High-sensitivity multi-channel DPSK system with real-time phase lock controller for free-space optical communication

To overcome the power jitters in satellite-to-ground communications caused by atmospheric turbulence, a type of DPSK free-space communication system, assisted by a self-designed real-time phase lock controller, has been established. The system can effectively compensate for power swings in communication links and hence achieve high sensitivity. The wavelength division multiplexing technique is applied to a four-channel DPSK system to provide greater link capacity. With the data rate of a single channel as 2.5 Gbps and unencoded BER as 1 × 10^–3, reception sensitivity has been obtained at −53.58 dBm (13.69 photons/bit), −53.59 dBm (13.66 photons/bit), −53.61 dBm (13.59 photons/bit), and −53.63 dBm (13.53 photons/bit) for each independent channel, respectively. The gap between our sensitivity result and the theoretical limit has narrowed to about −3.5 dB. Simultaneously, the DPSK receiver, with our self-designed phase lock controller, has stabilized reception of optical power fluctuations that range from 0 to 40 dB. Additionally, the impact of a four-wave mixing effect on multi-channel system performance has been investigated in detail. Our experimental results present a novel solution for the superior performance of free-space communication links.

Introduction

Because of its high-bandwidth, high-speed, and high-security features [1–5], free-space optical communication (FSOC) offers a feasible and valid solution for bottlenecks in microwave communication and for realizing massive real-time transmission of data. Concurrently, and because of the inherent benefits of its small size, lightweight, and low power consumption—capable of keeping up with the communication demands of booming space activities—the FSOC terminal can be considered an ideal satellite payload [6, 7]. Thus far, the data rate of satellite laser communication links has been found to approach Gbps magnitude [8, 9]. However, through wavelength division multiplexing (WDM) technology, this rate is predicted to reach magnitudes of dozens, even hundreds, of Gbps [10, 11].

Under the diverse modulation method, the proven techniques of FSOC are mainly divided into two main categories: non-coherent and coherent communication systems. Intensity modulation and direct detection (IM-DD) are utilized in non-coherent systems, which have the advantages of simplicity of structure and high reliability (although with undesirable levels of reception sensitivity) [12]. By contrast, coherent communication systems, which combine phase modulation with coherent detection, deploy the coherent superposition of local-oscillator (LO) and signal optical fields, supporting high sensitivity, high modulation rates, and strong anti-interference capability [13, 14]. Coherent communication modes mainly consist of binary phase shift keying (BPSK) and differential phase shift keying (DPSK). Since the DPSK format has less strict requirements for laser source linewidth, many commercial or strategic demonstrations have a preference for such systems, including the Laser Communications Relay Demonstration (LCRD), Integrated LCRD Low-Earth Orbit User Modem and Amplifier Terminal (ILLUMA-T), and the Japanese Data Relay System (JDRS) [15–17]. Due to the turbulence of the atmosphere, satellite-to-ground laser communication links suffer from random optical power fluctuations of the order of milliseconds (ms), which lead to inferior demodulation of the DPSK signal and an increase in the system bit-error rate (BER). To weaken the negative impact of these random fluctuations, several methods have been explored to reduce the penalty associated with other photoelectric devices [18]. Clearly, the optimal solution is to fundamentally smooth out or level of this kind of power jitter.

To this end, a real-time phase lock controller, based on a large-scale power jitter compensation method, has been designed to effectively compensate for optical power swings ranging from 0 to 40 dB. Applying this controller and the WDM technique, the resulting four-channel DPSK communication system has competitive receiving sensitivity that approaches the theoretical limit. Meanwhile, the impact of the four-wave mixing effect of high transmitted optical power on multi-channel system performance is elaborated in detail. The phase-lock controller can be considered an alternative solution for the power fluctuation problem in FSO communication links. At the same time, the WDM technique can be effectively combined with our self-designed phase-lock controller, which means the controller has potential in the application of multiplexed high-speed laser communication systems. Our demonstration indicates that adding a phase lock controller to the DPSK system leads to an improvement in receiving sensitivity, which in turn lays a vital foundation for optimizing the performance of the receiving terminal while mitigating the effects of optical power jitter.

Principle and experiments

Principle large-scale power jitter compensation

In the high-speed DPSK transceiver system, a pseudo-random bit sequence (PRBS) from a pattern generator is differentially pre-encoded and then transferred to a Mach–Zehnder modulator (MZM) to generate the DPSK optical signal. The transmission function can be presented as follows: [19]

$E_{out}\left(t\right)=E_{in}\left(t\right)\cos \left\{\frac{\pi }{2V_{\pi }}\left[V_{in}\left(t\right)-V_{bias}\right]\right\}\exp \left\{-j\frac{\pi V_{bias}}{2V_{\pi }}\right\},(1)$

where E_out(t) and E_in(t) = e^iωct represent output and input optical fields, respectively; ω_c = 2πf₀ is the angular frequency of the optical carrier, with f₀ being the frequency; V_π is the half-wave voltage of MZM; and V_in(t) and V_bias are the driving and bias voltage of MZM, respectively. When V_bias = V_π, V_in(t) = V (t)·a(t), with a(t) = ±1 [a(t) represents the 1 or 0 bit in the pre-coded PRBS], the DPSK optical signal can be generated with the transmission function as follows: [20]

$E_{out}\left(t\right)=-j{E}_{in}\left(t\right)\sin \left[\frac{\pi }{2}a\left(t\right)\right]=-ja\left(t\right)e^{i{\omega }_{c}t},(2)$

After modulation, the optical signal was transferred to a high-power Er³⁺-doped fiber amplifier (EDFA) before being routed to optical antenna for further transmission over the free-space channel. Subsequently, the DPSK signal can be captured by the receiving terminal and defined mathematically by the following transmission function:

$E_{RX}\left(t\right)=A\left(t\right)E_{out}\left(t\right),(3)$

where E_RX(t) represents the optical field of the received signal and A(t) is the random fluctuation function of optical power.

After a certain free-space distance of transmission, the optical signal is detected by the collimator at the receiving terminal. As illustrated in Figure 1A, an optical coupler (OC1) is introduced before the normal demodulation process. One of the signal branches enters the delay line interferometer (DLI) (path 1, Figure 1A), and the other branch is transformed into the electrical signal via a photodetector (PD), before being imported into the phase-lock control system (path 2, Figure 1A). The path 1 optical signal is converted into a detectable electrical signal by a balanced photo-detector (BPD) and is processed by the integrated transimpedance amplifier (TIA). Next, one channel of the output electrical signal is inputted into the envelope detection unit for peak-to-peak detection and is then transferred into the phase lock controller. Subsequently, two independent electrical signals from path 1 and path 2 undergo time synchronization, power jitter removal, as well as correlation detection with a scrambler signal, in order to calculate and update the bias voltage of DLI in real time. The optimized bias voltage guarantees the working position of DLI, and thus ensures the superior DPSK receiving performance.

FIGURE 1

FIGURE 1. (A) The block diagram of the high-speed DPSK receiver system. (B,C) The relationship between SNR and the harmonic component of the perturbation signal with corresponding bias voltage.

The output optical field after OC 2 can be resolved by the following matrix:

$\left(\begin{array}{l}{E}_1\\ E_2\end{array}\right)=\left(\begin{array}{l}{E}_{RX}\left(t\right)\\ E_{RX}\left(t-T\right)\end{array}\right)=\left(\begin{array}{l}-jA\left(t\right)a\left(t\right)e^{j{\omega }_{c}t}\\ -jA\left(t-T\right)a\left(t-T\right)e^{j{\omega }_c\left(t-T\right)}{e}^{i∆\varphi }\end{array}\right),(4)$

where T is the reciprocal of the system rate and Δϕ is the absolute phase-delay. Since the variation frequency of spatial optical power swings is much less than the signal rate, the approximate condition A(t)≈A(t-T) can be adopted to simplify the calculation. Meanwhile, the transfer matrix M of the OC 3 can be expressed as

$\mathrm{M}=\left(\begin{array}{cc}\sqrt{\rho }& j\sqrt{\rho }\\ j\sqrt{\rho }& \sqrt{\rho }\end{array}\right),(5)$

where ρ is the splitting ratio of OC 3 (Figure 1A). Therefore, the matrix of the optical field at the output port of OC 3 can be conducted as

$\left(\begin{array}{l}{E}_3\\ E_4\end{array}\right)=M\left(\begin{array}{l}{E}_1\\ E_2\end{array}\right)=\left(\begin{array}{l}-jA\left(t\right)\sqrt{\rho }{e}^{j{\omega }_{c}t}\left[a\left(t-T\right)e^{-j{\omega }_{c}T}+j{e}^{j∆\varphi }a\left(t\right)\right]\\ -jA\left(t\right)\sqrt{\rho }{e}^{j{\omega }_{c}t}\left[ja\left(t-T\right)e^{-j{\omega }_{c}T}+e^{j∆\varphi }a\left(t\right)\right]\end{array}\right).(6)$

The optical signal expressed in Eq. 6 will be detected by a BPD and conditioned by a TIA. Assuming ρ = 0.5, the output current from BPD (I₁ and I₂) is supposed to be defined by the corresponding input optical field of BPD (E₃ and E₄) as follows:

$\{\begin{array}{c}{I}_1\propto P_1={\left|E_3\right|}^2=A^2\left(t\right)\left[1-a\left(t-T\right)a\left(t\right)\sin \left({\omega }_{c}T+∆\varphi \right)\right]\\ I_2\propto P_2={\left|E_4\right|}^2=A^2\left(t\right)\left[1+a\left(t-T\right)a\left(t\right)\sin \left({\omega }_{c}T+∆\varphi \right)\right]\end{array}.(7)$

It can be clearly seen that the value of the output current from BPD is proportional to the input optical power. By means of a differential operation, the output voltage V_sig of BPD can be calculated by [21]

$V_{sig}=\left(I_1-I_2\right)R\propto 2A^2\left(t\right)\left[a\left(t-T\right)a\left(t\right)\sin \left({\omega }_{c}T+∆\varphi \right)\right],(8)$

where R is the transimpedance. Simultaneously, the average output optical power of the other phase-lock branch (${\overline{P}}_2$) can be expressed as

${\overline{P}}_2=r\left(P_1+P_2\right)=2r{A}^2\left(t\right),(9)$

where r is the splitting ratio and P₁ and P₂ are the optical power for paths 1 and 2, respectively. Based on Eq. 9, ${\overline{P}}_2$ is proportional to the square of the jitter amplitude A(t). Comparing ${\overline{P}}_2$ and ${\overline{V}}_{env}$ with the normalization method, the scaled factor k can be defined as

$k=\frac{{\overline{V}}_{env}}{{\overline{P}}_2}\approx \frac{2A^2\left(t\right)\sin \left({\omega }_{c}T+∆\varphi \right)}{2r{A}^2\left(t\right)}=\frac{\sin \left({\omega }_{c}T+∆\varphi \right)}{2r},(10)$

where ${\overline{V}}_{env}$ is the peak–peak valid value of V_sig. Since r and ω_cT are constant, k is independent of the power jitter, and is only related to the Δϕ of DLI. Thus, k can be expediently adjusted to the maximum value to guarantee the best performance of the output signal-to-noise ratio by controlling the DLI phase difference.

According to the actual operation of correlation detection, determining the value and the direction of the compensation is a matter of great necessity. To solve this problem, it is considered preferable to introduce to the DLI a perturbation signal with quite a low frequency. Getting through the BPD and envelope detection, the extracted perturbation signal carries out the correlation detection with the initial perturbation signal at the phase lock controller (Figure 1A).

Generally, the phase difference of DLI Δϕ can be expressed as [22]

$\Delta \varphi =\frac{\pi \left[V_{dc}+V_{dither}\right]}{V_{DLI}},(11)$

where V_dc is the direct current (DC) bias voltage applied on the DLI; V_DLI, as the constant, is the required voltage for the DLI to realize phase changing by π. The frequency of perturbation signal V_dither = v₀cos(ω₀t) is 1 kHz and has no impact on the original signal. When φ = ω_cT + πV_dc/V_DLI and k′ = 2rk are fixed, the updated scale factor k′ of the feedback loop in the phase lock controller can be easily conducted as

$k^{\prime }=\sin \left(\phi +\frac{\pi V_{dither}}{V_{\mathrm{D}\mathrm{L}\mathrm{I}}}\right)=\sin \phi \cos \frac{\pi V_{dither}}{V_{\mathrm{D}\mathrm{L}\mathrm{I}}}+\cos \phi \sin \frac{\pi V_{dither}}{V_{\mathrm{D}\mathrm{L}\mathrm{I}}}.(12)$

Expanding Eq. 12 by the Taylor series and keeping three terms, k' can be illustrated as

$k^{\prime }=\cos \phi +v_0\cos \left({\omega }_{0}t\right)\sin \phi -\frac{1}{2}{v}_0^2{\cos }^{\mathit{2}}\left({\omega }_{0}t\right)\cos \phi -\frac{1}{6}{v}_0^3{\cos }^{\mathit{3}}\left({\omega }_{0}t\right)\sin \phi ,(13)$

And by further conducting, it can be expressed as follows:

$\begin{array}{l}{k}^{\prime }=\left(1-\frac{1}{4}{v}_0^2\right)\cos \phi +\left(v_0-\frac{1}{8}{v}_0^3\right)\cos \left({\omega }_{0}t\right)\sin \phi -\frac{1}{4}{v}_0^2\cos \left(2{\omega }_{0}t\right)\cos \phi \\ -\frac{1}{24}{v}_0^3{\cos }^{\mathit{3}}\left({\omega }_{0}t\right)\sin \phi .\end{array}(14)$

Based on Eq. 14, the maximum value of scale factor k' can be approached by monitoring the value of the harmonic component of the perturbation signal. For instance, the first harmonic component is k₁′ = (v₀ − v₀³/8)cos(ω₀t)sin φ, and the second harmonic component is k₂′ = −v₀²cos(2ω₀t)cos φ/4. Figures 1B,C illustrate the performance of the scale factor k' and the harmonic components of the perturbation signal under the same working bias voltage. When φ = ω_cT+πV_dc/V_DLI = nπ, n = ±1, ±2, ±3, …, the first and second harmonic components correspond to the minimum and the maximum values, respectively. Thus, a superior signal-to-noise ratio (SNR) has been obtained. With our self-designed phase lock system, it is convenient to maintain the highest SNR of the output signal by continuously calculating and updating working voltages in real time, and apparently realizing the optimal coherent reception of the DPSK optical signal.

2.2 Experiment setup

In view of the correlation detection compensation method, the four-channel DPSK coherent communication system in this effort is presented in Figure 2. Four distributed-feedback (DFB) continuous-wave (CW) lasers (RIO, RIO0075-3-ITU-1) generated four corresponding WDM pulse signals with 100 GHz channel spacing, 10 kHz linewidth, and the central wavelengths of λ₁ = 1,550.52 nm, λ₂ = 1,551.32 nm, λ₃ = 1,552.12 nm, and λ₄ = 1,552.93 nm, respectively. Each signal was independently modulated by a MZM (iXblue, MXAN-LN-10, V_π = 5.5 V), loaded with non-return-to-zero (NRZ) PRBS of length 2⁷–1 from separate data sources. The inset of Figure 2 displays the spectrum of the four laser sources. The multiplexed signal is subsequently amplified by a high-power EDFA (KEOPSYS, CEFA-C-PB-HP) to prepare for coupling with the FSOC terminal, aimed at long-haul transmission over the free-space channel. In this effort, an electrical-control variable optical attenuator (VOA) is utilized to simulate the power jitter caused by atmospheric turbulence, and the spatial optical transmission distance is 1 m.

FIGURE 2

FIGURE 2. The architecture of the four-channel DPSK coherent communication system. Inset: the spectrum of the four-channel multiplexed signal.

The faded optical signal—resulting from the power jitter caused by atmospheric turbulence—is supposed to be captured via the optical antenna of the receiving terminal and coupled to the follow-up fiber. The received optical signal is split into two separate branches via a 50:50 splitter. One of the optical paths is applied to monitor the light power in real time, while the other is pre-amplified and routed into four cascaded fiber-Bragg gratings (FBGs) to faultlessly denoise with the purpose of extracting four separate channels of the optical signal. Each filtered optical signal is imported into the corresponding DLI to proceed with the self-differential demodulation of our self-designed phase-lock controller, which compensates for the demodulation-efficiency drops from optical power swings. Ultimately, each individual signal is converted into a baseband electrical signal by its corresponding BPD (Discovery Semiconductors DSC-R422) for further measurement and analysis.

Results and discussion

Receiving sensitivity

Receiving sensitivity is an essential indicator when assessing the performance of the free-space optical receiver. Figure 3A depicts the correlation between the communication BER and the received optical power for each single channel loaded with 2.5 Gbps PRBS. As the unencoded BER is 1 × 10^–3, which allows forward-error correction codes to further reduce the BER to the range of 10^–9, the receiving sensitivity of the four independent channels is measured as −53.58 dBm (13.69 photons/bit, 1,550.52 nm), −53.59 dBm (13.66 photons/bit, 1,551.32 nm), −53.61 dBm (13.59 photons/bit, 1,552.12 nm), and −53.63 dBm (13.53 photons/bit, 1,552.93 nm), respectively. It is impressive that there is only about −3.5 dBm loss compared with the theoretical limit, as −57.01 dBm (BER = exp(−ηN_p/2)/2, η is also set to 1, so that the sensitivity corresponds to an ideal photodetector; N_p is the number of photons) [23]. In our FSOC system, the penalty is mainly introduced by an optical pre-amplifier with a 4.5 dB noise coefficient, which is 1.5 dB larger than the theoretical limit of 3 dB. Additionally, about 1.5 dB loss caused by the out-of-band noise of the optical filter, and 0.5 dB loss from the phase lock controller are also taken into account. The eye diagrams for the four recovered channels of electrical signal are displayed in Figures 3B–E. Table 1 lists the reported BER performance of different DPSK communication systems. Compared with these results, the results of our experiment are objectively competitive.

FIGURE 3

FIGURE 3. (A) BER for four channels of 2.5 Gbps DPSK signal. (B–E) Eye diagrams of four independent channels after demodulation.

TABLE 1

TABLE 1. Reported BER results for different DPSK links.

Optical power jitter

An electrical-control VOA was applied to simulate the optical power jitter with a frequency of 100 Hz and its scale ranging from 0 to 40 dB. The applied voltage of the self-designed phase lock controller is illustrated in Figure 4A. Point ① denotes an initial voltage applied on DLI when the phase lock unit is switched on and implies a lower demodulated SNR (Figure 4B). After that, the phase lock controller commences calculating the scale factor k′ of the initial voltage within part ②, keeping the scale factor at a maximum value by means of real-time voltage adjustment with progressive SNR (Figure 4C). Part ③ signifies that the scale factor k′ is real-time locked at a maximum value (with the maximum SNR) by the phase lock system (Figure 4D).

FIGURE 4

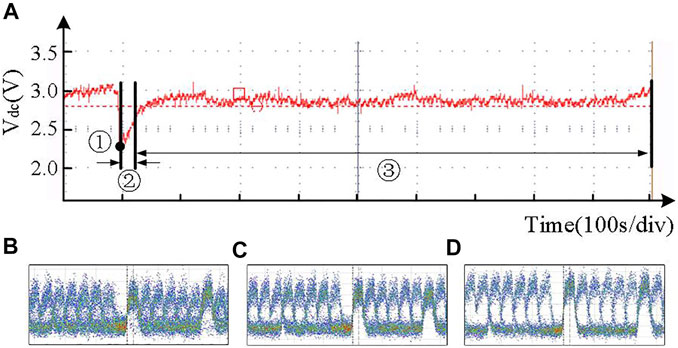

FIGURE 4. (A)Applied voltage on DLI for controlling the scale factor k′. (B–D) Eye diagrams for corresponding working point ①, part ②, and part ③.

On the strength of the above experiment and analysis, the optical power swings can be effectively compensated for using our self-designed phase lock system, which can productively optimize the coherent demodulation procedure.

Analysis of the FWM effect and transmitted optical power

Although high optical power is required for free-space long-haul transmission, the nonlinear optical (NLO) effects within the fiber receive a further boost from the increase in the optical power of the WDM system, especially the four-wave mixing (FWM) effect that occurs in the amplifying procedure within the transmitter. The optical amplification process has been utilized to investigate the probable influence brought about by FWM. Figure 5A exhibits the spectrum of four amplified laser sources, with the amplified power as 1, 2, 3, and 4 W, respectively. It is determined that the FWM effect occurs through optical amplification and generates multiple idle signals. With the increase in optical power, the FWM phenomenon is harder to ignore. The difference value between the signal light and idle 1 is 38.77, 34.91, 31.59, and 29.05 dB, corresponding to amplified power as 1, 2, 3, and 4 W. With the increase in the optical power, the BER is slightly increased (Figure 5B). The optical power of λ₁ = 1,550.52 nm is ∼0.4 dB higher than that of the other wavelengths. After optical amplification and transmittance, the corresponding optical power at the receiving terminal is also ∼0.4 dB higher than that of other wavelengths. Thus, the BER of 1,550.52 nm is better than the other three channels. Nonetheless, the BER remains at the same order of magnitude, which implies that the optical-power influence on the BER need not be over-considered.

FIGURE 5

FIGURE 5. (A)The amplified spectrum of four channels. (B) The correlation between optical power and the system BER.

Conclusion

In conclusion, a novel phase lock controller, based on the large-scale power jitter compensation method, has been designed to compensate for power fluctuations ranging from 0 to 40 dB. In applying the self-designed phase lock control unit, a high-sensitivity DPSK-based multi-channel communication system was established, which realized superior receiving performance. With the data rate of a single channel as 2.5 Gbps and unencoded BER as 1 × 10^–3, receiving sensitivity was obtained as −53.58 dBm (13.69 photons/bit), −53.59 dBm (13.66 photons/bit), −53.61 dBm (13.59 photons/bit), and −53.63 dBm (13.53 photons/bit) for each independent channel, respectively. The gap between the results of our experiment and the theoretical limit narrowed to about −3.5 dB. In addition, multi-channel communication system performance degradation caused by the FWM effect was confirmed to be negligible, which endows communication systems with the link capacity expansion potential of hundreds of Gbps in the future. As indicated by the experimentation, the self-designed phase lock controller has the stable performance and measurement precision to meet forthcoming requirements and hence has potential application for satellite-to-ground laser links.
