- School of Information Engineering, Jiangxi University of Science and Technology, Ganzhou, China
From the perspective of quantum information transmission, one may be interested in the teleportation of quantum Fisher information (QFI) which provides the optimal precision of parameter estimation. In this paper, we investigate the teleportation of QFI under the correlated amplitude damping (CAD) decoherence. It is found that the correlated effects play a positive role in improving the teleported QFI, but the impact of decoherence is still serious. Therefore, we propose two schemes, which are based on weak measurement (WM) and environment-assisted measurement (EAM), to enhance the teleportation of QFI under the CAD decoherence. The results show that both schemes can significantly improve the teleported QFI with a certain success probability. The findings of our study suggest that the correlated effects can significantly increase the success probabilities of these two schemes. A detailed comparison confirms that the EAM scheme is more efficient than the WM scheme in improving the teleportation of QFI.
1 Introduction
Quantum teleportation is an important branch in the field of quantum communication. Its original idea was first proposed by Bennett et al. in 1993 [1]. Since then, the research and application of quantum teleportation have attracted great attention and great progress has also been made in experiments [2–7]. Recently, the teleportation of quantum Fisher information (QFI) was widely investigated [8]. QFI plays a central role in quantum estimation theory where the main task is to estimate the value of an unknown parameter. According to the quantum Cramer-Rao theorem [9], the precision of parameter estimation is inversely proportional to the square root of QFI. This means that the larger the QFI is, the higher the precision of parameter estimation would be. In the past 2 decades, rapid developments in the field of quantum metrology also deepen the understanding of QFI [10, 11]. Moreover, as a specific measure of the information content of quantum states, QFI also has a wide range of applications in other quantum information processes, including but not limited to entanglement detection [12, 13], quantum thermodynamics [14], quantum teleportation [15] and quantum machine learning [16].
However, in the process of quantum teleportation, quantum system will inevitably interact with the surrounding environment. This interaction will lead to the loss of coherence and the decay of entanglement, which results in the distortion of teleportation [17–20]. The same is true for the teleportation of QFI [8, 21–24]. In Ref. [21], the author has studied the teleportation of QFI in consideration of vacuum fluctuation. The influence of thermal noise caused by the Unruh effect on the teleportation of QFI has been discussed in Ref. [22]. Guo et al. have investigated the teleportation of QFI under the Davies-type Markov environment [23]. In Refs. [8, 25], the amplitude damping decoherence has been studied and the schemes to improve the teleportation of QFI have been proposed. However, much of the research up to now are based on the assumption that the noisy channel used for teleportation is memoryless and the two consecutive use of the channel are independent.
In practice, an actual physical system is more or less correlated in continuous uses, especially when the transmission rate is high [26–30]. Interestingly, although the qubits in the CAD noise suffer from decoherence, the correlated effects are beneficial to suppress the decay of coherence [31–34]. Many studies have focused on the influence of correlated noise in quantum information processing, and put forward many schemes to suppress the CAD decoherence. Xiao et al. have investigated the protection of entanglement from CAD by WM [31]. Huang and Zhang demonstrate the protection of measurement-induced nonlocality and local quantum uncertainty from CAD by WM and post-measurement reversal [32]. Enhancing entanglement of assistance using WM and quantum measurement reversal (QMR) under CAD noise has been studied in Ref. [33]. In addition, the teleportation under CAD noise has been investigated and one scheme to suppress decoherence using WM has been proposed [34].
Here, we consider the teleportation of QFI using Werner state as quantum channels under the CAD decoherence. Our study differs from Refs. [22–24], in which the performance of the QFI under the uncorrelated decoherence is discussed. The focus of our paper is to examine how correlated effects affect the teleportation of QFI. According to our results, we find that the correlated effects are beneficial to the teleportation of QFI in the CAD decoherence. Our study also differs from Refs. [31–34], in which the combination of WM and QMR is presented to improve the teleportation. In this paper, two schemes based on WM and EAM are proposed to make further efforts on enhancing the QFI. In particular, a comprehensive comparison indicates that the EAM strategy outperforms the WM strategy on the teleportation of QFI. We also discuss how correlated effects affect the teleportation of QFI in WM and EAM schemes.
This paper is organized as follows: In Section 2, the teleportation of QFI under CAD decoherence is investigated. In Section 3, the scheme for enhancing the teleportation of QFI by WM and QMR is proposed. In Section 4, based on EAM and QMR, we present another scheme to enhance the teleportation of QFI. And the comparison of the two schemes is presented in Section 5. Finally, a summary is given in Section 6.
2 Teleportation of QFI under CAD noise
The teleportation of QFI under CAD noise is investigated in this section. Alice wants to send the QFI of parameter ϕ encoded in an unknown quantum state to Bob, which is
where θ is the polarization parameter and ϕ is the phase parameter. To realize the teleportation of QFI, an initially entangled state must be established between Alice and Bob. Here, the shared entangled state is a degraded Bell state, i.e., Werner state, which plays an important role in entanglement purification [17] and delocalized state [35].
where
where η is the correlated parameter and
where γ is the decoherence strength of the AD noise and
We note that the Kraus operator A0 cannot be expressed as a tensor product of two 2 × 2 matrices. In fact, it depicts the typical “spooky” action of the public channel: |00⟩, |01⟩ and |10⟩ will go through the channel undisturbed, while |11⟩ suffers the amplitude damping decoherence.
Substituting Eqs 2, 4, 5 into Eq. 3, we can obtain
where

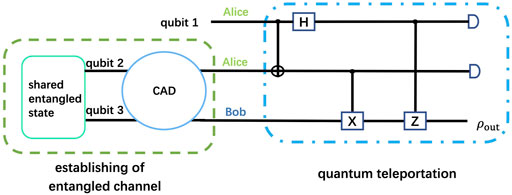

Then, through the quantum teleportation protocol shown in Figure 1, the state received by Bob is
On the other hand, Zhong et al. [39] presented a simple and explicit description of QFI for the single-qubit state
where
Then, we can obtain the teleported QFI under the CAD decoherence

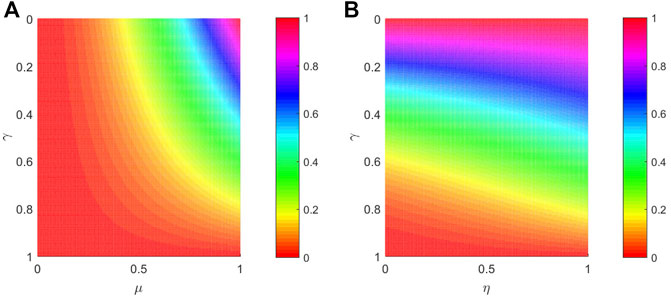

In Figure 2A, we have plotted the teleported QFI as a function of μ and γ for η = 0.8. It is straightforward to note that FCAD rapidly decreases with the increase of decoherence strength γ. That is to say, the decoherence seriously reduces the transmission of QFI. On the other hand, in order to figure out the effect of correlated parameter, Figure 2B is plotted to shown FCAD as a function of η and γ for μ = 0.8. It is found that FCAD decays more slowly as η increases. This result means that the correlated effects enable to enhance the teleported QFI which is subject to CAD noise.
FIGURE 2. (color online) (A) Teleported QFI FCAD as a function of γ and μ with η = 0.8. (B) Teleported QFI FCAD as a function of γ and η with μ = 0.8. The polarization parameter θ is
3 WM scheme
In above, the influence of CAD decoherence on the teleportation of QFI has been examined. We find that even though the correlated effect could enhance the teleported QFI, the unfavorable effects of CAD decoherence still remain. In this section, we introduce the techniques of WM and QMR to reduce the adverse effects of CAD noise. WM is associated with positive-operator valued measure (POVM) [40, 41]. The most notable virtue of WM is that it is not fully destructive, implying that the quantum state can be recovered. Then, QMR operation is designed to recover the initial state. The specific process is as follows: before Charlie sends the entangled qubits to Alice and Bob, two WMs are performed on the qubits, respectively. After qubits two and three arrive at Alice and Bob through the CAD channel, the QMRs are carried out on these two qubits by Alice and Bob. The processes can be expressed as the following map
where
where p and q are the strength of WM and QMR, respectively.
where
Following the quantum teleportation protocol shown in Figure 1, we can get the state received by Bob
Similarly, one can obtain the Bloch vector of Eq. 17 and calculate the teleported QFI by Eq. 8
To transfer the most amount of QFI from Alice to Bob, we should select a proper strength of QMR. The optimal QMR strength q can be obtained by solving the equation ∂FWM/∂q = 0 under the condition that ∂2FWM/(∂q)2 < 0. The result turns out to be
and the corresponding QFI is

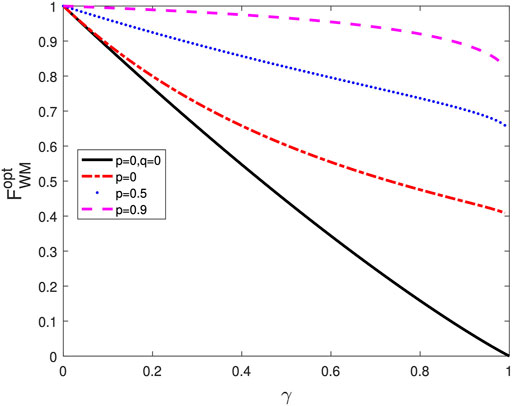

Figure 3 shows the result of QFI as a function of decoherence strength γ under CAD noise with the assistance of WM and QMR. It is noted that the teleported QFI rapidly decreases to 0 without the operations of WM and QMR (i.e., p = 0 and q = 0). When the operation of QMR is performed (i.e., p = 0), the teleported QFI can be enhanced. Remarkably, it can be further improved with the combination of WM and QMR (i.e., p = 0.5 and p = 0.9 and
FIGURE 3. (color online) Teleported QFI

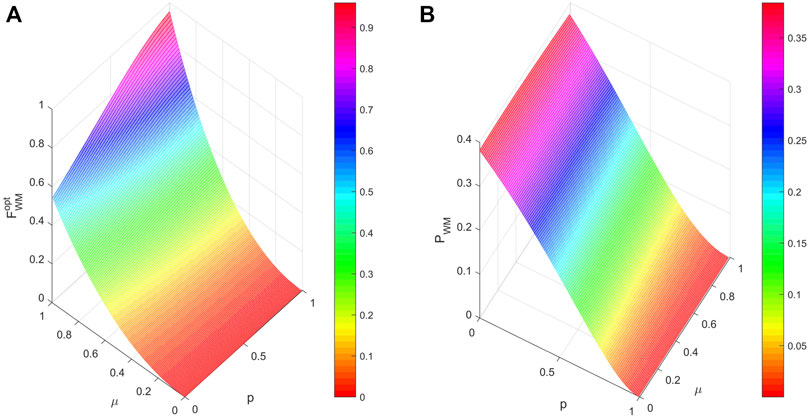

FIGURE 4. (color online) (A) The teleported QFI
Since both WM and QMR operations are non-unital, thus the price of enhancement of the teleported QFI is based on the probability of the scheme. The success probability of this scheme can be obtained as
Figure 4B shows the behavior of success probability PWM as a function of p and μ with γ = 0.6 and η = 0.8. Obviously, PWM decreases with the increase strength of WM. That is to say, the great improvement of teleported QFI is achieved at the cost of low success probability.
The curious question that comes up is: Are the correlated effects still contributing for the teleportation of QFI in the WM scheme? In order to clarify this question, we plot
FIGURE 5. (color online) (A) The teleported QFI
The underlying mechanism can be understood as follows. From Eqs 3–5, it is found that only one decoherence process |11⟩ → (| 10⟩, |01⟩) → |00⟩ is involved for uncorrelated AD noise (η = 0), while another decoherence process |11⟩ → |00⟩ is involved for FCAD noise (η = 1). Considering |00⟩ is immune to AD, FCAD and CAD decoherence, the pre-posed WM operation is devised to decrease the weights of states |11⟩, |10⟩ and |01⟩, which equivalently increases the weight of lazy state |00⟩. It was because of such a weight interchange that the state after WM consequentially becomes insensitive to the decoherence. In order to restore the initial information, the post-posed QMR is performed to re-balance the severely deviated weights between |11⟩, |10⟩, |01⟩ and |00⟩. Choosing the proper strength of QMR, the initial information can be totally recovered for AD and FCAD noise by WM and QMR. However, for CAD noise, the two decoherence processes mentioned above are involved simultaneously that cannot be distinguished by QMR. Therefore, the initial information cannot be completely recovered. In this context, the correlated effects are not always helpful to the WM enhanced teleportation of QFI. Fortunately, the magnitude of success probability is proportional to the correlated factor η since it is not related to the distinction of the two decoherence processes.
4 EAM scheme
In this section, we explore another strategy for enhancing the teleported QFI by EAM and QMR. In this scheme, the EAM operation is performed on the environment [43, 44]. The procedure is as follows: a detector is added to monitor the exciton changes of the environment when the entangled qubits pass through the CAD noise. We discard the result of clicks (including both one and two clicks) while keep the result corresponding to the no click. The quantum state corresponding to no click is picked out by EAM. To restore the initial QFI, the operations of QMRs shown in Eq. 15 are performed on the qubits 2 and 3, respectively. The final state shared by Alice and Bob yields to
where
Then, following the quantum teleportation protocol shown in Figure 1, the state received by Bob is
Similarly, the QFI of the teleported state could be obtained
The optimal strength of QMR can be obtained by solving the equation ∂FEAM/∂q = 0 under the condition that ∂2FEAM/(∂q)2 < 0. The result turns out to be
and the corresponding QFI is
Figure 6 shows the result of the teleported QFI as a function of γ under CAD noise with the assistance of EAM and QMR for μ = 1. It is noted that the teleported QFI is improved only the EAM is performed (i.e., q = 0). However, such a improvement disappears when γ → 1. Utilizing the combination of EAM and QMR
FIGURE 6. (color online) The teleported QFI

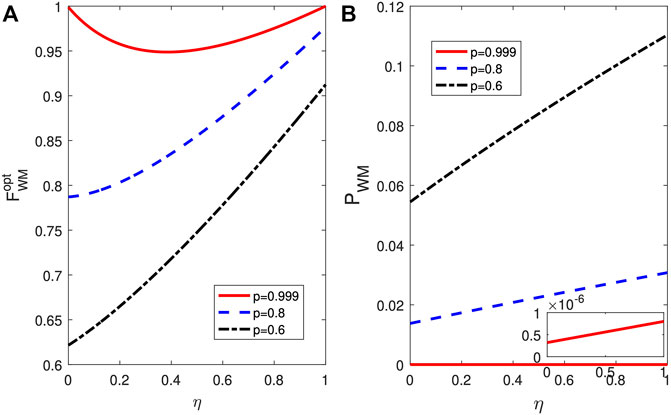

In order to more clearly describe the role of the correlated factor, Figure 7A is plotted to show
FIGURE 7. (color online) (A) Teleported
Figure 7B reveals that there has been a marked increase in the success probability with increasing η.
5 Comparison between the WM scheme and the EAM scheme
So far, we have found that both WM and EAM schemes can significantly enhance the teleportation of QFI under CAD noise in a probabilistic way. Particularly, in these two schemes, the improvement of QFI is based on the sacrifice of success probability. A detailed comparison seems necessary to show which one is better. To quantitatively determine the superiority of probabilistic schemes, a quantity of average improvement of QFI that balances the enhanced QFI and success probability is introduced.
where the subscript “imp” denotes the EAM scheme’s improvement over the WM scheme.

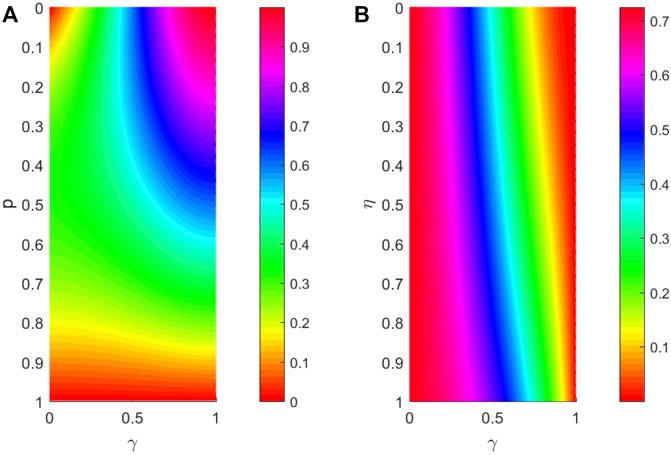

In Figure 8A, We have plotted
FIGURE 8. (color online) (A)
6 Conclusion
In summary, we have investigated the teleportation of QFI using Werner state as the quantum channel under the CAD decoherence. It is found that the correlated effects is helpful to increase the teleported QFI in CAD noise. Furthermore, we have proposed two schemes for improving the teleportation of QFI. The first scheme is based on the combination of WM and QMR. The second scheme is based on the aid of EAM and QMR. The teleported QFI can be improved significantly by taking advantage of these two schemes. Remarkably, the correlated effects can increase the success probability of these two schemes. A detailed comparison leads us to the conclusion that the EAM scheme beats the WM scheme in terms of enhancing the teleported QFI under CAD decoherence. Our work would be helpful for understanding the CAD decoherence in other quantum information processing tasks.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
Y-LL and YL conceived the paper’s physical model and idea, and Y-LL and LY carried out the calculation and numerical analysis. Y-LL and Y-BZ supervised the work. All authors contributed to the interpretation of the work and the preparation of the manuscript.
Funding
This work is supported by the Funds of Jiangxi Provincial Natural Science Foundation under Grant No. 20212ACB211004, the National Natural Science Foundation of China under Grant No. 61765007, and the Program of Qingjiang Excellent Young Talents of Jiangxi University of Science and Technology.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Bennett CH, Brassard G, Crpeau C, Jozsa R, Peres A, Wootters WK, et al. Teleporting an unknown quantum state via dual classical and Einstein-Podolsky-Rosen channels. Phys Rev Lett (1993) 70:1895–9. doi:10.1103/PhysRevLett.70.1895
2. Gottesman D, Chuang IL. Demonstrating the viability of universal quantum computation using teleportation and single-qubit operations. Nature (1999) 402:390–3. doi:10.1038/46503
3. Bouwmeester D, Pan JW, Mattle K, Eibl M, Weinfurter H, Zeilinger A, et al. Experimental quantum teleportation. Nature (1997) 390:575–9. doi:10.1038/37539
4. Braunstein SL, Kimble HJ. Teleportation of continuous quantum variables. Phys Rev Lett (1998) 80:869–72. doi:10.1103/PhysRevLett.80.869
5. Ursin R, Jennewein T, Aspelmeyer M, Kaltenbaek R, Lindenthal M, Walther P, et al. Quantum teleportation across the danube. Nature (2004) 430:849. doi:10.1038/430849a
6. Jin XM, Ren JG, Yang B, Yi ZH, Zhou F, Xu XF, et al. Experimental free-space quantum teleportation. Nat Photon (2010) 4:376–81. doi:10.1038/nphoton.2010.87
7. Pirandola S, Eisert J, Weedbrook C, Furusawa A, Braunstein SL. Advances in quantum teleportation. Nat Photon (2015) 9:641–52. doi:10.1038/nphoton.2015.154
8. Xiao X, Yao Y, Zhong WJ, Li YL, Xie YM. Enhancing teleportation of quantum Fisher information by partial measurements. Phys Rev A (2016) 93:012307. doi:10.1103/PhysRevA.93.012307
9. Braunstein SL, Caves CM. Statistical distance and the geometry of quantum states. Phys Rev Lett (1994) 72:3439–43. doi:10.1103/PhysRevLett.72.3439
10. Giovannetti V, Lloyd S, Maccone L. Advances in quantum metrology. Nat Photon (2011) 5:222–9. doi:10.1038/nphoton.2011.35
11. Meyer JJ. Fisher information in noisy intermediate-scale quantum applications. Quantum (2021) 5:539. doi:10.22331/q-2021-09-09-539
12. Li N, Luo SL. Entanglement detection via quantum Fisher information. Phys Rev A (2013) 88:014301. doi:10.1103/PhysRevA.88.014301
13. Akbari-Kourbolagh Y, Azhdargalam M. Entanglement criterion for multipartite systems based on quantum Fisher information. Phys Rev A (2019) 99:012304. doi:10.1103/PhysRevA.99.012304
14. Shitara T, Ueda M. Determining the continuous family of quantum Fisher information from linear-response theory. Phys Rev A (2016) 94:062316. doi:10.1103/PhysRevA.94.062316
15. El Anouz K, El Allati A, El Baz M. Teleporting quantum Fisher information for even and odd coherent states. J Opt Soc Am B (2020) 37:38. doi:10.1364/JOSAB.37.000038
16. Haug T, Bharti K, Kim MS. Capacity and quantum geometry of parametrized quantum circuits. PRX Quan (2021) 2:040309. doi:10.1103/PRXQuantum.2.040309
17. Bennett CH, Brassard G, Popescu S, Schumacher B, Smolin JA, Wootters WK, et al. Purification of noisy entanglement and faithful teleportation via noisy channels. Phys Rev Lett (1996) 76:722–5. doi:10.1103/PhysRevLett.76.722
18. Oh S, Lee S, Lee HW. Fidelity of quantum teleportation through noisy channels. Phys Rev A (2002) 66:022316. doi:10.1103/PhysRevA.66.022316
19. Laura TK, Christian TS, Miguel AL. Noisy quantum teleportation: An experimental study on the influence of local environments. Phys Rev A (2014) 90:042332. doi:10.1103/PhysRevA.90.042332
20. Alejandro F. High-dimensional quantum teleportation under noisy environments. Phys Rev A (2019) 100:062311. doi:10.1103/PhysRevA.100.062311
21. Jin Y. The effects of vacuum fluctuations on teleportation of quantum Fisher information. Sci Rep (2017) 7:40193. doi:10.1038/srep40193
22. Jafarzadeh M, Rangani JH, Amniat-Talab M. Teleportation of quantum resources and quantum Fisher information under Unruh effect. Quan Inf Process (2018) 17:165. doi:10.1007/s11128-018-1922-x
23. Guo YN, Peng HP, Yang C, Xie Q, Zeng K. Davies theory for teleportation of quantum Fisher information under decoherence. Laser Phys Lett (2019) 16:125202. doi:10.1088/1612-202X/ab5529
24. Guo YN, Zeng K, Chen PX. Teleportation of quantum Fisher information under decoherence channels with memory. Laser Phys Lett (2019) 16:095203. doi:10.1088/1612-202X/ab2f33
25. Li YL, Sun FX, Yang J, Xiao X. Enhancing the teleportation of quantum Fisher information by weak measurement and environment-assisted measurement. Quan Inf Process (2021) 20:55. doi:10.1007/s11128-021-02998-1
26. Caruso F, Giovannetti V, Lupo C, Mancini S. Quantum channels and memory effects. Rev Mod Phys (2014) 86:1203–59. doi:10.1103/RevModPhys.86.1203
27. Macchiavello C, Palma GM. Entanglement-enhanced information transmission over a quantum channel with correlated noise. Phys Rev A (2002) 65:050301. doi:10.1103/PhysRevA.65.050301
28. D’Arrigo A, Benenti G, Falci G. Quantum capacity of dephasing channels with memory. New J Phys (2007) 9:310. doi:10.1088/1367-2630/9/9/310
29. Plenio MB, Virmani S. Spin chains and channels with memory. Phys Rev Lett (2007) 99:120504. doi:10.1103/PhysRevLett.99.120504
30. D’Arrigo A, Benenti G, Falci G, Macchiavello C. Classical and quantum capacities of a fully correlated amplitude damping channel. Phys Rev A (2013) 88:042337. doi:10.1103/PhysRevA.88.042337
31. Xiao X, Yao Y, Xie YM, Wang XH, Li YL. Protecting entanglement from correlated amplitude damping channel using weak measurement and quantum measurement reversal. Quan Inf Process (2016) 15:3881–91. doi:10.1007/s11128-016-1356-2
32. Huang ZM, Zhang C. Protecting quantum correlation from correlated amplitude damping channel. Braz J Phys (2017) 47:400–5. doi:10.1007/s13538-017-0509-9
33. He Z, Zeng HS. Enhancing entanglement of assistance using weak measurement and quantum measurement reversal in correlated amplitude damping channel. Quan Inf Process (2020) 19:299. doi:10.1007/s11128-020-02791-6
34. Li YL, Zu CJ, Wei DM. Enhance quantum teleportation under correlated amplitude damping decoherence by weak measurement and quantum measurement reversal. Quan Inf Process (2019) 18:2. doi:10.1007/s11128-018-2114-4
35. Werner RF. Quantum states with Einstein-Podolsky-Rosen correlations admitting a hidden-variable model. Phys Rev A (1989) 40:4277–81. doi:10.1103/PhysRevA.40.4277
36. Yeo Y, Skeen A. Time-correlated quantum amplitude-damping channel. Phys Rev A (2003) 67:064301. doi:10.1103/PhysRevA.67.064301
37. Nielesen MA, Chuang IL. Quantum computation and quantum information. Cambridge: Cambridge University Press (2000).
38. Arshed N, Toor AH. Entanglement-assisted capacities of time-correlated amplitude-damping channel (2013). arXiv:1307.5403.
39. Zhong W, Sun Z, Ma J, Wang XG, Nori F. Fisher information under decoherence in Bloch representation. Phys Rev A (2013) 87:022337. doi:10.1103/PhysRevA.87.022337
40. Koashi M, Ueda M. Reversing measurement and probabilistic quantum error correction. Phys Rev Lett (1999) 82:2598–601. doi:10.1103/PhysRevLett.82.2598
41. Kim YS, Lee JC, Kwon O, Kim YH. Protecting entanglement from decoherence using weak measurement and quantum measurement reversal. Nat Phys (2012) 8:117–20. doi:10.1038/nphys2178
42. Xiao X. Protecting qubit-qutrit entanglement from amplitude damping decoherence via weak measurement and reversal. Phys Scr (2014) 89:065102. doi:10.1088/0031-8949/89/6/065102
43. Zhao X, Hedemann SR, Yu T. Restoration of a quantum state in a dephasing channel via environment-assisted error correction. Phys Rev A (2013) 88:022321. doi:10.1103/PhysRevA.88.022321
