ORIGINAL RESEARCH article

Front. Phys., 20 May 2022
Sec. Interdisciplinary Physics
This article is part of the Research Topic Advances in Memristor and Memristor-Based Applications View all 14 articles

A Chaos-Based Image Encryption Scheme Using the Hamming Distance and DNA Sequence Operation

Yuwen ShaYuwen Sha1Fanling Bu
Fanling Bu1*Hadi Jahanshahi
Hadi Jahanshahi2*Linian WangLinian Wang1
  • 1School of Mechanical Engineering and Automation, Dalian Polytechnic University, Dalian, China
  • 2Department of Mechanical and Manufacturing Engineering, University of Manitoba, Winnipeg, MA, Canada

In this study, we introduced a new memristive chaotic system with the rich dynamic behavior, and then we proposed a chaotic-based image encryption scheme which is based on the permutation–confusion–substitution structure. In our scheme, the Hamming distance is used to design a plain-related chaotic system initial condition, and the generated chaotic sequences are assigned to permutation, diffusion, and substitution stages. In the permutation stage, an effect pixel confusion is implemented through a new permutation approach, which is a double-ended select-swap scrambling strategy. In the diffusion stage, DNA XOR operation is implemented followed by DNA triploid mutation which is introduced to enhance the strength of our encryption system. A number of experiments and extensive safety analysis have been carried out and the results fully justify that our scheme not only ensures desirable security but also has superior efficiency.

1 Introduction

With the advent of the Internet and multimedia, the network plays a vital role in transmitting text, images, and video files as a medium. Therefore, the need to ensure the secure transmission of information on the network has become the focus of attention in the field of secure communications. Compared with text and video files, images with the visual information have many advantages in communication and transmission, such as large amount of information, small storage space occupation, and convenient transmission, so they are the most widely used [1]. However, images without special processing face the danger of being eavesdropped and crawled by some criminals using some special tools and means and image encryption came into being in this scenario [2, 3].

In recent years, image encryption technology has been developed one after another. Previous image encryption strategies that treated the image as a stream of a binary bit such as text information and then encrypted using the well-known AES and DES technologies have not been proven to use image files [4, 5]. This is due to the large amount of image data compared to adjacent pixels which are highly correlated and so on compared to text information. In contrast, compressive sensing [6, 7], DNA operation, and [8, 9] chaos theory [10, 11] are more suitable for image encryption. Among them, the chaotic image encryption algorithm is the most popular, which is due to the internal characteristics of chaos, such as initial value sensitivity; also, nonlinear behavior can ensure that the processed image has a higher security level [9, 1223]. For instance, Hua et al. [24] presented a gray image encryption scheme based on a 2D Logistic-Sine-coupling map. The chaotic system was generated by coupling the Logistic and Sine map. In [12], Chai et al. exploited a secure cipher image scheme using the preprocessing-permutation–diffusion structure. In this cryptosystem, the key streams were generated from a memristive hyperchaotic system. In [25], Li et al. suggested an optical cryptosystem, in which the laser hyperchaotic system was presented in a fractional-order form to improve the complexity of the chaotic sequences.

For the chaotic image cryptosystem, the security performance of the processed ciphertext is composed of many factors. One is whether the structure of the algorithm is safe enough, that is, whether to use architectures like to use the classic permutation–diffusion, permutation–substitution [2630, 42]. Whether the initial value of the second cryptosystem is designed to be related to the plaintext image to resist known-plaintext and chosen plaintext attacks [31, 32]. Third, in the development of chaos theory, various chaotic systems are developed and they are introduced into image encryption. However, these chaotic systems are not all suitable for the field of secure communication, which may be due to their low key space and due to fewer parameters [33, 34]. In addition, the weak chaotic performance will also become the main reason to threaten the security of cryptographic systems [3537]. Therefore, using a high-performance chaotic system to design a cryptographic scheme with a secure structure and an efficient algorithm becomes an urgent requirement [30, 3841].

In order to improve the security and enhance the efficiency of the chaotic image cryptosystem, a memristive system with better chaos performance has been designed by our team [42], and it was introduced for image encryption in this study. First, the chaotic system with complex chaotic behavior was demonstrated through the phase diagram, Lyapunov exponents (LEs), and Lyapunov dimensions (LEs). Then, the chaotic sequences were generated for the encryption phase. Before the confusion procedure, the DNA encoding rule was provided for the image, and then a new permutation approach was designed and implemented at the DNA level. Next, we used the DNA XOR operation to perform the diffusion operation. Finally, DNA triploid mutation with superior efficiency was carried out so as to enhance the system security. The experiment results and extensive safety analysis fully justify that our cryptosystem is suitable for practical secure images due to high-security level and satisfactory encryption efficiency.

The remaining part of the study is organized as follows. In Section 2, we introduced a memristive chaotic system, and its dynamic behavior is evaluated by the phase diagram and Lyapunov exponent. Section 3 shows the proposed encryption methodology. Section 4 presents the simulation results of different size images. Section 5 reports the security level of our encryption scheme. Section 6 summarizes the content of this study.

2 The Novel Chaotic Circuit Based on Two Memristors

Recently, a novel four-dimensional chaotic system based on memristors (4D-CMM) is proposed by our team [42] and an image cryptosystem is introduced to generate pseudo-random sequences in this study. The 4D-CMM model is defined as follows:

{i˙L=1Lv1La1iLz1,v˙=1CiLa2Cz2v,z˙1=(iLa1z1)2b1,z˙2=v2b2,(1)

where a1, a2, b1, b2, L, and C represent system parameters. The set initial conditions of the system are (−1, 3, 1, and −0.7). There are four kinds of attractors with different parameter values of b1 are shown in Figure 1 when a1 = 5, a2 = 0.825, b2 = 10, L = 0.025, and C = 0.025. In addition, Lyapunov exponents (LEs) and Lyapunov dimensions (LDs) with the different parameter values of b1 are listed in Table 1 to prove that the rich dynamic chaotic behavior exists in 4D-CMM. The results present that the 4D-CMM is chaotic and has rich dynamic behavior. Consequently, it can be introduced into the image encryption system as a key stream generator.

FIGURE 1
www.frontiersin.org

FIGURE 1. Four kinds of attractors with different parameter values b1 [42]: (A) b1 = −0.4, (B) b1 = −2.58, (C) b1 = −0.1, and (D) b1 = −1.7.

TABLE 1
www.frontiersin.org

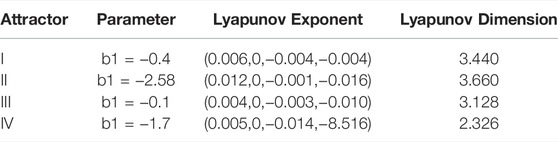

TABLE 1. LE and LD values with different chaotic attractors.

3 Image Encryption Algorithm

In this section, the proposed encryption scheme flow is presented, as shown in Figure 2, where the structure mainly consists of four parts, namely, initial condition generation, permutation, diffusion, and substitution, where encryption operations are performed at the DNA level The whole encryption process is as follows: a plain image and key are input and the latter is used to design the initial conditions of the chaotic system to initialize the chaotic system (4D-CMM). The three pseudo-random matrices generated by 4D-CMM are used as a key steam element for the encryption process. After that, P was transformed through the permutation procedure. The diffusion and substitution procedure are carried out, in turn, finally. Next, the implementation details in the encryption process will be described.

FIGURE 2
www.frontiersin.org

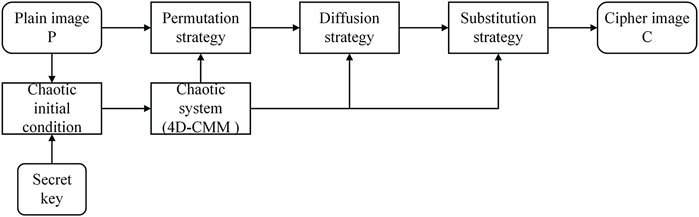

FIGURE 2. Proposed encryption scheme flow chart.

3.1 4D-CMM Initial Conditions

Based on the Hamming distance, we designed a plain pixel–related 4D-CMM initial conditions in this subsection. The Hamming distance is derived as follows:

{H(x,y)=i=1nh(xi,yi),i=1nh(xi,yi){0,xi=yi,1,xiyi,(2)

where x and y can be interpreted as two sequences and it can be obtained from the bit plain of image P (b1, b2, b3, b4, b5,b6,b7, and b8).

Assume that bit plain (b1, b2), (b3, b4), (b5, b6), and (b7, b8) represent W1, W2, W3, and W4, respectively. The Hamming distance hd1 = H(W1, W2), hd2 = H(W1, W3), hd3 = H(W1, W4), and hd4 = H(W2, W3). The initial conditions of 4D-CMM are obtained as follows:

{iL(0)=x1+0.5×hd1/r,v(0)=y1+0.6×hd2/r,z1(0)=x2+0.6×hd3/r,z2(0)=y2+0.5×hd4/r,(3)

where x1, x2, y1, and y2 are secret keys and r = M×N is the number of pixels in the image P. Note that if the pixels in the image change, we can use the Hamming distance to capture the change. This means that two images can have different initial values even if they are slightly different. This feature ensures that the proposed cryptosystem can resist known-plaintext and select-plaintext attacks.

3.2 Permutation Strategy

In the permutation stage, we proposed a two-way confusion strategy to enhance the efficiency and effect of image permutation. In our scheme, the two starting points of permutation start from the head and the tail of the image, respectively, and the permutation process is similar to the floating process of bubbles, which is a nonlinear pixel swapping operation.

In the confusion process, the plain image with a size of M×N is encoded using DNA coding rule α, and then treated as a one-dimensional array P=(P (1), P (2), …, P (4MN)) by scanning the DNA-encoded image P in a Z-like mode. The head (positive direction) and tail (negative direction) of the image P are taken as the starting point of the two exchanges, and the exchange operation is carried out alternately in the positive and negative directions. One element is placed in the final position for each swap operation, which means that the swapped element must be in the position between the two most recently identified elements in the opposite direction. Assume that T is the position of the current element in positive exchange and T0 represents the position to be swapped one, T0 is obtained according to Eqs 4, 5.

T0=T+kn(T),(6)
kn(T)=mod(floor(abs(un(T)×1012)),4MNT),(7)

where kn(T) is the key stream element used to generate confusion position T and un = [iL, v, z1, and z2] is the chaotic sequence by iterating Eq. 1 MN times. The element swapping procedure is performed according to Eq. 6.

{C(X)=P(T0)=P(T+kn(T)),P(T0)=P(T),(8)

where C(X) is the confused element. Analogously, R = MN-T and R0 represent the current element and the swapped one in the negative direction. The confused element is obtained by Eq. 7. In addition, it can get relaxed and can be concluded that T + R = 4 MN.

{R0=R+kn(R),C(R)=C(4MNT)=P(R0),P(R0)=P(R),kn(R)=mod(floor(abs(un(R)×106)),4MNR).(9)

When the positive and negative scrambling operations are performed at the same time, the scrambled image C is obtained after 2MN operations.

3.3 Diffusion Strategy

In the diffusion phase, we need to change the pixel value and transfer the current pixel value to other pixel values as much as possible to improve the concealment of the pixel. In our scheme, DNA XOR operations are introduced first and its calculation formula is shown as follows:

S(i)=D(i)K1(i)S(i1),(10)

where D(i) represents the pixel to be processed currently, and K1(i) represents the key stream, which can be deduced from Eq. 9. S(i) represents the current modified pixel value, and S (i-1) represents the previous modified pixel value. When i = 1, S (0) = D(n), and n = MN.

K1(i)=mod(un,256)+1.(11)

3.4 Substitution Strategy

In order to improve the security of ciphertext, we designed a new DNA mutation rule based on the triploid mutation, which is used for the diffusion result. In triploid organisms, one DNA strand can replicate three identical DNA strands. Taking advantage of this property, new types of DNA mutations can be designed to obtain mutated single strands by adding the binary representations of the three DNAs. Assume that the current DNA single strand is “ACGT,” and its binary representation is “00100111” using the coding rule 2 in Table 2. After DNA replication, three identical DNA strands “ACGT,” “ACGT,” and “ACGT” are generated. Then the mutated DNA single strand obtained is “ACTG.” Similarly, when DNA coding rule 4 is used, DNA represented by “00100111″ is “TCGA”, and the mutated DNA single strand obtained is “GCTA.” It is pointed out that eight kinds of DNA mutation rules can be obtained under eight kinds of DNA coding rules as shown in Table 3, and they are in line with the principle of base complementary pairing. Note that for different four bases, triploid mutation changes only two bases at a time, but the mutated bases are represented differently under different coding rules. As a result, it is an efficient way to mutate.

TABLE 2
www.frontiersin.org

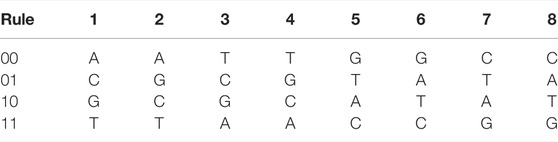

TABLE 2. DNA encoding and decoding rules.

TABLE 3
www.frontiersin.org

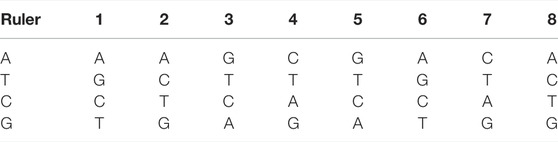

TABLE 3. DNA triploid mutation rules.

The DNA mutation based on triploid is carried out as follows:

κ(i)=mod(K1(i),8)+1,(12)

where κ (i) is the selected DNA mutation rule, and K1 (i) is the key stream. After mutation was completed, the cipher E image was obtained using decoding rule β.

4 Simulation Results

In this section, a variety of images are selected and they are mainly from the USC-SIPI database [43]. The simulation environments are as follows: Intel Core i5-4210U CPU 1.70 GHz, Memory 4.00 G, MATLAB 2019a, and Windows 10 operation platform.

An efficient cryptographic system should be able to meet the security requirements of different types of images in secure communication. The grayscale images with different sizes are shown in Figure 3 [43], in which the first column is the original image, the second column is the histogram of the original image, the third column is the cipher, the fourth column is the histogram of the cipher image, and the fifth is the restored image. One can observe that after all the original images are encrypted, their ciphertext images are noisy and chaotic without any visual information, which can be proved by the histogram changes of the original image during the encryption process. In addition, the original image can be accurately restored when decrypted with the correct key, as shown in Figure 3E. In addition, we have also conducted experiments on color images, and the satisfactory results are shown in Figure 4 [43].

FIGURE 3
www.frontiersin.org

FIGURE 3. Gray image [43] simulation results:(A) plain images, (B) histograms for (A), (C) encrypted images, (D) histograms for (B), and (E) decrypted images.

FIGURE 4
www.frontiersin.org

FIGURE 4. Color image [43] simulation results: (A) plain images, (B) histograms for (A), (C) encrypted images, (D) histograms for (B), and (E) decrypted images.

5 Security Analyses

5.1 Key Space Analysis

The key space consists of all the legal key combinations that can be used in the cryptosystem for encryption/decryption. A secure cryptographic system should have a large enough key space to preclude illegal decryption by implementing the brute-force attack. Table 4 lists all the keys that appear in the proposed cryptosystem. When the precision of the computer reaches 1015, the key space of the proposed cryptosystem is about 1015×16 ≈ 2797, which is much larger than the key space 2100 recommended by cryptography experts. Accordingly, the proposed cryptographic system can adequately cope with violent attacks.

TABLE 4
www.frontiersin.org

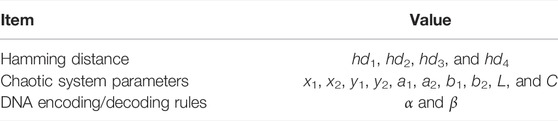

TABLE 4. Key during encryption set.

5.2 Key Sensitivity

In general, key sensitivity needs to be evaluated through both encryption and decryption processes. In the encryption process, first we get the cipher using the key K and then compare it with the cipher using the key K with a weakly change t = 10−15. In the decryption process, we also make the same adjustment to the decryption key K. In the decryption process, we also make the same adjustments to the decryption key K, and compare the differences between different decoded images. Figure 5 [43] and Figure 6 [43] show the key sensitivity test results in the encryption and decryption process, respectively. According to the difference in images, the corresponding images of different keys differ greatly, which enables our scheme to pass the key sensitivity test.

FIGURE 5
www.frontiersin.org

FIGURE 5. Key sensitivity test in the ciphering stage [43].

FIGURE 6
www.frontiersin.org

FIGURE 6. Key sensitivity test in the deciphering stage [43].

5.3 Correlation of Two Adjacent Pixels

Correlation analysis is a branch of statistical analysis, which is a quantitative analysis of the relationship between adjacent pixels in an image. The correlation rxy can be derived by the following formulas:

rxy=cov(x,y)D(x)D(y),(13)
cov(x,y)=E{[xE(x)][yE(y)]},(14)
E(x)=1Ni=1Nxi,(15)
D(x)=1Ni=1N[xiE(x)]2.(16)

Figure 7 [43] presents 3,000 pairs of pixel values that are taken from the three directions of the plain and its cipher, namely, horizontal (H), vertical (V), and diagonal (D) directions, which constitute the distribution of coordinate points in the rectangular coordinate system. Meanwhile, we have also calculated the correlation in three channels, namely, red, green, and blue and the comparison results are presented in Table 5. Compared with Refs. [5, 12, 38, 39] in Table 6, our algorithm can more efficiently de-correlate the pixel correlation.

FIGURE 7
www.frontiersin.org

FIGURE 7. Correlation test of image 5.1.14.tiff [43] and its cipher in three directions.

TABLE 5
www.frontiersin.org

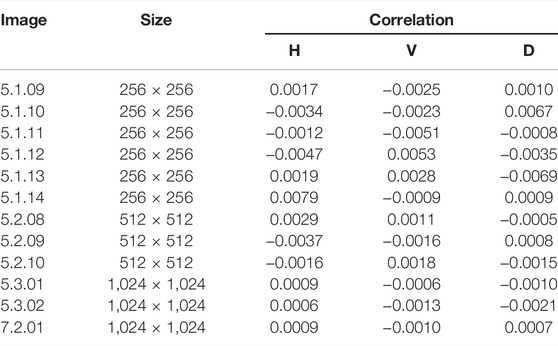

TABLE 5. Correlation of adjacent pixels in different cipher images.

TABLE 6
www.frontiersin.org

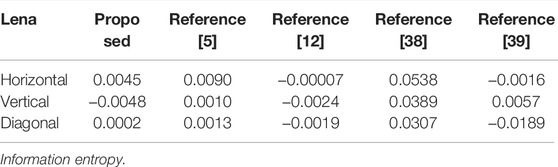

TABLE 6. Correlation comparison with different scheme results using the Lena image.

Information entropy (IE) can be used to measure the degree of pixel clutter and it is calculated by the following formula:

H(m)=i=0255p(mi)log2p(mi).(17)

For an ideal cryptographic system, the degree to which the IE calculated by the aforementioned formula approaches 8 can be used to evaluate the security of the system.

In addition, local Shannon entropy (LSE) is often used in recent years and its calculation formula is deduced as follows:

Hk,Tb(s)=i=1bH(si)b,(18)

where the image is divided into b blocks with size Tb and H(s) is the current block IE. When significance level α = 0.001, IE should fall into the intervals (7.901515698 and 7.903422936).

Table 7 lists the IE and LSE values of different size images. The IE values of all images approach 8 and the LSE test is passed by almost all images. In addition, we implemented the algorithm comparison using image Lenna, and the compared results in Table 8 fully certify that highly chaotic cipher images can be obtained by our algorithm.

TABLE 7
www.frontiersin.org

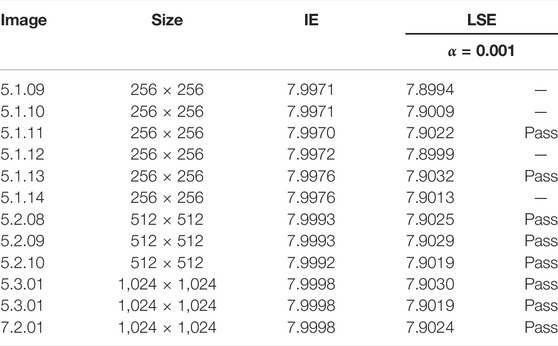

TABLE 7. Information entropy (IE) and local entropy (LSE) with different images.

TABLE 8
www.frontiersin.org

TABLE 8. Comparison results of IE values with different scheme.

5.4 Speed Analysis

In real-time communications, the speed at which algorithms process images is critical. A superior cryptographic system should not only have high security, but also have fast encryption and decryption ability. In our algorithm, the implementation of each scramble operation can simultaneously confuse two pixels, which come from the front and rear of the image. The time complexity is reduced from O (4MN) to O (2MN), so the running efficiency of our algorithm is improved compared with the scrambling operation of a single pixel. In addition, only the two bases are mutated during the process of mutation and the two bases can represent any two bits under different coding rules, which demonstrate the efficiency of mutation operation to a certain extent.

In the test of running speed, standard gray image Lena with the size of 512 × 512 is involved and 100 tests are carried out on it. Table 9 shows the average of the test results through our encryption scheme and compares it with Refs. [34, 38, 39]. The experimental results show that the proposed scheme has an excellent running speed.

TABLE 9
www.frontiersin.org

TABLE 9. Running time compared to the relevant encryption systems (unit: second).

6 Conclusion

In this study, we introduced a memristor chaotic system for a chaotic-based secure communication field. The rich dynamic behavior is analyzed prior to encryption. In the process of encryption, the initial conditions of the chaotic system designed by the Hamming distance are used to enhance the plaintext correlation of cryptosystem and provide a secure key stream for encryption. In the permutation stage, we used a chaotic sequence to generate two random positions of pixels to be swapped at the beginning and end of the image to shuffle the pixel, which can enhance the pixel’s confusion effect and permutation speed to a certain extent. In the diffusion stage, DNA XOR operation is implemented followed by DNA mutation is introduced to generate high-quality ciphertext images. Simulation experiments and security analysis fully show that our scheme not only ensures security but also has high efficiency.
