Dynamics of Rotating Spin-Orbit-Coupled Spin-1 Bose-Einstein Condensates With In-Plane Gradient Magnetic Field in an Anharmonic Trap

We investigate the dynamics of rotating spin-orbit-coupled spin-1 Bose–Einstein condensates (BECs) in an in-plane gradient magnetic field, which is confined in an anharmonic trap. In the case of rotating spin-orbit-coupled spin-1 BECs with given parameters, the system evolves from initial disk-shaped condensates into drastic turbulent oscillations and ghost vortices on the surface of the component densities due to surface wave excitations and then into two final vortex necklaces along the azimuthal direction with an irregular density hole, in which the vortices differ by one quantum number in turn. For the case of rotating spin-orbit-coupled spin-1 BECs with in-plane gradient magnetic field, with the dynamic evolution, the system undergoes a transition from an initial central polar-core vortex to violent turbulent oscillations and then to a final vortex chain along the diagonal of BECs, with the remaining vortices symmetrically distributed on both sides in the individual component. In addition, the corresponding spin texture undergoes a transition from plane-wave phase to double half-antiskyrmion necklaces for the former case and a transition from a structure similar to a quadrupole magnetic field to a half-antiskyrmion chain with the rest of the half-antiskyrmions on both sides. During the dynamic evolution process, the angular momentum increases gradually and then approaches a convergent value.

1 Introduction

Spin-orbit coupling (SOC) in ultracold atomic gases has been realized experimentally in the last decade [1–3], which has greatly stimulated people’s interest in the study of spin-orbit-coupled quantum gases [4–6]. This new and controllable artificial SOC not only offers new possibilities for quantum simulations of spin quantum Hall effect [7, 8], topological insulators [9], and topological superconductors [10] but also provides a new direction for exploring exotic quantum phenomena, novel states of matter in the fields of ultracold atomic, molecular physics, and condensed matter physics [11–18].

A novel anharmonic trap (a harmonic trap with a quartic distortion) [19, 20], which confines the Bose–Einstein condensates (BECs) even if the rotation frequency exceeds the trapping frequency, has attracted great attention both in theory and experiment. Most research so far focuses on the ground-state properties of BECs in an anharmonic trap [20, 21], but there are few studies on the dynamics of BECs. In this work, we investigate the dynamics of rotating spin-orbit-coupled spin-1 BECs with an in-plane gradient magnetic field in an anharmonic trap. Our research can not only obtain the stable structures of the system but also survey the detailed physical process and interesting dynamic properties of the system from an initial quantum state to a non-equilibrium state evolution and then to a final equilibrium state, which provides a new direction for exploring quantum phenomena of spin-orbit-coupled BECs in an anharmonic trap. As a matter of fact, the interesting physical properties in dynamics of quantum systems have attracted considerable interest, which includes Zitterbewegung oscillation in quenched spin–orbit-coupled BECs [22] and dynamical phases in a quenched spin–orbit-coupled degenerate Fermi gas [23].

The study is organized as follows. The theoretical model is introduced in Section 2. In Section 3, we analyze and discuss the simulation results. Finally, we summarize our findings in Section 4.

2 Model

We consider a quasi-two-dimensional (quasi-2D) spin-orbit-coupled F = 1 spinor BECs with an in-plane gradient magnetic field in an anharmonic trap. In the mean-field framework, the dynamics of the system can be given by the dissipative Gross–Pitaevskii (GP) form [24–27].

$\left(i-\gamma \right)\hslash \frac{\partial \mathrm{\Psi }}{\partial t}=H\mathrm{\Psi }.(1)$

Here, γ is the dissipation parameter. The model is a variation and generalization of that in BECs [24, 25, 28]. In addition, this model enables one not only to find the steady state of a rotating system but also to study the whole dynamical process toward the final steady state. Moreover, this model has considered the inevitable dissipation effects in actual cold atom experiments. When we switch off the dissipation term, the simulation based on the time-dependent GP equations shows that no steady state exists. In Equation 1, the Hamiltonian of the system can be written as H = H₀ + H_int with

$\begin{array}{ccc}\hfill \begin{array}{cc}\hfill H_0& =\int d\mathbf{r}{\mathrm{\Psi }}^{+}\left(-\frac{{\hslash }^2{\nabla }^2}{2m}+V\left(\mathbf{r}\right)+v_{so}-\mathrm{\Omega }{L}_z+g_F{\mu }_B\mathbf{B}(\mathbf{r})\cdot \mathbf{f}\right)\mathrm{\Psi },\hfill \\ \hfill H_{\mathit{int}}& =\int d\mathbf{r}\left(\frac{c_0}{2}{n}^2+\frac{c_2}{2}{\left|\mathbf{F}\right|}^2\right),\hfill \end{array}& \hfill & \hfill \end{array}(2)$

where $\mathrm{\Psi }={\left({\mathrm{\Psi }}_1,{\mathrm{\Psi }}_0,{\mathrm{\Psi }}_{-1}\right)}^T$ is the order parameter normalized with the total particle number N = ∫drΨ^†Ψ. m is the atomic mass, $n=n_1+n_0+n_{-1}={\sum }_j{\mathrm{\Psi }}_j^{*}{\mathrm{\Psi }}_j(j=0,\pm 1)$ is the total particle density, and r = (x, y). Ω is the rotation frequency along the z -direction, and L_z = iℏ(y∂_x − x∂_y) denotes the z component of the angular momentum operator. The coupling constants c₀ = 4πℏ² (2a₂ + a₀)/3m and c₂ = 4πℏ² (a₂ − a₀)/3m represent the strengths of density–density and spin–exchange interactions, respectively. They are given in terms of the corresponding s-wave scattering length a_F for atom pairs with total spin-F. The spin density vector F = (F_x, F_y, F_z) is defined by F_α(r) = Ψ^†f_αΨ(α = x, y, z), and f = (f_x, f_y, f_z) is the vector of the 3 × 3 spin-1 matrices given in the irreducible representation [29, 30]. g_F = −1/2 is Lande factor, μ_B denotes Bohr magnetic moment, and the in-plane gradient magnetic field (that is, the in-plane quadrupole field) B(r) is given by B(r) = B (xe_x − ye_y), with B being the strength of the magnetic field gradient. Here, we choose the Rashba-type SOC, which is given by v_so = k (f_xp_x + f_yp_y). The anharmonic trap is given by [19, 20].

$V\left(r\right)=\frac{1}{2}m{\omega }_{\perp }^2\left(r^2+\mu \frac{r^4}{a_0^2}\right)=\frac{1}{2}\hslash {\omega }_{\perp }\left(\frac{r^2}{a_0^2}+\mu \frac{r^4}{a_0^4}\right),(3)$

where ω_⊥ is the radial trap frequency and $r=\sqrt{x^2+y^2}$, $a_0=\sqrt{\hslash /m{\omega }_{\perp }}$, and μ is a dimensionless constant that characterizes the anharmonicity of the trap. The dimensionless GP equations describing the dynamics of the system can be written as [31, 32].

$\begin{array}{ll}\hfill \left(1-\gamma \right)i\frac{\partial {\psi }_1}{\partial t}& =\left[-\frac{1}{2}{\nabla }^2+V+i\mathrm{\Omega }\left(x{\partial }_y-y{\partial }_x\right)+{\lambda }_0{\left|\psi \right|}^2+{\lambda }_2\left({\left|{\psi }_1\right|}^2+{\left|{\psi }_0\right|}^2-{\left|{\psi }_{-1}\right|}^2\right)\right]{\psi }_1\hfill \\ \hfill & +\left[B\left(x+iy\right)+k\left(-i{\partial }_x-{\partial }_y\right)\right]{\psi }_0+{\lambda }_2{\psi }_{-1}^{\ast }{\psi }_0^2,\hfill \end{array}(4)$

$\begin{array}{ll}\hfill \left(1-\gamma \right)i\frac{\partial {\psi }_0}{\partial t}& =\left[-\frac{1}{2}{\nabla }^2+V+i\mathrm{\Omega }\left(x{\partial }_y-y{\partial }_x\right)+{\lambda }_0{\left|\psi \right|}^2+{\lambda }_2\left({\left|{\psi }_1\right|}^2+{\left|{\psi }_{-1}\right|}^2\right)\right]{\psi }_0\hfill \\ \hfill & +\left[B\left(x-iy\right)+k\left(-i{\partial }_x+{\partial }_y\right)\right]{\psi }_1+\left[B\left(x+iy\right)+k\left(-i{\partial }_x-{\partial }_y\right)\right]{\psi }_{-1}+2{\lambda }_2{\psi }_1{\psi }_{-1}{\psi }_0^{\ast },\hfill \end{array}(5)$

$\begin{array}{ll}\hfill \left(1-\gamma \right)i\frac{\partial {\psi }_{-1}}{\partial t}& =\left[-\frac{1}{2}{\nabla }^2+V+i\mathrm{\Omega }\left(x{\partial }_y-y{\partial }_x\right)+{\lambda }_0{\left|\psi \right|}^2+{\lambda }_2\left({\left|{\psi }_{-1}\right|}^2+{\left|{\psi }_0\right|}^2-{\left|{\psi }_1\right|}^2\right)\right]{\psi }_{-1}\hfill \\ \hfill & +\left[B\left(x-iy\right)+k\left(-i{\partial }_x+{\partial }_y\right)\right]{\psi }_0+{\lambda }_2{\psi }_1^{\ast }{\psi }_0^2.\hfill \end{array}(6)$

where ψ_j = N^−1/2a_hΨ_j (j = 0, ±1) denotes the dimensionless jth component wave function, and the total particle density is given by ${\left|\psi \right|}^2={\left|{\psi }_1\right|}^2+{\left|{\psi }_0\right|}^2+{\left|{\psi }_{-1}\right|}^2$, and the dimensionless external potential is $V=\left(r^2+\mu r^4\right)/2$. Here, λ₀ = 4πN (2a₂ + a₀)/3a_h and λ₂ = 4πN (a₂ − a₀)/3a_h represent dimensionless density–density and spin–exchange interactions, respectively. B, k, and Ω denote dimensionless quadrupole field strength, SOC strength, and rotation frequency, respectively. That is, in the numerical calculations of our study, the length (x and y), time, energy (interaction, SOC, and rotation), and magnetic field gradient are measured in units of $\sqrt{\hslash /m{\omega }_{\perp }},1/{\omega }_{\perp }$, ℏω_⊥, and ℏω_⊥/(g_Fμ_Ba_h), respectively.

For spin-1 BEC, the spin texture is defined as [33, 34].

${\mathbf{S}}_{\alpha }=\sum _{m,n=0,\pm 1}{\psi }_m^{\ast }{\left(f_{\alpha }\right)}_{m,n}{\psi }_n/{\left|\psi \right|}^2\left(\alpha =x,y,z\right).(7)$

The spatial distribution of the topological structure of the system is characterized by the topological charge density

$q\left(r\right)=\frac{1}{4\pi }\mathbf{s}•\left(\frac{\partial \mathbf{s}}{\partial x}\times \frac{\partial \mathbf{s}}{\partial y}\right),(8)$

with $\mathbf{s}=\mathbf{S}/\left|\mathbf{S}\right|$ and that topological charge Q is defined by

$Q=\int q\left(r\right)dxdy.(9)$

The topological charge $\left|Q\right|$ is unchanged, no matter how one exchanges the components of the spin density vector S_x , S_y and S_z.

3 Results and Discussion

In what follows, we study the dynamics of rotating spin-orbit-coupled spin-1 BECs without an in-plane gradient magnetic field and with an in-plane gradient magnetic field in an anharmonic trap. We can numerically solve the GP Eqs. 4–6 by using the split-step Fourier method [24, 25]. First, with the imaginary-time propagation method based on the Peaceman–Rachford method [35–37], the initial quantum state of the abovementioned two cases can be obtained for Ω = 0. The variation of nonzero γ does not change the dynamics of the vortex formation and the ultimate steady structure of the rotating system but only influences the relaxation time scale. In this work, we take γ = 0.03, which corresponds to a temperature of about 0.1 T_c. The relevant parameters are λ₀ = 2000 and λ₂ = −100, and the typical parameter of the anharmonic trap is chosen as μ =0.5.

3.1 Dynamics of Rotating Spin-Orbit-Coupled Spin-1 BECs in an Anharmonic Trap

It is to be noted that ${\left|{\psi }_1\right|}^2$, ${\left|{\psi }_0\right|}^2$, and ${\left|{\psi }_{-1}\right|}^2$ (the left three columns) are the density distributions of three components m_F = 1, m_F = 0, and m_F − 1, and the corresponding phase distributions are given by θ₁ = arg  ψ₁, θ₀ = arg  ψ₀, and θ₋₁ = arg  ψ₋₁ (the right three columns), respectively. In Figure 1A, we give the initial quantum state of spin-1 BECs with SOC strength k = 2 loaded in an anharmonic trap. The system supports an approximately disk-shaped condensate without any topological defects in each component; therefore, it presents a plane wave phase [38]. Figures 1B–G show the typical dynamics of the component densities and phases with the anharmonic trap beginning to rotate suddenly with Ω = 2, when the system has been prepared to the initial quantum state. It is shown that during the early evolution period (see Figure 1B), there is a slightly turbulent oscillation in BECs, where the approximately disk-shaped densities are broken and begin to deform. Moreover, ghost vortices are formed in the boundary regions of the BECs due to the surface wave excitations [24, 27]. Then, the system reaches the minimum in the density distribution, and complex turbulent oscillations appear in the phase distributions (Figure 1C), which results in the surface waves propagating along the surfaces. When t = 6, the ghost vortex [24, 39] enters the central region of the external potential and develops into visible vortices which present irregular distributions (Figure 1D). With further time evolution, the component density distributions gradually become regular and the phase defects gradually gather to trap the center (Figures 1E,F). Eventually, the system develops into two vortex necklace structures along the azimuthal direction with an irregular density hole. In addition, the vortices in the density hole in the three components differ by one quantum number in turn (see Figure 1G). One of the reasons for the abovementioned density structures in Figure 1G is the presence of the anharmonic trap. A similar necklace structure has been found in the literature [20, 27, 40], and in the first Ref, ground states are studied in an unharmonic trap, and the latter two are dynamics in a quasicrystalline optical lattice and harmonic trap, respectively. In addition, we know that the shape of the external potential plays an important role in the dynamic properties of the BECs; for example, the system confined in a toroidal trap eventually evolved into a density hole with giant vortex structures.

FIGURE 1

FIGURE 1. Dynamics evolution of rotated spin-orbit-coupled spin-1 BECs. The first to the third columns are the density distributions of three components $\left|F=1,m_F=1\right.⟩$, $\left|F=1,m_F=0\right.⟩$, and $\left|F=1,m_F=-1\right.⟩$, and the corresponding phase distributions are displayed in the fourth to the sixth columns, respectively. (A) Initial quantum state with SOC strength k = 2, (B–G) respective dynamic structures of t = 0.2, t = 1.5, t = 6, t = 15, t = 25, and t = 600 with the system suddenly beginning to rotate with Ω = 2. The length and time are in units of a₀ and 1/ω_⊥, respectively.

3.2 Dynamics of Rotating Spin-Orbit-Coupled Spin-1 BECs With In-Plane Gradient Magnetic Field in an Anharmonic Trap

Next, we study the dynamics of rotating spin-orbit-coupled spin-1 BECs with an in-plane gradient magnetic field in an anharmonic trap. In Figure 2A, we show the initial quantum state of spin-1 BECs with SOC strength k = 2 and in-plane quadrupole field strength B = 2. The vortices occur only in the central regions of the components m_F = 1 and m_F = −1, which form a polar-core vortex [41] with winding combination $⟨-\mathrm{1,0,1}⟩$, as shown in Figure 2A. Essentially, the polar-core vortices in Figure 2A are coreless vortices because there is no phase defect in the total density of the system. Our numerical simulation shows that the formation of the central polar-core vortex is relevant to the interplay between the quadrupole field and the SOC. The combined effects of the quadrupole field and the SOC generate a special saddle point structure, where the in-plane magnetization of the spin occurs in the particular magnetic field and the amplitude of the total magnetization $\left|\mathbf{F}\right|$ at the saddle point is zero. To satisfy the conservation of angular momentum, the two vortices at the center of components m_F = 1 and m_F = −1 must rotate backward, so they have opposite winding numbers. The typical dynamics of the component densities and phases after the anharmonic trap begins to rotate suddenly with Ω = 2 and are given in Figures 1B–G. As seen from the phase distributions of Figure 2B, there are slightly turbulent oscillations and some ghost vortices. At the same time, the components m_F = ± 1 obey anti-symmetric with a diagonal line, and the component m_F = 0 exists in two vortex dipoles (vortex–antivortex pairs). Then, the component densities are elongated along the diagonal line and are separated (Figure 2C). In addition, the central polar-core vortex and a small number of ghost vortices outside the atomic cloud (last three columns of Figure 2B) transform into complex turbulent oscillations in the phase distribution (last three columns of Figure 2C). When t = 1.3, the system becomes fragments and reaches the minimum in the density distributions, and the corresponding distributions present more complicated turbulence oscillations, which makes the boundary of the BECs unstable and induces surface waves propagating along the surfaces. With further time evolution, the condensates gradually split into two obvious parts about a diagonal line and the center of the system appears to dissipate (see Figures 2E,F). The visible vortices of the system eventually link up with each other along the principal diagonal, that is, a diagonal vortex chain, with the remaining vortices distributed symmetrically as far as possible on both sides of the diagonal line (Figure 2G). Physically, here the vortex chain is a result of the combined effect of SOC, in-plane quadrupole field, and rotation. The magnetic field gradient causes a magnetic force so that the condensate is difficult to concentrate at the center and is divided into two parts, and on the other hand, due to the existence of rotation, the competition among the magnetic force, SOC, and the rotation, a vortex chain appears. The vortex chain structure has been observed in the literature [42, 43], where only ground states with in-plane gradient magnetic fields are considered. The abovementioned research shows that in the dynamics, the combined effect of gradient magnetic fields, SOC, and rotation play a key role in the generation of exotic topological defects. On the experimental side, searching for novel quantum phases in this highly tunable system is still an ongoing work. Our findings will stimulate further research in searching for various novel states in spin-orbit coupled BECs subject to effective gradient fields. In addition, tunable atomic spin-orbit coupling synthesized with a modulating gradient magnetic field has been realized [44–46]

FIGURE 2

FIGURE 2. Dynamics evolution of rotated spin-orbit-coupled spin-1 BECs with an in-plane quadrupole field. The first to the third columns are the density distributions of three components $\left|F=1,m_F=1\right.⟩$, $\left|F=1,m_F=0\right.⟩$, and $\left|F=1,m_F=-1\right.⟩$, and the corresponding phase distributions are displayed in the fourth to the sixth columns, respectively. (A) Initial quantum state with SOC strength k = 2 and quadrupole field strength B = 2, (B–G) respective dynamic structures of t = 0.1, t = 0.3, t = 1.3, t = 5, and t = 15, t = 600 with the system suddenly beginning to rotate with Ω = 2. The length and time are in units of a₀ and 1/ω_⊥, respectively.

3.3 Spin Texture

The skyrmion is a type of topological soliton, which was originally suggested in nuclear physics by Skrme to elucidate baryons as a quasiparticle excitation with spins pointing in all directions to wrap a sphere [47]. A skyrmion can be viewed as the reverse of the local spin, and the spin-vector sweeps the whole unit sphere; therefore, its topological charge is Q = 1. As shown Figure 3 and Figure 4, we display the typical transitions of the topological charge density and spin texture. Displayed in Figures 3A,B are the topological charge density and the spin texture, and the corresponding density and phase distributions (t = 6) are given in Figure 1D. Figures 3C–G represent the typical local amplifications of the spin texture in Figure 3B, and Figure 3H shows the topological charge density of t = 11 (Figure 1E). Considering the limited resolution of the texture, in Figure 3I, we only show the spin texture in the core region, and the typical local amplifications of the full spin texture are given in Figures 3J–N. Our numerical calculation shows that Figures 3C–E and Figures 3J–M denote half-antiskyrmions [21, 48] with topological charge Q = −0.5, and Figures 3F,G and Figure 3N present antiskyrmions with topological charge Q = −1, which indicates that the spin texture in the process of evolution comprises different types of half-antiskyrmions (antimerons) and antiskyrmions. Due to the transitional spin texture being unstable, we cannot determine exactly what the topological defect is. Shown in Figures 3O,P are the topological density and spin texture of the steady state, and the local amplifications are given in Figures 3Q–U, Our calculation results demonstrate that the topological defect of the central region in the green spot is a hyperbolic antiskyrmion with unit topological charge Q = −1. The hyperbolic skyrmion and hyperbolic half-skyrmions have been reported in the literature [21, 47–49]. The topological defect in Figures 3Q–T is half-antiskyrmion (antimeron) with topological charge Q = −0.5, where different colors of dots represent half-antiskyrmions with different shapes. As seen from Figure 3O, there are seven half-skyrmions around the trap center, which develop into a half-antiskyrmion necklace structure along the azimuthal direction, and the external region of the cloud is occupied by a larger half-antiskyrmion necklace comprising eleven half-antiskyrmions, that is, the half-antiskyrmion necklace consists of two concentric annular half-antiskyrmions. In short, the spin texture undergoes a transition from an irregular antimeron and antiskyrmion structures to a double half-antiskyrmion necklace structure.

FIGURE 3

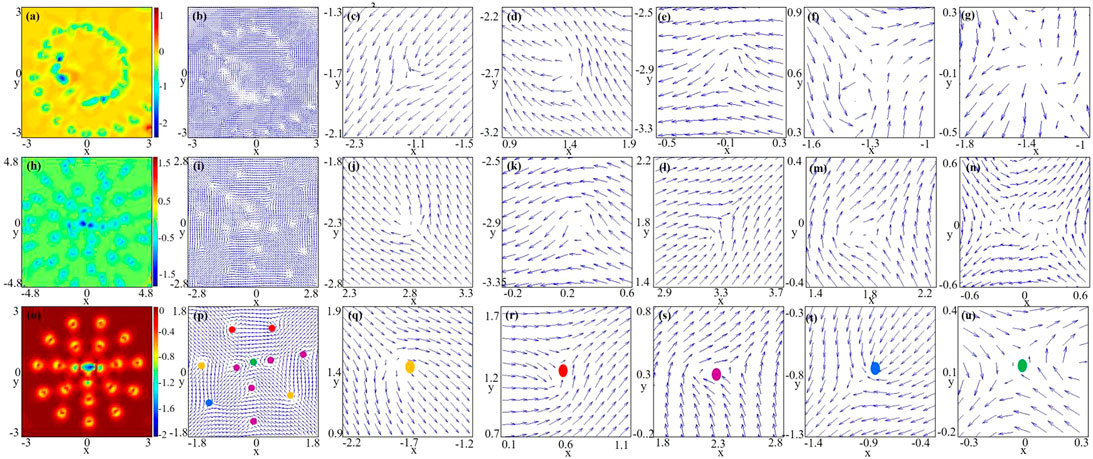

FIGURE 3. Transition of topological charge densities and spin textures in the anharmonic trap. (A–U) correspond to Figures 1D,E,G, respectively. The left two columns represent the topological charge densities and spin texture, and the right four columns denote the local enlargements of spin textures, respectively. (C–E), (I–M), (Q–T) denote half-antiskyrmions, and (F,G), (N,U) denote antiskyrmions. The unit length is a₀.

FIGURE 4

FIGURE 4. Transition of topological charge densities and spin textures. (A) is the texture of Figure 2A. (B–J) and (K–R) correspond to Figures 2F,G, respectively. (B,C) and (K,L) represent the topological charge densities and spin textures, and the rest represent the local enlargements of spin textures, which denote half-antiskyrmions, respectively. The unit length is a₀.

Figure 4A shows the spin structure corresponding to Figure 2A, and it indicates that the spin of the initial state is fully magnetized into the plane and whose arrangement resembles the configuration of a quadrupole magnetic field. The center of the quadrupole magnetic field is a saddle point with the magnetic field strength being 0, which has no magnetization. However, due to the continuity of the wave function, the spin function S (r) in the center point must be continuous. If S (0) has a certain magnitude, it must point in a certain direction. However, due to the symmetry of the system, no matter S (0) choice, any direction will break the continuity of S (r) at the center point. So, S (0) can only take 0 to satisfy the continuity condition. Therefore, the components m_F = 1 and m_F = −1 form a central vortex core. To satisfy the conservation of angular momentum, the two vortices at the center of $\left|F=1,m_F=1\right.⟩$ and $\left|F=1,m_F=-1\right.⟩$ components must rotate in opposite directions, which forms central polar-core vortex (see Figure 2A). Figures 4B,C exhibit the topological charge density and spin texture of t = 15, which corresponds to Figure 2F. From Figures 4D–J, there are seven types of half-antiskyrmions with respective local topological charge Q = −0.5, and they seem to be forming a half-antiskyrmion chain along the diagonal. As shown in Figures 4K,L are the topological charge density and spin texture of the steady state, and the local amplifications are given in Figures 4M–R. The topological structure of the leading diagonals is a chain comprising different kinds of half-antiskyrmions, whose respective local topological charge Q = −0.5. Moreover, the local topological charge in each red spot is Q = −0.5, which indicates that the topological structures on both sides of the leading diagonals are a symmetric half-antiskyrmion (antimeron) lattice with it. In a word, the spin texture transforms from a structure similar to a quadrupole magnetic field to a symmetric half-antiskyrmion lattice with respect to the diagonal of the half skyrmion chain. Essentially, the half-antiskyrmions (antiskyrmions) of different shapes in Figure 3 and Figure 4 are caused by the complicated interplay among the SOC, rotation, in-plane gradient magnetic field, and dissipation.

The dynamic process can also be characterized by the time evolution of the average angular momentum per atom $⟨L_z⟩$, where the dependence of $⟨L_z⟩$ on Ω, k, and B is displayed in Figure 5. Take the blue curve as an example, when the system suddenly begins to rotate with Ω = 2, $⟨L_z⟩$ increases rapidly with the time evolution (0 ≤ t ≤ 15), and the gradually (15 ≤ t ≤ 100) approaches a maximum value (equilibrium value). Essentially, the combined effects of the continuous input of angular momentum, quantum fluid nature, SOC, anharmonic trap, and the dissipation result in the formation of a steady vortex structure in the three components. Next, we take the green curve as an example, and as the system is rotated with Ω = 2, $⟨L_z⟩$ increases rapidly (0 ≤ t ≤ 5) and suddenly a small (5 ≤ t ≤ 8) decrease occurs and finally tends to be an equilibrium value. Compared with the former, we find that the final $⟨L_z⟩$ is larger for the latter. That is, the combined effects of the quantum fluid nature, SOC, in-plane gradient magnetic field, and dissipation enhance the creation of vortices on the diagonal.

FIGURE 5

FIGURE 5. Time evolution of the average angular momentum per atom $⟨L_z⟩$ with γ = 0.03. Here $⟨L_z⟩$ and t are in units of ℏ and 1/ω_⊥, respectively.

4 Conclusion

To summarize, we investigate the dynamics of rotating spin-orbit-coupled spin-1 BECs in an in-plane gradient magnetic field, which is confined in an anharmonic trap. Such a system sustains peculiar and interesting dynamic behaviors due to the multicomponent-order parameters and the interplay among the in-plane quadrupole field, SOC, rotation, and dissipation. In order to study the dynamics, the system is rotated suddenly after the system has been prepared to an initial quantum state. For the case of rotating spin-orbit-coupled spin-1 BECs, with the dynamic evolution, the system transforms from initial disk-shaped condensates to drastic turbulent oscillations and ghost vortices on the surface of the component densities due to the surface wave excitations and then to two final steady vortex necklaces along the azimuthal direction with an irregular density hole, where the vortices in the three components differ by one quantum number in turn, whereas for the case of rotating spin-orbit-coupled spin-1 BECs with in-plane gradient magnetic field, the system evolves from an initial central polar-core vortex to violent turbulent oscillations and then to a final vortex chain along the diagonal of BECs, with the remaining vortices symmetrically distributed on both sides in the individual component. Simultaneously, the corresponding spin texture experiences a structural phase transition from plane-wave phase to double half-antiskyrmion necklaces for the former case and a transition from a structure similar to a quadrupole magnetic field to a vortex chain with half-antiskyrmions on both sides. In addition, the angular momentum increases gradually and then approaches a convergent value. These interesting findings provide new understanding and exciting perspectives for ultracold atomic gases and condensed matter physics. Although it may be a challenge to implement the present system experimentally, this system is theoretically feasible and can be achieved in principle. For instance, one may consider a spin-1⁸⁷Rb BEC [44, 50] or a spin-1²³Na BEC [51]. With the ongoing development of cold-atom experimental techniques, the system may be realized in the future and its novel quantum phases and dynamic properties are expected to be observed in experiments.
