ORIGINAL RESEARCH article

Front. Phys., 10 May 2022
Sec. Interdisciplinary Physics
This article is part of the Research Topic Multiphase Flow Behavior in the Deep-Stratum and Deep-Water Wellbores View all 13 articles

Numerical Simulation of Water-Sediment Two-Phase Seepage Characteristics and Inrush Mechanism in Rough Rock Fractures

Xuyang ShiXuyang Shi1Ming LiMing Li2Yu HanYu Han2Qingxiang CaiQingxiang Cai1Zhanqing ChenZhanqing Chen2Yanlong ChenYanlong Chen2Dan Ma
Dan Ma1*
  • 1School of Mines, China University of Mining and Technology, Xuzhou, China
  • 2State Key Laboratory for Geomechanics and Deep Underground Engineering, China University of Mining and Technology, Xuzhou, China

The water-sediment two-phase flow in the rough fracture is one of the main causes of water-sediment inrush. In this study, numerical simulation models of the water-sediment two-phase flow in the smooth and rough fractures were established by ANSYS Fluent software based on the seepage theory; the mechanical properties of the water-sediment two-phase flow under different conditions were systematically investigated, and the influence laws of the surface morphology of the fracture on sediment volume concentration, sediment particle size, and sediment particle mass density were analyzed. In addition, the influence laws of the sediment volume concentration, sediment particle size, and sediment particle mass density on the absolute value of the pressure gradient, mean velocity of the fluid, and fluid turbulent kinetic energy were also illustrated from the perspective of sediment particle distribution. Research shows that during the water-sediment flow in the smooth fracture, the absolute value of pressure gradient Gp, the sediment volume concentration Ф, the sediment particle size Dp, and the sediment mass density ρp are approximately linear, and the linearity of Gp and Dp is the lowest; during the water-sediment flow in the smooth fracture, the mean velocity v of the continuous-phase fluid rarely changes with Ф, Dp, and ρp. However, during the water-sediment flow in the rough fracture, v is greatly affected by Ф, Dp, and ρp. During the water-sediment flow in the smooth fracture, the fluid turbulent kinetic energy kt decreases with the increase of ρp and Ф and decreases with the decrease of ρp. During the water-sediment flow in the rough fracture, kt is significantly affected by Ф, Dp, and ρp, which was manifested in the changes of curve shapes and deviation of the extreme points.

1 Introduction

Although coal resources are abundant in Northwest China, coal mining in this area is relatively difficult because of the fragile ecological environment and the thick sediment layer on the coal seam [14]. During the exploitation process of shallow coal seams, most faults are directly connected with overburden aquifers; in some extreme cases, subsidence areas may be directly connected with aquifers. At this point, the surface sediment layers and aquifers will be mixed; when the mixture flows underground, water-sediment inrush accidents will be induced [59]. Therefore, water-sediment flow characteristics in fractures should be comprehensively investigated so as to understand the disaster-causing mechanism of water-sediment inrush accidents and prevent the occurrence of water-sediment inrush accidents.

The physical and mechanical characteristics of the water-sediment mixture and the fracture surface characteristics are two key factors affecting the water-sediment two-phase flow [10, 12]. The characteristics of the water-sediment mixture, such as sediment volume concentration, sediment particle size, and sediment particle density, have been studied through laboratory experiments and theoretical analysis [1317]. Jiang et al. investigated the flowing properties of crushed red sandstone with different particle sizes. It was concluded that the broken rocks with finer particles were likely to become unstable [13]. Through a self-developed seepage test system, Zhang et al. conducted the indoor tests and determined the optimal sand-filtration rate [18]. Pu et al. analyzed the influence of particle size grading on water-sediment seepage and found that the flow and height of the water-sediment mixture can be effectively reduced by decreasing the height of the aquifer by drilling [19].

The water-sediment mixtures show significant differences in fractures with different surface characteristics. In the initial stage of the research, parallel smooth fractures were prefabricated in these experiments. With the gradual progress of technology, the water-sediment two-phase flow in rough fractures has been studied, and some results have been achieved [2024]. Researchers also have studied the influence of fracture aperture, directions, and amounts of fractures on the water-sediment two-phase flow [2528]. In real working conditions, the factors affecting the water-sediment two-phase seepage are much more complex than those in the indoor seepage tests. For example, vortexes around the concave fracture surface greatly affect the pressure, sediment concentration distribution, and energy consumption during the water-sediment flow in fractures [2936]. Although pressure gradient and flow rate can be used to analyze and invert the whole flow process in the laboratory tests, the evolution of water-sediment two-phase seepage in fractures cannot be illustrated. Therefore, it is necessary to adopt the numerical simulation method to study the water-sediment two-phase seepage in fractured rock masses.

In this study, considering the principle of water-sediment two-phase seepage, the mechanical models of water-sediment two-phase flow in smooth and rough fractures were established, and the numerical simulation experiment was performed by ANSYS Fluent. In addition, the influence of sediment volume concentration, sediment particle size, sediment mass density on pressure gradient, mean velocity distribution, and turbulent kinetic energy distribution was analyzed comprehensively. This study aims to reveal the disaster-causing mechanism of the water-sediment inrush and provide a reference for the precursor research of water-sediment inrush.

2 Experimental Principle and Model Overview

2.1 Principles of Water-Sediment Two-Phase Flow

2.1.1 Euler–Lagrange Method

The material description (or Lagrangian description) and spatial description method (or Eulerian description) are the main methods describing the motion of a continuous medium. In this study, the volume fraction of the sediment phase was less than 10%; thus, water was treated as the continuous phase and sediment particles were treated as the discrete phase. Specifically, the water phase was described by the conservation equation and transport equation of the turbulence in the Euler coordinate system, and the sediment movement was simulated by the discrete phase model (DPM) in the Lagrange coordinate system [37, 38]. It should be noted that the temperature change of the flow field [38] was ignored and water was treated as an incompressible fluid in this study.

2.1.2 Continuous Phase Governing Equations

As mentioned previously, water is treated as the continuous phase, and its flow is governed by the law of conservation. The governing equations included the mass conservation equation and momentum conservation equation. The former can be expressed by Eq. 1.

ρt+X(ρv)=Sm.(1)

The latter can be expressed by Eq. 2.

(ρv)t+(ρvv)=Σ+ρg+SDPM,(2)

where Σ is the stress tensor, Σ=σijeiej; g is the acceleration of gravity; and SDPM is the momentum source term reflecting the interaction between the sediment particle and water.

2.1.3 Discrete Phase Governing Equations

Both the rotation and moving of sediment particles should be considered to study the water-sediment flow in fractures. Based on the momentum theorem and the moment of momentum theorem, the governing equations of the discrete phase particles can be expressed by Eqs 35 in the Lagrange coordinate system:

dXpidt=vpi,(3)
mpdvpidt=FDi+mpgi(ρpρ)ρp+Fi,(4)
Iijdωpjdt+εijkIklωjωl=Mi,(5)

where Ωi is the angular velocity component of the water relative to the particle; FDi is the drag force component; Rep is the Reynolds number of the particle; CD is the dragging force coefficient; and Mi is the torque applied to the particle and is proportional to the angular velocity of the particle.

2.2 Models of the Water-Sediment Two-Phase Flow in Fractures

In the numerical simulation of water-sediment flow in fractures, three basic assumptions are proposed as follows: (1) water is incompressible, and its density is a constant; (2) the sediment particle is assumed to be a rigid sphere of fixed radius, without obvious damage; and (3) the flow rate is uniformly distributed around the cross section of the fracture inlet, and the fluid velocity of the discrete phase sediment particle is the same as that of the continuous phase particle.

Figure 1 shows the computational domains of the smooth and rough fractures. In Figure 1A, the water-sediment flow in the area is defined by two parallel smooth fracture surfaces. The distance between the two surfaces is h, and the length of the fracture is L. The projection of the upper and lower surfaces on the OX1X2 section is a straight line. The boundary of the flow domain Ω comprises the inlet section OD1¯, the upper surface D1D2¯, the outlet surface D2D3¯, and the lower surface D3O¯. In Figure 1B, the water-sediment flow in the area is defined by two coincident surfaces. The projections of the upper and lower surfaces on the OX1X section are broken lines, dividing the fracture surface into 50 equal broken line segments FLiu and FLid, where i=1,...50. The boundary of the flow domain Ω consists of the inlet section OC1¯, upper surface i=150FLiu, outlet section C2C3¯, and lower surface i=150FLid.

FIGURE 1
www.frontiersin.org

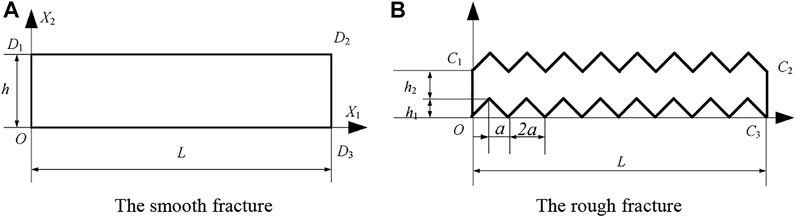

FIGURE 1. Flow domains of fractures. (A) Smooth fracture; (B) rough fracture.

ANSYS Fluent 17.0 numerical simulation software was used to establish models of the water-sediment two-phase flow in smooth and rough fractures. Since the boundary of the smooth fracture model was relatively regular, structured grids were used for division in the ANSYS ICEM CFD. The evenly distributed grid nodes were arranged at the inlet to make the sediment particles uniformly distributed along the X2 direction. In addition, the Stress-Omega RSM turbulence model was used in this study. It was required that y+ (the dimensionless distance to the wall) at the first layer of grid nodes near the wall was approximately 1; thus, fine grids were arranged. After calculation, y+ was checked. To ensure the accuracy and efficiency of the calculation results, after the grid independence test, the boundary layer grid size was set as 0.005 mm, and the global grid size was 0.08 mm. Figure 2 shows the final division result.

FIGURE 2
www.frontiersin.org

FIGURE 2. Grids of the smooth fracture.

Considering the severe bending of the wall boundary of the rough fracture model, hybrid grids were chosen for division in the meshing module on ANSYS Workbench, as shown in Figure 3. Multilayer structured grids were arranged in the boundary layer, and unstructured quadrilateral-dominant grids were used in other domains. After the division, y+ was checked and a grid-independent test was conducted. The total number of the grids was 145,000, as shown in Figure 3A. Figure 3B shows the grids in the boundary layer.

FIGURE 3
www.frontiersin.org

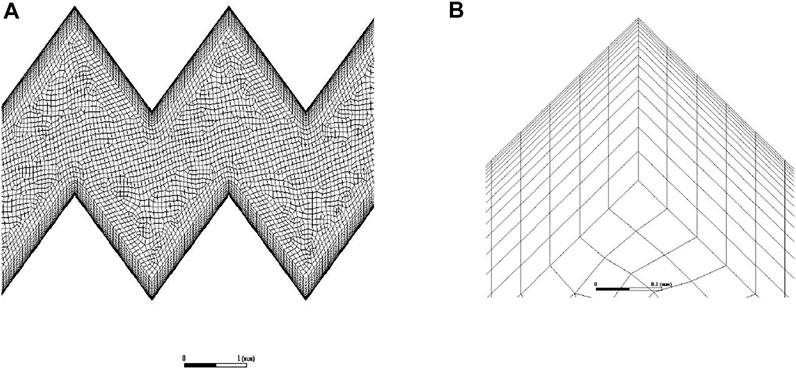

FIGURE 3. Grids of the rough fracture. (A) Grids of the rough fracture; (B) boundary grids of the rough fracture.

The parameters were adjusted according to the results of the laboratory test, and the material properties were determined, as shown in Table 1. Similarly, the interaction parameters between the sediment particle and the wall were determined. The friction coefficient, normal restitution coefficient, and tangential restitution coefficient were 0.45, 0.2, and 0.9, respectively. The interaction parameters among sediment particles were fixed. The static friction coefficient, sliding friction coefficient, and restitution coefficient were 0.3, 0.2, and 0.05, respectively.

TABLE 1
www.frontiersin.org

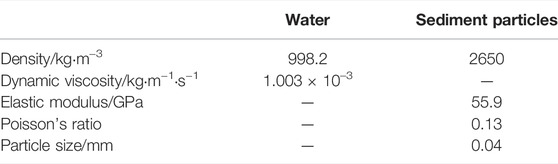

TABLE 1. Material properties.

2.3 Numerical Simulation Schemes and Methods

In this study, the sediment volume concentration, sediment particle size, and sediment mass density were taken as variables to investigate the evolution characteristics of the pressure gradient, mean velocity distribution, and turbulent kinetic energy distribution of the water-sediment two-phase flow under two fracture surface conditions. When a variable was used, the other two variables were fixed. Table 2 shows the specific values.

TABLE 2
www.frontiersin.org

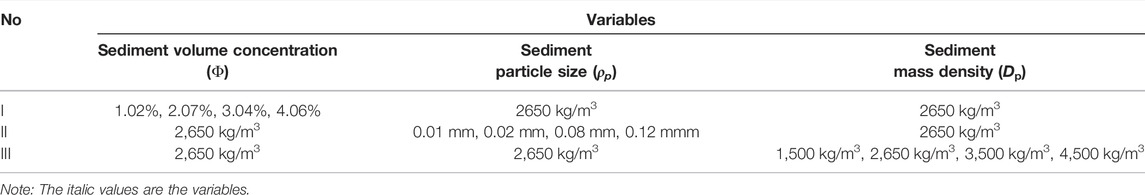

TABLE 2. Parameters in the numerical simulation.

In particular, the inlet segment (X1 = 5 mm), the middle segment (X1 = 50 mm) of the smooth fracture surface, the bending segment (X1 = 5 mm), and the parallel segment (X1 = 50.5 mm) of the rough fracture surface were selected as the typical segments to comprehensively study the change laws of mean velocity distributions. Similarly, the inlet velocity was fixed as 0.869 m/s, the observation time node t was 0.3 s, and the number of variables was reduced.

3 Analysis of the Numerical Simulation Results

3.1 Change Law of the Absolute Value of the Pressure Gradient

Pressure gradient is one of the main parameters describing the seepage, which can reflect the pressure change along the flow direction. Figure 4 shows the absolute value of pressure gradient–sediment volume concentration (GpФ) curves. In Figure 4A, when the water-sediment flowed in the smooth fracture, with a gradual increase of Ф, Gp decreased linearly from 6.51 kPa m−1 to 6.39 kPa m−1, decreasing by 1.72%. In Figure 4B, during the flow of water-sediment in the rough fracture, with a gradual increase of Ф, Gp first increased and then decreased. When Ф increased from 0 to 1.02%, Gp sharply decreased from 191.68 kPa m−1 to 181.57 kPa m−1, decreasing by 5.27%. When Ф increased from 1.02 to 4.06%, Gp gradually increased from 181.57 kPa m−1 to 185.08 kPa m−1, increasing by 1.93%. Through comparisons, it can be found that under the same conditions, the absolute value of the pressure gradient of the water-sediment flow in the rough fracture was about 40 times that in the smooth fracture. In addition, the change characteristics of the absolute value of the pressure gradient with the volume concentration of sediment particles were different under different fracture conditions. It indicates that the fracture surface morphology affects the influence of the volume concentration of sediment particles on the pressure gradient.

FIGURE 4
www.frontiersin.org

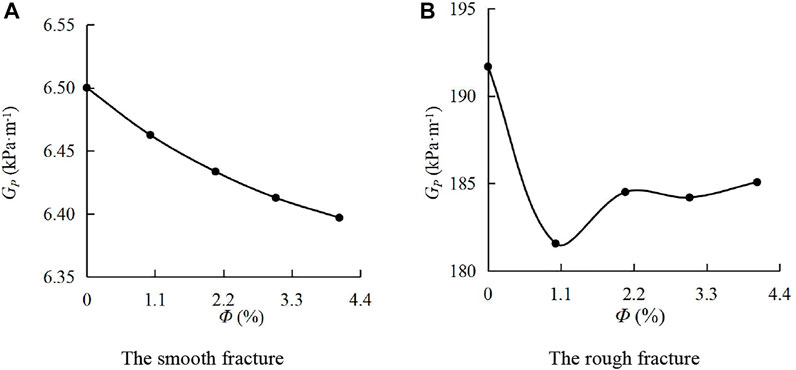

FIGURE 4. Absolute value of the pressure gradient–volume concentration of sediment particle curves. (A) Smooth fracture; (B) rough fracture.

Figure 5 shows the absolute value of the pressure gradient–sediment particle size (Gp-Dp) curves. In Figure 5A, during the water-sediment flow in the smooth fracture, Gp gradually decreased in a nonlinear form with the increase of Dp. As Dp increased from 0 to 0.12 mm, Gp quickly decreased from 6.51kPa m−1 to 6.34 kPa m−1, decreasing by 2.61%. In Figure 5B, during the water-sediment flow in the rough fracture, Gp first decreased, then increased, and decreased again. As Dp increased from 0 to 0.12 mm, Gp rapidly decreased from 191.68 kPa m−1 to 171.76 kPa m−1, decreasing by 10.39%. It can be found that during the water-sediment flow in the rough fracture, when the sediment particle size is small, the pressure loss increases with the increase of the particle size; when the sediment particle size is relatively large, the pressure loss decreases with the increase of the particle size. Through the comparisons, it can be found that the absolute value of the pressure gradient varies with the change of the sediment volume concentration under two types of fractures. It proves that the surface morphology of fractures affects the influence of sediment particle size on the pressure gradient.

FIGURE 5
www.frontiersin.org

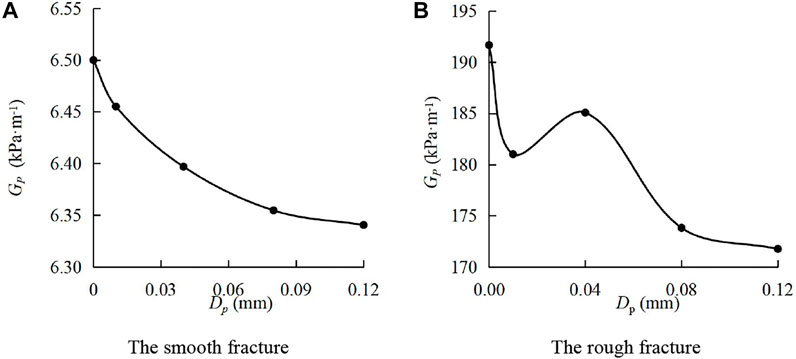

FIGURE 5. Absolute value of the pressure gradient–sediment particle size curves. (A) Smooth fracture; (B) rough fracture.

Figure 6 shows the absolute value of the pressure gradient–sediment particle mass density (GP-ρp) curves. In Figure 6A, when the water sediment flowed in the smooth fracture, with the increase of ρp, GP decreased in an approximately linear form. As ρp increased from 0 kg/m3 to 4,500 kg/m3, GP rapidly decreased from 6.51kPa m−1 to 6.33 kPa m−1, decreasing by 2.84%. In Figure 6B, during the water-sediment flow in the rough fracture, GP was smaller than that in the single-phase flow, and it first increased and then decreased with the increase of ρp. When ρp was 4,500 kg/m3, the minimum GP was obtained. Through the comparison, it is found that the absolute value of the pressure gradient during the water-sediment flow in the rough fracture is about 30 times that in the smooth fracture under the same conditions. In addition, the absolute value of the pressure gradient varies with the sediment particle mass density. It indicates that the surface morphology of the fracture affects the impact of sediment particle mass density on the pressure gradient.

FIGURE 6
www.frontiersin.org

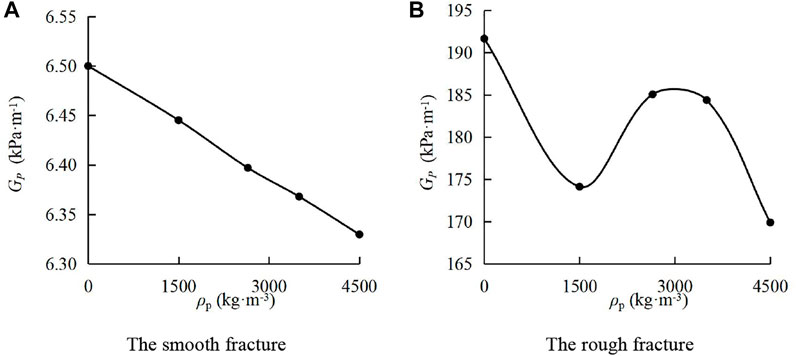

FIGURE 6. Absolute value of the pressure gradient–sediment particle mass density curves. (A) Smooth fracture; (B) rough fracture.

In summary, under the conditions of two types of surface fractures, the absolute value of the pressure gradient with different sediment particle volume concentrations, sediment particle sizes, and sediment particle mass density in the two-phase flow was smaller than that in the single-phase flow. Under the smooth fracture surface, the absolute value of the pressure gradient changed linearly with the change of sediment particle volume concentrations, sediment particle sizes, and sediment particle mass density, while this value has different changing trends under the rough fracture.

3.2 Variation Law of the Mean Fluid Velocity Distribution

The mean velocity distribution is one of the important technical indicators for the study of seepage problems. Figure 7 and Figure 8 show the mean velocity distributions of the continuous-phase fluid on typical cross sections of smooth and rough fractures under various sediment volume concentrations. In Figure 7A, at a cross section of X1 = 5 mm, the water-sediment fluid was not fully developed on the smooth fracture surface. In Figure 7B, the flow became fully developed. Through the comparison, it can be found that the mean velocity distributions on the two sections rarely change with the sediment volume concentration Ф, and they were symmetrically distributed along the center line of X2 = 0.9 mm.

FIGURE 7
www.frontiersin.org

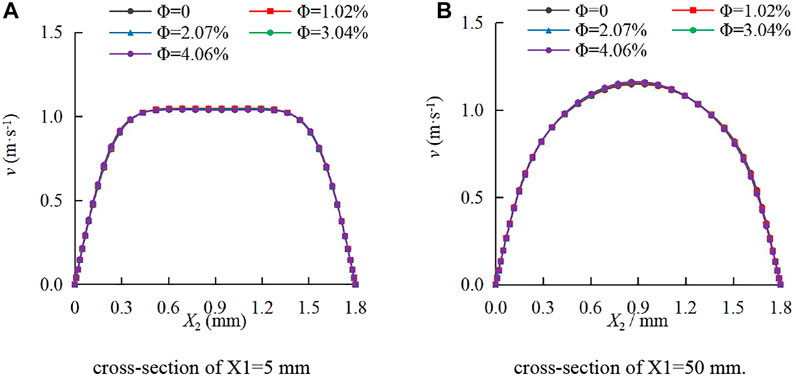

FIGURE 7. Mean velocity distributions of the continuous-phase fluid on smooth fracture sections under different sediment volume concentrations. (A) Cross section of X1=5 mm; (B) cross section of X1=50 mm.

FIGURE 8
www.frontiersin.org

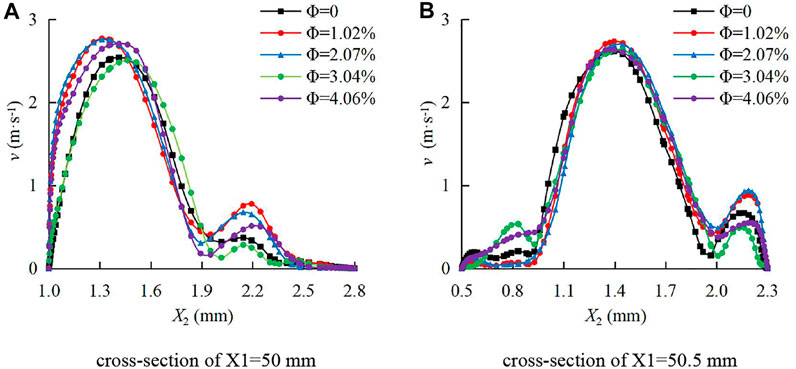

FIGURE 8. Mean velocity distribution of the continuous-phase fluid on cross sections of the rough fracture with different sediment volume concentrations. (A) Cross section of X1=50 mm; (B) cross section of X1=50.5 mm.

In Figure 8, when the water sediment flowed in the rough fractures, the mean velocity distributions of the continuous-phase fluid presented remarkable differences. In Figure 8A, v showed the asymmetric M-shaped distribution at the cross-section of X1 = 50 mm, with two extreme points, and the peak values were within 1.2 mm ≤ X2 ≤ 1.5 mm. In Figure 8B, there were multiple extreme points at the cross section of X1 = 50.5 mm, and the peak values were near the center line X2 = 1.4 mm. Compared with other positions, v has the greatest change with Ф near the wall.

As shown in Figure 7 and Figure 8, v of the continuous-phase fluid was dramatically different under two types of fracture conditions. The maximum v in the rough fracture was about three times that in the smooth fracture. In addition, the distribution curves are different. During the continuous-phase fluid flow in the smooth fracture, v-X2 curves are rectangular or semi-sine shaped, while they are M-shaped during the continuous-phase fluid flow in the rough fracture.

Figure 9 and Figure 10 show the mean velocity distribution of the continuous-phase fluid on the typical cross sections of the smooth and rough fractures under different sediment particle sizes. In Figure 9A, when the water sediment flowed in the smooth fracture, the fluid was not fully developed at the cross section of X1 = 5 mm. In Figure 9B, the fluid became fully developed at the cross section of X1 = 50 mm. It can be observed that v rarely changed with Dp under two types of cross sections and the distribution of v was symmetrical along the center line of X2 = 0.9 mm.

FIGURE 9
www.frontiersin.org

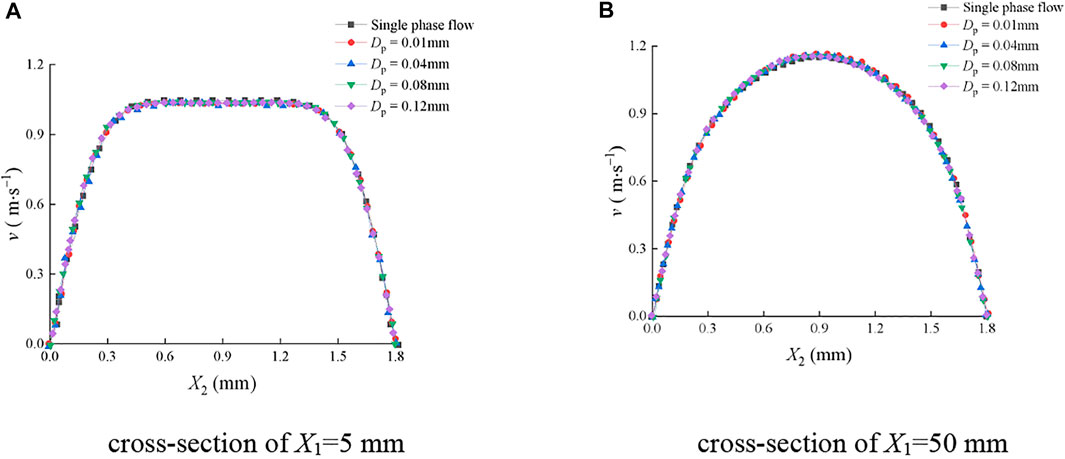

FIGURE 9. Mean velocity distribution of the continuous-phase fluid on cross sections of the smooth fracture with different sediment particle sizes. (A) Cross section of X1=5 mm; (B) cross section of X1=50 mm.

FIGURE 10
www.frontiersin.org

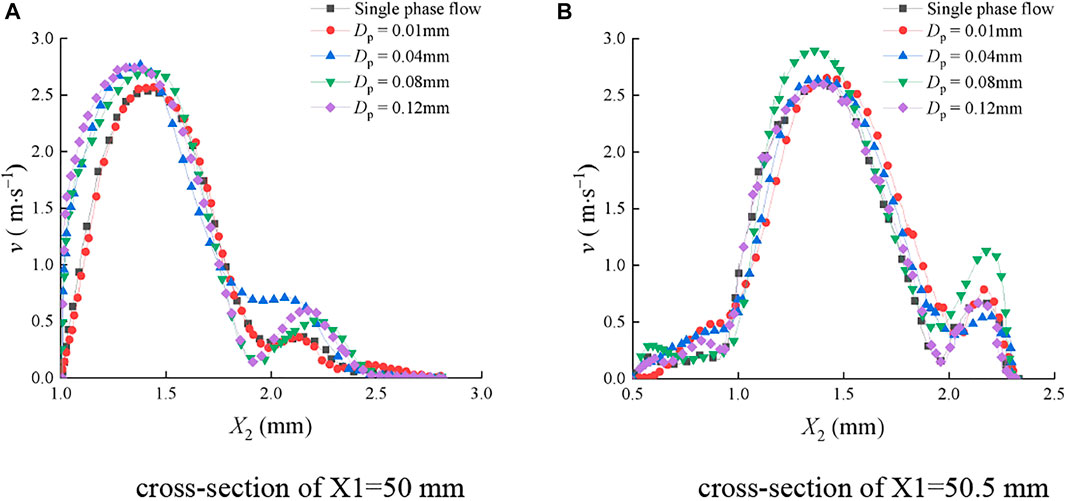

FIGURE 10. Mean velocity distribution of the continuous-phase fluid on cross sections of the rough fracture with different sediment particle sizes. (A) Cross section of X1=50 mm; (B) cross section of X1=50.5 mm.

Figure 10 shows that when the water sediment flowed in the rough fracture, v of the continuous-phase fluid was greatly influenced by Dp. Different v-X2 curves varied significantly. In Figure 10A, on the cross section of X1 = 50 mm, v first increased and then decreased with the increase of X2, and the maximum value was between 1.2 and 1.5 mm. In Figure 10B, at the cross section of X1=50.5mm, v also first increased and then decreased with the increase of X2. In addition, there was an upward fluctuation at X2 = 2.1 mm, and the peak value was within 1.2 mm ≤ X2 ≤ 1.5 mm.

Figure 11 and Figure 12 show the mean velocity distribution of the continuous-phase fluid on the typical cross sections of the smooth and rough fractures under different sediment particle mass densities, respectively. In Figure 11, at the cross sections of X1 = 5 mm and X1 = 50 mm, v rarely changed with the sediment particle size, and v was symmetrically distributed along the center line of X2 = 0.9 mm.

FIGURE 11
www.frontiersin.org

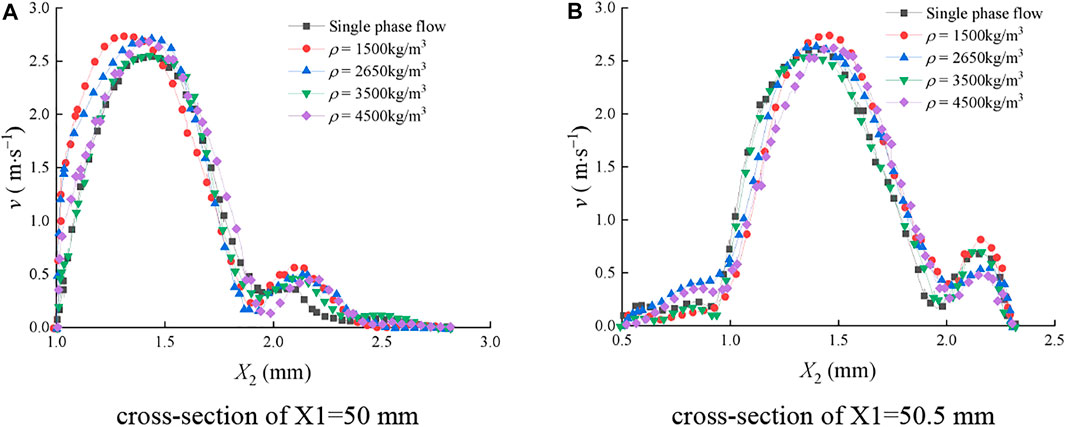

FIGURE 11. Mean velocity distribution of the continuous-phase fluid on the cross sections of the smooth fracture under different sediment particle mass densities. (A) Cross section of X1=5 mm; (B) cross section of X1=50 mm.

FIGURE 12
www.frontiersin.org

FIGURE 12. Mean velocity distribution of the continuous-phase fluid on cross sections of the rough fracture under different sediment particle mass density. (A) Cross section of X1=50 mm; (B) cross section of X1=50.5 mm.

In Figure 12, v was greatly affected by the sediment particle size during the flow in the rough fracture, and multiple extreme points can be observed. On the section of X2 = 50 mm, v of the fluid particle at each position was significantly affected by the sediment volume concentration, and the maximum v was in the range of 1.2 mm ≤ X2 ≤ 1.5 mm. On the section of X2 = 50.5 mm, the peak value was near the center line of X2 = 1.4 mm.

In summary, in the smooth fracture, the changes of the sediment particle volume concentration, sediment particle mass density, and sediment particle size rarely affect the mean velocity distribution of the continuous-phase fluid, while these influencing factors significantly affect the mean velocity distribution of the continuous-phase fluid in the rough fracture.

3.3 Variation Law of the Turbulent Kinetic Energy

The turbulent kinetic energy is an indicator to measure the development and decline of turbulence. Figure 13 and Figure 14 show the distribution of turbulent kinetic energy of the continuous-phase fluid on typical cross sections of smooth and rough fractures at various sediment particle volume concentrations. As shown in Figure 13A, on the section of X1 = 5 mm in the smooth fracture, kt first increased and then decreased with X2, and kt reached the maximum at X2 = 0.9 mm. The distribution curves of kt are symmetrical along with X2 = 0.9 mm under various Ф. In particular, within X2 = 0.15–0.45 mm and X2 = 1.35–1.65 mm, there was a significant negative correlation between Ф and kt. It indicates that the movement of sediment particles can inhibit the turbulent kinetic energy of the continuous-phase fluid. However, on the section of X1 = 50 mm, the ktX2 curves are M-shaped, as shown in Figure 13B. Differing from the situation on the section of X1 = 5 mm, kt reached a minimum value at X2 = 0.9 mm. At this point, Ф affected kt in the entire X2 interval, namely, the greater the Ф, the smaller the kt. It can be observed that the distribution of ktX2 curves was approximately symmetrical along X2 = 0.9 mm.

FIGURE 13
www.frontiersin.org

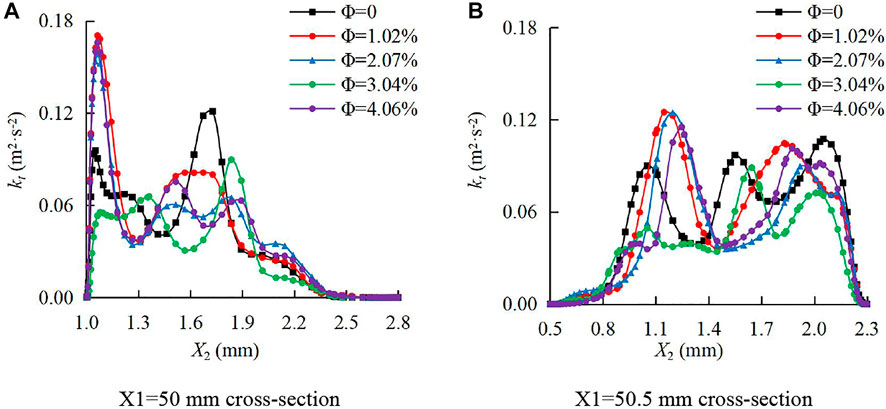

FIGURE 13. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the smooth fracture. (A) X1=5 mm cross section; (B) X1=50 mm cross section.

FIGURE 14
www.frontiersin.org

FIGURE 14. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the rough fracture. (A) X1=50 mm cross section; (B) X1=50.5 mm cross section.

As presented in Figure 14, the distribution of kt on the cross section of the rough fracture can be greatly affected by the sediment particle volume concentration Ф, which was manifested as the deviation of the extreme point position. In Figure 14A, on the section of X1 = 50 mm, kt fluctuated in the interval of 0 mm ≤ X2 ≤ 2 mm and gradually decreased within 2 mm ≤ X2 ≤ 2.8 mm. In Figure 14B, on the section of X1 = 50.5 mm, kt gradually increased in the interval of 0.5 mm ≤ X2 ≤ 0.8 mm and fluctuated in the interval of 0.8 mm ≤ X2 ≤ 2.3 mm. It can be observed that the maximum kt was in the interval of 1.0 mm ≤ X2 ≤ 1.3 m on both sections. In addition, the fluctuations of kt can be found on both sections, indicating that the turbulence intensity was higher in the rough fracture.

As shown in Figure 13 and Figure 14, the turbulent kinetic energy of the fluid in the rough fracture was an order of magnitude higher than that in the smooth fracture under the same conditions. The distribution of fluid turbulent kinetic energy in the X1 direction was numerically different, and the distribution curves were completely different during the water-sediment flow in the smooth and rough fractures. The impacts of the sediment volume concentration in the smooth fracture on the continuous-phase fluid turbulent kinetic energy had significant laws, while no obvious laws were observed in the rough fracture.

Figure 15 and Figure 17 show the distribution of turbulent kinetic energy of the continuous-phase fluid on typical cross sections of smooth and rough fractures under various sediment particle sizes. In Figure 15A, on the section of X1 = 5 mm of the smooth fracture, kt first increased and then decreased with X2, and the maximum kt was obtained at X2 = 0.9 mm. The sediment particles significantly reduced kt in the intervals of 0.15 mm ≤ X2 ≤ 0.45 and 1.35 mm ≤ X2 ≤ 1.65 mm, but the influence laws were different. In the interval of 0.15 mm ≤ X2 ≤ 0.45, the distribution curves of kt were basically consistent, and Dp had no obvious influence on kt, while in the interval of 1.35 mm ≤ X2 ≤ 1.65 mm, kt gradually decreased with the decrease of Dp. When Dp was 0.01 mm, the distribution curve of kt was symmetrically distributed along X2 = 0.9 mm. When the values of Dp were 0.04, 0.08, and 0.12 mm, the distribution curves of kt were asymmetrical along X2 = 0.9 mm. On the section of X1 = 5 mm, kt was slightly affected by Dp in intervals other than X2 = 0.15–0.45 mm and X2 = 1.35–1.65 mm, and the curves were relatively consistent.

FIGURE 15
www.frontiersin.org

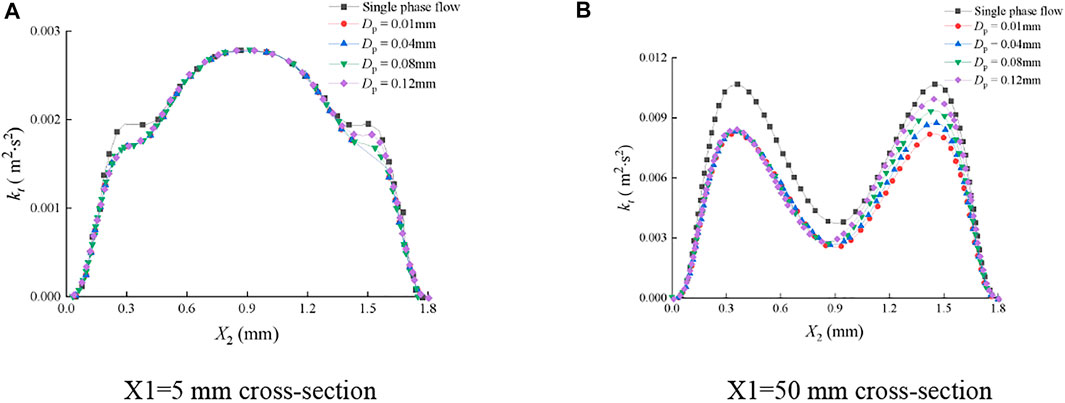

FIGURE 15. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the smooth fracture. (A) X1=5 mm cross section; (B) X1=50 mm cross section.

In Figure 15B, on the section of X1 = 50 mm, kt changed with X2 in an M shape and reached the minimum at X2 = 0.9 mm. At this point, Dp had effects on kt in the entire X2 interval, and kt gradually decreased with the decrease of Dp. The influence laws of Dp on kt were different in the intervals of X2 ≤ 0.9 mm and X2 ≥ 0.9 mm. In the interval of X2 ≤ 0.9 mm, the distribution curves of kt were nearly consistent with various Dp, indicating that Dp had no obvious effect on kt. However, in the interval of X2 ≥ 0.9 mm, kt gradually reduced with the decrease of Dp. When Dp was 0.01 mm, the distribution curve of kt was symmetrical along with X2 = 0.9 mm, and the curves are asymmetrical with a Dp of 0.04, 0.08, and 0.12 mm.

To illustrate the cause of the asymmetry in Figure 15, the distributions of sediment particles in fractures were given, as shown in Figure 16. The size of the sediment particle was doubled, and the concentration was diluted by one-tenth in order to clearly show the distribution of particles in the fracture. It can be observed that the sediment particles of 0.01 mm had no contact with the upper and lower walls of the fracture and were distributed symmetrically along X2 = 0.9 mm. The sediment particles of 0.04, 0.08, and 0.12 mm were gradually shifted downward under the action of gravity, and some of them settled on the bottom wall. This is because the sediment particles with smaller sizes have better flowability and are not easy to settle under the action of gravity, while the sediment particles with larger sizes have larger Stokes numbers and are easily affected by gravity. According to the aforementioned analysis, the sediment particles of 0.01 mm were symmetrically distributed along with X2 = 0.9 mm, and the turbulent kinetic energy of the fluid subjected to them was also symmetrically distributed along X2 = 0.9 mm. The sediment particles of 0.04, 0.08, and 0.12 mm were asymmetrical along with X2 = 0.9 mm and so was the turbulent kinetic energy.

FIGURE 16
www.frontiersin.org

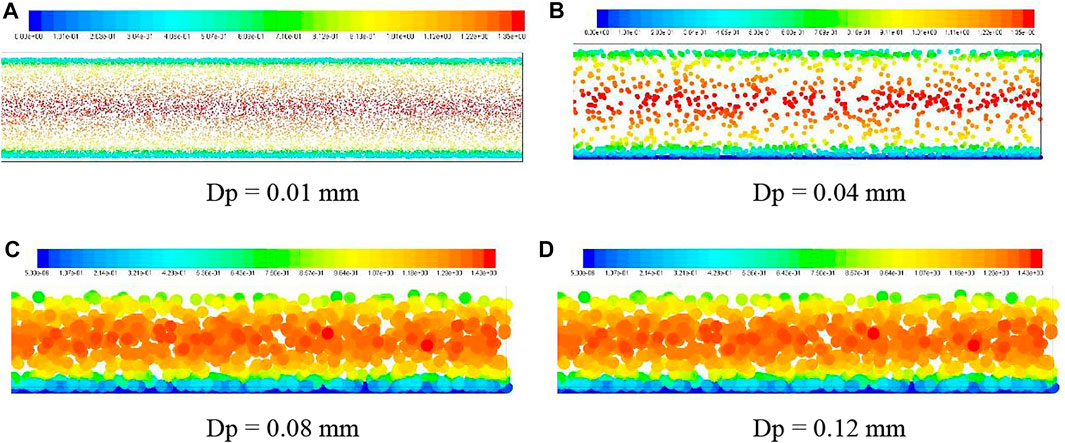

FIGURE 16. Distributions of sediment particles at the outlet of the fracture. (A) Dp = 0.01 mm, (B) Dp = 0.04 mm, (C) Dp = 0.08 mm, (D) Dp = 0.12 mm.

In Figure 17, the turbulent kinetic energy distribution of the continuous-phase fluid on the cross section of the fracture was greatly affected by sediment particle size, which was manifested as the deviation of the extreme points. On the section of X1 = 50 mm, kt was relatively large in the interval of X2 ≤ 2 mm, while it was smaller in the interval of X2 ≥ 2 mm. On the section of X1 = 50.5 mm, kt was relatively small when X2 ≤ 0.8 mm, and it was larger when X2 ≥ 0.8. The distribution of the fluid turbulent kinetic energy was disordered on the aforementioned two cross sections, indicating that the fluid pulsation was severe in the rough fracture and the turbulence intensity was high. Through the comparison of Figure 15 and Figure 17, it is found that the impacts of the sediment particle size on the fluid turbulent kinetic energy are completely different in smooth and rough fractures, and the difference is nearly an order of magnitude.

FIGURE 17
www.frontiersin.org

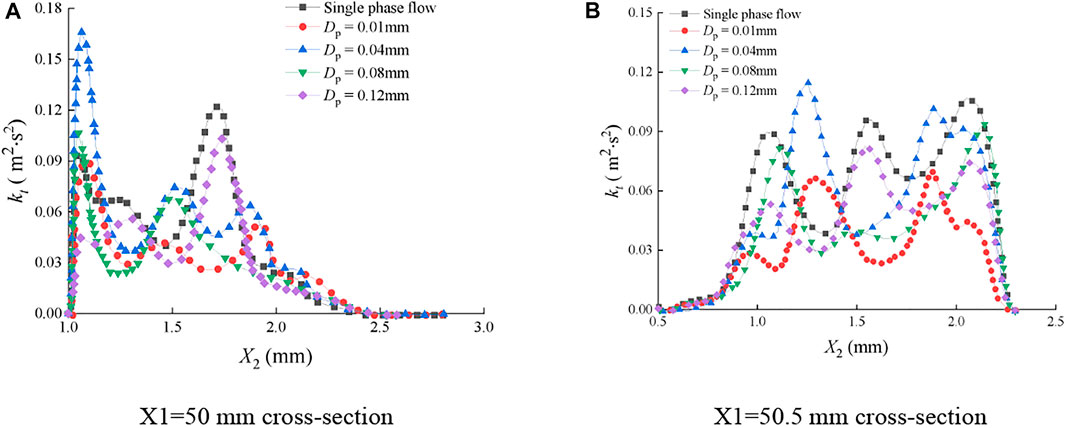

FIGURE 17. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the rough fracture. (A) X1=50 mm cross section; (B) X1=50.5 mm cross section.

Figure 18 and Figure 19 show the distribution of turbulent kinetic energy of the continuous-phase fluid on typical cross sections of the smooth fracture and rough fracture under various sediment mass densities.

FIGURE 18
www.frontiersin.org

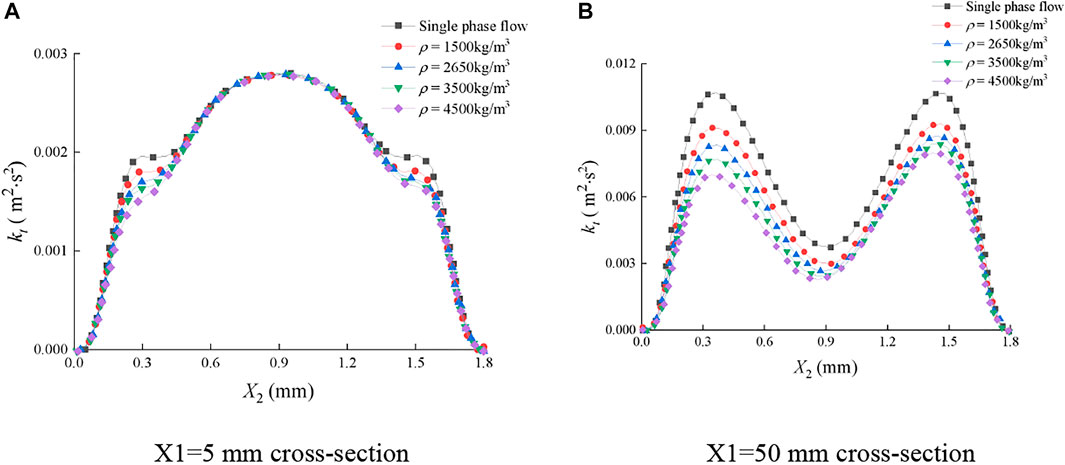

FIGURE 18. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the smooth fracture. (A) X1=5 mm cross section, (B) X1=50 mm cross section.

FIGURE 19
www.frontiersin.org

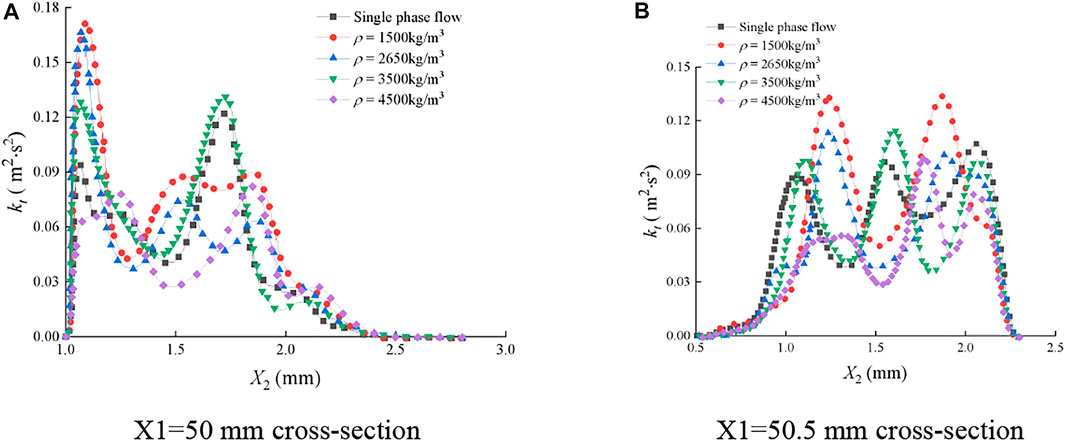

FIGURE 19. Distribution of turbulent kinetic energy of the continuous-phase fluid on cross sections of the rough fracture. (A) X1=50 mm cross section; (B) X1=50.5 mm cross section.

In Figure 18A, on the section of X1 = 5 mm of the smooth fracture, kt first increased and then decreased and reached the maximum when X2 = 0.9 mm. Obviously, the effects of the sediment volume concentration on kt were very significant in the intervals of 0.15 mm ≤ X2 ≤ 0.45 and 1.35 mm ≤ X2 ≤ 1.65 mm, where kt decreased with the increase of ρp. It was indicated that the movement of sediment particles can inhibit the turbulent kinetic energy with the increase of ρp. During the single-phase flow, when ρp was 1,500 kg/m3, kt was distributed symmetrically along X2 = 0.9 mm. When the values of ρp were 2650 kg/m3, 3500 kg/m3, and 4,500 kg/m3, kt in the interval of 0.15 mm ≤ X2 ≤ 0.45 mm was smaller than that in the interval of 1.35 mm ≤ X2 ≤ 1.65 mm, indicating that the sediment particle in the interval of 0.15 mm ≤ X2 ≤ 0.45 mm had a greater impact on the turbulent kinetic energy. This is because the sediment particles are more affected by gravity as the mass density increases, and they are easily deposited on the lower wall. In the intervals except for 0.15 mm ≤ X2 ≤ 0.45 and 1.35 mm ≤ X2 ≤ 1.65 mm, the distribution curves of kt were basically consistent and were symmetrical along X2 = 0.9 mm. It indicated that kt was slightly affected by the sediment particle mass density in these intervals. In Figure 18B, on the section of X1 = 50 mm, kt- X2 curves were M-shaped, and ρp affected kt in the whole X2 interval. The larger the ρp, the smaller the kt. In the single-phase flow, when ρp was 1,500 kg/m3, kt was symmetrically distributed along X2 = 0.9 mm. When the values of ρp were 2650 kg/m3, 3500 kg/m3, and 4,500 kg/m3, kt under X2 ≤ 0.9 mm was smaller than that under X2 ≥ 0.9 mm. It indicates that the sediment particles with the aforementioned mass densities have a greater influence on the turbulent kinetic energy in the interval of X2 ≤ 0.9 mm. This is because the sediment particles are more affected by gravity and easily deposited on the lower wall, as the mass density of sediment particles increases.

In Figure 19, the distribution of kt was greatly affected by ρp during the water-sediment flow in the rough fracture. The extreme points were shifted. On the section of X1 = 50 mm, kt was larger in the interval of X2 ≤ 2 mm than that in the interval of X2 ≥ 2 mm. On the section of X1 = 50.5 mm, kt was smaller when X2 ≤ 0.8 mm. It can be observed that the distribution of kt was disordered on both the cross sections, suggesting that the fluid pulsation was violent in the rough fracture and the turbulence intensity was high.

In summary, under the conditions of the same sediment mass density, same sediment size, same sediment volume concentration, and same inlet velocity, the influence of sediment mass density on fluid turbulent kinetic energy exhibits completely different laws in smooth and rough fractures, with the difference of nearly an order of magnitude.

4 Conclusion

In this study, ANSYS Fluent software was used to perform numerical simulations on the water-sediment two-phase flow in smooth and rough fractures. Then, the influences of the sediment volume concentration, sediment particle size, and sediment mass density on pressure gradient, mean velocity distribution, and turbulent kinetic energy distribution were analyzed. The following conclusions were obtained:

(1) During the water-sediment flow in the smooth fracture, the absolute values of pressure gradient Gp, the sediment volume concentration Ф, the sediment particle size Dp, and the sediment mass density ρp are approximately linear, and the linearity of Gp and Dp is the lowest. In other words, Gp decreases with the increase of Ф, Dp, and ρp. During the water-sediment flow in the rough fracture, the pressure loss of sediment particles is reduced. When Ф is 1.02%, Gp is the smallest. When Ф ≥ 2.07%, Gp changes slightly. When Dp is small, the pressure loss increases with the increase of Dp. When Dp is relatively large, the pressure loss decreases with the increase of Dp, and Gp first increased and then decreased with the increase of ρp.

(2) During the water-sediment flow in the smooth fracture, the mean velocity v of the continuous-phase fluid rarely changes with Ф, Dp, and ρp. However, during the water-sediment flow in the rough fracture, v is greatly affected by Ф, Dp, and ρp, which can be observed through the changes of curve shapes and deviations of extreme points.

(3) During the water-sediment flow in the smooth fracture, the fluid turbulent kinetic energy kt decreases with the increase of ρp and Ф and decreases with the decrease of ρp. During the water-sediment flow in the rough fracture, kt is significantly affected by Ф, Dp, and ρp, which was manifested in the changes of curve shapes and the deviation of the extreme points. This is obtained based on the distribution of sediment particle sizes and Stokes number.
