Solar Irradiance Variability Monitor for the Galileo Solar Space Telescope Mission: Concept and Challenges

Long and reliable total solar irradiance (TSI) time series is one of the essential parameters for understanding solar contributions to climate change. The minor fluctuations of TSI in long timescales could impact the energy balance. Despite the improvement of accurate measurements provided by the instruments, at the time, long-term TSI variability and its effects had not been established. The space-borne radiometer era provided observations in short timescales from minutes to years. Therefore, this study presents an overview of irradiance observations, highlighting the importance of following its variability in different time scales. In this context, the Galileo Solar Space Telescope that has been developed by the Institute for Space Research (INPE), Brazil, includes the Irradiance Monitor Module with a radiometer cavity like the classical design and a next-generation compact radiometer.

1 Introduction

The Galileo Solar Space Telescope (GSST) is the first Brazilian solar mission that aims to perform high-resolution solar observations to study the evolution of the magnetic structure and its impact on the Geospace. The GSST mission has been studied in a concurrent engineering environment to analyze the mission architecture alternatives to reach its scientific goals. This pre-phase A feasibility analysis was conducted in 2017, providing a complete technical solution for the GSST program comprising LEO (low-earth orbit) and GEO (geostationary orbit).

The GSST has three main objectives:

1) Understand the evolution of the magnetic structures of the outer layer of the Sun

2) Understand the Sun’s influence on Earth’s Climate

3) Understand the Sun’s influence on the Geospace.

The proposed payload package consists of high-resolution and full disk (wide field of view) telescopes with spectropolarimeters in visible and ultraviolet wavelengths, an absolute radiometer, a particle detector, and a magnetometer. The GSST instruments road map includes the development of ground prototypes, tests, and investigation of innovative solutions following a space phase with formal space system development.

Despite improved accurate measurements provided by the radiometers over the last 2 decades, long-term TSI variability and its effects have not been established completely. TSI variability attributed to surface magnetic changes is the most well-established mechanism. Therefore, an absolute radiometer is essential to complement the information to the GSST spectropolarimeters and better understand the physical phenomenon behind the solar activity and irradiance variability.

One of the critical aspects of irradiance variability is its influence on Earth’s atmosphere. Thus, the solar radiation arriving at the Earth’s atmosphere is the primary energy source. This energy is called total solar irradiance (TSI) when all integrated emissions over the entire electromagnetic spectrum are measured per unit area at an astronomical unit [1, 2]. The continuous monitoring and knowledge of the absolute TSI measurements are crucial for the Earth’s climate models. The space observations have expanded our view and understanding of the solar variability impact, specifically on the Earth’s atmosphere and climate, and the magnitude of the natural forcing. The continuity of monitoring seeks to improve TSI reconstructions and forecasts.

Understanding the order of magnitude among many phenomena that affect TSI requires strict requirements on radiometers’ accuracy, cadence, and stability. TSI monitoring has not been a simple task, and it represents a variety of observational challenges. This study reviews total solar irradiance through instrumentation, physical mechanisms behind this variability and future perspectives. In Section 2, we described the total solar irradiance observations. In Section 3, solar influence on TSI variability is described. We show the inhomogeneity of the TSI modeled values from different heliographic latitudes. In Section 4, we described the electrical substitution radiometers and the status of current developments. Finally, the scope of the first spacecraft concept for the GSST mission also included the challenges and contributions for the TSI measurements in Section 5.

2 Total Solar Irradiance Observations

The first known ground measurement of solar radiation based on water calorimetry was carried out during the 1830s by Pouillet [3]. Angstrom was the first to use electrically calibrated detectors, and this principle is the base for modern radiometers [4]. However, only a continuous era of satellites would overcome the TSI limitations of ground monitoring and insufficient instrument precision. TSI has been observed from the radiometers onboard satellites since 1978. The individual early instrument’s accuracy of about 0.2% was not enough to detect such changes in the 11-years solar cycle [5]. The accuracy improvement in the modern radiometers is mainly due to the precision aperture location, new materials development, data acquisition, and feedforward control system [6]. As seen in Table 1, longer-period observations depend on several near-Earth observation missions with different design instruments, satellite attitudes, and instrument degradation.

TABLE 1

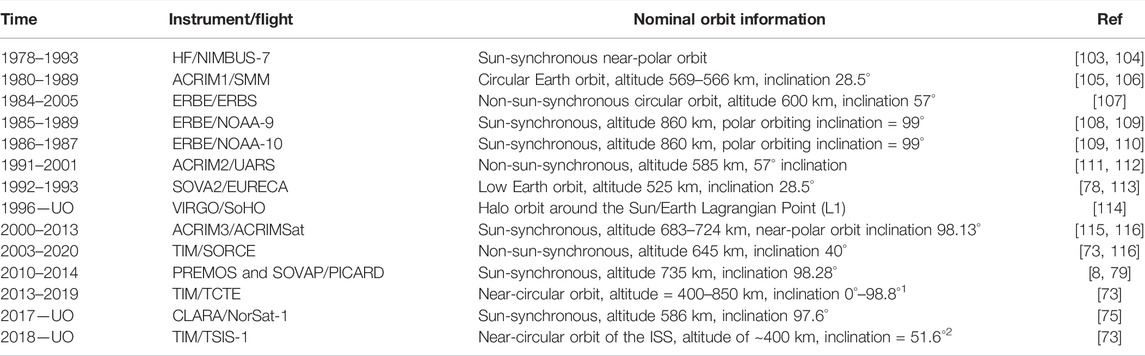

TABLE 1. Summary of the missions to monitor TSI since 1978. Some flights are under operation (UO).

The TSI observed values were inconsistent over the years due to earlier TSI measurement accuracy and absolute calibration of the radiometers. Since TIM/SORCE, launched in 2003, it has been understood that observation radiometers might have an issue with the absolute scale. The value of TSI by TIM showed 1361 ± 1 W/m² in the minimum solar period, representing values ∼4 W/m² lower than other instruments at the time (ACRIM3 and VIRGO). TSI Radiometer Facility (TRF), designed to ground compare TSI radiometers using a cryogenic radiometer, contributed to accuracy improvements [7]. PICARD/PREMOS (2010) [8], TCTE/TIM (2013), and TSIS-1/TIM (2017)³ instruments were ground calibrated or validated on TRF. In addition, the end-to-end instrument calibrations reduced record series discrepancies essential to establishing the accepted TSI value. TIM/SORCE and VIRGO/SOHO operated for longer; however, the individual observations of most instruments do not exceed more than a decade. Thus, overlapping the different design instruments is a crucial international effort to understand the potential uncertainty sources. Also, the flight correction introduces an additional uncertainty in the absolute values making a long-time TSI reconstruction extremely hard.

From space, the measurements showed variations of about 1.6 W/m² (0.12%) in phase with sunspot number [9]. However, so far, the life cycle of a single instrument cannot provide a complete understanding of the effects of the TSI variation on the Earth’s climate and solar physics study. Therefore, these investigations rely on the composites by TSI value from multiple instruments. Furthermore, the difference in the absolute values of TSI between instruments decreased from the first instrument in 1978. Despite the advances in the most recent radiometers, constructing a composite is extremely hard, mainly due to the in-flight corrections and individual degradations. In 2005, estimating the sources of uncertainty in a joint effort, including in-orbit degradation of different instruments, the values indicated varied from 0 (ERBE) to 2930 (PMO6V) ppm year⁻¹. The declared degradation of the ACRIM3 primary sensor has been 900 ppm during the 13 1/2 years [10]. The TIM shows primary sensor degradation of 200 ppm in 10 years [11]. The stability differences of each instrument in the orbit play a critical role in maintaining SI traceability in a spatial environment. Tracking the effects of uncertainties due to in-flight degradation provides data stability by representing the changes in instrument lifetime. In an analysis, Kopp 2014 [11] estimated the stability of 61, 34, 27, and 10 ppm year⁻¹ for ACRIM3, PREMOS, VIRGO, and TIM, respectively.

At present, the four composites combine data from different instruments: ACRIM [12], IRMB [13], PMOD [14], and a recent composite by Dudok de Wit et al. [15]. The ACRIM and PMOD composites are well-known compilations, and both have different approaches for merging data. Zacharias (2014), in an independent review, highlighted the data gap between the operation of ACRIM-I/SMM and ACRIM-II/UARS as a critical issue when there was no instrument for TSI monitoring but only less accurate TSI values for Earth radiation budget (ERB) [16]. The possible ACRIM gap (from Jul. /89 to Oct. /91), Nimbus7/ERB, and ERBS/ERBE inaccuracies make it more difficult, being one of the leading causes of differences between PMOD and ACRIM composites [16]. The recent composite by Dudok de Wit et al. [15] computed data using a new approach using a multiscale maximum likelihood estimator to create a composite that closely agrees with the PMOD composite. Our goal here is not to highlight concepts about composites and various methods but to point out that there is no one definitive consensus on a single TSI series, and it can impact the TSI long-term reconstructions.

3 Solar Influence on TSI Variability

3.1 Influence of Convective Features

The convection feature associated with heat transport occurs in different sizes and lifetimes. Granulation is considered a convective phenomenon. The scale motion of granulations is ≈1 Mm with typical lifetimes from 5 to 10 min, and supergranulation scales is ≈30 Mm (which map to the chromospheric network) with an average lifetime of 25 h [17–19]. Quiet Sun fields are connected to the supergranulation patterns [20]. In the Quiet Sun, the network is a reticular pattern outline of supergranular cells, with a strong field of ∼1 kG, while the cell interior, with a weaker field of ∼1 hG, is called internetwork [20, 21]. The network patterns dominantly occupy the quiet Sun forming a magnetic network that drives mass and energy into the corona and heliosphere [22]. Even during the maximum solar cycle, most of the solar surface fits as quiet Sun, and its influence on TSI variability on decadal to millennial timescales is still a subject of debate [23, 24].

McIntosh et al. (2011) [22] found an essential connection between the supergranular scale parameter variation and irradiance. They associated the reduction over the expected TSI on previous solar minima to chromospheric network and possible weaker quiet Sun field. Different scenarios are observed in the TSI reconstruction, especially during the Maunder minimum from 1645 to 1715; when the near disappearance of sunspots and heliospheric activity was still present [25–27]. The different model assumption diverges on TSI from about ∼1 W m⁻² to ∼6 W m⁻² from Maunder to current [24, 28–30]. The significantly higher reconstructions values were obtained by Egorova et al. (2018) [24] and Shapiro et al. (2011) [28], which considered a different approach for the quiet Sun. According to some estimates, the TSI increase since the Maunder minimum is below 1 Wm^2 [29, 30]. According to Foukal & Lean 1990 [31], the TSI secular variation approaching 0.5–1.0% over the past century, given the low precision instrumentation and insufficient understanding of solar radiative dynamics [32]. The results are not a consensus and try to solve its uncertainty to describe the solar minimum-to-minimum trend accurately; it is essential for understanding the relationship between solar activity and Earth’s climate [32–34]. The different observed scenarios attributed to the quiet Sun are associated with the data used or not in the models [35]. The quiet Sun observations require instruments sensitive enough for magnetic field characterization from weak polarization signals [36]. New high-resolution instruments have been impacted in physical models and theoretical quiet Sun understanding. The observations of Hinode’s spectropolarimeter revealed horizontal magnetic flux estimated by the Zeeman effect [37]. Studying the magnetic structure differences in quiet Sun in Polar regions and low latitudes is more challenging using data from the ecliptic plane [38].

3.2 Influence of Solar Features

The magnetic features on the solar surface and their dynamics are accepted to describe the TSI variability.

Figure 1 shows an overview of the surface features and TSI composite by Dudok de Wit et al. [15]. It allows observing different photospheric features such as quiet Sun regions (5–50 G), faculae regions (50–150 G), and active regions (500–4000 G) [39], pointing out the TSI during the period of maximum and minimum solar activity. Depending on the time scale, the TSI variability is attributed to oscillations, granulation, sunspot evolution, facular variability, the longitudinal asymmetry of the magnetic activity, and the active network [40]. The lifetime of a single instrument hardly reaches more than one complete solar cycle. It is not clear the mechanisms that affect TSI variability, especially for long periods (centuries or longer). Kopp (2014) [11] addresses the requirements to detect long-term variations such as entering or exiting the Maunder Minimum. The requirement instruments include the stability of continual measurements < 0.001%/year or sufficient absolute accuracy < 0.01% over a long period. The Solar irradiance variability models from days to years, i.e., solar cycles, are studied extensively during the last solar cycles. However, the variations in short timescales (of minutes or less) require additional studies.

FIGURE 1

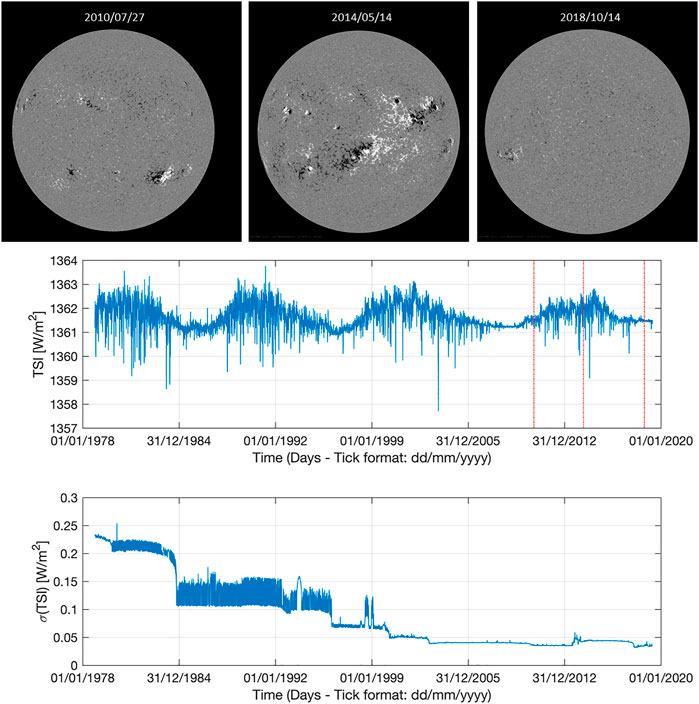

FIGURE 1. HMI magnetogram from SDO (top) and community‐consensus TSI composite⁴ by Dudok de Wit et al. [15] (middle), where the red lines represent the TSI on the same dates as the HMI. The uncertainty reduction (bottom) reflects the increasing instrument accuracy from the 2000s.

Solar magnetism occurs at different timescales. Moreover, the various features are present in the entire hemisphere as active regions, sunspots, and magnetic pores or absence in times of low solar activity. Usually, the quiet Sun is denoted area outside sunspots, pores, and plages [20]. In addition, the solar surface subdivision based on the magnetic flux encompasses the quiet Sun, where the field is closed and weaker. While the active regions with sunspots, the magnetic field is the strongest and has mostly a closed field, and coronal hole regions include open magnetic field regions [17]. The combined influence of the convective motions, the action of the magnetic field, the temperature stratification, and the differential rotation makes the analysis complex. For TSI variations from daily to the 11-years cycles, the primary mechanism is based on the evolution of the solar surface magnetic field, while on time scales of up to half a day, the granular convection becomes predominant [41].

TSI’s cyclic changes are mainly attributed to the balance of excessive facular and magnetic network brightening and dark sunspots [58 and references therein]. The primary source of the daily or longer TSI variability is associated with the sunspots and faculae contribution [43]. The small sunspot lifetime can be as short as hours or days, while the large groups persist until months [44]. The link between the sunspot’s motion across the Earth’s visible side of the Sun and the decrease in TSI was first detected by the ACRIM I [45]. TSI can reduce as much as 0.34% for large sunspots near solar disk center, and it is responsible for the deep daily decreases in the TSI variation [40]. Faculae tend to persist longer and are more distributed over the solar disc than sunspots. Faculae and network contribution in TSI reconstruction from models based on magnetic activity present additional challenges due to small-scale feature observations, complex morphology, and weak contrast. While the relationship between the radiance and size is relatively well known for sunspots, the relationship between contrast and magnetogram signal for faculae and network is more complex [46, 47]. Interdecadal TSI variability manifests itself in amplitudes of consecutive 11-years cycles. Detecting the small-amplitude variations between the cycles is a scientific and technical challenge. The absolute value of total solar irradiance also shows a difference in the minimum levels, especially at the beginning of the series. The findings may indicate long-term changes [48]. The differences in the TSI level at solar minimums represent a limit to merging the TSI of different instruments in a single series and the long-term reconstructions [42, 49, 50].

Magnetic field indices and magnetic activity proxies usually are used in TSI models and predictions. There are several TSI variability models based on the solar surface features. The evaluation of irradiance increase usually employs chromospheric proxies, while the irradiance reduction usually employs a photometric sunspot index [51]. Lately, the solar activity indicators and their impacts have undergone revisions, such as the number of sunspots [44, 52]. Therefore, the influence of international Sunspot number record revision on the TSI models is also analyzed. Kopp et al. (2016) [53] carried out a study where two different TSI models employed the Clette et al. (2014) [52]’s Sunspot number. The authors realized that the average solar irradiance did not change significantly in both Satire-T e NRLTSI2 models during the Maunder Minimum period of low solar activity (1645–1715). However, it is possible to notice fluctuations of greater amplitude in TSI in the solar cycle between the years 1700–1874. They suggested that the cycles of this period may be like the Modern Maximum at the end of the twentieth century. After 1985, the effect of the new sunspot number is insignificant since the difference between the sunspot records is small. That the models depend less on the number of sunspots for this present period is also relevant.

Figure 2 shows two recent historical TSI reconstructions. Lean, J. L [54]’s reconstruction employs the NRLTSI2 model that incorporates proxy indicators of the sunspot and facular sources. The model uses direct locations sunspots observations; however, from 1610 to 1882, the model used Hoyt and Schatten 1998) [44] and SILSO sunspots. While Koop, G. reconstruction⁷ used the SATIRE S&T model for years before 1650, the SATIRE-T model from Wu et al. 2018 [55], including recent revisions to Sunspot number records (SILSO V.2), and datasets of spacecraft-instrument era TSI composite from Dudok de Wit et al. (2017) [15]. This plot shows two possible scenarios, including the differences during the minimum solar activity.

FIGURE 2

FIGURE 2. Historical TSI reconstruction from 1610 to 2021. The comparison between Lean, J. L [54]⁵ reconstruction (red line) and Koop, G reconstruction (blue line)⁶. The blue box highlights the Maunder minimum period from 1645 to 1715.

Photospheric magnetic activity is considered the primary source of the TSI variability at solar rotation time scales and the solar cycle [56]. Therefore, TSI variability has been interpreted as the result of the magnetic activity impact due to its influence on the local temperature structure and, consequently, the radiant properties of the solar atmosphere [57]. Yeo et al. [57, 58] highlighted the other proposed mechanisms to explain the relationship between the solar cycle modulation and solar irradiance, but additional evidence is necessary from observations. As an example, the oscillations are driven by the Coriolis force (r-modes oscillations) [59], thermal shadowing related to the toroidal magnetic field [60, 61], and magnetic modulation of convective energy flux [62].

Short-term variability from minutes to hours is attributed to the globally-averaged superposition of solar convection and oscillations [40]. Additionally, the eruptive events as flares mainly observed in the UV and X-ray wavelengths occasionally affect the TSI variability. A short-duration increase in TSI of 0.028% was observed for some of the largest flares [40]. The precise contribution of the flares to TSI variation is unknown. However, it does not influence the radiative effect on the Earth’s climate [40].

The complex dynamics of the Sun influence the TSI variation at different temporal scales. The primary causes of change and its impact on the Earth are different for each time scale. Although the TSI variability on the Solar rotational time scale (∼27 days) is not a direct climate direct forcing, spectral variations can affect the Earth’s upper atmosphere and consequently lead to climatic effects [40, 63]. The investigation of the physical mechanisms depends significantly on the device’s cadence and high accuracy. The long-term measures have extra challenges due to degradation caused by exposure to the space environment and the need for in-orbit radiometer inter-calibration. Despite advances in radiometric measurements over the last decades, there are still many questions about variability and responsible physical mechanisms.

3.3 Orbital Variations and Their Influence on Solar Irradiance

Monitoring the solar flux density fluctuations is essential for the Earth-Sun coupled system study and providing knowledge of the Sun as a star. The TSI observations close to Earth from the ecliptic plane provide a near solar equatorial plane suitable for climatic studies. In comparison, the solar radiation observations from other points of view should explain TSI variability as a function of latitude. Furthermore, it estimates the Sun’s luminosity and its temporal evolution. The TSI variability on the solar rotational time scale is associated with the passage of the bright and dark features in the solar disk. The depletion and increment on the TSI, integrated power per unit area at 1 AU, are affected by geometric factors depending on the relative position of the magnetic features on the solar surface and the observer.

Solar luminosity refers to the total electromagnetic power per unit of time output of the Sun; it is estimated empirically by extending the TSI model as the flux for the whole sphere. In comparison, the calculated TSI at 1 AU is estimated through the area and distribution of features on the disk [56, 64]. Vieira et al. (2012) [64] applied this approach to model the TSI as a function of the heliographic latitude indicating a non-equality of TSI levels at the hemispheres due to the imbalance of magnetic features. Figure 3 illustrates the irradiance inhomogeneity on October 29, 2003, and November 03, 2003, when large sunspots were present on the solar disk. However, the current impossibility of the far side and poles observation leads to a detailed knowledge lack of the local properties, limiting the improvement of reconstruction models [65]. Therefore, it is appropriate to complement the TSI measurements with an investigation of the magnetic structures for the physical interpretation of TSI variations. The instruments have carried out TSI observations at near-Earth orbits and Lagrangian Point (L1) (schematized in Figure 4). While missions such as the Solar Orbiter investigate the magnetic structures close up and out of the ecliptic plane (see section 6).

FIGURE 3

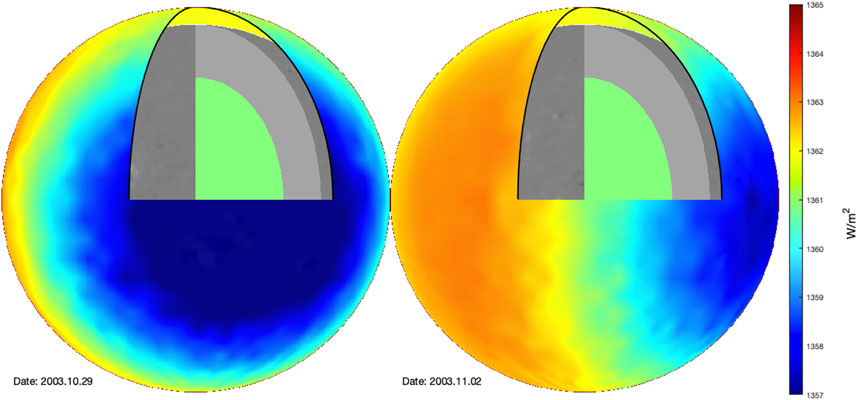

FIGURE 3. Sun’s outward radiative flux reconstruction by extending irradiance for a spherical shell simulated at 1 AU using the flux dispersal model for the photospheric magnetic field. The cutout represents the solar surface (gray sphere), the convection zone (gray radial surface), and the radiative zone + core (green radial surface).

FIGURE 4

FIGURE 4. Schematic of the Sun-Earth model with Lagrange point L1 to L5. All instruments have observed the TSI at near-Earth orbits save VIRGO/SOHO, which operates at L1.

Expect L2; all Lagrange Points view the Sun continuously. The SOHO satellite operates around the L1 point. It has access to valuable and continuum information about the entire electromagnetic and particle spectrum of the Sun [66]. In a different approach to the Solar Orbiter, Parker Solar Probe spacecraft or “L1 L5 Together future Lagrange mission” [67], Bemporad (2021) [68] highlighted the advantages of future missions exploring L4 and L5 Lagrangian Points, instead of the convenience of the condition of L1 and L5 points by a twin mission to follow the evolution of magnetic fields. Notably, monitoring TSI from Lagrange points may provide the opportunity to expand our awareness of the Sun’s radiative output and, when combined with near-Earth observations, improve our understanding of its impact on Earth.

Figure 5 shows TSI as a function of the heliographic latitude and longitude regarding the point of view of the Lagrange Points. For TSI estimates, the distribution of the magnetic features made by the Helioseismic and Magnetic Imager (HMI) on the Solar Dynamics Observatory (SDO) [69] spacecraft was used. The TSI was estimated by extending a semi-empirical TSI model using the flux dispersal model for the photospheric magnetic field to reconstruct solar irradiance; this model was developed by Vieira et al. (2012) [64] and Vieira et al. (2022) [70]. The TSI observed only near the ecliptic plane is not able to represent the radiative outputs of the Sun. At higher latitudes, TSI does not follow the same decay compared to near the equator. Concerning the inhomogeneity of irradiance in higher heliographic latitudes, the TSI decrease is less pronounced. Sunspots occur cyclically at latitude, typically around 40° in both hemispheres; as the cycle progresses, they move toward the equator [86]. The size and intensity of bright points are a heliographic function of angle [87], having a significant influence on TSI around 55° [80, 88]. Furthermore, a combined view of lon 0°, −60°, and 60° longitude will provide a central understanding of the influence of magnetic field evolution, especially the emergence and decay of the active regions, on the TSI. Our goal here is to point out that new viewpoint observations of TSI, such as from the Lagrange points, will improve the scientific knowledge about the influence of active regions and the quiet Sun on TSI.

FIGURE 5

FIGURE 5. Estimated TSI as a function of heliographic latitude (A) and longitude (B).

4 Electrical Substitution Radiometer For TSI Measurements

This section analyses the radiometer design evolution to achieve enhanced performance in a space environment. Currently, the instrument advances are closer to achieving the precision and stability requirements for the climate forcing models. On the other hand, for example, only the influence of large flares is detected even with low noise instruments. Short-term solar variability benefits from instruments with lower noise and higher cadences.

4.1 Background and Operating Principle

The thermal detectors are based on heating a body due to solar radiation absorption. Their operation compares electric Joule heating tracking some basic units. The radiometer’s key components are a blackbody solar absorber, an electrical circuit for heating, a temperature-sensitive element, a thermal link, a heat sink, and a precision aperture to define incoming solar energy (Figure 6). The blackbody solar absorber usually performs in pairs. While the reference sensor is kept in the dark, the other sensor is exposed to solar radiation. The absorbed radiation will lead to a temperature gradient generating a heat flow through the heat sink. Once the system is in the vacuum environment, the voltage/current variations to keep the sensors thermally balanced equal the irradiance. The measured radiant flux (Φ) is written by Equation 1 regarding electrical heating (PE) and optical heating (PO) [71].

$\text{Φ}=K.\left(P_E-P_O\right).(1)$

FIGURE 6

FIGURE 6. Diagram of electrical substitution radiometer.

The correction factor ($K$) accounts for uncertainties if the electric and radiant heating does not fit perfectly. The slight differences in heat flow are part of the complex correction factor referred to as non-equivalence. The relation between electrical and optical power only has been guaranteed by the careful design of the critical components and each component’s characterization and proper radiometer calibration. In order to measure the TSI, the characterization include analysis such as non-equivalence, cavity absorptance, radiation from background space, diffraction-losses, the Earth-Sun distance coefficient, Doppler-effect coefficient, for correction factor [72, 73].

In practice, the blackbody absorbers are cavities to improve the absorption of solar radiation. Commonly, the cavities are made of silver to increase thermal diffusivity along the cone [72–75]. ACRIM prevented heat transfer to the environment by aluminized Kapton shields [74], while TIM, CLARA, and JTSIM plated gold outside to minimize the radiative losses. The typical geometries consist of a cone plus a cylinder [76], just the cylinder [77], cone, or inverted cone [78]. The measured reflectivity depends on the size and absorbing material. The cavities inside are coated with a black layer to absorb the solar radiation as diffuse black paint (MAP-PU1 [75], Nextel black velvet/3 M velvet [74, 79]), specular black paint (Z302 [80]), and etched Ni-P [73, 81]. For specular reflection coatings, the cone angle of ACRIM is 30°, and the PMO6 is 60° providing 5 or 6 internal reflections of an incident beam perfectly parallel to the optical axis [82]. However, a regular difficulty in paints or black Ni-P is to have a uniform coating on the tip of the cone resulting in beams of direct reflection on the bottom of the cone, reducing the cavity absorptivity. One solution found is the extension of a curved tube at the tip of the cone [83, 84].

The complex geometries are difficult to wire-wound heater around the cone or bonded some flexible circuit. Although the region heated electrically should is as close as possible to where the radiation hits, part of the scattered rays is absorbed in other parts of the cavity. The effects of non-equivalence are not the same for all detectors. In PMO6, due to inverted cone geometry, the first reflected radiation reaches the external cylinder, which is not electrically heated, producing an extra temperature gradient in that outer shield [82]. DIARAD and PMO6 estimated mismatches of electric and radiant heat consider the sensitivity mapping over the bottom of the cavity and along the sidewall with a laser beam [82]. In ACRIM, the non-equivalence below the 0.01% level was uncorrected at the time because of the assumptions about non-loss to outside [8]. Due to the phase-sensitive detection method, TIM estimated the non-equivalence uncertainty by characterizing the ratio between heater power and absorbed radiant power versus shutter frequency [73]. The effects of non-equivalence are minimized using high conductive material cavities, thin walls, a meticulous combination of electric and radiant heating, and ensuring the excellent connection of the interfaces, guaranteeing long periods of operation. In practice, the ultrasonic welding technique used in the DARA detector is an option implemented to connect cavity and heat link interfaces manufactured in one aluminum piece with the heat sink [72, 75].

The cavity reflectance value made at 633 nm for TIM and CLARA are in the order of 60 ppm [76] and 2000 ppm [75], but the length of the cavities is 6.34 cm [73] and 1.88 cm [75], respectively. The increase of the cavity size results in absorption enhancement. On the other hand, a larger cavity increases the time constant, determined by the thermal resistance and thermal capacity. Due to this limitation, the ESR’s time constant will hardly be significantly reduced, especially for radiometers operating in a classical-complete cycle of measurement mode that could lead to excessive heating of the instrument [71]. Larger cavities in cryogenic radiometers work at approximately 4 K to decrease the specific heat [85]. Therefore, the instrument performance requires optimization of the thermal time constant and the sensitivity of the cavity. The detector is connected to a heat sink by a poor thermal link to ensure high sensitivity with a lower time constant and lower thermal mass. The contact and bonding between each part (cavity, resistor, heat link, and heat sink) affect the system’s thermal behavior. Additionally, the instruments use Joule heating in the current leads, and so careful thermal design for an appropriate correction is necessary to measure the uncertainty component of the heat dissipated through the receiver cavity before going to the heat sink and the rest of the heat that goes directly to the heat sink [86].

The cavity entrance is aligned with a precision aperture that defines the size of the solar beam, with diameters typically from 5 to 8 mm [73, 75, 82]. In traditional radiometers, sunlight is passed first through a view-limiting aperture and then through the precision aperture located close to the cavity. However, the discussions in the late 2000s led to the understanding that underestimating the internal scattering may have overestimated the solar irradiance. Since a fraction of the light is not captured by the baffles, it will occasionally reach the cavity. Therefore, PMO6 and DIARAD have a traditional design with a view-limiting aperture in front of the instrument to reduce stray light correcting the excess power of 1.001280 and 1.000833, respectively [86]. Otherwise, the TIM configuration, precision aperture in front of the instrument, and the field-of-the-view limiting aperture next to the cavity result in a power loss correction of 0.999582 [86]. The diffraction and scattering are associated with the aperture edge. These phenomenon components can be simulated, and their experimental distinction is a complex task to distinguish experimentally, both relevant in radiometry. The source-aperture-detector system is analyzed to understand the diffraction effect contribution. The assessment includes the extended source effect and wavelength proportionality [9, 21].

Furthermore, the precision aperture characterization requires analysis of material absorptivity, temperature effects such as a radiative component, and area variation due to expansion effects. The degradation processes of precision aperture materials are undeniable and may require extra care. Currently, the choice of the instrument includes aluminum [9], stainless steel, and tungsten carbide (85%) plus cobalt (15%) [8].

4.2 Degradation

The detector’s degradation and aging in a space environment must be monitored for appropriate correction. The detector changes are tracked using a redundant cavity comparison from the ACRIM I [87] radiometer. Therefore, minimizing the exposure time of a cavity reduces the degradation allowing comparison with the frequently exposed cavity. TIM-mounted silicon photodiodes are used to monitor reflectivity changes of the cone [73]. Despite the instrument degradation monitoring for ACRIM series, VIRGO, and TIM, the degradation issues of in-flight instruments are still unresolved [23]. The directly exposed components are more sensitive to changes in mechanical and thermo-optical properties such as absorption and thermal emission. The environmental conditions depend on the instrument’s operating orbit. The instrument degradation may be caused by an exposure to ultraviolet (UV) radiation, outgassing due to high vacuum levels, and atomic oxygen (AO) in low Earth Orbit (LEO). A key point is black coatings degradation; the paints usually have carbon as a pigment in a polymeric matrix that is more susceptible to damaging the organic chemical bonds or atomic oxygen erosion. On the other hand, the use of black Ni-P demonstrated greater robustness under space conditions [11].

4.3 Compact Designs

In recent years, some missions have made efforts to make the instrument compact to be suitable for Cubesats. Certainly, the instrument miniaturization requires both new designs and technological advances in critical aspects. The new materials with advanced properties can help us reshape the design of the new generation of radiometers. The main highlight is replacing the black Ni-P material with carbon nanotubes as an absorbent material in a silicon microfabrication sensor. Currently, RAVAN 3U CubeSat has demonstrated technologies for the Earth’s radiation budget measurement and multipoint constellation. CSIM (Compact Spectral Irradiance Monitor), launched in 2018³, has been demonstrated as a suitable alternative for next-generation SSI monitoring technology. In line with this new generation of bolometers, a compact total irradiance monitor (CTIM) is under development for 6U CubeSat on silicon-based vertically aligned carbon nanotube (VACNT) [88]. VACNTs are currently known as the blackest material. In addition to the excellent absorption properties, VACNT has shown high performance by exposure to ionizing radiation doses typical of the LEO. The use of VACNT has also been evaluated for the interior of the conical-shaped cavity [89]. However, the fragility and high temperature required for VACNT growth by chemical vapor deposition (the most common method used for VANTA as black coatings) limits the use of some materials for other component incorporation. On CTIM, the commercial thermistors are bonded to the silicon and connected by conductive traces with wire bonds [88, 90]. The compact sensors represent advancement for bolometers showing the technological potential to achieve strict requirements. The innovative components and cost reductions have guided the goals of compact radiometers development.

5 Irradiance Measurements in the GSST Mission

The internal institute stakeholders for the GSST mission include solar physics, solar-terrestrial physics, and climatology groups interested in TSI monitoring. Additionally, the Brazilian Space Study and Weather Monitoring Center (EMBRACE⁸, in Portuguese) uses an artificial network model [91] to compute the evolution of the TSI based on the irradiance variability due to the evolution of the solar magnetic field. Table 2 summarizes the mission goals and objectives.

TABLE 2

TABLE 2. Mission goals and objectives.

The TSI data will be utilized to understand the scientific objectives addressing the phenomena such as physical and dynamical solar properties, solar activity, and solar cycle. The GSST includes two instrument designs called irradiance monitor module (IMM) to achieve the mission goals. A cavity electrical substitution radiometer and a compact radiometer based on a photonic integrated circuit. The general IMM characteristics are outlined in Table 3. Both the radiometers will measure the TSI on the same platform. In addition, a classical cavity radiometer will contribute to TSI monitoring over extended periods and inter-calibration between the instruments.

TABLE 3

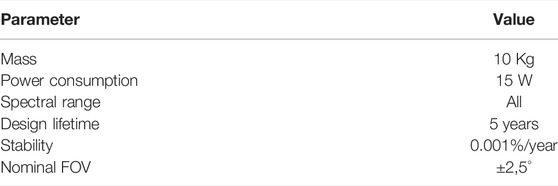

TABLE 3. IMM main characteristics.

As illustrated in Figure 7, the classical radiometer design takes advantage of advances described in section 4. The cavity is made of electroformed silver. It is coated internally with black Ni-P. This coating has a diffused reflectance of about 1% at 633 nm. The cavity design with a tube at the cone’s apex makes it possible to produce a visually uniform black surface inside the cavity. The light reflected by the cavities is slightly more than 200 ppm. We employed ray-tracing software to study the region with the highest incidence of radiation. The heating resistance is formed by a wire wound outside the sensor positioned as close as possible to the place heated by the radiant power. The thermal links between the cavity and heat sink are stainless steel. A more detailed discussion of the approach to positioning the heating resistance on the sensor and heat flux between the cavity and the heat sink can be found in [84, 92].

FIGURE 7

FIGURE 7. Classical cavity radiometer schematic design.

Meanwhile, the thermo-optical sensor technology test allows for achieving significantly lower cadences. However, according to the theory, ESRs have some significant inherent limitations that still need to be overcome: 1) non-equivalence of the measured optical power and the electric Joule heat; 2) the relationship between the thermal time constant and the sensitivity of the sensor; 3) large thermal noises in the electrical heater and temperature sensor limiting the signal-to-noise ratio (SNR) [71]. The compact radiometer design is improved mainly by combining the alternatives for temperature measurement method, servo system replacement, and solar absorptance materials. The ESR, a thermal detector, requires high thermal control to achieve the accuracy requirements of the measurements. Usually, the servo system controls temperature differences between the heat sink and cavities. The servo loop also controls cavity temperature by switching between optical and electrical heating. Mach–Zehnder interferometer (MZI) can measure the small phase shifts for high-resolution analysis [93]. A laser beam is coupled to the waveguide on the optical sensor. A Y-junction splits the beam equally, and after a distance, the beams are recombined. The output signal depends on the phase difference, which is a function of effective refractive indices. The radiation absorption in one MZI arm results in a variation in the index of refraction due to the temperature variation. Therefore, a phase difference occurs between the two propagating arms, which originate a destructive interference in the output signal. The PID acts by controlling the system to return to the constructive interference mode making it possible to calculate the absorbed radiant flux. The compact planar sensor employing an integrated Mach–Zehnder interferometer (MZI) is a feasible alternative to minimize or overcome classical sensor limitations.

The IMM in GSST program complements the magnetic structures observed by the spectropolarimeter. Among the mission concepts considered for the GSST, for the first satellite, the Brazilian PMM (multi-mission platform), schematically represented in Figure 8, has been investigated as an alternative for the first spacecraft to meet the orbital conditions established in the pre-phase A feasibility study. In the analysis, the Sun-synchronous orbit with RAAN positioned at 6:00 AM is the most suitable. The orbit inclination is 97.749˚, and the altitude is 601.599 km above the equator. The design mission lifetime is at least 5 years.

FIGURE 8

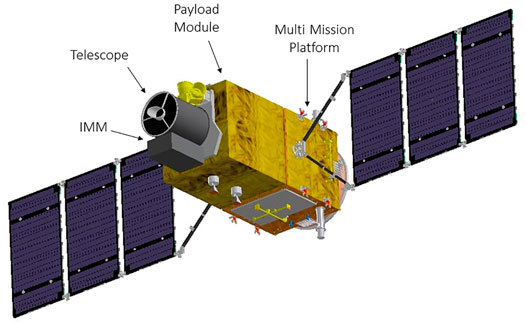

FIGURE 8. Schematic representation of GSST mission on the multi-mission platform (PMM).

6 Discussion and Perspectives About Total Solar Irradiance Observations

Indeed, the TSI observations and reconstructions variability provide essential information, including the Intergovernmental Panel on Climate Change (IPCC)⁹. Special attention has been given to distinguishing regional and global temperature impacts from natural and anthropogenic forcing. The effect of the TSI variability on the 11-years solar cycle on short-term regional and seasonal climate anomalies is measurable [94]. However, measuring the TSI variability impact on a time scale of centuries or millennia introduces several additional challenges due to space degradation associated with difficulty in tracking SI-traceability.

Solar variability contributions to the past climate fluctuations or even predicting future influences require efforts. The main difficulties are the current series duration and the maintenance of uncertainty and stability of the instruments in space for long periods. A longer and more accurate TSI observation record should improve the understanding of the forcing variability effect. The solar irradiance models aim to explain the instrumental observations. While some models attribute TSI variability exclusively to the photospheric magnetic activity (sunspots, bright faculae, and bright network), others include phenomena such as the convective energy flux. The physical understanding and precise quantification require tracking information about magnetic features and TSI variability in accuracy and cadence compatible with the solar mechanisms.

The photospheric activity influences the total solar irradiance variations. However, this information about the magnetic activity comes from only the solar hemisphere facing the Earth. At the moment, the maps of non-visible disk or far side of the Sun are calculated using some techniques, i.e., seismic holography [95, 96], and the Global Oscillations Network Group (GONG) project has been producing daily far-side maps [97]. Ideally, the future new orbit missions should provide information about photospheric magnetic field and radiative output, extending the view of the Sun to the high-latitude and far side. Furthermore, the observations of the Sun out of the ecliptic plane allow us to determine the differences between poles and the solar equator; additionally, if the TSI variations observed near the Earth are attributed to luminosity variations or flux space contributions [98].

Determining the solar irradiance at all latitudes is one of the proposed science goals in the Voyage 2050 program [74]. In addition, to the solar poles investigation for extended periods, the POLARIS (POLAR Investigation of the Sun) mission intends to explore the development to achieve a satellite in a 0.48 AU circular orbit around the Sun with an inclination of 75º to the solar equator using a combination of a gravity assist and solar sail propulsion [75]. The Solar Orbiter (SO) mission, launched in 2020, combines in situ measurements in the Heliosphere or multiple telescope channels for remote imaging of the Sun and its atmosphere. This mission shows a unique short distance (minimum perihelion of 0.28 AU) and an orbit out of the ecliptic plane (18° and 30° helio-latitude during nominal and extended mission phase, respectively) [76]. Even without a TSI radiometer, the expected data from SO will contribute to the heliosphere investigation and the solar activity changes over time [99].

These missions present the critical challenges to the environment that affects the detectors, electronics, thermal effects of the platform, and payload, boosting new technological advances [100, 101]. Shortly, the results and new information about the solar dynamics and the latest technological advances will come from the SO. These can provide clues and knowledge to develop solar radiative energy flux instrumentation or other detectors in extreme space conditions (inside solar corona).

Over the last decades, there has been significant improvement in the design and calibration of absolute radiometers but still requires improvements, including tracking degradation for appropriate in-flight correction. In addition, the observation instabilities can raise speculation about whether the inter-minima TSI decrease from 1996 to 2008 is authentic or instrumental and model limitation [76].

The radiometers’ cross-calibrations and overlapping observations between the different instruments are essential to the TSI reconstruction. JTSIM includes two instruments, digital absolute radiometer (DARA) and the solar irradiance absolute radiometer (SIAR), on the same pointing system to monitor TSI at the same time in orbit for 8 years [72]. These observations can provide important information on each instrument’s stability.

The GSST IMM module includes a classical cavity radiometer and a new miniaturized sensor. Its monitoring approach will provide information on solar irradiance variability in distinct timescales and magnitudes. The other key issue is to demonstrate new technologies to monitor TSI. The current radiometers follow the trend of miniaturization, seeking to maintain or improve performance. Compared to traditional cavity radiometers, compact technology has advantages in fabricating and characterizing flat sensors. Miniaturization is even more necessary to reduce overall mission costs and possible out-of-ecliptic orbit scenarios. They would be suitable for a new mission concept that seeks to develop technologies to fly closer to the Sun with small satellites as the effort of NIAC [102]. Especially, the GSST-designed sensor based on the photonic integrated circuit under development can be placed on a small satellite constellation for a better estimate of non-isotropic radiation reaching the Earth.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

Conceptualization: FC and LA. Software modeling: LA. Validation: LA. Formal analysis: FC and JR. Investigation: FC, JR, and AB. Resources: LA. Data curation: FC, JR, and AB. Writing—original draft preparation: FC. Writing—review and editing: JR and AD. Visualization: LA and AB. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grant 2021/13309–6, São Paulo Research Foundation (FAPESP), and grant 301991/2021-9 CNPq/PCI (Programa de Capacitação Institucional). AB thanks Capes (88887.607304/2021–00) and CNPq (141449/2021–7) for the financial support. LA thanks CNPq (Grant number 308355/2020–2) and the Brazilian Space Agency (Grant number TED AEB 2020–20VB—PO 0009).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors would like to thank Adenilson Silva, Bráulio Fonseca Carneiro de Albuquerque, Ronan Arraes Jardim Chagas, and Graziela Maia for the technical support and analyses for the GSST platform.
