Data-driven electrical conductivities of dense plasmas

A wide range of theoretical and computational models have been developed to predict the electrical transport properties of dense plasmas, in part because dense plasma experiments explore order-of-magnitude excursions in temperature and density; in experiments with mixing, there may also be excursions in stoichiometry. In contrast, because high pressures create transient and heterogeneous plasmas, data from experiments that isolate transport are relatively rare. However, the aggregate of our datasets continues to increase in size and plays a key role in the validation of transport models. This trend suggests the possibility of using the data directly to make predictions, either alone or in combination with models, thereby creating a predictive capability with a controllable level of agreement with the data. Here, such a data-driven model is constructed by combining a theoretical model with extant data, using electrical conductivity as an example. Discrepancy learning is employed with a theoretical model appropriate for dense plasmas over wide ranges of conditions and a dataset of electrical conductivities in the solid to expanded warm dense matter regimes. The resulting discrepancy is learned via a radial basis function neural network. Regularization of the network is included through centers chosen with silhouette scores from k-means clustering. The covariance properties of each cluster are used with a scaled Mahalanobis distance metric to construct anisotropic basis functions for the network. The scale is used as a hyperparameter that is used to optimize prediction quality. The resulting predictions agree with the data and smoothly transition to the theoretical model away from the data. Detailed appendices describe the electrical conductivity model and compare various machine-learning methods. The electrical conductivity data and a library that yields the model are available at GitHub.

1 Introduction

Dense plasmas are typically created in the laboratory by heating solids with currents, radiation or beams. In all cases, electron-ion collisions play a central role in determining the characteristics of the energy absorption. Energy deposition properties (e.g., stopping range) from ion beams, for example, are primarily determined by projectile-electron collisions [1]. Similarly, properties of laser absorption are also determined by electron-ion collisions in the inverse Bremsstrahlung process [2, 3]. These energy-deposition processes are typically characterized by the stopping-power and electrical-conductivity transport coefficients. Knowledge of these coefficients allows us to design and interpret experiments and provides physical insight into material properties. In fact, these transport coefficients, together with the equation of state [4], are the closures in hydrodynamics models that specify material properties [5–7]. It is important to obtain accurate values for these coefficients, but it is difficult to do so over large ranges of material properties because of the order-of-magnitude excursions in these properties during a typical experiment. This difficulty poses challenges for theoretical and computational approaches that are highly efficient in narrow regimes of material properties.

A typical research pattern is that theoretical and/or computational models are compared to each other, yielding a form of theoretical confidence or sensitivity [4, 7], and are validated with experimental data. With increasing amounts of experimental data becoming available, an alternate approach, using machine learning (ML), is possible: rather than merely validating models with data, data can now be directly employed in generating models. ML approaches to capturing and predicting material properties are currently under intense development [8–11], and such approaches are widely used in plasmas physics [12]. Other applications of ML in plasma physics include, for example, mitigating disruptions that break confinement in tokamaks, provided accurate forecasts can be made from real-time data; in fact, using a wide variety of ML techniques, the success rate for predicting disruptions is quite high [13]. Another example is the use of ML to produce clean gases from biomass by predicting chemical processes in plasma arcs to improve tar removal [14]; in general, ML has numerous uses in low-temperature plasma applications [15, 16]. Closer to the theme of this work, artificial neural networks have been used to reconstruct plasma parameters using spectra from laser-plasma experiments [17]. Here, ML will be used to develop predictions for the electrical conductivity in dense plasmas, both as an exemplar of this approach and because of the intrinsic importance of the electrical conductivity in plasma applications.

A wide array of theoretical and computational methods has been developed across many decades to model electrical conductivities [18–21]. The ongoing need for new models stems from the fact that practical models are formulated for a narrow range of material properties; theoretical and computational approaches are efficient and accurate in limited regimes [7]. This can be seen by considering the Lee-More model of electronic transport [18], a version of which is developed in this work. To account for large changes in material properties, the Lee-More model uses a “patchwork-quilt” approach that stitches together conductivity models appropriate in different regimes of temperature-density space (see their Figure 6). Their model is constructed such that it captures the high-temperature Spitzer limit, with corrections to handle lower-temperature phases. While these corrections do give important improvements, as discussed in detail in Supplementary Appendix SB, the accuracy of this model at low temperatures is not uniform across different elements. Thus, for the important class of experiments in which matter is rapidly heated from a solid through the liquid and warm dense matter regimes, improvements in the model are needed. In particular, laser- and pulsed-power-heated targets are initially cold and often evolve into, or through, the challenging expanded warm dense matter regime. Fortunately, this is the regime for which data are most readily available; starting with a new version of the Lee-More model, the goal of this work is to use ML to create a wide-ranging model that is very accurate at both low and high temperatures.

This paper is organized as follows. The ML approach employed here is based on radial basis function neural networks (RBFNNs), which are reviewed and developed generally, for potential application to a variety of material properties, in the next section. Because ML can be conducted using a wide range of techniques, RBFNNs are compared with several related ML techniques in Supplementary Appendix SA; in some settings, a related ML technique may offer an advantage over RBFNNs in terms of interpretation, computational cost and/or another specific feature, such as an ability to provide uncertainty estimates. RBFNNs are used here in the context of discrepancy learning [22–24], which is formulated in the next section to include model-based detrending, cluster-based center selection and anisotropic radial basis functions (RBFs). The model used here is a modification of the Lee-More model and is developed in detail in Supplementary Appendix SB. Next, in Section 3, two datasets are described that include electrical conductivity measurements from five elements, as measured in exploding-wire experiments conducted by DeSilva and coworkers [25, 26], and data from Clérouin et al. for eight elements. Exploratory data analysis is carried out, including the generation of distributions, correlations and silhouette diagrams for data clusters, as well as a scatter plot variant that reveals silhouette trends within a cluster. Finally, a summary discussion, conclusions and an outlook are given.

2 Radial basis function neural network models

Our RBFNN approach is described in this section. Because the approach can be applied to a broad range of applications beyond electrical conductivity, including to the equation of state [4], ionic transport properties [5] and other electronic properties [6], the formulation in this section is generic. The ML goal is function approximation: from data, establish the functional relationship between the input variables, which are here the equilibrium material properties {Z, ρ, T}, and the output variable, which is the electrical conductivity σ. In the following section, we will examine data for the electrical conductivity σ that can be used in the framework of this section.

Consider a dataset $\mathcal{D}$ with N_d data points $({\mathbf{x}}_p,y_p)\in \mathcal{D}$, where the x_p are the input features, the y_p are the outputs, and p labels the data point. A wide variety of methods have been developed to predict values at any x given the dataset $\mathcal{D}$. As an example, the model

$Y\left(\mathbf{x}\right)=\sum _{i=1}^{N_d}{y}_i{P}_i\left(\mathbf{x}-{\mathbf{x}}_i\right)(1)$

directly uses the data $\mathcal{D}$ to make a prediction at any x. Intuitively, predictions sum contributions from the input data y_i weighted by the distance from data locations x_i. This learning approach uses the idea of similarity: predictions should be similar to nearby data, appropriately weighted. Obvious limiting cases are $P_i=N_d^{-1}$, in which predictions are the average of the data, and $P_i=d_i^{-1}/{\sum }_j{d}_j^{-1}$, where d_j is a distance metric from x to data point x_j, which is the inverse-distance weighting (IDW) method [27]. A form notionally similar to the IDW method and obtained from statistical arguments is [28]

$Y\left(\mathbf{x}\right)=\frac{{\sum }_{i=1}^{N_d}{y}_i\exp \left(-d_i^2/2L^2\right)}{{\sum }_{i=1}^{N_d}\exp \left(-d_i^2/2L^2\right)}.(2)$

The relative contribution of distant data points is controlled through the choice of L. These methods are intuitive and straightforward to evaluate given the data; the connections among these models and others, and their strengths and weaknesses, are discussed in Supplementary Appendix SA. The related RBFNN method will be used in the remainder of this paper.

2.1 RBF basics

The RBFNN method expresses predictions Y at x in terms of a basis expansion of the form

$Y\left(\mathbf{x}\right)=\sum _{c=1}^{N_c}{w}_{c}K\left(\mathbf{x},{\mathbf{x}}_c\right),(3)$

or Y = Kw, where the functional form of K depends on ‖x − x_c‖₂ (Euclidean distance or L2 norm). That is, predictions are made based on radial distances r = ‖x − x_c‖₂ from centers x_c, avoiding the need for a regular mesh. The sum is over all N_c centers, with weights w_c learned from $\mathcal{D}$. Once w is found, we have a prediction for Y for any input x. Note that x is of arbitrary dimension and could live in the three-dimensional space spanned by {Z, ρ, T}, or x could be formulated element-by-element as Y_Z in two dimensions {ρ, T} or in much higher dimensions for mixtures. Note also that K(x, x_c) = K(‖x − x_c‖₂; ϵ) has a scaling parameter ϵ, which we sometimes write explicitly as a “length” L. Common functional forms, and some comparisons among them, are given in Supplementary Appendix SA.

Note that we use the term “RBF” to refer to the basis functions in (3), although that term is also used in some contexts to refer specifically to the Gaussian, or “squared-exponential,” basis function itself. We also refer to the basis functions themselves as RBFs, and we call the method that uses RBFs an RBFNN.

For a given choice for K, we have N_c unknowns w_c, and N_d knowns y_p. There are several options for choosing the centers. If the data have very little uncertainty, then the centers can be chosen to be the locations of the data: x_c = x_p. We use the data, with Y(x_j) = y_j, to write (3) as

$Y\left({\mathbf{x}}_j\right)=\sum _{p=1}^d{w}_{p}K\left(\Vert {\mathbf{x}}_j-{\mathbf{x}}_p{\Vert }_2;ϵ\right),(4)$

for each j in $\mathcal{D}$. We can write (4) in terms of d × 1 vectors for y and w and a d × d symmetric “kernel matrix” for K, which allows us to learn the weights, with w = K⁻¹y. This is computationally inexpensive provided K is not too large.

This learning method makes predictions using the data directly and reproduces the data exactly (i.e., the method is an “exact-interpolation” method). Note that every prediction Y(x) uses all of the data with relative contributions determined by the distances ‖x − x_p‖₂ and the functional form of K. The scaling parameter ϵ can be chosen to be the inverse of the average distance between data points, or it can be determined through a separate procedure (e.g., maximum likelihood estimation or cross validation).

Maximum fidelity is obtained by choosing each center at each data point, in which case K is square and we exactly interpolate $\mathcal{D}$. In the common case in which the data have uncertainty, we choose N_c < N_d and employ the pseudoinverse w = K⁺y to obtain a least-squares solution rather than exact interpolation. This flexibility in the number of centers aids in preventing the overfitting of noisy data. A process for choosing centers is discussed in Section 2.3, after we remove systematic trends in the data.

2.2 Discrepancy learning: Physics-based Detrending

In principle, the form (3) can be used to predict electrical conductivities given a dataset $\mathcal{D}$ used to obtain weights w. However, several practical issues arise. First, the model in (3) should not be used for extrapolation, because we cannot guarantee that data in a localized region of x are predictive at points distant from x_p. Mathematically, depending on the functional form chosen for K(x, x_p; ϵ), extrapolations can have nonphysical values such as zero or infinity. Second, material parameters often vary by orders of magnitude within a single experiment. Third, data may not span all regimes experienced in an experiment, and we must rely on theoretical guidance in some regimes.

These three issues are mitigated by detrending the data with a physics model that reliably characterizes electrical conductivities in data-poor regimes, exhibits appropriate basic trends with physical parameters (e.g., power-law scalings with density and/or temperature), and is high-fidelity in the data-poor regimes explored by experiments (e.g., at very high temperature). Thus, here, we propose to modify (3) to become

$\mathcal{Y}\left(\mathbf{x}\right)=\sum _{p=1}^d{w}_{p}K\left(\mathbf{x},{\mathbf{x}}_p;ϵ\right)+\mathcal{T}\left(\mathbf{x}\right),(5)$

where $\mathcal{T}(\mathbf{x})$ is a trend, and K(x, x_p; ϵ) is an RBF that tends to zero away from the data. We choose $\mathcal{T}(\mathbf{x})$ to be a model applicable in physical regimes not covered by the data. Because conductivity data are more readily measured in the solid, liquid-metal and warm dense matter regimes, we take the trend $\mathcal{T}(\mathbf{x})$ to be a model developed for high-temperature applications. In this sense, the RBF portion of (5) corrects the trend $\mathcal{T}(\mathbf{x})$ to match the data. We choose that the RBF will decay to zero to recover the trend away from the data; the Gaussian RBF will be used below for this reason. In summary, the model (5) matches the data to our desired accuracy (by varying the number of centers) and tends to the model $\mathcal{T}(\mathbf{x})$ of our choosing. The theoretical model we employ for $\mathcal{T}(\mathbf{x})$ is a modified version of the Lee-More [18] electrical conductivity model, which is discussed in detail in Supplementary Appendix SB.

In the following subsection, we will specify the details of the RBFNN: center selection, choice of distance metric and functional form.

2.3 Center selection and silhouette diagrams

The number of centers in the RBFNN is a key hyperparameter that allows one to account for several properties of the data, including the following:

• Data may have been obtained with very fine changes in material conditions with negligible changes in the material property.

• Related to the possibility raised above, datasets can be unbalanced, with many more data points in one region of the input space than in other regions.

• Experimental uncertainties may not support exact interpolation.

• The dataset may contain contradictory data obtained by experiments under the same conditions with samples that differ in some way, such as the presence of impurities.

• Computational resources may prohibit finding the weights w for very large datasets.

In general, different datasets will not be impacted by these issues in the same way; thus, there is no single algorithm for choosing the number and locations of the centers that will work in all situations [10]. Given a choice for the number of centers, perhaps guided by computational limitations, the centers can be placed uniformly, randomly, or more densely near extrema of the second-order derivative of an approximate function, or they can be chosen using clustering [29, 30].

An unsupervised approach to clustering is used to find the RBF centers. Choosing the number of clusters is a challenge in the absence of a straightforward analogy of cross-validation for unsupervised learning, as there is no equivalent to a “test” score [31, 32]. However, as there are no computational issues with the relatively small datasets we have in mind, the number of centers is chosen such that the topology of the data is well represented by the number of clusters, as defined by silhouette scores for the clusters [33]. Clusters of various numbers are formed by a k-means algorithm, and the value of k with the lowest silhouette score is chosen as the optimal value. The silhouette score $\mathcal{S}(p)$ for data point p is computed by first finding the average distance to points within its cluster, denoted as the within-cluster dissimilarity $\mathcal{W}(p)$. Next, this step is repeated for all other clusters to find the cluster $\mathcal{C}(p)$ nearest to p. The silhouette score then measures the dissimilarity between p’s cluster and its neighbor, as described in [33], and can be written as

$\mathcal{S}\left(p\right)=\frac{\mathcal{W}\left(p\right)-\mathcal{C}\left(p\right)}{\max \left\{\mathcal{W}\left(p\right),\mathcal{C}\left(p\right)\right\}}.(6)$

Note that $-1<\mathcal{S}(p)<1$, with values closer to 1 indicating strong clustering. An example using fake data is illustrated in Figure 1, where we imagine that the dataset has been constructed from possibly multiple experiments and therefore is scattered in the plane. The fake data in this two-dimensional space are plotted as points, and we wish to characterize the topology of these data by forming clusters. Five, six and seven clusters are chosen in the first, second and third columns, respectively, with the cluster centers shown as larger gray circles. In this example, the quality of the k-means clustering is qualitatively good.

FIGURE 1

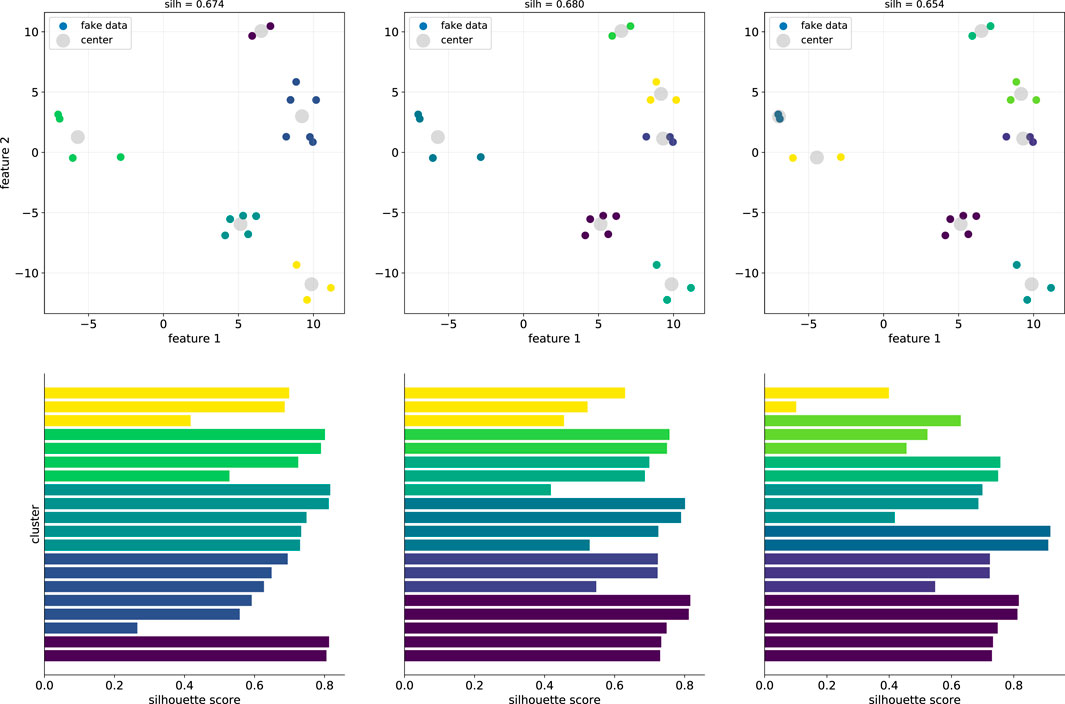

FIGURE 1. Example of forming clusters of three sizes with fake data and generating silhouette scores and diagrams. In the top row, the smaller points are the data points, and the larger gray points are the cluster centers, as determined by k-means. The silhouette score is given at the top of each column; the center column has the highest score. Silhouette diagrams are shown in the diagrams in the bottom row, color coded by the clusters shown in the diagrams above them. Bar lengths are most uniform in the middle column, indicating that none of the points are poorly clustered, and therefore resulting in the middle column’s higher score.

The overall silhouette score is given at the top of each column in Figure 1, and we see that the middle column has a slightly higher score. However, all scores are positive and $>0.65$, which indicates high-quality clustering. Silhouette diagrams are shown in the lower row, corresponding to the clustering shown in the upper row. Silhouette diagrams further quantify the clustering by assigning a score to each point within a cluster, giving us a sense of which points solidly fall within some cluster or are instead close to two or more cluster centers. For example, in the right column, the cluster containing yellow points is not as well defined as the others because one of its points is close to the cluster center above it. This approach allows for a completely unsupervised approach to placing the optimal number of centers within clusters found in the dataset. In practice, as shown in the next section, clusters were formed in the three-dimensional space of {ρ, T, σ} to account for clusters that appear because of excursions in the conductivity itself. In the following subsection, we will determine the RBF widths at those centers.

2.4 Norms and RBF widths

As mentioned above, RBFs are typically characterized by a scalar distance and a scaling parameter ϵ (See Supplementary Appendix SA for more details). The radial distance r can be defined for multivariate data in terms of the Euclidean distance

$r=\Vert \mathbf{x}{\Vert }_2(7)$

$=\sqrt{{\mathbf{x}}^T\mathbf{x}}.(8)$

Consider the Gaussian RBF

$K\left(\Vert \mathbf{x}{\Vert }_2\right)=\exp \left(-ϵ{\mathbf{x}}^T\mathbf{x}\right).(9)$

This RBF is unsatisfactory in practice because the components of x contain quantities of different types, scales and units. This suggests that it would be useful to use a weighted norm, which we define as

$\Vert \mathbf{x}{\Vert }_{\mathbf{W}}^2={\mathbf{x}}^T{\mathbf{W}}^T\mathbf{W}\mathbf{x},(10)$

where W is a matrix that contains the scalings. Choosing a diagonal form for W generalizes (9) to

$K\left(\Vert \mathbf{x}{\Vert }_2\right)=e^{-{ϵ}_1{x}_1^2}{e}^{-{ϵ}_2{x}_2^2}\dots .(11)$

This is treated by scaling each feature by a “typical” value of that feature; for example, we scale temperatures by 10 eV, densities by 1 g/cc, and nuclear charges by 10, making each scaled feature dimensionless and of order unity. An overall scale remains that is determined by the topology of the data.

Experimental data are rarely aligned along the Cartesian directions of our inputs; as a result, changes in one variable are often correlated with changes in other variables. For example, laser-driven experiments drive shocks that follow the Hugoniot rather than an isochore. For this reason, clusters of points around a center are unlikely to be distributed spherically. The region of influence of the center should reflect the distribution of data points; what is “farther from” or “closer to” the center depends on the topology of the data associated with that center. An extreme example is the case in which a very short-pulse laser is used to heat a sample approximately isochorically: the data lie nearly along a line in parameter space, not as points filling a sphere. We treat these issues by generalizing the distance metric to the Mahalanobis distance

$\Vert \mathbf{x}{\Vert }_{\mathcal{C}}^2={\mathbf{x}}^T{\mathcal{C}}^{-1}\mathbf{x}.(12)$

We assume that $\mathcal{C}$ is proportional to the (non-diagonal) covariance matrix of the data within a given cluster, and therefore units, scales and orientations are treated automatically.

Use of the Mahalanobis distance suggests an alternate visualization to the standard silhouette plot in Figure 1. In Figure 2, fake data are again used to find clusters. The dataset is shown with 2–7 clusters. Here, the points are color-coded according to their silhouette value, with darker colors corresponding to lower values. Also shown are contours associated with the covariance matrix of each cluster; these contours indicate each cluster’s orientation and therefore its volume of influence in parameter space. Silhouette scores are shown in the lower right plot, which shows that the choice of four clusters is optimal; when there are more than four clusters, well-isolated clusters are broken into non-isolated subclusters. Importantly, as the number of clusters grows, the region influenced by the data becomes more spherical and suggestive of a single, scalar ϵ. Thus, we anticipate that in the limit of large datasets and large numbers of clusters, the universal function-approximation properties of these anisotropic RBFs will be preserved. Note how dense clusters associated with an unbalanced dataset are assigned to a single center, thereby partially balancing the dataset.

FIGURE 2

FIGURE 2. A fake dataset separated into two through seven clusters. The color of each data point indicates its silhouette number. The orientation of each cluster is indicated by contours computed from the covariance properties of that cluster, indicating the coverage of the data points in the parameter space. The optimal number of clusters is found using the plot at the lower right that shows the silhouette score versus the number of clusters; the number of clusters with the largest silhouette score is the optimal choice. See Figure 9 for the 3D version using real data.

In summary, the ML approach finds clusters in the data, guided by silhouette scores, finds the covariance of each cluster, uses the covariance as the distance in anisotropic RBFs and learns the discrepancy between $\mathcal{T}(\mathbf{x})$ and the data. In the next section, we apply this ML approach to conductivity data.

3 Datasets

The approach described above was applied to two datasets, both of which originated from exploding-sample experiments. A dataset that includes the elements Al, Ni, Fe, Cu and W was generated with wires by DeSilva and Katsouros (DK) [25] and has been studied by many authors [34–36]. Conductivities versus temperature, color-coded by density, for these four elements are shown in Figure 3. Another dataset, using wires, foam, tubes, foil and sticks, was generated by Clérouin and co-authors [37] and includes data for the elements Al, Ni, Ti, Cu, Ag, Au, B and Si. The Clérouin et al. data differ from the DK data in two important ways: detailed equations of state were used to connect the energy density to the temperature, and the density was controlled through the use of a fixed-radius ring. Both datasets used here, along with codes used in this work, are available at GitHub [38].

FIGURE 3

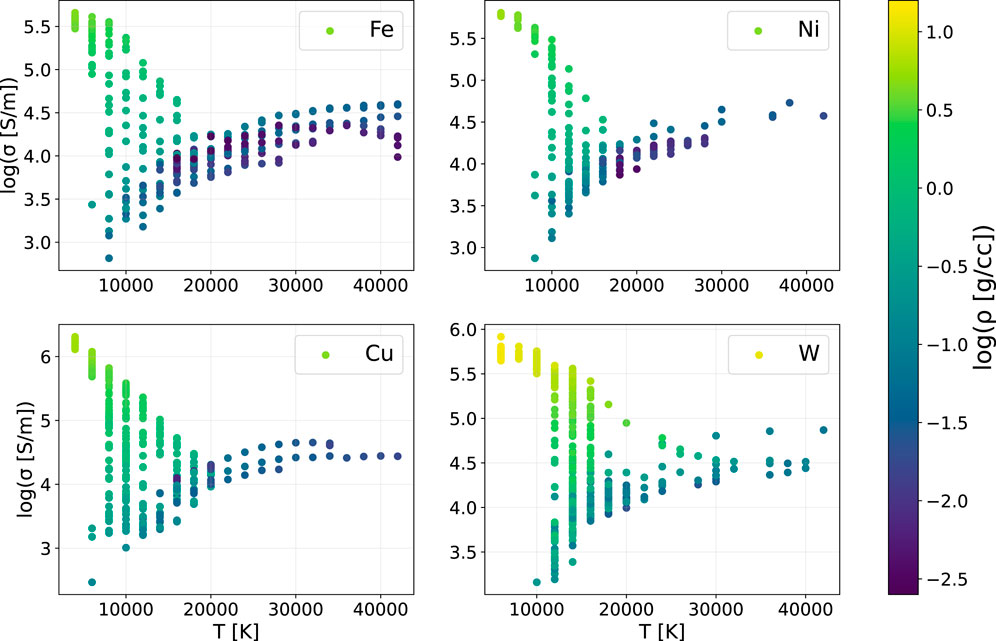

FIGURE 3. DK electrical conductivity data for Fe, Ni, Cu and W. Conductivity is shown versus temperature, with data points color-coded by the mass density. (Conductivity and mass density are shown on logarithmic scales.) Note that the data at high temperatures tend to be at lower densities because of the experimental procedure that employs an exploding wire.

Raw features of these datasets are shown in Figures 4, 5. Variations in and concentrations of values for temperature, density and conductivities are indicated by the histograms along the diagonal. Note that the DK dataset is concentrated at lower temperatures and higher densities, as expected for exploding wires that begin as room-temperature solids. The logarithm of the conductivity is moderately uniform. There are clear trends of conductivity with temperature and density, with the correlation between conductivity and density being slightly stronger than that between conductivity and temperature. While these trends are similar to those seen in the Clérouin data, a key difference is that the Clérouin experiments are very isochoric. (Note that an outlier in the boron data was removed.)

FIGURE 4

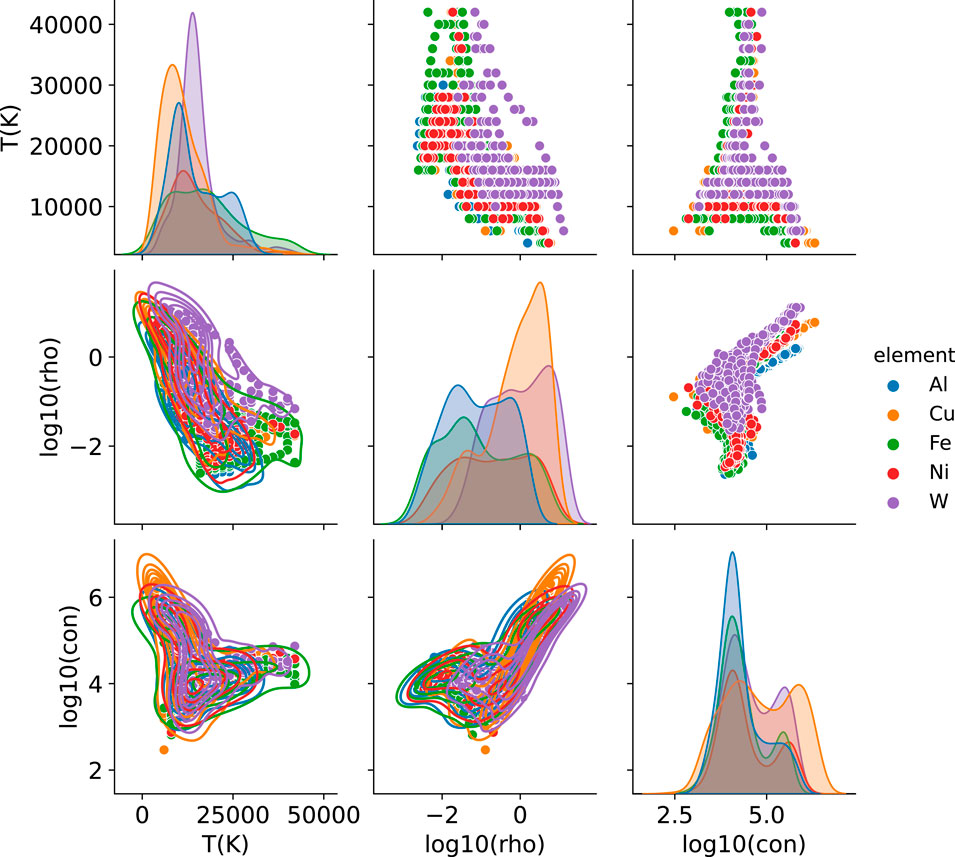

FIGURE 4. DK electrical conductivity data for all five elements (Al, Fe, Ni, Cu and W) shown as histograms and scatter plots. Along the diagonal are the distributions of temperatures (in K), densities (log g/cc) and conductivities (log S/m). Note that some of the data are unbalanced toward lower temperatures or higher densities. Correlations between variables are shown in the off-diagonal plots, which reveal strong correlations between conductivity and density as well as between conductivity and temperature.

FIGURE 5

FIGURE 5. Clérouin et al. electrical resistivity data for all elements, shown as histograms and scatter plots. In contrast to the DK data, the densities are constant within a given experiment and resistivities are shown.

We can get a better sense of the physics content of the data by plotting conductivity versus density, with data points color-coded by temperature, and separately, conductivity versus temperature, with data points color-coded by density. These comparisons are shown in Figure 6, where some averaging is done by binning the data into temperature ranges. In the left panel, at low temperatures (blue dots), the conductivity increases monotonically and nearly linearly (in terms of logarithms of the quantities). At elevated temperatures (e.g., orange and green), the conductivity exhibits a minimum, and insufficient data are available to draw a definitive conclusion at the highest temperatures. However, at low densities, there is a trend toward higher conductivities at higher temperatures. This trend is clearer in the panel on the right, where the colors of data points now reflect density bands, with some bands not shown, to reduce clutter. At high densities (shown as green points near the top of the plot), the conductivity drops as the temperature increases. At slightly lower densities (cyan), there is no clear trend. For expanded plasmas, however, the conductivity increases with temperature, a possible signature of a metal-nonmetal transition [36]. Because all of the temperatures in this dataset are below the Fermi energy of Cu ($\sim 7$eV), the physical properties are very sensitive to pressure ionization (or a lack thereof).

FIGURE 6

FIGURE 6. The DK data plotted as conductivity versus density (left panel) and versus temperature (right panel) for Al. In the left panel, color coding by temperature reveals strong temperature dependence at low density, with fairly universal behavior at high density. These trends with temperature can be seen in the right panel, in which data points are color-coded by the logarithm of the density: conductivities decrease with temperature at high densities (top, green), are roughly constant at intermediate densities (cyan), and increase with temperature at low densities.

The function we wish to learn is σ(ρ, T). Figure 7 shows the distribution of data points in this input space, color-coded by the conductivity, for three elements: Al, Fe and W. Because this dataset originated from one source—with all data produced using exploding wires—the data do not have well-isolated clusters. Rather, the topology of the data represents the temperature-density path taken by wires with initially high density and low temperature that are heated and expand under pressure. Moreover, because Figure 7 is a 2D projection, we cannot view possible clustering of points along a conductivity axis. Below, we will examine whether our clustering algorithm can find the structure in this dataset.

FIGURE 7

FIGURE 7. Distribution of DK data points in a linear-temperature log-density plane, color-coded by the logarithm of the electrical conductivity, for Al, Fe and W.

4 Results

The modified Lee-More (MLM) model (see Supplementary Appendix SB) is compared with the data in Figure 8 for the two temperatures 10kK and 30kK for a range of densities. This represents an extreme regime—expanded warm dense matter—for the MLM model, and the corresponding errors are clearly visible. Note that the MLM model is used here with no empirical adjustments. The MLM model uses a simple Thomas-Fermi ionization model (see Supplementary Appendix SB) that is not accurate at these low densities and uses a single mean ionization state. Importantly, the MLM model is used here only as the trend $\mathcal{T}$.

FIGURE 8

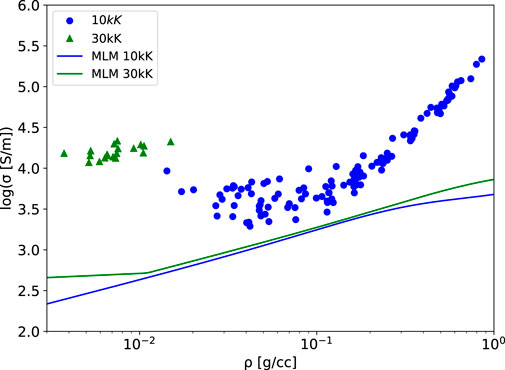

FIGURE 8. Electrical conductivity versus density for the MLM and DK data. Shown are two temperatures, 10kK (blue) and 30 kK (green), for Cu. (To get a sense of the trend in the data, a small band of temperatures around 10kK and 30kK was used).

Next, clustering is used to examine the coverage of the DK data in the density-temperature space, using a cluster analysis. As with most ML methods, the formation of clusters was very sensitive to the data values. Thus, to compress the data onto similar scales, temperatures were scaled by 11,605; that is, temperatures were converted to eV from K. The results are shown in Figure 9.

FIGURE 9

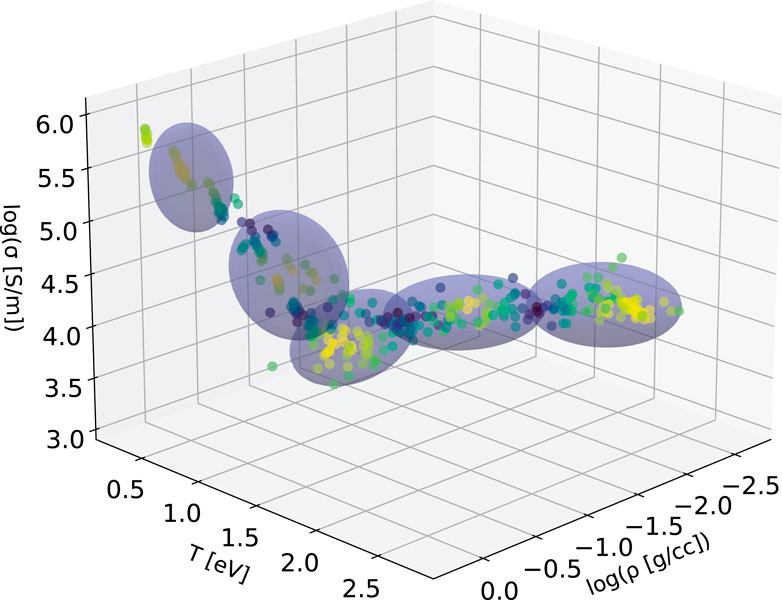

FIGURE 9. Clustering of the DK Al data. As in Figure 2, colors represent silhouette scores; darker points are less well clustered. Note that clusters are formed using all three dimensions (with Z fixed). Five clusters are used, which is two greater than the silhouette score suggested; this increase in cluster number gave an improved prediction.

In practice, once clusters are formed and their covariances are found, three additional steps were performed. First, because the clusters were formed in 3D, a marginal covariance in 2D was found in terms of the input variables x. Second, a hyperparameter was introduced that scales the covariance matrix; physically, this corresponds to learning the region of influence of the data and therefore the scale over which the model reverts to $\mathcal{T}$. Third, additional clusters were found with silhouette scores above the silhouette score’s optimal value, to mitigate underfitting. A cross-validation approach was used to determine these hyperparameters. Our cross-validation procedure is as follows. The data are first split into training and testing sets. The split is random, with the split percentage varied; it was the found that the commonly used split of 80% yielded good results. The width hyperparameter was varied with a grid search on a portion of the testing set, that is, only along a single temperature contour. This amounts to a separate validation step: does the width determined in one temperature regime yield good results in a separate temperature regime? Finally, the predictions were compared with the test data. Here, quality was measured only visually; in a production setting, a three-stage train-validate-test would be constructed to yield a quantitative error metric.

RBFNN model predictions of Al and Cu electrical conductivity versus density are shown as the orange curves in Figures 10, 11. Because of the large variations in the conductivity values, the logarithm of σ(ρ, T) was used in the learning process. The DK testing data [25] are shown as green points, with testing data chosen randomly from 80% of the total data. Note the agreement of the RBFNN with the data in comparison with the base MLM model and, in particular, how the RBFNN predictions naturally transition to the MLM model predictions away from the data. Here, scale factors of 10 and 30 of the Mahalanobis covariance matrix were used for Al and Cu, respectively, which impacts the widths of the peaks seen in the RBFNN predictions (and therefore the scale over which there is a transition to the MLM model). Because only five centers were used, a high degree of regularization is seen. This is manifested in the good agreement with the green testing data; there is little chance of overfitting with so few centers.

FIGURE 10

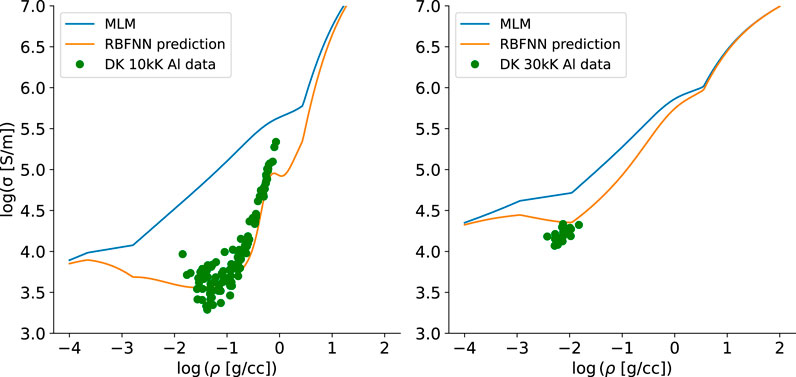

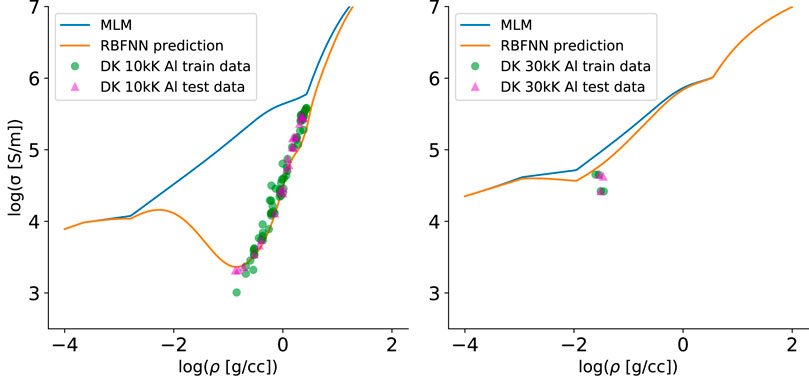

FIGURE 10. DK training data for Al are shown as green dots, with the base MLM model shown as the top, blue curve. The RBFNN model is shown in orange, which predicts the data well and asymptotically (away from the data) tends to the trend $\mathcal{T}$, which is the MLM model. Here, five centers were used, and the covariance scale hyperparameter was learned from the data in the panel on the left; thus, the prediction in the right panel serves as a test. The magenta triangles indicate the test data (random 20% of the total data).

FIGURE 11

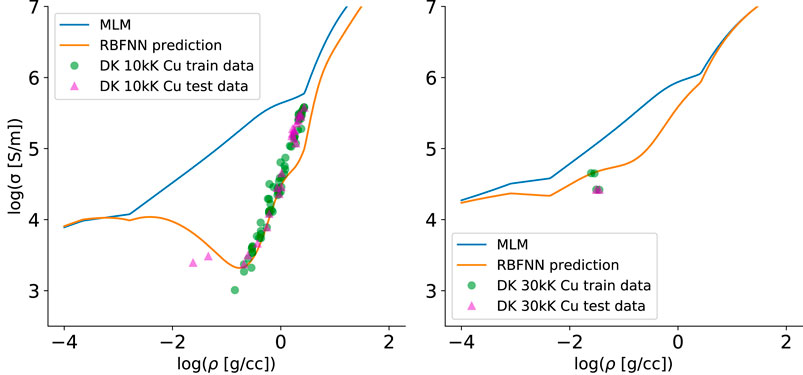

FIGURE 11. DK training data for Cu are shown as green dots, with the base MLM model shown as the top, blue curve. The RBFNN model is shown in orange, which predicts the data well and asymptotically (away from the data) tends to the trend $\mathcal{T}$, which is the MLM model. Here, five centers were used, and the covariance scale hyperparameter was learned from the data in the panel on the left; thus, the prediction in the right panel serves as a test. The magenta triangles indicate the test data (random 20% of the total data).

Next, we turn to the Clérouin et al. dataset. As seen above in Figures 4, 5, the topology of this dataset is very different from that of the DK dataset, and this difference provides an opportunity to further explore the RBFNN approach. Results are shown in Figure 12 for three clusters. Note that the data are nearly constant, with relatively small temperature variations and no density variations; such a topology causes two potential problems not seen with the DK data. First, because the data for each element falls on an isochore, which prevents one from exploring variations along density contours as can be done with the DK data, the lack of variation in density leads to a covariance matrix that has small, and sometimes zero, values. The RBFNN procedure therefore involves singular matrices. These zero values correspond to having no confidence in making a prediction at any density other than the one that was measured. However, if we plot our predictions versus temperature, as in Figure 12, we do not use information for other densities; when the data and predictions are shown this way, a small amount of noise added to the covariance matrix allows for matrix inversion. Second, it is known that RBFNNs are poor at approximating functions that have steps between flat regions, which is how this dataset varies versus temperature. To achieve a sharp transition between flat regions, the RBFNN generates oscillations as seen in the figure.

FIGURE 12

FIGURE 12. Predictions for the Clérouin et al. dataset for four elements. In this case, conductivity is plotted versus temperature because density did not vary within an experiment. Three clusters were used, which limits the ability of the RBFNN to resolve what are nearly flat data.

If we have control over the creation of our data, where should we create it [39]? The Clérouin et al. dataset reveals that, despite the desire to experimentally create well-characterized densities, allowing some variation in density is important from a data-science perspective. (Portions of the Clérouin et al. dataset contained data at two densities for a single element; we leave analysis of these data for future work.) ML methods can be used to guide the creation of datasets [39, 51] that maximize our knowledge with the minimum cost. And, of course, in practice we would combine the datasets; here, these two datasets were kept separate to reveal the interesting differences in their topologies.

5 Conclusion and outlook

In summary, a data-driven approach to predictions of electrical conductivities has been presented. The ML model is based on a detrended RBFNN, where the detrending function $\mathcal{T}(\mathbf{x})$ is a modified version of the Lee-More model. Training data are from the Cu exploding-wire experiments of DeSilva and Katsouros. Two data sources were used here; they are available on GitHub [38]. Many other data sources, as they are found or produced, will be added to this repository. The RBFNN model presented here uses a small number of centers that resolve the topology of the data without overfitting it. Silhouette scores guide k-means clustering, a purely unsupervised learning process. Future work will examine a supervised approach, as well as cross-validation methods for clustering [32].

The detrending model $\mathcal{T}(\mathbf{x})$, while wide ranging, could be improved. Obviously, the more accurate $\mathcal{T}(\mathbf{x})$ is, the more accurate the overall model will be. Theoretically, Ziman approaches are more fundamental and should be explored in this ML context. Although Ziman models are often more computationally demanding, because of their use of ionic structure factors and numerically generated cross sections, fast implementations or tabulated outputs could be used for $\mathcal{T}(\mathbf{x})$.

There are many ways that the ML approach can be extended. Chief among them is to enhance the size, quality and sources of the dataset. This can be accomplished by using properties of lower-pressure heated solids and liquid metals, as well as by “computing data” with highly converged, high-fidelity computational models (e.g., Kubo-Greenwood calculations with finite-temperature Kohn-Sham inputs). A topic not discussed here is uncertainty: all discrepancy-learning models [22–24] should be subject to uncertainty quantification and the use of Bayesian methods, such as Gaussian process regression (GPR) [40]. This will be the subject of future work; for example, there are interesting parallels with discrepancy modeling and multifidelity models, many of which are GPR-based [39]. Finally, the approach presented here could be extended to multi-output ML. Simultaneous prediction of multiple electronic transport properties (e.g., including viscosity and thermal conductivity) could enforce consistency among the models. Importantly, a general framework could be constructed that also predicts the equation of state, which allows a more direct use of exploding wire data [26] for which energy density is a more natural independent variable than temperature.

Data availability statement

Publicly available datasets were analyzed in this study. These data can be found here: https://github.com/MurilloGroupMSU/Dense-Plasma-Properties-Database/tree/master/database/DeSilvaKatsouros.

Author contributions

MM conceived and designed the study, performed all calculations and wrote the manuscript.

Acknowledgments

The author thanks A. W. DeSilva for useful conversations. The author is extremely grateful to J. Stephens (Texas Tech University) and S. Hansen (Sandia) for providing DeSilva-Katsouros datasets and to an anonymous referee for providing a CSV file of the Clérouin et al. data. We thank the U.S. Air Force Office of Scientific Research for their support of this work under Grant No. FA9550-17-1-0394.

Conflict of interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphy.2022.867990/full#supplementary-material
