Optical Properties of Gold After Intense Short-Pulse Excitations

Intense ultrashort laser pulses can create highly excited matter with extraordinary properties. Experimental and theoretical investigations of these extreme conditions are very complex and usually intertwined. Here, we report on a theoretical approach for the electron scattering rates and the optical properties in gold at elevated temperatures. Our theory is based on the degree of occupancy of the conduction band as well as inputs from ab initio simulations and experimental data. After the electron system has reached a quasi-equilibrium, the occupancy is fully determined by the electron temperature. Thus, our approach covers the important relaxation stage after fast excitations when the two-temperature model can be applied. Being based on the electronic structure of solids, the model is valid for lattice temperatures up to melting but the electron temperature might exceed this limit by far. Our results agree well with recent experimental data for both the collision frequencies and the conductivity of highly excited gold. Scattering of sp-electrons by d-electrons is found to be the dominant damping mechanism at elevated electron temperatures and depends strongly on the number of conduction electrons, hence, revealing the microscopic origin of the conductivity change after heating. The supportive benchmarks with experiments are very valuable as the underlying scattering rates determine a number of other transport, optical and relaxation properties of laser-excited matter.

1 Introduction

The interaction of short laser pulses with matter has drawn broad attention over the last few decades due to its importance for fundamental science as well as for a plentitude of applications in diverse fields [1–9]. Advances in laser technology have opened new possibilities and new research areas [10–12] and allowed for remarkable qualitative improvements of temporal, spatial and energy resolution of experiments [13–18]. Accordingly, the capabilities to probe and control materials properties even at extreme conditions and ultrashort time scales have been enhanced considerably in the last decade. The combination of short-pulse optical lasers and free-electron lasers has proven to be a particularly suitable tool to create highly excited states of matter and probe its properties when utilizing the versatility of the free-electron laser with respect to photon energies and pulse duration.

The absorption of laser energy by solid materials drives the electrons in a nonthermal state with an energy distribution specific to the material and the excitation process [19–22]. Subsequently, the electrons relax to a Fermi distribution in each band on times scales of a few to a few hundred femtoseconds [23–25]. This stage is followed by the recombination of excited electrons into lower bands leading to the equilibration of the occupation numbers in the bands and finally an energy transfer from the electrons to the lattice that was initially unaffected by the laser [26, 27]. Transiently, there exists a stage in the relaxation that can be described with an elevated electron temperature and a relatively cold lattice. Understanding this stage is very useful when interpreting experiments with ultrafast excitations. Detecting this behavior sets a well-defined limit to the time the ultrafast equilibration processes need to establish a Fermi distribution and an equilibrium band occupation. Moreover, these states can deliver deep insights about the process of electron-phonon coupling and electron collisionality in general. Finally, this stage sets the initial conditions for melting or ablation processes at very high energy inputs.

The optical properties of materials are known to be modified during the excitation and relaxation process. Thus, they reflect the different relaxation stages and can be employed to probe the properties of matter at highly excited conditions. The optical response can be measured in pump-probe experiment through the reflection and/or the transmission [28–32]. These direct data can then be recast as internal optical properties like the dynamic conductivity either directly for bulk materials or with the help of the Helmholtz equations for heated films [33, 34]. Time-resolved ellipsometric measurements can also provide the complex refractive index of a material [35, 36]. Moreover, the DC electrical conductivity can be obtained with terahertz (THz) probe reflectivity [37] or probe transmission [38, 39]. THz probes provide more direct access to DC conductivity in contrast to measurements with optical frequencies that require to be extrapolated in the near zero-frequency limit [37].

Whereas reflection and transmission are the directly measured quantities in experiments, theoretical models usually start with the evaluation of the dielectric function or dynamic conductivity [40], which can be based on ab initio methods [41–44], quantum statistical approaches [45–47], classical simulations [48] or a Drude or Drude–Lorentz model [44, 49]. For extreme conditions and ultrashort time scales, the modelling of these properties remains challenging. The use of a constant value for the optical properties in many models is a crude approximation and may lead for instance to a wrong evaluation of the energy deposition and the damage threshold [50, 51]. The full nonequilibrium or, at least, temperature-dependent dielectric function should thus be rigorously evaluated. One crucial parameter is the damping rate of conducting electron states which is usually described as a scattering rate with other electrons, phonons and lattice imperfections. To date, this scattering rate and particularly its dependence on the electron temperature is still under discussion due to discrepancies found in both existing experiments [30, 39, 52] and also theoretical calculations [30, 53]. In a previous study by Fourment et al. [30], it has been shown that the scattering rate of the conduction electrons in gold is mostly determined by the number of holes in the d-band. These calculations have assumed that the sp and d-band states lie within certain energy boundaries instead of a projected density of states (PDOS) with orbitals hybridization. Moreover, a recent study by Chen et al. [39] has found a much smaller collision frequency of heated gold.

The resolution of the discrepancies and uncertainties of recent studies requires a thorough description of the material and optical properties, high-quality experimental data and well-suited relaxation codes to combine the two. With this combination, one can then harness the power of short-pulse excitations to reveal the relaxation pathways, collisionality and thermodynamics of strongly driven matter. Here, we report on the scattering rate and the electrical conductivity of gold under electron-phonon nonequilibrium with special emphasis to compare our theoretical approach to recent experimental results. Gold is an ideal candidate to study such properties of highly excited matter since it has been investigated extensively with short laser pulses [29, 30, 34, 39, 54, 55].

Our calculations are based on the temperature-dependent degree of filling of the sp and d-bands as in Ref. [30] but using a PDOS. We find that the electron-electron scattering is the major contributor to the total collision frequency at elevated electron temperature and is fully determined by the occupations of the bands. However, our results suggest a much lower electron-ion rate for cold gold in order to match the recent experimental data of Ref. [39]. These new settings translate into a good agreement with experiments for the DC and AC conductivities of heated gold. The latter reveals different qualitative behavior depending on the probe wavelength but remains constant and equals the DC conductivity at very low photon energies hence supporting THz radiations as an adequate probe for the static limit. The good agreement between the calculations and the experiment suggests that the Drude model is well suited to describe the DC and the real part of AC conductivity of highly excited matter at photon energies below the interband threshold once an appropriate description of the scattering rates is applied.

2 Theoretical Model

Laser-heating may induce strong modifications of the material’s optical properties due to the excited electron states created. Here, we consider optical excitation of gold, where two active bands contribute, namely, the 5d valence and the 6sp conduction electrons. The additional excitation of core electrons is possible with X-rays or XUV pulses [39, 56] but should not be addressed here, mainly, due to the ultrashort lifetimes of such core holes.

We consider times when the electron system is fully thermalized, hence a Fermi distribution is established. This relaxation stage is quickly reached as the kinetic stage with non-Fermi electron distributions lasts only a few femtoseconds [21, 24, 25]. Moreover, the sp and d-bands are assumed to be in equilibrium, i.e., they share a common temperature and chemical potential. This condition sets the lower temporal limit when our approach is valid since the occupation of these bands may stay out of equilibrium for several hundreds of femtoseconds [56, 57]. The assumption of equilibrated upper bands is fulfilled in many existing experiments [29–31, 33] since such a quasi-equilibrium state is reached at probe time [56]. For such cases, we can describe the material properties with quasi-equilibrium electron states that are uniquely defined by the electron temperature.

Still, the properties described here require ultrafast probing as part of the electron’s energy will be transferred to the lattice. This stage of nonequilibrium persists, at least, several picoseconds [54, 58]. Thus, our investigations can be seen as providing snap-shots of the optical properties during the electron-phonon temperature equilibration.

The density of states (DOS) of the two upper bands for solid gold is calculated from density functional theory employing Elk [59]. This code uses augmented-plane waves to treat all electrons. We use an 80 × 80 × 80 k-point grid, spin-orbit coupling and the local density approximation to evaluate the ground state which also sufficiently describes the elevated temperatures considered here [60]. Results for the DOS are shown in Figure 1, where the Fermi energy E_F sets the zero of the energy scale. At room temperature, the DOS accounts for a fully occupied 5d-band and a half-filled 6sp conduction band. The equilibrium occupation of these states at elevated temperatures according to Fermi statistics,

$f\left(E,\mu ,T_e\right)={\left\{\exp \left[\left(E-\mu \right)/k_B{T}_e\right]+1\right\}}^{-1},(1)$

with an electron temperature T_e and a chemical potential μ is plotted in Figure 1 for different electron temperatures. As one can see, the sp-band is increasingly populated at higher electron temperatures while the corresponding chemical potential μ shifts towards higher energies. We obtain μ from the conservation of the total number of electrons, both in the sp- and d-bands, n_tot [40], by solving the equation $n_{\text{tot}}\left(T_e,\mu \right)=n_{\text{tot}}$ (0 K, E_F). Here, n_tot is determined by Eq. 2 with the respective Fermi functions. In the following, we apply an unchanged DOS for all temperatures as its changes remain negligible for the temperature range of interest [60].

FIGURE 1

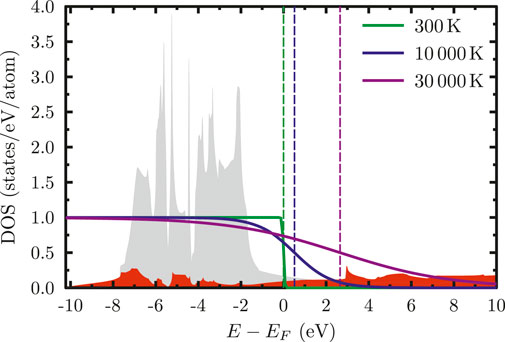

FIGURE 1. Partial density of states in gold for the 6sp electrons (red area) and the 5d-band (gray area), together with the equilibrium Fermi distributions at room temperature (green line), at 10 000 K (blue line) and at 30 000 K (purple line). The Fermi energy E_F is located at energy zero. Dashed lines are the chemical potential demonstrating a shift at elevated electron temperatures.

The electron density of a given band is calculated as

$n_j\left(T_e\right)=\int \mathrm{d}Ef\left(E,\mu ,T_e\right)D_j\left(E\right),(2)$

where j denotes the band’s index, D_j the partial DOS of the band and f is the Fermi equilibrium distribution. The increase of the electron temperature leads to a rise of the conduction electron density and, correspondingly, a decrease in the occupation of the d-band, satisfying the conservation of the total electron density n_tot = n_sp + n_d.

For matter initially at room temperature, the energy absorbed by the electrons while being heated to a new temperature T_e can be written as $\mathrm{\Delta }u=u\left(T_e\right)-u$(300 K) with

$u\left(T_e\right)=\int \mathrm{d}EEf\left(E,\mu ,T_e\right)D_{\text{tot}}\left(E\right),(3)$

where D_tot = D_sp + D_d is the total density of states. The internal energy Eq. 3 also determines the heat capacity of the electrons, c_e, via the temperature derivative at constant volume c_e = ∂ u/∂ T_e. Thus, all thermodynamic variables of the electron system are uniquely defined by the absorbed energy or, equivalently, the electron temperature.

Now we turn to the optical properties as expressed by the frequency-dependent conductivity. It is directly linked to the complex dielectric function via ɛ(ω) = ɛ_∞ + iσ(ω)/ωɛ₀, with the dielectric constant ɛ_∞ and the vacuum permittivity ɛ₀. The dielectric function is an intrinsic property and once known, all other optical properties like the absorption coefficient, the penetration depth or the reflectivity can easily be inferred [40]. For bulk materials, the reflectivity of the surface for normal incidence is given by

$R=\frac{{\left(n-1\right)}^2+k^2}{{\left(n+1\right)}^2+k^2},(4)$

where n and k are the real and the imaginary parts of the complex refractive index $\widehat{n}$, respectively. The latter is related to the dielectric function via $\widehat{n}=\sqrt{\epsilon }$. For thin foils, the thickness of the material needs to be included and multiple reflection effects are encountered [61], which introduces further complexity when inferring the internal material properties, like ɛ, from measured data. The reflectivity of a material is a directly measurable quantity. Hence, it appears to be more intuitive to compare this quantity with results of theoretical models. However, in the case of gold, the Drude model is not suitable to correctly evaluate the real part of the dielectric function since interband contributions dominate below 2 eV photon energy [52]. Accordingly, a comparison for the dynamical conductivity is more reliable.

Within the Drude formalism, the complex frequency-dependent electrical conductivity is given by

$\sigma \left(\omega ,T_i,T_e\right)=\frac{{\sigma }_0\left(T_i,T_e\right)}{1-i\omega /{\nu }_{\text{tot}}\left(T_i,T_e\right)},(5)$

where ω is the probe frequency. In the zero-frequency limit ω → 0, σ reduces to the DC conductivity σ₀ with

${\sigma }_0\left(T_i,T_e\right)=\frac{e^2{n}_{sp}\left(T_e\right)}{m_{sp}{\nu }_{\text{tot}}\left(T_i,T_e\right)}.(6)$

Here, e is the electron charge and m_sp is the effective mass of the conduction electrons taken to be equivalent to the free electron mass for gold [62]. $n_{sp}\left(T_e\right)$ is the sp-electron density obtained with Eq. 2 and ν_tot denotes the total scattering rate. The real part of the AC conductivity is determined as

${\sigma }_r\left(\omega ,T_i,T_e\right)=\frac{e^2{n}_{sp}\left(T_e\right)}{m_{sp}}\frac{{\nu }_{\text{tot}}\left(T_i,T_e\right)}{{\omega }^2+{\nu }_{\text{tot}}^2\left(T_i,T_e\right)}.(7)$

The total scattering rate ν_tot contains contributions from both electron-ion/phonon and electron-electron scattering: ${\nu }_{\text{tot}}\left(T_i,T_e\right)={\nu }_{ei}\left(T_i\right)+{\nu }_{ee}\left(T_e\right)$. The first term, scattering of sp-electrons with ions/phonons ν_ei, increases linearly with the ion temperature T_i at low temperatures. According to Ref. [30], the electron-electron collision frequency is determined by the scattering of sp electrons with d-band electrons. The latter process also needs d-band holes due to Pauli-blocking of the final states. Thus we have

${\nu }_{\text{tot}}\left(T_i,T_e\right)=B{T}_i+A{n}_d\left(T_e\right)\left[n_d^{\text{full}}-n_d\left(T_e\right)\right],(8)$

where the constant B equals ${\nu }_{ei}^{\text{cold}}/$300 K. The electron-ion rate for cold gold ${\nu }_{ei}^{\text{cold}}=$0.084 fs⁻¹ is fixed by experiments at ambient conditions [52, 62]. The constant A = V² 0.36 fs⁻¹, with V = 1.69 × 10^–29 m³ being the volume of the unit cell, is found to be almost constant when T_e increases [30]. $n_d^{\text{full}}$ labels the electron density of the full d-band and the temperature-dependent $n_d\left(T_e\right)$ can be calculated with Eq. 2. This description of the scattering rate has been used successfully for warm dense gold [30] and also for solid gold excited near the ablation threshold [42].

3 Results and Discussion

We demonstrate how the optical properties of gold are modified by elevated electron temperatures up to 20 kK while we keep the lattice close to room temperature. Such quasi-equilibria with well-defined electron and phonon temperatures occur in many experiments [29–31, 33, 63] during the relaxation process after ultrafast excitation. Indeed, probing these states is essential to determine important parameters like the electron-phonon coupling.

The electron temperature reached in the experiment depends on the absorbed energy which is much easier to determine experimentally. Figures 2A,B show the electron temperature and the density in the conduction band of gold, respectively, in dependence of the absorbed energy. The temperature is determined by inverting Eq. 3 whereas the sp-density is evaluated by Eq. 2. To convert the absorbed energy per mass into the specific internal energy, we use a mass density of ρ_Au = 19.3 gcm⁻³. At ambient conditions, gold contains one sp electron per atom corresponding to a conduction band density of n_sp ≃5.9 × 10²² cm⁻³.

FIGURE 2

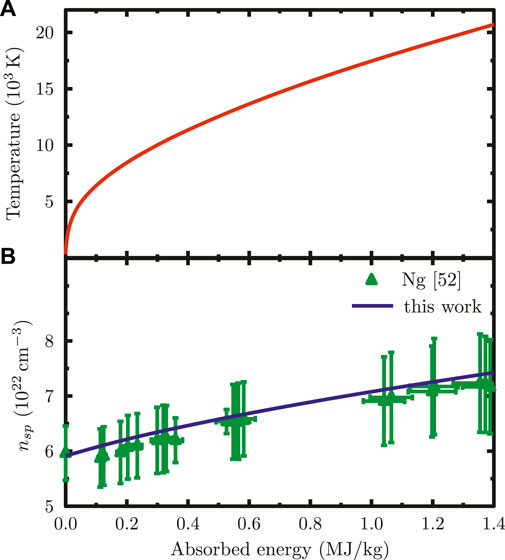

FIGURE 2. Predictions of (A) the electron temperature and (B) the electron density in the 6sp-conduction band of gold as a function of the absorbed energy. The conduction band density is compared with experimental data from Ref. [52].

The results shown in Figure 2 take the entire energy from an excitation process to be stored by the electron system directly after excitation. During and shortly after the excitation, energy may be transferred to the lattice even if the electron-phonon coupling in gold is small [58, 64], which can be included by simply adjusting the energy absorbed into the electrons. In Figure 2A, the electron temperature increases strongly nonlinearly with the absorbed energy. This effect can be attributed to the highly degenerate sp electrons at room temperature and the influence of d-band electrons which have a major contribution to the total heat capacity at higher electron temperatures.

With increasing energy density, hence temperature, the d-band electrons, located below the Fermi energy and serving as a reservoir of particles, are more and more excited into the empty states of the conduction band. This thermal excitation of d-electrons results in a rise of the sp-electron density as shown in Figure 2B, where we compare our calculations with experimental data (green triangles) inferred from measurements after short optical excitation [29, 52]. Our results show satisfactory agreement with the experiment although the large error bars do not confine the theory strongly.

The increase in sp-density strongly influences the electron-electron scattering rate shown in Figure 3A as a function of the electron temperature. It is obtained with the second term of Eq. 8 and, thus, is determined by the densities of electrons and holes in the d-band. At very low electron temperatures, the d-band of gold is fully occupied. Hence, Pauli blocking prevents scattering by the d-band electrons and ν_ee remains nearly zero. For temperatures above ∼4 kK, thermal excitation of d-electrons becomes significant which increases the density in the conduction band as seen in Figure 2B and creates some empty states (holes) below the Fermi level. The increase of the density of holes in the d-band activates efficient electron-electron scattering leading to a strong rise of ν_ee with the temperature. Moreover, the increase of ν_ee shows a quadratic nature $(\sim T_e^2)$ revealing, therefore, a typical Fermi-liquid behavior.

FIGURE 3

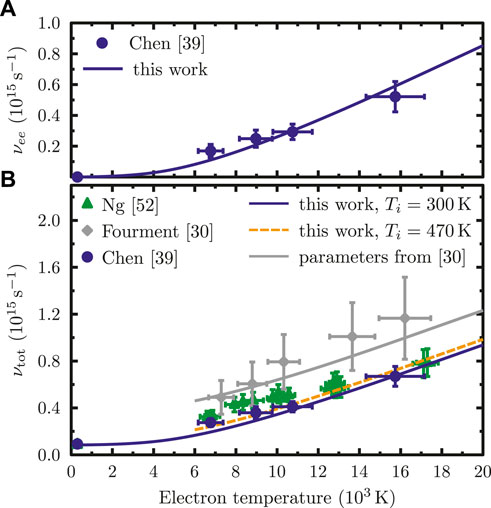

FIGURE 3. (A) Calculated temperature-dependent electron-electron scattering frequency in gold (blue line) compared with experimental data from Ref. [39] (blue circles). (B) Total scattering rate according to Eq. 8 for a cold lattice (blue solid line) and at a phonon temperature of 470 K (orange dashed line). Calculations are compared with different sets of experimental data obtained from Ref. [52] (green triangles), Ref. [39] (blue circle) and Ref. [30] (gray diamonds), respectively.

We compare our calculations with experimental data obtained from Ref. [39]. In the experiment, a thin gold foil was strongly heated with XUV pulses at different energy densities and probed with THz radiations. The temporal resolution was 700 ± 200 fs. ν_ee was derived from the total scattering rate that was inferred from the THz conductivity measurements [39]. The comparison shows good agreement with the experimental data over a wide range of temperatures.

Figure 3B depicts the total scattering frequency ν_tot in gold in dependence of the electron temperature. This scattering rate is a crucial quantity for an accurate description of optical and transport properties in laser-excited materials as shown in Eqs 5–7. We obtain it via Eq. 8 as a sum of electron-electron and electron-ion contributions. For cold gold, the almost full occupation of the d-band at room temperature prevents electron-electron scattering. The scattering of sp-electrons with the phonons prevails and ν_tot ≈ ν_ei. While increasing the electron temperature and keeping the lattice cold (blue solid line), we observe a strong rise of ν_tot with respect to T_e. This can be directly attributed to an increase of the electron-electron scattering rate ν_ee as seen in Figure 3A and resulting from an increase in the number of d-band holes. At such conditions, ν_ee clearly dominates and has the largest contribution to the total collision frequency.

We compare our theoretical predictions with different sets of experimental data. There are some discrepancies between the THz data [39] (blue circles) and our results for a lattice at room temperature. However, to match the experimental conditions of the THz data including some electron-phonon energy transfer, we increase the lattice temperature up to T_i = 470 K. That corresponds to the value obtained with a two-temperature model at 700 fs, using a slow electron-phonon coupling [39, 64]. This small increase of T_i results in a rise of ν_ei by a factor of 1.6 from its initial value, hence increasing ν_tot (orange dashed line) which now matches the THz data well. In contrast to Figure 3A, the data point at T_e ≃6500 K also agrees much better with the theoretical line.

The experimental data shown with green triangles [52] and gray diamonds [30] were obtained from gold excited by optical pulses. The experiment of Ref. [52] uses an optical pump of 400 nm wavelength and probes at 800 nm with a temporal resolution of 540 fs whereas the experiment of Ref. [30] was pumped and probed with an 800 nm laser at a delay of 100 fs. Both of these data sets show similar qualitative behavior than the THz measurements [39] but are quantitatively higher. According to Ref. [39], this could be due to different experimental conditions especially the use of a thick target in Ref. [30].

The gray data points [30] in Figure 3B are only matched when input parameters from Ref. [30] are used, i.e., a much larger electron-ion collision frequency for cold gold and a lattice temperature at 880 K (gray solid line). In Ref. [30], ${\nu }_{ei}^{\text{cold}}$ is set to 0.129 fs⁻¹. However, this is at least 1.5 times larger than the value determined by many other experiments with gold [52, 62, 65] or by fitting the room temperature experimental dielectric function of gold [42, 62]. Overall, we find good agreement between experimental data [39] and our model, suggesting that Eq. 8 can indeed satisfactorily describe scattering rates in rapidly heated gold after a few hundred fs and until lattice melting.

More directly measured optical properties provide a better test for existing models. Figure 4 shows results for the DC conductivity of gold as a function of the electron temperature. We obtain it according to Eq. 6 which includes the lattice contribution through ${\nu }_{ei}\left(T_i\right)$. For cold gold, we find σ₀ = 1.98×10⁷ Sm⁻¹ which is in good agreement with the data for room temperature [39, 52]. For increasing electron temperatures, σ₀ decreases when the lattice is kept at 300 K. Our calculations agree well with the THz data [39] over the entire temperature range whereas a good match with the optical data [52] is only observed at elevated T_e as for the scattering rate (see Figure 3B). When T_e increases, ν_tot rises considerably due to an increase of ν_ee, as seen in Figure 3 and, therefore, inducing a decrease of the DC conductivity. Although σ₀ ∝ n_sp/ν_tot, the increase of the free electron density shown in Figure 2B has much less influence on the DC conductivity than the significant rise of ν_tot. For example at T_e = 20 kK, n_sp increases only by a factor of approx. 1.25 while ν_tot rises over more than 11 times its initial value (see Figures 2B, 3B). Similar to Figure 3B, a better agreement with the THz data at T_e ≃6500 K is obtained by increasing the lattice temperature T_i to 470 K in order to fully match the THz experimental conditions (orange dashed line). A further rise of T_i lowers σ₀ and our theory then matches the optical data better.

FIGURE 4

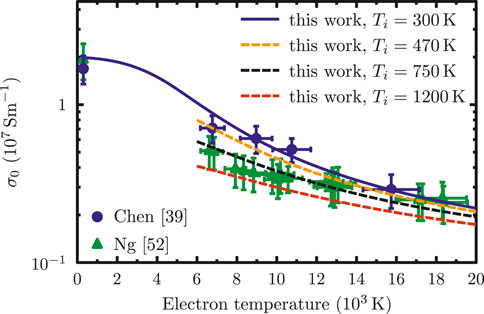

FIGURE 4. Temperature-dependent DC electrical conductivity of gold. The calculations according to Eq. 6 are shown for different phonon temperatures and compared with data from THz transmission measurements [39] (blue circles) and optical pump-probe experiments [52] (green triangles).

Figure 5 shows the real part of the AC conductivity in gold in dependence of the electron temperature and at different laser wavelengths. We observe quite different qualitative behaviors of the AC conductivity depending on the wavelength of the probe. Applying near-infrared probes, the AC conductivity monotonically rises with the electron temperature. That is the case observed for 2 µm wavelength, i.e. 0.62 eV photon energy, and similar to optical results at a wavelength of 800 nm in Refs. [29, 41]. In such regime of optical wavelengths, we have ω ≫ ν_tot and therefore σ_r ∝ ν_tot in Eq. 7 (note the logarithmic scale in Figure 5). At slightly longer wavelengths, see cases for 5–15 μm, our results show a still rising σ_r at low electron temperature, but it is reversed at elevated T_e. The decrease of σ_r is due to a strong increase of ν_tot as seen in Figure 3B such that ν_tot ≫ ω and thus inverting the proportionality to σ_r ∝ 1/ν_tot, see Eq. 7.

FIGURE 5

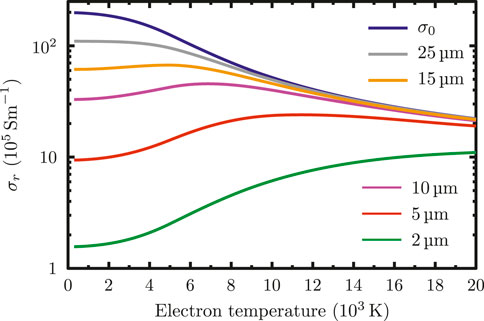

FIGURE 5. Real part of the AC conductivity as a function of the electron temperature for different laser wavelengths.

At 25 µm wavelength (49.6 meV) and above, the AC conductivity monotonically decreases with increasing electron temperature. The decrease of σ_r at elevated T_e is due to the relation ω ≪ ν_tot, hence σ_r ∝ 1/ν_tot. For these wavelengths, σ_r displays a similar qualitative behavior than the DC conductivity. Moreover, for probe wavelengths above 15 μm, both σ₀ and σ_r almost yield the same quantitative value at T_e ≥ 10 kK.

Figure 6 displays the real part of the broadband AC conductivity for gold at different electron temperatures. Note the logarithmic scale of both axes. The rectangles represent the data obtained by measurements using THz transmission [39]. The horizontal dimension is the range of frequency components in the THz cycle and the vertical dimension indicates the uncertainty of the experimental data. The circles correspond to optical data at 1.55 eV photon energy and are inferred from reflection and transmission measurements [29].

FIGURE 6

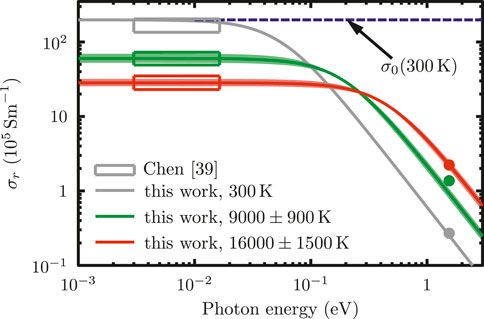

FIGURE 6. Real part of the broadband electrical conductivity σ_r for gold at room temperature (gray line) and at electron temperatures of T_e = 9000 ± 900 K (green line) and 16,000 ± 1500 K (red line) according to Eq. 7. The calculations are compared with THz measurements (triangles) from Ref. [39] and with optical conductivity data from Ref. [29] (full circles). The DC electrical conductivity at room temperature is shown with a blue dashed line.

We plot the DC conductivity σ₀ at room temperature with a blue dashed line. The calculated AC conductivity for cold gold (gray line) matches well the experimental data, both in the THz and optical regimes. Moreover, it shows that σ_r is constant and equals σ₀ over the range from zero to 0.01 eV, hence, making THz radiations an adequate tool to probe DC conductivity of materials as in Refs. [37, 39]. We also show our results for electron temperatures of 9000 ± 900 K and 16,000 ± 1500 K, respectively, while keeping the lattice cold. The shaded areas are determined by the uncertainty of the electron temperature according to the experimental conditions of the THz data [39]. Our calculated σ_r agree well with both the THz measurements and the optical data. The green data point for optical photons is not fully matched. This is reasonable since, according to Ref. [39], the THz data average over a slightly different range of temperature conditions than the optical ones. Moreover, at probe time the lattice is slightly heated and, therefore, increases ν_tot (see Figure 3B), which should result in a rise of σ_r for optical photons. In the THz range, σ_r ∝ 1/ν_tot decreases with increasing T_e, while the opposite behavior is observed at higher photon energies and in the optical regime (where σ_r ∝ ν_tot), as seen in Figures 4, 5, respectively. These comparisons demonstrate that the Drude model can describe the DC and the real part of the AC conductivity of strongly heated gold satisfactorily if interband contributions are small and the scattering rates and the band occupations are well determined.

4 Conclusion

We have studied the optical properties of highly excited gold in a nonequilibrium state with very different electron and phonon temperatures. We have shown that the scattering rates are the crucial quantities that determine most of the optical and transport properties in strongly heated metals. To that end, the occupation of the upper bands must be known as it fully determines the increase of the free carriers’ density and the electron-electron collision frequency which is the dominant rate at elevated electron temperatures. Although the lattice remains relatively cold at probe time, slight variations of the phonon temperature are observable in the optical properties. Our results match experimental data very well giving confidence in using the Drude model for probe wavelengths below the interband threshold.

The methods described here are also applicable to other metals with simple and complex band structures and, thus, can help to reveal the behavior of materials after short-pulse excitations. In particular, the phase of electron-phonon temperature equilibration can be studied as the electrons are in this phase in quasi-equilibrium that changes relatively slowly due to the energy transfer to the phonons/ions. In this case, the important electron-phonon energy transfer rate can be determined by combining optical probing and the modelling described here. Further work should be focused towards the optical properties for photon energies above the interband threshold, e.g., employing Drude Lorentz-like models. Given the propagation of uncertainties, comparison of optical properties is by far superior to comparisons of inferred quantities like the conduction band density when benchmarking theoretical models.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

PN implemented the models and performed the simulations. All authors contributed to the methods development and wrote the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank Zhijiang Chen for providing the experimental data and Sebastian Weber for the partial DOS and for helpful discussions.
