ORIGINAL RESEARCH article

Front. Phys., 23 February 2022
Sec. Condensed Matter Physics
This article is part of the Research Topic Advances in Superconducting Infinite-Layer and Related Nickelates View all 16 articles

Ab Initio Downfolding Based on the GW Approximation for Infinite-Layer Nickelates

Motoaki Hirayama,
Motoaki Hirayama1,2*Yusuke NomuraYusuke Nomura2Ryotaro Arita,Ryotaro Arita2,3
  • 1QPEC, The University of Tokyo, Tokyo, Japan
  • 2RIKEN Center for Emergent Matter Sciences (CEMS), Saitama, Japan
  • 3Department of Applied Physics, The University of Tokyo, Tokyo, Japan

We derive an effective three-orbital model for the infinite-layer nickelates based on the band structure obtained by the GW approximation (GWA), where we consider the Ni 3dx2y2 and O 2p orbitals forming the σ-bond. In the GWA, the self-energy correction to the local density approximation (LDA) increases the energy difference between Ni 3dx2y2 and O 2p, which reduces the bandwidth of the antibonding 3dx2y2 orbitals. The isolation of the Ni 3dx2y2 around the Fermi level suppresses the screening effect. As a result, the correlation effect becomes more significant than that in the model constructed by the LDA-based downfolding. Furthermore, the Mott-Hubbard type character is enhanced in the GWA-based effective model, because the charge-transfer energy increases more rapidly compared to the increase in the interaction parameters.

Introduction

The discovery of nickel superconductors [1] has attracted renewed attention to superconductivity in strongly correlated electron systems [27]. So far, superconductivity has been found in film samples of doped infinite-layer nickelates RNiO2 (R = Nd, Pr, and La) [1, 816] and a quintuple-layer nickelate Nd6Ni5O12 [17]. Although the nature of the superconductivity is largely unknown, the pairing mechanism is likely to be unconventional: Theoretically, a phonon calculation for NdNiO2 has shown that the electron-phonon coupling is too weak to explain the superconductivity with a transition temperature on the order of 10 K [18]. Experimentally, both U- and V-shaped spectra have been observed using the scanning tunneling microscopy, depending on the location of the inhomogeneous surface of the doped NdNiO2 film [9]. Although the origin of the coexistence of the two different signals is controversial [1923], the presence of the V-shape spectrum is consistent with an unconventional d-wave pairing. In fact, unconventional pairing mechanisms have been discussed since the early stages of the research [2426].

In contrast with the conventional phonon-mediated superconductivity for which ab initio calculation based on density functional theory (DFT) plays a crucial role [27, 28], construction of low-energy models with few degrees of freedom is critically important for unconventional superconductivity since a detailed analysis of the correlation effects is mandatory. In the standard approach to derive a low-energy effective model from first principles, we first calculate the electronic structure with the local density approximation (LDA) or the generalized gradient approximation (GGA) in the framework of DFT. We then construct the maximally localized Wannier function (MLWF) [29, 30] for the low-energy states around the Fermi level and derive a tight-binding model. Next, we calculate the effective Coulomb interaction by the constrained random phase approximation (cRPA) [31, 32]. The matrix elements of the (partially) screened interaction are calculated for the Wannier basis, from which we estimate the Hubbard U and Hund coupling J in the multi-orbital Hubbard model [18, 24, 33, 34]. The cRPA is formulated in such a way that RPA calculation for the derived low-energy effective model reproduces a one-shot GW (G0W0) result [31, 32, 35].

To improve the accuracy of the parameters in the low-energy model, we can replace the Green’s function (G0) constructed from the DFT/LDA eigenenergies with the dressed Green’s function in the GW approximation (GWA).1 Such a derivation based on the GWA has been recently performed for the celebrated cuprate superconductors [37, 38]. While two types of orbitals, i.e., the Cu 3d and O 2p orbitals, form low-energy bands near the Fermi level, the GW self-energy correction increases the energy difference between the d and p orbitals and reduce the bandwidth of the d band. With these modifications, it has been shown with an extensive variational Monte Carlo (VMC) calculation that the experimental values of the Mott gap and magnetic moment of La2CuO4 are successfully reproduced [38, 39]. Given that the differences in the band structure between the DFT/LDA and that in the GWA are commonly seen in transition metal oxides where 3d and 2p orbitals with different correlation strengths coexist near the Fermi level, it would be of great interest to derive an effective low-energy model for infinite-layer nickelates based on the GWA.

In this study, we perform a first-principles derivation of the effective model for infinite-layer nickelates. In particular, we mainly focus on the dpp three-orbital models (single-orbital model is discussed in Appendix) because it is interesting to investigate how the GWA modifies the charge-transfer energy and correlation strength compared to the LDA-based downfolding.2 First, we calculate the band structure in the DFT/LDA and estimate the parameter of the effective model using the MLWF and cRPA technique. Next, we calculate the band structure in the GWA using the Green’s function of the LDA. We derive the effective model from the GW band structure and compare the results with those obtained from the LDA. We find that the GWA-based effective model is predicted to be more strongly-correlated with enhanced Mott-Hubbard type character. The model offers an interesting reference to be compared with that of the cuprates with the charge-transfer type character.

Methods

In this study, we calculate the parameter of the Hubbard Hamiltonian for the low-energy degree of freedom,

Heff=ij12σt12σRiRjdi1σdj2σ+12i1i2i3i41234σηρτW1234σηρτHRi1,Ri2,Ri3,Ri4di11σdi22ηdi33ρdi44τ).(1)

Here, the hopping term is represented by

t12σR=ϕ10|H|ϕ2R,(2)

where H is the Hamiltonian in the LDA or GWA and ϕR is the MLWF of the th orbital localized at the unit cell R. The interaction term is given by

W1234σηρτHRi1,Ri2,Ri3,Ri4=ϕ1Ri1ϕ2Ri2|WH|ϕ3Ri3ϕ4Ri4,(3)

where WH is the effective interaction for the low-energy degree of freedom,

WHq,ω=vq1PHq,ωvq.(4)

We calculate the effective interaction from the one-shot GWA band. In the one-shot GWA, we calculate the self-energy from the Green’s function G and the fully-screened interaction W,

Σ=GW,(5)

where W is calculated from all the polarizations in the RPA P as follows,

Wq,ω=vq1Pq,ωvq.(6)

The quasiparticle approximation of the Hamiltonian in the GWA is expressed as

HGW=HLDA+ZϵLDAVxc+ΣϵLDA,(7)

where HLDA is the Hamiltonian in the LDA, Vxc is the exchange correlation potential in the LDA, and Z(ϵLDA) is the renormalization factor of Σ at the eigenenergy ϵLDA:

Zϵ=1ReΣωω=ϵ1.(8)

We calculate the electronic band structure of the YNiO2 using the experimental lattice parameters of LaNiO2, where a=3.959Å and c=3.375Å [69]. To exclude the contribution of the 4f orbital, here we use Y as the cation. The computational conditions for the DFT/LDA and GW are as follows. The calculation is based on the full-potential linear muffin-tin orbital implementation [70]. The exchange correlation functional is obtained by the local density approximation of the Ceperley-Alder type [71]. We neglect the spin-polarization. The self-consistent LDA calculation is done for the 12 × 12 × 12 k-mesh. The muffintin (MT) radii are as follows: RYMT= 2.9 bohr, RNiMT= 2.15 bohr, ROMT= 1.5 bohr, The angular momentum of the atomic orbitals is taken into account up to l = 4 for all the atoms.

The cRPA and GW calculations use a mixed basis consisting of products of two atomic orbitals and interstitial plane waves [72]. In the cRPA and GW calculation, the 6 × 6 × 6 k-mesh is employed for YNiO2. we interpolate the mesh using the tetrahedron method to treat the screening effect accurately [73, 74]. We disentangle the target band from other bands when the target band crosses another band and construct orthogonalized two separated Hilbert spaces [75]. We include bands about from −25 to 120 eV for calculation of the screened interaction and the self-energy.

Result

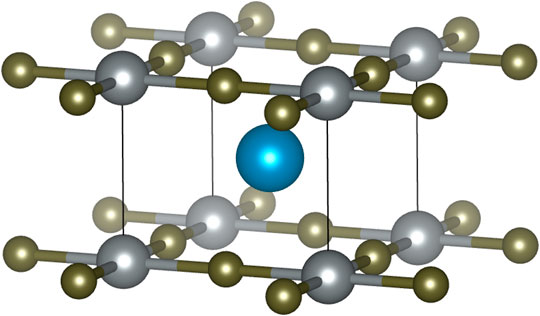

Figure 1 shows the crystal structure of the infinite-layer nickelates. The block layer is a single lanthanide cation and has large interstitial regions surrounded by cations. This is one of the reasons for the formation of electron pockets originating from the block layer, as described below.

FIGURE 1
www.frontiersin.org

FIGURE 1. Crystal structure of YNiO2.

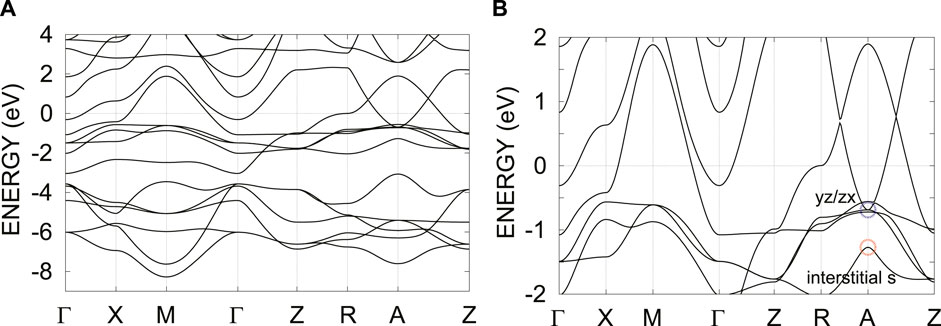

Figure 2 shows the band structure of YNiO2 in the LDA. The band structure of YNiO2 is very similar to that of NdNiO2 if we eliminate the Nd 4f bands. The 3dx2y2 antibonding state mainly forms the Fermi surface, which is a feature commonly seen in the cuprate superconductors. Reflecting the square planar crystal field of oxygen around the nickel site, the other d bands are almost fully occupied. However, differently from the cuprates, the infinite-layer nickelates have additional small electron pockets around the Γ and A points. These electron pockets originate from the d-orbital and the interstitial state in the block layer, respectively. The energy difference between the 3d bands of Ni1+ and the 2p bands of O2− is larger than that between Cu2+ and O2− in copper oxides, and they are energetically separated near −3 eV.

FIGURE 2
www.frontiersin.org

FIGURE 2. (A) DFT/LDA band structure for YNiO2 and (B) its magnified figure. The zero energy corresponds to the Fermi level.

The interstitial state is located at − 1.4 eV at the A point, and has a band inversion between yz/zx orbitals around the A point. Because of the inversion between bands with different numbers of degeneracies, the bands of the interstitial s and the yz/zx are continuously connected from the conduction band to the valence band. Since this band inversion is buried in the metallic band, it will be difficult to observe the surface state associated with the band inversion.

In this paper, we derive a three-orbital effective model consisting of the Ni 3dx2y2 orbital and two O 2p orbitals forming a σ-bonding. We first construct the maximally localized Wannier functions [29, 30] for these orbitals and evaluate the parameters in the tight-binding model (see Table 1 and Figure 3). The obtained model has a larger energy difference between the 3dx2y2 and 2p orbitals than that of the cuprate, and is closer to the Mott-Hubbard type.

TABLE 1
www.frontiersin.org

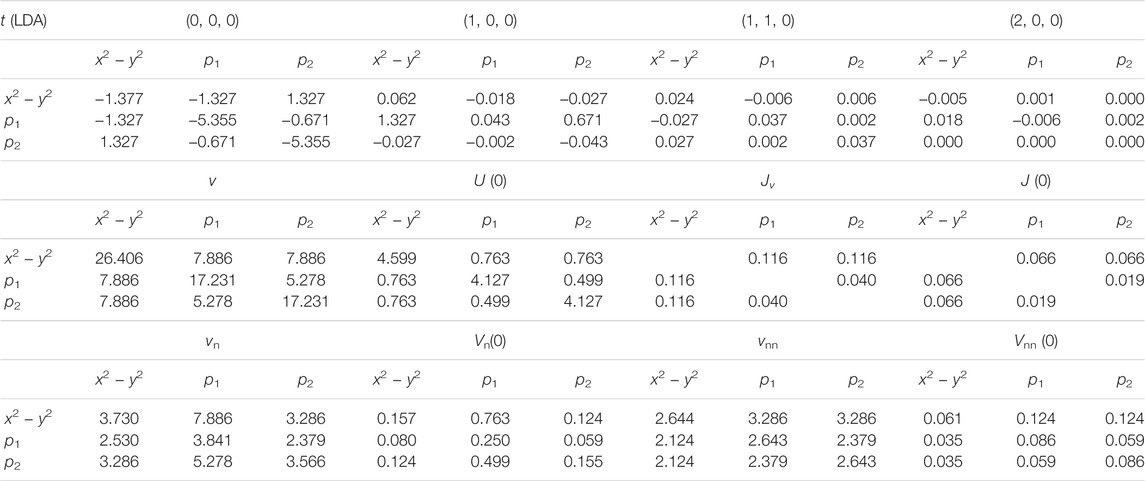

TABLE 1. Transfer integrals and effective interactions in the three-orbital Hamiltonian for YNiO2 (in eV). Both the one- and two-body part of the Hamiltonian are constructed based on the LDA band structure. v, U (0), Jv, and J (0) represent the bare Coulomb, the static values of the effective Coulomb, bare exchange interactions, and exchange interactions, respectively (at ω =0). The index “n” and “nn” represent the nearest unit cell (1,0,0) and the next-nearest unit cell (1,1,0), respectively.

FIGURE 3
www.frontiersin.org

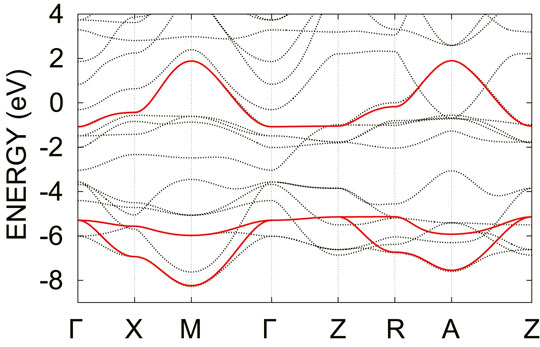

FIGURE 3. Electronic band structure of the three-orbital model in the LDA (solid lines). The zero energy corresponds to the Fermi level. For comparison, the band structures in the LDA is also given (dotted lines).

We then calculate the effective interaction for the three-orbital model by the cRPA method. The obtained effective interactions are summarized in Table 1. The bare Coulomb interaction v is slightly smaller than that of the copper oxides (Ni 3dx2y2: 26 eV, Cu dx2y2: 29 eV in Refs. [37, 38]), and the dielectric constant U/v is smaller than that of the copper oxides partially due to the metallic screening from the block layer.

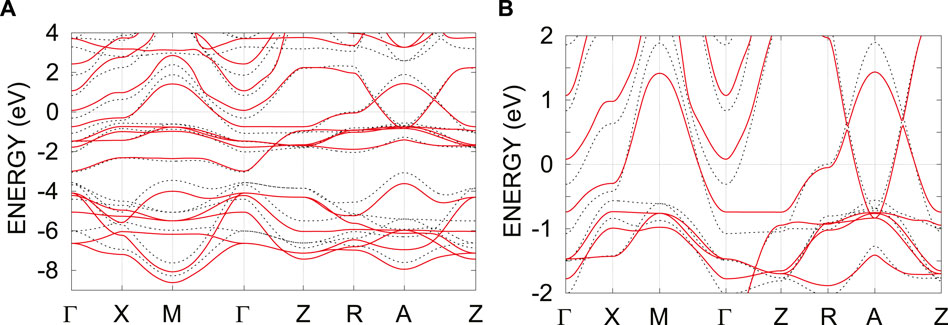

We next show the band structure in the GWA in Figure 4. In the GWA, the energy difference between the strongly correlated Ni 3d orbitals and the weakly correlated O 2p orbitals is enhanced [33, 76]. Thereby, the energy gap between the d- and p-bands around −3 eV is increased. On the other hand, the bandwidth of the antibonding orbitals of the 3dx2y2 orbital decreases. The contribution of the O 2p orbitals to the antibonding orbitals decreases due to the increase in the energy difference between the d- and p-orbitals. The bandwidth of the strongly correlated orbitals in the GWA is also reduced compared to that in the LDA due to the effect of the frequency dependence of the self-energy. The bandwidth of the O 2p orbitals remains approximately the same as that in the LDA.

FIGURE 4
www.frontiersin.org

FIGURE 4. (A) GW band structure for YNiO2 and (B) its magnified figure (solid lines). For comparison, the band structures in the LDA is also given (dotted lines). The zero energy corresponds to the Fermi level.

In the GWA, the position of the valence band is lifted up from that in the LDA. In particular, the electron pocket originating from the d orbital in the block layer near the Γ point disappears. On the other hand, the bottom of the band originating from the interstitial state still creates the electron pocket around the A point even in the GWA.

We derive the three-orbital model (see Figure 5) and summarize the hopping parameters in Table 2. The difference in the on-site potential between the 3dx2y2 and 2p orbitals increase from 3.98 to 4.60 eV. The nearest-neighbor hopping between the 3dx2y2 and 2p orbitals is almost the same (1.3 eV), but slightly reduced due to the renormalization factor in the GWA. The increase of the onsite potential deference between the atomic 3dx2y2 and 2p orbitals results in an decrease of the oxygen contribution to the antibonding 3dx2y2 orbitals and decrease of the hopping between the antibonding 3dx2y2 orbitals.

TABLE 2
www.frontiersin.org

TABLE 2. Transfer integrals and effective interactions in the three-band Hamiltonian for YNiO2 (in eV). The one-body part is obtained from the GW band structure, and the effective interaction is the result of the cRPA calculation for the GW bands. v, U (0), Jv, and J (0) represent the bare Coulomb, the static values of the effective Coulomb, bare exchange interactions, and exchange interactions, respectively (at ω =0). The index “n” and “nn” represent the nearest unit cell [1,0,0] and the next-nearest unit cell [1,1,0] respectively.

FIGURE 5
www.frontiersin.org

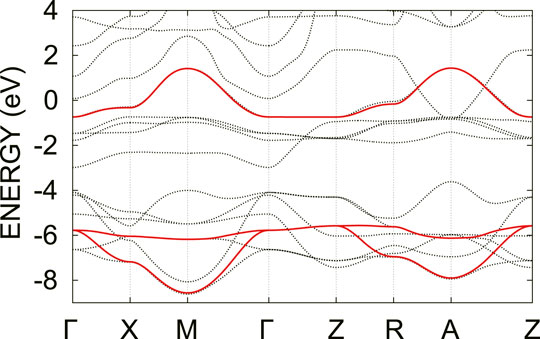

FIGURE 5. Electronic band structure of the three-orbital model in the GWA (solid lines). The zero energy corresponds to the Fermi level. For comparison, the band structures in the GWA is also given (dotted lines).

The screening effect of the system is reduced compared to that in the LDA mainly due to the increase of the charge-transfer energy, which increases the bare Coulomb interaction of the 3dx2y2 band and reduces the screening effect from the 2p bands. The bands originating from the block layer as well as the O 2p orbitals in the GWA move away from the Fermi level compared to the LDA, which makes the screening effect weaker. The disappearance of the metallic screening from the electron pocket at the Γ point also partially contribute to the reduction of the correlation. Therefore, the value of the effective interaction is increased from that in the LDA. For example, while the on-site interaction is 4.6 eV for the 3dx2y2 orbital and 4.1 eV for the 2p orbital in the LDA-based cRPA calculation, the GWA-based cRPA gives 5.0 eV for the 3dx2y2 orbital and 4.5 eV for the 2p orbital. The nearest-neighbor interactions also increase from 0.16 to 0.22 eV for the 3dx2y2 orbital. Note that the metallic screening from the electron pocket near the A point still remains even in the GWA.3

Conclusion

We derived a three-orbital low-energy model for the infinite-layer nickelates based on the GWA. In the GWA, the O 2p bands locate deeper below the Fermi level, and the bandwidth of the Ni 3dx2y2 band is narrower than that in the LDA calculation. Due to the isolation of the low-energy Ni 3dx2y2 band, the screening effect becomes less effective, leading to larger interaction parameters in the Hamiltonian. Thus the GW-based ab initio downfolding gives a more correlated model than the LDA-based downfolding.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

MH conducted calculations. All authors contributed to writing the article.

Funding

We acknowledge funding through Grant-in-Aids for Scientific Research (JSPS KAKENHI) (Grant Nos 20K14423 (YN), 21H01041 (YN), and 19H05825 (RA)) and “Program for Promoting Researches on the Supercomputer Fugaku” (Basic Science for Emergence and Functionality in Quantum Matter —Innovative Strongly-Correlated Electron Science by Integration of “Fugaku” and Frontier Experiments) (Grant No. JPMXP1020200104) from MEXT.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer AF declared a shared affiliation, with no collaboration, with the authors, RA, MH, to the handling editor at time of review.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank Terumasa Tadano and Motoharu Kitatani for valuable discussions.

Footnotes

1It should be noted that although the cRPA method is free from the double counting problem for the interaction parameters, we have to apply the constrained GW (cGW) method to avoid the double counting in the self-energy [36].

2We note that there are several other effective models for infinite-layer nickelates that have been discussed, including a multi-band model that includes 3d orbitals other than the 3dx2y2 orbital [4052], a model that includes the contribution of rare-earth 4f electrons [5356], and a model that includes the self-doping bands [5759]. Here, we focus on the debate [40, 57, 6067] on the classification of the Mott-Hubbard or charge-transfer regimes in Zaanen-Sawatzky-Allen phase diagram [68].

3We note that there is a proposal that the electron pocket at the A point can be eliminated by designing a different type of the block layer [33].

Appendix

For reference, we summarize the parameters in the single-orbital model in Tables A1 and A2. Special attention should be paid to the strength of the interaction in the GWA-based effective single-orbital model (see Ref. [38]). In the copper oxides, the correlation effect beyond the RPA between the d and p orbitals in the three-orbital model is not small. Therefore, in order to calculate the single-orbital model accurately, it is necessary to treat the screening effect originating from the bonding and nonbonding bands beyond the RPA. To do so, we need to solve the three-orbital model once with a low-energy solver such as the VMC and estimate the energy corrections between the d and p orbitals beyond the GWA. By combining such a correction with the GW self-energy correction, we can calculate the band structure beyond the GWA, and can estimate a single-orbital model with high accuracy (See Ref. [38] for details of the method). Because the nickelates have a qualitatively similar band structure to the cuprates, the reliability of the GWA-based single-orbital model for the nickelates also needs to be carefully examined: in particular, the correlation strength |U/t| might be overestimated.
