Bismuth germanate oxide (BGO) scintillators can be re-introduced in time-of-flight positron emission tomography (TOF-PET) by exploiting the Cherenkov luminescence emitted as a result from 511 keV interactions. Accessing the timing information from the relatively few emitted Cherenkov photons is now possible due to the recent improvements in enhanced near-ultraviolet high-density (NUV-HD) silicon photomultiplier (SiPM) technology, fast and low noise readout electronics, and the development of efficient data post-processing methods. In this work, we aim to develop a scalable detector element able to achieve excellent coincidence time resolution (CTR) required for TOF-PET using BGO scintillator elements of various lengths. The proposed detector element is optically coupled to 3.14
1Introduction
Bismuth germanate oxide (Bi4Ge3O12), commonly referred as BGO, was the scintillator of choice during the first few decades of mass commercial production of PET scanners until the late 1990s [1]. BGO scintillators are of interest in PET due to its short 511 keV photon attenuation length (1.1 cm), its high-effective atomic number (Zeff = 74), and density (
However, BGO scintillators exhibit a low overall scintillation light yield of 10 photons/keV and long decay times ∼45.8 ns (8 %)–365 ns (92%) ns in comparison to the 32 photons/keV and <40 ns for lutetium-based scintillators [4, 5]. These poor parameters comparatively discouraged investigators, and BGO-based PET scanners were replaced by the lutetium-based detector design to enable TOF-PET and improved energy resolution to advance achievable noise-equivalent count rate and hence image quality [6]. A potential approach to boost the CTR of BGO for TOF-PET may be to exploit the small population of promptly emitted light photons that are generated much faster than the scintillator’s dominant luminescence yield as a result of 511 keV photon interactions [7]. An example of these prompt signatures is Cherenkov light [7, 8], produced when an electron in the crystal lattice is ejected with enough kinetic energy to travel faster than the speed of light in scintillating media [9]. Its detection is of interest for TOF-PET based on BGO, since relative to luminescence processes that have tens-to-hundreds of nanoseconds (ns) intrinsic decay time constants (e.g., 300 ns for BGO); this process is essentially instantaneous [9]. Therefore, this promptly emitted form of light can be used to derive an estimate for 511 keV photon interaction time with lower temporal variance than achievable with the overall luminescence yield, thus improving coincidence time resolution [4].
Among the interesting Cherenkov emitter candidates to explore, BGO is one of them; due to its high index of refraction, the 511 keV photoelectrons produce more Cherenkov light than lutetium-based scintillators (∼20 above BGO’s self-absorption band and ∼9 above LSO’s self-absorption band [10], and its ∼300 nm absorption band also allows it to be more transmissive to UV light [11]). An important milestone achieved to exploit Cherenkov light detection was the recent improvement of the photodetector technology such as silicon photomultipliers (SiPMs) with good photon detection efficiency (PDE) in the near-ultraviolet and low single photon time resolution (SPTR) values combined with fast, low noise readout electronics [12–14]. However, optimizing CTR from detectors that exploit the small population of prompt signatures to estimate the photon arrival time also requires special data post-processing methods.
The electronic readout has to mitigate the influence of electronic noise on achievable timing performance, which is especially difficult owing to the effective device capacitance [15, 16] of large area (e.g,. 3
Following this trend, we have developed a scalable readout electronics board that consists of an improved version of the low-noise, high-frequency, and high-gain circuit presented in [4], combined using 3.14
2 Materials and Methods
As described below, key elements to exploit the Cherenkov luminescence contribution for more precise CTR are the scintillation material, the photosensor technology, the electronics readout circuit, and signal processing correction methods.
2.1 Scintillator Material: BGO
The Cherenkov emission is produced following a 511 keV photoelectric or Compton interaction, over a short time interval of
As a result of the process explained previously, the BGO’s temporal signal present two components, namely a fast decay component (45–60 ns) that represents only 8–10% of the emission and corresponds to the emitted Cherenkov photons [28, 30] and a slow decay component (300–365 ns) that represents 92–90% of the emission [5]; see Figure 1A. As shown in Table 1, the dominant component (∼92%) of BGO’s decay time is much larger than that for other commonly used scintillators in TOF-PET such as LSO; therefore, to achieve a comparable temporal performance in BGO-based PET scanners, it is mandatory to exploit the Cherenkov component of the luminescence (∼8%) [30].

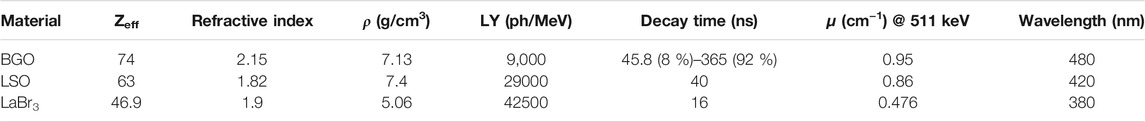

![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g001.jpg)
FIGURE 1. (A). BGO’s temporal components, the green line represents the fast decay component (45–60 ns) which corresponds to the emitted Cherenkov photons, and the orange line represents the slow decay component (300–365 ns) of the scintillation luminescence (original plot extracted from [20]). (B). Photon detection efficiency for the Broadcom AFBR-S4N33C013 SiPMs [25]. The blue line represents the emission spectra of BGO.
To study the influence of exploiting Cherenkov radiation in the temporal performance of a custom-designed PET detector element (see Section 2.3), we made use of four different pairs of BGO crystals. In particular, we have evaluated crystal elements of 3
2.2 Photosensor: Near-Ultraviolet-Enhanced Silicon Photomultipliers
The Cherenkov photon emission upon 511 keV photon interaction in BGO is dominantly in the ultraviolet (UV) portion of the electromagnetic spectrum, dropping off at higher wavelengths, specifically between 310 and 850 nm [5]. Therefore, it is convenient to employ photosensor with enhanced photon detection efficiency (PDE) in the UV range. Previous works have evaluated the FBK NUV-HD SiPMs [18] in combination with high-frequency [22], high-gain, and low-noise readouts [4, 5] and reported CTR values below 300 ps for long (15–20 mm) BGO crystals. In [20], the authors compared the performance of different SiPM vendors for Cherenkov detection, achieving best values when using the UV-enhanced ones.
For the experiments reported in this work, we have decided to use the Broadcom® AFBR-S4N33C013 SiPMs [25], since they are commercially available and can perform ultra-sensitive precision measurement of single photons in the UV range (PDE >54% at 420 nm). This high performance in the UV range is possible because of the SiPM protective layer that is made by glass that is highly transparent down to UV wavelengths which results in a broad response in the visible light spectrum with high sensitivity toward blue- and near-UV region of the light spectrum; see Figure 1B. The active area of the evaluated SiPMs is 3.14
2.3 Electronics Readout Circuit
In addition to the selection of the scintillator and SiPM technology, exploiting the Cherenkov yield to precisely estimate the photon time of interaction presents two main challenges: 1) the CTR is quite sensitive to SPTR of the SiPM and associated electronic readout used [8], and 2) the optimum leading-edge threshold should be set below one light photon equivalent level [32], where the lowest achievable threshold above the noise floor yields optimum CTR.
To account for this, we have designed a printed circuit board (PCB) that consists of a passive capacitance compensation circuit [15]. To provide an optimum timing signal, a balun transformer Macom MABA-007159 (MACOM [33]) (50
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g002.jpg)
FIGURE 2. (A). Photograph of the custom-designed board implementing the low-noise, high-speed electronics configuration and the Broadcom SiPM. (B). Circuit schematics.
2.4 Data Acquisition and Analysis: Physical Considerations
For data acquisition, two identical detector elements, each consisting of one 3.14
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g003.jpg)
FIGURE 3. (A). Scheme of the experimental setup (based on 3.14
The energy spectra for each module were estimated as the histogram of the maximum amplitude of each acquired energy waveform. The energy spectra were fitted using a Gaussian function to determine the photopeak gain as a function of the different SiPM bias voltages and crystal lengths. For data analysis, only those events falling within the FWTM of the 511 keV photon photopeak for both detectors were processed. In addition, a leading-edge discrimination method was used to estimate time of interaction from the digitized waveforms and the influence of baseline offset from dark pulses, and cross talk events were corrected by averaging over region of the baseline in front of each pulse [35, 36]. The energy resolution was estimated at an optimum SiPM voltage as
Regarding CTR evaluation, in order to derive a more accurate estimate for 511 keV photon time of interaction, we have followed the methods proposed in the literature [14, 19, 20]. These correction methods are applied to the experimental data; owing to the contribution of both slow and fast temporal components, BGO’s coincidence time spectrum does not follow a Gaussian-like distribution as the CTR histogram shown in Figure 3B, acquired using 3
1. The rise time calculation by setting the lower threshold below one light photon equivalent threshold and the upper threshold above the signal amplitude of a single SPAD, instead of using the traditional method in which the signal rise time is estimated as the slope of the exponential fitting applied to the 10–90% of the signal [4].
2. The time delay correction method based on the different rise times observed (Fast = Cherenkov; Slow = standard scintillation). The method is applied as described in [19, 20]: first, the time walk
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g004.jpg)
FIGURE 4. (A). Measured rise time histograms for 3
3. The classification correction method based on splitting the events into five regions for each detector based on their rise time. The events are first sorted based on their rise time and then classified into five groups containing one of the 20% of the data, i.e., the fastest 20% events are for region 1, the second fastest 20% for region 2, and subsequently for the other regions, see Figure 4A bottom for an example of the different splitting regions. Different regions other than five regions per detector could be identified, but this data sampling was selected as the best trade-off between acquired statistics and correction impact; note that these regions do not represent the different categories of coincidence types as identified in the CTR histogram of Figure 3A, where each region contains indeed both Cherenkov and scintillation event and, for this reason, each of the categories (k = 25) is fitted using a double Gaussian as described in [19]:
where
The corrected coincidence time spectrum
We applied all three methods to the acquired data during the post-processing. This step was carried out using the custom MATLAB code for each on the four tested BGO crystal pairs (3
3 Results
Figure 5A shows an example of the energy histogram for one of the 3
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g005.jpg)
FIGURE 5. (A). Energy histogram acquired using the digital scope in singles mode using one of the 3
3.1Photopeak Relative Gain
Figure 6A shows the photopeak relative gain as a function of the evaluated SiPM-biasing voltage for each pair of BGO crystals. Note that the photopeak relative gain has been estimated as the ratio between each measured gain and the maximum value (provided by the 3
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g006.jpg)
FIGURE 6. (A). Photopeak relative gain as a function of the evaluated SiPM-biasing voltage for each of the four pairs of BGO crystals. (B). Measured single-photon spectra for 3 × 3 × 3 mm3 BGO crystals coupled to our high-speed, low-noise custom-designed board. The histogram of x- and y-axis represents the time (30 ns scale) and signal level (55 mV scale), respectively.
The energy resolution was calculated at optimum SiPM voltage being 13
3.2 CTR Performance
Figure 6B shows the single-photon spectra measured using 3
Figures 7A,B depict the CTR FWHM (solid lines) and full-width-tenth-maximum (FWTM) (dashed lines) values achieved as a function of the SiPM bias voltage for each of the different evaluated BGO crystal pairs before and after applying the corrections outlined in Section 2.4, respectively.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g007.jpg)
FIGURE 7. (A, B). FWHM (solid lines) and FWTM (dashed lines) CTR values achieved as a function of the SiPM bias voltage for each of the different evaluated BGO crystal pairs before and after applying the corrections, respectively.
Before applying any correction method, best CTR FWHM values of 163 ± 8, 224 ± 8, 266 ± 9, and 428 ± 8 ps and best CTR FWTM values of 437 ± 6, 507 ± 10, 731 ± 8, and 1,013 ± 8 ps have been obtained for 3
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-t002.jpg)
TABLE 2. Best FWHM and FWTM CTR values and Cherenkov ratios obtained for each different crystal length before and after corrections.
Figure 8 depicts the CTR values achieved when only considering the fast (Cherenkov) component of the BGO’s timing signal as a function of the SiPM bias voltage for each crystal length and after applying the previously described corrections. Best CTR FWHM values of 105 ± 6, 127 ± 8, 133 ± 4, and 189 ± 8 ps have been reported for 3
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-g008.jpg)
FIGURE 8. FWHM CTR values achieved when only considering the fast (Cherenkov) component of the timing signal, as a function of the SiPM bias voltage for each crystal length after applying both delay and classification corrections.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/816384/fphy-10-816384-HTML/image_m/fphy-10-816384-t003.jpg)
TABLE 3. Best FWHM CTR values obtained for each different crystal length before and after corrections. The second and third columns report the CRT values when only considering the fast (Cherenkov contribution) or slow (Scintillation contribution) component of the timing signal.
4 Discussion
The present article describes a potential scalable solution for BGO-based TOF-PET detectors. Fast and low noise front-end electronics minimize the influence of electronic noise on sensor-timing response and result in the excellent signal-to-noise ratio to provide an optimum timing signal well above the noise level. This is the key to discriminate the fast component (Cherenkov) of the timing signal and exploit the small Cherenkov photon yield. An advantage of the experimental setup in the present work is the selected amplifiers and their configuration that allows optimum performance at lower voltage (5.5 V), thus reducing the signal noise level. The readout board integrated 3.14
For the evaluation of the detector’s ability to discriminate the Cherenkov contribution, we tested BGO crystal elements of 3 × 3 × 3 mm3, 3 × 3 × 5 mm3, 3 × 3 × 10 mm3, and 3 × 3 × 15 mm3 in size, with chemically etched surfaces and wrapped using Teflon tape. The reason behind using this metric is that 15 -mm long BGO crystals have ∼6% higher photoelectric absorption probability for 511 keV photons than 20 -mm lutetium-based crystals; thus, these results are directly relevant to the practical detector design for high detection efficiency clinical PET systems at lower cost [37].
During data analysis, the photopeak relative gain was estimated for each SiPM-biasing voltage and for each BGO crystal length (Figure 6). The standard deviations between the photopeak gain for the two modules were below 0.07 confirming the similar performance of both detectors. As expected, higher gains were achieved at higher bias voltages. Excellent discrimination of the single photon response (Figure 4) was achieved, thanks to the electronic readout design, allowing an optimum threshold for leading-edge time pickoff well below the single photon equivalent amplitude and just above baseline noise. We also implement a dual threshold approach to reduce the tailing in the coincidence time distribution, as suggested in [20]. This method helps because events that do not detect any Cherenkov photons in one or both detectors have a skew in the detection time, generating rise time histograms as the one shown in Figure 4A. The time pickoff derived only from BGO’s slow luminescence results in a slightly delayed timestamp. The rise time correction and classification methods provide some correction for this delay, which in turn reduces the tails by effectively pulling in the events that have no Cherenkov photons in one or both detectors toward the center of the CTR distribution [19, 20]. This skew correction also improves CTR as demonstrated. For the longer crystals with lower density of Cherenkov photons, this correction has a larger impact because it is correcting for skew in a greater number of coincidence events that do not have Cherenkov photons.
Using the experimental setup shown in Figure 3A, we achieved best CTR FWHM values of 163 ± 8, 224 ± 8, 266 ± 9, and 428 ± 8 ps and best CTR FWTM values of 437 ± 6, 507 ± 10, 731 ± 8, and 1,013 ± 8 ps for 3 × 3 × 3 mm3, 3 × 3 × 5 mm3, 3 × 3 × 10 mm3, and 3 × 3 × 15 mm3 BGO crystals before applying any correction (Figure 7A). These values improved to a CTR of 156 ± 6, 188 ± 5, 228 ± 8, and 297 ± 8 ps for FWHM and 398 ± 9, 489 ± 5, 613 ± 9, and 981 ± 11 ps for CTR FWTM, respectively, after applying the corrections described in Section 2.4 (Figure 7B), which represents an improvement of 3.2, 6.7, 8.1, and 12.6%. As expected, a degradation of CTR was observed as a function of the increased crystal length due to possible miss-alignment and increased light transit time inside the crystal before reaching the SiPM. The achieved CTR values are already acceptable to build a Cherenkov-based PET detector comprising long BGO crystals. However, one clear area for improvement is increasing the light extraction efficiency for Cherenkov photons. One way to address this directly is to leverage the near-complete light collection efficiency available from the “side-readout” configuration [38]. The side-readout approach has been demonstrated to reduce the transit time variance of the light photons to the photosensor while enhancing the light collection efficiency. We are currently designing a board to test the side-readout configuration in our Cherenkov-based detector. In addition, the presented results were acquired at room temperature with no active cooling, and thermal regulation is likely required to mitigate the higher uncorrelated and correlated noise in a scaled, multiplexed detector configuration.
The applied methodology facilitates data corrections for 511 keV photon time of interaction, as a function of signal rise time, which partially compensate inherent delays in timing estimators derived from events with no Cherenkov photons. When considering only the fast (Cherenkov) component of the timing signal, best values of 105 ± 6, 127 ± 8, 133 ± 4, and 189 ± 8 ps for CTR FWHM long BGO crystals have been achieved for 3 × 3 × 3 mm3, 3 × 3 × 5 mm3, 3 × 3 × 10 mm3, and 3 × 3 × 15 mm3 BGO crystals, respectively, as shown in Figure 8. Looking at individual event categories may allow estimation of event position along each system line of response (LOR) with different precisions corresponding to the different time resolution values [19]. The standard PET image reconstruction methods allocate the same TOF kernel resolution to all events. However, since the rise time information allows classification of events, a gain in SNR is expected when each category of the events is allocated to its proper TOF kernel; thus, events having a better time resolution can provide higher TOF kernel resolution along the LOR and thus better reconstructed image SNR, while events with worse time resolution are used in addition to maintain the high sensitivity of BGO [20]. The work presented in [39] reports a simulation toolkit that introduces multiple timing spreads on the coincident events of a full cylindrical BGO–Cherenkov PET model and an image reconstruction procedure that incorporates the multi-kernel idea. The results demonstrate a better contrast-to-noise ratio for the multi-kernel BGO model.
Note that the higher photon detection efficiency of BGO offers another strong advantage. It can be estimated as the effective sensitivity gain for BGO’s higher detection efficiency combined with TOF performance for the different underlying components of the CTR distribution:
Therefore, a 15-mm long BGO crystal element with 40% of events having Cherenkov photons in both detectors, with fast Gaussian (Cherenkov) FWHM of ∼250 ps and slow Gaussian (Scintillation) of ∼1 ns FWHM achieves the same effective sensitivity as a 20 -mm long LSO crystal element with 320 ps FWHM timing performance. So, even immediate implementations of BGO can have a significant impact. Technologies that improve Cherenkov detection efficiency can also eventually push performance toward the same effective sensitivity as a 200 -ps LSO scanner, or better.
The CTR values reported in this work are comparable or better to those achieved by state-of-the-art commercial TOF-PET systems [40, 41]. This work thus indicates to be feasible that BGO-based TOF-PET detector modules could be developed with the same effective sensitivity compared to the one achieved using 20 -mm long LSO-based detector modules that achieve <350 ps FWHM CTR, facilitating high performance clinical PET systems with 4–5-fold lower scintillation material cost. Furthermore, other advantages associated to BGO scintillators are shorter 511 keV photon attenuation length (BGO = 1.1 cm) than lutetium-based ones (i.e., LSO = 1.3 cm), thus less volumes of BGO material are required to stop the same amount of incoming radiation; BGO’s effective atomic number (Zeff = 74) is higher than the one for lutetium-based scintillators which increases the probability of photoelectric interactions instead of Compton ones. Note that photoelectric interactions are preferred in PET since they allow for a more accurate positioning of the annihilation point within the scintillator, and BGO scintillators do not present intrinsic radiation while lutetium-based scintillators present the intrinsic radiation of 177Lu, thus the contributions of other decay products are not present minimizing possible pile-up or false coincidences.
As a closing remark, we would like to comment on the proposed detector design scalability. We are currently upgrading the presented standard end-readout detector architecture to large side-readout area detector modules which include six SiPMs. In this side-readout version of our design, the circuitry electronics will be integrated in a wisely designed high-speed and compact PCB board. For the accurate determination of the signal’s rise time, we plan to include an ASIC configured to generate two timestamps on the leading edge of the pulse. We will follow a similar approach to the one shown in [42], in which the authors proposed a readout design for lutetium-based scintillators that allow to acquire multiple timestamps per detected event using two ASICs. In our case, the ASICs will be customized with the lower threshold set below one light photon equivalent threshold and the upper threshold above the signal amplitude of a single SPAD.
Moreover, since power consumption is a major concern when scaling up the electronic design of single detectors to compact PET modules, our circuitry has been carefully trimmed to ensure optimal performance of the components at low bias voltage (amplifier’s bias voltage 5.5 V). Note that low operation voltage is also the key to minimize the influence of electronic noise on sensor-timing response and thus to provide an optimum timing signal well above the noise level which is the key to discriminate the fast component (Cherenkov) of the timing signal and exploit the small Cherenkov photon yield. Finally, regarding the implementation of the correction methods based on non-Gaussian TOF kernels, we plan to apply such algorithms once the data acquisition has been completed. Acquired data will be transferred to a PC for the application of the correction methods which will be followed by image reconstruction. The inclusion of several TOF kernels in reconstruction was already demonstrated in [39], so we will follow a similar approach. However, this is out of the scope of this article and will be discussed in detail in a future work.
Summarizing, the combination of the aforementioned BGO’s advantages and the good CTR performance provided by exploiting the BGO–Cherenkov component allows to achieve the same sensitivity while employing less volume of scintillation materials, thus reducing cost and enabling more compact scanners. These properties make BGO scintillators good candidates for building PET systems requiring a high volume of scintillation material such as total body PET scanners.
5 Conclusion
We have reported the CTR value for BGO crystal elements of various lengths with chemically processed surface treatments, using an optimized, fast, and high-frequency readout electronic design that minimizes the influence of electronic noise. The board was evaluated using 3.14
