Concepts of vertex regularity in cubic fuzzy graph structures with an application

The cubic fuzzy graph structure, as a combination of cubic fuzzy graphs and fuzzy graph structures, shows better capabilities in solving complex problems, especially in cases where there are multiple relationships. The quality and method of determining the degree of vertices in this type of fuzzy graphs simultaneously supports fuzzy membership and interval-valued fuzzy membership, in addition to the multiplicity of relations, motivated us to conduct a study on the regularity of cubic fuzzy graph structures. In this context, the concepts of vertex regularity and total vertex regularity have been informed and some of its properties have been studied. In this regard, a comparative study between vertex regular and total vertex regular cubic fuzzy graph structure has been carried out and the necessary and sufficient conditions have been provided. These degrees can be easily compared in the form of a cubic number expressed. It has been found that the condition of the membership function is effective in the quality of degree calculation. In the end, an application of the degree of vertices in the cubic fuzzy graph structure is presented.

1 Introduction

Graphs have many applications in different fields such as computers, systems analysis, networks, transportation, operations research, and economics. Graphs are usually used to model relationships among objects. But there are many issues that are vague and uncertain as a result of the information loss, lack of evidence, incomplete statistical data, etc. In general, uncertainty exists in many real life problems and is an integral part of them. In a classical graph, for each vertex or edge, the probability of uncertainty existence or non-existence is assumed. Therefore, classical graphs cannot model uncertain problems. However, often real-life problems are uncertain, which makes it difficult to model using conventional methods. Zadeh [1] presented an extended version of sets, called fuzzy set (FS), where objects have different degrees of membership between zero and one. This concept quickly found wide applications in computer science, information science, system science, management science, theoretical mathematics and other fields of sciences. A decade after the introduction of FS, Zadeh [2] presented an interval-valued fuzzy set (IVFS) as a branch of FS in which an interval between 0 and 1 was used as the membership value instead of a fuzzy number. These two concepts gave rise to different types of graphs called fuzzy graphs, which were first introduced by Kaufman [3] in 1973. Later, fuzzy graph theory was developed as a generalization of graph theory by Rosenfeld [4] in 1975. He explained some concepts including tree, cut vertex, cycle, bridge, and end vertex in fuzzy graphs. The researchers studied different types of fuzzy graphs. Talebi [5] had a study on Kayley fuzzy graph. Borzooei et al. [6] had many studies on vague graphs. Atanassov [7] introduced the concept of intuitionistic fuzzy set (IFS) as a generalization of FS. Akram and Dudek [8] gave the idea of an interval-valued fuzzy graph (IVFG) in 2011. Talebi et al. [9, 10] introduced some new concepts of interval-valued intuitionistic fuzzy graph (IVIFG). Kosari et al. [11–13] studied new results in vague graph and vague graph structures. Some trend concepts in fuzzy graphs were explained by Pal et al. [14]. Samanta et al. [15, 16] reviewed some results from fuzzy k–competition graphs.

Graph structures were presented by Sampathkumar [17] in 2006 as a generalization of signed graphs and graphs with labeled or colored edges. Fuzzy graph structure (FGS) is more important than graph structure because uncertainty and ambiguity in many real-world phenomena often occur as two or more separate relationships. Dinesh [18] introduced the notion of an FGS and discussed some related properties. Ramakrishnan and Dinesh [19] generalized this concept in studies. Akram [20] presented new results on m-polar FGSs. Akram and Akmal [21–23] investigated the concepts of bipolar FGSs and intuitionistic FGSs. Akram et al. [24–28] defined new concepts of operations in FGSs. Kou et al. [29] studied vague graph structure. Continuing his studies in 2020, Denish [30] presented the concept of fuzzy incidence graph structure. Akram and Sitara [31] introduced decision-making with q-rung orthopair FGSs. Sitara and Zafar [32] studied the application of q-rung picture FGSs in airline services.

Fuzzy graphs were previously limited to one or more degrees of fuzzy membership or interval-valued fuzzy membership. Jun et al. [33] introduced the idea of a cubic fuzzy set (CFS) in the form of a combination of FS and IVFS, serving as a more general tool for modeling uncertainty and ambiguity. By applying this concept, various problems that arise from uncertainties can be solved and the best choice can be made using CFS in decision making. Jun et al. [34] combined the neutrosophic complex with CFS and proposed the idea of neutrosophic CFS. Jun et al., also, studied some CFS-based algebraic features including cubic IVIFSs [35], cubic structures [36], cubic sets in semigroups [37], cubic soft sets [38], and cubic intuitionistic structures [39]. Muhiuddin et al. [40] presented the stable CFSs idea. Kishore Kumar et al. [41] examined the regularity concept in CFG. Rashid et al. [42] introduced the concept of a CFG where they introduced many new types of graphs and their applications. A modified definition of a CFG is given by Muhiuddin et al [43] along with concepts such as the strong edge, path, path strength, bridge, and cut vertex. Rashmanlou et al [44] explained some of the concepts of the CFG.

The concept of node order and degree plays an important role in graph theory and its applications, including the analysis of social networks, road transmission networks, wireless networks, etc. Vertex degree is an accepted concept to represent the total number of relations of a vertex in a graph that can be used in graph analysis. Gani and Radha [45] offered the notation of the regular FG. Samanta and Pal [46] introduced the concept of the irregular bipolar fuzzy graphs. Borzooei et al. [47] investigated the Regularity of vague graphs. Gani and Lathi [48] defined the concept of irregularity, total irregularity, and total degree in an FG. Huang et al. [49] studied regular and irregular Neutrozophic graphs with real applications. Samanta et al. [50] investigated the completeness and regularity of generalized fuzzy graphs. These concepts have been gradually developed by researchers into different types of FGs.

Cubic fuzzy graph structure (CFGS), as a combination of FGS and CFG, has better flexibility in modeling and solving problems in ambiguous and uncertain fields. The study of regularity in the CFGS that supports multiple relationships is important and decisive in its own way. In fact, checking regularity is essential from the point of view that most of the issues around us are composed of several different relationships. The quality and method of determining the degree of the vertices in the cubic fuzzy graph structure, has fuzzy membership and interval-valued fuzzy membership at the same time besides the multiplicity of existing relations, made us carry out a study on the regularity of cubic fuzzy graph structures. In this paper, we introduce regularity in a CFGS. We were able to investigate the corresponding properties by defining the degree of a vertex and the total degree of a vertex. In the following, by introducing the order and size in the CFGS, some relevant results were studied. Finally, an application of the CFGS in the detection of bank criminals is presented.

2 Preliminaries

In this section, we have an overview of the basic concepts in fuzzy graphs in order to enter the main discussion.

A graph is a pair of G = (V, E), where V is a non-empty set of vertices and E is the set of edges of G. A graph structure (GS) of X = (V, E₁, E₂, …, E_k) consists of a set V with relations of E₁, E₂, …, E_k on V, all of which are mutually disjoint and each E_i is irreflexive and symmetric, for i = 1, 2, …, k. If (x, y) ∈ E_i for some i = 1, 2, …, k, then, it is called an E_i−edge and is simply written xy. A GS is complete whenever each E_i−edge appears at least once and between each pair of vertices of x, y ∈ V, xy ∈ E_i for some i = 1, 2, …, k. A path between two vertices of x and y consisting of only E_i−edges is named E_i−path. Reciprocally, E_i−cycle is a cycle consisting of only E_i−edges. A GS is a tree, if it is connected and contains no cycle. If the subgraph structure induced by E_i−edges is a tree, then, it is an E_i−tree. A GS is an E_i−forest, if the subgraph structure induced by E_i−edges is a forest [17].

A fuzzy graph (FG) on V is a pair of G = (τ, μ), where τ is a fuzzy subset (FS) of V and μ is a fuzzy relation on τ so that μ(x, y) ≤ τ(x) ∧ τ(y), ∀x, y ∈ V. The underlying crisp graph of G is the graph G* = (τ*, μ*), where τ* = {x ∈ ∣τ(x) > 0} and μ* = {xy ∈ V × V∣μ(xy) > 0}. An FG S = (λ, η) on V is a partial fuzzy subgraph of G if λ ≤ τ and η ≤ μ. A fuzzy subgraph S is a spanning fuzzy subgraph of G if τ = λ [14].

An interval-valued fuzzy set (IVFS) A on V is described by

$A=\left\{\left[\alpha \left(x\right),\beta \left(x\right)\right]\mid x\in V\right\}$

where α and β are FSs of V so that α(x) ≤ β(x) for all x ∈ V. [14]

A cubic fuzzy set (CFS) [33] $\mathcal{A}$ on V is described as

$\mathcal{A}=\left\{⟨\left[\alpha \left(z\right),\beta \left(z\right)\right],\gamma \left(z\right)⟩\mid z\in V\right\},$

where [α(z), β(z)] is named the interval-valued fuzzy membership degree and γ(z) is named the fuzzy membership degree of z, so that α, β, γ: V → [0, 1].

The CFS $\mathcal{A}$ is called an internal CFS if γ(z) ∈ [α(z), β(z)], and external CFS whenever γ(z)∉[α(z), β(z)], for all z ∈ V.

Definition 2.1 [19]. Let Z = (V, E₁, E₂, …, E_k) be a GS. Then, $\mathcal{Z}=(\tau ,{\phi }_1,{\phi }_2,\dots ,{\phi }_k)$ is named the fuzzy graph structure (FGS) of Z whenever τ, φ₁, φ₂, …, φ_k are fuzzy subset on V, E₁, E₂, …, E_k, respectively, so that

${\phi }_i\left(ab\right)\le \tau \left(a\right)\wedge \tau \left(b\right),\forall a,b\in V,i=\mathrm{1,2},\dots ,k.$

If ab ∈ supp(φ_i), then, ab is called a φ_i−edge of $\mathcal{Z}$.

Definition 2.2 [43]. A cubic fuzzy graph (CFG) on a non-empty set V is a pair of $\mathcal{G}=(\mathcal{A},\mathcal{B})$ where $\mathcal{A}=\{⟨[\alpha (z),\beta (z)],\gamma (z)⟩\mid z\in V\}$ is a CFS on V and $\mathcal{B}=\{⟨[\alpha (wz),\beta (wz)],\gamma (wz)⟩\mid wz\in E\}$ is a CFS on V × V, so that for all z, w ∈ V,

$\begin{array}{ll}\hfill {\alpha }_{\mathcal{B}}\left(zw\right)& \le {\alpha }_{\mathcal{A}}\left(z\right)\wedge {\alpha }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\beta }_{\mathcal{B}}\left(zw\right)& \le {\beta }_{\mathcal{A}}\left(z\right)\wedge {\beta }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\gamma }_{\mathcal{B}}\left(zw\right)& \le {\gamma }_{\mathcal{A}}\left(z\right)\wedge {\gamma }_{\mathcal{A}}\left(w\right).\hfill \end{array}$

Definition 2.3. Let V be a non-empty set and G* = (V, E₁, E₂, …, E_k) be a GS. Then, $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is named a cubic fuzzy graph structure (CFGS) on G* if $\mathcal{A}=\{⟨[\alpha (z),\beta (z)],\gamma (z)⟩\mid z\in V\}$ is a CFS on V and ${\mathcal{B}}_i=\{⟨[{\alpha }_{{\mathcal{B}}_i}(wz),{\beta }_{{\mathcal{B}}_i}(wz)],{\gamma }_{{\mathcal{B}}_i}(wz)⟩\mid wz\in E_i\}$ is CFS on E_i, respectively, so that

$\begin{array}{ccc}\hfill {\alpha }_{{\mathcal{B}}_i}\left(zw\right)& \le \hfill & {\alpha }_{\mathcal{A}}\left(z\right)\wedge {\alpha }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\beta }_{{\mathcal{B}}_i}\left(zw\right)& \le \hfill & {\beta }_{\mathcal{A}}\left(z\right)\wedge {\beta }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\gamma }_{{\mathcal{B}}_i}\left(zw\right)& \le \hfill & {\gamma }_{\mathcal{A}}\left(z\right)\wedge {\gamma }_{\mathcal{A}}\left(w\right),forallzw\in E_{i}andi=\mathrm{1,2},\dots ,k.\hfill \end{array}$

If $zw\in supp({\mathcal{B}}_i)$, then, zw is named as ${\mathcal{B}}_i$-edge of CFGS $\mathcal{G}$. Obviously, [α_i, β_i] and γ_i are named the membership function of ${\mathcal{B}}_i-$ edges. Furthermore, ${\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k$ are mutually disjoint so that each α_i, β_i and γ_i is symmetric and irreflexive, for 1 ≤ i ≤ k.

Example 2.4. Consider the GS G* = (V, E₁, E₂, E₃) where V = {x, y, z, t, u, w}, E₁ = {xy, tu}, E₂ = {yz, tw}, and E₃ = {wy, tz}. We define the CFSs $\mathcal{A}$, ${\mathcal{B}}_1$, ${\mathcal{B}}_2$, and ${\mathcal{B}}_3$ on V, E₁, E₂, and E₃, respectively, as follows:

$\begin{array}{ll}\mathcal{A}\hfill & =\left\{\left(x,\langle \left[0.2,0.5\right],0.6\rangle \right),\left(y,\langle \left[0.4,0.6\right],0.7\rangle \right),\left(z,\langle \left[0.3,0.5\right],0.4\rangle \right),\left(t,\langle \left[0.3,0.4\right],0.5\rangle \right),\right.\hfill \\ \hfill & \left.\times \left(u,\langle \left[0.6,0.7\right],0.2\rangle \right),\left(w,\langle \left[0.5,0.7\right],0.8\rangle \right)\right\},\hfill \\ {\mathcal{B}}_1\hfill & =\{\left(xy,\langle \left[0.2,0.4\right],0.5\rangle \right),\left(tu,\langle \left[0.2,0.4\right],0.2\rangle \right)\},\hfill \\ {\mathcal{B}}_2\hfill & =\{\left(yz,\langle \left[0.2,0.3\right],0.4\rangle \right),\left(tw,\langle \left[0.3,0.4\right],0.4\rangle \right)\},\hfill \\ {\mathcal{B}}_3\hfill & =\{\left(wy,\langle \left[0.4,0.6\right],0.7\rangle \right),\left(tz,\langle \left[0.3,0.4\right],0.4\rangle \right)\}.\hfill \end{array}$

Then, the CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,{\mathcal{B}}_3)$ on G* is shown in Figure 1.

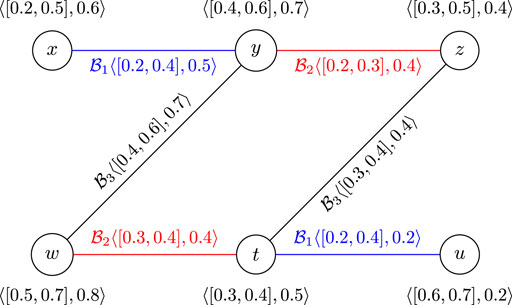

FIGURE 1

FIGURE 1. CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,{\mathcal{B}}_3)$.

Definition 2.5. A CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is ${\mathcal{B}}_i$-strong if

$\begin{array}{ccc}\hfill {\alpha }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\alpha }_{\mathcal{A}}\left(z\right)\wedge {\alpha }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\beta }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\beta }_{\mathcal{A}}\left(z\right)\wedge {\beta }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\gamma }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\gamma }_{\mathcal{A}}\left(z\right)\wedge {\gamma }_{\mathcal{A}}\left(w\right),forallzw\in E_i.\hfill \end{array}$

If $\mathcal{G}$ is ${\mathcal{B}}_i$-strong for all i = 1, 2, …, k, then, $\mathcal{G}$ is named strong CFGS.

Definition 2.6. A CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is named complete CFGS if

$\begin{array}{ccc}\hfill {\alpha }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\alpha }_{\mathcal{A}}\left(z\right)\wedge {\alpha }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\beta }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\beta }_{\mathcal{A}}\left(z\right)\wedge {\beta }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\gamma }_{{\mathcal{B}}_i}\left(zw\right)& =\hfill & {\gamma }_{\mathcal{A}}\left(z\right)\wedge {\gamma }_{\mathcal{A}}\left(w\right),forallz,w\in V.\hfill \end{array}$

Definition 2.7. A CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is named ${\mathcal{B}}_i$-connected if all vertices are connected by ${\mathcal{B}}_i$-edges.

Some abbreviations in the article are listed in Table 1.

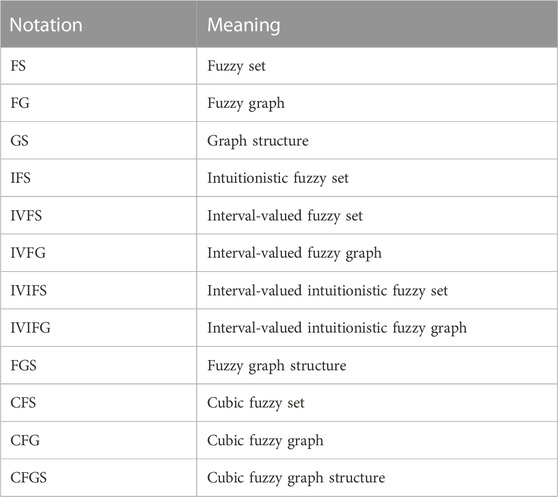

TABLE 1

TABLE 1. Abbreviations.

3 Vertex regularity in cubic fuzzy graph structures

In this section, vertex regularity in cubic fuzzy graph structures is discussed and some of its properties are examined.

Definition 3.1. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. ${\mathcal{B}}_i$-degree of a vertex z is determined as ${\mathfrak{D}}_{{\mathcal{B}}_i}(z)=⟨[{\mathfrak{D}}_{{\alpha }_i}(z),{\mathfrak{D}}_{{\beta }_i}(z)],{\mathfrak{D}}_{{\gamma }_i}(z)⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{D}}_{{\alpha }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\alpha }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{{\beta }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\beta }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{{\gamma }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\gamma }_{{\mathcal{B}}_i}\left(wz\right).\hfill \end{array}$

Also, ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of a vertex z is determined as ${\mathfrak{D}}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}(z)=⟨[{\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}(z),{\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}(z)],{\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}(z)⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\alpha }_{{\mathcal{B}}_{i_j}}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\beta }_{{\mathcal{B}}_{i_j}}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\gamma }_{{\mathcal{B}}_{i_j}}\left(wz\right).\hfill \end{array}$

The full-degree z is defined as ${\mathfrak{D}}_{\mathcal{G}}(z)=⟨[{\mathfrak{D}}_{\alpha }(z),{\mathfrak{D}}_{\beta }(z)],{\mathfrak{D}}_{\gamma }(z)⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{D}}_{\alpha }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\alpha }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{\beta }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\beta }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{D}}_{\gamma }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\gamma }_{{\mathcal{B}}_i}\left(wz\right).\hfill \end{array}$

Definition 3.2. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. If all vertices have the same ${\mathcal{B}}_i$-degree ⟨[a, b], c⟩, then, $\mathcal{G}$ is named a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular CFGS. Also, $\mathcal{G}$ is named a ⟨[a, b], c⟩-${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular CFGS whenever all vertices have the same ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree ⟨[a, b], c⟩. It is clear that every connected CFGS with two vertices is regular.

Considering the membership degree of the vertex, we define the total degree of the vertex as follows:

Example 3.3. Consider CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$ is shown in Figure 2, where

$\begin{array}{ll}\mathcal{A}\hfill & =\left\{\langle z_1,\left[0.6,0.7\right],0.8\rangle ,\langle z_2,\left[0.5,0.6\right],0.7\rangle ,\langle z_3,\left[0.7,0.8\right],0.9\rangle ,\langle z_4,\left[0.8,0.9\right],1\rangle \right\},\hfill \\ \hfill {\mathcal{B}}_1\hfill & =\left\{\langle z_1{z}_2,\left[0.4,0.5\right],0.6\rangle ,\langle z_3{z}_4,\left[0.4,0.5\right],0.6\rangle \right\},\hfill \\ \hfill {\mathcal{B}}_2\hfill & =\left\{\langle z_1{z}_4,\left[0.3,0.4\right],0.5\rangle ,\langle z_2{z}_3,\left[0.3,0.4\right],0.5\rangle \right\}.\hfill \end{array}$

The ${\mathcal{B}}_1$-degree of vertices is equal to ⟨[0.4, 0.5], 0.6⟩. Also, ${\mathcal{B}}_2$-degree of vertices equals ⟨[0.3, 0.4], 0.5⟩. Therefore, ${\mathcal{B}}_{\mathrm{1,2}}$-degree of vertices is equal to ⟨[0.7, 0.9], 1.1⟩. Hence, $\mathcal{G}$ is a ⟨[0.4, 0.5], 0.6⟩-${\mathcal{B}}_1$-vertex regular, ⟨[0.3, 0.4], 0.5⟩-${\mathcal{B}}_2$-vertex regular, and ⟨[0.7, 0.9], 1.1⟩-${\mathcal{B}}_{\mathrm{1,2}}$-vertex regular CFGS.

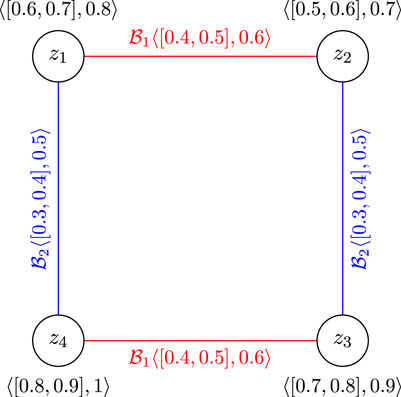

FIGURE 2

FIGURE 2. The ⟨[0.4, 0.5], 0.6⟩-${\mathcal{B}}_1$-vertex regular CFGS, $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$.

Definition 3.4. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. The total ${\mathcal{B}}_i$-degree of a vertex z is shown as ${\mathfrak{T}\mathfrak{D}}_{{\mathcal{B}}_i}(z)=⟨[{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}(z),{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}(z)],{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}(z)⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\alpha }_{{\mathcal{B}}_i}\left(wz\right)+{\alpha }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\beta }_{{\mathcal{B}}_i}\left(wz\right)+{\beta }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)& =\sum _{wz\in E_i,z\ne w}{\gamma }_{{\mathcal{B}}_i}\left(wz\right)+{\gamma }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

Also, total ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of a vertex z is determined as

${\mathfrak{T}\mathfrak{D}}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}\left(z\right)=⟨\left[{\mathfrak{T}\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right),{\mathfrak{T}\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right)\right],{\mathfrak{T}\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right)⟩,$

where

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\alpha }_{{\mathcal{B}}_{i_j}}\left(wz\right)+{\alpha }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\beta }_{{\mathcal{B}}_{i_j}}\left(wz\right)+{\beta }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right)& =\sum _{j=1}^r\sum _{wz\in E_{i_j},z\ne w}{\gamma }_{{\mathcal{B}}_{i_j}}\left(wz\right)+{\gamma }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

The totally full-degree z is defined as ${\mathfrak{T}\mathfrak{D}}_{\mathcal{G}}(z)=⟨[{\mathfrak{T}\mathfrak{D}}_{\alpha }(z),{\mathfrak{T}\mathfrak{D}}_{\beta }(z)],{\mathfrak{T}\mathfrak{D}}_{\gamma }(z)⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{\alpha }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\alpha }_{{\mathcal{B}}_i}\left(wz\right)+{\alpha }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{\beta }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\beta }_{{\mathcal{B}}_i}\left(wz\right)+{\beta }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{\gamma }\left(z\right)& =\sum _{i=1}^k\sum _{wz\in E_i,z\ne w}{\gamma }_{{\mathcal{B}}_i}\left(wz\right)+{\gamma }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

Definition 3.5. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. If all vertices have the same total ${\mathcal{B}}_i$-degree ⟨[a, b], c⟩, then, $\mathcal{G}$ is named a ⟨[a, b], c⟩-${\mathcal{B}}_i$-total vertex regular CFGS. Also, $\mathcal{G}$ is named a ⟨[a, b], c⟩-${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-total vertex regular CFGS whenever all vertices have the same total ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree ⟨[a, b], c⟩.

The following definitions determine the maximum or minimum degree of a vertex in CFGS.

Definition 3.6. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. The minimum vertex ${\mathcal{B}}_i$-degree of $\mathcal{G}$ is defined as ${\delta }_{{\mathcal{B}}_i}(\mathcal{G})=⟨[{\delta }_{{\alpha }_i}(\mathcal{G}),{\delta }_{{\beta }_i}(\mathcal{G})],{\delta }_{{\gamma }_i}(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\delta }_{{\alpha }_i}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\alpha }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\beta }_i}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\beta }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\gamma }_i}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\gamma }_i}\left(z\right),z\in V\right\}.\hfill \end{array}$

Also, the minimum vertex ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of $\mathcal{G}$ is determined as

${\delta }_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)=⟨\left[{\delta }_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right),{\delta }_{{\beta }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)\right],{\delta }_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)⟩,$

where

$\begin{array}{ll}\hfill {\delta }_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\beta }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\}.\hfill \end{array}$

Definition 3.7. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. The maximum vertex ${\mathcal{B}}_i$-degree of $\mathcal{G}$ is defined as ${\mathrm{\Delta }}_{{\mathcal{B}}_i}(\mathcal{G})=⟨[{\mathrm{\Delta }}_{{\alpha }_i}(\mathcal{G}),{\mathrm{\Delta }}_{{\beta }_i}(\mathcal{G})],{\mathrm{\Delta }}_{{\gamma }_i}(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathrm{\Delta }}_{{\alpha }_i}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\alpha }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\beta }_i}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\beta }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\gamma }_i}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\gamma }_i}\left(z\right),z\in V\right\}.\hfill \end{array}$

Also, the maximum vertex ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of $\mathcal{G}$ is defined as ${\mathrm{\Delta }}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}(\mathcal{G})=⟨[{\mathrm{\Delta }}_{{\alpha }_{i_1{i}_2\cdots i_r}}(\mathcal{G}),{\mathrm{\Delta }}_{{\beta }_{i_1{i}_2\cdots i_r}}(\mathcal{G})],{\mathrm{\Delta }}_{{\gamma }_{i_1{i}_2\cdots i_r}}(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathrm{\Delta }}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\}.\hfill \end{array}$

Definition 3.8. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. The minimum total vertex ${\mathcal{B}}_i$-degree of $\mathcal{G}$ is defined as ${\delta }_{{\mathcal{B}}_i}^t(\mathcal{G})=⟨[{\delta }_{{\alpha }_i}^t(\mathcal{G}),{\delta }_{{\beta }_i}^t(\mathcal{G})],{\delta }_{{\gamma }_i}^t(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\delta }_{{\alpha }_i}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\beta }_i}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\gamma }_i}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right),z\in V\right\}.\hfill \end{array}$

Also, the minimum total vertex ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of $\mathcal{G}$ is determined as

${\delta }_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)=⟨\left[{\delta }_{{\alpha }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right),{\delta }_{{\beta }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)\right],{\delta }_{{\gamma }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)⟩,$

where

$\begin{array}{ll}\hfill {\delta }_{{\alpha }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\beta }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\delta }_{{\gamma }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigwedge \left\{{\mathfrak{T}\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\}.\hfill \end{array}$

Definition 3.9. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. The maximum total vertex ${\mathcal{B}}_i$-degree of $\mathcal{G}$ is defined as ${\mathrm{\Delta }}_{{\mathcal{B}}_i}^t(\mathcal{G})=⟨[{\mathrm{\Delta }}_{{\alpha }_i}^t(\mathcal{G}),{\mathrm{\Delta }}_{{\beta }_i}^t(\mathcal{G})],{\mathrm{\Delta }}_{{\gamma }_i}^t(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathrm{\Delta }}_{{\alpha }_i}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\beta }_i}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\gamma }_i}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right),z\in V\right\}.\hfill \end{array}$

Also, the maximum total vertex ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-degree of $\mathcal{G}$ is determined as

${\mathrm{\Delta }}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)=⟨\left[{\mathrm{\Delta }}_{{\alpha }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right),{\mathrm{\Delta }}_{{\beta }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)\right],{\mathrm{\Delta }}_{{\gamma }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)⟩,$

where

$\begin{array}{ll}\hfill {\mathrm{\Delta }}_{{\alpha }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\alpha }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\beta }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\beta }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\},\hfill \\ \hfill {\mathrm{\Delta }}_{{\gamma }_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)& =\bigvee \left\{{\mathfrak{T}\mathfrak{D}}_{{\gamma }_{i_1{i}_2\cdots i_r}}\left(z\right),z\in V\right\}.\hfill \end{array}$

Example 3.10. Consider CFGS of $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$ as shown in Figure 3, where

$\begin{array}{ll}\hfill \mathcal{A}& =\left\{\langle z_1,\left[0.7,0.9\right],1\rangle ,\langle z_2,\left[0.5,0.6\right],0.6\rangle ,\langle z_3,\left[0.6,0.8\right],1\rangle ,\langle z_4,\left[0.4,0.5\right],0.6\rangle \right\},\hfill \\ \hfill {\mathcal{B}}_1& =\left\{\langle z_1{z}_2,\left[0.3,0.4\right],0.5\rangle ,\langle z_2{z}_4,\left[0.2,0.3\right],0.4\rangle ,\langle z_3{z}_4,\left[0.4,0.5\right],0.5\rangle \right\},\hfill \\ \hfill {\mathcal{B}}_2& =\left\{\langle z_1{z}_4,\left[0.3,0.4\right],0.5\rangle ,\langle z_1{z}_3,\left[0.1,0.2\right],0.3\rangle ,\langle z_2{z}_3,\left[0.4,0.5\right],0.6\rangle \right\}.\hfill \end{array}$

The total ${\mathcal{B}}_1$-degree of vertices is equal to ⟨[1, 1.3], 1.5⟩. Therefore, $\mathcal{G}$ is a ⟨[1, 1.3], 1.5⟩-${\mathcal{B}}_1$-total vertex regular CFGS. As it can be seen

${\delta }_{{\mathcal{B}}_1}^t\left(\mathcal{G}\right)={\mathrm{\Delta }}_{{\mathcal{B}}_1}^t\left(\mathcal{G}\right)=⟨\left[\mathrm{1,1.3}\right],1.5⟩.$

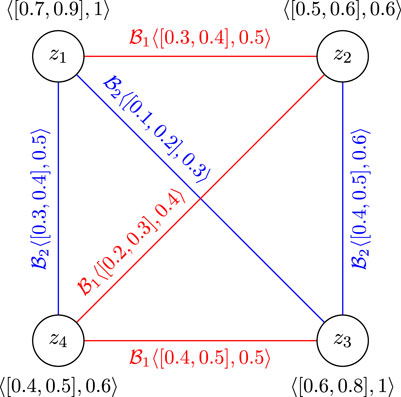

FIGURE 3

FIGURE 3. The ⟨[1, 1.3], 1.5⟩-${\mathcal{B}}_1$-total vertex regular CFGS, $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$.

Remark 3.11. A CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is named ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular if

${\delta }_{{\mathcal{B}}_i}\left(\mathcal{G}\right)={\mathrm{\Delta }}_{{\mathcal{B}}_i}\left(\mathcal{G}\right)=⟨\left[a,b\right],c⟩,$

and $\mathcal{G}$ is named ⟨[a, b], c⟩-${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular if

${\delta }_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)={\mathrm{\Delta }}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}\left(\mathcal{G}\right)=⟨\left[a,b\right],c⟩.$

Also, $\mathcal{G}$ is named ⟨[a, b], c⟩-${\mathcal{B}}_i$-total vertex regular if

${\delta }_{{\mathcal{B}}_i}^t\left(\mathcal{G}\right)={\mathrm{\Delta }}_{{\mathcal{B}}_i}^t\left(\mathcal{G}\right)=⟨\left[a,b\right],c⟩,$

and $\mathcal{G}$ is named ⟨[a, b], c⟩-${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-total vertex regular if

${\delta }_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)={\mathrm{\Delta }}_{{\mathcal{B}}_{i_1{i}_2\cdots i_r}}^t\left(\mathcal{G}\right)=⟨\left[a,b\right],c⟩.$

Theorem 3.12. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS which is both a ${\mathcal{B}}_i$-vertex regular and a ${\mathcal{B}}_i$-total vertex regular, then, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant.

Proof. Suppose $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular and a ⟨[a′, b′], c′⟩-${\mathcal{B}}_i$-total vertex regular CFGS. Then, for all z ∈ V

$\begin{array}{ll}\hfill {\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)& =\langle \left[{\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a,b\right],c\rangle ,\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)& =\langle \left[{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a^{\prime },b^{\prime }\right],c^{\prime }\rangle .\hfill \end{array}$

Thus, by definition

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)& ={\mathfrak{D}}_{{\alpha }_i}\left(z\right)+{\alpha }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)& ={\mathfrak{D}}_{{\beta }_i}\left(z\right)+{\beta }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)& ={\mathfrak{D}}_{{\gamma }_i}\left(z\right)+{\gamma }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

Therefore,

${\alpha }_{\mathcal{A}}\left(z\right)=a^{\prime }-a,{\beta }_{\mathcal{A}}\left(z\right)=b^{\prime }-b,{\gamma }_{\mathcal{A}}\left(z\right)=c^{\prime }-c,forallz\in V.$

Hence, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant.

The following example shows that the opposite of the above theorem is not necessarily true.

Example 3.13. Consider CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$ is shown in Figure 4, where

$\begin{array}{ll}\hfill z_i& =⟨\left[0.4,0.5\right],0.6⟩,i=\mathrm{1,2},\dots ,6,\hfill \\ \hfill {\mathcal{B}}_1& =\left\{⟨z_1{z}_2,\left[0.3,0.4\right],0.5⟩,⟨z_3{z}_4,\left[0.4,0.5\right],0.6⟩,⟨z_3{z}_6,\left[0.3,0.4\right],0.5⟩\right\},\hfill \\ \hfill {\mathcal{B}}_2& =\left\{⟨z_1{z}_3,\left[0.1,0.2\right],0.3⟩,⟨z_2{z}_4,\left[0.5,0.6\right],0.7⟩,⟨z_3{z}_5,\left[0.2,0.3\right],0.4⟩\right\}.\hfill \end{array}$

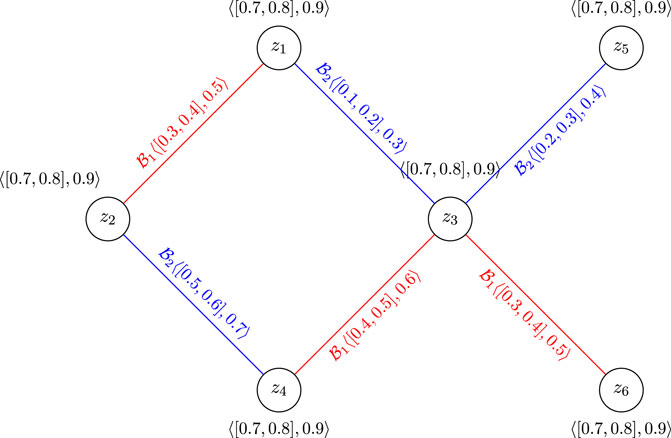

FIGURE 4

FIGURE 4. A CFGS with ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ constant, $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$.

Here, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are a constant functions. But $\mathcal{G}$ is neither ${\mathcal{B}}_{i_1{i}_2}$-vertex regular CFGS nor a ${\mathcal{B}}_{i_1{i}_2}$-total vertex regular CFGS.

Definition 3.14. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. Then, $\mathcal{G}$ is called perfectly ${\mathcal{B}}_i$-vertex regular if $\mathcal{G}$ is a ${\mathcal{B}}_i$-vertex regular and ${\mathcal{B}}_i$-total vertex regular. Also, $\mathcal{G}$ is called perfectly ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular if $\mathcal{G}$ is a ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular and ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-total vertex regular.

Remark 3.15. The ${\mathcal{B}}_i$-total vertex regularity does not imply the ${\mathcal{B}}_i$-vertex regularity of a CFGS, and vice versa. Also, The ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-total vertex regularity does not imply the ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regularity of a CFGS, and vice versa.

Example 3.16. Consider the CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$ as drawn in Figure 3. $\mathcal{G}$ is a ${\mathcal{B}}_i$-total vertex regular CFGS, but it is not a ${\mathcal{B}}_i$-vertex regular CFGS.

Theorem 3.17. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. Then, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions on V if and only if the following are equivalent:

(1) $\mathcal{G}$ is a ${\mathcal{B}}_i$-vertex regular CFGS.

(2) $\mathcal{G}$ is a ${\mathcal{B}}_i$-total vertex regular CFGS.

Proof. Suppose $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ to be a CFGS and ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions on V. i.e.,

${\alpha }_{\mathcal{A}}\left(z\right)=k,{\beta }_{\mathcal{A}}\left(z\right)=m,{\gamma }_{\mathcal{A}}\left(z\right)=n,forsomek,m,n\in \mathbf{R}andallz\in V.$

(1) ⇒ (2) Let $\mathcal{G}$ be a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular. Then, for all z ∈ V

${\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)=\langle \left[{\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a,b\right],c\rangle .$

On the other hand, we have

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)& ={\mathfrak{D}}_{{\alpha }_i}\left(z\right)+{\alpha }_{\mathcal{A}}\left(z\right)=a+k,\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)& ={\mathfrak{D}}_{{\beta }_i}\left(z\right)+{\beta }_{\mathcal{A}}\left(z\right)=b+m,\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)& ={\mathfrak{D}}_{{\gamma }_i}\left(z\right)+{\gamma }_{\mathcal{A}}\left(z\right)=c+n.\hfill \end{array}$

Therefore, $\mathcal{G}$ is a ⟨[a+k, b + m], c + n⟩-${\mathcal{B}}_i$-total vertex regular CFGS.(2) ⇒ (1) Let $\mathcal{G}$ be a ⟨[a′, b′], c′⟩-${\mathcal{B}}_i$-total vertex regular, a′, b′, c′ ∈ R. Then,

${\mathfrak{T}\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)=\langle \left[{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a^{\prime },b^{\prime }\right],c^{\prime }\rangle .$

Therefore,

$\begin{array}{ll}\hfill {\mathfrak{D}}_{{\alpha }_i}\left(z\right)& ={\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)-{\alpha }_{\mathcal{A}}\left(z\right)=a^{\prime }-k,\hfill \\ \hfill {\mathfrak{D}}_{{\beta }_i}\left(z\right)& ={\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)+{\beta }_{\mathcal{A}}\left(z\right)=b^{\prime }-m,\hfill \\ \hfill {\mathfrak{D}}_{{\gamma }_i}\left(z\right)& ={\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)+{\gamma }_{\mathcal{A}}\left(z\right)=c^{\prime }-n.\hfill \end{array}$

Thus, $\mathcal{G}$ is a ⟨[a′ − k, b′ − m], c′ − n⟩-${\mathcal{B}}_i$-vertex regular CFGS.Conversely, suppose (1) and (2) are equivalent. We prove that ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions. Suppose ${\alpha }_{\mathcal{A}}$ not to be a constant function. Then, there exist z, w ∈ V so that ${\alpha }_{\mathcal{A}}(z)\ne {\alpha }_{\mathcal{A}}(w)$. Let $\mathcal{G}$ be a ${\mathcal{B}}_i$-vertex regular. According to the definition we have

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(w\right)& ={\mathfrak{D}}_{{\alpha }_i}\left(w\right)+{\alpha }_{\mathcal{A}}\left(w\right),\hfill \\ \hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)& ={\mathfrak{D}}_{{\alpha }_i}\left(z\right)+{\alpha }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

Since ${\alpha }_{\mathcal{A}}(z)\ne {\alpha }_{\mathcal{A}}(w)$, then ${\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}(w)\ne {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}(z)$. Thus, $\mathcal{G}$ is not ${\mathcal{B}}_i$-total vertex regular. Now, suppose that $\mathcal{G}$ is a ${\mathcal{B}}_i$-total vertex regular. Then, ${\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}(w)={\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}(z)$. It follows that ${\mathfrak{D}}_{{\alpha }_i}(w)-{\mathfrak{D}}_{{\alpha }_i}(z)={\alpha }_{\mathcal{A}}(w)-{\alpha }_{\mathcal{A}}(z)\ne 0$. Therefore, ${\mathfrak{D}}_{{\alpha }_i}(w)\ne {\mathfrak{D}}_{{\alpha }_i}(z)$. Thus, $\mathcal{G}$ is not ${\mathcal{B}}_i$-vertex regular. This is contrary to the assumption. Therefore, ${\alpha }_{\mathcal{A}}$ is a constant function. Similarly, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions.

Corollary 3.18. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. Then, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions on V if and only if the following are equivalent:

(1) $\mathcal{G}$ is a ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular CFGS.

(2) $\mathcal{G}$ is a ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-total vertex regular CFGS.

Proof. It is proved similar to the above theorem.

Corollary 3.19. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a CFGS. Then, ${\alpha }_{\mathcal{A}}$, ${\beta }_{\mathcal{A}}$, and ${\gamma }_{\mathcal{A}}$ are constant functions on V if and only if $\mathcal{G}$ is a perfectly ${\mathcal{B}}_i$-vertex regular or perfectly ${\mathcal{B}}_{i_1{i}_2\cdots i_r}$-vertex regular.

Definition 3.20. The order of a CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is defined as $\mathfrak{P}(\mathcal{G})=⟨[{\mathfrak{P}}_{\alpha }(\mathcal{G}),{\mathfrak{P}}_{\beta }(\mathcal{G})],{\mathfrak{P}}_{\gamma }(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right)& =\sum _{z\in V}{\alpha }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)& =\sum _{z\in V}{\beta }_{\mathcal{A}}\left(z\right),\hfill \\ \hfill {\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)& =\sum _{z\in V}{\gamma }_{\mathcal{A}}\left(z\right).\hfill \end{array}$

The ${\mathcal{B}}_i$-size of a CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is defined as ${\mathfrak{Q}}_{{\mathcal{B}}_i}(\mathcal{G})=⟨[{\mathfrak{Q}}_{{\alpha }_i}(\mathcal{G}),{\mathfrak{Q}}_{{\beta }_i}(\mathcal{G})],{\mathfrak{Q}}_{{\gamma }_i}(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right)& =\sum _{wz\in E_i}{\alpha }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)& =\sum _{wz\in E_i}{\beta }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)& =\sum _{wz\in E_i}{\gamma }_{{\mathcal{B}}_i}\left(wz\right).\hfill \end{array}$

The size of a CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ is defined as $\mathfrak{Q}(\mathcal{G})=⟨[{\mathfrak{Q}}_{\alpha }(\mathcal{G}),{\mathfrak{Q}}_{\beta }(\mathcal{G})],{\mathfrak{Q}}_{\gamma }(\mathcal{G})⟩$, where

$\begin{array}{ll}\hfill {\mathfrak{Q}}_{\alpha }\left(\mathcal{G}\right)& =\sum _{i=1}^k\sum _{wz\in E_i}{\alpha }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{Q}}_{\beta }\left(\mathcal{G}\right)& =\sum _{i=1}^k\sum _{wz\in E_i}{\beta }_{{\mathcal{B}}_i}\left(wz\right),\hfill \\ \hfill {\mathfrak{Q}}_{\gamma }\left(\mathcal{G}\right)& =\sum _{i=1}^k\sum _{wz\in E_i}{\gamma }_{{\mathcal{B}}_i}\left(wz\right).\hfill \end{array}$

Theorem 3.21. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular CFGS with n vertices. Then, the ${\mathcal{B}}_i$-size of $\mathcal{G}$ is equal to ${\mathfrak{Q}}_{{\mathcal{B}}_i}(z)=⟨[\frac{na}{2},\frac{nb}{2}],\left.\frac{nc}{2}\right)⟩$.

Proof. Suppose $\mathcal{G}$ is a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular CFGS with n vertices. Then, for all z ∈ V

${\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)=\langle \left[{\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a,b\right],c\rangle .$

On the other hand,

$\begin{array}{ll}\hfill \sum _{z\in V}{\mathfrak{D}}_{{\alpha }_i}\left(z\right)& =2\sum _{xy\in E_i}{\alpha }_{{\mathcal{B}}_i}\left(xy\right)=2{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right),\hfill \\ \hfill \sum _{z\in V}{\mathfrak{D}}_{{\beta }_i}\left(z\right)& =2\sum _{xy\in E_i}{\beta }_{{\mathcal{B}}_i}\left(xy\right)=2{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right),\hfill \\ \hfill \sum _{z\in V}{\mathfrak{D}}_{{\gamma }_i}\left(z\right)& =2\sum _{xy\in E_i}{\gamma }_{{\mathcal{B}}_i}\left(xy\right)=2{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right).\hfill \end{array}$

Therefore,

$\begin{array}{ll}\hfill 2{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right)& =\sum _{z\in V}{\mathfrak{D}}_{{\alpha }_i}\left(z\right)=\sum _{z\in V}a=na,\hfill \\ \hfill 2{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)& =\sum _{z\in V}{\mathfrak{D}}_{{\beta }_i}\left(z\right)=\sum _{z\in V}b=nb,\hfill \\ \hfill 2{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)& =\sum _{z\in V}{\mathfrak{D}}_{{\gamma }_i}\left(z\right)=\sum _{z\in V}c=nc.\hfill \end{array}$

Hence, ${\mathfrak{Q}}_{{\mathcal{B}}_i}(z)=⟨[\frac{na}{2},\frac{nb}{2}],\left.\frac{nc}{2}\right)⟩$.

Theorem 3.22. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a ⟨[a′, b′], c′⟩-${\mathcal{B}}_i$-total vertex regular CFGS with n vertices. Then,

$\begin{array}{ll}\hfill 2{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right)& =n{a}^{\prime },\hfill \\ \hfill 2{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)& =n{b}^{\prime },\hfill \\ \hfill 2{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)& =n{c}^{\prime }.\hfill \end{array}$

Proof. Suppose $\mathcal{G}$ is a ⟨[a′, b′], c′⟩-${\mathcal{B}}_i$-total vertex regular CFGS with n vertices. Then, for all z ∈ V

${\mathfrak{T}\mathfrak{D}}_{{\mathcal{B}}_i}\left(z\right)=\langle \left[{\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right),{\mathfrak{T}\mathfrak{D}}_{{\beta }_i}\left(z\right)\right],{\mathfrak{T}\mathfrak{D}}_{{\gamma }_i}\left(z\right)\rangle =\langle \left[a^{\prime },b^{\prime }\right],c^{\prime }\rangle .$

Therefore,

$\begin{array}{ll}\hfill {\mathfrak{T}\mathfrak{D}}_{{\alpha }_i}\left(z\right)& ={\mathfrak{D}}_{{\alpha }_i}\left(z\right)+{\alpha }_{\mathcal{A}}\left(z\right)=a^{\prime },\hfill \\ \hfill \sum _{z\in V}{\mathfrak{D}}_{{\alpha }_i}\left(z\right)+\sum _{z\in V}{\alpha }_{\mathcal{A}}\left(z\right)& =\sum _{z\in V}{a}^{\prime },\hfill \\ \hfill 2{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right)& =n{a}^{\prime }.\hfill \end{array}$

Correspondingly,

$\begin{array}{ll}\hfill 2{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)& =n{b}^{\prime },\hfill \\ \hfill 2{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)& =n{c}^{\prime }.\hfill \end{array}$

Example 3.23. Consider CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2)$ shown in Figure 3. $\mathcal{G}$ is a ⟨[1, 1.3], 1.5⟩-${\mathcal{B}}_1$-total vertex regular CFGS. Also, we have

$\begin{array}{ll}\hfill \mathfrak{P}\left(\mathcal{G}\right)& =\langle \left[{\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right),{\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)\right],{\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)\rangle =\langle \left[2.2,2.8\right],3.2\rangle ,\hfill \\ \hfill {\mathfrak{Q}}_{{\mathcal{B}}_i}\left(\mathcal{G}\right)& =\langle \left[{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right),{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)\right],{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)\rangle =\langle \left[0.9,1.2\right],1.4\rangle .\hfill \end{array}$

Therefore,

$\begin{array}{ll}\hfill 2{\mathfrak{Q}}_{{\alpha }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right)& =n{a}^{\prime }\Rightarrow 2\left(0.9\right)+2.2=4\left(1\right),\hfill \\ \hfill 2{\mathfrak{Q}}_{{\beta }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)& =n{b}^{\prime }\Rightarrow 2\left(1.2\right)+2.8=4\left(1.3\right),\hfill \\ \hfill 2{\mathfrak{Q}}_{{\gamma }_i}\left(\mathcal{G}\right)+{\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)& =n{c}^{\prime }\Rightarrow 2\left(1.4\right)+3.2=4\left(1.5\right).\hfill \end{array}$

Corollary 3.24. Let $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,\dots ,{\mathcal{B}}_k)$ be a ${\mathcal{B}}_i$-connected CFGS. If $\mathcal{G}$ is a ⟨[a, b], c⟩-${\mathcal{B}}_i$-vertex regular and a ⟨[a′, b′], c′⟩-${\mathcal{B}}_i$-total vertex regular CFGS, then

$\begin{array}{ll}\hfill {\mathfrak{P}}_{\alpha }\left(\mathcal{G}\right)& =n\left(a^{\prime }-a\right),\hfill \\ \hfill {\mathfrak{P}}_{\beta }\left(\mathcal{G}\right)& =n\left(b^{\prime }-b\right),\hfill \\ \hfill {\mathfrak{P}}_{\gamma }\left(\mathcal{G}\right)& =n\left(c^{\prime }-c\right).\hfill \end{array}$

Proof. The result is obtained from the above theorems.

4 Application

In today’s world, consumers demand instant access to services and money transfers, which provides opportunities for criminals. For example, payment service programs try to deliver money to users as quickly as possible while ensuring that money is not sent for illegal purposes. This requires real-time fraud detection.

Fraud detection is a process that identifies fraudsters and prevents their fraudulent activities. The implementation of this process is very important in banking, insurance, medicine and also government organizations.

Money laundering, cyber attacks, fake bank transactions and checks, identity theft and many other illegal activities are called fraudulent activities. As a result, organizations are implementing modern fraud detection and prevention technologies and risk management strategies to combat this growing fraudulent activity across multiple platforms.

These techniques employ adaptive and predictive analytics (machine learning) to detect fraud. This enables continuous monitoring of transactions and crimes in real-time condition and can also help decipher new and complex preventive measures through automation.

Graphs are the most widely used tools for visualization and analysis of complex communication data. This wide range of functions has made graphs one of the most useful tools in detecting financial corruption and fraud today. In large economic networks, in order to gain an intuition of the totality of relationships between entities and simultaneously access details, only a graph with the correct settings and readability can be useful. When looking at trades with graph technology, it is not just trades that can be modeled on graphs. Graphs are very flexible, denoting the fact that surrounding heterogeneous information can also be modeled. For example, customers’ IP addresses, ATM geographic locations, card numbers, and account IDs can all become nodes, and each type of connection can be an edge.

A CFGS can be used for fraud detection, especially in on line banking and ATM location analysis, because users can design fraud detection rules based on data sets. The following relationships are taken into account in the review of banking transactions of a bank’s customers:

${\mathcal{B}}_1=$ people who have entered the system with the IP of several cards registered in different places.

${\mathcal{B}}_2=$ people who have transacted by card in different places with long distances.

${\mathcal{B}}_3=$ people who received transactions simultaneously from other accounts located in different locations.

Today, by monitoring information and data, it is easy to obtain the statistics of banks and interbanks payments. One of these statistics is the number and amount of bank transactions in the payment network and the share of each account in these transactions. Table 2 shows some suspicious accounts found in the investigation of a bank, as well as the percentage share of each account in the total number and amount of related transactions.

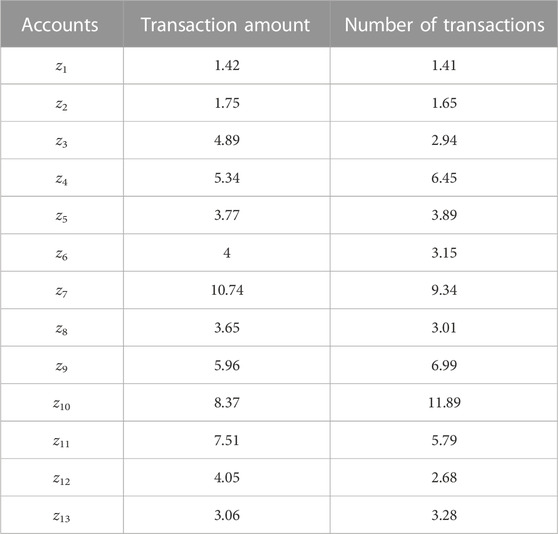

TABLE 2

TABLE 2. Each account’s share of total transactions.

The cubic fuzzy values of each account are given in Table 3. To fuzzify the numbers, dividing each number by the maximum number is used. As in the connection between the accounts, the strongest connections were intended, therefore, all the edges are considered strong.The cubic fuzzy values related to each of the relations of ${\mathcal{B}}_1$, ${\mathcal{B}}_2$, ${\mathcal{B}}_3$ are given in Tables 4–6.

TABLE 3

TABLE 3. The cubic fuzzy values of each account.

TABLE 4

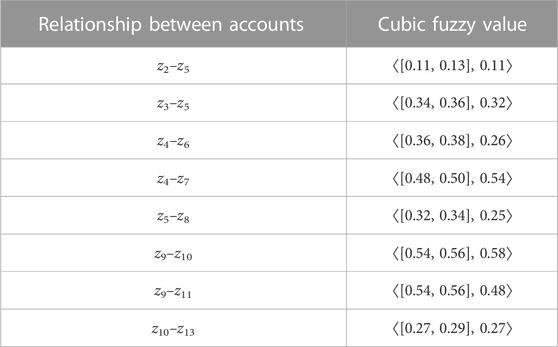

TABLE 4. The cubic fuzzy values related to relation ${\mathcal{B}}_1$.

TABLE 5

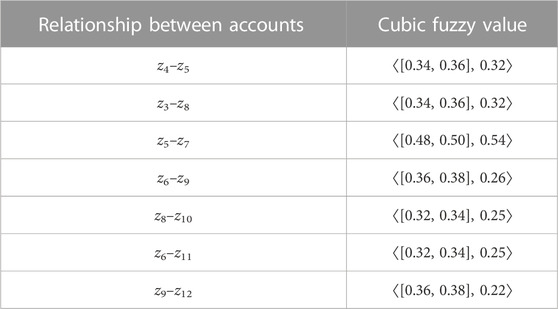

TABLE 5. The cubic fuzzy values related to relation ${\mathcal{B}}_2$.

TABLE 6

TABLE 6. The cubic fuzzy values related to relation ${\mathcal{B}}_3$.

Considering accounts as vertices and relationships of ${\mathcal{B}}_1$, ${\mathcal{B}}_2$, and ${\mathcal{B}}_3$ as edges, the CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,{\mathcal{B}}_3)$ is obtained as Figure 5.

FIGURE 5

FIGURE 5. The CFGS $\mathcal{G}=(\mathcal{A},{\mathcal{B}}_1,{\mathcal{B}}_2,{\mathcal{B}}_3)$.

By examining the degrees of vertices, it is determined that:

The maximum ${\mathcal{B}}_1$-degree of vertices belongs to vertex z₉ with a value of ${\mathfrak{D}}_{{\mathcal{B}}_1}(z_9)=⟨[0.27,0.29],0.22⟩$. Therefore, the z₉ account holder has entered the system with the IP of several cards registered in different places.

The maximum ${\mathcal{B}}_2$-degree of vertices belongs to vertex z₅ with a value of ${\mathfrak{D}}_{{\mathcal{B}}_1}(z_5)=⟨[0.82,0.86],0.86⟩$. So, z₅ is an account that has transacted with the card at various locations over a long distance.

The maximum ${\mathcal{B}}_3$-degree of vertices belongs to vertex z₇ with a value of ${\mathfrak{D}}_{{\mathcal{B}}_1}(z_7)=⟨[1.30,1.34],1.36⟩$. Therefore, z₇ is an account that has received transactions simultaneously from other accounts located in different locations.

5 Conclusion

Cubic fuzzy graph structure (CFGS) as a combination of fuzzy graph structure and cubic fuzzy graph, has a better flexibility in modeling and solving problems in ambiguous and uncertain fields. In this article, we introduced vertex regularity in CFGS and examined their characteristics. Also, the total vertex regularity in CFGS is discussed and its results are studied. In this regard, a comparative study has been conducted between vertex regular and total vertex regular CFGSs and some necessary and sufficient conditions have been provided. These degrees are expressed as a cubic number so that they can be easily compared. It has been found that the membership function conditions in CFGS are effective in the degree calculation quality. The results show that some properties of vertex regular CFGSs are not true for the total vertex regular CFGSs. In our future work, we intend to express the properties of product operations on CFGSs.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

LL contributed to supervision, methodology, project administration, and formal analyzing. SK and SS contributed to investigation, resources, computations, and wrote the initial draft of the paper, which was investigated and approved by AT, who wrote the final draft. All authors have read and agreed to the submitted version of the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Zadeh LA. Fuzzy sets. Inf Control (1965) 8:338–53. doi:10.1016/s0019-9958(65)90241-x

CrossRef Full Text | Google Scholar

2. Zadeh LA. The concept of a linguistic variable and its application to approximate reasoning–I. Inf Sci (1975) 8(3):199–249. doi:10.1016/0020-0255(75)90036-5

CrossRef Full Text | Google Scholar

3. Kauffman A Introduction a la Theorie des Sous-Emsembles Flous, 1. French: Masson: Issy-les-Moulineaux (1973).

Google Scholar

4. Rosenfeld A Fuzzy Graphs, Fuzzy Sets and Their Applications. New York, NY, USA: Academic Press (1975). p. 77–95.

CrossRef Full Text | Google Scholar

5. Talebi AA. Cayley fuzzy graphs on the fuzzy groups. Comp Appl Math (2018) 37(4):4611–32. doi:10.1007/s40314-018-0587-5

CrossRef Full Text | Google Scholar

6. Borzooei RA, Rashmanlou H. New concepts of vague graphs. Int J Mach Learn Cybern (2016) 8(4):1081–92. doi:10.1007/s13042-015-0475-x

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Atanassov K. Intuitionistic fuzzy sets. Fuzzy Sets Syst (1986) 20:87–96. doi:10.1016/s0165-0114(86)80034-3

CrossRef Full Text | Google Scholar

8. Akram M, Dudek WA. Interval-valued fuzzy graphs. Comput Math Appl (2011) 61(2):289–99. doi:10.1016/j.camwa.2010.11.004

CrossRef Full Text | Google Scholar

9. Talebi AA, Rashmanlou H, Sadati SH. New concepts on m-polar interval-valued intuitionistic fuzzy graph. TWMS J Appl Eng Math (2020) 10(3):808–16.

Google Scholar

10. Talebi AA, Rashmanlou H, Sadati SH. Interval-valued intuitionistic fuzzy competition graph. J Multiple-Valued Logic Soft Comput (2020) 34:335–64.

Google Scholar

11. Kosari S, Rao Y, Jiang H, Liu X, Wu P, Shao Z. Vague graph structure with application in medical diagnosis. Symmetry (2020) 12(10):1582–2. doi:10.3390/sym12101582

CrossRef Full Text | Google Scholar

12. Rao Y, Kosari S, Shao Z. Certain properties of vague graphs with a novel application. Mathematics (2020) 8(10):1647. doi:10.3390/math8101647

CrossRef Full Text | Google Scholar

13. Kou Z, Kosari S, Akhoundi M. A novel description on vague graph with application in transportation systems. J Math (2021) 2021:11. doi:10.1155/2021/4800499

CrossRef Full Text | Google Scholar

14. Pal M, Samanta S, Ghorai G. Modern Trends in Fuzzy Graph Theory. Singapore: Springer.

15. Samanta S, Pal M. Fuzzy k-competition graphs and p-competition fuzzy graphs. Fuzzy Inf Eng (2013) 5(2):191–204.

CrossRef Full Text | Google Scholar

16. Samanta S, Pal M, Pal A. Some more results on fuzzy k-competition graphs. Int J Adv Res Artif Intell (2006) 3(1):60–67.

Google Scholar

17. Sampathkumar E. Generalized graph structures. Bull Kerala Math Assoc (2006) 3(2):65–123.

Google Scholar

18. Dinesh T. A study on graph structures, incidence algebras and their fuzzy analogues Ph.D. Thesis. Kannur, India: Kannur University (2011).

Google Scholar

19. Dinesh T, Ramakrishnan T. On generalised fuzzy graph structures. Appl Math Sci (2011) 5(4):173–80.

Google Scholar

20. Akram M, 371. Cham: Springer (2019). p. 209–33.m–polar fuzzy graph structuresM-polar Fuzzy Graphs Stud fuzziness soft Comput

CrossRef Full Text | Google Scholar

21. Akram M, Akmal R. Application of bipolar fuzzy sets in graph structures. Applied Computational Intelligence and Soft Computing (2016).

Google Scholar

22. Akram M, Akmal R. Intuitionistic fuzzy graph structures. Kragujevac J Math (2017) 41(2):219–37. doi:10.5937/kgjmath1702219a

CrossRef Full Text | Google Scholar

23. Akram M, Akmal R. Operations on intuitionistic fuzzy graph structures. Fuzzy Inf Eng (2016) 8(4):389–410. doi:10.1016/j.fiae.2017.01.001

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Akram M, Sitara M. Certain fuzzy graph structures. J Appl Math Comput (2019) 61(1):25–56. doi:10.1007/s12190-019-01237-2

CrossRef Full Text | Google Scholar

25. Sitara M, Akram M, Yousaf Bhatti M. Fuzzy graph structures with application. Mathematics (2019) 7(1):63. doi:10.3390/math7010063

CrossRef Full Text | Google Scholar

26. Akram M, Sitara M, Saeid AB. Residue product of fuzzy graph structures. J Multiple-Valued Logic Soft Comput (2020) 34(3-4):365–99.

Google Scholar

27. Koam AN, Akram M, Liu P. Decision-making analysis based on fuzzy graph structures. Math Probl Eng (2020) 2020:1–30. doi:10.1155/2020/6846257

CrossRef Full Text | Google Scholar

28. Akram M, Sitara M. Novel applications of single-valued neutrosophic graph structures in decision-making. J Appl Math Comput (2018) 56(1):501–32. doi:10.1007/s12190-017-1084-5

CrossRef Full Text | Google Scholar

29. Kou Z, Akhoundi M, Chen X, Omidi S. A study on vague graph structures with an application. Adv Math Phys (2022) 2022:1–14. doi:10.1155/2022/3182116

CrossRef Full Text | Google Scholar

30. Dinesh T. Fuzzy incidence graph structures. Adv Fuzzy Math (Afm) (2020) 15(1):21–30.

Google Scholar

31. Akram M, Sitara M. Decision-making with q-rung orthopair fuzzy graph structures. Granul Comput (2021) 7:505–26. doi:10.1007/s41066-021-00281-3

CrossRef Full Text | Google Scholar

32. Sitara M, Zafar F. Selection of best inter-country airline service using q-rung picture fuzzy graph structures. Comp Appl Math (2022) 41(1):54–32. doi:10.1007/s40314-021-01714-0

CrossRef Full Text | Google Scholar

33. Jun YB, Kim CS, Yang KO. Cubic sets. Ann Fuzzy Math Inform (2012) 4(1):83–98.

Google Scholar

34. Jun YB, Smarandache F, Kim CS. Neutrosophic cubic sets. New Math Nat Comput (2017) 13(01):41–54. doi:10.1142/s1793005717500041

CrossRef Full Text | Google Scholar

35. Jun YB, Song SZ, Kim SJ. Cubic interval-valued intuitionistic fuzzy sets and their application in BCK/BCI-algebras. Axioms (2018) 7(1):7. doi:10.3390/axioms7010007

CrossRef Full Text | Google Scholar

36. Jun YB, Lee KJ, Kang MS. Cubic structures applied to ideals of BCI-algebras. Comput Math Appl (2011) 62(9):3334–42. doi:10.1016/j.camwa.2011.08.042

CrossRef Full Text | Google Scholar

37. Khan M, Jun YB, Gulistan M, Yaqoob N. The generalized version of Jun’s cubic sets in semigroups. J Intell Fuzzy Syst (2015) 28(2):947–60. doi:10.3233/ifs-141377

CrossRef Full Text | Google Scholar

38. Ali A, Jun YB, Khan M, Shi FG, Anis S. Generalized cubic soft sets and their applications to algebraic structures. Ital J Pure Appl Math (2015) 35:393–414.

Google Scholar

39. Senapati T, Jun YB, Muhiuddin G, Shum KP. Cubic intuitionistic structures applied to ideals of BCI-algebras. Analele Universitatii Ovidius Constanta - Seria Matematica (2019) 27(2):213–32. doi:10.2478/auom-2019-0028

CrossRef Full Text | Google Scholar

40. Muhiuddin G, Ahn SS, Kim CS, Jun YB. Stable cubic sets. J Comput Anal Appl (2017) 23(5):802–19.

Google Scholar

41. Krishna KK, Rashmanlou H, Talebi AA, Mofidnakhaei F. Regularity of cubic graph with application. J Indonesian Math Soc (2019) 1–15. doi:10.22342/jims.25.1.607.1-15

CrossRef Full Text | Google Scholar

42. Rashid S, Yaqoob N, Akram M, Gulistan M. Cubic graphs with application. Int J Anal Appl (2018) 16(5):733–50.

Google Scholar

43. Muhiuddin G, Takallo MM, Jun YB, Borzooei RA. Cubic graphs and their application to a traffic flow problem. Int J Comput Intelligence Syst (2020) 13(1):1265–80. doi:10.2991/ijcis.d.200730.002

CrossRef Full Text | Google Scholar

44. Rashmanlou H., Muhiuddin G., Amanathulla S. K., Mofidnakhaei F., Pal M. A study on cubic graphs with novel application. Journal of Intelligent & Fuzzy Systems (2021) 40(1):89–101. doi:10.3233/jifs-182929

CrossRef Full Text | Google Scholar

45. Gani A.N., Radha K. On regular fuzzy graphs. J. Phys Sci (2008) 12:33–40.

Google Scholar

46. Samanta S, Pal M. Irregular bipolar fuzzy graphs. ArXiv (2012). p. 1682.1209

Google Scholar

47. Borzooei RA, Rashmanlou H, Samanta S, Pal M. Regularity of vague graphs. J Intell Fuzzy Syst (2016) 30(6):3681–9. doi:10.3233/ifs-162114

CrossRef Full Text | Google Scholar

48. Nagoorgani A, Latha SR. Isomorphism on irregular fuzzy graphs. Int J Math Sci Eng Appl (2012) 6(3):193–208.

Google Scholar

49. Huang L, Hu Y, Li Y, Kumar PK, Koley D, Dey A. A study of regular and irregular neutrosophic graphs with real life applications. Mathematics (2019) 7(6):551. doi:10.3390/math7060551

CrossRef Full Text | Google Scholar

50. Samanta S, Sarkar B, Shin D, Pal M. Completeness and regularity of generalized fuzzy graphs. SpringerPlus (2016) 5(1):1979–14. doi:10.1186/s40064-016-3558-6

PubMed Abstract | CrossRef Full Text | Google Scholar
