Sensitivity analysis of the temperature profile changing law in the production string of a high-pressure high-temperature gas well considering the coupling relation among the gas flow friction, gas properties, temperature, and pressure

The temperature profile plays an important role in well integrity, flow assurance, and well test. Meanwhile, the impact of engineering conditions should not be ignored while calculating the well temperature profile. Therefore, in this study, we established a model to analyze the changing law of the temperature profile inside the production string of a high-pressure/high-temperature gas well (HPHT gas well). The proposed model considers the flow friction caused by a high production rate. Meanwhile, the variations in gas properties are taken into account to increase the model accuracy, including gas density, flow velocity, and viscosity. The analysis indicates that the temperature in the production string decreases more and more quickly from the reservoir to the wellhead. The wellhead temperature changes more and more slowly with time. When the reservoir temperature is too low to maintain production, it is useful to regulate the production rate or inject the thermal insulating fluid into the annulus to avoid the block caused by wax deposition or hydrate deposition. Considering the sensitivity, feasibility, and cost, it is recommended to change the well temperature profile by adjusting the production rate. If not applicable, the thermal conductivity can also be optimized to change the temperature profile.

Introduction

Due to the worldwide rapid increase in the consumption and extensive application of natural gas for both industrial and civil purposes, natural gas development has stepped into more harsh strata and conditions, such as gas hydrate [1–3], shale/tight gas [4, 5], deep water formation [6, 7], deep/ultra-deep stratum [8, 9], and coalbed methane [10]. Among the aforesaid resources of natural gas, the deep/ultra-deep stratum has great potential for its rich reserves and high productivity. Deep/ultra-deep natural gas is usually buried 5,000 m or deeper under the ground, so the bottom hole temperature can be as high as 180 °C [11, 12]. As a result, the temperature profile in the production string is unavoidably changed by the natural gas from the reservoir. Meanwhile, the temperature profile is an important index for production safety. The applications are as follows. First is well integrity. The increase in temperature can lead to trapped annular pressure [13, 14]. This can cause casing collapse [15, 16], cement integrity failure [17, 18], packer sealing failure [19], and tubing deformation [20]. In addition to trapped annular pressure, thermal stress would also damage well integrity [21], such as the tubing buckling and cement strength reduction. Second is flow assurance. The wax and gas hydrate would block the production pathway when the temperature is not high enough [22, 23]. In some gas wells with high content of sulfur, sulfur deposition can also block the production pathway [24]. When the abovementioned incidents happen, effective measures such as heating, chemical plugging removal, and ultrasound removal [25, 26] must be taken to restart production. Third is the production test. The well temperature distribution can reflect the reservoir energy, so it is a classical method to estimate the productivity by analyzing the wellbore transient temperature during the production test [27, 28].

Henceforth, substantial efforts have been devoted to calculate the wellbore temperature. The available research works indicate that the calculation should consider different engineering conditions, such as cement hydration [29], drilling circulation [30], thermal insulation [31], and gas properties [32, 33]. For an HPHT gas well, there are two factors that cannot be ignored: first, the gas flow friction would generate heat and decrease pressure because of the high production rate [34]. Second, the gas properties would vary because the temperature and pressure decrease remarkably from the reservoir to the wellhead. For this reason, this study establishes a model to analyze the changing law of the temperature profile in HPHT gas wells. The model considers the gas flow friction and variation in properties in order to match the actual condition as closely as possible. A dimensionless index is introduced to evaluate the influencing factors, thus providing support for safe and effective production of HPHT gas wells.

Calculation method of the temperature profile inside the production string

Conservation law in the production string

The reservoir gas is the heat resource to redistribute the wellbore temperature. To calculate the temperature, some assumptions are essential. First, the wellbore cross-section is taken as a circle, and the pipes are concentric. Second, thermal conductivity is used to express the wellbore heat transfer capacity. Third, the production is stable without large fluctuations, and the heat transfer along the flow direction is so minor that it can be ignored. Based on the aforementioned assumptions, the energy conservation equation can be established in the micro-unit of the production string, including the internal energy, kinetic energy, pressure energy, gravitational potential energy, and heat transfer, as expressed by Eq. 1:

$C_{\mathrm{f}}\frac{\mathrm{d}{T}_{\mathrm{f}}}{\mathrm{d}z}+v_{\mathrm{f}}\frac{\mathrm{d}{v}_{\mathrm{f}}}{\mathrm{d}z}+\frac{1}{{\rho }_{\mathrm{f}}}\frac{\mathrm{d}p}{\mathrm{d}z}+g\sin \theta +\frac{1}{w_{\mathrm{f}}}\frac{\mathrm{d}Q}{\mathrm{d}z}=0(1)$

where C_f is the gas heat capacity inside the production string, J/(kgK); dT_f is the gas temperature change inside the production string, K; dz is the length of the micro-unit of the production string, m; v_f is the flow velocity of gas, m/s; dv_f is the flow velocity change of gas, m/s; ρ_f is the gas density inside the production string, kg/m³; p is the gas pressure inside the production string, Pa; g is the gravity speed, m/s²; θ is the well inclination angle, °; w_f is the gas mass flow rate, kg/s; and dQ is the heat transfer along the well radial direction, J/s.

In addition to the energy conservation law, the momentum conservation law can also be applied in the micro-unit of the production string, as expressed by Eq. 2:

$\frac{\mathrm{d}p}{\mathrm{d}z}+{\rho }_{\mathrm{f}}g\sin \theta +f\frac{{\rho }_{\mathrm{f}}{v}_{\mathrm{f}}^2}{2d_{\mathrm{t}\mathrm{n}}}+{\rho }_{\mathrm{f}}{v}_{\mathrm{f}}\frac{\mathrm{d}{v}_{\mathrm{f}}}{\mathrm{d}z}=0(2)$

where f is the friction efficient between the gas flow and production string, dimensionless; and d_tn is the inner diameter of the production string, m.

Likewise, the mass conservation law can also be applied in the micro-unit of the production string, as expressed by Eq. 3:

${\rho }_{\mathrm{f}}\frac{\mathrm{d}{v}_{\mathrm{f}}}{\mathrm{d}z}+v_{\mathrm{f}}\frac{\mathrm{d}{\rho }_{\mathrm{f}}}{\mathrm{d}z}=0.(3)$

Heat transfer along the well radial direction

The heat transfers through the tubing, annular liquid, casing, and cement sheath and finally comes to the formation. This process can be divided into two parts. The first part is the heat transfer from the production string to the cement sheath and the second is from the cement sheath to the formation. According to the semi-steady method [35, 36], the first part can be seen as a state, so the heat transfer can be expressed by Eq. 4:

$\mathrm{d}{Q_{\mathrm{r}}}_{\mathrm{w}}=\frac{T_{\mathrm{f}}-T_{\mathrm{h}}}{R_{\mathrm{t}\mathrm{o}}}\mathrm{d}z(4)$

where dQ_rw is the heat transfer from the production string to the cement sheath, J/s; T_f is the gas temperature inside the production string, K; T_h is the temperature of the cement sheath, K; and R_to is the thermal resistance from the production string to the cement sheath, mk/W.

As shown in Figure 1, R_to is the thermal resistance from the production string to the cement sheath and can be obtained by the thermal resistance series principle, as expressed by Eq. 5:

$R_{\mathrm{t}\mathrm{o}}=R_{\mathrm{t}\mathrm{c}\mathrm{t}}+R_{\mathrm{c}\mathrm{h}\mathrm{t}}+{\displaystyle \sum }_{k=1}^m{R}_{\mathrm{t}\mathrm{c}}^k+{\displaystyle \sum }_{j=1}^n{R}_{\mathrm{t}\mathrm{e}}^j(5)$

where R_tct is the thermal resistance of the tubing wall, mk/W; R_cht is the thermal resistance of the annular liquid, mk/W; R^k_tc is the thermal resistance of the kth casing wall, mk/W; and R^j_te is the thermal resistance of the jth cement sheath, mk/W.

FIGURE 1

FIGURE 1. Heat transfer along the well radial direction.

Hasan and Kabir [37] verified that the heat transfer from the cement sheath to the formation conforms to Fourier heat conduction law, which can be expressed by Eq. 6:

$\mathrm{d}{Q_{\mathrm{r}}}_{\mathrm{f}}=\frac{2\pi \lambda \mathrm{e}\left(T_{\mathrm{h}}-T_{\mathrm{e}}\right)}{T_{\mathrm{D}}}\mathrm{d}z(6)$

where λ_e is the formation of thermal conductivity outside the cement sheath, W/(mk); T_e is the temperature of the formation outside the cement sheath, k; and T_D is the dimensionless temperature of the formation outside the cement sheath, dimensionless.

The formation temperature can be expressed by Eq. 7 when the formation temperature is seen as a linear distribution:

$T_{\mathrm{e}}=T_{\mathrm{o}}+g_{\mathrm{t}}\left(h-z\right)(7)$

where T_o is the surface ground temperature, k; g_t is the geothermal gradient, k/100 m; h is the well depth, m; and z is the distance from the formation outside the cement sheath to the well bottom, m.

The dimensionless temperature of formation can be expressed by Eqs 8 and 9, as proposed by Hasan and Kabir [37]:

$T_D=\{\begin{array}{cc}1.1281\sqrt{t_D}\left(1-0.3\sqrt{t_D}\right),& t_D\le 1.5,\\ \left(0.4063+0.5\ln t_D\right)\left(1+0.6/t_D\right),& t_D\succ 1.5\end{array}(8)$

$tD=\frac{t\alpha \mathrm{e}}{r{\mathrm{w}}^2}(9)$

where t_D is the dimensionless production time, dimensionless; t is the production time, s; α_e is the formation thermal diffusion coefficient, m²/s; and r_w is the wellbore radius, m.

According to the semi-steady method and the conservation principle of radial heat flow, the heat transfer in the two aforementioned parts is equal. Then, the temperature of the cement sheath, T_h, can be expressed by Eq. 10:

$T_{\mathrm{h}}=\frac{T_{\mathrm{D}}{T}_{\mathrm{f}}+2\pi {\lambda }_{\mathrm{e}}{R}_{\mathrm{t}\mathrm{o}}{T}_{\mathrm{e}}}{T_{\mathrm{D}}+2\pi {\lambda }_{\mathrm{e}}{R}_{\mathrm{t}\mathrm{o}}}.(10)$

The heat transfer on the radial direction can be obtained by combining Eq. 10 and Eq. 6, as expressed by Eq. 11:

$\mathrm{d}\mathrm{Q}=\frac{2\pi {\lambda }_{\mathrm{e}}\left(T_{\mathrm{f}}-T_{\mathrm{e}}\right)}{T_{\mathrm{D}}+2\pi {\lambda }_{\mathrm{e}}{R}_{\mathrm{t}\mathrm{o}}}\mathrm{d}z.(11)$

Impact of the gas flow friction

The gas flow friction can increase the gas internal energy while decreasing the pressure energy. The friction efficient is the key parameter to calculate gas flow friction [38], as expressed by Eq. 12:

$f=\{\begin{array}{cc}\frac{64}{\mathrm{R}\mathrm{e}},& \mathrm{R}\mathrm{e}\le 2000\\ {\left[1.14-21g\left(\frac{R\mathrm{a}}{d_{\mathrm{t}\mathrm{n}}}+\frac{21.25}{{\mathrm{R}\mathrm{e}}^{0.9}}\right)\right]}^{-2},& \mathrm{R}\mathrm{e}>2000\end{array}(12)$

where R_a is the roughness of the production string inner wall, m; and Re is the Reynolds number, dimensionless.

The Reynolds number can be expressed by Eq. 13:

$\mathrm{R}\mathrm{e}=\frac{{\rho }_{\mathrm{f}}{v}_{\mathrm{f}}{d}_{\mathrm{t}\mathrm{n}}}{\mu }(13)$

where μ is the gas viscosity, Pas.

After the friction efficient is obtained, the gas pressure inside the production string can be expressed by Eq. 14:

$\frac{\mathrm{d}p}{\mathrm{d}z}=-{\rho }_{\mathrm{f}}g\sin \theta -f\frac{{\rho }_{\mathrm{f}}{v}_{\mathrm{f}}^2}{2d_{\mathrm{t}\mathrm{n}}}-{\rho }_{\mathrm{f}}{v}_{\mathrm{f}}\frac{\mathrm{d}{v}_{\mathrm{f}}}{\mathrm{d}z}(14)$

Likewise, the gas temperature in the production string can be obtained by substituting Eq. 15 and Eq. 11 into Eq. 1, as expressed by Eq. 14:

$\frac{\mathrm{d}{\mathit{T}}_{\mathrm{f}}}{\mathrm{d}\mathit{z}}=\mathit{f}\frac{{\rho }_{\mathrm{f}}{\mathrm{v}}_{\mathrm{f}}^2}{2{\mathit{C}}_{\mathrm{f}}{\mathit{d}}_{\mathrm{t}\mathrm{n}}}-\frac{2\pi {\lambda }_{\mathrm{e}}\left({\mathit{T}}_{\mathrm{f}}-{\mathit{T}}_{\mathrm{e}}\right)}{{\mathit{w}}_{\mathrm{f}}{\mathit{C}}_{\mathrm{f}}\left({\mathit{T}}_{\mathrm{D}}+2\pi {\lambda }_{\mathrm{e}}{\mathit{R}}_{\mathrm{t}\mathrm{o}}\right)}(15)$

Impact of the gas properties

According to the mass conservation law, the change of gas flow velocity can be calculated by Eq. 16:

$\frac{\mathrm{d}{v}_{\mathrm{f}}}{\mathrm{d}z}=-\frac{v_{\mathrm{f}}\mathrm{d}{\rho }_{\mathrm{f}}}{{\rho }_{\mathrm{f}}\mathrm{d}z}(16)$

Natural gas is compressible, so its density can be expressed by Eq. 16:

${\rho }_{\mathrm{f}}=\frac{p_{\mathrm{f}}{M}_{\mathrm{g}}}{Z_{\mathrm{g}}R{T}_{\mathrm{f}}}(17)$

where M_g is the molar mass of gas, kg/mol; Z_g is the gas compression factor, dimensionless; and R is the gas constant, J/(kgmol).

The gas compression factor is related to the pressure and temperature [39], as expressed by Eq. 18:

$\{\begin{array}{l}{Z}_{\mathrm{g}}=\frac{A_1+A_2\ln p_{\mathrm{r}}+A_3{\left(\ln p_{\mathrm{r}}\right)}^2+A_4{\left(\ln p_{\mathrm{r}}\right)}^3+A_5/T_{\mathrm{r}}+A_6/T_{\mathrm{r}}^2}{1+A_7\ln p_{\mathrm{r}}+A_8{\left(\ln p_{\mathrm{r}}\right)}^2+A_9/T_{\mathrm{r}}+A_{10}/T_{\mathrm{r}}^2}\\ p_{\mathrm{r}}=\frac{{10}^{-6}{p}_{\mathrm{f}}}{4.666+0.103{\gamma }_{\mathrm{g}}-0.25{\gamma }_{\mathrm{g}}^2},\\ T_{\mathrm{r}}=\frac{273.15+T_{\mathrm{f}}}{93.3+181{\gamma }_{\mathrm{g}}-7{\gamma }_{\mathrm{g}}^2},\end{array}(18)$

where A₁, A₂, A₃, A₄, A₅, A₆, A₇, A₈, A₉, and A₁₀ are constants, dimensionless; p_r is the pseudo-contrast pressure, dimensionless; T_r is the pseudo-contrast temperature, dimensionless; and γ_g is the gas relative density, dimensionless.

The value of the constants used in Eq. 17 are as follows: A1 = 1.1153, A2 = 0.079, A3 = 0.01588, A4 = 0.00886, A5 = −2.1619, A6 = 1.1575, A7 = −0.05368, A8 = 0.014655, A9 = −1.80997, and A10 = 0.9548. In addition to the velocity and density, the viscosity also changes with the temperature, as expressed by Eq. 19:

$\frac{\mu }{{\mu }_0}={\left(\frac{T_{\mathrm{f}}}{T_0}\right)}^{1.5}\frac{T_0+110.4}{T_{\mathrm{f}}+110.4}(19)$

where μ₀ is the gas viscosity under normal temperature, Pas; and T₀ is the test temperature, k.

Solution method

Solution of the temperature profile inside the production string

It can be observed from the aforementioned calculation method that a coupling relationship exists among the temperature, pressure, and gas properties. In order to solve Eq. 14, the well should be divided into a short section in the axial direction with length △z. The short section is numbered as 0, 1, 2, 3, ......, i-1, i+1, ......, h/△z. As a result, the temperature of the ith section can be expressed by Eq. 20 by the difference of Eq. 15:

$\begin{array}{l}{T}_{\mathrm{f}}^{\mathrm{i}}\left(t\right)=\frac{1}{A+\Delta z}\left(A{T}_{\mathrm{f}}^{i-1}\left(t\right)+\Delta z{T}_{\mathrm{e}}^i+A\Delta z{f}^{i-1}\frac{{\left(v_{\mathrm{f}}^{i-1}\right)}^2}{2C_{\mathrm{f}}{d}_{\mathrm{t}\mathrm{n}}}\right)\\ A=\frac{w_{\mathrm{f}}{C}_{\mathrm{f}}\left[T_{\mathrm{D}}+2\pi {\lambda }_{\mathrm{e}}{R}_{\mathrm{t}\mathrm{o}}^i\right]}{2\pi {\lambda }_{\mathrm{e}}}\end{array}(20)$

where A is a calculation parameter.

As shown in Figure 2, the gas properties used in Eq. 20 are obtained under the pressure and temperature of the last well section, as expressed by Eq. 21:

$G_i=f\left(T_f^{i-1},p_f^{i-1}\right)(21)$

where G_i is the gas properties used to calculate the temperature of the ith well section, including velocity, density, and viscosity shown in 1.4.

FIGURE 2

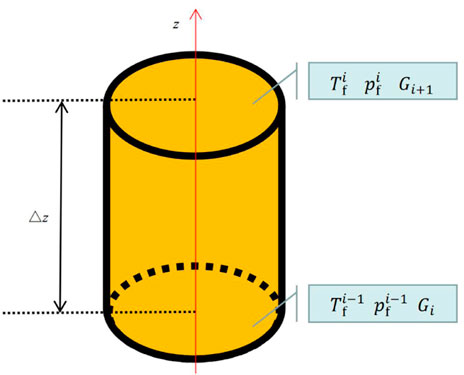

FIGURE 2. Sketch map of the short section of the production string.

Solution of the pressure profile inside the production string

Moreover, the gas properties also change in that the flow friction influences the wellbore pressure and temperature. The gas pressure can also be calculated, as expressed by Eq. 22:

$p_{\mathrm{f}}^i=p_{\mathrm{f}}^{i-1}-\left({\rho }_{\mathrm{f}}^{i}g\sin \theta +f^i\frac{{\rho }_{\mathrm{f}}^i{\left(v_{\mathrm{f}}^i\right)}^2}{2d_{\mathrm{t}\mathrm{n}}}\right)\Delta z-{\rho }_{\mathrm{f}}^i{v}_{\mathrm{f}}^i\Delta v_{\mathrm{f}}^i(22)$

where △v_f is the change of gas velocity in the short well section, m/s.

Because the well bottom temperature and pressure are available through well logging, the calculation starts from the well bottom, as expressed by Eq. 23.

$\{\begin{array}{l}{T}_{\mathrm{f}}^0=T_{\mathrm{b}},\\ p_{\mathrm{f}}^0=p_{\mathrm{b}},\\ △v_{\mathrm{f}}^0=0,\\ G_1=f\left(T_{\mathrm{f}}^0,p_{\mathrm{f}}^0\right)\end{array}(23)$

where T_b is the well bottom temperature, K; and p_b is the well bottom pressure, Pa.

Changing law of the temperature profile

Changing law under different factors

An HPHT gas well is selected from Ref. [40] as a case well to study the changing law. The basic parameters can be found in the reference. The temperature distributions in the production string under different influencing factors are shown in Figure 3. The detailed analysis is as follows:

1) Changing law under different production times. As shown in Figure 3A1, the temperature inside the production string decreases from the well bottom to the wellhead more and more quickly. According to Figure 3A2, the wellhead temperature increases as the production prolongs, but the increasing rate gradually decreases, and the increment value is not so large. For example, the wellhead temperatures are 358.33K, 361.77K, 364.56K, 365.73K, and 367.62K, respectively, under the production times of 10, 50, 200, 365, and 1000 days. This indicates that the largest temperature difference appears at the wellhead. Moreover, the changing rate of the temperature profile becomes slower and slower as the production continues. This means that the wellhead temperature would keep stable under normal production. However, the production histories of some gas wells showed that the wellhead temperature sometimes fluctuates remarkably. This situation may be caused by some incidents, such as reservoir energy depletion, production string block, or water invasion.

2) Changing law under different production rates. As shown in Figure 3B1, the whole temperature profile increases as the production increases. Alternatively, the temperature change becomes smaller and smaller as the well depth increases. Combining Figure 3B2, it can be observed that the maximum temperature change appears at the wellhead. For example, the wellhead temperatures are 349.85K, 365.73K, 390.77K, and 416.21K, respectively, under the production rates of 300 000 m³/d, 400 000 m³/d, 600 000 m³/d, and 800 000 m³/d, while the temperatures at the well bottom are equal. This can be explained by two reasons: first, a larger production rate brings more heat from the deep gas reservoir. Second, the heat generated by the flow friction increases. For some gas wells blocked by the wax deposition or the gas hydrate, the production rate can be increased in order to enhance the temperature profile of the gas wells.

3) Changing law under different values of the annular liquid thermal conductivity. The main function of the annular liquid is to prevent tubing collapse by balancing the pressure difference [41]. Meanwhile, the annular liquid also plays a role in thermal insulation by improving its thermal conductivity [42]. As shown in Figure 3C1, the annular liquid with higher thermal conductivity can enhance the temperature profile inside the production string. Similar to the impact of the annular liquid thermal conductivity, the maximum temperature change appears at the wellhead, but the trend is the opposite. Taking the wellhead temperature in Figure 3C2 as an example, the temperature increases from 358.58K to 374.42K when the annular liquid thermal conductivity decreases from 1.0 W/(mK) to 0.4 W/(mK). Hence, the annular liquid with low thermal conductivity can be applied to mitigate the trapped annular pressure. If necessary, the annular liquid thermal conductivity can be even lower, thus increasing the temperature profile. Likewise, this can also be used in the prevention of wax deposition or the gas hydrate block in low-temperature gas wells.

4) Changing law under different values of the gas-specific heat capacity. As shown in Figure 3D1, the temperature profile increases as the gas heat capacity increases. According to Figure 3D2, the wellhead temperature has an approximate positive linear relation with the gas-specific heat capacity, which is the same as the impact of the production rate. Since natural gas is compressible, the temperature has an impact on the heat capacity. Currently, there are several methods to express the impact of temperature on gas capacity, including the formula HYSYS software and API formula. However, these methods may not be applicable when the natural gas is mixed with different kinds of gas or the temperature is very high [43]. Therefore, the gas heat capacity should be tested in order to improve the calculation accuracy of temperature distribution in gas wells. On the other hand, the specific heat capacity of the production fluid would also change when the water enters the wellbore, thus leading to a change in the well temperature distribution.

FIGURE 3

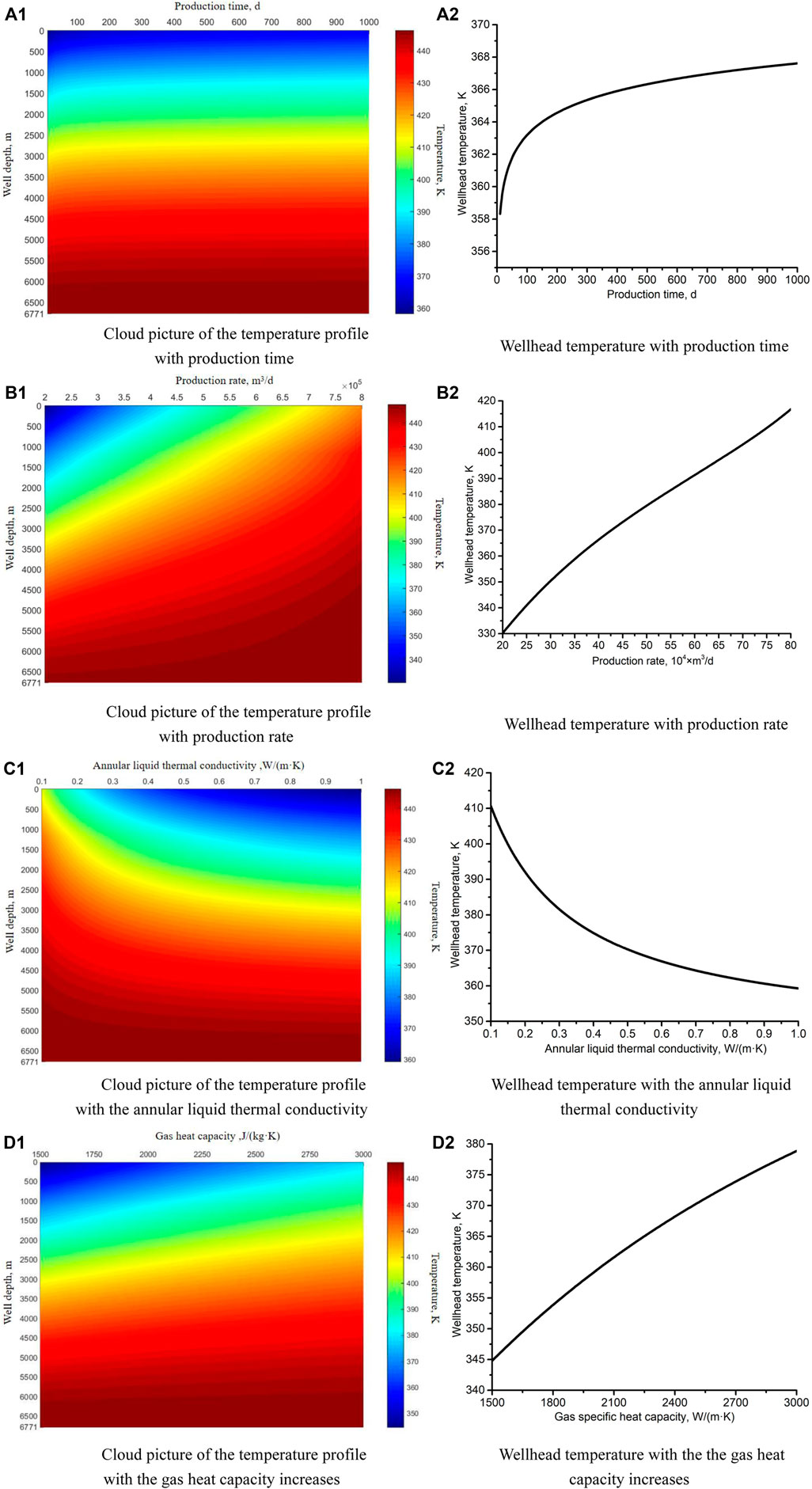

FIGURE 3. Changing law of the temperature profile under different factors. (A1) and (A2) are the impacts of production time. (B1) and (B2) are the impacts of production rate. (C1) and (C2) are the impacts of annular liquid thermal conductivity. (D1) and (D2) are the impacts of gas heat capacity.

Evaluation of the influencing factors

The wellhead is convenient to observe, so it can be taken as an index to reflect the wellbore temperature distribution and reservoir temperature. As stated previously, the changing law and the changing degree are different under the influences of different factors. Limited by the value ranges and the units of different factors, it is hard to directly compare the sensitivities of the influencing factors. For this reason, a new dimensionless index is proposed by Zhang et al. [44], which is called the ratio of standard deviation coefficient. To eliminate the impact of the factors’ units, this index is the ratio of the standard deviation coefficient of wellhead temperature and influencing factor. To eliminate the impact of the value range, it is necessary to get the starting point of the value range back to 0. Based on the two principles, the ratio of the standard deviation coefficient can be obtained in three steps. The first step is to get the starting point of the value range back to 0, as expressed by Eq. 24:

$x_j^{\prime }=x_{\mathrm{j}}-\min \left(x_1,x_2,x_3\dots \dots x_{\mathrm{n}}\right)(24)$

where $x_j^{\prime }$ is the jth value of the factor x after returning to 0; x_j is the jth value of the factor x; and n is the number of the factor values.

The second step is to calculate the standard deviation of the influencing factors and the wellhead temperature, as expressed by Eq. 25:

$\sigma =\sqrt{\frac{\sum _{j=1}^{j=n}{\left(x_j^{\prime }-x_{\mathrm{i}\mathrm{f}\mathrm{a}}\right)}^2}{\text{n}}}(25)$

where σ is the standard deviation and x_ifa is the average value of the factor value change.

Finally, the ratio of the standard deviation coefficient can be expressed by Eq. 26:

$C_{\mathrm{r}}=\frac{{\sigma }_{\mathrm{p}}{x}_{\text{ifa}}}{{\sigma }_{\mathrm{x}}{T}_{\mathrm{h}\mathrm{e}\mathrm{a}\mathrm{d}}}\times 100\%(26)$

where C_r is the ratio of the standard deviation coefficient, dimensionless; σ_p is the wellhead temperature standard deviation, K; σ_x is the standard deviation of the influencing factor; and T_head is the average value of the wellhead temperature, K.

Figure 4 shows the evaluation results. The sensitivity is presented by the new index, the ratio of the standard deviation coefficient. Here, the sensitivity in Figure 4 means the ability of the influencing factors to change the wellhead temperature. The higher the sensitivity is, the stronger the ability is. The horizontal axis represents the feasibility to adjust the wellhead temperature through the related factor. It can be seen that the gas-specific heat capacity has the highest sensitivity, while the production time has the lowest. Nevertheless, there are few methods to change the gas heat capacity in that this is a property determined by the production fluid. The production time can only be adjusted by stopping or continuing production. In other words, adjustment of the production time would disturb the production. The production rate can be adjusted through the oil nozzle. The only disadvantage is that the reservoir energy may be not able to last long at high production rate. The thermal conductivity of the annular liquid is easy to adjust by selecting different kinds of thermal-insulated liquids [45]. Given the cost, it is recommended to change the well temperature profile by adjusting the production rate. If not applicable, the thermal conductivity can be optimized to change the temperature profile.

FIGURE 4

FIGURE 4. Feasibility and sensitivity of the influencing factors.

Conclusion

1) The wellhead temperature increases as the production time increases, but the changing rate of the temperature profile becomes slower and slower as the production continues. Therefore, the obvious change in wellhead temperature can reflect potential production incidents of gas wells, such as reservoir energy depletion, production string block, or water invasion.

2) The production rate and annular liquid thermal conductivity can improve the temperature profile inside the production string, which can be used to prevent wax or hydrate deposition in gas wells with low temperature. The gas-specific heat capacity and temperature have a coupling relationship, so the changing law of gas-specific heat should be considered to improve the calculation accuracy.

3) Considering the sensitivity, feasibility, and cost, it is recommended to change the well temperature profile by adjusting the production rate. If not applicable, the thermal conductivity can be optimized to change the temperature profile.
