Interfacial quality to control tunnelling magnetoresistance

Theoretically, coherent tunnelling through an MgO barrier can achieve over 1,000% magnetoresistance at room temperature. To date, this has not been demonstrated experimentally. In this article, we have categorised magnetic tunnel junctions into four groups and have investigated possible causes of the reduction in their magnetoresistance by correlating their interfacial atomic structures and spin-polarised electron transport. We have concluded that the spin fluctuation induced by dislocations and disordering at a ferromagnet/barrier interface reduced the corresponding magnetoresistance.

Introduction

Current information technology heavily relies on semiconductor-based nanoelectronics. In order to sustain the improvement of semiconductor devices, post-Moore technologies need to be developed. Spintronics can offer alternative devices utilising the spin polarisation of electrons and holes as an additional degree of freedom. This can offer low-energy device operation and non-volatile data storage.

The major difference between current nanoelectronics and spintronics is the importance of their interfaces [1]. In semiconductor nanoelectronics, a depletion layer, the thickness of which can be up to the order of µm, is intrinsically formed by attaching a metallic contact and a semiconducting layer. This reduces the importance of the interfacial smoothness and quality. Spintronics, on the other hand, requires an atomically sharp interface to minimise spin-dependent and -independent electron scattering caused by ferromagnetic and non-magnetic contaminants in the vicinity of an interface; which reduces the magnitude of a spin-polarised electrical current induced in the system and the resulting efficiency for operation [2, 3]. Accordingly, the importance of the interface control has been increasing significantly in recent years.

In this study, we employed magnetic tunnel junctions (MTJs), which are the most commonly used spintronic devices for memory and recording applications as well as future applications as a magnetic switch. We categorised MTJs into four (A) polycrystalline, (B) epitaxial (C) lattice softened and (D) lattice matched (without dislocations) MTJs as listed in Table 1, and characterised the differences in their interfaces using cross-sectional transmission electron microscopy (TEM). These interfaces were correlated with their spin transport, revealing the controlling parameters at the interfaces. Our findings can be fed back to the growth and fabrication processes of MTJs for their optimisation and improvement.

TABLE 1

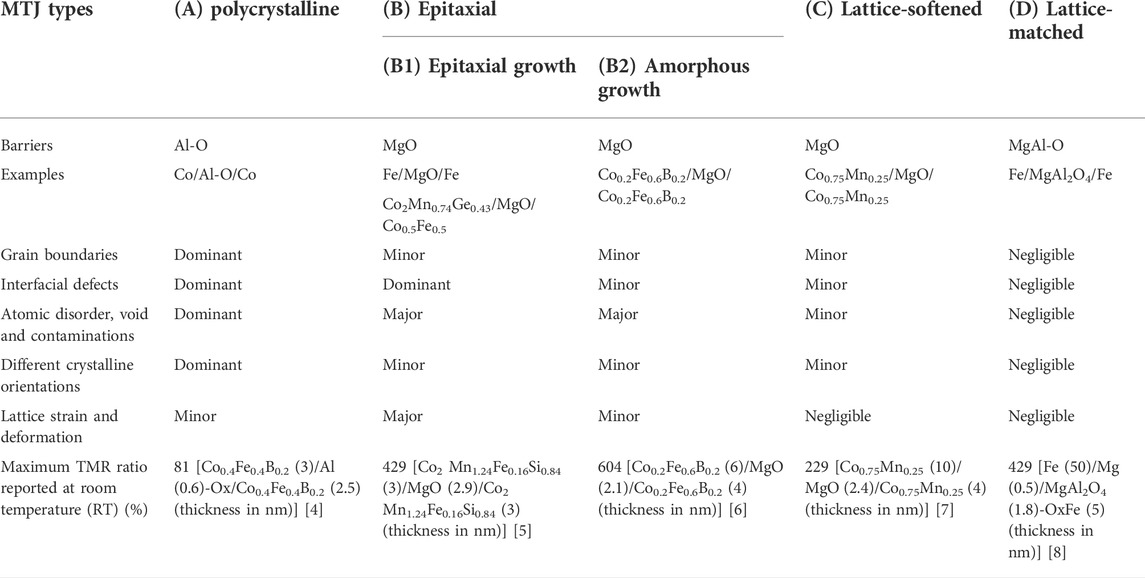

TABLE 1. List of properties for four major MTJs.

Experimental procedures

MTJ samples were prepared using ultrahigh vacuum magnetron sputtering. MgO(001) single crystal and thermally oxidised substrates were used for the deposition of MTJ consisting of Cr (40)/Co_0.5Fe_0.5 (10)/MgO (2)/Co_0.5Fe_0.5 (4)/IrMn (10)/Ru (5), Ta (5)/Ru (10)/Ta (5)/Co_0.2Fe_0.6B_0.2 (10)/MgO (2)/Co_0.2Fe_0.6B_0.2 (2)/Ta (3)/Ru (5) and Cr (40)/Co_0.83Mn_0.17 (10)/MgO (2.4)/Co_0.83Mn_0.17 (4)/Co₃Fe (1.5)/IrMn (10)/Ru (5) (thickness in nm) with a Ti and Au top electrode. In-situ annealing was carried out after the deposition of the Cr seed layer and Co_0.83Mn_0.17 layers at 700°C and 200°C for 1 h, respectively. MTJs were then post-annealed at 325°C for their crystallisation after patterned into pillars with Ti/Au electrodes by photolithography.

The thin film samples were prepared for cross-section TEM imaging via mechanical polishing. Mechanical polishing was chosen over focused ion beam techniques because of the fragile nature of the tunnelling barrier material and to preserve interfacial crystallinity that would otherwise be damaged by gallium ion implantation. Diced sections of the thin film samples were epoxied together between pieces of silicon. These cross-section stacks were then thinned using lapping pads (15, 6, 3, 1 µm roughness). Final thinning was performed using Ar ion polishing (Gatan PIPS). TEM imaging was then performed with a JEOL JEM-2011 TEM operating at 200 kV accelerating voltage.

Results and discussion

Figure 1 shows representative TEM images of three distinctive MTJs with MgO barriers sandwiched by (B1) conventional ferromagnets (B2) amorphous ferromagnets and (C) soft-lattice ferromagnets. For the conventional ferromagnet, we imaged MTJs consisting of MgO(001)//Cr (40)/Co_0.5Fe_0.5 (10)/MgO (2)/Co_0.5Fe_0.5 (4)/IrMn (10)/Ru (5) (thickness in nm) as shown in Figure 1A together with the corresponding Fourier filtered image in Figure 1B. The MTJs were epitaxially grown on an MgO(001) substrate, which may induce some strain in the Co_0.5Fe_0.5/MgO/Co_0.5Fe_0.5 junctions. The lattice constant of the MgO barrier is also estimated to be 0.430 nm (102% of the bulk value of 0.421 nm [9]). This may induce interfacial strain to top Co_0.5Fe_0.5 layers. The lattice constant of the bottom Co_0.5Fe_0.5 layer is estimated to be 0.291 nm, which is 102% of the bulk value of 0.2849 nm [10]. The total distance which is analysed in the TEM images over the bottom MgO/Co_0.5Fe_0.5 interface is about 68.2 nm. There are eight dislocations due to their lattice mismatch appeared across 68.2 nm. On average this leads to the dislocation density of 8.5 nm⁻¹. The total distance analysed for the top MgO/Co_0.5Fe_0.5 interface is about 72.7 nm. There are six dislocations appeared for this case, resulting the averaged dislocation density of 12.1 nm⁻¹. These dislocations can be the major cause of the interfacial spin fluctuation as discussed below.

FIGURE 1

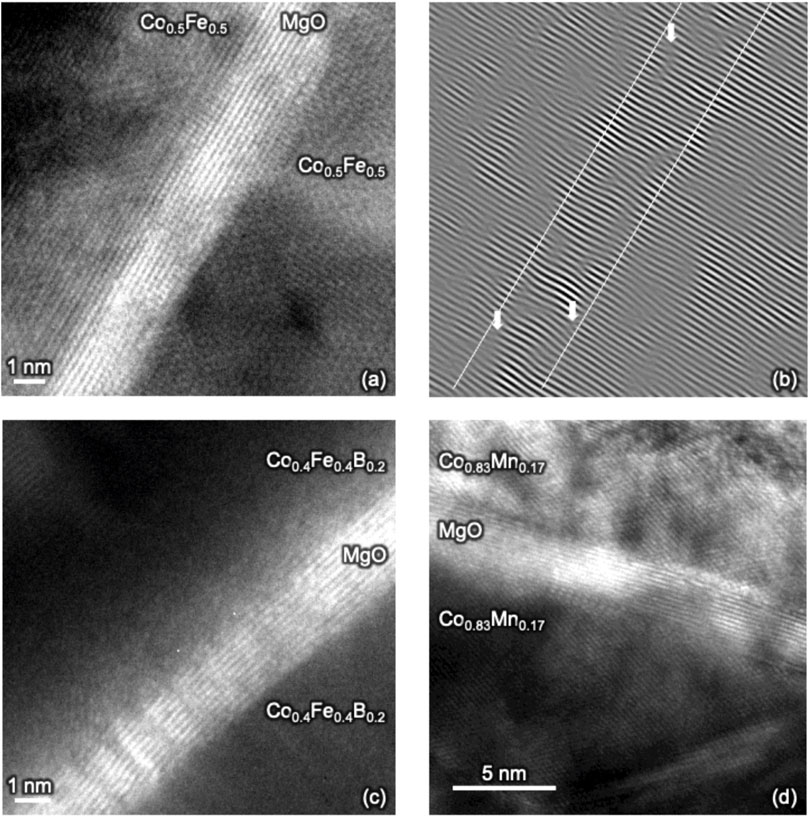

FIGURE 1. Cross-sectional TEM images of three distinctive interfaces; epitaxial MgO barriers with (A) conventional Co_0.5Fe_0.5 ((B) the corresponding filtered image-white arrows highlight dislocations), (C) amorphous Co_0.2Fe_0.6B_0.2 and (D) strain-free Co_0.83Mn_0.17 ferromagnets.

For the amorphous ferromagnet, we observed MTJs consisting of Si/SiO₂//Ta (5)/Ru (10)/Ta (5)/Co_0.2Fe_0.6B_0.2 (10)/MgO (2)/Co_0.2Fe_0.6B_0.2 (2)/Ta (3)/Ru (5) (thickness in nm) as seen in Figure 1C. For this type of MTJ, the crystallisation is initiated by the MgO barrier, followed by the crystallisation of the neighbouring Co_0.2Fe_0.6B_0.2 layers through their interfaces [11]. The lattice constant of MgO is measured to be 0.368 nm, which is 87.5% of the bulk value. The lattice constant of Co_0.2Fe_0.6B_0.2 is estimated to be 0.257 nm, which is the same for the top and bottom interfaces of the MgO barrier. This leads to 89.7% match with the bulk value. The lattice mismatch between Co_0.4Fe_0.4B_0.2 and MgO is accordingly calculated to be 1% but with the dislocation density of 7.2 nm⁻¹, which may be due to the formation of grains during the crystallisation. This can minimise any interfacial spin fluctuation on both sides of the MgO barrier unlike MTJs with the conventional ferromagnets as summarised in Table 2.

TABLE 2

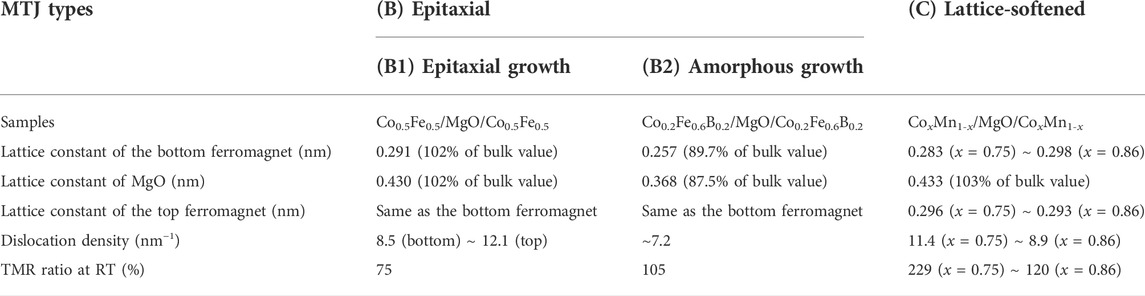

TABLE 2. List of structural and magnetic properties for MTJs studied.

For strain-free MTJs consisting of MgO(001)//Cr (40)/Co_0.83Mn_0.17 (10)/MgO (2.4)/Co_0.83Mn_0.17 (4)/Co_0.75Fe_0.25 (1.5)/Ir_0.25Mn_0.75 (10)/Ru (5) (thickness in nm)] [7], MTJs were epitaxially grown but the interfacial strain should be absorbed by the lattice deformation. The lattice constant of the MgO barrier is also estimated to be 0.433 nm (103% of the bulk value). Here, the MgO barriers are found to contain some textured grains misaligned to the matrix. Such grains have previously been reported as uncrystallised grains to induce spin-independent hopping but their contribution to spin transport is found to be negligible. This may induce interfacial strain to the top Co_0.83Mn_0.17 layers. The lattice constant of the bottom Co_0.83Mn_0.17 layer is estimated to be 0.294 nm with some periodic dislocations to release the lattice strain induced mainly at the grain boundaries as above, achieving strain-free nature across textured grains. The dislocation density is estimated to be ∼10.0 nn⁻¹, which can be further reduced to (11.4 ± 0.3) nm⁻¹ for Co_0.75Mn_0.25 for larger tunnelling magnetoresistance (TMR) ratio of 229% at room temperature (RT) and increased to (8.9 ± 0.3) nm⁻¹ for Co_0.86Mn_0.14 with smaller TMR ratio of 142% at RT. This again confirms the dislocation density controls the interfacial spin fluctuation and the resulting TMR ratios. By comparing with the Co_0.4Fe_0.4B_0.2/MgO interface, the dislocation density and discrepancy between the top and bottom interfaces need to be reduced further to eliminate any spin fluctuation induced by the interfacial dislocations and vacancies in the ferromagnets.

Figure 2 shows the temperature-dependence of TMR ratios [12] with additional data. The data in Figure 2 are categorised into four; MTJs with (A) polycrystalline Al-O barriers, epitaxial MgO barriers with (B1) conventional and (C) strain-free ferromagnets, and (D) lattice-matched MgAl-O barriers whose lattice constants match with those of ferromagnets. For the polycrystalline Al-O-based junctions, the TMR ratios almost follow the empirical Bloch law of the temperature-dependence of magnetisation as AT^3/2, where A is a constant and T is temperature. For example, the TMR ratios of Ni_0.8Fe_0.2/Al-O/Ni_0.8Fe_0.2 can be fit as (71.11 ± 0.37)–(0.00493 ± 0.00013)T^3/2 between 4 and 300K [13]. This means that the spin-polarised electron transport in Al-O-based MTJs is governed by the temperature-dependence of the magnetisations of the ferromagnetic layers with the gradient of ∼0.005. By replacing one of the Ni_0.8Fe_0.2 layers with a Co₂MnSi Heusler-alloy film, the temperature dependence shows faster decrease with increasing T below 200K, leading to the TMR ratio fit as (62.46 ± 0.46)–(0.00571 ± 0.00011)T^3/2 (200–300K) [13], which increases the gradient of the temperature dependence (>0.005). Here, the Curie temperature of Co₂MnSi (985K for bulk [22]) is higher than that of Ni_0.8Fe_0.2 (850–872K for bulk [23]), and hence this change in gradient can be attributed to an additional factor which controls the spin transport especially at low temperature as discussed later. A similar MTJ consisting of Co₂MnSi/Al-O/CoFe shows a similar trend as (62.22 ± 0.40)–(0.00571 ± 0.00001)T^3/2 (200–300K) [15].

FIGURE 2

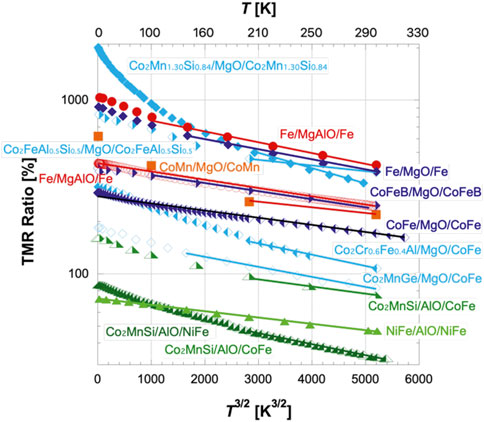

FIGURE 2. Temperature-dependence of TMR ratios of four types of MTJs [12]. Green triangles represent MTJs with Al-O barriers; light closed for Ni_0.8Fe_0.2/Al-O/Ni_0.8Fe_0.2 [13], dark right-filled for Co₂MnSi/Al-O/Co_0.5Fe_0.5 [14], dark left-filled for Co₂MnSi/Al-O/Ni_0.8Fe_0.2 [13] and dark open Co₂MnSi/Al-O/Co_0.7Fe_0.3 [15]. Blue diamonds represent MTJs with MgO barriers; dark closed for Fe/MgO/Fe [8], dark right-filled for Co_0.4Fe_0.4B_0.2/MgO/Co_0.4Fe_0.4B_0.2 [14], dark left-filled for Co_0.84Fe_0.16/MgO/Co_0.84Fe_0.16 [16], light closed for Co₂Mn_1.30Si_0.84/MgO/Co₂Mn_1.30Si_0.84 [17], light right-filled for Co₂FeAl_0.5Si_0.5/MgO/Co₂FeAl_0.5Si_0.5 [18], light left-filled for Co₂Fe_0.6Cr_0.4Al/Mg-O/Co_0.5Fe_0.5 [19] and light open Co₂Mn_0.74Ge_0.43/MgO/Co_0.5Fe_0.5 [20]. Amber closed squares show strain-free Co_0.75Mn_0.25/MgO/Co_0.75Mn_0.25 [7]. Red closed circles represent MTJs with MgAl-O barriers; closed and open for Fe/MgAl₂O₄/Fe [8, 21], respectively.

By replacing polycrystalline Al-O with epitaxial MgO, coherent tunnelling was achieved [16, 24] as theoretically predicted [25, 26]. Although the resulting TMR ratios increase one order of magnitude, their temperature dependence show similar decrease as that observed for the Al-O-based MTJs with Heusler-alloy films as a ferromagnet below ∼100K. For example, a most commonly used MTJs consisting of Co_0.4Fe_0.4B_0.2/MgO/Co_0.4Fe_0.4B_0.2 can be fit as TMR ratio = (387.20 ± 6.84)–(0.0281 ± 0.0021)T^3/2 (100–300K) [16], showing larger gradient of 0.02–0.03 than that for Al-O-based MTJ by almost one order of magnitude. Here, the Curie temperature of Co_0.4Fe_0.4B_0.2 has been reported to be 750–895K in a film form [27], which is similar to that of Ni_0.8Fe_0.2, excluding the contributions of the magnetisation changes within this temperature range. Similarly, Co_0.84Fe_0.16/MgO/Co_0.84Fe_0.16 follows (266.52 ± 1.22)–(0.0192 ± 0.0004)T^3/2 (80–300K) [16]. By replacing one of the Co_0.84Fe_0.16 layers with Co₂MnGe Heusler alloy, Co₂Mn_0.74Ge_0.43/MgO/Co_0.5Fe_0.5 again reveals the increase in the gradient as (151.62 ± 2.62)–(0.0139 ± 0.0007)T^3/2 (140–300K) [20], maintaining the gradient at the same order (Curie temperature of bulk Co₂MnGe: 905K [22]). By using both ferromagnets as Co₂MnSi Heusler alloys, Co₂Mn_1.30Si_0.84/MgO/Co₂Mn_1.30Si_0.84 can be fit as (725.84 ± 17.35)–(0.08063 ± 0.00432)T^3/2 (200–300K) [17], doubling the gradient as compared with the conventional MgO-based MTJs as above. This suggests additional atomic disorder in the Heusler alloys in the vicinity of the MgO interfaces may induce further spin fluctuation.

In such MgO-based MTJs, the crystallisation is typically initiated in MgO for Co_0.4Fe_0.4B_0.2/MgO/Co_0.4Fe_0.4B_0.2 and epitaxial growth via seed layers is used for the other MTJs. These crystallisation processes may induce strain in the ferromagnetic layers and the tunnel barrier, which may modify their magnetic properties and induce some defects at their interfaces. In order to avoid these issues, lattice-softening of CoMn and MgO layers has been investigated recently [7]. For Co_0.75Mn_0.25/MgO/Co_0.75Mn_0.25, the TMR ratios are fit as 308.98–0.01732T^3/2. This reduces the gradient of the T^3/2 dependence slightly as compared with the abovementioned conventional MgO-based MTJs, indicating the contributions of the change in the ferromagnet magnetisations and the interfacial spin fluctuation may contribute dominantly to the reduction of the TMR ratios.

Further improvement of the ferromagnet/barrier interfaces has been demonstrated by doping the MgO barriers with Al to match their lattice constants with the neighbouring ferromagnets perfectly [21]. They fabricated a set of MTJs consisting of Fe/MgO/Fe with and without the Al doping. Fe/MgO/Fe follows (762.96 ± 23.95)–(0.07714 ± 0.00726)T^3/2 (100–300K), while Fe/MgAl-O/Fe shows (770.53 ± 16.59)–(0.06777 ± 0.000424)T^3/2 (140–300K). This confirms the elimination of the interfacial defects and associated spin fluctuation can improve the spin transport through MTJs.

For further clarification, the temperature-dependence of conductance for the (anti-)parallel configurations [G_{P (AP)}] from some of the data in Figure 2 are used for fitting with Shang’s model [28]:

$G_{\mathrm{P}\left(\mathrm{A}\mathrm{P}\right)}=G_0\frac{CT}{\sin CT}\left[1\begin{array}{c}+\\ \left(-\right)\end{array}{P}_0^2{\left\{1-A{T}^{3/2}\right\}}^2\right]+B{T}^{4/3}$

As shown in Figure 3, G_P shows much stronger temperature dependence than G_AP. For Co/Al-O/Co and Ni_0.8Fe_0.2/Al-O/Ni_0.8Fe_0.2, A = (1–6) × 10⁻⁶ K^−3/2 and (3–5) × 10⁻⁵ K^−3/2, which is almost a half of the bulk value A = 1.23 × 10⁻⁵ K^−3/2 (Ni_0.8Fe_0.2) [28]. P₀ is estimated to be (34 ± 2)% for Co and (42 ± 3)% for Ni_0.8Fe_0.2.

FIGURE 3

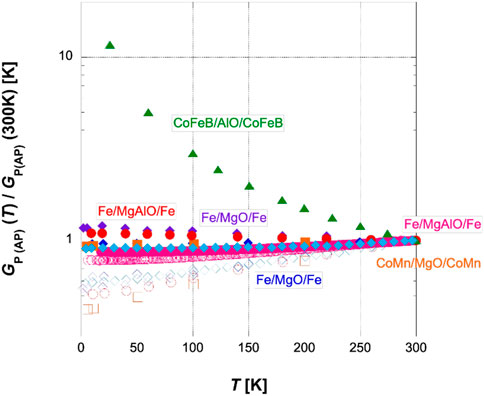

FIGURE 3. Normalised temperature-dependence of conductance for (anti-)parallel magnetisation configurations [G_{P (AP)}, for closed (open) symbols] of four types of MTJs. Green triangles show Co_0.4Fe_0.4B_0.2/Al-O/Co_0.4Fe_0.4B_0.2 [29]. Blue and purple diamonds represent MTJs with MgO barriers; Fe/MgO/Fe [8, 30], and light blue diamonds for Co₂Mn_0.74Ge_0.43/MgO/Co_0.5Fe_0.5 [31]. Amber squares show strain-free Co_0.75Mn_0.25/MgO/Co_0.75Mn_0.25 [7]. Red circles show Fe/MgAl₂O₄/Fe [8].

For Fe/MgO/Fe, A is estimated to be 7.0 × 10⁻⁶ K^−3/2, which is ∼20% smaller than the bulk Fe value of 9.2 × 10⁻⁶ K^−3/2 [30]. This improvement as compared with the polycrystalline Al-O-based MTJs again confirms minor effects of the interfacial quality on spin transport. By using the strain-free Co_0.75Mn_0.25/MgO/Co_0.75Mn_0.25, A is obtained as 1.7 × 10⁻⁵ K^−3/2 with P₀ = 0.87, B = (1.688 ± 0.007) × 10⁻¹⁰ S⋅K^4/3, C = 1.4 × 10⁻³ and G₀ = 1.62 × 10⁻⁶ S/μm² (20 μm² squared MTJs) [7].

Further improvement in the interfacial quality can be achieved by using a lattice-matched barrier as Co_0.4Fe_0.4B_0.2/MgAl₂O₄/Co_0.4Fe_0.4B_0.2. For MgAl₂O₄-based MTJs (Mg thickness: t_Mg = 0.5 nm), B and C are estimated to be 2.031 × 10⁸ S⋅K^−4/3 and 1.67 × 10⁻³ K⁻¹, leading to the ratio between spin dependent and independent parts: B/G₀ = 1.14 × 10⁻⁴ [32]. These fitting parameters are listed in Table 3.

TABLE 3

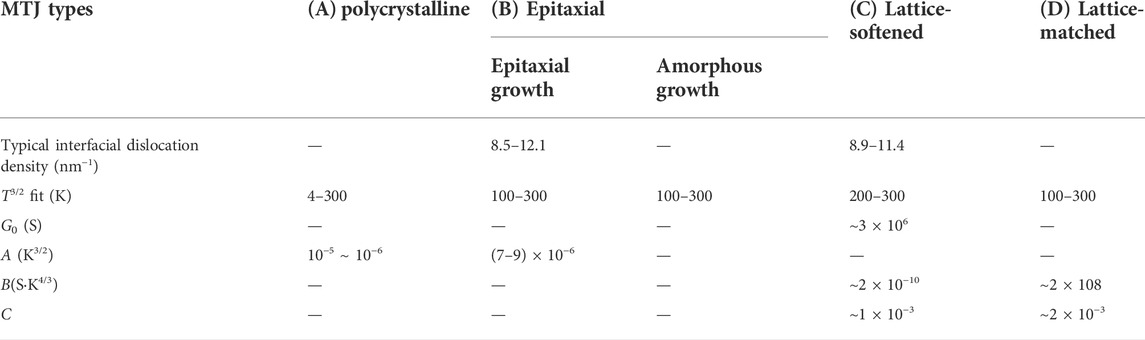

TABLE 3. List of fitting parameters for four major MTJs.

Table 3 confirms that the initially amorphous MTJs can minimise dislocations and disordering at a MgO interface. However, the spin polarisation of Co_0.4Fe_0.4B_0.2 limits the maximum TMR ratio to be 604% at RT. Their temperature dependence follows the empirical T^3/2 law within a broad temperature range. In order to increase the TMR ratios at RT further to achieve a magnetic switch (TMR ratio >1,000%), highly spin-polarised ferromagnets, such as a Heusler alloy, needs to be used in MTJs, which indeed show >1,000% TMR ratios at low temperature. However, such half-metallicity in a ferromagnet can be broken by atomic disordering induced by defects and dislocations in the vicinity of a neighbouring layer, which consists of different elements, inducing spin fluctuation to reduce TMR ratios at finite temperature. Such interfacial spin fluctuation can be minimised by developing a half-metallic ferromagnet which can be crystallised by MgO as similar to Co_0.4Fe_0.4B_0.2 or by improving the interfacial matching with the MgAl₂O₄ tunnelling barrier.

Summary

Four groups of magnetic tunnel junctions have been analysed using cross-section TEM, this revealed that the reduction of interfacial dislocations and disorder, increases the corresponding tunnelling magnetoresistance. To date, the minimum dislocation density has been achieved at a Co_0.2Fe_0.6B_0.2/MgO interface, which accordingly shows the largest magnetoresistance at room temperature. This has been demonstrated by the post-annealing of an amorphous junction rather than growing a junction epitaxially. On the other hand, a half-metallic ferromagnet has shown larger magnetoresistance at low temperature but the disordered phases formed at MgO interfaces induces spin fluctuation with increasing temperature. For the improvement of the magnetoresistance, it is critical to eliminate such interfacial dislocations and disordering.
