The Transport Properties of Quasi–One-Dimensional Ba3Co2O6(CO3)0.7

Minnan ChenMinnan Chen1Jiangtao WuJiangtao Wu1Qing HuangQing Huang2Jinlong JiaoJinlong Jiao1Zhiling DunZhiling Dun3Guohua WangGuohua Wang1Zhiwei ChenZhiwei Chen4Gaoting LinGaoting Lin1Vasudevan RathinamVasudevan Rathinam1Cangjin LiCangjin Li5Yanzhong PeiYanzhong Pei5Feng YeFeng Ye6Haidong ZhouHaidong Zhou2Jie Ma,
Jie Ma1,7*
  • 1Key Laboratory of Artificial Structures and Quantum Control, School of Physics and Astronomy, Shanghai Jiao Tong University, Shanghai, China
  • 2Department of Physics and Astronomy, University of Tennessee, Knoxville, TN, United States
  • 3School of Physics, Georgia Institute of Technology, Atlanta, GA, United States
  • 4Center for Phononics and Thermal Energy Science, Shanghai Key Laboratory of Special Artificial Microstructure Materials and Technology, School of Physics Science and Engineering, Tongji University, Shanghai, China
  • 5Interdisciplinary Materials Research Center, School of Materials Science and Engineering, Tongji University, Shanghai, China
  • 6Neutron Scattering Division, Oak Ridge National Laboratory, Oak Ridge, TN, United States
  • 7Wuhan National High Magnetic Field Center, Huazhong University of Science and Technology, Wuhan, China

We have performed combined elastic neutron diffuse, electrical transport, specific heat, and thermal conductivity measurements on the quasi–one-dimensional Ba3Co2O6(CO3)0.7 single crystal to characterize its transport properties. A modulated superstructure of polyatomic CO32− is formed, which not only interferes the electronic properties of this compound, but also reduces the thermal conductivity along the c-axis. Furthermore, a large magnetic entropy is observed to be contributed to the heat conduction. Our investigations reveal the influence of both structural and magnetic effects on its transport properties and suggest a theoretical improvement on the thermoelectric materials by building up superlattice with conducting ionic group.

Introduction

Thermoelectric (TE) materials can recycle waste heat into usable electricity based on the Seebeck effect and are believed to play a significant role in efficient use of energy [1]. As the energy conversion performance of TE materials is evaluated by the dimensionless figure of merit zT, zT = S2σT/(κele + κlatt), where T is operating temperature, σ is electrical conductivity, S is Seebeck coefficient, κele is electronic thermal conductivity, and κlatt is lattice thermal conductivity, the research on the TE material is usually focused on two main approaches: (1) increasing the power factor S2σ through electronic structure or energy band engineering [24] and (2) reducing the lattice thermal conductivity κlatt by introducing additional phonon scattering and manipulating phonon structure [59]. Actually, those approaches are very complex. For example, the electrical transport (σ = nμe) could be regulated by the carrier concentration n, the carrier mobility μ, and the electron charge e, whereas the acoustic phonon scattering introduces a μT −1.5 dependence, and the ionized impurity scattering gives a μT1.5 relationship [10]. Furthermore, the lattice thermal conductivity, κlatt, could be decreased by the grain boundary scattering, point defect scattering, disorder scattering, and Umklapp scattering [11, 12]. Therefore, if the scattering mechanisms of both the electrical and thermal transport could be well understood, the energy conversion performance of TE materials can be better optimized.

At present, alloy TE materials have been widely applied as a TE compound. Although the performance has been continuously improved, there are some unavoidable limitations on the environment, expenses, oxidization stability, and so on [1315]. Therefore, the investigation of oxide TE materials has been proposed. Because of its special crystal structure and magnetic effect, the cobalt oxide has good electronic properties and low lattice thermal conductivity [1621]. For example, the power factor (S2σ) of NaCo2O4 is 5 × 10–3 W · m−1 · K−2, even higher than that of Bi2Te3 [22]. Among them, NaCo2O4, Ca3Co4O9, and Bi2Sr2Co2Ox have received much attention, and their TE performance is also continuously improved and even higher than some alloys [17, 2326].

Recently, a quasi–one-dimensional cobaltate Ba3Co2O6(CO3)0.7 has been reported as a new excellent potential TE material [27]. This compound comprised face-sharing CoO6 octahedra and carbonate CO32− molecular chains along its c-axis with the space group of P-6, a = 9.683 Å and c = 9.518 Å [28], Figures 1A, B. The average occupancy of the polyatomic CO32− molecule is 0.7. Although z of Ba3Co2O6(CO3)0.7 was reported as 5.1 × 10−5 K−1, which is comparable to NaxCoO2-y at 300 K, and it was considered as a promising cobalt oxide TE material [24], the thermal conductivity, transport properties, and the physics remain unknown.

FIGURE 1
www.frontiersin.org

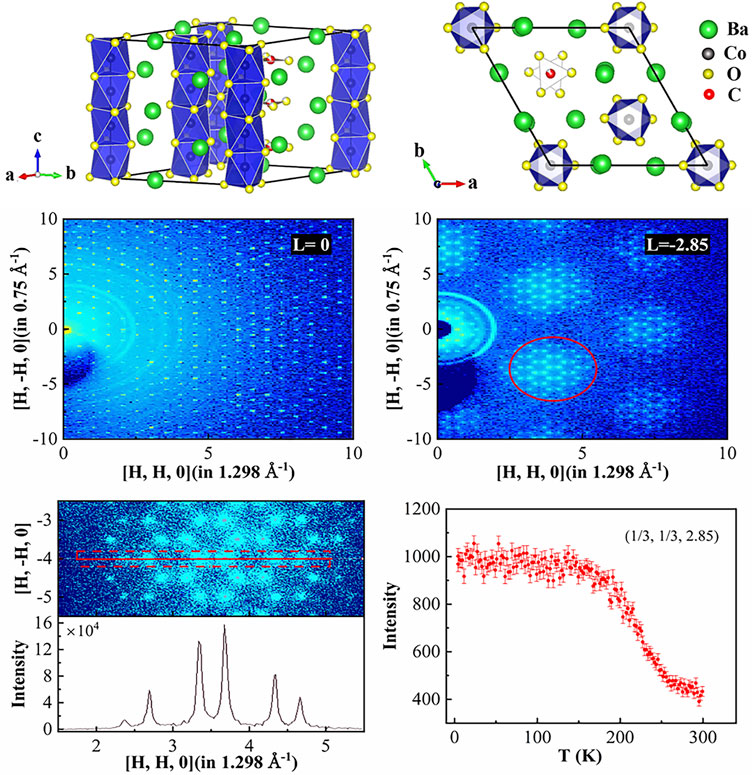

FIGURE 1. (A) Crystal structure of Ba3Co2O6(CO3)0.7 consisting of chains of CoO6 and carbonate CO3 along the c-axis in the standard orientation [space group: P-6]. (B) The c-axis projected crystal structure. 2D slice of diffuse neutron scattering patterns of Ba3Co2O6(CO3)0.7 single crystal at 50 K. (C) L = 0, (D) L = −2.85, and (E) enlarged view of a section of (D) obtained on CORELLI. (F) Cuts along the [H, H, 0] direction of the Bragg peak marked by red solid line in panel (E). (G) Temperature dependence of the peak intensity of the (1/3 1/3 2.85).

In this article, we report neutron diffuse scattering, electrical conductivity, Hall effect, specific heat, and thermal conductivity of Ba3Co2O6(CO3)0.7 single crystal. Moreover, the magnetic effect of the Co ions is discussed.

Experimental Details

Single crystal of Ba3Co2O6(CO3)0.7 was grown by a flux method using a mixture of Co3O4, BaCO3, K2CO3, and BaCl2 [27]. These single crystals have the shape of short hexagonal rods. The c-axis was determined using the X-ray Laue method to be along the rod direction.

A single crystal with dimension of 2 × 2 × 6 mm3 was aligned in the (H, K, 0) horizontal scattering plane for the diffuse scattering studies using the elastic single crystal diffuse scattering spectrometer CORELLI at the Spallation Neutron Source (SNS), Oak Ridge Nation Laboratory [29]. Based on the Hall effect, the carrier concentration of Ba3Co2O6(CO3)0.7 in the temperature range of 80 to 300 K was measured by the van der Pauw technique at a reversible magnetic field of 2 T. And the conductivity along the c-direction was obtained by Physical Property Measurement System (PPMS, Quantum Design) with resistivity option, using the four-probe method. The specific heat measurement was applied on PPMS’s heat capacity option in two steps. First, the background specific heat was measured by an empty puck with a small amount of N-grease in the temperature range from 2 to 250 K at zero field. Then, a Ba3Co2O6 (CO3)0.7 sample (approximately 4.71 mg) was placed in the measured N-grease, and the total specific heat was measured at same conditions. Finally, we gained the specific heat of the sample by subtracting the background specific heat from the total specific heat. The thermal conductivity along the c-axis was characterized using PPMS with thermal transport options, and the four-probe lead configuration method was used. During the measurement, the matching gold-plated copper bar in PPMS was used as leads. More detail for the measurement of carrier concentration, specific heat and thermal conductivity can be find in Supplementary Material. The diffuse scattering studies, carrier concentration, electrical conductivity, and thermal conductivity, were carried out on the same crystal, and the sample for the measurement of the specific heat was cut from this crystal too.

Results and Discussion

Elastic Diffuse Scattering

To further understand the structural details of Ba3Co2O6(CO3)0.7, we study the elastic diffuse scattering behavior of it. Figures 1C, D show the contour plot of neutron intensity at 50 K in the (H, K, 0) plane of Ba3Co2O6(CO3)0.7 with L = 0 and L = −2.85. The sharp spots in Figure 1C demonstrate the good crystallinity of the single crystal. The signals of strong diffuse scattering are clearly observed at L = −2.85. Figure 1F, corresponding to the red solid line in Figure 1E, shows the elastic intensity along the [H, H, 0] direction and the relative diffuse intensity of each diffuse spot. Morgan et al. [30] have analyzed the short-range diffuse scattering using reverse Monte Carlo method and concluded that the diffuse scattering has short-range correlation between the disorder vibrations of polyatomic CO32−.

Figure 1G shows the temperature dependence of the superlattice (1/3, 1/3, 2.85) reflection. Upon warming, the intensity starts to decrease at 150 K and approaches a T-independent constant greater than 250 K. Thus, the vibrations of polyatomic CO32− should be affected by the thermal effect, and the localization of the CO32− cluster should be relaxed.

Electrical Transport Properties

To obtain the electrical transport properties of Ba3Co2O6(CO3)0.7 single crystal, Hall carrier concentration nH was collected at a reversible magnetic field of 2 T, and Hall mobility μH was determined with zero-field resistivity, as shown in Figure 2. The exponential increase of carrier concentration with rising temperature indicates the thermal excitation of carriers. The charge polarity is dominated by holes in the measured temperature range, which is consistent with the positive Seebeck coefficients reported by Igarashi et al. [31]. The low carrier concentrations suggest that the further acceptor doping is required for TE applications. As marked in Figure 2A, there are two anomalies at 150 and 250 K, which agrees very well with the diffuse data and confirmed that CO32− ion is a conductor in the system.

FIGURE 2
www.frontiersin.org

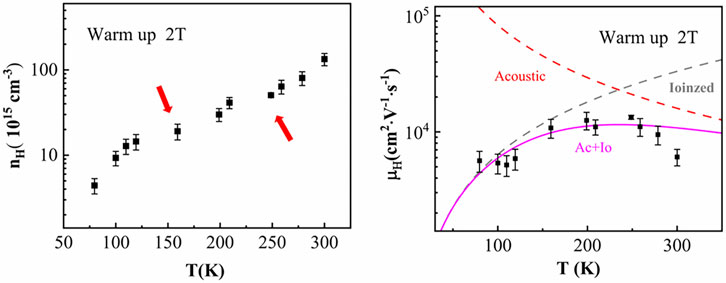

FIGURE 2. Temperature dependence of (A) carrier concentration nH and (B) Hall mobility μH along the c-axis for Ba3Co2O6(CO3)0.7. (B) Calculated carrier mobility (magenta solid line) took into account the ionized impurity scattering (gray dashed line) and acoustic phonon scattering (red dashed line) contributions.

The temperature versus μH of Ba3Co2O6(CO3)0.7 single crystal is nonmonotonic, as shown in Figure 2B. The calculated mobility involving both the ionized impurity scattering and acoustic phonon scattering can well match the experimental values over a wide temperature range. μH follows a temperature dependence closing to T1.5 at low temperature range, implying that ionized impurity scattering dominates at low temperature in Ba3Co2O6(CO3)0.7 single crystal. We believe that the ionized impurity scattering relates to polyatomic CO32−. As the temperature increases, the localized ordering of CO32− weakens, and the scattering of ionized impurity also diminishes. On the other hand, the lattice vibrations become stronger with increasing temperature. These two factors together lead to the acoustic phonon scattering, gradually overshadowing the ionized impurity scattering and becoming the dominant scattering mechanism in the material, which causes a negative temperature-dependence slope of μH greater than 250 K. The CO32− is delocalized when T > 250 K, which might introduce other scattering mechanisms affecting the carriers transports and make the carrier mobility lower than the theoretical value.

Results of CP(T)

To investigate the thermal effect in Ba3Co2O6(CO3)0.7, the specific heat CP was measured in the temperature range from 2 to 250 K at zero field. As shown in Figure 3A, the profile of data is very smooth, and no obvious peak is detected, indicating the absence of structure and magnetic transitions. The inset of Figure 3A displays the data as a CP/T versus T2. According to the Debye model, the lattice term of the total specific heat CP/T is linear with T2 at low T, but the data demonstrate a deviation from the linear relationship at low temperature and a nonzero intercept (approximately 0.29 J · mol−1 · K−2) at 0 K. The nonzero intercept is an order of magnitude larger than that for NaCo2O4, which is a strongly correlated electronic cobalt system [32], and suggests Ba3Co2O6(CO3)0.7 as also a strongly correlated electronic system.

FIGURE 3
www.frontiersin.org

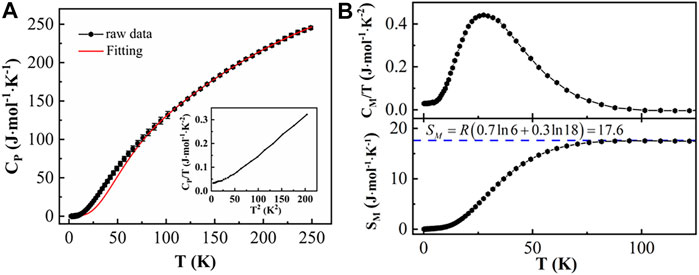

FIGURE 3. (A) The total specific heat CP of Ba3Co2O6(CO3)0.7 measured at zero field. The red line represents the lattice contribution by Eq. 1. The inset shows the CP/T vs T2 (B) The magnetic specific heat is obtained by subtracting the lattice contribution Cp from the raw data. (C) Magnetic entropy obtained by integrating CM/T over the entire measured temperature range.

In order to further study the specific heat of Ba3Co2O6(CO3)0.7, a fitting was gained by using the Debye–Einstein model, which can fit the lattice specific heat data well at both low and high temperature. The model is written as follows [33]:

Cp(T)=CD[9R(TθD)30xDx4ex(ex1)2dx]+iCEi[3R(θEiT)2exp(θEiT)[exp(θEiT)1]2] ,(1)

where the first term is the contribution from the acoustic branch (Debye term), and the remaining terms are related to the contribution of the optical branch (Einstein terms). CD and CEi are the relative weights of the Debye and Einstein terms, respectively. R is the universal gas constant. θD and θEi represent Debye and Einstein temperatures. There are 13.8 atoms per formula in our system. The best fitting for our data results is one Debye term and three E terms with a ratio 1:6:2.8:4 for CD:CE1:CE2:CE3 and θD = 163 K, θE1 = 816 K, θE2 = 179 K, and θE3 = 290 K, respectively.

As there is no distinct phase transition in the specific heat data, and the magnetic long-range order was not observed down to 2 K [34], the deviation of the experimental data from the fitted values indicates the presence of short-range magnetic fluctuations. Figures 3B, C display the magnetic specific heat, CM, by subtracting the fitted lattice contribution from raw data, and the related magnetic entropy SM, respectively. The SM enhances with increasing temperature, and almost 100% recovered the theoretical value 17.6 J · mol−1 · K−1 at approximately 100 K. Both contributions of spin and orbital degrees of freedom are suggested to be considered [35]: Co4+ has high-spin state with S = 1/2 (3d5), and Co3+ has intermediate-spin state with S = 1 (3d6), leading to SM = R(0.7 ln 6 + 0.3 ln 18) = 17.6 J · mol−1 · K−1, as shown by the blue dotted line in Figure 3C. There may be spin-phonon scattering in the huge magnetic entropy regimen that interferes with the thermal conductivity.

Thermal Transport Properties

Figure 4 shows the temperature dependence of the total thermal conductivity κc and the lattice thermal conductivity κc_L of Ba3Co2O6(CO3)0.7 parallel to the c-axis from 3 to 250 K κc consists of κc_L and the electronic thermal conductivity κc_e, where the electronic thermal conductivity can be determined by the Wiedemann–Franz law (κe = σLnT, where the Lorenz number Ln = 2.45 × 10–8 W · Ω · K−2) and subtracted. At low temperatures, κc and κc_L almost completely overlap due to the very small electronic thermal conductivity. As the temperature increases, κc and κc_L begin to separate because of the exponential increase in conductivity. Although κc_e is maximum at 250 K, it is only a few percent of κc_L. The contribution of phonon to κc is domain. κc_L increases rapidly at low temperature with the dominant boundary scattering, which displays a κc_L ∝ T3 dependence. A maximum with a value of 13.5 W · m−1 · K−1 appears at approximately 12 K, where the Umklapp processes with exp (θD/bT) dependence become frequent and enough to compare with boundary scattering. One notes that the peak of κc_L is an order of magnitude smaller than that of other cobalt oxides, such as Ca3Co2O6 [36]. This difference may be caused by the superlattice in Ba3Co2O6(CO3)0.7, which can enhance the scatting of κc_L. As temperature increases further, κc_L drops very quickly and reflects that the Umklapp process scattering gradually becomes the main scattering mechanism. When the temperature is higher than 60 K, the trend of the curve gets flat. At approximately 250 K, the lattice thermal conductivity of Ba3Co2O6(CO3)0.7 along the c-axis is 5.02 W · m−1 · K−1.

FIGURE 4
www.frontiersin.org

FIGURE 4. The temperature dependence of the thermal conductivity κc and the lattice thermal conductivity (κc_L) along the c-axis of Ba3Co2O6(CO3)0.7 at zero field. The black line is experimental data of the thermal conductivity; the red line is κc_L, and the green one represents the result of fitting by Eq. 2. The magenta dashed line is the contribution of the grain boundary and the point defect scattering, and the blue one is Umklapp process scattering.

The data of κc_L were fitted to the formula given by the Debye model of phonon thermal conductivity[37].

κc_L=kB2π2νp(kB)3T30θD/Tx4ex(ex1)2τ(ω,T)dx,(2)

where kB is the Boltzmann’s constant, νp is the average sound velocity, ħ is the Planck constant, x = ħω/kBT, ω is frequency, and τ is the mean lifetime of phonon. The phonon relaxation is usually defined as follows:

τ1=νp/L+Aω4+BTω3exp(-θD/bT).(3)

These three items correspond with phonon boundary scattering, phonon point defect scattering, and the phonon–phonon Umklapp processes, respectively. L, A, B, and b are the fitting parameters. νp can be calculated by the Debye temperature θD = 163 K obtained by the fitting above and Eq. 4:

θD=νpkB(6π2NV)13(4)

where N is the number of atoms in crystal, and V is the volume of crystal, and then we obtain the average sound velocity of the sample νp ≈ 1,343 m · s−1.

The best fitting is shown in Figure 4 as green solid line with L = 1.6 × 10–5 m, A = 1.7 × 10–41 s3, B = 7.4 × 10–29 K−1 s2, and b = 2.7. The lattice thermal conductivity is mainly the contribution of phonons below approximately 18 K. As the temperature increases, the fitted values gradually deviate from the raw data. An extra contribution of the thermal conductivity has also been observed in Ca3Co2O6 [38]. In combination with the heat capacity, the deviation of thermal conductivity might be due to the overestimation of the lattice thermal conductivity, because of the magnetic contribution to the total thermal conductivity: (1) The magnetic entropy increases rapidly after 18 K; in the meantime, κc_L starts to be higher than the theoretical value. (2) After the magnetic entropy reaches saturation at approximately 100 K, the κc_L also decreases slowly with growing temperature at the same rate as the theoretical one. As the electron concentration is very low, the electron–phonon scattering is not dominant in the system, and the CO32− affects grain boundary and defect.

Conclusion

In summary, we have studied the structural, electrical, and thermal transport properties of quasi–one-dimensional Ba3Co2O6(CO3)0.7 single crystal and the connection between the lattice structure, magnetism, and its transport properties. Neutron diffuse reveals that a modulated superstructure of CO32− is formed in Ba3Co2O6(CO3)0.7. The main hole carriers in the systems are continuously excited with increasing temperature and scattered not only by short-range ordered polyatomic CO32− at low temperature, but also by acoustic phonon and nonlocalized CO32− at high temperature. No lattice and magnetic phase transition are observed by the specific heat measurement, and the magnetic entropy is consistent with mixed Co3+ and Co4+ valence. The thermal conductivity of Ba3Co2O6(CO3)0.7 shows an enhancement at higher temperatures over classic phonon heat transfer due to the contribution of the itinerant magnetism. The unique lattice and transport properties in Ba3Co2O6(CO3)0.7 suggest a potential superlattice designs for regulating the TE properties.
