Vector Resolved Energy Fluxes and Collisional Energy Losses in Magnetic Nozzle Radiofrequency Plasma Thrusters

Energy losses in a magnetic nozzle radiofrequency plasma thruster are investigated to improve the thruster efficiency and are calculated from particle energy losses in fully kinetic simulations. The simulations calculate particle energy fluxes with a vector resolution including the plasma energy lost to the dielectric wall, the plasma beam energy, and the divergent plasma energy in addition to collisional energy losses. As a result, distributions of energy losses in the thruster and the ratios of the energy losses to the input power are obtained. The simulation results show that the plasma energy lost to the dielectric is dramatically suppressed by increasing the magnetic field strength, and the ion beam energy increases instead. In addition, the divergent ion energy and collisional energy losses account for approximately 4%–12% and 30%–40%, respectively, regardless of the magnetic field strength.

Introduction

Magnetic nozzle radiofrequency (RF) plasma thrusters have been developed worldwide for future high-power electric propulsion systems [1–7] and low-power small thrusters [8–11]. The main components of the magnetic nozzle RF plasma thruster are an RF antenna, a dielectric tube, and a solenoid. The thruster does not have a cathode or an external neutralizer, i.e., a completely electrodeless configuration. Therefore, electrode wear, which limits the lifetime, does not occur, enabling the long lifetime in space. The magnetic nozzle RF plasma thrusters are expected to be utilized instead of conventional electric thrusters, such as ion and Hall thrusters, as the long-term operational propulsion system.

In the magnetic nozzle RF plasma thrusters, the electric power is delivered to the plasma from the RF antenna wound around the source tube, where the solenoid or the permanent magnets are set to produce the magnetic field in the source and the magnetic nozzle [1, 12–14]. The plasma is accelerated through the magnetic nozzle toward the downstream direction and obtains the axial momentum. In the magnetic nozzle, an azimuthal current is induced by the diamagnetic effect and produces the axial Lorentz force with the radial magnetic field [15–19].

Thruster efficiencies of magnetic nozzle RF plasma thrusters are summarized in Ref. [4], and a recent study reported a thruster efficiency approaching 20% at the maximum for the RF power of 6 kW [20]. However, Hall thrusters show a thruster efficiency of 35%–60% for an input power of 1.5–4.5 kW [21] and have been already utilized successfully on satellites and space probes [22, 23]. The thruster efficiency of magnetic nozzle RF plasma thrusters is still relatively poor compared with that of Hall thrusters, although magnetic nozzle RF plasma thrusters have the advantage of not requiring cathodes and an external neutralizer. Therefore, further improvement of thruster efficiency is an important challenge.

Considering that Hall thrusters achieve a thruster efficiency of 60% at maximum, magnetic nozzle RF plasma thrusters do not utilize the input power efficiently compared with Hall thrusters. In magnetic nozzle RF plasma thrusters, the power is supplied from only the RF antenna because of the completely electrodeless configuration. The RF power is mainly absorbed by electrons in the inductively coupled or helicon modes [1]. Note that the neutral energy is negligibly small because the neutral temperature is roughly 300 K, while the measured ion and electron temperatures are 0.1–1 eV [24] and 1–20 eV [25, 26], respectively. In addition, the magnetostatic field produced by the solenoid supplies no energy to the plasma. Therefore, to impart the axial momentum to ions and obtain the thrust, the electron energy heated by the RF electromagnetic fields should be converted to the axial ion energy in the magnetic nozzle. In the case of a low thruster efficiency, it is expected that the electron energy is not converted to the axial ion energy efficiently and lost in the thruster. Here, possible energy losses are energy fluxes on the dielectric wall, a divergent plasma beam energy that does not contribute to the thrust, a rotation plasma energy, and collisional energy losses. To improve the thruster efficiency of magnetic nozzle RF plasma thrusters, it is necessary to know where and how the energies are lost in the thruster and to identify the major process of the energy loss.

The energy balance in the thruster has been analyzed by a global discharge model, implying significant energy losses to the wall, where the inner diameter of the thruster is 3.2–3.25 cm, the RF power is 300–2,000 W, and the magnetic field strength is 0–269 G [27]. An individual measurement of the axial force imparted to the lateral dielectric wall showed that a non-negligible axial momentum is lost there, where the inner diameter of the thruster is 6.4 cm, the RF power is 1 kW, and the magnetic field strength is 0–750 G [28]. Moreover, the energy lost to the lateral dielectric wall was measured by using a momentum vector measurement instrument and Langmuir probes and accounted for 20%–60% of the input power depending on the magnetic field strength, where the inner diameter of the thruster is 9.5 cm, the RF power is 400 W, and the magnetic field strength is 0–300 G [29]. However, other energy losses besides the energy lost to the dielectric wall have not been fully understood yet.

In this study, fully kinetic simulations of a magnetic nozzle RF plasma thruster are conducted to investigate the energy losses in the thruster. Because the current simulations have the limitation of the thruster size and the input power, this study shows how the energy losses are distributed in the thruster and their ratios to the input power depending on the magnetic field strength. The simulations obtain energy fluxes by ions and electrons with a vector resolution, which are directly calculated from particle motions in the simulations. Collisional energy losses are also calculated in the simulations. First, the calculation model of fully kinetic simulations employed in this paper is briefly described. Then the energy losses in the thruster and their ratios to the input power are reported. The simulation results show that the ion and electron energies lost to the dielectric wall are suppressed by increasing the magnetic field strength and instead the thruster efficiency dramatically increases from 2.1% to 27.4%, which are qualitatively consistent with previous experiments [29].

Numerical model

We have employed two-dimensional (x-y) and bidirectional calculation models to reduce the calculation cost [19, 30]. Although bidirectional thrusters are different from the common thruster, they are proposed for space debris removal [31]. The numerical model has an infinite length in the z-direction, and the simulation results are discussed in the unit length of the z-direction. The plasma kinetics in the thruster is analyzed using particle-in-cell and Monte Carlo collisions (PIC-MCC) techniques. Details of the calculation model and simulation method were given in previous papers [19, 30, 32, 33], and a brief description is written in this paper.

Figure 1A shows a schematic of the calculation area employed in this paper. The calculation area is 2.5 cm × 0.56 cm including the dielectric and divided into 50 μm × 50 µm cells, i.e., a 501 × 113 grid. The solenoid produces the magnetic field lines as shown by the solid black lines in Figure 1A. The solenoid current is set to 0.1, 0.4, and 2.0 kA to investigate the dependence of the magnetic field strength. The magnetic field strength at 2.0 kA is shown as a colormap in Figure 1A, and the magnetic field strengths on the x-axis for the solenoid currents of 0.1, 0.4, and 2.0 kA are shown in Figure 1B. The plasma absorbs the RF power supplied from the RF antenna and maintains the discharge. Simulation results are averaged over 30 µs.

FIGURE 1

FIGURE 1. (A) A schematic of the calculation area and a magnetic field strength produced by the solenoid current of 2.0 kA. Solid black lines show the magnetic field lines. Energy fluxes and collisional energy losses in the magnetic nozzle radiofrequency (RF) plasma thruster are also plotted. P_in is the input power from the RF antenna (a white arrow). P_w, P_r, and P_t are energy losses per unit time from colliding with the lateral dielectric wall (a pink arrow), from colliding with the right boundary at x = 2.5 cm (a red arrow), and from colliding with the top boundary at y = 0.56 cm (a green arrow), respectively. These energy losses per unit time are calculated independently from particle motions for ions and electrons and the x-, y-, and z-directions. P_el, P_ex, and P_iz are the elastic, excitation, and ionization energy losses per unit time, respectively (a blue font). Because the left and bottom boundaries are assumed to be symmetrical, particles are reflected at the boundaries, and the particle energies are not lost. (B) Magnetic field strengths on the x-axis for the three solenoid currents of 0.1 (a dashed blue line), 0.4 (a dotted-dashed orange line), and 2.0 kA (a solid green line).

Ions and electrons are lost to the lateral dielectric wall, the right boundary at x = 2.5 cm, or the top boundary at y = 0.56 cm, from colliding with these boundaries. Because the calculation area is symmetric about the x- and y-axes, ions and electrons are reflected at the left boundary at x = 0 cm and the bottom boundary at y = 0 cm. The motions of ions and electrons are solved by using the Boris method [34]. In the simulations, single charged xenon ions, Xe⁺, and electrons, e⁻, are treated. Their time steps are set to 0.125 ns and 3.57 ps, respectively. In addition, electron-neutral collisions including elastic, excitation, and ionization collisions are solved by using the null-collision method [35] and cross-sections in [36–38]. The neutral density is a spatiotemporal constant in the simulations and set to 2.0 × 10¹⁹ m⁻³. The RF frequency is set to 80 MHz, and the power absorption is controlled to be 3.5 W, where the unit length is assumed in the z-direction.

Electric and magnetic fields employed in this paper are the electrostatic field E_es generated by charged particles and the surface charge on the dielectric, the electromagnetic field E_em induced by the RF antenna, and the magnetostatic field B produced by the solenoid. These fields are obtained by solving Maxwell’s equations using fast Fourier transformation.

The boundary conditions of the electrostatic field are Dirichlet boundary conditions at the right and top boundaries (ϕ = 0) and the Neumann boundary conditions at the left and bottom boundaries (∂ϕ/∂n = 0 with ∂/∂n being the normal derivative), where ϕ is the potential. Note that the Dirichlet boundary conditions generate the sheath near the right and top boundaries, as shown in our previous paper [30].

The calculation area for E_em is set to 1.5 × 0.5 cm in the dielectric. The details of the RF field are described in our previous papers [39, 40]. As boundary conditions, E_em is set to zero on the x- and y-axes, and E_em on the outer boundaries at x = 1.5 cm and y = 0.5 cm are calculated using the Biot–Savart law.

The calculation area for B is set to 15 × 5.6 cm, which is 10 times the calculation area for charged particles and the electrostatic field. Here, the magnetic field strengths under the solenoid are 5, 20, and 100 mT for the solenoid currents of 0.1, 0.4, and 2.0 kA, respectively. For the magnetic field strength of 100 mT, the ion Larmor radius r_L becomes approximately 1.3 cm, where the ion temperature is assumed to be 0.5 eV. Then, the ratio r_L/L is 1.3, where L is a thruster height of 1 cm (diameter in cylindrical coordinates). Therefore, ions are not fully magnetized for all magnetic field strengths.

Figure 1A also shows energy fluxes and collisional energy losses considered in the simulations. In this study, energy losses are evaluated by using those per unit time (i.e., the power). P_in is the input power from the RF antenna, P_w is the energy loss from colliding with the lateral dielectric wall, P_r is the energy loss from colliding with the right boundary at x = 2.5 cm, and P_t is the energy loss from colliding with the top boundary at y = 0.56 cm. These energy losses are calculated independently from particle motions for ions and electrons and the x-, y-, and z-directions. P_el, P_ex, and P_iz are the elastic, excitation, and ionization energy losses, respectively. Because left and bottom boundaries are assumed to be symmetrical, particles are reflected at the boundaries, and the particle energies are not lost.

The energy losses considered in this study are summarized in Table 1, and the subscripts are described in Table 2. In this paper, it is assumed that the charged particles colliding with the calculation boundaries lose their kinetic energies. Therefore, the energy flux of the particle species α to the boundary β in the γ-direction, p_α,β,γ, is calculated by

$p_{\alpha ,\beta ,\gamma }=\frac{{\sum }_j(m_{\alpha }{v}_{\alpha ,\beta ,\gamma ,j}^2/2)}{\mathrm{\Delta }S\mathrm{\Delta }{t}_a},(1)$

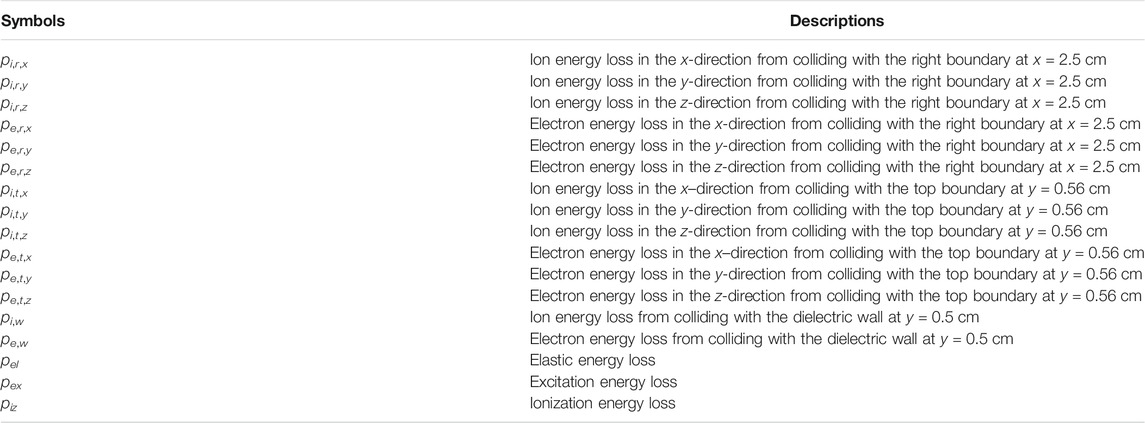

TABLE 1

TABLE 1. Definitions of energy losses considered in this study.

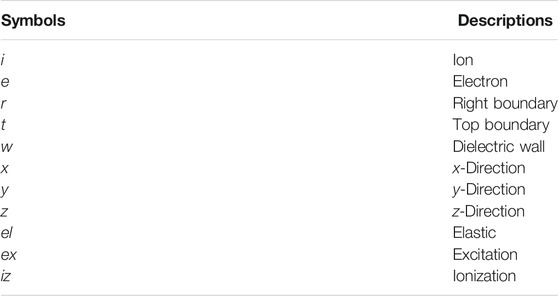

TABLE 2

TABLE 2. Subscripts of energy losses.

where j is the particle index, m_α is the mass of the particle species α, v_α,β,γ,j is the velocity of the particle j in the γ-direction, ΔS is the cell area, and Δt_a is the averaging time. Here, α is i or e, β is r, t, or w, and γ is x, y, or z, according to Table 2. It should be noted that the sheaths at the boundaries are self-consistently solved in the simulation; hence the energy fluxes calculated in the simulations contain the sheath effect.

Charged particles also lose their kinetic energies by collisions: the excitation and ionization energy losses, and the energy transferred from electrons to neutrals by binary collisions. Here, the collisional energy loss density p_c is written as

$p_c=\frac{\sum \mathrm{\Delta }E}{\mathrm{\Delta }V\mathrm{\Delta }{t}_a},(2)$

where ΔE is the energy loss by a collision and ΔV is the cell volume. Here, the subscript c is el, ex, or iz according to Table 2.

The total energy losses per unit time P_α,β,γ and P_c are calculated by integrating p_α,β,γ and p_c over the area and volume, respectively, i.e., as given by

$P_{\alpha ,\beta ,\gamma }=\sum p_{\alpha ,\beta ,\gamma }\mathrm{\Delta }S,(3)$

$P_c=\sum p_c\mathrm{\Delta }V.(4)$

The sum P_α,β of the energy losses per unit time in all directions is written as

$P_{\alpha ,\beta }=P_{\alpha ,\beta ,x}+P_{\alpha ,\beta ,y}+P_{\alpha ,\beta ,z}.(5)$

Note that the energy fluxes and collisional energy loss density are dependent on the size of the calculation area, indicating that this paper evaluates the thruster performance in a small vacuum chamber of 2.5 × 0.56 cm.

In this study, it is important that all the calculation conditions except the magnetic field strengths are fixed: e.g., the size of the calculation area, the power absorption, and the potential on the boundary. The energy losses to the boundaries can be compared by fixing the calculation conditions, and the effect of the magnetic field strength is discussed.

The plasma power contributing to the thrust P_th is defined by

$P_{th}=P_{i,r,x}+P_{e,r,x}+P_{i,t,x}+P_{e,t,x}.(6)$

Then, the thruster efficiency η in the simulations is calculated as

$\eta =\frac{P_{th}}{P_{in}}.(7)$

Here, η is the electrical efficiency in the thruster, which is defined as the beam power out of the thruster divided by the total input power [21].

Results and discussion

Figure 2 shows the x-y profiles of the electron number density n_e for the three magnetic field strengths of 5, 20, and 100 mT. The electron number density n_e is large near the axial location of the RF antenna (x = 0.1 cm) and decreases in the downstream direction due to the magnetic expansion, the plasma diffusion, the ion acceleration, and the electron reflection by the electric field. The plasma distribution is confined to the center of the magnetic nozzle for the 20 mT case in Figure 2B, and the off-axis density peak can be seen for the 100 mT case as in Figure 2C. These density–profile transitions from increasing the magnetic field strength were measured in previous experiments [41–45] and numerical results [46], indicating that the simulation results reproduce the experimental ones qualitatively.

FIGURE 2

FIGURE 2. x-y profiles of the electron number density n_e for the three magnetic field strengths of (A) 5, (B) 20, and (C) 100 mT. Solid black lines show magnetic field lines.

Figure 3 shows the x-y profiles of the electron temperature T_e for the three magnetic field strengths of 5, 20, and 100 mT. The electron temperature for the 5 mT case is relatively high at approximately 10 eV on the magnetic field line in contact with the dielectric surface and under the RF antenna. For the 20 and 100 mT cases, the high-temperature regions are approximately 5 eV and move inward, a little away from the dielectric surface.

FIGURE 3

FIGURE 3. x-y profiles of the electron temperature T_e for the three magnetic field strengths of (A) 5, (B) 20, and (C) 100 mT. Solid black lines show magnetic field lines.

For the 5 mT case, the electron temperature decreases in the downstream region within 1.5 cm < x < 2.5 cm. Note that the electrons for the 5 mT case are less magnetized because the Larmor radius at the center of the solenoid is approximately 0.17 cm using a magnetic field strength of 5 mT and an electron temperature of 5 eV and are less transported along the magnetic field lines. For the 20 and 100 mT cases, however, the electron temperature is relatively high in the downstream region within 1.5 cm < x < 2.5 cm. The high-temperature electrons are expected to be transported to the downstream region through the magnetic nozzle and lost to the downstream boundaries; these results are consistent with previous experimental ones [47].

Figure 4 shows the x profiles of the ion and electron energy fluxes on the lateral dielectric wall p_i,w and p_e,w, respectively, for the three magnetic field strengths of 5, 20, and 100 mT. Both the ion and electron energy fluxes on the lateral dielectric wall decrease with increasing the magnetic field strength, especially under the solenoid within x = 0.7–1.5 cm. Although the electron losses are expected to be prevented by the magnetic field, the ions are not fully magnetized in this simulation and do not move only along the magnetic field lines. The ion motions are expected to be affected by the potential distribution as previously observed in experiments [48, 49].

FIGURE 4

FIGURE 4. x profiles of the (A) ion and (B) electron energy fluxes on the lateral dielectric wall p_i,w and p_e,w, respectively, for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). Gray boxes show locations of the solenoid and the lateral dielectric wall.

Figure 5 shows the y profiles of the potential ϕ at x = 1.1 cm for the three magnetic field strengths of 5, 20, and 100 mT. The radial potential drop is clearly formed around y = 0.2–0.5 cm for 5 mT; the ions are accelerated in the radial direction there and would take significant energy from the system to the wall. For the 20 and 100 mT cases, slight increases in the potential along the y axis can be seen, and the wall potentials are higher than that in the plasma core, suppressing ion loss to the dielectric. These structures can be interpreted as a result of the inhibition of the electron transport to the wall by the magnetic field, resulting in a positive charge-up of the wall by the ions. To have confidence of a positive charge-up, the x profile of the surface charge σ on the wall is analyzed and shown in Figure 6; this result demonstrates the positively charged-up wall at the solenoid location, where the magnetic field lines are almost parallel to the wall.

FIGURE 5

FIGURE 5. y profiles of the potential ϕ at x = 1.1 cm for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). A gray box shows the location of the dielectric wall.

FIGURE 6

FIGURE 6. x profiles of the surface charge density on the lateral dielectric wall σ for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). Gray boxes show locations of the solenoid and the lateral dielectric wall.

Figure 7 shows the x-y profiles of the power absorption P_abs for the three magnetic field strengths of 5, 20, and 100 mT, where P_abs is calculated from the change of the particle velocities. For the 5 mT case, the power absorption is high under the RF antenna and approximately 1 W/cm³ as shown in Figure 7A. It is expected that the plasma absorbs the energy by the RF field induced by the RF antenna. For the 20 and 100 mT cases shown in Figures 7B, C, the power absorption is relatively high downstream, while the plasma also absorbs a little energy under the RF antenna. From Figure 7, the location where the plasma often absorbs the energy shifts to the radially inner region in the thruster, although its physics is still unclear. However, the shift in the plasma energy is consistent with the profiles of n_e and T_e shown in Figures 2 and 3, respectively. The decrease in the energy fluxes to the dielectric is also consistent with the shift in the power absorption.

FIGURE 7

FIGURE 7. x-y profiles of the power absorption P_abs for the three magnetic field strengths of (A) 5, (B) 20, and (C) 100 mT. Solid black lines show magnetic field lines.

Figure 8 shows the x and y profiles of the ion energy fluxes in the x-direction on the top boundary p_i,t,x and the right boundary p_i,r,x, respectively, for the three magnetic field strengths of 5, 20, and 100 mT. Note that the ion energy fluxes p_i,t,x and p_i,r,x contribute to the increase in the thrust. As shown in Figure 8A, p_i,t,x is negligibly small. However, p_i,r,x significantly increases with increasing magnetic field strength and achieves 464 W/m² at maximum as shown in Figure 8B, while it decreases at y = 0–0.1 cm when increasing the magnetic field strength from 20 to 100 mT. The change in the position of the maximum ion energy flux and the low energy flux around y = 0 cm in Figure 8B are consistent with the distributions of the electron number density n_e in Figure 2.

FIGURE 8

FIGURE 8. (A) x and (B) y profiles of the ion energy fluxes in the x-direction on the top boundary (y = 0.56 cm) p_i,t,x and the right boundary (x = 2.5 cm) p_i,r,x, respectively, for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). Note that x = 2.5 cm in (A) corresponds to y = 0.56 cm in (B).

Figure 9 shows the x and y profiles of the ion energy fluxes in the y-direction on the top boundary p_i,t,y and the right boundary p_i,r,y, respectively, for the three magnetic field strengths of 5, 20, and 100 mT. The ion energy fluxes in the y-direction p_i,t,y and p_i,r,y are 0–69 W/m². By changing the magnetic field strength from 5 to 20 mT, the position of the maximum ion energy flux in the y-direction shifts in the positive x-direction in Figure 9A, and the maximum energy loss increases. The shift and increase in the maximum energy losses are expected because the plasma is localized near the central region around the x-axis for the larger magnetic field strength as shown in Figure 2 and is transported along the magnetic field lines.

FIGURE 9

FIGURE 9. (A) x and (B) y profiles of the ion energy fluxes in the y-direction on the top boundary (y = 0.56 cm) p_i,t,y and the right boundary (x = 2.5 cm) p_i,r,y, respectively, for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). Note that x = 2.5 cm in (A) corresponds to y = 0.56 cm in (B).

Figure 10 shows the x profiles of the electron energy fluxes on the top boundary (p_e,t,x, p_e,t,y, and p_e,t,z) and y profile of the electron energy fluxes on the right boundary (p_e,r,x, p_e,r,y, and p_e,r,z) for the three magnetic field strengths of 5, 20, and 100 mT. Note that the electron energy fluxes p_e,t,x and p_e,r,x contribute to the increase in the thrust. Whereas the electron energy fluxes for the 5 mT case are sufficiently small in Figures 10A, B, the electron energy fluxes for the 20 and 100 mT cases are mainly lost to the top and right boundaries, respectively. These energy fluxes are expected because the magnetic nozzle enhances the electron transport to the downstream region and suppresses the energy losses to the dielectric as shown in Figure 4.

FIGURE 10

FIGURE 10. (A) x profiles of the electron energy fluxes on the top boundary (y = 0.56 cm) p_e,t,x, p_e,t,y, and p_e,t,z and (B) y profiles of the electron energy fluxes on the right boundary (x = 2.5 cm) p_e,r,x, p_e,r,y, and p_e,r,z, for the three magnetic field strengths of 5 (a dashed blue line), 20 (a dotted-dashed orange line), and 100 mT (a solid green line). Note that x = 2.5 cm in (A) corresponds to y = 0.56 cm in (B).

For the 20 mT case, the location of the maximum electron energy flux is x = 1.9 cm in Figure 10A because the energetic electrons are magnetized and transported along the magnetic field lines passing through the location under the RF antenna, as reported in Refs. [41], [45], [50], and [51], where the electrons are considerably heated by the RF field. As shown in Figure 3B, the high-temperature electrons for the 20 mT case pass through the top boundary at y = 0.56 cm along the magnetic field lines, corresponding to the electron energy flux shown in Figure 10A.

The electron energy fluxes to the right boundary for the 100 mT case are much larger than those for the 5 and 20 mT cases as seen in Figure 10B, whereas the significant energy fluxes to the top boundary appear for the 20 mT case as seen in Figure 10A. These energy fluxes would be dominated by the density and temperature profiles in Figures 2 and 3, respectively. The simulation results in Figure 10 show that the electron energy for the strong magnetic field case of 100 mT is well transported to the right boundary in the inner region along the magnetic nozzle. For the 20 mT case, however, the significant electron energy is transported to the top boundary along the divergent magnetic field lines. The energy loss to the top boundary for the 20 mT case is consistent with the higher electron temperature in Figure 3B and the higher power absorption in Figure 7B near the top boundary. The detailed particle and energy transport processes have not been fully understood yet and remain to be further investigated.

In the simulations, the ion and electron energy fluxes in the x-direction are considered to be the plasma beam extracted from the plasma source and contribute to an increase in the thrust; these are p_i,t,x and p_i,r,x in Figure 8, and p_e,t,x and p_e,r,x in Figure 10. As shown in Figure 8B, the ion energy flux in the x-direction p_i,r,x becomes greater with increasing the magnetic field, which is expected to enhance the thrust. The electron energy fluxes in the x-direction. P_e,t,x and p_e,r,x are 0–65 W/m² for the 20 and 100 mT cases as shown in Figure 10, indicating that the electron energy fluxes are an order of magnitude smaller than the ion energy flux. However, the electron energy flux is not negligible in the thrust generation and also increases the thruster efficiency. The non-negligible electron energy flux was implied in previous papers [52, 53], in which the plasma expansion in a convergent-divergent magnetic nozzle is analyzed computing self-consistently the velocity distribution function. While fully magnetized plasma is treated in [52, 53], the presence of the electron energy flux at the end of the magnetic nozzle is well consistent with the results in our study.

Figure 11 shows the x-y profiles of the excitation energy loss density p_ex and the ionization energy loss density p_iz for the three magnetic field strengths of 5, 20, and 100 mT. p_ex and p_iz have similar distributions for each magnetic field strength and are large at the upstream region of the magnetic nozzle, where the electron number density n_e is also large as shown in Figure 2.

FIGURE 11

FIGURE 11. x-y profiles of the excitation energy loss density p_ex for the three magnetic field strengths of (A) 5, (B) 20, and (C) 100 mT and the ionization energy loss density p_iz for the three magnetic field strengths of (D) 5, (E) 20, and (F) 100 mT. Solid black lines show magnetic field lines.

Figure 12 shows the energy losses in the magnetic nozzle RF plasma thruster for the three magnetic field strengths of 5, 20, and 100 mT. The definitions of energy losses are described in Table 1. P_o contains other energy losses and is defined by P_o = P_i,r,z + P_i,t,z + P_el. Its magnitude is less than 1 × 10⁻³ W, indicating that the elastic energy loss density and the ion rotation energy fluxes are negligibly small. Energy losses are calculated using Eqs. 3 and 4. Note that the input power from the RF antenna P_in is set to 3.5 W for all magnetic field strengths, and the total energy losses are also almost equal to 3.5 W, shown as a dashed black line in Figure 12.

FIGURE 12

FIGURE 12. Energy losses in the magnetic nozzle RF plasma thruster for the three magnetic field strengths of 5 (a left bar), 20 (a center bar), and 100 mT (a right bar). The definitions of energy losses are described in Table 1. P_o contains other energy losses and is defined by P_o = P_i,r,z + P_i,t,z + P_el. The input power P_in is set to 3.5 W for all magnetic field strengths; therefore, the total energy losses are also approximately 3.5 W, shown as a dashed black line.

P_ex and P_iz are the excitation and ionization energy losses, respectively. The sums of P_ex and P_iz account for 31.1%, 37.9%, and 36.6% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Therefore, P_ex and P_iz account for 30%–40% regardless of the magnetic field strength. Here, P_ex and P_iz are considered as the minimum loss power to maintain the plasma discharge. Thus, 30%–40% of the energy absorbed by the plasma is not utilized as the plasma beam with or without the magnetic nozzle. The remaining 60%–70% of the energy can be utilized as the energy of the plasma beam. Although P_ex and P_iz are considered unavoidable energy losses in plasma propulsion, the thruster efficiency of the magnetic nozzle RF plasma thruster can be increased to 60%–70% if the remaining energy is utilized efficiently.

P_i,w and P_e,w are the ion and electron energy losses from colliding with the lateral dielectric wall, respectively. The sums of P_i,w and P_e,w account for 61.5%, 14.6%, and 1.78% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Therefore, P_i,w and P_e,w are extremely reduced by increasing the magnetic field strength. This significant decrease is due to preventing the electron loss to the dielectric by the magnetic field. The sheath near the dielectric wall is also suppressed, and the ion energy loss is prevented. These results are qualitatively consistent with previous experimental results reported in Ref. [29], which shows that the energy loss to the dielectric wall changes from 55%–60% to 20%–30% with increasing the magnetic field strength from 0 to 300 G.

P_i,t,x and P_i,t,y are the ion energies in the x- and y-directions from colliding with the top boundary, respectively, which are extracted from the plasma source but diverged by the magnetic nozzle. P_i,t,x accounts for 0.6%, 1.3%, and 1.1% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Therefore, P_i,t,x is negligibly small and contributes less to the increase in the thrust regardless of the magnetic field strength. P_i,t,y accounts for 4.31%, 10.3%, and 10.0% for the magnetic field strengths of 5, 20, and 100 mT, respectively. P_i,t,y is the lowest at 0.1 kA, and it doubles at 20 and 100 mT by the magnetic nozzle. P_e,t,x, P_e,t,y, and P_e,t,z are electron energy losses in the x-, y-, and z-directions from colliding with the top boundary, respectively. The sum of P_e,t,x, P_e,t,y, and P_e,t,z is 0.13 W and relatively large for the magnetic field strength of 20 mT, while it is mostly vanished for the magnetic field strength of 100 mT.

P_i,r,x and P_i,r,y are the ion energy losses in the x- and y-directions from colliding with the right boundary, respectively. P_i,r,x accounts for 1.2%, 21.1%, and 39.1% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Therefore, P_i,r,x is dramatically increased by increasing the magnetic field strength, contributing to an increase in the thrust. P_i,r,y accounts for 0.1%, 1.0%, and 1.7% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Although P_i,r,y slightly increases with increasing magnetic field strength, its effect is relatively small in the energy losses. P_e,r,x, P_e,r,y, and P_e,r,z are electron energy losses in the x-, y-, and z-directions from colliding with the right boundary, respectively. While these electron energy losses are relatively small, P_e,r,x is also included in Eq. 6, somewhat contributing to the thrust generation.

The plasma powers contributing to the thrust P_th are 0.07, 0.97, and 1.59 W for the magnetic field strengths of 5, 20, and 100 mT, respectively, which are calculated from Eq. 6. Then, power ratios to the plasma power contributing to the thrust P_th are calculated and shown in Figure 13. The largest component of P_th is P_i,r,x, and the power ratios P_i,r,x/P_th are 54.3%, 77.0%, and 86.9% for the magnetic field strengths of 5, 20, and 100 mT, respectively. The power ratios P_i,t,x/P_th are 30.3%, 4.8%, and 2.4% for the magnetic field strengths of 5, 20, and 100 mT, respectively. The power ratios of the electron energies (P_e,r,x + P_e,t,x)/P_th are 15.5%, 18.2%, and 10.7% for the magnetic field strengths of 5, 20, and 100 mT, respectively. The electron energy somewhat contributes to the thrust, while it is converted to the ion energy in the sheath.

FIGURE 13

FIGURE 13. Power ratios to the plasma power contributing to the thrust P_th in the magnetic nozzle RF plasma thruster for the three magnetic field strengths of 5 (a left bar), 20 (a center bar), and 100 mT (a right bar). The definitions of energy losses are described in Table 1.

The thruster efficiencies η for the three magnetic field strengths are calculated from the energy losses in the magnetic nozzle RF plasma thruster using Eq. 7. It should be noted that normal unidirectional thrusters have a back plate, which is not considered in this study. The energy losses to the back plate are not included in Figure 12, indicating the thruster efficiencies of the bidirectional model. The thruster efficiencies are 2.1%, 27.4%, and 45.0% for the magnetic field strengths of 5, 20, and 100 mT, respectively. Therefore, the thruster efficiency in the magnetic nozzle is increased dramatically by increasing the magnetic field strength. The thruster efficiency of 2.1% for the magnetic field strength of 5 mT is consistent with experiments with a weak magnetic field as reported in Refs. [25] and [54 –58]. Then, the thruster efficiency of 27.4% for the magnetic field strength of 20 mT is roughly consistent with the recent experiment in Ref. [20], which is the maximum thruster efficiency measured to date. Although the thruster efficiency of 45.0% for the magnetic field strength of 100 mT is not realized in experiments, the fully kinetic simulation in this paper implies that the thruster efficiency of magnetic nozzle RF plasma thrusters could be made to achieve a thruster efficiency of 40%–50% by increasing the magnetic field strength. Continuous increases in the thrust have actually been observed when increasing the magnetic field up to a few kG [59], which is much higher than that used in the thrust assessment experiment. The assessment of the thruster efficiency remains a further experimental issue.

Here, the increase in the thruster efficiency with increasing the magnetic field strength is mainly due to the dramatic decrease of the ion and electron energy losses from colliding with the lateral dielectric wall, because the collisional energy losses and the divergent ion energy remain almost unchanged regardless of the magnetic field strength. The results are consistent with the previous assessment of the energy loss to the wall [29]. It is also expected that increasing the magnetic field strength and preventing energy loss from colliding with the dielectric wall improve the thruster efficiency in experiments. When energy loss from colliding with the lateral dielectric wall is completely prevented, suppressing divergent ions would further improve the thruster efficiency of the magnetic nozzle RF plasma thrusters.

Conclusion

Fully kinetic simulations are conducted to investigate the energy losses in the magnetic nozzle RF plasma thruster for further improvement of the thruster efficiency. It is shown that the main energy loss for a weak magnetic field strength is the ion and electron energies lost to the lateral dielectric wall, which account for 61.5% for the 5 mT case. However, they are dramatically reduced to 1.78% for the 100 mT case by increasing the magnetic field strength. The ion beam energy increases from 1.2% to 39.1% instead of the decrease of the energy loss on the wall, improving the thruster efficiency from 2.1% to 45.0%. The divergent ion energy and collisional energy losses are identified as approximately 4%–12% and 30%–40%, respectively, which are not utilized as the plasma beam. Suppressing the energy loss on the lateral dielectric wall is the key to the improvement of the thruster efficiency, and the performance of the magnetic nozzle RF plasma thrusters is expected to be further improved.
