BaF2 Ridge Waveguide Operating at Mid-Infrared Wavelength

We report on the fabrication of optical ridge waveguide in barium fluoride (BaF₂) crystal by 15 MeV C5⁺ ions irradiation with femtosecond laser ablation. The near-field modal profile and propagation loss of the waveguide at mid-infrared wavelength 4 µm are investigated by using end-face coupling system. We implement a series of annealing treatment and it efficiently reduces the propagation loss of the waveguide. The confocal Raman spectra demonstrate that the lattice structure of BaF₂ crystal does not change largely after C5⁺ ion irradiation.

Introduction

Mid-infrared (MIR) is usually defined as the electromagnetic wave with wavelength of 2.5–25 μm, which can not only be used for detection of molecular content and molecular type identification but also to achieve molecular imaging, so it has a wide range of applications in the fields of military, environmental monitoring, medical treatment, and basic research. BaF₂ is an alkaline earth fluoride crystal, belonging to cubic crystal system. BaF₂ crystal has the characteristics of good moisture resistance, high operating temperature, and wide light transmittance range that can reach more than 90% in the wavelength range of 0.2–10 μm [1, 2]. BaF₂ crystal is an ideal material for making various optical windows, prisms, lenses, and other optical components. It can be used for infrared power distribution cabinet windows, Fourier gas analysis windows, oil and gas detection, high power laser, optical instruments, etc. [3, 4].

Optical waveguide structure can limit beam transmission in a relatively small area to increase the optical density and enhance the optical phenomenon, which can be used as the basis of integrated optoelectronic devices [5–7]. According to the dimensions of the waveguide, it can be categorized as one-dimensional waveguide, two-dimensional waveguide, and three-dimensional waveguide [8, 9]. People have been exploring effective methods to prepare optical waveguides. The commonly used waveguide preparation methods include ion implantation/irradiation, ion exchange, and laser direct writing [10–17]. As two-dimensional optical waveguide has advantages of higher optical density and better connection efficiency than one-dimensional optical waveguide, it has attracted more and more attention. Up to now, two-dimensional ridge waveguides have been constructed by technique of ion irradiation combined with diamond blade dicing or femtosecond laser ablation [18–20].

In our work, we first time constructed ridge waveguide on BaF₂ crystal by using the method of ion irradiation with femtosecond laser ablation and investigated optical transmission characteristics of waveguides at mid-infrared 4 µm wavelength and the lattice damage of crystal after ion irradiation by using Raman spectrum.

Experiments

We prepared a BaF₂ crystal with size of 10 × 10 × 3 mm³ which was optically polished. We utilized a 3 MV tandem accelerator to irradiate C⁵⁺ ions onto the sample surface (10 × 10 mm²) at Helmholtz-Zentrum Dresden-Rossendorf, Germany. The irradiation energy was 15 MeV and the ion dose was 1.5 × 10¹⁵ ions/cm². In order to reduce the channel effect, an angle of 7° was maintained between the incident ion beam and the normal direction of the sample surface. In this way, a planar waveguide with depth of 11 µm was generated beneath the BaF₂ crystal surface.

Then, we used a Ti:sapphire laser system at the University of Salamanca, Spain, to generate a femtosecond laser (central wavelength of 800 nm, maximum pulse energy of 9 mJ, pulse width of 120 fs, and repetition rate of 1 kHz) to ablate grooves on the sample surface. The pulse energy of the laser was set to 2.1 μJ by using a half-wave plate, a linear polarizing plate, and a neutral density filter. The femtosecond laser was used to scan the sample surface at speed of 20 μm/s, and two parallel grooves were ablated with separation of 30 μm. With femtosecond laser ablation method, the minimum separation distance that can be achieved in ridge waveguide structure is 10 µm. Finally, a ridge waveguide with width of 30 μm and depth of 11 μm was prepared on BaF₂ crystal.

We utilized an end-face coupling system to investigate the guiding characteristics of the BaF₂ waveguide. We employed a laser source (MIR™ 8025, Daylight Solutions) to generate mid-infrared light at 4 μm wavelength. The light passed through a polarizer and it was coupled into and out of the waveguide by a pair of MIR objective lens (ZnSe, LFO-5-12-3.75, N.A. = 0.13). Finally, it was recorded by an MIR camera (Tigris-640, Xenics) to record the near-filed modal profile and an MIR power meter (PM125D, Thorlabs) to measure the output power of the waveguide. The propagation loss comes out of the defects and color centers in BaF₂ crystal by ion irradiation. As heat treatment can reduce the defects and color centers caused by ion irradiation and the propagation loss of waveguide, we implemented a series of thermal annealing treatments at 210, 240, 270, 300, and 330°C in sequence and calculated the propagation loss of the waveguide before and after each annealing.

In order to study the lattice structure damage to the BaF₂ crystal after C⁵⁺ ion irradiation, we used a confocal Raman spectrometer (Horiba/Jobin Yvon HR800) to measure the Raman spectrum of the waveguide and substrate region. We chose the Raman laser wavelength at 473 nm and set the wave number range 100–1,000 cm⁻¹.

Results and Discussion

We used SRIM-2010 software to simulate the energy deposition process of 15 MeV C⁵⁺ ion irradiation, as shown in Figure 1 [21]. As we can see, from the depth range of 0–10 μm, the electronic blocking energy S_e is obviously higher than nuclear blocking energy S_n, and S_e goes for a maximum of 1.6 keV/nm at depth of 7 μm. Meanwhile, within the depth range of 0–9 μm, the nuclear blocking energy S_n remains 0 and increases very slowly reaching the maximum of 0.1 keV/nm at depth of 10.8 μm. This result shows that compared with nuclear blocking ability, the electronic blocking energy plays a dominant role in the mechanism of waveguide formation.

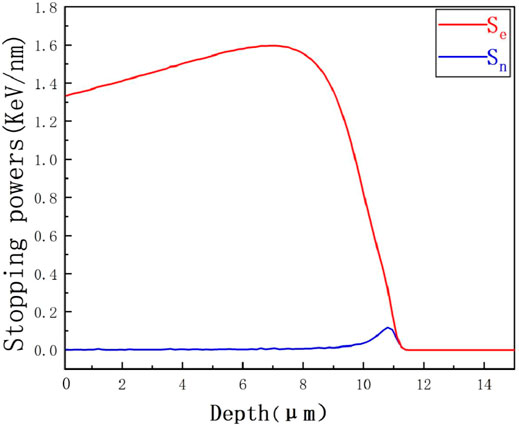

FIGURE 1

FIGURE 1. Electronic (red line) and nuclear (blue line) stopping powers as function of penetrate depth from the surface of the 15 MeV C⁵⁺ ion irradiated BaF₂ crystal.

Because the waveguide fabricated by C⁵⁺ ion irradiation has high irradiation energy and deep buried layer, the refractive index distribution cannot be measured by dark mode spectroscopy directly. To obtain the refractive index profile of the waveguide at 4 µm wavelength, we measured the maximum refractive variation Δn by using the formula [22],

$\Delta n=\frac{{\sin }^2{\mathit{\Theta }}_m}{2n},(1)$

where n = 1.4568 is the refractive index of BaF₂ crystal at 4 µm wavelength; ${\mathit{\Theta }}_m$ is the maximum deflection angle when the transmitted power is unchanged. Due to the uncertainty of the measured maximum incident angle deflection, the estimated error is 30%. Based on the measured ${\mathit{\Theta }}_m$ = 9.3° (TE) and ${\Theta }_m$ = 8.2° (TM), we obtain Δn = +0.009 (TE) and Δn = +0.007 (TM), which indicates that the waveguide’s confining light ability at TE mode is stronger than that on TM mode. By combing the simulated S_e profile and Δn, we reconstructed the refractive index profile at 4 µm along TE and TM polarizations, as shown in Figure 2.

FIGURE 2

FIGURE 2. Refractive index profile on TE (red line) and TM (blue line) modes at 4 μm wavelength of the 15 MeV C⁵⁺ ion irradiated BaF₂ crystal.

Figures 3A–C depict the measured near-field modal profile of the ridge waveguide at 4 µm wavelength along TE and TM polarizations, respectively. As we can see, the near-field modal profiles exhibit single-mode guidance on TE mode and multi-mode guidance on TM mode. It shows that the guiding characteristic at 4 µm wavelength on TE mode is superior compared to TM mode, which conforms to the measured Δn (TE) > Δn (TM). According to the reconstructed refractive index profile of the waveguide at 4 μm, we simulated the near-field modal profile of the waveguide using Rsoft software through finite difference beam propagation method (FD-BPM) on TE and TM modes, respectively, as shown in Figures 3B–D, which is in good agreement with the experimental results [23].

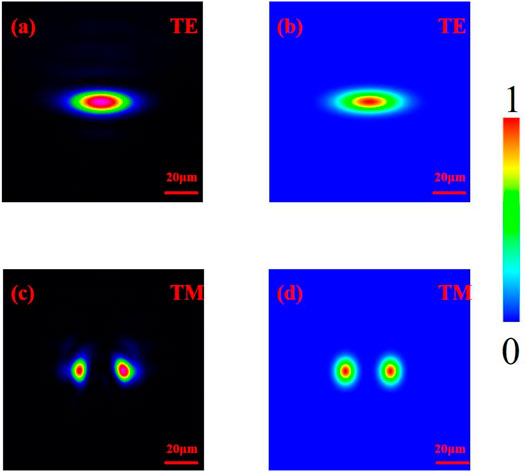

FIGURE 3

FIGURE 3. Measured near-field modal profiles (A) (C) and simulated modal profiles by using FD-BMP code (B) (D) of the ridge waveguide at 4 μm wavelength.

Figure 4 depicts the measured propagation losses of the ridge waveguide at 4 µm wavelength on TE and TM modes before and after each annealing treatment. As we can see, for TE mode, the propagation loss is 5.1 dB/cm before annealing. After 5 steps of annealing, the propagation loss decreases to 4.0 dB/cm (step 1, 210°C), 2.6 dB/cm (step 2, 240°C), 1.1 dB/cm (step 3, 270°C), 0.5 dB/cm (step 4, 300°C), and 0.5 dB/cm (step 5, 330°C). For TM mode, the propagation loss is 6.0 dB/cm before annealing. After 5 steps of annealing, the propagation loss decreases to 4.7 dB/cm (step 1, 210°C), 3.2 dB/cm (step 2, 240°C), 2.1 dB/cm (step 3, 270°C), 0.9 dB/cm (step 4, 300°C), and 0.9 dB/cm (step 5, 330°C). We can conclude that a series of annealing treatment (step 1–4, 210–330°C) can eliminate the color center and point defect of the waveguide region which can decrease the propagation loss of the waveguide. After step 5 annealing, the propagation loss of the waveguide remains unchanged and it shows the temperature range of 330–360°C is the thermal stability region of the waveguide. We can find that under the same annealing condition, the propagation loss of the waveguide at TE mode is lower than that at TM mode.

FIGURE 4

FIGURE 4. Propagation losses of BaF₂ ridge waveguide at 4 μm wavelength on TE (blue line) and TM (red line) modes before and after each annealing step (1–5).

Figure 5 depicts the Raman spectrum of the waveguide and substrate of BaF₂ crystal. As we can see, the Raman spectrum of the waveguide coincides with that of the substrate very well. It indicates that ion irradiation does not significantly damage the lattice of the crystal.

FIGURE 5

FIGURE 5. Raman spectra of 15 MeV C⁵⁺ ion irradiated BaF₂ crystal in the waveguide region (blue line) and substrate region (red line).

Conclusion

We used technique of 15 MeV C⁵⁺ ions irradiation with femtosecond laser ablation to construct a ridge waveguide in BaF₂ crystal and investigated the guiding properties at 4 µm wavelength. We simulated the energy deposition process of ion irradiation and reconstructed the refractive index profile of the waveguide. By using end-face coupling arrangement, we measured the near-field modal profile showing single-mode at TE and multi-mode at TM. After a series of annealing treatment, the propagation loss of the waveguide is reduced as low as 0.5 dB/cm on TE mode and 0.9 dB/cm on TM mode. The Raman spectrum shows that ion irradiation process does not damage the lattice of the crystal. Our work suggests an effective method to fabricate low-loss ridge waveguide structure in BaF₂ crystal, which shows a prospective application in MIR integrated optical chips. In the further work, we consider to construct waveguides with more complex geometries.
