The Transition From MoS2 Single-Layer to Bilayer Growth on the Au(111) Surface

The transition from single-layer to bilayer growth of molybdenum disulfide on the Au(111) surface is investigated by in situ low-energy electron and photoemission microscopy. By mapping the film morphology with nanometer resolution, we show that a MoS₂ bilayer forms at the boundaries of single-layer single-domain MoS₂ islands and next to merging islands whereas bilayer nucleation at the island centers is found to be suppressed, which may be related to the usage of dimethyl disulfide as sulfur precursor in the growth process. This approach, which may open up the possibility of growing continuous films over large areas while delaying bilayer formation, is likely transferable to other transition metal dichalcogenide model systems.

1. Introduction

The interest in two-dimensional (2D) materials has been strongly increasing since the seminal discovery of the peculiar electronic properties of graphene in 2004 [1], including Dirac-like dispersion of the electronic bandstructure near the Fermi level [2, 3]. However, in view of applications, as a semi-metal, graphene is not a suitable candidate for electronic devices, such as transistors or optoelectronics [1], because for these applications a sizeable, direct bandgap is necessary. Yet, a promising group of van-der-Waals materials, the transition metal dichalcogenides (TMDs) [4], was identified that can also be thinned down to a 2D material to fill this need. A typical representative of these TMDs is molybdenum disulfide (MoS₂), which may be regarded as a model system to unravel their materials properties. Indeed, a direct bandgap was demonstrated for single-layer MoS₂ in first photoluminescence studies [5, 6]. Subsequently, first proof-of-principle experiments targeting the realization of electronic devices with single-layer MoS₂, such as transistors [7] and photodetectors [8] were reported. Interestingly, although exhibiting an indirect bandgap, also bilayer MoS₂ showed promising electronic applications, e.g., as active channel material in field-effect transistors [9] as well as in novel electronic devices featuring a dynamically tuneable bandgap [10]. Furthermore, even 2D heterostructures combining graphene and MoS₂ could be synthesized, with demonstrated superior performance in optoelectronic devices, such as phototransistors [11], clearly underlining the potential of TMDs for applications.

For the utilization of 2D transition metal dichalcogenides in applications, a scaleable epitaxial growth process is highly desirable. Recent successes in the chemical vapor deposition of MoS₂ layers [12, 13] notwithstanding, one of the key prerequisites to optimizing the growth parameters and conditions is a deeper understanding of the underlying mechanisms governing the formation of single and double layers. Here, we focus on the well-studied model system MoS₂ on Au(111) to gain deeper insights into the epitaxial growth behavior of TMDs and the respective structural transition between single and bilayer coverages. Using a methodology that makes use of several layer-dependent materials properties, e.g., the electron reflectivity for slow electrons and the characteristic electronic bandstructure, we perform a spatially resolved characterization of the synthesized MoS₂ film and are able to map the single-layer and bilayer distribution of MoS₂ with few-nm resolution and reveal key factors determining their formation.

2. Materials and Methods

The growth and characterization experiments presented here were performed under ultra-high vacuum (UHV) conditions with a base pressure of 1 × 10⁻¹⁰ torr in an ELMITEC low-energy electron microscopy (LEEM) III at the University of Bremen, Germany, and an ELMITEC SPE-LEEM installed at the Nanospectroscopy beamline at the Elettra Sincrotrone laboratory, Trieste, Italy. Further measurements were performed ex situ at the VUV-Photoemission beamline, also at Elettra.

The in situ characterization of the MoS₂ growth relies on the real-space and reciprocal-space imaging capabilities of the LEEM system. In real-space imaging mode a spatial resolution of <10 nm is achieved under optimized conditions. Generally, the LEEM operates as a full-field microscope, enabling efficient monitoring of the sample surface at video-frame rates. As the LEEM is set up to image the surface employing a range of electron kinetic energies, the local energy-dependent electron reflectivity, the so-called I(V) curve, can be determined from a sequence of real-space images, facilitating the investigation of the local structure. Here, we extract the local I(V) curve in a typical energy range from 2 to 40 eV, in which the influence of the material specific bandstructure, i.e., the dispersion of the unoccupied electronic states of the sample, is most prominent. This reflectivity curve can be calculated using ab initio scattering theory; in practice, it can be used as a fingerprint to identify the related material locally [14].

As the LEEM is a diffraction-based microscope, switching between real-space and reciprocal-space imaging is readily possible by adjusting the excitations of the electromagnetic lenses in the imaging column of the instrument. This allows for low-energy electron diffraction (LEED) measurements of the illuminated area on the sample surface, which can be spatially limited down to 250 nm (in the Bremen LEEM) or 500 nm (in the SPE-LEEM at Elettra) in diameter using suitable illumination apertures. By positioning an aperture in the backfocal plane of the objective lens, a single diffracted beam can be selected for real-space imaging. Employing the specular (00) beam allows for bright-field imaging, while any other diffracted beam enables a so-called dark-field measurement. Dark-field imaging reveals the sample area contributing to the selected beam, which in our present case allows to differentiate between the two existing mirror domains of MoS₂ on Au(111) [15, 16].

The spectroscopic photoemission and low-energy electron microscope (SPE-LEEM) at the Nanospectroscopy beamline of the Elettra synchrotron laboratory uses monochromatized soft x-rays in the range of 25–1,000 eV with a hemispherical bandpass energy filter, which is normally operated at a pass energy of 908 eV and an energy resolution of down to 0.2 eV in suitable conditions [17]. The monochromatized synchrotron radiation illuminates the sample and excites photoelectrons of the sample, thereby making it possible to access the bandstructure of the occupied states via local angle-resolved photo electron spectroscopy (ARPES) measurements. In accordance with the literature, in the present work a photon energy of 49 eV has been selected to maximize the intensity of the top-most valence band of MoS₂ [18]. Furthermore, in our microspot-ARPES experiments, the contributing surface region of the sample has been limited with a selected-area aperture down to about 2 μm in diameter. Further information on (SPE-)LEEM methodology can be found elsewhere [19–21].

In addition to selected-area ARPES, we also present high-resolution ARPES data, which were recorded ex situ at the VUV beamline [22] at Elettra at 49 eV photon energy at about 50 K, using a Scienta R4000 electron energy analyzer with an angular acceptance angle of 30° and an energy resolution of 20 meV.

In the experiments, a Au(111) single crystal was employed as substrate, which was cleaned by several cycles consisting of first Ar⁺ sputtering at 0.5 kV for 1 h followed by thermal annealing at 700°C for 30 min. In a final step before starting the growth procedure, the sample was heated to 950°C and annealed for 5 min to ensure a well-defined herringbone reconstruction, which is typical for the clean, well-ordered Au(111) surface [23].

The MoS₂ growth was performed at a sample temperature of 720°C by dosing dimethyldisulfide (DMDS, purity ≥99.0%), a vapor sulfur source suitable for MoS₂ growth [24], via chamber backfilling at 1 × 10⁻⁶ torr. To ensure full sulfidization during the MoS₂ growth process the sample was exposed to DMDS for 10 min before evaporating the Mo from a Mo metal rod (purity ≥99.95%) using e-beam bombardment. After the deposition, a growth rate of 0.2 ML/h was determined from the overall coverage of MoS₂ islands on the Au(111) surface as revealed by large-scale LEEM investigations in relation to the total evaporation time. A detailed report on the growth methodology is published elsewhere [15].

3. Results and Discussion

In our approach to study the model system MoS₂ on Au(111) we have applied a previously established growth method [15] to achieve MoS₂ islands of mostly one of the two rotational domains close to full coverage. The whole growth process was monitored in situ by LEEM. A time-lapse sequence is shown in Figure 1, in which Figures 1A–C capture the growth process at three intermediate stages and (D) shows the final state of the sample surface. Figures 1A–C focuses on the same region of the sample at a coverage of (A) 0.1 ML, (B) 0.4 ML, and (C) 0.7 ML. These LEEM images are taken with a kinetic electron energy of 16 eV, at which the Au sample surface appears bright and the MoS₂ islands dark. Additionally, one can spot fine dark lines representing the Au step edges and step bunches as well as tiny dark dots that belong to pinning centers of the Au(111) surface. Moreover, one can readily discern the triangular shape of the growing MoS₂ islands during the growth process. The final coverage is shown in Figure 1D for 0.9 ML at a kinetic electron energy of 5.2 eV. At this energy the contrast is inverted; the MoS₂ islands appear bright and the Au(111) surface appears dark. Although the MoS₂ islands seem to have expanded with no clear shape at first glance, the in situ observations document an island expansion process that proceeds until morphological boundaries limit the island growth, and secondary nucleation of single-layer islands occurs between existing islands once the expansion is limited [15]. The evaporation of Mo and the supply of DMDS was stopped when no further island expansion was observed.

FIGURE 1

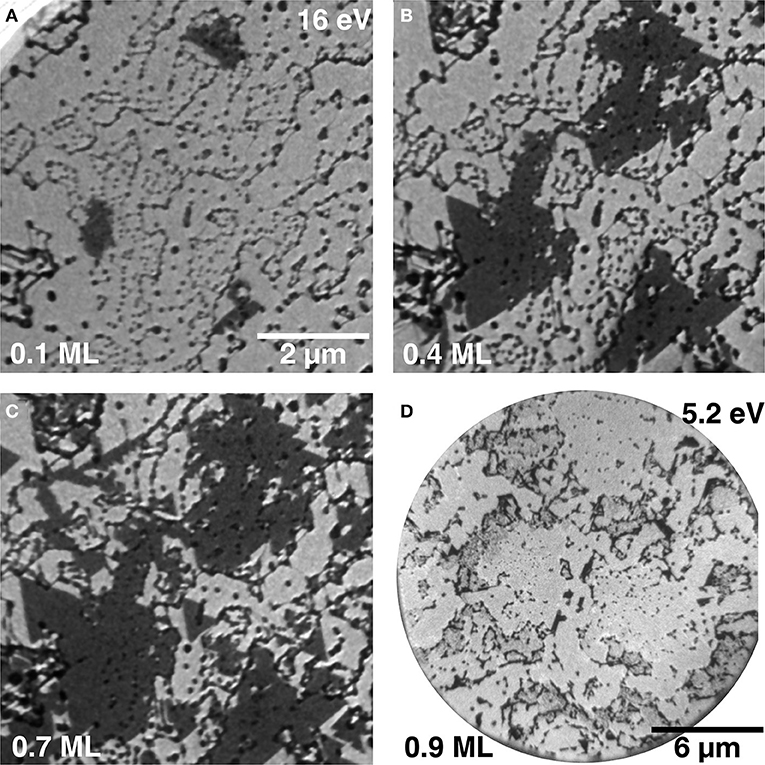

Figure 1. Low-energy electron microscopy (LEEM) time-lapse sequence of the MoS₂ growth process recorded at 16 eV kinetic energy with the Au surface appearing bright and the MoS₂ islands appearing dark for coverages of (A) 0.1 ML, (B) 0.4 ML, and (C) 0.7 ML. An overview LEEM image of the final coverage of 0.9 ML taken at 5.2 eV is shown in (D), where the MoS₂ appears bright and the Au substrate appears dark.

A micro-LEED measurement of a single MoS₂ island provides a clear diffraction pattern with the 3-fold symmetry and moiré spots around specular and integer spots as shown in Figure 2A. This indicates a high level of crystalline ordering and structural quality within the MoS₂ island. The 3-fold symmetric pattern is typical for single-domain MoS₂ on Au(111) [25]. Furthermore, this 3-fold symmetry allows mirror domains of single-layer MoS₂ on Au(111) to be identified in dark-field (DF) LEEM by their integer beam intensity [15], similarly to the case of WS₂ on Au(111) [16]. Accordingly, their spatial distribution can be visualized by DF-LEEM performed at distinct electron energies (here, 31 and 41 eV) as demonstrated in Figures 2C,D. The extracted (10) beam profiles (see Figure 2B) belong to the two mirror domains (cf. Figures 2C,D red and black arrows). Using this information, we could determine a distribution of about 90:10 between the two domains of MoS₂ on Au(111). A high-resolution investigation of the electronic bandstructure of the 0.9 ML sample presented in Figure 1D was performed at the VUV-Photoemission beamline at Elettra. In the measurement, the sampling area amounted to about 0.3 mm in diameter. The valence band dispersion along the $\stackrel{-}{\Gamma }-\stackrel{-}{K}$ direction of the MoS₂ surface Brillouin zone is displayed in Figure 3A. The presented ARPES data not only shows the electronic bandstructure of the MoS₂ layer, but is also affected by the underlying gold substrate as already discussed by Miwa et al. [26]. Furthermore, comparing our ARPES data of MoS₂ on Au(111) to exfoliated MoS₂ on SiO₂ we do not find any evidence for a valence band compression, indicative of negligible interaction with the substrate [27]. More specifically, two band maxima are found, a higher one at the $\stackrel{-}{\Gamma }$ point and a lower one at the $\stackrel{-}{K}$ point, exhibiting a relative energy difference of 0.35 eV. Additionally, at the $\stackrel{-}{K}$ point a spin splitting of 0.14 eV as well as the gold surface states are observed, in good agreement with previous studies [26]. Taken together, these findings represent the typical tell-tale signs of the electronic bandstructure of 2H-stacked MoS₂ bilayers [28], which raises the question where these bilayer regions may be found on the sample surface.

FIGURE 2

Figure 2. Dark-field low-energy electron microscopy (DF-LEEM) measurement using the (10) beam of the MoS₂ LEED pattern, as seen in (A) at 39 eV. The integer beam intensity of each domain is shown in (B). At the two indicated energies only one of the domains significantly contributes to the beam intensity and thus appears bright: (C) majority domain (red line and arrow) and (D) minority domain (dark line and arrow). No traces of the BL-MoS₂ (cf. Figure 5) are visible in the dark appearing domain.

FIGURE 3

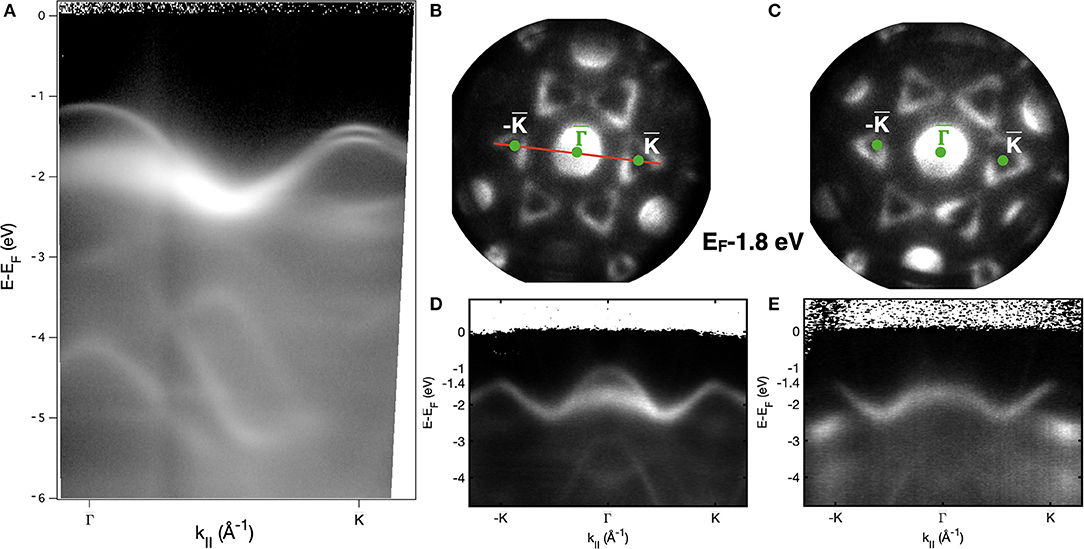

Figure 3. (A) A more detailed measurement of bilayer MoS₂ along the $\stackrel{-}{\Gamma }-\stackrel{-}{K}$ direction shows the band splitting of 0.14 eV at the $\stackrel{-}{K}$ point; the gap between the band maxima at $\stackrel{-}{\Gamma }$ and $\stackrel{-}{K}$ is 0.35 eV, which is not observed for single-layer MoS₂. (B,C) Two-dimensional photoelectron angular distribution patterns of the two MoS₂ mirror domains at 1.8 eV below the Fermi level from selected-area ARPES measurements. Both the minority domain (see B) and the majority domain (see C) exhibit a 3-fold symmetry of the first order $\stackrel{-}{\Gamma }$ points in a mirror configuration. The ARPES data along the $-\stackrel{-}{K}-\stackrel{-}{\Gamma }-\stackrel{-}{K}$ direction (exemplarily indicated by the red line in B) exhibits the typical bandstructures for (D) bilayer MoS₂ (recorded at RT), with an additional band at the $\stackrel{-}{\Gamma }$ point for the bilayer, and (E) for single-layer MoS₂ (recorded at 720°C).

Since the employed growth method provides relatively large MoS₂ islands of few micrometer size, these may be suitable for assessing the electronic structure of the single-layer and bilayer MoS₂ regions separately in selected-area ARPES measurements, possibly also allowing insights into the yet unknown spatial distribution of the bilayer areas. The respective data taken from two distinct sample regions, each about 2 μm in diameter, are presented in Figures 3B–E.

From both regions, local 2D photoelectron angular distribution patterns were acquired at several electron kinetic energies near the Fermi level to scan the three-dimensional (3D) energy-momentum electronic bandstructure. As one can see from the selected-area ARPES data reproduced in Figures 3B,C, both regions exhibit a 3-fold symmetric intensity distribution of the first order $\stackrel{-}{\Gamma }$ points. However, this 3-fold distribution is rotated by 60° between the two regions and accordingly reflects the different orientation of the unit cells. Therefore, these sample regions represent the two mirror domains. From the 3D datasets we derived the band dispersion along the $-\stackrel{-}{K}-\stackrel{-}{\Gamma }-\stackrel{-}{K}$ direction. Both domains exhibit single- and bilayer features (not shown). The latter are found to be more strongly pronounced in a local measurement of a third area that included a high density of island boundaries as shown in Figure 3D. In this case, the bandstructure exhibits a band maximum at $\stackrel{-}{\Gamma }$ point that is 0.35 eV higher than the maximum at the $\stackrel{-}{K}$ point. This is characteristic for bilayer MoS₂ and in very good agreement with a previous study by Grønborg et al. [28]. Unfortunately, a single island that was large enough for the sampling area not to include any island boundaries was not found on this sample.

To prove the single-layer character of the islands at an intermediate stage of the growth process, a reference sample was produced following an identical preparation procedure as before. Yet, this time the growth was stopped when the MoS₂ islands had reached 1.5–2 μm in size and were perfectly suited for acquiring a single-island single-domain bandstructure. Figure 3E displays the respective dispersion along the $-\stackrel{-}{K}-\stackrel{-}{\Gamma }-\stackrel{-}{K}$ direction that has been recorded at the growth temperature, which therefore features substantial thermal broadening. Nevertheless, the maximum at the $\stackrel{-}{K}$ point is about 0.3 eV higher than the local maximum at $\stackrel{-}{\Gamma }$ when comparing the intensity centers, in acceptable agreement with previous findings for single-layer MoS₂. This result clearly demonstrates that huge single-domain single-layer MoS₂ islands even with a high local coverage can be achieved, hinting toward a growth scenario in which the limitation in island expansion leads to bilayer formation at the island boundaries. This hypothesis can be investigated in the same instrument by performing x-ray photoemission electron microscopy (XPEEM), i.e., by spectroscopic imaging of the spatial distribution of the elements.

X-ray photoemission electron microscopy images highlighting the elemental gold and sulfur distributions of the same sample area are represented in Figures 4A,B, respectively. In both images, three major intensity levels (dark, gray, and bright) are readily discernible, each corresponding to a low, intermediate, and high local elemental concentration. In Figure 4B, exemplary regions of intermediate and high sulfur concentrations are marked by red and green arrows, respectively.

FIGURE 4

Figure 4. X-ray photoemission electron microscopy (XPEEM) data recorded using Au4f_7/2 (A) and S2p_3/2 (B) core-level photoelectrons (photon energy hν ≈ 250 eV). In (B), an exemplary region of intermediate (high) sulfur concentration is marked by a green (red) arrow, respectively. For comparison, the same regions are also marked in the inset of Figure 5.

Comparing Figures 4A,B reveals that the same structural features are visible in both XPEEM images; however, the contrast is found to be reversed. This is readily explained by the attenuation of the Au4f photoelectron intensity caused by the presence of MoS₂ due to inelastic scattering. As the loss of primary photoelectron intensity is proportional to the local amount of MoS₂ on-top, the distinct gray levels are thus representing different local film thicknesses. Accordingly, the highest Au4f intensity corresponds to still uncovered sample areas, the next-highest to 1 ML MoS₂ islands (gray contrast), and the lowest intensity to 2 ML patches. Likewise, the patches with the highest Au intensity have the least, albeit non-vanishing S2p intensity, consistent with sulfur atoms chemisorbed to the gold substrate in the MoS₂-free regions. The gray areas in the Au4f XPEEM image comprise the largest fraction of the surface and correspond to the intermediate S intensity, marking the single-layer MoS₂ islands. Consequently, the thin lines and patches that show up dark (bright) in the Au4f (S2p) image are consistently interpreted as bilayer MoS₂ regions, which appear to decorate the single-layer island boundaries. Hence, the XPEEM data strongly suggest the coexistence of single-layer and bilayer MoS₂ islands on a length scale that prevents a clear separation in selected-area ARPES. This interpretation is validated using IV-LEEM, a technique that is able to quantify the local film thickness in terms of S-Mo-S monolayers.

The conditions leading to bilayer growth can further be elucidated when the local MoS₂ morphology is probed at a higher spatial resolution. The inset in Figure 5 shows the nearly closed monolayer of MoS₂ on Au(111) as observed in the LEEM. The presented measurement of the electron reflectivity by I(V)-LEEM of the differently covered regions reveal the corresponding reflectivity curves that can be used as identifying fingerprints for each region and to quantitatively determine the local number of MoS₂ layers, in analogy to graphene [30]. Specifically, in the energy range from about 3 to about 9 eV, the curve of the single-layer MoS₂ shows one characteristic dip at 7.6 eV (cf. green solid line) whereas the bilayer exhibits two characteristic dips at 5.2 and 7.8 eV (cf. red solid line). These reflectivity curves are in good agreement with measurements of exfoliated MoS₂ on hBN by de Jong et al. [29] and in excellent agreement with the calculated reflectivity profiles from ab initio scattering theory (cf. dashed lines in Figure 5) as reported by the same authors, clearly justifying the assigned numbers of local MoS₂ layers. However, we note that these two transmission resonances in the I(V) curve are of entirely different origin: Since the dip at 7.6 eV is perfectly reproduced by the ab initio calculation assuming a completely free-standing single layer of MoS₂ without a substrate, this particular resonance is most probably intrinsically related to the internal three-layer structure of the S-Mo-S trilayer. This is different from the situation in free-standing single-layer graphene, where no transmission resonance is found [31]. Yet, adding a second MoS₂ layer gives rise to the evolution of a Fabry-Pérot-like interference minimum, which accordingly is found at 5.2 eV.

FIGURE 5

Figure 5. I(V)-LEEM dataset of two MoS₂ regions in the corresponding LEEM image (see inset). The gray region (green arrow and line) is identified as single-layer MoS₂ and the white region (red arrow and line) as bilayer MoS₂ (shifted by +0.5, for clarity). The calculated reflectivity curves of single and bilayer MoS₂ as reported by de Jong et al. [29] are plotted in dashed lines and prove the assignment.

In total, on the sample surface, three types of regions are found, each identified by their unique reflectivity curves. At the displayed energy of 7.6 eV (cf. inset of Figure 5), the MoS₂-free Au sample surface appears dark, the micron-sized MoS₂ single-layer single-domain regions gray (cf. green arrow) and the bilayer regions bright (cf. red arrow). Interestingly, this last region is indeed located at the boundaries of the single-layer islands, in excellent agreement with the XPEEM results and also in accordance with our structural ARPES interpretation.

It may, perhaps, be astonishing that we did not observe any indication for bilayer growth in DF-LEEM (Figure 2). Similar to the differences found in the (10) and (01) beam intensities between the mirror domains in DF-LEEM, the 2H-stacked MoS₂ bilayer should also exhibit a decisive difference in the integer beam reflectivity compared to the underlying single-layer. This intensity difference can qualitatively be understood by realizing that in the 2H-stacked bilayer the top layer unit mesh is rotated by 60° with respect to the first layer unit mesh, inducing differences in the local structure factor leading to changes in q_∥-dependent I(V) measurements, with the bottom layer unit mesh being identical to the one of the whole majority-domain single-layer MoS₂ island. In fact, a similar observation for single-layer and bilayer MoS₂ has been reported by de Jong et al. [29] for exfoliated MoS₂ deposited on hexagonal boron nitride. As the key differences in the (10) and (01) I(V) curves in this energy range from 25 to 90 eV (in which the surface sensitivity is the highest) mostly originate from the rotation of the MoS₂ unit cell, in DF-LEEM, this reasoning would also lead to a very similar appearance of a single-layer domain and a mirror-symmetrical 2H-stacked bilayer domain. The fact that we did not observe any contrast between the single-layer and bilayer regions (cf. Figures 2C,D) may thus indicate non-ideal imaging conditions or insufficient statistics in the DF-LEEM measurement. Yet another possible explanation would be a scenario in which the bilayer forms underneath the single-layer island as this would lead to a non-rotated diffraction pattern for the bilayer area and thereby negligible DF-LEEM contrast within a single MoS₂ domain.

The differentiation between single- and bilayer areas owing to the high spatial resolution offered by I(V)-LEEM allows conclusions to be drawn with respect to the bilayer nucleation site as well as some of the key factors influencing bilayer growth at these conditions. From Figure 5, it can clearly be concluded that the bilayer has grown only in areas of merging single-layer islands or at island boundaries themselves, but not in the island centers. Additional I(V)-LEEM observations on a step-rich Au(111) surface (not shown) further point toward bilayer formation at the island boundaries of micrometer-sized single-domain MoS₂ islands already at a lower coverage (i.e. 0.3 ML), when the island expansion process is limited by Au step bunches.

We compare our results for this model system of MoS₂ on Au(111) to an epitaxial growth study reported by Grønborg et al., who were also able to identify bilayer islands [28]. For clarity, we, here, repeat the most important findings: Employing a growth method based on cycled nanocluster growth at a temperature of 850 K with H₂S as sulfur precursor, they report a merging of the single-layer islands at about 0.6 ML leading to domain boundaries between nanoclusters within an island. The bilayer itself, which forms at coverages close to a monolayer, has been identified as 2H-stacked MoS₂, and the respective island shape is described as not as clear as observed for the single-layer MoS₂ at similar coverages. Furthermore, the irregular contours have been linked to the growth of the second layer owing to the weak van-der-Waals interaction between the MoS₂ layers, which is assumed to cause the occurrence of many rotational domains and which, accordingly, might explain the unclear shape. Yet, a tendency of bilayer nucleation at island or domain boundaries has not been reported.

Although the experimental conditions of Grønborg et al. [28] differ from ours, MoS₂ bilayers are found in both studies. But, whereas Grønborg et al. identified the overall coverage as the key factor, we find that it is indeed the local coverage on the micrometer scale that tips the balance toward bilayer nucleation. Moreover, another factor is the limitation of the single-layer island expansion that seems to force the bilayer formation upon continued growth. This limitation may be imposed by the proximity of other MoS₂ islands or the substrate morphology itself. Apart from other potential kinetic factors (e.g., related to the deposition rate), only under these circumstances is the MoS₂ likely to grow the second layer rather than expanding the first. Moreover, the specific choice of sulfur agent (e.g., H₂S or DMDS) does also impact the bilayer formation process: Whereas the H₂S-supported growth has been reported to form bilayer clusters in the island centers [28], this is not the case when DMDS is used even though both agents were found to form MoS₂ at similar quality [24]. Our finding that DMDS-supported MoS₂ growth only forms bilayer close to the island boundaries suggests that in the present case the bilayer growth is limited by the DMDS dissociation occurring on the Au(111) surface only. However, when using H₂S as precursor, S is continuously provided since the H₂S may also dissociate on the MoS₂ islands, thus facilitating local bilayer growth. Summarizing this discussion, our results establish two key factors that are responsible for bilayer formation, i.e., (i) a limitation in the island expansion imposed by near-by islands or surface obstacles (e.g., step bunches) and (ii) the local availability of sulfur following dissociation of the S-containing precursor molecules.

4. Conclusions

The epitaxial growth of MoS₂ by reactive molecular beam epitaxy was studied on the Au(111) single crystal surface using in situ and ex situ experimental methods including low-energy electron and spectroscopic photoemission microscopy.

The coexistence of single- and bilayer MoS₂ was successfully identified by micro-ARPES and XPEEM as well as I(V)-LEEM measurements, the last being able to provide nanometer-scale information on the film morphology and thickness. We located the formation of MoS₂ bilayer patches at the boundaries of MoS₂ single-layer islands whereas the island center remain bilayer-free for our preparation conditions, specifically using DMDS as sulfur precursor. Together with our in situ LEEM observations during growth, these findings suggest that the key factors for bilayer formation are related to the substrate and film morphology during growth that may limit the MoS₂ island expansion, e.g., by Au step bunches or merging with adjacent MoS₂ islands. Our observation that bilayer nucleation does not occur at the island centers is likely related to the usage of DMDS instead of H₂S as sulfur source, for which bilayer patches have previously been found far away from the single-layer island edges. This interpretation may be clarified in future detailed study of DMDS chemistry on MoS₂ single-layer islands including mapping of the sulfur distribution. These issues notwithstanding, we conclude that using a sulfur agent which does only supply sulfur to the substrate may be key to pure single-layer MoS₂ on the Au(111) surface. This key ingredient of our growth recipe, as well as these considerations, may well be transferable to the growth of related transition-metal dichalcogenides (e.g., WS₂) on Au(111) or other transition metal surfaces.
