Automatically Controlled Frequency-Tunable rf Plasma Thruster: Ion Beam and Thrust Measurements

Takahashi, Kazunori; Imai, Ryoji; Hanaoka, Kengo

doi:10.3389/fphy.2021.639010

ORIGINAL RESEARCH article

Front. Phys., 31 March 2021

Sec. Low-Temperature Plasma Physics

Volume 9 - 2021 | https://doi.org/10.3389/fphy.2021.639010

This article is part of the Research Topic Ion Beams from Plasmas: Space to Nanotechnology View all 4 articles

Automatically Controlled Frequency-Tunable rf Plasma Thruster: Ion Beam and Thrust Measurements

$\nKazunori Takahashi$ Kazunori Takahashi^*

Ryoji Imai

Kengo Hanaoka

Department of Electrical Engineering, Tohoku University, Sendai, Japan

A fast and automatically controlled frequency-tunable radiofrequency (rf) system is installed in an rf plasma thruster consisting of a stepped-diameter insulator source tube wound by a single-turn loop antenna and a solenoid providing a magnetic nozzle, and immersed in vacuum. The frequency and the output power are controlled so as to minimize the reflection coefficient and to maintain the net power corresponding to the forward minus reflected powers at a constant level. The reproducibility of the impedance matching and the stability of the net rf power are assessed, showing the fast impedance matching within about 10 msec and the long and stable delivery of the rf power to the thruster. When increasing the rf power up to 500 W, discontinuous changes in the source plasma density, the imparted thrust, and the signal intensity of the ion beam downstream of the thruster are observed, indicating effects of the discharge mode on the thruster performance and the ion energy distribution.

Introduction

Spontaneous accelerations of charged particles can be frequently observed in space, astrophysical, and laboratory plasmas [1, 2]. Especially, unmagnetized ions having a mass much heavier than the electrons are significantly affected by electric fields rather than magnetic fields; hence the potential structure plays an important role in the ion acceleration processes in weakly magnetized plasmas [3–5]. When a plasma density decays due to a volume expansion, an axial electric field accelerating the ions and confining the electrons develops in the plasmas. Charles and Boswell have discovered a formation of a current-free electric double layer, which has a potential drop over a narrow region of about a few tens of Debye length, in the magnetically expanding radiofrequency (rf) plasmas [6]. A number of subsequent experiments have also shown the similar structure or a broader (but still narrower than the scale of the magnetic field gradient) potential drop over about 10 cm in the expanding magnetic fields [7–16]. Measurements of ion energy distributions by using a retarding field energy analyzer and a laser-induced fluorescence method have shown a generation of a supersonic ion beam at the low-potential side, where the number of the beam ions decays along the axis due to a charge exchange process [7]. The magnetic field configuration and strength are key parameters in the spontaneous ion acceleration phenomenon as demonstrated before [17, 18], where the ion beam is generated when the Larmor radius of the ions becomes smaller than the source radius [19].

Measurement of an electron energy probability function (eepf) in the magnetically expanding rf plasma has identified the presence of the two species of electrons: trapped and free electrons, where the high energy (but low temperature population) electrons overcome the potential drop and neutralize the accelerated ion beam [20]. Since the energy source of the potential drop is considered to be the electron energy as discussed in [21], the electron energy distribution significantly affects the ion acceleration energy. Actually, the increases in both the ion beam energy and the electron temperature with a decrease in the operating gas pressure have been detected so far [16, 22, 23].

Thrusts imparted by magnetic nozzle rf plasma thrusters have been assessed for the last decade by using thrust balances [24–29], where the thrust is the reaction force of the momentum exhausted from the system per unit time. The above-mentioned electrostatic ion acceleration does not increase the thrust due to the absences of both any external energy source and the vector conversion of the momentum [30]. However, the generation of the collimated ion beam would be beneficial for the thruster since the accelerated ions can be detached from the magnetic field lines [31–35], where the electron detachment from the magnetic nozzle is still an open question [36–41]. The direct measurement of the force exerted to the magnetic field has demonstrated a thrust enhancement by the magnetic nozzle, where a Lorentz force arising from an azimuthal electron diamagnetic current and a radial magnetic field is exerted to the magnetic field, being equivalent to an electron pressure force to the expanding magnetic field [30, 42–44]. Various configurations of the thruster have been tested so far and the thruster efficiency has been gradually increased and approaches twenty percent in recent years [45]. Furthermore, a new application of the magnetic nozzle rf plasma thruster to contactless space debris removal has been proposed and the proof of the principle has been demonstrated in a laboratory experiment [46].

To mount the thruster on a spacecraft, development of peripheral components being compact, light, and robust, is also important issue. In early stage of fundamental studies, permanent magnet configurations, which lead eliminations of heavy solenoids and dc power supplies, have been designed to form the magnetic nozzles. Chen has demonstrated the efficient plasma production with annular permanent magnets [47]. One of authors and Virko et al. [10] have demonstrated the spontaneous ion acceleration in the expanding magnetic fields formed by the permanent magnets [9, 10]. The rf system including a generator and a matching box often dominates the weight and volume of the thruster, in addition to the solenoids and the dc power supplies. Since the load impedance is significantly affected by plasma parameters (e.g., the plasma density and the electron temperature), the impedance tuning is an important element of the rf plasma thruster operation, especially with undefined composition of the propellant for an air-breathing electric propulsion and the use of propellants created from in situ resource utilization [48, 49]. The load impedance is typically adjusted by changing the variable capacitors in the matching circuit. This type of the matching circuit requires a mechanical motion control preventing the matching circuit from being compact. Furthermore, the time lag of the communication between the spacecraft and the ground control station would be a serious problem for the impedance matching; it would be desirable to include the automatic controller for the impedance tuning. To overcome the issue on the matching box, several types of the rf generators have adjusted the frequency to match the load impedance to the output impedance of the generator [50–53], where fixed capacitors are used in the matching circuit. A recently developed fast and automatically controlled rf system has demonstrated the fast impedance matching for the rf plasma source [54], where the source tube is attached to a vacuum flange of a chamber and the rf antenna wound around the source tube is exposed to the atmosphere. On the other hand, the whole structure of the plasma source including the antenna has to be immersed in vacuum for the thruster assessment configuration.

Here the fast and automatically controlled rf system operational in the frequency range of 37–43 MHz and with the maximum power of about 500 W is installed in the helicon plasma thruster immersed in vacuum, where the thruster is attached to a pendulum thrust balance. The impedance tuning can be typically accomplished within several msec and the net power (corresponding to the forward minus reflected powers) is maintained at a constant level during the discharge, providing the stable steady-state operation of the thruster. The imparted thrust and the ion energy distribution function are measured by using a thrust balance and a retarding field energy analyzer (RFEA), respectively, showing the thrust of a few mN for 500 W rf power and the spontaneous generation of the supersonic ion beam. Discontinuous increases in the thrust, the source plasma density, and the ion beam component, are clearly observed when increasing the rf power. The ion beam component enhanced simultaneously with the discharge mode transition implies that the presence of the high-density plasma at the high-potential side is useful to the increase in the ion beam current. The energy of the supersonic ion beam and the electron temperature increase with a decrease in the gas flow rate. The results are consistent with the previous experiments using 13.56 MHz rf generators [2, 45].

Experimental Setup

Figure 1A shows the schematic diagram of the experimental setup, together with the calculated magnetic field lines. A helicon thruster consists of a stepped-diameter (65–95 mm inner diameter and 70–100 mm outer diameter) pyrex glass source tube wound by a single-turn water-cooled rf loop antenna and a solenoid providing a static magnetic field expanding downstream of the source, i.e., the magnetic nozzle. The detailed structure of the thruster design can be found in Ref. [55] and the rf antenna is covered with insulators and further covered with a grounded metallic structure to suppress parasitic discharges outside the source tube [56]. The thruster is attached to a pendulum thrust balance installed inside a 1-m-diameter and 2-m-long cylindrical vacuum chamber, which is evacuated by three turbomolecular pumping [labeled as “TMP” in Figure 1A] systems to a base pressure lower than 10⁻⁴ Pa. It is noted that the rf loop antenna is mechanically isolated from the source tube to ensure the pendulum motion of the thrust balance. The upstream side of the source is terminated by an insulator plate having a small gas injection port. Argon gas is continuously introduced from the gas injection port into the source tube via a mass flow controller located outside the chamber. For typical gas flow rate of C_Ar = 70 ± 1 sccm, the argon gas pressure measured at the chamber side wall is about 25 ± 1 mPa. It should be mentioned that the thrust measurement for different pumping speeds, i.e., different gas pressures for the constant gas flow rate, has been performed previously, showing the unchanged thrust, where the measurement has been performed at 25 and 75 mPa [57]. This implies that the thruster performance is not affected by the gas ingestion. The performance assessment at the lower gas pressure cannot be performed due to the limit of the vacuum facility. A dc current I_B is supplied to the solenoid to form the magnetic nozzle, where the calculated magnetic field strength on the z axis is plotted in Figure 1B, showing that the magnetic field has a throat of about 650 G at the larger-diameter region of the source tube (z ~ −3.5 cm). The rf antenna is powered from the rf generator (briefly described later) via an impedance matching circuit, resulting in a plasma production in the source tube, where the capacitances in the matching circuit are unchanged to demonstrate the automatic and fast control of the frequency tuning.

FIGURE 1

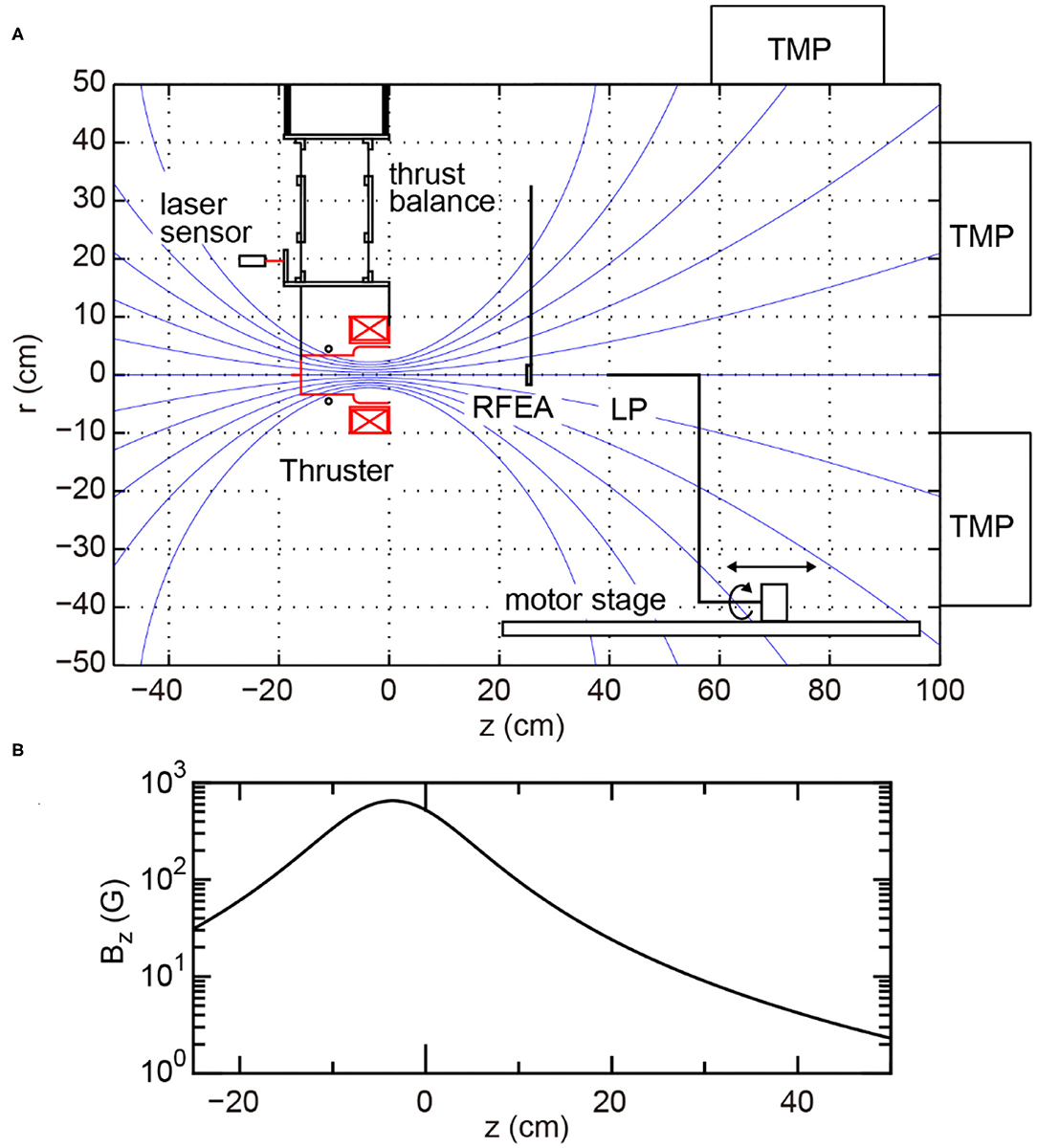

Figure 1. (A) Schematic diagram of the experimental setup together with the calculated magnetic field lines (blue solid lines). (B) Calculated magnetic field strength on the z axis.

The rf generator is very similar to that used in the previous experiment [53], while the maximum output power can be increased up to about 500 W in the present setup. Briefly, it consists of a voltage-controlled oscillator (VCO), a voltage-variable attenuator (VVA), a main amplifier, a bi-directional coupler, and power detectors, as shown in Figure 2. A board controller (National Instruments, sbRIO-9637) is mounted on the system, which consists of a field-programmable gate array (FPGA) and analog-digital/digital-analog convertors. The board has digital-input (DI), digital-output (DO), analog-input (AI), and analog-output (AO) channels. The frequency and the power of the rf signal inputted to the main amplifier can be controlled by the AO signals to the VCO and the VVA, respectively. The amplified rf power is transferred to a load (including the capacitors and the plasma source) via the bi-directional coupler. The rf signals corresponding to the forward and reflected powers are converted into dc voltages by using coaxial schottky barrier diode detectors and the low pass filters (LPF), which are measured by the AI channels. A gate signal is inputted into the DI channels; the same signal outputted from the DO channel is inputted into the main amplifier to turn on the rf power. During the detection of a high logic level by the DI channel, the frequency and the power are controlled by the board so as to minimize the reflection coefficient and to maintain the net rf power at a constant level, where the reflection coefficient and the net power are calculated on the board from the measured forward (P_f) and reflected (P_r) powers as

\begin{array}{l} Γ_{r} = \sqrt{\frac{P_{r}}{P_{f}},} & (1) \end{array}

\begin{array}{l} P_{n e t} = P_{f} - P_{r}, & (2) \end{array}

respectively. It should be noted that the power delivered to the load is not the forward power P_f but the net power P_net. The detected signals of the forward and reflected powers are calibrated by using an rf wattmeter with an accuracy of 5%, resulting in errors of about 7.5% in G_r (for typical powers of P_f = 500 W and P_r = 20 W) and about 5% in P_net. Typical dc-rf conversion efficiency in the main amplifier is about 74%. To assess the overall efficiency of the source, estimation of the rf power delivered to the plasma, i.e., the rf power transfer efficiency to the plasma, is required. This has not been performed yet and remains a further experimental issue.

As shown in Figure 1A, the whole structure of the thruster is attached to a plate suspended by flexible thin metallic plates from a top plate of the thrust balance, where the length of the arms is about 24 cm. The displacement induced by the plasma production is measured by a commercial laser displacement sensor with a resolution of 0.1 mm. The absolute value of the thrust can be obtained by multiplying a calibration coefficient to the measured displacement, where the calibration coefficient is obtained by measuring the displacement vs. known force before pumping down the chamber and is confirmed to be unchanged after venting the chamber. The validity of the thrust measurement technique has been shown in the previous experiment with the comparison between the thrust balance and the target techniques [58].

FIGURE 2

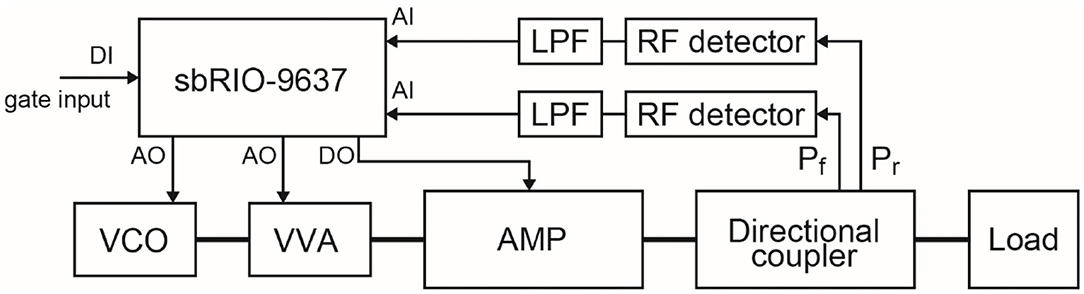

Figure 2. Schematic circuit diagram of the rf system.

The plasma density, the electron temperature, and the ion energy distribution function (IEDF) are measured by a radially facing 3-mm-diameter planar Langmuir probe mounted on a movable motor stage and an RFEA located at z = 25 cm. The plasma density n_p can be obtained from an ion saturation current I_is as

\begin{array}{l} I_{i s} = 0.61 e n_{p} u_{B} S, & (3) \end{array}

where e, u_B, and S are the elementary charge, the Bohm velocity, and the surface area of the probe tip, respectively, and a measured electron temperature is used for the calculation of the Bohm velocity, e.g., T_e ~ 4.5 ± 0.5 eV for the gas flow rate of 70 sccm. As the detector faces in the radial direction, the estimated density corresponds to that of the thermal ions. The RFEA consists of a collector electrode and two meshes: the first mesh contacting the plasma is electrically floating and the second one is used as a repeller for the electrons. The IEDF is known to be proportional to the first derivative of the collector voltage (V_c)-current (I_c) characteristic, which is obtained by a pulsed Langmuir probe technique [59].

Results

Figure 3 shows the typical temporal evolutions of (A) the gate signal and the rf frequency (f ), (B) the forward (P_f) and reflected (P_r) powers, and (C) the net power (P_net) and the square of the reflection coefficient ( $Γ_{r}^{2}$ ), where the initial value of the frequency, the pulse width of the rf power, and the target value of the net power are set at ~39.1 MHz, 100 msec, and 500 W, respectively. It is found that the rf frequency automatically changes from ~39.1 to ~38.7 MHz within the initial 7 msec; the value of $Γ_{r}^{2}$ is significantly reduced from unity to 0.03, corresponding to the power reflection of about 3%, at t ~ 7 msec. The net power P_net is also found to approach the target value of 500 W during the pulse.

FIGURE 3

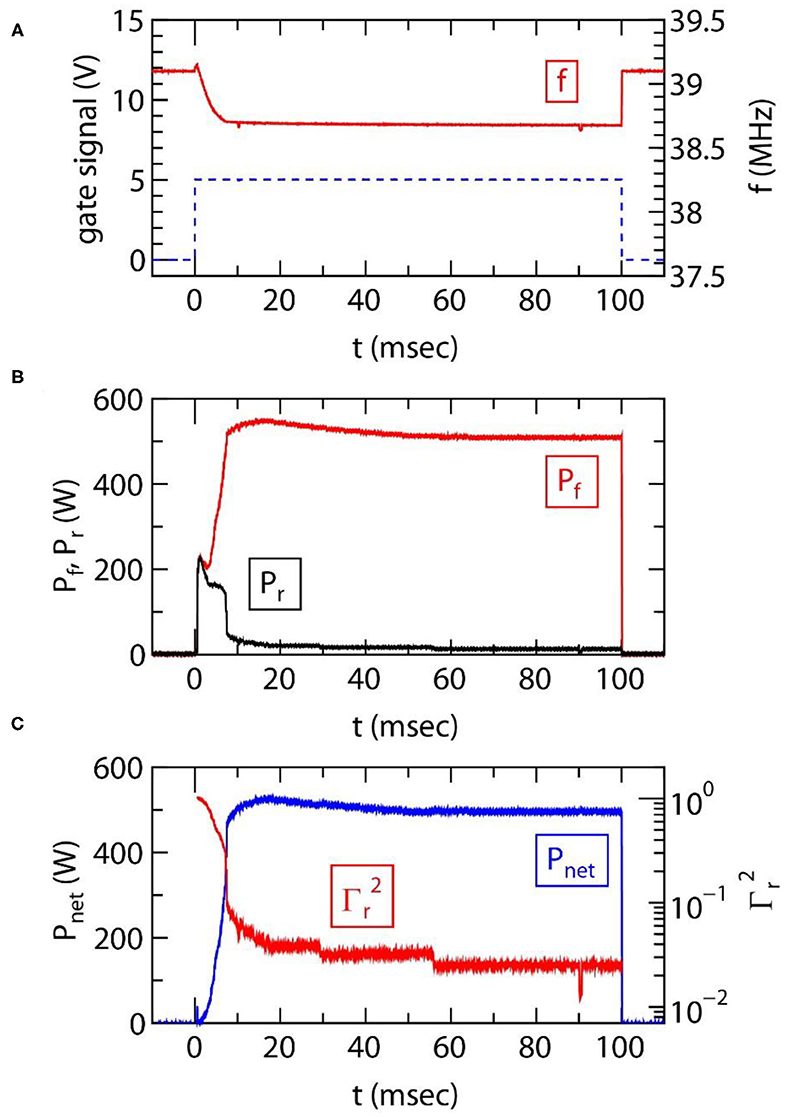

Figure 3. Temporal evolutions of (A) the rf gate signal (a dashed line), the frequency f of the rf power (a red solid line), (B) the forward power P_f (a red solid line), the reflected power P_r (a black solid line), (C) the net rf power P_net (a blue solid line), and the square of the reflection coefficient $Γ_{r}^{2}$ (a red sold line), where the pulse width of the rf power, the initial value of the frequency, and the target value of the net power, are set at 100 msec, 39.1 MHz, and 500 W, respectively.

By taking data of 1,000 shots, the statistical analyses for the tuning time (t_tune), the rf powers (P_f, P_r, P_net), and the square of the reflection coefficient ( $Γ_{r}^{2}$ ) are performed, where t_tune is defined as the time spent for reducing the value of $Γ_{r}^{2}$ to 0.1. A probability density function (PDF) of t_tune presented in Figure 4A shows the typical tuning time of about 7.5 ± 0.5 msec and the reproducibility can be confirmed from this PDF even in the thruster immersed in vacuum, as well as the previous experiment using the rf antenna exposed to atmosphere [60]. The PDFs of the rf powers and $Γ_{r}^{2}$ presented in Figures 4B,C, respectively, are calculated from the data for t > 50 msec to discuss the power controllability in the steady state, implying the sharp peaks in the PDFs of the rf powers as seen in Figure 4B. The PDF of $Γ_{r}^{2}$ in Figure 4C shows the reproduced impedance matching giving the power reflection of about 3%. Therefore, the fast and automatically controlled rf system can be utilized in the thruster development, where the plasma source structure including the rf antenna is immersed in vacuum.

FIGURE 4

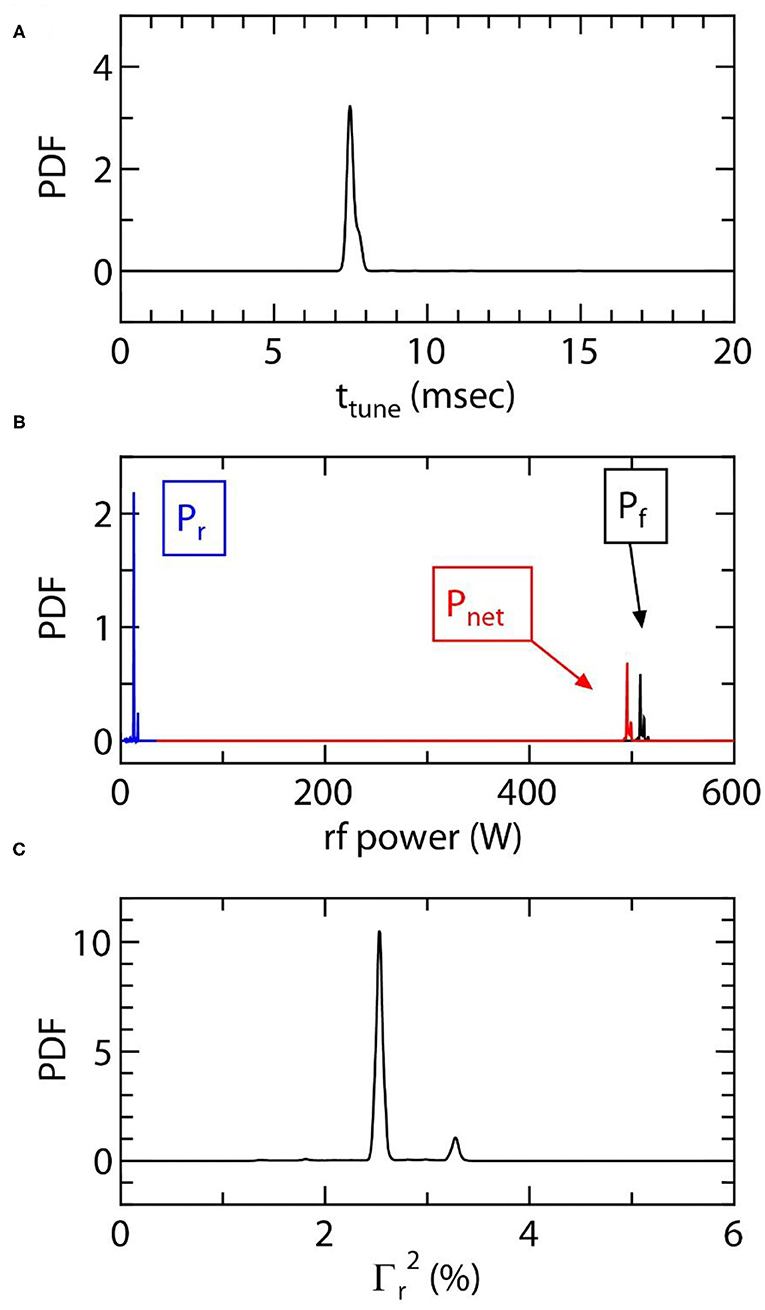

Figure 4. Probability density functions (PDFs) of (A) the tuning time t_tune, (B) the forward power P_f (a black solid line), the reflected power P_r (a blue solid line), the net power P_net (a red solid line), and (C) the square of the reflection coefficient $Γ_{r}^{2}$ . These are obtained from the data taken by 1,000 shots repetition.

Steady state operation of the thruster is also an important issue. Figure 5 shows the measured P_net and f for the long pulse of 180 sec, where the target value of P_net is set at 450 W. It is found that the frequency is immediately changed from the initial 39.1 to ~38.65 MHz and slightly changed during the pulse. The slight change in the frequency seems to be due to the change in the wall temperature of the source tube, where the temperature of the water-cooled antenna is expected to be unchanged. It can be seen that P_net is maintained at 450 W during the discharge pulse of 180 s, indicating the stable operation of the rf system.

FIGURE 5

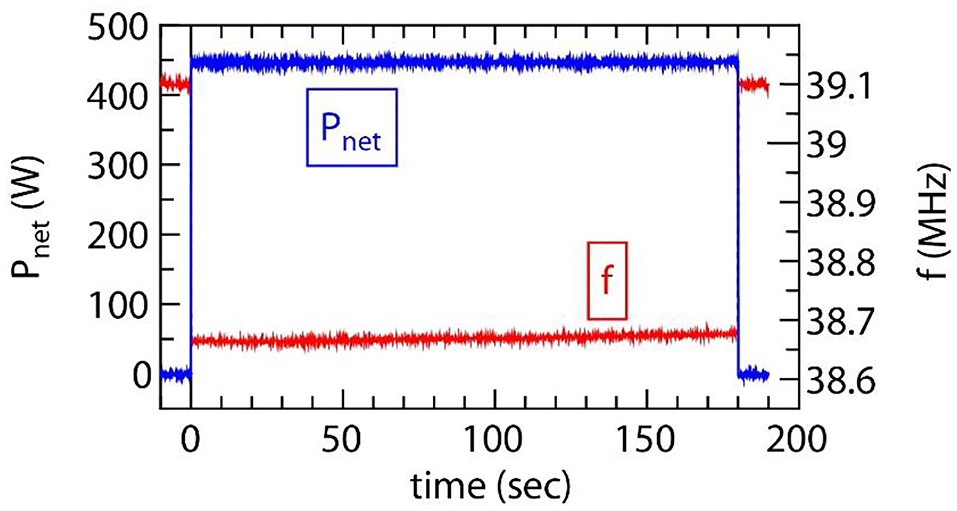

Figure 5. Temporal evolutions of the net power P_net (a blue solid line) and the rf frequency f (a red solid line), where the pulse width and the target value of the net power are set at 180 s and 450 W, respectively.

Measurement of the thrust as a function of P_net is performed for the gas flow rate of 70 sccm and the result is plotted by filled squares in Figure 6. The thrust is found to increase with an increase in the rf power and a slight discontinuous change can be seen at P_net ~ 350 W. Open circles in Figure 6 show the plasma density n_p measured by the Langmuir probe located at z = −10 cm and the discontinuous jump of the density can be observed at the similar power of P_net ~ 350 W, which is considered to be due to the discharge mode transition from capacitively- to inductively-coupled discharges. The maximum thrust obtained in the present experiment is about 3.5 mN for the rf power of 500 W, which seems to be similar to that obtained with 13.56 MHz rf generator [55].

FIGURE 6

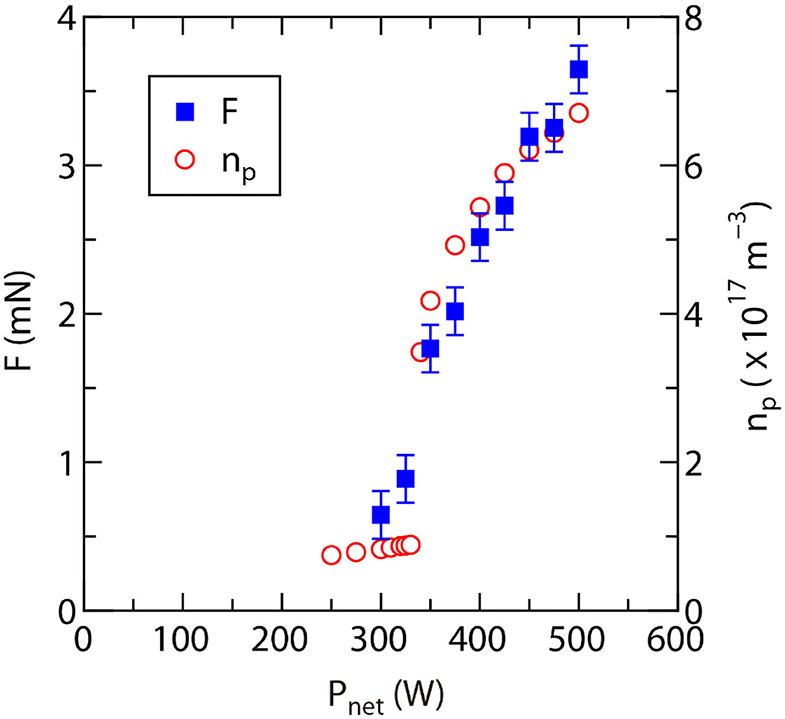

Figure 6. Thrust F measured by the thrust balance and plasma density n_p taken at z = −10 cm as functions of the net power P_net.

Figure 7a shows the typical IEDF (blue solid line) taken at z = 25 cm for the gas flow rate of C_Ar = 70 sccm and the net power of P_net = 500 W, clearly showing the two peaks corresponding to the low-energy thermal ions at ~38 V (plasma potential) and the high-energy beam ions at ~51 V (beam potential). The measured data can be well-fitted by a superimposition of two Gaussians (dashed lines) as drawn by a red solid line. Figure 7b shows the normalized IEDFs as a function of P_net, where the fitting curves are used to draw the contour plot. At the net rf power of P_net ~ 350 W, the peak of the ion beam is found to be enhanced simultaneously with the discharge mode transition observed in Figure 6. Therefore, it is demonstrated that the discharge mode inside the source significantly affects the ion energy distribution function downstream of the source tube; the presence of the high-density plasma in the source tube can yield the increase in the ions accelerated from the high- to low-potential sides.

FIGURE 7

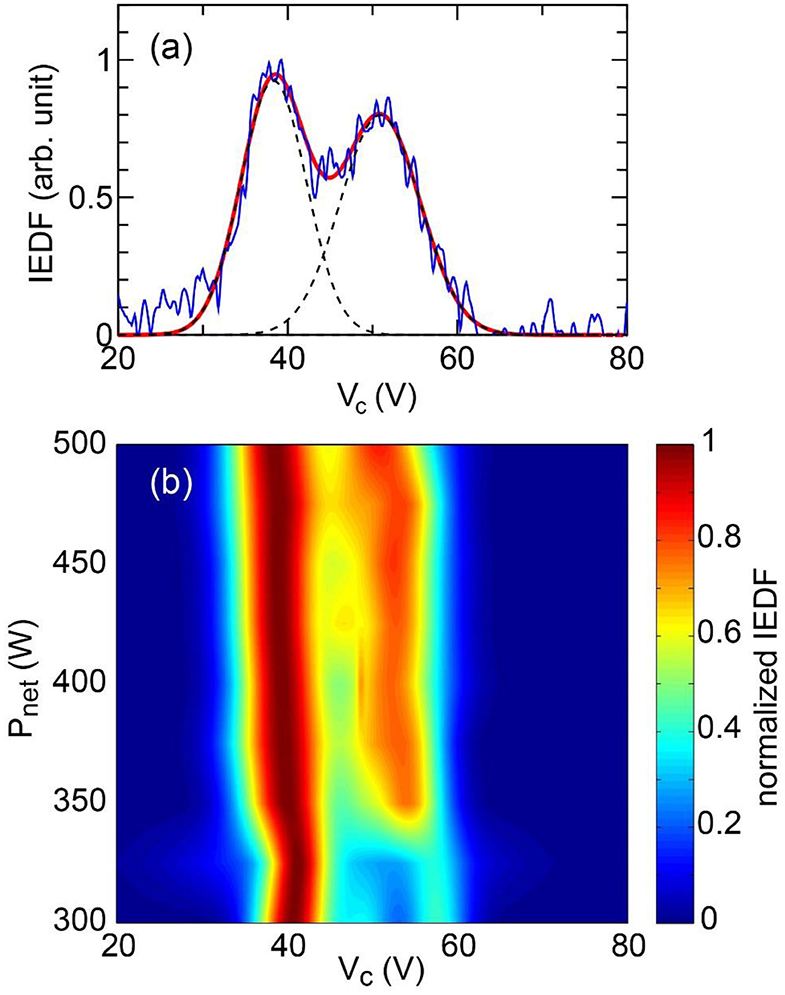

Figure 7. (a) IEDF (a blue solid line) taken at z = 25 cm together with the Gaussian fitting curve (a red solid line) given by the sum of the two Gaussians drawn by dashed lines, where the gas flow rate and the net rf power are chosen as 70 sccm and 500 W, respectively. (b) Contour plot of the normalized IEDF as a function of the net rf power P_net, where the Gaussian fitting curves are used to draw the contour plot.

Figure 8A shows the axial profile of the plasma density n_p for the same conditions as Figure 7a and the axial decay of the density is enhanced near the thruster exit (z = 0–10 cm). When assuming a uniform electron temperature, the voltage V from the reference position (density of n_p0) can be given by the Boltzmann relation as

\begin{array}{l} V = T_{e} ln (\frac{n_{p}}{n_{p 0}}), & (4) \end{array}

and the calculated V from the data in Figure 8A is plotted in Figure 8B. It is noted that the difference between the plasma and beam potentials in the IEDF taken at z = 25 cm is about 12.5 V as seen in Figure 7a. A red dashed line in Figure 8B indicates the axial position giving the 12.5-V-higher potential than that at z = 25 cm. This result implies that the accelerated ion beam comes from the high potential side near the thruster exit. The velocity of the 12.5 eV ions is about 7.7 km/sec, while the ion sound speed corresponding to the Bohm velocity for T_e = 4.5 eV is about 3.3 km/sec. Therefore, the ion Mach number can be estimated as ~2.3 and the detected ion beam is found to be supersonic. It should be mentioned that the IEDFs in the present experiment (Figure 7) seem to be broadened, compared with that observed in the previous experiment showing the formation of the current-free double layer, which has a nearly discontinuous potential drop [61]. Possible reasons of the broadened IEDF are a poor energy resolution of the RFEA and the spatially broadened potential drop near the thruster exit over about 10 cm scale as in Figure 8.

FIGURE 8

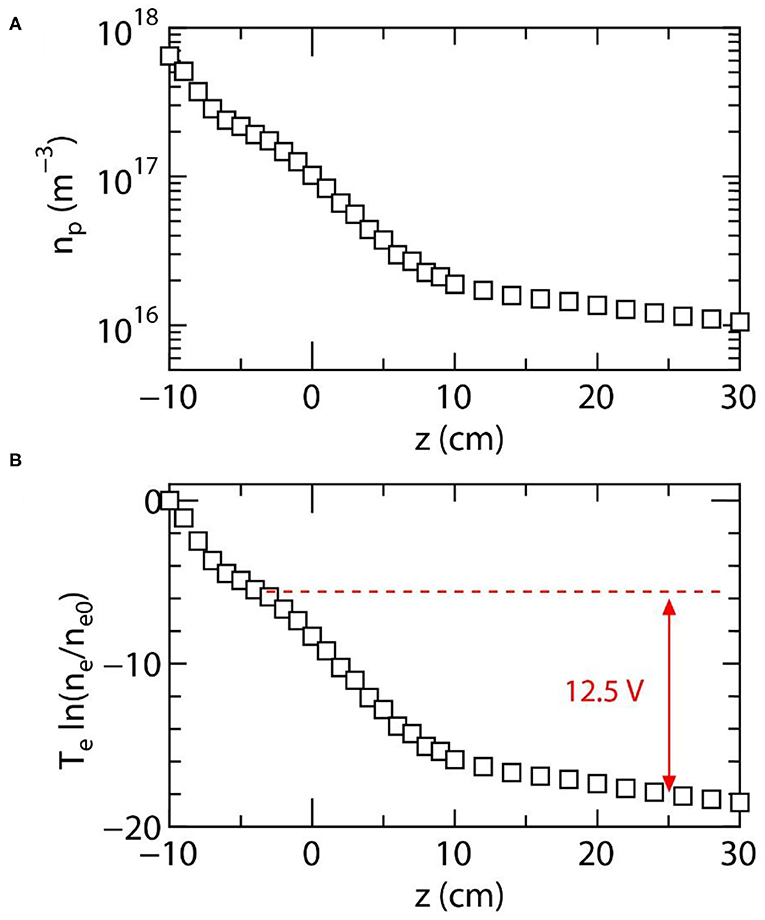

Figure 8. (A) Axial profile of the measured plasma density n_p on the z axis for P_net = 500 W and C_Ar = 70 sccm. (B) Voltage V from the reference position (z = −10 cm) calculated from the Boltzmann relation assuming a uniform electron temperature, where the measured temperature of T_e = 4.5 eV is used for the calculation. The dashed line and the arrow indicate the potential difference corresponding to the beam energy of ε_beam ~ 12.5 eV [seen in Figure 7a], implying that the beam ions are accelerated from the source tube.

Both the ion beam energy and the electron temperature have been observed to increase with a decrease in the operating gas pressure (or the gas flow rate) [22, 23]. This change in the ion beam energy can be interpreted as a result of the flux balance between the accelerated ions and the electrons overcoming the potential drop, as discussed in Ref. [20, 21, 45]. Figure 9 shows the measured plasma potential V_p, the beam potential V_beam, the beam energy ε_beam = V_beam – V_p, and the electron temperature T_e, as functions of the gas flow rate C_Ar. The present results also show the similar trends to the previous observations [22, 23] and the detected beam energy is about 3–3.5 times as large as the electron temperature over the pressure range tested here. This value is different from the potential drop estimation satisfying the flux balance between the ions and electrons for the Maxwellian electron energy distribution, i.e., ~5.2T_e. This discrepancy seems to be due to the assumption of the Maxwellian electron energy distribution, since the previously measured energy distribution has a depleted tail and close to the Druyvesteyn rather than the Maxwellian [23]. Therefore, the detailed measurement of the electron energy distribution is required to verify the flux balance between the electrons and ions. The characteristics of the ion beam and the imparted thrust similar to the previous experiments show that the fast- and automatically-controlled rf power system does not impact the thruster performance, while it would be important technique to operate the thruster for the undefined composition of the propellant, e.g., the air-breathing electric propulsion. When the imparted thrust is expected to be changed by the propellant composition even if the impedance matching is well-performed, the rf output power has to be controlled to maintain the constant thrust level, which remains further development issue.

FIGURE 9

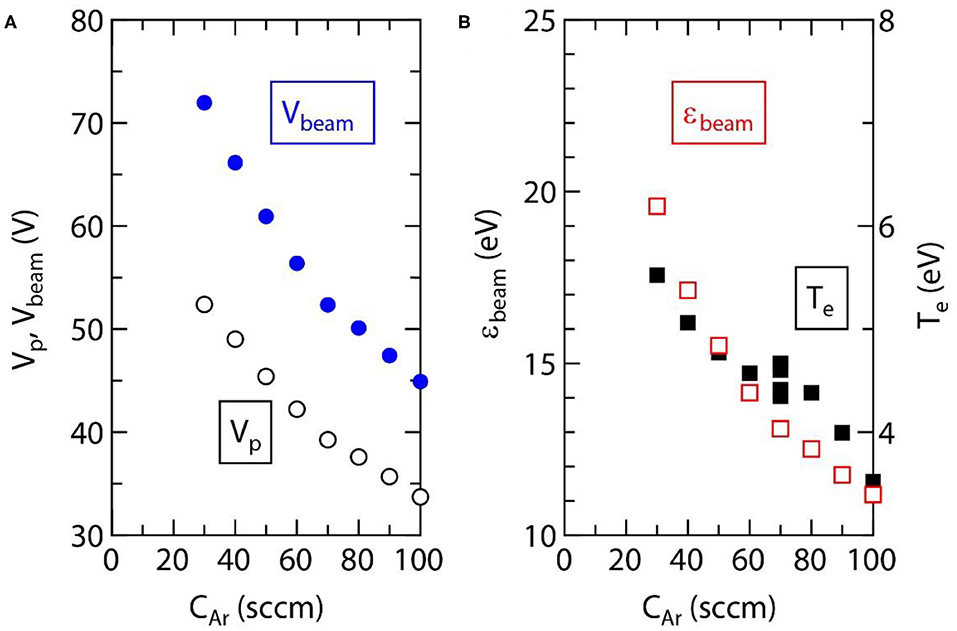

Figure 9. (A) Plasma potential V_p (open circles) and beam potential V_beam (filled circles) as functions of the gas flow rate C_Ar, where these potentials are obtained from the Gaussian fitting curves (not shown here) of the measured IEDF at z = 25 cm. (B) Calculated ion beam energy ε_beam (open squares) from the data in (A) and electron temperature T_e (filled squares) taken at z = 10 cm as functions of C_Ar.

Since the rf generator includes the similar components, such as the oscillator, the amplifier, and the power sensors, the weight and size of the rf generator would be similar to the traditional rf system. However, the use of only the fixed capacitors in the matching circuit would reduce the size and weight of the matching circuit, as the traditional system includes the large size variable capacitors and the mechanical motors. Typical weight and size of the commercial and traditional rf system for semiconductor process seem to be 5–10 kg and 10 × 20 × 30 cm³ for the matching circuit (including the variable capacitors and the mechanical controllers), and about 10 kg and 15 × 45 × 25 cm³ for the rf generator. It is expected that the matching circuit can be contained in about 5 × 5 × 5 cm³ in size and <1 kg in weight for the frequency-tunable rf system. Therefore, the present system will roughly reduce the size and weight in half for the 500-W-class rf system.

Conclusion

The fast and automatically controlled frequency-tunable rf system is attached to the magnetic nozzle rf plasma thruster immersed in vacuum, where the rf frequency can be adjusted in the range of 37–43 MHz and the maximum output power can be increased up to about 500 W. The frequency and the output power are automatically controlled, yielding the minimized reflection coefficient and the net power maintained at a constant level with the good reproducibility and the stable steady-state operation. The maximum thrust of 3.5 mN is obtained for the rf power of ~500 W, where the increase in the thrust can be observed simultaneously with the discharge mode transition. The presence of the supersonic ion beam is shown by the measurement of the ion energy distribution, where the enhancement of the ion beam component is detected simultaneously with the discharge mode transition. This implies that the high-density plasma production at the high-potential side is the key element of the ion beam generation. The present results show that the fast- and automatically-controlled rf system does not impact the thruster performance, being useful to reduce the size and the weight of the rf system.
