Analysis of the Global Banking Network by Random Matrix Theory

Since the financial crisis of 2008, the network analysis of financial systems has attracted a lot of attention. In this paper, we analyze the global banking network via the method of Random Matrix Theory. By applying that method on a cross border lending network, it is shown that while the connectivity between different parts of the network has risen and the profile of transactions has diversified, the role of hubs remains important in the weighted perspective. The largest eigenvalue of the transaction matrix as the leading mode of the system shows sharp growth since 2002. As well, it is observed that its growth has diminished since 2008. This indicates that the crisis of 2008 has left a long-lasting footprint on the financial system. Analyzing the mean value of the participation ratio reveals the fact that the role of countries in forming small modes, has increased since 2002. In our final analysis, we provide snapshots of the hubs in the network over time. We observe that the share of countries in total transactions is not equal to their share in shaping the eigenvector of the largest eigenvalue. In 2018 for example, while the United Kingdom leads the share of transactions, it is the United States that has the largest value in the leading eigenvector. The proposed technique in the paper can be useful for analyzing different types of interaction networks between countries.

1 Introduction

Since the recent global financial crisis, cross-border lending and financial contagions have gained in importance. The propagated effects [1, 2] of financial crises on political and economic systems [3, 4] are not to be underestimated. Those developments have prompted a lot of research on the systemic dependence of the international banking sector [5–13].

The field of complexity can aid in understanding better such systemic dependence [5, 14–22]. Complex networks are useful instruments for describing a large number of financial systems [23–31].

Most of the networks have different topological properties such as small-world and scale-free characteristics [24–26, 32–39].

The purpose of complexity science in finance focusses on the analysis of the structure and the dynamics of entangled systems.

Many scholars have applied complexity techniques for the analysis of financial contagion [6, 9, 10, 40–42].

Their findings suggested that the connectivity of financial institutions is the source of potential contagions.

For example, Glasserman and Young [40] reviewed the extensive literature on the network’s structures and their interactions with other key variables such as leverage, size, and short-term funding. They emphasized that the network connections expand the firms’ risk exposures, and through different routes, the shocks can be proliferated via contagion.

Random Matrix Theory is one of the useful methods for analyzing the behavior of complex systems [16, 43–54].

This theory was developed to describe the energy levels of quantum systems [55, 56].

It is the universality regime of the eigenvalue statistics which provides for the success factor of Random Matrix Theory [57–59]. Based on previous studies, it is shown that when the size of the matrix is very large, the eigenvalue distribution tends toward a specific distribution [59].

Random Matrix Theory has been applied to analyze the behavior of coupling matrices [16]. This technique divides the contents of the coupling matrix into noise and information parts. The noise part of the coupling matrix conforms to the Random Matrix Theory findings, and the information part deviates from them. This concept stems from the idea of solving the problem of non-stationary cross-correlation and measurement noise which result from market conditions and the finite length of time series [57, 59].

A system which can be analyzed by the complexity approach is the global banking network [60].

Minoiu and Reyes [60] have analyzed the global banking network from 1978 to 2009. They have applied network metrics such as centrality, connectivity, and clustering for analyzing financial interconnectedness. They have shown that during and after systemic banking crises (and sovereign debt crises), the connectivity drops. Also, it was shown that the 2008–2009 financial crisis provided for an unusually large perturbation to the global banking network. For more research on this, please see [61–69].

In this paper, by applying Random Matrix Theory on bilateral locational statistics data provided by the Bank for International Settlements (BIS) [70] from 1978 until 2019, we aim to analyze the global banking network. This data includes all ‘core’ countries (the qualifier ‘core’ is used by many researchers such as [60], for countries which regularly report their financial data to BIS).

Our paper is organized as follows. In Section 2 we present our methods and, in Section 3 we apply Random Matrix Theory on the global banking network and present our findings. Then, in Section 4 we conclude.

2 Methods

Random Matrix Theory has been presented by some scholars in nuclear physics such as Mehta [55, 56], for analyzing the energy levels of complex quantum systems. Subsequently, the method has helped to address specific issues in other fields, such as finance [45, 57–59, 71, 72].

From random matrix theory, we know that the eigenvalues–in the real matrix–which deviate from the range of the eigenvalues–in the random matrix–possess relatively more complete information from the system [51, 58, 59]. It can be shown that the majority of the eigenvalues of coupling matrices, agree with the random matrix predictions, but the largest eigenvalue has deviations from those estimations [50, 57, 58, 73]. In essence, this eigenvalue develops an energy gap that separates it from the other eigenvalues [45]. The largest eigenvalue is related to a strongly delocalized eigenvector that represents the collective evolution of the system. This is called market mode. From this perspective, the largest eigenvalue’s magnitude reflects the coupling strength of the system [45].

In Random Matrix Theory, there is a parameter named Inverse Participation Ratio IPR [74]. Its inverse provides a measure for the number of components which significantly participate in each eigenvector. This notion shows the effect of components of each eigenvector and specifically indicates how the largest eigenvalues deviate from the bulk region which is densely occupied by eigenvalues of the random matrix. Based on previous papers [45, 75], IPR can be applied as an indicator for measuring the collective behavior of the networks. The formula of this concept is as follows:

$IPR\left(k\right)={\displaystyle \sum }_{l=1}^n{\left(u_l^k\right)}^4;(1)$

where $l=1,\dots ,n$ and $u_l^k$ is the $l^{th}$ element of the $k^{th}$ eigenvector ($lk$). To further clarify the concept, one may consider examples below:

i. In case all elements of a certain eigenvector are equal to $1/\sqrt{N}$, IPR will be equal to $1/N$. This implies that whole elements are significantly influential on the systems’ behavior.

ii. On the other hand, if just a single element is equal to one and the others are equal to 0, IPR would be equal to 1. This implies that only this component is effective in the corresponding eigenvector. Hence, one can perceive that $IPR$ clarifies the number of influential elements in a certain eigenvector.

3 Analysis of Global Banking Network by Random Matrix Theory

The banking industry is one of the most important sectors in finance. Given this importance, it is not surprising that a significant aspect of financial contagion shows that the banking network is the conduit, through which the emergence and transmission of crises occurs. In this paper, we create a weighted and directed financial transaction network corresponding to each quarter from 1978 until 2018. Each link corresponds to a loan given by a certain country to another one. Previous studies have shed light on a country’s dependency network and they showed an increase, over time, of the dependency structure of the network [7, 60].

In Figure 1, the evolution of the global banking network in three snapshots (1978-Q3, 1998-Q3, and 2018-Q3) has been depicted. The left panel in Figure 1 shows the dendrogram structure of communities for trading weighted matrices. Furthermore, the right panel shows the evolution, over time, of the network topology and the size of nodes stands for the degree. As depicted, not only the size of the network has grown but also transactions have become more diversified. It is obvious that, over time, the degree of all countries has grown and has become more homogeneous. If the size of degrees is considered, a few countries can be distinguished as hubs, and this will be discussed later in the paper. For the continuous monitoring of networks during the period of study, Figure 2 is plotted. The results show the same outcomes as Figure 1. The left panel of Figure 2 represents the evolution of the degree for each country over time. As can be seen at the beginning of the period, only a small portion of countries has a high degree. But over time, both the degree across more countries and the average degree rise. It means that the sparseness has declined and connectivity has risen. The right panel of Figure 2 shows this fact, i.e., that only a small number of countries are in charge of a big portion of transactions.

FIGURE 1

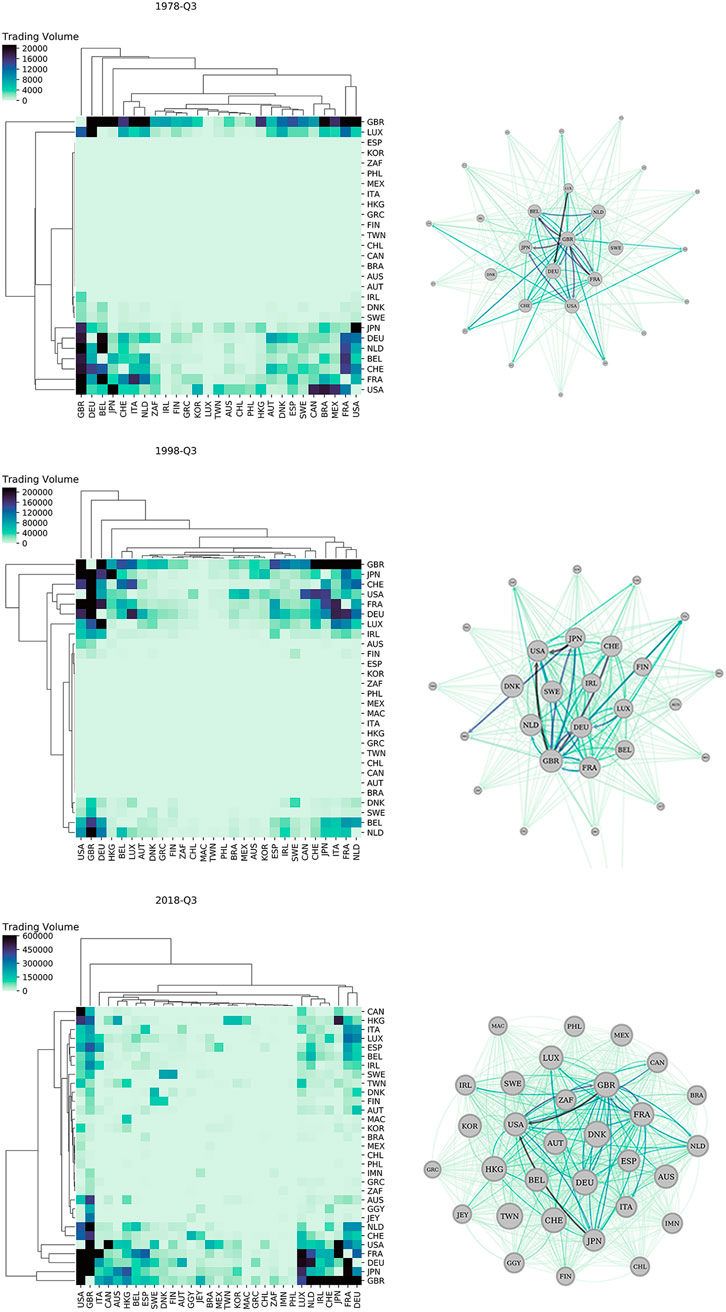

FIGURE 1. The evolution of the global banking network is demonstrated for three snapshots of 1978-Q3, 1998-Q3, and 2018-Q3. Left) shows the dendrogram structure of communities for trading weighted matrices. Right) the network topology is graphed. The size of each node represents the degree.

FIGURE 2

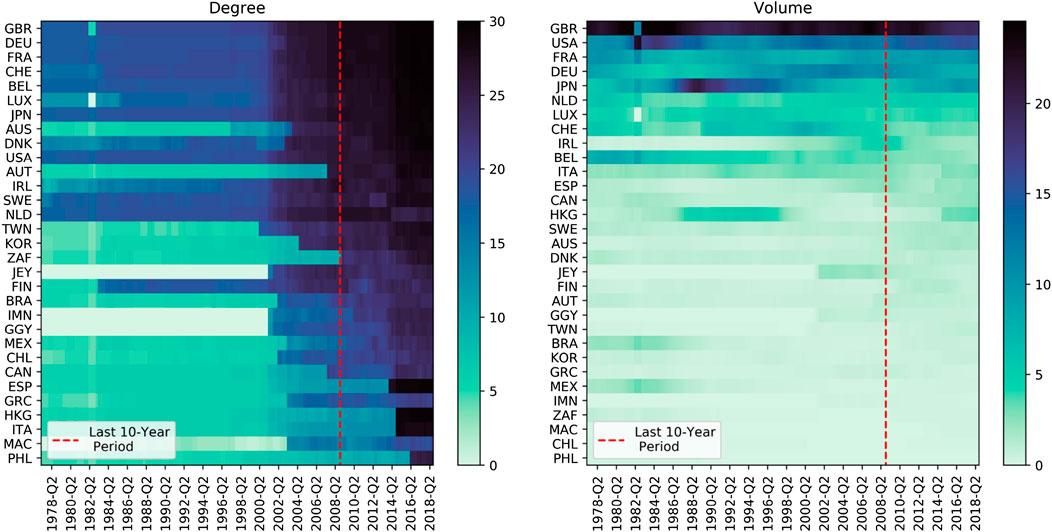

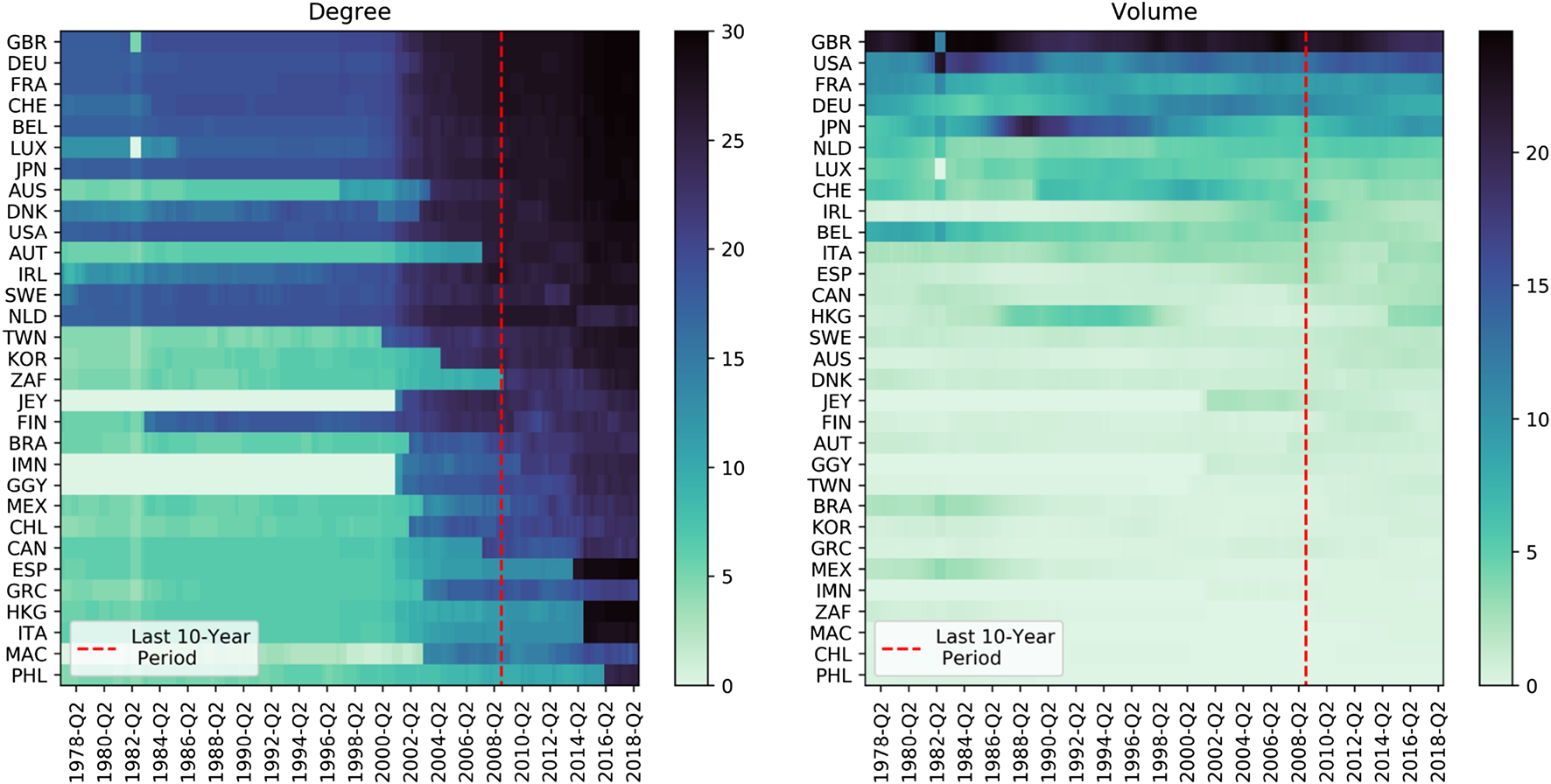

FIGURE 2. Temporal evolution of: (Left) the degree, and (Right) the volume of each country over time. The sorting order of countries is based on the average of the last 10-year period.

To move further into our analysis, we now apply random matrix techniques. The global banking network possesses an adjacency matrix. In random matrix theory, we have learned that the largest eigenvalue is important and addresses the global trend of a system [45, 57, 58, 76]. In Figure 3 we have depicted the evolution of the largest eigenvalue (${\lambda }_{max}$) overtime. As can be seen, ${\lambda }_{max}$ has grown significantly before the financial crisis of 2008. To figure out whether the growth of the eigenvalue is a mere consequence of either the growth of the transaction or the change of the structure of the network, we have compared the growth of the ${\lambda }_{max}$ of the original matrix with ${\lambda }_{max}$ of the shuffled network. If the growth of the largest eigenvalue is a consequence of the growth of transactions, then we expect that its value will be close to its counterpart in the shuffled network. In the shuffling technique, we rewire the network. We do so as follows. Pairs of links are chosen randomly and their values are exchanged. Over the course of such a process, the information concerning the structure of the network is lost. All remains are the size of the network and the profile of transactions.

FIGURE 3

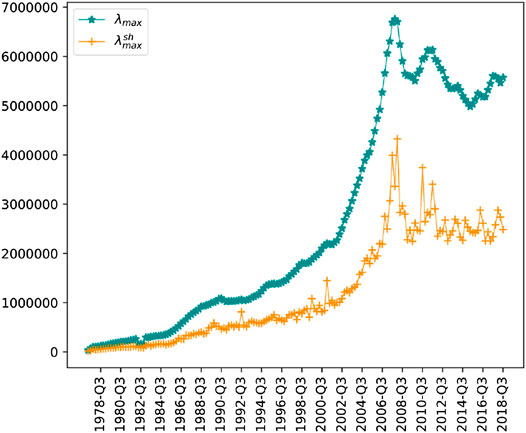

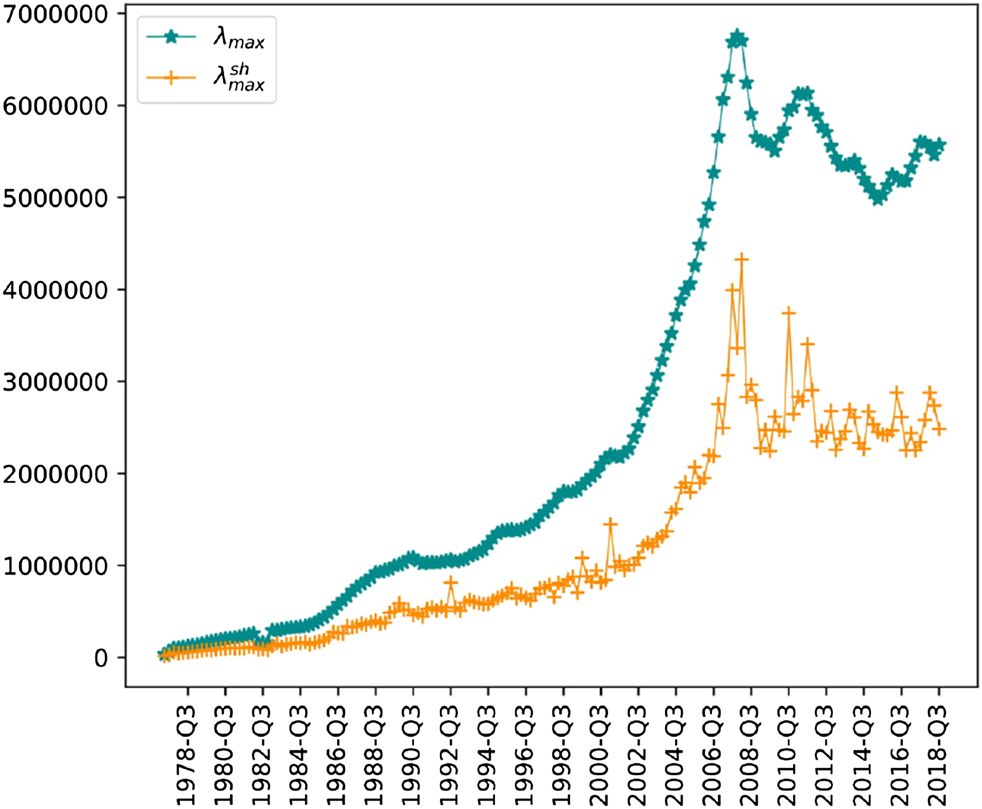

FIGURE 3. The evolution of the largest eigenvalue, ${\lambda }_{max}$, of the global banking network and its shuffled, ${\lambda }_{max}^{sh}$, are depicted.

The difference between ${\lambda }_{max}$ of the network itself and its shuffled counterpart, implies the existence of information content which is embedded in the largest eigenvalue of the banking interaction matrix. This will be discussed further below. The fast growth of the ${\lambda }_{max}$ of the shuffled network from 2002 to 2004, is the consequence of the fast pace of transaction volumes.

The fact that the largest eigenvalues of both the banking network and the shuffled network, have lost their growth trends after 2008, means that the financial crisis has left a long-lasting footprint on the network. Since the obtained eigenvalue does not describe all the details and properties of the collective behavior, one should investigate other quantities in the network.

As already discussed in the method section, one should keep in mind that the IPR possesses the ability of information extraction from the collective the behavior of systems. Figure 4 represents the evolution of the $\langle IPR\rangle$ and $IP{R}_{{\lambda }_{max}}$. In this context, by focusing on the mean inverse participation ratio of all eigenvectors, $\langle IPR\rangle$, and also, the inverse participation ratio of the largest eigenvalue corresponding to the largest eigenvector, we investigate banking behaviors of countries and their influences on the network structure and the market trend.

FIGURE 4

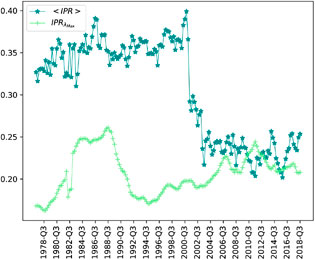

FIGURE 4. The average of the Inverse participation ratio of all eigenvectors $\langle IPR\rangle$ and $IP{R}_{{\lambda }_{max}}$ has been depicted. The decline of the $\langle IPR\rangle$ implies that the contribution of countries in all modes has been increased which can be a consequence of the growth of the connectivity in the banking network.

In a network of size N, IPR could have a value within $\left[1/N-1\right]$. Values close to the lower end will imply that almost all nodes play a role in the leading mode. Values close to one, indicate that a few nodes play an important role in shaping the eigenvector. As can be seen, for the largest eigenvalue, IPR has kept a value much higher than its possible minimum, i.e., $1/N$. This means that a few countries lead the network. Disparities have been even stronger in small modes in the early years of the studied period. However, from 2002 to 2004, following the fast growth of global transactions, the average of IPR of all modes, has tended to the IPR of the largest mode. This means that the participation of countries in shaping the small modes has grown.

The sustainability of the relatively high rate of IPR in the largest eigenvalue leads us to investigate the share of countries in shaping its eigenvector. We expect the countries which have a higher share of transactions, to play a more important role in shaping the trend of the system embedded in this eigenvector. Figure 5 visualizes the contribution of countries in the structure of the leading mode vs. their contribution to trading volume in five snapshots since 1978. A couple of interesting results can be inferred from the figure.

FIGURE 5

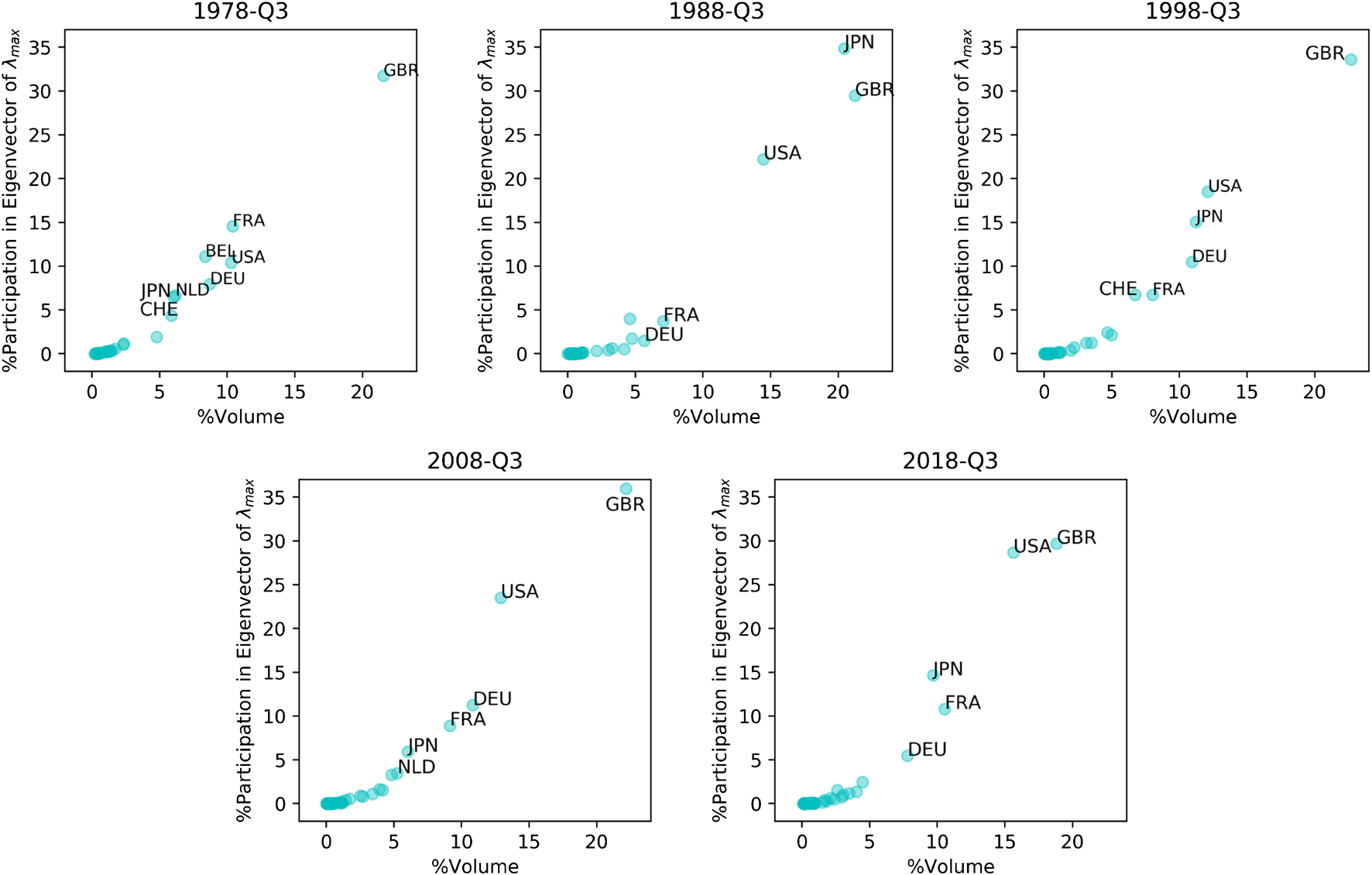

FIGURE 5. The percentage of the participation of each country in the eigenvector of ${\lambda }_{max}$ vs. the percentage of the transaction of each country from the total transaction $\left(\%{\text{volume}}_j/{\displaystyle {\sum }_i^N{\text{Volume}}_i}\right)$. (Note: Countries possessing more than 5% of total volume are annotated by name.)

In all snapshots, the share of hubs in the leading mode has been higher than their share in transactions. For example, in 1978 while the share of the United Kingdom in total transactions has been 21.5 percent, its share in the leading eigenvector has been 31.73 percent. Hence, this means that the role of the United Kingdom in shaping the leading eigenvalue has been larger than its share in total transactions. The same scenario works for other hubs such as France and the United States.

The interesting observation of 1988 is that, while the United Kingdom holds the lead in the share of transactions, Japan has the largest component of the leading eigenvector. On the eve of the economic downturn, Japan has not repeated its leading role in any other snapshots.

Within the last 2 decades, the United States has become closer to the United Kingdom in shaping the eigenvector of the largest eigenvalue. However, for both countries, their share in the largest eigenvalue is bigger than their share in the total transactions. Such an effect could be a matter of the country’s role in the structure of the leading mode in the network.

4 Conclusion

In this paper, by applying Random Matrix Theory, the global banking network is analyzed. For this purpose, we consider the matrix of the interaction of the banking sectors of BIS countries. We first focus on the largest eigenvalue which defines the leading mode in a system. We observe that the largest eigenvalue grows over time. By making a comparison with the largest eigenvalue of the network itself and the shuffled network, we conclude that the growth of the largest eigenvalue originates from two sources. The first source is the growth of the transaction volume and the other source is the network structure. We observe that the growth of the largest eigenvalue has vanished after 2008.

By focusing on the temporal behavior of the IPR of the largest eigenvalue, we observe that it has kept a sustainable value far above its possible minimum. This emphasizes the role of a few countries as hubs in the system. In comparison, the mean value of the IPR of all eigenvectors has declined sharply after 2002. This leads us to conclude, that the contribution of countries to shape small modes and possibly local structures, has grown. This phenomenon has occurred in tandem with the fast growth of transactions from 2002 to 2004. In comparing the share of countries in total transactions with their share in the leading mode, we observe that usually the share of the leading countries in shaping the market mode, is larger than their share in total transactions.

In this work, we analyzed the network of the international banking system. Our work sheds light on some features of this network. We suggest future research where financial networks are studied along with other variables such as commercial interactions in a multi-layer scheme.

Data Availability Statement

Publicly available datasets were analyzed in this study. This data can be found here: https://www.bis.org/.

Author Contributions

All authors contribute to all sections. All authors have read and agreed to the published version of the manuscript. GJ and RR supervise the project; AN administrates the project.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
