The study of rare fundamental physics phenomena, such as double-beta decay, rare nuclear decays and dark matter, requires very low levels of background radiation in order to observe a signal. To achieve the required background levels, experiments are located deep underground as these facilities provide significant rock overburden and commensurate reduction in the cosmic ray flux and cosmic ray-spallation induced products. An overview of the sources of these backgrounds will be presented. Taking advantage of the deep underground laboratory spaces, there have been a growing number of underground measurements in other fields, including environmental monitoring, benchmarking of other physical techniques, Life Science studies in low background environments, and material selection. The exceptional sensitivity and high resolution of high-purity germanium detectors allows for very sensitive measurements using gamma-ray spectrometry. Their use has been increasing as they allow for non-destructive measurements of experiment components, which can be directly used if they meet specified background requirements. This paper will discuss the current most sensitive ultra-low background germanium detectors in operation and explain how to achieve the best level of background reduction to attain the best sensitivities. In addition, an overview of several complementary low background measurement methods will be discussed. A proposed program to cross calibrate germanium detectors at several laboratories will be described and a searchable database used to store radioactivity measurements of experimental materials will be introduced.

Introduction

The study of radioactive backgrounds has been ongoing for several decades, it began in the 1950’s with the search for little-known backgrounds in materials surrounding particle accelerators to determine if those materials were activated from the accelerator itself. Counting facilities were then developed to measure the materials and then to search for lesser known backgrounds. This involved building dedicated facilities with the appropriate construction materials to shield the counters from local backgrounds. Once sufficient local backgrounds were removed from the counters, dedicated background experiments were gradually developed as the need arose. The counters were then developed for local use quantifying radionuclides in basic materials such as rock, concrete and steel. This led to a natural transition to low background material assays for nuclear and particle physics experiments as these became more sensitive to backgrounds from their construction materials. The initial counting facilities were usually developed by the individual experiments as their needs arose. Gradually these counters were developed into permanent facilities and improved to increase sensitivity (see for example Refs. 1 and 2).

It was realized that to increase sensitivity and to remove cosmogenic backgrounds, moving the background counters to underground laboratories would be very beneficial. For these early low background counting facilities shallow underground labs were developed with depths up to 100 m. As experiments required lower background materials to observe rare event searches, the materials to build the counter were improved and to further remove atmospheric backgrounds the counters were moved to deep underground laboratories. The search for low background materials continues with a particular emphasis on the search to find materials which have low concentrations of the radioactive chain elements, 238U, 232Th, and 40K, often well below mBq kg1. These concentrations are below what is generally accessible by standard chemical and analytical techniques, therefore assay methods are often performed through radiation counting or through very sensitive non radiometric techniques like mass spectrometry.

The backgrounds of interest can include muons, alphas, betas, gammas or neutrons, depending upon the experiment and component in question (see Refs. 3 and 4). The radiation could be direct or via leaching or emanation, thus, several different detector technologies are used to estimate radioactive contamination levels. In addition, the counting detectors themselves must be very low in background contamination levels, which requires them to be radioactively clean and underground, and fabricated and shielded with low background materials. Several complementary methods are used to measure the backgrounds, which depend on the material, if the material itself is going to be used in the experiment or if some of the material can be sacrificed for the assay (see for example Ref. 5). These methods and their advantages and drawbacks will be discussed in Section 3.

Background Sources

The energy range of the expected signals in experiments searching for rare events is approximately 1–5 MeV, the same range as that of the decay of radionuclides and other nuclear reactions. The background induced by cosmic rays, especially muons, is diminished by going underground. The rock overburden reduces efficiently their intensity and their reaction products through interaction with matter (mainly neutrons). The muon flux at LNGS is for example suppressed by more than six orders of magnitude to less than 1 muon m2 h1 for energies up to 1 TeV.

However, just having an experiment deep underground is not enough to reduce the backgrounds to levels required for the current generation of experiments. All materials contain traces of radioactive nuclides and the most important task is to bring down the intrinsic background of the detector set-up. In general, materials contain radioactive impurities because either they are not radio-pure or they come into contact with radio impurities during their production process. Other substances such as copper are intrinsically very radio-pure, but can contain radio impurities by being exposed to cosmic rays after manufacturing.

Primordial Radionuclides and Natural Decay Chains

All nuclides that still exist since they were produced in stellar nucleosynthesis are called primordial; 40K, 232Th, 235U, and 238U, the latter three are the starting nuclides of the three naturally occurring decay chains, belong to this group. In addition to these four ubiquitous radionuclides usually identified in gamma-ray spectra, there are a lot more elements with primordial radioisotopes (e.g., 87Rb, 113Cd, 115In, 190Pt, 144Nd, 176Lu, 138La and many more) (see Ref. 6), but they are only relevant as a background source in very specific cases, for example, in scintillating crystals like lanthanum bromide (138La), sodium iodide (87Rb), and cadmium tungstate (113Cd). Primordial 232Th, 235U, and 238U can be found in all natural occurring mineral materials. In nature the isotope ratio 238U/235U is 137.88, thus in samples with low radioactivity concentration often only the 238U concentration is assessed. Therefore, in the following the focus will be set only to 238U. The elemental abundance of thorium and uranium in the Earth’s crust is very variable and different average values have been determined (see, e.g., Refs. 4, 7, 8]), which are for Th and U in the range of (17–60) and (16–110) Bq kg1, respectively. All their decay products are present in the materials as well, unless chemical or physical separation will take place. Each of these decay chains stops with a stable lead isotope. If any separation occurred in a material, the chain is not anymore in secular equilibrium. Primordial 40K is also present everywhere. Its concentration varies very much from levels of few hundreds to thousands of Bq kg1 as in soil samples down to tenths of mBq or even less in pure materials like copper, lead and special plastic products. It is often considered as less problematic as it can rather easily be identified, but nevertheless, in some cases its presence can be limiting to the experimental sensitivity [9]. Many radionuclide activities in the three decay chains can not be assessed right-away using gamma-ray spectrometry, due to no or very faint emission of gamma-rays (e.g., 232Th and 238U themselves). Other methods are necessary to determine their concentration (e.g., neutron activation, mass spectrometry, see, for example, Ref. 10).

Cosmogenic Radionuclides

This group of radionuclides is produced through interaction with matter of secondary and tertiary cosmic ray particles [6]. For example 3H, 14C, and 7Be are produced through interactions in the upper atmosphere between high energy cosmic ray particles and oxygen and nitrogen. Their production rate is approximately constant and they are present in the atmosphere and in living animals and plants. In addition, there are many more radionuclides which are produced by neutron and muon capture from cosmic radiation in the atmosphere; several of these isotopes are extremely important as possible background sources in metals (e.g., 108mAg and 110mAg in silver, 57Co, 58Co, and 60Co in copper, iron and many alloys [11]).

Anthropogenic Radionuclides

These are man-made radionuclides i.e., artificially produced through nuclear reactions either in nuclear power and reprocessing plants, nuclear weapons testing, and production of radioactive sources for industrial and medical applications. The radionuclides belonging to this group are for example 60Co, 137Cs, 238Pu, and 241Am. They are present in the environment, because they are and were freed either in nuclear incidents (in nuclear power plants and by accidental melting of high activity sources), in nuclear weapons testing (until the late 50s) and as emission from reprocessing plants. For example, 60Co is used as a tracer to ensure the integrity of the melting furnaces, thus steel may contain notable amounts of this isotope, which exceeds the naturally present concentration of cosmogenic 60Co by up to two orders of magnitude [12].

Radio-Assay Techniques

There are several different techniques available to assay materials. Each technique has its advantages and drawbacks. For example, some techniques require the sample to be destroyed while other techniques may only allow a small fraction of the material to be sampled. Table 1 lists the most common counting techniques used, the type of background each method is best suited for and the current sensitivity of each method. Several of these common counting techniques will be described in the following sections.

TABLE 1
www.frontiersin.org

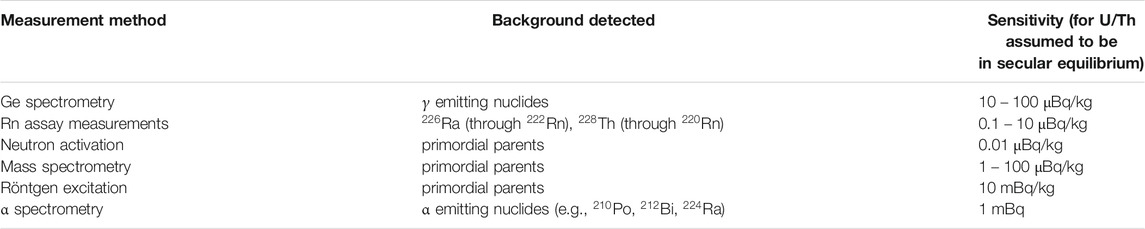

TABLE 1. Techniques used to measure radioactive backgrounds.

Gamma-Ray Spectrometry

Gamma-ray spectrometry (GRS) with high purity germanium (HPGe) detectors is an all-important tool for material screening in rare event experiments. In order to achieve the best sensitivity, the most important prerequisite for these detectors is that near the sample and inside the detector itself the radioactivity concentration is as low as possible. In comparison to other methods (e.g., mass spectrometry or neutron activation) GRS provides a more inclusive method of radionuclide detection. The information about all contributing gamma-ray emitting radionuclides is combined in a single energy spectrum. The excellent energy resolution of HPGe detectors allows for a highly efficient separation of different gamma-ray lines and for the best way to identify the various radionuclides present. One further very important advantage is that material screening can be performed non-destructively, and no elaborate sample treatment is needed.

As previously discussed, the primordial radionuclides 40K, 238U, and 232Th represent the most important sources of radioactivity in ordinary materials. Only GRS is capable of measuring the concentration of all progenies that emit gamma-rays in the uranium and thorium decay chains. This also makes it possible to assess whether secular equilibrium is broken in the respective decay chains. Furthermore, if this is the case, the actual state of equilibrium can be investigated by comparing the concentrations of the gamma-active progenies in the decay chains. Within the 232Th chain one has two sub-chains that can be out of secular equilibrium, one starting with 228Ra (half-life 5.75 y) and the other with 228Th (half life 1.9126 y). For the first sub-chain, we need to assess 228Ac as direct progeny of 228Ra. For the second sub-chain, we measure the progenies of 228Th, i.e., 212Pb, 212Bi, and 208Tl. In the 238U chain one has again two sub-chains of interest for GRS, 238U (half life 4.468×109 y) itself and 226Ra (half life 1600 y). In the first case, the sub-chain can be assessed through 234Th (direct progeny of uranium) and 234mPa (progeny of 234Th). For the second sub-chain, one measures the gamma-active progenies of 226Ra, i.e., 214Pb and 214Bi.

Ultra-Low Background (ULB) HPGe spectrometers are specially developed detectors that use carefully selected materials (e.g., very pure copper, not exposed or at least only very shortly exposed to cosmic rays, ultrapure aluminium) as construction materials and very low radioactivity containing electronic components inside the detector end cap close to the germanium crystal. When operated deep underground [13], or even at rather shallow depths but with efficient active shielding [14], ULB HPGe detectors can reach sensitivities on the order of 10100 μBq kg1. This, however, requires long counting periods, sometimes even of up to 100 days, and rather bulky samples (up to several tens of kg). Consequently, it is recommended to run simultaneously several spectrometers in order to not prolong the counting time needed for screening samples. These detectors usually have rather elaborate shielding composed of graded lead with the innermost parts made of ancient or ultra-high purity lead followed by high-purity low-Z material (usually very pure copper) to absorb bremsstrahlung radiation from residual radioactivity in the lead. Moreover, radon gas (coming from the surrounding material or entering through diffusion from the outside) is removed through encapsulation of the experimental set-up and flushing with radon-free gas (e.g., boil-off nitrogen). Since these ULB detectors have very low count rates compared to normal systems (on the order of 100 counts per day in the energy range of interest between 40 and 2.7 MeV compared to several hundred to several thousands of counts per day in normal detectors) it is mandatory to perform regularly long background measurements (on the order of several weeks) and energy calibrations in order to check for possible changes in background performance or electronic problems (worsening of resolution, shift in energy etc.).

ICP-MS Mass Spectrometry

Inductively coupled plasma mass spectrometry (ICP-MS) is a type of mass spectrometry which uses inductively coupled plasma to ionize the sample [15, 16, 17, 18]. The sample is atomized creating atomic and small polyatomic ions, which can then be detected. It is often used to detect metals and some non-metals which are dissolved in liquids at very low concentrations. The ions are then separated on the basis of their mass-to-charge ratio and a mass spectrometer then detects the ion signal, which is proportional to the concentration of the isotope, for this it is a non radiometric technique as it does not look for radioactive decay in itself, but for the concentration of the radioactive isotope. The absolute concentration in the sample can be determined through calibrations with certified reference materials. ICP-MS screening is useful for small samples or when a piece of a large sample can be used. The sensitivity of current methods down to nBq per kg levels for U and Th can now be achieved, so this method is very important in finding low background materials as it is one of the most sensitive background detection method currently used [19, 20]. The main drawback of this method is the condition that the sample preparation is destructive and only small samples of larger materials can be measured.

Alpha Spectrometry

Many isotopes can decay via alpha particle emission, these alpha particles can then be detected and counted using alpha spectrometry to identify and quantify the isotope based on properties of the emitted alpha particle. Similar to gamma spectrometry, energy spectra are detected with high precision alpha detectors and electronics and analyzed to determine the nuclide. Samples are often measured following chemical separation to isolate the radionuclides of concern due to the complexity associated with correcting for interferences since alpha particle energies are often very close together. Alpha spectrometry is widely used in several applications, including: environmental radioactivity monitoring, health physics personnel monitoring, materials testing, geology and mineralogy, forensics and nuclear fuel processing, see for example Ref. 21.

Alpha counting is often used for material testing as a complementary method to gamma counting. Samples are generally machined into thin disks, or a liquid solution is placed on a metal disk and then allowed to dry to give a uniform coating. If the thickness of the layer or of the sample is too thick then the detected energy line spectra are broadened to lower energies, due to some of the energy of the alpha particles being lost during their interactions through the layer of active material [22]. The samples can be measured with various types of detectors, some of the most sensitive detectors currently used are ionization chambers with or without sensor wires. The current detectors can detect alphas over an energy range of 1 to 10 MeV with a sensitivity better than 100 nBq cm2. Semiconductor detectors such as the Passivated Implanted Planar Silicon (PIPS) are improvements from the silicon surface barrier (SSB) detectors and diffused junction detectors, which were both designed in the 1960’s. The PIPS detector was designed with thin windows to improve sensitivity and resolution and backgrounds for these detectors are usually less then 0.05 counts/hr/cm2 [23].

A second method of alpha spectrometry is to use internal liquid scintillation counting, in which the sample is mixed with or dissolved into a scintillation cocktail. The light emissions are then counted using photomultipliers and the signal is then analyzed using a combination of pulse shape discrimination and coincidence counting for identifying alpha beta coincidence events. The sensitivity of this method is on the order of 1 mBq/kg for 238U and 232Th assuming that the chains are in equilibrium. A custom built system is shown in Figure 1, this system is built using low background copper housings and photomultipliers to reduce internal backgrounds. Drawbacks to this method include the failure of all photons to be detected, cloudy or colored samples which can be difficult to count and the fact that random quenching can reduce the number of photons generated per radioactive decay.

FIGURE 1
www.frontiersin.org

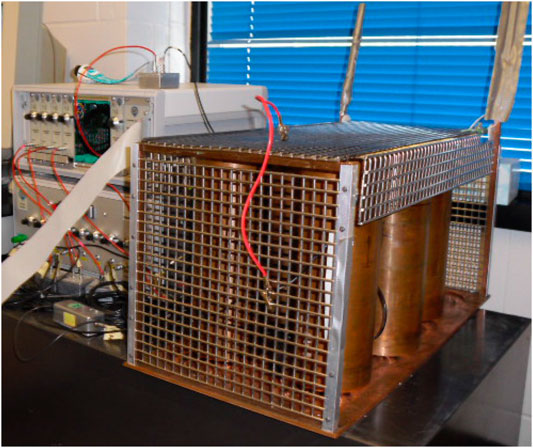

FIGURE 1. A photograph of a custom built alpha beta coincidence liquid scintillation detector located at SNOLAB.

Radon Assay Measurements

Radon emanation of a material is the process in which the radon atoms formed from the decay of 226Ra escape from the decaying isotopes and move into the pore spaces of the molecule. Diffusion and advective flow then cause the movement of the radon atoms throughout the material and subsequently to the surface. Once the radon atoms reach the surface, they can be exhaled from the material (see, e.g., Ref. 24). These radon atoms and their progeny can be collected inside a radon exhalation chamber for several half-lives of the 222Rn and then counted directly with a radon detector (e.g., Durridge RAD7 [25]) or using alpha spectrometry. These measurements provide radon exhalation rates in units of Bq m2 s1 or Bq kg1 s1. A typical radon exhalation collection chamber system is shown in Figure 2. The exhalation rates of typical construction materials for underground laboratories are shown in Table 2, as can be observed, the rates can vary a lot, so one should choose their materials with the exhalation rate in mind when constructing a low background experiment.

FIGURE 2
www.frontiersin.org

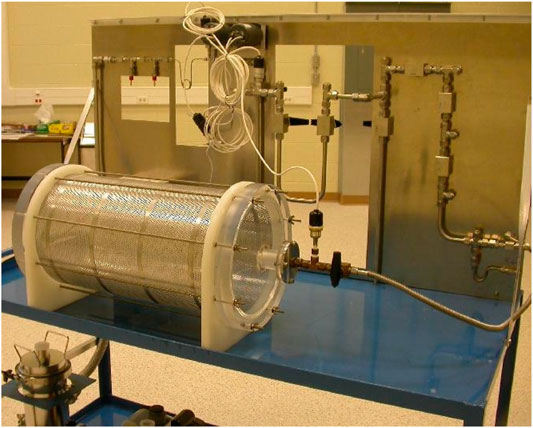

FIGURE 2. A photograph of a typical radon exhalation chamber at SNOLAB. The sample material is placed in the cylindrical chamber where the radon progeny are accumulated for several 222Rn half-lives after which the progeny are collected in a Lucas cell which is then used to count the photons from the alpha interactions [30].

TABLE 2
www.frontiersin.org

TABLE 2. Typical radon exhalation rates for some common construction materials used in underground experiments.

Neutron Activation

A sample which is not normally radioactive can be activated with neutrons causing its components to form radioactive isotopes which can then be detected using the methods described above. The process involves neutrons inducing radioactivity in the sample in which the nuclei capture free neutrons, thus becoming heavier and entering into excited states. The excited nucleus then decays by emitting gamma rays, beta and alpha particles, fission products and neutrons. The main drawback of this method is that the activation products could have long half-lives, thus making the sample unusable for the immediate deployment in an experiment. The main advantage of this method is that the sample usually does not need to be destroyed to complete the measurement, so this method is very useful if the activated isotopes have half-lives of at most a few days or months. This method is not used as much as in the past due the limited opportunities to irradiate samples as suitable activation reactors are in declining use. A very good overview on this method, its application in the field of rare events physics experiments and its actual sensitivity is given in Ref. 26.

Röntgen Excitation Analysis

Röntgen excitation analysis or X-ray fluorescence involves the emission of characteristic “secondary” (or fluorescent) X-rays from a material that has been excited by being bombarded with high-energy X-rays or gamma-rays. This method was first proposed by Glocker and Shreiber in 1928 [27]. This technique is used for elemental and chemical analysis in the composition of materials, such as metals, glass and ceramics, building materials, forensic science, archaeology and others. It can be used to determine U and Th in different matrices (see, e.g., Refs. 28, 29).

Germanium Detector Calibrations

Several underground laboratories operate germanium detectors which are used for low background counting. These detectors may be operated by the laboratories themselves or directly by various experiments. Each detector group has developed their own analysis method based on their experience with their particular detectors and analysis techniques. This makes it difficult to compare samples counted on different detectors without cross calibrations to take into account the different detector characteristics and analysis methods. Different research groups are currently taking a lead role in comparing as many germanium detectors as possible to determine the best detectors to measure the large number of samples expected to be counted to find the best possible materials to build their experiments.

The detector comparison is using calibration sources created from NIST and IAEA standards containing several isotopes in known quantities at very low levels. The sources are prepared in a container which can be fit most detectors to simplify the comparisons between the detectors. The detector groups will be sent the calibration sources without knowing the composition and will then report their results. The different groups will keep their results confidential until each laboratory has counted the calibration sources to avoid biases. The results from the different detectors will then be compared to determine the consistency of the results and if the measurements returned the expected concentration levels of the isotopes contained in the sources, this will allow the different analysis methods to be compared and to determine if there are any fundamental differences between the various analysis techniques. In addition, the detector sensitivities will be made available such that one can select which detector will be best suited for particular samples to make the best use of the detectors to count samples as efficiently as possible. For example, known high background materials should be counted on higher background detectors and materials expected to be low background should be counted on lower background detectors to maximize the number of samples counted.

Material Assay Database

The low background community has an ongoing effort to bring together all relevant low background counting results from around the world to create a central database. The database is a useful tool in tabulating data from many laboratories into one place so that those searching for new materials have a central repository to search for their materials. The database is currently hosted at SNOLAB and is maintained by an international collaboration of scientists who are responsible for developing the database application, defining the material assay data format and encouraging laboratories and experiments to contribute their data. The database is located at the following web site: www.radiopurity.org.

The project began at Lawrence Berkeley National Laboratory and has grown with the support of the wider low-background community, in particular the Assay and Acquisition of Radiopure Materials (AARM) collaboration and the ILIAS program which created a database of radio-pure materials from data collected at several European laboratories. The new database incorporated all of the data from the ILIAS database as its starting point and has continued to add new data from ongoing experiments. Currently, improvements are being planned to upgrade the software and databases to keep them current and to allow new data to be more easily added to keep the database relevant for the next generation of low background experiments.

Future Prospects

To further improve the low background detection counting techniques, the background levels of the existing counting systems must be reduced by at least an order of magnitude from current levels. To accomplish this large task, a program to find cleaner materials to build the counters themselves will be required. This includes, for example, finding the raw materials such as copper and lead with even lower internal backgrounds as these will be required to better shield the current suite of experiments.

One such proposed low background facility is being developed at SNOLAB which will includes its own supply of radon-reduced air to allow detector development in the underground lab. In addition it is being proposed to build a general purpose shielding tank with its own veto system to identify muon spallation events from cosmic rays. The tank would contain an inner acrylic tank and a photomultiplier array counter. Such a tank may prove critical to find cleaner materials for future experiment construction.

Summary

There are many different techniques employed to measure radioactive backgrounds, the techniques can depend on several factors, such as the sample size, whether or not the sample itself will be used in the final experiment, can the sample be sacrificed, etc. To fully understand a material background, often it can be counted using several techniques, where one can use germanium spectrometry to measure the bulk background of a material while using alpha spectrometry to measure the surface backgrounds. A program to cross calibrate low background detectors at several laboratories around the world is in progress which will allow a comparison of the different detectors and the different analysis techniques used by each experimental group. Finally, an improved database to collate the low background results for common materials will be further improved to enhance the user experience and to include data from many more underground laboratories.
