How to Optimize the Supply and Allocation of Medical Emergency Resources During Public Health Emergencies

\nChunyu WangChunyu Wang1Yue DengYue Deng1Ziheng YuanZiheng Yuan2Chijun ZhangChijun Zhang3Fan ZhangFan Zhang1Qing CaiQing Cai4Chao Gao,
Chao Gao5,1*Jurgen Kurths,Jurgen Kurths6,7
  • 1College of Computer and Information Science, Southwest University, Chongqing, China
  • 2Faculty of Humanities, Chang'an University, Xi'an, China
  • 3College of Management Science and Information Engineering, Jilin University of Finance and Economics, Changchun, China
  • 4School of Mechanical and Aerospace Engineering, Nanyang Technological University, Singapore, Singapore
  • 5Key Laboratory of Urban Land Resources Monitoring and Simulation, Ministry of Natural Resources of the People's Republic of China, Shenzhen, China
  • 6Potsdam Institute for Climate Impact Research, Potsdam, Germany
  • 7Nizhny Novgorod State University, Nizhny Novgorod, Russia

The solutions to the supply and allocation of medical emergency resources during public health emergencies greatly affect the efficiency of epidemic prevention and control. Currently, the main problem in computational epidemiology is how the allocation scheme should be adjusted in accordance with epidemic trends to satisfy the needs of population coverage, epidemic propagation prevention, and the social allocation balance. More specifically, the metropolitan demand for medical emergency resources varies depending on different local epidemic situations. It is therefore difficult to satisfy all objectives at the same time in real applications. In this paper, a data-driven multi-objective optimization method, called as GA-PSO, is proposed to address such problem. It adopts the one-way crossover and mutation operations to modify the particle updating framework in order to escape the local optimum. Taking the megacity Shenzhen in China as an example, experiments show that GA-PSO effectively balances different objectives and generates a feasible allocation strategy. Such a strategy does not only support the decision-making process of the Shenzhen center in terms of disease control and prevention, but it also enables us to control the potential propagation of COVID-19 and other epidemics.

1. Introduction

In December 2019, a few patients with atypical pneumonia were first diagnosed in Wuhan, China, and this was reported to the World Health Organization (WHO) [1]. Then, its etiology was identified as the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). It is obvious that the disease was spreading continuously from person to person at the end of January 2020 [2]. The confirmed and imported cases in the Hubei province, China, brought about severe coronavirus outbreaks in many cities across China. More seriously, the disease, called COVID-19, has since spread rapidly across China and to the rest of the world [1]. By the end of June 30, 2020, there were 10,185,374 confirmed cases and 503,862 deaths in 210 countries [3].

Currently, vaccines and antiviral medicines for COVID-19 are still under development. Besides, other pharmaceutical treatments (e.g., plasma therapy) are not likely to be implemented on a large scale. Therefore, the use of a personal protective equipment (PPE) (e.g., hand sanitizers, surgical face masks, and protective clothing) becomes one of the major non-pharmaceutical measures to reduce the infectious hazard [4]. The sudden outbreak throughout China has exacerbated an unprecedented PPE shortage, causing austere challenges to epidemic control [5]. Due to the limited stock of a PPE during the early phase of COVID-19 epidemic, the local health organization suffered great challenges. It has been an open problem for us to efficiently allocate a PPE during an epidemic propagation.

Currently, various models (e.g., SIS, SIR, and SVIR) are considered to model the spreading process for the purpose of estimating the affecting scope from the perspective of theoretical analysis [610]. It is also possible to introduce evolutionary game theory during the resource allocation process [11]. However, balancing the allocation of a PPE in different regions is still a tough task due to multiple risk factors and high interest. Two key factors are a high-risk population and the severity of infection [12]. As a result, this paper develops an improved particle swarm optimization algorithm to reconcile this decision making problem. It balances the heterogeneity of a high-risk population and the severity of infection by incorporating the one-way crossover and mutation operations into the particle swarm optimization framework and eventually generates a reasonable allocation strategy of a PPE.

We apply this algorithm for balancing the allocation of PPE in Shenzhen, which is one of the largest megacities [with a population of more than 11 million [13]] in Guangdong province, China. During the COVID-19 epidemic in China, Shenzhen reported 195 confirmed COVID-19 cases as of February 1, 2020, which was higher than all other cities except Hebei province at that time. Therefore, improving the medical emergency system has been one of the highest priorities in Shenzhen [14]. More specifically, the supply and allocation of PPE is an urgent matter in Shenzhen.

2. Methods

Shenzhen is divided into ten administrative districts. All parameters are set in Table 1. Let X = (x1, ..., x10) denote a PPE allocation over 10 districts, and G=ixi represent the total allocation. The optimization strategy is based on the following assumptions and objectives:

High-risk population: Due to multiple complications and a high fatality rate of people over 65, we select people over 65 [17]. The ith district with Oi people aged 65 or more is allocated xi sets of PPE defined in Equation (1), where Ni is the population size in the ith district.

ixi×Oi/Ni    (1)

The severity of infection: The ith district with Ii confirmed cases is allocated xi sets of PPE defined in Equation (2). Ai is the number of impacted individuals per confirmed case, which is assumed to be 1,000 for all districts.

ixi×Ai×Ii/Ni    (2)

Based on the above two objectives, this paper proposes a novel multi-objective optimization algorithm, named as GA-PSO, developed on the basis of MODPSO [18]. More specifically, GA-PSO is partially modified to simultaneously optimize the high-risk population and the severity of infection. The overview of GA-PSO is shown in Figure 1. It adopts one-way crossover and mutation operations to modify MODPSO in order to enhance the quality of solutions and escape the local optimum [19, 20]. Every population is composed of a set of particles which is a feasible solution (i.e., X). Firstly, a random population of particles is initialized. X is a random integer vector by G=ixi. Then, X is evaluated by the high-risk population and the severity of infection. It adopts the roulette method to select the preferable fitness particles. After that, it executes the one-way crossover operation. When a random number is less than the mutation value, it generates random particles. Finally, it iteratively generates new populations using particle status updating rules. During each iteration, the algorithm updates the Pareto solutions. When the number of iterations reaches the set value, the currently obtained Pareto solutions are the final solutions for the optimization problem.

TABLE 1
www.frontiersin.org

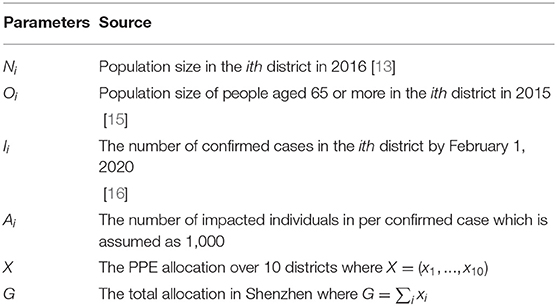

Table 1. Parameters are used in the experiments of the GA-PSO algorithm.

FIGURE 1
www.frontiersin.org

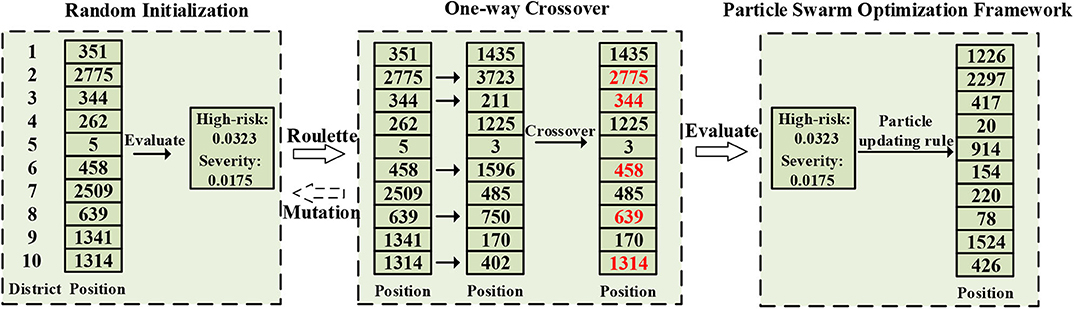

Figure 1. The overview of the GA-PSO algorithm, which comprises three components, i.e., the random initialization, the genetic operations, and the particle swarm optimization framework. The initial particles are selected by the roulette method. When a random number is less than the mutation rate, the particle is executed the initialization operation.

3. Results

The Shenzhen dataset is shown in Table 2 and includes the population size in 2016 [13], the number of people aged 65 or more in 2015 [15], and the cumulative cases on February 1, 2020 [16]. Besides, the PPE optimized allocation is calculated by GA-PSO as shown in Table 2. Figure 2 describes that the GA-PSO detects the Pareto front solutions for the PPE optimized allocation over 10 districts in Shenzhen. Every Pareto front solution indicates a feasible allocation. Different solutions can lead to different objective function values as quantified by the high-risk and severity priorities. The value of high-risk priority has ranged from 4.1% to 5.0%, and the value of the severity priority has ranged from 2.5% to 3.1% in Figure 2.

TABLE 2
www.frontiersin.org

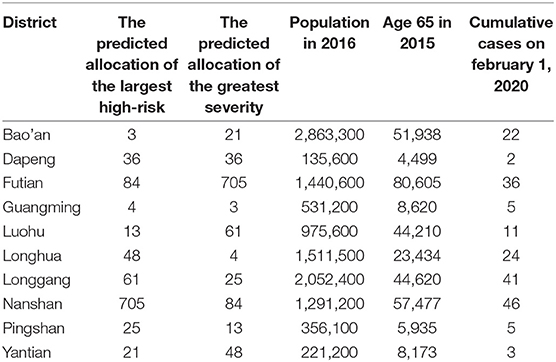

Table 2. The demographic information of 10 districts in Shenzhen and the predicated PPE allocation of the highest risk and the greatest severity objectives.

FIGURE 2
www.frontiersin.org

Figure 2. Estimated PPE optimized allocation in the 10 districts of Shenzhen on February 14, 2020. The Pareto frontier uses the two objectives of high-risk and severity priorities in the middle right inset. The predicted allocation of the greatest high-risk priority in (A) and the predicted allocation of the greatest severity priority in (B).

In summary, two objectives (i.e., the high-risk population and the severity of inflection) are added to obtain the PPE accessibility. The maximum value of the PPE accessibility is 7.53% for older or impacted individuals. When only the maximal high-risk population is the objective, the optimized allocation is estimated across 10 districts in Shenzhen, ranging from 3‰in suburban Bao'an to 705‰in central Nanshan. If the severity is the solitary objective, the allocation is from 3‰in suburban Guangming to 705‰in central Futian. The central districts of Futian and Nanshan top the PPE priority because of the maximal older people and confirmed cases.

4. Discussion

Metropols (e.g., New York, London, Paris, and San Paulo) have been experiencing an urgent demand for medical emergency resources since the early phase of the COVID-19 epidemic. The use of a personal protective equipment (PPE) (e.g., hand sanitizers, surgical face masks, and protective clothing) has become one of the major non-pharmaceutical measures with which to reduce the infectious hazard. Due to the limited stock of PPE in particular during the early phase of the COVID-19 epidemic, the local health organization has suffered greatly. It is therefore a challenge to balance the supply and allocation of PPE during the available time. To overcome this challenge for practical applications, the multi-objective optimization is a promising method.

A multi-objective optimization algorithm generates a set of Pareto solutions each of which is a tradeoff between multiple objectives. Consequently, the multi-objective optimization facilitates the decision making problem. In addition to PPE, the pharmaceutical prophylactics (e.g., antibiotics, vaccines, antitoxins, and other critical medical supplies) are also faced with the decision making problem because of the limited supply in the early phase. Our optimization algorithm for PPE can therefore be extended to other pharmaceutical prophylactics to narrow the scope of a disease spread and to avoid catastrophic economic and social consequences.
