Computing Irregularity Indices for Probabilistic Neural Network

Kang, Shunguang; Chu, Yu-Ming; Virk, Abaid ur Rehman; Nazeer, Waqas; Jia, Jia

doi:10.3389/fphy.2020.00359

ORIGINAL RESEARCH article

Front. Phys., 04 September 2020

Sec. Statistical and Computational Physics

Volume 8 - 2020 | https://doi.org/10.3389/fphy.2020.00359

This article is part of the Research Topic Mathematical Treatment of Nanomaterials and Neural Networks View all 28 articles

Computing Irregularity Indices for Probabilistic Neural Network

$\nShunguang Kang$ Shunguang Kang¹

Yu-Ming Chu^2,3^*

Abaid ur Rehman Virk⁴

Waqas Nazeer⁵

Jia Jia¹

¹School of Tourism Data, Guilin Tourism University, Guilin, China
²Department of Mathematics, Huzhou University, Huzhou, China
³Hunan Provincial Key Laboratory of Mathematical Modeling and Analysis in Engineering, Changsha University of Science & Technology, Changsha, China
⁴Department of Mathematics, University of Management and Technology, Lahore, Pakistan
⁵Department of Mathematics, Government College University, Lahore, Pakistan

A topological index (TI) is a quantity expressed as a number that help us to catch symmetry of network. With the help of quantitative structure property relationship (QSPR), we can guess physical and chemical properties of several networks. A neural network is a computer system based on the nerve system. There are numerous uses of these systems in different fields of studies but their most critical use to date is in Neurochemistry. In this paper, we will discuss thirteen irregularity indices for probabilistic neural networks (PNN).

1. Introduction

PNN are likewise Parzen window pdf estimator. In last few years these networks are widely used in different problems. With the help of these networks, we can solve email security problems, also helpful in signature verification. A PNN network contain different sub networks. The input data is from the set of measurements. The Gaussian functions produce the second layer with the help of given set of data points. An average operation is perform by second layer which produce third layer.

Molecular structures can be studied by means of graph. A branch of mathematics thats deals with the study of molecular graphs is know as chemical graph theory. With the help of different tools of mathematics, we are able to identify the features that helps us in QSPR. Contaminate, TIs are arithmetic value link with graph of PNN and has utilization in different fields of study. TIs stay invariant of two isomorphic graphs and helpful to predict many properties of PNN [1–7]. Other growing field is Cheminformatics, in which QSAR and QSPR relationship is used to figure out properties of concerned network. In these investigation, a few Physico-chemical properties and TIs are helpful to examine the behavior of compound structures [8–17].

The other primeval TI is Randić index, introduced by Randić [18] in 1975. Due to huge applications of Randić index, the generalized Randić index was given in [12]. This variant develop intrust for both the mathematicians and chemists [19–24].

After Randić index, the most examined TIs are Zagreb indices [25–27]. The different variants of Zagreb index was studied in [28]. An other important topological invariant is a symmetric division index which is an excellent descriptor of the aggregate surface area for polychlorobiphenyls [29].

2. Topological Indices

A special number, in graph theoretical term, representing a molecular structure, is known as topological descriptor. A topological descriptor when correlates with a molecular property, it can be determine as graph-theoretic index or topological index. The First and second Zagreb indices are the oldest molecular descriptors invented in 1975 by Gutman [18] and their properties are extensively investigated. They are defined as:

M_{1} (G) = \sum_{u v \in E (G)} (d_{u} + d_{v}) .

M_{2} (G) = \sum_{u v \in E (G)} (d_{u} \times d_{v}) .

The first genuine degree based TI was given by Randić in 1975 [18] as:

R (G) = \sum_{u v \in E (G)} \frac{1}{\sqrt{d_{u} . d_{v}}} .

The GRI known as General Randic Index [30] and is defined as:

G R I (G) = \sum_{u v \in E (G)} {(d_{u} . d_{v})}^{α} .

where α is an arbitrary real number.

The TI is known as Irregularity index [31], if TI of graph is greater equal to zero and TI of graph is equal to zero if and only if graph is regular. The Irregularity indices are given below. All these Irregularity indices are belong to degree based topological invariants excluding IRM2(G). A simplified way of expressing the irregularity is a irregularity index.

• $V A R (G) = \sum_{u ϵ V} {(d_{u} - \frac{2 m}{n})}^{2} = \frac{M_{1} (G)}{n} - {(\frac{2 m}{n})}^{2}$

• $A L (G) = \sum_{u v \in E (G)} | d_{u} - d_{v} |$

• $I R 1 (G) = \sum_{u \in V} {(d_{u})}^{3} - \frac{2 m}{n} \sum_{u \in V} {(d_{u})}^{2} = F (G) - \frac{2 m}{n} M_{1} (G)$

• $I R 2 (G) = \sqrt{\frac{\sum_{u v \in E (G)} d_{u} d_{v}}{m}} - \frac{2 m}{n} = \sqrt{\frac{M_{2} (G)}{m}} - \frac{2 m}{n}$

• $I R F (G) = \sum_{u v \in E (G)} {(d_{u} - d_{v})}^{2} = F (G) - 2 M_{2} (G)$

• $I R F W (G) = \frac{I R F (G)}{M_{2} (G)}$

• $I R A (G) = \sum_{u v \in E (G)} {(d_{u}^{- 1 / 2} - d_{v}^{- 1 / 2})}^{2} = n - 2 R (G)$

• $I R B (G) = \sum_{u v \in E (G)} {(d_{u}^{1 / 2} - d_{v}^{1 / 2})}^{2} = M_{1} (G) - 2 R R (G)$

• $I R D I F (G) = \sum_{u v \in E (G)} | \frac{d_{u}}{d_{v}} - \frac{d_{v}}{d_{u}} | = \sum_{i < j} m_{i, j} (\frac{j}{i} - \frac{i}{j})$

• $I R L F (G) = \sum_{u v \in E (G)} \frac{| d_{u} - d_{v} |}{\sqrt{(d_{u} d_{v})}} = \sum_{i < j} m_{i, j} (\frac{j - i}{\sqrt{i j}})$

• $I R L A (G) = 2 \sum_{u v \in E (G)} \frac{| d_{u} - d_{v} |}{(d_{u} + d_{v})} = 2 \sum_{i < j} m_{i, j} (\frac{j - i}{i + j})$

• $I R D 1 (G) = \sum_{u v \in E (G)} l n 1 + | d_{u} - d_{v} | = \sum_{i < j} m_{i, j} l n (i + j - 1)$

• $I R G A (G) \sum_{u v \in E (G)} l n (\frac{d_{u} + d_{v}}{2 \sqrt{d_{u} d_{v}}}) \sum_{i < j} m_{i, j} (\frac{i + j}{2 \sqrt{i j}})$

3. Computations of Probabilistic Neural Network

In this section, we will discuss irregularity indices for probabilistic neural network. The molecular graph of PNN(n, k, m) is given in Figure 1. The edge partition of PNN(n, k, m) is given in Table 1. The total vertices in PNN(n, k, m) are n+k(m+1) and number of edges are km(n + 1).

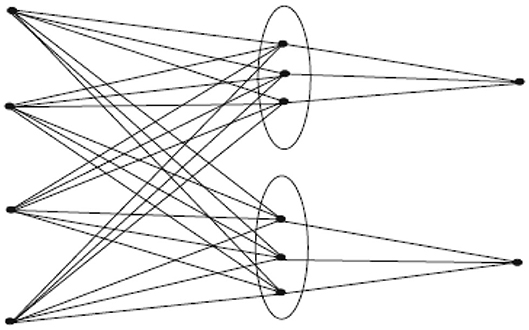

FIGURE 1

Figure 1. PNN(4, 2, 3).

TABLE 1

Table 1. E[PNN(n, k, m)].

Theorem 3.1. Consider G as graph for probabilistic neural network PNN(n, k, m. Then,

1. VAR(G) $= \frac{k m (K^{2} m^{2} - 4 k m n^{2} + k^{2} m + k m^{2} - 5 k m n - k m + 2 k n + m n + 2 n^{2} + 2 k + 2 n)}{{(k m + k + n)}^{2}}$

2. AL(G) = k²m²n − kmn² − km² + 2kmn + km

3. $I R 1 (G) = \frac{1}{k m + k + n} (k m (k^{3} m^{3} + k^{3} m^{2} + k^{2} m^{2} n + 2 k^{2} m n + k m^{3} + 2 k^{2} m + k m^{2} + 2 k n^{2} + m^{2} n + 2 m n^{2} + 2 n^{3} + 4 k n + 2 m n + 4 n^{2} + 2 k + 2 n))$

4. $I R 2 (G) = \frac{1}{k m + k + n} (\sqrt{(k + 1) m} k m - 2 k m n + \sqrt{(k + 1) m} k + \sqrt{(k + 1) m} n - 2 k m)$

Proof:

\begin{array}{l} 1 . V A R (G) = \sum_{u \in V} {(d_{u} - \frac{2 m}{n})}^{2} = \frac{M_{1} (G)}{n} - {(\frac{2 m}{n})}^{2} \\ = \frac{k^{2} m^{2} + k m^{2} + 2 k m n + 2 k m}{k m + k + n} - {(\frac{k m n + k m}{k m + k + n})}^{2} \\ = \frac{1}{{(k m + k + n)}^{2}} (k m (K^{2} m^{2} - 4 k m n^{2} + k^{2} m + k m^{2} \\ - 5 k m n - k m + 2 k n + m n + 2 n^{2} + 2 k + 2 n)) \end{array}

\begin{array}{l} 2 . A L (G) = \sum_{u v \in E (G)} | d_{u} - d_{v} | \\ = | k m - n - 1 | (k m n) + | n + 1 - m | (k m) \\ = k^{2} m^{2} n - k m n^{2} - k m^{2} + 2 k m n + k m . \end{array}

\begin{array}{l} 3 . I R 1 (G) = \sum_{u \in V} d_{u}^{3} - \frac{2 m}{n} \sum_{u \in V} d_{u}^{2} = F (G) - (\frac{2 m}{n}) M_{1} (G) \\ = (k^{3} m^{3} + 2 k^{2} m^{2} n + 2 k^{2} m^{2} + k m^{3} + 2 k m^{2} n \\ + 2 k m n^{2} + 2 k m^{2} + 4 k m n + 2 k m) \\ - \frac{2 (k m n + k m)}{(k m + k + n)} (k^{2} m^{2} + k m^{2} + 2 k m n + 2 k m) \\ = \frac{1}{k m + k + n} (k m (k^{3} m^{3} + k^{3} m^{2} \\ + k^{2} m^{2} n + 2 k^{2} m n + k m^{3} + 2 k^{2} m + k m^{2} + 2 k n^{2} \\ + m^{2} n + 2 m n^{2} + 2 n^{3} + 4 k n + 2 m n \\ + 4 n^{2} + 2 k + 2 n)) . \end{array}

\begin{array}{l} 4 . I R 2 (G) = \sqrt{\frac{\sum_{u v \in E (G)} d_{u} d_{v}}{m}} - \frac{2 m}{n} = \sqrt{\frac{M_{2} (G)}{m}} - \frac{2 m}{n} \\ = \sqrt{\frac{(k m n + k m) k m + k m (m n + m)}{k m n + k m}} \\ - (\frac{2 (k m n + k m)}{k m + k + n}) \\ = \frac{1}{k m + k + n} (\sqrt{(k + 1) m} k m \\ - 2 k m n + \sqrt{(k + 1) m} k \\ + \sqrt{(k + 1) m} n - 2 k m) . \end{array}

□

Theorem 3.2. Consider G as graph for probabilistic neural network PNN(n, k, m. Then,

1. IRF(G) = k³m³ + km³ + 2kmn² + 4kmn + 2km

2. $I R F W (G) = \frac{k^{2} m^{2} + m^{2} + 2 n^{2} + 4 n + 2}{m (k n + k + n + 1)}$

3. $I R A (G) = \frac{1}{\sqrt{k m n + k m} (m n + m)} k m (n \sqrt{m n + m} + \sqrt{k m n + k m})$

4. IRB(G) = (−2k²m²n² − 2k²m²n + k²m² − 2km²n − km² + 2kmn + 2km)

Proof:

\begin{array}{l} 1 . I R F (G) = \sum_{u v \in E (G)} {(d_{u} - d_{v})}^{2} \\ = {(k m - n - 1)}^{2} (k m n) + {(n + 1 - m)}^{2} (k m) \\ = k^{3} m^{3} + k m^{3} + 2 k m n^{2} + 4 k m n + 2 k m . \end{array}

\begin{array}{l} 2 . I R F W (G) = \frac{I R F (G)}{M_{2} (G)} \\ = \frac{k^{2} m^{2} + m^{2} + 2 n^{2} + 4 n + 2}{m (k n + k + n + 1)} . \end{array}

\begin{array}{l} 3 . I R A (G) = \sum_{u v \in E (G)} {(d_{u}^{- 1 / 2} - d_{v}^{- 1 / 2})}^{2} \\ = n - 2 R (G) \\ = \frac{1}{\sqrt{k m n + k m} (m n + m)} \\ k m (n \sqrt{m n + m} + \sqrt{k m n + k m}) . \end{array}

\begin{array}{l} 4 . I R B (G) = \sum_{u v \in E (G)} {(d_{u}^{1 / 2} - d_{v}^{1 / 2})}^{2} \\ = M_{1} (G) - 2 R R (G) \\ = (k m + n + 1) k m + k m (m + n + 1) \\ - 2 k^{2} m^{2} n^{2} - 2 k^{2} m^{2} n - 2 k m^{2} n - 2 k m^{2} \\ = (- 2 k^{2} m^{2} n^{2} - 2 k^{2} m^{2} n \\ + k^{2} m^{2} - 2 k m^{2} n - k m^{2} + 2 k m n + 2 k m) . \end{array}

□

Theorem 3.3. Consider G as graph for probabilistic neural network PNN(n, k, m. Then,

1. $I R D I F (G) = \frac{k^{2} m^{2} n - k m^{2} + k n^{2} - n^{3} + 2 k n - 2 n^{2} + k - n}{n + 1}$

2. $I R L F (G) = \frac{k m n (k m - n - 1)}{\sqrt{k m n + k m}} + \frac{k m (n - m + 1)}{\sqrt{m n + m}}$

3. IRLA(G) = $\frac{k m (k m^{2} n + k m n^{2} - k m^{2} + 2 k m n - m n^{2} - n^{3} + k m - 2 m n - n^{2} - m + n + 1)}{(k m + n + 1) (m + n + 1)}$

4. IRD1(G) = k²m²n − kmn² − km² + km

5. $I R G A (G) = \frac{1}{\sqrt{(k m n + k m) (m n + m)}} (k m (0.71 l n) k m + n + 1) n \sqrt{m n + m} + 0.70 l n (m + n + 1) \sqrt{k m n + k m}$

Proof:

\begin{array}{l} 1 . I R D I F (G) = \sum_{u v \in E (G)} | \frac{d_{u}}{d_{v}} - \frac{d_{v}}{d_{u}} | \\ = (\frac{k m}{n + 1} - \frac{n + 1}{k m}) k m n \\ + (\frac{n + 1}{m} - \frac{n + 1}{m} - \frac{m}{n + 1}) k m \\ = \frac{k^{2} m^{2} n - k m^{2} + k n^{2} - n^{3} + 2 k n - 2 n^{2} + k - n}{n + 1} . \end{array}

\begin{array}{l} 2 . I R L F (G) = \sum_{u v \in E (G)} \frac{| d_{u} - d_{v} |}{\sqrt{d_{u} . d_{v}}} \\ = (\frac{| k m - n - 1 |}{\sqrt{k m n}}) (k m n) + (\frac{| n + 1 - m |}{\sqrt{m n}}) (k m) \\ = \frac{k m n (k m - n - 1)}{\sqrt{k m n + k m}} + \frac{k m (n - m + 1)}{\sqrt{m n + m}} . \end{array}

\begin{array}{l} 3 . I R L A (G) = \sum_{u v \in E (G)} 2 \frac{| d_{u} - d_{v} |}{(d_{u} + d_{v})} \\ = 2 (\frac{| k m - n - 1 |}{k m + n + 1}) (k m n) \\ + 2 (\frac{| n + 1 - m |}{n + 1 + m}) (2 k m) \\ = \frac{1}{(k m + n + 1) (m + n + 1)} (k m (k m^{2} n + k m n^{2} \\ - k m^{2} + 2 k m n - m n^{2} - n^{3} \\ + k m - 2 m n - n^{2} - m + n + 1) . \end{array}

\begin{array}{l} 4 . I R D 1 (G) = \sum_{u v \in E (G)} l n {1 + | d_{u} - d_{v} |} \\ = l n {1 + | k m - n - 1 |} (k m n) \\ + l n {1 + | n + 1 - m |} (k m) \\ = k^{2} m^{2} n - k m n^{2} - k m^{2} + k m . \end{array}

\begin{array}{l} 5 . I R G A (G) = \sum_{u v \in E (G)} l n (\frac{d_{u} + d_{v}}{2 \sqrt{d_{u} d_{v}}}) \\ = l n (\frac{k m + n + 1}{2} \sqrt{k m (n + 1)}) (k m n) \\ + l n (\frac{m + n + 1}{2 \sqrt{m (n + 1)}}) (k m) \\ = \frac{1}{\sqrt{(k m n + k m) (m n + m)}} (k m (0.71 l n) k m + n + 1) \\ n \sqrt{m n + m} + 0.70 l n (m + n + 1) \sqrt{k m n + k m} . \end{array}

□

Conclusion

In this article, we have calculated degree-based irregularity indices of probabilistic neural network. Our outcomes are pertinent in material science and other applied sciences. It is demonstrated certainty that TIs help to anticipate numerous properties without setting off to the wet lab.

Data Availability Statement

All datasets generated for this study are included in the article/supplementary material.

Author Contributions

SK revised the introduction section and proofread the paper. Y-MC analyzed the results and arrange funding. AV proved the main results. WN proposed the problem and supervised this work. JJ improved the language and highlight the applications of the results. All authors listed approved it for publication.

Funding

The research was supported by the National Natural Science Foundation of China (Grant Nos. 11971142, 11871202, 61673169, 11701176, 11626101, and 11601485).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
