Search for Lepton-Flavor-Violating Decays of Bosons With the ATLAS Detector

The quest for lepton-flavor-violating processes at the LHC represents one of the key searches for new physics beyond the Standard Model. This review summarizes the direct searches for lepton-flavor-violating decays of heavy bosons with the ATLAS detector, using proton-proton collisions at the center-of-mass energy of 13 TeV.

1. Introduction

The search for processes beyond the Standard Model (SM) is one of the goals of the physics programme at the Large Hadron Collider (LHC) at CERN. A possible sign of such processes would be the lepton-flavor-violation (LFV) in decays of heavy bosons, such as well-established Z and Higgs bosons or even not-yet-discovered bosons (Z′, additional Higgs bosons, etc).

Direct LFV processes are forbidden in the SM but are allowed in its many extensions. For instance, LFV decays of the Z boson are predicted by models with heavy neutrinos [1], extended gauge models [2] and supersymmetry (SUSY) [3], which also allows for LFV decays of the Higgs boson [4, 5]. In particular Minimal Supersymmetric SM scenarios with very high energy scale of the SUSY particle masses m_SUSY present a non-decoupling behavior of the Higgs boson partial widths in two leptons of different flavor, with respect to m_SUSY. This feature opens the possibility of detecting indirectly scenarios with very high m_SUSY via LFV Higgs boson decays. Other models with more than one Higgs doublet [6, 7], composite Higgs [8] or warped extra dimension models [9–11] predict LFV decays of the Higgs boson, too. The addition of an extra U(1) gauge symmetry to the SM results in a massive neutral Z′ boson [12] that could also decay through LFV processes. Recently, new models [13–15] have proposed LFV decays of the Higgs or heavier bosons as a necessary ingredient to explain the flavor anomalies observed by LHCb [16–21].

This paper summarizes the searches for LFV decays performed with the ATLAS detector using pp collision data collected at the center-of-mass energy of 13 TeV. Despite the large number of aforementioned models predicting the existence of LFV processes, the ATLAS searches presented in this review are performed as much as possible in a model-independent way, in order to be sensitive to any type of new physics phenomena giving rise to LFV processes. First, the ATLAS detector and object selection common to below analyses are briefly described (section 2). The latest ATLAS results on LFV decays of Z, Higgs bosons and searches for other bosons decaying via LFV processes are summarized in sections 3, 4, and 5, respectively.

2. The ATLAS Detector and Object Selection

2.1. The ATLAS Detector

ATLAS is a multi-purpose particle detector at the LHC with a forward-backward symmetry and nearly 4π coverage in the solid angle [22–24]. It consists of several sub-detectors that play different roles. Closest to the beam pipe is the inner tracking detector covering the pseudorapidity¹ range |η| < 2.5. It is surrounded by the superconducting solenoid that provides a 2 T axial magnetic field. High-granularity electromagnetic (|η| < 3.2) and hadronic (|η| < 4.9) sampling calorimeters provide precision energy and direction measurement of electrons, photons, isolated hadrons and jets. The detector is completed with the muon spectrometer (|η| < 2.7), with a toroidal magnetic field generated by three sets of large superconducting magnets. The spectrometer also includes fast trigger chambers used for the event selection in the first trigger level.

2.2. Object Selection

The key objects used in these analyses include light leptons², jets including those originating from hadronic decays of τ-leptons and missing transverse momentum.

Electrons are reconstructed by matching tracks in the inner detector to clustered energy deposits in the electromagnetic calorimeter [25]. Likelihood-based identification (ID) [26] is applied. Muons are identified by mutually matching tracks in the inner detector and muon spectrometer [27]. Electrons and muons are required to be isolated from other objects reconstructed in the detector in order to suppress events where these leptons originate from semi-leptonic decays of particles within jets or from other sources.

Jets are reconstructed with the anti-k_t algorithm [28] applied to topological clusters of calorimeter cells [29] with a radius parameter R = 0.4. Jets from other pp interactions in the same and neighboring bunch-crossings are mitigated with the jet vertex tagger algorithms [30, 31]. Jets containing b-hadrons (b-jets), often originating from top-quark decays, are identified with the likelihood-based algorithm [32, 33] used in the central detector region (|η| < 2.4), which is inside the inner tracking detector coverage.

The reconstruction of visible products of the hadronic τ-lepton decays (τ → hadrons + ν_τ), denoted τ_had-vis, starts from jets. Additional information from the inner detector tracks associated to the given jet is exploited, one or three tracks with a total charge q = ±1 are required. A dedicated identification algorithm [34, 35] is further applied in order to reject candidates arising from misidentified jets or from decays of hadrons containing b- or c-quark. Finally, 1-prong τ_had-vis candidates geometrically overlapping with an electron with high ID score are also rejected. For each identified τ_had-vis candidate, the corresponding jet is removed from the jet collection to avoid object double-counting.

The missing transverse momentum ${\overrightarrow{p}}_{\text{T}}^{\text{miss}}$ and its magnitude $E_{\mathrm{\text{T}}}^{\mathrm{\text{miss}}}$ is calculated as negative vectorial sum of the transverse momenta of all fully reconstructed and calibrated physics objects. Additional contribution comes from the tracks originating from the hard-scattering vertex that are not matched to any reconstructed object [36].

2.3. Dilepton Mass Reconstruction

In order to reconstruct a two-body decay of a heavy boson, the invariant mass of the decay products needs to be constructed. In case of the eμ decay, this quantity can be directly evaluated from individual measured lepton momenta. The situation is more complicated in decays involving τ-leptons due to the presence of at least one neutrino in the final state. Two approaches are usually adopted, both exploiting ${\overrightarrow{p}}_{\text{T}}^{\text{miss}}$ as a proxy to the neutrino momentum in the plane transverse to the colliding beam axis. The collinear approximation [37] assumes all τ-decay products including the neutrino fly in the same direction, while the missing mass calculator (MMC) [37] allows for a non-zero angle between the neutrino and the direction of the visible τ-decay products, taking into account the angular distribution expected for the given decay mode.

3. Z Boson

The searches for LFV decays of the Z boson include all flavor combination Z → eτ, Z → μτ and Z → eμ. This review focuses on the two searches with τ-lepton involved, where the results with the pp collisions acquired at the center-of-mass energy of 13 TeV and corresponding to the total integrated luminosity of 36.1fb⁻¹ are already available [38].

Major background processes to the Z → ℓτ search include the irreducible component Z → ττ → ℓ + hadrons + 3ν and reducible backgrounds from W+jets, top-quark pair-production and Z → ℓℓ, where either a jet or a light lepton is misidentified as τ_had-vis.

Neural network (NN) classifiers are used to identify the three major background components (Z → ττ, W+jets, Z → ℓℓ). For each type the NN classifier is trained and validated with the MC simulations. Components of light lepton and τ_had-vis momenta, their collinear mass and missing transverse momentum are typically used as the NN input variables. In order to obtain a single discriminating quantity, the combined NN classifier is built of individual NN outputs separately for events with 1-prong and 3-prong τ_had-vis candidates:

$\begin{array}{ll}\text{combined(1-prong)}=1-\sqrt{{(1-\text{NN}(W+\text{jets}))}^2+{(1-\text{NN}(Z\to \tau \tau ))}^2+{(1-\text{NN}(Z\to \ell \ell ))}^2}/\sqrt{3}& (1)\end{array}$

$\begin{array}{ll}\text{combined(3-prong)}=1-\sqrt{{(1-\text{NN}(W+\text{jets}))}^2+{(1-\text{NN}(Z\to \tau \tau ))}^2}/\sqrt{2}& (2)\end{array}$

Events considered in the analysis are triggered by single electron or muon triggers. The selection is further tightened by requiring well-identified and isolated electron or muon matched to the triggered lepton. Only hadronic decays of the τ-lepton are considered in the final state, at least one τ_had-vis candidate with opposite electric charge with respect to the light lepton is required. Events with more than one light lepton and/or b-jets are rejected, the latter condition mitigates the top-quark-related background. The transverse mass of the τ_had-vis candidate and $E_{\mathrm{\text{T}}}^{\mathrm{\text{miss}}}$:

$\begin{array}{ll}{m}_{\text{T}}({\tau }_{\text{had-vis}},E_{\text{T}}^{\text{miss}})\equiv \sqrt{2p_{\text{T}}({\tau }_{\text{had-vis}})E_{\text{T}}^{\text{miss}}(1-cos(\Delta \varphi ({\tau }_{\text{had-vis}},E_{\text{T}}^{\text{miss}})))}& (3)\end{array}$

also assists in the signal/background separation.³ In the signal region (SR), $m_{\text{T}}({\tau }_{\mathrm{\text{had-vis}}},E_{\mathrm{\text{T}}}^{\mathrm{\text{miss}}})<35(30)\mathrm{\text{GeV}}$ in the eτ (μτ) search is further required.

In order to constrain the background normalization with data, four control regions (CR) are defined for several background components. The event selection is the same as for the SR, but one criterion is inverted: at least two b-jets in the top-quark CR, $m_{\text{T}}({\tau }_{\mathrm{\text{had-vis}}},E_{\mathrm{\text{T}}}^{\mathrm{\text{miss}}})>40\mathrm{\text{ GeV}}$ in the W+jets CR, inverted light lepton isolation in the multi-jet CR. Electrons misidentified as 1-prong τ_had-vis are determined from MC simulations, the rate is corrected using data. Normalization is constrained from the Z → ℓℓ CR, defined with dilepton invariant mass corresponding to the Z-boson mass. Jets misidentified as τ_had-vis are estimated using the data-driven fake factor method. The dominant contributions comes from W+jets and multi-jet processes, the fake factors are measured in the corresponding CR.

The NN templates are constructed using the combined outputs (1), (2) for signal, Z → ττ, fakes, Z → ℓℓ, top-quark background and W(→ τν)+jets events; small contributions from SM Higgs boson decays and diboson production are summed into a single template (“other”). The template fit is performed separately for each search and prongness as shown in Figure 1. The dominant contributions to the total uncertainty come from the normalizations of the Z → ττ background and components where jets mimic τ_had (W+jets, $t\bar{t}$, Z(→ ℓℓ)+jets, multi-jets). The statistical uncertainty in fake factors also contributes significantly to the total uncertainty.

FIGURE 1

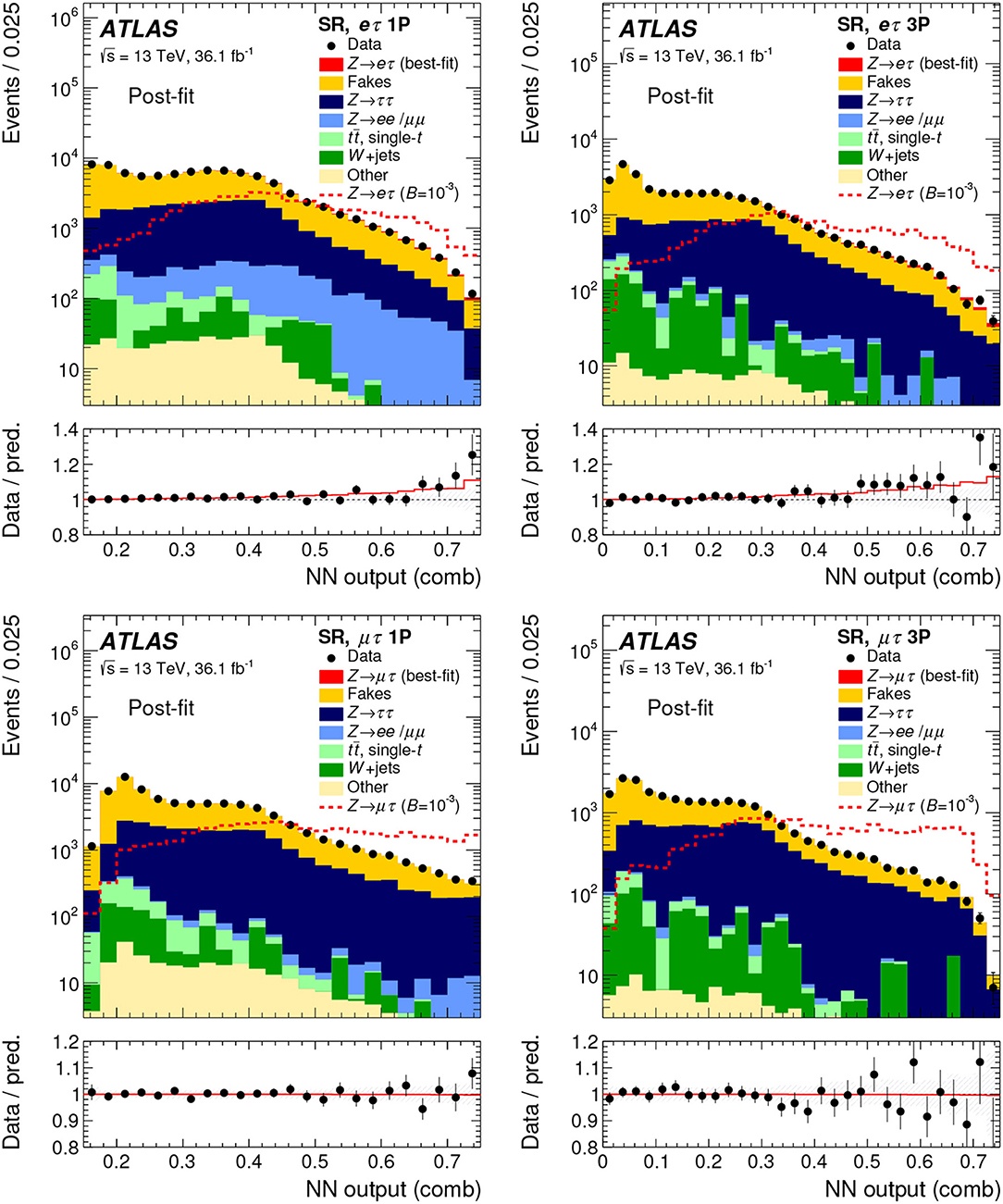

Figure 1. Observed and expected post-fit distributions of the combined NN outputs in the SR are shown for the eτ (top row) and μτ (bottom row) searches, separately for 1-prong (left column) and 3-prong events (right column). The overlaid dashed line represents the expected distribution for the signal normalized to ${B}(Z\to \ell \tau )=10^{-3}$. The bottom panels in each plot display the ratios of the observed data (dots) and the post-fit background plus signal (solid line) over the post-fit background. The hatched areas correspond to the combined statistical and systematic uncertainties. Reproduced from ATLAS Collaboration [38] under the Creative Commons CC-BY-4 license.

The combined best-fit value of the branching fraction slightly fluctuates to a positive value in the eτ search, ${B}(Z\to e\tau )=(3.3_{-1.4}^{+1.5})\times 10^{-5}$, and it is consistent with zero in the μτ search, ${B}(Z\to \mu \tau )=(-0.1_{-1.2}^{+1.2})\times 10^{-5}$. Since no significant deviations from the background-only hypothesis are observed, the upper limits at 95% confidence level (CL) are set, ${B}(Z\to e\tau )<5.8\times 10^{-5}$ and ${B}(Z\to \mu \tau )<2.4\times 10^{-5}$, respectively [38].

The results of the Z → μτ search are combined with the previous results obtained with pp collisions at the center-of-mass energy of 8 TeV [39]. The combined observed 95% CL upper limit amounts to ${B}(Z\to \mu \tau )<1.3\times 10^{-5}$.

The search for the LFV Z → eμ decay was performed with earlier dataset acquired with 8 TeV pp collisions. An upper bound ${B}(Z\to e\mu )<7.5\times 10^{-7}$ was obtained [40].

4. Higgs Boson

ATLAS and CMS collaborations discovered in 2012 a new boson with a mass of ~125 GeV [41, 42]. Current measurements indicate that the new particle is compatible with the predicted Higgs boson of the Standard Model (SM) [43–48], but the quest of measuring the branching fractions of the Higgs boson decay is still open. The search for LFV decays of the Higgs boson is performed for all flavor combinations: H → eτ, H → μτ, and H → eμ. The first two searches, involving decays with a τ-lepton, are performed with the pp collisions acquired at the center-of-mass energy of 13 TeV and corresponding to a total integrated luminosity of 36.1fb⁻¹ [49]. The last search is performed with 139fb⁻¹ of pp collisions at a center-of-mass energy of 13 TeV [50].

4.1. Search for H → eτ and H → μτ Decays

Major background processes to the H → ℓτ searches include the irreducible components Z → ττ, H → ττ and reducible backgrounds from top-quark production processes, diboson production, H → WW and from W+jets, Z → ℓℓ and multi-jet production where at least a jet or a light lepton is misidentified as τ_had-vis or light lepton of different nature.

The events considered in these two searches are triggered by single electron or muon triggers. The selection is further tightened by requiring well-identified and isolated electron or muon matched to the triggered lepton. For each of the two searches, two channels are exploited:

• $\ell {\tau }_{{\ell }^{\prime }}$ channel: requiring exactly one electron and one muon of opposite-sign (OS) charges, where the lepton of lowest p_T is associated to the leptonic decay of the τ-lepton.

• ℓτ_had channel: requiring a light lepton and a τ_had-vis of OS charges.

For both channels, events are further categorized into VBF (with a focus on the Higgs boson production via the vector boson fusion, VBF) and non-VBF categories. The VBF selection is based on the kinematics of the two jets with the highest p_T, where j₁ and j₂ denote the leading and subleading jet in p_T, respectively. The variables m(j₁, j₂) and Δη(j₁, j₂) stand for the invariant mass and η separation of these two jets. The non-VBF category contains events failing the VBF selection, but passing further selection criteria described in reference [49].

The VBF and non-VBF categories in each of the $\ell {\tau }_{{\ell }^{\prime }}$ and ℓτ_had channels give rise to the four signal regions used in the statistical analysis of each search. The analysis exploits boosted decision trees (BDT) [51–54] algorithms to enhance the signal separation from backgrounds in the individual searches, channels and categories. The analysis employs as well CRs orthogonal to the analysis SRs to constrain the background normalization with data. For each category, a top-quark control region is defined by requiring the presence of at least one b-jet. Similarly for each category, a Z → ττ CR is defined by requiring that the leading lepton p_T is between 35 GeV and 45 GeV, with a purity of about 80% (65%) for the non-VBF (VBF) category.

The contribution of backgrounds where jets are misidentified as light leptons or τ_had-vis is estimated with data-driven techniques. Contribution of electrons misidentified as 1-prong τ_had-vis are determined from data, as well. The other background components are modeled with MC simulation.

The BDT distribution for the SRs of the H → eτ and H → μτ searches are shown in Figures 2, 3, respectively.

FIGURE 2

Figure 2. Distributions of the BDT score after the background+signal fit in each signal region of the eτ search, with the LFV signal overlaid, normalized with ${B}(H\to e\tau )=1\%$ and enhanced by a factor 10 for visibility. The top and bottom plots display eτ_μ and eτ_had BDT scores, respectively, the left (right) column corresponds to the non-VBF (VBF) category. The size of the combined statistical, experimental and theoretical uncertainties of the background is indicated by the hatched bands. The binning is shown as in the statistical analysis. Reproduced from ATLAS Collaboration [49] under the Creative Commons CC-BY-4 license.

FIGURE 3

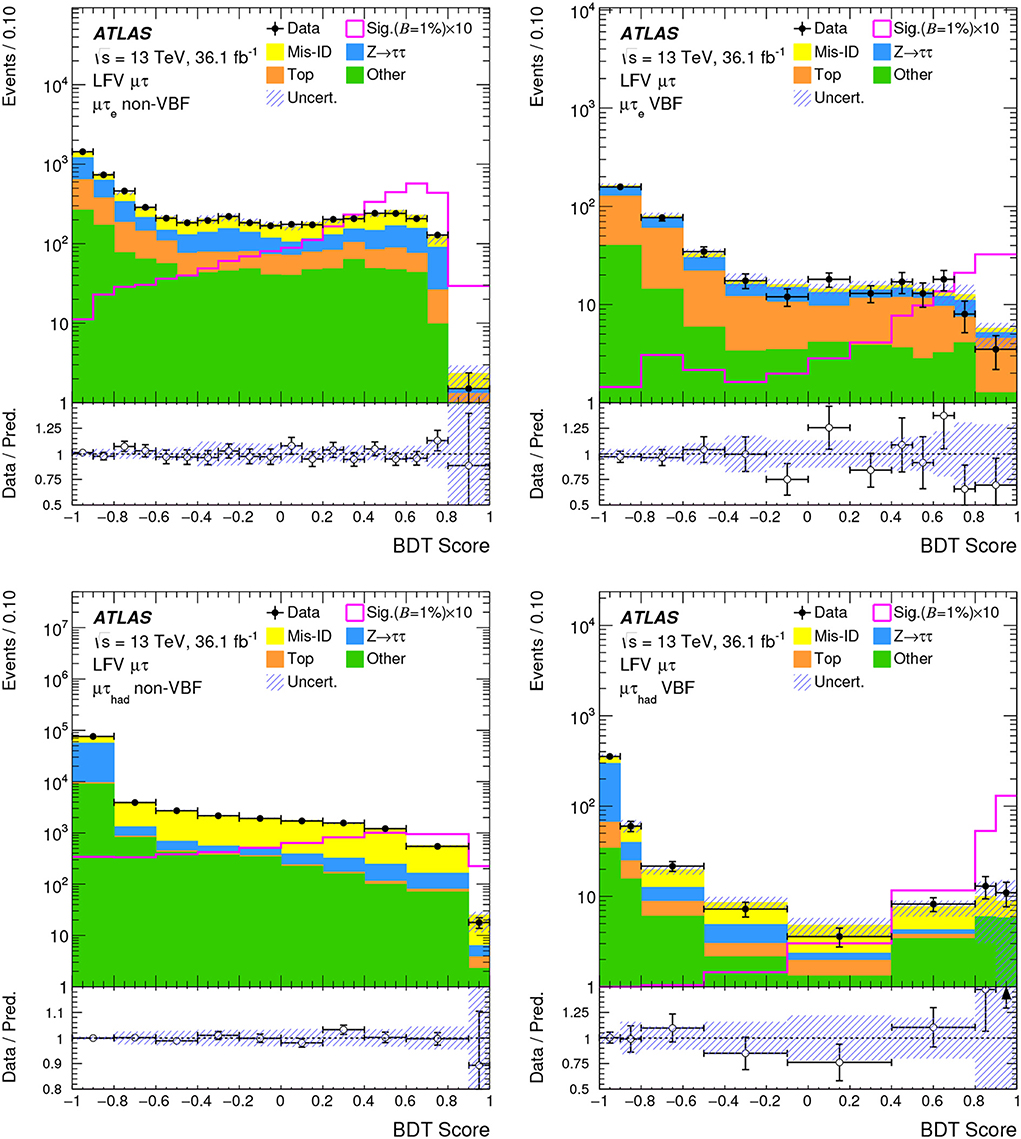

Figure 3. Distributions of the BDT score after the background+signal fit in each signal region of the μτ search, with the LFV signal overlaid, normalized with ${B}(H\to \mu \tau )=1\%$ and enhanced by a factor 10 for visibility. The top and bottom plots display μτ_e and μτ_had BDT scores, respectively, the left (right) column corresponds to the non-VBF (VBF) category. The size of the combined statistical, experimental and theoretical uncertainties of the background is indicated by the hatched bands. The binning is shown as in the statistical analysis. In the data/background prediction ratio plots, points outside the displayed y-axis range are shown by arrows. Reproduced from ATLAS Collaboration [49] under the Creative Commons CC-BY-4 license.

The main uncertainties of the searches derive from systematic uncertainties on the estimation of jets misidentified as τ_had-vis and light leptons and on the identification of b-jets. The best-fit branching fractions and upper limits are computed while assuming ${B}(H\to \mu \tau )=0$ for the H → eτ search and ${B}(H\to e\tau )=0$ for the H → μτ search. The best-fit values of the LFV Higgs boson branching fractions are equal to $(0.15_{-0.17}^{+0.18})\%$ and (−0.22±0.19)% for the H → eτ and H → μτ search, respectively. In the absence of a significant excess above the expected background from SM processes, upper limits on the LFV branching fractions are set for a Higgs boson with m_H = 125 GeV. The observed (median expected) 95% CL upper limits are 0.47% ($0.34_{-0.10}^{+0.13}\%$) and 0.28% ($0.37_{-0.10}^{+0.14}\%$) for the H → eτ and H → μτ searches, respectively.

The individual Yukawa matrix elements Y_τℓ and Y_ℓτ are directly related to the corresponding branching fraction via the relation [55]

$\begin{array}{ll}|Y_{\ell \tau }{|}^2+|Y_{\tau \ell }{|}^2=8\pi \frac{{\Gamma }_H^{\text{SM}}}{m_H}·\frac{{B}(H\to \ell \tau )}{1-{B}(H\to \ell \tau )},& (4)\end{array}$

where m_H and ${\Gamma }_H^{\text{SM}}$ represent the mass and the SM total width of the Higgs boson [56]. Figure 4 shows the limits on the individual coupling matrix elements Y_τℓ and Y_ℓτ together with the limits from earlier ATLAS analyses [39, 57] and from τ → ℓγ searches [55, 58].

FIGURE 4

Figure 4. Upper limits on the absolute value of the couplings Y_τℓ and Y_ℓτ together with the limits from earlier ATLAS analyses [39, 57] (light gray line) and the most stringent indirect limits from τ → ℓγ searches (dark purple region). Also indicated are limits corresponding to different branching fractions (0.01, 0.1, 1, 10, and 50%) and the naturalness limit (denoted n.l.) $\left|Y_{\tau \ell }{Y}_{\ell \tau }\right|\lesssim m_{\tau }{m}_{\ell }/v^2$ [55], where v = 246 GeV is the vacuum expectation value of the Higgs field. Reproduced from ATLAS Collaboration [49] under the Creative Commons CC-BY-4 license.

4.2. Search for H → eμ Decay

The analyses strategy follows closely the methodology of the H → μμ search [59]. The main backgrounds of the search are Z → ττ process, top-quark production, diboson production and W+jets and multi-jet processes, where at least one jet is misidentified as a light lepton.

The signal is separated from the background primarily by identifying a narrow peak in the invariant mass distribution of the two leptons m_eμ corresponding to a decay of the Higgs boson with m_H = 125 GeV.

The event selection divides the events into eight categories, based on those used for the H → μμ search. Events where the p_T of the subleading lepton is < 27 GeV enter the “Low p_T” category. A category enriched in events from vector-boson fusion production “VBF” is defined by selecting those with jets having large pseudorapidity separation, Δη(j₁, j₂) > 3 and dijet invariant mass m(j₁, j₂) > 500 GeV. Events that don't enter the first two categories are classified as “Central” if the pseudorapidities of both leptons are |η| < 1 or as “Non-central” otherwise. For each of these two categories, events are further separated into three sub-categories depending on the ranges in the dilepton transverse momentum p_T(eμ). Further details can be found in reference [50].

In the statistical analysis, analytical functions are used to describe the m_eμ distributions for the signal and background processes. The shape of the signal events in each category is parameterized as a sum of a Crystal Ball and a Gaussian function. For the background, a Bernstein polynomial function is used to parameterize the m_eμ distribution.

Distribution of the events entering in the eight categories used in the analysis is shown in Figure 5.

FIGURE 5

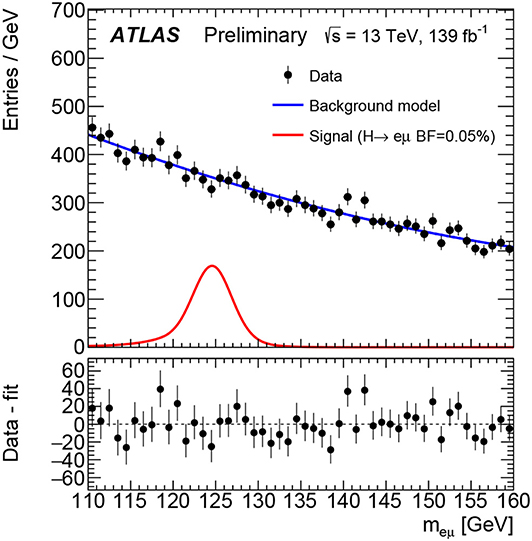

Figure 5. All categories summed together for the eμ channel compared with the background only model. The signal parameterization with branching fractions (BF) set to ${B}$(H → eμ) = 0.05% is also shown (red line). The bottom panels show the difference between data and fit. Reproduced from ATLAS Collaboration [50] under the Creative Commons CC-BY-4 license.

A simultaneous fit using a profile-likelihood-ratio test statistics is performed to the observed electron-muon-mass spectra divided into 50 m_eμ bins in each of the eight categories. No evidence for the decay H → eμ is observed with a best fit value of the branching fraction of (0.4±2.9(stat)±0.3(syst)) × 10⁻⁵. The uncertainty is dominated by the data statistics, while the largest systematic contribution is from Higgs boson production cross-section uncertainty. The observed (median expected) upper limit at the 95% confidence level is found to be 6.1 × 10⁻⁵ (5.8 × 10⁻⁵).

Figure 6 shows the limits on the individual coupling matrix elements Y_eμ and Y_μe together with the indirect constraints derived from null searches for μ → eγ [60], μ → 3e [61] and μ → e conversions on gold nuclei [62].

FIGURE 6

Figure 6. Constraints on the flavor-violating Yukawa couplings Y_eμ and Y_μe derived analogously to the relation (4). The expected (red dashed line) and observed (blue solid line) limits are derived from the limits on ${B}(H\to e\mu )$ from the present analysis. The green (yellow) band indicates the range that is expected to contain 68% (95%) of all observed limit excursions. The shaded regions show the indirect constraints derived using the model calculations of reference [55] from null searches for μ → eγ [60], μ → 3e [61], and μ → e conversions on gold nuclei [62]. For these calculations the flavor diagonal Yukawa couplings are taken to be the SM values. The diagonal line indicates the so-called naturalness limit $\left|Y_{e\mu }{Y}_{\mu e}\right|<m_e{m}_{\mu }/v^2$, where v is the vacuum expectation value of the Higgs field. Reproduced from ATLAS Collaboration [50] under the Creative Commons CC-BY-4 license.

Figure 7 summarizes the 95% CL upper limits on the branching fractions of the Higgs boson to lepton-flavor-violating decays, H → eτ, H → μτ, and H → eμ.

FIGURE 7

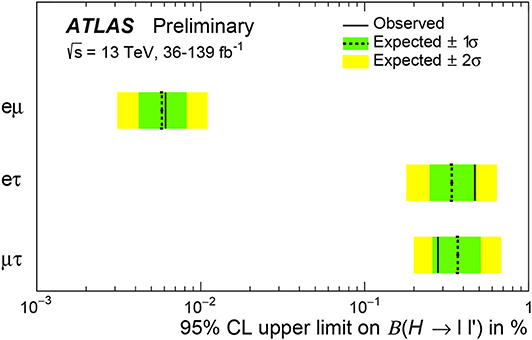

Figure 7. Limits at 95% CL upper limits on the branching fractions of the Higgs boson to various lepton flavor violating decays in percent. The results for H → eμ are from reference [50] and the H → eτ and H → μτ results are taken from reference [49]. Expected limits are shown as a dashed line with the one- and two-sigma uncertainty bands in green and yellow. Reproduced from ATLAS Collaboration [50] under the Creative Commons CC-BY-4 license.

5. Other LFV Searches

5.1. Z′ Boson

The searches summarized here assume the Z′ boson has the same couplings to quarks and chiral structure as the SM Z boson, while in the leptonic modes only the LFV decays are allowed. The searches for three flavor combinations (eμ, eτ, μτ) are performed independently, assuming only one non-zero LFV coupling at any time [63].

The event selection is similar as in the analysis described in section 3. In the eτ and μτ decays, only τ_had-vis candidates are considered. Higher p_T thresholds on all objects (e, μ, τ_had-vis) are imposed, reflecting the high mass of the potential Z′ boson. In addition, a tighter identification for light leptons is required. Exactly two back-to-back leptons (angular separation in the transverse plane Δϕ(l, l′) > 2.7) are required in the SR. No condition on the opposite charges is imposed, since it reduces the signal selection efficiency up to 6% at high masses due to charge misassignment, with no significant benefit in the background rejection.

The analysis strategy is to look for a peak in the invariant (eμ) or collinear (eτ, μτ) mass distributions of the two decay products, commonly denoted as $m_{l{l}^{\prime }}$ in the following text. The irreducible background consists of Z → ττ, $t\bar{t}$, single top-quark and diboson production processes, all of them are modeled with MC simulations. Since the top-quark samples ($t\bar{t}$ and single top-quark) suffer from low statistics for $m_{l{l}^{\prime }}>1\mathrm{\text{ TeV}}$, the $m_{l{l}^{\prime }}$ distribution is extrapolated with monotonically decreasing function fitted to that distribution in the lower mass range. The reducible background comes from jets misidentified as electrons or τ_had-vis candidates, it is estimated with data-driven techniques. Contributions from muons originating from hadron decays or jets is negligible and is not taken into account.

In the eμ search, the dominant background comes from the $t\bar{t}$ production, which can be suppressed by b-jet veto. The analysis is performed both with and without this requirement. The background from jets misidentified as electrons is estimated with the matrix method [64] using the samples with looser-ID electrons. Efficiencies of these electrons to match the nominal ones is evaluated with Z → ee simulated events, the misidentification probability (fake rate) is obtained in the multi-jet enriched data sample.

In the eτ and μτ searches, the dominant background comes from W+jets process, where a jet is misidentified as a τ_had-vis candidate. It is estimated with MC simulations, where each jet is weighted according to the probability to pass the nominal τ-lepton ID. This so-called fake rate is measured in the W(→ e/μ)+jets CR, defined in the same way as the SR but with the inverted condition on the back-to-back leptons. A cut on transverse mass, as defined in formula (3), is also required (m_T > 80 GeV) to enrich this CR with W+jets contribution. The fake rate is measured as a function of p_T, η and number of charged tracks associated with τ_had-vis candidates. Another source of reducible background is the multi-jet production. It is estimated with an ABCD method. Transfer factors are determined as the ratio of number of events failing both the light lepton isolation and τ-lepton ID over the number of events passing these two criteria. These transfer factors are derived with the same-sign (SS) light lepton pairs, validated with opposite-sign events and applied to events without any charge requirement.

The dilepton mass spectra are displayed in Figure 8. The systematic uncertainties in parton distribution functions (PDFs) and the $t\bar{t}$ modeling represent the major contributions to the total uncertainty shown in the bottom panels. These $m_{l{l}^{\prime }}$ spectra are fitted with the BumpHunter program [65] to search for a possible peak. Since no significant deviations from the SM predictions are observed, the exclusion limits are extracted using a Bayesian method. The product of the Poisson probabilities of the observed and expected number of events in each $m_{l{l}^{\prime }}$ bin is used to construct the likelihood function. The 95% CL exclusion upper limits are set on the signal cross-section times branching fraction. Expected exclusion limits are obtained by generating 1,000 pseudo-experiments for each mass point, their median value is taken as the expected limit.

FIGURE 8

Figure 8. The dilepton mass distributions of eμ without b-jet veto applied (left), eτ (middle), and μτ (right) pairs for data and SM predictions. The expected signal from Z′ boson with a mass of 1.5 TeV is overlaid. Also shown are signals expected by other models producing the same final states: τ-sneutrino and quantum black hole, both with masses of 1.5 TeV. The error bars display the statistical uncertainty of the observed yields, the bands in the bottom panels include all statistical and systematic uncertainties combined in quadrature. No further data points are found in overflow bins. Reproduced from ATLAS Collaboration [63] under the Creative Commons CC-BY-4 license.

The results are shown in Figure 9 as a function of the Z′ boson mass for all three searches. The limits are not so strong for masses above 2.5 TeV due to lower detector acceptance at very high p_T, while in the low-mass region the limits suffer from the signal being suppressed by PDFs. The observed 95% lower limits on the mass of the Z′ boson with LFV couplings are 4.5 TeV (4.4 TeV when b-jet veto is applied), 3.7 TeV and 3.5 TeV in the eμ, eτ and μτ channel, respectively.

FIGURE 9

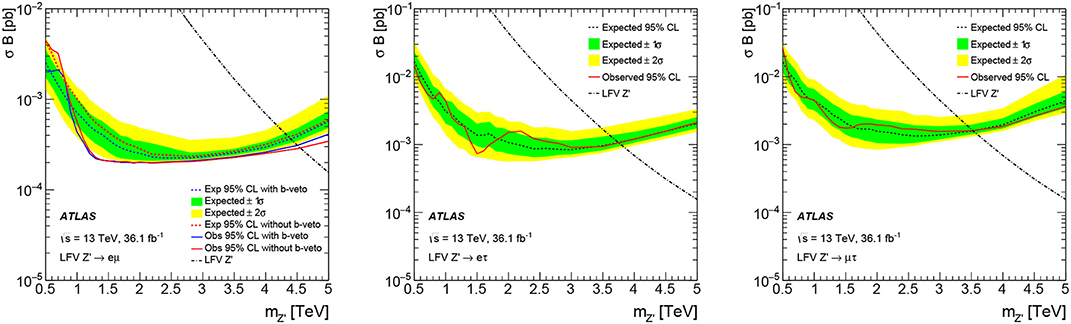

Figure 9. The observed and expected 95% CL upper limits on the Z′ boson production cross-section times branching fraction for decays into eμ (left), eτ (middle), and μτ (right). The signal theoretical cross-section times branching fraction, shown with dash-dotted lines, are obtained from MC simulations according to the LFV Z′ model (${B}(Z^{\prime }\to l{l}^{\prime })=6.4\%$). The expected limits are shown with ±1 and ±2 standard deviation uncertainty bands. Reproduced from ATLAS Collaboration [63] under the Creative Commons CC-BY-4 license.

The limits on couplings in the LFV Z′ model are directly related to the cross-section times branching fraction. These limits can be then compared to results from precision low-energy measurements, namely to the μ-to-e conversion, μ → eee, μ → eγ (eμ decay), τ → eee, τ → eμμ (eτ decay) and τ → μμμ, τ → eμμ (μτ decay). The ATLAS results do not compete for the eμ decay, but are more stringent than the low-energy measurements for the eτ and μτ decays, although additional assumption on the Z′ couplings to quarks are required [63].

The results on the presented searches are also interpreted in other models. Lower limits at 95% CL are set on the τ-sneutrino mass in the R-parity violating SUSY model [66] at 3.4, 2.9 and 2.6 TeV and on the threshold mass for the quantum black hole production in the context of the Arkani-Hamed–Dimopoulos–Dvali [67] (Randall–Sundrum [68]) model at 5.6 (3.4), 4.9 (2.9), and 4.5 (2.6) TeV for the eμ, eτ, and μτ search, respectively [63].

5.2. Doubly Charged Higgs Boson

Several extensions of the SM predict the existence of doubly charged Higgs boson (H^±±), for instance the Higgs triplet model [69], left-right symmetric (LRS) [70, 71], type-II see-saw [72, 73], and other models.

Doubly charged Higgs particles can couple to same-sign leptons (either left- or right-handed) or to pairs of W bosons. The leptonic decay modes dominate for a low Higgs triplet vacuum expectation value v_Δ, assumed in this search, which implies the main production mechanism at hadron colliders is the pair production H⁺⁺H⁻⁻ via the Drell-Yan process. In the LRS models, the left- and right-handed cases are distinguished and referred to as $H_{\text{L}}^{\pm \pm }$, $H_{\text{R}}^{\pm \pm }$. The production cross-section for $H_{\text{L}}^{++}{H}_{\text{L}}^{--}$ is ~2.3 times larger than for $H_{\text{R}}^{++}{H}_{\text{R}}^{--}$ due to different couplings to Z boson [74].

Unlike the SM Higgs boson, the doubly charged Higgs particle's couplings to fermions are not proportional to the corresponding fermion mass, therefore decays involving τ-leptons are not preferred over those containing light leptons. For this reason, this review focuses on the LFV search for the H^±± → e^±μ^± decay mode [75].

Events considered in the presented analysis are triggered by either combined e − μ trigger or single-lepton triggers. Only well-identified, isolated and prompt⁴ light leptons are considered. At least one SS lepton pair with the invariant mass m_eμ > 200 GeV is required. In order to reduce the background originating from top-quark production processes, b-jet veto is applied. Three SRs are defined according to the number of light leptons (2, 3, 4) in the final state. This choice also covers other final states of one of the H^±± decay, such as τ-lepton, W or particles escaping detection. In the three- and four-lepton SRs, events are vetoed if any OS lepton pair exhibits an invariant mass close to that of the Z boson. This condition mitigates the contribution from the diboson background. Additional requirements are imposed on the SS lepton pair in order to maximize the sensitivity of the search. In the two- and three-lepton SRs, the SS lepton pair must meet the criteria on the angular separation ΔR(e^±μ^±) < 3.5, the total transverse momentum $p_{\mathrm{\text{T}}}(e^{\pm }{\mu }^{\pm })>100$ GeV and the scalar sum of individual transverse momenta $p_{\mathrm{\text{T}}}(e^{\pm })+p_{\mathrm{\text{T}}}({\mu }^{\pm })>300$ GeV. These criteria exploit both the boosted decay topology of the H^±± resonance as well as its high mass translating into high energy of its decay products. In the four-lepton SR, events are rejected if the two SS lepton pairs exhibit large difference in their invariant masses.

The irreducible background consists of Drell-Yan, diboson and top-quark production, where the Z boson, W boson or the τ-lepton from the Z → ττ process decays to light leptons. Also the SM Higgs boson decays are considered. All these background components are simulated with MC.

The background originating from in-flight decays of mesons inside jets, jets misreconstructed as electrons, and conversions of initial- and final-state radiation photons is estimated with data using the fake factor method [76]. Another background component comes from the electron charge misidentification. Since this feature is poorly modeled by MC, data-driven approach is exploited using Z → ee events selected by imposing the di-electron invariant mass to match the Z boson mass. The correction factors, derived as a function of electron's p_T and η by comparing the number of SS and OS events between data and MC, are then applied to MC [75].

The statistical analysis exploits the simultaneous maximum-likelihood fit applied to mass distributions in all SRs and CRs. The SS dilepton mass is used in the two- and three-lepton SRs, while the average mass of the two SS dilepton pairs is used in the four-lepton SR. The signal is modeled with 23 templates of different H^±± mass, ranging from 200 to 1300 GeV in steps of 50 GeV. The main uncertainties of the search come from the systematic uncertainties on the fake background determination, theoretical uncertainties and statistical uncertainties of both data and MC samples. Since no evidence for the LFV decay of the doubly charged Higgs boson is observed, the cross-section upper limits are presented in Figure 10 as a function of the H^±± boson mass. The results of the fit for $H_{\text{L}}^{\pm \pm }$ and $H_{\text{R}}^{\pm \pm }$ are shown in Figure 11.

FIGURE 10

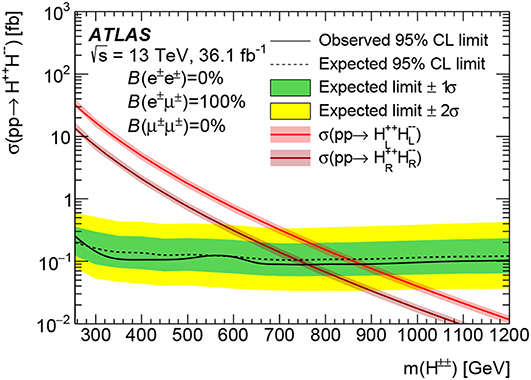

Figure 10. The upper limit on the cross-section for pp → H⁺⁺H⁻⁻, assuming the doubly charged Higgs decays to a pair of electron and muon. The theoretical uncertainty in the cross-section is presented with the shaded band around the central value. Reproduced from ATLAS Collaboration [75] under the Creative Commons CC-BY-4 license.

FIGURE 11

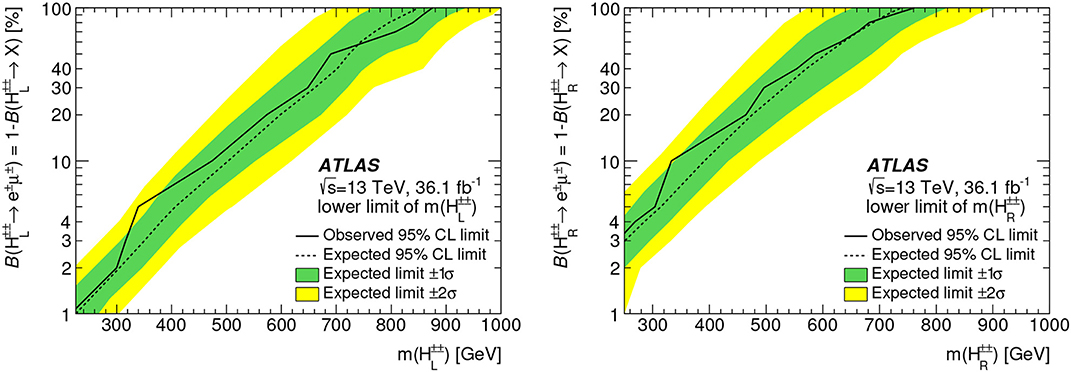

Figure 11. Lower limits on the $H_{\text{L}}^{\pm \pm }$ (left) and $H_{\text{R}}^{\pm \pm }$ (right) boson mass as a function of the branching fraction ${B}(H^{\pm \pm }\to e^{\pm }{\mu }^{\pm })$. Reproduced from ATLAS Collaboration [75] under the Creative Commons CC-BY-4 license.

Similar analyses are performed also for the same-flavor lepton pairs e^±e^±, μ^±μ^± in the final state. Together with the presented search, lower limits on the mass of the $H_{\text{L}}^{\pm \pm }$ boson are set, varying from 770 to 870 GeV for ${B}(H_{\text{L}}^{\pm \pm }\to {\ell }^{\pm }{\ell }^{\pm })=100\%$ [75].

6. Conclusions and Outlook

Direct searches for lepton-flavor-violating decays of heavy bosons, as performed with the ATLAS detector using 13 TeV proton–proton collisions, have been presented. Since no signs of the LFV processes are observed, upper limits at 95% CL are set on the corresponding branching fractions of the Z and Higgs bosons. They are summarized in Table 1. Some of these results will soon be updated after the analyses of the full Run-2 dataset are completed. Further improvements are expected from the high-luminosity LHC (HL-LHC), which should provide 3000 fb⁻¹ of pp collisions at the center-of-mass energy of 14 TeV. The HL-LHC results will provide the best limits on LFV decays of the Z boson [77], overcoming the currently leading limits set by LEP experiments (${B}(Z\to e\tau )<9.8\times 10^{-6}$, ${B}(Z\to \mu \tau )<1.2\times 10^{-5}$) at 95% CL [79–82]. The limits on LFV H → ℓτ decays have also been estimated [78] and are listed in Table 1.

TABLE 1

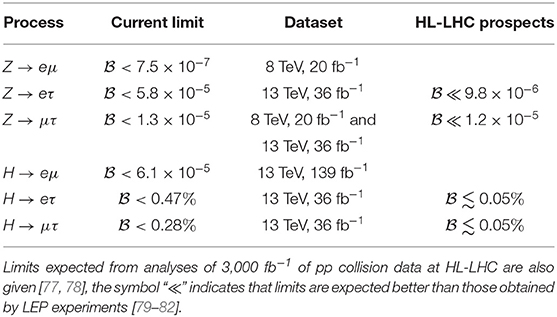

Table 1. Current ATLAS limits on the branching fractions for the LFV decays of Z and Higgs bosons, as obtained at 95% of CL, along with the corresponding dataset.

Searches for LFV decays of hypothetical new bosons predicted by various extensions of the Standard Model have also been performed and lower limits on their masses are set. The presented results are also interpreted in terms of other models, lower limits are set on the mass of the supersymmetric τ-neutrino and the threshold mass for the quantum black hole production. Projections for HL-LHC also exist, for instance the LFV decays of doubly charged Higgs boson in the process $pp\to H^{++}{H}^{--}\to {\tau }_{\text{had}}^{\pm }{\ell }^{\pm }{\ell }^{\mp }{\ell }^{\mp }$ can be probed up to m(H^±±)~800 GeV at the 3σ CL [83].

Author Contributions

The authors contributed to the review and summary of the current status of searches for lepton-flavor-violating decays in the ATLAS experiment. They also actively contributed to the ATLAS lepton-flavor-violating analyses.

Funding

The work was partly supported by the projects LTT17018 and LM2018104 of the Ministry of Education, Youth and Sports of the Czech Republic and by project RTI2018-094270-B-I00, financed by Spanish Ministry of Research and Universities, Spanish National Research Agency, and European Regional Development Fund (MCIU/AEI/ERDF, UE).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Footnotes

1. ^The pseudorapidity is defined as η ≡ −ln tan(θ/2), where θ represents the polar angle measured from the beam axis.

2. ^Electrons and muons are referred to as light leptons, denoted by ℓ. All lepton flavors including τ-lepton are denoted by l.

3. ^Signal-like events are expected to have low transverse mass since ν_τ is almost parallel to τ_had-vis due to large boost of the τ-lepton, whereas W+jets events exhibit large $m_{\text{T}}({\tau }_{\mathrm{\text{had-vis}}},E_{\mathrm{\text{T}}}^{\mathrm{\text{miss}}})$ values.

4. ^Longitudinal impact parameter with respect to the primary vertex of <0.5 mm.
