Constraints on Dark Matter with Gamma-Ray Experiments and Future Observational Strategies

  • INFN, Rome Tor Vergata, Rome, Italy

Indirect dark matter (DM) searches rely on detection of stable by-products of DM interactions to search for a signal of this elusive component of the Universe. Among these final products, gamma rays have recently played a major role in understanding the nature of the DM particle. We review the current status of indirect DM searches with gamma-ray observations and prospects with future instruments.

1. Introduction

High-energy phenomena in the cosmos, and in particular processes leading to the emission of gamma- rays in the energy range 300 KeV–100 TeV, play a very special role in the understanding of our Universe. This energy range is indeed associated with non-thermal phenomena and challenging particle acceleration processes. The Universe can be thought as a context where fundamental physics, relativistic processes, strong gravity regimes, and plasma instabilities can be explored in a way that is not possible to reproduce in our laboratories. High-energy astrophysics and atmospheric plasma physics are indeed not esoteric subjects, but are strongly linked with our daily life. Understanding cosmic high-energy processes has a large impact on our theories and laboratories applications. The technology involved in detecting gamma-rays is challenging and drives our ability to develop improved instruments for a large variety of applications.

The energy range between 300 Kev and 100 MeV is an experimentally very difficult range and remained uncovered since the time of COMPTEL. In this range a new instrument can address all astrophysics issues left open by the current generation of instruments. In particular better angular resolution in the energy range 10 MeV–1 GeV is crucial to resolve patchy and complex features of diffuse sources in the Galaxy and in the Galactic Centre as well as increasing the point source sensitivity. This instrument can address scientific topics of great interest to the community, with particular emphasis on multifrequency correlation studies involving radio, optical, IR, X-ray, soft gamma-ray and TeV emission.

Above 100 MeV, thanks to the launch of the Fermi-LAT satellite and to the advent of a new generation of imaging air Cherenkov telescopes (H.E.S.S., MAGIC, VERITAS), several thousand gamma-ray sources are known today revealing an unexpected ubiquity of particle acceleration processes in the Universe.

Major scientific challenges are still ahead, such as the identification of the nature of dark matter, the discovery and understanding of the sources of cosmic rays, or the comprehension of the particle acceleration processes that are at work in the various objects.

The identification of the nature of dark matter can be done with the detection of gamma rays and cosmic rays from the annihilation or decay of dark matter particles. This is a promising method for identifying dark matter, understanding its intrinsic properties, and mapping its distribution in the universe.

1.1. Search for Dark Matter in the Galactic Center and in the Dwarf Spheroidal Galaxy Satellites

Astrophysical searches for dark matter are a fundamental part of the experimental efforts to explore the dark sector. The strategy is to search for DM annihilation products in preferred regions of the sky, i.e., those with the highest expected DM concentrations and still close enough to yield high DM-induced fluxes at the Earth. For that reason, the Galactic Center (GC), nearby dwarf spheroidal galaxy (dSphs) satellites of the Milky Way, as well as local galaxy clusters are thought to be among the most promising objects for DM searches. In particular, dSphs represent very attractive targets because they are highly DM-dominated systems and are expected to be free from any other astrophysical gamma-ray emitters that might contaminate any potential DM signal. Although the expected signal cannot be as large as that from the GC, dSphs may produce a larger signal-to-noise (S/N) ratio. This fact allows us to place very competitive upper limits on the gamma-ray signal from DM annihilation [13], using data collected by the Large Area Telescope (LAT) onboard the Fermi gamma-ray observatory [4]. These are often referred to as the most stringent limits on DM annihilation cross-section obtained so far.

Despite these interesting limits derived from dSphs, the GC is still expected to be the brightest source of DM annihilations in the gamma-ray sky by several orders of magnitude. Although several astrophysical processes at work in the crowded GC region make it extremely difficult to disentangle the DM signal from conventional emissions, the DM-induced gamma-ray emission is expected to be so large there that the search is still worthwhile. Furthermore, the DM density in the GC may be larger than what is typically obtained in N-body cosmological simulations. Ordinary matter (baryons) dominates the central region of our Galaxy [5]. Thus, baryons may significantly affect the DM distribution. As baryons collapse and move to the center they increase the gravitational potential, which in turn forces the DM to contract and increase its density. This is a known and qualitatively well understood physical process [6]. It is also observed in many cosmological simulations that include hydrodynamics and star formation [7]. If this is the only effect of baryons, then the expected annihilation signal will substantially increase [5, 8] but another possible effect of baryonic matter is that of blastwave supernova feedback, that has the opposite impact on the DM density profile [9].

A preliminary analysis of Fermi LAT observations of the GC region was presented in Vitale [10] Morselli et al. [11]. with an observation of an excess of gamma rays in the 3–5 GeV energy range from the GC region. These results produced a lot of activity outside the Fermi collaboration with claims of evidence for dark matter in the Galactic Center (i.e., [12], [13] and references therein).

This possibility was already considered in the analysis of the EGRET galactic center excess [14] but there are other possible explanations, e.g., a population of millisecond pulsars around the Galactic Center below the Fermi threshold [15, 16].

A third possibility is related to past activity of the Galactic Center [17, 18]. In this case the excess can be connected to the Fermi bubble and it will be very important to see how this bubble is structured in the GC region.

Another possibility is related to extra injections of cosmic rays (steady-state, not related to the past activity of the GC), which produce radiation. See for example [1921].

The analysis of the Fermi Collaboration [22] using 5 years of data and the Pass 7 event selections [23] and the on-going analysis with 6.5 year of data and the Pass 8 event selections [24] confirm the excess but confirm also that when all the uncertainties on the excess morphology and spectrum related to the modeling of the various components of gamma-ray emission in that region, in particular in the distribution of interstellar gas along the line of sight, in the low latitude emission from the Fermi bubbles, and in the abundance of cosmic ray sources in the innermost Galaxy are considered the spectrum varies significantly and it is not possible to discriminate between the different hypotesis. The new analysis of the dSphs with the use of Pass 8 begin to constrain some of the preferred parameter space for a DM interpretation of a gamma-ray excess in the Galactic center region. As shown in Figure 1, for interpretations assuming a  b¯b final state, the best-fit models lie in a region of parameter space slightly above the 95% CL upper limit from this analysis, with an annihilation cross section in the range of (1–3) × 10−26 cm3 s−1 and mDM between 25 and 50 GeV. However, uncertainties in the structure of the Galactic DM distribution can significantly enlarge the best-fit regions of 〈σv〉 channel, and mDM.

FIGURE 1
www.frontiersin.org

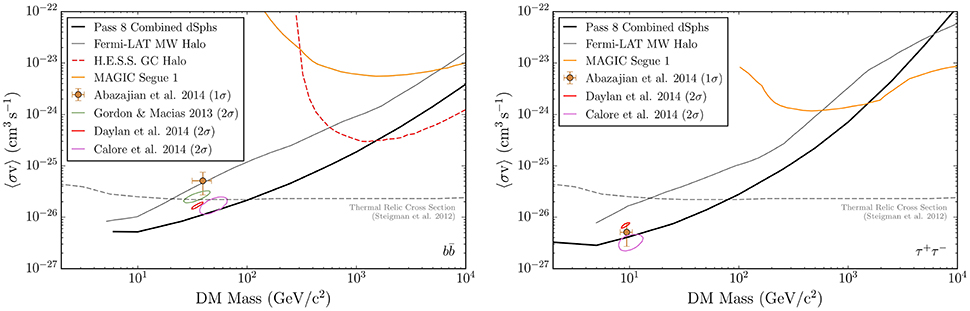

Figure 1. Comparison of constraints on the DM annihilation cross section for the b¯b(Left) and  τ¯τ (Right) channels [25] with previously published constraints from LAT analysis of the Milky Way halo (3σ limit) [26], 112 h of observations of the Galactic Center with H.E.S.S. [27], and 157.9 h of observations of Segue 1 with MAGIC [28]. These limits have been found to be fairly insensitive to the assumed DM density profile [25]. Closed contours and the marker with error bars show the best-fit cross section and mass from several interpretations of the Galactic center excess [12].

Figure 2 shows a comparison of constraints on the DM annihilation cross section for the  τ¯τ channel [25] with Antares [29], IceCube-DeepCore [30] and MAGIC [28]. One can see that the Fermi limits are the best limits below 2 TeV.

FIGURE 2
www.frontiersin.org

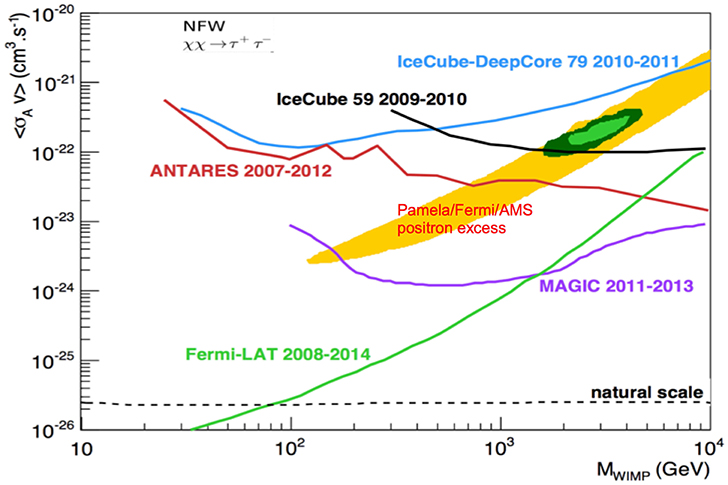

Figure 2. Comparison of Fermi-LAT constraints on the DM annihilation cross section for the  τ¯τ channel [25] with Antares [29], IceCube-DeepCore [30] and MAGIC [28].

At lower energies a new instrument like Gamma-Light [31], or ASTROGAM can really improve these results both in the Galactic center and in the dSphs limits.

The project for an improved version of ASTROGAM, e-ASTROGAM, is being prepared in reply of the fifth ESA call for medium mission (M5) that will be released in the fall of 2016. [32, 33].

Interactions of photons with matter in the e-ASTROGAM energy range is dominated by Compton scattering from 0.1 MeV up to about 15 MeV in silicon, and by electron-positron pair production in the field of a target nucleus at higher energies. e-ASTROGAM maximizes its efficiency for imaging and spectroscopy of energetic gamma rays by using both processes. The e-ASTROGAM instrument is based on double-sided Silicon detectors coupled to front-end-electronics capable of acquiring analog information on energy deposition in the range 20–1000 keV with high efficiency and high signal-to-noise. Both Compton events induced by photons in the range 0.3–30 MeV and pair production events in the 30 MeV–30 GeV range can be detected by the e-ASTROGAM Tracker equipped with a Calorimeter and an Anticoincidence system. Figure 3 shows representative topologies for Compton and pair events.

FIGURE 3
www.frontiersin.org

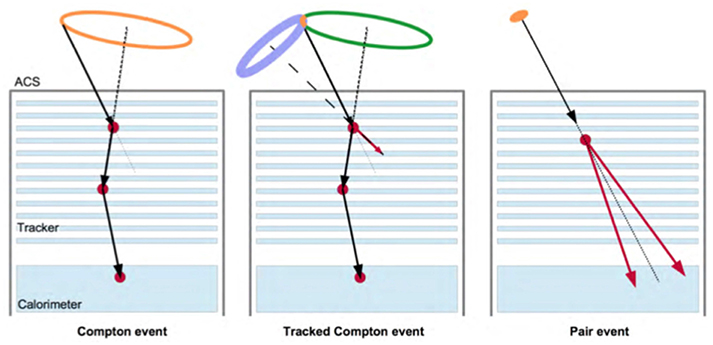

Figure 3. Representative event topologies for Compton events without (Left) and with electron tracking (Center) and for a pair event (Right) inside the e-ASTROGAM detector.

For Compton events, point interactions of the gamma ray in tracker and calorimeter produce spatially resolved energy deposits, which have to be reconstructed in sequence using the redundant kinematic information from multiple interactions. Once the sequence is established, two sets of information are used for imaging: the total energy and the energy deposit in the first interaction measure the first Compton scatter angle. The combination with the direction of the scattered photon from the vertices of the first and second interactions generates a ring on the sky containing the source direction. Multiple photons from the same source enable a full deconvolution of the image, using probabilistic techniques. For energetic Compton scatters (above 1 MeV), measurement of the track of the scattered electron becomes possible, resulting in a reduction of the event ring to an arc, hence further improving event reconstruction. Compton scattering depends on polarization of the incoming photon, hence careful statistical analysis of the photons for a strong (e.g., transient) source yields a measurement of the degree of polarization of its high-energy emission. Pair events produce two main tracks from the electron and positron at small opening angle. Tracking of the initial opening angle and the plane spanned by electron and positron enables direct back-projection of the source. Multiple scattering in the tracker material (or any intervening passive materials) leads to broadening of the tracks and limits the angular resolution at low energies.

The nuclear recoil taking up an unmeasured momentum results in a small uncertainty, usually negligible compared to instrumental effects. The energy of the gamma ray is measured using the calorimeter. Polarization information in the pair domain is given by the azimuthal orientation of the electron-positron plane. The Point Spread Function of e-ASTROGAM is shown in Figure 4, and the sensitivity is shown in Figure 5 for an effective exposure of 1 year of a high Galactic latitude source. Sensitivities above 30 MeV are given at the 5-sigma confidence level, whereas those below 10 MeV (30 MeV for COMPTEL) are at 3-sigma.

FIGURE 4
www.frontiersin.org

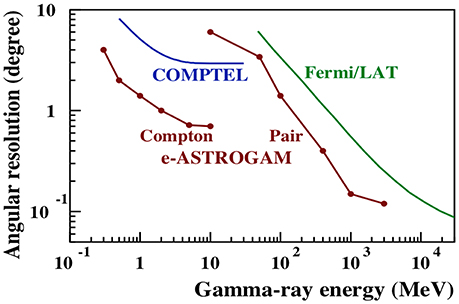

Figure 4. Point Spread Function (PSF, 68% containment radius) of the e-ASTROGAM gamma-ray detector. For comparison, we show the Fermi-LAT Pass7 PSF and the COMPTEL instrument. In the Compton domain, the performance of e-ASTROGAM and COMPTEL is the FWHM of the angular resolution measure (ARM).

FIGURE 5
www.frontiersin.org

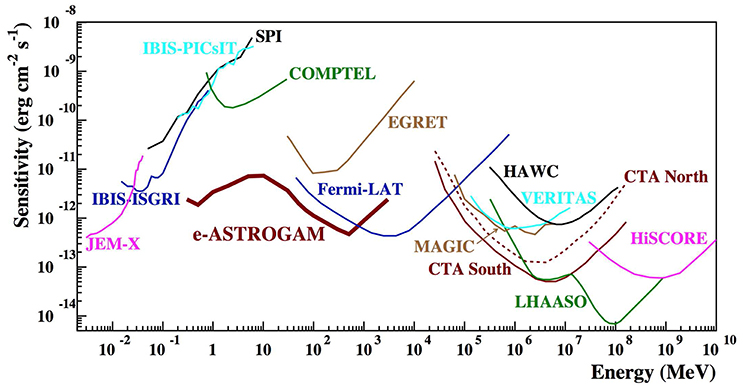

Figure 5. Point source continuum sensitivity of different X and γ-ray instruments compared with e-ASTROGAM.

2. Dark Matter Studies in the MeV–GeV Domain

One of the major scientific objectives of e-ASTROGAM is the search for dark matter by means of the production of secondary gamma-rays after the annihilation or decay of the DM particle candidates. The importance of e-ASTROGAM for DM searches can be seen in Figure 6 where the differential γ-ray energy spectra per annihilation of WIMP are plotted [14]. As one can see the bulk of the emission even for high WIMP masses is in the energy range 5–100 MeV. Decaying DM can also produce a detectable line in the e-ASTROGAM energy range that might be detectable out of the continuum. Together with Fermi and CTA, e-ASTROGAM will probe most of the space of WIMP models with thermal relic annihilation cross section.

FIGURE 6
www.frontiersin.org

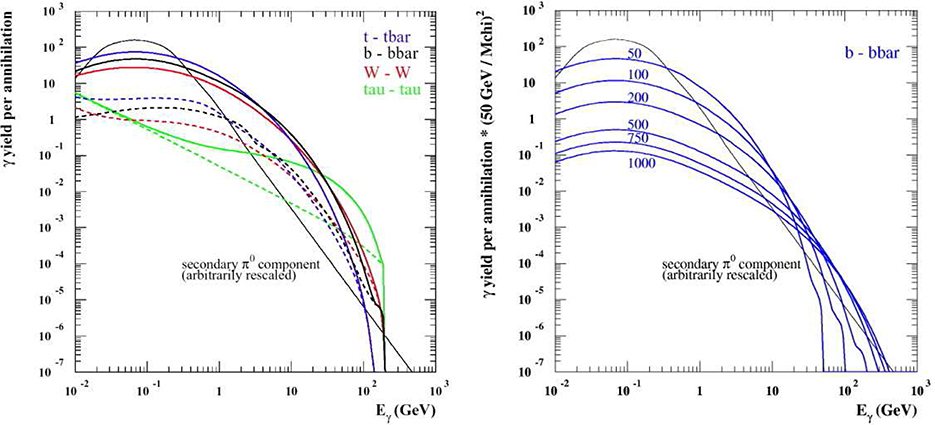

Figure 6. (Left) Differential energy spectra per annihilation for a few sample annihilation channels and a fixed WIMP mass (200 GeV) and differential γ-ray energy spectra per annihilation for a fixed annihilation channel (bb) and for different values of WIMP masses [14]. For comparison we also show the emissivity, with an arbitrarily rescaled normalization, from the interaction of primaries with the interstellar medium. (Right) The solid lines are the total yields for different annihilation channels, while the dashed lines are components not due to π0 decays.

Resolving the inner region of our Galaxy at high-energies remains one of the outstanding problems of modern astrophysics. Despite several attempts, the origin of positrons currently annihilating at the rate of 2 ·1043 s−1 from the inner Galaxy is not accounted for by current models of star formation and compact object activities in the region. Recent data show that in addition to the central bulge also the inner disk is producing 511 keV emission. Candidate positron sources include: the central black hole activity, massive stars, Supernovae, compact binaries, pulsars, and possibly DM annihilation/de-excitation. The much improved e-ASTROGAM sensitivity at the electron-positron annihilation energy will be used for a high-resolution mapping of the mysterious 511 KeV radiation. In the Fermi-LAT analysis of the Galactic Center the diffuse gamma-ray backgrounds and discrete sources, as we model them today, can account for the large majority of the detected gamma-ray emission from the Galactic Center.

Nevertheless, a residual emission is left, not accounted for by the above models of standard astrophysical phenomena. In the crowded Galactic Center region the analysis to disentangle a possible DM signal from conventional emissions has still large uncertainties due to the extremely difficult subtraction of the Galactic diffuse emission and the contribution of unresolved sources. The very good angular resolution of e-ASTROGAM at low energies will help to resolve sources in the galactic center region and to disentangle the possible DM contribution, see Figure 7.

FIGURE 7
www.frontiersin.org

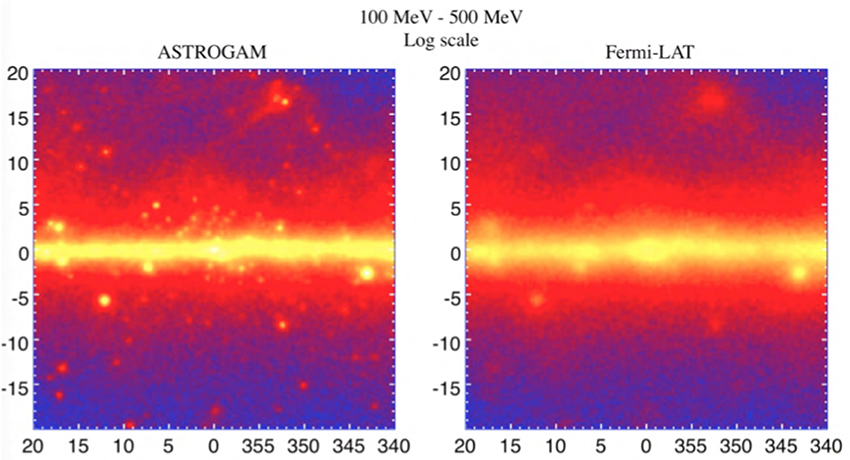

Figure 7. e-ASTROGAM simulated view of the Galactic Center Region in the 100–500 MeV energy region (Left) compared with the Fermi view (Right).

e-ASTROGAM will also perform indirect DM detection searches in dwarf spheroidal galaxies and put constraints on DM contribution to the largely unknown diffuse extragalactic gamma-ray background in the spectral range 0.3–100 MeV. Models will be tested in a spectral range not yet currently studied.

Author Contributions

The author confirms being the sole contributor of this work and approved it for publication.

Conflict of Interest Statement

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
