Mechanical generation of spin current

\r\nMamoru Matsuo,*Mamoru Matsuo1,2*Jun&#x;ichi Ieda,Jun'ichi Ieda1,2Sadamichi Maekawa,Sadamichi Maekawa1,2
  • 1Advanced Science Research Center, Japan Atomic Energy Agency, Tokai, Japan
  • 2ERATO, Japan Science and Technology Agency, Sendai, Japan

We focus the recent results on spin-current generation from mechanical motion such as rigid rotation and elastic deformations. Spin transport theory in accelerating frames is constructed by using the low energy expansion of the generally covariant Dirac equation. Related issues on spin-manipulation by mechanical rotation are also discussed.

1. Introduction

Spin current, a flow of spins, is a key concept in the field of spintronics. It is generated by using angular momentum conversion among magnetic angular momentum due to magnetization dynamics, photon angular momentum, angular momentum due to orbital motion of electron, and spin angular momentum [13]. Meanwhile, mechanical angular momentum carried by condensed matter systems due to macroscopic motion has not been utilized for spin-current generation, which might be useful in nano-electromechanical systems (NEMS). In the following, we provide the theory of the coupling between mechanical angular momentum and spin current, and show that spin current can be generated from mechanical motion including rigid rotation and elastic deformations (Figure 1).

FIGURE 1
www.frontiersin.org

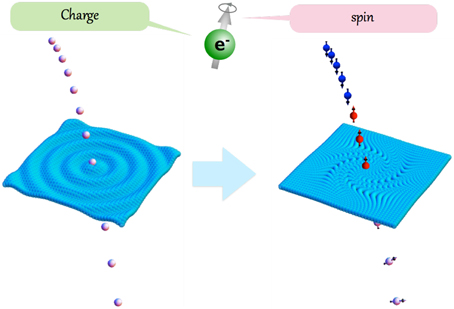

Figure 1. Concept of spin-mechatronics system. Left: coupling between charge current and mechanical motion yields electro-mechanical systems. Right: coupling between spin current and mechanical motion will open up a new field of spintronics.

1.1. Magnetism and Mechanical Rotation

Let us give a brief reivew on the coupling between magnetic moment and mechanical rotation. In 1915 Einstein and de Haas carried out the experiment that reveals a close relationship between magnetism and mechanical angular momentum. They measured the mechanical torque exerted by a reversal of the magnetization of an iron cylinder (Figure 2) [4]. In the same year, Barnett discovered the reciprocal effect, magnetization induced by rotation (Figure 3) [5]. He measured magnetization of iron which is rotated with the angular velocity Ω, and shows that the magnetization M is given by

M=χΩγ,    (1)

where χ is the magnetic susceptibility and γ is the gyromagnetic ratio. The result means that an effective magnetic field,

BΩ=Ωγ,    (2)

is induced in the rotating body. Both Einstein-de Haas and Barnett's experiments established conversion between magnetic and mechanical angular momentum.

FIGURE 2
www.frontiersin.org

Figure 2. Einstein-de Haas effect. Modulation of magnetization of iron by applying the external magnetic filed, magnetic angular momentum is changed. As a result, the mechanical angular momentum is induced for compensating the modulation of the annular momentum.

FIGURE 3
www.frontiersin.org

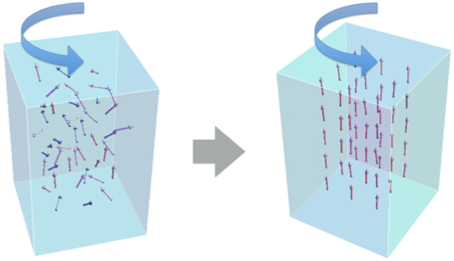

Figure 3. Barnett effect. Magnetization is induced by applying mechanical rotation since an effective magnetic field, emerges in a rotating body.

Recently much attention has been paid to the coupling between mechanical rotation and magnetism in the context of spintronics. Rapid progress in nanotechnology has allowed us to investigate the coupling of nano-magnetism and mechanical rotation [68]. There have been theoretical studies on the coupling between magnetic moment and mechanical motion [922]. Experiments on mechanical manipulation of nuclear spin have been carried out [2325], where the Barnett field has been measured by using nuclear magnetic resonance (NMR) spectroscopy. Both a sample and an NMR coil are rotated synchronously at ultra high speed and the NMR frequency is shifted by the field because of the lifting of energy levels split by the external magnetic field. The results provide direct evidence of the coupling between the nuclear magnetic moment and mechanical rotation.

1.2. Toward Mechanical Generation of Spin Current

Our goal is to study mechanical generation of spin current. It is highly challenging because the phenomenon involves non-inertial motion of a body, i.e., rotation and acceleration, and the microscopic coupling has not been clarified. To study effects of mechanical motion on spin current, one has to extend condensed matter theory in an inertial frame to that in non-inertial frames. In the following, we construct quantum theory in accelerating systems and theoretically show that spin current can be generated from mechanical motion, including rigid rotation and elastic deformations.

The outline of this article is as follows. In Section 2, the Dirac equation in both inertial and non-inertial frames are summarized. In Section 3, the Pauli equation in the rotating frame is derived and mechanical generation of spin current by rigid rotation is presented. In Section 4, spin diffusion in the presence of elastic deformation is discussed and spin-current generation by surface acoustic waves is shown. In Section 5, renormalization of spin-rotation coupling is investigated. This article ends with a few concluding remarks in Section 6.

2. Electron in Non-inertial Frames

In this section, we derive the Pauli equation in non-inertial frames which includes inertial effects due to mechanical motion on electron spin. Conventionally, the Pauli equation is derived from low energy expansion of the special relativistic Dirac equation. However, this cannot describe effects induced by acceleration of a body since the special relativity is the theory in inertial systems. To describe spin transport phenomena with inertial effects, we start with the general relativistic Dirac equation that is the fundamental theory of spinor in non-inertial frames.

2.1. Electron in an Inertial Frame

Before going into the non-inertial frame, let us review the derivation of the Pauli equation in an inertial frame. Lagrangian of the special relativistic Dirac equation is given by

=Ψ̄[iγac(pa-qAa)-mc2]Ψ,    (3)

where Ψ is the 4-spinor wave function, γa(a = 0, 1, 2, 3) is the Dirac matrix, which satisfies the anti-commutation relation: {γa, γb} = 2ηab, with the Minkowski metric ηab = diag(−, +, +, +), q is charge, m is mass, c is the speed of light, and Aa is the U(1) gauge potential. The Dirac matrix is related as γ0(x) = iβ, γi(x)=iβαi with β=(IOOI) and α=(OσσO), where I is the 2 × 2 unit matrix and σi is the Pauli matrix.

The Dirac equation contains the electron and positron components. The special relativistic Dirac Hamiltonian is given by

HD=βmc2+cα·π+qA0,    (4)

where π = pqA. As the energy gap between the electron and positron states is much larger than the energy scales of condensed matter systems, we reduce the Dirac equation to the Pauli equation using the low energy-expansion developed by Foldy and Wouthuysen [26] and Tani [27]. The Hamiltonian HD is divided into two parts: = qA0 and 𝓞 = · π. By successive unitary transformation, H=UFH0UF-iUFtUF, H=UFHUF-iUFtUF, …, where UF=exp(-iβ𝒪2mc2), we obtain the block-diagonalized Hamiltonian up to the order of 1/m:

H=β[mc2+π22m+q2mσ·B]+qA0.    (5)

The second and third terms are the kinetic term and the Zeeman term. The Hamiltonian up to the order of 1/m2 leads to the spin-orbit coupling and the Darwin term:

-18m2c4[𝒪,[𝒪,ε]+it𝒪]=qλ2σ·(π×E-E×π)                          -qλ2divE,    (6)

where λ = ℏ2/4m2c2. While the spin-orbit coupling, λ, is small in vacuum since it originates from the expansion of 𝓞(1/m2), the coupling is enhanced by quantum many body effects in materials (see Section 6 of this article). Actually, large spin-orbit coupling in Pt is widely used for the conversion between charge and spin currents, which are known as spin Hall effect (SHE) [2834] and inverse spin Hall effect [35]. Hamiltonian with spin-orbit coupling:

He(1m2)=π22m-eA0-e2mσ·B-eλσ·(π×E)    (7)

gives rise to the spin-dependent velocity

v=1i[r,He]=πm-eλmσ×E.    (8)

The second term is known as the anomalous velocity, which is responsible for the spin Hall effect (Figure 4).

FIGURE 4
www.frontiersin.org

Figure 4. Spin Hall effect. Spin current is generated by strong spin-orbit coupling in Pt and it flows perpendicular to the charge current.

2.2. Electron in Non-inertial Frames

To include inertial effects due to mechanical motion, we start with the generally covariant Dirac Lagrangian [3638]:

G=Ψ̄[ieaμγac(pμ-qAμ+iΓμ)-mc2]Ψ,    (9)

where the vierbein eaμ is a local orthonomal base and can be regarded as a square root of the metric tensor gμν(x): eaμηabebν=gμν. The general relativistic version of the Dirac matrix is given by γμ(x)=eaμ(x)γa since it satisfies the anti-commutation relation: {γμ(x), γν(x)} = 2gμν(x). The Lagrangian includes the spin connection Γμ=ωμabΣab, where ωμab=eλa(μδνλ+Γμνλ)eνb with the Christoffel symbol Γμνλ and the generator of the Lorentz transformation Σab=14[γa,γb]. Especially, the spatial component of the generator is spin operator for the 4-spinor: Σij=12ϵijk(σkOOσk). It should be noted that the general relativistic Lagrangian includes the spin-dependent gauge field Γμ(σ), which is responsible for the spin-dependent inertial effects and the mechanical generation of spin current as discussed below.

3. Spin Current Generation by Rigid Rotation

In this section, we show spin-current generation due to rigid rotation by using low energy expansion of the general relativistic Dirac equation.

3.1. Electron in a Rigidly Rotating Frame

Firstly, let us reconsider Einstein-de Haas and Barnett effects from the point of view of the Dirac equation in a rotating frame. The coordinate transformation from a rigidly rotating frame to an inertial frame is given by

dr=dr+(Ω×r)dt,dt=dt,    (10)

where Ω is the angular velocity of the rotation with respect to an inertial frame. From the line element

ds2=-c2dt2+dr2=[-1+(Ω×rc)2]c2dt2+2(Ω×rc)                                      cdtdr+dr2=gμνdxμdxν,    (11)

the metric leads to g00=-1+(Ω×rc)2, g0i = gi0 = (Ω × r/c)i, gij = δij (i, j = 1, 2, 3), where we assume |Ω × r/c| ≪ 1. The vierbein and inverse vierbein are given by

e00=1, ej0=0,e0i=-(Ω×rc)i, eji=δji,    (12)

and

e0α=δ0α+ηαi(Ω×rc)i, eiα=δiα.    (13)

The space-time dependent Dirac matrix becomes γ0(x) = −i β, iγi(x) = [(Ω × r/c)i + αi], and the Christoffel symbols are given by

Γ000=Γi00=Γij0=Γjki=0,Γ00i=ϵijkΩj(Ω×rc)kc+0(Ω×rc)i,Γj0i=-ϵijkΩkc,    (14)

where 0=c-1t. Thus, the spin connection reads

Γ0(x)=γiγjϵijkΩl4c=iΣ·Ω2c,    (15)
Γi(x)=0,    (16)

where Σ=12(σOOσ). The time component of the spin connection consists of the inner product of the spin operator and the angular velocity of the rotation, and appears in the following Hamiltonian:

H̄D=βmc2+(cα-Ω×r)·π+qA0-Ω·Σ.    (17)

The last term −ℏΩ·Σ is spin-rotation coupling. Velocity operator of the Dirac particle in the rotating frame is given by

v=1i[r,H]=cα-Ω×r.    (18)

This consists of the combination of the velocity in an inertial frame cα and the rotation velocity Ω × r. By using the relation (cα − Ω × r) · π = cα · π −(r × π) · Ω, the Hamiltonian in the rotating frame H̄D is related to that in an inertial frame HD=βmc2+cα·π+qA0 as H̄D=HD-(r×π+Σ)·Ω. It agrees with the Hamiltonian obtained by the unitary transformation: UHDU-iUtU with U = exp[J·Ωt/iℏ] and J = r × π + ℏΣ.

Now let us derive an effective Hamiltonian for an electron in the rotating frame by the Foldy-Wouthuysen-Tani (FWT) transformation. The Hamiltonian H is divided into ε=qA0-Ω·(r×π+Σ) and 𝓞 = cα · π. Using the unitary transformation UF=exp(-iβ𝒪2mc2), the Hamiltonian to the order of 1/m is given by

H̄D=β[mc2+π22m+q2mσ·B]+qA0         -(r×π+Σ)·Ω.    (19)

We obtain the kinetic term and Zeeman term as well as the coupling of the total angular momentum J = r × π + Σ and the rotation frequency Ω. The electron sector of the Hamiltonian is written as

H̄e(1m)=π22m-eA0-r×π·Ω-e2mσ·(B+BΩ),    (20)

where BΩ = mΩ/e is known as the Barnett field, which is the effective magnetic field due to mechanical rotation and the quantum mechanical origin of the Barnett effect.

The expansion of the order of 1/m2 yields the spin-orbit coupling and the Darwin terms augmented by inertial effects [3941]:

-18m2c4[𝒪,[𝒪,ε]+it𝒪]=qλ2σ·(π×E-E×π)                                           -qλ2divE,    (21)

where E′ = E +(Ω × r) × B. It means that the conventional electric field E appeared in the couplings is modified as EE′ = E +(Ω × r) × B. This result is in accord with the general relativistic transformation of electromagnetic fields in the rotating frame:

E=E+(Ω×r)×B,    (22)
B=B,    (23)

where E and B are electromagnetic fields in the rest frame. It should be noted that these relations are not the Lorentz transformations in the special relativity but the general coordinate transformations in the general relativity. The Lorentz transformation of the electromagnetic fields is written as

Ec=γ(Ec+β×B)-γ2γ+1(β·Ec)β,    (24)
B=γ(B-β×Ec)-γ2γ+1(β·B)β,    (25)

with γ=11-β2, and β = v0/c, where E″ and B″ are the electromagnetic field in the inertial frame, whose relative velocity to the rest frame is v0. In the case of β ⊥ E, β ⊥ B and |v0/c| ≪ 1, the Lorentz transformations are reduced to

Ec=Ec+β×B,    (26)
B=B-β×Ec.    (27)

The special relativistic transformations Equations (26) and (27) have a symmetry for E/c and B, while the general relativistic relations Equations (22) and (23) do not. Such an asymmetry originates from the space-time asymmetry of a general coordinate transformation [41, 42].

3.2. Spin Current from Rigid Rotation

Now we discuss spin current generation from rigid rotation. As derived above, Hamiltonian for electron in the rotating frame is given by

H̄e=He-(r×π+2σ)·Ω        -eλσ·[π×{(E+Ω×r)×B}].    (28)

Even in the absence of E, when we have both magnetic field B and rotation Ω, the anomalous velocity is induced in the rotating frame as

vσ=-eλmσ×{E+(Ω×r)×B}.    (29)

In the case of Ω || B || ez, where ez is the unit vector along the z-axis, the term (Ω × r) × B becomes ΩrBer with the unit vector along the radial direction er. Accordingly, the z-polarized spin current flows along the azimuthal direction (Figure 5). The spin current is estimated as

Js=enTrσzvσ=2neκωcreϕ,    (30)

where r is the distance from the rotation axis, eϕ is the unit vector of the azimuthal direction, n is the electron density, and ωc = eB/m is the cyclotron frequency. The dimensionless parameter κ is given by κ=λ~kF2·ΩϵF, where kF,ϵF=2kF22m are the Fermi wave number and the Fermi energy, respectively, and λ~ is the spin-orbit coupling in a material. In the case of Pt, λ~kF20.6, and when B = 1T and Ω = 1 kHz, the spin current becomes Js108A/m2 [39].

FIGURE 5
www.frontiersin.org

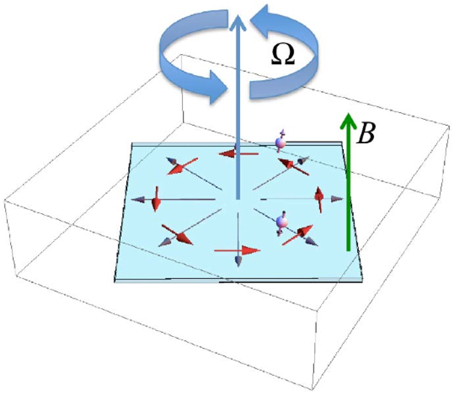

Figure 5. Spin Hall effect in the rotating frame where an external magnetic field is applied along the rotation axes. In this case, the effective electric field is induced in the radial direction and the spin current flows along the azimuthal direction.

4. Spin Current Generation by Elastic Motion

The spin current generation from rigid rotation requires strong spin-orbit coupling as discussed above. On the contrary, in the following we will show an alternative mechanism for mechanical generation of spin current in non-magnets where spin-orbit coupling is not necessary.

4.1. Spin Diffusion Under Time-dependent Field

From now on, we pursue a new route for generating spin current by considering spin-rotation coupling:

HSR=-2σ·B.    (31)

First let us consider applying stationary rotation. In this case, the Barnett field is induced in a material and electron spins align to the rotation axis because of the spin relaxation. However, spin currents cannot be generated since an equilibrium spin state is eventually reached. To generate spin currents, the Barnett field should be time-dependent so that a nonequilibrium spin state is realized. In the following, we investigate spin transport by using the generalized spin diffusion equation in the presence of non-stationary rotation.

When the mechanical rotation, Ω, is applied along the z-axis, the bottom of the energy band of the electron is shifted by ℏΩ/2 due to the Barnett effect. The number density of up (down) spin electron is given by

n()=±Ω2μ()dεN0(ε),    (32)

where N0 is the density of states for electrons, μ and μ are the spin-dependent electro-chemical potentials for up and down spin electrons, respectively (Figure 6). Thus, the spin density can be estimated as nnN0 δμ, where δμ = μ − μ is the spin accumulation. Here the density of state is assumed to be constant for simplicity. Generally, spin relaxation occurs in two processes (Figure 6):

1. on-site spin flip with the spin lifetime, τsf,

2. spin diffusion with the diffusion constant, D.

FIGURE 6
www.frontiersin.org

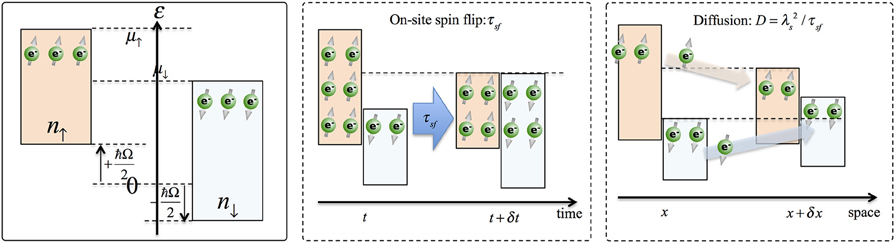

Figure 6. Electron spin states in a rotating frame and spin-diffusion. In a rotating frame, the magnetization by the Barnett field due to mechanical rotation should be included when calculating the spin density (left panel). Spin relaxation occurs in both on-site spin flip (middle panel) and spin diffusion processes (right panel).

The on-site spin flip with the spin lifetime is expressed as τsf-1N0δμ and the spin diffusion process as D2(N0δμ). Then, the continuity equation for spin density becomes t(n-n)=τsf-1N0δμ+D2(N0δμ). Thus, we obtain the extended spin diffusion equation in the presence of spin-rotation coupling [43]:

(t-D2+τsf-1)δμ=tΩ,    (33)

The time-derivative of rotation frequency ∂tΩ appears in the right-hand side of Equation (33) and this term vanishes when the rotation is stationary as mentioned above.

The z-polarized spin current can be calculated as Js=σ0eδμ, where σ0 is the conductivity and δμ is the solution of Equation (33). Therefore, to generate spin current, we need space-time dependent mechanical rotation. To realize such rotation, we focus on an elastic deformation induced by surface acoustic waves, which is suitable for spin-current generation as shown in the next section.

4.2. Electron in Elastic Materials

The coordinate transformation from a local rest frame in an elastic material to the laboratory frame is given by dr′ = dr + vdt, dt′ = dt, where v(t, r) is the velocity field due to elastic deformations, and then, the metric tensor becomes g00=-1+v2c2,g0i=gi0=vic,gij=δij, and the vierbein is given by e00=1,ej0=0,e0i=-vic,eji=δji. In this case, the spin connection is given by Γ0 = iΣ · ω/2, Γi = 0, where ω = ∇ × v is the vorticity of the lattice motion. This result shows that spin-rotation coupling Σ·Ω in the rigidly rotating frame is extended to“spin-vorticity coupling" Σ·ω/2 in the presence of elastic deformation. The Dirac Hamiltonian is written as

HD=βmc2+cα·π-eA0+e2A·v-12{v,π}        -2Σ·ω,    (34)

and the lowest order of the FWT transformation leads to the Hamiltonian for electron:

He=π22m-eA0-e2mσ·B+e2A·v-12{v,π}        -2σ·ω2.    (35)

The last term is the spin-vorticity coupling, which is responsible for spin-current generation due to surface acoustic waves.

4.3. Spin Current from Surface Acoustic Wave

Let us consider the generation of spin current due to surface acoustic waves (SAWs) in nonmagnetic metals or semiconductors1. Our setup is illustrated in Figure 7. The SAW traveling along the x-axes induces the local rotational motion along the z-axes whose angular velocity is given by [47, 48]

Ω(x,y,t)=ωs2u02ctexp{-kty+i(kx-ωt)},    (36)

where ωs and u0 are the frequency of the mechanical resonator and the amplitude, respectively, and ct is the transverse sound velocity, k is the wave number, kt=k1-ξ2 is the transverse wave number, and ξ is given by ξ = (0.875+1.12ν)/(1+ν) with the Poisson ratio ν. The frequency ωs is related to k, ct, and ξ as ωs = ct. Inserting Equation (36) into the spin-diffusion Equation (33), the solution leads to the SAW induced spin current [43]:

Js=σ0ey0dt0dyθ(t-t)e-(t-t)(1+λs2k2)τsf4πD(t-t)        [e-(y-y)24D(t-t)+e-(y+y)24D(t-t)]e-kty-iωt,    (37)

where λs=Dτsf is the spin diffusion length, and we use the boundary condition Js = 0 on the surface y = 0. Especially, in the case of ωsτsf ≪1, the solution is reduced to

Jsσ02eτsfωs4u0ct21-ξ2ξexp[-kty+i(kx-ωst)].    (38)
FIGURE 7
www.frontiersin.org

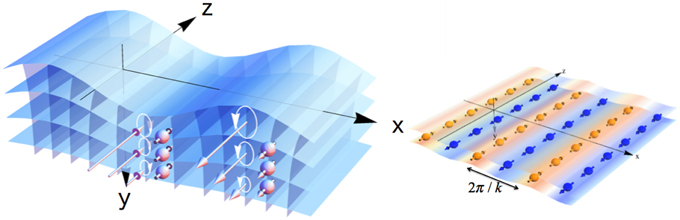

Figure 7. Spin-current generation by spin-vorticity coupling. Spin current flows along the gradient of vorticity due to the SAW (left figure). Magnetic stripe patterns are induced on the surface of non-magnets (right figure).

As shown in Figure 7, the spin current flows along the y-axes, namely parallel to the gradient of the effective magnetic field due to the vorticity of the lattice motion. As a result, the magnetic stripe pattern is induced on the surface of the non-magnetic metal or semi-conductor. Experimentally, spin precession controlled by SAW was observed by using the time-resolved polar magneto-optic Ker effect (MOKE) in which the spatial and time resolution of the order of 10 μm and 10 ns have been acheived [49, 50]. MOKE measurements for metallic multilayer are also performed [51]. Since in-plane spin polarization is induced in our setup, transversal of longitudinal MOKE measurements are relevant to the SAW-induced spin accumulation.

The spin current depends strongly on σ0 and τsf. Table 1 shows the amplitude of the spin current for Pt, Al, Cu, Ag, Au, and n-dopoed GaAs normalized by that for Pt in the case of ωs = 2.5 GHz. In the case of u0 = 0.01 nm, Js(Pt) becomes 104 A/m2. Remarkably, the spin current for Al or Cu is much larger than that for Pt since the generated spin current is proportional to σ0 and τsf.

TABLE 1
www.frontiersin.org

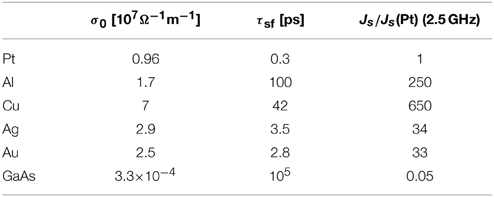

Table 1. Spin current generated by SAWs.

Conventionally, the generation of spin current in nonmagnetic materials has required strong spin-orbit coupling because the spin Hall effect is used. This means that materials with short spin lifetime has been suitable for spin-current generation. On the contrary, the mechanism proposed in this section requires longer spin lifetimes to generate larger spin currents. In other words, Al and Cu, which have been regarded as good materials for a spin conducting channel, can be favorable for generating spin current.

As expressed in Equation (38), the generated spin current oscillates with the frequency ωs. The AC nature of the spin current has several advantages: one of the valuable applications would be for the spin-torque ferromagnetic resonance (ST-FMR) [52], where AC spin currents excite magnetization dynamics of nanomagnets in the several GHz range. In Liu et al. [52], an AC charge current is converted into an AC spin current via the SHE which requires materials with the large spin-Hall angle such as Pt and Ta whereas our method does not rely on the SHE and Cu or Al can be used. This indicates that the predicted AC spin current can provide an alternative route for the ST-FMR, namely, a “rare-metal-free” ST-FMR.

5. Renormalization of Spin-rotation Coupling

It is well known that conventional Zeeman coupling and spin-orbit coupling are enhanced by quantum many body effect in materials. In this section, spin-rotation or spin-vorticity coupling and augmented spin-orbit coupling derived in the previous sections are also enhanced by the similar mechanism.

5.1. Bloch Theorem in the Presence of Rotation

Let us consider an electron in a periodic potential in the presence of mechanical rotation.

Firstly, we recall conventional Bloch's theorem. We begin with an electron Hamiltonian in the laboratory frame: H0=p22m+V0(r0), where V0 is a microscopic periodic crystal potential. When the crystal lattice has translational symmetry, where primitive lattice vectors ai(i = 1, 2, 3), eigenfunction for H0 can be written as ψn,k(r)=eik·run,k(r). Here n is the band index, R is given by R=imiai with integer mi, and uu, k satisfies uu, k(r + R) = un, k(r). This is known as Bloch's theorem. In the presence of an external magnetic field, Hamiltonian has the magnetic translation symmetry [53], and the Bloch's eigenfunction is modified as ψn,k(r)=eik·run,k(r), where the generalized crystal momentum ℏk′ = p + eA is introduced.

As discussed above, mechanical rotation Ω can be regarded as an effective magnetic field, namely, the Barnett field BΩ = Ω/γ. Accordingly, the wave function for electron in the rotating frame should be treated as a similar eigenfunction in the presence of magnetic fields. The Hamiltonian in the rigidly rotating frame H̄ is derived as H̄=UH0U-iUUt=H0-J·Ω, where U = exp[J · Ωt/iℏ] is the unitary transformation with the generator of rotation J=r×p+2σ. The Hamiltonian can be rewritten as

HR=(p+eAg)22m+V0(r)-eϕg-e2mσ·Bg2,    (39)

where Ag = −(m/e)Ω × r, ϕg=(me)(Ω×r)22, and Bg = ∇ × Ag. The field Bg is known as the gravitomagnetic field, which is related to the Barnett field BΩ as BΩ = Bg/2. Compared with the Hamiltonian in the presence of electromagnetic fields, H=(p+eA)22m+V0(r)-eϕg-g2e2mσ·B with the electron g-factor g, the vector potential, which represents the Coriolis effect, Ag, and the scalar potential ϕg, the centrifugal force, appears in H̄ and the spin-rotation coupling can be interpreted as the effective Zeeman coupling with g = 1. Since the symmetry of the Hamiltonian is similar to the magnetic translational symmetry, the eigenfunction of H̄ is given by ψn,kg(r)=eikg·run,kg(r) with ℏkg = p + eA [54].

5.2. Renormalization by Interband Mixing

We extend the conventional k·p perturbation [55, 56] to that in the presence of rotation [54]. It is shown that spin-rotation coupling and spin-orbit coupling can be renormalized by the interband mixing in the case of the simple band structure such as GaAs and InSb by using the 8 × 8 Kane model [55] (in which the band structure is shown in Figure 8). We obtain an effective Hamiltonian for the conduction electrons [54]:

H*=2kg22m*+V-(1+δg)2σ·Ω       +q(λ+δλS)σ·(kg×E)+q2(λ+δλD)divE,    (40)

where

1m*=1m+2P232(2EG+1EG+Δ0)    (41)
δg=4m2P23(1EG1EG+Δ0),    (42)
δλS=P23(1EG21(EG+Δ0)2),    (43)
δλD=P23(2EG2+1(EG+Δ0)2).    (44)
FIGURE 8
www.frontiersin.org

Figure 8. Band structure in the 8 × 8 Kane model.

Here, EG is the energy gap between the conduction and valence bands, Δ0 is the spin-orbit gap, and P is the Kane momentum matrix element. Thus, both spin-rotation and spin-orbit couplings are renormalized by the interband mixing in materials with non-zero spin-orbit gap Δ0. In this derivation, we use the simple Hamiltonian H̄. If we include the augmented spin-orbit coupling, The relations above are modified as EE′, and therefore, the spin-orbit coupling due to mechanical rotation is also renormalized by the interband mixing.

Conventionally, the renormalized Zeeman coupling obtained from the 8 × 8 Kane model is given by (2 + δg)/2μBσ · B, while spin-rotation coupling is modulated as -(1+δg)2σ·Ω. The difference stems from that of g factors for the usual magnetic field and the gravitomagnetic field. For lightly doped n-InSb at low temperature, g = −49 has been reported. In this case, δg = −51 [55], and then, spin-rotation coupling becomes about 50 times as large as the bare coupling.

6. Discussion and Conclusions

In this article, we review mechanical generation of spin current by using the low energy expansion of the generally covariant Dirac equation. We have found various inertial effects on electron spins that have been ignored in conventional condensed matter theory. According to general relativity, inertial effects are represented by connections, or gauge fields. Especially, the Dirac equation in non-inertial frames contains spin-dependent connections, and thus, spin-dependent gauge fields appears in the Hamiltonian for electrons in accelerating bodies, and are responsible for generating spin current.

Mechanical generation of spin current as well as mechanical manipulation of spins stem from the intrinsic property of spinor, which is sensitive to curvature of space-time. This year is the 100th anniversary since Einstein's clarification of the coupling between magnetism and mechanical motion as well as his construction of the general relativity. Relying on both fundamental concepts, we are pursuing a new development of spintronics, where spin and mechanical motion are gracefully harmonized.
