ORIGINAL RESEARCH article

Front. Photonics, 25 April 2022
Sec. Optical Information Processing and Holography

Transverse Traveling-Wave and Standing-Wave Ray-Wave Geometric Beams

Zhaoyang Wang,Zhaoyang Wang1,2Ruilin Long,Ruilin Long1,2Zhensong Wan,Zhensong Wan1,2Zijian Shi,Zijian Shi1,2Xinjie LiuXinjie Liu3Qiang Liu,
Qiang Liu1,2*Xing Fu,
Xing Fu1,2*
  • 1Key Laboratory of Photonic Control Technology, Ministry of Education, Tsinghua University, Beijing, China
  • 2State Key Laboratory of Precision Measurement Technology and Instruments, Department of Precision Instrument, Tsinghua University, Beijing, China
  • 3School of Statistics, Capital University of Economics and Business, Beijing, China

Ray-wave geometric beam is an exotic kind of structured light with ray-wave duality and coupled diverse degrees of freedom (DoFs), which has attracted intense attention due to its potential applications in theories and applications. This work offers a new insight that the traditional ray-wave geometric beams can be seen as the transverse standing-wave (SW) beams, and can be decomposed into the superposition of transverse traveling-wave (TW) beams. We construct a generalized model for transverse TW and SW ray-wave geometric beams in the wave picture. In experiment, we exploit a digital hologram system with more flexible tunable DoFs to generate the transverse TW and SW beams, inspiring the exploration for the spatial wave structure of more complex structured light.

1 Introduction

Structured light with multiple controllable degrees of freedom (DoFs) has attracted wide attention in both fundamental theories and technological applications such as optical manipulation, communication, quantum-classical entanglement, and the analogy between classical optics and quantum mechanics (Shen et al., 2021a; Shen et al., 2021b; Forbes et al., 2021; Lourenço-Martins et al., 2021; Shen and Rosales-Guzmán, 2022). In the structured light family, the identified ray-wave geometric beam, as the classical analogy of quantum SU(2) coherent state (Bužek and Quang, 1989; Fox and Choi, 2000), has intriguing ray-wave duality (Babington, 2018), multiple tunable DoFs (Wan et al., 2021) and wide potential applications (Shen, 2021). Ray-wave geometric beam can be described by both ray and wave representation in optics (Shen et al., 2020a), and expressed as the superposition of eigenmodes analogous to the distribution of bosons in SU(2) coherent state in mathematic (Wodkiewicz and Eberly, 1985). There are many identified ray-wave geometric beams such as multi-path ray-wave geometric beams (Chen et al., 2019a), multi-axis ray-wave geometric beams (Tuan et al., 2018), and Lissajous-to-trochoidal geometric beams (Chen et al., 2006; Chen, 2011). Besides, multifarious novel ray-wave geometric beams have been proposed to enrich the structured light family, such as ray-wave vector vortex beams (Shen et al., 2020b) and astigmatic hybrid vector vortex beams (Wang et al., 2021b). In addition to constructing exotic ray-wave beams, the spatial wave structure is also an interesting topic. Recently, a unified mode evolution of azimuthally traveling-wave (TW) and standing-wave (SW) ray-wave beams has been proposed, which newly constructs ray-wave geometric beams with ray-splitting/fusion and provides a deep insight into the azimuthally spatial structure of ray-wave geometric beams (Wang et al., 2021a). However, the study on transverse wave structure of ray-wave geometric beams has not been reported.

Generally, SW refers to a superposition of 2 TWs, which could be understood via some simple mathematical formulas. For f±(x) = gc(x) ±igs(x), f±(x) is the TW function, gc(x) and gs(x) are SW functions, which could also be expressed as gc(x) = [f+(x) + f(x)]/2, gs(x) = [f+(x) − f(x)]/(2i). In a word, SW and TW functions are mathematical analogies to gc(x) and gs(x), respectively. The concepts of TW and SW manifest themselves in structured light as well. For example, azimuthally TW vortex beams can be expressed as A(r) exp ± iℓθ, and azimuthally SW vortex beams can be expressed as A(r) cos ℓθ and A(r) sin ℓθ, where A(r) is the complex amplitude and is the topological charge (Wang et al., 2021a). For another example, Bessel beams also have radial TW component as [Jn(krr)±iNn(krr)]ei(θ+kzz), and radial SW component as Jn(krr)ei(θ+kzz) and Nn(krr)ei(θ+kzz), where kr2+kz2=k2, k = 2π/λ the wave number, Jn(r) and Nn(r) are Bessel function and Neumann function as two independent solutions of Bessel function, respectively (Chávez-Cerda et al., 1996). Besides, the Laguerre-Gaussian (LG) beams, Hermite-Gaussian (HG) beams and Airy beams also have the corresponding radial (or transverse) TW and SW beams (Richards, 2002; Mendoza-Hernández et al., 2019; Ugalde-Ontiveros et al., 2021). Note that TW and SW beams have key applications such as the coherent perfect absorption of light (Vetlugin, 2021), classical analogy of quantum entanglement (Chen et al., 2021), interpretation of the self-healing origin in wave picture (Mendoza-Hernández et al., 2019; Ugalde-Ontiveros et al., 2021) and dispersive soliton solutions in optical fibers (Tang, 2021). Therefore, it is of great importance to study the SW and TW forms of ray-wave geometric beams for extending the Frontier of structured light. Besides, ray-wave geometric beams were generated in a degenerate laser resonator originally (Chen et al., 2004, 2006; Tuan et al., 2018), but there are some limits on the tunability (Wan et al., 2020) and a lack of a generalized model in the wave picture for more exotic beams (Chen et al., 2019b).

In this paper, we construct a theoretical framework for the transverse TW and SW ray-wave geometric beams, which provides a physical insight in the wave picture. Besides, we generate these beams via a digital hologram system in experiment, with more flexible tunability. We first analyze the transverse TW and SW Hermite-Laguerre-Gaussian (HLG) beams as the eigenmodes of ray-wave geometric beams (Section 2.1), and then propose a generalized model for the transverse TW and SW ray-wave geometric beams (Section 2.2). Furthermore, we experimentally generate these transverse TW and SW beams by the digital holography method with a liquid-crystal spatial light modulator (LC-SLM) (Section 3) (Ren et al., 2015; Wan et al., 2020; Javidi et al., 2021). Our work can be easily extended to investigate the spatial wave structure of more complex structured light, further enriching the structured light family.

2 Theoretical Framework

2.1 Transverse Wave Structure of Hermite-Laguerre-Gaussian Beams

The ray-wave geometric beams are the superposition of eigenmodes under the frequency-degenerate condition (Chen et al., 2004). As such, we analyze the transverse TW and SW forms of eigenmodes firstly. HLG beams are the typical eigenmodes of the paraxial wave equation (PWE), which describe the tunable spatial mode evolution between HG beams and LG beams. In mathematics, HLG beams could be expressed as the superposition of HG beams (Chen, 2011):

HLGn,m,lx,y,z|α,β=ein+m2αk=0n+meikαdkn+m2,nm2n+m2βHGk,n+mk,lx,y,z,(1)

where HLGn,m,l (x, y, z|α, β) represents the complex field of HLG beams with transverse indices (n, m) and longitudinal indices l, (α, β) are tunable parameters of spatial mode evolution between HG beams and LG beams that HLGn,m,l (x, y, z|α, β) would tend to LG beams for (α = π/2, β = π/2) and HG beams for α = 0 or β = 0, where dkn+m2,nm2n+m2β are the elements of Wigner d-matrix as (Chen, 2011):

dkn+m2,nm2n+m2β=k!n+mk!n!m!×υ=max0,knminm,k1υcosβ/2m+k2υsinβ/2nk+2υυ!mυ!kυ!nk+υ!.(2)

In this way, one can describe the transverse wave structure of HLG beams, using the transverse wave structure of HG beams that are further expressed as (Ugalde-Ontiveros et al., 2021):

HGn,m,lx,y,z=14i,jTWHGn,m,li,jx,y,z,(3)

where i, j = 1, 2, and TWHGn,m,li,j(x,y,z) represents the decomposed components as Ugalde-Ontiveros et al. (2021):

TWHGn,m,li,jx,y,z=Cn,mwzex̃2+ỹ22HHnix̃HHmjỹeik̃n,m,lz̃in+m+1ϑz,(4)

where Cn,m=π2n+m1n!m! is the normalized factor, (x, y, z) is the Cartesian coordinates, x̃=2x/w(z), ỹ=2y/w(z), z̃=z+[(x2+y2)z]/[2(z2+zR2)], k̃n,m,l=2πωn,m,l/c, ωn,m,l = (n + m + 1)ω0 + (l + 1/2)ωz, ω0 and ωz are transverse and longitudinal mode frequency spacings, c is the light speed, ϑ(z) = tan−1 (z/zR) is the Gouy phase, w(z)=w01+(z/zR)2 is the Gaussian beam waist, zR is the Rayleigh rang, λ is the light wavelength. HHni() is the Hankel-like Hermite polynomial of nth order as HHni()=Hn()±iNHn(), where Hn(⋅) and NHn(⋅) are the first and second solutions of the Hermite differential equation, i = 1, 2 for the sign of“+” and“−”, respectively (Ugalde-Ontiveros et al., 2021).

Note that Hn(⋅) and NHn(⋅) are the transverse SW functions analogous to gc(x) and gs(x), and HHni() is the transverse TW function analogous to f±(x), respectively. Since the analytical expression of HG beams requires the multiplication of two Hermite functions defined in x −, y − directions, there would be four decomposed components as defined in Eq. 4. The decomposed components of HG beams in Eq. 4 could be called the transverse TW HG beams. Besides, the sum of four transverse TW HG beams in Eq. 3 is equivalent to the traditional HG beams, due to i,jHHni(x)HHmj(y)=Hn(x)Hm(y). Thus, the traditional HG beams could be called the transverse SW HG beams, alternatively. Based on the transverse TW HG beams, the transverse TW HLG beams could be obtained as:

TWHLGn,m,li,jx,y,z|α,β=ein+m2αk=0n+meikαdkn+m2,nm2n+m2βTWHGk,n+mk,li,jx,y,z.(5)

The sum of four transverse TW HLG beams is equivalent to the traditional HLG beams in Eq. 1, which could also be called the transverse SW HLG beams. The simulated results of transverse TW and SW HLG beams are shown in Figure 1, where the intensity and phase at z = 0 plane are shown in rows Figures 1A–F, respectively. The horizontal and vertical axes of subplots are x- and y-axis and ranges from −4.2w0 to 4.2w0. The corresponding parameters are (n, m) = (5, 6), α = π/2, and the rows from top to bottom correspond to HG-HLG-LG beam evolution with β = 0, π/4, π/2. The subplots labeled with (i, j) in columns 1-4 are transverse TW HLG beams as defined in Eq. 5, and the column 5 corresponds to transverse SW HLG beams. The transverse TW HG beams have almost rectangular intensity profiles with different phase distributions, as shown in the Figures 1A,D, 1–4, while their superposition as SW HG beams have arrayed intensity profiles, as shown in Figures 1A5. In comparison, the transverse TW HLG beams have different intensity and phase distributions, which are superposed to form the transverse SW HLG beams with elliptical arrayed intensity profiles, as shown in Figures 1B,E, 1–5. The transverse TW LG beams could be divided into two groups with same intensity distributions (Figures 1C1–C4) but different phases (Figures 1F1–F4), which can constitute LG beams with ring-like intensity profiles and spiral phase distributions as shown in Figures 1C5,F5.

FIGURE 1
www.frontiersin.org

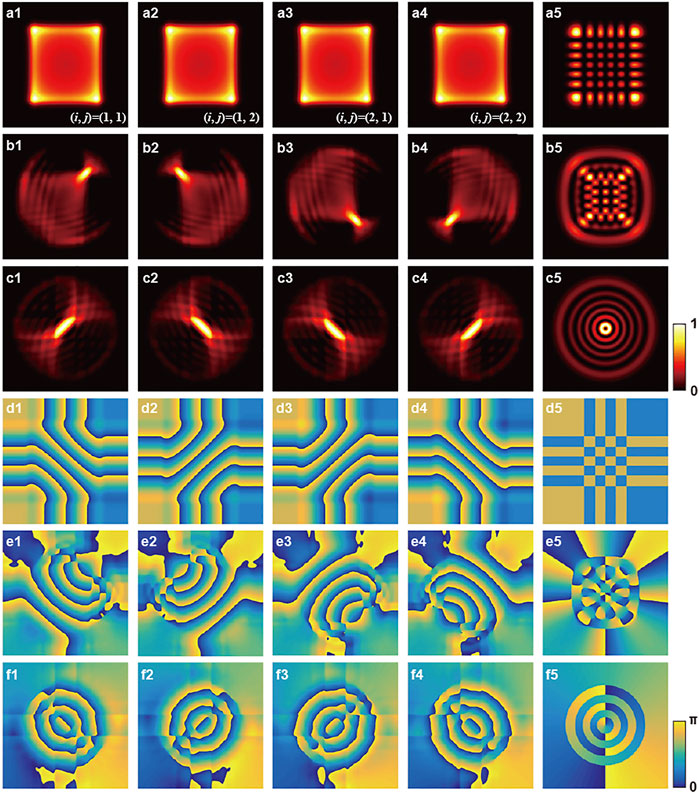

FIGURE 1. Transverse wave structure of HLG beams. Subplots (A1–C4) correspond to the intensities of transverse TW HLG beams with (n, m) = (5, 6), α = π/2, β = 0, π/4, π/2 from top to bottom, respectively. Subplots (A5,B5,C5) correspond to the intensities of transverse SW HLG beams. The subplots in rows (D–F) are the phases corresponding to the intensities shown in rows (A–C) (Colormap: darkness to brightness means 0 to 1 for intensity, and − π to π for phase).

2.2 Transverse Wave Structure of Ray-Wave Geometric Beams

In the above subsection, we have analyzed the transverse wave structure of HLG beams and proposed the transverse TW HLG beams, which allows us to further explore the transverse wave structure of complex ray-wave geometric beams as the superposed spatial wave packet. There are three typical kinds of ray-wave geometric beams, which are the so-called multi-path ray-wave geometric beams (Chen et al., 2019a), multi-axis ray-wave geometric beams (Tuan et al., 2018), and Lissajous-to-trochoidal geometric beams (Chen et al., 2006; Chen, 2011). Here we would decompose these exotic ray-wave beams into the superposition of transverse TW components. By selecting the transverse TW HLG beams as eigenmodes, the transverse TW ray-wave geometric beams can be expressed mathematically as (Bužek and Quang, 1989):

ψn,m,li,jx,y,z|N,ϕ,α,β=12N/2K=0NNK12eiKϕTWHLGn+pK,m+qK,lsKi,jx,y,z|α,β,(6)

where ϕ is the coherent phase, N is an integer which represents the number of superposed eigenmodes in ray-wave geometric beams, analogous to the number of bosons in quantum SU(2) coherent state (Wodkiewicz and Eberly, 1985; Bužek and Quang, 1989), (p, q, s) are three integers about frequency-degenerate condition (Chen et al., 2004). The sum of four transverse TW ray-wave geometric beams (subplots labeled with (i, j) in columns 1-4 in Figure 2) as defined in Eq. 6 is equivalent to traditional ray-wave geometric beams (subplots in column 5 in Figure 2), which could be called transverse SW ray-wave geometric beams, where the horizontal and vertical axes of subplots are x- and y-axis, (α, β) = (π/2, 0) for rows (Figures 2A,D,G), (π/2, π/4) for rows (Figures 2B,E,H), (π/2, π/2) for rows (Figures 2C,F,I), respectively. The rows a-c, d-f, and g-i of the Figure 2 are ray-wave multi-path geometric beams (n = 5, m = 0, ϕ = 0, p = 3, q = 0, M = 4, (x, y) ranges from −4.2w0 to 4.2w0), ray-wave multi-axis geometric beams (n = 25, m = 5, ϕ = 0, p = 3, q = 0, M = 6, (x, y) ranges from − 8w0 to 8w0) and ray-wave Lissajous-to-trochoidal geometric beams (n = 25, m = 5, ϕ = π/2, p = −1, q = 4, M = 6, (x, y) ranges from − 8w0 to 8w0), respectively. The simulation ranges and the parameters are set for clear illustration. The beams that intensity located on segmented curves, are explained in the ray picture (Chen et al., 2019b). Here we demonstrate that these beams with segmented curved intensity are the transverse TW ray-wave geometric beams in the wave picture. Our generalized model provides a physical insight in the wave picture for the ray-wave geometric beams, which would be experimentally generated in the next section.

FIGURE 2
www.frontiersin.org

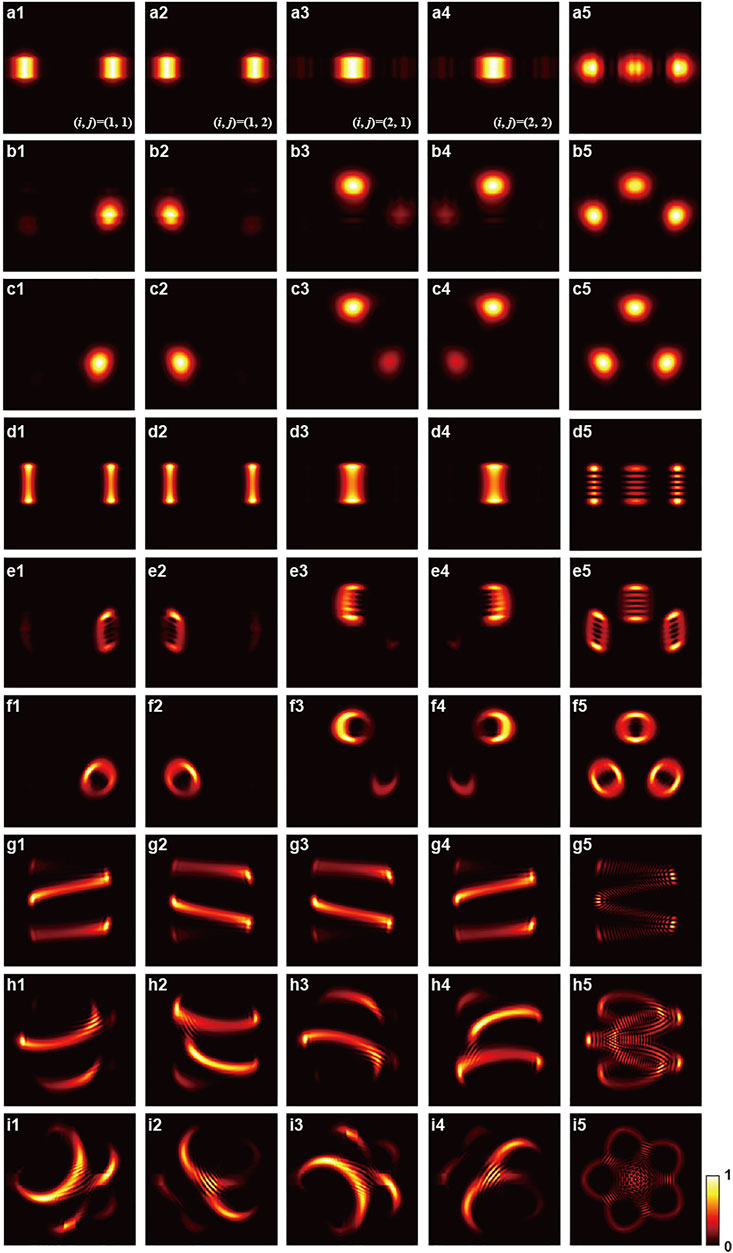

FIGURE 2. Transverse intensity of ray-wave geometric beams. The subplots in columns (A1–I5) are transverse TW (labeled with (i, j)) and SW ray-wave geometric beams, respectively (Colormap: darkness to brightness means 0 to 1 for intensity).

3 Experiment

We exploit a digital hologram system to generate the transverse TW and SW beams, since this method could generate various exotic beams flexibly, just by changing the mask loaded on the SLM (Chen et al., 2004, 2006; Tuan et al., 2018). In comparsion, the traditional method based on laser resonator requires to tune the length of cavity, pump position and power, and gain for generating various exotic beams, while some ray-wave beams cannot be generated in the cavity (Wan et al., 2020). Therefore, the digital hologram system is an effective and compact setup for the generation and modulation of structured light. The experimental setup based on LC-SLM is shown in Figure 3. LC-SLM is a type of opto-electrical device for phase modulation, which is regulated by the extraordinary refractive index of liquid crystal cells (Aulbach et al., 2017). Exploiting SLM to generate complex beams requires masks, which are essentially computer-generated holograms (Arrizón et al., 2007). There are several methods to generate masks, as introduced in (Arrizón et al., 2007; Markus Fratz et al., 2021; Trolinger, 2021). The masks used in this paper can be expressed as (Arrizón et al., 2007; Wan et al., 2020):

fmaskx,y=eiJ11CAx,ysinΦx,y+2πuxx+vyy,(7)

where C = 0.5819 is a constant (Arrizón et al., 2007; Wan et al., 2020), A (x, y) and Φ(x, y) are complex amplitude and phase distributions of light, ux and uy are spatial frequency coordinates. Lens L1 and L2 expand the beam emitted by the source, and the collimated beam is modulated by the mask loaded on SLM. The lenses L3 and L4 compose a 4f system. The aperture (AP) is placed at the Fourier plane of L3 to extract +1st-order diffraction component, as shown in the inset with blue box in the Figure 3, where only three diffraction orders are displayed. The target structured light exists in the +1st-order diffracting component, which is imaged by L4 and then recorded by CCD. The generation of planar multi-path ray-wave geometric beams is selected as an example shown in the right insets, where the insets are the mask loaded on SLM, enlarged view of the mask, and the experimental pattern recorded by CCD from top to bottom, respectively. A 1064-nm laser source (2 W) is used in this experiment and the generated beams are linear-polarized. The SLM (Meadowlark Optics) have 1920 × 1,152 pixels and (ux, uy) = (5, 0) for the masks loaded. The results recorded by CCD are about 300 × 300 pixels. The focal length of L1 to L4 is 20 mm, 120 mm, 120 mm, 60 mm, respectively.

FIGURE 3
www.frontiersin.org

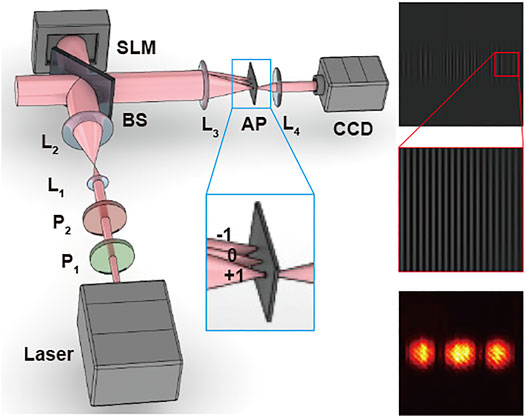

FIGURE 3. Experimental setup. P1-P2, polarizers; L1-L4, lens; BS, beam splitter; SLM, spatial light modulator; AP, aperture for filtering; CCD, charge coupled device camera. The blue rectangle highlights the filtering aperture, with the details of extracting + 1st-order diffraction component. The right insets exhibit the mask loaded on SLM, enlarged view of the mask, and the experimental pattern recorded by CCD from top to bottom, respectively.

Experimental results of transverse TW and SW HLG beams and ray-wave geometric beams are shown in Figure 4, where subplots labelled with (i, j) in rows 1-4 of each section are transverse TW beams and the subplots in 5th row are transverse SW beams. The first section of Figures 4A–C exhibits experimental results of HLG beams corresponding to the simulated results as shown in Figure 1, where subplots a1-a5, b1-b5, c1-c5 are transverse TW and SW HG, HLG and LG beams, respectively. The other three sections of Figure 4 exhibit the transverse TW and SW ray-wave geometric beams generated in experiment, corresponding to the simulated results as shown in Figure 2, where the subplots d1-d5, e1-e5, f1-f5 are transverse TW and SW ray-wave multi-path geometric beams, the subplots g1-g5, h1-h5, i1-i5 are transverse TW and SW ray-wave multi-axis geometric beams, and the subplots j1-j5, k1-k5, p1-p5 are transverse TW and SW ray-wave Lissajous-to-trochoidal geometric beams, respectively.

FIGURE 4
www.frontiersin.org

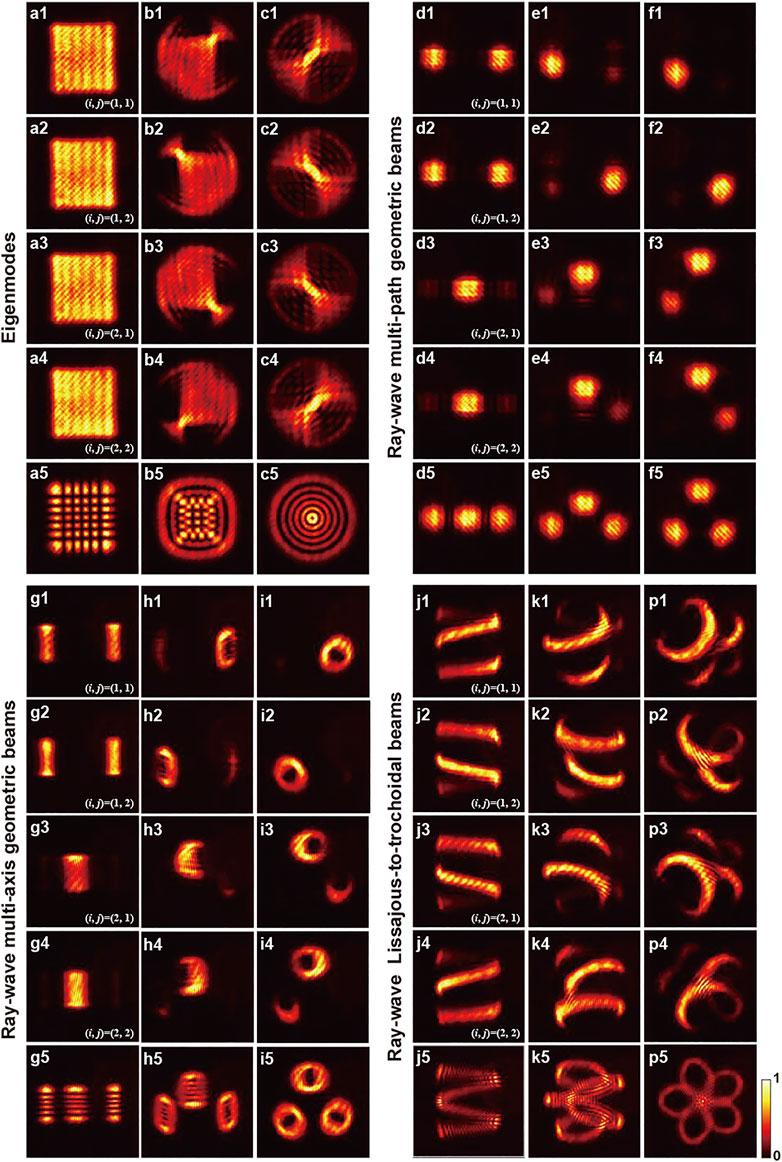

FIGURE 4. Experimental results of the transverse TW and SW beams of HLG beams, multi-path geometric beams, multi-axis geometric beams and Lissajous-to-trochoidal geometric beams. The subplots labeled with (i, j) in rows (A1–A4) to (P1–P4) of each section are transverse TW beams, and subplots in row (A5–P5) are SW beams (Colormap: darkness to brightness means 0 to 1 for intensity).

4 Discussion

The theoretical framework presented in this work decomposes traditional transverse SW ray-wave geometric beams into transverse TW geometric beams, which enriches the structured light family and provides a physical insight for the ray-wave beams. The generalized model demonstrates that the beams with segmented curved intensity in the laser resonator (Chen et al., 2019b) are transverse TW ray-wave geometric beams, essentially. Furthermore, our theoretical framework has the potential to unveil more classes. For instance, it can be applied to non-diffraction resonant geometric beams based on Bessel beams (Chen et al., 2012; Liang and Lin, 2020) since Bessel function Jn(r) and Neumann function Nn(r) can be seen as radial SW functions, and Jn(r) ±iNn(r) can be seen as radial TW functions (Chávez-Cerda et al., 1996). For another instance, the first kind of Airy function Ai (⋅) and the second kind of Airy function Bi(⋅) could be used to construct transverse (radial) TW and SW Airy beams and their coherent spatial wave packet (Richards, 2002). We can also investigate generalized transverse wave structure in astigmatic and vector fields (Droop et al., 2021), as well as hybrid coherent state (Shen et al., 2020b). Besides, our newly proposed TW ans SW beams have multi- controllable DoFs, which is significant for extending the potential applications such as optical communication and manipulation.

In summary, we propose the transverse TW HLG beams and three kinds of exotic transverse TW ray-wave geometric beams, providing a physical insight for spatial wave structure of structured light, which are demonstrated in theoretical simulation and experiment. Our work has strong extensibility to explore spatial wave structure of more structured light such as non-diffracting beams, providing a powerful tool for exploring the frontiers of structured light.

Data Availability Statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author Contributions

ZaW performed the theoretical analysis and experiment. ZeW and ZS also contributed to the experiment. XF leaded this work. All authors participated in the analysis of results and manuscript writing.

Funding

Funded by National Natural Science Foundation of China (61975087).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors thank Sabino Chavez-Cerda for useful discussion.
