Upconverting nanoparticles as primary thermometers and power sensors

Luminescence thermometry is a spectroscopic technique for remote temperature detection based on the thermal dependence of the luminescence of phosphors, presenting numerous applications ranging from biosciences to engineering. In this work, we use the Er³⁺ emission of the NaGdF₄/NaGdF₄:Yb³⁺,Er³⁺/NaGdF₄ upconverting nanoparticles upon 980 nm laser excitation to determine simultaneously the absolute temperature and the excitation power density. The Er^{3+ 2}H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2 emission bands, which are commonly used for thermometric purposes, overlap with the ²H_9/2 →⁴I_13/2 emission band, which can lead to erroneous temperature readout. Applying the concept of luminescent primary thermometry to resolve the overlapping Er³⁺ transitions, a dual nanosensor synchronously measuring the temperature and the delivered laser pump power is successfully realized holding promising applications in laser-supported thermal therapies.

Introduction

Luminescent nanothermometry exploits the temperature-dependent emission properties of luminescent nanoprobes, e.g., quantum dots, organic dyes, polymers, DNA or protein conjugated systems, transition-metal-based materials, or trivalent lanthanide ion (Ln³⁺)-doped materials (Brites et al., 2012; Jaque and Vetrone, 2012; Brites et al., 2016). The latter systems feature unique characteristics, such as high photostability, narrow bandwidth, and efficient room-temperature emission, which make them suitable for different applications, particularly bioimaging-related ones (Jaque et al., 2014; Zhou et al., 2015; Brites et al., 2016; Dramicanin, 2018; Brites et al., 2019a). Ln³⁺ ions work in the spectral ranges where the biological tissue has minimal absorption and negligible autofluorescence, designated as biological imaging windows. Therefore, luminescent thermometers based on Ln³⁺-doped nanomaterials have been widely employed in intracellular measurements (Debasu et al., 2020; Piñol et al., 2020; Dantelle et al., 2021; Di et al., 2021; Kim et al., 2021; Dos Santos et al., 2022) and tumor temperature mapping during thermal therapies (Jaque et al., 2014; Carrasco et al., 2015; Zhu et al., 2016, 2018).

The most common approach to infer absolute temperature is based on the intensity ratio of two distinct transitions - ratiometric luminescence thermometry (Brites et al., 2016). In the last few years, primary thermometers based on luminescent nanoprobes have been studied which take advantage of the temperature-dependent intensity ratio of the two thermally coupled Er³⁺ levels, ²H_11/2 and ⁴S_3/2 (Balabhadra et al., 2017; Bastos et al., 2019; Brites et al., 2019b; Martínez et al., 2019; Borges et al., 2021; Martins et al., 2021; Dos Santos et al., 2022). A primary thermometer is characterized by a well-established emitting state population equation that follows Boltzmann statistics. Recently, a few works have drawn attention to the impact of the ²H_9/2→⁴I_13/2 emission band in temperature determination using Er³⁺ emission (Martins et al., 2021; Rühl et al., 2021; Van Swieten et al., 2021; Xia et al., 2021). Upon near-infrared (NIR) excitation, the ²H_9/2 manifold of Er³⁺ is populated through a three-photon upconversion process (Cho et al., 2017). Emission of the ²H_9/2→⁴I_13/2 transition overlaps with the ⁴S_3/2→⁴I_15/2 one, which can lead to total intensity overestimation when ²H_9/2→⁴I_13/2 contribution is overlooked, and its contribution increases with the excitation power density (P_D) (Zhou et al., 2013; Berry and May, 2015; Yuan et al., 2018, 2019; Rühl et al., 2021; Xia et al., 2021). This complicates accurate temperature readout but provides an opportunity to explore NIR P_D optical readout, as demonstrated herein. To the best of our knowledge, only one luminescent excitation density ratiometric sensor for the visible spectral range was reported by (Marciniak et al. (2022)). There, the intensity ratio of ⁴T_2(g)→⁴A_2(g) and ²E_(g) →⁴A_2(g) transitions of GdAl₃(BO₃)₄:Cr³⁺ nanoparticles was used to measure the excitation power density at 445 nm and 532 nm. The authors designed the nanoparticles to enhance the probability of nonradiative processes to achieve an efficient radiation-to-heat conversion. The designed material reached temperatures as high as 143°C, even at low excitation power density. According to the excitation power density, the heat generated in the system leads to the thermalization of the ⁴T_2(g) state inducing a change in the intensity ratio (Marciniak et al., 2022), and thus, the working principle of this Cr³⁺ ratiometric laser power meter is, in fact, temperature related.

The simultaneous measurement of temperature and incident P_D is critical for optimizing photon-based therapies, such as photothermal therapy (Jaque et al., 2014; Yang et al., 2017) and photobiomodulation (PBM) (Freitas and Hamblin, 2016), and preventing the surrounding tissue from overheating and deleterious damage (Shen et al., 2020). Photothermal therapy uses light to generate heat from plasmonic or dielectric nanoparticles (Jaque et al., 2014), whereas PBM involves the use of a low-powered light source (lasers and LEDs) within the red and NIR wavelength range (∼600–1,000 nm) to stimulate or inhibit cellular and biological processes (Freitas and Hamblin, 2016). In PBM applications, where the low-powered excitation source does not induce an evident temperature rise, the P_D quantization of the delivered light to the target could contribute to standardization, improving the reliability and reproducibility of the technique (Wang and Dong, 2020).

In this work, we study the thermometric features of NaGdF₄/NaGdF₄:Yb³⁺,Er³⁺/NaGdF₄ upconverting nanoparticles upon 980 nm laser excitation and show how they work as a primary luminescent thermometer once the decoupling procedure is applied to resolve the overlapping ²H_9/2→⁴I_13/2 and ⁴S_3/2→⁴I_15/2 emission bands. The passive-core/active-shell/passive-shell architecture of nanoparticles was chosen to promote Er³⁺ upconversion emission from the ²H_9/2 excited state, through reduced energy migration and enhanced energy transfer upconversion (Chen et al., 2016; Wang, 2019). Taking advantage of the P_D-dependent ²H_9/2→⁴I_13/2 emission intensity, we characterize a ratiometric NIR radiation sensor. Thus, we have developed a versatile system capable of sensing both the local absolute temperature and the P_D delivered to the target using luminescence with future potential applications in PBM treatments or other laser-based thermal therapies.

Besides being a NIR radiation sensor, which is the radiation commonly used in biological applications, the monodisperse in size NaGdF₄/NaGdF₄:Yb³⁺,Er³⁺/NaGdF₄ nanoparticles can be patterned on various substrates as well as dispersed in different colloidal mixtures. Moreover, the intensity of the selected transitions to sense the delivered laser pump power are thermal independent, enabling the synchronous measurement of the temperature and P_D.

Materials and methods

Materials synthesis

NaGdF₄/NaGdF₄: 2 mol% Er³⁺, 20 mol% Yb³⁺/NaGdF₄ lanthanide-doped nanoparticles (Figure 1), were prepared by hot-injection thermal decomposition (Boyer et al., 2006; Skripka et al., 2020).

FIGURE 1

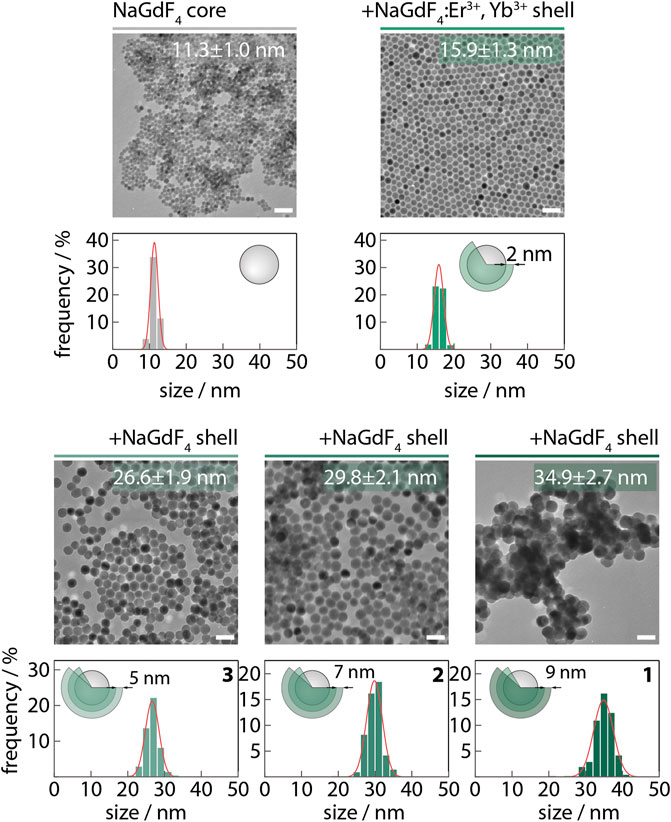

FIGURE 1. Representative TEM images of Er³⁺-doped nanothermometers and their respective size distributions. The thickness of the outer NaGdF₄ shell is represented in the scheme. The nanoparticles used in this work, 1, 2, and 3, are represented in the lower panel. The solid lines are the best fits to the experimental data using Gaussian distributions (r² > 0.99). The scale bars correspond to 50 nm.

To synthesize the core, an initial mixture of 12.5 mL each of OA and ODE was prepared in a 100 mL three-neck round bottom flask (Solution A). Aside, 2.5 mmol of Na-TFA were added to the 2.5 mmol of dried Gd-TFA precursor together with 7.5 mL each of OA and ODE (Solution B). Both solutions A and B were degassed at 150°C under vacuum with magnetic stirring for 30 min. After degassing, solution A was placed under an Ar atmosphere and the temperature was raised to 315°C. Solution B was then injected into the reaction vessel containing solution A with a syringe and pump system at a 1.3 mL/min injection rate. The mixture was left at 315°C under vigorous stirring for 60 min. After cooling to room temperature, the as-synthesized cores (11.3 nm) were stored in a Falcon centrifuge tube under Ar for further synthesis steps. The core/shell NaGdF₄/NaGdF₄:Er³⁺, Yb³⁺ nanoparticles were prepared by a subsequent shelling of the 2.5 mmol of core nanoparticles (solution A). Separately, solution B contained 3.5 mmol of Na-TFA precursors and 3.5 mmol of Gd,Yb,Er-TFA (2.73 mmol + 0.7 mmol + 0.07 mmol) together with 7.5 mL each of OA and ODE. Both solutions were degassed at 150°C under vacuum with magnetic stirring for 30 min. After degassing, solution A was placed under an Ar atmosphere and the temperature was raised to 315°C. Solution B was then injected at a 1 mL/min rate into solution A and left to react for 90 min. After, 15 mL of the reaction mixture containing core/shell1 nanoparticles (15.9 nm) was aliquoted for sampling. The core/shell/shell NaGdF₄/NaGdF₄:Er³⁺, Yb³⁺/NaGdF₄ with various thicknesses of the most-outer shell were prepared by subsequent injection of shelling precursors into the reaction. 8 mmol each of Na-TFA and Gd-TFA were dissolved and degassed in a mixture of 10 mL each of OA and ODE (solution C). Half (10 mL) of solution C was injected at 1 ml/min into the reaction flask and kept at a pre-set 315°C temperature for 60 min, 10 mL of the reaction mixture was aliquoted from the flask before injecting the rest of the solution C. After 60 min, 10 mL were aliquoted from the reaction flask, obtaining core/shell/shell RENPs with a 5.4 nm thick outer shell. Another 8 mmol each of Na-TFA and Gd-TFA were dissolved and degassed in a mixture of 10 mL each of OA and ODE (solution D) and injected (10 mL) into the reaction flask. After 60 min, 10 mL were aliquoted from the reaction obtaining core/shell/shell RENPs with 7.0 nm thick outer shell. The remaining 10 mL of the solution D were then injected into the reaction mixture and allowed to react for 60 min, yielding core/shell/shell RENPs with a 9.5 nm thick outer shell. The mixture was cooled to room temperature, and core-only, core/shell, and core/shell/shell RENPs were precipitated with ethanol and washed three times with hexane/ethanol (1/4 v/v), followed by centrifugation (5400 RCF). Samples containing NaGdF₄/NaGdF₄:Er³⁺,Yb³⁺/NaGdF₄ RENPs with outer shell thicknesses of 9.5, 7.0, and 5.4 nm dispersed in water (nanofluids) were designated as 1, 2 and 3, respectively.

Structural characterization methods

The morphology and size distribution of the core-only and core/shell UCNPs were investigated by transmission electron microscopy (TEM, Philips Tecnai 12). The particle size was determined from TEM images using ImageJ software with a minimum set size of 200 individual UCNPs per sample. The crystallinity and phase of all the UCNPs were determined via X-ray powder diffraction (XRD) analysis with a Bruker D8 Advance Diffractometer (USA) using Cu K_α radiation.

Power density and temperature-dependent photoluminescence measurements

The 1, 2, and 3 nanofluids were placed in a quartz cuvette (114F−10–40, Hellma Analytics) and were excited with a pulsed laser (BrixX 980–1000 HD, Omicron Laser) at a frequency of 1.5 MHz, to get an essentially continuous wave irradiation mode. The laser was focused through an optical lens of 7.5 cm focal distance (LA1145, Thorlabs) to enhance the power density (P_D) that ranges from 29.0 ± 0.1 to 138.8 ± 0.7 W cm⁻², estimated as previously reported (Caixeta et al., 2020). The emission light was guided through an optical fiber (P600-1-UV-VIS, Ocean Insight) and the laser contribution was cut out with a short-pass optical filter (FESH0750, Thorlabs). The emission spectra were recorded by a portable spectrometer (MAYA Pro 2000; Ocean Insight) using an acquisition window between 15–75 s (a total of 150 measurements with integration time ranging from 0.1 to 0.5 s), adjusting the acquisition conditions to obtain a similar signal-to-noise (SNR) ratio at the different excitation P_D. The spectrometer uses reference and dark measurements to correct the instrument response.

The quartz cuvette was placed in thermal contact with a homemade temperature controller containing a Peltier system and a thermocouple (K-type, 0.1 K accuracy) that was immersed near the laser spot, but away from the light path to monitor and measure the temperature (T) of the nanofluid. We set the temperature controller at a fixed temperature and turned on the excitation laser at a fixed P_D inducing an additional temperature increment. After the nanofluid reaches thermal equilibrium (t > 350 s) the emission spectra and thermocouple reading are recorded. This process was repeated for P_D ranging from 19.0 to 138.8 W cm⁻² and for different set temperatures (297.6–315.3 K). At the lowest temperature used (room temperature), the temperature controller was kept off.

Sensing parameters determination

Before the calculus of the thermometric parameter (∆) and NIR radiation sensing parameter (∆_NIR), a spectral deconvolution procedure based on a previously reported work (Martins et al., 2021) was applied to the emission spectra to decouple the overlapping transitions, ²H_9/2→⁴I_13/2 and ⁴S_3/2→⁴I_15/2, using a routine in MatLab^© software. The routine starts with a baseline subtraction to remove the remaining spectrometer electric noise, followed by the conversion of the signal of each emission spectrum from wavelength to energy units by applying the Jacobian transformation (Mooney and Kambhampati, 2013). Then, the [17,500, 19,500] cm⁻¹ spectral region was fitted using a multiparametric Gaussian function. Good fits to the experimental data (R² > 0.99) were obtained with a minimum number of Gaussian functions equal to 10 (two, four, and four Gaussian functions described the ²H_9/2→⁴I_13/2, ⁴S_3/2→⁴I_15/2, and ²H_11/2→⁴I_15/2 transitions, respectively). The intensities of the transitions were estimated by the sum of the fitted areas of the respectively assigned Gaussian functions. The parameters ∆ and ∆_NIR are computed for the 150 recorded emission spectra for each P_D and T, where ∆, ∆_NIR and the respective uncertainties (δ∆ and δ∆_NIR, respectively) are extracted from the corresponding histograms (mean ± standard deviation). To evaluate the performance of the luminescent thermometer, the relative thermal sensitivity, S_r, and the minimum temperature uncertainty, δT, are determined, as follows (Brites et al., 2016):

${\mathit{S}}_{\mathit{r}}=\frac{\mathbf{1}}{\mathit{\Delta }}\left|\frac{\partial \mathit{\Delta }}{\partial \mathit{T}}\right|=\frac{\mathit{\Delta }\mathit{E}}{{\mathit{k}}_{\mathit{B}}{\mathit{T}}^{\mathbf{2}}}(1)$

and

$\mathit{\delta }\mathit{T}=\frac{\mathbf{1}}{{\mathit{S}}_{\mathit{r}}}\frac{\mathit{\delta }\mathit{\Delta }}{\mathit{\Delta }}(2)$

where δΔ is the uncertainty in the determination of $\Delta$. S_r, which represents the relative Δ change per temperature degree, is an intrinsic property of the nanothermometer material (Brites et al., 2016).

Results and discussion

Primary thermometer

Figure 2 illustrates the emission spectra of 1 for selected P_D values exhibiting Er³⁺ transitions in the green, ²H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2, and red spectral regions, ⁴F_9/2→⁴I_15/2 (Auzel, 2004). Evidence of the ²H_9/2 level population can be found in the transitions in the blue, ²H_9/2 →⁴I_15/2, and red spectral region, ²H_9/2 →⁴I_11/2. Additionally, the band overlapping with the ⁴S_3/2→⁴I_15/2 emission corresponds to the ²H_9/2→⁴I_13/2 transition, whose intensity shows similar power-dependence to the ²H_9/2 →⁴I_11/2,15/2 transitions (Berry and May, 2015; Cho et al., 2017). Since the population of the ²H_9/2 level is reached via a three-photon upconversion process, the intensity of radiative transitions from the ²H_9/2 level shows a different behavior with P_D than the ²H_11/2→⁴I_15/2 and ⁴S_3/2 →⁴I_15/2 transitions (Renero-Lecuna et al., 2011; Zhou et al., 2013; Cho et al., 2017). A similar trend is observed for ⁴F_9/2→⁴I_15/2, where, at higher P_D, the upper levels, ²H_11/2 and ⁴S_3/2 become saturated favoring the population of the ⁴F_9/2 emitting level due to nonradiative relaxations upon the local heating induced by the laser excitation (Kraft et al., 2018; Maturi et al., 2021). The emission spectra of 2 and 3 measured at the lowest measured P_D display analogous emission spectra of 1, except for the worse SNR (Supplementary Figure S1). As the shell gets thicker, the luminescence quenching effects are reduced (Pini et al., 2022; Shi et al., 2022) leading to higher SNR and advantageously decreased temperature uncertainty. As initially proposed by some of us (Brites et al., 2016), and experimentally implemented by others (Van Swieten et al., 2021), the temperature uncertainty increases as the SNR degrades. The value of the relative thermal uncertainty for 1 is about 78% and 49% smaller than those obtained for 2 and 3, respectively, in similar excitation and collection conditions (Supplementary Figure S2). For this reason, 1 was the chosen nanofluid to perform the onward photoluminescent measurements.

FIGURE 2

FIGURE 2. Normalized upconversion emission spectra of 1 as a function of P_D measured at room temperature. The spectra are normalized to the ⁴S_3/2→⁴I_15/2 transition.

The Er³⁺ emission in the green spectral region, namely the ²H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2 transitions, have been widely explored for thermometric purposes in light upconverting nanoparticles since its first report in 2010 (Vetrone et al., 2010). The intensity ratio of these two transitions is temperature-dependent according to Boltzmann statistics, which governs the population distribution between the two thermally coupled levels, ²H_11/2 and ⁴S_3/2. Recently, these thermometers have been explored as primary luminescent thermometers, in which the intensity ratio between ²H_11/2→⁴I_15/2 (I_H) and ⁴S_3/2→⁴I_15/2 (I_S) emissions bands are directly related to the absolute temperature, T, through a well-established equation of state population (Balabhadra et al., 2017; Brites et al., 2019b; Martínez et al., 2019; Back et al., 2020):

$\frac{\mathbf{1}}{\mathit{T}}=\frac{\mathbf{1}}{{\mathit{T}}_{\mathbf{0}}}-\frac{{\mathit{k}}_{\mathit{B}}}{\mathit{\Delta }\mathit{E}}\mathit{ln}\frac{\mathit{\Delta }}{{\mathit{\Delta }}_{\mathbf{0}}}(3)$

where k_B is the Boltzmann constant, ΔE is the energy gap between the barycenters of the ²H_11/2 and ⁴S_3/2 levels, and Δ = I_H/I_S the thermometric parameter with Δ₀ being the value at the temperature T₀ (see Supporting Information for the calculus of ΔE and Δ₀).

Regarding temperature determination through the intensity ratio between the ²H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2, a few works have been raising awareness of the impact of the ²H_9/2→⁴I_13/2 transition and how it can affect the temperature measurements, especially when a laser P_D variation is imposed (Martins et al., 2021; Rühl et al., 2021; Van Swieten et al., 2021; Xia et al., 2021).

Figure 3A shows the temperature dependence of the emission spectra of 1 excited at selected P_D values and set temperatures (297.6, 305.3, and 315.3 K). Since the ²H_9/2→⁴I_13/2 and ⁴S_3/2→⁴I_15/2 emission bands are overlapped, and Equation 3 accounts only for the emissions of the two thermally coupled levels (²H_11/2 and ⁴S_3/2), the emission bands must be decoupled to correctly estimate I_S. Thus, a spectral deconvolution, consisting of a multiparametric Gaussian fit, is applied and the ²H_9/2→⁴I_13/2 (I_X), ⁴S_3/2→⁴I_15/2 (I_S), and ²H_11/2→⁴I_15/2 (I_H) transitions intensities are estimated by the sum of the fitted areas of the assigned Gaussians to the respective transitions (Figure 3B) (see further details in Materials and Methods).

FIGURE 3

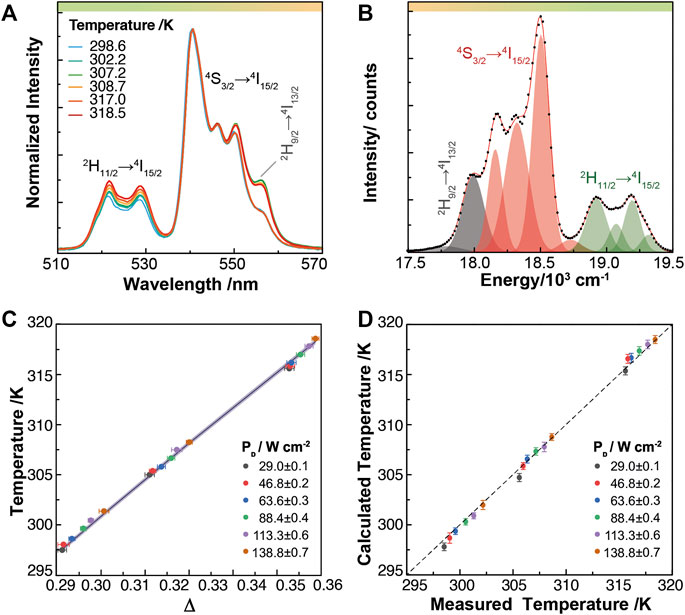

FIGURE 3. (A) Temperature-dependent upconversion emission spectra of 1 excited at 29.0, 88.4 and 138.8 W cm⁻². (B) Spectral Gaussian deconvolution of the emission spectrum measured at 302.2 K and 138.8 W cm⁻². The black dots and the red line represent the experimental data and the fit envelope of the spectrum, respectively. The shadowed areas correspond to the Gaussian functions assigned to the ²H_9/2→⁴I_13/2 (black), ⁴S_3/2→⁴I_15/2 (red), and ²H_11/2→⁴I_15/2 (green) transitions. (C) Temperature dependence of the experimental Δ values determined under laser excitation at different P_D values. The horizontal error bars represent the error in the measured thermometric parameters (Supplementary Equation S1 in Supporting Information). The line is the theoretical prediction of the temperature (Equation 3) and the shadowed area is the corresponding uncertainty (Supplementary Equation S2 in Supporting Information). (D) Measured temperature (thermocouple reading) versus calculated temperature (Equation 3) under laser excitation at different P_D values. The vertical error bars correspond to the shadowed area of the line represented in C. The thermocouple accuracy is 0.1 K.

We observe that the calculated ∆ are within the theoretical prediction by Equation 3, independently of the excitation P_D values (Figure 3C). ∆ is converted to absolute temperature substituting the corresponding parameters (Δ₀, T_0, and ΔE, Supplementary Figures S3, S4 and Supporting Information for further details) in Equation 3. The calculated temperatures are in excellent agreement with the experimental ones, demonstrating that 1 works as a primary luminescent thermometer. Besides guaranteeing reliable temperature measurements, the primary luminescent thermometer demonstrated the correct decoupling of both transitions (²H_9/2→⁴I_13/2 and ⁴S_3/2→⁴I_15/2) in the P_D range of 29.0–138.8 W cm⁻². Moreover, it is experimentally verified, for the first time, the independence of the primary luminescent thermometer on excitation P_D (Figure 3D).

The S_r of 1 is within the commonly reported range for Er³⁺ based nanothermometers (∼0.2–1 %K⁻¹), since ΔE is not considerably affected by its host matrix (Figure 4A). Besides the material, δT also depends on the SNR of the measurement, which means this figure of merit is strongly affected by the type and performance of the detector and experimental conditions, such as luminescent material quantity, acquisition time, and background noise, thus precluding a fair comparison with reported values in the literature (Brites et al., 2016; Van Swieten et al., 2022). Nevertheless, in this work, the minimum δT is 0.3 K at 297.5 K (Figure 4B), which is above 0.2 K, the minimum possible value, as reported by (Van Swieten et al. (2022)).

FIGURE 4

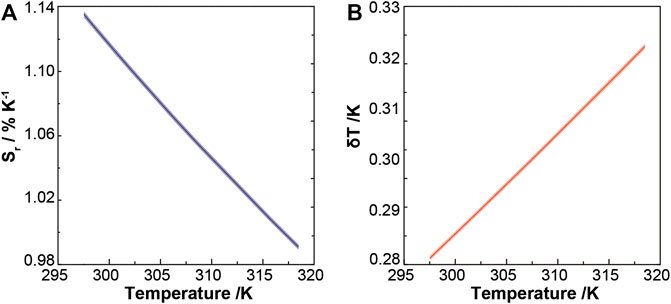

FIGURE 4. (A) Relative thermal sensitivity and (B) temperature uncertainty of 1. The corresponding uncertainties (Supplementary Equations S3, S4 in Supporting Information) are represented by the shadowed areas.

NIR radiation sensor

The high sensitivity of the ²H_9/2→⁴I_13/2 intensity to P_D values led us to further study these luminescent nanoparticles as a potential NIR radiation sensor. Since emission intensities depend on a multitude of parameters (e.g., temperature, power density, sensor concentration, material inhomogeneities and optoelectronic drifts in detection) (Brites et al., 2012), we define the NIR radiation sensing parameter as an intensity ratio, Δ_NIR = I_X/I_B, calculated using the emission intensity of the ²H_9/2→⁴I_15/2 (I_B) and ²H_9/2→⁴I_13/2 (I_X) transitions (Figure 5A).

FIGURE 5

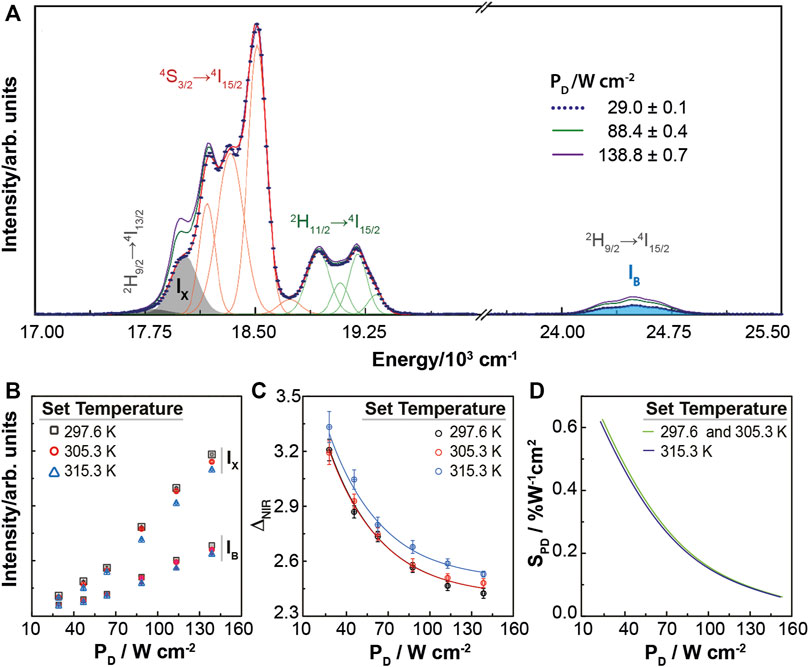

FIGURE 5. (A) Upconversion emission spectra of 1 for selected P_D values (297.6 K set temperature) depicting the spectral Gaussian deconvolution (green and red lines ascribed to ²H_11/2→⁴I_15/2 and ⁴S_3/2→⁴I_15/2 transitions) and the I_X and I_B areas for 29.0 W cm⁻² (grey and blue shadowed regions). Dependence on P_D of (B) I_X and I_B and (C) Δ_NIR, for the indicated set temperatures. The lines correspond to the best fits to the experimental data using Equation 4 (r² > 0.98). (D) Corresponding relative sensitivity to P_D of the NIR sensor based on 1.

The power-dependence of I_X and I_B is different (Figure 5B) resulting in a decreasing Δ_NIR with P_D values (Figure 5C). Changing P_D for the set temperatures 297.6 and 305.3 K, Δ_NIR is the same within the uncertainty, while at a higher set temperature (315.3 K) an offset in Δ_NIR values is observed. Therefore, we characterize 1 as a NIR sensor with a specific calibration according to the working temperature ranges (298.5–308.7 K and 315.6–318.5 K, Figure 3D).

To determine a working calibration curve that describes Δ_NIR variation in the measured P_D range, we assume a generic and empirical equation that better fits the experimental data since we lack a theoretical model. As the behavior observed for Δ_NIR variation is similar in both temperature ranges and only differs by an offset, the following function:

${\mathit{\Delta }}_{\mathit{N}\mathit{I}\mathit{R}}=\mathit{A}\mathbf{exp}\left(-\frac{{\mathit{P}}_{\mathit{D}}}{\mathit{t}}\right)+{\mathit{y}}_{\mathbf{0}}(4)$

was fitted to both experimental datasets with A and t parameters shared between the two fits while y₀ was kept free (Figure 5C). The resulting fitting parameters are A = 1.74 ± 0.09, t = 37 ± 1 W cm⁻², y₀₁ = 2.41 ± 0.01 and y₀₂ = 2.50 ± 0.01, corresponding to y₀ in the 298.5–308.7 K and 315.6–318.5 K ranges, respectively. Inspired by the definition of the relative thermal sensitivity of a thermometer (Equation 1), we define the relative sensitivity to P_D, S_PD, as a figure of merit to characterize the NIR sensor:

${\mathit{S}}_{\mathit{P}\mathit{D}}=\frac{\mathbf{1}}{{\mathit{\Delta }}_{\mathit{N}\mathit{I}\mathit{R}}}\left|\frac{\partial {\mathit{\Delta }}_{\mathit{N}\mathit{I}\mathit{R}}}{\partial {\mathit{P}}_{\mathit{D}}}\right|=\left|\frac{-{\mathit{\Delta }}_{\mathit{N}\mathit{I}\mathit{R}}+{\mathit{y}}_{\mathit{0}}}{{\mathit{t}\mathit{\Delta }}_{\mathit{N}\mathit{I}\mathit{R}}}\right|(5)$

yielding a maximum value of 0.5% W⁻¹·cm² at 29.0 W cm⁻² (Figure 5D), which is higher than the value reported for the luminescent Cr³⁺⁻based ratiometric radiation sensor, 0.07% W⁻¹ cm², (Marciniak et al., 2022).

Conclusion

The Er³⁺ emission of the NaGdF₄/NaGdF₄:Yb³⁺,Er³⁺/NaGdF₄ upconverting nanoparticles upon 980 nm laser excitation was used to develop a luminescent dual nanosensor synchronously measuring the temperature and the delivered laser pump power. Both sensing capabilities use the same simple instrumentation, providing reliable temperature readout through the concept of luminescent primary thermometry to resolve the overlapping of the ²H_9/2→4I_13/2 and ⁴S_3/2→4I_15/2 emissions. Moreover, the measurements are independent and there are no temperature-P_D crossover effects in the studied temperature. This dual-sensor shows potential for laser-assisted biomedical applications, such as in-vivo real-time temperature monitoring during photothermal therapies, where human exposure to NIR laser radiation must be strictly controlled to avoid healthy tissue damage and, thus, ensuring a safe and efficient therapy implementation. In context, under the International Commission on Non‐Ionizing Radiation Protection (ICNIRP) guidelines, skin exposure to 980 nm laser radiation is limited to 0.73 W cm^-2 for exposures times of 10 s to 8 h (Ziegelberger, 2013). However, for deliberate exposure as part of medical treatment, these radiation limits vary according to the procedure and instrumentation regulated by U.S. Food and Drug Administration (FDA) (FDA, 2020), and thus demand for flexible in situ power verification.
