Predicting new-onset stroke with machine learning: development of a model integrating traditional Chinese and western medicine

Liuding Wang ^1* Jingzi Shi ² Lina Miao ¹ Yifan Chen ¹ Jingjing Wei ¹ Min Jia ¹ Zhiyi Gong ³ Ze Yang ¹ Jian Lyu ^1* Yunling Zhang ^1* Xiao Liang ^1*

• ¹ Xiyuan Hospital, China Academy of Chinese Medical Sciences, Beijing, China
• ² Beijing University of Chinese Medicine, Beijing, Beijing Municipality, China
• ³ Shandong University of Traditional Chinese Medicine, Jinan, Shandong Province, China

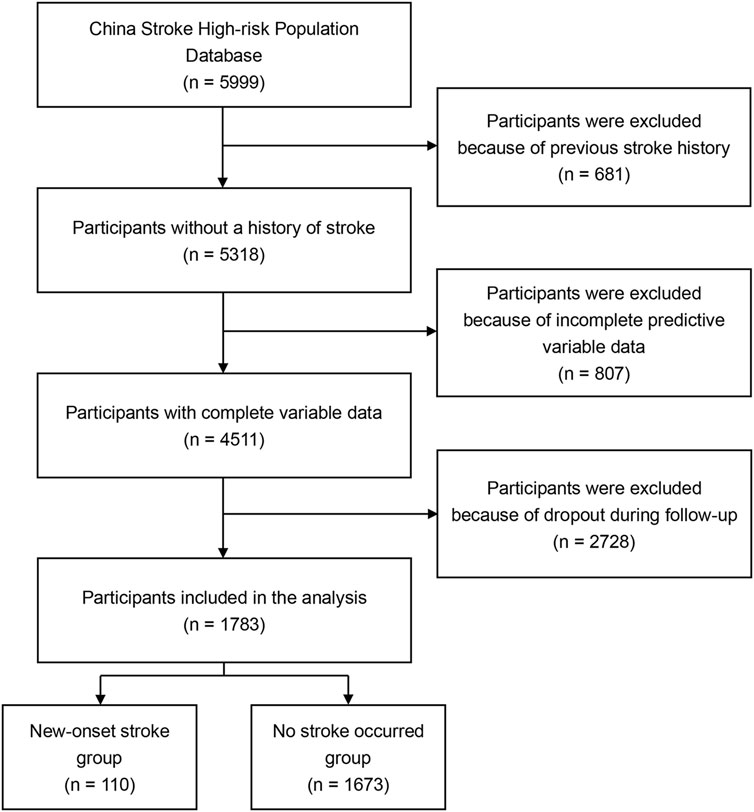

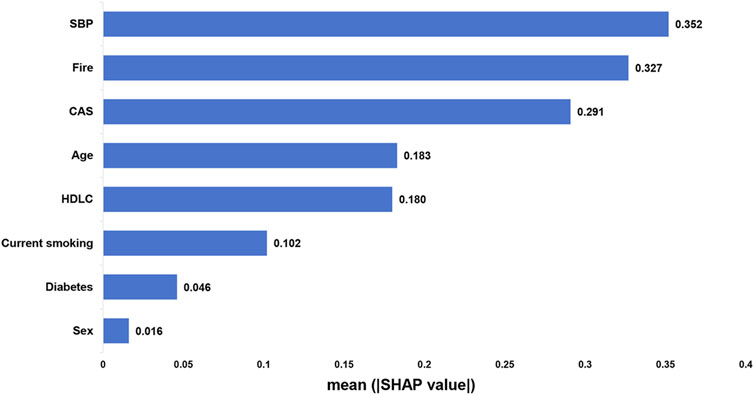

The integration of traditional Chinese medicine (TCM) and Western medicine has demonstrated effectiveness in the primary prevention of stroke. Therefore, our study aims to utilize TCM syndromes alongside conventional risk factors as predictive variables to construct a machine learning model for assessing the risk of new-onset stroke.We conducted a ten-year follow-up study encompassing 4,511 participants from multiple Chinese community hospitals. The dependent variable was the occurrence of the new-onset stroke, while independent variables included age, gender, systolic blood pressure (SBP), diabetes, blood lipids, carotid atherosclerosis, smoking status, and TCM syndromes. We developed the models using XGBoost in conjunction with SHapley Additive exPlanations (SHAP) for interpretability, and logistic regression with a nomogram for clinical application.Results: A total of 1,783 individuals were included (1,248 in the training set and 535 in the validation set), with 110 patients diagnosed with new-onset stroke. The logistic model demonstrated an AUC of 0.746 (95% CI: 0.719 -0.774) in the training set and 0.658 (95% CI: 0.572 -0.745) in the validation set. The XGBoost model achieved a training set AUC of 0.811 (95% CI: 0.788 -0.834) and a validation set AUC of 0.628 (95% CI: 0.537 -0.719). SHAP analysis showed that elevated SBP, Fire syndrome in TCM, and carotid atherosclerosis were the three most important features for predicting the newonset stroke.Conclusions: Under identical traditional risk factors, Chinese residents with Fire syndrome may have a higher risk of new-onset stroke. In high-risk populations for stroke, it is recommended to prioritize the screening and management of hypertension, Fire syndrome, and carotid atherosclerosis. However, future high-performance TCM predictive models require more objective and larger datasets for optimization.
