Yu Chen1†
Yixuan Zhong
Shuyuan Zhang
Weili Zhang- 1National Clinical Research Center for Cardiovascular Diseases, State Key Laboratory of Cardiovascular Disease, Fuwai Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, National Center for Cardiovascular Diseases, Beijing, China
- 2The First Affiliated Hospital of Anhui University of Science and Technology, The First People’s Hospital of Huainan City, Huainan, Anhui, China
- 3Clinical Laboratory, Xiamen Key Laboratory of Genetic Testing, The First Affiliated Hospital of Xiamen University, Xiamen, Fujian, China
- 4Central-China Branch of National Center for Cardiovascular Diseases, Henan Cardiovascular Disease Center, Fuwai Central-China Hospital, Zhengzhou, China
Background: The genetic factors in assessing therapeutic efficacy and predicting antihypertensive drug response are unclear. Therefore, this study aims to identify the associations between variants and antihypertensive drug response.
Methods: A longitudinal study including 1837 hypertensive patients was conducted in Northern China and followed up for a median 2.24 years. The associations of 11 candidate variants with blood pressure changes in response to antihypertensive drugs and with the risk of cardiovascular events during the follow-up were examined. The dual-luciferase assay was carried out to assess the effect of genetic variants on gene transcriptional activity.
Results: The variant rs11039149A>G in the promoter of nuclear receptor subfamily 1 group H member 3 (NR1H3) was associated with the change in systolic blood pressure (ΔSBP) in response to calcium channel blockers (CCBs) monotherapy. Patients carrying rs11039149AG genotype showed a significant increase of systolic blood pressure (SBP) at follow-up compared with AA carriers, and the difference of ΔSBP between AG and AA carriers was 5.94 mm Hg (95%CI: 2.09–9.78, p = 0.002). In 1,184 patients with CCBs therapy, SBP levels decreased in AA carriers, but increased in AG carriers, the difference of ΔSBP between AG and AA carriers was 8.04 mm Hg (95%CI: 3.28–12.81, p = 0.001). Further analysis in 359 patients with CCBs monotherapy, the difference of ΔSBP between AG and AA carriers was 15.25 mm Hg (95%CI: 6.48–24.02, p = 0.001). However, there was no significant difference in ΔSBP between AG and AA carriers with CCBs multitherapy. The rs11039149A>G was not associated with the cardiovascular events incidence during the follow-up. Additionally, transcriptional factor forkhead box C1 (FOXC1) bound to the NR1H3 promoter containing rs11039149A and significantly increased the transcriptional activity, while rs11039149 A to G change led to a loss-of-function and disabled FOXC1 binding. For the other 10 variants, associations with blood pressure changes or risk of cardiovascular events were not observed.
Conclusion: Hypertensive patients with rs11039149AG genotype in the NR1H3 gene have a significant worse SBP control in response to CCBs monotherapy compared with AA carriers. Our findings suggest that the NR1H3 gene might act as a promising genetic factor to affect individual sensitivity to antihypertensive drugs.
1 Introduction
Hypertension is a major risk factor leading to cardiovascular diseases (Carey et al., 2022). About one-third of Chinese adults suffer from hypertension, while only 29.6% of patients with antihypertensive treatment achieved the blood pressure goal (Lewington et al., 2016). Interindividual genetic variability might explain this disappointing outcome partly. However, the genetic factors in assessing therapeutic efficacy and predicting antihypertensive drug response are unclear.
The blood pressure levels are influenced by environmental and genetic factors (Niu et al., 2021), and genetic factors have shown inheritability from 30% to 50% on blood pressure variation among Chinese and White individuals (Wu et al., 2011; Ehret & Caulfield, 2013; Munroe et al., 2013). Pharmacogenomic studies of hypertension have suggested that genetic variants related to blood pressure elevation showed effects on antihypertensive response in Chinese, Americans, Europeans and Hispanics, etc. (Johnson, 2012; Gong et al., 2015; Iniesta et al., 2019; Citterio et al., 2021; Xiao et al., 2022). Previous genome-wide association studies and candidate gene strategy studies have identified multiple genes and variants related to antihypertensive response. For example, some genes are involved in ion channel function, such as calcium voltage-gated channel subunit alpha1 C (CACNA1C) that is found to be associated with antihypertensive response to calcium channel blockers (CCBs) (Beitelshees et al., 2009), and NEDD4 like E3 ubiquitin protein ligase (NEDD4L) that is associated with treatment response with beta-blockers or diuretics (Luo et al., 2009; Svensson-Färbom et al., 2011; McDonough et al., 2013). Some genes encode the components of the renin-angiotensin-aldosterone system (RAAS) such as angiotensinogen (AGT), angiotensin converting enzyme 2 (ACE2) and angiotensin II receptor type 1 (AGTR1), which are found to have effects on antihypertensive response to angiotensin converting enzyme inhibitors (ACEIs) or angiotensin receptor blockers (ARBs) (Liljedahl et al., 2004; Fan et al., 2007; Beitelshees et al., 2009; Luo et al., 2009; McDonough et al., 2013; de Denus et al., 2018). However, some genes and variants associated with antihypertensive response still have unclear biological mechanisms.
Genetic variants can be used to explore the efficacy of antihypertensive drugs, but studies have shown that a risk allele for worse response to one drug class might exhibit a beneficial response to another drug class. For example, rs5051 in AGT is found to be associated with blood pressure lowering to beta-blockers in 115 Swedish patients with hypertension and left ventricular hypertrophy (Kurland et al., 2004) but with blood pressure lowering to ACEIs in 640 Chinese patients with essential hypertension (Kurland et al., 2004; Yu et al., 2014). Rs5186 in AGTR1 is related to different therapeutic efficacy to CCBs and ACEIs in 311 White Europeans with hypertension (Benetos et al., 1996) whereas associated with ARBs on systolic blood pressure (SBP) response in 1,049 Chinese patients with hypertension (Jiang et al., 2011). These inconsistent associations may have multiple reasons unrelated to the pharmacology, or due to methodological differences, or led by ethnics of participants. Other variants in CACNA1C (Beitelshees et al., 2009), ACE2 (Fan et al., 2007), NEDD4L (Luo et al., 2009; Svensson-Färbom et al., 2011; McDonough et al., 2013), adducin 1 (ADD1) (Turner et al., 2003; Vormfelde & Brockmöller, 2012), matrix metallopeptidase 3 (MMP3) (Sherva et al., 2011), nuclear receptor subfamily 1 group H member 3 (NR1H3) (Price et al., 2011), and protein tyrosine phosphatase receptor type D (PTPRD) (Gong et al., 2015) are also shown to have relationship with antihypertensive response or cardiovascular events in response to antihypertensive medications among the Chinese population or other population (including White Europeans, White Americans, Black Americans, Hispanics, etc.), but these results varied between populations and thus should be further explored.
The investigations for genetic variants on antihypertensive response in Chinese population are limited. In this study, a total of 11 variants at 9 genes (AGT, AGTR1, ADD1, ACE2, CACNA1C, NEDD4L, NR1H3, PTPRD, MMP3) are chosen and genotyped in a Chinese prospective cohort study including 1837 patients with hypertension, aiming to explore the association of variants with the changes in blood pressure in response to antihypertensive drugs treatment and the risk of cardiovascular events during the follow-up.
2 Materials and methods
2.1 Study population
This prospective study was conducted in two communities, the Benxi County, Liaoning Province, and Hongxinglong County, Heilongjiang province in the northern region in China. A total of 1953 patients with hypertension (>40 years) were enrolled at two time periods according to the same criteria of inclusion and exclusion, of whom 463 patients from January to November in 2009 and 1,490 patients from January 2012 to December 2014. The definition of hypertension was based on the following criteria: SBP≥140 mm Hg and/or diastolic blood pressure (DBP)≥90 mm Hg, and/or receiving antihypertensive drugs, and/or history of hypertension. The enrolled patients were provided with antihypertensive drugs at free of charge, including CCBs, ARBs, ACEIs, thiazide-type diuretics (hydrochlorothiazide), or beta-blockers, unless intolerance was reported. The drug dosages and types were modulated by doctors according to the patients’ blood pressure levels.
All patients were followed up face-to-face every 2 years by trained investigators, and the last visit was from May 1 to November 30 in 2016. The main endpoint was the composite of stroke, myocardial infarction, coronary revascularization, hospitalization for unstable angina or acute decompensated heart failure, and deaths from cardiovascular causes. Definitions of the endpoints were described in the Supplementary Material.
Before data assessment, we excluded 98 patients lack of antihypertensive treatment data, 11 patients without genotyping data due to lack of blood samples, and 7 patients who were loss of follow-up due to immigration and lack of follow-up blood pressure. Thus, a total of 1837 patients with complete clinical data and genetic information were included in this study for analyzing the association of variants with blood pressure lowering response and risk of cardiovascular events. The flowchart of study was shown in Figure 1.
FIGURE 1. Flowchart of the current study. Cardiovascular events including stroke, myocardial infarction, coronary revascularization, hospitalization for unstable angina or acute decompensated heart failure, and deaths from cardiovascular causes.
2.2 Data collection and blood pressure measurements
Baseline demographic characteristics including age, sex, antihypertensive therapy, medical history, and lifestyles (smoking and alcohol status) of enrolled patients were collected through interviews, and a standardized questionnaire was utilized for data collection. Height and weight were measured by skilled nurses, and body mass index was computed as weight (kilograms) divided by the square of height (meters). Blood samples were drawn from the antecubital vein after overnight fast and total cholesterol, low-density lipoprotein cholesterol, high-density lipoprotein cholesterol, triglycerides, fasting blood glucose and serum creatinine were examined by an automatic analyzer (Hitachi 7,060, Tokyo, Japan). All measurements were done at Beijing FuWai Clinical Laboratory and certified by the Centers for Disease Control and Prevention.
Blood pressure was measured by trained nurses using validated oscillometric monitors with suitable-sized arm cuffs (large, medium, or small). All patients were requested to avoid smoke, alcohol, tea, coffee, and exercise for at least 30 min before the blood pressure was measured. The sitting blood pressure was measured 3 times at intervals of 1 min after at least 5 min of rest, the average of the second and third readings was recorded as the blood pressure level. The changes in blood pressure were derived from follow-up blood pressure minus baseline blood pressure. ΔSBP and ΔDBP were used for indicating the changes in SBP and DBP, respectively.
2.3 Gene variants selection and genotyping
Eleven genetic variants linked to antihypertensive response were genotyped in this study. These variants were located at 9 genes, including 3 genes involved in the RAAS (AGT, AGTR1, ACE2), 2 genes involved in ion channels (CACNA1C, NEDD4L), 3 genes associated with vascular functions (NR1H3, PTPRD, MMP3), and ADD1 gene, which encodes adducin-1 and plays important roles in the stabilization of the membrane cortical cytoskeleton, cell-cell adhesions, and cell signal transduction (Manunta & Bianchi, 2006). Genetic variants were listed in Supplementary Table S1.
Genomic DNA was extracted from the peripheral white blood cell with FlexGen Blood DNA Kit (Cowin Biotech Co., Beijing, China). Genotyping was performed using the Nascent Genotyping system with a custom-by-design 48-Plex SNPscan™ Kit (Genesky Biotechnologies Co., Shanghai, China) which was based on double ligation and multiplex fluorescence polymerase chain reaction (PCR) method. For each variant, two special primers (one for wild allele and the other for mutant allele) and one common primer were designed (Supplementary Table S2). The procedure was as the following: a ligation mixture was first prepared in 20 μl, containing 100 ng DNA sample, 1x ligase buffer, 1U ligase and 1 x primer mix. The ligation reaction was carried out in an ABI2720 thermal cycler under the following cycling program: 95°C for 5 min, 4 cycles of 94°C for 1 min, 58°C for 4 min, 94°C for 2 min, hold at 72°C. Two 48-multiplex fluorescence PCR reactions were performed for each ligation product. The PCR mixture was prepared in 20 μl, containing 1 μl ligation product, 1x primer mix and 1x PCR master mix. The PCR program was described as following: 95°C for 2 min; 9 cycles of 94°C for 20 s, 62°C–0.5°C/cycle for 40 s, and 72°C for 1.5 min; 25 cycles of 94°C for 20 s, 57°C for 40 s, and 72°C for 1.5 min; 68°C for 1 h; and hold at 4°C. PCR products were then detected by capillary electrophoresis on an ABI 3730XL sequencer. Genotyping data were analyzed by the software GeneMapper version 4.1.
The genotyping method used in this study has been validated by single nucleotide extension with the Multiplex SNaPshot Kit (Applied Biosystems Inc., Foster City, CA, USA) in previous studies which have reported >99% concordance rates of validation (Chen et al., 2012; Lu et al., 2021). In our study, Genotyping for eleven variants had completion rates of 99.8%. For quality control, we chose 5% of samples randomly and repeated genotyping, and the concordance rate of repeated samples was 100%. The phenotype status of the patients was masked throughout the genotyping.
2.4 Construction of plasmids
Bioinformatic analysis (JASPAR database, http://jaspar.genereg.net/) was used to explore the potential binding sequence of transcriptional factors in relation to the genetic variants in this study. To verify whether rs11039149A>G influences the transcriptional activity of NR1H3, 200-bp NR1H3 promoter fragments containing rs11039149A or rs11039149G allele were amplified by PCR method using the following primers: forward 5′-GGCGGTACCCCTCAGCAGCTTGCCTCC-3′, reverse 5′- GGCACGCGTAGTGGCTGGG CTGGGATCAGA-3′, then cloned into the pGL3-promoter luciferase vector (Promega, WI, USA) at KpnI and MluI restriction sites, and two plasmids were generated: pGL3-rs11039149A and pGL3-rs11039149G. Forkhead box C1 (FOXC1) gene coding sequence was amplified using the following primers: forward 5′-GCGCGATCGCATGCAGGCGCGCTACTCC-3′, reverse 5′- GGCACGCGTCA AAACTTGCTACAGTCGTAG-3′, then cloned into eukaryotic expression vector pENTER (WZ Biosciences, Shandong, China) at AsisI and MluI restriction sites to generate the pENTER-FOXC1 plasmid. All plasmids were confirmed by DNA sequencing.
2.5 Cell culture, transfection, and dual-luciferase assays
HEK293T cells were seeded at a density of 2.0 × 104 cells per well in a 96-well plate, and transfection was performed with lipofectamin3000 (Invitrogen, USA) according to the manufacturer’s protocol. Luciferase vector pGL3-rs11039149A or pGL3-rs11039149G were co-transfected with a transcription factor expression plasmid pENTER-FOXC1 or pENTER empty vector (each vector 20 ng per well). The Renilla luciferase plasmid pRL-TK (Promega, WI, USA) were co-transfected as an internal control (1 ng per well) to standardize the transfection efficiency. The transfected cells were harvested after 36 h, and the luciferase activity was measured using the dual-luciferase reporter assay system (Promega, WI, USA) by a luminometer (TD-20; Turner Designs).
2.6 Statistical analysis
Hardy-Weinberg equilibrium for each variant was examined by chi-square test. We used fixed-effect model as the main analysis of genetic association, given that fixed-effect model is more appropriate for exploratory or predictive studies with large sample sizes greater than 500, and it has a smaller median absolute error (4%) of the true marginal effect than random-effect model, as proposed by a simulation study (Dieleman & Templin, 2014). Univariable general linear model was used to explore the confounding variables that might affect the changes in blood pressure, and baseline characteristics of age, sex, body mass index, serum creatine, blood pressure, smoking status, alcohol intake and antihypertensive drugs were found to be significantly associated with the changes in blood pressure (Supplementary Table S3), therefore, these variables were adjusted as fixed effect. In addition, random-effect model was also used to re-analyze the main results, which further adjusted entry time and center as random effect.
In this study, two parallel models were used to give more comprehensive assessments for the genetic association analysis. Generalized linear regression model was used to calculate the means, mean differences and 95% confidence intervals (CIs) of the changes in blood pressure (ΔSBP and ΔDBP) among different genotypes of the variants. Multivariate linear regression model was used to obtain the correlation coefficient of genetic variants with the changes in blood pressure. The effects of antihypertensive treatments and sex on the correlation of variants with the changes in blood pressure were analyzed in further stratification. In addition, we performed epistasis analysis using the PLINK 1.9 (cog-genomics.org) to further explore the effects of interactions of the studied variants on the changes in blood pressure at the follow-up. The P-values for interaction were calculated by multiple linear regression models with adjustment for covariates as mentioned above.
Cox proportional-hazards model was used to compute hazards ratios and 95%CIs for the association between variants and the risk of cardiovascular events. Person-years of follow-up began on the date of enrollment until the date of cardiovascular outcomes, death, or the end of follow-up (30 November 2016), whichever came first.
False discovery rate (FDR) derived from the Benjamin & Hochberg method (Smeland et al., 2020) was calculated to correct for multiple comparisons of genetic associations. A two-tailed probability value of ≤0.05 was considered as significant. SPSS Statistics 25.0 (SPSS Inc., Chicago, USA) were used to conduct the analysis.
3 Results
3.1 Baseline characteristics of patients with hypertension
A total of 1837 patients were included in this study and the baseline characteristics of these patients were shown in Table 1. The mean age of the patients was 63.0 years, and 39.6% were men. The means of baseline SBP and DBP of the patients were 156 mm Hg and 89.5 mm Hg, respectively. The patients received monotherapy or multitherapy of antihypertensive drugs: 64.5% patients had CCBs, 53.2% had ARBs, 12.0% had ACEIs, 22.5% had diuretics, and 20.7% had beta-bockers.

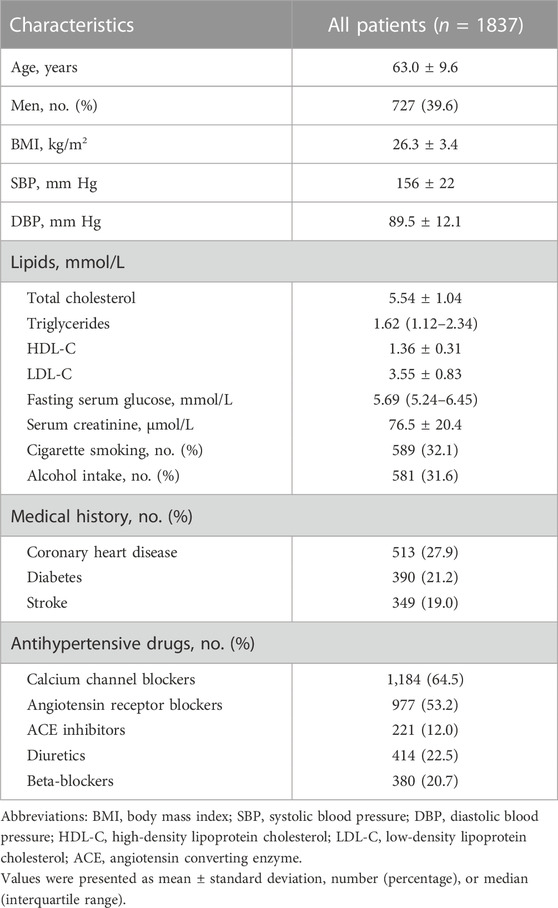

TABLE 1. Baseline characteristics of the patients in this study.
3.2 NR1H3 gene variant rs11039149A>G was associated with the change in SBP
The frequencies of 11 studied variants were shown in Supplementary Table S4 and the frequencies distribution of all variants did not deviate significantly from Hardy-Weinberg equilibrium (all p > 0.05). Means, mean differences and 95%CIs of blood pressure changes between genotypes were calculated by generalized linear regression model with adjustment for age, sex, body mass index, serum creatine, blood pressure, smoking status, alcohol intake and antihypertensive drugs. The results showed that NR1H3 gene variant rs11039149A>G was associated with ∆SBP. In this studied population, the minor allele frequency of rs11039149G was 3.0%, and the genotype frequencies of rs11039149 were respectively as AA (94.0%) and AG (6.0%). ∆SBP was 2.95 mm Hg (95%CI: −1.08 to 6.98) for the NR1H3 variant rs11039149AG carriers and −2.99 mm Hg (95%CI: −4.71 to −1.26) for the AA carriers; ∆DBP was −0.56 mm Hg (95%CI: −2.68 to 1.57) for the AG carriers and −2.66 mm Hg (95%CI: −3.57 to −1.57) for the AA carriers. The difference of ∆SBP between AG and AA carriers was 5.94 mm Hg (95%CI: 2.09 to 9.78, p = 0.002, FDR = 0.02), but no significant difference of ∆DBP was found between the AG and AA carriers after multiple comparison correction by the Benjamin & Hochberg method (FDR = 0.44) (Table 2).

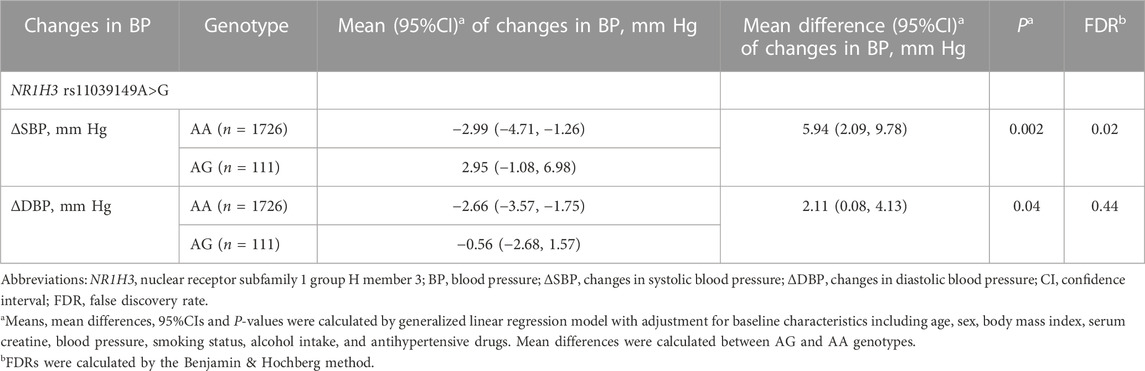

TABLE 2. Effects of NR1H3 variant rs11039149A>G on changes in blood pressure.
For the NR1H3 variant rs11039149A>G, when stratified by sex, the difference of ∆SBP between AG and AA carriers was observed in both men and women (Supplementary Table S5). For the other 10 variants, the associations with blood pressure changes were not observed in either men, women or the whole patients (Supplementary Tables S5, S6).
The correlation coefficients between variants and blood pressure changes were further assessed by multiple linear regression model. The coefficient beta was 5.77 (p = 0.003, FDR = 0.03) for ∆SBP and 2.08 (p = 0.04, FDR = 0.46) for ∆DBP, respectively (Supplementary Table S7). We also performed epistasis analysis to further explore the effects of interactions between rs11039149 and other 10 studied variants on blood pressure changes at the follow-up. No significant epistasis was found to affect blood pressure changes (all P for interaction>0.05) (Supplementary Table S8). Considering the potential effects of entry time and center, we further adjusted these two covariates as random effect in multiple linear mixing model. The results showed that rs11039149AG genotype was significantly associated with SBP increase during the follow-up (p = 0.01), which was consistent with the fixed-effect model (Supplementary Table S9).
We compared baseline characteristics of the patients with two genotypes of rs11039149, showing that patients with AG genotype had a lower body mass index and a higher level of serum creatinine than those with AA genotype (Supplementary Table S10). In addition, patients with AG genotype had a higher level of SBP at the follow-up than those with AA genotype. There were no significant differences in other characteristics including age, sex, blood lipid, fasting serum glucose, baseline blood pressure, smoking status, alcohol intake, the usage of antihypertensive drugs and medical history of cardiovascular diseases.
3.3 NR1H3 gene variant rs11039149A>G was associated with SBP response to CCBs
The association of NR1H3 variant rs11039149A>G with ∆SBP differed in antihypertensive therapy. In 1,184 patients with CCBs therapy, SBP levels decreased in AA carriers (ΔSBP: −2.49 mm Hg, 95%CI: −4.45 to −0.53), but increased in AG carriers (ΔSBP: 5.55 mm Hg, 95%CI: 0.64 to 10.64), the difference of ΔSBP between AG and AA carriers was 8.04 mm Hg (95%CI: 3.28 to 12.81, p = 0.001, FDR = 0.01) (Table 3). However, there was no significant difference in ΔSBP between AG and AA carriers without CCBs therapy (p = 0.41). As for ARBs, ACEIs, diuretics and beta-blockers, the therapies of these drugs did not significantly affect the association between the NR1H3 variant rs11039149A>G and blood pressure changes (all p > 0.05) (Supplementary Table S11).
TABLE 3. Effects of NR1H3 variant rs11039149A>G on SBP response to CCBs therapy.
Among the 1,184 patients with CCBs therapy, 359 (30.3%) patients had CCBs monotherapy and 825 (69.7%) patients had multitherapy. Considering the potential effect of multitherapy on the association of the genotypes with CCBs therapy, we further assessed the differences of ΔSBP in patients with or without rs11039149G allele when receiving CCBs monotherapy and multitherapy. In patients with CCBs monotherapy, the difference of ΔSBP between patients with AG and AA genotype was 15.25 mm Hg (95%CI: 6.48 to 24.02, p = 0.001). However, in patients with CCBs multitherapy, there was no significant difference in ΔSBP between the patients with two genotypes (p = 0.15). Compared with the patients receiving CCBs multitherapy, the difference in ∆SBP was more significant in patients with CCBs monotherapy (P genotype × CCBs therapy interaction = 0.002) (Table 3).
Irregular drug taking (defined as the change in types of drugs, and/or the increase/decrease in the dosage, and/or stop the use of drugs without doctors’ prescription) and drug regimen change (defined as the change in types of drugs during the follow-up) may also affect the genetic association. Therefore, after 100 patients with irregular drug taking or 531 patients with drug regimen change were excluded, we further performed the sensitivity analysis. The results showed that the association of rs11039149 with SBP in response to CCBs still remained. (Supplementary Tables S12, S13).
With the use of multiple linear mixing model, entry time and center were further adjusted as random effect. The results showed that rs11039149A>G was significantly associated with SBP response to CCBs monotherapy (P genotype × CCBs therapy interaction = 0.004), which was consistent with the fixed-effect model (Supplementary Table S14).
3.4 No variants were associated with the risk of cardiovascular events
All patients in this study were followed up for a median 2.24 years, and 159 events were recorded. There were no significant associations between the 11 variants and the risk of cardiovascular events (all p > 0.05, Supplementary Table S15).
3.5 NR1H3 variant rs11039149G allele disabled the transcriptional factor FOXC1 binding
Bioinformatic analysis (JASPAR database, http://jaspar.genereg.net/) showed that the variant rs11039149 A to G change at the NR1H3 promoter region could affect the binding ability with transcriptional factor FOXC1, which changed the transcription activity of NR1H3 gene. Therefore, pENTER-FOXC1 and pGL3-promoter luciferase vectors pGL3-rs11039149A and pGL3-rs11039149G were constructed, and the luciferase activity representative of NR1H3 promoter activity was measured by the dual-luciferase assay carried out in HEK293T. The relative luciferase activity had no significant difference between the pGL3-rs11039149A and pGL3-rs11039149G when without any stimulation of transcriptional factors. As for the wild pGL3-rs11039149A having potential binding sequence with the FOXC1, its relative luciferase activity significantly increased by 2.1-fold comparing the presence of FOXC1 with the absence of FOXC1 (p < 0.001). After co-transfected with the FOXC1 gene, the wild pGL3-rs11039149A had a significantly higher relative luciferase activity by 2-fold than the mutant pGL3-rs11039149G (p < 0.001) (Figure 2). These results suggested that FOXC1 could promote the transcriptional activity of NR1H3 via binding to the wild rs11039149A allele, while the mutant rs11039149G allele disabled the FOXC1 binding and had no change in transcriptional activity.

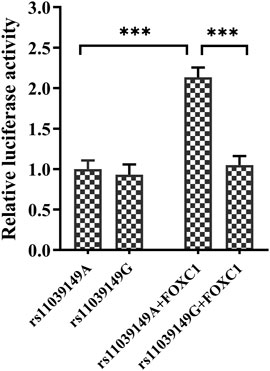

FIGURE 2. Transcription activity analysis of the NR1H3 promoter containing rs11039149A and rs11039149G alleles in HEK293T. After co-transfected with the FOXC1 gene, the wild pGL3-rs11039149A had a significantly higher relative luciferase activity by 2-fold than the mutant pGL3-rs11039149G (***p < 0.001). The pGL3-rs11039149A and pGL3-rs11039149G luciferase reporter vectors carried the NR1H3 gene promoter fragment containing rs11039149A or rs11039149G allele, respectively. Firefly luciferase activity was expressed relative to pGL3-rs11039149A co-transfected with pENTER empty plasmid. Renilla luciferase activity encoded by the co-transfected control plasmid pRL-TK to standardize the transfection efficiency. Data are presented as mean ± standard error (SE) from three independent experiments.
4 Discussion
In this longitudinal study, a total of 11 variants at 9 genes (AGT, AGTR1, ADD1, ACE2, CACNA1C, NEDD4L, NR1H3, PTPRD, MMP3) were analyzed in 1837 Chinese patients with hypertension. Our data first provided evidence in Chinese patients with hypertension that NR1H3 promoter variant rs11039149A>G was related to the change in SBP and the SBP response to CCBs monotherapy. However, no significant association was found between NR1H3 variant rs11039149A>G and the risk of cardiovascular events.
The genetic association analysis showed that SBP levels decreased in patients with rs11039149AA genotype, but increased in patients with AG genotype. In addition, bioinformatics analysis and dual luciferase assay showed that FOXC1 could bind to rs11039149A and promote the transcriptional activity of NR1H3. The rs11039149A to G change disabled FOXC1 binding with NR1H3. FOXC1 gene encodes fork head protein C1, acting as a transcription factor binding to gene promoter sequence and playing roles in the early development of the heart and blood vessels.
NR1H3 gene encodes liver X receptor alpha (LXRA), one of the key transcription factors for cholesterol efflux and inflammatory gene responses in macrophages, and thus takes part in the process of atherosclerosis (Che et al., 2021; Savla et al., 2022). LXRA can bind to the promoter region of renin gene to regulate renin transcription (Morello et al., 2005), and activation of LXRA is reported to suppress the RAAS activation (Kuipers et al., 2010). Animal studies have shown that the LXR agonist GW3965 can reduce blood pressure in rats and have beneficial effects on vascular function (Han et al., 2018; Bal et al., 2019). Supporting, we found that rs11039149G allele is a loss-of-function allele that could disable the FOXC1 binding, which may partly explain the effects of rs11039149G allele on blood pressure changes. In addition, it has been reported that LXR deficiency can lead to atherosclerosis with increased monocyte entry, foam cell formation, and plaque inflammation (Endo-Umeda et al., 2022). A case-control study in the INVEST-GENES cohort showed that rs11039149G in NR1H3 is the protective allele for cardiovascular outcomes in White Americans and Hispanics (Price et al., 2011), while it was not found in our study. One reason may be the difference in ethnics, and another reason may be related to multiple complex factors on atherosclerosis and cardiovascular diseases.
NR1H3 gene variant rs11039149A>G was significantly associated with ∆SBP but not with ∆DBP after multiple comparison correction by the Benjamin & Hochberg method. There are several potential explanations. First, the heritability for blood pressure is shown as 30–50% (Ehret & Caulfield, 2013; Munroe et al., 2013), and SBP has a higher heritability (46%) than that of DBP (30%) in Chinese population (Wu et al., 2011), indicating that SBP may be more susceptible to genetic factors. Second, NR1H3 regulates lipid homeostasis, inflammation and affects the process of arteriosclerosis (Jarvis et al., 2019), and moreover, atherosclerosis has a greater effect on the increase of SBP (Smulyan et al., 2016). Third, animal studies have shown that activation of NR1H3 can significantly reduce SBP in rats and mice (Negishi et al., 2018; Bal et al., 2019), and the possible mechanism may be that NR1H3 could regulate blood pressure through the RAAS (Joseph et al., 2002), which supported the results of the present study to some extent.
Another finding of this study showed that NR1H3 variant rs11039149G was associated with SBP increase in patients with CCBs monotherapy. CCBs inhibit Ca2+ influx through L-type calcium channels in myocardium cells and vascular smooth muscle cell (VSMCs), thus relax vasoconstriction and reduce blood pressure (Laurent, 2017). Clunn et al. found that VSMCs transformation from a differentiated phenotype to a synthetic or dedifferentiated phenotype is associated with loss-of-function of L-type calcium channels and hence loss of potential responsiveness to CCBs (Clunn et al., 2010). The process of VSMCs phenotype switching is associated with lipid metabolism and inflammatory response (Shi et al., 2020). Davies et al. found that the direct activation of LXRs in VSMCs up-regulated FASE, SREBP1c, and SCD-1, thus promotes TG accumulation via de novo FA synthesis and SCD-1-mediated Δ9 desaturation (Davies et al., 2005). These studies indicate that NR1H3 gene may play a role in the loss of CCBs effect. In addition, we found that compared with patients receiving CCBs monotherapy, patients receiving CCBs multitherapy had a better blood pressure control. The results showed that the worse SBP control of CCBs in rs11039149AG carriers could be alleviated by combined use with other antihypertensive drugs, which supports the previous studies that combination therapy was more likely to achieve blood pressure goals (Ma et al., 2015; An et al., 2021).
One advantage of the present study was that all patients are of Han ethnicity, which avoided the possibility of spurious association caused by population stratification. In addition, the study was a community-based study and all of the patients were recruited from the same geographic area, which minimized the influences of various lifestyles and environments. Several limitations of the present study need to be mentioned. First, drug adherence was not evaluated in this study, but the questionnaires were used to investigate whether the patients took drugs regularly according to the doctor’s prescription during the follow-up. After excluding 100 patients with irregular drug taking, we performed the sensitivity analysis and obtained a consistent result. Second, the adverse drug reactions were not collected in the database, and thus it was unable to assess the associations of genetic variants with the occurrence of adverse reactions or some grades of adverse reactions. However, in this study, the enrolled patients were provided with antihypertensive drugs (including CCBs, ARBs, ACEIs, thiazide-type diuretics, or beta-blockers, unless intolerance was reported), all of which are proved to be safe and most widely used antihypertensive drug types in China. Due to possible adverse effects, the study could not exclude some bias with regarding to the association of NR1H3 variant rs11039149A>G with blood pressure changes in response to CCBs. Third, the efficiency of CCBs was influenced by pharmacodynamic effects directly and correlated with its plasma concentration (Taburet et al., 1983), and the genetic variants may have effects on pharmacokinetics and pharmacodynamics (Guo et al., 2015; Wang et al., 2015). However, considering the long-term follow-up and large patient population in this study, the pharmacokinetic assessment of antihypertensive drugs was not included due to infeasibilities. The multiple-effects of genetic variants on antihypertensive drugs should be evaluated precisely in the future. Fourth, the data of antihypertensive drug dosage of each patient was not collected, and thus was unable to investigate the association in a dose-dependent manner. Given that the difference in drug dosages might affect the genetic association of NR1H3 variant rs11039149A>G with the changes in blood pressure in CCBs, future studies are needed to explore the genetic effects in a dose-dependent manner. Moreover, the results of the present study need to be strengthened by replication in another population, and need to be validated in other races to generalize to a larger population beyond the Han patients.
In conclusion, the key finding of the study is that hypertensive patients with rs11039149AG genotype in the NR1H3 gene have a significantly worse SBP control in response to the monotherapy of CCBs, compared with patients with the wild-type rs11039149AA genotype. The underlying biological mechanisms may be related to the disabled binding ability of transcription factor FOXC1 to rs11039149 caused by A to G change. Our findings support that the NR1H3 gene might act as a promising genetic factor to affect individual sensitivity to antihypertensive drugs. Clinical trials in pharmacogenetics will be helpful to investigate genetically determined variations in response to drugs and thus benefit the individual treatment strategies.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
The studies involving human participants were reviewed and approved by the Ethics Committee of Fuwai Hospital. The patients/participants provided their written informed consent to participate in this study.
Author contributions
YC performed the experiment and wrote the manuscript. YH performed the data analyses and wrote the manuscript. YW, YZ, and SZ helped perform the analysis with constructive discussions. YY and SZ collected the data. RH and WZ conceived and designed the study and gave a critical review of this manuscript. All authors reviewed and approved the final manuscript.
Funding
This work was supported by Chinese Academy of Medical Sciences Innovation Fund for Medical Sciences (2021-I2M-1-011) and National Science and Technology Pillar Program during the Twelfth Five-year Plan Period from the Ministry of Science and Technology, China (2011BAI11B04).
Acknowledgments
We thank doctors and nurses at Benxi Railway Hospital, Liaoning, and Hongxinglong Center Hospital, Heilongjiang, China for data collection.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2023.1083134/full#supplementary-material
References
An, J., Luong, T., Qian, L., Wei, R., Liu, R., Muntner, P., et al. (2021). Treatment patterns and blood pressure control with initiation of combination versus monotherapy antihypertensive regimens. Hypertension 77, 103–113. doi:10.1161/HYPERTENSIONAHA.120.15462
Bal, N. B., Han, S., Usanmaz, S. E., Kiremitci, S., Sadi, G., Uludag, O., et al. (2019). Activation of liver X receptors by GW3965 attenuated deoxycorticosterone acetate-salt hypertension-induced cardiac functional and structural changes. J. Cardiovasc Pharmacol. 74, 105–117. doi:10.1097/FJC.0000000000000693
Beitelshees, A. L., Navare, H., Wang, D., Gong, Y., Wessel, J., Moss, J. I., et al. (2009). CACNA1C gene polymorphisms, cardiovascular disease outcomes, and treatment response. Circ. Cardiovasc Genet. 2, 362–370. doi:10.1161/CIRCGENETICS.109.857839
Benetos, A., Cambien, F., Gautier, S., Ricard, S., Safar, M., Laurent, S., et al. (1996). Influence of the angiotensin II type 1 receptor gene polymorphism on the effects of perindopril and nitrendipine on arterial stiffness in hypertensive individuals. Hypertension 28, 1081–1084. doi:10.1161/01.hyp.28.6.1081
Carey, R. M., Moran, A. E., and Whelton, P. K. (2022). Treatment of hypertension: A review. JAMA 328, 1849–1861. doi:10.1001/jama.2022.19590
Che, X., Xiao, Q., Song, W., Zhang, H., Sun, B., Geng, N., et al. (2021). Protective functions of liver X receptor α in established vulnerable plaques: Involvement of regulating endoplasmic reticulum-mediated macrophage apoptosis and efferocytosis. J. Am. Heart Assoc. 10, e018455. doi:10.1161/JAHA.120.018455
Chen, X., Li, S., Yang, Y., Yang, X., Liu, Y., Liu, Y., et al. (2012). Genome-wide association study validation identifies novel loci for atherosclerotic cardiovascular disease. J. Thromb. Haemost. 10, 1508–1514. doi:10.1111/j.1538-7836.2012.04815.x
Citterio, L., Bianchi, G., Scioli, G. A., Glorioso, N., Bigazzi, R., Cusi, D., et al. (2021). Antihypertensive treatment guided by genetics: PEARL-HT, the randomized proof-of-concept trial comparing rostafuroxin with losartan. Pharmacogenomics J. 21, 346–358. doi:10.1038/s41397-021-00214-y
Clunn, G. F., Sever, P. S., and Hughes, A. D. (2010). Calcium channel regulation in vascular smooth muscle cells: Synergistic effects of statins and calcium channel blockers. Int. J. Cardiol. 139, 2–6. doi:10.1016/j.ijcard.2009.05.019
Davies, J. D., Carpenter, K. L. H., Challis, I. R., Figg, N. L., McNair, R., Proudfoot, D., et al. (2005). Adipocytic differentiation and liver x receptor pathways regulate the accumulation of triacylglycerols in human vascular smooth muscle cells. J. Biol. Chem. 280, 3911–3919. doi:10.1074/jbc.M410075200
de Denus, S., Dubé, M.-P., Fouodjio, R., Huynh, T., LeBlanc, M.-H., Lepage, S., et al. (2018). A prospective study of the impact of AGTR1 A1166C on the effects of candesartan in patients with heart failure. Pharmacogenomics 19, 599–612. doi:10.2217/pgs-2018-0004
Ehret, G. B., and Caulfield, M. J. (2013). Genes for blood pressure: An opportunity to understand hypertension. Eur. Heart J. 34, 951–961. doi:10.1093/eurheartj/ehs455
Endo-Umeda, K., Kim, E., Thomas, D. G., Liu, W., Dou, H., Yalcinkaya, M., et al. (2022). Myeloid LXR (liver X receptor) deficiency induces inflammatory gene expression in foamy macrophages and accelerates atherosclerosis. Arterioscler. Thromb. Vasc. Biol. 42, 719–731. doi:10.1161/ATVBAHA.122.317583
Fan, X., Wang, Y., Sun, K., Zhang, W., Yang, X., Wang, S., et al. (2007). Polymorphisms of ACE2 gene are associated with essential hypertension and antihypertensive effects of Captopril in women. Clin. Pharmacol. Ther. 82, 187–196. doi:10.1038/sj.clpt.6100214
Gong, Y., McDonough, C. W., Beitelshees, A. L., El Rouby, N., Hiltunen, T. P., O'Connell, J. R., et al. (2015). PTPRD gene associated with blood pressure response to atenolol and resistant hypertension. J. Hypertens. 33, 2278–2285. doi:10.1097/HJH.0000000000000714
Guo, C., Pei, Q. I., Tan, H., Huang, Z., Yuan, H., and Yang, G. (2015). Effects of genetic factors on the pharmacokinetics and pharmacodynamics of amlodipine in primary hypertensive patients. Biomed. Rep. 3, 195–200. doi:10.3892/br.2014.395
Han, S., Bal, N. B., Sadi, G., Usanmaz, S. E., Uludag, M. O., and Demirel-Yilmaz, E. (2018). The effects of LXR agonist GW3965 on vascular reactivity and inflammation in hypertensive rat aorta. Life Sci. 213, 287–293. doi:10.1016/j.lfs.2018.10.042
Iniesta, R., Campbell, D., Venturini, C., Faconti, L., Singh, S., Irvin, M. R., et al. (2019). Gene variants at loci related to blood pressure account for variation in response to antihypertensive drugs between Black and white individuals. Hypertension 74, 614–622. doi:10.1161/HYPERTENSIONAHA.118.12177
Jarvis, S., Williamson, C., and Bevan, C. L. (2019). Liver X receptors and male (In)fertility. Int. J. Mol. Sci. 20, 5379. doi:10.3390/ijms20215379
Jiang, S., Hsu, Y.-H., Venners, S. A., Zhang, Y., Xing, H., Wang, X., et al. (2011). Interactive effect of angiotensin II type 1 receptor (AGT1R) polymorphisms and plasma irbesartan concentration on antihypertensive therapeutic responses to irbesartan. J. Hypertens. 29, 890–895. doi:10.1097/HJH.0b013e32834494f6
Johnson, J. A. (2012). Advancing management of hypertension through pharmacogenomics. Ann. Med. 1, S17–S22. doi:10.3109/07853890.2011.653399
Joseph, S. B., McKilligin, E., Pei, L., Watson, M. A., Collins, A. R., Laffitte, B. A., et al. (2002). Synthetic LXR ligand inhibits the development of atherosclerosis in mice. Proc. Natl. Acad. Sci. U. S. A. 99, 7604–7609. doi:10.1073/pnas.112059299
Kuipers, I., van der Harst, P., Kuipers, F., van Genne, L., Goris, M., Lehtonen, J. Y., et al. (2010). Activation of liver X receptor-alpha reduces activation of the renal and cardiac renin-angiotensin-aldosterone system. Lab. Invest. 90, 630–636. doi:10.1038/labinvest.2010.7
Kurland, L., Liljedahl, U., Karlsson, J., Kahan, T., Malmqvist, K., Melhus, H., et al. (2004). Angiotensinogen gene polymorphisms: Relationship to blood pressure response to antihypertensive treatment. Results from the Swedish irbesartan left ventricular hypertrophy investigation vs atenolol (SILVHIA) trial. Am. J. Hypertens. 17, 8–13. doi:10.1016/j.amjhyper.2003.09.009
Laurent, S. (2017). Antihypertensive drugs. Pharmacol. Res. 124, 116–125. doi:10.1016/j.phrs.2017.07.026
Lewington, S., Lacey, B., Clarke, R., Guo, Y., Kong, X. L., Yang, L., et al. (2016). The burden of hypertension and associated risk for cardiovascular mortality in China. JAMA Intern Med. 176, 524–532. doi:10.1001/jamainternmed.2016.0190
Liljedahl, U., Kahan, T., Malmqvist, K., Melhus, H., Syvänen, A.-C., Lind, L., et al. (2004). Single nucleotide polymorphisms predict the change in left ventricular mass in response to antihypertensive treatment. J. Hypertens. 22, 2321–2328. doi:10.1097/00004872-200412000-00014
Lu, C., Zhang, Y., Qin, Y., Xu, Q., Zhou, R., Cui, Y., et al. (2021). Human X chromosome exome sequencing identifies BCORL1 as contributor to spermatogenesis. J. Med. Genet. 58, 56–65. doi:10.1136/jmedgenet-2019-106598
Luo, F., Wang, Y., Wang, X., Sun, K., Zhou, X., and Hui, R. (2009). A functional variant of NEDD4L is associated with hypertension, antihypertensive response, and orthostatic hypotension. Hypertension 54, 796–801. doi:10.1161/HYPERTENSIONAHA.109.135103
Ma, J., Wang, X.-Y., Hu, Z.-D., Zhou, Z.-R., Schoenhagen, P., and Wang, H. (2015). Meta-analysis of the efficacy and safety of adding an angiotensin receptor blocker (ARB) to a calcium channel blocker (CCB) following ineffective CCB monotherapy. J. Thorac. Dis. 7, 2243–2252. doi:10.3978/j.issn.2072-1439.2015.12.39
Manunta, P., and Bianchi, G. (2006). Pharmacogenomics and pharmacogenetics of hypertension: Update and perspectives–the adducin paradigm. J. Am. Soc. Nephrol. 17, S30–S35. doi:10.1681/ASN.2005121346
McDonough, C. W., Burbage, S. E., Duarte, J. D., Gong, Y., Langaee, T. Y., Turner, S. T., et al. (2013). Association of variants in NEDD4L with blood pressure response and adverse cardiovascular outcomes in hypertensive patients treated with thiazide diuretics. J. Hypertens. 31, 698–704. doi:10.1097/HJH.0b013e32835e2a71
Morello, F., de Boer, R. A., Steffensen, K. R., Gnecchi, M., Chisholm, J. W., Boomsma, F., et al. (2005). Liver X receptors alpha and beta regulate renin expression in vivo. J. Clin. Invest. 115, 1913–1922. doi:10.1172/JCI24594
Munroe, P. B., Barnes, M. R., and Caulfield, M. J. (2013). Advances in blood pressure genomics. Circ. Res. 112, 1365–1379. doi:10.1161/CIRCRESAHA.112.300387
Negishi, E., Fukuda, N., Otsuki, T., Katakawa, M., Komatsu, K., Chen, L., et al. (2018). Involvement of complement 3 in the salt-sensitive hypertension by activation of renal renin-angiotensin system in spontaneously hypertensive rats. Am. J. Physiol. Ren. Physiol. 315, F1747–F1758. doi:10.1152/ajprenal.00370.2018
Niu, M., Zhang, L., Wang, Y., Tu, R., Liu, X., Wang, C., et al. (2021). Lifestyle score and genetic factors with hypertension and blood pressure among adults in rural China. Front. Public Health 9, 687174. doi:10.3389/fpubh.2021.687174
Price, E. T., Pacanowski, M. A., Martin, M. A., Cooper-DeHoff, R. M., Pepine, C. J., Zineh, I., et al. (2011). Liver X receptor α gene polymorphisms and variable cardiovascular outcomes in patients treated with antihypertensive therapy: Results from the INVEST-GENES study. Pharmacogenet Genomics 21, 333–340. doi:10.1097/FPC.0b013e3283452fec
Savla, S. R., Prabhavalkar, K. S., and Bhatt, L. K. (2022). Liver X receptor: A potential target in the treatment of atherosclerosis. Expert Opin. Ther. Targets 26, 645–658. doi:10.1080/14728222.2022.2117610
Sherva, R., Ford, C. E., Eckfeldt, J. H., Davis, B. R., Boerwinkle, E., and Arnett, D. K. (2011). Pharmacogenetic effect of the stromelysin (MMP3) polymorphism on stroke risk in relation to antihypertensive treatment: The genetics of hypertension associated treatment study. Stroke 42, 330–335. doi:10.1161/STROKEAHA.110.593798
Shi, J., Yang, Y., Cheng, A., Xu, G., and He, F. (2020). Metabolism of vascular smooth muscle cells in vascular diseases. Am. J. Physiol. Heart Circ. Physiol. 319, H613–H631. doi:10.1152/ajpheart.00220.2020
Smeland, O. B., Frei, O., Shadrin, A., O'Connell, K., Fan, C.-C., Bahrami, S., et al. (2020). Discovery of shared genomic loci using the conditional false discovery rate approach. Hum. Genet. 139, 85–94. doi:10.1007/s00439-019-02060-2
Smulyan, H., Lieber, A., and Safar, M. E. (2016). Hypertension, diabetes type II, and their association: Role of arterial stiffness. Am. J. Hypertens. 29, 5–13. doi:10.1093/ajh/hpv10729
Svensson-Färbom, P., Wahlstrand, B., Almgren, P., Dahlberg, J., Fava, C., Kjeldsen, S., et al. (2011). A functional variant of the NEDD4L gene is associated with beneficial treatment response with β-blockers and diuretics in hypertensive patients. J. Hypertens. 29, 388–395. doi:10.1097/HJH.0b013e3283410390
Taburet, A. M., Singlas, E., Colin, J. N., Banzet, O., Thibonnier, M., and Corvol, P. (1983). Pharmacokinetic studies of nifedipine tablet. Correlation with antihypertensive effects. Hypertension 5, II29–II33. doi:10.1161/01.hyp.5.4_pt_2.ii29
Turner, S. T., Chapman, A. B., Schwartz, G. L., and Boerwinkle, E. (2003). Effects of endothelial nitric oxide synthase, alpha-adducin, and other candidate gene polymorphisms on blood pressure response to hydrochlorothiazide. Am. J. Hypertens. 16, 834–839. doi:10.1016/s0895-7061(03)01011-2
Vormfelde, S. V., and Brockmöller, J. (2012). The genetics of loop diuretic effects. Pharmacogenomics J. 12, 45–53. doi:10.1038/tpj.2010.68
Wang, X.-F., Yan, L., Cao, H.-M., Wei, L.-M., Yang, W.-H., Zhang, S.-J., et al. (2015). Effect of CYP3A4*1G, CYP3A5*3, POR*28, and ABCB1 C3435T on the pharmacokinetics of nifedipine in healthy Chinese volunteers. Int. J. Clin. Pharmacol. Ther. 53, 737–745. doi:10.5414/CP202211
Wu, T., Snieder, H., Li, L., Cao, W., Zhan, S., Lv, J., et al. (2011). Genetic and environmental influences on blood pressure and body mass index in han Chinese: A twin study. Hypertens. Res. 34, 173–179. doi:10.1038/hr.2010.194
Xiao, Z.-L., Yang, M., Chen, X.-B., Xie, X.-M., and Chen, M.-F. (2022). Personalized antihypertensive treatment guided by pharmacogenomics in China. Cardiovasc Diagn Ther. 12, 635–645. doi:10.21037/cdt-22-154
Keywords: pharmacogenetics, antihypertensive response, blood pressure, genetic variants, antihypertensive drugs
Citation: Chen Y, Han Y, Wu Y, Hui R, Yang Y, Zhong Y, Zhang S and Zhang W (2023) Pharmacogenetic association of the NR1H3 promoter variant with antihypertensive response among patients with hypertension: A longitudinal study. Front. Pharmacol. 14:1083134. doi: 10.3389/fphar.2023.1083134
Received: 28 October 2022; Accepted: 20 February 2023;
Published: 06 March 2023.
Edited by:
Alessandro Vacchini, University Hospital of Basel, SwitzerlandReviewed by:
Umamaheswaran Gurusamy, University of California San Francisco, United StatesLorena Citterio, San Raffaele Scientific Institute (IRCCS), Italy
Copyright © 2023 Chen, Han, Wu, Hui, Yang, Zhong, Zhang and Zhang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Weili Zhang, emhhbmd3ZWlsaUBmdXdhaWhvc3BpdGFsLm9yZw==
†These authors have contributed equally to this work
