CASE REPORT article

Front. Pharmacol., 10 August 2022
Sec. Translational Pharmacology

Case Report: Rhabdomyolysis secondary to vildagliptin overdose in a suicidal attempt: A case report and brief literature review

Zhijia TangZhijia Tang1Xiaofang FanXiaofang Fan2Zhen FengZhen Feng1Bing Han
Bing Han1*Nan Guo
Nan Guo1*
  • 1Minhang Hospital & Department of Clinical Pharmacy, School of Pharmacy, Fudan University, Shanghai, China
  • 2Department of Endocrinology, Minhang Hospital, Shanghai, China

Rhabdomyolysis is a life-threatening syndrome associated with direct or indirect muscle damage that is rarely reported with dipeptidyl peptidase (DPP)-4 inhibitors. Here we presented a case in which a 58-year-old female suffered from severe swelling and pain in bilateral lower limbs and oliguria after a suicidal vildagliptin overdose. Drug-induced rhabdomyolysis and drug-induced liver injury were diagnosed based on laboratory and radiological findings. The patient was treated with fluid resuscitation, insulin, electrolyte replacement, diuretics, urine alkalizing agents, anticoagulants, antioxidants, and 24-h bedside ECG monitoring and suicide prevention. After 20 days of hospitalization and close monitoring, the patient was discharged without sequelae. Risk factors, diagnostic criteria, disease mechanisms, and outcomes were also discussed. This case illustrated that overdose of oral anti-diabetic medications may result in clinically significant adverse events, such as rhabdomyolysis in this case with a DPP-4 inhibitor. Although the incidence is low, special attention should be paid to intentional or accidental exposure to anti-diabetic medications during suicide attempts, especially in depressed patients with diabetes.

Introduction

Rhabdomyolysis is a serious syndrome in which muscle contents (such as myoglobin) leak into the bloodstream due to the breakdown of skeletal muscle fibers (Sauret et al., 2002). An elevated level of creatine kinase (CK) (i.e., >1,000 IU/L) is the most sensitive laboratory test to assess the severity of muscle damage that causes rhabdomyolysis (Huerta-Alardin et al., 2005; Cervellin et al., 2010). The typical symptoms of rhabdomyolysis are muscle pain, weakness, swelling, nausea, vomiting, confusion, dark urine, and oliguria. Approximately 10–40% of patients with rhabdomyolysis will develop further kidney damage, such as acute kidney injury (AKI), which may require dialysis (Kasaoka et al., 2010). Although trauma and muscle compression remain the two most common causes of direct muscle injury, drug-induced rhabdomyolysis may also result from certain classes of drugs. Previous studies have shown that the drugs most likely to cause rhabdomyolysis include psychiatric agents, antihistamines, illicit substances, and those affecting the cytochrome P450 system, such as statins (Sauret et al., 2002; Hohenegger, 2012). In addition, concomitant use of Chinese herbal medicine and herbal dietary supplements (HDS) has been shown to be associated with rhabdomyolysis based on case reports and spontaneous reports of suspected adverse events (Li et al., 2020; Allkanjari et al., 2022). Dipeptidyl peptidase (DPP)-4 inhibitors, one of the safest oral hypoglycemic agents that reduce the degradation of GLP-1, are usually not considered to cause rhabdomyolysis (Mulvihill and Drucker, 2014; Marx et al., 2021). Other risk factors of rhabdomyolysis include old age, female, strenuous exercise, frailty, kidney or liver insufficiency, and diabetes (Sauret et al., 2002; Huerta-Alardin et al., 2005).

Here, we report a clinical case of rhabdomyolysis caused by vildagliptin overdose in a depressed patient with type 2 diabetes mellitus (T2DM) trying to commit suicide, and how diagnosis and treatment were performed. This adverse event has been reported to the National Adverse Drug Reaction Monitoring System (www.adrs.org.cn) under the affiliation of China’s National Medical Products Administration (notification number: 310112-1-027962-2022-00059).

Case presentation

A 58-year-old female presented to our emergency department in a wheelchair with severe pitting edema and pain in both lower extremities as well as oliguria after a suicidal attempt that she took vildagliptin 1,400 mg (14-times the normal dosage). Her height and weight were 156 cm and 50 kg, respectively; temperature, 37.1°C; blood pressure, 120/60 mm Hg; pulse, 80 beats per minute; respiratory rate, 19 breaths per minute. She had a known history of T2DM, hypertension, and depression. Home medications included vildagliptin, insulin aspart and nifedipine. No psychiatric medication or psychotherapy was received. The patient recalled no heavy exercise, muscle injuries, toxins, alcohol abuse, or traumatic accident recently. Neither previous suicide attempts nor family history of suicide was noticed. Physical examination revealed diminished Dorsalis pedis pulse and sensation in bilateral feet. The immunology tests showed substantially increased white blood cell (31.34 × 109/L), neutrophil percentage (92.5%), procalcitonin (1.921 ng/ml) and C-reactive protein (159.69 mg/L). The biochemical analyses disclosed a high level of creatine kinase (CK) (11,311 U/L), myoglobin (>500 ng/ml) and blood urea nitrogen (BUN) (8 mmol/L). Considering the increase in CK (>87 times the upper limit of normal [ULN]) and myoglobin (>7 × ULN), and the very typical clinical manifestations, a preliminary diagnosis of rhabdomyolysis was made. The magnetic resonance imaging (MRI) findings also revealed abnormal signal intensity of muscles in the anterior and posterior compartments bilaterally (Figure 1).

FIGURE 1
www.frontiersin.org

FIGURE 1. Lower limb muscle MRI findings. (A) Coronal, (C) sagittal and (E) axial T2-weighted images. (B) Coronal, (D) sagittal and (F) axial T1-weighted fat-suppressed contrast-enhanced images demonstrated high signal intensity of the tibialis anterior, gastrocnemius and soleus with homogenous enhancement (red arrow).

Lactic acidosis was assumed on elevated blood lactate (6.24 mmol/L), low base excess (-5.0 mmol/L) and low pH value (7.231). The liver function test reported an elevated aspartate aminotransferase (375 U/L) and alanine transaminase (214 U/L). Diabetic ketoacidosis (DKA) was diagnosed based on increased lactate dehydrogenase (1,249 U/L), blood ketone (4.4 mmol/L), and random blood glucose (25.5 mmol/L). In the emergency room, the patient received aggressive fluid resuscitation of normal saline and furosemide to eliminate myoglobin from the body, intravenous infusion of regular insulin and potassium chloride to control DKA, sodium bicarbonate injection to correct acidemia and achieve urinary alkalinization, and cefminox injection to treat Streptococcal viridans, Neisseria sicca and E. coli infection. On top of that, she also received intravenous α-lipoic acid and glutathione to reduce oxidative stress, and subcutaneous dalteparin to prevent blood clots due to an elevated D-dimer level (1,780 ng/ml), as well as 24-h bedside ECG monitoring and suicide prevention. The patient did not show signs of renal failure or cardiac arrhythmia throughout the course. After urinary output boosted to 3,300 ml per day with unnoticeable myoglobin and ketone, she was transferred to the inpatient unit for further observation (Table 1). The timeline of the case was illustrated in Figure 2. The patient was compliant and expressed understanding with all treatment received.

TABLE 1
www.frontiersin.org

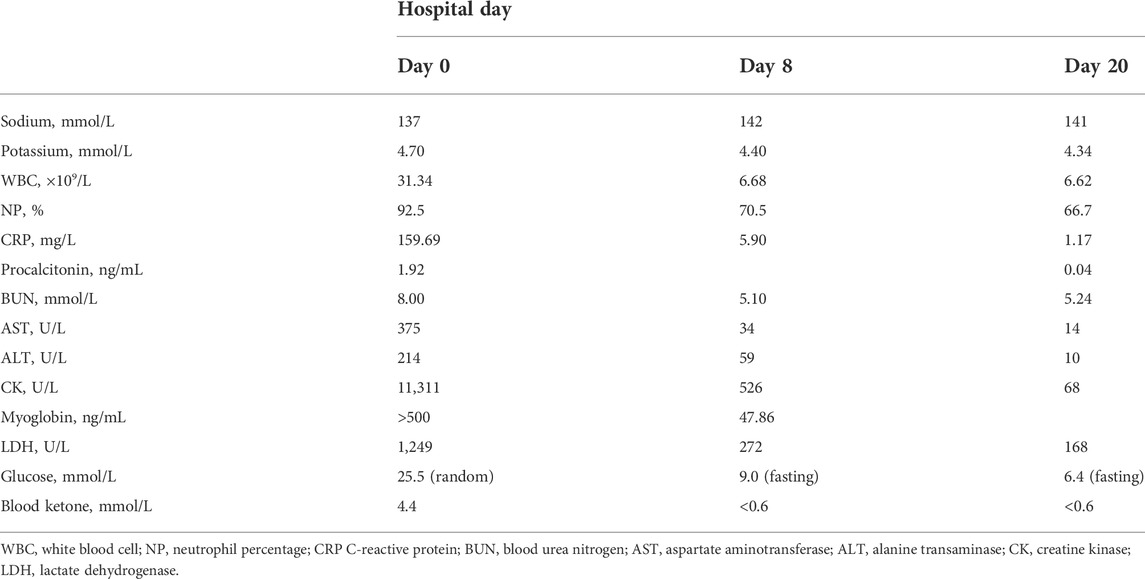

TABLE 1. Laboratory test results during patient hospitalization.

FIGURE 2
www.frontiersin.org

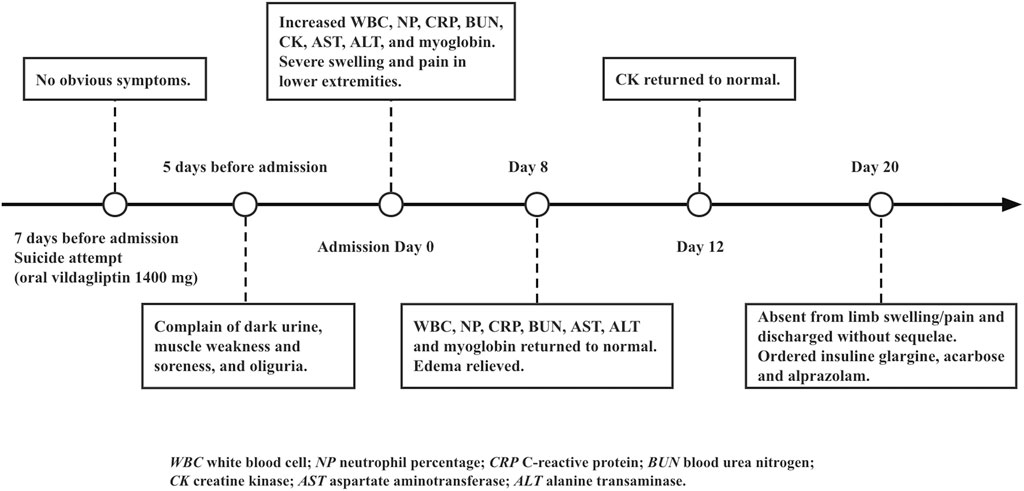

FIGURE 2. Timeline of the case report.

Discussion

Rhabdomyolysis is a serious syndrome associated with muscle injury. Generally speaking, the mortality rate is low, but it may still cause lifelong kidney damage or even death if not treated in time. This patient had extremely high levels of CK and serum myoglobin (>87 times ULN; >7 × ULN, respectively), with very typical clinical manifestations (limb swelling, pain and diminished pedal pulses) and abnormal diagnostic radiographic results (Figure 1). Therefore, although it is currently reported in the literature that 50% of patients with rhabdomyolysis will not complain of muscle pain or weakness, and less than 10% of patients will have typical symptoms (Torres et al., 2015), the diagnosis in this case was clear.

Vildagliptin is a DPP-4 inhibitor, which is rare to induce rhabdomyolysis compared with traumatic causes (Mathieu and Bollaerts, 2007; Strain et al., 2013; Mulvihill and Drucker, 2014; Mathieu et al., 2017). In 2014 and 2017, the European Medicines Agency (EMA) and US Food and Drug Administration (FDA) raised warnings about the possible rhabdomyolysis side effect for this class of drugs (European Medicines Agency Pharmacovigilance Risk Assessment Committee, 2014; Food and Drug Administration, 2017). However, there was no consensus on the risk and underlying mechanism of DPP-4 inhibitors because most reported cases were related to concurrent use of high-risk drugs such as statins, Chinese herbal medicines, and dietary supplements which were known to cause rhabdomyolysis (Kao et al., 2008; DiGregorio and Pasikhova, 2009; Bhome and Penn, 2012; Labat et al., 2017). Notably, this patient never took any known high-risk agents concomitantly. According to EMA Summary of Product Characteristics (SmPC), there is very limited information on whether an overdose of vildagliptin causes rhabdomyolysis and how to treat it (European Medicines Agency, 2022). In a rising dose tolerability study, a healthy subject who was given vildagliptin 600 mg (6 times the normal dose) for 10 days experienced feet and hand edema, as well as increased levels of CK, AST, CRP and myoglobin (European Medicines Agency, 2022). The subject recovered without any treatment after discontinuation of the drug. Other studies have also confirmed that musculoskeletal disorders caused by DPP-4 inhibitors are usually mild and can be relieved on their own after stopping the drug (Tarapues et al., 2013). The underlying mechanism may be explained by the wide distribution of DPP-4 in striated muscle and the lower pain threshold in rhabdomyolysis (Guieu et al., 2006; Tarapues et al., 2013). Despite the lack of direct references, considering that the patient had been taking vildagliptin for many years without any complaints, we can speculate on the causal relationship between the overdose and the occurrence of rhabdomyolysis in this case.

Generally, intravenous fluid therapy is the cornerstone of treatment. In our case, because the patient’s suicide attempt happened a few days ago, we did not perform gastric lavage or hemodialysis. There is no known antidote, and supportive management is recommended in the case of overdose (European Medicines Agency, 2022). An intravenous bolus furosemide was used along with normal saline to help maintain urine production and thus prevent kidney failure. The use of sodium bicarbonate is controversial based on literature. However, since vigorous fluid repletion with non-buffered crystalloids may contribute to acidosis, and our patient already had an episode before, urinary alkalinization with close monitoring of acid-base status and electrolytes (especially potassium) should be a reasonable approach. Furthermore, bicarbonate has demonstrated possible benefits in reversal of mild to moderate acidemia (Chua et al., 2011), which may be another reason to support its use in our situation. The patient’s DKA was assumed to be triggered by inadequate glycemic control and infection, and was resolved with fluid resuscitation and insulin and potassium replacement. In addition, some studies have declared that antioxidants and free radical scavengers could not only reduce oxidative damage in liver injury, but also decrease the risk of myoglobinuric acute kidney injury in rhabdomyolysis (Bosch et al., 2009). Therefore, we administered α-lipoic acid and glutathione until the patient’s liver function recovered.

In this case, the patient had been suffering from depression for years without receiving psychiatric medications or psychotherapy. Previous studies have showed that people with chronic diseases such as T2DM often experience depression and anxiety, which can lead to suicidal behavior (Semenkovich et al., 2015; Kim et al., 2022). Risky drugs include high doses of insulin, metformin, glipizide, liraglutide and sitagliptin (Sarkar and Balhara, 2014; Goonoo et al., 2020; Tuncali et al., 2021). Our case further indicated that vildagliptin is also a potential drug for suicide and self-harm, which should be particularly noted in depressed individuals. Although after consultation with a psychiatrist, we considered this patient to be at low risk for another suicide, we implemented 24-h monitoring and suicide prevention during hospitalization. Additionally, given her inadequate glycemic control, we added a long-acting insulin (insuline glargine) to the patient’s home medication, along with acarbose and the antidepressant alprazolam. Vildagliptin was discontinued at discharge.

Conclusion

In conclusion, we reported a rare case of vildagliptin overdose-induced rhabdomyolysis accompanied by DKA, infection and liver damage, and provided some hints on how to treat such condition. This case showed that overdose of oral anti-diabetic medications, including DPP-4 inhibitors, may result in severe adverse events, such as rhabdomyolysis, and such intentional or accidental drug exposure should be especially noted in depressed patients during suicide attempts.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Ethics statement

The studies involving human participants were reviewed and approved by the Ethics Committee of Minhang Hospital (No. 2021–030–01K). The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author contributions

Conceptualization: ZT and NG; Data curation: NG; Formal Analysis: ZT and NG; Funding acquisition: ZT and BH; Investigation: XF; Methodology: XF; Project administration: NG; Resources: BH and XF; Software: ZF; Supervision: NG; Validation: BH; Writing–original draft: ZT; Writing–review and editing: NG.

Funding

This work was supported by the Scientific Research Project of Shanghai Municipal Health Commission under Grant No. 20194Y0234, the Shanghai Committee of Science and Technology under Grant No. 22YF1439800, and by the start-up grant for Zhijia Tang by Fudan University under Grant No. JIF301001Y.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Allkanjari, O., Menniti-Ippolito, F., Ippoliti, I., Di Giacomo, S., Piccioni, T., Vitalone, A., et al. (2022). A descriptive study of commercial herbal dietary supplements used for dyslipidemia-Sales data and suspected adverse reactions. Phytother. Res. 36 (6), 2583–2604. doi:10.1002/ptr.7473

PubMed Abstract | CrossRef Full Text | Google Scholar

Bhome, R., and Penn, H. (2012). Rhabdomyolysis precipitated by a sitagliptin-atorvastatin drug interaction. Diabet. Med. 29 (5), 693–694. doi:10.1111/j.1464-5491.2011.03502.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Bosch, X., Poch, E., and Grau, J. M. (2009). Rhabdomyolysis and acute kidney injury. N. Engl. J. Med. 361 (1), 62–72. doi:10.1056/NEJMra0801327

PubMed Abstract | CrossRef Full Text | Google Scholar

Cervellin, G., Comelli, I., and Lippi, G. (2010). Rhabdomyolysis: historical background, clinical, diagnostic and therapeutic features. Clin. Chem. Lab. Med. 48 (6), 749–756. doi:10.1515/CCLM.2010.151

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, H. R., Schneider, A., and Bellomo, R. (2011). Bicarbonate in diabetic ketoacidosis - a systematic review. Ann. Intensive Care 1 (1), 23. doi:10.1186/2110-5820-1-23

PubMed Abstract | CrossRef Full Text | Google Scholar

DiGregorio, R. V., and Pasikhova, Y. (2009). Rhabdomyolysis caused by a potential sitagliptin-lovastatin interaction. Pharmacotherapy 29 (3), 352–356. doi:10.1592/phco.29.3.352

PubMed Abstract | CrossRef Full Text | Google Scholar

European Medicines Agency Pharmacovigilance Risk Assessment Committee (2014). Vildagliptin; vildagliptin, metformin – rhabdomyolysis. London, U.K.: European Medicines Agency. [updated June 13, 2014. Available at: https://www.ema.europa.eu/en/documents/prac-recommendation/prac-recommendations-signals-adopted-prac-meeting-10-13-june-2014_en.pdf.

Google Scholar

European Medicines Agency (2022). Xiliarx : EPAR - product information. [updated May 10, 2022; cited 2022 July 3]. Available at: https://www.ema.europa.eu/en/documents/product-information/xiliarx-epar-product-information_en.pdf.

Google Scholar

Food and Drug Administration (2017) Potential signals of serious risks/new safety information identified by the FDA adverse event reporting system (FAERS). Silver Spring, MD: Food and Drug Administration. April - June 2017 [updated October 6, 2017. Available at: https://www.fda.gov/drugs/questions-and-answers-fdas-adverse-event-reporting-system-faers/april-june-2017-potential-signals-serious-risksnew-safety-information-identified-fda-adverse-event.

Google Scholar

Goonoo, M. S., Morris, R., Raithatha, A., and Creagh, F. (2020). Metformin-associated lactic acidosis: reinforcing learning points. BMJ Case Rep. 13 (9), e235608. doi:10.1136/bcr-2020-235608

PubMed Abstract | CrossRef Full Text | Google Scholar

Guieu, R., Fenouillet, E., Devaux, C., Fajloun, Z., Carrega, L., Sabatier, J. M., et al. (2006). CD26 modulates nociception in mice via its dipeptidyl-peptidase IV activity. Behav. Brain Res. 166 (2), 230–235. doi:10.1016/j.bbr.2005.08.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Hohenegger, M. (2012). Drug induced rhabdomyolysis. Curr. Opin. Pharmacol. 12 (3), 335–339. doi:10.1016/j.coph.2012.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Huerta-Alardin, A. L., Varon, J., and Marik, P. E. (2005). Bench-to-bedside review: Rhabdomyolysis -- an overview for clinicians. Crit. Care 9 (2), 158–169. doi:10.1186/cc2978

PubMed Abstract | CrossRef Full Text | Google Scholar

Kao, D. P., Kohrt, H. E., and Kugler, J. (2008). Renal failure and rhabdomyolysis associated with sitagliptin and simvastatin use. Diabet. Med. 25 (10), 1229–1230. doi:10.1111/j.1464-5491.2008.02536.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Kasaoka, S., Todani, M., Kaneko, T., Kawamura, Y., Oda, Y., Tsuruta, R., et al. (2010). Peak value of blood myoglobin predicts acute renal failure induced by rhabdomyolysis. J. Crit. Care 25 (4), 601–604. doi:10.1016/j.jcrc.2010.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, Y. C., Um, Y. H., Kim, S. M., Kim, T. W., Seo, H. J., Hong, S. C., et al. (2022). Suicide risk in patients with diabetes varies by the duration of diabetes: The korea national Health and nutrition examination survey (2019). Psychiatry Investig. 19 (4), 326–332. doi:10.30773/pi.2021.0396

PubMed Abstract | CrossRef Full Text | Google Scholar

Labat, V., Arnaud, M., Miremont-Salame, G., Salvo, F., Begaud, B., Pariente, A., et al. (2017). Risk of myopathy associated with DPP-4 inhibitors in combination with statins: A disproportionality Analysis using data from the WHO and French spontaneous reporting databases. Diabetes Care 40 (3), e27–e29. doi:10.2337/dc16-1822

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, F., Chen, A. B., Duan, Y. C., Liao, R., Xu, Y. W., Tao, L. L., et al. (2020). Multiple organ dysfunction and rhabdomyolysis associated with moonwort poisoning: Report of four cases. World J. Clin. Cases 8 (2), 479–486. doi:10.12998/wjcc.v8.i2.479

PubMed Abstract | CrossRef Full Text | Google Scholar

Marx, N., Davies, M. J., Grant, P. J., Mathieu, C., Petrie, J. R., Cosentino, F., et al. (2021). Guideline recommendations and the positioning of newer drugs in type 2 diabetes care. Lancet. Diabetes Endocrinol. 9 (1), 46–52. doi:10.1016/S2213-8587(20)30343-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Mathieu, C., and Bollaerts, K. (2007). Antihyperglycaemic therapy in elderly patients with type 2 diabetes: Potential role of incretin mimetics and DPP-4 inhibitors. Int. J. Clin. Pract. 61 (154), 29–37. doi:10.1111/j.1742-1241.2007.01437.x

CrossRef Full Text | Google Scholar

Mathieu, C., Kozlovski, P., Paldánius, P. M., Foley, J. E., Modgill, V., Evans, M., et al. (2017). Clinical safety and tolerability of vildagliptin - insights from randomised trials, observational studies and post-marketing surveillance. Eur. Endocrinol. 13 (2), 68–72. doi:10.17925/EE.2017.13.02.68

PubMed Abstract | CrossRef Full Text | Google Scholar

Mulvihill, E. E., and Drucker, D. J. (2014). Pharmacology, Physiology, and mechanisms of action of dipeptidyl peptidase-4 inhibitors. Endocr. Rev. 35 (6), 992–1019. doi:10.1210/er.2014-1035

PubMed Abstract | CrossRef Full Text | Google Scholar

Sarkar, S., and Balhara, Y. P. (2014). Diabetes mellitus and suicide. Indian J. Endocrinol. Metab. 18 (4), 468–474. doi:10.4103/2230-8210.137487

PubMed Abstract | CrossRef Full Text | Google Scholar

Sauret, J. M., Marinides, G., and Wang, G. K. (2002). Rhabdomyolysis. Am. Fam. Physician 65 (5), 907–912.

PubMed Abstract | Google Scholar

Semenkovich, K., Brown, M. E., Svrakic, D. M., and Lustman, P. J. (2015). Depression in type 2 diabetes mellitus: Prevalence, impact, and treatment. Drugs 75 (6), 577–587. doi:10.1007/s40265-015-0347-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Strain, W. D., Lukashevich, V., Kothny, W., Hoellinger, M. J., and Paldánius, P. M. (2013). Individualised treatment targets for elderly patients with type 2 diabetes using vildagliptin add-on or lone therapy (INTERVAL): a 24 week, randomised, double-blind, placebo-controlled study. Lancet 382 (9890), 409–416. doi:10.1016/S0140-6736(13)60995-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Tarapues, M., Cereza, G., and Figueras, A. (2013). Association of musculoskeletal complaints and gliptin use: review of spontaneous reports. Pharmacoepidemiol. Drug Saf. 22 (10), 1115–1118. doi:10.1002/pds.3503

PubMed Abstract | CrossRef Full Text | Google Scholar

Torres, P. A., Helmstetter, J. A., Kaye, A. M., and Kaye, A. D. (2015). Rhabdomyolysis: Pathogenesis, diagnosis, and treatment. Ochsner J. 15 (1), 58–69.

PubMed Abstract | Google Scholar

Tuncali, B., Temizkan Kırkayak, A. G., and Zeyneloğlu, P. (2021). Continuous veno-venous hemodiafiltration in metformin-associated lactic acidosis caused by a suicide attempt: A report of two cases. Ulus. Travma Acil Cerrahi Derg. 27 (5), 595–599. doi:10.14744/tjtes.2020.27367

PubMed Abstract | CrossRef Full Text | Google Scholar
