Chunyu Shi1,2
Zheng Hu- 1National-Local Joint Engineering Laboratory of Animal Models for Human Diseases, The First Hospital of Jilin University, Changchun, China
- 2Department of Gastrointestinal Colorectal and Anal Surgery, China-Japan Union Hospital of Jilin University, Changchun, China
- 3Department of Pediatric Immunology, Allergy and Rheumatology, The First Hospital of Jilin University, Changchun, China
In utero hematopoietic cell transplantation (IUHCT) is considered a potentially efficient therapeutic approach with relatively few side effects, compared to adult hematopoietic cell transplantation, for various hematological genetic disorders. The principle of IUHCT has been extensively studied in rodent models and in some large animals with close evolutionary similarities to human beings. However, IUHCT has only been used to rebuild human T cell immunity in certain patients with inherent immunodeficiencies. This review will first summarize the animal models utilized for IUHCT investigations and describe the associated outcomes. Recent advances and potential barriers for successful IUHCT are discussed, followed by possible strategies to overcome these barriers experimentally. Lastly, we will outline the progress made towards utilizing IUHCT to treat inherent disorders for patients, list out associated limitations and propose feasible means to promote the efficacy of IUHCT clinically.
1 Introduction
Extensive progress has been made in the field of fetal interventions for congenital disorders. Since its first description in 1982 (Harrison et al., 1982), fetal surgeries have successfully treated various anatomical anomalies; however, they are limited to the correction of structural anomalies. For some congenital hematopoietic disorders, postnatal hematopoietic stem cell transplantation (HSCT) remains the only therapy; however, it is often restricted by limited histocompatible donors and severe treatment-associated morbidity and mortality. In recent years, remarkable advances in prenatal screening and molecular diagnostics have improved the possibility of diagnosing congenital disorders early during gestation. (Flake and Zanjani, 1999a). In utero hematopoietic cell transplantation is a non-myeloablative approach that can avoid the concerns of postnatal treatment and potentially cure various congenital disorders (Surbek et al., 2001). Compared to postnatal therapy, IUHCT allowing physicians to intervene in the treatment of diseases before birth. Furthermore, certain biological advantages unique to the fetal environment provide compelling reasons for favoring prenatal therapy over postnatal therapy (Vrecenak and Flake, 2013). However, the clinical success of IUHCT has been limited to severe combined immunodeficiency (SCID) over the last few decades (Vrecenak and Flake, 2013). Herein, we review the rationale, current progress, and potential clinical applications of IUHCT. We also discuss the barriers to engraftment and potential strategies to overcome them.
2 Rationale for in utero hematopoietic cell transplantation
The IUHCT notion is supported by the first report of a natural experiment studied by Owen in 1945, when he found that dizygotic cattle twins with shared placental circulation were chimeric postnatally (Owen, 1945). In 1953, Billingham showed that introduction of foreign antigen into early gestation fetuses resulted in the development of immunologic tolerance towards the foreign antigen (Billingham et al., 1953). The most compelling rationale for IUHCT is the induction of fetal specific immunologic tolerance to donor cells due to the naive immune system of the fetus. During the early gestation period, the fetal immune system undergoes a self-education process which occurs primarily in the fetal thymus. The outer region of thymus (cortex) supports the positive selection of T lineage progenitors whose TCRs react to self-major histocompatibility complex (MHC) molecules in a proper strength. The survival cells then travel to the inner thymus (medulla), where negative selection induces apoptosis of the progenitors that possess potential to response with self-antigens, including self-MHC, presented on thymic antigen presenting cells (APCs). The process results in deletion of self-reactive T cells and in a state of self-tolerance (central tolerance) (Palmer, 2003; Takahama, 2006). However, the thymic deletion is incomplete, self-reactive T cells that escape the deletion are suppressed by regulatory T cells (Tregs) mediated peripheral tolerance (Vrecenak and Flake, 2013). Central and peripheral tolerance leaves the fetus to recognize self-antigens and eliminate foreign antigens (Tai-MacArthur et al., 2021). Theoretically, introduction of allogenic cells by IUHCT ahead of the formation of functional fetal adaptive immune system could result in deletion of alloreactive T cells and induction of Treg cells, resulting in complete donor-specific immune tolerance (Vrecenak and Flake, 2013).
Another rationale for IUHCT is the potential hematopoietic niches available for donor cell homing and engraftment during the large-scale migration of hematopoietic stem cells (HSCs) during fetal development (Vrecenak and Flake, 2013). Hematopoiesis emerges from the yolk sac and aorto-gonadal-mesonephros regions. HSCs then circulate to the fetal liver, where HSCs undergo a dramatic expansion. Finally, HSCs colonize the bone marrow (BM), where hematopoiesis takes place throughout the adult life (Dzierzak and Speck, 2008; Bertrand et al., 2010; Gao et al., 2018). Moreover, the fetal environment also supports the expansion and differentiation of donor stem cells (Sagar et al., 2019). Manipulation of regular migration to selectively favor donor HSCs may help overcome competition from the host hematopoietic compartment and improve donor engraftment after IUHCT (Almeida-Porada et al., 2016). In addition, before and during the second trimester of gestation, the fetal BM is relatively empty, allowing donor cell engraftment without requiring myelosuppression, compared to postnatal HSCT (Surbek et al., 2001).
The third advantage of IUHCT is the small fetus size. At 12–13 weeks of gestation, when IUHCT is ideally performed, the human fetus weighs less than 50 g. Therefore, it is possible to deliver a much larger donor cell dosage on a fetal weight basis than could be provided postnatally.
3 Experimental models for in utero hematopoietic cell transplantation
IUHCT has been performed in many different animal models, of which murine models are most extensively used (Table 1). In the late 1970s, Fleischman and Mintz reported the first study of IUHCT (Fleischman and Mintz, 1979), in which an intraplacental injection of donor BM cells was administered at gestational day 11 (E11) into fetal mice with genetic anemia based on c-kit deficiency. The results showed complete substitution with donor erythroid cells in homozygous anemic mice. Later, studies conducted by Mintz and Blazar reported that even a single normal donor HSC was sufficient to engraft and reconstruct normal hematopoiesis in a c-kit-deficient mouse model (Mintz et al., 1984; Blazar et al., 1995a). Blazer also demonstrated only lymphoid reconstitution (split chimerism) in a severe combined immunodeficiency (SCID) mouse model in which donor lymphoid cells showed proliferative and survival advantages (Blazar et al., 1995b). In normal mice without any immune or stem cell deficiency, competitive pressure from the host prevented donor cell engraftment and the level of chimerism remained very low (Carrier et al., 1995; Kim et al., 1998; Donahue et al., 2001). These studies highlight the importance of host cell competition and the engraftment advantage achieved by immune deficiency. The low level of chimerism in normal mice resulted in donor-specific immune tolerance, which might form the basis of postnatal cell transplantation (Carrier et al., 1995; Kim et al., 1999). Further studies have shown that intravenous injection allows for the delivery of much higher cell numbers, resulting in increased chimerism (Peranteau et al., 2007; Boelig et al., 2016).

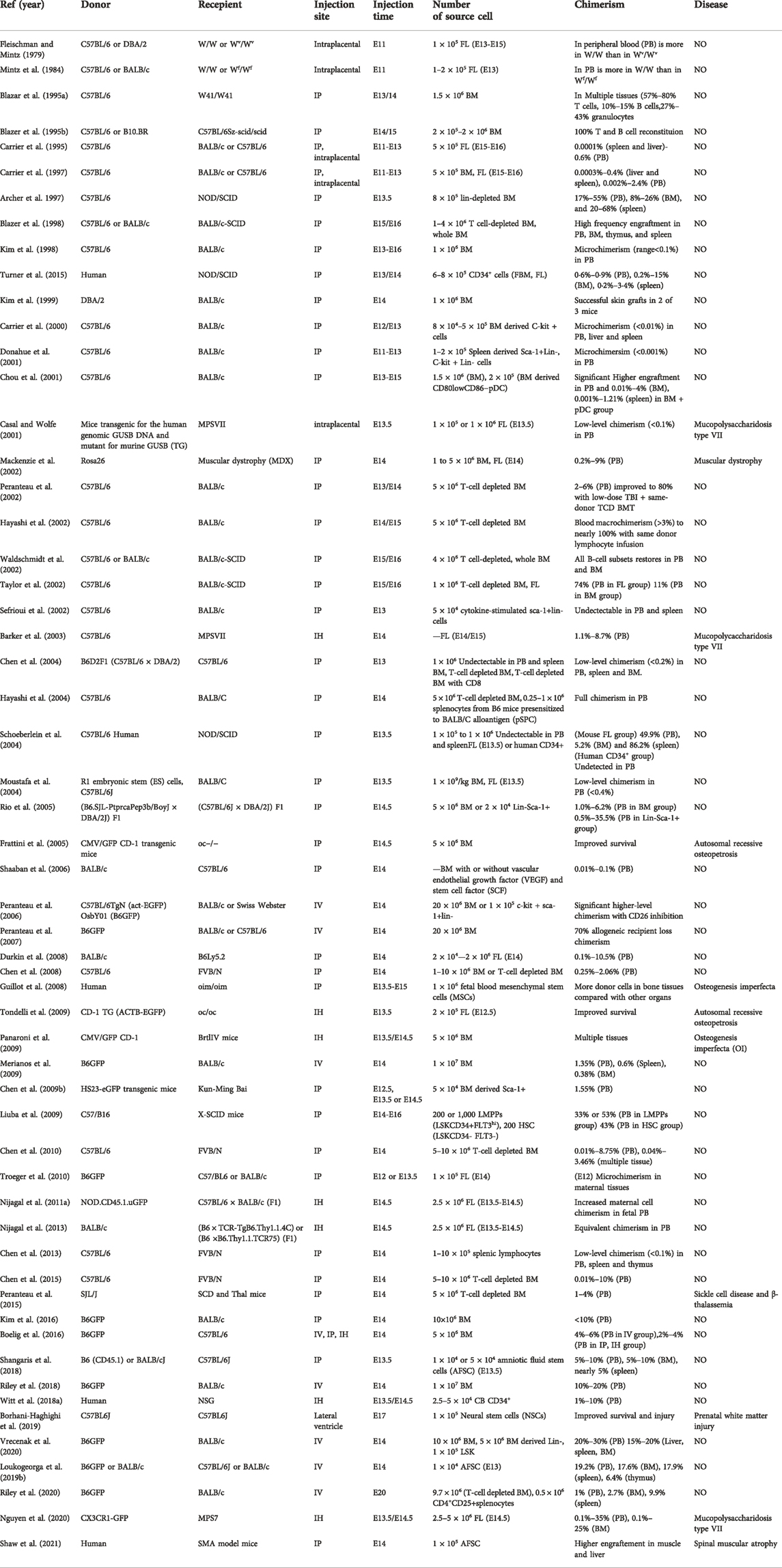

TABLE 1. IUT in murine model.
Murine models are also used to study the mechanisms of donor-specific tolerance induction by IUHCT and various strategies to postnatally improve donor cell engraftment. Previous studies have shown that clonal deletion, anergy, and induction of donor-specific Tregs are essential for the induction of immune tolerance (Kim et al., 1999; Hayashi et al., 2004; Merianos et al., 2009; Nijagal et al., 2011a; Nijagal et al., 2011b). Further studies that administered low-dose total body irradiation (TBI) or busulfan to chimeric recipients followed by T-cell-depleted bone marrow transplantation (BMT) resulted in complete donor cell chimerism without the graft-versus-host disease (GVHD) (Peranteau et al., 2002; Ashizuka et al., 2006). Moreover, another strategy of using postnatal donor-specific lymphocyte infusion combined with IUHCT without BMT also resulted in complete donor cell chimerism without GVHD (Hayashi et al., 2002). These results highlight the crucial roles of host immune barrier and resident hematopoietic stem cell competition in compromising IUHCT efficacy, and implicate potential strategies to promote postnatal chimerism after successful induction of donor specific tolerance by IUHCT in clinical applications.
In addition to murine models, large animal models are also valuable and necessary preclinical tools for IUHCT study. The sheep model was the first large animal model to demonstrate sustained allogeneic engraftment after in utero transplantation of fetal stem cells (Flake et al., 1986) (Table 2). Moreover, ex vivo incubation of donor cells with growth factors enhanced engraftment of allogeneic stem cells (Zanjani et al., 1992a). Increasing the proportion of donor T cells also resulted in increased level of allogeneic chimerism, and approximately 1% donor T cells allowed significant engraftment without GVHD (Crombleholme et al., 1990). In sheep model, donor specific immune tolerance could also be induced by IUHCT, and postnatal injection of cells from the same donor enhanced the engraftment of donor cells (Zanjani, 1994). However, though 3%–5% stable chimerism was achieved, tolerance to renal transplantation was not observed in chimeric sheep (Hedrick et al., 1994). The sheep model also demonstrated persistent xenogeneic engraftment after transplantation of human HSCs (Zanjani et al., 1992b; Srour et al., 1992; Srour et al., 1993; Zanjani et al., 1994; Liechty et al., 2000; Noia et al., 2003; Noia et al., 2008; Tanaka et al., 2010; Goodrich et al., 2014; Jeanblanc et al., 2014). In addition, intracelomic transplantation of human CD34+ cells into fetal sheep resulted in more significant engraftment than that described in peritoneal transplantation (Noia et al., 2003). However, unlike the murine model results, the efficacies of intravenous and intraperitoneal transplantation were not significantly different in the sheep model (Tanaka et al., 2010). Moreover, cotransplation of stromal cell with HSC resulted in an increased level of chimerism in both xenogeneic and allogeneic sheep models (Almeida-Porada et al., 1999; Almeida-Porada et al., 2000).

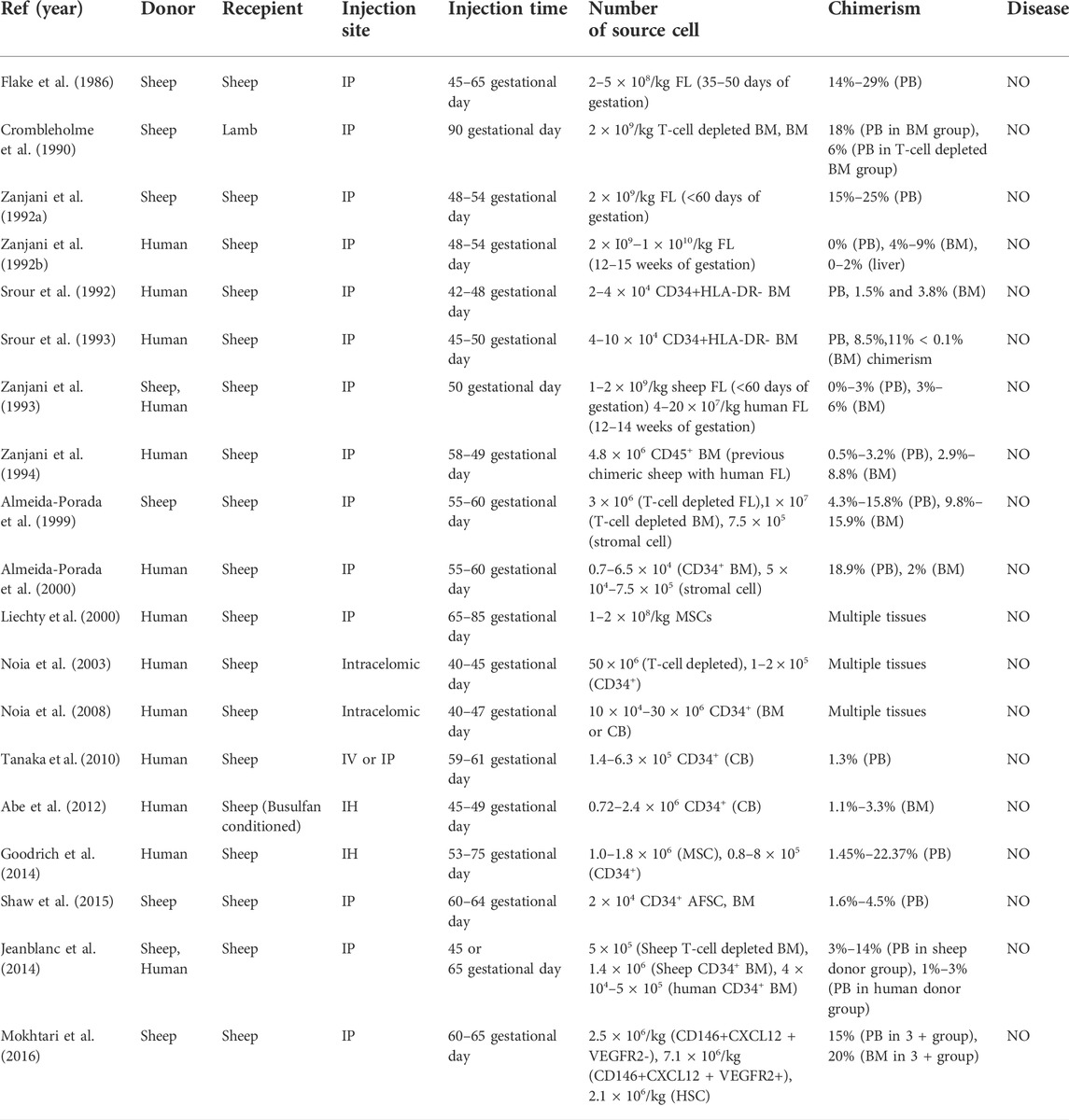

TABLE 2. IUT in ovine model.
The canine model is an attractive large-animal model. The dog model demonstrated microchimerism after in utero transplantation of paternal dog BM or human HSCs (Omori et al., 1999; Blakemore et al., 2004) (Table 3). Moreover, IUHCT combined with postnatal same-donor boosting strategy using a low-dose busulfan conditioning regimen increased the level of chimerism from 1% to 35–45%, and cured leukocyte adhesion deficiency in a canine model (Peranteau et al., 2009). Vrecenak et al. (2014) demonstrated that intracardiac injection resulted in much higher levels of chimerism than intraperitoneal injection in normal canine models, without any conditioning or evidence of GVHD. Studies also showed that high doses of donor T cells with CD34+ resulted in microchimerism without GVHD (Petersen et al., 2007). More recently, Vrecenak et al. (2018) reported that a clear threshold of 1%–3% donor T cells allowed excellent engraftment without GVHD.

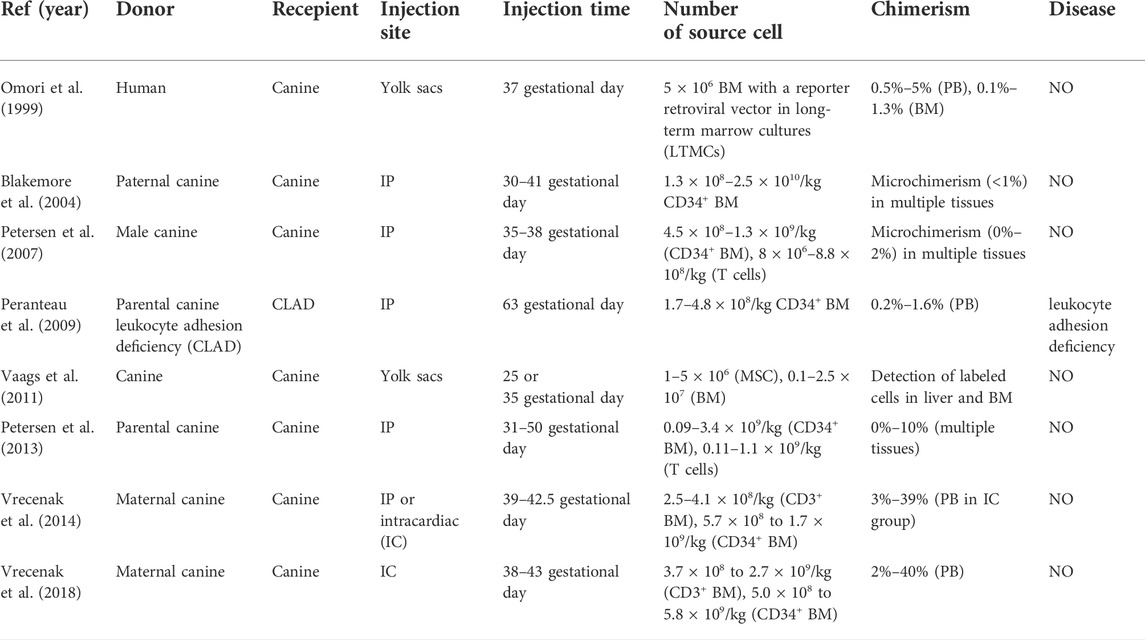

TABLE 3. IUT in canine model.
Stable allogeneic and xenogeneic multilineage engraftment was also achieved in swine models (Lee et al., 2005b; Abellaneda et al., 2012; Fisher et al., 2013) (Table 4). IUHCT-induced chimerism in fetal swine resulted in donor-specific tolerance to renal and vascularized composite allograft transplantation without conditioning (Lee et al., 2005a; Mathes et al., 2005; Mathes et al., 2014). These studies support the possibility of using this strategy to cure fetuses that require postnatal organ transplantation.

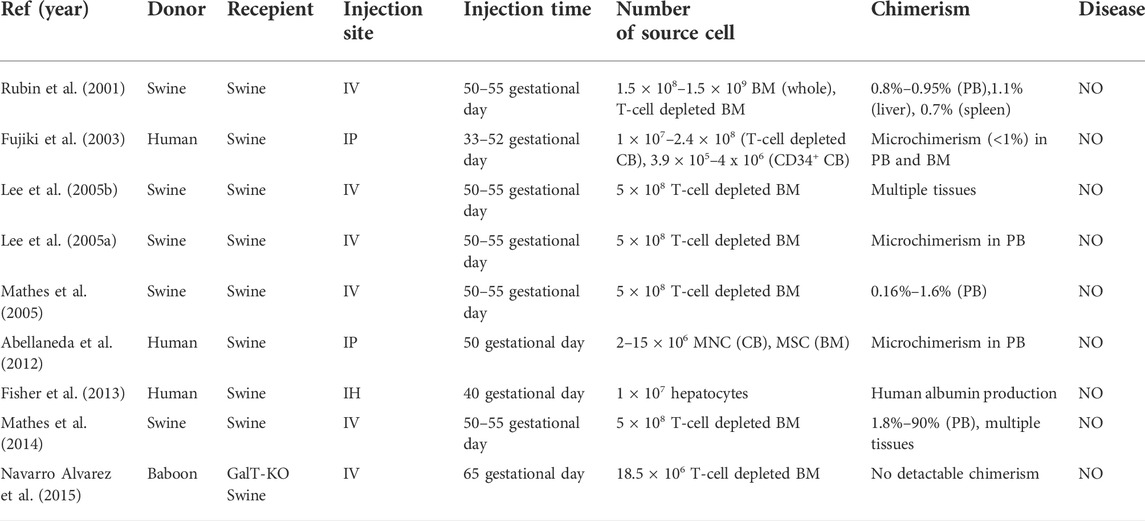

TABLE 4. IUT in swine model.
Finally, low levels of allogeneic chimerism were also achieved in non-human primates (Michejda et al., 1992; Asano et al., 2003; Shields et al., 2003; Mahieu-Caputo et al., 2004; Shields et al., 2004; Shields et al., 2005) (Table 5). Fetal immune suppression resulted in an increased level of chimerism, but the level remained low (Shields et al., 2004). Moreover, the level of long-term chimerism was not improved with postnatal donor cell infusion (Shields et al., 2004). The non-human primate model also allowed multilineage engraftment of human HSCs (Tarantal et al., 2000). In addition to these large animal models, chimerism was also observed in rats (Chen et al., 2009a; Li et al., 2012; Lazow et al., 2021), rabbits (Wengler et al., 2005; Martínez-González et al., 2012; Moreno et al., 2012), and cats (Abkowitz et al., 2009). These studies in mice and large-animal models established the foundation for clinical application of IUHCT.

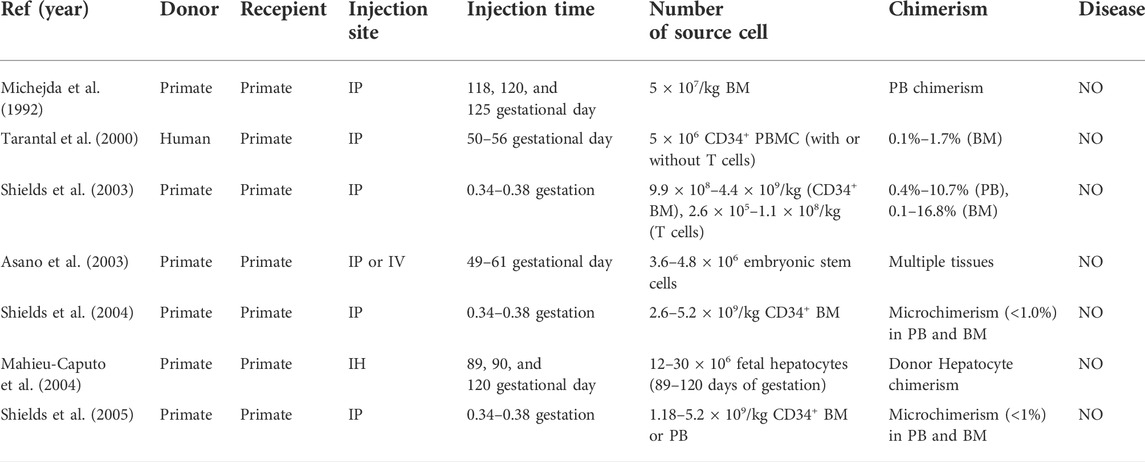

TABLE 5. IUT in primate model.
4 Barriers to in utero hematopoietic cell transplantation
Despite the compelling rationale of IUHCT, poor engraftment in most animal models suggests the existence of significant barriers to successful engraftment after IUHCT (Figure 1).
FIGURE 1. Barriers to IUHCT. Diagram representing the current barriers to IUHCT. Firstly, in normal recipients, the fetal HSCs compete with donor HSCs. Secondly, there are limited niches available in the fetal microenvironment. Thirdly, maternal T cells, maternal alloantibodies transferred through breastmilk and fetal NK cells consist of immune barriers.
4.1 Host cell competition
In the c-kit-deficient mouse model, in which the donor cells have a competitive advantage, a single normal donor HSC is sufficient to engraft and reconstitute normal hematopoiesis (Mintz et al., 1984). Moreover, though the number of donor HSCs in the BM remains relatively low, nearly complete lymphoid lineage reconstitution is achieved in SCID mouse models and X-SCID patients (Blazar et al., 1995b; Flake et al., 1996), in which donor lymphoid cells have a proliferative and survival advantage. These studies have demonstrated the effectiveness of this competitive advantage in the setting of a proliferative defect in one or more lineages. In contrast, in normal mouse models, donor BM cells migrate to the fetal liver rapidly after IUHCT, followed by a rapid decrease of engraftment level, demonstrating host fetal cells outcompete donor BM cells (Shaaban et al., 1999). Because the host fetal HSCs have a distinct competitive advantage over donor adult HSCs due to their rapid cycling and expansion kinetics (Jordan et al., 1995; Leung et al., 1999; Shaaban et al., 1999; Rosler et al., 2000). Peranteau et al. (2007) reported how this competition limits long-term donor cell engraftment by transplantation of massive doses of BM cells (2 × 1011 cells/kg) in a congenic mouse model, which resulted in long-term donor cell engraftment levels below 10%.
4.2 Limited niches within the host
Although the fetal microenvironment is fundamentally different from any postnatal system, a relatively valid comparable model is the postnatal nonmyeloablative syngeneic mouse model. In this mouse model, similar to syngeneic IUHCT, the host hematopoietic compartment is intact and the donor and recipient cells are genetically equal. Studies in this model have demonstrated a dose-dependent increase in donor cell engraftment with repetitive large doses of syngeneic donor cells (Stewart et al., 1993; Rao et al., 1997). A further study in this model demonstrated that administration of the donor cells over several separate infusions, rather than in one injection, did not increase engraftment levels (Ramshaw et al., 1995). Recently, Shimoto et al. (2017) demonstrated that transplantation of a vast number of HSCs (up to 390% of the total number of endogenous HSCs) into unconditioned mice resulted in a two-fold increase in the total number of HSCs (endogenous plus transplanted). Strikingly, they found that these donor cells did not compete with host HSCs, but engrafted distinct niches. These collective studies convincingly show that there are a large number of empty niches in normal BM, and donor HSCs can engraft into the BM without competing with host HSCs (Ding, 2017).
During fetal development, since the large migration of HSCs from yolk sac and aorto-gonadal-mesonephros regions to BM, there is an associated rapid expansion of the hematopoietic niches for the homing and engraftment of circulating HSCs. It is reasonable to suppose the niches available in prenatal microenvironment might exceed the niches in the postnatal environment (Flake and Zanjani, 1999a).
However, in the fetal sheep model, increasing the allogeneic and xenogeneic donor cell doses (106 to 1010 cells/kg) results in an eventual plateau of engraftment efficiency, and a further increase in donor cells does not affect the donor engraftment (Zanjani et al., 1997). Thus, the available studies illustrate that there is not an abundance of niches available in the fetal microenvironment compared with those in the postnatal BM microenvironment.
In adult SCID mice, selective depletion of host HSCs with a c-kit antibody (ACK2) before BM transplantation results in engraftment levels of up to 90%. However, the chimerism level is only about 0.1%–1% in unconditioned recipients (Czechowicz et al., 2007). A recent study indicated that in utero depletion of host HSCs with ACK2 before neonatal congenic hematopoietic cell transplantation leads to higher engraftment levels (Derderian et al., 2014). These collective studies suggest that vacating host HSC niches may lead to high engraftment levels after IUHCT.
4.3 Immunological barriers
Peranteau et al. (2007) demonstrated that after transplantation of high doses of allogeneic or congenic BM cells into fetal mice, only 30% of allogeneic recipients sustained long-term chimerism, whereas 100% of congenic recipients remained chimeric. Recently, studies by Shangaris et al. (2018) and Loukogeorgakis et al. (2019b) showed that 100% of congenic recipients remained macrochimerism compared to 29% or 0% of allogeneic recipients with microchimerism after in utero transplantation of amniotic fluid stem cells. These results strongly suggest the engraftment advantage of congenic stem cells over allogeneic stem cells and the existence of immune barriers resulting in the elimination of allogeneic cells after IUHCT.
In 2008, Merianos et al. (2009) first demonstrated the existence of a maternal immune barrier after IUHCT, and an adaptive alloimmune response was induced by the transfer of maternal antibodies to pups via breast milk, resulting in the loss of chimerism in allogeneic recipients. In this study, chimerism in allogenic recipients remained at 100% when the pups were fostered by a naive mother. The most important observation of this study was that in the absence of the maternal immune response, the recipients were tolerant of allogeneic donor cells via partial deletion of donor-specific T cells and the induction of Tregs.
A subsequent study by Nijagal et al. (2011a) demonstrated that maternal leukocytes increased significantly in murine fetuses after IUHCT. More importantly, donor engraftment improved dramatically in the fetuses of T cell-deficient mothers, indicating that the maternal T cells limited donor engraftment. Furthermore, when the donor cells were matched to the mother, there was no difference in engraftment between the syngeneic and allogeneic fetal recipients.
Recently, Riley et al. (2018) demonstrated that after in utero transplantation of donor HSCs in a novel murine model, in which donor-specific antibodies were already present at the time of injection, the maternal donor-specific IgG was transferred to the fetus in utero and caused rapid rejection of allogeneic donor cells, resulting in a mean engraftment level of 0%. These collective studies suggest that the maternal immune response may be a significant barrier to the success of engraftment after IUHCT in some murine models. Whether maternal immunization is a limitation for engraftment in large animal models and clinical applications requires further investigation. Despite unsolved issues, we hypothesize that it may be prudent to use donor cells either from the mother or matched to the mother’s stem cells to avoid maternal immunization and improve engraftment in IUHCT for the treatment of many congenital diseases.
In addition to the maternal immune barrier, early studies also support the existence of a fetal immune barrier to IUHCT. Clinical success has been observed in the treatment of x-SCID patients with paternally derived stem cells (Touraine et al., 1989; Flake et al., 1996; Wengler et al., 1996), and failure in the treatment of sickle cell disease and thalassemia (Orlandi et al., 1996; Westgren et al., 1996). The maternal immune response in these cases was intact regardless of their clinical outcome, but the effect of maternal immune barrier was not apparent.
Some previous studies suggested a significant role for NK cells in immune rejection (Carrier et al., 2000; Donahue et al., 2001), and also suggested that NK cells may pose the earliest barrier to engraftment following allogeneic IUHCT (Alhajjat et al., 2010; Alhajjat et al., 2015). Recently, Durkin et al. (2008) proved that engraftment or rejection after IUHCT correlated with the level of initial chimerism. All mice exhibiting >1.8% chimerism demonstrated allogeneic NK cell tolerance; however, mice with <1.8% chimerism underwent NK cell-mediated rejection. Furthermore, rejection did not occur when NK host cells were depleted from mice with <1.8% chimerism but reoccurred when NK cells were allowed to recover. The same team also demonstrated that depletion of fetal but not maternal NK cells enables stable engraftment of allogeneic cells following IUHCT and donor-to-host MHC transfer (trogocytosis) as an intrinsic mechanism regulating the development and maintenance of NK cell tolerance in prenatal chimeras (Alhajjat et al., 2013; Alhajjat et al., 2015). Although these data still need to be studied in large animal models, they illustrated the importance of NK cells in the fetus for clinical IUHCT success.
5 Strategies to overcome engraftment barriers
During the last few decades, efforts have been made to overcome the barriers to successful IUHCT in normal recipients and improve the engraftment of donor cells without GVHD. These strategies fall into three categories: 1) providing competitive advantage for donor cells, 2) increasing receptive niches for donor cells, 3) overcoming immune barriers (Figure 2).
FIGURE 2. Strategies to Succeed IUHCT. Diagram representing the possible strategies to overcome the barriers. (A) Host cell competition. a. Proper routes (intravenous, intraperitoneal, intrahepatic, intracelomic and intracardiac) and time of administration; b. Increasing cell doses. c. Cotransplantation with stromal cells. d. Using fetal sources of stem cells (fetal liver, amniotic fluid stem cells, etc.); (B) Limited niches. a. Mobilize HSCs from niches. b. Antibodies targeted to host HSCs. c. Maternal immunosuppressants administration; (C) Immune barriers. a. Matched maternal HSCs. b. Induction of host NK cells tolerance.
5.1 Providing competitive advantage for donor cells
5.1.1 Using fetal sources of stem cells
Hematopoietic stem cells can be isolated from fetal liver, umbilical cord blood, and adult BM. Taylor et al. (2002) and Harrison et al. (1997) demonstrated that fetal liver cells had a higher competitive engraftment advantage than adult BM in allogeneic SCID mouse models and xenogeneic sheep models. In addition to these sources, many studies demonstrated the hematopoietic characteristics of amniotic fluid stem cells (AFSCs) and achieved long-term engraftment with AFSC after IUHCT in congenic mouse and autologous sheep model (Shaw et al., 2015; Shangaris et al., 2018; Loukogeorgakis et al., 2019b). But whether AFSCs can engraft in allogeneic or xenogeneic animal models needs further studies. Due to the fetal origin of AFSCs, long-term engraftment was also significantly higher than that achieved with BM (Loukogeorgakis et al., 2019b). These studies suggest that fetal donor cells are more competitive to some extent.
5.1.2 Proper routes and time of injection of donor cells
Administration of donor cells can be accomplished through intravenous (IV), intraperitoneal (IP), intrahepatic (IH), intracelomic and intracardiac routes. Compared with IP and IH route, intravenous administration of donor cells resulted in higher levels of chimerism in murine models (Boelig et al., 2016). However, no difference was detected in sheep models (Tanaka et al., 2010). In addition, intracelomic and intracardiac injection of donor cells resulted in higher level of chimerism than that achieved in intraperitoneal injection in sheep and canine models. (Noia et al., 2003; Vrecenak et al., 2014). It is still a question which route is the most suitable. Prior to clinical application, more studies of injection routes need to be evaluated in the nonhuman primate model.
The injection time is crucial, especially for non-immunodeficient fetuses. As mentioned previously, the “window of opportunity” has been a major concern for the experimental and clinical success of IUHCT. The evidence suggests that although the transplant can occur outside the window of opportunity, significant modifications to the technique or the conditions of the transplant are needed to achieve a successful transplant. If donor cells were introduced in the early gestation period when the immune system of the host was naïve, the foreign antigen could be recognized as “self” and not rejected. In the murine model, most of the studies have been performed at E13.5 or E14.5 (Table 1). Chen et al. (2009b) performed IUHCT at E12.5, resulting in the highest chimerism rate compared to those at E13.5 and E14.5; however, the average engraftment was not high (1.55%). In the canine model, studies proved that the initial thymic selection started at around 40 days of gestation and obtained maximal engraftment at 42 days of gestation (Petersen et al., 2013; Vrecenak et al., 2014). In the sheep model, Jeanblanc et al. (2014) found between 45 and 51 days of gestation, the osteoblastic/endosteal niche started developing, and their number increased with gestational age. Moreover, significantly higher engraftment was observed at 65 days of gestation, indicating that a fully functional BM microenvironment improved engraftment. In humans, this period correlates with events that occur from 12 to 14 weeks of gestation (Darrasse-Jeze et al., 2005; Alhajjat et al., 2010). Further studies are needed to evaluate the appropriate time for IUHCT in humans.
5.1.3 Increasing donor cell dosage or repopulating competency
Studies from sheep model showed that engraftment after IUHCT was dose-dependent, which seemed to reach a plateau above the optimal dose (Zanjani et al., 1997). Moreover, Vrecenak et al. (2020) demonstrated that increasing doses of Lin-cells combined with BM could dramatically improve both allogeneic early and late engraftment after IUHCT.
Recently, Loukogeorgakis et al. (2019a) performed IUHCT of HSCs decorated with glycogen synthase kinase-3 (GSK3) inhibitor-loaded nanoparticles, which enhanced the repopulating capacity of donor cells and dramatically improved long-term allogeneic engraftment. Shaaban et al. (2006) demonstrated that pre-incubation of donor cells with vascular endothelial growth factor (VEGF) and stem cell factor (SCF) resulted in improved short-term chimerism. Moreover, Goodrich et al. (2014) and Almeida-Porada et al. (2000) proved that cotransplantation BM with stromal cells could also improve allogeneic and xenogeneic engraftment (Almeida-Porada et al., 1999).
5.2 Increasing receptive niches for donor cells
5.2.1 Mobilize hematopoietic stem cells from the host niches
Peranteau et al. (2006) found that ex vivo inhibition of CD26 in donor cells increased donor cell homing to the fetal liver and increased short- and long-term allogeneic engraftment. The CXCR4|SDF-1α and α4β1|VCAM-1 pathways are critical for HSC recruitment into the BM after postnatal transplantation. Kim et al. (2016) observed that maternal administration of AMD3100 (a CXCR4 antagonist) and firategrast (an α4β1 antagonist) prior to IUHCT would mobilize host HSCs from fetal liver and increase long-term allogeneic engraftment significantly in a mouse model. Goodrich et al. (2004) performed fetal cotransplantation with AMD3100 and human CD34+ cells in sheep model resulted in improved chimerism.
5.2.2 Maternal immunosuppressants administration
Studies in sheep models showed that maternal administration of busulfan before IUHCT increased engraftment of donor cells (Abe et al., 2012). Similarly, Shields et al. (2004) proved that fetal administration of corticosteroids and antithymocyte globulin (ATG) before IUHCT is associated with an increase in the level of progenitor and BM chimerism in nonhuman primate models. However, whether these immunosuppressants can be safely used for clinical application needs further studies.
5.2.3 Administration of antibodies targeted to host hematopoietic stem cells
Derderian et al. (2014) proved that in utero depletion of host HSCs with a c-Kit receptor antibody led to significantly increased engraftment after neonatal congenic hematopoietic cell transplantation. Chhabra et al. (2016) and Witt et al. (2018b) demonstrated that preconditioning with an anti-c-Kit antibody and CD47 antagonist markedly improved long-term engraftment in both prenatal and postnatal mouse models. Palchaudhuri et al. (2016) showed that conditioning with CD45 blockage enable long-term donor cell engraftment (>90%) in immunocompetent mice and complete correction of a sickle-cell anemia model. A recent study showed that administration of anti-human CD117 antibody resulted in the depletion of host HSCs and the improvement in donor cell engraftment in nonhuman primates and humanized NSG mice (Kwon et al., 2019). The above mentioned studies support the notion that depleting host HSC niches through “silver bullet” may be a viable method of improving donor cell chimerism after IUHCT, though further studies are needed in more prenatal animal models.
5.3 Overcoming immune barriers
With a better understanding of the maternal and fetal immune barriers, some promising strategies may be applied to improve the engraftment of donor cells. Firstly, donor cells harvested from the mother or matched to the mother’s stem cells are most likely to be used in initial clinical trials. Aiming for an initial chimerism threshold of >1.8% with host NK cell tolerance may improve engraftment of donor cells (Durkin et al., 2008). Deleting NK cells within the fetus before IUHCT may also facilitate engraftment of donor cells (Durkin et al., 2008). However, further studies are required in large animal models. The absolute number and concentration of donor T cells also dramatically affects engraftment. This strategy focuses on inducing a graft-versus-hematopoietic effect with the use of donor T cells, but without GVHD. Previous studies in murine, sheep, canine, swine, and non-human primate models emphasized the importance of T cells and demonstrated that approximately 1%–2% donor T cells are felicitous in facilitating donor cell engraftment without GVHD (Crombleholme et al., 1990; Shields et al., 2003; Lee et al., 2005b; Chen et al., 2008; Vrecenak et al., 2018). In addition, using donor T cells presensitized to the recipient with donor HSCs can also provide an engraftment advantage to donor cells without GVHD (Bhattacharyya et al., 2002; Hayashi et al., 2004). A recent study also showed that in utero injection of BM with regulatory T cells, either from chimeric mice or from naive donors, could promote allogeneic engraftment in late-gestation mouse models (Riley et al., 2020). However, further studies are needed to understand the role of T cells and Tregs in large animal models before their clinical application.
6 Clinical application of in utero hematopoietic cell transplantation
Since the first clinical application of IUHCT in a bare lymphocyte syndrome fetus (Touraine et al., 1989), there have been approximately 50 reported cases of IUHCT during the past 30 years, targeting various diseases with different donor cell sources and transplantation protocols. Unfortunately, the success of this process has been limited mainly to fetuses with SCID (Flake et al., 1996; Wengler et al., 1996; Westgren et al., 2002). However, in successful IUHCT cases, the patients manifested engraftment only in the T-cell lineage (split chimerism), similar to postnatal results in HSCT treatment (Buckley et al., 1999). Thus far, there is little evidence demonstrating the advantages of prenatal treatment over postnatal treatment in patients with X-linked SCID (Flake and Zanjani, 1999b). As for other immunodeficiency disorders, such as chronic granulomatous disease and Chediak-Higashi syndrome, no detectable engraftment was achieved in the treated children (Cowan and Golbus, 1994; Flake and Zanjani, 1997; Muench et al., 2001).
Similarly, the use of IUHCT to treat hemoglobinopathies has mostly been unsuccessful. There have been 12 attempts to treat β-thalassemia with IUHCT, and only two have showed detectable postnatal engraftment (Slavin et al., 1992; Orlandi et al., 1996; Westgren et al., 1996; Sanna et al., 1999; Vrecenak and Flake, 2013). In α-thalassemia, three attempts at IUHCT were made, where only one demonstrated microchimerism and donor-specific immune tolerance (Cowan and Golbus, 1994; Westgren et al., 1996; Hayward et al., 1998). Currently, Horvei et al. (2021) are performing a phase I clinical trial (NCT02986698) of IUHCT using maternal cells as donors for treatment of α-thalassemia. As discussed previously, the presence of maternal cells in the fetus result in fetal tolerance, transplantation of maternal cells provides the highest likelihood of success. If the one-step protocol results in low levels of chimerism, a combined strategy would be performed with postnatal maternal cells transplantation.
In sickle cell anemia, fetal liver cells were injected to a female fetus at 13 weeks of gestation, however, engraftment was not detected at 3 months after her birth (Westgren et al., 1996). In another two unpublished clinic cases that applied IUHCT for sickle cell anemia therapy also failed in donor cell engraftment (Westgren, 2006). Metabolic storage diseases, another type of inherited disorder, may also benefit from IUHCT. Seven attempts were made and two cases showed engraftment (Bambach et al., 1997; Flake and Zanjani, 1997; Touraine et al., 1997; Touraine et al., 2004); however, one patient showed no improvement, while the other died prenatally, probably due to GVHD. For other genetic disorders, such as osteogenesis imperfecta, two attempts resulted in microchimerism and transient clinical effects (Le Blanc et al., 2005; Götherström et al., 2014). To date, the results of clinical cases demonstrated that clinical IUHCT, along with current methods, is not able to establish therapeutic levels of engraftment in recipients without significant immunodeficiency. Because of this, only a few recent clinical attempts at IUHCT have been reported. These clinical cases used various donor cell sources and IUHCT was performed at different times during gestation. These inconsistencies have made it impossible to determine the specific factors responsible for the low donor engraftment or failure in clinical practice. Therefore, it is vital to perform more controlled IUHCT in animal models to optimize the protocols before clinical application. In 2015, MacKenzie et al. (2015) produced an international consensus statement describing guidelines for IUSCT clinical trials.
Currently, two strategies can be used in clinical applications. The first is to perform IUHCT alone to achieve therapeutic engraftment levels; however, such a strategy might only be possible for diseases that require very low levels of engraftment for therapeutic success. The most favorable target disease for this approach is X-linked SCID, and other diseases, such as chronic granulomatous disease, hyper-IgM syndrome, and leukocyte adhesion deficiency, which are characterized by an SCID phenotype, may benefit from such a strategy. However, further studies on such diseases are required to optimize the current strategy. For diseases requiring high levels of engraftment for therapeutic success, such as hemoglobinopathies, the most compelling strategy is performing IUHCT to induce donor-specific tolerance, followed by postnatal minimal or non-toxic conditioning of HSCTs from the same donor to increase donor engraftment. As mentioned before, this strategy significantly reduces the initial chimerism required for clinical success to 1%–2%. From the studies of murine, sheep, and canine models discussed earlier (Zanjani, 1994; Hayashi et al., 2002; Peranteau et al., 2002; Ashizuka et al., 2006; Peranteau et al., 2009), on the basis of the initial chimerism after IUHCT, donor engraftment can be enhanced dramatically to complete or near-complete levels. More importantly, this strategy lowers the chimerism threshold, which may be required for clinical success.
Recently, Peranteau et al. (2015) showed that IUHCT combined with the same donor non-myeloablative allogeneic BM transplants corrected the disease phenotype in mice with β-thalassemia and sickle cell disease. Moreover, IUHCT-induced donor-specific tolerance may allow for postnatal organ transplantation without immunosuppression. Chen et al. (2010) demonstrated that the success of postnatal donor skin transplantation was dependent on the level of donor cell chimerism after IUHCT in murine models. Studies in swine and canine models support the combined strategy for successful postnatal renal transplants from the same donor without immunosuppression (Lee et al., 2005a; Mathes et al., 2005; Vrecenak et al., 2014). These results highlight the therapeutic potential of IUHCT combined with postnatal same-donor “boosting” transplantation in the clinical setting.
7 Conclusion and perspectives
IUHCT has great potential for the treatment of numerous congenital hematological, genetic, and immunological disorders. However, this therapy has so far only been successfully achieved in fetuses with SCID. There are many hurdles remaining for IUHCT to overcome before it can be used as a therapeutic alternative for specific diseases. Challenges for IUHCT are mainly related to overcoming the competitive barriers to engraftment in the fetus and to better understand the maternal and fetal immune barriers to engraftment in large animal models and humans. Studies in murine and large animal models suggest that, under limited circumstances, a single IUHCT may result in high levels of donor cell engraftment to ameliorate the target disease. However, it seems unlikely to reach a therapeutic level of engraftment without the development of safe myeloablative drugs or options in the human fetus. Hopefully, through a greater understanding of induction and maintenance of immune tolerance and stem cell biology, new innovative methods and diverse source of donor cells can be applied to achieve high donor chimerism. Although limited clinical studies at the current time, the strategy of prenatal tolerance induction followed by postnatal HSC transplantation from the same donor to enhance engraftment is promising in the future. Further insights into the fetal hematopoietic ontogeny will further facilitate the improvement of therapeutic strategies based on IUHCT in the future.
Author contributions
CS prepared the draft and designed the figures. LP edited and contributed to the manuscript. ZH reviewed, revised, and overall supervised the whole work.
Funding
This work was supported by grants from the NSFC (81870091), the Science Development Project of Jilin Province (20190201295JC and 20200703012ZP).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
