Xu Liu
Xia Tian
Zhipeng Ma1
Peiyang Gao
Chuantao Zhang- 1Department of Respiratory Medicine, Hospital of Chengdu University of Traditional Chinese Medicine, Chengdu, China
- 2Department of Critical Care Medicine, Hospital of Chengdu University of Traditional Chinese Medicine, Chengdu, China
Background: No specific drug for COVID-19 has been found, and many studies have found that different degrees of liver injury often occurred after infection with COVID-19. Glycyrrhizic acid preparation (GAP) has been frequently used clinically, often combined with conventional treatments such as antiviral therapy, to improve the prognosis of COVID-19 and patients’ liver function.
Aims: To critically review and analyze clinical evidence on the efficacy and safety of GAP in the treatment of COVID-19 alone and COVID-19 with comorbid liver injury.
Methods: A systematic literature review was performed following a sensitive searching strategy that examines all articles published in “WHO COVID-19 Research Database,” “Cochrane Library,” “VIP,” “CNKI,” “Wanfang,” and “CBM” from 2020 to July 2022. Articles were evaluated by peer reviewers and used Joanna Briggs Institute (JBI) critical appraisal tools to complete the assessment of the risk of bias.
Results: Ten clinical studies were finally included, involving 598 patients with COVID-19, of whom 189 were confirmed to be with comorbid liver injury. The main GAPs used are diammonium glycyrrhizinate and magnesium isoglycyrrhizinate, which have shown efficacy in improving liver function, inhibiting inflammation, and enhancing immunity. We are still seeking more related research.
Conclusion: Glycyrrhizic acid preparations (mainly diammonium glycyrrhizinate and magnesium isoglycyrrhizinate) have a considerable clinical effect on improving liver function in patients with COVID-19 alone or with comorbid liver injury. Further studies on the use of GAP in the treatment of COVID-19 with comorbid liver injury and its mechanism are still needed.
Systematic Review Registration: [www.crd.york.ac.uk/prospero], identifier [CRD42021234647].
1 Introduction
An increasing number of studies have noted a close association between COVID-19 and liver injury (Metawea et al., 2021). Elevated liver enzyme levels have been observed in biochemical indicators of COVID-19 patients (Gracia-Ramos et al., 2021; Kim et al., 2021; Yadav et al., 2021; Zhang. et al., 2022), and this elevation is not associated with muscle (Bloom et al., 2021). The mechanisms may include the effects of direct viral cytotoxicity, an exaggerated inflammatory response, ACE2 receptors in the liver or bile ducts, hepatic hypoxia, gut microbiota, vascular endothelial damage, mitochondrial damage, and antiviral drugs (Kariyawasam et al., 2022). Its occurrence at the microscopic level may be mainly related to the distribution of SRB1, TMPRS2, and ACE2 in the liver (Wanner et al., 2022). At present, in COVID-19 patients, the clinical treatment is mainly directed to SARS-CoV-2, using conventional treatments such as antiviral drugs (Wu et al., 2020). There is a lack of attention to the treatment of combined liver injury, and some studies have shown that patients with liver dysfunction such as cirrhosis, fatty liver, and liver transplantation have higher rates of severe illness and mortality after infection with COVID-19 (Ji et al., 2020; Cerbu et al., 2021; Ge et al., 2021; Kim et al., 2021). As for GAP, the animal experiment of Gong et al. (2022) shows that magnesium isoglycyrrhizinate can inhibit bacterial lipopolysaccharide (LPS), Toll-like receptor 4 (TLRs), and nuclear factor-kappa B (NF-κB) signaling pathway to alleviate liver injury induced by anti-tuberculosis drugs. Samsudin et al. (2022) reported that LPS interacts directly with SARS-CoV-2 S protein, which echos the discovery of Gong’s and supports the application of GAP in the treatment of comorbid liver injury in COVID-19. Moreover, the latest research reports that 18β-glycyrrhetinic acid could induce apoptosis in activated hepatic stellate cells to decrease hepatic fibrosis (Zhang et al., 2022b). Thus GAP shows direct and indirect protective effects on the liver. Therefore, this review is dedicated to investigating the clinical efficacy of drugs that can be used for both antiviral and hepatoprotection, GAP. In China and Japan, GAP has been isolated from crude extracts of Gancao and used clinically in the treatment of liver diseases, and has a track record of use in the treatment of SARS-CoV infection (Hoever et al., 2005). Its raw material, Gancao, is one of the most common and frequently used drugs in traditional Chinese medicine (Xiong et al., 2020), specifically the dried roots of Glycyrrhiza uralensis Fisch (licorice), Glycyrrhiza inflata Bat., Glycyrrhiza glabra L. (glycyrrhiza). Gancao’s effects may include anti-arthritic, anti-allergic, anti-cholinergic, anti-estrogenic, anti-inflammatory, anti-leukemic, anti-cancer, inhibition of liver fibrosis (Qu et al., 2012; Tu et al., 2012; Qu et al., 2015), anti-viral (Sun et al., 2019), and anti-hepatotoxic (Cao et al., 2019). It also shows the anti-SARS-CoV-2 activity in the treatment of COVID-19 (van de Sand et al., 2021; Yu et al., 2021), the anti-inflammatory activity of multiple mechanisms (Zhu et al., 2010; Andersson and Tracey 2011; Wang et al., 2011; Mahmoud and Al Dera 2015), the ability to modulate immunity (Gao et al., 2019), and the ability to improve prognosis. It can therefore also be expected to be used to facilitate the treatment and rehabilitation of COVID-19 and COVID-19 with comorbid liver injury.
The efficacy of GAP in COVID-19 has not yet been reviewed by researchers. With a wide variety of GAPs, this study aimed to provide a systematic review of the clinical efficacy and safety of GAP in the treatment of COVID-19 and COVID-19 with comorbid liver injury. The results of this review may provide valuable practical implications about the use of GAP in COVID-19 for patients, healthcare professionals, and those working on COVID-19 research.
2 Methods
Our research was conducted according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) (Moher et al., 2009), and the protocol has already been published online (Tian et al., 2021). Moreover, given the lack of homogeneity between the studies, we decided to perform a systematic review without a meta-analysis.
2.1 Search strategy
All randomized controlled trials, retrospective studies, and clinical trials addressing the use of GAP alone or combined with conventional therapy in the treatment of COVID-19 in Chinese and English were considered for inclusion in our systematic review. Grey literature was also included. We conducted a comprehensive search for articles between 2020 and July 2022 in databases such as WHO COVID-19 Research database (https://search.bvsalud.org/global-literature-on-novel-coronavirus-2019-ncov/), Cochrane Library, VIP, CNKI, Wanfang, and CBM with “glycyrrhi*,” “COVID-19” and similar terms. The detailed search strategy is shown in Supplementary Table S1.
2.2 Inclusion criteria
2.2.1 Types of studies
We included randomized controlled trials on GAP for COVID-19 and COVID-19 with comorbid liver injury in the experimental groups. In addition, retrospective studies including cohort studies, case series, and case report, have also been included in this systematic review. The language was limited to English or Chinese.
2.2.2 Types of participants
Patients suffering from COVID-19 alone or with comorbid liver injury were included. Because the population is generally susceptible to SARS-CoV-2, there was no restriction on the age of patients with COVID-19. The confirmation of COVID-19 was when the SARS-CoV-2 was detected by real-time reverse transcription PCR. Liver injury was diagnosed through abnormal liver function tests, which means alanine aminotransaminase (ALT) and/or aspartate aminotransferase (AST) over three times the upper limit unit of normal (ULN); alkaline phosphatase (ALP), gamma-glutamyl transferase (GGT), and/or total bilirubin (TBIL) over two times ULN as liver injury (Cai et al., 2020). When we mention liver injury, we are talking about liver damage occurring due to the virus or its treatment in those without preexisting liver damage. Participants of any sex and ethnicity were all enrolled.
2.2.3 Types of interventions
The experimental group using GAP alone or combined with conventional therapy, and the control group receiving conventional therapy were included. There were no restrictions on the types, dosage forms, doses, and methods of the use of GAP.
2.2.4 Types of outcome measures
2.2.4.1 Primary outcome
Liver function was tested with serum ALT and serum AST. Besides, ALP, GGT, and TBIL were recorded for reference if possible. The disease course will be evaluated by days of hospitalization.
2.2.4.2 Secondary outcome
The mortality rate was defined as the percentage of deaths to the total number after treatment. The blood test was evaluated by C-reactive protein (CRP), white blood cell count (WBC), and procalcitonin. The immune status was assessed by the levels of lymphocytes or CD molecules.
2.2.4.3 Safety outcome
Incidence of adverse reactions was observed by kidney function, bilirubin level, gastrointestinal symptoms (e.g., nausea, vomiting, abdominal pain, diarrhea), rash, and others.
2.3 Exclusion criteria
1) Controlled studies in which GAP exists in both the experimental group and the control group; 2) non-clinical research; 3) studies whose intervention was glycyrrhiza extracts (Different from monomer preparations with clear ingredients); 4) patients with preexisting liver disease (e.g., cirrhosis, hepatocellular carcinoma, non-alcoholic fatty liver disease, autoimmune liver diseases, liver transplant or drug-induced liver injury) 5) necessary data unavailable; 6) duplicate studies.
2.4 Selection and extraction process
All the literature we retrieved according to prepared keywords and eligibility criteria were all imported into EndNote X9 for classification and sorting, other than duplicate ones. Two researchers (X.L. and Z.M.) independently screened the titles and abstracts of the literature that fulfilled the inclusion criteria. For any potentially related research, we downloaded and read the full text. Discrepancies in the selection processes were resolved by discussion with the third researcher (X.T.). A research flow chart was drawn to show the whole process of research selection.
2.5 Data extraction
Two researchers (X.T. and X.L.) independently extracted data and summarized the information from the articles retrieved. Data extraction includes five aspects: 1) basic research information (e.g., title, journal, research ID number, author, contact information, etc.); 2) research methods (e.g., research design, random unit, random method, etc.); 3) observation objects (e.g., age, gender, sample size, etc.); 4) intervention measures (e.g., treatment course information, etc.); 5) measurement indicators (e.g., measurement indicators and time points for judgment, judgment indicators, measurement units, etc.).
We tried to contact the original author when met missing data. Studies with unavailable data were excluded. Similarly, if the data were disputed, it was resolved by discussion. Once the extraction is completed, the two researchers (XT and XL) will check with each other to ensure the accuracy of the data.
2.6 Assessment of risk of bias
Each selected paper was assessed individually using Joanna Briggs Institute (JBI) critical appraisal tools (Moola et al.). The appraisal helps to assess the extent to which a study has addressed the possibility of bias and reveals synthesis and interpretation of the results of the study. Two researchers (X.T. and X.L.) were responsible to complete it.
3 Results
Ten clinical studies, including two randomized controlled trials (Sun et al., 2020; Zhou et al., 2020), four cohort studies (Li et al., 2020; Wang and Lin 2020; Liao et al., 2021; Tan et al., 2022), two case series (Xi et al., 2020; Liu et al., 2021), and two case reports (Liu et al., 2020; He et al., 2022), were ultimately included, of which, four studies observed COVID-19 with comorbid liver injury (Li et al., 2020; Liu et al., 2020; Liao et al., 2021; Liu et al., 2021), while the remaining observed patients with COVID-19 alone. 598 COVID-19 patients were involved, of whom 189 were with comorbid liver injury. In addition, three registered eligible trials were also included (Huo-Shen-Shan Hospital 2020; Pouya Fekran Mahour Pharmaceutical Company 2020; Zhongnan Hospital of Wuhan University 2020). All studies differed in the type of GPA used, study design, and outcomes. The GAPs used in these studies were mainly diammonium glycyrrhizate and magnesium isoglycyrrhizate, and often in combination with antivirals (Li et al., 2020; Sun et al., 2020; Wang and Lin 2020; Xi et al., 2020; Zhou et al., 2020; He et al., 2022; Tan et al., 2022) or vitamin C (Zhongnan Hospital of Wuhan University 2020; Tan et al., 2022). Figure 1 details the flow of screening the studies and the characteristics of the included studies are shown in Supplementary Table S2.

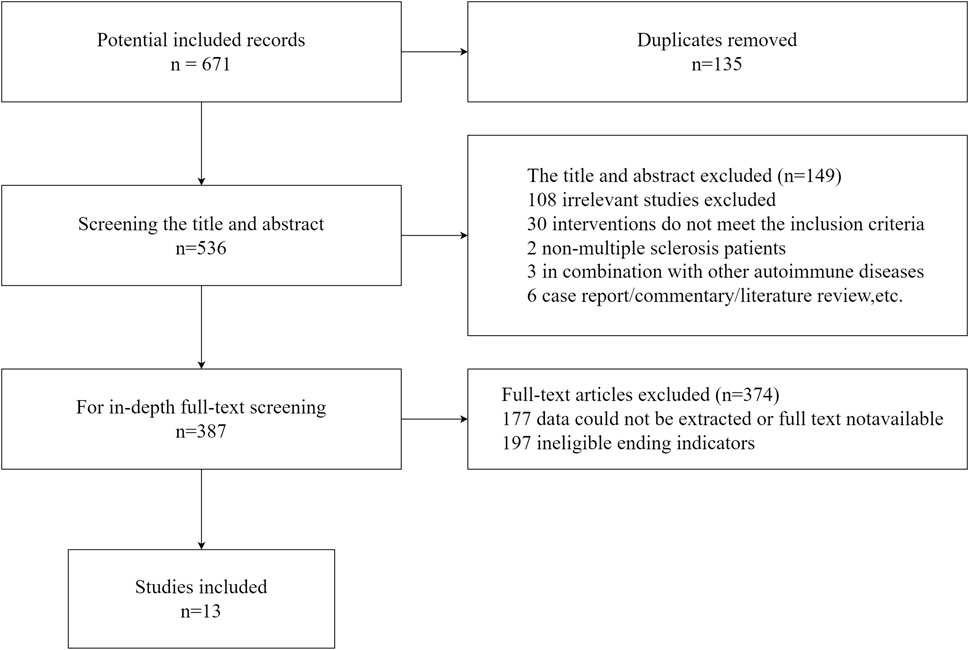

FIGURE 1. Flow graph of the literature search.
Three studies focusing on COVID-19 alone reported liver function (ALT and AST) (Sun et al., 2020; Wang and Lin 2020; Xi et al., 2020). Xi et al. (2020) reported an increase within the normal range in ALT after the treatment with GAP (p < 0.05), which only occurred in 8 out of 46 patients. Sun et al. (2020) and Wang and Lin (2020) found statistically significant differences in both ALT and AST before and after using the GAP. Furthermore, Sun also reported that the ALT and AST levels in the GAP group were lower than in the control group after the intervention. Tan et al. (2022) found that the rate of acute liver injury and the incidence of post-GAP complications, was lower in the group using diammonium glycyrrhizate plus vitamin C than in the control group (arbidol within standard therapy). In addition, Wang and Lin 2020 reported a significant decrease (p < 0.05) in both ALP and TBIL after using GAP, and Sun et al. (2020) reported no statistically significant differences in both ALP and GGT. Li et al. (2020) and Liu et al. (2021) found a statistically significant decrease in AST and ALT before and after using the GAP in the treatment of COVID-19 with comorbid liver injury. Liu et al. (2020) reported two patients with COVID-19 treated with magnesium isoglycyrrhizate injection without other antivirals whose mean AST and mean ALT were reduced after the treatment. Liao et al. (2021) temporarily added GAP for 59 patients with COVID-19 to alleviate their abnormal liver function. By the time these patients were discharged or died, AST and ALT in mild and severe cases tended to return to normal levels. And using GAP was more effective in improving ALT and AST levels than not using it in severe cases (Liao et al., 2021). Moreover, Liu et al. (2021) reported a significant decrease in GGT and a slight improvement in TBIL after using the GAP in the treatment of COVID-19 with comorbid liver injury. In contrast, Li et al. (2020) observed that TBIL did not decrease more than in the control group after using GAP in the treatment of COVID-19 with comorbid liver injury and TBIL levels in both groups were within the normal range before and after the intervention.
Three studies suggested that GAP may inhibit the inflammation in the treatment of COVID-19 alone (Wang and Lin 2020; Xi et al., 2020; Zhou et al., 2020), and this effect of GAP is closely related to its shown efficacy in reducing CRP levels. The case series by Xi et al. (2020) reported a statistically insignificant decrease in CRP. The results from Wang and Lin (2020) showed that the use of GAP significantly reduced CRP levels but could not indicate that the group using GAP had a better effect than the control group. The study by Zhou et al. (2020) can support that the use of GAP reduces CRP levels better.
Wang and Lin (2020) observed a statistically significant increase in LYM levels in both GAP and control groups. A similar rise was observed by Xi et al. (2020). Its results were not statistically significant, probably due to insufficient sample size and lack of controls (Xi et al., 2020). The study by Zhou et al. (2020) reported that the use of GAP increased some of the CD molecule levels more than not use. As for WBC, Xi et al. (2020) reported no significant increase, while Tao Wang and Lin (2020) reported a significant increase up to normal level after using GAP, but the difference was not statistically significant when compared with the control group. A study by Li et al. (2020) on COVID-19 with comorbid liver injury showed a significant decrease in CRP after the use of GAP, and the LYM level increased significantly (p < 0.05). In addition, the WBC in its experimental group increased but decreased in the control group, and there was no statistically significant difference in WBC between the two groups before and after the treatment (Li et al., 2020). He et al. (2022) reported two cases in which the WBC levels showed a rebounding trend.
In the study by Wang and Lin (2020), the duration of the symptoms including fever, cough, and chest tightness was shorter in the experimental group than that in the control group (p < 0.05), and the days of hospitalization were also significantly shorter than that in the control group. The study by Tan et al. (2022) reported that the differences in the days of hospitalization between the observation and control groups were not significant.
A study by Zhou et al. (2020) found that the incidence of adverse reactions (nausea and vomiting, diarrhea, and abnormal liver function) was 13.47% lower in the group using GAP than in the control group, with a statistically significant difference (p < 0.05). Xi et al. (2020) not only observed adverse reactions of nausea, but also reported a case of rash, and it resolved on its own without treatment. Tan et al. (2022) reported that the incidence of All new complications [including acute liver injury, acute ciliary muscle injury, acute kidney injury, infectious shock, acute respiratory distress syndrome (ARDS), etc.] in the group using diammonium glycyrrhizate plus vitamin C was significantly lower (19.6% in the experimental group versus 46.1% in the control group), with a statistically significant difference (p = 0.00). The incidence of acute liver injury alone was reduced, but the difference was not statistically significant (Tan et al., 2022).
Until 4 July 2022, there were two randomized controlled trials and a cohort study that focus on the treatment of COVID-19 with GAP (Huo-Shen-Shan Hospital 2020; Pouya Fekran Mahour Pharmaceutical Company 2020; Zhongnan Hospital of Wuhan University 2020). They have all registered at the World Health Organization Clinical Trials Registry Platform (WHO ICTRP). The trials researching the effects of GAP on COVID-19 were small in number and size, different in characteristics, and outcome indicators. The sample sizes of these trials were between 60 and 100. Two parallel controlled trials were randomly assigned (Huo-Shen-Shan Hospital 2020; Zhongnan Hospital of Wuhan University 2020). One from Iran used a double-blind method (Pouya Fekran Mahour Pharmaceutical Company 2020) and the other from China was open (Zhongnan Hospital of Wuhan University 2020). In addition, the only single-arm trial was a case series (Huo-Shen-Shan Hospital 2020). The samples of the two trials from China were mainly from hospitals in Wuhan (Huo-Shen-Shan Hospital 2020; Zhongnan Hospital of Wuhan University 2020). All included trials selected different outcome indicators, and the main outcome indicators included measurement of cough severity, the severity of shortness of breath, lung radiologic changes, clinical recovery time, and healing rate, without anyone using liver function indicators.
Detailed data is shown longitudinally in Supplementary Table S3 and horizontally in Supplementary Table S4. The efficacy and safety of GAP treating comorbid liver injury in COVID-19 are outlined in the schematic diagram (Figure 2).

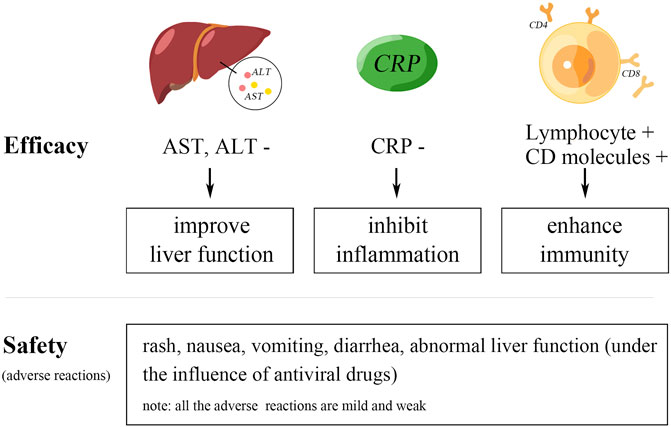

FIGURE 2. Schematic diagram of the results.
All the studies focused on different indicators and varied in quality. The studies by Liu et al. (2020), Liu et al. (2021), and He et al. (2022) had small sample sizes, with less than 10 cases. Moreover, their studies and the study of Xi et al. (2020) all lacked controls (Liu J. et al., 2020; Liu F. et al., 2021; He et al., 2022), which means the results may be not precise enough to reflect the impact of using GAP on COVID-19 patients. However, together with other studies they still have some but limited value, and the different interventions are still a problem. According to the assessment of the JBI’s tool, three of the four cohort studies all failed to analyze or address potential confounding factors (Li et al., 2020; Wang T. and Lin 2020; Liao et al., 2021). Only the study by Tan et al. (2022) used a propensity-score matching (PSM) approach, resulting in less biased results. In the study of Liao et al. (2021), 13 cases were lost to follow-up due to a lack of records, and no further exploration was carried out. The other two randomized controlled trials failed to clearly clarify the allocation concealment and the implementation of blinding (Sun et al., 2020; Zhou et al., 2020). It is not clear whether Sun et al. (2020) used true randomization. These all lead to selection bias (Supplementary Table S5).
4 Discussion
We noted that GAP has considerable theoretical advantages and Gancao has a long history of use in China and India, not only for treatment but also for disease prevention (Abraham and Florentine 2021). Therefore, we attempt to find clinical evidence to support the use of GAP in the treatment of COVID-19. The evidence we obtained showed that GAP could improve liver function, inhibit inflammation, and enhance the immunity of COVID-19 patients to some extent.
The six studies we included used AST and ALT as outcome indicators. Four experimental groups with n ≤ 24 showed improvements in AST and ALT. In contrast, Xinlin Sun and Jiaxi Xi reported changes within the normal range for groups greater than or equal to 34. In addition, the trends of other liver function indicators differed, thus, we infer that GAP has potential to improve liver function mainly by modulating AST and ALT levels. Further studies and bigger sample size are worth considering. Indicators like CRP, LYM, and CD molecules were researched less than liver enzymes, but also showed similar results, which could partially support the efficacy of GAP in inhibiting inflammation and enhancing immunity.
GAP combined with vitamin C is a common combination. Vitamin C may play a role in antioxidant and scavenging harmful reactive oxygen species (Carr 2020), which can further reduce tissue damage. Liu et al. (2020) found that the AST and ALT levels decreased after using magnesium isoglycyrrhizate injection alone. However, GAP was always used in combination, and some studies used conventional antivirals and supportive therapy when necessary to avoid serious complications and life-threatening events.
GAPs do have some adverse reactions. The studies we included reported rash, nausea, vomiting, diarrhea, and abnormal liver function, but the impact of combining antiviral drugs cannot yet be excluded. Some studies have reported that GAPs may cause adverse reactions such as sodium retention and hypertension (Wu et al., 2018), but in any case, the adverse reactions caused by the use of GAP in the treatment of COVID-19 are few and weak. Washington’s panel reviewed the safety of a series of Gancao’s monomer components, including glycyrrhizic acid, ammonium glycyrrhizate, potassium glycyrrhizinate, dipotassium glycyrrhizate, disodium glycyrrhizate, trisodium glycyrrhizate, methyl glycyrrhizate, glycyrrhetinic acid, potassium glycyrrhetinate, disodium succinoyl glycyrrhetinate, glyceryl glycyrrhetinate, glycyrrhetinyl stearate, and stearyl glycyrrhetinate. This study concluded that glycyrrhetinic acid has no acute, short-term, subchronic, or chronic toxicity and that other GAPs can be extrapolated for their safety due to structural similarities (Cosmetic Ingredient Review Expert 2007). The study by Wu et al. (2018) further elucidated the possible adverse reactions of GAPs, noting dose control, control of allergic reactions, contraindications (hypertension, diabetes, heart failure), and that oral formulations have weaker adverse reactions than injectable formulations. In the studies we included, diammonium glycyrrhizate was generally used at 150 mg t.i.d. and magnesium isoglycyrrhizate injection was used at 150 mg q.d. or 100 mg/d. Liao et al. (2021) used only 50 mg diammonium glycyrrhizate t.i.d., temporarily for liver injury.
It was the monomer preparation that we researched, rather than the crude glycyrrhiza extracts. There are still many studies on glycyrrhiza extracts which is more complex in composition. Failure to pay attention to the subtle differences between GAP and glycyrrhiza extracts, or to clearly define the two may lead to biased results (Gomaa and Abdel-Wadood 2021).
4.1 Limitation
Since there is no consensus on the target of GAP and its specific mechanism, we cannot define the characteristic indicators of GAP’s efficacy. The number of eligible studies and their scales are also limited. The population involved was mainly middle-aged and elderly people, although the population is generally susceptible to SARS-CoV-2. The wide variation of literature in outcome indicators and study designs made meta-analyses difficult, which reduced the reliability to some extent of our systematic review.
4.2 Implication
Liao et al. (2021) found that the combination of GAP did not normalize AST and ALT in critical cases, which may be related to the degree of liver injury, suggesting that future studies need to pay attention to stratifying by the severity of COVID-19. It was not done in some of the studies we included. The study by Xi et al. (2020) did not stratify the type of COVID-19, although the severity of COVID-19 was noted. Moreover, we need more well-designed clinical studies with larger sample sizes to improve the quality of evidence, especially RCTs. Currently, only three registered trials are in progress (Huo-Shen-Shan Hospital 2020; Pouya Fekran Mahour Pharmaceutical Company 2020; Zhongnan Hospital of Wuhan University 2020). When studying the clinical efficacy of GAP on COVID-19, outcome indicators should also consider liver-related indicators, inflammatory indicators, immune indicators, adverse reactions, etc. Researchers should not only analyze the data before and after the treatment with GAP, but also should pay more attention to the differences between the experimental group and control group, and the sources of differences in both of them. Meta-analyses should be implemented when there are more eligible studies emerging. Lastly, elucidating the mechanism of GAP still requires joint efforts of researchers.
This systematic review can support the use of GAP in the treatment of COVID-19 alone or COVID-19 with comorbid liver injury to some extent. In addition, this review has demonstrated again that COVID-19 is prone to comorbiding with different degrees of liver injury. Although mild liver injury in COVID-19 is usually transient and reversible (Cui et al., 2022), monitoring liver function and using hepatoprotective drugs such as GAP is still needed to improve prognosis and enhance the quality of patients’ survival.
5 Conclusion
Our article reviewed the studies about the efficacy and safety of GAP on patients with COVID-19 alone or COVID-19 with comorbid liver injury. We found that GAPs (mainly diammonium glycyrrhizinate and magnesium isoglycyrrhizinate) were effective to improve liver function, inhibit inflammation, and strengthen the immunity of patients, with few and mild adverse reactions. These results still need further studies in this field to support and the mechanism of GAPs acting on COVID-19 with comorbid liver injury should be further elucidated.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
Manuscript-drafting, revising, data extraction by XL and XT. Data acquisition and extraction by ZM. JC took part in data acquisition and literature collection. Resources, funding acquisition by QH and PG. Supervision, resources and funding acquisition by CZ. All authors read and approved the final version of the manuscript.
Funding
Major Science and Technology Project of Sichuan Provincial Administration of Traditional Chinese Medicine (2021XYCZ007); Research Collaboration Special Project of Traditional Chinese Medicine in the Prevention and Treatment of Covid-19, Guangdong New Huangpu Research Institute of Traditional Chinese Medicine Joint Innovation (20220TH002); “Emergency Special Project of SARS-CoV-2”, “Xinglin Scholar” Research Project of Chengdu University of Traditional Chinese Medicine (XGZX2003); “100 Talent Plan” Project of Hospital of Chengdu University of Traditional Chinese Medicine (Hospital office [2021] 42).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2022.1003697/full#supplementary-material
Supplementary Table S1 | Search strategy.
Supplementary Table S2 | Data overview.
Supplementary Table S3 | Data longitudinal view.
Supplementary Table S4 | Data horizontal view.
Supplementary Table S5 | Assessment of risk of bias.
Abbreviations
COVID-19, coronavirus disease 2019; GAP, glycyrrhizic acid preparation; ALT, alanine aminotransaminase; AST, aspartate aminotransferase; TBIL, total bilirubin; GGT, γ-glutamyl transpeptidase; ALP, alkaline phosphatase; WBC, white blood cell count; LYM, lymphocyte; CD, clusters of differentiation; PCR, polymerase chain reaction
References
Abraham, J., and Florentine, S. (2021). Licorice (Glycyrrhiza glabra) extracts-suitable pharmacological interventions for COVID-19? A review. Plants (Basel) 10, 2600(12), doi:10.3390/plants10122600
Andersson, U., and Tracey, K. J. (2011). HMGB1 is a therapeutic target for sterile inflammation and infection. Annu. Rev. Immunol. 29, 139–162. doi:10.1146/annurev-immunol-030409-101323
Bloom, P. P., Meyerowitz, E. A., Reinus, Z., Daidone, M., Gustafson, J., Kim, A. Y., et al. (2021). Liver biochemistries in hospitalized patients with COVID-19. Hepatology 73 (3), 890–900. doi:10.1002/hep.31326
Cai, Q., Huang, D., Yu, H., Zhu, Z., Xia, Z., Su, Y., et al. (2020). COVID-19: Abnormal liver function tests. J. Hepatol. 73 (3), 566–574. doi:10.1016/j.jhep.2020.04.006
Cao, Y., Shi, H., Sun, Z., Wu, J., Xia, Y., Wang, Y., et al. (2019). Protective effects of magnesium glycyrrhizinate on methotrexate-induced hepatotoxicity and intestinal toxicity may Be by reducing COX-2. Front. Pharmacol. 10, 119. doi:10.3389/fphar.2019.00119
Carr, A. C. (2020). A new clinical trial to test high-dose vitamin C in patients with COVID-19. Crit. Care 24 (1), 133. doi:10.1186/s13054-020-02851-4
Cerbu, B., Pantea, S., Bratosin, F., Vidican, I., Turaiche, M., Frent, S., et al. (2021). Liver impairment and hematological changes in patients with chronic hepatitis C and COVID-19: A retrospective study after one year of pandemic. Med. Kaunas. 57 (6), 597. doi:10.3390/medicina57060597
Cosmetic Ingredient Review Expert, P. (2007). Final report on the safety assessment of glycyrrhetinic acid, potassium glycyrrhetinate, disodium succinoyl glycyrrhetinate, glyceryl glycyrrhetinate, glycyrrhetinyl stearate, stearyl glycyrrhetinate, glycyrrhizic acid, ammonium glycyrrhizate, dipotassium glycyrrhizate, disodium glycyrrhizate, trisodium glycyrrhizate, methyl glycyrrhizate, and potassium glycyrrhizinate. Int. J. Toxicol. 26 (2), 79–112. doi:10.1080/10915810701351228
Cui, H., Liang, J., and Xiang, H. L. (2022). Research advances in coronavirus disease 2019-related liver injury. J. Clin. Hepatol 38 (04), 931–935. in Chinese. doi:10.3969/j.issn.1001-5256.2022.04.039
Gao, M. A.-O., Li, X., He, L. A.-O., Yang, J. A.-O., Ye, X. A.-O., Xiao, F., et al. (2019). Diammonium glycyrrhizinate mitigates liver injury via inhibiting proliferation of NKT cells and promoting proliferation of tregs. Drug Des. devel. Ther. 13, 3579–3589. doi:10.2147/DDDT.S220030
Ge, J., Pletcher, M. J., Lai, J. C., and Consortium, N. C. (2021). Outcomes of SARS-CoV-2 infection in patients with chronic liver disease and cirrhosis: A national covid cohort collaborative study. Gastroenterology 161 (5), 1487–1501.e5. doi:10.1053/j.gastro.2021.07.010
Gomaa, A. A., and Abdel-Wadood, Y. A. (2021). The potential of glycyrrhizin and licorice extract in combating COVID-19 and associated conditions. Phytomed. Plus. 1 (3), 100043. doi:10.1016/j.phyplu.2021.100043
Gong, J. Y., Ren, H., Chen, H. Q., Xing, K., Xiao, C. L., and Luo, J. Q. (2022). Magnesium isoglycyrrhizinate attenuates anti-tuberculosis drug-induced liver injury by enhancing intestinal barrier function and inhibiting the LPS/TLRs/NF-κB signaling pathway in mice. Pharm. (Basel) 15 (9), 1130. doi:10.3390/ph15091130
Gracia-Ramos, A. E., Jaquez-Quintana, J. O., Contreras-Omana, R., and Auron, M. (2021). Liver dysfunction and SARS-CoV-2 infection. World J. Gastroenterol. 27 (26), 3951–3970. doi:10.3748/wjg.v27.i26.3951
He, R. H., Zhang, C. Y., Li, S. L., Ren, C. S., and Xie, Y. Q. (2022). Experience of two cases of severe COVID-19 treated with diammonium glycyrrhizate combined with antiviral therapy. J. Med. Theory Pract. 35 (3), 537–539. in Chinese. doi:10.19381/j.issn.1001-7585.2022.03.080
Hoever, G., Baltina, L., Michaelis, M., Kondratenko, R., Baltina, L., Tolstikov, G. A., et al. (2005). Antiviral activity of glycyrrhizic acid derivatives against SARS-coronavirus. J. Med. Chem. 48 (4), 1256–1259. doi:10.1021/jm0493008
Huo-Shen-Shan Hospital (2020). To evaluate the efficacy and safety of diammonium glycyrrhizinate enteric-coated capsules combined with hydrogen-rich water in the treatment of novel coronavirus pneumonia (COVID-19). Identification No. ChiCTR2000030490. Chictr.org. Availabe at: http://www.chictr.org.cn/showproj.aspx?proj=50487.
Ji, D., Qin, E., Xu, J., Zhang, D., Cheng, G., Wang, Y., et al. (2020). Non-alcoholic fatty liver diseases in patients with COVID-19: A retrospective study. J. Hepatol. 73 (2), 451–453. doi:10.1016/j.jhep.2020.03.044
Kariyawasam, J. C., Jayarajah, U., Abeysuriya, V., Riza, R., and Seneviratne, S. L. (2022). Involvement of the liver in COVID-19: A systematic review. Am. J. Trop. Med. Hyg. 106 (4), 1026–1041. doi:10.4269/ajtmh.21-1240
Kim, D., Adeniji, N., Latt, N., Kumar, S., Bloom, P. P., Aby, E. S., et al. (2021). Predictors of outcomes of COVID-19 in patients with chronic liver disease: US multi-center study. Clin. Gastroenterol. Hepatol. 19 (7), 1469–1479.e19. doi:10.1016/j.cgh.2020.09.027
Li, L., Li, S., and Chen, Y. (2020). Clinical observation of diammonium glycyrrhizinate treatment in patients of COVID-19 combined with abnormal liver function. Chin. J. Gastroenterology Hepatology 29 (10), 1162–1166. in Chinese. doi:10.3969/j.issn.1006-5709.2020.10.017
Liao, F. L., Peng, D. H., Chen, W., Hu, H. N., Tang, P., Liu, Y. Y., et al. (2021). Evaluation of serum hepatic enzyme activities in different COVID-19 phenotypes. J. Med. Virol. 93 (4), 2365–2373. doi:10.1002/jmv.26729
Liu, F., Wu, G., Sun, C. F., Huang, F. L., and Chen, Y. F. (2021). Analysis of characteristics and therapeutic effect of COVID-19 associated liver injury in Luzhou City. Chongqing Med. 50 (9), 1551–1554. in Chinese. doi:10.3969/j.issn.1671-8348.2021.09.025
Liu, J. Q., Zhuo, M., and Ding, Y. H. (2020). An analysis of the clinical efficacy of magnesium isoglycyrrhizate injections in liver injury caused by critical COVID-19. Qinghai Med. J. 50 (6), 54–56. in Chinese.
Mahmoud, A. M., and Al Dera, H. S. (2015). 18β-Glycyrrhetinic acid exerts protective effects against cyclophosphamide-induced hepatotoxicity: Potential role of PPARγ and Nrf2 upregulation. Genes Nutr. 10 (6), 41. doi:10.1007/s12263-015-0491-1
Metawea, M. I., Yousif, W. I., and Moheb, I. (2021). COVID 19 and liver: An A-Z literature review. Dig. Liver Dis. 53 (2), 146–152. doi:10.1016/j.dld.2020.09.010
Moher, D., Liberati, A., Tetzlaff, J., Altman, D. G., and Group, P. (2009). Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. BMJ 339, b2535. doi:10.1136/bmj.b2535
Moola, S., Munn, Z., Tufanaru, C., Aromataris, E., Sears, K., Sfetc, R., et al. (2020). JBI manual for evidence synthesis-chapter 7: Systematic reviews of etiology and risk. Adelaide, South Australia: jbi global. doi:10.46658/jbimes-20-08
Pouya Fekran Mahour Pharmaceutical Company (2020). Evaluation of the effect of SINA anti-flu natural product on COVID-19. Identification No. IRCT20160131026298N5. Available at: https://en.irct.ir/trial/49886.
Qu, Y., Chen, W. H., Zong, L., Xu, M. Y., and Lu, L. G. (2012). 18α-Glycyrrhizin induces apoptosis and suppresses activation of rat hepatic stellate cells. Med. Sci. Monit. 18 (1), Br24–32. doi:10.12659/msm.882196
Qu, Y., Zong, L., Xu, M., Dong, Y., and Lu, L. (2015). Effects of 18α-glycyrrhizin on TGF-β1/Smad signaling pathway in rats with carbon tetrachloride-induced liver fibrosis. Int. J. Clin. Exp. Pathol. 8 (2), 1292–1301.
Samsudin, F., Raghuvamsi, P., Petruk, G. A.-O., Puthia, M., Petrlova, J., MacAry, P., et al. (2022). SARS-CoV-2 spike protein as a bacterial lipopolysaccharide delivery system in an overzealous inflammatory cascade. J. Mol. Cell Biol. 2022, mjac058. doi:10.1093/jmcb/mjac058
Sun, X., Zhang, R., Li, Y., and Zhao, L. (2020). Clinical value of prophylactic liver protecting drugs in coronavirus disease 2019 (COVID-19). Acta Acad. Med. Xuzhou 40 (4), 293–296. in Chinese. doi:10.3969/j.issn.2096-3882.2020.04.014
Sun, Z. G., Zhao, T. T., Lu, N., Yang, Y. A., and Zhu, H. L. (2019). Research progress of glycyrrhizic acid on antiviral activity. Mini Rev. Med. Chem. 19 (10), 826–832. doi:10.2174/1389557519666190119111125
Tan, R., Xiang, X., Chen, W., Yang, Z., Hu, W., Qu, H., et al. (2022). Efficacy of diammonium glycyrrhizinate combined with vitamin C for treating hospitalized COVID-19 patients: A retrospective, observational study. QJM 115 (2), 77–83. doi:10.1093/qjmed/hcab184
Tian, X., Gan, W., Nie, Y., Ying, R., Tan, Y., Chen, J., et al. (2021). Clinical efficacy and security of glycyrrhizic acid preparation in the treatment of anti-SARS-CoV-2 drug-induced liver injury: A protocol of systematic review and meta-analysis. BMJ Open 11 (7), e051484. doi:10.1136/bmjopen-2021-051484
Tu, C. T., Li, J., Wang, F. P., Li, L., Wang, J. Y., and Jiang, W. (2012). Glycyrrhizin regulates CD4+T cell response during liver fibrogenesis via JNK, ERK and PI3K/AKT pathway. Int. Immunopharmacol. 14 (4), 410–421. doi:10.1016/j.intimp.2012.08.013
van de Sand, L., Bormann, M., Alt, M., Schipper, L., Heilingloh, C. S., Steinmann, E., et al. (2021). Glycyrrhizin effectively inhibits SARS-CoV-2 replication by inhibiting the viral main protease. Viruses 13 (4), 609. doi:10.3390/v13040609
Wang, C. Y., Kao, T. C., Lo, W. H., and Yen, G. C. (2011). Glycyrrhizic acid and 18β-glycyrrhetinic acid modulate lipopolysaccharide-induced inflammatory response by suppression of NF-κB through PI3K p110δ and p110γ inhibitions. J. Agric. Food Chem. 59 (14), 7726–7733. doi:10.1021/jf2013265
Wang, T., and Lin, W. (2020). Clinical effect of glycyrrhizic acid preparation on novel coronavirus infection. Pract. Clin. Med. 21 (7), 1–4. in Chinese. doi:10.13764/j.cnki.lcsy.2020.07.001
Wanner, N., Andrieux, G., Badia, I. M. P., Edler, C., Pfefferle, S., Lindenmeyer, M. T., et al. (2022). Molecular consequences of SARS-CoV-2 liver tropism. Nat. Metab. 4 (3), 310–319. doi:10.1038/s42255-022-00552-6
Wu, J., Song, S., Cao, H. C., and Li, L. J. (2020). Liver diseases in COVID-19: Etiology, treatment and prognosis. World J. Gastroenterol. 26 (19), 2286–2293. doi:10.3748/wjg.v26.i19.2286
Wu, Y., Gu, K., Gao, Q., Yang, F., Liu, C., Liu, Y., et al. (2018). Adverse reactions of licorice preparations and their mechanism research progress. Drug Eval. Res. 41 (7), 1363–1368. in Chinese. doi:10.7501/j.issn.1674-6376.2018.07.039
Xi, J., Xiang, S., Zhang, H., Lan, B., and Chen, X. (2020). Clinical observation of arbidol combined with diammonium glycyrrhizinate in the treatment of COVID-19. Chin. J. Hosp. Pharm. 40, 1287–1290. doi:10.13286/j.1001-5213.2020.12.01
Xiong, X., Wang, P., Su, K., Cho, W. C., and Xing, Y. (2020). Chinese herbal medicine for coronavirus disease 2019: A systematic review and meta-analysis. Pharmacol. Res. 160, 105056. doi:10.1016/j.phrs.2020.105056
Yadav, D. K., Singh, A., Zhang, Q., Bai, X., Zhang, W., Yadav, R. K., et al. (2021). Involvement of liver in COVID-19: Systematic review and meta-analysis. Gut 70 (4), 807–809. doi:10.1136/gutjnl-2020-322072
Yu, S., Zhu, Y., Xu, J., Yao, G., Zhang, P., Wang, M., et al. (2021). Glycyrrhizic acid exerts inhibitory activity against the spike protein of SARS-CoV-2. Phytomedicine. 85, 153364. doi:10.1016/j.phymed.2020.153364
Zhang, Q., Luo, P., Zheng, L., Chen, J., Zhang, J., Tang, H., et al. (2022). 18beta-glycyrrhetinic acid induces ROS-mediated apoptosis to ameliorate hepatic fibrosis by targeting PRDX1/2 in activated HSCs. J. Pharm. Anal. 12 (4), 570–582. doi:10.1016/j.jpha.2022.06.001
Zhang, X., Yu, Y., Zhang, C., Wang, H., Zhao, L., Wang, H., et al. (2022). Mechanism of SARS-CoV-2 invasion into the liver and hepatic injury in patients with COVID-19. Mediterr. J. Hematol. Infect. Dis. 14 (1), e2022003. doi:10.4084/mjhid.2022.003
Zhongnan Hospital of Wuhan University (2020). A randomized, open, controlled trial for diammonium glycyrrhizinate enteric-coated capsules combined with vitamin C tablets in the treatment of common novel coronavirus pneumonia (COVID-19) in the basic of clinical standard antiviral treatment to evaluate the safety and efficiency. Identification No. ChiCTR2000029768. Available at: http://www.chictr.org.cn/showproj.aspx?proj=49131.
Zhou, W., Zhao, F., Li, B., and Tian, Z. (2020). Clinical efficacy of diammonium glycyrrhizinate in the treatment of common type patients with novel coronavirus pneumonia. Chin. J. Virology 36 (2), 160–164. in Chinese. doi:10.13242/j.cnki.bingduxuebao.003679
