Silpita Paul†
Gaurisankar Sa- Division of Molecular Medicine, Bose Institute, Kolkata, India
The conventional carcinoma treatment generally encompasses the employment of radiotherapy, chemotherapy, surgery or use of cytotoxic drugs. However, recent advances in pharmacological research have divulged the importance of traditional treatments in cancer. The aim of the present review is to provide an overview of the importance of one such medicinal herb of Chinese and Indian origin: Andrographis paniculate on colorectal cancer with special emphasis on its principal bioactive component andrographolide (AGP) and its underlying mechanisms of action. AGP has long been known to possess medicinal properties. Studies led by numerous groups of researchers shed light on its molecular mechanism of action. AGP has been shown to act in a multi-faceted manner in context of colorectal cancer by targeting matrix metalloproteinase-9, Toll-like receptor or NFκB signaling pathways. In this review, we highlighted the recent studies that show that AGP can act as an effective immunomodulator by harnessing effective anti-tumor immune response. Recent studies strongly recommend further research on this compound and its analogues, especially under in-vivo condition to assess its actual potential as a prospective and efficient candidate against colorectal cancer. The current review deals with the roles of this phytomedicine in context of colorectal cancer and briefly describes its perspectives to emerge as an essential anti-cancer drug candidate. Finally, we also point out the drawbacks and difficulties in administration of AGP and indicate the use of nano-formulations of this phytomedicine for better therapeutic efficacy.
Introduction
Colorectal cancer (CRC) is one of the highest occurring malignancies worldwide. In 2020, approximately 147,950 individuals were diagnosed with CRC with a 35% mortality rate. Around a 20% mortality rate has been observed in patients below 50 years of age (Siegel et al., 2020). The conventional therapies include surgery, chemotherapy, and targeted therapy. The current chemotherapeutic drugs treat CRC, but that cause adverse toxicity. It also develops drug resistance. The targeted therapy is quite promising, but sometimes it lacks specificity, is not cost-effective and might associate with adverse events (Wolpin and Mayer, 2008; Xie et al., 2020). Nowadays, phytochemicals are considered a natural arsenal to fight against cancer risk. The foremost advantage of phytochemical usage is that it can treat the malignancy with less or no adverse side effects (Ranjan et al., 2019). Andrographolide (AGP) is a phytochemical which has anti-cancer properties and many studies have reported its wide use as a weapon to fight against cancer (Mishra et al., 2015).
The natural source of AGP is the plant, Andrographis paniculata (Burm.f.) of the family Acanthaceae. This medicinal plant is widely cultivated and used in India, Sri Lanka, China and many other South Asian countries for its curative properties against several diseases and infections (Hossain et al., 2014). The extract of A. paniculata, i.e., AGP has several biological activities, such as antioxidant (Xu et al., 2019), antiviral, antibacterial (Wiart et al., 2005), anti-inflammatory (Abu-Ghefreh et al., 2009), antipyretic (Madav et al., 1995), anti-thrombotic, hepatoprotective (Pan et al., 2017), and most importantly, it has anti-cancer properties (Farooqi et al., 2020). AGP also acts as an immunomodulator or immunostimulant (Churiyah, 2015).
The leaves of A. paniculata contain several bioactive components, which includes diterpene lactones (deoxy andrographolide, andrographolide, neoandrographolide, and 14-deoxy-11, 12-didehydro andrographolide), diterpene glucoside (deoxyandrographolide 19_-d-glucoside), and flavonoids (5, 7, 20, 30-tetramethoxyflavanone and 5-hydroxy-7, 20, 30-trimethoxyflavone) (Akbar, 2011). Among them, AGP (C20H30O5) is the main bioactive component of the plant (Chakravarti and Chakravarti, 1951). Due to the presence of lactone diterpene, the component and the plant taste bitter. Numerous in vitro and in vivo studies previously reported the anticancer property of AGP (Rajagopal et al., 2003). In this review, we tried to accumulate various aspects of the component with a focus on the immunomodulatory and anticancer role. We also discussed its application for the treatment of CRC as an independent drug or as an adjuvant.
The Phytochemical From the Herb A. Paniculata and its Analogues
The main bioactive compound of the plant is andrographolide/AGP (C20H30O5), containing 1.84% of the plant extract. It is a colorless, crystal-like, extremely bitter taste compound and holds lactone (bicyclic diterpenoid lactone) functioning (Bera et al., 2014). The organic structure of AGP consists of a-alkylidene c-butyrolactone moiety, two olefin bonds Δ8 and Δ12, and three hydroxyls at C-3, C-14, and C-19. The other analogues metabolites of A. paniculata exhibit equal prominence in the field of phyto-pharmaceuticals. It contains several diterpenoids and diterpenoid glycosides, such as neo andrographolide, deoxy andrographolide, 14-deoxyandrographolide, 14-deoxy- 11, 12-didehydro andrographolide, andrographiside, deoxyandrographiside, homo andrographolide, andrographan, andrographon, andrographosterin, and stigmasterol. The 14-deoxy- 11, 12-didehydroandrographolide is an isolated labdane diterpenoid (Mishra et al., 2015). Several other chemical compounds of A. paniculata are flavonoids, and xanthones in nature (Matsuda et al., 1994; Dua et al., 2004). The extracted flavonoids are 5-years droxy-7, 8, 6, 2′, 4′-trimethoxyflavone, 5,6-Dihydroxy-7,8-dimethoxyflavone, and 5-hydroxy-7,8- dimethoxyflavone (Mishra et al., 2007). During the last several years, various researchers analyzed the chemical nature of A. paniculata. According to the study, 19 AGP analogues were found based on structure-activity relation. Out of them, several analogues exhibited higher cytotoxic activities than the parent compounds (Sirion et al., 2012). The functional analysis of 14-deoxy-11, 12-didehyroandrogrpholide showed a convincing grip in controlling the cell cycle process and cell cycle arrest in breast carcinoma cells. It also caused autophagy in cancer cells (Tan et al., 2012). The primary carbon structures of these compounds are presented in Figure 1.

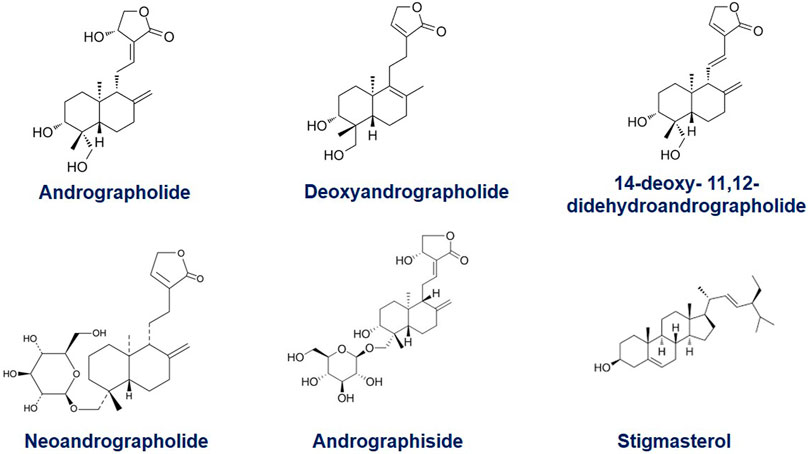

FIGURE 1. The organic structure of Andrographolide (C20H30O5), containing a-alkylidene c-butyrolactone moiety; two olefin bonds Δ8 (17) and Δ12 (13), and three hydroxyls at C-3, C-14, and C-19 and its common analogues, Deoxyandrographolide, 14-deoxy- 11, 12-didehydroandrographolide, Neoandrographolide, Andrographoside, Stigmasterol.
The Molecular Pathways Invovled in Colorectal Cancer
CRC is the consequence of multiple genetic and epigenetic anomalies that occur within cells. The abnormalities of several signaling pathways are also associated with CRC. A colorectal adenoma turns into carcinoma because of chromosomal anomalies, microsatellite instability, and CpG island methylator phenotyping. Since it is a heterogeneous disease, it requires in-depth molecular understanding for the development of targeted therapies. The molecular basis of CRC involves several factors that initiate tumor formation and progression (Nguyen and Duong, 2018). This section summarizes the molecular mechanisms and signaling pathways associated with CRC (Figure 2, created by BioRender and Canvas).

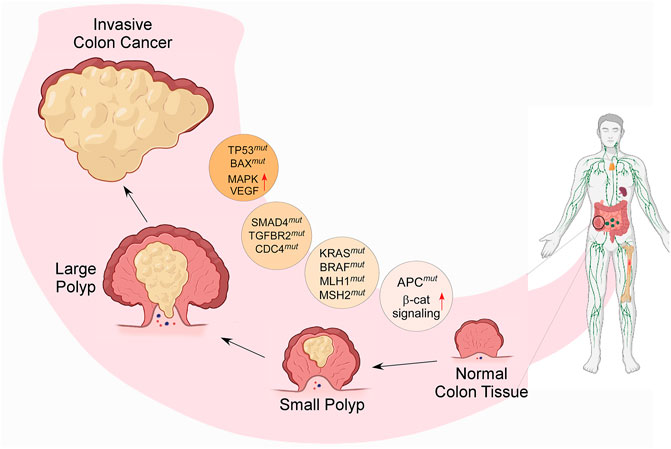

FIGURE 2. Diagram representing the molecular cause of CRC and its gradual development from small adenoma polyp to invasive cancerous form; the process is modulated by several genetic modifications, such as chromosomal instability; mutations in tumor suppressor genes and DNA mismatch repair genes, such as TP53, MLH1, MSH2, SMAD4, TGFBR2, CDC4; stimulation of oncogenic signaling pathways, such as K-RAS, BRAF, MAPK; and activation of the growth factors, such as COX2, EGF & VEGF- mediated signaling. (β-cat = β-catenin, mut = mutation).
Chromosomal Instability
Chromosomal instability is one of the vital causes of CRC. In the case of CRC, genetic aberrations occur in the genes. These aberrations are responsible for maintaining chromosomal instability (Barber et al., 2008). Several changes in the chromosomal copy number (Lengauer et al., 1997) and loss of wild-type copy of the tumor-suppressor genes, such as APC, P53 cause CRC (Markowitz and Bertagnolli, 2009) in most patients.
Defects in DNA Repair Mechanism
Inactivation of the mismatch repair genes of DNA causes CRC. In most cases, it is hereditary in nature. Germ-line mutation in mismatch repair genes, MLH1 and MSH2 confirm a lifetime risk of CRC in 80% cases, who suffered from hereditary nonpolyposis colon cancer (HNPCC) (Fishel et al., 1993; Bronner et al., 1994). This mismatch repairing anomaly causes genomic instability and instigates the development of CRC in HNPCC patients (Järvinen et al., 2000). Bi-allelic silencing of the promoter region of MLH1 by methylation hampers mismatch repairing, thus causes non-familial CRC in 15% of patients. Mismatch repair defects also inactivate the tumor suppressor genes that encode TGFBR2, BAX; base excision repair gene MYH, which eventually leads to the CRC (Al-Tassan et al., 2002; Markowitz and Bertagnolli, 2009) in numbers of patients.
Abnormal DNA Methylation
Epigenetic silencing of genes due to abnormal DNA methylation is another vital cause of CRC generation (Kondo and Issa, 2004). In the normal genome, cytosine methylation does not occur in CpG islands. But in the case of the CRC genome, abnormal methylation occurs within promoter-associated CpG islands (Issa, 2004). This phenomenon induces epigenetic silencing. In sporadic CRC with microsatellite instability, the aberrant methylation shuts down the MLH1 expression (Toyota et al., 1999). The association between MLH1 silencing and CRC is well-established, but the detailed mechanism of colorectal carcinogenesis still requires attention (Barault et al., 2008).
Mutation of Tumor Suppressor Genes
The APC gene silencing due to mutation improperly activates the Wnt signaling pathway, which helps in developing familial adenomas polyposis and subsequently leads to the risk of CRC (Korinek et al., 1997; Goss and Groden, 2000). Mutation of the TP53 gene is another major cause of CRC. Both copies of TP53 alleles are knocked down either by missense mutation or by 17p chromosomal deletion that eventually impedes the cell cycle arrest of the abnormal cells, causes CRC (Markowitz and Bertagnolli, 2009). Somatic mutation of TGFBR2 occurs in about one-third of CRC patients that causes inactivation of TGFβ signaling (Seoane and Gomis, 2017). Missense mutations of the TGFBR2 kinase domain inactivate the downstream TGFβ pathway factors, SMADs, and subsequently develop CRC from adenoma (Grady et al., 1998).
Stimulation of Oncogenic Signaling Pathways
RAS and BRAF play a significant role in developing CRC. The oncogenic mutations of these two genes activate the MAPK pathway in 37% and 13% of CRC patients (Bos et al., 1987), respectively. K-RAS mutation activates GTPase activity that further stimulates RAF. Similarly, BRAF mutations activate BRAF serine-threonine kinase activity, consequently activate MAPK signaling cascade (Rajagopalan et al., 2002). Genetic alteration of PI3KCA, down-regulation of PTEN, up-regulation of IRS2, AKT, and PAK4 activate PI3K signaling pathway that eventually led to the development of the CRC (Samuels et al., 2004).
Activation of the Growth Factor Pathways
The activation of growth factor pathways helps in cancer progression. The up-regulation of COX2, activation of prostaglandin signaling, and synthesis of prostaglandin E2 are highly associated with CRC (Cha and DuBois, 2007). Several clinical trials reported that COX2 inhibition by chemotherapeutic drugs prevents the progression of new adenomas in the colorectal region and subsequently reduces the size of the formed adenomas (Arber et al., 2006). Numerous studies have reported that EGFR-mediated signaling causes CRC. EGFR activates PI3K and MAPK signaling cascades that eventually cause malignancy (Saltz et al., 2004). Another major growth factor is VEGF, which plays a significant role in the angiogenesis process. Activation of the VEGF signaling pathway is highly lethal to CRC patients (Hurwitz et al., 2004).
Immunomodulatory Role of Andrographolide
AGP as an immunomodulator in various types of cancer has been a raging field of research for the last few decades. AGP enhances the natural killer (NK) cells activity in tumor-bearing mice (Sheeja and Kuttan, 2007a). It increases IL2 and IFNɣ secretion by T cells that suppress tumor growth (Sheeja and Kuttan, 2007b). It prevents detrimental autoimmune responses by inducing antigen-specific tolerance (Iruretagoyena et al., 2006). AGP reduces the mRNA expression of inflammatory cytokines in LPS activated macrophages (Qin et al., 2006; Wang et al., 2010). HN-02 is a mixture of AGP, 14-deoxy andrographolide, and 14-deoxy-11, 12 di-dehydroandrographolide. It enhances immunological activities either by modifying the immune responses during antigen reaction or by reversing the cyclophosphamide-induced immune suppression. It stimulates the response of macrophages and the action of lymphocytes in antibody synthesis and secretion. It improves immunity by activating intricate cellular pathways to increase the efficacy of antigen-clearance by phagocytes or by inducing the secretion of immune effector molecules (Naik and Hule, 2009).
It is a well-known fact that macrophages play a vital role in shaping tumor-mediated immune response (Shapouri-Moghaddam et al., 2018). Recent studies have shown the potential effect of this phytomedicine in modulating the innate arm of the immune system by affecting macrophage phenotypic polarization (Davoodvandi et al., 2019). MAPK and PI3K signaling cascades play a role in the AGP-mediated macrophage activation and their subsequent polarization. In neutrophils, this phytomedicine blocks ROS production. The administration of AGP up-regulates the expression of CD markers and the cytokine TNFα. These improve the cytotoxicity of the lymphocytes in the tumor microenvironment (Naik and Hule, 2009). AGP treatment at a dose of 1 uM for 48 h, resulted in an increased proliferation of human peripheral blood mononuclear cells (PBMCs), which up-regulate IL2 production and increased immune response against a wide range of cancers, including colorectal cancer (Varma et al., 2011). Combinatorial administration with other drugs resulted in an escalated function of NK cells and TNFα thereby, resulting in better prognosis in patients affected with late-stage cancers of different types (Mishra et al., 2015). Apart from this, AGP also prevents unnecessary T cell exhaustion (Iruretagoyena et al., 2005). Experiments on animal models elucidated the potent role of AGP in increasing the antibody-mediated cellular toxicity, mitogen-induced bone marrow cell proliferation, increased production of IL2, and anti-tumor cytokine IFNγ in both tumor-bearing as well as healthy animal models (Sheeja and Kuttan, 2007a).
Anticancer Properties of Andrographolide
The increased occurrence of cancer-associated death is a serious issue globally. The six hallmarks of cancer, i.e., proliferation, insensitivity to growth-inhibitory signals, anti-apoptosis, and induction of angiogenesis, invasion, and metastasis make cancer cell resistance against immunity. The tumor microenvironment plays a vital role in the development and progression of cancer (Hanahan and Weinberg, 2000). Phytochemicals play a significant role as anticancer agents and modulate cancer-causing pathways (Newman and Cragg, 2012). Several studies reported that AGP acts on the regulatory pathways involved in apoptosis, cell cycle, and cell adhesion process (Lai et al., 2013). Thus, AGP can be used as an anticancer agent for the treatment of cancers including CRC. AGP and its analogues can suppress the uncontrolled proliferation of cancer cell lines such as leukemia, breast, lung, and melanoma (Rajagopal et al., 2003; Kumar et al., 2004). It blocks the invasion of colon cancer cells to the distant organs (CT26 cell) (Chao et al., 2010). AGP inactivates the PI3K/AKT and ERK signaling pathways, inhibits the function of MMP2/MMP9, and suppresses the AP1 heterodimer complex. AGP inhibits cancer cell invasion and down-regulates the mRNA expression of MMP7 (Chao et al., 2010; Pratheeshkumar and Kuttan, 2011). Liu et al. reported that the molecular basis of AGP-mediated anticancer activity is associated with the inhibition of Hsp90 function and reduces the levels of Hsp90 client proteins (Liu et al., 2014). AGP and other derivatives suppress the function of the CYP1A superfamily gene, activate heterocyclic amine and carcinogenic amino acids (Jaruchotikamol et al., 2007). Although, mechanisms for the anticancer activities of AGP and its analogues may vary depending on the types of cancer cells in vitro and in vivo (Mishra et al., 2015) (Figure 3, created by BioRender and Canvas).

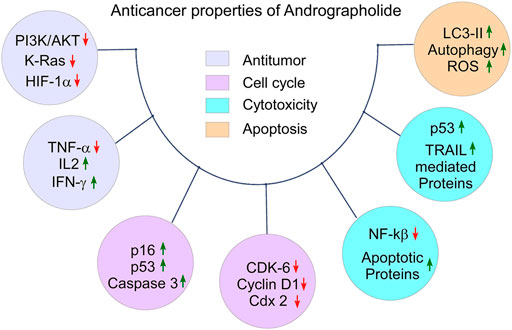

FIGURE 3. The anticancer properties of Andrographolide: Tumor suppressing property by down-regulating of tumor promoting molecules and up-regulating of anti-tumor molecules, cell cycle arrest by down-regulating of cell cycle promoting factors and up-regulating of cell cycle arresting factors in defected cells, cytotoxicity by promoting autophagy in the abnormal cell, and apoptotic property by down regulating anti-apoptotic proteins and up-regulating pro-apoptotic proteins.
Cytotoxicity
Cancer cell-specific cytotoxicity is vital for therapeutic purposes. AGP has a strong cytotoxic effect on malignant cells. AGP is cytotoxic to human hepatoma cell lines, HepG2 but has no negative effect on normal liver L-02 cells. It also exhibited cytotoxicity against human epidermoid leukemia (KB) and lymphocytic leukemia (P388) cell lines (Li et al., 2007). A study reported that AGP up regulates the autophagy markers in various cancer cell lines and induces autophagic cell death by disrupting mitochondrial membrane potential (Zhou et al., 2012). It is assumed that AGP accumulates LC3-II protein as well as autophagosomes and initiates the formation of GFP-LC3 (Chen et al., 2012). AGP and lipoic acid conjugate activate ROS-dependent DNA damage and performed cytotoxicity by inducing apoptosis in human leukemia K562 cells (Zhu et al., 2013). AGP can also act as an anti-proliferative agent. AGP can penetrate the blood-brain barrier. Therefore, in case of glioblastoma, it induces cell cycle arrest at the G2/M phase and down regulates cdk1 and cdc25 proteins. It causes cytotoxicity in glioblastoma cells by suppressing the function of the PI3/Akt signaling pathway (Li et al., 2012). It has been observed that the other AGP analogues are equally cytotoxic to malignant cells (Chen et al., 2013).
Apoptosis Induction
Programmed cell death or apoptosis is a molecular mechanism that activates a conserved intracellular pathway and is highly antagonist with cancer progression and metastasis. Cancer cells are characteristically apoptotic resistant (Kaufmann and Earnshaw, 2000). Several studies reported that AGP and its analogues successfully induce apoptosis in malignant cells. AGP activates the caspase3 and p53, prevents NFκB activity, and accordingly initiates apoptosis in human neuroblastoma cells (Sukumari-Ramesh et al., 2011). NFκB is a transcription factor that controls cell apoptosis and proliferation (Wu and Zhou, 2009). AGP-fluorouracil (5-FU) conjugate enhances apoptosis in the human hepatocellular carcinoma (HCC) cell line by activating Bax protein, caspase-3, 8, 9, and by increasing the secretion of cytochrome c (Yang et al., 2009). AGP stimulates p53-induced transcriptional up-regulation of DR4 by processing p53 phosphorylation. Subsequently, it activates the TRAIL-mediated apoptosis process (Zhou et al., 2008). IL6 expression is necessary for cell proliferation in prostate cancer, and AGP inhibits both mRNA and protein expression of IL6 that further induces apoptotic cell death (Chun et al., 2010). An analogues of AGP inhibits DNA topoisomerase IIα, which is a vital chemotherapeutic target for anticancer agents and thus induces apoptosis in cholangiocarcinoma (Nateewattana et al., 2013). Even though the pro-apoptotic function of AGP is proved in several cancer cell lines, yet the in-depth mechanism is still ambiguous.
Cell Cycle Arrest
The main bioactive compound of A. paniculata can obstruct the cell cycle process, and this interference makes it a trustworthy anticancer agent. AGP blocks tumor growth by arresting the cell cycle at the G2/M phase and initiates caspase-mediated apoptosis (Kumar et al., 2012). AGP decreases cell cycle-associated proteins, and increases the expression of cell cycle inhibitory proteins, p16, p21, p53, and thus exhibits an anti-proliferation effect in colorectal cancer cells. Shi et al. also reported that AGP treatment arrested the human colorectal carcinoma Lovo cells in the G1 phase by p27 induction and CDK4 suppression (Shi et al., 2008). Several AGP analogues, such as 3A.1 19-tert-butyldiphenylsilyl-8, 17-epoxy AGP exhibit caspase3 activation and down-regulation of CDK6, cyclin D1, and COX-2 proteins expression, which assist in cell cycle control (Nateewattana et al., 2014).
Antitumor
AGP and analogues are successfully established as an antineoplastic drug in cancer chemotherapy with minimum side-effect on non-malignant cells. The AGP nanoparticles are efficient as the chemotherapeutic agent that show anticancer property through cell cycle arrest and apoptosis induction in breast cancer cell line (Roy et al., 2012). In AGP-based treatment, down regulation of PI3K/AKT signaling pathway has been observed that accordingly reduce the expression of HIF-1α, a factor for tumor growth in non-small cell lung cancer (NSCLC) by the ubiquitin-dependent degradation (Lin et al., 2011). AGP exhibits a protective role against cyclophosphamide (CTX)-induced urothelial toxicity in Swiss albino mice. AGP suppresses the production of TNFα, which was up-regulated during CTX administration. Furthermore, AGP increases the levels of IL2 and IFNγ that were down-regulated by CTX treatment (Sheeja and Kuttan, 2006). AGP act as a ligand to inhibit GDP-GTP exchange by coupling to transient pockets of K-Ras; thus, it reduces the GTP loading of wild type K-Ras. It further reduces the signal transmission by oncogenic mutant K-Ras: G12V by binding to Ras protein (Hocker et al., 2013). This proved the antitumor potentiality against the function of oncogenic mutant Ras. Numerous studies have already proved that AGP and its analogues could be applied as effective anticancer agents (Kasemsuk et al., 2013). AGP application in combination with cisplatin or doxorubicin increases the cancer cell-specific cytotoxicity in neuroblastoma (Sukumari-Ramesh et al., 2011), which strengthen the role of AGP as an anticancer immune-modulator.
Mode of Action of Andrographolide in Cancer
Revolutionary discovery in the arena of proteomics, as well as genomics, enabled scientists to conceptualize numerous scientific breakthroughs involving the interrelated network of tumorigenic signal events. The deregulation of cell-signaling pathways, involving, both spatial extension as well as temporal duration facilitates the tumor cells to survive under “drug-pressure” as well as enabling them to undergo epithelial-to-mesenchymal transition (EMT), metastasis, and developing an aversion to apoptosis. A special highlight is made on the efficiency of this phytochemical in modulating JAK/STAT, NFκB, Wnt/β-Catenin, VEGF/VEGFR, and TRAIL and mTOR-driven signaling pathways (Figure 4, created by BioRender and Canvas).
FIGURE 4. Diagram representing the immunomodulatory role of Andrographolide on the signaling pathways, that cause cancer: Andrographolide inhibits the functioning of NFκB, thus hampers the downstream signaling pathway mediated via MMP9; blocks the VEGFR-mediated PI3K/Akt, ERK & JAK/STAT signaling, which stimulate tumor progression; down-regulates β-catenine (β-cat) and suppresses Wnt signaling pathway to block tumor progression. Blocking of these signaling pathways lead to the suppression of cell proliferation and angiogenesis process, which eventually can cause tumor regression.
JAK/STAT Pathway
The down-regulation of the JAK/STAT pathway is associated with cancer development. Phosphorylated STAT proteins transcriptionally up-regulate cancer-promoting genes (Haura et al., 2005). An optimum dose of AGP down-regulates IL6 at both mRNA and protein levels. It suppresses IL6-dependent autocrine loop- and paracrine loop-driven signaling by interfering with STAT3 phosphorylation (Chun et al., 2010). AGP blocks the phosphorylation of Tyr705 and Ser727 residues of STAT3 and, as well as inhibits tyrosine phosphorylation of JAK1 and JAK2 proteins (Zhou et al., 2010). Recently, STAT3 inhibitors OPB-31121 and 51602 receive clinical attention for Phase I/II clinical trials for cancer. But poor pharmacokinetic features and associated toxicities limit its usages. Hence, AGP can be used as a better replacement or an adjuvant with conventional chemical drugs as a STAT3 inhibitor (Farooqi et al., 2020).
NFκB-Mediated Signaling
The cellular events of apoptosis and hyperplasia are closely related to the development and progression of cancer. Various studies, in this context, have highlighted the role of the nuclear factor NF-κB in the management of cellular events involving programmed cell death (apoptosis), as well as hyperplasia. This nuclear transcription factor exists in a heterodimer or di-polymer form in different cell types. The activity of the transcription factor NFκB is closely related to the TLR (Toll-like receptor), a type-I transmembrane protein belonging to a 10-membered family of proteins. This receptor acts as a vital connecting knot between the innate and adaptive arms of the body’s immune system. It recognizes several endogenous ligands and the PAMPs (Pathogen Associated Molecular Patterns). They trigger the signaling cascade that results in the release of inflammatory mediators, thereby evoking an immune response. Previous research elucidated the role of TLR in pathogenesis as well as bio-immunotherapy. The transcription factor directly binds at the MMP-9 promoter, thereby resulting in the up-regulation of the matrix metalloproteinase. In colorectal cancer, AGP abrogates TLR4/NFκB/MMP-9 signaling pathway (Zhang et al., 2017; Farooqi et al., 2020).
Wnt/β-Catenin Pathway
The Wnt/β-catenin signaling pathway is another signaling cascade playing a vital role in human colorectal cancer (CRC) progression. Therefore, it is a powerfully potent target for CRC treatment (Koveitypour et al., 2019). 19-O-triphenylmethyl AGP (RS-PP-050), an AGP analogue plays the character of the protagonist in CRC treatment by regulating the Wnt/β-catenin signaling machinery. This analogue suppresses the activity of T-cell factor/lymphocyte enhancer factor (TCF/LEF), thereby resulting in down-regulation of β-catenin expression. It also plays a contributing role in the down-regulation of the endogenous expression of Wnt target genes. Apart from this, the AGP analogues successfully decreases the expression of the active form of β-catenin at the translational level and has the unique ability to function independently of GSK3β, a negative regulator of Wnt. Interestingly, the analogues can abrogate the nuclear translocation of β-catenin by blocking the Ser675 phosphorylation, thereby causing Wnt inactivation and subsequent cancer regression (Reabroi et al., 2018a).
VEGF-VEGFR2 Signaling
Another signaling pathway contributing to tumor progression is the VEGF-VEGFR2 signaling cascade. Numerous preclinical, and clinical researches, have confirmed the presence of this factor (VEGF) at a high level in many solid tumors, including colon cancer. VEGF plays an essential role in stimulating the endothelial cells for angiogenesis, thereby resulting in cancer progression. In colon cancer, overexpression of this factor has been linked to poor prognosis and metastasis of tumor. AGP effectively binds to the ATP-binding pocket of the VEGFR2, thereby inhibiting its kinase activity. Additionally, 15-Benzylidene substituted derivatives (ADN-9) of AGP successfully, regress the growth and metastasis of tumors. AGP mainly inhibits the VEGF-mediated phosphorylation of the receptor (VEGFR) by inhibition of the mitogen-activated protein kinases (MAPKs) (Yang et al., 2017).
TRAIL-Mediated Signaling
TRAIL is a highly efficient molecule involved in the targeted elimination of malignant cells by inducing DR4/5-mediated intracellular signaling (von Karstedt et al., 2017). AGP up-regulates TRAIL-mediated cleavage of FLIP-L protein and down-regulates XIAP levels that further help in the apoptosis process. AGP also up-regulates the expression of DR4 protein in wild-type p53 expressing cancer cells. ROS generation triggers the activation of JNK-mediated signaling, and that eventually phosphorylated p53 at 81st threonine position. This occurrence is necessary for the functional stabilization of p53 protein. AGP promotes ROS generation and subsequently stabilizes p53 (Zhou et al., 2008). Although AGP-induced TRAIL functioning significantly regresses tumor progression in several in vivo cancer models (Deng et al., 2019), a detailed investigation is still required to certify the immune-modulatory role of AGP on the apoptosis process.
mTOR Signaling Pathway
AGP exerts anticancer properties by inducing autophagic cell death. It inhibits the stimulation of AKT and mTOR in several cancer cells (Liu et al., 2017) and reduces the phosphorylation of mTOR at the Ser2481 position. AGP down-regulates the protein level of RAPTOR and RICTOR, members of mTORC1 and mTORC2, respectively, (Kumar et al., 2015). It helps to prevent tumor development in mice by inhibiting NLRP3-mediated inflammation in colitis and colitis-associated cancer (Guo et al., 2014).
Role of Andrographolide in Increasing the Efficacy of Conventional Chemotherapy for CRC
In this section, we reviewed the research findings related to the effect of AGP in colorectal cancer. Recently, the application of phytomedicines to conventional chemotherapeutic drugs has become a clinical interest. The main two reasons are their immunomodulatory effects and fewer adverse side effects (Ranjan et al., 2019). AGP has great potentiality as an anticancer phytomedicine and has been applied to treat cancer (Rajagopal et al., 2003). The anticancer properties of AGP and its functioning mechanisms have been discussed already in the previous sections. These imply that it can counter-attack the causes of CRC to a great extent. AGP, as an adjuvant with chemotherapeutic drugs, increases the therapeutic efficacy against CRC. Activation of c-MET induced signaling cascade leads to uncontrolled cell growth, proliferation, metastasis, and angiogenesis. Su et al. showed AGP enhanced 5-Fluro Uracil (5-FU)- induced anti-tumor effect in human colon cancer cell line HCT-116 by inhibiting c-MET pathway (Su et al., 2017). AGP has the potentiality to reverse the 5-FU resistance (5-FUR) in CRC by up-regulating BAX expression (Wang et al., 2016). Another research revealed high cytotoxicity when AGP co-administered with chemotherapeutic agent cisplatin in CRC. Recent researches have highlighted the efficiency of this phytomedicine in mediating both the extrinsic and intrinsic apoptotic pathways in the CRC LoVo cell line. The combinatorial therapy involving the administration of CDDP chemotherapy along with AGP increases the apoptotic rate of cancer cells which could be demonstrated by checking the changes in the transcriptional as well as translational levels of Bax and Bcl2 (Lin et al., 2014). Banerjee et al. supported this statement by their reported work that AGP stimulates ER stress and apoptosis in colon cancer cell lines (T84, HCT116, and COLO 205), that control the unwanted growth of carcinoma (Banerjee et al., 2016). A very interesting work has been done by Sharda et al. They analyzed the effect of AGP and melatonin combinatorial drug on metastatic colon cancer cell lines (T84, Colo 205, HT-29, and DLD-1) and on a metastatic patient-derived organoid model (PDOD). The result implied that this therapy induces ER stress-mediated apoptosis in metastatic CRC cell death by stimulating the IRE-1/XBP-1/CHOP signaling pathway (Sharda et al., 2021). Zhang et al. reported the anti-proliferation role of AGP on the colon cancer SW620 cell line. AGP inhibits TLR4, MyD88, NF-κB-p65, and MMP-9 signaling pathways and can be used as a promising drug to treat CRC (Zhang et al., 2017). Li et al. also reported the inhibitory role of AGP on PI3K-AKT-mTOR signaling pathway (Li et al., 2020). Henhena et al. reported that due to the antioxidant property of AGP, it down-regulated the expression and functioning of the marker genes for CRC development. AGP exhibited its efficacy as a genetic and epigenetic modulator. They also reported the chemo-preventive effect of AGP on the CRC against the carcinogen azoxymethane (Al-Henhena et al., 2014).
An analogue of AGP, 19-O-triphenylmethyl AGP (RS-PP-050) is a potent drug for CRC. Its activity has been observed on the Wnt/β-catenin pathway. RS-PP-050 inhibited the proliferation and survival of HT-29 CRC cells. It also induces cell cycle arrest and initiates apoptotic cell death, associated with the stimulation of PARP-1 and p53. Moreover, it has inhibitory effects on β-catenin transcription by down-regulating T-cell factor or lymphocyte enhancer factor (TCF/LEF) activity in cells. This analogues reduced the protein expression of the active form of β-catenin. Surprisingly, it dephosphorylates at Ser675 of β-catenin which links to the intervention of the nuclear translocation of β-catenin and contributes to Wnt inactivation (Reabroi et al., 2018b).
So, it is cleared that AGP can control the uncontrolled growth of colorectal polyp into carcinoma and can treat CRC by modulating the causes of CRC. Even after such promising outcomes of AGP applications on CRC cell lines, to the best of our knowledge, no significant animal model study has been done yet. The clinical trial of AGP is highly encouraging, but before that, it still requires more in-depth research (Table 1).

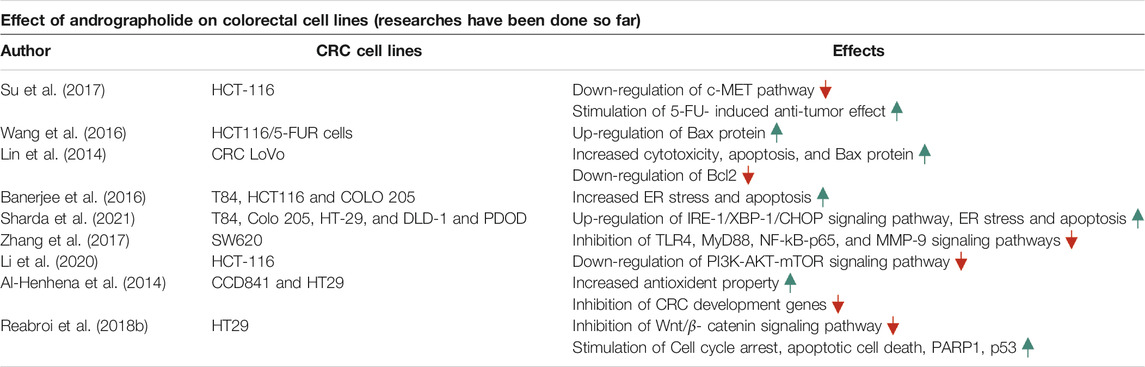

TABLE 1. Summery of the recent researches that have been done to inspect the role of Andrographolide on CRC cell lines.
Bioavailibity and the Methods of Application: The Drawbacks and Solutions
Alike other phytochemicals, AGP also has low aqueous solubility and poor bioavailability after oral administration. It has better solubility in the solvents, such as acetone, methanol, chloroform, and ether (Sareer et al., 2014). After oral administration of AGP, i.e., 200 mg/day, the highest concentration that was measured in human plasma was 58.62 ng/ml at 1.6 h. AGP has a half-life of 10.50 h in humans (Xu et al., 2009). For this reason, the therapeutic use of AGP is somehow restricted. It urges a necessity to develop alternative methods of application for better therapeutic results and better bioavailability. The optimum absorption of the substance is mainly depended on the properties of the solvent. These nanostructure pharmaceutical formulations containing the phytomedicine as compound delivery systems therapeutically enhance the performance of the biochemical drugs, and the functioning depends on the absorption property of the solvent (Butnariu et al., 2020). Hence, AGP has been formulated as micro- or nanoparticles for therapeutic purposes. The microparticles include polylactic-glycolic acid, alginic acid, and glucan derivatives, whereas nanoparticles include vesicles, polymeric nanoparticles, solid lipid nanoparticles, gold nanoparticles, nanocrystals, microemulsions, and nano-emulsions, and nanosuspensions (Casamonti et al., 2019). The bioavailability of AGP has been increased by 241% by the nanoparticle’s formulation than the only suspension. These formulations help to overcome the aqueous insolubility of AGP (Yang et al., 2013).
Polymeric nanoparticles (PNPs): PNPs are the most common drug delivery formulation. It delivers drugs by nanospheres and nanocapsules. Synthetic and natural, both types of polymers are used to prepare PNPs. Some polymers are biodegradable in nature, and some are non-biodegradable (Bilia et al., 2017). Polymeric micelles (PM): AGP is coated in a PM formulation depending on an amphiphilic triblock copolymer of D, L-lactic acid, glycolic acid, and ethylene glycol (Zhang et al., 2014). Vesicles: Vesicles are bi-layered colloidal vectors that can carry both hydrophilic and hydrophobic compounds. Liposomes are vesicles that have been used to load AGP to the tumor site (Bilia et al., 2016). Solid lipid nanoparticles (SLNs): SLNs are spherical lipid nanoparticles of diameter 10–1,000 nm, and they can disperse in water or aqueous solution. AGP entrapped into SLNs (diameter 286.1 nm) enhanced its bioavailability and its efficacy at the tumor site (Parveen et al., 2014). Nanoemulsions (NEs) and microemulsions (MEs): Both NEs and MEs are characterized by high aqueous solubility and AGP delivery via these enhance its bioavailability (McClements, 2012). Mesoporous nanoparticles (MNPs): MNPs are a dense framework with porous structure and large surface area that allows the attachment of different functional group for targeted the drug delivery to a particular site. Gold nanoparticles (GNPs): GNPs are the most advanced nanoparticles develop for biomedical usages. The targeted delivery of AGP with GNPs is promising to enhance tumor-specific cytotoxicity (Das et al., 2018). Nanocrystals and nanosuspensions: These two are designed for fast-dissolving and better dissolution of AGP (Ma et al., 2018).
All these above-mentioned nanoformulations can be administrated by all methods, can control the rate and degree of drug absorption, enhance aqueous solubility, increase bioavailability, drug stability, and can be effective to overcome multidrug resistance in tumor cells (Figure 5, created by BioRender and Canvas).

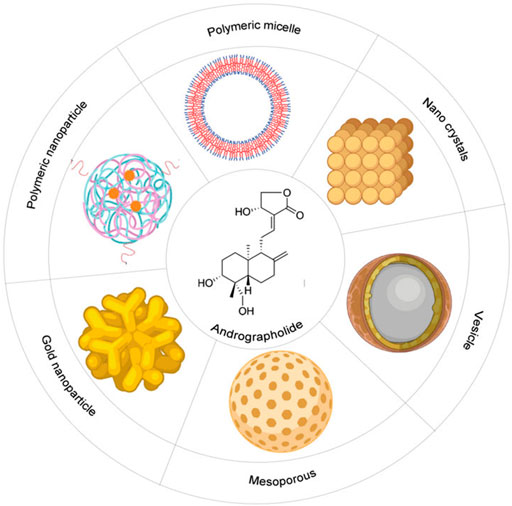

FIGURE 5. Schematic diagram of different types of nano-formulations to increase the bioavailability of the Andrographolide: It includes polymeric micelle, nano-crystals, vesicles, mesoporous, gold-nanoparticles, polymeric nanoparticles.
Conclusion
AGP, a widely used phytomedicine of many South-Asian countries has attracted the limelight due to its potent anti-cancer attributes. Numerous studies performed by different groups of scientists confirmed the potent, and effective neoplastic as well as immunomodulatory properties of this phytochemical.
It is now a well-corroborated certitude that an integrated and interlinked approach is essential for cancer management and its successful eradication. Thus, a compound or a multitude of compounds that can potently affect numerous tumorigenesis-related biochemical pathways globally have been of interest to cancer biologists. AGP, as an organic compound, fights against all tumor-promoting signaling molecules and pathways. To date, the performance of AGP on CRC cell lines is very satisfactory. However, most researches are still left before exhibiting it as a forthcoming chemotherapeutic agent. For instance, the precise line of action and the signaling pathways affected by this compound should be thoroughly studied. Besides, the efficacy of this compound in in-vivo models especially, in higher-order animals and humans should be tested so that it can be used more readily for clinical trials. Numerous naturally derived agents have entered the clinical trials and subsequently faced termination owing to the lack of efficacy, mostly due to enormous toxicity imparted by them. The screening of the compound by performing in vitro bioassays on several CRC cell lines has led to its selection that can be headed to pre-clinical and clinical studies.
On that basis, AGP and its semi-synthetic derivatives are interesting prospects, which can also provide a lead for novel anti-cancer drug synthesis. Taken together, this compound and its derivatives can emerge as a promising candidate to be the next new class of chemotherapeutic agents against colorectal cancer.
Author Contributions
SiP and DR undertook the background literature study and prepared the initial draft of the manuscript; SuP prepared the figures; GS supervised the entire manuscript and made final corrections to the draft.
Funding
This work was supported by research grants Department of Biotechnology, Department of Science and Technology, Government of India. GS is National Academy of Science (India) Platinum Jubilee Senior Scientist.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
