Peng Li1†Shuang Hu2,3†Cheng Qian4†Yan Yao2,3†Liang-yun Li2,3Jun-fa Yang2,3Li Yang2,3Chen-chen Yang2,3Hong Zhou2,3Shu-xian Wang2,3Ying Hu2,3Xing-yu Zhu5Jing Zhou2,3Lin-xin Pan6Chuan-pu Shen2,3*
Huan Zhou5*- 1The First Affiliated Hospital of Medical University of Anhui, Hefei, China
- 2School of Pharmacy, Anhui Key Laboratory of Bioactivity of Natural Products, Anhui Medical University, Hefei, China
- 3Institute for Liver Diseases of Anhui Medical University, Anhui Medical University, Hefei, China
- 4Center for Scientific Research, Anhui Medical University, Hefei, China
- 5National Drug Clinical Trial Institution, The First Affiliated Hospital of Bengbu Medical College, Hefei, China
- 6School of Life Sciences, Anhui Medical University, Hefei, China
Inflammasomes are large multimolecular complexes best recognized because of their ability to control activation of caspase-1, which in turn regulates the maturation of interleukin-18 (IL-18) and interleukin-1 β (IL-1β). IL-1β was originally identified as a pro-inflammatory cytokine, capable of inducing local and systemic inflammation as well as a fever response reaction in response to infection or injury. Excessive production of IL-1β is related to inflammatory and autoimmune diseases. Both coronavirus disease 2019 (COVID-19) and severe acute respiratory syndrome (SARS) are characterized by excessive inflammatory response. For SARS, there is no correlation between viral load and worsening symptoms. However, there is no specific medicine which is available to treat the disease. As an important part of medical practice, TCM showed an obvious therapeutic effect in SARS-CoV-infected patients. In this article, we summarize the current applications of TCM in the treatment of COVID-19 patients. Herein, we also offer an insight into the underlying mechanisms of the therapeutic effects of TCM, as well as introduce new naturally occurring compounds with anti-coronavirus activity, in order to provide a new and potential drug development strategy for the treatment of COVID-19.
Introduction
Viruses cause a wide range of human diseases, ranging from acute self-healing conditions to acute fatal diseases. Effects that appear long after the primary infection may also increase the incidence of chronic diseases or lead to the development of cancer [25366544. Coronaviruses belong to the subfamily Orthocoronavirinae of the coronavirus family (Nidovirales) and mainly cause respiratory and gastrointestinal infections (Xie and Chen, 2020), such as HCoV-OC43, HCoV-NL63, HCoV-229E, HCoV-HKU1, severe acute respiratory syndrome coronavirus (SARS-CoV), Middle East respiratory syndrome coronavirus (MERS-CoV), and the new 2019 coronavirus (SARS-CoV-2/2019-nCoV) (Figure 1) (Xu et al., 2020). Coronaviruses are spherical or other shaped particles of about 100 nm. The genome length is about 30 kb, which is the largest among the known RNA virus genomes. There are different corona-like spikes on the outer envelope of these viruses, similar in shape to a crown. Therefore, these are known as coronaviruses. SARS-CoV-2 is a β-coronavirus. It is a non-segmented single positive-stranded RNA virus. According to the genome structure, the homology between the SARS-CoV-2 and SARS genome is about 79.5%, which is a precise and rapid gene. Mutation detection can provide an important basis for the screening of antiviral drugs. Structurally, according to genome sequencing, 2019-nCoV is approximately 89% identical to bat SARS-like-CoVZXC21, approximately 82% identical to human SARS-CoV, and approximately 50% identical to MERS-CoV (Dong et al., 2020; Wang et al., 2020c). Coronavirus particles mainly contain four structural proteins, namely the larger spike protein (spike, S), the most abundant viral envelope protein (membrane, M), small envelope protein (envelope, E), and phosphorylated nucleoprotein (nucleocapsid, N), in which the trimeric S glycoprotein mediates the connection between the virus and the host receptor. In addition, the S protein also plays an important role in the host tropism and virulence of the virus, so the S protein becomes the most researched target for related vaccines. As of April 5, 2020, the pandemic has accumulatively caused 1,189,773 confirmed cases and 65,428 deaths globally. The World Health Organization (WHO) is deeply concerned about the unprecedented swift global spread and severity of the epidemic in the world (Xie and Chen, 2020). Hence, WHO declared that COVID-19 can be characterized as a pandemic.

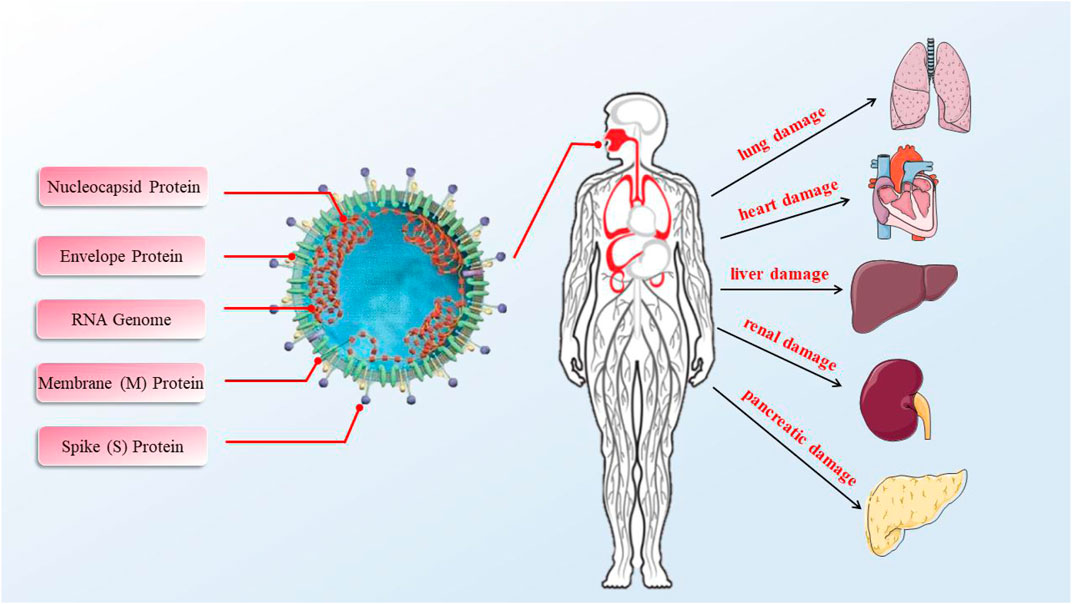

FIGURE 1. The virus structure of SARS-CoV-2 and its organ damage. It was found that in the 52 COVID-19 patients, the incidence of heart injury was 33% (abnormal LDH or creatine kinase), liver injury was 29% (any abnormality in AST, ALT, GGT, or ALP), pancreatic injury was 17%, renal injury was 8% (abnormal creatinine), and diarrhea was 2%.
Traditional Chinese medicine (TCM) has been established for thousands of years in China’s medical system (Chen et al., 2020b). It has the characteristics of overall vision, syndrome differentiation, and treatment, and has unique advantages in the prevention, treatment, rehabilitation, and health care of various diseases (Liang et al., 2020). At the same time, TCM plays a vital role in enhancing the function of the main active components and reducing their toxicity through cooperative mechanisms (Hu et al., 2019). In addition, more and more evidence has showed that TCM and its effective components can treat many diseases through a variety of targets (Long et al., 2020), such as pulmonary disease (Zeng et al., 2020), liver diseases (Balkrishna et al., 2020), heart diseases (Chuang et al., 2020), renal diseases (Zhang et al., 2020a), and so on. Meanwhile, the application of TCM in COVID-19 was largely inspired by the treatment of SARS, which was caused by an outbreak of SARS-CoV in Guangdong Province, China. The disease spread rapidly in 2003, and the cumulative number exceeded 8,000 globally (Watkins et al., 1993; Peiris et al., 2004). Of note, TCM also played a significant and credible role in the study of COVID-19 prevention and treatment. Generally speaking, the development of COVID-19 can be divided into three stages: mild, severe/critically severe, and convalescent, forming a complete chain. The team of Xiaolin Tong found that the treatment of COVID-19 with TCM did not aggravate the condition of mild patients, the mortality rate of severe/critically severe patients was reduced by more than 80%, and the rate of symptom improvement in rehabilitation patients was also low (Chen et al., 2020a; Song et al., 2020). Thus, this evidence revealed the safety and effectiveness of TCM in the treatment of COVID-19 patients. In this review, we analyzed data associated with exploring the effectiveness and possible mechanism of action of TCM formulas to prevent and treat COVID-19.
Overview of Virus-Induced Inflammatory Disease—Focus on COVID-19
In the process of coronavirus infection, inflammatory cytokines have a dual role: on the one hand, they can effectively stimulate the activation of the immune response and enable the body to actively fight foreign viruses; on the other hand, they can mediate and amplify the development of systemic inflammation. It leads to an imbalance of immune function and cytokine storm, but this reaction is not only ineffective to pathogens, but also harmful to the body, and eventually leads to acute respiratory distress syndrome (ARDS), and may lead to the death of patients.
When pattern recognition receptors [PRRs; for example, toll-like receptors (TLRs) and RIG-I-like receptors (RLRs)] are expressed on immune and non-immune cell types resident in tissues, invasive pathogens induce acute inflammation [32156572. PRR connection triggers innate immune response, induces inflammation and antiviral gene expression, limits pathogen growth, activates adaptive immune response, and finally solves infection [26035247. Essentially, the ideal inflammatory response must show a balance, that is, once the threat is controlled, it can be appropriately activated against actual threats and self-limiting behaviors (Chen et al., 2020a). Although it has important significance in maintaining homeostasis in normal tissues and limiting pathogen-related diseases, little is known about the regulatory mechanism of this balance.
The coronavirus family consists of several zoonotic viruses that cause several serious human diseases, including MERS and SARS. At the end of 2019, a novel coronavirus outbreak caused by SARS-CoV-2, resulted in a human disease which was designated by the WHO as COVID-19 (Hanley et al., 2020). Up to now, more than two million people around the world have tested positive for COVID-19, of which more than 200,000 have died of the virus. It is estimated that 15% of patients who were diagnosed with COVID-19 will have serious health complications, while due to the severity of symptoms and high risk of death, about 5–10% of patients need intensive care (3–5%) (Esteves et al., 2020; Gupta et al., 2020). Generally speaking, typical symptoms of COVID-19 include dry cough, dyspnea, fever, fatigue, myalgia, and pneumonia. In most severe cases, complications can occur, such as acute respiratory distress syndrome, which eventually leads to death (Burgueño et al., 2020). SARS-CoV-2 can cause COVID-19 to enter human cells through binding the spike protein and membrane to the aminopeptidase angiotensin-converting enzyme 2 (ACE2) (Kessler and Schunkert, 2020). Meanwhile, more and more evidence shows that inflammatory responses play a vital role in the process of COVID-19. The rapid viral replication and cell destruction of SARS-CoV-2 can recruit monocytes and macrophages, and induce the release of chemokines and cytokines. The SARS-CoV-2 virus and the SARS-CoV-1 coronavirus share many characteristics in common, the latter of which caused a pandemic in 2002–2003 (Sriram and Insel, 2020). Common features include about 80% of the common sequence identity in the virus genome, the infected tissue range, the mortality rate of ARDS, and its cell receptor ACE2 (Zhou et al., 2020a; Zhou et al., 2020b). Meanwhile, this mechanism subsequently leads to a massive influx of neutrophils and monocytes/macrophages, leading to the massive production of pro-inflammatory cytokines, which can destroy lung tissue (i.e., acute respiratory distress syndrome, pneumonia). Specific Th1/Th17 cells may be activated and cause increased inflammation [32417709]. On account of their structural similarity, information associated to SARS-CoV-1 helps to establish hypotheses for the treatment of SARS-CoV-2, which including the re-approval of pharmacology for use in humans. Given the remarkable success of TCM in preventing SARS-CoV-1, TCM may become a key measure to prevent and treat COVID-19 (Figure 2).

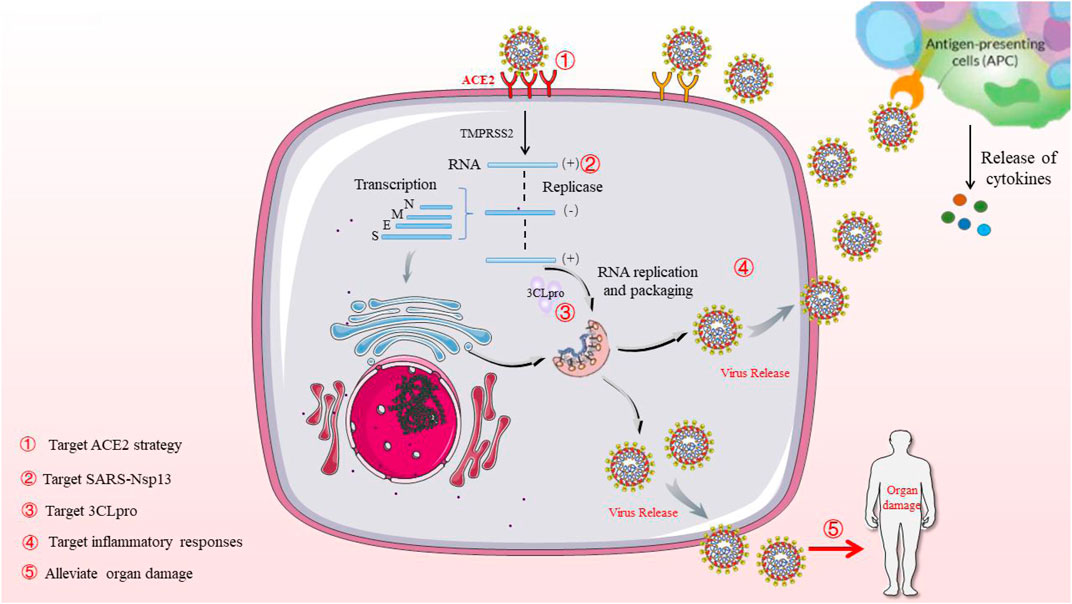

FIGURE 2. Possible life cycle of SARS-CoV-2 and potential intervention strategy.
Conventional Treatment of TCM in SARS-CoV Patients
Coronavirus (CoV) belongs to an enveloped positive strand RNA virus in the coronaviridae family (Di Mascio et al., 2020). In the past two decades, CoV has caused two pandemics: SARS infected 8,098 people, with a mortality rate of about 10.5%. MERS infected 2,519 laboratory confirmed cases, with a mortality rate of 34.4% (Gordon et al., 2020). At present, the treatment of SARS and MERS in modern medical clinics includes oxygen inhalation, serotherapy, and antiviral and anti-inflammatory treatment. However, coronavirus-specific antiviral drugs have not yet entered clinical trials, and there are some obvious side effects. At this point, the focus is on compounds with broad antiviral activity and medicine developed for other therapeutic purposes, which also have anti-coronavirus effects.
Related TCM research shows that pulmonary interstitial lesions can be treated according to the principle of removing blood stasis and promoting blood circulation, and can be treated with ligustrazine injection, angelica, and other drugs (Xiao et al., 2003). During the outbreak of SARS in 2003, the State Administration of TCM and the Ministry of Health of the Republic of China announced six prescriptions of TCM to prevent SARS infection. It is worth mentioning that yiyiren, jiegeng, huangqi, baijiang, and gancao played an important role and acquired prominent effects at that time [16437747. On the other hand, Wen et al. confirmed that six phytoextracts from ciwujia, longdan, shuyu, juemingzi, and sangjisheng could confer effective anti-SARS-CoV activity by inhibiting SARS-CoV replication. Two compounds from gouji (designated as CBE and CBM) also inhibited the 3-Chymotrypsin-like protease (3CLpro) of SARS-CoV (Carroll and Fischer, 1997; Wen et al., 2011).
On the other hand, the clinical benefits of TCM seem to be supported by laboratory research to prevent COVID-19. Xi et al. found that in the recovery stage, banxia, and chenpi were only identified in the list of commonly used herbs, in which patients may have white and thin sputum after recovery. Banxia and chenpi are the main ingredients of the herbal formula Erchen decoction, which is usually used to remove phlegm dampness (Xi and Gong, 2017). Of note, glycyrrhizin, the most effective active component of TCM, effectively inhibits the replication of SARS virus clinical isolates, according to a compelling study published in the Lancet (Cinatl et al., 2003). It serves as one of the antiviral herbal treatments approved by the China Food and Drug Administration (SFDA). Many studies have found that these herbal remedies could inhibit the attachment, entry, and replication of viruses that have previously been used against COVID-19 (Chen et al., 2004; Ang et al., 2020) (Figure 3).

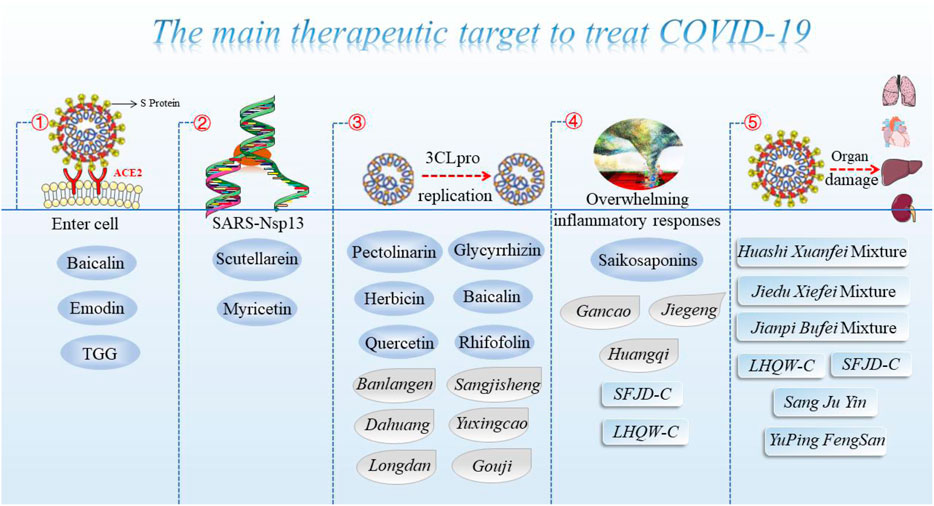

FIGURE 3. The main therapeutic target to treat COVID-19 (target ACE2 strategy, SARS-Nsp13, 3CLpro, inflammatory responses, and organ damage).
The Anti-Novel Coronaviral Compound From TCM—Anti-Inflammatory Responses
Natural products derived from TCM are still a rich source of new therapies to treat various diseases. Scientists have made great efforts to identify herbal formulations of various ingredients in TCM with anti-SARS-CoV activity. Simultaneously, although the mechanism of action has not been elucidated, various TCM anti-coronavirus preparations have been identified from TCM. Moreover, Luo et al. studied a total of 26 COVID-19 treatment protocols issued in Chinese provinces and cities and 8 core compatibility and 10 new prescriptions to prevent and treat COVID-19 were identified and proposed. Among them, the most commonly used TCM are gancao, huangqin, kuxingren, jinyinhua, lianqiao, and other antipyretic, cough, and phlegm, as well as dehumidification herbs. Most of these TCM have anti-inflammatory, anti-viral, immune regulation, anti-tumor, anti-pyretic and anti-spasmodic, and anti-asthmatic effects (Fan et al., 2020). In the following, we summarized some compounds extracted from TCM that have a certain prevention effect on COVID-19, in order to meet the challenge of conventional treatment of TCM in SARS-CoV patients followed by corresponding potential solutions.
Single Active Component From TCM–Single Targets Therapy
Flavonoids
Baicalin is the biologically active form of huangqin, and the major bioactive ingredient of which is flavonoid (Zhao et al., 2020). Su et al. found that the main components of huangqini are baicalin and baicalein, and they are novel inhibitors of the COVID-19 3CL protease, which can effectively inhibit the replication of COVID-19 at the cellular level. Moreover, combined with cytotoxicity and viral replication inhibitory activity, baicalein’s cellular antiviral effect of flavonoids is better than most reported compounds. Baicalin tablets have been used as adjuvant treatment for acute, chronic, or persistent hepatitis in China, and baicalein has completed the first phase of clinical trials, and is currently in the second phase of clinical trials against influenza-related symptoms; one decoction was used to treat a new coronavirus infection. The patient’s Chinese medicine or Chinese patent medicine (such as Qingfei Paidu decoction and Shuanghuanglian oral liquid) also contained huangqin (Islam et al., 2020). Of note, ACE2 is the receptor of coronavirus SARS-CoV-2, TCM with the ability of targeting ACE2 is expected to prevent the infection of SARS-CoV-2 [32333601. Deng et al. found that the interaction of the SARS-CoV S protein and ACE2 could be markedly inhibited by baicalin (Deng et al., 2012). But the anti-SARS-CoV activity of these compounds remains to be evaluated.
Quercetin is a plant-derived flavonoid abundant in gegen. Related research exhibited that quercetin could inhibit the proliferation and metastasis of some lung diseases (da Silva Araújo et al., 2020; Dong et al., 2020). Epigallocatechin gallate and gallocatechin gallate (GCG), have various biological activities, for instance anti-obesity, anti-bacterial, anti-cancer, anti-oxidative, and cholesterol and triacylglycerol-lowering activity (Wu et al., 2019). Of note, 3-Chymotrypsin-like protease (3CLpro) is of critical importance in virus replication, so it is often a medicine target for the development and treatment of COVID-19 (Zhang et al., 2020b). The results revealed that the purified 3CLpro was used for the inhibition and kinetic analysis of seven kinds of flavonoids, and quercetin displayed a fine inhibitory effect on 3CLpro with an IC50 value of 73 μM (Nguyen et al., 2012). What is more, GCG was the best inhibitor of 3CLpro in vitro. The relationship between the structure and inhibitory activity of the seven flavonoids was also studied. GCG revealed many hydrophobic and H-bond interactions of amino acid residues in the active site pocket of 3CLpro (Nguyen et al., 2012).
Herbacetin was extracted from jinjingcao (Li et al., 2019). Like other flavonoids, oxalin and its derivatives have nonspecific effects on membrane structure and enzyme activities associated with the occurrence and development of cancer (Péter Zomborszki et al., 2019). Rhoifolin is one of the main flavonoids derived from chenpi, which has antioxidant and antihypertensive effects (Liao et al., 2019). Pectolinarin, a major flavonoid, was identified as an active compound in daji (Wang et al., 2019). Interestingly, Jo et al. established a flavonoid library and systematically studied the inhibitory compounds of SARS-CoV 3CLpro by the FRET method. Results showed that herbicin, rhifofolin, and pectolinarin were the best choices. The combination of the flavonoids was independently proven by a fluorescence method based on tryptophan. In addition, it is expected that the presence of the additional 8-hydroxyl group of gloxopterin will achieve high binding affinity near the S1 and S2 sites. It is predicted that the carbohydrate groups of pectolinarin and rhoifolin occupy S1 and S2 sites, which is another way that glycosylated flavonoids have a high affinity for SARS-CoV 3CLpro (Jo et al., 2020). This study indicated that the combination of biochemical analysis and docking prediction may help develop better inhibitory flavonoid derivatives from various flavonoid scaffolds.
Myricetin is a natural flavonoid rich in zhongyao. It can exert anti-inflammatory, anti-oxidant, and anti-cancer effects (Kang et al., 2020). Scutellarein is a flavone present in huangqin which can exert a higher bioavailability compared with scutellarin (Li et al., 2020c). Helicase protein is also served as a potential target for the development of anti-HCoV (human coronavirus) preparations. Helicase SARS-CoV Nsp13 (SARS-Nsp13) plays a critical role in catalyzing the melting of double-stranded oligonucleotides into single-strands in an NTP-dependent manner. Importantly, SARS-Nsp13 has been identified as an ideal target for the development of anti-viral drugs because of its sequence conservation and indispensability in all CoV species (Jia et al., 2019). Yu et al. suggested that myricetin and scutellarein can effectively inhibit the SARS-CoV helicase protein in vitro via affecting the ATPase activity instead of relaxing nsP13 activity. Additionally, myricetin and scutellarein show good safety for the lungs because they have no cytotoxic activity against normal breast epithelial MCF10A cells (Yu et al., 2012). Thus, this study demonstrates for the first time that selected naturally occurring flavonoids, including myricetin and scultellarein may be chemical inhibitors of SARS-CoV.
On the other hand, MERS-CoV is a zoonotic virus that spreads between humans and animals. It leads to high mortality from MERS. Jo et al. used the flavonoid library to detect inhibitory compounds against MERS-CoV 3CLpro. As a result, it has been found that isobavachalcone, helichrysetin, herbacetin, and helichrysetin block the enzymatic activity of MERS‐CoV 3CLpro, and these activities have also been independently confirmed by a fluorescence method based on tryptophan. Furthermore, the induced‐fit docking analysis showed that S1 and S2 sites play a role in the interaction with flavonoids. The experimental and computational studies have shown that flavonol and chalcone are ideal scaffolds for binding to the catalytic site of MERS-CoV 3CLpro. We also infer that certain flavonoid derivatives with hydrophobic or carbohydrate moieties possess good inhibitory effects (Jo et al., 2019). Therefore, flavonoids with these properties can be used as templates for the development of effective MERS-CoV 3CLpro inhibitors.
Terpenoids
Ginsenoside-Rb1 is the major active ingredient from renshen, which has been demonstrated to cause a wide range of biological activities, possibly through anti-stress, anti-oxidative, anti-inflammatory, anti-apoptosis, and anti-depressive effects in vivo and in vitro (Shi et al., 2020). Wu et al. conducted a large-scale screening of existing drugs, natural products, and synthetic compounds (>10,000 compounds) to identify effective anti-SARS-CoV drugs by a cell-based assay of SARS virus and Vero E6 cells. They revealed that ginsenoside-Rb1 could inhibit SARS-CoV replication at non-toxic concentrations (Wu et al., 2004). Saikosaponins was the major triterpenoid saponins derived from chaihu with valuable pharmacological activities. These active components have several immunomodulatory functions, including anti-inflammatory, anti-bacterial, antiviral, and anticancer effects (Sinha et al., 2020). Cheng et al. found that saikosaponins had an effective which can inhibit the viral cellular entry, adsorption, and penetration (Wu et al., 2004).
Glycosides
Tetra-O-galloyl-β-D-glucose (TGG) from wubeizi, is composed of six galloyl moieties in the glucose core, which strongly inhibits pancreatic lipase activity and adipocyte differentiation in 3T3-L1 cells (Ihn et al., 2019). Yi et al. identified the anti-SARS-CoV activities of TGG, which were confirmed through using a wild-type SARS-CoV infection system. TGG showed significant anti-SARS-CoV activity, the effective concentration was 50%, the concentration was 4.5 μM, and the selective index was 240.0. Additionally, TGG could inhibit the interaction of the SARS-CoV S protein and ACE2 (Yi et al., 2004). Therefore, TGG was potentially useful for the drugs inhibiting SARS.
Anthraquinone
Emodin, from the genus dahuang, is the main active ingredient of rhubarb. It is an anthraquinone, which displayed various biological effects, such as antibacterial, anti-inflammatory, and anti-viral activities (Li et al., 2020b). Ho et al. found that emodin significantly blocked the interaction between the S protein and ACE2 in a dose-dependent manner. It also inhibited the infectivity of S protein-pseudotyped retrovirus to Vero E6 cells (Ho et al., 2007). In addition, it has previously been shown that the open reading frame 3a of SARS-CoV forms a cation-selective channel, which can be expressed in infected cells and then participated in virus release. It is expected to inhibit viral release to inhibit the ion channels formed by the 3a protein of drugs. Emodin has been shown to inhibit the 3a ion channel of coronavirus HCoV-OC43 and SARS-CoV and the viral release of HCoV-OC43, and its K1/2 value is about 20 μM (Schwarz et al., 2011). These findings indicated that emodin may be considered as a potential main therapeutic agent for SARS (Table 1).

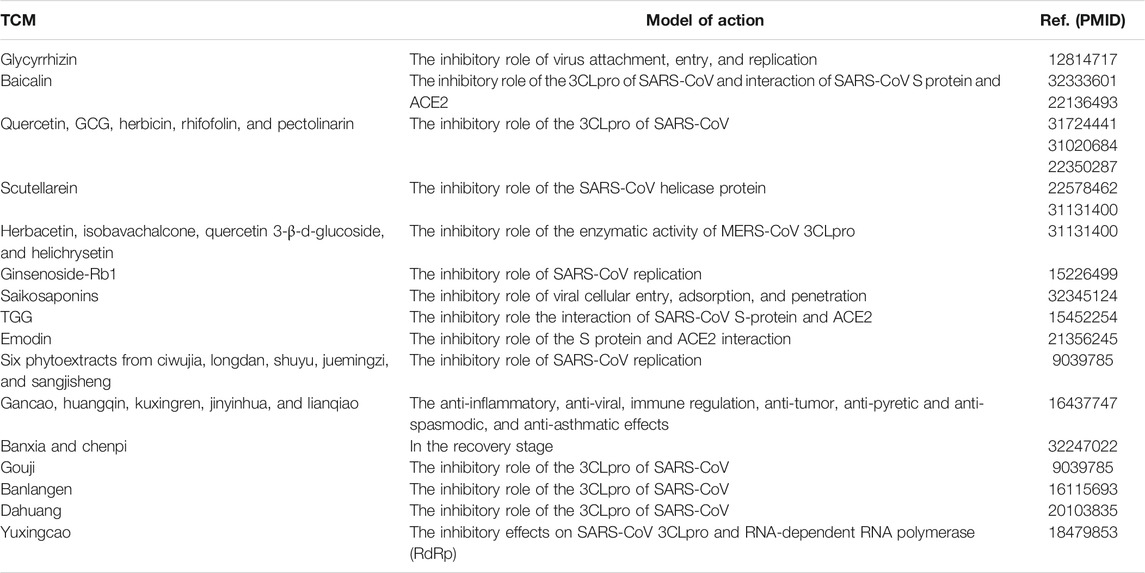

TABLE 1. TCM herbal extracts or TCM-derived compounds with anti-HCoV activity.
Multi-Components From TCM—Multiple Targets Therapy
Banlangen
Banlangen is a kind of common Chinese medicine to treat colds. It has long been used as a TCM for colds, fever, and influenza, especially for the treatment of SARS and H1N1-influenza (Cao et al., 2019). Previous phytochemical research of banlangen have led to the isolation of many natural components, including indirubin, indigo, indican (indoxyl--d-glucoside), -sitosterol, -sitosterol, and sinigrin, etc. (Xi et al., 2020). Lin et al. confirmed that cleavage assays with 3CLpro showed that the IC50 values of banlangen extract, indigo, sinigrin, aloe emodin, and hesperetin are in the micromolar range. In the cell-based assay, sinigrin (IC50: 217 μM) was more effective than indigo (IC50: 752 μM) and beta-sitosterol (IC50: 1210 μM) in blocking the cleavage processing of 3CLpro. In the cell-based assay, there were only two phenolic compounds, aloe emodin, and hesperetin, that could dose-dependently inhibit the cleavage activity of 3CLpro, in which the IC50 was 366 μM for aloe emodin and 8.3 μM for hesperetin (Lin et al., 2005). It suggested that banlangen has anti-SARS coronavirus 3C-like protease effects, which might be a potential strategy for treating COVID-19.
Dahuang
Dahuang, a well-known TCM and food, is usually used to treat various diseases and adverse conditions, such as high fever and abdominal pain [31366111. Its main active components are anthraquinones. A previous study confirmed that dahuang extracts possess anti-SARS coronavirus effects (Shi et al., 2020). Luo et al. demonstrated that Rheum palmatum L. had a high level of anti-SARS-CoV 3CLpro activity. The IC50 was 13.76 ± 0.03 μg/ml and the inhibition rate was up to 96% (Luo et al., 2009). In conclusion, dahuang extracts have a high level of inhibitory activity against 3CLpro, indicating that extracts from dahuang may represent a potential therapeutic agent for SARS.
Yuxingcao
Yuxingcao has been used as a TCM to treat a variety of ailments in Asian countries (Liu et al., 2020), and it can effectively treat pneumonia, refractory hemoptysis, infectious disease as well as malignant pleural effusion. Relevant data revealed that yuxingcao water extract could obviously and dose-dependently stimulate the proliferation of mouse splenic lymphocytes. In terms of the anti-viral aspect, yuxingcao showed vital inhibitory effects on SARS-CoV 3CLpro and RNA-dependent RNA polymerase (RdRp) (Lau et al., 2008).
TCM Formula in the Treatment of COVID-19 Patients—Multiple Targets Therapy
SARS is an acute respiratory disease that first emerged in 2002. The current SARS-CoV-2 that causes COVID-19 has proved that our preparedness for emerging respiratory viral infections is not enough. TCM exerted a vital role in the treatment of SARS (Lau et al., 2005). According to the quasi-randomized controlled trial involving 654 SARS patients, Liu et al. found that the combination of comprehensive TCM and Western medicines can improve symptoms, quality of life, lung infiltrate and absorption, and reduce corticosteroid dosage (Liu et al., 2006). Therefore, it is possible that TCM could have a potential therapeutic role in COVID-19, which is also a type of SARS. What is more, the guidelines for the diagnosis and treatment of COVID-19 in Hubei province (Sixth Edition) have been developed and released, which also highlights the important role of TCM formulations in the treatment of COVID-19 patients (Table 2) (Yu et al., 2020). Thus, we listed the possible value of the relevant TCM formulations in the prevention of COVID-19.

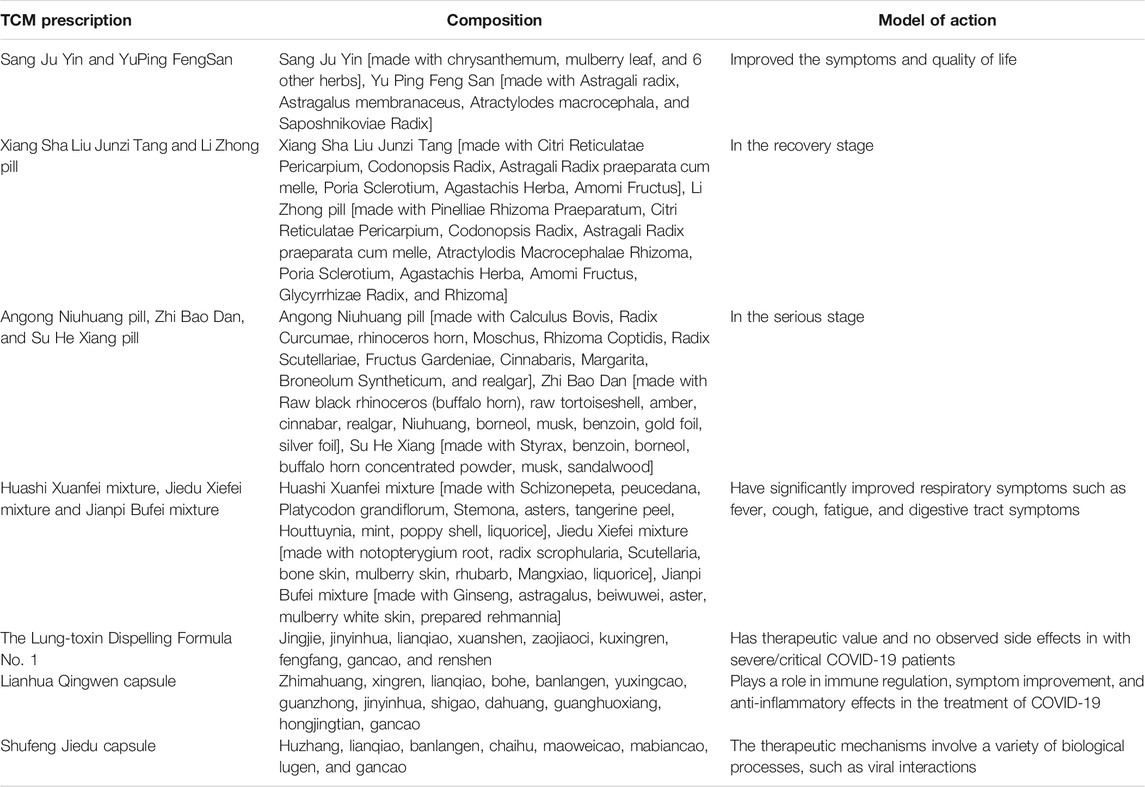

TABLE 2. TCM prescription for treating patients with COVID-19.
Importantly, severe inflammatory responses can be attributed to the deaths of SARS-CoV, MERS-CoV, or COVID-19 patients. As a result, anti-inflammatory drugs may reduce the rates of severity and mortality (Lu, 2020). Interestingly, it was discovered that shuanghuanglian effectively inhibited the stimulation of cytokines (IL-1β, IL-6, TNF-α, IFN-γ) and chemokines (MIP-1α, MIP-1β, and MCP-1) in peripheral blood mononuclear cells (PBMCs) induced by staphylococcal toxic shock syndrome toxin 1 (TSST-1) (Chen et al., 2002; Science CAo, 2020). Meanwhile, Poon et al. found that Sang Ju Yin and Yu Ping Feng San may have beneficial immunomodulatory effects on preventing viral infections, including SARS-CoV. “Clinical study on the treatment of COVID-19 with Chinese medicine” has made progress recently. Three new anti-coronavirus pneumonia Chinese medicine preparations have been approved by the Zhejiang Provincial Drug Administration as hospital preparations, laying a better foundation for further prevention and treatment of novel coronavirus pneumonia. Three kinds of TCM preparations against COVID-19 are jointly used by famous doctors of national medicine in the hospital, and national and provincial Chinese medicine. The three kinds of TCM formula that have been developed are: New Crown Pneumonia No. 1 prescription-Huashi Xuanfei Mixture (treatment of common type) New Coronary Pneumonia), New Coronary Pneumonia No. 2-Jiedu Xiefei Mixture (Treatment of Severe New Coronary Pneumonia), New Coronary Pneumonia No. 3-Jianpi Bufei Mixture (Treatment of New Coronary Pneumonia). Of note, these three prescriptions are being used in nine new coronavirus pneumonia designated hospitals in the province. The results show that: after using TCM, patients have significantly improved respiratory symptoms such as fever, cough, fatigue, and digestive tract symptoms caused by antiviral drugs. Some severely ill patients become mild after receiving treatment.
The Lung-toxin Dispelling Formula No. 1 (祛肺毒一号方), known as Respiratory Detox Shot (RDS), which is based on the medicinal value of the TCM theory, classical TCM prescription, and clinical practice. There are nine TCM ingredients in RDS: jingjie, jinyinhua, lianqiao, xuanshen, zaojiaoci, kuxingren, fengfang, gancao, and renshen. The nine TCMs have been proven to be effective in preventing and treating acute respiratory infection, common cold, and influenza in clinical practice. Lately, a clinical trial evaluating the efficacy of RDS in severe/critical COVID-19 patients found that RDS had therapeutic value and no observed side effects (Li et al., 2020a). Zhang et al. confirmed that RDS mainly acted on the kidney-urinary bladder, lung-large intestine, and stomach-spleen meridians, while other zang-fu viscera were strategically covered by all nine components. Under the background of the meridian theory of TCM, multiple components and objectives of RDS contribute to the health and elimination of pathogens. (Zhang et al., 2020b). Thus, this has a universal effect on the early control and prevention of COVID-19.
The Lianhua Qingwen capsule (LHQW-C) is a TCM prescription composed of zhimahuang, xingren, lianqiao, bohe, banlangen, yuxingcao, guanzhong, jinyinhua, shigao, dahuang, guanghuoxiang, hongjingtian, and gancao (Zhao et al., 2014). LHQW-C has been used to treat conventional seasonal influenza for decades. LHQW-C is found to affect or inhibit all parts of human influenza A virus in patients infected with human influenza A virus in different periods (Ding et al., 2017). Furthermore, Li et al. found that LHQW-C significantly inhibited SARS-CoV-2 replication in Vero E6 cells and significantly reduced pro-inflammatory cytokine (TNF-α, IL-6, CCL-2/MCP-1, and CXCL-10/IP-10) production at the mRNA levels. Furthermore, LHQW-C caused abnormal particle morphology of virus particles in cells (Runfeng et al., 2020). One eligible study focused on the anti-viral and anti-inflammatory activities of LHQW-C for treating COVID-19 or the suspected cases under medical observation, which published by the team of the outstanding academician Nanshan Zhong. Of note, for suspicious or mild cases, early treatment was essential. Relevant data showed that LHQW-C could be used as a preventive measure for the patients in the medical observation period (Runfeng et al., 2020). In addition, the clinical evidence confirmed that LHQW-C has quite the curative effect when combined with a Western medicine scheme, and no obvious adverse reaction. It can not only improve the clinical symptoms including cough, fatigue, fever, sputum, shortness of breath, chest tightness, poor appetite, but it also can control the progress of the upper respiratory tract infection and reduce the transition from light to severe, and shorten hospitalization time, which is suitable for ordinary type and suspected COVID-19 patients (Wang et al., 2020b). Therefore, accumulating evidence from bioinformatics, pharmacodynamics, and clinical findings suggests that LHQW-C plays a role in immune regulation, symptom improvement, and anti-inflammatory effects in treating of COVID-19.
The Shufeng Jiedu capsule (SFJD-C) is composed of huzhang, lianqiao, banlangen, chaihu, maoweicao, mabiancao, lugen, and gancao. It was mainly used to treat acute upper respiratory tract infections previously (Ying et al., 2017). Xiao et al. found that SFJD-C combined with arbidol had good efficacy in the treatment of COVID-19 and no drug-related adverse events were reported. What is more, there were critical improvements in CD4+ and CD8+ T cell subpopulations, white blood cell and CT imaging, antipyretic time, the disappearance time of dry cough, nasal congestion, fatigue, pharyngeal pain, and diarrhea for 2019-nCoV (Luo et al., 2009; Fung et al., 2011). At the same time, the study about a drug-component disease-target network analyzed the potential targets and mechanisms of SFJD-C for treating COVID-19. The results indicated that the therapeutic mechanisms involved various biological processes, such as viral interactions. And there were various cytokines, such as IL-6, ALB, and MAPK3 (Ying et al., 2017). In patients with COVID-19 infection, a huge number of cytokines may be related to the rapid onset of acute respiratory distress syndrome (ARDS), single or multiple organ failure, and even eventual death.
Prospect of Application of TCM in COVID-19
TCM has obvious advantages in preventing and treating COVID-19. A variety of TCM have antiviral, anti-inflammatory, immune regulation effects, and low toxicity and side effects. In particular, some TCM have a two-way regulatory effect on the immune system. They enhance the body’s immunity through improving immunity and protecting all organs. It can also reduce an excessive immune response and alleviate the damage caused by inflammatory storm. However, TCMs fail to occupy an important position in the international market, because of the lack of reliable quality standards of TCM, and the fact that its specific mechanism is not clear. Based on this, it is urgent for us to find out the effective components in TCM, so that the specific mechanism of its effect can be explored. Therefore, we may be able to screen some effective components of TCM and study their mechanism of action. Thus, we could develop some drugs that can treat COVID-19. On the other hand, for TCM prescriptions, we can determine the quality standard and the proportion of each TCM to better treat COVID-19. In particular, a TCM formula could treat COVID-19 with multiple targets at the same time. Luo et al. found that gancao, huangqin, kuxingren, jinyinhua, lianqiao, and other herbs are the most frequently used in TCM, and these showed anti-inflammatory, anti-viral, immune regulation, anti-tumor, anti-pyretic and anti-spasmodic, and anti-asthmatic effects (Fan et al., 2020). Clinical studies have shown that LHQW-C significantly improved fever, cough, fatigue, and shortness of breath in suspected and confirmed COVID-19 cases, and reduced the proportion of suspected cases turning to severe disease. What is more, the over-expression of inflammatory cytokines (IL-6, TNF-a, MCP-1, and so on) caused by SARS-CoV-2 was significantly inhibited by LHQW-C, which exerted a vital role in immune regulation, symptom improvement, and anti-inflammatory effects in treating COVID-19. It also offers a reference and a potential pathway for the development of modern medicine, especially for the development of modern compound preparation to treat COVID-19.
In the last few decades, genome editing technology has been largely used in biomedical research. At the same time, continuous development has improved the efficiency of gene editing, reduced the impact of deviation from the target, and simplified the operating procedures in the organism (Memi et al., 2018). CRISPR/Cas13d is the RNA-directed RNA targeting CRISPR system. Tuan et al. suggest using the system to “chew” the RNA genome of SARS-CoV-2 specifically to limit its ability to regenerate. Cas13d protein and guided RNAs (gRNAs) containing specific complementary spacer sequences with viral RNA genomes were selected to cut the RNA genome of SARS-CoV-2. Moreover, in order to destroy the function of the virus, the researchers specially used the gRNAs to target both the ORF1ab and S genes of SARS-CoV-2. These functional proteins play a vital role in the infection and replication of SARS-CoV-2. If they interfere with the function of one or more of the proteins individually or at the same time and inhibit their activity, they can block the process of SARS-CoV-2 infection or self-replication in the host cell, so as to play a therapeutic role (Nguyen et al., 2020). Therefore, we can reduce the toxicity of natural products by subtracting toxic genes through gene editing. Hence, the natural productions would only protect COVID-19 patients.
On the other hand, to further explore the mechanism of TCM treatment of COVID-19. We used the TCMSP database to predict and screen the effective active ingredients of related TCM and sort out the ingredients of each prescription respectively by using the network pharmacology method. We integrated the targets of the common ingredients of the four formulations predicted on the Swiss Target Prediction platform and the targets related to COVID-19 obtained in the GeneCards database into a Venn diagram to screen the common targets. Next, we used the string platform to analyze the protein-protein interaction (PPI) between the common target and ACE2. Then, we analyzed the KEGG pathway and GO enrichment by using the DAVID platform, and studied the interaction between the target protein and HIV protein. On the basis of the above research, the results were visualized using the OmicShare platform and Cytoscape software (Zu et al., 2020) (Figure 4).

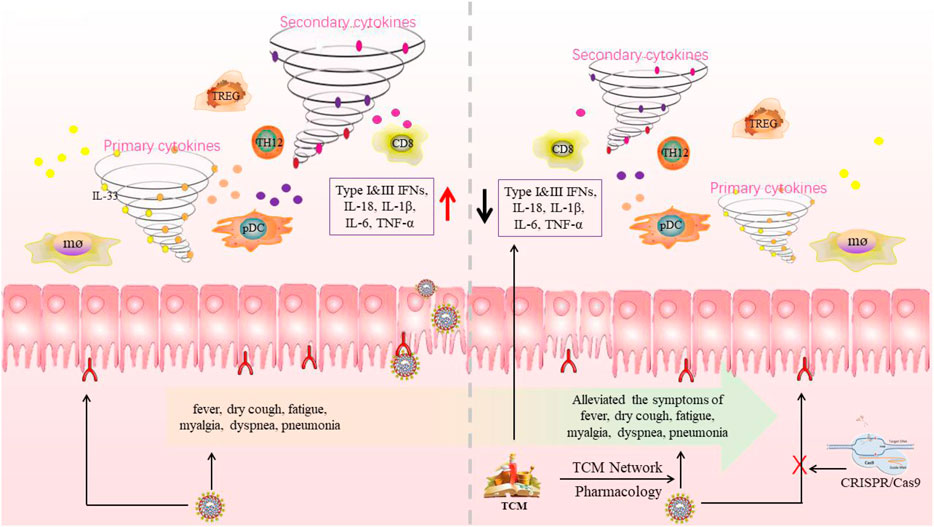

FIGURE 4. The future expectation of therapeutic methods in the treatment of COVID-19 patients. The researchers will specially use the gRNAs targeting both ORF1ab and S genes of SARS-CoV-2 in order to destroy the function of the virus and the toxicity of natural products by subtracting toxic genes through gene editing. Meanwhile, we can use the TCMSP database to predict and screen the effective active ingredients of related TCM and sort out the ingredients of each prescription respectively by using the network pharmacology method to treat COVID-19.
Conclusion
In the search for novel antiviral agents, it is not a new idea to reuse old drugs or relocate experimental drugs, and it was proposed that they should be used to treat other virus infections, such as Ebola epidemic (Sweiti et al., 2017). Meanwhile, it is also recommended to repurpose folk medicines (Habtemariam and Lentini, 2015), while emphasizing cardiovascular medicines (Patanè, 2014). Diseases caused by virus have been a big problem for scientists. For thousands of years, until today, no effective and special drugs have been found in the medical field. However, so far, there are no specific antiviral drugs or vaccines that have been proven to be effective against virus-induced inflammatory diseases, such as COVID-19. Therefore, the focus is on preventive measures and symptomatic treatment. Of note, because COVID-19 can cause systemic organ damage, multi-target therapy may be required besides anti-inflammatory and antiviral drugs during treatment. TCM can protect COVID-19 patients from tissue damage. This protection can be at least partially attributed to the anti-inflammatory, antioxidant, and anti-apoptotic effects of the TCM under investigation. In this context, TCM are being explored to provide patients with supportive, preventive, and rehabilitative care, owing to the characteristics of the multi-target therapy of TCM. Although there is no direct evidence, some uncontrolled studies on TCM show that they may possess a direct efficacy on the virus (Weeks, 2020). This also provides a reference and idea for the development of modern drugs, especially the development of modern compound preparations. In this review, it can also provide drug candidates for medicine research and development of COVID-19 prevention and treatment.
Author Contributions
PL and SH: Design of the work, drafting the manuscript; CQ: Analysis and critical revision of the article, design of figures and tables; LL, JY, and LY: Review of traditional oriental medicine herbs in different sources, reviewing the pharmacological mechanisms; CY, HZ, SW, YY, YH, XZ, JZ, LP: Reviewing the auditory relevance; CS and HZ: Analysis of ethnopharmacological relevance, and final approval.
Funding
This project was supported by the National Natural Science Foundation of China (Nos. 31900285), and the Natural Science Foundation of Anhui Province (1908085QH374). 512 Talent Cultivation Plan of Bengbu Medical College (by51201315), Natural Science Foundation of Anhui Province (2008085QH401).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
ACE2, Angiotensin-converting enzyme 2; ARDS, Acute respiratory distress syndrome; 3CLpro, 3-chymotrypsin-like protease; COVID-19, Coronavirus disease 2019; CoV, Coronavirus; gRNAs, Guided RNAs; IL-1β, Interleukin-1 β; IL-18, Interleukin-18; LHQW-C, lianhua-qingwen capsules; MERS-cov, middle east respiratory syndrome coronavirus; MOF, Multiple organ failure; PBMC, Peripheral blood mononuclear cell; PPI, Protein-protein interaction; RDS, respiratory detox shot; rdrp, RNA-Dependent RNA polymerase; SARS, Severe acute respiratory syndrome; SARS-cov, Severe acute respiratory syndrome coronavirus; SARS-cov-2/2019-ncov, Severe acute respiratory syndrome coronavirus-2/2019 new coronavirus; SFJD-C, shufeng jiedu capsules; TGG, tetra-O-Galloyl-β-D-glucose; TSST-1, Toxic shock syndrome toxin 1.
References
Ang, L., Lee, H. W., Choi, J. Y., Zhang, J., and Lee, M. S. (2020). Herbal Medicine and Pattern Identification for Treating COVID-19: a Rapid Review of Guidelines. Integr. Med. Res. 9 (2), 100407. doi:10.1016/j.imr.2020.100407
Angelini, M. M., Akhlaghpour, M., Neuman, B. W., and Buchmeier, M. J. (2013). Severe Acute Respiratory Syndrome Coronavirus Nonstructural Proteins 3, 4, and 6 Induce Double-Membrane Vesicles. mBio 4 (4), e00524–13. doi:10.1128/mbio.00524-13
Balkrishna, A., Sakat, S. S., Ranjan, R., Joshi, K., Shukla, S., Joshi, K., et al. (2020). Polyherbal Medicine Divya Sarva-Kalp-Kwath Ameliorates Persistent Carbon Tetrachloride Induced Biochemical and Pathological Liver Impairments in Wistar Rats and in HepG2 Cells. Front. Pharmacol. 11, 288. doi:10.3389/fphar.2020.00288
Burgueño, J. F., Reich, A., Hazime, H., Quintero, M. A., Fernandez, I., Fritsch, J., et al. (2020). Expression of SARS-CoV-2 Entry Molecules ACE2 and TMPRSS2 in the Gut of Patients with IBD. Inflamm. Bowel Dis. 26 (6), 797–808. doi:10.1093/ibd/izaa085
Cao, Y.-W., Qu, R.-J., Miao, Y.-J., Tang, X.-Q., Zhou, Y., Wang, L., et al. (2019). Untargeted Liquid Chromatography Coupled with Mass Spectrometry Reveals Metabolic Changes in Nitrogen-Deficient Isatis Indigotica Fortune. Phytochemistry 166, 112058. doi:10.1016/j.phytochem.2019.112058
Carroll, M. C., and Fischer, M. B. (1997). Complement and the Immune Response. Curr. Opin. Immunol. 9 (1), 64–69. doi:10.1016/s0952-7915(97)80160-4
Chen, D., Yang, B., Zhang, Y., Chen, L., Wei, L., Zhang, W., et al. (2020a). Withdrawing Mycophenolate Mofetil in Treating a Young Kidney Transplant Recipient with COVID-19: A Case Report. Medicine (Baltimore) 99 (24), e20481. doi:10.1097/md.0000000000020481
Chen, F., Chan, K. H., Jiang, Y., Kao, R. Y. T., Lu, H. T., Fan, K. W., et al. (2004). In vitro susceptibility of 10 Clinical Isolates of SARS Coronavirus to Selected Antiviral Compounds. J. Clin. Virol. 31 (1), 69–75. doi:10.1016/j.jcv.2004.03.003
Chen, S. Y., Gao, Y., Sun, J. Y., Meng, X. L., Yang, D., Fan, L. H., et al. (2020b). Traditional Chinese Medicine: Role in Reducing β-Amyloid, Apoptosis, Autophagy, Neuroinflammation, Oxidative Stress, and Mitochondrial Dysfunction of Alzheimer's Disease. Front. Pharmacol. 11, 497. doi:10.3389/fphar.2020.00497
Chen, X., Zack Howard, O. M., Yang, X., Wang, L., Oppenheim, J. J., and Krakauer, T. (2002). Effects of Shuanghuanglian and Qingkailing, Two Multi-Components of Traditional Chinese Medicinal Preparations, on Human Leukocyte Function. Life Sci. 70, 2897–2913. doi:10.1016/s0024-3205(02)01541-2
Chen, Z., and Nakamura, T. (2004). Statistical Evidence for the Usefulness of Chinese Medicine in the Treatment of SARS. Phytother. Res. 18 (7), 592–594. doi:10.1002/ptr.1485
Chuang, T. Y., Lien, C. Y., Hsu, C. H., Lu, C. W., and Wu, C. H. (2020). Chinese Herbal Medicine Alleviates Thyroidectomy-Induced Cardiopulmonary Exercise Dysfunction in Rats. Evid. Based Complement. Alternat Med. 2020, 9415082. doi:10.1155/2020/9415082
Cinatl, J., Morgenstern, B., Bauer, G., Chandra, P., Rabenau, H., and Doerr, H. (2003). Glycyrrhizin, an Active Component of Liquorice Roots, and Replication of SARS-Associated Coronavirus. The Lancet 361 (9374), 2045–2046. doi:10.1016/s0140-6736(03)13615-x
Corman, V. M., Lienau, J., and Witzenrath, M. (2019). Coronaviren Als Ursache Respiratorischer Infektionen. Internist 60 (11), 1136–1145. doi:10.1007/s00108-019-00671-5
da Silva Araújo, N. P., de Matos, N. A., Leticia Antunes Mota, S., Farias de Souza, A. B., Dantas Cangussú, S., Cunha Alvim de Menezes, R., et al. (2020). Quercetin Attenuates Acute Lung Injury Caused by Cigarette Smoke Both In Vitro and In Vivo. COPD: J. Chronic Obstructive Pulm. Dis. 17 (2), 205–214. doi:10.1080/15412555.2020.1749253
Deng, Y. F., Aluko, R. E., Jin, Q., Zhang, Y., and Yuan, L. J. (2012). Inhibitory Activities of Baicalin against Renin and Angiotensin-Converting Enzyme. Pharm. Biol. 50 (4), 401–406. doi:10.3109/13880209.2011.608076
Di Mascio, D., Khalil, A., Saccone, G., Rizzo, G., Buca, D., Liberati, M., et al. (2020). Outcome of Coronavirus Spectrum Infections (SARS, MERS, COVID-19) during Pregnancy: a Systematic Review and Meta-Analysis. Am. J. Obstet. Gynecol. MFM 2 (2), 100107. doi:10.1016/j.ajogmf.2020.100107
Ding, Y., Zeng, L., Li, R., Chen, Q., Zhou, B., Chen, Q., et al. (2017). The Chinese Prescription Lianhuaqingwen Capsule Exerts Anti-influenza Activity through the Inhibition of Viral Propagation and Impacts Immune Function. BMC Complement. Altern. Med. 17 (1), 130. doi:10.1186/s12906-017-1585-7
Dong, L., Hu, S., and Gao, J. (2020). Discovering Drugs to Treat Coronavirus Disease 2019 (COVID-19). DD&T 14 (1), 58–60. doi:10.5582/ddt.2020.01012
Dong, Y., Yang, J., Yang, L., and Li, P. (2020). Quercetin Inhibits the Proliferation and Metastasis of Human Non-small Cell Lung Cancer Cell Line: The Key Role of Src-Mediated Fibroblast Growth Factor-Inducible 14 (Fn14)/Nuclear Factor Kappa B (NF-Κb) Pathway. Med. Sci. Monit. 26, e920537. doi:10.12659/msm.920537
Esteves, S. C., Lombardo, F., Garrido, N., Alvarez, J., Zini, A., Colpi, G. M., et al. (2020). SARS-CoV-2 Pandemic and Repercussions for Male Infertility Patients: A Proposal for the Individualized Provision of Andrological Services. Andrology, 9, 10-18. doi:10.1111/andr.12809 [published online ahead of print, 2020 May 1].
Fan, T., Chen, Y., Bai, Y., Ma, F., Wang, H., Yang, Y., et al. (2020). [Analysis of medication characteristics of traditional Chinese medicine in treating COVID-19 based on data mining]. Zhejiang Da Xue Xue Bao Yi Xue Ban 49(1), 260-269. doi:10.3785/j.issn.1008-9292.2020.03.14
Fung, K. P., Leung, P. C., Tsui, K. W., Wan, C. C., Wong, K. B., Waye, M. Y., et al. (2011). Immunomodulatory Activities of the Herbal Formula Kwan Du Bu Fei Dang in Healthy Subjects: a Randomised, Double-Blind, Placebo-Controlled Study. Hong Kong Med. J. 17 (Suppl. 2), 41–43.
Gordon, C. J., Tchesnokov, E. P., Woolner, E., Perry, J. K., Feng, J. Y., Porter, D. P., et al. (2020). Remdesivir Is a Direct-Acting Antiviral that Inhibits RNA-dependent RNA Polymerase from Severe Acute Respiratory Syndrome Coronavirus 2 with High Potency. J. Biol. Chem. 295 (20), 6785–6797. doi:10.1074/jbc.ra120.013679
Gupta, A., Arora, V., Nair, D., Agrawal, N., Su, Y. X., Holsinger, F. C., et al. (2020). Status and Strategies for the Management of Head and Neck Cancer during COVID-19 Pandemic: Indian Scenario. Head & Neck, 42, 1460, 1465. doi:10.1002/hed.26227 [published online ahead of print, 2020 May 1].
Habtemariam, S., and Lentini, G. (2015). Did Ebola Survivors Use Plant Medicines, and if So, Which Ones?. Phytother. Res. 29 (4), 632. doi:10.1002/ptr.5279
Hanley, B., Lucas, S. B., Youd, E., Swift, B., and Osborn, M. (2020). Autopsy in Suspected COVID-19 Cases. J. Clin. Pathol. 73 (5), 239–242. doi:10.1136/jclinpath-2020-206522
Ho, T., Wu, S., Chen, J., Li, C., and Hsiang, C. (2007). Emodin Blocks the SARS Coronavirus Spike Protein and Angiotensin-Converting Enzyme 2 Interaction. Antiviral Res. 74 (2), 92–101. doi:10.1016/j.antiviral.2006.04.014
Hu, S., Li, S.-w., Yan, Q., Hu, X.-p., Li, L.-y., Zhou, H., et al. (2019). Natural Products, Extracts and Formulations Comprehensive Therapy for the Improvement of Motor Function in Alcoholic Liver Disease. Pharmacol. Res. 150, 104501. doi:10.1016/j.phrs.2019.104501
Ihn, H. J., Kim, T. H., Kim, K., Kim, G.-Y., Jeon, Y.-J., Choi, Y. H., et al. (2019). 2-O-digalloyl-1,3,4,6-tetra-O-galloyl-β-D-glucose Isolated from Galla Rhois Suppresses Osteoclast Differentiation and Function by Inhibiting NF-Κb Signaling. BMB Rep. 52 (6), 409–414. doi:10.5483/bmbrep.2019.52.6.063
Islam, R., Parves, M. R., Paul, A. S., Uddin, N., Rahman, M. S., Mamun, A. A., et al. (2020). A Molecular Modeling Approach to Identify Effective Antiviral Phytochemicals against the Main Protease of SARS-CoV-2. J. Biomol. Struct. Dyn., 1–12. doi:10.1080/07391102.2020.1761883
Jia, Z., Yan, L., Ren, Z., Wu, L., Wang, J., Guo, J., et al. (2019). Delicate Structural Coordination of the Severe Acute Respiratory Syndrome Coronavirus Nsp13 upon ATP Hydrolysis. Nucleic Acids Res. 47 (12), 6538–6550. doi:10.1093/nar/gkz409
Jo, S., Kim, H., Kim, S., Shin, D. H., and Kim, M. S. (2019). Characteristics of Flavonoids as Potent MERS‐CoV 3C‐like Protease Inhibitors. Chem. Biol. Drug Des. 94 (6), 2023–2030. doi:10.1111/cbdd.13604
Jo, S., Kim, S., Shin, D. H., and Kim, M.-S. (2020). Inhibition of SARS-CoV 3CL Protease by Flavonoids. J. Enzyme Inhib. Med. Chem. 35 (1), 145–151. doi:10.1080/14756366.2019.1690480
Kang, H. R., Moon, J. Y., Ediriweera, M. K., Song, Y. W., Cho, M., Kasiviswanathan, D., et al. (2020). Dietary Flavonoid Myricetin Inhibits Invasion and Migration of Radioresistant Lung Cancer Cells (A549‐IR) by Suppressing MMP‐2 and MMP‐9 Expressions through Inhibition of the FAK‐ERK Signaling Pathway. Food Sci. Nutr. 8 (4), 2059–2067. doi:10.1002/fsn3.1495
Kessler, T., and Schunkert, H. (2020). Inhibitors of the Renin-Angiotensin System and SARS-CoV-2 Infection. Herz 45 (4), 323–324. doi:10.1007/s00059-020-04920-4
Lau, K.-M., Lee, K.-M., Koon, C.-M., Cheung, C. S.-F., Lau, C.-P., Ho, H.-M., et al. (2008). Immunomodulatory and Anti-SARS Activities of Houttuynia Cordata. J. Ethnopharmacology 118 (1), 79–85. doi:10.1016/j.jep.2008.03.018
Lau, T. F., Leung, P. C., Wong, E. L. Y., Fong, C., Cheng, K. F., Zhang, S. C., et al. (2005). Using Herbal Medicine as a Means of Prevention Experience during the SARS Crisis. Am. J. Chin. Med. 33 (3), 345–356. doi:10.1142/s0192415x05002965
Li, L., Fan, P., Chou, H., Li, J., Wang, K., and Li, H. (2019). Herbacetin Suppressed MMP9 Mediated Angiogenesis of Malignant Melanoma through Blocking EGFR-ERK/AKT Signaling Pathway. Biochimie 162, 198–207. doi:10.1016/j.biochi.2019.05.003
Li, S. Y., Li, G. Y., Zhang, H. R., Li, B., Hofmann, H. A., and Ci, Z. H. (2020a). Clinical Efficacy and Experiences of Lung-Toxin Dispelling Formula No.1 Treating Patients of Corona Virus Disease 2019 Type Severe/type Extremely Severe. Zhongguo Shi Yan Fang Ji Xue Za Zhi 26 (11). [Chinese with abstract in English].
Li, Y., Guo, R., Zhang, M., Chen, P., Li, J., and Sun, Y. (2020b). Protective Effect of Emodin on Intestinal Epithelial Tight Junction Barrier Integrity in Rats with Sepsis Induced by Cecal Ligation and Puncture. Exp. Ther. Med. 19 (6), 3521–3530. doi:10.3892/etm.2020.8625
Li, Y., Wang, J., Zhong, S., Li, J., and Du, W. (2020c). Scutellarein Inhibits the Development of Colon Cancer via CDC4-mediated RAGE Ubiquitination. Int. J. Mol. Med. 45 (4), 1059–1072. doi:10.3892/ijmm.2020.4496
Liang, B., Zou, F. H., Fu, L., and Liao, H. L. (2020). Chinese Herbal Medicine Dingji Fumai Decoction for Ventricular Premature Contraction: A Real-World Trial. Biomed. Res. Int. 2020, 5358467. doi:10.1155/2020/5358467
Liao, S., Song, F., Feng, W., Ding, X., Yao, J., Song, H., et al. (2019). Rhoifolin Ameliorates Titanium Particle‐stimulated Osteolysis and Attenuates Osteoclastogenesis via RANKL‐induced NF‐κB and MAPK Pathways. J. Cel Physiol 234 (10), 17600–17611. doi:10.1002/jcp.28384
Lin, C.-W., Tsai, F.-J., Tsai, C.-H., Lai, C.-C., Wan, L., Ho, T.-Y., et al. (2005). Anti-SARS Coronavirus 3C-like Protease Effects of Isatis Indigotica Root and Plant-Derived Phenolic Compounds. Antiviral Res. 68 (1), 36–42. doi:10.1016/j.antiviral.2005.07.002
Liu, J., Zhu, X., Yang, D., Li, R., and Jiang, J. (2020). Effect of Heat Treatment on the Anticancer Activity of Houttuynia Cordata Thunb Aerial Stem Extract in Human Gastric Cancer SGC-7901 Cells. Nutr. Cancer 73, 1–9. doi:10.1080/01635581.2020.1737153
Liu, X., Zhang, M., He, L., Li, Y. P., and Kang, Y. K. (2006). Chinese Herbs Combined with Western Medicine for Severe Acute Respiratory Syndrome (SARS). Cochrane Database Syst. Rev. 10 (10), CD004882. doi:10.1002/14651858.CD004882.pub2
Long, Y., Yang, Q., Xiang, Y., Zhang, Y., Wan, J., Liu, S., et al. (2020). Nose to Brain Drug Delivery - A Promising Strategy for Active Components from Herbal Medicine for Treating Cerebral Ischemia Reperfusion. Pharmacol. Res. 159, 104795. doi:10.1016/j.phrs.2020.104795
Lu, H. (2020). Drug Treatment Options for the 2019-new Coronavirus (2019-nCoV). Biosci. Trends 14 (1), 69–71. doi:10.5582/bst.2020.01020
Luo, W., Su, X., Gong, S., Qin, Y., Liu, W., Li, J., et al. (2009). Anti-SARS Coronavirus 3C-like Protease Effects of Rheum Palmatum L. Extracts. Biosci. Trends 3, 124–126.
Memi, F., Ntokou, A., and Papangeli, I. (2018). CRISPR/Cas9 Gene-Editing: Research Technologies, Clinical Applications and Ethical Considerations. Semin. Perinatology 42 (8), 487–500. doi:10.1053/j.semperi.2018.09.003
Nguyen, T. M., Zhang, Y., and Pandolfi, P. P. (2020). Virus against Virus: a Potential Treatment for 2019-nCov (SARS-CoV-2) and Other RNA Viruses. Cell Res. 30 (3), 189–190. doi:10.1038/s41422-020-0290-0
Nguyen, T. T. H., Woo, H.-J., Kang, H.-K., Nguyen, V. D., Kim, Y.-M., Kim, D.-W., et al. (2012). Flavonoid-mediated Inhibition of SARS Coronavirus 3C-like Protease Expressed in Pichia pastoris. Biotechnol. Lett. 34 (5), 831–838. doi:10.1007/s10529-011-0845-8
Pan, Y., Long, L., Zhang, D., Yuan, T., Cui, S., Yang, P., et al. (2020). Potential False-Negative Nucleic Acid Testing Results for Severe Acute Respiratory Syndrome Coronavirus 2 from Thermal Inactivation of Samples with Low Viral Loads. Clin. Chem. 66 (6), 794–801. doi:10.1093/clinchem/hvaa091
Patanè, S. (2014). Ebola: Is There a Hope from Treatment with Cardiovascular Drugs? Int. J. Cardiol. 177 (2), 524–526. doi:10.1016/j.ijcard.2014.08.114
Peiris, J. S., Guan, Y., and Yuen, K. Y. (2004). Severe Acute Respiratory Syndrome. Nat. Med. 10 (12 Suppl. l), S88–S97. doi:10.1038/nm1143
Péter Zomborszki, Z., Kúsz, N., Csupor, D., and Peschel, W. (2019). Rhodiosin and Herbacetin in Rhodiola Rosea Preparations: Additional Markers for Quality Control? Pharm. Biol. 57 (1), 295–305. doi:10.1080/13880209.2019.1577460
Runfeng, L., Yunlong, H., Jicheng, H., Weiqi, P., Qinhai, M., Yongxia, S., et al. (2020). Lianhuaqingwen Exerts Anti-viral and Anti-inflammatory Activity against Novel Coronavirus (SARS-CoV-2). Pharmacol. Res. 156, 104761. doi:10.1016/j.phrs.2020.104761
Schwarz, S., Wang, K., Yu, W., Sun, B., and Schwarz, W. (2011). Emodin Inhibits Current through SARS-Associated Coronavirus 3a Protein. Antiviral Res. 90 (1), 64–69. doi:10.1016/j.antiviral.2011.02.008
Science CAo (2020). Researchers in Shanghai Institute of Drugs and Wuhan Virus. Institute discovered that the Chinese patent medicine Shuanghuanglian oral liquid can inhibit the 2019-new coronavirus.
Shi, Y. H., Li, Y., Wang, Y., Xu, Z., Fu, H., and Zheng, G. Q. (2020). Ginsenoside-Rb1 for Ischemic Stroke: A Systematic Review and Meta-Analysis of Preclinical Evidence and Possible Mechanisms. Front. Pharmacol. 11, 285. doi:10.3389/fphar.2020.00285
Shi, Y., Wang, G., Cai, X.-p., Deng, J.-w., Zheng, L., Zhu, H.-h., et al. (2020). An Overview of COVID-19. J. Zhejiang Univ. Sci. B. 21 (5), 343–360. doi:10.1631/jzus.b2000083
Sinha, S. K., Shakya, A., Prasad, S. K., Singh, S., Gurav, N. S., Prasad, R. S., et al. (2020). An In-Silico Evaluation of Different Saikosaponins for Their Potency against SARS-CoV-2 Using NSP15 and Fusion Spike Glycoprotein as Targets. J. Biomol. Struct. Dyn., 1–12. doi:10.1080/07391102.2020.1762741
Song, P., Zhao, L., Li, X., Zhaoyuan, S., and Bin, J. (2020). Interpretation of the Traditional Chinese Medicine Portion of the Diagnosis and Treatment Protocol for Corona Virus Disease 2019 (Trial Version 7). J. Tradit Chin. Med. 40 (3), 497–508. doi:10.19852/j.cnki.jtcm.2020.03.019
Sriram, K., and Insel, P. A. (2020). A Hypothesis for Pathobiology and Treatment of COVID‐19 : The Centrality of ACE1/ACE2 Imbalance. Br. J. Pharmacol. 177, 4825–4844. doi:10.1111/bph.15082
Sweiti, H., Ekwunife, O., Jaschinski, T., and Lhachimi, S. K. (2017). Repurposed Therapeutic Agents Targeting the Ebola Virus: A Systematic Review. Curr. Ther. Res. 84, 10–21. doi:10.1016/j.curtheres.2017.01.007
Wang, F., Wang, H., Fan, J., Zhang, Y., Wang, H., and Zhao, Q. (2020a). Pancreatic Injury Patterns in Patients with Coronavirus Disease 19 Pneumonia. Gastroenterology 159, 367–370. doi:10.1053/j.gastro.2020.03.055
Wang, L., Wang, N., Zhao, Q., Zhang, B., and Ding, Y. (2019). Pectolinarin Inhibits Proliferation, Induces Apoptosis, and Suppresses Inflammation in Rheumatoid Arthritis Fibroblast‐like Synoviocytes by Inactivating the Phosphatidylinositol 3 Kinase/protein Kinase B Pathway. J. Cel Biochem. 120 (9), 15202–15210. doi:10.1002/jcb.28784
Wang, S. Z., Wang, H. J., Chen, H. M., Yue, Y., Bu, F. J., Zhang, X. M., et al. (2020b). Lianhua Qingwen Capsule and Interferon-α Combined with Lopinavir/ritonavir for the Treatment of 30 COVID-19 Patients. J. Bengbu Med. Coll. 45 (2), 154–155. [In Chinese].
Wang, Z., Chen, X., Lu, Y., Chen, F., and Zhang, W. (2020c). Clinical Characteristics and Therapeutic Procedure for Four Cases with 2019 Novel Coronavirus Pneumonia Receiving Combined Chinese and Western Medicine Treatment. Bst 14 (1), 64–68. doi:10.5582/bst.2020.01030
Watkins, D. N., Jenkins, I. R., Rankin, J. M., and Clarke, G. M. (1993). Inhaled Nitric Oxide in Severe Acute Respiratory Failure-Its Use in Intensive Care and Description of a Delivery System. Anaesth. Intensive Care 21 (6), 861–866. doi:10.1177/0310057x9302100620
Weeks, J. (2020). Call to Action: Announcing the Traditional, Complementary and Integrative Health and Medicine COVID-19 Support Registry. J. Altern. Complement. Med. 26 (4), 256–258. doi:10.1089/acm.2020.29083.jjw
Wen, C.-C., Shyur, L.-F., Jan, J.-T., Liang, P.-H., Kuo, C.-J., Arulselvan, P., et al. (2011). Traditional Chinese Medicine Herbal Extracts of Cibotium Barometz, Gentiana Scabra, Dioscorea Batatas, Cassia Tora, and Taxillus Chinensis Inhibit SARS-CoV Replication. J. Traditional Complement. Med. 1 (1), 41–50. doi:10.1016/s2225-4110(16)30055-4
Wu, C.-Y., Jan, J.-T., Ma, S.-H., Kuo, C.-J., Juan, H.-F., Cheng, Y.-S. E., et al. (2004). Small Molecules Targeting Severe Acute Respiratory Syndrome Human Coronavirus. Proc. Natl. Acad. Sci. 101 (27), 10012–10017. doi:10.1073/pnas.0403596101
Wu, Q. Q., Liang, Y. F., Ma, S. B., Li, H., and Gao, W. Y. (2019). Stability and Stabilization of (-)‐gallocatechin Gallate under Various Experimental Conditions and Analyses of its Epimerization, Auto‐oxidation, and Degradation by LC‐MS. J. Sci. Food Agric. 99 (13), 5984–5993. doi:10.1002/jsfa.9873
Xi, S. Y., and Gong, Y. W. (2017). Essentials of Chinese Materia Medica and Medical Formulas: New Century Traditional Chinese Medicine. 1st ed. Academic Press.
Xi, Y.-F., Lou, L.-L., Han, F.-Y., Liu, S.-F., Yao, G.-D., Lin, B., et al. (2020). Four Pairs of Alkaloid Enantiomers from Isatis Indigotica Fortune Ex Land with Neuroprotective Effects against H2O2-Induced SH-Sy5y Cell Injury. Bioorg. Chem. 96, 103650. doi:10.1016/j.bioorg.2020.103650
Xiao, X. H., Wang, J. B., and He, C. H. (2003). [On the rational exertion for the prescriptions and drugs of TCM in preventing and treating SARS]. Zhongguo Zhong Yao Za Zhi 28 (7), 664–668.
Xie, M., and Chen, Q. (2020). Insight into 2019 Novel Coronavirus - an Updated Interim Review and Lessons from SARS-CoV and MERS-CoV. Int. J. Infect. Dis. 94, 119–124. doi:10.1016/j.ijid.2020.03.071
Xu, L., Liu, J., Lu, M., Yang, D., and Zheng, X. (2020). Liver Injury during Highly Pathogenic Human Coronavirus Infections. Liver Int. 40 (5), 998–1004. doi:10.1111/liv.14435
Yi, L., Li, Z., Yuan, K., Qu, X., Chen, J., Wang, G., et al. (2004). Small Molecules Blocking the Entry of Severe Acute Respiratory Syndrome Coronavirus into Host Cells. J. Virol. 78 (20), 11334–11339. doi:10.1128/jvi.78.20.11334-11339.2004
Ying, Y., Qingwu, L., Mingming, X., Zhenju, S., Chaoyang, T., and Zhengang, T. (2017). Emodin: One Main Ingredient of Shufeng Jiedu Capsule Reverses Chemoresistance of Lung Cancer Cells through Inhibition of EMT. Cell Physiol Biochem. 42 (3), 1063–1072. doi:10.1159/000478754
Yu, M.-S., Lee, J., Lee, J. M., Kim, Y., Chin, Y.-W., Jee, J.-G., et al. (2012). Identification of Myricetin and Scutellarein as Novel Chemical Inhibitors of the SARS Coronavirus Helicase, nsP13. Bioorg. Med. Chem. Lett. 22 (12), 4049–4054. doi:10.1016/j.bmcl.2012.04.081
Yu, S., Wang, J., and Shen, H. (2020). Network Pharmacology-Based Analysis of the Role of Traditional Chinese Herbal Medicines in the Treatment of COVID-19. Ann. Palliat. Med. 9 (2), 437–446. doi:10.21037/apm.2020.03.27
Zeng, Y., Li, Y., Wei, H., Xiong, C., Liao, L., Miao, , et al. (2020). The Effects and Safety of Chinese Oral Herbal Paste on Stable Chronic Obstructive Pulmonary Disease: A Systematic Review and Meta-Analysis of Randomized Controlled Trials. Evid. Based Complement. Alternat Med. 2020, 5867086. doi:10.1155/2020/5867086
Zhang, S.-F., Mao, X.-J., Jiang, W.-M., and Fang, Z.-Y. (2020a). Qian Yang Yu Yin Granule Protects against Hypertension-Induced Renal Injury by Epigenetic Mechanism Linked to Nicotinamide N-Methyltransferase (NNMT) Expression. J. Ethnopharmacology 255, 112738. doi:10.1016/j.jep.2020.112738
Zhang, Z.-j., Wu, W.-y., Hou, J.-j., Zhang, L.-l., Li, F.-f., Gao, L., et al. (2020b). Active Constituents and Mechanisms of Respiratory Detox Shot, a Traditional Chinese Medicine Prescription, for COVID-19 Control and Prevention: Network-Molecular Docking-LC-MSE Analysis. J. Integr. Med. 18 (3), 229–241. doi:10.1016/j.joim.2020.03.004
Zhao, H., Li, C., Li, L., Liu, J., and Gao, Y. (2020). Baicalin Alleviates Bleomycin induced Pulmonary Fibrosis and Fibroblast Proliferation in Rats via the PI3K/AKT Signaling Pathway. Mol. Med. Rep. 21 (6), 2321–2334. doi:10.3892/mmr.2020.11046
Zhao, P., Yang, H. Z., Lv, H. Y., and Wei, Z. M. (2014). Efficacy of Lianhuaqingwen Capsule Compared with Oseltamivir for Influenza A Virus Infection: a Meta-Analysis of Randomized, Controlled Trials. Altern. Ther. Health Med. 20 (2), 25–30.
Zhou, F., Yu, T., Du, R., Fan, G., Liu, Y., Liu, Z., et al. (2020a). Clinical Course and Risk Factors for Mortality of Adult Inpatients with COVID-19 in Wuhan, China: a Retrospective Cohort Study. Lancet 395(10229), 1054–1062. doi:10.1016/s0140-6736(20)30566-3 [published correction appears in Lancet. 2020 Mar 28;395(10229):1038].
Zhou, P., Yang, X.-L., Wang, X.-G., Hu, B., Zhang, L., Zhang, W., et al. (2020b). A Pneumonia Outbreak Associated with a New Coronavirus of Probable Bat Origin. Nature 579 (7798), 270–273. doi:10.1038/s41586-020-2012-7
Keywords: COVID-19, TCM, inflammatory reaction, TCM formulation, therapeutic targets
Citation: Li P, Hu S, Qian C, Yao Y, Li L-y, Yang J-f, Yang L, Yang C-c, Zhou H, Wang S-x, Hu Y, Zhu X-y, Zhou J, Pan L-x, Shen C-p and Zhou H (2021) The Therapeutic Effect of Traditional Chinese Medicine on Inflammatory Diseases Caused by Virus, Especially on Those Caused by COVID-19. Front. Pharmacol. 12:650425. doi: 10.3389/fphar.2021.650425
Received: 07 January 2021; Accepted: 29 March 2021;
Published: 26 May 2021.
Edited by:
Jian Gao, Second Affiliated Hospital of Dalian Medical University, ChinaReviewed by:
Xiangjiang Lin, Ludwig Maximilian University of Munich, GermanyKaiyuan Niu, Queen Mary University of London, United Kingdom
Copyright © 2021 Li, Hu, Qian, Yao, Li, Yang, Yang, Yang, Zhou, Wang, Hu, Zhu, Zhou, Pan, Shen and Zhou. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Chuan-pu Shen, scp1001@126.com; Huan Zhou, zhhuanbest@163.com
†These authors have contributed equally to this work
