Juwairiah Remali
Wan Mohd Aizat- Institute of Systems Biology (INBIOSIS), Universiti Kebangsaan Malaysia (UKM), Bangi, Malaysia
The rapid outbreak of coronavirus disease 2019 (COVID-19) has demonstrated the need for development of new vaccine candidates and therapeutic drugs to fight against the underlying virus, severe acute respiratory syndrome-coronavirus-2 (SARS-CoV-2). Currently, no antiviral treatment is available to treat COVID-19 as treatment is mostly directed to only relieving the symptoms. Retrospectively, herbal medicinal plants have been used for thousands of years as a medicinal alternative including for the treatment of various viral illnesses. However, a comprehensive description using various medicinal plants in treating coronavirus infection has not to date been described adequately, especially their modes of action. Most other reports and reviews have also only focused on selected ethnobotanical herbs such as Traditional Chinese Medicine, yet more plants can be considered to enrich the source of the anti-viral compounds. In this review, we have screened and identified potential herbal medicinal plants as anti-coronavirus medication across major literature databases without being limited to any regions or ethnobotanic criteria. As such we have successfully gathered experimentally validated in vivo, in vitro, or in silico findings of more than 30 plants in which these plant extracts or their related compounds, such as those of Artemisia annua L., Houttuynia cordata Thunb., and Sambucus formosana Nakai, are described through their respective modes of action against specific mechanisms or pathways during the viral infection. This includes inhibition of viral attachment and penetration, inhibition of viral RNA and protein synthesis, inhibition of viral key proteins such as 3-chymotrypsin-like cysteine protease (3CLpro) and papain-like protease 2 (PLpro), as well as other mechanisms including inhibition of the viral release and enhanced host immunity. We hope this compilation will help researchers and clinicians to identify the source of appropriate anti-viral drugs from plants in combating COVID-19 and, ultimately, save millions of affected human lives.
Introduction
Coronaviruses are known to infect various hosts such as mice (mouse hepatitis virus, MHV), pigs (porcine epidemic diarrhea virus, PEDV), birds (avian coronavirus, IBV) and even human (human coronavirus, HCoV including severe acute respiratory syndrome coronavirus (SARS-CoV), SARS-CoV-2, Middle East Respiratory Syndrome-CoV (MERS-CoV), HCoV-OC43, HCoV-NL63 and HCoV-229E) with different disease severity (Vellingiri et al., 2020; Zhu et al., 2020). On January 30, 2020, the World Health Organization (WHO) declared the outbreak of COVID-19, caused by the SARS-CoV-2, to be a global pandemic, which requires an international public health emergency (Patel and Jernigan, 2020). Ever since its outbreak in December 2019 (Yang et al., 2020), the SARS-CoV-2 virus has spread and caused more than 15.3 million cases and 631,000 deaths worldwide as of July 23, 2020 (https://virusncov.com/). The outbreak originated from the Hunan seafood market in Wuhan, a main city of China which frequently sold live exotic animals such as bats, frogs, snakes, dogs, civets, and marmots (Wang et al., 2020a). Although the zoonotic source of COVID-19 is yet to be verified, however, sequence-based analysis of isolates from infected patients has indicated that bats may serve as the primary reservoir, of which over 80% of the viral genome sequences is identical to the previous human SARS-coronavirus (Wu et al., 2020). Most COVID-19 patients initially suffered from fever, cough, and fatigue while developing other symptoms including muscle pain, headache, shortness of breath, and diarrhea, of which, in extreme cases, severe inflammatory responses may lead to fatality (Chen et al., 2020).
SARS-CoV-2 belongs to the order Nidovirales, family Coronaviridae and genus Coronavirus, which is comprised of single stranded positive RNA sense viruses with 29.7 kb in length (Ksiazek et al., 2003; Marra et al., 2003; Ruan et al., 2003). Such RNA encodes two large non-structural polyproteins and four major structural proteins (Figure 1). The non-structural polyproteins, known as ORF1a and ORF1b with protein sizes of 486 and 790 kDa, respectively (Ksiazek et al., 2003; Marra et al., 2003), will undergo co-translational processing by two viral-encoded proteases called 3-chymotrypsin-like cysteine protease (3CLpro) and a papain-like protease (PLpro) (Gao et al., 2003; Snijder et al., 2003; Thiel et al., 2003). The processing of ORF1a is carried out by PLpro at three sites (yellow filled star) which release nsp1, nsp2, and nsp3, whereas the rest of the sites are processed by 3CLpro (red filled star) releasing nsp4 until nsp16 (Lindner et al., 2005). Besides that, the viral RNA encodes for the structural proteins, including nucleocapsid (N), envelope (E), membrane (M), and spike (S) proteins (Figure 1) (Du et al., 2016; Zhou et al., 2018; Wang et al., 2020b). The N protein is a soluble protein that contains the nucleocapsid packages of the RNA genome. Whereas, E is a small protein, around 76–109 amino acids containing a single predicted hydrophobic domain that is essential for interaction with M protein (Ruch and Machamer, 2012) which is the most prevalent membrane protein in the virion envelope (Masters, 2006; Hogue and Machamer, 2014). Meanwhile, the S protein serves as an important mechanism for viral attachment and fusion to the host cells (Figure 1). In general, upon S protein attachment to the host receptor called angiotensin-converting enzyme 2 (ACE2), the coronavirus will enter into the host cell through endocytosis (Figure 1). The virus will then release the genomic RNA before the genetic codes are being translated into non-structural polyproteins including 3CLpro, PLpro and RNA-dependent RNA polymerase (RdRp), followed by other structural proteins (N, M, E and S) (Kumar et al., 2020). Eventually, the viral progenies will bud out with all the complete components including replicated genomic RNA to infect other neighboring regions (Figure 1).
FIGURE 1. Mechanism of actions of antiviral agents/compounds from plants against coronavirus infection. As the virus initially infects an eukaryotic cell, several stages in the infection process occur which can be the potential sites of attack by the antiviral compounds. The life cycle of the virus begins when spike protein (S) of coronavirus binds to the angiotensin-converting enzyme 2 receptor (ACE2) located on the membrane of the host cells. The receptor binding facilitates viral envelope fusion with the host cell membrane before releasing the viral RNA into the host cell. The viral RNA encodes four structural proteins and two large non-structural polyproteins called ORF1a and ORF1b. These two non-structural polyproteins are translated and cleaved into 16 non-structural proteins (nsp) by two proteinases, 3-chymotrypsin-like cysteine protease (3CLpro) and papain-like protease 2 (PLpro). The yellow filled stars are the sites predicted to be cleaved by PLpro whereas the red filled stars are the sites predicted to be cleaved by 3CLpro. Besides that, the coronavirus genome also encodes structural proteins, including spike (S), envelope (E), membrane (M), and nucleocapsid (N) proteins. After replication, transcription and translation, viral proteins and genome RNA are subsequently assembled into virions in the endoplasmic reticulum (ER) and Golgi body before they will be transported via vesicles to be released out of the cell as new virus progenies.
Due to its infectivity, scientists have been racing to comprehend the origin and transmission of the virus including elucidating the mechanism for its disease pathogenesis (Liu et al., 2020). A number of comprehensive research have unraveled viable viral genes and proteins as promising future targets for the development of therapeutic agents and vaccines for COVID-19 or other related human coronaviruses (Guo et al., 2020; Liu et al., 2020). However, there are still no clinically approved vaccine or specific antiviral drugs to fight the infection as of July 2020, although more than nine pharmaceutical companies are currently working on this disease (https://www.forbes.com/sites/moneyshow/2020/06/16/9-pharmaceutical-companies-racing-for-a-covid-19-vaccine/#3acd13c576ad). Current treatments used by physicians mainly depend on managing the symptoms such as breathing support using mechanical ventilation, and corticosteroids to reduce lung swelling, as well as the current available antiviral and antibiotics medications (Cascella et al., 2020).
Alternatively, herbal medicine has been used for thousands of years to treat various viral-related illnesses and may become a valuable source of anti-coronovirus treatment (Ling, 2020). Evidently, in 2003, patients who suffered from severe acute respiratory syndrome (SARS) and received Traditional Chinese Medicine (TCM) treatment were reported to have short-term hospitalization (inpatient care), reduced steroid-related side effects, and improvement from the viral symptoms (World Health Organization, 2004). Thus, most previous publications including review papers have mainly focused on the use of TCM and other ethnobotanical herbs (Dudani and Saraogi, 2020; Khanna et al., 2020; Ling, 2020; Vellingiri et al., 2020) or the use of drugs and other dietary supplements that are currently in clinical trials (Di Matteo et al., 2020; Kumar et al., 2020; Stahlmann and Lode, 2020). This may not cover most, if not all, potential plant species or extracts available globally. Besides that, the mechanism of these plant extracts and compounds, especially their modes of action against the viral infection, are still not comprehensively described (Dudani and Saraogi, 2020; Ling, 2020). Therefore, in this review, we have gathered previous studies on medicinal herbs with some evidence against coronavirus infection, either through in vivo, in vitro, or in silico studies, and classified them based on their different modes of actions. This review highlights the potential use of herbal plants and related compounds in treating the coronavirus infection, in the hope that it could lead to a potential source of anti-viral drugs for curbing the COVID-19 outbreak.
All manuscripts were obtained from various databases such as Scopus, PubMed, and Web of Science by using key words (herb* OR herbal) AND (virus OR viral) AND corona* in the search field. We have identified and included research studies starting from year 2004 to year 2020. Relevant papers were selected after critical evaluation on their significance and were further divided based on their experimental designs, whether in vitro, in vivo, or in silico (Tables 1–3). However, we acknowledge that the recorded assay values, for examples IC50 and SI values from the in vitro analysis (Table 1), are not comparable between cell types/lines nor coronavirus types (Kalliokoski et al., 2013) due to their inherent molecular and physiological differences. Thus, the plant herbal extracts/compounds are only discussed within specific application (cell and virus types) of their original reported studies, to avoid over interpretation. Furthermore, the potential use of various herbs are described in this review according to their modes of action including inhibition of viral attachment and penetration, inhibition of RNA and protein synthesis, inhibition of viral proteases, inhibition of viral release and enhancement of host immunity as well as other mechanisms.
TABLE 1. In vitro antiviral activity of various herbal extracts against coronavirus infection.
TABLE 2. In silico antiviral activity of various herbal extracts against coronavirus protein target.

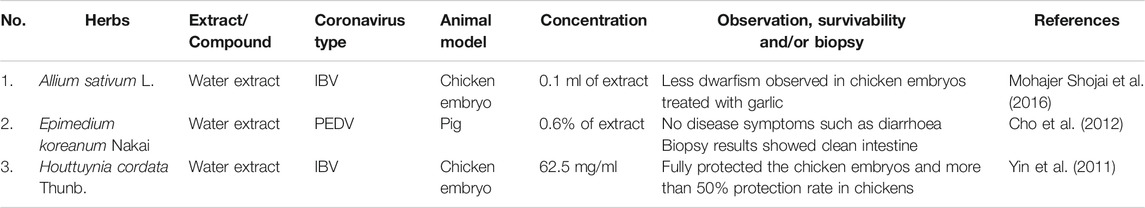

TABLE 3. In vivo antiviral activity of various herbal extracts against coronavirus infection.
Inhibition of Viral Attachment and Penetration
The inhibition of viral penetration and attachment is an effective way to curb coronavirus infection. Infectious virion binds to cell membrane receptors, permeates the cellular membranes and removes the virion's protein coat once entered into the cell cytoplasm, releasing viral nucleic acid (Figure 1) (Smith et al., 1980). Coronavirus S protein plays a critical role in viral attachment, fusion, and entry, making it a potential target in the development of vaccines, antibodies, and inhibitors (Liu et al., 2004; Du et al., 2009, 2017; Wang et al., 2016). The S protein modulates the viral penetration through the first binding on the host cells using receptor-binding domain in the S1 subunit and then fusion into host cells via the S2 subunit through the host ACE2 receptor (Liu et al., 2004). However, different subtypes of coronavirus have been described to recognize different receptors. For examples, SARS-CoV specifically recognizes the ACE2 receptors, while MERS-CoV identified dipeptidyl peptidase 4 (DPP4) receptors (Li et al., 2003; Raj et al., 2013). The current SARS-CoV-2 binds ACE2 receptor (Zhou et al., 2020), thus inhibition at these S proteins or ACE2 may inhibit the viral attachment from entering host cells (Figure 1).
Among 121 herbal compounds that were screened by Wu et al. (2004), tetra-O-galloyl-β-d-glucose (TGG) and luteolin, isolated from Rhus chinensis Mill. and Veronica linariifolia Pall. ex Link, respectively, were identified to have the highest affinity to the S2 subunit of the virus, thus postulating that these compounds may interfere with the viral cell fusion process (Figures 1, 2) (Wu et al., 2004). TGG and luteolin exhibit significant anti-SARS-CoV activity with IC50 of 4.5 and 10.6 µM, respectively, as well as very high selectivity index of 240.0 and 14.62, respectively (Table 1). Selectivity index (SI) is determined based on the proportion of cytotoxicity concentration of the extracts or compounds that can inhibit 50% population of host cells (CC50) to inhibitory concentration of the extracts or compounds that can cause 50% of virus inhibition (IC50). The higher the value of SI, the lesser cytotoxicity for the host and hence it being potentially safe to be applied as a future antiviral agent (Table 1 and Figure 2) (Wu et al., 2004). Thus, this suggested that both compounds can be effective against the coronavirus and, more importantly, safe for human application.
FIGURE 2. The chemical structure of bioactive compounds identified from plants that have inhibition effects on coronavirus infection.
In addition, glycyrrhizin isolated from Glycyrrhiza glabra L. (licorice) also has been identified to inhibit viral attachment and penetration (Figure 1) (Cinatl et al., 2003). In addition, licorice root has been known historically as a powerful antiviral herb (Fiore et al., 2008), used thousands of years ago as a folk medicine for the treatment of throat infection, asthma, bronchitis, peptic ulcers, inflammation, and allergies (Das et al., 1989; Krausse et al., 2004; Nassiri Asl and Hosseinzadeh, 2008). Glycyrrhizin or its other name glycyrrhizic acid (Figure 2) is the principal bioactive component of triterpenoid glycoside in this herb, having demonstrated promising inhibition of SARS-CoV (Chen et al., 2004). Evidently, the compound was found more effective (SI = over 67; Table 1) against the replication of clinical isolates of SARS-CoV than several synthetic antivirals, such as ribavirin, pyrazofurin, 6-azauridine, and mycophenolic acid (Cinatl et al., 2003). Glycyrrhizin also has been shown to suppress inflammation through downregulation of proinflammatory mediators (Ramos-Tovar and Muriel, 2019; Khanna et al., 2020), but its effectiveness in combating COVID-19 severe inflammation including cytokine storm requires further investigation.
Another study conducted on 312 controlled traditional herbs successfully identified two species from the family Polygonaceae to inhibit the interaction of coronavirus S protein and ACE2 (Ho et al., 2007). Water extracts from the root tubers of Rheum officinale Baill., as well as the vines and root tubers of Polygonum multiflorum Thunb., showed IC50 range of 1–10 μg/ml for the viral inhibition (Table 1) (Ho et al., 2007). Emodin, an anthraquinone glycoside compound found from both species (Figure 2), significantly obstructed the S protein and ACE2 interaction (Figure 1) in a dose-dependent way (Ho et al., 2007). This compound also inhibited the S protein-pseudotyped retrovirus infectivity in Vero E6 cells (Ho et al., 2007), thus showing promising potential for blocking the viral entry (Figure 1) (Ho et al., 2007).
Besides that, ethanol extract of Sambucus formosana Nakai, a species of elderberry, also has been identified to have very potent anti-viral effect as it has very low IC50 at 1.17 μg/ml and high SI of 154.37, against the coronavirus (Table 1) (Weng et al., 2019). Caffeic acid isolated from the plant extract (Figure 2) also demonstrated potential anti-coronavirus activity through viral entry inhibition. This compound was able to impair the binding interaction of human coronavirus NL63 (HCoV-NL63) with ACE2 receptor (Figure 1) (Chiou et al., 2017) and heparan sulphate proteoglycans (co-receptor) (Milewska et al., 2014) on the host cell surface. In addition to caffeic acid, two other phenolic acid constituents from this plant extract, chlorogenic acid and gallic acid, were found to exhibit antiviral effect by reducing the development of HCoV-NL63 particles in vitro (Table 1 and Figure 2) (Weng et al., 2019). The IC50 of these two compounds showed promising viral inhibition (chlorogenic acid IC50 = 43.45 μM and gallic acid IC50 = 71.48 μM) but the caffeic acid was more potent (IC50 = 3.54 μM) (Table 1) (Weng et al., 2019).
The coronavirus S-protein also utilizes endosomal cathepsin l-protease enzymatic activity for viral entry (Figure 1) (Simmons et al., 2005; Huang et al., 2006). Cathepsin L stimulates the S protein-mediated membrane fusion by promoting receptor dependent and acid-dependent conformational changes in the S2 domain in which a low pH permits optimal proteolytic activity in endosomes (Huang et al., 2006; Bosch et al., 2008). This indicates that the S protein may be triggered proteolytically during the entry of the virus into infected cells throughout the endocytic route (Simmons et al., 2005; Huang et al., 2006). Screening of various natural compounds based on the Traditional Chinese Medicine (TCM) database has identified aurantiamide acetate derived from Artemisia annua L. plant (Figure 2) (Wang et al., 2007) to inhibit the SARS cathepsin L with the lowest docking binding energy (−50.767 kcal/mol) (Table 2), thus possibly blocking viral entry (Figure 1) (Wang et al., 2007). This plant is originally known to exhibit many therapeutic efficacies especially against flu-like symptoms, such as antitracheitis (inflammation at trachea), cough relief, phlegm removal, asthma relief and others (Zhou et al., 2011). These findings suggest the compound could be implemented as medication to prevent SARS-CoV infection, although this should be evaluated further in animal studies in future (Du et al., 2009).
SARS-CoV also utilizes endocytosis route mediated by clathrin to invade host cells (Figure 1) (Inoue et al., 2007). Clathrin-based endocytosis has been well characterized to use growth factor receptors such as the transferrin receptor (TfR) (Mellman, 1996), epidermal growth factor receptor (Stang et al., 2004), and the keratinocyte growth factor receptor (Belleudi et al., 2003). Butanol fraction of Cinnamomum verum J. Presl (cortex) was shown to inhibit wild-type SARS-CoV (wtSARS-CoV) infection and HIV/SARS-CoV S pseudovirus infections by inhibiting clathrin-mediated endocytosis pathway through TfR receptor (Table 1 and Figure 1) (Zhuang et al., 2009). Besides that, procyanidin A2, procyanidin B1, and cinnamtannin B1 successfully fractionated from this plant (Figure 2) showed moderate anti-wtSARS-CoV activity (IC50s of 29.9, 41.3 and 32.9 µM, respectively, and SIs of 37.35, 15.69, and 5.61, respectively) (Table 1) (Zhuang et al., 2009). However, the procyanidins have not been shown to inhibit the internalization of the virus (Zhuang et al., 2009) and hence more studies needs to be performed to elucidate their exact mechanism of inhibition.
Inhibition of RNA and Protein Synthesis
Several plants such as Sanguisorba officinalis L., Stephania tetrandra S. Moore, and Strobilanthes cusia (Nees) Kuntze also have anti-viral activity towards RNA and protein synthesis of the coronavirus. For instance, N protein expression of mouse hepatitis virus, MHV-A59 was reduced in Sanguisorba officinalis L. treatment, suggesting this plant extract might negatively affect the viral nucleocapsid formation (Figure 1) (Kim et al., 2010). Besides that, natural bis-benzylisoquinoline alkaloids such as tetrandrine, fangchinoline, and cepharanthine isolated from Stephania tetrandra S.Moore (Figure 2) were able to suppress the expression of viral S and N proteins, thus inhibiting the replication of human coronavirus OC43 (HCoV-OC43) infection in MRC-5 human lung cells (Figure 1) (Kim et al., 2019). In addition to that, Strobilanthes cusia (Nees) Kuntze leaf methanol extract strongly suppressed HCoV-NL63-infected cells with IC50 of 0.64 μg/ml (Table 1), and the HCoV-NL63 infection was potently inhibited in a concentration-dependent manner (Tsai et al., 2020). Tryptanthrin and indigodole B (5aR-ethyltryptanthrin) are among the various bioactive compounds present in the extract of S. cusia (Nees) Kuntze (Figure 2) that exhibited significant antiviral activity in minimizing the cytopathic effect and development of viral progeny with IC50 values of 1.52 and 2.60 µM, respectively (Table 1) (Tsai et al., 2020). Different modes of time-of-addition/removal assay demonstrated that tryptanthrin prevented the replication of HCoV-NL63 in the early and the late replication stages, mainly by blocking genome synthesis of viral RNA (Figure 1) (Tsai et al., 2020).
Furthermore, intracellular viral RNA concentrations were also reduced in the extracts of Sophora flavescens Aiton, Acanthopanax gracilistylus W.W.Sm., and Torilis japonica (Houtt.) DC. with a comparable reduction in viral protein and MHV-A59 production (Kim et al., 2010). Moreover, the extracts reduced the replication of other subtypes of coronavirus such as the John Howard Mueller strain of MHV and porcine epidermic diarrhea virus (PEDV) in vitro (Kim et al., 2010). Besides that, an active ingredient of forsythoside A isolated from the fruits of Forsythia suspensa (Thunb.) Vahl has been identified to reduce the viral yield and decreased the expression of infectious bronchitis virus (IBV) N gene (Figure 1) in contrast to untreated IBV infected cells (Li et al., 2011). Forsythoside A is completely able to inhibit IBV in primary chicken embryo kidney cells and abrogated the virus progeny in vitro at concentration of 0.64 mM (Table 1 and Figure 2) (Li et al., 2011). This compound also effectively inhibited pathogenic bacteria including Staphylococcus aureus (Nishibe et al., 1982). Forsythia suspensa (Thunb.) Vahl is typically used to prevent inflammation, pyrexia and emesis in traditional Chinese medicine (Li et al., 2011).
RNA-dependent RNA polymerase (RdRp) is a replicase enzyme that is crucial for the transcription and replication of coronavirus (Thiel et al., 2003). Since RdRp has been identified to play a vitally important role for the virus life cycle, several polymerase inhibitors such as Remdesivir have been implemented for the treatment of varying viral infections such as human immunodeficiency virus type 1 (HIV-1), human hepatitis B virus (HBV), hepatitis C virus (HCV), Zika virus, and herpes virus (Korba et al., 2006; Mercorelli et al., 2018; Gordon et al., 2020). Thus, the inhibition of this enzyme can potentially be used for the discovery of anti-SARS-CoV agent (Lau et al., 2008). For example, H. cordata Thunb. has been identified to act on RdRp activity (Figure 1) (Lau et al., 2008). A study on the polymerase activity with different concentration levels of H. cordata Thunb. water extract (50, 100, 200, 400 and 800 μg/ml) showed a marked reduction in RdRp activity (Table 1) (Lau et al., 2008). Moreover, the oral acute toxicity test showed that H. cordata Thunb. was not harmful toward mice after implementing oral administration at 16 g/kg (Lau et al., 2008) and 2000 mg/kg (Chiow et al., 2016), thus it would be potentially safe for human consumption. Several plant extracts from Cimicifuga racemosa (L.) Nutt., Phellodendron chinense C.K.Schneid., Sophora subprostrata Chun & T.Chen, Phoradendron meliae Trel., and Coptis chinensis Franch. were also known to inhibit RdRp activity (Figure 1) (Kim et al., 2008). Methanol extracts from these plants decreased the production of intracellular viral RNA and protein expression in murine coronavirus (MHV) with IC50 values between 2.0 and 27.5 μg/ml (Table 1) (Kim et al., 2008). These extracts also significantly decreased PEDV production in vitro, a coronavirus that infects the cell lining of pig small intestine (Kim et al., 2008).
Inhibition of Viral Proteases, 3CLpro and PLpro
Viral proteases such as 3CLpro and PLpro also play a prominent role in the replication of coronavirus and presently have become the potential drug target for the development of anti-coronavirus agents (Anand et al., 2003; Han et al., 2005; Gan et al., 2006; Zhang et al., 2020). These two proteases (PLpro and 3CLpro) are responsible for the synthesis and maturation of the various viral polyproteins as shown in Figure 1, and hence they are vital for the biogenesis of the virus replication complex (Lindner et al., 2005). We identified several plants and compounds that have significant activities to inhibit these enzymes. However, compared to PLpro, many more studies have been conducted on 3CLpro, possibly as it was able to generate 12 important non-structural proteins (nsp 4 to nsp 16), including the viral RdRp (nsp 12) and helicase (nsp 13) (Rut et al., 2020).
In silico docking analysis has identified 13 herbal compounds such as coumaroyltyramine, cryptotanshinone, kaempferol, N-cis-feruloyltyramine, quercetin, and tanshinone IIa that are able to inhibit 3CLpro and PLpro (Figures 1, 2 and Table 2) (Zhang et al., 2020). Furthermore, tryptanthrin isolated from the extract of S. cusia (Nees) Kuntze (Figure 2, Table 1) also has been identified to inhibit PLpro activity of the HCoV-NL63 in vitro (Figure 1) (Tsai et al., 2020). Another in silico study has identified several other plant compounds such as helichrysetin, herbacetin, isobavachalcone, pectolinarin, quercetin 3-β-D-glucoside, and rhoifolin (Figure 2) to effectively interrupt the enzymatic activity of 3CLpro of coronavirus (Figure 1 and Table 2) (Jo et al., 2019, 2020). Moreover, sabadinine, a naturally occurring bioactive compound originally isolated from the Lily plant Veratrum sabadilla Retz. (Figure 2) (Sayre, 1907), was also shown able to dock into the active site of 3CLpro (Table 2) (Toney et al., 2004).
Besides that, H. cordata Thunb., Isatis indigotica Fortune ex Lindl. and R. palmatum L. also exhibited significant inhibitory effects on 3CLpro of SARS-CoV in in vitro experiments (Figure 1 and Table 1) (Lin et al., 2005; Lau et al., 2008; Luo et al., 2009). The activity of 3CLpro was reduced to 50% at the maximum concentration of 1,000 μg/ml of H. cordata Thunb. water extract, thereby indicating that polar molecules are responsible for the enzyme inhibition (Table 1) (Lau et al., 2008). Furthermore, compounds isolated from I. indigotica Fortune ex Lindl. (a member of broccoli family) such as sinigrin, beta-sitosterol, and indigo (Figure 2) significantly inhibited cleavage activities of the 3CLpro (Figure 1) (Lin et al., 2005). Sinigrin with an IC50 of 217 µM was found more effective than indigo compound (IC50: 752 µM) or beta-sitosterol (IC50: 1,210 µM) in inhibiting the cleavage processing of the 3CLpro in a cell-based assay (Table 1) (Lin et al., 2005). In addition, aloe emodin and hesperetin, which are phenolic compounds from I. indigotica Fortune ex Lindl. (Figure 2), also dose-dependently inhibited the cleavage activity of 3CLpro, in which the IC50 for aloe emodin was 366 and 8.3 µM for hesperetin (Table 1) (Lin et al., 2005). Moreover, R. palmatum L. ethyl acetate extract also had anti-SARS-3CLpro activity with the IC50 being 13.76 μg/ml (Table 2) and the level of inhibition being up to 96% (Luo et al., 2009). This high rate of 3CLpro inhibitory activity from different plants suggests that these extracts or isolated compounds may represent a potential therapeutic agent against coronavirus.
Inhibition of Viral Release and Enhancement of Host Immunity
Plant compounds also have been identified to specifically target the proteins involved in the release mechanism of the virus such as 3a ion-channel proteins (Figure 1) (Krüger and Fischer, 2009; Fischer et al., 2010; Wang et al., 2011; Kelly et al., 2003; Montal, 2003; Lu et al., 2006). Thereby, herbal medicine that suppressed the channel protein could thus be anticipated to prevent the viral spread to other cells (Schwarz et al., 2012). Employment of the anthraquinone emodin that has been used as alternative therapy in treatment of SARS has demonstrated that it can block the 3a ion channel, thus inhibiting the release of virus at concentration of 20 μM (Figures 1, 2 and Table 1) (Schwarz et al., 2012). Besides that, the flavonols, kaempferol and kaempferol glycosides (Figure 2) also showed potent inhibition towards the 3a channels (Table 1) (Schwarz et al., 2012), which suggests their potential role in inhibiting coronavirus release.
Another strategy to fight against the viral infection is by boosting the host immunity (Lau et al., 2008; Cho et al., 2012). The host with better immunity may act as physiological resistance to protect itself from any infection such as increase in the formation of white blood cells which are able to destroy the viruses rapidly. Evidently, the in vivo study of Epimedium koreanum Nakai on PEDV showed this herbal treatment protects against disease symptoms such as treating diarrhea and ensuring clean intestine in pigs (Table 3) (Cho et al., 2012). It has been suggested that the antiviral effect of E. koreanum Nakai is modulated by immune responses including macrophage and lymphocyte stimulation (Cho et al., 2012). Quercetin and icariin are the main compounds of E. koreanum Nakai (Cho et al., 2012), and interestingly, a previous study has identified that the quercetin also may be able to inhibit the replication of PEDV through specific viral induced reactive oxygen species pathway (Song et al., 2011). Besides that, an in vitro study of this herb also showed that this plant exhibited antiviral effect against other coronavirus subtypes such as SM98 and transmissible gastroenteritis coronavirus (TGE) viruses (Table 1) (Cho et al., 2012). This extract is not toxic within the host cells, hence indicating that it can be safely delivered for possible infection treatment (Cho et al., 2012). Besides that, H. cordata Thunb. study on mice has identified that the water extract from this plant was able to increase immune system of the mice through significantly stimulating the proliferation of mouse spleen lymphocytes (Lau et al., 2008). It was also revealed that H. cordata Thunb. increased the CD4 + and CD8 + T cell proportion and also caused a significant increment of mouse splenic lymphocyte secretion of interleukin-2 (IL-2) and interleukin-10 (IL-10) (Lau et al., 2008). These findings demonstrated that H. cordata Thunb. extract could exhibit immunostimulatory effect which may aid to suppress the coronavirus infection. Various other studies have also shown that diets including micronutrients such as vitamin C and D have the potential to prevent or treat COVID-19 by fortifying immune system, some of which have entered clinical trial phase (Di Matteo et al., 2020).
Other Mechanisms
There are also other studies that have provided excellent evidence regarding natural herbs and traditional medicine as future anti-coronavirus compounds, even though its exact mechanism is still unknown. For instance, plants such as Euphorbia neriifolia L. and Pelargonium sidoides DC. were identified as having appreciable antiviral activity against human coronavirus infection. Several compounds such as 3β-friedelanol, 3β-acetoxy friedelane, friedelin, and epitaraxerol (Figure 2) that successfully isolated from the ethanolic extract of E. neriifolia L. leaves exhibited potent anti-human coronavirus (HCoV) activity on human fibroblasts (MRC-5) infected cells, as opposed to the positive control, actinomycin D (Table 2) (Chang et al., 2012). Structure-activity relationship further demonstrated the importance of friedelane skeleton for developing a new anti-HCoV-229E treatment (Chang et al., 2012). Moreover, Pelargonium sidoides DC. extract EPs® 7630 that is approved for treating acute bronchitis has broad spectrum antiviral agent activity toward various respiratory viruses including human coronavirus (Table 1) (Michaelis et al., 2011). Infected cells treated with the extract showed high survivability which was up to 87% (Table 1) (Michaelis et al., 2011). Besides that, the P. sidoides DC. roots have been used for generations in Southern Africa for the medication of different diseases including airways infections (Conrad et al., 2007; Brendler and van Wyk, 2008; Kolodziej, 2008) and in 2005, the Federal Institute of Drugs and Medical Devices approved its standardized extract for the use of acute bronchitis in Germany (Conrad et al., 2007). However, more work may be needed to establish the extract efficacy in treating the coronavirus infection.
Lycoris radiata (L'Hér.) Herb. extract also was identified as having potent anti-coronovirus activity based on a screening through an in vitro study (Li et al., 2005). Ethanol extract of L. radiata (L'Hér.) Herb. that has been treated on SARS-CoV BJ-006 strain showed the highest SI (370-422) compared with the other plants such as Lindera aggregata (Sims) Kosterm. (SI: 16-17), Pyrrosia lingua (Thunb.) Farw. (SI: 55-59), and Artemisia annua L. (SI: 27-31) (Table 1) (Li et al., 2005). Further structure and activity analysis resulted in a single bioactive compound called lycorine being identified as an active component of anti-SARS-CoV in L. radiata (L'Hér.) Herb. with an IC50 value of 15.7 nM (Table 1 and Figure 2). This compound also has a CC50 value of 14,980 nM in cytotoxicity assay and a selective index (SI) greater than 900 (Table 1) (Li et al., 2005). This finding has shown that lycorine may serve as a great candidate for the new anti-coronavirus treatment (Li et al., 2005).
Besides that, other plants such as Toona sinensis (Juss.) M. Roem. (Chinese mahogany) have been identified to possess antiviral activity toward coronavirus infection too. T. sinensis (Juss.) M. Roem (also known as Cedrela sinensis, belongs to the family Meliacceae) is popular in Taiwan, China, and Malaysia, has also been tested for SARS-CoV inhibition in vitro analysis and the water extract was shown to inhibit SARS coronavirus replication with an SI of 17 (Table 2) (Chen et al., 2008). However, the main compound responsible for inhibiting the SARS-CoV is still unknown, although many bioactive compounds having been isolated from its leaves including beta-sitosterol, beta-sitosteryl-glucoside, (+)-catechin, (−)-epicatechin, gallic acid, kaempferol, kaempferol-d-glucoside, methyl gallate, phytol, quercetin, quercitrin, rutin, stigmasterol, stigmasterol glucoside and toosendanin (Chia, 2007).
Additionally, in vivo study of chicken embryo that received treatment from garlic extract (Allium sativum L.) showed inhibitory effects against IBV, the coronavirus that contributes to tremendous economic loss in the poultry industry around the world (Mohajer Shojai et al., 2016). These treated embryos showed less dwarfism compared to the untreated group (Table 3) (Mohajer Shojai et al., 2016). The metabolite profiling of this extract also showed highly abundant compounds such as diallyl disulphide, disulfide di-2-propenyl and methyl 2 propenyl disulphide that might be responsible for its bioactivity (Mohajer Shojai et al., 2016). Furthermore, H. cordata Thunb. water extracts have been shown to have an inhibitory effect on the IBV (Table 3) (Yin et al., 2011). In vitro and in vivo study of H. cordata Thunb. conducted on specific pathogen free (SPF) chicken embryos and chickens demonstrated inhibitory activity of more than 90% against IBV infection in Vero cells and chicken embryo kidney cells as well as reduction of more than 90% of apoptosis-inducing cell death resulting from IBV infection (Yin et al., 2011). Besides that, H. cordata Thunb. also protected chickens against the virus during pre-treatment (62.5 mg/ml extract given before IBV infection) or post-treatment (62.5 mg/ml given after IBV infection), curing more than 50% of the infected chickens (Tables 2 and 3) (Yin et al., 2011). Additionally, ethyl acetate fraction of H. cordata Thunb. demonstrated anti-MHV activity at an IC50 of 0.98 μg/ml (Table 1) without any appreciable cytotoxic effects on CCL9.1 cells (Chiow et al., 2016). The flavonoids of H. cordata Thunb. which is quercetin (Figure 1) also significantly inhibit MHV activity with IC50 of 125 μg/ml (Table 1) (Chiow et al., 2016). Interestingly, quercetin is currently being tested in a clinical trial due to its strong antioxidant and prophylactic effect against COVID-19 (Di Matteo et al., 2020). Although these evidence suggest the use of these plant extracts for anti-coronaviral treatments, more in-depth studies are needed to elucidate their exact mechanism in targeting the viral infection.
Conclusion
A considerable amount of research strongly indicates that both excellently characterized and less familiar medicinal plants around the world, either crude extracts or bioactive compounds from these plants, are very convincing as therapy for the new emerging coronavirus infection. Several compounds such as TGG, emodin, glycyrrhizin, aurantiamide acetate, and caffeic acid have been identified to have inhibition on viral attachment and penetration. Besides that, several plants and compounds such as Sanguisorba officinalis L., Stephania tetrandra S. Moore (tetrandrine, fangchinoline, and cepharanthine), and Strobilanthes cusia (Nees) Kuntze (tryptanthrin), and F. suspensa (Thunb.) Vahl (forsythoside A) were able to inhibit the viral RNA and protein synthesis. Other compounds such as kaempferol, N-cis-feruloyltyramine, and quercetin have targeted and inhibited the viral proteases such as 3CLpro and PLpro, important enzymes for the co-translation of non-structural proteins. We also identified a few compounds that may act on the viral release mechanism such as through the 3a ion channel (emodin and kaempferol) as well as enhancing the host immune systems (E. koreanum Nakai and H. cordata Thunb. extracts). Last but not least, several plants such as L. radiata (L'Hér.) Herb., A. sativum L., E. neriifolia L., P. sidoides DC., and T. sinensis (Juss.) M. Roem. have also been discovered to have anti-coronavirus activity, yet their exact mechanisms in targeting the coronavirus infection are still unknown, thus becoming exciting candidates for the development of new anti-coronavirus agents. Perhaps the most promising extracts for this current pandemic are from L. radiata (ethanol extract and lycorine) and S. cusia (methanol extract, tryptanthrin and indigodole B) and I. indigotica (hesperetin) with excellent in vitro IC50 and SI values against human coronaviruses, as well as quercetin and kaempferol from various herbs as evidenced from in silico experimentation. However, more preclinical and clinical studies are needed to justify their use and efficacy against the current SARS-CoV-2 virus. Altogether, this compilation will aid researchers or clinicians to better evaluate some targeted plant extracts and bioactive compounds for an effective potential treatment against this devastating pandemic.
Author Contributions
JR analysed, interpreted and reviewed the research articles as well as drafting the article. WA designed the research framework and critically revised the manuscript. All authors contributed to manuscript revision, read, and approved the submitted version.
Funding
This study was funded by UKM Research University grants, DIP-2018-001 and GP-2019-K019471.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Anand, K., Ziebuhr, J., Wadhwani, P., Mesters, J. R., and Hilgenfeld, R. (2003). Coronavirus main proteinase (3CLpro) structure: basis for design of anti-SARS drugs. Science 80, 1763–1767. doi:10.1126/science.1085658
Belleudi, F., Visco, V., Ceridono, M., Leone, L., Muraro, R., Frati, L., et al. (2003). Ligand-induced clathrin-mediated endocytosis of the keratinocyte growth factor receptor occurs independently of either phosphorylation or recruitment of eps15. FEBS Lett. 553 (3), 262–270. doi:10.1016/S0014-5793(03)01020-2
Bosch, B. J., Bartelink, W., and Rottier, P. J. M. (2008). Cathepsin L functionally cleaves the severe acute respiratory syndrome coronavirus Class I fusion protein upstream of rather than adjacent to the fusion peptide. J. Virol. 82 (17), 8887–8890. doi:10.1128/jvi.00415-08
Brendler, T., and van Wyk, B. E. (2008). A historical, scientific and commercial perspective on the medicinal use of Pelargonium sidoides (Geraniaceae). J. Ethnopharmacol. 119 (3), 420–433. doi:10.1016/j.jep.2008.07.037
Cascella, M., Rajnik, M., Cuomo, A., Dulebohn, S. C., and Di Napoli, R. (2020). Features, evaluation and treatment coronavirus (COVID-19). Treasure Island, FL: StatPearls Publishing.
Chang, F. R., Yen, C. T., Ei-Shazly, M., Lin, W. H., Yen, M. H., Lin, K. H., et al. (2012). Anti-human coronavirus (anti-HCoV) triterpenoids from the leaves of Euphorbia neriifolia. Nat. Prod. Commun. 7 (11), 1934. doi:10.1177/1934578x1200701103
Chen, C. J., Michaelis, M., Hsu, H. K., Tsai, C. C., Yang, K. D., Wu, Y. C., et al. (2008). Toona sinensis Roem tender leaf extract inhibits SARS coronavirus replication. J. Ethnopharmacol. 120 (1), 108–111. doi:10.1016/j.jep.2008.07.048
Chen, F., Chan, K. H., Jiang, Y., Kao, R. Y. T., Lu, H. T., Fan, K. W., et al. (2004). In vitro susceptibility of 10 clinical isolates of SARS coronavirus to selected antiviral compounds. J. Clin. Virol. 31 (1), 69–75. doi:10.1016/j.jcv.2004.03.003
Chen, N., Zhou, M., Dong, X., Qu, J., Gong, F., Han, Y., et al. (2020). Epidemiological and clinical characteristics of 99 cases of 2019 novel coronavirus pneumonia in Wuhan, China: a descriptive study. Lancet 28, 526. doi:10.1016/S0140-6736(20)30211-7
Chia, (2007). Components of Toona Sinensis: review. Rev. Bras. Farmacogn. 29 (1), 111–124. doi:10.1016/j.bjp.2018.07.009
Chiou, S. Y., Sung, J. M., Huang, P. W., and Lin, S. D. (2017). Antioxidant, antidiabetic, and antihypertensive properties of Echinacea purpurea flower extract and caffeic acid derivatives using in vitro models. J. Med. Food 20 (2), 171–179. doi:10.1089/jmf.2016.3790
Chiow, K. H., Phoon, M. C., Putti, T., Tan, B. K. H., and Chow, V. T. (2016). Evaluation of antiviral activities of Houttuynia cordata Thunb. extract, quercetin, quercetrin and cinanserin on murine coronavirus and dengue virus infection. Asian Pac. J. Trop. Med. 9 (1), 1–7. doi:10.1016/j.apjtm.2015.12.002
Cho, W. K., Kim, H., Choi, Y. J., Yim, N. H., Yang, H. J., and Ma, J. Y. (2012). Epimedium koreanum Nakai water extract exhibits antiviral activity against porcine epidermic diarrhea virus in vitro and in vivo. Evidence-based Complement. Altern. Med. 7 (1), 352–377. doi:10.1155/2012/985151
Cinatl, J., Morgenstern, B., Bauer, G., Chandra, P., Rabenau, H., and Doerr, H. W. (2003). Glycyrrhizin, an active component of liquorice roots, and replication of SARS-associated coronavirus. Lancet 361 (9374), 2045–2046. doi:10.1016/S0140-6736(03)13615-X
Conrad, A., Kolodziej, H., and Schulz, V. (2007). Pelargonium sidoides-etrakt (EPs® 7630): Zulassung bestätigt wirksamkeit und verträglichkeit. Wien Med. Wochenschr. 157, 331–336. doi:10.1007/s10354-007-0434-6
Das, S. K., Das, V., Gulati, A. K., and Singh, V. P. (1989). Deglycyrrhizinated liquorice in aphthous ulcers. J. Assoc. Phys. India 37 (10), 647.
Di Matteo, G., Spano, M., Grosso, M., Salvo, A., Ingallina, C., Russo, M., et al. (2020). Food and COVID-19: preventive/Co-therapeutic strategies explored by current clinical trials and in silico studies. Foods 9 (8), 1036. doi:10.3390/foods9081036
Du, L., He, Y., Zhou, Y., Liu, S., Zheng, B. J., and Jiang, S. (2009). The spike protein of SARS-CoV - a target for vaccine and therapeutic development. Nat. Rev. Microbiol. 7 (3), 226–236. doi:10.1038/nrmicro2090
Du, L., Tai, W., Zhou, Y., and Jiang, S. (2016). Vaccines for the prevention against the threat of MERS-CoV. Expert Rev. Vacc. 15 (9), 1123–1134. doi:10.1586/14760584.2016.1167603
Du, L., Yang, Y., Zhou, Y., Lu, L., Li, F., and Jiang, S. (2017). MERS-CoV spike protein: a key target for antivirals. Expert Opin. Ther. Targets 21 (2), 131–143. doi:10.1080/14728222.2017.1271415
Dudani, T., and Saraogi, A. (2020). Use of herbal medicines on coronavirus. Acta Sci. Pharm. Sci. 11 (6), 416–419. doi:10.31080/asps.2020.04.0518
Fiore, C., Eisenhut, M., Krausse, R., Ragazzi, E., Pellati, D., Armanini, D., et al. (2008). Antiviral effects of Glycyrrhiza species. Phyther. Res. 22 (2), 141–148. doi:10.1002/ptr.2295
Fischer, W. B., Thiel, G., and Fink, R. H. A. (2010). Viral membrane proteins. Eur. Biophys. J. 39, 1041–1042. doi:10.1007/s00249-009-0525-y
Gan, Y. R., Huang, H., Huang, Y. D., Rao, C. M., Zhao, Y., Liu, J. S., et al. (2006). Synthesis and activity of an octapeptide inhibitor designed for SARS coronavirus main proteinase. Peptides 27 (4), 622–625. doi:10.1016/j.peptides.2005.09.006
Gao, F., Ou, H. Y., Chen, L. L., Zheng, W. X., and Zhang, C. T. (2003). Prediction of proteinase cleavage sites in polyproteins of coronaviruses and its applications in analyzing SARS-CoV genomes. FEBS Lett. 553 (3), 451–456. doi:10.1016/S0014-5793(03)01091-3
Gordon, C. J., Tchesnokov, E. P., Woolner, E., Perry, J. K., Feng, J. Y., Porter, D. P., et al. (2020). Remdesivir is a direct-acting antiviral that inhibits RNA-dependent RNA polymerase from severe acute respiratory syndrome coronavirus 2 with high potency. J. Biol. Chem. 295, 6785–6797. doi:10.1074/jbc.RA120.013679
Guo, Y. R., Cao, Q. D., Hong, Z. S., Tan, Y. Y., Chen, S. D., Jin, H. J., et al. (2020). The origin, transmission and clinical therapies on coronavirus disease 2019 (COVID-19) outbreak- A n update on the status. Mil. Med. Res. 226, 20–39. doi:10.1186/s40779-020-00240-0
Han, Y. S., Chang, G. G., Juo, C. G., Lee, H. J., Yen, S. H., Hsu, J. T. A., et al. (2005). Papain-like protease 2 (PLP2) from severe acute respiratory syndrome coronavirus (SARS-CoV): expression, purification, characterization, and inhibition. Biochemistry 44, 10349–10359. doi:10.1021/bi0504761
Ho, T. Y., Wu, S. L., Chen, J. C., Li, C. C., and Hsiang, C. Y. (2007). Emodin blocks the SARS coronavirus spike protein and angiotensin-converting enzyme 2 interaction. Antiviral Res. 74 (2), 92–101. doi:10.1016/j.antiviral.2006.04.014
Hoever, G., Baltina, L., Michaelis, M., Kondratenko, R., Baltina, L., Tolstikov, G. A., et al. (2005). Antiviral activity of glycyrrhizic acid derivatives against SARS-coronavirus. J. Med. Chem. 48 (4), 1256–1259. doi:10.1021/jm0493008
Hogue, B. G., and Machamer, C. E. (2014). Coronavirus structural proteins and virus assembly. In Nidoviruses 28, 569. doi:10.1128/9781555815790.ch12
Huang, I. C., Bosch, B. J., Li, F., Li, W., Kyoung, H. L., Ghiran, S., et al. (2006). SARS coronavirus, but not human coronavirus NL63, utilizes cathepsin L to infect ACE2-expressing cells. J. Biol. Chem. 281 (6), 3198–3203. doi:10.1074/jbc.M508381200
Inoue, Y., Tanaka, N., Tanaka, Y., Inoue, S., Morita, K., Zhuang, M., et al. (2007). Clathrin-dependent entry of Severe Acute Respiratory Syndrome coronavirus into target cells expressing ACE2 with the cytoplasmic tail deleted. J. Virol. 81 (16), 8722–8729. doi:10.1128/jvi.00253-07
Jo, S., Kim, H., Kim, S., Shin, D. H., and Kim, M. S. (2019). Characteristics of flavonoids as potent MERS-CoV 3C-like protease inhibitors. Chem. Biol. Drug Des. 94 (6), 2023–2030. doi:10.1111/cbdd.13604
Jo, S., Kim, S., Shin, D. H., and Kim, M. S. (2020). Inhibition of SARS-CoV 3CL protease by flavonoids. J. Enzyme Inhib. Med. Chem. 35 (1), 145–151. doi:10.1080/14756366.2019.1690480
Kalliokoski, T., Kramer, C., Vulpetti, A., and Gedeck, P. (2013). Comparability of mixed IC 50 data–a statistical analysis. PloS One 8 (4), e61007. doi:10.1371/journal.pone.0061007
Kelly, M. L., Cook, J. A., Brown-Augsburger, P., Heinz, B. A., Smith, M. C., and Pinto, L. H. (2003). Demonstrating the intrinsic ion channel activity of virally encoded proteins. FEBS (Fed. Eur. Biochem. Soc.) Lett. 552 (1), 61–67. doi:10.1016/S0014-5793(03)00851-2
Khanna, K., Kohli, S. K., Kaur, R., Bhardwaj, A., Bhardwaj, V., Ohri, P., et al. (2020). Herbal immune-boosters: substantial warriors of pandemic Covid-19 battle. Phytomedicine 5, e561. doi:10.1016/j.phymed.2020.153361
Kim, D. E., Min, J. S., Jang, M. S., Lee, J. Y., Shin, Y. S., Park, C. M., et al. (2019). Natural bis-benzylisoquinoline alkaloids-tetrandrine, fangchinoline, and cepharanthine, inhibit human coronavirus oc43 infection of mrc-5 human lung cells. Biomolecules 9 (11), 696. doi:10.3390/biom9110696
Kim, H. Y., Eo, E. Y., Park, H., Kim, Y. C., Park, S., Shin, H. J., et al. (2010). Medicinal herbal extracts of Sophorae radix, Acanthopanacis cortex, Sanguisorbae radix and Torilis fructus inhibit coronavirus replication in vitro. Antivir. Ther. 15 (5), 697–709. doi:10.3851/IMP1615
Kim, H. Y., Shin, H. S., Park, H., Kim, Y. C., Yun, Y. G., Park, S., et al. (2008). In vitro inhibition of coronavirus replications by the traditionally used medicinal herbal extracts, Cimicifuga rhizoma, Meliae cortex, Coptidis rhizoma, and Phellodendron cortex. J. Clin. Virol. 41 (2), 122–128. doi:10.1016/j.jcv.2007.10.011
Kolodziej, H. (2008). Aqueous ethanolic extract of the roots of Pelargonium sidoides - new scientific evidence for an old anti-infective phytopharmaceutical. Planta Med. 74 (6), 661–666. doi:10.1055/s-2007-993778
Korba, B. E., Furman, P. A., and Otto, M. J. (2006). Clevudine: a potent inhibitor of hepatitis B virus in vitro and in vivo. Expert Rev. Anti Infect. Ther. 4, 549–561. doi:10.1586/14787210.4.4.549
Krausse, R., Bielenberg, J., Blaschek, W., and Ullmann, U. (2004). In vitro anti-Helicobacter pylori activity of Extractum liquiritiae, glycyrrhizin and its metabolites. J. Antimicrob. Chemother. 54 (1), 243–246. doi:10.1093/jac/dkh287
Krüger, J., and Fischer, W. B. (2009). Assembly of viral membrane proteins. J. Chem. Theory Comput. 5, 2503–2513. doi:10.1021/ct900185n
Ksiazek, T. G., Erdman, D., Goldsmith, C. S., Zaki, S. R., Peret, T., Emery, S., et al. (2003). A novel coronavirus associated with severe acute respiratory syndrome. N. Engl. J. Med. 348 (20), 1953–1966. doi:10.1056/NEJMoa030781
Kumar, R., Harilal, S., Al-Sehemi, A. G., Mathew, G. E., Carradori, S., and Mathew, B. (2020). The Chronicle of COVID-19 and possible strategies to curb the pandemic. Curr. Med. Chem. 182, 111602. doi:10.2174/0929867327666200702151018
Lau, K. M., Lee, K. M., Koon, C. M., Cheung, C. S. F., Lau, C. P., Ho, H. M., et al. (2008). Immunomodulatory and anti-SARS activities of Houttuynia cordata. J. Ethnopharmacol. 118 (1), 79–85. doi:10.1016/j.jep.2008.03.018
Li, H., Wu, J., Zhang, Z., Ma, Y., Liao, F., Zhang, Y., et al. (2011). Forsythoside A inhibits the avian infectious bronchitis virus in cell culture. Phyther. Res. 6, 1060–1069. doi:10.1002/ptr.3260
Li, S. Y., Chen, C., Zhang, H. Q., Guo, H. Y., Wang, H., Wang, L., et al. (2005). Identification of natural compounds with antiviral activities against SARS-associated coronavirus. Antiviral Res. 67 (1), 18–23. doi:10.1016/j.antiviral.2005.02.007
Li, W., Moore, M. J., Vasllieva, N., Sui, J., Wong, S. K., Berne, M. A., et al. (2003). Angiotensin-converting enzyme 2 is a functional receptor for the SARS coronavirus. Nature 426 (6965), 450–454. doi:10.1038/nature02145
Lin, C. W., Tsai, F. J., Tsai, C. H., Lai, C. C., Wan, L., Ho, T. Y., et al. (2005). Anti-SARS coronavirus 3C-like protease effects of Isatis indigotica root and plant-derived phenolic compounds. Antiviral Res. 67, 18–23. doi:10.1016/j.antiviral.2005.07.002
Lindner, H. A., Fotouhi-Ardakani, N., Lytvyn, V., Lachance, P., Sulea, T., and Ménard, R. (2005). The papain-like protease from the Severe Acute Respiratory Syndrome coronavirus is a deubiquitinating enzyme. J. Virol. 79 (24), 15199–15208. doi:10.1128/jvi.79.24.15199-15208.2005
Ling, C. (2020). Traditional Chinese medicine is a resource for drug discovery against 2019 novel coronavirus (SARS-CoV-2). J. Integr. Med. 18 (2), 87–88. doi:10.1016/j.joim.2020.02.00
Liu, C., Zhou, Q., Li, Y., Garner, L. V., Watkins, S. P., Carter, L. J., et al. (2020). Research and development on therapeutic agents and vaccines for COVID-19 and related human coronavirus diseases. ACS Cent. Sci. 6 (3), 315–331. doi:10.1021/acscentsci.0c00272
Liu, S., Xiao, G., Chen, Y., He, Y., Niu, J., Escalante, C. R., et al. (2004). Interaction between heptad repeat 1 and 2 regions in spike protein of SARS-associated coronavirus: implications for virus fusogenic mechanism and identification of fusion inhibitors. Lancet 363 (9413), 938–947. doi:10.1016/S0140-6736(04)15788-7
Lu, W., Zheng, B. J., Xu, K., Schwarz, W., Du, L., Wong, C. K. L., et al. (2006). Severe acute respiratory syndrome-associated coronavirus 3a protein forms an ion channel and modulates virus release. Proc. Natl. Acad. Sci. USA 103 (33), 12540–12545. doi:10.1073/pnas.0605402103
Luo, W., Su, X., Gong, S., Qin, Y., Liu, W., Li, J., et al. (2009). Anti-SARS coronavirus 3C-like protease effects of Rheum palmatum L. extracts. Biosci. Trends 3 (4), 124–126.
Marra, M. A., Jones, S. J. M., Astell, C. R., Holt, R. A., Brooks-Wilson, A., Butterfield, Y. S. N., et al. (2003). The genome sequence of the SARS-associated coronavirus. Science 80, 231. doi:10.1126/science.1085953
Masters, P. S. (2006). The molecular biology of coronaviruses. Adv. Virus Res. 66, 193–292. doi:10.1016/S0065-3527(06)66005-3
Mellman, I. (1996). Endocytosis and molecular sorting. Annu. Rev. Cell Dev. Biol. 12, 575–625. doi:10.1146/annurev.cellbio.12.1.575
Mercorelli, B., Palù, G., and Loregian, A. (2018). Drug repurposing for viral infectious diseases: how far are we?. Trends Microbiol. 26 (10), 865–876. doi:10.1016/j.tim.2018.04.004
Michaelis, M., Doerr, H. W., and Cinatl, J. (2011). Investigation of the influence of EPs® 7630, a herbal drug preparation from Pelargonium sidoides, on replication of a broad panel of respiratory viruses. Phytomedicine 18 (5), 384–386. doi:10.1016/j.phymed.2010.09.008
Milewska, A., Zarebski, M., Nowak, P., Stozek, K., Potempa, J., and Pyrc, K. (2014). Human coronavirus NL63 utilizes heparan sulfate proteoglycans for attachment to target cells. J. Virol. 88 (22), 13221–13230 doi:10.1128/jvi.02078-14
Mohajer Shojai, T., Ghalyanchi Langeroudi, A., Karimi, V., Barin, A., and Sadri, N. (2016). The effect of Allium sativum (Garlic) extract on infectious bronchitis virus in specific pathogen free embryonic egg. Avicenna J. phytomedicine 6, 458–267. doi:10.22038/ajp.2016.6455
Montal, M. (2003). Structure-function correlates of Vpu, a membrane protein of HIV-1. FEBS (Fed. Eur. Biochem. Soc.) Lett. 552 (1), 47–53. doi:10.1016/S0014-5793(03)00849-4
Nassiri Asl, M., and Hosseinzadeh, H. (2008). Review of pharmacological effects of Glycyrrhiza sp. and its bioactive compounds. Phyther. Res. 22 (6), 709–724. doi:10.1002/ptr.2362
Nishibe, S., Okabe, K., Tsukamoto, H., Sakushima, A., and Hisada, S. (1982). The structure of forsythiaside isolated from Forsythia suspensa. Chem. Pharm. Bull. 30, 1048–1050. doi:10.1248/cpb.30.1048
Patel, A., and Jernigan, D. B. (2020). Initial public health response and interim clinical guidance for the 2019 novel coronavirus outbreak ‐ United States, December 31, 2019-February 4, 2020. MMWR Morb. Mortal. Wkly. Rep. 69 (5), 140–146. doi:10.15585/mmwr.mm6905e1
Raj, V. S., Mou, H., Smits, S. L., Dekkers, D. H. W., Müller, M. A., Dijkman, R., et al. (2013). Dipeptidyl peptidase 4 is a functional receptor for the emerging human coronavirus-EMC. Nature 23, 1069–1070. doi:10.1038/nature12005
Ramos-Tovar, E., and Muriel, P. (2019). “Phytotherapy for the liver,” in Dietary intervention in liver diseases. Editors R.R. Watson, and V.R. Preedy (New York, NY: Acaddemic Press). doi:10.1016/B978-0-12-814466-4.00009-4
Ruan, Y. J., Wei, C. L., Ee, L. A., Vega, V. B., Thoreau, H., Yun, S. T. S., et al. (2003). Comparative full-length genome sequence analysis of 14 SARS coronavirus isolates and common mutations associated with putative origins of infection. Lancet 361, 1779–1785. doi:10.1016/S0140-6736(03)13414-9
Ruch, T. R., and Machamer, C. E. (2012). The coronavirus E protein: assembly and beyond. Viruses 8, 339. doi:10.3390/v4030363
Rut, W., Groborz, K., Zhang, L., Sun, X., Zmudzinski, M., Hilgenfeld, R., et al. (2020). Substrate specificity profiling of SARS-CoV-2 Mpro protease provides basis for anti-COVID-19 drug design. bioRxiv. 10, 521. doi:10.1101/2020.03.07.981928
Sayre, L. (1907). A manual of organic materia medica and pharmacognosy: an introduction to the study of the vegetable kingdom and the vegetable and animal drugs.
Schwarz, S., Sauter, D., Lü, W., Wang, K., Sun, B., Efferth, T., et al. (2012). Coronaviral ion channels as target for Chinese herbal medicine. For. Immunopathol. Dis. Therap. 25, 6789. doi:10.1615/ForumImmunDisTher.2012004378
Simmons, G., Gosalia, D. N., Rennekamp, A. J., Reeves, J. D., Diamond, S. L., and Bates, P. (2005). Inhibitors of cathepsin L prevent severe acute respiratory syndrome coronavirus entry. Proc. Natl. Acad. Sci. USA 102 (33), 11876–11881. doi:10.1073/pnas.0505577102
Smith, R. A., Sidwell, R. W., and Robins, R. K. (1980). Antiviral mechanisms of action. Annu. Rev. Pharmacol. Toxicol. 20, 259–284. doi:10.1146/annurev.pa.20.040180.001355
Snijder, E. J., Bredenbeek, P. J., Dobbe, J. C., Thiel, V., Ziebuhr, J., Poon, L. L. M., et al. (2003). Unique and conserved features of genome and proteome of SARS-coronavirus, an early split-off from the coronavirus group 2 lineage. J. Mol. Biol. 331 (5), 991–1004. doi:10.1016/S0022-2836(03)00865-9
Song, J., Shim, J., and Choi, H. (2011). Quercetin 7-rhamnoside reduces porcine epidemic diarrhea virus replication via independent pathway of viral induced reactive oxygen species. Virol. J. 8, 460. doi:10.1186/1743-422X-8-460
Stahlmann, R., and Lode, H. (2020). Medication for COVID-19—an overview of approaches currently under study. Dtsch. Arztebl. Int. 117, 213–219. doi:10.3238/arztebl.2020.0213
Stang, E., Blystad, F. D., Kazazic, M., Bertelsen, V., Brodahl, T., Raiborg, C., et al. (2004). Cb1-dependent ubiquitination is required for progression of EGF receptors into clathrin-coated pits. Mol. Biol. Cell 14, 289–293. doi:10.1091/mbc.E04-01-0041
Thiel, V., Ivanov, K. A., Putics, Á., Hertzig, T., Schelle, B., Bayer, S., et al. (2003). Mechanisms and enzymes involved in SARS coronavirus genome expression. J. Gen. Virol. 84 (Pt 9), 2305–2315. doi:10.1099/vir.0.19424-0
Toney, J. H., Navas-Martín, S., Weiss, S. R., and Koeller, A. (2004). Sabadinine: a Potential non-peptide anti-Severe Acute-Respiratory-Syndrome agent identified using structure-aided design. J. Med. Chem. 47 (5), 1079. doi:10.1021/jm034137m
Tsai, Y.-C., Lee, C.-L., Yen, H.-R., Chang, Y.-S., Lin, Y.-P., Huang, S.-H., et al. (2020). Antiviral action of tryptanthrin isolated from Strobilanthes cusia leaf against human coronavirus NL63 outbreak of novel coronavirus (SARS-Cov-2): first evidences from international scientific literature and pending questions. Biomolecules 10 (3), 366. doi:10.3390/biom10030366
Vellingiri, B., Jayaramayya, K., Iyer, M., Narayanasamy, A., Govindasamy, V., Giridharan, B., et al. (2020). COVID-19: a promising cure for the global panic. Sci. Total Environ. 725, 138277. doi:10.1016/j.scitotenv.2020.138277
Wang, C., Horby, P. W., Hayden, F. G., and Gao, G. F. (2020a). A novel coronavirus outbreak of global health concern. Lancet 395 (10223), 470–473. doi:10.1016/S0140-6736(20)30185-9
Wang, K., Xie, S., and Sun, B. (2011). Viral proteins function as ion channels. Biochim. Biophys. Acta Biomembr. 1808 (2), 510–515. doi:10.1016/j.bbamem.2010.05.006
Wang, N., Shang, J., Jiang, S., and Du, L. (2020b). Subunit vaccines against emerging pathogenic human coronaviruses. Front. Microbiol. 11, 298. doi:10.3389/fmicb.2020.00298
Wang, Q., Wong, G., Lu, G., Yan, J., and Gao, G. F. (2016). MERS-CoV spike protein: targets for vaccines and therapeutics. Antiviral Res. 133, 165–177. doi:10.1016/j.antiviral.2016.07.015
Wang, S. Q., Du, Q. S., Zhao, K., Li, A. X., Wei, D. Q., and Chou, K. C. (2007). Virtual screening for finding natural inhibitor against cathepsin-L for SARS therapy. Amino Acids 33 (1), 129–135. doi:10.1007/s00726-006-0403-1
Weng, J. R., Lin, C. S., Lai, H. C., Lin, Y. P., Wang, C. Y., Tsai, Y. C., et al. (2019). Antiviral activity of Sambucus formosana Nakai ethanol extract and related phenolic acid constituents against human coronavirus NL63. Virus Res. 273, 197767. doi:10.1016/j.virusres.2019.197767
World Health Organization, (2004). SARS: clinical trials on treatment using a combination of traditional Chinese medicine and Western medicine. Beijing: World Health Organization.
Wu, A., Peng, Y., Huang, B., Ding, X., Wang, X., Niu, P., et al. (2020). Genome composition and divergence of the novel coronavirus (2019-nCoV) originating in China. Cell Host Microbe 27 (3), 325–328. doi:10.1016/j.chom.2020.02.001
Wu, C. Y., Jan, J. T., Ma, S. H., Kuo, C. J., Juan, H. F., Cheng, Y. S. E., et al. (2004). Small molecules targeting severe acute respiratory syndrome human coronavirus. Proc. Natl. Acad. Sci. USA 101 (27), 10012–10017. doi:10.1073/pnas.0403596101
Yang, G., Zhang, H., and Yang, Y. (2020). Challenges and countermeasures of integrative cancer therapy in the epidemic of COVID-19. Integr. Cancer Ther. 9, 1534. doi:10.1177/1534735420912811
Yin, J., Li, G., Li, J., Yang, Q., and Ren, X. (2011). In vitro and in vivo effects of Houttuynia cordata on infectious bronchitis virus. Avian Pathol. 40 (5), 491–498. doi:10.1080/03079457.2011.605107
Zhang, D. hai, Wu, K. lun., Zhang, X., Deng, S. qiong., and Peng, B. (2020). In silico screening of Chinese herbal medicines with the potential to directly inhibit 2019 novel coronavirus. J. Integr. Med. 18 (2), 152–158. doi:10.1016/j.joim.2020.02.005
Zhou, J., Xie, G., and Yan, X. (2011). Natural sources and applications molecular structures, pharmacological activities, encyclopedia of traditional Chinese medicines. Available at: https://link.springer.com/content/pdf/10.1007/978-3-642-16744-7.pdf (Accessed April 14, 2020).
Zhou, P., Yang, X., Hu, B., Zhang, L., and Zhang, W. (2020). A pneumonia outbreak associated with a new coronavirus of probable bat origin. Nature 17 (8), 677–686. doi:10.1038/s41586-020-2012-7
Zhou, Y., Jiang, S., and Du, L. (2018). Prospects for a MERS-CoV spike vaccine. 17 (8), 677–686. Expert Rev. Vaccines. doi:10.1080/14760584.2018.1506702
Zhu, Z., Lian, X., Su, X., Wu, W., Marraro, G. A., and Zeng, Y. (2020). From SARS and MERS to COVID-19: a brief summary and comparison of severe acute respiratory infections caused by three highly pathogenic human coronaviruses. Respir. Res. 21, 224. doi:10.1186/s12931-020-01479-w
Keywords: COVID-19, drug, herb, SARS, Traditional Chinese medicine (TCM), medicinal plant, natural products, viral infection
Citation: Remali J and Aizat WM (2021) A Review on Plant Bioactive Compounds and Their Modes of Action Against Coronavirus Infection. Front. Pharmacol. 11:589044. doi: 10.3389/fphar.2020.589044
Received: 04 August 2020; Accepted: 03 December 2020;
Published: 11 January 2021.
Edited by:
Javier Echeverria, University of Santiago, ChileReviewed by:
Simone Carradori, University “G. d'Annunzio” of Chieti-Pescara, ItalyAmit Krishna De, Indian Science Congress Association (ISCA), India
Copyright © 2021 Remali and Aizat. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Wan Mohd Aizat, d21hQHVrbS5lZHUubXk=
