Review of Statistical Methodologies for Detecting Drug–Drug Interactions Using Spontaneous Reporting Systems

Concomitant use of multiple drugs for therapeutic purposes is known as “polypharmacy situations,” which has been recognized as an important social problem recently. In polypharmacy situations, each drug not only induces adverse events (AEs) but also increases the risk of AEs due to drug–drug interactions (DDIs). The proportion of AEs caused by DDIs is estimated to be around 30% of unexpected AEs. The randomized clinical trials in pre-marketing typically focus emphasis on the verification of single drug safety and efficacy rather than the surveys of DDI, and therefore, patients on multiple drugs are usually excluded. However, unlike pre-marketing randomized clinical trials, in clinical practice (= post marketing), many patients use multiple drugs. The spontaneous reporting system is one of the significant sources drug safety surveillance in post-marketing. Commonly, signals of potential drug-induced AEs detected from this source are validated in real-world settings. Recently, not only methodological studies on signal detection of “single” drug, but also on several methodological studies on signal detection of DDIs have been conducted. On the other hand, there are few articles that systematically summarize the statistical methodology for signal detection of DDIs. Therefore, this article reviews the studies on the latest statistical methodologies from classical methodologies for signal detection of DDIs using spontaneous reporting system. This article describes how to calculate for each detection method and the major findings from the published literatures about DDIs. Finally, this article presented several limitations related to the currently used methodologies for signal detection of DDIs and suggestions for further studies.

Introduction

For safety surveillance of a drug, several data-mining algorithms are used to detect quantitative signals from spontaneous reporting systems. The data-mining algorithms include the frequency statistical models are the proportional reporting ratio (PRR) (Evans et al., 2001) and the reporting odds ratio (ROR) (van, Puijenbroek et al. 2002), and the Bayesian statistical models are [the information component (IC) as the Bayesian Confidence Propagation Neural Network (BCPNN) (Bate et al., 1998) and the gamma-Poisson shrinker (GPS) (Szarfman et al., 2002) used as the empirical Bayes geometric mean (EBGM)].

Although, the recent extension of the IC and the GPS can accommodate signals of high-order interactions (Almenoff et al., 2003; Yang and Fram, 2004; Norén et al., 2006; DuMouchel and Harpaz, 2012), generally, the PRR and the ROR are exploited for early signal detection of unknown “single” drug-induced adverse events (AEs). And these detection models might detect potential drug-induced AEs that could not be found clinical trials of pre-marketing using spontaneous reporting systems including post-marketing data.

The randomized clinical trials in pre-marketing typically focus emphasis on the verification of single drug safety and efficacy rather than the surveys of drug–drug interactions (DDIs), and therefore patients on multiple drugs are usually excluded from the clinical trial. However, unlike pre-marketing randomized clinical trials, in clinical practice (= post marketing), many patients use multiple drugs, as in polypharmacy situations.

Concomitant use of multiple drugs can affect the biological action of the related drugs. The main types of DDIs include pharmacokinetic and pharmacodynamic interactions (Aronson, 2004). Of them, the pharmacokinetic interactions might affect the metabolism of drug that determine bioavailability. On the other hand, there is no change in blood levels of drugs in the pharmacodynamic interactions, which can occur either competitively or non-competitively at the pharmacological receptor level.

In concomitant use of multiple drugs, each drug not only induces AEs but also increases the risk of AEs due to DDIs. The proportion of AEs caused by DDI has been estimated to be around 30% of unexpected AEs (Pirmohamed and Orme, 1998).

Adverse events caused by DDIs can also be prevented if discovered early like single drug-induced AEs, and it is practically difficult to examine the interactions of all drug combinations in the pre-marketing stage (Banda et al., 2016). Therefore, post-marketing surveys will help early detection of unknown AEs not only caused by single drug but also DDIs.

Recently, several methodological studies on signal detection of DDIs have been conducted. Herein, we review studies on the statistical methodologies for signal detection of DDIs using spontaneous reporting systems.

Statistical Methodology

Logistic Regression Model

van Puijenbroek et al. proposed a statistical method using the logistic regression model for detecting signals of DDIs from a spontaneous reporting system (van, Puijenbroek et al. 1999; van, Puijenbroek et al. 2002).

The ROR is a statistical model similar to odds ratio (van, Puijenbroek et al. 2002), and using the logistic regression model shown in Eq. 1, the ROR adjusted for age, gender, and concomitant drugs (drug D₁ and drug D₂) is used as the adjusted ROR.

$\begin{array}{ll}log\left(odds\right)={\beta }_0+{\beta }_1 a+{\beta }_2 G+{\beta }_3 x_1+{\beta }_4 x_2+{\beta }_5 x_1 x_{2 } & (1)\end{array}$

where, a = age, G = gender, x₁ = drug D₁, x₂ = drug D₂, and x₁x₂ = the concomitant use of drug D₁ and drug D₂.

In their first study, the authors showed that concomitant use of oral contraceptives and the antifungal itraconazole resulted in the occurrence of withdrawal bleeding. In the second study, the authors showed that the efficacy of diuretics decreased with the concomitant use of diuretics and non-steroidal anti-inflammatory drugs, resulting in worsening of congestive heart failure (van, Puijenbroek et al., 1999).

Signal detection using the logistic regression model has some limitations (e.g., ignoring dependencies/associations between AEs and regression analysis of more than 10,000 drugs as included in a spontaneous reporting system).

To overcome the limitations of the classical logistic regression model, a new statistical model; the Bayesian logistic regression model, which extended the logistic regression model corresponding to data of very large dimensions, was proposed. The Bayesian logistic regression model can perform regression analysis using millions of predictors contained in a spontaneous reporting system. (Genkin et al., 2007).

Using the Bayesian logistic regression model, Caster et al. also addressed masking effect (cf. Limitation) that affects background reporting of AEs (Wang et al., 2010) and confounding caused by the concomitant use of multiple drugs (Caster et al., 2010).

Extended Gamma-Poisson Shrinker Model

Multi-Item Gamma-Poisson Shrinker Model

The multi-item gamma-Poisson shrinker (MGPS) model is currently used by the US Food and Drug Administration (FDA) and is a statistical model that extended the GPS model for detecting signals of potential DDIs (Almenoff et al., 2003; Yang and Fram, 2004).

The MGPS model can calculate the score of “Drug–Drug–Event” or “Drug–Event–Event” (including that of with higher-order interactions such as “Drug–Drug–Drug–Event” or “Drug–Drug–Event–Event”). Moreover, the MGPS model can be applied to the itemsets of size 3 or more, but as the number of items increases, the calculation amount explosively increases.

In the MGPS model, Excess2 is used an indicator value. The signal detection threshold value is not set, and as the value of Excess2 is relatively large, the influence of interaction caused by concomitant drugs is predominantly suspected.

For an arbitrary itemset, it is desirable to estimate the expectation λ = E [N/E]. Where, N is the observed frequency of the itemset (= number of reports) and E is the count predicted from an assumption that items are independent, that is, the baseline count.

The observed frequency of itemset is defined by i, j, k,…, as N_i, N_j, N_k…, E and other variables are defined as subscript letters as well as N. For example, E_ij is the baseline prediction for the number of involving items i and j.

As a common model, baseline counts are calculated based on the assumption of within-stratum independence. E calculated under this assumption is often expressed as E0.

If all reports are assigned to the strata denoted by s = 1, 2,…, S, the proportion of reports in stratum s that contain the item i is expressed by P_i^s, and the total number of reports in stratum s is expressed by n_s.

Here, the frequency of baseline for triple itemset (i, j, and k) is defined under independence as:

$\begin{array}{ll}E{0}_{ijk}={\displaystyle \sum }_{}{n}_s{P}_i^s{P}_j^s{P}_k^s & (2)\end{array}$

For itemsets of size 3 or more, an “all-2-factor” loglinear model can be defined as the frequency E2 for the itemsets that match all the estimated pairwise two-way marginal frequencies but contain no high-order dependencies.

For itemsets of size 3 (e.g., DDI: drug D₁ and drug D₂, and AE), the estimated frequency of the all-2-factor loglinear model can be defined as the frequency E2 prediction by simple subtraction is compared.

For example:

$\begin{array}{ll}Excess{2}_{ijk}= {\lambda }_{ijk}E{0}_{ijk}-E{2}_{ijk} & (3)\end{array}$

The parameter λ is estimated by the geometric means, denoted as EBGM, of their empirical Bayes posterior distributions.

Detecting the signals of DDIs using the MGPS model is based on the EBGM value of the two drugs and the lower of the 90% confidence interval (CI) being larger than the upper of the 90% CI estimates for each of the two drugs.

Example, in one of the reports the signals of potential DDIs detected using the MGPS model is the AE profile of verapamil (the calcium channel blocker) and the combination of three classes of cardiovascular drugs (Almenoff et al., 2003).

This result revealed that the MGPS model for disproportionality measure is a promising statistical model for detecting signals of potential DDIs in polypharmacy situations.

Regression-Adjusted Gamma-Poisson Shrinkage Model

The GPS model proposed by DuMouchel is worse than the logistic regression model (Harpaz et al., 2013). However, unlike the GPS model, signal detection using t-tests in logistic regression models is not suitable for small samples such as rare AEs (DuMouchel and Pregibon, 2001).

DuMouchel et al. proposed the Regression-adjusted gamma-Poisson shrinkage (RGPS) model, which integrated the GPS model and the logistic regression model into a hybrid detection model with the advantages of both, to overcome the disadvantages of the GPS model (DuMouchel and Harpaz, 2012).

The RGPS model is similar to the MGPS model (cf. Multi-item Gamma-Poisson Shrinker Model) in that the relative reporting rate (RRR) is entered into the Bayesian gamma-Poisson shrinking algorithm, and a reliable estimate rate and CI are obtained.

On the contrary, the major difference between the RGPS model and the MGPS model is that the MGPS model do not consider the effects for polypharmacy, and thus may lead to the underestimation of disproportionality estimate for the drug of interest. In addition, the RGPS model can handle this question.

Additionally, the values of the adjusted expected value (E) in the RGPS model is not calculated by standard logistic regression but instead the extended logistic regression.

It is recommended to replace EBGM as the posterior geometric mean with the empirical Bayes relative reporting ratio (EBRRR) as the posterior mean in the RGPS model.

For each response, the (N_j, E_j) pairs from the previous step are input into a gamma-Poisson shrinkage algorithm. The prior distributions are assumed to be simple gamma distributions rather than a mixture of two gamma distributions as is done in the MGPS model. Specifically, a two-parameter gamma Poisson model is used to produce shrinkage estimates, where the prior distribution of the relative reporting ratios is assumed to be Gamma (γ, δ) and where the (N_j, E_j) pairs are used to estimate the hyperparameters γ and δ. The posterior mean of a drug relative reporting ratio is then EBRRR_j = (N_j + γ)/(E_j + δ), and RRR05 and RRR95 are computed using the appropriate gamma distribution Gamma(N_j + γ, E_j + δ) (DuMouchel and Harpaz, 2012).

In the RGPS model of DDIs, n_jk is defined as the number of reports including both drug_j and drug_k, and N_jk is defined as the number of reports related to expected AEs. Then, EBRRR_j and EBRRR_k are defined as the corresponding disproportionality estimates for the two drugs in report i.

$\begin{array}{ll}{p}_i= P_{\alpha }\left({\mu }_i= {\beta }_{0_{g\left(i\right)}}+ {\displaystyle \sum }_{}{X}_{ij}{\beta }_j\right) & (4)\end{array}$

where P_α is the function that links the linear predictor µ_i to the probability scale and β_j and β_0g(i) are the estimated coefficients for the drugs and intercepts, where the intercept depends on which grouped-stratum g(i) report i belong to. Additionally, Let X_ij = 1 if drug j is included in report i, X_ij = 0 otherwise, and let N_j be the number of events reported with drug j.

E_jk is defined as the expected value (E) of N_jk under the null hypothesis that both drug_j and drug_k have no effect of the RRR.

$\begin{array}{ll}{E}_{jk}={\displaystyle \sum }_{}{X}_{ij}{X}_{ik}{P}_{\alpha }\left({\mu }_i-{\beta }_j-{\beta }_k\right) \left(1\le j<k\le J_{\mathrm{int}}\right) & (5)\end{array}$

where, β_j or β_k is considered as 0 if the suspected drug was not in the logistic regression model.

“No interaction” indicates that the disproportionality measure for both the drugs (= N_jk/E_jk) is expected to be higher for the EBRRR_j and EBRRR_k. Therefore, the no-interaction expected count is defined as follows:

$\begin{array}{ll}{E}_{jk}^{*}=E_{jk}^{*}\text{max}\left(EBRR{R}_j, EBRR{R}_k\right) & (6)\end{array}$

There will be J_int (J_int – 1)/2 raw interaction ratio (INTRR_jk) of the form:

$\begin{array}{ll}INTR{R}_{jk}=\frac{N_{jk}}{E_{jk}^{*}}& (7)\end{array}$

DuMouchel et al. proposed a method to use one-parameter prior gamma distribution (γ₁, γ₁), of mean 1, as a model for the mean of INTRR_jk, and estimate γ₁ by inputting the set (N_jk,E^*_jk) into the empirical Bayes estimation.

As a result, the posterior mean of the interaction ratio is expressed as follows:

$\begin{array}{ll}INTE{B}_{jk}=\frac{N_{jk}+ {\gamma }_1}{E_{jk}^{*}+ {\gamma }_1} & (8)\end{array}$

The posterior 5% limit (INTEB_05jk) and posterior 95% limit (INTEB_95jk) are the corresponding quantiles of the gamma distribution (N_jk + γ₁, E^*_jk + γ₁).

The proposed RGPS model only presents interaction estimates if INTEB₀₅ > INTEB_05min or INTEB₉₅ < INTEB_95max with the default values INTEB_05min = 1 and INTEB_95max = 1/3 by DuMouchel and Harpaz (2012).

If the INTEB is very low, it has not yet been completely verified whether it are the signals of potential DDIs. However, because such results are often obtained, the further verification will be necessary.

Extended Information Component Model

The IC is a measure of association of pairs of drug and AEs only, but there is often an interest in high-order interactions as DDIs (= itemsets of size 3).

Although, an extension of the IC to 3rd-order associations including 3 itemset as DDIs was proposed by Orre et al. (2000), the proposed method did not compensate for pairwise associations. Therefore, Norén et al. (2006) proposed the following definition for the extended IC model:

$\begin{array}{ll}I{C}_{xyz}=I{C}_{xy|z}-I{C}_{xy}=I{C}_{yz|x}-I{C}_{yz}& (9)\end{array}$

where,

$\begin{array}{ll}I{C}_{xy|z}=lo{g}_2\frac{P\left(xy|z\right)}{P\left(x|z\right)P\left(y|z\right)}& (10)\end{array}$

As with simple algebraic operations, IC_xyz can be re-expressed as follows:

$\begin{array}{ll}\begin{array}{c}I{C}_{xyz}=lo{g}_2\frac{P\left(yz|x\right)}{P\left(y|x\right)P\left(z|x\right)} -lo{g}_2\frac{P\left(y\right)P\left(z\right)}{P\left(y,z\right)} =\\ lo{g}_2\frac{P\left(x,y,z\right)P\left(x\right)P\left(y\right)P\left(z\right)}{P\left(x,y\right)P\left(x,z\right)P\left(y,z\right)}\end{array}& (11)\end{array}$

Although arbitrarily accurate estimates for the posterior mean of IC distribution can be used (Koski and Orre, 1998), the maximum a posteriori (m.à.p.) estimates can be used for central estimates instead, because IC distribution is generally unimodal.

There are three main advantages of the m.à.p. estimate.

First, it is well suited for use in stratified IC. Second, it has the intuitive property of being equal to 0 when the estimated joint probability is equal to the product of the estimated marginal probabilities. Third, the concept of most likely value for an unknown parameter is perhaps more natural than that of the expected value.

These are important aspects in drug safety applications, and the results must be interpretable not only by statisticians but also by non-statisticians such as medical professionals.

Norén et al. (2006) proposed the following m.à.p. estimate. Most of the theory developed for the pairwise IC model (IC_m.à.p. model) holds approximately the IC model for higher order.

In one of the reports, the signals of potential DDIs detected using the extended IC model was terfenadine and ketoconazole-induced ventricular fibrillation. There were five reports of ventricular fibrillation due to the combination of terfenadine and ketoconazole in the VigiBase^® as a spontaneous reporting system, and the extended IC (IC_xyzm.à.p.) value is 2.40 with the lower of the 95% CI of 1.08 (Norén et al., 2006).

Ω Shrinkage Measure Model

The Ω shrinkage measure model was proposed to calculate the observed-to-expected ratio as a spontaneous reporting system for detecting the signals of potential DDIs (Norén et al., 2008).

Norén et al. criticized the logistic regression model in missing out on several signals that strongly suggestive of potential DDIs, additionally, they demonstrated that after conducting comparative studies using the World Health Organization database, the Ω shrinkage measure model is a refined method compared to the logistic regression model.

For the Ω shrinkage measure model, the observed reporting ratio was f₁₁ of AE caused by concomitant use of 2 drugs: drug D₁ and drug D₂, in addition, its expected value was E[f₁₁].

$\begin{array}{ll}{f}_{00}=\frac{n_{001}}{n_{00+}}, f_{10}=\frac{n_{101}}{n_{10+}}, f_{01}=\frac{n_{011}}{n_{01+}}, f_{11}=\frac{n_{111}}{n_{11+}}& (12)\end{array}$

where, n is the number of reports shown in Figure 1. For example, n₁₁₁ is the number of reported target AEs caused by drug D₁ and drug D₂.

FIGURE 1

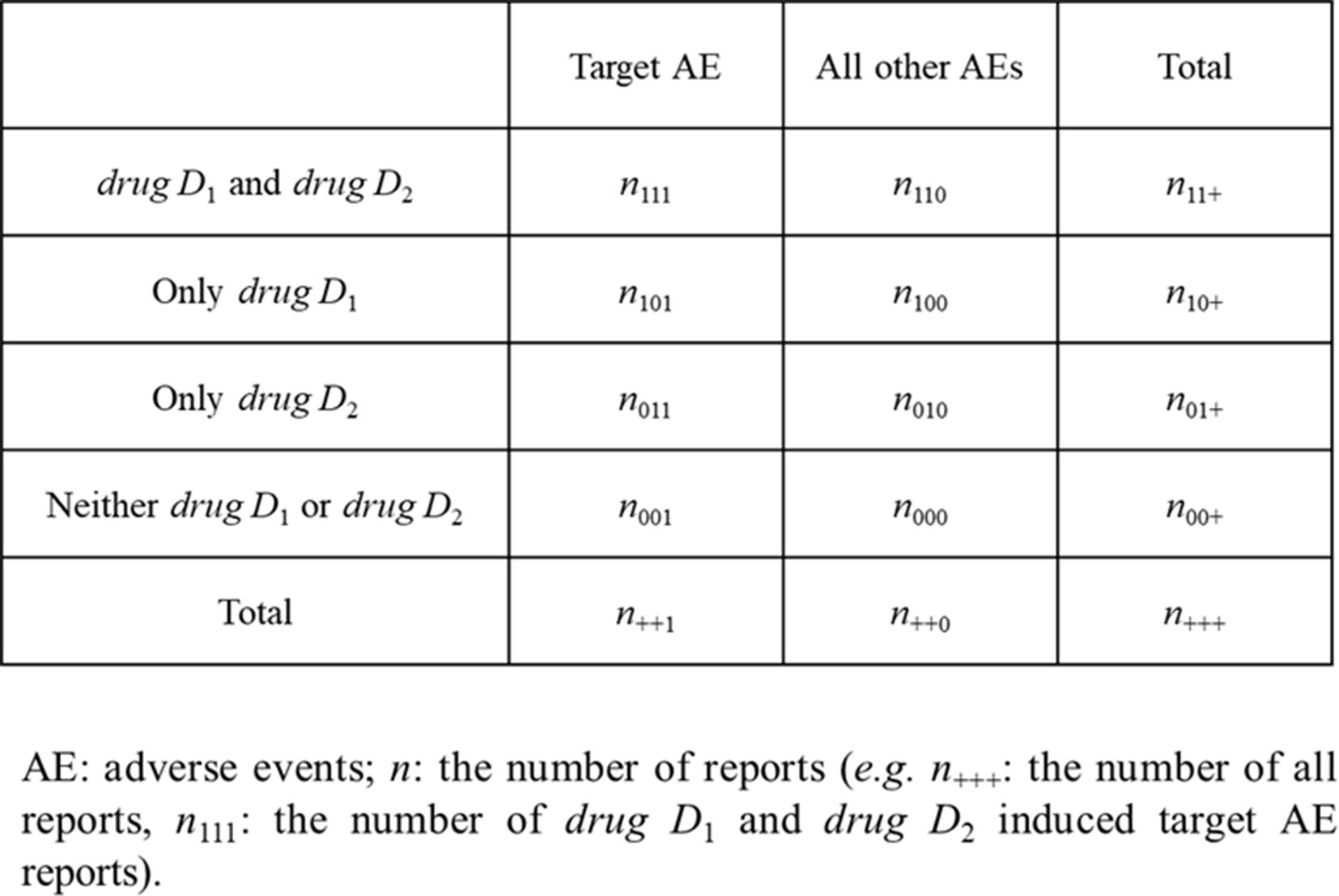

Figure 1 Four-by-two contingency table for the evaluation of drug–drug interaction.

E[f₁₁] is unknown. However, f₁₁ can be compared with the estimator g₁₁ of E[f₁₁], g₁₁ is given as follows:

$\begin{array}{ll}{g}_{11}=1-\frac{1}{\max \left(\frac{f_{00}}{1-f_{00}}, \frac{f_{10}}{1-f_{10}}\right)+ \max \left(\frac{f_{00}}{1-f_{00}}, \frac{f_{01}}{1-f_{01}}\right)- \frac{f_{00}}{1-f_{00}} +1 } & (13)\end{array}$

When f₁₀ < f₀₀ (which denote no risk of AE caused by drug D₁), the most sensible estimator g11 = max (f₀₀, f₀₁) is yielded and the vice versa when f₀₁ < f₀₀.

Norén et al. defined a non-shrinkage measure for detecting AEs caused by drug D₁ and drug D₂ as follows:

$\begin{array}{ll}{\text{Ω}}_0=lo{g}_2\frac{f_{11}}{g_{11}}& (14)\end{array}$

However, since the occurrence of AE is rare, g₁₁ might show very small, and therefore, Ω₀ is sensitive to spurious relationship and tends to falsely detect a signal.

This is a well-known phenomenon in screening pairwise drug-AE excessive reporting rates in a spontaneous reporting system, and shrinkage has been proven to be an effective approach in reducing the sensitivity to random fluctuations in disproportionality measures based on rare cases. The models such as the BCPNN and EBGM also used pairwise measures of disproportionality as shrinkage measures.

To construct a similar shrinkage measure from Eq. 14, Norén et al. re-expressed the observed and expected RRR f₁₁ and g₁₁ in terms of the observed number of reports n₁₁₁ and expected numbers of reports E₁₁₁ = g₁₁×n₁₁₊, respectively:

$\begin{array}{ll}\frac{f_{11}}{g_{11}}=\frac{n_{111}/n_{11+}}{E_{111}/n_{11+}}=\frac{n_{111}}{E_{111}}& (15)\end{array}$

and proposed the Ω shrinkage measure:

$\begin{array}{ll}\text{Ω}=lo{g}_2\frac{n_{111}+\alpha }{E_{111}+\alpha }& (16)\end{array}$

α is the tuning parameter that determines the shrinkage strength. When α = 0, Ω = Ω₀. The effect of α is equivalent to that of α additional expected reports, and exactly matches the increase in the observed number.

Shrinkage regression can be set as the value of tuning parameter based on cross-validation estimates for classifier performance. However, in a disproportionality analysis, there is no objective basis for selecting a particular value for α. Therefore, in the Ω shrinkage measure model, α = 0.5 was set to provide sufficient shrinkage for avoiding disproportional highlighting based on rare reports.

In the frequentist method, Ω differs slightly from Ω₀ for large n₁₁₁ and E₁₁₁, and the variance of Ω₀ is given as follows:

$\begin{array}{ll}\text{Var}\left({\text{Ω}}_0\right)=\text{Var}\left(lo{g}_2\frac{n_{111}}{E_{111}}\right)\approx \frac{1}{n_{111}log{\left(2\right)}^2}& (17)\end{array}$

Using Eq. 17, the lower of the 95% CI for Ω can be estimated using the following equation:

$\begin{array}{ll}{\text{Ω}}_{025}=\text{Ω}-\frac{\varphi \left(0.975\right)}{log\left(2\right)\sqrt{n_{111}}}& (18)\end{array}$

where, ϕ(0.975) is 97.5% of the standard normal distribution.

On the contrary, in Bayesian method, the exact CI for µ can be obtained as solutions to the following equation, for appropriate posterior quantiles µ_q:

$\begin{array}{ll}\underset{0}{\overset{{\mu }_q}{{\displaystyle \int }}}\frac{{\left(E_{111}+\alpha \right)}^{n_{111}+\alpha }}{\Gamma \left(n_{111}+\alpha \right)}{u}^{n_{111}+\alpha -1}{e}^{-\left(n_{111}+\alpha \right)u}du=q& (19)\end{array}$

where, α is the tuning parameter. n₁₁₁ and E₁₁₁ are the number of reported target AEs caused by drug D₁ and drug D₂ and their expected values.

Here, the logarithm of the solution to Eq. 19 for q = 0.025 and 0.975 provides Ω₀₂₅ (the lower limits of 95% CI) and Ω₀₇₅ (the upper limits of 95% CI), respectively.

In both frequentist and Bayesian methods, Ω₀₂₅ > 0 is used as a threshold for detecting the signals of the concomitant use with drug D₁ and drug D₂.

Qian et al. built a computerized system in which data acquisition and placement are automated. The signals of potential DDIs were then detected using this system. (Qian et al., 2010). This study detected the signals of potential DDIs using three different models; the Ω shrinkage measure model, the logistic regression model (cf. Logistic Regression Model), and the additive model and multiplicative models (cf. Additive and Multiplicative Models). A comparison of signals detected using the three models revealed that the signals of potential DDIs detected on average by at least two models could reflect the fact that the 3 models are highly correlated (Qian et al., 2010).

Additive and Multiplicative Models

Thakrar et al. (2007) proposed the additive model and multiplicative model for detecting the signals of potential DDIs. For two models, Thakrar et al. (2007) conducted the retrospective study for detecting the signals of known DDIs using the FDA Adverse Event Reporting System.

The additive model assumes that drug related risks increase additively, on the contrary, the multiplicative model assumes that drug related risks increase synergistically. Additive Model and Multiplicative Model provide the details of each model using Figure 2.

FIGURE 2

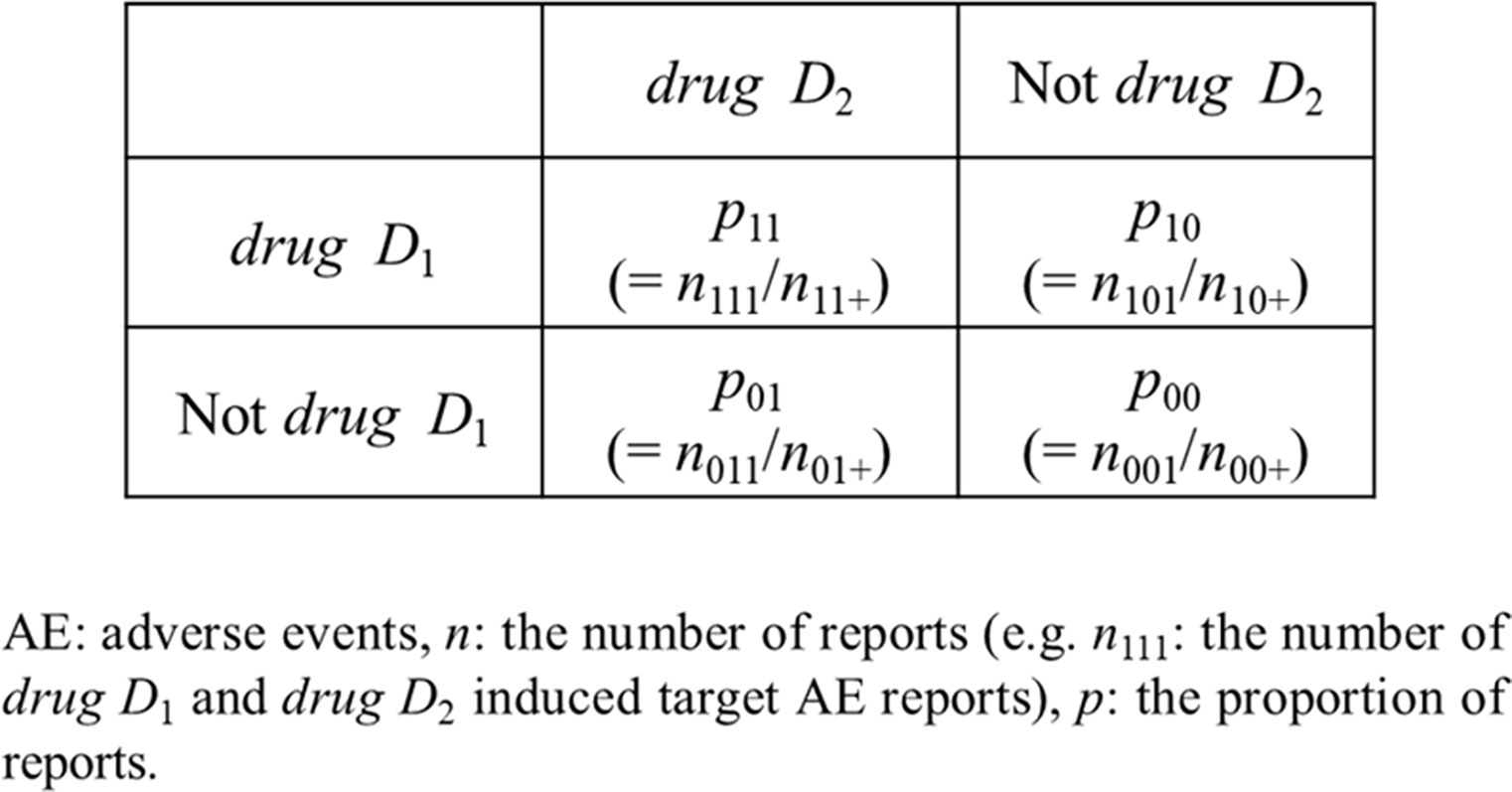

Figure 2 Two-by-two contingency table for the evaluation of drug–drug interaction.

Additive Model

In the additive model, if the risk associated with drug D₁ without drug D₂ is the same as the risk associated with drug D₁ and drug D₂ together, then there is no signal of DDI. In other words, there are potential DDIs if the combination risk is high compared to what is expected based on the individual drug:

$\begin{array}{ll}{p}_{11}-p_{00}=\left(p_{10}-p_{00}\right)+\left(p_{01}-p_{00}\right)& (20)\end{array}$

This equality implies (RD: risk difference):

$\begin{array}{ll}R{D}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}=R{D}_{only drug D_1}+R{D}_{only drug D_2}& (21)\end{array}$

That is, when RD _{drugD1∩drugD2} – RD _onlydrugD1 + RD _onlydrugD2 > 0 (p₁₁ − p₁₀ − p₀₁ + p₀₀ > 0), the signal of the additive model is detected.

The formal statistical test for DDIs is performed within the framework of binomial distribution linear regression:

$$risk of event={\alpha }_0+{\alpha }_1 x_1+{\alpha }_2 x_2+{\alpha }_{12} x_1 x_{2 }+\epsilon$$

$\begin{array}{ll}\left({\alpha }_{12}= p_{11}-p_{10}-p_{01}+p_{00}\right)& (22)\end{array}$

Multiplicative Model

In the multiplicative model, under the assumption that the null hypothesis is true (i.e., no interaction), the proportion of an AE associated with the concomitant use of drug D₁ and drug D₂ is the same as the proportional risks of individual drugs in the absence of either drug D₁ or drug D₂.

$\begin{array}{ll}\frac{p_{11}}{p_{00}}=\frac{p_{10}}{p_{00}}\times \frac{p_{01}}{p_{00}}& (23)\end{array}$

or

$\begin{array}{ll}\frac{p_{11 }/ \left(1-p_{11}\right)}{p_{00 }/ \left(1-p_{00}\right)}=\frac{p_{10 }/ \left(1-p_{10}\right)}{p_{00 }/ \left(1-p_{00}\right)}\cdot \frac{p_{01 }/ \left(1-p_{01}\right)}{p_{00 }/ \left(1-p_{00}\right)}& (24)\end{array}$

This equality implies:

$\begin{array}{ll}PR{R}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}=PR{R}_{only drug D_1}\times PR{R}_{only drug D_2}& (25)\end{array}$

or

$\begin{array}{ll}RO{R}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}=RO{R}_{only drug D_1}\times RO{R}_{only drug D_2}& (26)\end{array}$

Therefore, if the measure shown in Eq. 27 or Eq. 28 exceeds 1 it can be determined that the signals of potential DDIs are detected. In modeling terminology, the following multiplicative model (Eqs. 25 and 26) can be applied for log-linear regressions and logistic regressions:

log-linear regressions

$$log\left(risk of event\right)={\beta }_0+{\beta }_1 x_1+{\beta }_2 x_2+{\beta }_{12} x_1 x_{2 }+\epsilon$$

$\begin{array}{ll}\left(e^{{\beta }_{12}}=\frac{PR{R}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}}{PR{R}_{only drug D_1}\times PR{R}_{only drug D_2}}\right)& (27)\end{array}$

logistic regressions

$$logit\left(risk of event\right)={\gamma }_0+{\gamma }_1 x_1+{\gamma }_2 x_2+{\gamma }_{12} x_1 x_{2 }+\epsilon$$

$\begin{array}{ll}\left(e^{{\gamma }_{12}}=\frac{RO{R}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}}{RO{R}_{only drug D_1}\times RO{R}_{only drug D_2}}\right)& (28)\end{array}$

where, x₁ = drug D₁, x₂ = drug D₂, x₁x₂ = the concomitant use of drug D₁ and drug D₂.

Thakrar et al. (2007) showed that the additive model has higher sensitivity than that of the multiplicative model in detecting the signals of potential DDIs. Therefore, Noguchi et al. compared the power of the additive model with that of the multiplicative model for the combined risk ratio model (cf. Combination Risk Ratio Model). Similar to the result of Takagi et al., the additive model presented higher detection power than that of the multiplicative model (sensitivity: 95.62 vs. 65.46%, specificity: 96.92 vs. 98.78%, Youden’s index: 0.925 vs. 0.642, positive predictive value: 89.47% vs. 93.64%, negative predictive value: 98.78 vs. 91.26% F-score: 0.924 vs. 0.771) (Noguchi et al., 2018a).

Combination Risk Ratio Model

To estimate the degree of potential safety risk in combination, Susuta and Takahashi (2014) proposed a risk assessment method for combined use of drugs at a frequency where two or more drugs are reported simultaneously, assuming that the possibility of drug interaction is a combined risk in the occurrence of AEs.

The concomitant use risk was determined when the ratio between the concomitant use indicator and the indicator (e.g., PRR, ROR) obtained separately for both agents exceeded 2. The following is an expression using the PRR as the indicator.

$\begin{array}{ll}Combination risk ratio=\frac{PR{R}_{drug D_1{{\displaystyle \cap }}^{\text{}} drug D_2}}{\text{max}\left(PR{R}_{drug D_1}, PR{R}_{drug D_2}\right)}& (29)\end{array}$

When n₁₁₁ ≥ 3, PRR_{drugD1∩drugD2} > 2, χ²_{drugD1∩drugD2} > 4, Combination risk ratio > 2, it was a signal of DDIs.

The formula for calculating PRR and χ² is as follows:

$\begin{array}{ll}PRR=\frac{\left(N_{11}/N_{1+}\right)}{\left(N_{01}/N_{0+}\right)}& (30)\end{array}$

$\begin{array}{ll}{\chi }^2=\frac{n_{+++}\times {\left(\left|N_{11}\times N_{00}-N_{10}\times N_{01}\right|-n_{+++}/2\right)}^2}{N_{1+}\times N_{+1}\times N_{0+}\times N_{+0}}& (31)\end{array}$

Additionally, to calculate the PRR and the χ² of drug D₁ ∩ drugD₂, drug D₁ and drug D₂, replace it as follows.

drug D₁ ∩ drugD₂: N₁₁ = n₁₁₁, N₀₀ = n₀₀₀ + n₀₁₀ + n₁₀₀, N₁₀ = n₁₁₀, N₀₁ = n₀₀₁ + n₀₁₁ + n₁₀₁, N₁₊ = n₁₁₊, N₊₁ = n₊₊₁, N₀₊ = n₀₀₊ + n₀₁₊ + n₁₀₊, N₊₀ = n₊₊₀.

drug D₁: N₁₁ = n₁₁₁ + n₁₀₁, N₀₀ = n₀₀₀ + n₀₁₀, N₁₀ = n₁₁₀ + n₁₀₀, N₀₁ = n₀₀₁ + n₀₁₁, N₁₊ = n₁₁₊+ n₁₀₊, N₊₁ = n₊₊₁, N₀₊ = n₀₀₊ + n₀₁₊, N₊₀ = n₊₊₀.

drug D₂: N₁₁ = n₁₁₁ + n₀₁₁, N₀₀ = n₀₀₀ + n₁₀₀, N₁₀ = n₁₁₀ + n₀₁₀, N₀₁ = n₀₀₁ + n₁₀₁, N₁₊ = n₁₁₊+ n₀₁₊, N₊₁ = n₊₊₁, N₀₊ = n₀₀₊ + n₁₀₊, N₊₀ = n₊₊₀.

To check the validity of the combination risk ratio model, the reports of Stevens–Jonson syndrome (SJS) or toxic epidermal necrolysis caused by the DDIs were analyzed using the Japanese Adverse Drug Event Report database.

As for the concomitant use of suspected drugs, which fulfill the situations of concomitant use risk, SJS: 10 candidates out of 159 combinations and toxic epidermal necrolysis: 22 candidates out of 111 combinations were detected.

In addition, this method proposed by Susuta et al. has been used to search for the DDIs related to the concomitant use of angiotensin receptor blockers and thiazide diuretics combination therapy by Noguchi et al. (2015) and for detecting signals of the concomitant use of deferasirox with other drugs by Mizuno et al. (2016) in Japan.

Chi-Square Statistics Model

Gosho et al. (2017) proposed the chi-square statistics model for detecting the signals of potential DDIs.

First, they developed the following measure (χ₀) to estimate the discrepancy between the observed and expected numbers of AEs with drug combinations:

$\begin{array}{ll} {\chi }_0=\frac{n_{111}-E_{111}}{\sqrt{E_{111}}}& (32)\end{array}$

The expected number of AEs (E₁₁₁) can be estimated using E₁₁₁ = g₁₁·n_11·, presented in Ω Shrinkage Measure Model. The measure χ_N, which is the square root of the chi-square test statistic, is based on the normal approximation of the Poisson model, and therefore, χ_N is not suitable for the evaluation of rare events. Thus, when evaluating rare events, it is generally considered more appropriate to use the chi-square test with Yate’s correction than the standard chi-square test (Yates, 1934), hence, χ was also corrected with the correction term “0.5” based on the chi-square test with Yate’s correction:

$\begin{array}{ll} \chi =\frac{n_{111}-E_{111}-0.5}{\sqrt{E_{111}}}& (33)\end{array}$

Gosho et al. (2017) set χ > 2 and χ > 2.6 as thresholds for detecting the signals of AEs caused by DDIs in a simulation study. These cutoff values are specified based on 95% and 99% of chi-square distribution with one degree of freedom. According to this simulation study, with the criterion: χ > 2, false positives are controlled within acceptable ranges, additionally the chi-square statistics model showed higher sensitivity and AUC than those of both frequentist and Bayesian methods of the Ω shrinkage measure model (Gosho et al., 2017).

Similar to the Ω shrinkage measure model, the detection of signal using the chi-square statistics model is designed to focus on the detection of synergistic rather than antagonism among some DDIs.

Gosho (2018) used the chi-square statistics model and he Ω shrinkage measure model to examine the clinical drug–drug interactions that cause hypoglycemia and rhabdomyolysis (Gosho, 2019).

Association Rule Mining Model

To comprehensively search for the signals of potential DDIs, if a calculation using the conventional methods that simply create combinations from a large database such as a spontaneous reporting system is used, the considered number of the concomitant use would be enormous. Therefore, it would be difficult to detect the signals of potential DDIs at an early stage.

Contrarily, the association rule mining model is frequently used to find interesting combinations hidden in large databases, and not just medical databases. In the association rule mining model, the “a priori algorithm” can be used to reduce the number of calculations (Agrawal et al., 1993; Agrawal and Srikant,1994).

If the association rule mining model was used, it is unnecessary to calculate indicators for all combinations of the concomitant use, as the previous models.

An indicator of a general association rule model is shown below.

Among the transaction T as a set of items, an association rule can be expressed as the antecedent of rule X → the consequent of rule Y; where, X and Y are mutually exclusive sets of items.

There are several indicators of the association rule mining model. First, the support is defined as the percentage of all items in both X and Y to transaction T in the data. That is, how frequently the rules (X → Y) occur within transaction T. The support is as follows:

$\begin{array}{ll}support \left(X\to Y\right)=\frac{\left\{X \to Y\right\}}{\left\{T\right\}}& (34)\end{array}$

Second, the confidence is the conditional probability P(Y|X), and measures the reliability of the interference made by the rules (X → Y). The confidence is as follows:

$\begin{array}{ll}confidence \left(X\to Y\right)=\frac{support \left(X\to Y\right)}{support \left(X\right)}& (35)\end{array}$

Third, the lift of an association rule represents the ratio of probability. It is the ratio between the confidence of the rule and the support of the itemset in the consequent of the rule. The lift is as follows:

$\begin{array}{ll}lift \left(X\to Y\right)=\frac{confidence \left(X\to Y\right)}{support \left(Y\right)}=\frac{support \left(X\to Y\right)}{support \left(X\right)\times support \left(Y\right)}& (36)\end{array}$

If the lift is > 1, it shows the degree to which those two occurrences depend on each other. Therefore, the lift is often used frequently to assess the interest of a rule.

Finally, the conviction of an association rule can be interpreted as the ratio of the expected frequency that X occurs without Y if X and Y are independent and divided by the observed frequency of incorrect predictions. The conviction is as follows:

$\begin{array}{ll}conviction \left(X\to Y\right)=\frac{1-support \left(Y\right)}{1-confidence \left(X\to Y\right)}& (37)\end{array}$

In the lift, even if X and Y are interchanged, the value of the indicator is the same. On the contrary, in the conviction, when X and Y are interchanged, the value of the indicator is different. This indicates that the lift cannot be evaluated correctly if Y is actually the antecedent of rule and X is actually the consequent of rule, and the conviction can be also evaluated correctly in such a situation.

So far, we have introduced four indicators that are particularly commonly used in the association rule mining model. Next, three search models of the signals of potential DDIs using these indicators are shown using Figure 3.

FIGURE 3

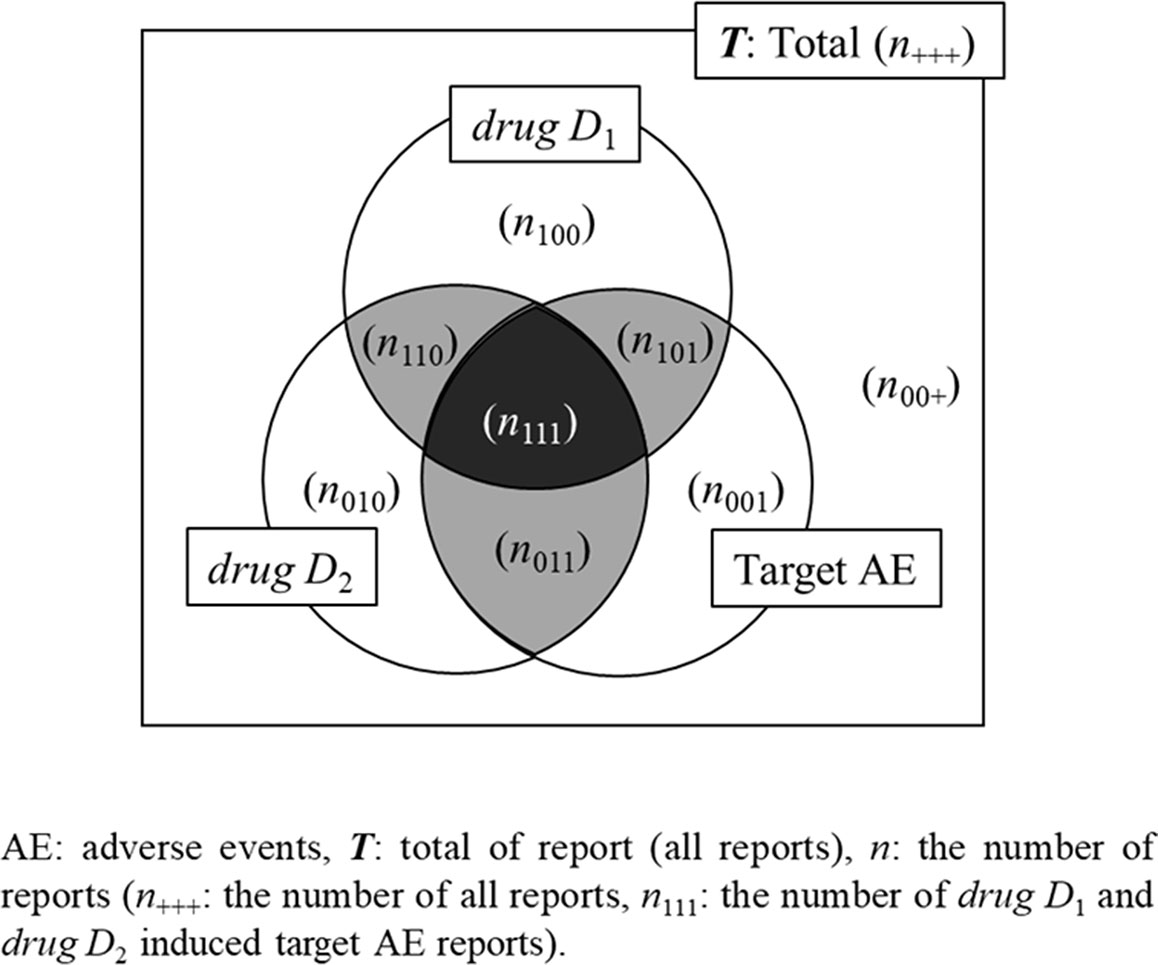

Figure 3 Venn diagram for the evaluation of drug–drug interaction.

Shirakuni’s Method of Association Rule Mining Model

Shirakuni et al. (2009) examined the combined use and discrete use of 2 drugs using association rule mining model.

In the combined use of two drugs model, the antecedent of rule X was defined as drugs D₁ and D₂, and the consequent of rule Y was defined as the target AE (AE).

$\begin{array}{ll}\begin{array}{l}support \left(drug D_1 and drug D_2\to AE\right)=\hfill \\ \frac{\left\{drug D_1 and drug D_2\to AE\right\}}{\left\{T\right\}}\hfill \end{array}& (38)\end{array}$

$\begin{array}{ll}\begin{array}{l}confidence(drug\text{}{D}_{1}anddrug{D}_2\to AE)=\hfill \\ \frac{support(drug{D}_{1}anddrug{D}_2\to AE)}{support(drug{D}_{1}anddrug{D}_2)}\hfill \end{array}& (39)\end{array}$

In the discrete use of 2 drugs model, the antecedent of rule X was defined as drugs D_1(or2)-induced AE, and the consequent of rule Y was defined as drugs D_2(or1). In this rule, both hypotheses and conclusions are relevant to the AE, and therefore, signals can be detected from drugs D₁ and drugs D₂ individually.

The support and confidence of each drug is calculated for both drugs D₁ and drugs D₂ based on the cases of patients presenting AEs included in the dataset.

$\begin{array}{ll}\begin{array}{l}support \left(drug D_{1\left(or 2\right)} induced AE\to drug D_{2\left(or 1\right)}\right)\hfill \\ \phantom{}=\frac{\left\{drug D_{1\left(or 2\right)} induced AE\to drug D_{2\left(or 1\right)}\right\}}{\left\{T\right\}}\hfill \end{array}& (40)\end{array}$

$\begin{array}{ll}\begin{array}{l}confidence(drug{D}_{1}anddrug{D}_2\to AE)\hfill \\ \phantom{}=\frac{support(drug{D}_{1(or2)}inducedAE\to drug{D}_{2or1})}{support(drug{D}_{1(or2)}inducedAE)}\hfill \end{array}& (41)\end{array}$

Kubota purposed that because the PRR show the generation ratio of AEs, the result is evaluated regardless of sample size and χ² is important when examining the total sample size (Kubota, 2001). Therefore, the drugs with high log PRR and log χ² values are considered to have a strong signal.

To evaluate Shirakuni’s method, the signal score obtained by adding the log PRR and log χ² was used as the strength of the signal. This signal score is also used to compare signals for sex and age differences (Noguchi et al., 2018b; Noguchi et al., 2018c).

$\begin{array}{ll}Signal score = log PRR+log {\chi }^2& (42)\end{array}$

The FDA Adverse Event Reporting System dataset had sufficient information to apply the association rule mining model. In the association rule mining model, high indicators of the support and confidence are generally evaluated as a strong relationship. Next, Shirakuni et al. (2009) compared each signal score of the SJS caused by DDIs with the results of the association rule mining model to evaluate the performance of the proposed model.

In this result, the correlation between “discrete use of 2 drugs” and the signal score was weaker than that of “combined use of 2 drugs.” Therefore, it was concluded that, among the two methods of the association rule mining model proposed by Shirakuni et al. (2009), the method focused on “combined use of 2 drugs” detected such important signals at an early stage.

Harpaz’s Method of Association Rule Mining Model

In Harpaz’s method (Harpaz et al., 2010), like the combined use of two drugs model suggested by Shirakuni et al. (Shirakuni et al., 2009), the antecedent of rule X was defined as drugs D₁ and D₂, and the consequent of rule Y was defined as the AE.

However, in the association rule mining model, it is sometimes inappropriate to evaluate using the confidence value. For example, frequently reported AEs (e.g., nausea) produce large confidence values ​​regardless of the drug associated with AEs. Whereas, rarely reported AEs may produce small confidence values, although AEs are strongly associated with certain drugs.

Therefore, in Harpaz’s method, the RRR was used instead of confidence as the second parameter to qualify the worthiness or strength of an association rule (Harpaz et al., 2010 ).

The RRR is defined as the ratio of the observation frequency of the rule to the prediction frequency of the baseline, and is shown as Eq. 43.

The other disproportionality analysis methods are based on the RRR, namely the BCPNN and the EBGM in the signal detection of a single drug.

$\begin{array}{ll}RRR=\frac{Observed}{Expected}=confidence \left(drug D_1 and drug D_2\to AE\right) \times N& (43)\end{array}$

N is the total number of records in the data.

Extrapolating from Harpaz’s evaluation sample, the full set of potential DDIs identified by the method can be described by the taxonomy and proportions shown below.

Drugs are divided into the following three categories; (1) drugs known to be administered together or treat the same indication: 57%; (2) drugs with the same active ingredient: 2%; and (3) supposedly unrelated drugs: 41%.

AEs are divided into the following four categories: (1) one of the drugs is known to cause effect: 22%; (2) all drugs are known to cause effect: 21%; (3) none of the drugs is known to cause effect: 27%; and (4) confounded association, where drugs are administered to treat the AE: 30%.

The DDIs are divided into the following two categories: (1) known drug interaction: 35% and (2) unknown drug interaction: 65%.

In evaluations using Harpaz’s method, the results demonstrate that a significant number of DDIs can be identified. Additionally, the very low p-value indicates that it is extremely unlikely that Harpaz’s method detected them just by chance, and thus is a valid statistical model for signal detection.

Noguchi’s Method of Association Rule Mining Model

We proposed Noguchi’s method using the association rule mining model (Noguchi et al., 2018a). In Noguchi’s method, the antecedent of rule X was defined as drug D_2(or1) and the consequent of rule Y was defined as drug D_1(or2)-induced AE. That is, Noguchi’s method focuses on how much additional drug D_2(or1) contributes to drug D_1(or2)-induced AE.

$\begin{array}{ll}\begin{array}{l}lift(drug{D}_{2(or1)}\to drug{D}_{1(or2)}inducedAE)\hfill \\ \phantom{}=\frac{confidence(drug{D}_{2(or1)}\to drug{D}_{1(or2)}inducedAE)}{support(drug{D}_{1(or2)}inducedAE)}\hfill \end{array}& (44)\end{array}$

The lift according to this model indicates that the presence of drug D_2(or1) influences the probability of drug D_1(or2)-induced AE. Furthermore, in this method, it was confirmed by conviction that the DDIs obtained are not a false prediction.

$\begin{array}{ll}\begin{array}{l}conviction(drug{D}_{2(or1)}\to drug{D}_{1(or2)}inducedAE)\hfill \\ \phantom{}=\frac{1-support(drug{D}_{1(or2)}inducedAE)}{1-confidence(drug{D}_{2(or1)}\to drug{D}_{1(or2)}inducedAE)}\hfill \end{array}& (45)\end{array}$

In the study by Noguchi et al., lift of >1 and conviction of >1 were used as the criterion for detection using the association rule mining model. As the risk data for verification was created by the combination risk ratio model presented in Section 2.6, there is no combination of n < 3 in the risk data for verification. Therefore, in the verification, the combination of n₁₁₁ < 3 was excluded from the signal and n₁₁₁ ≥ 3 was added to the criterion for detection.

Noguchi’s method has high detection power (sensitivity: 99.05%, specificity: 92.60%, Youden’s index: 0.917, positive predictive value: 78.57%, negative predictive value: 99.72% F-score: 0.876) like the additive model and multiplicative model (Noguchi et al., 2018a).

In Noguchi’s method, to compare the detection power, all combinations of DDIs were calculated using the association rule mining model. Therefore, it has not been determined how much computation time could be reduced compared to the previous methods using the a priori algorithm.

However, given the number of drugs registered in the spontaneous reporting systems, there are several potential combinations of DDIs. As Noguchi’s method simplifies the computation, it is expected that the time for signal detection will be reduced as well as statistical models using other association rule mining model in actual search.

The association rule mining model is easy to extend to higher-order interactions. However, among the three methods presented in this review, the gold-standard has not been determined.

The chi-squared statistics is useful to determine the statistical significance level. Alvarez showed that chi-square statistics can be calculated directly using confidence, support, and lift with Eq. 46 (Alvarez, 2003).

$\begin{array}{ll}{\chi }^2=T\times {\left(lift\right)}^2\times \frac{support\times confidence}{\left(confidence-support\right)\times \left(lift-confidence\right)}& (46)\end{array}$

The chi-squared statistics make it easy to validate combinations obtained using the standard association rule mining model (e.g., Shirakuni’s method and Noguchi’s method), and can identify statistically significant signals of DDIs that might be false positives.

Causal Association Rule Discovery Model

As described in Association Rule Mining Model, the association rule mining model is often used to discover the signals of potential DDIs in the spontaneous reporting system. However, the main limitation of the traditional association rule mining model is that the strength of signals is measured based on correlation, not causality.

Several studies have been reported on the concept of causality, such as inductive causality models (Pearl, 2000), causal Bayesian network based methods (Spirtes et al., 2001), an additive noise model (Hoyer et al., 2008), and a hybrid approach (Cai et al., 2013), however causal discovery on high-order and sparse data of DDIs is still unsolved.

To solve this problem, instead of reconstructing a causal Bayesian network, Cai et al. proposed the causal association rule discovery (CARD) model with the aim to detect the true causal relationship between the concomitant use of two drugs and AEs (Cai et al., 2017).

For the rule X → Y with X ≥ 3, any sub-rules containing two antecedents must also form the V-structure with the AE: drugs D₁ → AE ← drugs D₂ (e.g., aspirin → Bleeding ← warfarin).

Because the interesting of rule X (drugs D₁, drugs D₂) → Y (AE) is dependent on the weakness of its sub-rules, and the causal association interesting measure (CAIM) is defined as follows:

$\begin{array}{ll}CAIM \left(X\to Y\right)=\underset{\left\{X_{i1}, X_{i2}\right\}\subset Y}{\min }CAIM \left(X_{i1}{X}_{i2}\to Y\right)& (47)\end{array}$

The dominance of the CARD model was determined by physician assessment of 100 randomly selected higher-order associations detected using the CARD model and Harpaz’s method of association rule mining model (cf. Harpaz’s Method of Association Rule Mining Model) (Harpaz et al., 2010). In the identification of known DDI, the CARD model was more accurate than Harpaz’s method: CARD model (20%) vs. Harpaz’s method (10%). Furthermore, in the CARD model, the detection of unknown combinations is less than Harpaz’s method: CARD model (50%) vs. Harpaz’s method (79%) (Cai et al., 2017).

Limitation

The spontaneous reporting systems used in these studies are based on clinical trials and post-marketing spontaneous reports, so only AEs observed are registered, and their causal relationship is unclear. Therefore, the cases may be underreported. Furthermore, the number of reports and signal values are influenced by various factors. Although not necessarily apparent, the number of cases increases in the first 2 years post-marketing and then begins to decrease. This is known as the Weber effect (Weber, 1984; Hartnell and Wilson, 2004).

The number and score of signals also possibly fluctuate during several years after launching (Hochberg et al., 2009). After drug-induced AE is highlighted, the number of reports may generally be accelerated. This is known as the notoriety effect (Pariente et al., 2007).

Additionally, the reports of drugs in the same class to those reported may also be accelerated. This is known as the ripple effect (Pariente et al., 2007).

The signal may be underestimated by numerous reports and that the same AE is associated with other drugs. This is called the masking effect or cloaking effect (Wang et al., 2010).

Matsuda et al. (2015) clarified that factors related to drug-induced AEs reporting attitudes in Japan may be different from those in other countries due to the involvement of medical representatives early post-marketing phase vigilance as a part of Japanese unique system of surveillance and the voluntary reporting process.

Thus, the spontaneous reporting systems are affected by several reporting biases and the state of the country’s survey. Furthermore, the report rates of AEs vary from year to year, and the value of the signal can easily vary with the timing of the survey.

In addition to the general limitations of study using the spontaneous reporting systems, the research of DDIs has some unique limitations.

In the surveillance for of DDIs, the lack of information about one of the two drugs will overestimate the RRR of drug-induced AEs, when either drug is used alone (Norén et al., 2008).

This is a serious problem in evaluating the AEs of DDIs, because it leads to under-reporting of n₁₁₁ and over-reporting of n₁₀₁ or n₀₁₁ (Figure 1). Furthermore, some of these statistical models do not apply to interactions with three or more drugs.

Finally, these statistical models are designed to focus on the detection of synergism rather than antagonism among some interaction of DDIs.

Conclusions and Perspectives

In this review, we have discussed statistical methodologies for signal detection of DDIs in spontaneous reporting systems. To the best of our knowledge, this is the latest review including recently proposed statistical methodologies.

The bivariate disproportionality analysis (e.g., single drug-induced AE) represents the bulk of daily routine of PhV. However, as the use of multiple drugs becomes more common, the problems of AEs due to DDIs cannot be ignored. Therefore, in the future operations of PhV, it is important to detect signals of unknown DDIs at an early stage.

In the bivariate disproportionality analysis, the frequentist methods generally have the following advantages and limitations compared with Bayesian methods. Several comparative studies of detection trends of these detection approaches have been reported (van, Puijenbroek et al., 2002; Kubota et al., 2004; Li et al., 2008; Bonneterre et al., 2012; Ang et al., 2016; Pham et al., 2019).

The advantages of the frequentist methods are generally as follows: 1. early signal detection, 2. sensitive, 3. easily applicable, and 4. easy to understand. While the limitations are 1. detection of false positive signals and 2. low specificity.

Although these advantages and limitations are considered to show a similar tendency in the signal detection models of DDIs, at this stage, the verification is not sufficient. Furthermore, the statistical models introduced in Statistical Methodology are not sufficiently clarified the difference in detection power. Therefore, in the future, it is necessary to examine the similarity and specificity of the signal detection tendency of each statistical model introduced.

As mentioned in Limitation, there are various biases (Weber, 1984; Hartnell and Wilson, 2004; Pariente et al., 2007; Hochberg et al., 2009; Wang et al., 2010; Matsuda et al., 2015) as these signals are calculated using the spontaneous reporting system. So the signal obtained is only a hypothesis. This does not change whether it is signals of single drug or DDIs. Therefore, considerable attention must also be paid to the interpretation of results in signal research of DDIs.

As indicated so far, most studies have focused on the analysis of AEs caused by the concomitant use of two drugs. However, in polypharmacy patients, the occurrence of AEs by interaction of multiple drugs (e.g., fourth order drug interaction: drug D₁–drug D₂–drug D₃–AE) is a concern. Therefore, in the future, establishment of a signal detection method for this higher order drug interaction will be more important.

This review has introduced only statistical methodologies for detecting DDIs based on the number of AEs reported.

In recent years, the method for detecting the signals that use time-to-onset instead of the number of reports have been studied (van Holle et al., 2012; van Holle et al., 2014; Scholl and Van Puijenbroek, 2016), but there are no examples of using them for DDIs. Since it may be possible to detect the signals that cannot be obtained with the statistical models introduced in this review, further studies are expected.

Author Contributions

YN and HT wrote the manuscript. TT also contributed with the paper organization. All the authors contributed with the bibliographic research.

Funding

This study was supported by JSPS KAKENHI Grant Number 19K20731.

Conflict of Interest

Although Laboratory of Community Healthcare Pharmacy, Gifu Pharmaceutical University, is financially supported by donations from WELCIA YAKKYOKU CO., LTD., the authors report no conflicts of interest regarding the content of this article.

The handling editor and reviewer W-CC declared their involvement as co-editors in the Research Topic, and confirm the absence of any other collaboration.

References

Agrawal, R., Srikant, R. (1994). “Fast algorithms for mining association rules,” in Proceedings of the 20th International Conference on Very Large Databases, vol. 487-499. (San Francisco, CA: Morgan Kaufman Publishers Inc.).

Google Scholar

Agrawal, R., Imielinski, T., Swami, A. N. (1993). Mining association rules between sets of items in large databases. ACM SIGMOD Int. Conf. Manage. Data, 207–216. doi: 10.1145/170035.170072

CrossRef Full Text | Google Scholar

Almenoff, J. S., DuMouchel, W., Kindman, L. A., Yang, X., Ram, D. (2003). Disproportionality analysis using empirical Bayes data mining: a tool for the evaluation of drug interactions in the post-marketing setting. Pharmacoepidemiol Drug Saf. 12, 517–521. doi: 10.1002/pds.885

PubMed Abstract | CrossRef Full Text | Google Scholar

Alvarez, S. A. (2003). Chi-squared computation for association rules: preliminary results. Tech. Rep. BCCS-2003–01.

Google Scholar

Ang, P. S., Chen, Z., Chan, C. L., Tai, B. C. (2016). Data mining spontaneous adverse drug event reports for safety signals in Singapore - a comparison of three different disproportionality measures. Expert Opin. Drug Saf. 15, 583–590. doi: 10.1517/14740338.2016.1167184

PubMed Abstract | CrossRef Full Text | Google Scholar

Aronson, J. K. (2004). Classifying drug interactions. Br. J. Clin. Phramacol 56, 343–344. doi: 10.1111/j.1365-2125.2004.02244.x

CrossRef Full Text | Google Scholar

Banda, J. M., Callahan, A., Winnenburg, R., Strasberg, H. R., Cami, A., Reis, B. Y., et al. (2016). Feasibility of prioritizing drug-drug-event associations found in electronic health records. Drug Saf. 39, 45–57. doi: 10.1007/s40264-015-0352-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Bate, A., Lindquist, M., Edwards, I. R., Olsson, S., Orre, R., Lansner, A., et al. (1998). A Bayesian neural network method for adverse drug reaction signal generation. Eur. J. Clin. Pharmacol. 54, 315–321. doi: 10.1007/s002280050466

PubMed Abstract | CrossRef Full Text | Google Scholar

Bonneterre, V., Bicout, D. J., Gaudemaris, R. (2012). Application of pharmacovigilance methods in occupational health surveillance: comparison of seven disproportionality metrics. Saf. Health Work. 3, 92–100. doi: 10.5491/SHAW.2012.3.2.92

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, R., Liu, M., Hu, Y., Melton, B. L., Matheny, M. E., Xu, H., et al. (2017). Identification of adverse drug-drug interactions through causal association rule discovery from spontaneous adverse event reports. Artif Intell Med. 76, 7–15. doi: 10.1016/j.artmed.2017.01.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, R., Zhang, Z., Hao, Z. (2013). “SADA: a general framework to support robust causation discovery,” in Proceedings of the 30th International Conference on Machine Learning, vol. 28(2) 208-216.

Google Scholar

Caster, O., Noren, G. N., Madigan, D., Bate, A. (2010). Large-scale regression-based pattern discovery: the example of screening the WHO global drug safety database. Stat. Analy. Data Min. 3, 197–208. doi: 10.1002/sam.10078

CrossRef Full Text | Google Scholar

DuMouchel, W., Harpaz, R. (2012). Regression-adjusted GPS algorithm (RGPS). Oracle White Paper November..

Google Scholar

DuMouchel, W., Pregibon, D., (2001). “Empirical Bayes Screening for Multi-item Associations,” in Proceedings of the Seventh ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD‘01, 67-76 (New York, NY, USA: ACM).

Google Scholar

Evans, S. J., Waller, P. C., Davis, S. (2001). Use of proportional reporting ratios (PRRs) for signal generation from spontaneous adverse drug reaction reports. Pharmacoepidemiol. Drug Saf. 10, 483–486. doi: 10.1002/pds.677

PubMed Abstract | CrossRef Full Text | Google Scholar

Genkin, A., Lewis, D. D., Madigan, D. (2007). Large-scale Bayesian logistic regression for text categorization. Technometrics 49, 291-304 doi: 10.1198/004017007000000245

CrossRef Full Text | Google Scholar

Gosho, M. (2018). Risk of hypoglycemia after concomitant use of antidiabetic, antihypertensive, and antihyperlipidemic medications: a database study. J. Clin. Pharmacol. 58, 1324–1331. doi: 10.1002/jcph.1147

PubMed Abstract | CrossRef Full Text | Google Scholar

Gosho, M. (2019). Rhabdomyolysis risk from the use of two-drug combination of antidyslipidemic drugs with antihypertensive and antidiabetic medications: a signal detection analysis. Fundam Clin. Pharmacol. 33, 339–346. doi: 10.1111/fcp.12435

PubMed Abstract | CrossRef Full Text | Google Scholar

Gosho, M., Maruo, K., Tada, K., Hirakawa, A. (2017). Utilization of chi-square statistics for screening adverse drug-drug interactions in spontaneous reporting systems. Eur. J. Clin. Pharmacol. 73, 779–786. doi: 10.1007/s00228-017-2233-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Harpaz, R., Chase, H. S., Friedman, C. (2010). Mining multi-item drug adverse effect associations in spontaneous reporting systems. BMC Bioinf. 11, S7. doi: 10.1186/1471-2105-11-S9-S7

CrossRef Full Text | Google Scholar

Harpaz, R., DuMouchel, W., LePendu, P., Bauer-Mehren, A., Ryan, P., Shah, N. H. (2013). Performance of pharmacovigilance signal - detection algorithms for the fda adverse event reporting system. Clin. Pharmacol. Ther. 93, 539–546. doi: 10.1038/clpt.2013.24

PubMed Abstract | CrossRef Full Text | Google Scholar

Harpaz, R., Haerian, K., Chase, H. S., Friedman, C. (2010). Statistical mining of potential drug interaction adverse effects in fda’s spontaneous reporting system. AMIA Annu. Symp Proc. 2010, 281–285.

PubMed Abstract | Google Scholar

Hartnell, N. R., Wilson, J. P. (2004). Replication of the Weber effect using postmarketing adverse event reports voluntarily submitted to the United States Food and Drug Administration. Pharmacotherapy 24, 743–749. doi: 10.1592/phco.24.8.743.36068

PubMed Abstract | CrossRef Full Text | Google Scholar

Hochberg, A. M., Hauben, M., Pearson, R. K., O’Hara, D. J., Reisinger, S. J. (2009). Systematic investigation of time windows for adverse event data mining for recently approved drugs. J. Clin. Pharmacol. 49, 626–633. doi: 10.1177/0091270009333484

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoyer, P. O., Janzing, D., Mooij, J., Peters, M., Scholkopf, B. (2008). “Nonlinear causal discovery with additive noise models,” in Neural Information Processing Systems (NIPS), vol. 689-696. (Vancouver, Canada).

Google Scholar

Koski, T., Orre, R., (1998). “Statistics of the information component in Bayesian neural networks,” in Technical Report (Stockholm, Sweden: department of numerical analysis and computing science, royal institute of technology).

Google Scholar

Kubota, K. (2001). Signal detection from spontaneous reports - new Methods in MCA in the UK, FDA in the US and WHO. Jpn. J. Pharmacoepidemiol. 6, 101–108. doi: 10.3820/jjpe1996.6.101

CrossRef Full Text | Google Scholar

Kubota, K., Koide, D., Hirai, T. (2004). Comparison of data mining methodologies using Japanese spontaneous reports. Pharmacoepidemiol Drug Saf. 13, 387–394. doi: 10.1002/pds.964

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, C., Xia, J., Deng, J., Jiang, J. (2008). A comparison of measures of disproportionality for signal detection on adverse drug reaction spontaneous reporting database of Guangdong province in China. Pharmacoepidemiol Drug Saf. 17, 593–600. doi: 10.1002/pds.1601

PubMed Abstract | CrossRef Full Text | Google Scholar

Matsuda, S., Aoki, K., Kawamata, T., Kimotsuki, T., Kobayashi, T., Kuriki, H., et al. (2015). Bias in spontaneous reporting of adverse drug reactions in Japan. PloS One 10, e0126413. doi: 10.1371/journal.pone.0126413

PubMed Abstract | CrossRef Full Text | Google Scholar

Mizuno, T., Umemura, T., Sakai, T., Fukatsu, M., Yamada, T., Kajiguchi, T., et al. (2016). Signal detection on the concomitant use of deferasirox with other drugs and acute renal failure using data mining of the Japanese adverse drug event report database and evaluation by a case-control study. Jpn. J. Pharm. Health Care Sci. 42, 717–726. doi: 10.5649/jjphcs.42.717

CrossRef Full Text | Google Scholar

Noguchi, Y., Esaki, H., Asano, S., Yokoi, T., Usui, K., Kato, M., et al. (2015). Analysis of effects of the diuretics on levels of blood potassium and blood sodium with angiotensin receptor blockers and thiazide diuretics combination therapy: data mining of the Japanese adverse drug event report database, JADER. Jpn. J. Pharm. Health Care Sci. 41, 488–496. doi: 10.5649/jjphcs.41.488

CrossRef Full Text | Google Scholar

Noguchi, Y., Katsuno, H., Ueno, A., Otsubo, M., Yoshida, A., Kanematsu, Y., et al. (2018c). Signals of gastroesophageal reflux disease caused by incretin-based drugs: a disproportionality analysis using the Japanese adverse drug event report database. J. Pharm. Health Care Sci. 4, 15. doi: 10.1186/s40780-018-0109-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Noguchi, Y., Ueno, A., Katsuno, H., Otsubo, M., Yoshida, A., Kanematsu, Y., et al. (2018b). Analyses of non-benzodiazepine-induced adverse events and prognosis in elderly patients based on the Japanese adverse drug event report database. J. Pharm. Health Care Sci. 4, 10. doi: 10.1186/s40780-018-0106-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Noguchi, Y., Ueno, A., Otsubo, M., Katsuno, H., Sugita, I., Kanematsu, Y., et al. (2018a). A new search method using association rule mining for drug-drug interaction based on spontaneous report system. Front. Pharmacol. 9, 197. doi: 10.3389/fphar.2018.00197

PubMed Abstract | CrossRef Full Text | Google Scholar

Norén, G. N., Bate, A., Orre, R., Edwards, I. R. (2006). Extending the methods used to screen the WHO drug safety database towards analysis of complex associations and improved accuracy for rare events. Stat. Med. 25, 3740–3757. doi: 10.1002/sim.2473

PubMed Abstract | CrossRef Full Text | Google Scholar

Norén, G. N., Sundberg, R., Bate, A., Edwards, I. R. (2008). A statistical methodology for drug-drug interaction surveillance. Stat. Med. 27, 3057–3070. doi: 10.1002/sim.3247

PubMed Abstract | CrossRef Full Text | Google Scholar

Orre, R., Lansner, A., Bate, A. (2000). Lindquist M. Bayesian neural networks with confidence estimations applied to data mining. Comput. Stat. Data Anal. 34, 473–493. doi: 10.1016/S0167-9473(99)00114-0

CrossRef Full Text | Google Scholar

Pariente, A., Gregoire, F., Fourrier-Reglat, A., Haramburu, F., Moore, N. (2007). Impact of safety alerts on measures of disproportionality in spontaneous reporting databases: the notoriety bias. Drug Saf. 30, 891–898. doi: 10.2165/00002018-200730100-00007

PubMed Abstract | CrossRef Full Text | Google Scholar

Pearl, J. (2000). Causality: models, reasoning and inference First edition. ed: Cambridge Univ Press.

Google Scholar

Pham, M., Cheng, F., Ramachandran, K. (2019). A comparison study of algorithms to detect drug-adverse event associations: frequentist, Bayesian, and Machine-Learning Approaches. Drug Saf. 42, 743–750. doi: 10.1007/s40264-018-00792-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Pirmohamed, M., Orme, M. (1998). “Drug interactions of clinical importance,” in Davies’s Textbook of Adverse Drug Reactions, Eds. Davies, D., Ferner, R., de Glanville, H. (London: Chapman & Hall Medical), 888–912.

Google Scholar

Qian, Y., Ye, X., Du, W., Ren, J., Sun, Y., Wang, H., et al. (2010). A computerized system for detecting signals due to drug-drug interactions in spontaneous reporting systems. Br. J. Clin. Pharmacol. 69, 67–73. doi: 10.1111/j.1365-2125.2009.03557.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Scholl, J. H., Van Puijenbroek, E. P. (2016). The value of time-to-onset in statistical signal detection of adverse drug reactions: a comparison with disproportionality analysis in spontaneous reports from the Netherlands. Pharmacoepidemiol Drug Saf. 25, 1361–1367. doi: 10.1002/pds.4115

PubMed Abstract | CrossRef Full Text | Google Scholar

Shirakuni, Y., Okamoto, K., Kawashita, N., Yasunaga, T., Takagi, T. (2009). Signal detection of drug complications applying association rule learning for Stevens-Johnson Syndrome. J. Com. Aid. Chem. 10, 118–127. doi: 10.2751/jcac.10.118

CrossRef Full Text | Google Scholar

Spirtes, P., Glymour, C., Scheines, R.Cusation, Prediction, and Search Second Edition ed., 2001.

Google Scholar

Susuta, Y., Takahashi, Y. (2014). Safety risk evaluation methodology in detecting the medicine concomitant use risk which might cause critical drug rash. Jpn. J. Pharmacoepidemiol. 19, 39–49. doi: 10.3820/jjpe.19.39

CrossRef Full Text | Google Scholar

Szarfman, A., Machado, S. G., O’Neill, R. T. (2002). Use of screening algorithms and computer systems to efficiently signal higher-than-expected combinations of drugs and events in the US FDA’s spontaneous reports database. Drug Saf. 25, 381–392. doi: 10.2165/00002018-200225060-00001

PubMed Abstract | CrossRef Full Text | Google Scholar

Thakrar, B. T., Grundschober, S. B., Doessegger, L. (2007). Detecting signals of drug-drug interactions in a spontaneous reports database. Br. J. Clin. Pharmacol. 64, 489–495. doi: 10.1111/j.1365-2125.2007.02900.x

PubMed Abstract | CrossRef Full Text | Google Scholar

van Holle, L., Tavares Da Silva, F., Bauchau, V. (2014). Signal detection based on time-to-onset: extending a new method from spontaneous reports to observational studies. Pharmacoepidemiol Drug Saf. 23, 849–858. doi: 10.1002/pds.3669

PubMed Abstract | CrossRef Full Text | Google Scholar

van Holle, L., Zeinoun, Z., Bauchau, V., Verstraeten, T. (2012). Using time-to-onset for detecting safety signals in spontaneous reports of adverse events following immunization: a proof of concept study. Pharmacoepidemiol Drug Saf. 21, 603–610. doi: 10.1002/pds.3226

PubMed Abstract | CrossRef Full Text | Google Scholar

van, Puijenbroek, E. P., Bate, A., Leufkens, H. G., Lindquist, M., Orre, R., Egberts, A. C. (2002). A comparison of measures of disproportionality for signal detection in spontaneous reporting systems for adverse drug reactions. Pharmacoepidemiol Drug Saf. 11, 3–10. doi: 10.1002/pds.668

PubMed Abstract | CrossRef Full Text | Google Scholar

van, Puijenbroek, E. P., Egberts, A. C., Heerdink, E. R., Leufkens, H. G. (2000). Detecting drug-drug interactions using a database for spontaneous adverse drug reactions: an example with diuretics and non-steroidal anti-inflammatory drugs. Eur. J. Clin. Pharmacol. 200056, 733–738. doi: 10.1007/s002280000215

CrossRef Full Text | Google Scholar

van, Puijenbroek, E. P., Egberts, A. C., Meyboom, R. H., Leufkens, H. G. (1999). Signalling possible drug-drug interactions in a spontaneous reporting system: delay of withdrawal bleeding during concomitant use of oral contraceptives and itraconazole. Br. J. Clin. Pharmacol. 47, 689–693. doi: 10.1046/j.1365-2125.1999.00957.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H. W., Hochberg, A. M., Pearson, R. K., Hauben, M. (2010). An experimental investigation of masking in the US FDA adverse event reporting system database. Drug Saf. 33, 1117–1133. doi: 10.2165/11584390-000000000-00000

PubMed Abstract | CrossRef Full Text | Google Scholar

Weber, J. (1984). Epidemiology of adverse reactions to nonsteroidal anti-inflammatory drugs. Adv. Inflammation Res. 6, 1–7.

Google Scholar

Yang, X., Fram, D. (2004). Using disproportionality analysis as a tool to explore drug-drug interavtions in AERS database. Pharmacoepidemiol. Drug Saf. 13, S247.

Google Scholar

Yates, F. (1934). Contingency tables involving small numbers and the χ² test. Suppl. J. R Stat. Soc. 1, 217–235. doi: 10.2307/2983604

CrossRef Full Text | Google Scholar
