Yun He
Yufei Yang
Xiaoyu Song1
Wenjun Zhang- 1Department of Ultrasound Medicine, Taihe Hospital, Hubei University of Medicine, Shiyan, Hubei, China
- 2Department of Cardiothoracic Surgery, Taihe Hospital, Hubei University of Medicine, Shiyan, Hubei, China
Background: Unilateral pulmonary artery discontinuity (UPAD) is a rare fetal abnormality, for which a prenatal ultrasonographic diagnosis remains challenging. We report a case of left pulmonary artery discontinuity in association with Taussig–Bing syndrome, which has rarely been reported in the literature thus far.
Case presentation: A pregnant woman with a fetus with congenital heart disease (CHD) at 23 weeks gestation was referred to our center. She denied any familial history of genetic disorders in either spouse, and non-invasive prenatal testing (NIPT) also showed a low risk of CHD for the fetus. An ultrasound examination revealed a complex cardiac malformation indicative of left pulmonary artery discontinuity originating from the ductus arteriosus with Taussig–Bing syndrome. The family eventually chose to terminate the pregnancy and agreed to an autopsy, which confirmed that the prenatal echocardiographic diagnosis was correct. In addition, in this report, we review and analyze 17 reported cases of prenatal echocardiographic diagnoses of UPAD.
Conclusions: UPAD is characterized by discontinuity between the proximal and distal pulmonary arteries, along with a ductal origin of the distal pulmonary artery. A discontinuous pulmonary artery originating from the ductus can be detected on prenatal sonography using ultrasound technology. The aim is to detect malformations earlier and carry out the necessary intervention measures as soon as possible.
Case presentation
A 31-year-old woman with a fetus with congenital heart disease (CHD) at 23 gestational weeks was referred to our hospital. She denied any history of non-steroidal anti-inflammatory drug (NSAID) use during the pregnancy, exposure to toxins or radiation, familial history of genetic disorders in either spouse, or congenital heart disease. Non-invasive prenatal testing (NIPT) also showed a low risk of CHD for the fetus. The fetal echocardiogram revealed an apparent ventricular septal defect (VSD) measuring 4.7 mm (Figure 1A). In the three-vessel view (3VV), compared with the aorta, there was stenosis in the pulmonary artery. To confirm this and explore why it was narrowed, we first determined the aorta by its three main branches in the long-axis view, and then, in the 3VV, slightly rotated the ultrasound beam and found that there was no bifurcation in the main pulmonary artery (MPA) and it only gave rise to the right pulmonary artery (RPA) (Figure 1B). However, color Doppler flow imaging (CDFI) showed blood flow signals originating from the descending aorta through the left side of the ductus arteriosus (DA) to supply the left pulmonary artery (LPA) (Figure 1C). Based on the CDFI results, it appeared that the LPA originated from the left side of the ductus arteriosus. Thus, vessels suspected to be the LPA were measured which corresponded to the waveform of the pulmonary artery, and the peak flow velocity in the bilateral pulmonary arteries measured 105 cm/s (left) and 107 cm/s (right) (Figures 1D,E).

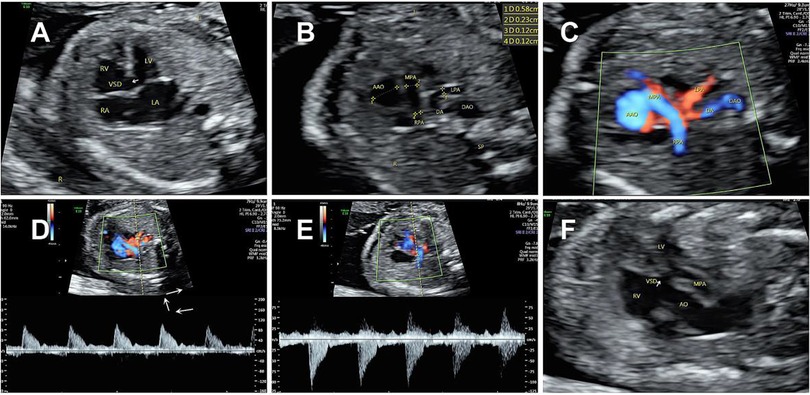

Figure 1. Prenatal echocardiogram showing (A) a large ventricular septal defect. (B,C) Main pulmonary artery (MPA-2.3 mm) only gave rise to the right pulmonary artery (RPA-1.2 mm). CDFI showed a blood flow (LPA-1.2 mm) originated from the descending aorta through the ductus arteriosus to supply the left pulmonary artery. (D,E) Spectral Doppler ultrasound showed similar high resistance waveforms of the pulmonary arteries on both sides. (F) A complete transposition of the aorta originating solely from the right ventricle.
When we performed a continuous scan to explore the origin of the left pulmonary artery, in the ventricular outflow tract section, we also observed the right pulmonary artery mostly originated from the right ventricle but was overriding the ventricular septum, while the aorta completely originated from the right ventricle (Figure 1F). In addition, the two major arteries were not crossed and arose from the right ventricle in parallel.
These findings led to a final diagnosis of Taussig–Bing syndrome associated with unilateral pulmonary artery discontinuity (UPAD) for the fetus. The Family decided to terminate the pregnancy, and the autopsy confirmed the diagnosis. The autopsy demonstrated levocardia with an ascending aorta arising from the right ventricle (Figure 2A). The main pulmonary artery arises from the right ventricle and is left and parallel to the ascending aorta (Figure 2B). The right pulmonary artery arose from the main pulmonary artery with a discontinuity of the left pulmonary artery (Figures 2B,C). The left patent ductus arteriosus supplied the left pulmonary artery (Figure 2D).
Figure 2. Pathological findings including (A) an ascending aorta arising from the right ventricle (B) the right pulmonary artery arising from the atretic main pulmonary artery. (C) Double-outlet right ventricle (DORV) with a subpulmonary ventricular septal defect (D) the left pulmonary artery arising from the descending aorta through the ductus arteriosus.
Discussion
UPAD is a rare CHD with an estimated prevalence of 1 in 200,000 and was initially described by Fraentzel in 1868 (1, 2). It is also referred to as isolated unilateral pulmonary artery agenesis or ductal origin of distal pulmonary artery (DODPA). The former term can be misleading as an intrapulmonary vessel is present in fetuses with this condition. The term UPAD is more widely accepted and used, as it clarifies that distal and proximal pulmonary artery discontinuities can coexist. Embryologically, under normal conditions, the proximal sixth aortic arch forms the extrapulmonary pulmonary artery and joins the intrapulmonary pulmonary arteries. The majority of UPAD studies have indicated that the cause of this developmental defect is the involution of the proximal sixth aortic arch, resulting in the absence of the extrapulmonary pulmonary artery (3). Consequently, a single pulmonary artery arising from the MPA trunk can be found on ultrasound imaging, while the intrapulmonary pulmonary arteries arise normally from their respective lung buds and persistently connect with the distal sixth aortic arch. This explains why, during ultrasound scanning from the hilum, the distal segment of the pulmonary artery is normally connected to the corresponding lung tissue. Since the distal sixth aortic arch is destined to become the ductus arteriosus, the pulmonary artery always arises by way of the ductus-like collateral vessels from the aortic arch system or from the bronchial arteries. In our case, the pulmonary artery originated from the descending aortic arch through the ductus arteriosus.
Accurately determining the origination of the pulmonary artery from the aorta is crucial. If the unilateral pulmonary artery anomaly originates from the ascending aorta, it is classified as hemitruncus arteriosus or anomalous origin of one pulmonary artery from the ascending aorta (AOPA) (4). In comparison to UPAD, these anomalies typically result in life-threatening pulmonary hypertension earlier due to the pulmonary artery with anomalous origin receiving disordered and high-pressure blood perfusion from the aorta, while another pulmonary artery receives perfusion from the whole right ventricle. According to the distance between the anomalous origin of the pulmonary artery and the aortic valve, AOPA can be classified into proximal and distal types. Distinguishing the distal type from UPAD on ultrasound is challenging.
UPAD usually coexists with other CHDs but can also be present as an isolated anomaly. The occurrence of left pulmonary artery discontinuity (LPAD) in conjunction with other CHDs is more prevalent, such as tetralogy of Fallot (TOF), septal defect, persistent DA, or mirror image right aortic arch (MRAA) (5, 6). Nevertheless, rare literature documents the prenatal echocardiographic diagnosis of the left pulmonary artery originating from the ductus arteriosus coexist Taussig-Bing syndrome. In the latter syndrome, the pulmonary artery typically arises from both ventricles, while the aorta arises exclusively from the morphological right ventricle. The aorta is usually to the right, and is slightly anterior to, or side-by-side with the pulmonary artery. These two great vessels are usually parallel. They do not spiral around each other as in the normal heart. The pulmonary artery overrides the VSD (7). It should be noted that Taussig–Bing syndrome can be easily confused with transposition of the great arteries (TGAs).
In the prenatal stage, isolated unilateral pulmonary discontinuity can be difficult to diagnose. However, after birth, if the ductus arteriosus closes or there is vascular endothelial injury, symptoms such as coughing, hemoptysis, and recurrent respiratory infections may occur, which can potentially be life-threatening (8).
There is a consensus among sonographers who perform fetal malformation screening that conducting a continuous scan enables the acquisition of more comprehensive anatomical information (9). In challenging cases where identification of the origin of the ipsilateral pulmonary artery proves difficult, it is recommended to perform upstream scanning from the hilum to locate its origin and course. Furthermore, we utilized spectral Doppler ultrasound to measure the spectrum of the pulmonary arteries on both sides and observed similar waveforms. Therefore, spectral Doppler ultrasound can be a valuable tool for assisting in the diagnosis of undiagnosed (but suspected) vessels with abnormal origin. Identifying the origin of the pulmonary arteries should be considered routine prenatal screening to prevent missed detection of various anomalous origins such as AOPA, pulmonary artery sling, and crossed pulmonary arteries (CPA), among others that are often challenging to identify using conventional views. Currently, new technology provides better support for diagnosis, for example, Chen et al. (10) used four-dimensional spatiotemporal image correlation (STIC-HD) live flow technology to acquire an overall perspective of all blood vessels, which can help physicians to have a clear depiction of great vessels in a fetus (11).
Over the past decade, the frequency of intrauterine detection of UPAD has been gradually increasing. However, it is more commonly detected in children and young adults due to clinical symptoms rather than prenatal diagnosis (12, 13). We conducted a comprehensive analysis of the existing English literature on identified fetal UPAD in PubMed within the past decade. The available research encompassed a mere five studies, comprising a total of 16 documented cases. Table 1 provides the information about each case report. From the data in Table 1, it can be observed that 5 (30%) out of the 17 patients had isolated UPAD with no other cardiac malformations. In addition, in 12 (70%) cases, UPAD was associated with other congenital heart diseases, most commonly ventricular septal defect (n = 6), followed by mirror image right aortic arch (n = 4), double-outlet right ventricle (n = 2), tetralogy of Fallot (n = 1), Taussig–Bing syndrome (n = 1), and persistent left superior vena cava (PLSVC) (n = 1). In this group, isolated right pulmonary artery discontinuity (RPAD) was less common than LPAD with CHD, accounting for 30% of all cases. Among the 10 LPAD cases, 6 (60%) were not associated with MRAA, which contradicts the finding of Li et al. (15) that the proximal pulmonary artery was found to be absent on the contralateral side of the aortic arch. However, it is worth noting that MRAA has never been found in cases of RPAD. Isolated RPAD accounted for approximately 70% of all the RPAD cases, and only two cases of RPAD were associated with other CHDs, namely, a small ventricular defect and PLSVC.

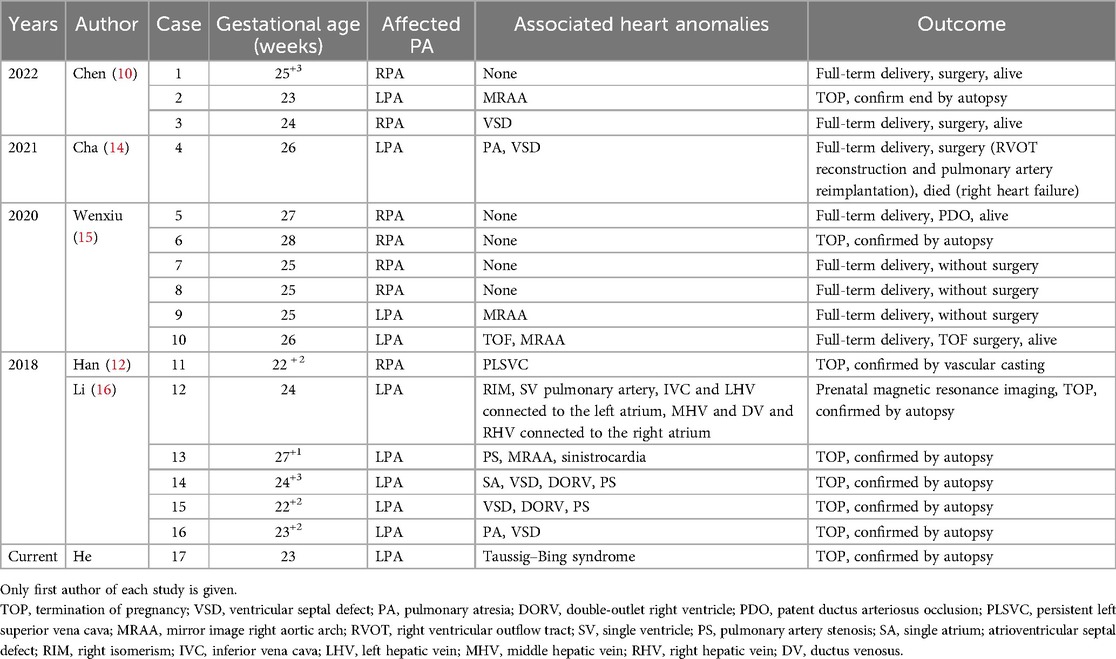

Table 1. Prenatal ultrasonographic manifestations and follow-up results of 17 cases of unilateral pulmonary artery discontinuity.
UPAD refers to the involution of the sixth aortic arch resulting in discontinuity between the proximal and distal pulmonary arteries, along with a ductal origin of the distal pulmonary artery. LPAD often coexists with complex congenital heart defects, while RPAD can be easily overlooked during routine scans. Therefore, whether managing complex CHD or conducting regular antenatal examinations, assessing the branching relationship of the pulmonary arteries in a three-vessel view becomes essential for identifying any abnormalities in their origins. Ultrasound is the preferred method for antenatal examination, allowing for more accurate and early detection of lesions. However, achieving this requires sonographers to possess a deeper understanding of basic views and a broader comprehension of diseases. This case emphasizes the importance of examining the continuity of the pulmonary arteries when detecting CHD as it significantly aids later-stage treatment. Furthermore, it is a reminder that LPAD can coexist with Taussig–Bing syndrome equally.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
The studies involving humans were approved by Ethics Committee of Shiyan Taihe Hospital. The studies were conducted in accordance with the local legislation and institutional requirements. Written informed consent for participation in this study was provided by the participants’ legal guardians/next of kin. Written informed consent was obtained from the minor(s)' legal guardian/next of kin for the publication of any potentially identifiable images or data included in this article.
Author contributions
YH: Writing – review & editing, Resources, Project administration. YY: Writing – original draft, Software, Investigation, Data curation. XS: Writing – review & editing, Software, Data curation. ZZ: Writing – review & editing, Methodology, Conceptualization. DY: Writing – review & editing, Supervision. CX: Writing – review & editing, Conceptualization. MZ: Writing – review & editing, Conceptualization. WZ: Writing – review & editing, Supervision, Project administration, Funding acquisition.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by Taihe Hospital Foundation (2020JJXM018).
Acknowledgments
We feel grateful for the doctors and staff who have been involved in this work. All persons that contributed to this study are listed authors and meet the criteria for authorship.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
CHD, congenital heart disease; UPAD, unilateral pulmonary artery discontinuity; NIPT, non-invasive prenatal testing; 3VV, three-vessel view; CDFI, color Doppler flow imaging; RPA, right pulmonary artery; LPA, left pulmonary artery; MPA, main pulmonary artery; AOPA, anomalous origin of one pulmonary artery; LPAD, left pulmonary artery discontinuity; RPAD, right pulmonary artery discontinuity; DA, ductus arteriosus; MRAA, mirror image right aortic arch; VSD, ventricular septal defect; TOP, termination of pregnancy.
References
1. Reading DW, Oza U. Unilateral absence of a pulmonary artery: a rare disorder with variable presentation. Proc (Bayl Univ Med Cent). (2012) 25:115–8. doi: 10.1080/08998280.2012.11928802
2. Fraentzel O. Ein fall von abnormer communication der aorta mit der arteria pulmonalis. Archiv Pathol Anat. (1868) 43:420–6. doi: 10.1007/BF01915623
3. Apostolopoulou SC, Kelekis NL, Brountzos EN, Rammos S, Kelekis DA. “Absent” pulmonary artery in one adult and five pediatric patients: imaging, embryology, and therapeutic implications. AJR Am J Roentgenol. (2002) 179:1253–60. doi: 10.2214/ajr.179.5.1791253
4. Nathan M, Rimmer D, Piercey G, del Nido PJ, Mayer JE, Bacha EA, et al. Early repair of hemitruncus: excellent early and late outcomes. J Thorac Cardiovasc Surg. (2007) 133:1329–35. doi: 10.1016/j.jtcvs.2006.12.041
5. Bouros D, Pare P, Panagou P, Tsintiris K, Siafakas N. The varied manifestation of pulmonary artery agenesis in adulthood. Chest. (1995) 108:670–6. doi: 10.1378/chest.108.3.670
6. Presbitero P, Bull C, Haworth SG, de Leval MR. Absent or occult pulmonary artery. Br Heart J. (1984) 52:178–85. doi: 10.1136/hrt.52.2.178
7. Walters HL, Mavroudis C, Tchervenkov CI, Jacobs JP, Lacour-Gayet F, Jacobs ML. Congenital heart surgery Nomenclature and database project: double outlet right ventricle. Ann Thorac Surg. (2000) 69:S249–63. doi: 10.1016/S0003-4975(99)01247-3
8. Raymond A, Pedretti E, Privitera G, Cicero C, Biasucci G. Neonatal diagnosis of isolated absence of the right pulmonary artery: a case report and review of the literature. Ital J Pediatr. (2018) 44:27. doi: 10.1186/s13052-018-0465-1
9. Ma J, Zhang Y, Wang Y, Zhao L. Prenatal two-and three-dimensional echocardiographic diagnosis of anomalous origin of one pulmonary artery from the ascending aorta: case report and literature review. J Clin Ultrasound. (2020) 48:423–7. doi: 10.1002/jcu.22827
10. Chen L, Xu H, Zhou L, Liu C, Xi J, Wu Y, et al. Prenatal diagnosis of ductal origin of distal pulmonary artery: presentation of three cases and literature review. Ultrasound Obstet Gynecol. (2022) 60:284–90. doi: 10.1002/uog.24799
11. Rizzo G, Capponi A, Muscatello A, Cavicchioni O, Vendola M, Arduini D. Examination of thefetal heart by four-dimensional ultrasound with spatiotemporal image correlation during routine second-trimester examination: the “three-steps technique.”. Fetal Diagn Ther. (2008) 24(2):126–31. doi: 10.1159/000142142
12. Han J, Yu S, Hao X, Gao S, Weng Z, He Y. Prenatal diagnosis of bilateral ductus arteriosi and an anomalous origin of the right pulmonary artery from the right-sided duct. J Ultrasound Med. (2018) 37:2961–2. doi: 10.1002/jum.14655
13. Kruzliak P, Syamasundar RP, Novak M, Pechanova O, Kovacova G. Unilateral absence of pulmonary artery: pathophysiology, symptoms, diagnosis and current treatment. Arch Cardiovasc Dis. (2013) 106:448–54. doi: 10.1016/j.acvd.2013.05.004
14. Cha H-H, Kim HM, Seong WJ. Pulmonary atresia with a ventricular septal defect and left pulmonary artery discontinuity: a case report. J Med Case Rep. (2021) 15:190. doi: 10.1186/s13256-021-02750-4
15. Wenxiu L, Yuan Z, Chaoning H, Bin G, Jiang W, Shuang Y. Prenatal diagnosis of anomalous origin of one pulmonary artery branch by two-dimensional echocardiography: summary of 12 cases. Cardiol Young. (2020) 30:39–46. doi: 10.1017/S1047951119002890
Keywords: fetus, malformation, pulmonary artery, echocardiography, congenital heart
