ORIGINAL RESEARCH article

Front. Pediatr., 28 October 2024
Sec. Pediatric Orthopedics

Sound transmission using a tuning fork for the diagnosis of developmental dysplasia of the hip in newborns

\r\nNicols Padilla-Raygoza
Nicolás Padilla-Raygoza1*Jssica Plascencia-Roldn,Jéssica Plascencia-Roldán1,2Guadalupe Irazú Morales-Reyes,Guadalupe Irazú Morales-Reyes1,3Luis Guillermo Patio-GutirrezLuis Guillermo Patiño-Gutiérrez4Ariana Valeria Girn-SotoAriana Valeria Girón-Soto4Evaristo Antonio Meza-GalvnEvaristo Antonio Meza-Galván4Itzel Marcela Anguiano-CancholaItzel Marcela Anguiano-Canchola4Sergio Emmanuel Luna SantillanaSergio Emmanuel Luna Santillana5Jos Juan Torres-HernndezJosé Juan Torres-Hernández6Gilberto Flores-Vargas\r\nGilberto Flores-Vargas1
  • 1Department of Research and Technological Development, Directorate of Teaching and Research, Institute of Public Health from Guanajuato State, Guanajuato, Mexico
  • 2Division of Health Sciences, Campus Leon, University of Guanajuato, León, Mexico
  • 3School of Medicine, University of Quetzalcoatl in Irapuato, Irapuato, Mexico
  • 4Service of Pediatrics, Hospital General Guanajuato, Institute of Public Health from Guanajuato State, Guanajuato, Mexico
  • 5Service of Radiology, Hospital General Guanajuato, Institute of Public Health from Guanajuato State, Guanajuato, Mexico
  • 6Service of Surgery, Hospital General Guanajuato, Institute of Public Health from Guanajuato State, Guanajuato, Mexico

Introduction: This study aims to estimate the validity and reliability of sound transmission tests using a tuning fork and stethoscope compared with the usual clinical procedures for the diagnosis of developmental dysplasia of the hip in newborns from the state of Guanajuato, Mexico.

Methodology: This is a cross-sectional study of newborns at the Guanajuato General Hospital of the Institute of Public Health from Guanajuato. The population under study comprised newborns born from April to May 2023. All parents of newborns were invited to participate. The Ortolani, Barlow, Peter–Baden, and sound transmission tests were performed with a tuning fork and stethoscope three times by two observers. Ultrasonography using the Graf technique was also applied to both hips. We evaluated the validity and repeatability of clinical procedures and sound transmission tests against ultrasonography as the gold standard. We calculated sensitivity, specificity, and predictive values for validity and Cohen's kappa for repeatability.

Results: The sample consisted of 100 newborns (56% male and 44% female); 65% born by vaginal delivery. Sound transmission test results for sensitivity, specificity, the positive predictive value, and the negative predictive value were 87.88%, 95.81%, 80%, and 97.53%, respectively. The intra-observer kappa was 0.89 (95% CI = 0.80–0.97) and the inter-observer kappa was 0.85 (95% CI = 0.73–0.97). The validity and repeatability of the Ortolani, Barlow, and Peter–Baden tests were low compared with the sound transmission test.

Conclusion: The sound transmission test using a tuning fork and stethoscope is helpful for the diagnosis of developmental dysplasia of the hip.

1 Introduction

Developmental dysplasia disease of the hip (DDDH) consists of hip alterations, ranging from a slight incongruence between the articular surfaces to the dislocation of the femoral head outside the acetabulum (1). DDDH originates from the interaction between the cartilage maturation, bony elements of the acetabulum, and the pressure applied by muscular forces on the femoral head (2).

In the USA, DDDH occurs in 1 in 100 live births in the form of instability and in 1 in 1,000 live births in the form of hip dislocation (3). In Mexico, 1% of neonates have DDDH, and 75% of macrosomia infants at birth have ultrasonographic evidence of hip abnormalities. Nevertheless, only 1 in every 7,000 live births progresses to hip dislocation (4). Fernandez (5) pointed out that 17% of affected children were diagnosed by the medical doctor and the rest by the family, generally in the second semester of the infant's life, when the infant started walking.

The cause of DDDH may include maternal hormones, macrosomia, breech presentation with extension of the lower extremities, inadequate obstetric practices during birth and in postnatal life, and improper wrapping or carrying techniques for the baby (6, 7). DDDH is classified into physiological immaturity, subluxation, luxation, and dislocation of the hip. The clinical diagnosis is established through procedures that should be routinely performed during the examination of neonates and infants: Ortolani, Barlow, Peter–Baden, and limitation of abduction, among others (1). These procedures only detect hips with subluxation, luxation, or dislocation (1, 6, 7), and physiological immaturity may go undiagnosed, potentially becoming a risk factor for progression to subluxation, luxation, or dislocation.

In 1987, Stone et al. (8) described sound transmission testing with a tuning fork and stethoscope for clinical diagnosis, which was later replicated by Padilla-Raygoza and Figueroa-Ferrari (9) in Mexico, utilizing the properties of bone to transmit sound. The definitive diagnosis is made in neonates and infants up to 3 months of age, using the Graf technique in ultrasonography. Radiographs are not recommended in children under 8–12 weeks of postnatal life due to the incomplete ossification of the femoral head. This study aimed to compare the validity and reliability of sound transmission tests with a tuning fork and stethoscope with the usual clinical procedures for the diagnosis of DDDH in neonates from Guanajuato, Mexico.

2 Participants and methods

The protocol was approved by the Ethics Committee for Research of Hospital General Salamanca (registry number CEI-HGS007-2023) on 13 March 2023.

2.1 Study design

This is a quantitative, cohort, longitudinal, prospective, prolective, and analytical study. The follow-up period for each newborn was 28 days. The sound transmission and clinical procedures were performed 4–6 days after the delivery, and the hip ultrasonography was carried out 2–4 weeks after the sound transmission and clinical procedures. The universe of this study consisted of newborns born at the Guanajuato General Hospital (GGH) from April to May, 2023. The parents of all neonates were invited to participate. No sampling method was used. Progressively, starting on 1 April and continuing until the recruitment of 100 neonates, the parents were invited to have their newborns participate in the study.

2.2 Sample size calculation

The minimum sample size calculation is 100 neonates with DDDH, assuming a sensitivity value for the sound transmission of 90%, 95% precision, and 80% power (Epidat, 4.2, Xunta de Galicia, WHO, Universidad CES).

2.3 Selection criteria

The inclusion criteria were neonates born at the GGH whose parents consented to their participation by signing the informed consent form. The exclusion criteria were neonates with congenital rigid or embryological hip dislocation. The elimination criteria were neonates with incomplete evaluations due to not attending the hip ultrasound.

2.4 Variables

The sociodemographic variables included age, sex, gestational age based on the date of the mother's last menstrual period, and mode of delivery.

2.4.1 Independent variables

The comparative sound transmission test (tuning fork) is a dichotomous categorical variable. It measures the transmission of the sound in the hip, from being in extension to being in flexion. An increase in sound when flexing the hip is considered with DDDH. If the sound remains the same or decreases, the individual is considered free of DDDH. Results are presented as frequencies and percentages.

The Ortolani test is a dichotomous categorical variable. It refers to the clinical maneuver evaluating both hips simultaneously to detect a clicking sound in one of them. It is measured as “yes” or “no” and is presented as frequencies and percentages.

The Barlow test is a dichotomous categorical variable. It is a clinical maneuver that evaluates each hip separately, looking for a snapping sound. It is measured as “yes” or “no” and is presented as frequencies and percentages.

The Peter–Baden test is a dichotomous categorical variable. It is a clinical maneuver that evaluates asymmetry in the groin, thigh, and gluteal folds. It is considered positive if asymmetry is present and negative if it is not. Results are presented as frequencies and percentages.

2.4.2 Dependent variable

The ultrasonographic evaluation result is an ordinal categorical variable. It refers to the alteration of the hip joint, measured with hip ultrasonography using the Graf technique, which consists of a dynamic test and a static test, measuring the alpha and beta angles of the hips. A healthy hip is classified as Graf I (α > 60° and β < 55°), physiological immaturity is classified as Graf II (α = 44°–59° and β = 55°–77°), and subluxation, luxation, or dislocation are classified as Graf III or IV (α < 43° and β > 77°) (10, 11).

As procedure, when receiving a pregnant woman for obstetric resolution by the GGH, the program objectives and the risks and benefits to the neonate of participating were explained. After the birth of the newborn, either the mother or the father were asked to sign the informed consent form. If they signed it, the sound transmission test was applied. It consisted of placing the neonate in dorsal recumbency with the lower extremities extended, the 256 cycles/s tuning fork vibrating on the patella, and the diaphragm of the stethoscope on the pubis and perceiving the sound. The hip must be flexed to 90° to perceive the sound. The usual clinical procedures were also applied on three occasions: the first two by the pediatrician of the service and a third by the pediatric residents. The neonates were also scheduled for a hip ultrasound using the Graf technique.

2.5 Statistical analysis

For the validity of the sound transmission test using a tuning fork and the clinical procedures (Ortolani, Barlow, Peter–Baden, and abduction limitation), sensitivity, specificity, and predictive values were calculated using hip ultrasound with the Graf technique as the gold standard. Cohen's kappa was calculated for intra-observer reliability (comparing the first and second measurements by the pediatrician) and inter-observer reliability (comparing the pediatrician's measurements with those of the pediatric resident) to assess the repeatability of the sound transmission test. Statistical analysis was performed using STATA 13.0® (StataCorp., College Station, TX, USA).

3 Results

The sample size was 100. Table 1 presents their sociodemographic characteristics. Males neonates comprised 56% of the sample and female neonates 44%; 65% of the all newborns were born via vaginal delivery. The average age at first contact after birth was 0.79 ± 0.71 days, and the average gestational age based on the last menstrual period was 39.22 ± 1.55 weeks.

Table 1
www.frontiersin.org

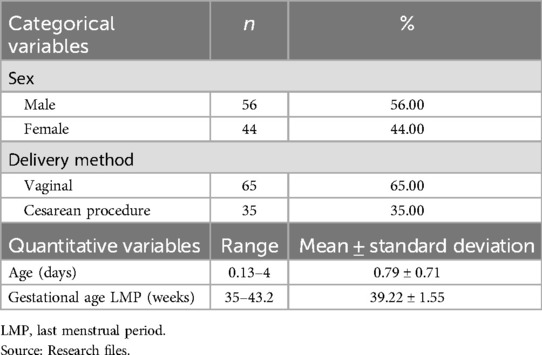

Table 1. Distribution of sociodemographic variables of the participating neonates (n = 100).

According to the hip ultrasound using the Graf technique, the results predominantly showed physiological immaturity: 13% in the right hip and 17% in the left hip. Only two cases of subluxation and two cases of hip dislocation were detected (Table 2).

Table 2
www.frontiersin.org

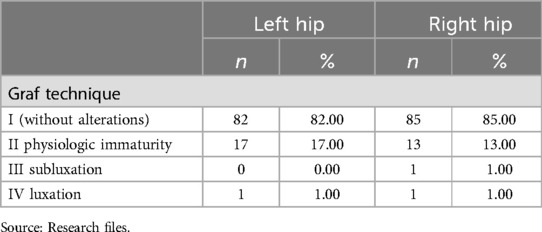

Table 2. Diagnosis of hip with ultrasound using the Graf technique.

When comparing the three assessments using sound transmission and hip ultrasound with the Graf technique, the sensitivity was similar, at over 80%, specificity exceeded 90%, the positive predictive value ranged between 70% and 80%, and the negative predictive value was above 90% (Table 3).

Table 3
www.frontiersin.org

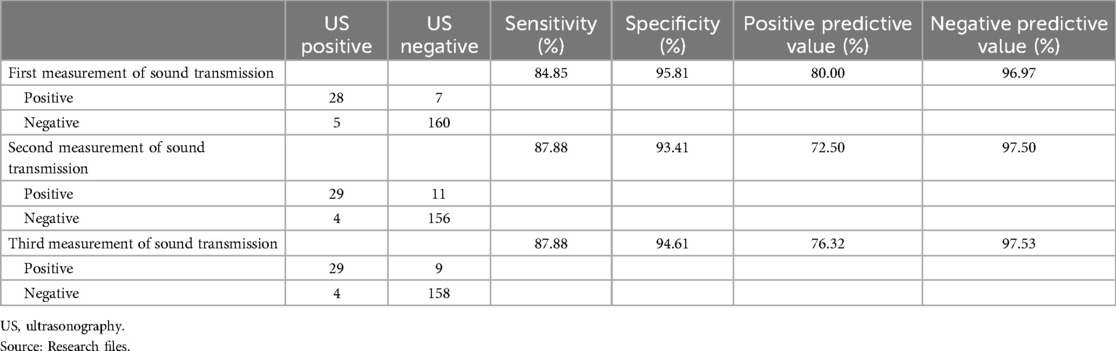

Table 3. Validity of sound transmission with a tuning fork and stethoscope.

The Ortolani procedure is used to diagnose subluxated or dislocated hips; however, it does not detect dysplasia. As shown in Table 4, the sensitivity was below 20% and the positive predictive value was under 50%.

Table 4
www.frontiersin.org

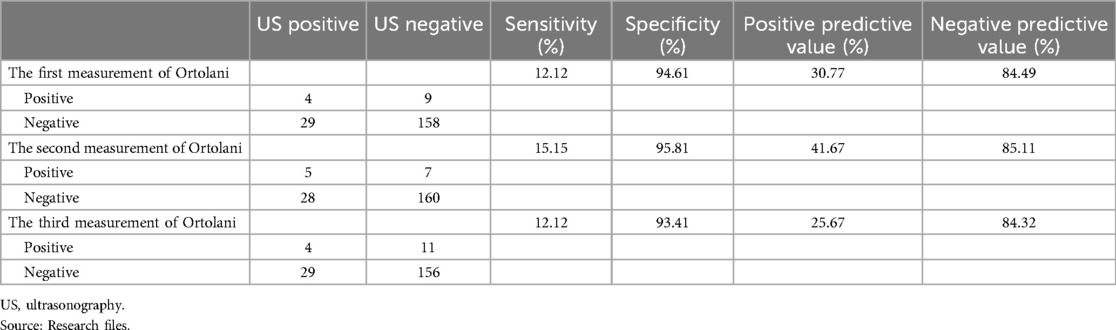

Table 4. Validity of the Ortolani maneuver.

For the Barlow maneuver, a similar issue arises as with the Ortolani maneuver. As it does not detect hip dysplasia and only identifies subluxated or dislocated hips, the sensitivity and positive predictive value were very low across the three measurements (Table 5).

Table 5
www.frontiersin.org

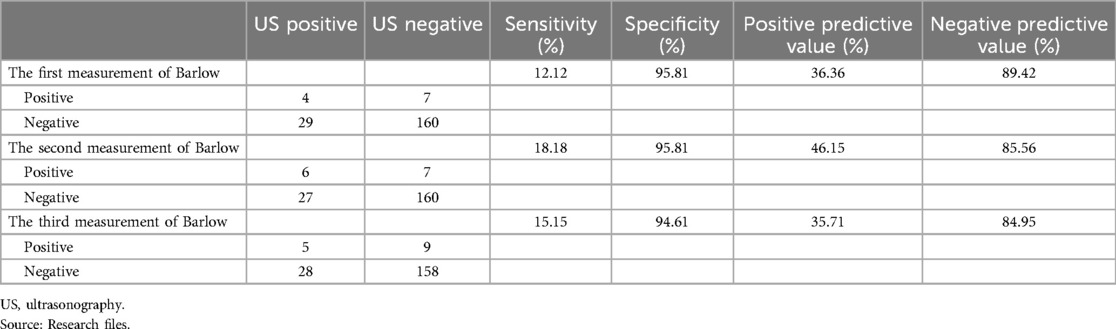

Table 5. Validity of the Barlow maneuver.

Fold asymmetry is a sign that raises suspicion of subluxation or dislocation of the hip. However, there is no evidence that it indicates hip dysplasia, as demonstrated by the very low sensitivities (<10%) and positive predictive values of 50% or less (Table 6).

Table 6
www.frontiersin.org

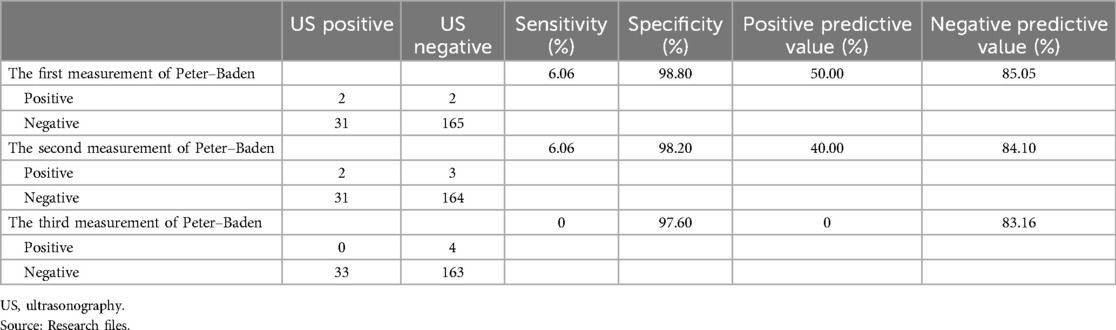

Table 6. Validity of fold asymmetry or the Peter–Baden sign.

The intra-observer reliability was K = 0.89 and the inter-observer reliability was K = 0.85, indicating that the sound transmission test measurements were applied similarly by both the pediatrician and the pediatric resident (Table 7).

Table 7
www.frontiersin.org

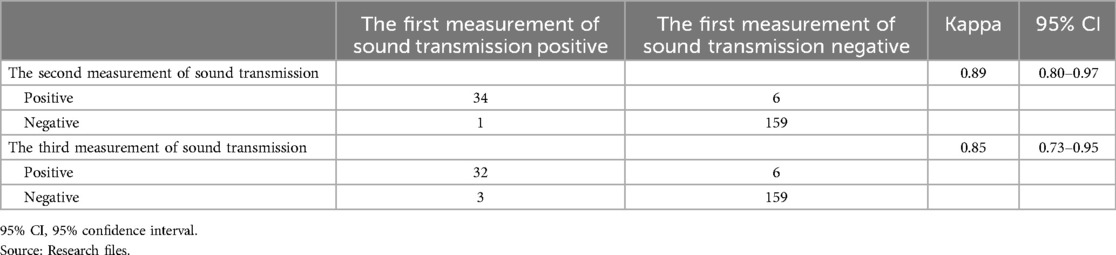

Table 7. Reliability of sound transmission.

The intra-observer reliability of the Ortolani maneuver was 0.70, but the inter-observer reliability was much lower (0.54) (Table 8).

Table 8
www.frontiersin.org

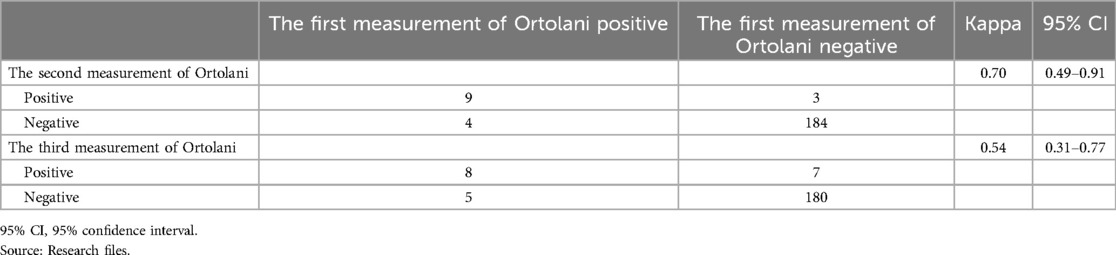

Table 8. Reliability of the Ortolani maneuver.

The Barlow maneuver showed a good intra-observer reliability of 0.80 (measurements made by the pediatrician), but the inter-observer reliability decreased to 0.62 (Table 9). Fold asymmetry showed an intra-observer reliability of 0.89. A comparison of the measurement by the pediatrician with that of the pediatric resident yielded a Kappa of 0.49 (Table 10).

Table 9
www.frontiersin.org

Table 9. Reliability of the Barlow maneuver.

Table 10
www.frontiersin.org

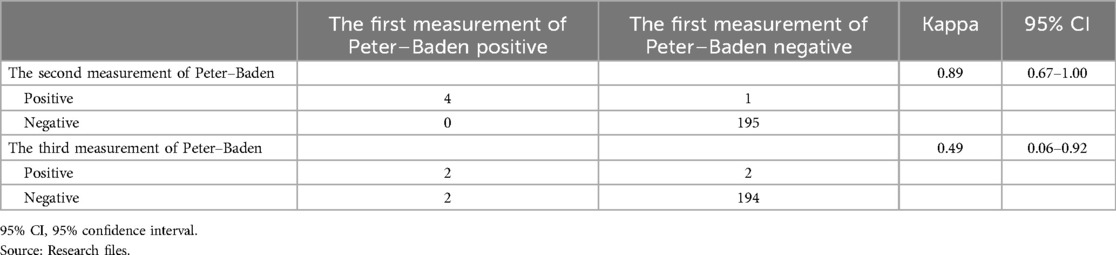

Table 10. Reliability of fold asymmetry or the Peter–Baden sign.

4 Discussion

In the sample of 100 neonates, 33 abnormal hips were detected (15 right hips and 18 left hips) (Table 2). It is important to note that, among the 100 newborns, 13 cases of right physiological immaturity and 17 cases of left subluxation were detected, along with 1 case of right subluxation, 1 case of right dislocation, and 1 case of left dislocation. Dislocation has been reported to occur in 1:1,000 births (3). The 30% incidence of physiological immaturity observed is similar to the rates reported in Mexico (7). In the USA, the prevalence of immaturity is 1% (3).

The sample for the present report consisted of newborns from a public hospital in Guanajuato City. The samples from other studies on the transmission of sound in the state of Guanajuato presented the following characteristics. In the first study in Celaya (9), the sample comprised 104 newborns and children aged up to 2 years from private healthcare institutions. The gold standard was the AP radiography in the neutral position and abduction. The results included 32 true positives (30.77%) and 11 false positives. The second sample comprised 150 newborns and children aged up to 28 days (7). In this case, the participants came from a public institution in Celaya. The gold standard was the Graf technique applied to hip ultrasounds. The results included 54% of the cases with physiological immaturity, 4.6% with subluxation, and none with luxation.

Regarding the sociodemographic variables across the mentioned samples, there were no differences between the mentioned samples. In addition, the frequencies of physiological immaturity, subluxation, or luxation were similar.

The sound transmission test showed superior validity and reliability than standard clinical procedures. Stone et al. (8) did not calculate the validity of the sound transmission test. Nevertheless, based on the published data, a sensitivity value of 72% and specificity of 88% can be computed, which are lower than those obtained in this research (Table 2). Validity demonstrates that the sound transmission should be measured for alterations of the hip, compared with the gold standard. In children up to 2 years of age from Celaya, the sensitivity was 74.4% and the specificity was 96.9% (9), which were slightly different from those obtained in this sample (Table 2).

Padilla and Figueroa (7) obtained a sensitivity of 86.36%, a specificity of 87.09%, a negative predictive value of 90.47%, and a negative predictive value of 81.81%, applying the sound transmission test. In this study, the sensitivity was 84.85%–87.88% in the three measurements (Table 3).

The tuning fork reliability for the sound transmission test was greater than 0.80 for both intra- and inter-observer comparisons (Table 6). Reliability shows that the results are similar independently of who applies the test; a kappa higher than 0.8 is excellent reliability. Reliability remains high in different observers because it is a simple test.

The clinical procedures of Ortolani, Barlow, and fold asymmetry only detect subluxation or dislocation. As they do not detect dysplasia, the validity for DDDH is very low, as demonstrated in this study (Tables 4, 5, and 6) and reported by Padilla and Figueroa (7). Dysplasia is much more prevalent than subluxation or dislocation. The validity and reliability values are low as the clinical procedures included in the study do not detect dysplasia.

Concerning more objective measures, the change in logarithm based on 10 of decibels (log10dB), when comparing the transmission of sound with the extended vs. flexed legs, was measured using the electroacoustic probe. The difference in log10dB detected was from −1.4 (false positives) to 3.1 in hips without alterations. For those with physiological immaturity, the difference was from −2.8 to 1.4 (false negatives). Finally, for subluxation, the difference of log10dB was −1, and for luxation, it was −0.1 (12, 13). If dysplasia of the hip is not detected early, it can progress into subluxation or dislocation. Moreover, if children begin to walk while having this disease, they will need surgery on the hip.

4.1 Limitations

In this study, only the sound transmission test with extension or flexion was applied as it evaluates each hip separately, outperforming the comparative sound transmission test, which can yield false negatives in the case of bilateral DDDH because it compares the sound transmission in one hip with the other one (79).

Another limitation is that although Stone et al. (8) described the sound transmission tests in 1988, which were replicated in Mexico, we could not find articles on sound transmission for the DDDH diagnosis. Sound transmission tests using a tuning fork depend on the auditory accuracy of the observer, which could explain the differences in results between Stone et al. (8), Padilla and Figueroa (7), and this study.

5 Conclusion

Sound transmission with a tuning fork and stethoscope is a valuable tool for the diagnosis of DDDH in neonates. It aids in assessing the clinical suspicion of DDDH, which is confirmed through hip ultrasound using the Graf technique. The clinical procedures of Ortolani, Barlow, and Peter–Baden are effective at diagnosing subluxation or the dislocation of the hip. The sound transmission test serves as an additional tool for clinical diagnosis.

It is advisable to conduct studies with larger sample sizes. One of our future projects aims to include more newborns from the state of Guanajuato. This study demonstrated an optional, validated, and reliable tool for the diagnosis of DDDH in newborns.

Data availability statement

The original contributions presented in the study are included in the Supplementary Material, further inquiries can be directed to the corresponding author.

Ethics statement

The studies involving humans were approved by the Ethics Committee for Research, Hospital General Salamanca (registry number CEI-HGS007-2023). The studies were conducted in accordance with the local legislation and institutional requirements. Written informed consent for participation in this study was provided by the participants’ legal guardians/next of kin.

Author contributions

NP-R: Conceptualization, Formal Analysis, Writing – original draft, Writing – review & editing. JP-R: Supervision, Validation, Writing – original draft, Writing – review & editing. GIM-R: Supervision, Validation, Writing – original draft, Writing – review & editing. LGP-G: Investigation, Writing – original draft, Writing – review & editing. AVG-S: Investigation, Writing – original draft, Writing – review & editing. EAM-G: Investigation, Writing – original draft, Writing – review & editing. IMA-C: Methodology, Supervision, Validation, Writing – original draft, Writing – review & editing. SEL-S: Methodology, Resources, Writing – original draft, Writing – review & editing. JJT-H: Project administration, Resources, Writing – original draft, Writing – review & editing. GF-V: Formal Analysis, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. The publication fee was supported by the Institute of Public Health from Guanajuato State.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fped.2024.1397697/full#supplementary-material.
