Effectiveness, quality and implementation of pain, sedation, delirium, and iatrogenic withdrawal syndrome algorithms in pediatric intensive care: a systematic review and meta-analysis

Background: Pain, sedation, delirium, and iatrogenic withdrawal syndrome are conditions that often coexist, algorithms can be used to assist healthcare professionals in decision making. However, a comprehensive review is lacking. This systematic review aimed to assess the effectiveness, quality, and implementation of algorithms for the management of pain, sedation, delirium, and iatrogenic withdrawal syndrome in all pediatric intensive care settings.

Methods: A literature search was conducted on November 29, 2022, in PubMed, Embase, CINAHL and Cochrane Library, ProQuest Dissertations & Theses, and Google Scholar to identify algorithms implemented in pediatric intensive care and published since 2005. Three reviewers independently screened the records for inclusion, verified and extracted data. Included studies were assessed for risk of bias using the JBI checklists, and algorithm quality was assessed using the PROFILE tool (higher % = higher quality). Meta-analyses were performed to compare algorithms to usual care on various outcomes (length of stay, duration and cumulative dose of analgesics and sedatives, length of mechanical ventilation, and incidence of withdrawal).

Results: From 6,779 records, 32 studies, including 28 algorithms, were included. The majority of algorithms (68%) focused on sedation in combination with other conditions. Risk of bias was low in 28 studies. The average overall quality score of the algorithm was 54%, with 11 (39%) scoring as high quality. Four algorithms used clinical practice guidelines during development. The use of algorithms was found to be effective in reducing length of stay (intensive care and hospital), length of mechanical ventilation, duration of analgesic and sedative medications, cumulative dose of analgesics and sedatives, and incidence of withdrawal. Implementation strategies included education and distribution of materials (95%). Supportive determinants of algorithm implementation included leadership support and buy-in, staff training, and integration into electronic health records. The fidelity to algorithm varied from 8.2% to 100%.

Conclusions: The review suggests that algorithm-based management of pain, sedation and withdrawal is more effective than usual care in pediatric intensive care settings. There is a need for more rigorous use of evidence in the development of algorithms and the provision of details on the implementation process.

Systematic Review Registration: https://www.crd.york.ac.uk/prospero/display_record.php?ID=CRD42021276053, PROSPERO [CRD42021276053].

1. Introduction

To optimize comfort and minimize distress, analgesic and sedative medications are integral to the care of children in pediatric intensive care units (PICUs). However, prolonged intravenous administration of opioids and sedatives can lead to tolerance, delirium, and iatrogenic withdrawal syndrome (IWS) (1–3). Maintaining optimal sedation levels is challenging and depends on drug pharmacokinetics that can be altered by clinical factors. Only 57.6% of children achieve optimal sedation levels (4). Under-recognition of pain, agitation, delirium or IWS can have negative consequences for children, including delayed recovery, increased morbidity and mortality, and increased length of intensive care unit (ICU) stay (5–7). The challenge is that pain, sedation, delirium and IWS are distinct but interrelated conditions with overlapping behavioral indicators (3, 8, 9). These overlaps complicate and convolute the assessment process for healthcare professionals (HCPs), as they may use up to four different measurement instruments, each taking time to complete. Up to 50% of children in PICUs are younger than one year of age or are mechanically ventilated (10, 11); thus, they are unable to self-report. They are at the greatest risk and HCPs report this group as the most challenging to assess (12, 13). Appropriate assessment is a prerequisite for appropriate treatment. To promote best practice, available evidence-based (EB) clinical practice guidelines (CPGs) recommend that validated measurement instruments be used for each condition (3, 14). Although multiple measurement instruments exist for assessing pain and sedation (15), delirium (16) and IWS (17), their uptake in clinical practice has been slow and varies worldwide (18, 19). One suggested strategy for facilitating the use of measurement instruments is to incorporate them into management algorithms (3, 20). An algorithm is a visual representation or flowchart that provides a step-by-step sequence of actions and decision points related to a condition (21–23). This facilitates clinical decision-making and standardizes the process in the local context.

Several studies on algorithm implementation in PICUs has been published in the last decade, predominantly quasi-experimental and focused on sedation algorithms. In studies where patients were managed using a sedation algorithm, mixed results have emerged; positive outcomes included reduced PICU length of stay (LOS), decreased total duration of sedation, decreased doses of sedatives, and decreased prevalence of IWS (24, 25). However, two systematic reviews published in 2014 and 2018 were unable to show the effectiveness of algorithm-based sedation management vs. non-protocolized sedation in pediatric patients due to small sample sizes and a lack of randomized controlled trials (RCTs) (24, 26). Quasi-experimental studies can generate strong causal evidence, particularly when RCTs are not possible (27). Establishing the effectiveness of sedation algorithms is important to informing clinical practice; thus, their use in this evaluation is warranted. Sedation algorithms that integrate pain, delirium, and/or IWS contribute to standardized management of sedation and should be pooled as evidence to measure the effect on children in intensive care. To date, no systematic review has reported the effectiveness of algorithm-based management of these four conditions. One systematic review that pooled the results of all available clinical practice pathways showed reduced in-hospital complications and improved documentation (28).

While effectiveness is an important component of implementation (29), researchers have called for greater generalizability of interventions and implementation processes into real-world practice to reduce research waste through the use of systematic reviews (30, 31). However, the implementation of complex health interventions, such as algorithms, are compounded by multiple factors, including the suboptimal evidence base of the intervention of interest (32), the poor planning of the implementation process without considering the context (33, 34) or determinants (barriers or facilitators) (35), and the implementation strategies used for intervention implementation (36, 37). To bridge this gap, systematic reviews of effectiveness can also identify elements of the implementation process, such as determinants and common implementation strategies. Organizations trying to adopt an algorithm-based management intervention can use these results and save time by not reassessing known determinants. None of the reviews on sedation algorithms have evaluated the structure and the content of algorithms or the implementation processes that contributed to the success or failure of these complex health interventions.

Effectiveness is not the sole indicator of quality of care. Donabedian's concepts of “structure-process-outcome” are universally accepted as a framework for quality assessment (38). Structure refers to the attributes of the setting (38); in this review, these are the attributes of the algorithm. Process refers to the components of care delivery, and outcome refers to the health status of patients (38). These three concepts are important for understanding complex health intervention implementation. Using Donabedian's concepts, in order of research priorities, the three objectives of this systematic review for evaluating algorithms for managing pain, sedation, delirium and IWS, are as follows:

1) To evaluate the effectiveness of the algorithm for pediatric intensive care patient outcomes (outcome).

2) To evaluate the quality of the content and the development of algorithm attributes (structure).

3) To describe the implementation of the algorithms, including strategies of implementation, the determinants (barriers and facilitators), the fidelity to the algorithm and/or its components, and users' satisfaction (process).

2. Methods

The Cochrane Guidelines for Systematic Reviews handbook guided this review (39). The Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) (40) and the extension for literature searches (PRISMA-S) (41) were used for reporting. (Completed PRISMA and PRISMA-S checklists available in Supplementary File S1, Tables S1, S2) The review protocol was registered in the International Prospective Register of Systematic Reviews (PROSPERO) CRD42021276053.

2.1. Eligibility criteria (PICO)

All studies with a before and after implementation design, including RCTs, quasi-experimental and cohort studies with prospective or retrospective controls. The PICO criteria: population (P) of interest: premature infants and children up to 18 years of age admitted to any pediatric intensive care setting (pediatric and neonatal units were included because the most at-risk are pre-verbal). Intervention (I): studies using an algorithm for at least one of the four conditions with an embedded measurement instrument. Compared (C) to usual/baseline care. Each study had to contain at least one patient outcome (O) of interest: LOS in the ICU or hospital, length of mechanical ventilation (MV), duration of analgesics and sedatives, cumulative dose of analgesics and sedatives, incidence of IWS and delirium, adequate pain and sedation management, scores, length of medication weaning, and methadone use. Studies published after 2005, as this aligns with the publication year of the first CPG on analgesia and sedation in pediatric intensive care (42). Language was restricted to English and French due to review team's knowledge.

2.2. Information sources and search strategies

A three-step approach was used to retrieve studies meeting the eligibility criteria:

1) Database searches in PubMed, Embase.com, CINAHL with Full Text (EBSCO), and Cochrane Library (Wiley, Cochrane Database of Systematic Reviews and Cochrane Central Register of Controlled Trials), ProQuest Dissertations and Thesis Global (ProQuest)

2) Complementary searches in Google Scholar. As recommended the first 300 entries (30 pages) were manually assessed (43).

3) Manual citation searches were conducted for all included studies, using the reference list and Web of Science and Google Scholar to identify additional relevant studies on development, implementation, or adaptation of the original algorithm.

A biomedical information specialist (AT) assisted in developing the search strategy. An advanced search strategy was developed for PubMed using Medical Subject Headings (MeSH) and free-terms describing: (1) pain, sedation, delirium or withdrawal, (2) pediatric intensive care, and (3) algorithm, clinical pathway, or protocol. The strategy was then adapted for each informational source, using the appropriate index terms and syntax. No published search filters or hedges were used. Contrary to what was stated in the protocol, no language limit was applied, and records published before 2005 were excluded. In Embase.com, conference abstracts and conference reviews published before 2016 were excluded. All search strategies were peer-reviewed by another librarian using the PRESS checklist (44). The first search strategy was completed on September 29, 2020, updated on December 7, 2021 and November 29, 2022. The full search strategies are available in Supplementary Table S3.

2.3. Study selection

The search records were uploaded to Endnote 20 reference manager (Clarivate Analytics, USA), to remove duplicates (AT). The remaining records were uploaded to Rayyan (Qatar Computing Research Institute, Doha, Qatar) for the screening process (45).

Three reviewers (IMD, VdG, and MM) independently screened titles and abstracts for inclusion. Full-text publications meeting inclusion criteria were assessed, and the reasons for exclusion were recorded. Disagreements were resolved through discussion and consensus. One reviewer (IMD) conducted the complementary search on Google Scholar and manual citation searches and identified full-texts, and two reviewers independently assessed inclusion criteria (IMD and MM).

2.4. Data extraction, quality assessment and analysis

The review team designed, and pilot tested the data extraction tables; one change was made, the addition of one category to the Effective Practice and Organisation of Care (EPOC) implementation strategies (see section 2.5.2 for details).

Two quality appraisal strategies were used to assess the quality of each study and the quality of each algorithm.

2.4.1. Assessment of the methodological quality of studies

To appraise the methodological quality of each study, three JBI quality appraisal tools were used according to the study design: (1) RCTs (13 items), (2) quasi-experimental studies (9 items), and (3) cohort studies (11 items) (46). Each item was answered in one of the four following ways: yes, no, unclear, or not applicable. Quasi-experimental designs were defined as those with exogenous explanatory variables (treatment or exposure) that the investigator does not control (27). This includes before- and after-design studies without randomization, including quality improvement. No studies were excluded based on quality. Two independent reviewers (IMD and VdG) appraised all the studies. Disagreements were resolved through discussion and consensus, and no additional reviewer was required.

2.4.2. Assessment of the methodological quality of algorithms

No tool exists for the appraisal of the methodological quality of algorithms. We modified the Appraisal of Guidelines for Research and Evaluation (AGREE) II instrument (47) to create the aPpRaisal OF algorIthm quaLity instrumEnt (PROFILE). Modifications included: a) replacing the word CPG with the word algorithm; b) eliminating domain 6: editorial independence as this is not applicable for locally developed algorithms; and c) adding eight items related to content and development based on a literature review of clinical pathway appraisal tools (48–51). This review was done because Govender identified this as missing from the AGREE II instrument when using it to appraise algorithms (52). The PROFILE contains 24 items across five domains: (1) scope and purpose; (2) stakeholder involvement; (3) rigor of development; (4) content and process; and (5) implementation. The domains are further categorized across three processes: (a) development (domains 1–3), (b) content (domain 4), and (c) implementation (domain 5). Each item was scored as either “1 = yes” or “0 = no”. No algorithm was excluded based on quality. The PROFILE has three types of scores: (1) an overall quality score that uses all items; (2) domain scores, five in total, one for each domain; and (3) process scores, three in total. It was pre-tested using one algorithm by all three reviewers (IMD, EF and MM), following which a consensus meeting was used to finalize the items and create a user manual with details for each item (as with the AGREE II instrument). An overview of the PROFILE is available in Supplementary Table S4. One appraiser (IMD) independently evaluated each algorithm, and four reviewers (EF, MM, SA and A-SR) cross-checked all data. Discrepancies were resolved through consensus discussion. The inter-rater reliability was calculated using kappa statistics (53). The scores were represented as a percentage by totaling the number of each present item (1 = yes) and dividing by the total number of items.

2.5. Data extraction

The information extracted from each study and how it was analyzed to meet the three objectives are described below. Descriptive information on the study characteristics and details of each algorithm was extracted and summarized in two tables.

2.5.1. Objective 1: to evaluate the effectiveness of the algorithm for pediatric intensive care patient outcomes

Meta-analyses were conducted using STATA version 17 software (54). Random-effects (Hedges' g) models using the Sidik-Jonkman method were used to measure effectiveness of algorithms across continuous outcomes of interest using the standardized mean difference (SMD) and its 95% confidence interval (CI) (55). Random-effects models using the Sidik-Jonkman method was used for dichotomous outcomes of interest using pooled odds ratios (OR) and 95% CI (55).

When the median and interquartile range (IQR) were reported, they were transformed using Wan's method and Excel tool (56).

The I² test was used to assess statistical heterogeneity, which was considered low if <40%, moderate 30%–60%, substantial 50%–90% and considerable 75%–100% (57). When heterogeneity was ≥40%, a sensitivity analysis of influencers was performed by removing one study at a time to assess the impact of each study on the overall effect size (57). To determine other sources of heterogeneity, sensitivity analyses were performed by stratifying studies based on the type of setting (PICU or NICU) when two or more studies were available. Risk of bias was not assessed due to the limited number of moderate quality studies. Additionally, study design was not assessed as pooling bodies of evidence has a mainly concordant direction of effect (58).

A subgroup analysis to estimate the treatment effect was performed on the type of algorithm, as recommended in a systematic review of clinical pathways (28). Type of algorithm was determined by the embedded measurement instrument(s) and medications used.

When more than one time point was measured post-implementation, the first point was used because fidelity to implementation was considered the highest. When studies on IWS/weaning used two different algorithms based on different medications, both groups were included in the meta-analysis.

For each outcome of interest a forest plot displaying the meta-analysis was created, additionally subgroup and sensitivity analyses figures were created.

To assess publication bias, funnel plots were generated, and the Egger's test was used to indicate the likelihood of publication bias.

When a meta-analysis could not be performed, the results were presented narratively.

To assess the certainty of the findings, a summary of findings (SoF) table was created using the Grading of Recommendations, Assessment, Development and Evaluation (GRADE) approach (59). The GRADE approach assesses all studies together for each outcome of interest and rates the level of uncertainty for the risk of bias, indirectness, consistency, imprecision, and publication bias (57). The main outcomes included in the SoF table were: (1) LOS intensive care (2) length of MV; (3) duration of analgesics; (4) duration of sedatives; (5) cumulative dose analgesics; (6) cumulative dose sedatives; and (7) incidents of IWS, as seven is the maximum suggestion (39). The selection of these main outcomes was based on the literature and its relevance to the clinical setting (60).

All corresponding authors were sent a personalized email to clarify unclear risk of bias items or missing details of algorithm content, development, and implementation. Six authors provided additional information included in the analysis (61–66).

2.5.2. Objective 2: to evaluate the quality of the content and the development of algorithm attributes

The three PROFILE scores (as described in section 2.4.2) were categorized based on a three-step quality threshold as determined in a systematic review of AGREE II instrument usage (67). A score was classified as “high” if >60%, “medium” if between 59% and 30%, and “low” if <30% (67). The results are presented as a heat map.

2.5.3. Objective 3: to describe the implementation of the algorithms, including strategies of implementation, the determinants, the fidelity to the algorithm and/or its components, and users' satisfaction

To analyze the process of establishing the algorithm in practice, the strategies in each study were categorized according to the EPOC subcategories of interventions targeted at healthcare workers (36). One item called “case-based and scenario evaluation” was added because this could not be categorized in the existing EPOC taxonomy. Results are presented in tabular format.

To analyze the determinants (barriers and facilitators) of algorithm implementation, narrative descriptions were extracted. and categorized as intervention, professional or organizational using Lau's framework (68). Each determinant was further categorized as a barrier or facilitator, and the level of implementation was categorized (pre-implementation, implementation, or post-implementation). The method used to obtain the determinant (measured vs. mentioned but not empirically verified) was recorded. Results are presented in tabular format.

To analyze algorithm fidelity, rates were extracted, reported as percentages and ranges, and presented in a table. Fidelity is defined as whether an intervention has been implemented as intended with two subcomponents: adherence and dose (69). Adherence refers to whether the intervention is delivered as intended, and dose refers to the number of intervention components delivered (69).

Staff and family satisfaction was reported in a table.

3. Results

The database search yielded 6779 records and the complementary search (Google Scholar and citation screening) added 20 records. After removing duplicates, 123 full-text studies were screened, and 91 were excluded (Supplementary Table S5). Thirty-two studies met the inclusion criteria (61–66, 70–95), including 28 unique algorithms (Figure 1: PRISMA flow diagram) (40). There was high inter-rater agreement across all extraction tables (K = 0.92–0.97).

FIGURE 1

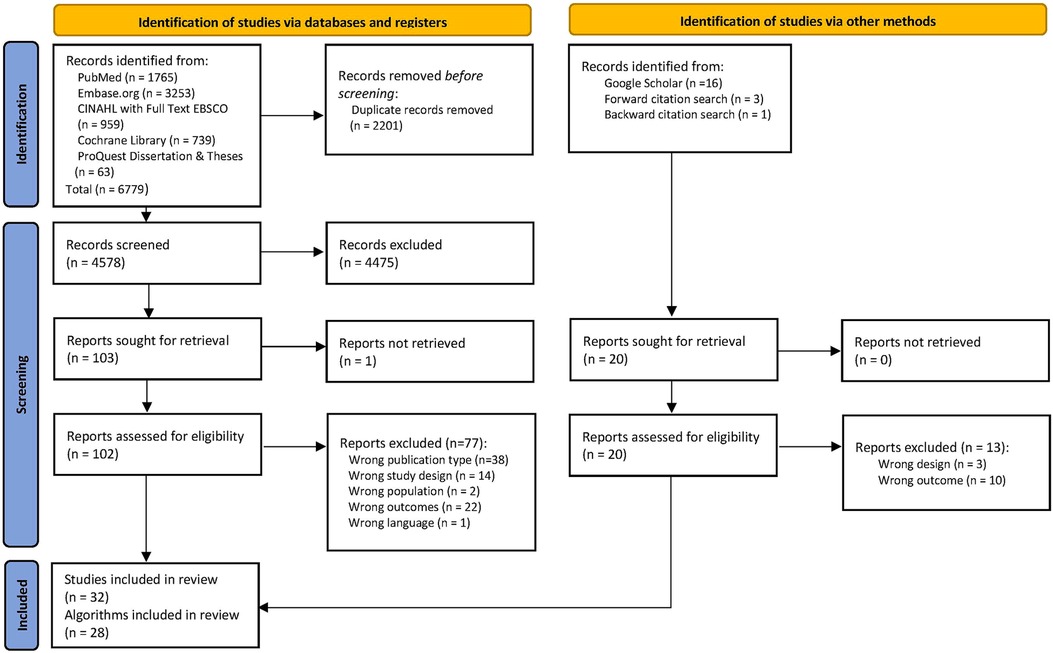

Figure 1. The PRISMA flow diagram summarizes the number of studies excluded in each phase of the selection process (40).

3.1. Study and algorithm characteristics

3.1.1. Study characteristics

The characteristics of the 32 included studies are summarized in Supplementary Table S6, and the details of the algorithms are provided in Supplementary Table S7. Twenty-three studies used a quasi-experimental design (73%) (61, 63, 64, 66, 70–74, 76–83, 85–88, 93, 95), seven were cohort studies (21%) (65, 75, 84, 90–92, 94) and two were RCTs (6%) (62, 89). The studies were conducted across 11 countries: 15 in the United States (47%) (62, 64, 65, 70–72, 74, 75, 86–88, 90–93), 11 in six European countries (34.3%) (61, 63, 66, 73, 76–80, 94, 95), three in Australia (9.4%) (83–85), and three in three Asian countries (9.4%) (81, 82, 89). All but two studies (62, 83) were single-centers (94%) (61, 63–66, 70–82, 84–95). Two thirds of the studies were published in the last five years (66%) (63–66, 71–74, 77, 79–81, 85–93).

The sample comprised 9,289 children (55% in the algorithm/intervention group). Seventy-five percent of the studies (n = 24) had a sample with a mean or median age of less than 4 years (61–63, 65, 66, 70–75, 77, 78, 80, 82–85, 87–89, 91, 92, 94, 95). The majority of the settings were PICUs (72%) (61–66, 70, 72, 73, 75–77, 79–83, 85, 89–93), 16% were neonatal ICU (86–88, 94, 95), and 22% were pediatric cardiac ICUs (71, 74, 78, 84, 85).

3.1.2. Algorithm characteristics

The distribution of the 28 algorithms by type of condition represented is shown in Figure 2. Nine (32%) of the 28 algorithms focused on one condition alone (65, 70–72, 81, 87, 89–92), one on pain (87), one on sedation (81), and seven on IWS/weaning (65, 70–72, 89–92). Of the remaining 19 algorithms (68%), all but one (88) combined sedation with at least one other condition, which were distributed as follows: 12 “pain-sedation” algorithms (61, 63, 64, 73, 75–77, 84–86, 93–95), four “pain-sedation-IWS” algorithms (62, 74, 78–80, 83), one “pain-sedation-delirium-IWS” algorithm (66), and one “sedation-IWS” algorithm (82). The other combination was “pain-IWS” (88).

FIGURE 2

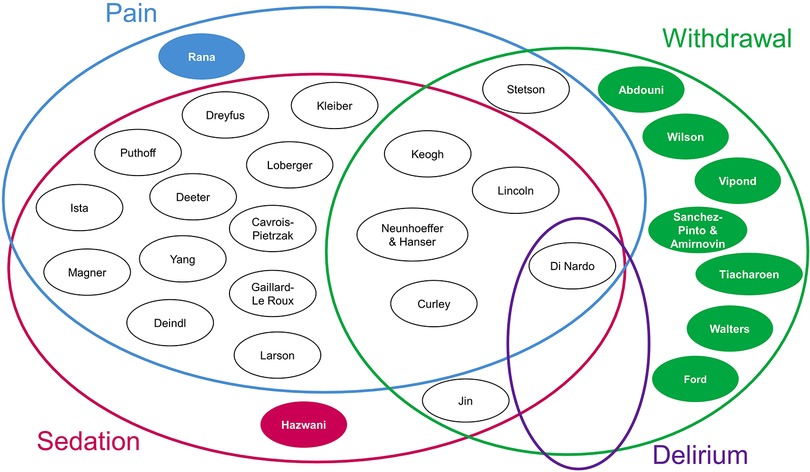

Figure 2. Each circle represents an algorithm, with the first author(s) of each study listed inside the circle. The solid-colored circles represent algorithms that focus on one condition, while the white circles represent algorithms that have overlapping conditions, as presented by the Venn diagram.

Nurses were responsible for managing the algorithm (88.9%) (61–66, 70–81, 83–86, 88, 89, 91–93, 95), one algorithm was managed by a pharmacist (3.7%) (82), another by a pharmacist, a critical care physician, and a nurse (3.7%) (90), and one by a pharmacist and nurse (3.7%) (65). One study did not report the HCP responsible for management (87).

Fifteen studies included information on the process and documentation of algorithms. Of these, ten (67%) integrated the measurement instruments into the electronic health record (61, 65, 66, 74, 81, 86, 88, 92–95), two (13%) included a portion as an order set in the electronic health record (70, 85), and three were paper-based at the bedside (63, 64, 71).

The primary analgesic agent used by algorithms was morphine (77%) (61–63, 65, 73–75, 77–80, 83–89, 91, 92, 94, 95) and the primary sedative agent was midazolam (77%) (61–63, 71, 73, 74, 76, 78–80, 82, 83, 85, 86, 89, 92, 94, 95).

The measurement instruments used by algorithm, condition, and measurement frequency are summarized in Supplementary Table S8. Of the 14 algorithms that included IWS (62, 65, 66, 70–72, 74, 78–80, 82, 83, 88–92), the most commonly used measurement instrument was the WAT-1 (69%) (62, 65, 66, 71, 74, 89–92), and the monitoring frequency varied from 4 to 12 h (62, 65, 66, 71, 89–92). Nineteen algorithms included pain measurement instruments (61–64, 66, 73–80, 83–88, 93–95), of which seven (37%) assessed pain without using a combined pain and sedation measurement instrument (62, 64, 74, 83, 87, 88, 93), the most commonly used was the FLACC (57%) (62, 64, 74, 93), and was monitored every 4 h (62, 74, 83, 93). Nineteen algorithms included sedation measurement instruments (61–64, 66, 73–86, 93–95), eight studies assessed sedation alone (62, 64, 74, 75, 81–83, 93), and the remaining 11 used a combined measurement instrument (one which combines the assessment of pain and sedation) (61, 63, 66, 73, 76–80, 84–86, 94, 95). When only sedation was assessed, the most often used measurement instrument was the SBS (62, 64, 74, 83, 93), and the most often used monitoring frequency was every 4 h (75%). One algorithm used the COMFORT-B but assessed only sedation (81), another used the COMFORT and assessed only sedation (82), and another used a non-validated measurement instrument, the Seattle PICU Comfort Tool (75). The 11 algorithms that used a combined pain and sedation instrument, 45% used the COMFORT-B (73, 76, 77, 84, 85), 27% used the COMFORT-B + NISS (30%) (61, 66, 78, 80), one used the COMFORT-B + NRS (9%) (63), and 18% used the NPASS (86, 95). The monitoring timeframe varied between 3 and 8 h. One algorithm assessed delirium using the CAPD (66).

3.2. Study quality

An overview of the JBI checklist for each study is presented in Supplementary Tables S9–S11. All studies were of high to moderate quality. RCTs were moderate quality, scoring 8 out of 13 (62, 89). All quasi-experimental studies were high quality (61, 63, 64, 66, 70–74, 76–80, 82, 83, 85–88, 93, 95), except one moderate quality, scoring 5 out of 8 (81). Six of the cohort studies were high quality, with scores ranging from 6 to 7 out of 8 (65, 75, 84, 90–92), and one was moderate quality, with a score of 5 out of 8 (94).

3.3. Effectiveness

Twenty-six studies were included in meta-analyses on algorithm effectiveness compared to usual care for the outcomes of interest (62–66, 70–80, 82, 87–95). No studies reported on incidents of delirium.

3.3.1. Intensive care unit length of stay

Twenty-five of the 29 studies with data on ICU LOS were included, with Vipond et al. having two different medication groups (62–66, 70–80, 82, 87–95). The algorithm group showed a small decrease in ICU LOS (SMD = −0.13; 95% CI = −0.22 to −0.05; p = 0.01; Figure 3A) compared to the usual care group. Substantial heterogeneity was observed (I² = 60%).

FIGURE 3

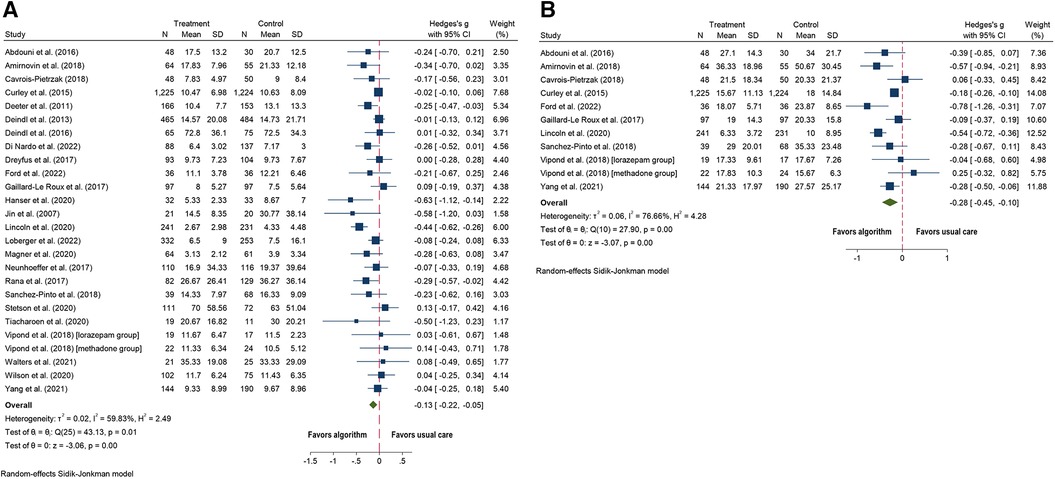

Figure 3. Forest plots for algorithm versus usual care for the outcomes of: (A) length of stay in intensive care (days) and (B) length of stay in hospital (days).

Four studies were not included in the meta-analysis because of missing data, three of them showed no significant differences between the two groups (78, 83, 84), while Larson et al. found a significant increase in PICU LOS, but this outcome was measured in hours instead of days (85).

3.3.2. Hospital length of stay

All ten studies with outcome data on hospital LOS were included, and the algorithm group showed a small decrease in hospital LOS (SMD = −0.28; 95% CI = −0.45 to −0.10; p = 0.001; Figure 3B) compared to the usual care group (62, 65, 70–74, 77, 90, 93). Substantial heterogeneity was observed (I² = 77%).

3.3.3. Length of mechanical ventilation

Twenty-six studies included duration of MV (62–64, 66, 70–80, 82–85, 87, 89–92, 94, 95), of which two were excluded due to missing data (83, 84). Four studies were analyzed separately because duration of MV was reported in hours (63, 74, 80, 85). Of twenty studies, the algorithms group showed a small decrease in time on MV (SMD = −0.14; 95% CI = −0.27 to −0.01; p = 0.03; Figure 4) (62, 64, 66, 70–73, 75–79, 82, 87, 89–92, 94, 95) compared to usual care. Substantial heterogeneity was observed (I² = 81%).

FIGURE 4

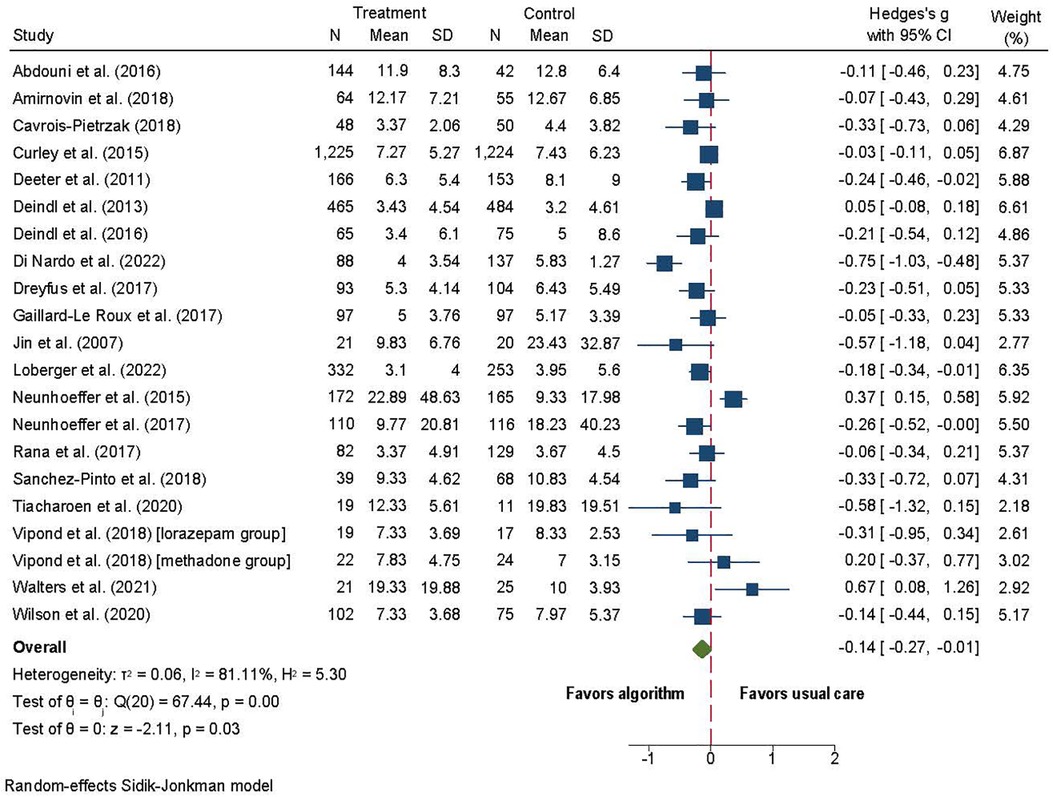

Figure 4. Forest plot for length of mechanical ventilation (days) algorithm versus usual care.

The four studies that reported MV in hours showed no difference in the length of MV between the algorithm and usual care groups (SMD = −0.11; 95% CI = −0.49 to 0.27; p = 0.58) (63, 74, 80, 85). Substantial heterogeneity was observed (I² = 81). Sensitivity analysis showed that Larson et al. (85) was an outlier, and when removed I² was reduced to 0. A small statistically significant effect in hours of MV was observed (SMD = −0.30; 95% CI = −0.46 to −0.15; p = 0.0001; Figure not shown).

One study with missing data and showed no significant difference between the algorithm and the usual care groups (84).

3.3.4. Cumulative dose of analgesic medications

Nineteen studies included cumulative dose of analgesic medications (62, 64, 66, 70–73, 78–80, 82, 84, 87, 90, 92–95). Four studies were excluded due to measuring outcomes differently: per visit (74), per patient (72) instead of over time, cumulative dose for the first 12 h, instead of the entire admission period (84), and Yang et al. included data in box plots (93). Of the 15 studies; the algorithm group showed a decrease in the cumulative dose of analgesic medications (SMD = −0.26; 95% CI = −0.43 to −0.08; p = 0.0001; Figure 5A) (62, 64, 66, 70, 71, 73, 78–80, 82, 87, 90, 92, 94, 95) compared to usual care. Considerable heterogeneity was observed (I² = 89).

FIGURE 5

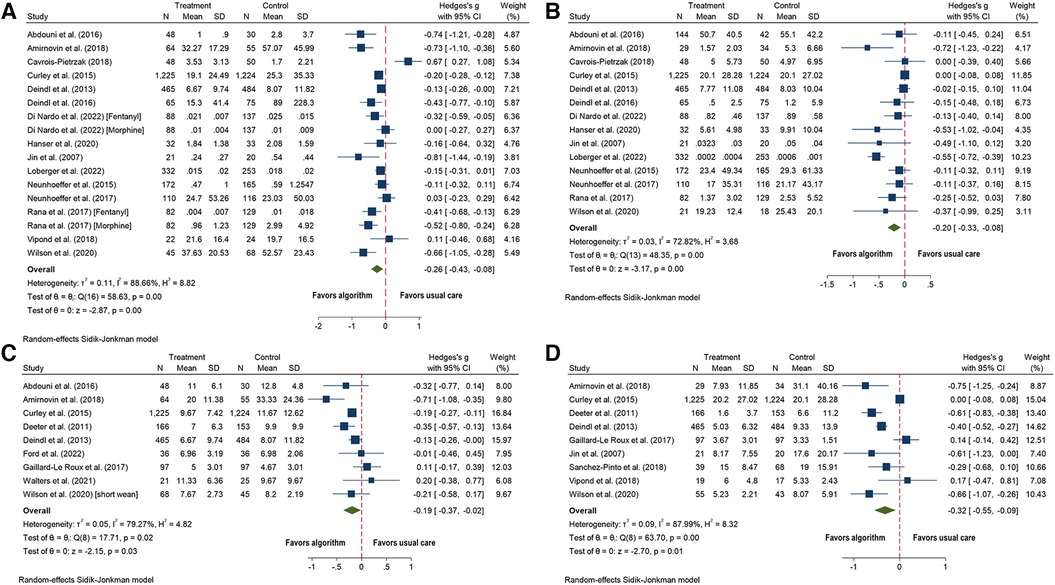

Figure 5. Forest plots for algorithm versus usual care for the outcomes of: (A) cumulative dose of analgesic medications; (B) cumulative dose of sedative medications: (C) duration of analgesics medications (days); and (D) duration of sedative medications (days).

Of the four studies not included in the meta-analysis, one study showed a statistically significant decrease in the cumulative morphine dose (mg/kg/visit) in the algorithm group (74), while the other three studies showed no differences between the algorithm and usual care groups (72, 84, 93).

3.3.5. Cumulative dose of sedative medications

Eighteen studies included the outcome of cumulative dose of sedative medications (62, 64, 66, 70–74, 78–80, 82, 84, 87, 89, 92–95). Three studies were excluded because the outcomes were measured differently: per visit (74), per patient (72), per hour instead of days (84). Yang et al. included data in box plots, so was not included (93). Of 14 studies; the algorithm group showed a decrease in the cumulative dose of sedative medications (SMD = −0.20; 95% CI = −0.33 to −0.08; p = 0.0001; Figure 5B) (62, 64, 66, 70, 71, 73, 78–80, 82, 87, 92, 94, 95) compared to usual care. Substantial heterogeneity was observed (I² = 73).

Three studies not included in the meta-analysis showed statistically significant decreases in the algorithm group: one in cumulative lorazepam dose (mg/kg/visit), another in total dose of midazolam (displayed as box plots) (93), and the last in cumulative dose of midazolam per hour (74). The study by Sanchez-Pinto et al. showed no statistically significant difference between the algorithm and the usual care groups (72).

3.3.6. Duration of analgesic medications

Twelve studies evaluated the duration of use of analgesic medications (62, 65, 70, 71, 73, 75–77, 83, 91, 92, 95). Three studies were excluded, one due to missing data (83), and two for measuring duration in hours instead of days (73, 76). Of nine studies; the algorithm group showed a decrease in the number of days of analgesic administration (SMD = −0.19; 95% CI = −0.37 to −0.02; p = 0.03; Figure 5C) (62, 65, 70, 71, 75, 77, 91, 92, 95) compared to usual care. Substantial heterogeneity was observed (I² = 79).

Three studies not included in the meta-analysis showed no statistically significant differences between the algorithm and the usual care groups (73, 76, 83).

3.3.7. Duration of sedative medications

Fifteen studies included the duration of sedative medications (62, 71–73, 75–77, 81–83, 86, 89, 90, 92, 95). Three studies were excluded because of missing data (81, 83, 86). Three additional studies were excluded, two for measuring duration in hours instead of days (73, 76), and one for measuring duration of sedative medications per patient (72). Of nine studies; the algorithm group showed a decrease in the number of days sedatives were administered (SMD = −0.32, 95% CI = −0.55 to −0.09; p = 0.01; Figure 5D) compared to usual care (62, 71, 72, 75, 77, 82, 90, 92, 95). Heterogeneity was substantial (I² = 88).

Three studies not included in the meta-analysis showed no statistically significant difference between the algorithm and usual care groups when measuring duration in hours instead of days (73, 76, 83). Hawzani et al. included run charts and showed a significant decrease in the hours of sedative use over the course of algorithm implementation (81). Puthoff et al. did not include the data for the control group but noted a statistically significant decrease in days on benzodiazepines (86).

3.3.8. Incidents of withdrawal

Thirteen algorithms reported the percentage of patients with IWS symptoms (62, 64–66, 71–73, 76–79, 82, 89). Ten studies included the event of developing IWS for both groups, and the analysis showed that the odds of experiencing IWS were reduced by 35% for children in the algorithm group (OR 0.65; CI = 0.49 to 0.87; p < .0001; I² = 47; Figure 6A) (62, 64–66, 73, 76, 78, 79, 82, 89) compared to usual care.

FIGURE 6

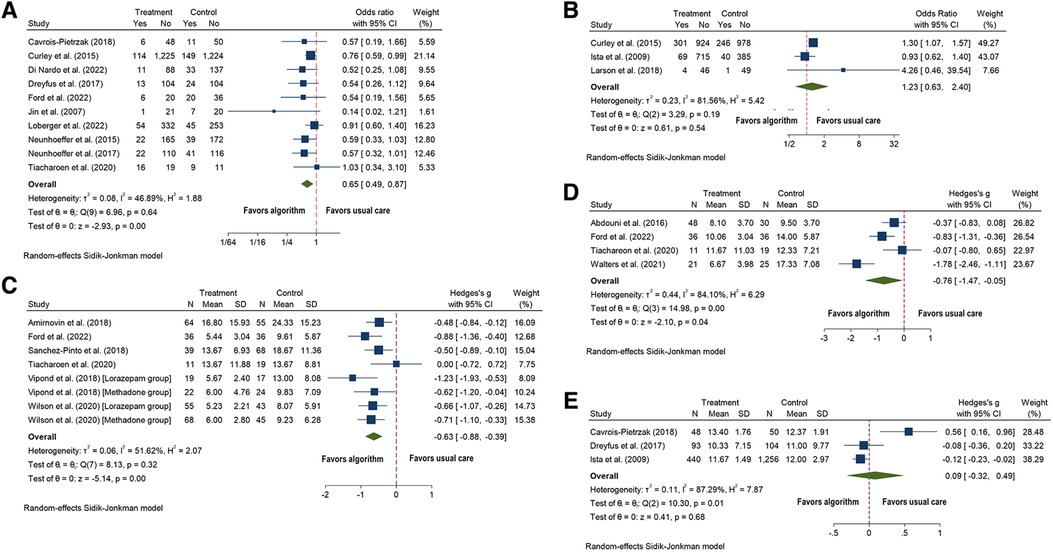

Figure 6. Forest plots for algorithm versus usual care for the outcomes of: (A) incidents of withdrawal; (B) inadequate sedation management (under-sedation): (C) duration of medication weaning (days); (D) duration of methadone exposure (days), and (E) mean COMFORT-B score.

Two studies not included in the meta-analysis showed a decrease in the rates of IWS in the algorithm compared to the usual care group (71, 82), and the remaining five showed no significant difference between the groups (72, 73, 76, 77, 92).

3.3.9. Incidents of delirium

One study reported on the treatment of delirium with antipsychotics and there was no significant difference between the two groups (p = 0.09) (64).

3.3.10. Inadequate sedation management

Seven studies reported on inadequate sedation management (61, 62, 76–78, 80, 85). One study was excluded because it did not report total numbers (76); two reported only on the post-implementation period (78, 80); and another did not include data (77). Of three studies, no difference in under-sedation was observed between the two groups (OR 1.23; CI = 0.63–2.40; p = 0.54; I² = 82; Figure 6B) (61, 62, 85).

Sensitivity and subgroup analyses were not performed because there were only three studies.

Two studies reported on over-sedation and were not statistically significant but had opposite directions of effect, one with more incidents of over-sedation in the algorithm group (85) and the other with more incidents in the usual care group (61). Dreyfus et al. found a decrease in the mean number of over-sedation levels in the algorithm group (76). Gaillard et al. stated no significant difference was observed between groups (77).

3.3.11. Inadequate pain management

Three studies reported on inadequate pain management (62, 76, 95), but a meta-analysis could not be performed due to the difference in data. One study reported only post-implementation results (95). One study reported no difference between the two groups (62), while another showed an increase in the number of adequate mean pain levels documented (76).

3.3.12. Duration of medication weaning and methadone use

Six studies reported on the duration of weaning, and all were included in the analysis (65, 71, 72, 89, 90, 92). The algorithm group had fewer days of weaning from medications (SMD = −0.63, 95% CI = −0.88 to −0.39; p = 0.0001; Figure 6C) than the usual care group. Heterogeneity was moderate (I² = 52).

Four studies reported the duration of methadone exposure and were all included in the analysis (65, 70, 89, 91). The algorithm group had fewer days of methadone exposure (SMD = −0.76, 95% CI = −1.78 to −0.05; p = 0.04; Figure 6D) than the usual care group. Heterogeneity was substantial (I² = 84).

3.3.13. Scores for pain, sedation and withdrawal

Two studies reported on pain scores (62, 74). Curley et al. reported that the intervention group had a greater percentage of days with any report of a pain score of 4 or higher compared to the control group (p < .001); however, there was no difference between the two groups for modal pain scores of less than 4 (62). Lincoln et al. reported no significant differences in pain scores between the groups (74).

Nine studies reported on sedation scores (61, 64, 73, 74, 76, 77, 81, 85, 93). Three studies reported median COMFORT-B scores per patient, and showed no statistically significant difference between the algorithm (SMD = 0.09, 95% CI = −0.32 to 0.49; p = 0.68; I² = 87; Figure 6E) and the usual care groups (61, 73, 76).

Among the studies not included in the meta-analysis. One study reported the percentage of COMFORT-B scores per patient increased significantly from 40% in the usual care group to 75%-85% in the algorithm group (81). Three studies that implemented a “pain + sedation” algorithm reported a significant increase in the number of COMFORT-B assessments completed daily (73, 76, 85). Two studies reported no difference between the number of assessments per day, one using the COMFORT-B (77) and another using the SBS (74). Three studies using the SBS reported no statistically significant difference between SBS scores before and after implementation (64, 74, 93).

Two studies reported on withdrawal scores (62, 74); both showed no difference between groups, one in peak WAT-1 scores (62), and the other in mean WAT-1 scores (74).

3.3.14. Subgroup analyses

The subgroup analyses by algorithm type indicated no statistically significant subgroup effects for cumulative dose of sedative medications, duration of analgesic medications and methadone exposure (Supplementary Figures S1–S8), suggesting that algorithm type does not modify the effect of algorithms compared to usual care. However, the small number of studies and participants in some subgroups may indicate that the analysis may have been unable to detect subgroup differences.

There were some differences observed by algorithm subgroup types:

• IWS algorithms showed a decrease in length of hospital stay (SMD = −0.34; 95% CI = −0.64 to −0.03; p = 0.08; I²= 60); a decrease in the cumulative dose of analgesic medications (SMD = −0.54; 95% CI = −0.93 to −0.15; p = 0.07; I² = 69%) (70, 71, 90, 92); and a decrease in the number of days analgesic medications were administered (SMD = −0.41; 95% CI = −0.82 to −0.01; I² = 65; p = 0.09) (71, 72, 90, 92).

• “Pain-sedation” algorithms showed a decrease in length of MV (SMD = −0.13; 95% CI = −0.25 to −0.02; p = 0.10; I² = 41) (64, 73, 75–77, 94, 95).

• “Pain-sedation-IWS” algorithms showed a decrease in the cumulative dose of analgesic medications (SMD = −0.14; 95% CI = −0.26 to −0.03; p = 0.34; I² = 28%) (62, 78–80); and a decrease in incidents of IWS (OR = −0.48; 95% CI = −0.80 to −0.16; I² = 28; p = 0.29) (62, 78, 79).

3.3.15. Summary of findings

The summary of findings table for the seven key outcomes, using GRADE, is presented in Table 1.

TABLE 1

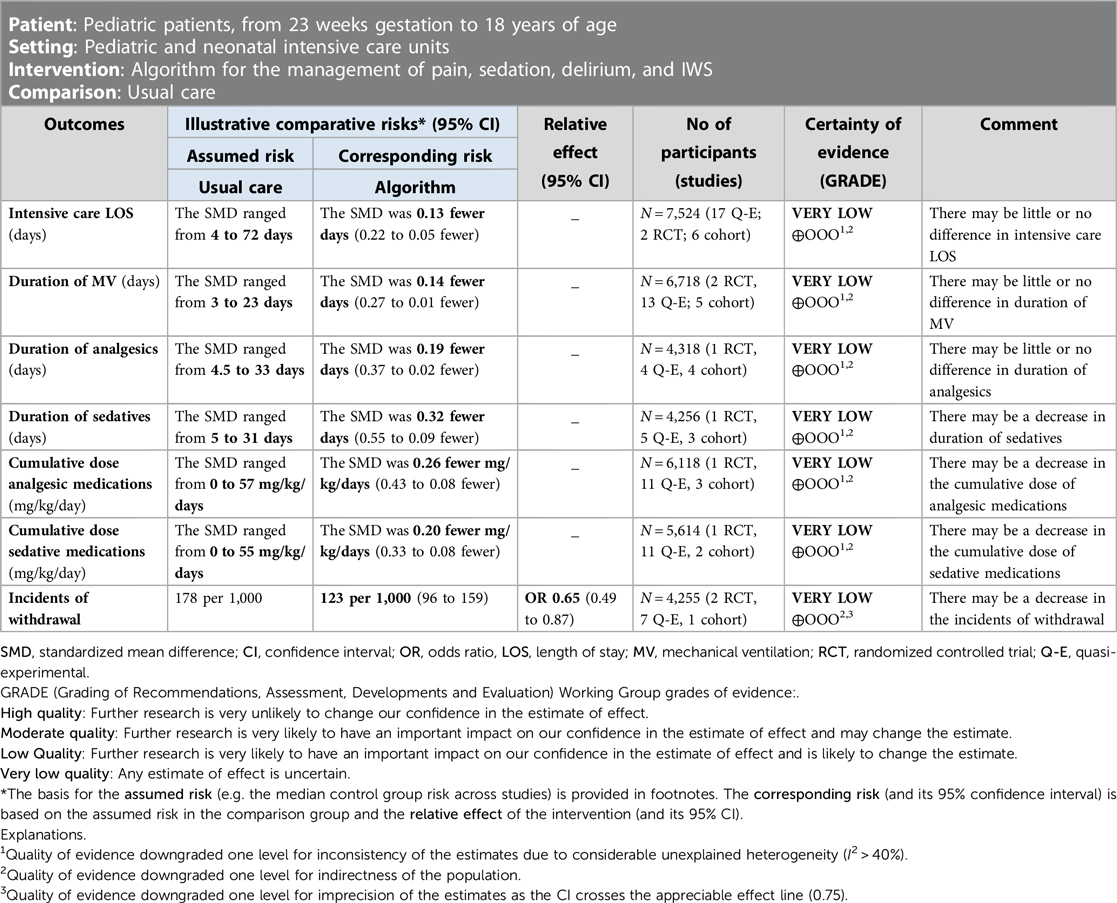

Table 1. GRADE summary of findings.

3.3.16. Publication bias

No publication bias was observed for any of the outcomes with more than 10 studies (Supplementary Figure S9).

3.3.17. Sensitivity analysis

The sensitivity analyses of removing one study at a time showed no significant reduction in heterogeneity for all but three outcomes of interest. Firstly, for length of MV, three studies individually decreased the heterogeneity by 2%–7% (66, 78, 91) but removed together, I² decreased by 30% with the same small-sized effect (SMD = −0.14; 95% CI = −0.23 to −0.05; p = 0.001; I²= 51). Secondly, for duration of analgesic medications, two studies were outliers (71, 77) with no significant decrease in heterogeneity when individually removed, but when removed together, I² decreased by 24% (SMD = −0.18; 95% CI = −0.31 to −0.05; p = 0.01; I² = 55). Lastly, for incidence of withdrawal where one study (82) when removed decreased the I² by 28% with a slight effect size change (OR 0.69; CI = 0.56 to 0.86; p < .0001; I² = 19) (Supplementary Figures S10–S20).

Sensitivity analysis by type of setting showed a decrease in LOS ICU for PICUs (SMD = −0.12; 95% CI = −0.22 to −0.02; p = 0.34; I2 = 53%) but not for NICUs, and a decrease in the cumulative dose of analgesic medications for NICUs (SMD = −0.33; 95% CI = −0.52 to −0.15; p = 0.03; I² = 57%) but not for PICUs. The test of group difference was not significant for either analysis (results not shown).

Sensitivity analyses by setting could not be performed for the outcomes of hospital LOS, duration of analgesic medications, duration of sedative medications, and incidents of withdrawal because there were no NICUs or >2 studies.

All sensitivity analyses by study design showed that quasi-experimental studies favored algorithms (results not shown).

3.4. Algorithm quality and evidence

The overall PROFILE and the three process scores of the 28 algorithms are displayed in Table 2.

TABLE 2

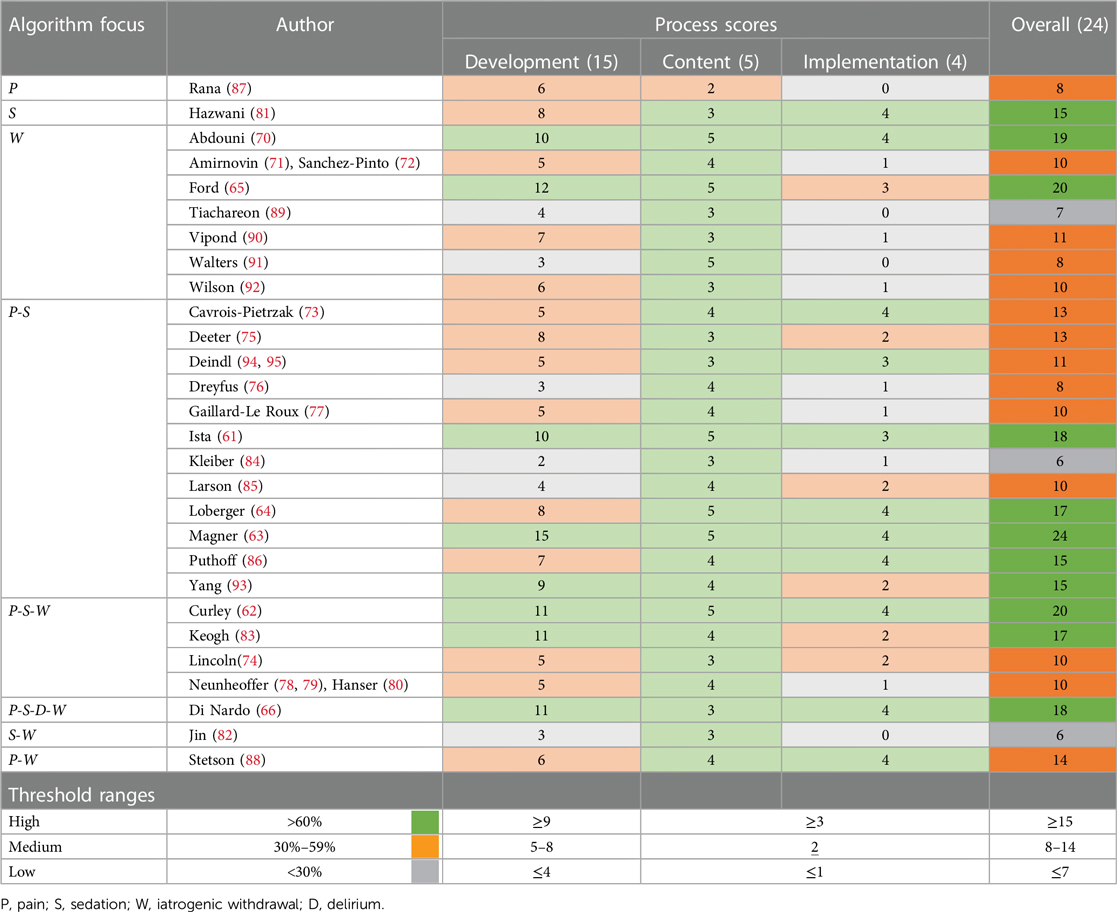

Table 2. Heatmap PROFILE scores.

The mean percentage of the overall score was 54%. Eleven algorithms scored as high (39%) (61–66, 70, 81, 83, 86, 93), 14 as medium (50%) (71–80, 85, 87, 88, 90–92, 94, 95), and three as low (11%) (82, 84, 89).

The mean percentage of the development process score was 46%. Eight algorithms scored as high (29%) (61–63, 65, 66, 70, 83, 93), 14 as medium (50%) (64, 71–81, 86–88, 90, 92, 94, 95), and six as low (21%) (76, 82, 84, 85, 89, 91).

The mean percentage of the content process score was 76%. All but one algorithm scored as high (61–66, 70–86, 88–95), and it was medium (87).

The mean percentage of the implementation process score was 55%. Twelve algorithms scored as high (43%) (61–66, 70, 73, 81, 86, 88, 94, 95), five as medium (18%) (74, 75, 83, 85, 93), and 11 as low (39%) (71, 72, 76–80, 82, 84, 87, 89–92).

Among the five domains of the PROFILE, Domain 1 (scope and purpose) scored high for all algorithms, with at least two out of the three items being present. Domains 4 and 5 were discussed in the previous section and are related to two of the three process scores (content and implementation process scores, respectively). The lowest represented domain was Domain 2 (stakeholders), with only one algorithm including the patient or family, during development (63). Details of each item by algorithm are in Supplementary Table S12.

Concerning content and development, 15 algorithms were developed because of an identified clinical problem (54%) (61–64, 66, 70, 73, 81, 83, 85, 86, 88, 90, 93–95). Eighteen algorithms reported using an interdisciplinary approach to development (64%) (61–64, 66, 70, 73–75, 77–81, 85–88, 93–95). Eighteen algorithms reported using evidence during development (64%) (61–63, 66, 70, 75, 77–81, 83, 87, 89, 90, 92–95), with four (14%) using a CPG as the highest quality of evidence (63, 73, 83, 93).

3.5. Implementation process

3.5.1. Implementation strategies

Implementation strategies were reported in 26 of 32 studies (61–63, 65, 66, 70–78, 81, 83–88, 91–93, 95). Of the 17 EPOC categories, 13 were used (76.5%), the details are presented in Supplementary Table S13. Apart from one study (91), all other studies applied multiple strategies. The most frequently applied strategies were educational meetings (n = 24, 92%) (61–63, 70–78, 81, 83–88, 91–93, 95), the provision of materials (n = 24, 92%) (61–63, 65, 66, 70–78, 81, 83, 85–88, 92, 93, 95), followed by out-reach visits (n = 13, 50%) (62, 63, 66, 70, 71, 75, 77, 78, 81, 83, 84, 93, 95). The most frequently used non-educational strategy was continuous quality improvement (n = 12, 46%) (63, 70–75, 81, 86, 88, 93, 95). The least frequently used implementation strategies were audit and feedback (n = 2, 8%) (62, 81), tailored interventions (n = 2, 8%) (70, 81), use of local champions (n = 1, 4%) (62), managerial supervision (n = 1, 4%) (63), and monitoring performance (n = 1, 4%) (65). The mean number of implementation strategies used across all studies was 4.2 (median = 3.5, IQR 2). High-quality algorithms used a mean of 5.4 (median = 4.5, IQR 5) implementation strategies, compared to medium- and low-quality algorithms, with a mean of 3.4 (median = 3.5, IQR 2.5).

3.5.2. Determinants

Fifty-five determinants (barriers or facilitators) were reported across ten studies (61, 66, 70, 73, 81, 83, 88, 90, 95) and grouped into 48 unique determinants. Five studies measured determinants (66, 73, 81, 83, 90), three measured determinants quantitatively using surveys (66, 83, 90), and two measured determinants qualitatively (73, 81). Supplementary Table S14 presents the organizational, professional, and interventional determinants.

The major organizational barriers were lack of leadership support, lack of planning for training, and competing priorities. The organizational facilitators were team buy-in, support, and involvement.

The major professional barriers relate to the complexity of applying algorithms to patients due to stability and age, and nurses' lack of knowledge of the algorithm. Professional facilitators included education and a positive attitude.

The major intervention facilitators were the structure of the algorithm, automatic alerts for assessment, and support for decision-making, resulting in ease and efficiency. No intervention barriers were reported.

3.5.3. Fidelity (adherence and dose of the intervention)

Fidelity to the algorithm was reported in 19 studies (68%) (61–63, 66, 70–73, 77–79, 81, 83, 85, 87, 90, 92, 93, 95). Five studies reported both adherence to the algorithm and the dose of algorithm components (26%) (62, 66, 70, 83, 87). Eight studies reported on adherence (42%) (71–73, 78, 79, 81, 90, 93) and six reported on the dose of delivery of components (32%) (61, 63, 77, 85, 92, 95). The dose category had two overarching sub-categories: (1) dose related to the use of the measurement instrument, reported by eight studies (63, 66, 71, 73, 77, 83, 85, 95), and (2) dose related to medication delivery reported by four studies (61, 63, 87, 92). Overall adherence varied considerably, ranging from 36% to 100%. The dose associated with using the measurement instrument across all conditions was high, ranging from 65% for IWS (62) to 95.9% for pain and sedation (77). One study reported adherence to medication at 61% (63), and two studies reported loading dose delivery ranging from 8.2 to 86% (63, 92). One study reported both bolus prescription and medication prescription delivery with a 90.6% adherence rate (63). Supplementary Table S15 presents details of fidelity.

3.5.4. Satisfaction with algorithms

Six studies reported on staff satisfaction levels (63, 66, 74, 83, 90, 95) and one on parental satisfaction (87) (Supplementary Table S16). All studies with pre- and post-implementation statistics supported improvements; however, physicians showed greater satisfaction, as compared to nurses. Lincoln did not include a percentage score, instead indicated nurses' satisfaction with patient sedation management post-implementation was 8.5 (74).

4. Discussion

To the best of our knowledge, this was the first systematic review that examined the effectiveness of 28 algorithms for the management of pain, sedation, delirium and IWS in pediatric and neonatal intensive care. There were four key findings; firstly, standardized algorithm-based management across the four conditions had a weak but positive effect on improving most outcomes of interest for critically ill children in pediatric intensive care settings. Secondly, the evidence base used to develop algorithms varied with inconsistent multidisciplinary and little patient and family involvement in development and implementation. Thirdly, implementation processes were poorly described. Fourthly, although, adherence rates varied, they showed improved assessment and documentation practices.

Standardizing the management of pain, sedation, delirium and IWS using an algorithm is recommended as a strategy (3, 20); however, evidence for its effectiveness is limited and restricted to sedation management algorithms (24, 26). This review was designed to overcome this challenge by including the four interlinked conditions of pain, sedation, delirium, and IWS. The negative outcome of IWS related to prolonged analgesic and sedative exposure in pediatric intensive care has long been recognized (1, 5). The results of these meta-analyses of algorithms compared with usual care showed an impact on several outcomes of interest, with a significant reduction in IWS and small decreases in the length of ICU and hospital stays, length of MV, cumulative dose and duration of analgesics and sedative medications, and duration of weaning from medications and methadone exposure. The results showed moderate to substantial heterogeneity, which is expected given the variations in study design, the algorithms, and in the populations of pediatric intensive care settings. These varying factors may have contributed to the small effective sizes observed but potential sources were investigated using sensitivity analyses. These results were similar to those reported in other reviews of sedation algorithms, demonstrating that patients receiving more effective sedation resulted in decreased LOS and cost (24, 25). One study demonstrated a cost savings of approximately $17,000 per patient when an IWS algorithm was used (71). Delirium bundles were designed as a preventive strategy, and although they include delirium screening, the results do not have a described course of action, and as such were excluded from this review. This explained why delirium is poorly integrated in algorithms. A recently published systematic review and meta-analysis (96) suggests, however, the need for prevention and the results from this review supported their inclusion and incorporation into algorithms that standardized care for critically ill children. Protocolized management of pain, sedation and weaning were recommended in the recently published PANDEM CPG (14). The small decrease in both duration and cumulative dose of sedatives per day in this review is promising, as the association with the development of delirium and withdrawal is undisputed.

In this study, over a third of the algorithms were scored as high-quality, indicating their potential to improve the management of the four conditions. However, given the undisputed benefits of CPGs, the lack of their use in the development of algorithms was an important finding. Out of 28 algorithms, only four used CPGs during development, suggesting that CPGs are not fully utilized, possibly due to lack of awareness or trust among HCPs. This finding was consistent with two recent surveys of PICUs showing that PICU practices related to pain and sedations management varied widely across Europe (19, 97). Out of the 215 PICUs surveyed, only 71% reported having a protocol in place (19) and the implementation of measurement instruments for the four conditions was inconsistent (97). The lack use of CPGs in the development of algorithms and the inconsistency in implementing measurement instruments for the four conditions highlighted the need for more standardized practices, better implementation of measurement instruments and CPGs. While some algorithms scored as high-quality, it is concerning that many algorithms relied on expert opinion rather than rigorous EB CPGs. Even when CPGs are rigorously developed, they do not consider the local needs. Therefore, they should be integrated into internal unit specific algorithms (98, 99) to ensure that management practices are standardized and used consistently, that decision-making and actions are EB and clearly defined. Furthermore, the wide international variation in practices related to pain and sedation underscored the need for greater attention to the issues of CPG, algorithm, and measurement instrument implementation. The use of non-validated scoring ranges (84–86) or combining measurement instruments (i.e., Comfort-B + NISS (61, 63, 78–80), as observed in some algorithms, was not supported in a recent EB CPG and is problematic, as it could render the evaluation invalid. Therefore, it is important to continue to improve the quality of algorithms using EB CPGs. While guidelines are well-established, the ideal sedation and analgesia regime for pediatric patients remains undefined, and their application in practice is challenging. Algorithms have been proposed to overcome this gap and provide standardized, EB care. Although many studies reported contradictory results, pooling them together revealed a small effect, indicating that algorithms can contribute to delivering consistent and EB care for pediatric patients.

In this review, barriers to the implementation process of algorithms in pediatric intensive care settings were identified. However, the implementation processes were often poorly reported, highlighting the importance of robust implementation processes as a barrier to transferability. Implementation strategies for algorithms tended to focus on education and training strategies, but these are often considered insufficient for successful implementation (100). Other studies have also emphasized the importance of education and training in the implementation process (34, 101). High-quality algorithms tended to utilize more implementation strategies compared to medium- and low-quality algorithms, suggesting a potential link between the number and types of strategies used and successful implementation. Furthermore, studies in this review that examined determinants emphasized the significance of continuous quality improvement, local outreach, and local opinion leaders (champions) in the implementation process. Although, satisfaction with the implementation of algorithms was not widely reported, increasing levels were noted for HCPs and families.

The review identified organizational barriers, such as planning and leadership support, as crucial facilitators, which is consistent with existing literature (34). It also found that ensuring seamless integration of algorithms into the electronic health system is a crucial consideration. Given the increasing digitalization of healthcare, several studies have described the need for optimizing the design and ensuring integration into the workflow, as this can impact the use and burden nurses (102). Involving staff in technology design (103, 104) and implementation planning was recognized as a necessary strategy for improving implementation and sustainability efforts (104), which aligns with many process models in implementation science (105). Although, no studies directly evaluated algorithm implementation into the electronic health record, one study evaluating an integrated rounding checklist in the PICU showed improved outcomes for patients across many of the measured outcomes (106). During implementation planning, the identification of barriers and facilitators is undisputed to facilitate implementation efforts, as highlighted by determinant frameworks (105). However, many studies identified mostly barriers post-implementation or were researcher perceived, and those that identified them pre-implementation did not map specific strategies to those identified.

In terms of professional barriers, this review highlighted the importance of planning for training, leadership support, and team buy-in to supporting the implementation process. This is supported by a study that described knowledge translation strategies used across 16 pediatric units, including neonatal and pediatric ICUs (101). Algorithms can be difficult to update and maintain over time (107, 108), but these challenges can be overcome by utilizing and maintaining more complex implementation strategies, such as champions, continuous quality improvement, and auditing and monitoring (34). While few studies in this review reported on fidelity, studies with high-quality algorithms more often reported favorable rates. Improved understanding of barriers and facilitatos, along with the use of increased implementation strategies, can enhance the likelihood of successful algorithm implementation, particularly, when integrated into the electronic health records as clinical decision support systems (109). A recent qualitative study using the iPARIHS framework also identified several similar barriers and facilitators to practice change in PICUs (34), and these same variables were further supported in a recent realist review (110), suggesting their foundational importance in implementation in pediatric centers. These findings underscore the value of conducting reviews to establish known determinants and strategies that can aid teams during implementation, leading to reduced research waste and faster implementation (30, 31).

The levels of adherence to the algorithm, including the dose, components, and measurement instruments were mixed. However, given the varied use of measurement instruments, increased compliance with assessment recommendations, and limited change in scores, this suggests that embedding measurement instruments into algorithms increases their frequency of use without changing the scores. This demonstrates the adequacy of the management strategies outlined in the algorithm. The use of algorithms improved both assessment and documentation practices, which are often cited as areas of concern by HCPs (111).

4.1. Strengths and limitations

An important contribution and strength of this review is the comprehensive evaluation of the development (structure), implementation (process), and outcomes of algorithm use. To the best of our knowledge, this method of evaluation has not been performed in a systematic review. However, this is also a limitation, as many of the algorithms were developed prior to the recommendations for using implementation frameworks and their standardized reporting, such as the template for intervention description and replication (112). Reporting of all aspects may not have been possible in all studies due to a lack of awareness or limitations in word count, as has been identified in other areas of research (113). This may have resulted in lower quality scores for some algorithms. To overcome this limitation, a standardized method was employed to contact all study authors, as recommended by Reynders et al. (114).

Another strength of this review is the recognition of the importance of ensuring the quality of algorithms, which was the reason for developing and using the PROFILE tool. Given the potential variability in algorithm quality and the impact this can have on patient outcomes, the assessment of rigor and transparency of algorithm development is crucial. The PROFILE provides a comprehensive framework for performing evaluations of algorithms and serves to identify areas for improvement in development and reporting. This underscores the need for a standardized approach to algorithm development and evaluation to ensure they are sfe, effective, and reliable.

Another limitation is the possible sources of heterogeneity, including the non-standardized reporting of outcomes, which affected the ability to include outcomes in meta-analyses. Some outcomes had considerable differences, such as the different dosages and forms of medication administration (e.g., continuous administration of one medication or continuous administration that included boluses), and the definitions of the treatment point for the outcomes being examined. Other factors could also have affected the results, such as age, underlying disease and severity, and concomitant medications. Currently, standardized core outcome sets do not exist in the PICU, which likely leads to variability.

The variability in research designs is another limitation. While RCTs are considered the gold standard, they are tightly controlled and conducted with homogenous populations. Therefore, although RCTs may show better treatment effects for outcomes of interest, their results cannot be readily used in the clinical setting where these algorithms are often applied to the entire unit or much broader populations. With unit-based algorithms (quasi-experimental studies), the best possible results are achieved for these children based on continuous assessment and individualized care. However, retrospectively acquired methods may decrease the treatment effects.

4.2. Implications and recommendations for practice and research

This systematic review has established that algorithm-based management is potentially associated with reductions in most of the outcomes of interest and improved fidelity to algorithm components, including assessment and documentation across the four conditions. While many of the algorithms contained a mixture of these conditions, only one combined all four conditions (66). Likely due to the complexity of combining all four together, however, many researchers have called for their inclusion (3, 9). In fact one team is currently developing a combined measurement instrument (115), demonstrating both the feasibility and need for combining these four conditions. Teams in pediatric ICUs considering the implementation of an algorithm for the assessment and management of pain, sedation, delirium, and IWS should consider using the currently available algorithms and adapting them to their practice environment if necessary. These teams should incorporate the latest recommendations from quality CPGs (14), as these were missing in many of the included algorithms. Teams should publish their implementation efforts and use the PROFILE (user manual available upon request to author) to ensure complete reporting.

This review provides an overview of the implementation strategies used and the common determinants to consider when developing implementation plans. Implementation teams should consider these determinants in their planning to hasten implementation efforts by focusing on the contextual assessment of missing factors. The review also demonstrates the need to include all outcomes related to the implementation process, such as fidelity, to interpret successful implementation efforts or ineffective interventions. The use of implementation frameworks to guide the process is essential for advancing algorithms into practice (34, 116), along with the use of systematic reviews (30). Applying Donabedian's outcomes to the implementation process would help researchers and healthcare teams assess the required aspects to explain the implementation process of complex health interventions.

This review highlights the limited inclusion of patients and families in both algorithm development and implementation planning, and it is recommended that teams consider their inclusion throughout the process. Patient and family involvement has been recognized as integral in CPG development (117), and it is likely transferable to algorithm development. Additionally, the inclusion of staff throughout the process was also haphazard, and their inclusion is crucial for success.

Although the implementation of an algorithm for the management of pain, sedation, delirium, and IWS is an important first step for critically ill children, a cultural shift that includes the ABCDEF bundles is important (97, 118), along with engaging patients and families through family-centered care (119, 120).

This review highlights that many patient outcomes are not defined, and those that are vary in the depth of their definitions, making them difficult to pool. This study further supports the need for researchers to develop a PICU-specific core outcome set to examine effectiveness.

As indicated in the review of clinical pathway effectiveness, this study confirms the need for future systematic reviews to group algorithms and clinical pathways by condition to reduce heterogeneity (28). Both reviews highlight the need for clinical pathway and algorithm integration into clinical decision support systems. This was a facilitator indicated in this review and has been supported by other studies (109). Further research is needed to understand technology embeddedness in the development and implementation of complex healthcare interventions.

5. Conclusion

This comprehensive systematic review provides valuable insight and a much-needed evaluation of the use of algorithms for the management of pain, sedation, delirium, and IWS in children in pediatric intensive care settings. The study results demonstrate that the implementation of algorithms can lead to improved patient outcomes and increased adherence to EB practices and documentation. Algorithms not only improve outcomes but also ensure standardization, preventing important interventions from being missed and ensure timely and appropriate treatments are applied, leading to improved documentation and satisfaction of HCPs. However, this review has highlighted gaps in the processes and reporting of algorithm development and implementation. The implementation of algorithms can be challenging, and evidence suggests that barriers such as lack of staff buy-in, resistance to change, and difficulties with implementation can affect the effectiveness of algorithms. There is a need for rigorous use of EB recommendations in the development of algorithms and overcoming these challenges with the use of implementation frameworks to facilitate algorithm quality and successful implementation aligned with the clinical setting.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

IMD conceived and designed the study and wrote the first draft of the manuscript. IMD, A-SR, AT and M-HP developed the methodology. AT performed the literature search. Study selection and appraisal were performed by IMD, VdG, SA and MM. Data collection, analysis and review were completed by IMD, MM, VdG, SA, EF, A-SR and M-HP. All authors reviewed, edited and approved the final manuscript. M-HP and A-SR supervised IMD. All authors contributed to the article and approved the submitted version.

Funding

Open access funding by University of Lausanne.

Acknowledgments

We would like to thank Shannon Barnes and Fabienne Teike Lüthi for their assistance with screening titles and abstracts. Thanks to Cécile Jaques, biomedical information specialist, for her assistance with the search strategy. Thanks to Zahra Rahmaty for providing feedback on early versions of the manuscript. Thanks to Roger Hilfiker for supporting the production of forest plots and publication bias figures.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fped.2023.1204622/full#supplementary-material.

References

1. Best KM, Wypij D, Asaro LA, Curley MAQ. Patient, process, and system predictors of iatrogenic withdrawal syndrome in critically ill children. Crit Care Med. (2017) 45(1):e7–e15. doi: 10.1097/CCM.0000000000001953

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Alvarez RV, Palmer C, Czaja AS, Peyton C, Silver G, Traube C, et al. Delirium is a common and early finding in patients in the pediatric cardiac intensive care unit. J Pediatr. (2018) 195:206–12. doi: 10.1016/j.jpeds.2017.11.064

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Harris J, Ramelet AS, van Dijk M, Pokorna P, Wielenga J, Tume L, et al. Clinical recommendations for pain, sedation, withdrawal and delirium assessment in critically ill infants and children: an ESPNIC position statement for healthcare professionals. Intensive Care Med. (2016) 42(6):972–86. doi: 10.1007/s00134-016-4344-1

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Vet NJ, Ista E, de Wildt SN, van Dijk M, Tibboel D, de Hoog M. Optimal sedation in pediatric intensive care patients: a systematic review. Intensive Care Med. (2013) 39(9):1524–34. doi: 10.1007/s00134-013-2971-3

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Egbuta C, Mason KP. Current state of analgesia and sedation in the pediatric intensive care unit. J Clin Med. (2021) 10(9):1847. doi: 10.3390/jcm10091847

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Traube C, Silver G, Gerber LM, Kaur S, Mauer EA, Kerson A, et al. Delirium and mortality in critically ill children: epidemiology and outcomes of pediatric delirium*. Pediatr Crit Care. (2017) 45(5):891–8. doi: 10.1097/CCM.0000000000002324

CrossRef Full Text | Google Scholar

7. da Silva PSL, Reis ME, Fonseca TSM, Fonseca MCM. Opioid and benzodiazepine withdrawal syndrome in PICU patients: which risk factors matter? J Addict Med. (2016) 10(2):110–6. doi: 10.1097/ADM.0000000000000197

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Baarslag MA, Jhingoer S, Ista E, Allegaert K, Tibboel D, van Dijk M. How often do we perform painful and stressful procedures in the paediatric intensive care unit? A prospective observational study. Aust Crit Care. (2019) 32(1):4–10. doi: 10.1016/j.aucc.2018.04.003

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Ista E, van Dijk M. We can not compartmentalize our patients! overlapping symptoms of iatrogenic withdrawal syndrome, pediatric delirium, and anticholinergic toxidrome. Pediatr Crit Care Med. (2017) 18(6):603–4. doi: 10.1097/PCC.0000000000001163

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Meyburg J, Dill M-L, Traube C, Silver G, von Haken R. Patterns of postoperative delirium in children. Pediatr Crit Care Med. (2017) 18(2):128–33. doi: 10.1097/PCC.0000000000000993

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Ibiebele I, Algert CS, Bowen JR, Roberts CL. Pediatric admissions that include intensive care: a population-based study. BMC Health Serv Res. (2018) 18(1):264. doi: 10.1186/s12913-018-3041-x

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Laures E, LaFond C, Hanrahan K, Pierce N, Min H, McCarthy AM. Pain assessment practices in the pediatric intensive care unit. J Pediatr Nurs. (2019) 48:55–62. doi: 10.1016/j.pedn.2019.07.005

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Ismail A. The challenges of providing effective pain management for children in the pediatric intensive care unit. Pain Manag Nurs. (2016) 17(6):372–83. doi: 10.1016/j.pmn.2016.08.005

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Smith HAB, Besunder JB, Betters KA, Johnson PN, Srinivasan V, Stormorken A, et al. 2022 society of critical care medicine clinical practice guidelines on prevention and management of pain, agitation, neuromuscular blockade, and delirium in critically ill pediatric patients with consideration of the ICU environment and early mobility. Pediatr Crit Care Med. (2022) 23(2):e74–e110. doi: 10.1097/PCC.0000000000002873

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Giordano V, Edobor J, Deindl P, Wildner B, Goeral K, Steinbauer P, et al. Pain and sedation scales for neonatal and pediatric patients in a preverbal stage of development: a systematic review. JAMA Pediatr. (2019) 173(12):1186–97. doi: 10.1001/jamapediatrics.2019.3351

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Gu S, Couloures K. Pediatric delirium: a review of current diagnosis and management in the intensive care setting. Curr Pediatr Rep. (2020) 8(3):80–5. doi: 10.1007/s40124-020-00222-9

CrossRef Full Text | Google Scholar

17. Madden K, Burns MM, Tasker RC. Differentiating delirium from sedative/hypnotic-related iatrogenic withdrawal syndrome: lack of specificity in pediatric critical care assessment tools. Pediatr Crit Care Med. (2017) 18(6):580–8. doi: 10.1097/PCC.0000000000001153

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Ista E, Redivo J, Kananur P, Choong K, Colleti J, Needham D, et al. ABCDEF bundle practices for critically Ill children: an international survey of 161 PICUs in 18 countries. Crit Care Med. (2022) 50(1):114–25. doi: 10.1097/CCM.0000000000005168

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Daverio M, von Borell F, Ramelet AS, Sperotto F, Pokorna P, Brenner S, et al. Pain and sedation management and monitoring in pediatric intensive care units across Europe: an ESPNIC survey. Crit Care. (2022) 26(1):88. doi: 10.1186/s13054-022-03957-7

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Motta E, Luglio M, Delgado AF, Carvalho WB. Importance of the use of protocols for the management of analgesia and sedation in pediatric intensive care unit. Rev Assoc Med Bras. (2016) 62(6):602–9. doi: 10.1590/1806-9282.62.06.602

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Steinberg E, Greenfield S, Wolman DM, Mancher M, Graham R. Clinical practice guidelines we can trust. Washington, DC: National Academies Press (2011).

22. Heidegger T, Gerig HJ, Henderson JJ. Strategies and algorithms for management of the difficult airway. Best Pract Res Clin Anaesthesiol. (2005) 19(4):661–74. doi: 10.1016/j.bpa.2005.07.001

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Sriram C, Rosenthal GL. Encyclopedia of medical decision making. In: Kattan MW, editors. Vol. 1. Thousand Oaks, CA: Sage (2009). p. 136–9.

24. Poh YN, Poh PF, Buang SNH, Lee JH. Sedation guidelines, protocols, and algorithms in PICUs: a systematic review. Pediatr Crit Care Med. (2014) 15(9):885–92. doi: 10.1097/PCC.0000000000000255

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Balit CR, LaRosa JM, Ong JSM, Kudchadkar SR. Sedation protocols in the pediatric intensive care unit: fact or fiction? Transl Pediatr. (2021) 10(10):2814–24. doi: 10.21037/tp-20-328

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Aitken LM, Bucknall T, Kent B, Mitchell M, Burmeister E, Keogh SJ. Protocol-directed sedation versus non-protocol-directed sedation in mechanically ventilated intensive care adults and children. Cochrane Database Syst Rev. (2018) 11(11):CD009771. doi: 10.1002/14651858.CD009771.pub3

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Barnighausen T, Tugwell P, Rottingen JA, Shemilt I, Rockers P, Geldsetzer P, et al. Quasi-experimental study designs series-paper 4: uses and value. J Clin Epidemiol. (2017) 89:21–9. doi: 10.1016/j.jclinepi.2017.03.012

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Rotter T, Kinsman L, James E, Machotta A, Steyerberg EW. The quality of the evidence base for clinical pathway effectiveness: room for improvement in the design of evaluation trials. BMC Med Res Methodol. (2012) 12(1):1–8. doi: 10.1186/1471-2288-12-80

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Proctor E, Silmere H, Raghavan R, Hovmand P, Aarons G, Bunger A, et al. Outcomes for implementation research: conceptual distinctions, measurement challenges, and research agenda. Adm Policy Ment Health. (2011) 38(2):65–76. doi: 10.1007/s10488-010-0319-7

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Huebschmann AG, Leavitt IM, Glasgow RE. Making health research matter: a call to increase attention to external validity. Annu Rev Public Health. (2019) 40(1):45–63. doi: 10.1146/annurev-publhealth-040218-043945

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Davis M, Beidas RS. Refining contextual inquiry to maximize generalizability and accelerate the implementation process. Implement Res Pract. (2021) 2:2633489521994941. doi: 10.1177/2633489521994941

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Liu Y, Zhang Y, Wang S, Liu L, Che G, Niu J, et al. Quality of pediatric clinical practice guidelines. BMC Pediatr. (2021) 21(1):223. doi: 10.1186/s12887-021-02693-1

PubMed Abstract | CrossRef Full Text | Google Scholar

33. May CR, Johnson M, Finch T. Implementation, context and complexity. Implement Sci. (2016) 11(1):141. doi: 10.1186/s13012-016-0506-3

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Steffen KM, Holdsworth LM, Ford MA, Lee GM, Asch SM, Proctor EK. Implementation of clinical practice changes in the PICU: a qualitative study using and refining the iPARIHS framework. Implement Sci. (2021) 16(1):15. doi: 10.1186/s13012-021-01080-9

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Damschroder LJ, Aron DC, Keith RE, Kirsh SR, Alexander JA, Lowery JC. Fostering implementation of health services research findings into practice: a consolidated framework for advancing implementation science. Implement Sci. (2009) 4(1):1–15. doi: 10.1186/1748-5908-4-50

PubMed Abstract | CrossRef Full Text | Google Scholar

36. (EPOC). EPaOoC. EPOC Taxonomy 2015 [Available from: epoc.cochrane.org/epoc-taxonomy).

37. Powell BJ, Waltz TJ, Chinman MJ, Damschroder LJ, Smith JL, Matthieu MM, et al. A refined compilation of implementation strategies: results from the expert recommendations for implementing change (ERIC) project. Implement Sci. (2015) 10(1):21. doi: 10.1186/s13012-015-0209-1

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Donabedian A. The quality of care: how can it be assessed? JAMA. (1988) 260(12):1743–8. doi: 10.1001/jama.1988.03410120089033

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Cochrane. Cochrane Handbook for Systematic Reviews of Interventions version 6.3 (2022). Available at: www.training.cochrane.org/handbook

40. Page MJ, Moher D, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, et al. PRISMA 2020 Explanation and elaboration: updated guidance and exemplars for reporting systematic reviews. Br Med J. (2021) 372:n160. doi: 10.1136/bmj.n160

CrossRef Full Text | Google Scholar

41. Rethlefsen ML, Kirtley S, Waffenschmidt S, Ayala AP, Moher D, Page MJ, et al. PRISMA-S: an extension to the PRISMA statement for reporting literature searches in systematic reviews. Syst Rev. (2021) 10(1):39. doi: 10.1186/s13643-020-01542-z

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Playfor S, Jenkins I, Boyles C, Choonara I, Davies G, Haywood T, et al. Consensus guidelines on sedation and analgesia in critically ill children. Intensive Care Med. (2006) 32(8):1125–36. doi: 10.1007/s00134-006-0190-x

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Haddaway NR, Collins AM, Coughlin D, Kirk S. The role of google scholar in evidence reviews and its applicability to grey literature searching. PLoS One. (2015) 10(9):e0138237. doi: 10.1371/journal.pone.0138237

PubMed Abstract | CrossRef Full Text | Google Scholar

44. McGowan J, Sampson M, Salzwedel DM, Cogo E, Foerster V, Lefebvre C. PRESS Peer review of electronic search strategies: 2015 guideline statement. J Clin Epidemiol. (2016) 75:40–6. doi: 10.1016/j.jclinepi.2016.01.021

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Ouzzani M, Hammady H, Fedorowicz Z, Elmagarmid A. Rayyan-a web and mobile app for systematic reviews. Syst Rev. (2016) 5(1):210. doi: 10.1186/s13643-016-0384-4

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Tufanaru C, Munn Z, Aromataris E, Campbell J, Hopp L. Chapter 3: systematic reviews of effectiveness. In: Aromataris E, Munn Z, editors. Joanna Briggs Institute Reviewer’s Manual [Internet] (2017). p. 71–87. Available from: https://reviewersmanual.joannabriggs.org/

47. Brouwers MC, Kho ME, Browman GP, Burgers JS, Cluzeau F, Feder G, et al. AGREE II: advancing guideline development, reporting and evaluation in health care. CMAJ. (2010) 182(18):E839–E42. doi: 10.1503/cmaj.090449

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Bjurling-Sjöberg P, Jansson I, Wadensten B, Engström G, Pöder U. Prevalence and quality of clinical pathways in Swedish intensive care units: a national survey. J Eval Clin Pract. (2014) 20(1):48–57. doi: 10.1111/jep.12078

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Croucher M. An evaluation of the quality of integrated care pathway development in the UK national health service. J Integr Care Pathw. (2005) 9(1):6–12. doi: 10.1177/147322970500900102

CrossRef Full Text | Google Scholar

50. de Luc KE, Whittle C. An integrated care pathway appraisal tool: a “badge of quality”. J Integr Care Pathw. (2002) 6(1):13–7. doi: 10.1177/147322970200600104

CrossRef Full Text | Google Scholar

51. Whittle C. ICPAT: integrated care pathways appraisal tool. Int J Care Pathw. (2009) 13(2):75–7. doi: 10.1258/jicp.2009.009012

CrossRef Full Text | Google Scholar

52. Govender P. AGREE-II Appraisal of a clinical algorithm for hypotonia assessment. Afr Health Sci. (2018) 18(3):790–8. doi: 10.4314/ahs.v18i3.38

PubMed Abstract | CrossRef Full Text | Google Scholar

53. McHugh ML. Interrater reliability: the kappa statistic. Biochem Med (Zagreb). (2012) 22(3):276–82. doi: 10.11613/BM.2012.031

PubMed Abstract | CrossRef Full Text | Google Scholar

54. StataCorp. Stata statistical software: Release 17. 17th ed. College Station, TX: StataCorp LLC (2021).

55. IntHout J, Ioannidis JPA, Borm GF. The hartung-knapp-sidik-jonkman method for random effects meta-analysis is straightforward and considerably outperforms the standard DerSimonian-laird method. BMC Med Res Methodol. (2014) 14:1–12. doi: 10.1186/1471-2288-14-25

PubMed Abstract | CrossRef Full Text | Google Scholar

56. Wan X, Wang W, Liu J, Tong T. Estimating the sample mean and standard deviation from the sample size, median, range and/or interquartile range. BMC Med Res Methodol. (2014) 14(1):1–13. doi: 10.1186/1471-2288-14-1

PubMed Abstract | CrossRef Full Text | Google Scholar

57. GRADE. GRADE handbook (2013). Available at: www.gradeworkinggroup.org

58. Brockelmann N, Stadelmaier J, Harms L, Kubiak C, Beyerbach J, Wolkewitz M, et al. An empirical evaluation of the impact scenario of pooling bodies of evidence from randomized controlled trials and cohort studies in medical research. BMC Med. (2022) 20(1):355. doi: 10.1186/s12916-022-02559-y

PubMed Abstract | CrossRef Full Text | Google Scholar

59. Guyatt GH, Thorlund K, Oxman AD, Walter SD, Patrick D, Furukawa TA, et al. GRADE Guidelines: 13. Preparing summary of findings tables and evidence profiles-continuous outcomes. J Clin Epidemiol. (2013) 66(2):173–83. doi: 10.1016/j.jclinepi.2012.08.001

PubMed Abstract | CrossRef Full Text | Google Scholar

60. Danielis M, Castellano A, Mattiussi E, Palese A. Nursing-sensitive outcomes among patients cared for in paediatric intensive care units: a scoping review. Int J Environ Res Public Health. (2021) 18(18):9507. doi: 10.3390/ijerph18189507

PubMed Abstract | CrossRef Full Text | Google Scholar

61. Ista E, de Hoog M, Tibboel D, van Dijk M. Implementation of standard sedation management in paediatric intensive care: effective and feasible? J Clin Nurs. (2009) 18(17):2511–20. doi: 10.1111/j.1365-2702.2009.02836.x

PubMed Abstract | CrossRef Full Text | Google Scholar

62. Curley MA, Wypij D, Watson RS, Grant MJ, Asaro LA, Cheifetz IM, et al. Protocolized sedation vs usual care in pediatric patients mechanically ventilated for acute respiratory failure: a randomized clinical trial. JAMA. (2015) 313(4):379–89. doi: 10.1001/jama.2014.18399

PubMed Abstract | CrossRef Full Text | Google Scholar

63. Magner C, Valkenburg AJ, Doherty D, van Dijk M, O’Hare B, Segurado R, et al. The impact of introducing nurse-led analgesia and sedation guidelines in ventilated infants following cardiac surgery. Intensive Crit Care Nurs. (2020) 60:102879. doi: 10.1016/j.iccn.2020.102879

PubMed Abstract | CrossRef Full Text | Google Scholar

64. Loberger JM, Waddell KC, Prabhakaran P, Jones RM, Lawrence MV, Bittles LA, et al. Pediatric ventilation liberation: bundled extubation readiness and analgosedation pathways decrease mechanical ventilation duration and benzodiazepine exposure. Respir Care. (2022) 67(11):1385–95. doi: 10.4187/respcare.09942

PubMed Abstract | CrossRef Full Text | Google Scholar

65. Ford J, Harthan A, McGarvey J, Mischler M. Implementation of an opioid weaning protocol at a tertiary care children’s hospital. Hosp Pediatr. (2022) 12(11):945–53. doi: 10.1542/hpeds.2021-006306

PubMed Abstract | CrossRef Full Text | Google Scholar

66. Di Nardo M, Boldrini F, Broccati F, Cancani F, Satta T, Stoppa F, et al. The LiberAction project: implementation of a pediatric liberation bundle to screen delirium, reduce benzodiazepine sedation, and provide early mobilization in a human resource-limited pediatric intensive care unit. Front Pediatr. (2021) 9:1–11. doi: 10.3389/fped.2021.788997

CrossRef Full Text | Google Scholar

67. Hoffmann-Esser W, Siering U, Neugebauer EAM, Lampert U, Eikermann M. Systematic review of current guideline appraisals performed with the appraisal of guidelines for research & evaluation II instrument-a third of AGREE II users apply a cut-off for guideline quality. J Clin Epidemiol. (2018) 95:120–7. doi: 10.1016/j.jclinepi.2017.12.009

PubMed Abstract | CrossRef Full Text | Google Scholar

68. Lau R, Stevenson F, Ong BN, Dziedzic K, Treweek S, Eldridge S, et al. Achieving change in primary care—causes of the evidence to practice gap: systematic reviews of reviews. Implement Sci. (2016) 11(1):40. doi: 10.1186/s13012-016-0396-4

PubMed Abstract | CrossRef Full Text | Google Scholar

69. Carroll C, Patterson M, Wood S, Booth A, Rick J, Balain S. A conceptual framework for implementation fidelity. Implement Sci. (2007) 2(1):1–9. doi: 10.1186/1748-5908-2-40

PubMed Abstract | CrossRef Full Text | Google Scholar

70. Abdouni R, Reyburn-Orne T, Youssef TH, Haddad IY, Gerkin RD. Impact of a standardized treatment guideline for pediatric iatrogenic opioid dependence: a quality improvement initiative. J Pediatr Pharmacol Ther. (2016) 21(1):54–65. doi: 10.5863/1551-6776-21.1.54

PubMed Abstract | CrossRef Full Text | Google Scholar

71. Amirnovin R, Sanchez-Pinto LN, Okuhara C, Lieu P, Koh JY, Rodgers JW, et al. Implementation of a risk-stratified opioid and benzodiazepine weaning protocol in a pediatric cardiac ICU. Pediatr Crit Care Med. (2018) 19(11):1024–32. doi: 10.1097/PCC.0000000000001719

PubMed Abstract | CrossRef Full Text | Google Scholar

72. Sanchez-Pinto LN, Nelson LP, Lieu P, Koh JY, Rodgers JW, Larson KA, et al. Implementation of a risk-stratified opioid weaning protocol in a pediatric intensive care unit. J Crit Care. (2018) 43:214–9. doi: 10.1016/j.jcrc.2017.08.049

PubMed Abstract | CrossRef Full Text | Google Scholar

73. Cavrois-Pietrzak C. Evaluation d'un protocole de sédation-analgésie dans le service de réanimation pédiatrique de CHRU de Lille (2018).

74. Lincoln PA, Whelan K, Hartwell LP, Gauvreau K, Dodsen BL, LaRovere JM, et al. Nurse-Implemented goal-directed strategy to improve pain and sedation management in a pediatric cardiac ICU. Pediatr Crit Care Med. (2020) 21(12):1064–70. doi: 10.1097/PCC.0000000000002505

PubMed Abstract | CrossRef Full Text | Google Scholar

75. Deeter KH, King MA, Ridling D, Irby GL, Lynn AM, Zimmerman JJ. Successful implementation of a pediatric sedation protocol for mechanically ventilated patients. Crit Care Med. (2011) 39(4):683–8. doi: 10.1097/CCM.0b013e318206cebf

PubMed Abstract | CrossRef Full Text | Google Scholar

76. Dreyfus L, Bordet F, Touzet S, Denis A, Javouhey E. Implementation and evaluation of a paediatric nurse-driven sedation protocol in a PICU. Ann Intensive Care. (2017) 6:1–13. doi: 10.1186/s13613-017-0256-7

CrossRef Full Text | Google Scholar

77. Gaillard-Le Roux B, Liet JM, Bourgoin P, Legrand A, Roze JC, Joram N. Implementation of a nurse-driven sedation protocol in a PICU decreases daily doses of midazolam. Pediatr Crit Care Med. (2017) 18(1):e9–e17. doi: 10.1097/PCC.0000000000000998

PubMed Abstract | CrossRef Full Text | Google Scholar

78. Neunhoeffer F, Kumpf M, Renk H, Hanelt M, Berneck N, Bosk A, et al. Nurse-driven pediatric analgesia and sedation protocol reduces withdrawal symptoms in critically ill medical pediatric patients. Paediatr Anaesth. (2015) 25(8):786–94. doi: 10.1111/pan.12649

PubMed Abstract | CrossRef Full Text | Google Scholar

79. Neunhoeffer F, Seitz G, Schmidt A, Renk H, Kumpf M, Fideler F, et al. Analgesia and sedation protocol for mechanically ventilated postsurgical children reduces benzodiazepines and withdrawal symptoms-but not in all patients. Eur J Pediatr Surg. (2017) 27(3):255–62. doi: 10.1055/s-0036-1586202

PubMed Abstract | CrossRef Full Text | Google Scholar

80. Hanser A, Neunhoeffer F, Hayer T, Hofbeck M, Schlensak C, Mustafi M, et al. A nurse-driven analgesia and sedation protocol reduces length of PICU stay and cumulative dose of benzodiazepines after corrective surgery for tetralogy of fallot. J Spec Pediatr Nurs. (2020) 25(3):e12291. doi: 10.1111/jspn.12291

PubMed Abstract | CrossRef Full Text | Google Scholar

81. Hazwani T, Al Ahmady A, Kazzaz Y, Al Smari A, Al Enizy S, Alali H. Implementation of a sedation protocol: a quality improvement project to enhance sedation management in the paediatric intensive care unit. BMJ Open Qual. (2022) 11(1):e001501. doi: 10.1136/bmjoq-2021-001501

PubMed Abstract | CrossRef Full Text | Google Scholar

82. Jin HS, Yum MS, Kim SL, Shin HY, Lee EH, Ha EJ, et al. The efficacy of the COMFORT scale in assessing optimal sedation in critically ill children requiring mechanical ventilation. J Korean Med Sci. (2007) 22(4):693–7. doi: 10.3346/jkms.2007.22.4.693

PubMed Abstract | CrossRef Full Text | Google Scholar

83. Keogh SJ, Long DA, Horn DV. Practice guidelines for sedation and analgesia management of critically ill children: a pilot study evaluating guideline impact and feasibility in the PICU. BMJ Open. (2015) 5(3):e006428. doi: 10.1136/bmjopen-2014-006428

PubMed Abstract | CrossRef Full Text | Google Scholar

84. Kleiber N, de Wildt SN, Cortina G, Clifford M, van Rosmalen J, van Dijk M, et al. A comparative analysis of preemptive versus targeted sedation on cardiovascular stability after high-risk cardiac surgery in infants. Pediatr Crit Care Med. (2016) 17(4):321–31. doi: 10.1097/PCC.0000000000000663

PubMed Abstract | CrossRef Full Text | Google Scholar

85. Larson GE, McKeever S. Nurse titrated analgesia and sedation in intensive care increases the frequency of comfort assessment and reduces midazolam use in paediatric patients following cardiac surgery. Aust Crit Care. (2018) 31(1):31–6. doi: 10.1016/j.aucc.2017.02.001

PubMed Abstract | CrossRef Full Text | Google Scholar

86. Puthoff TD, Shah H, Slaughter JL, Bapat R. Reduction of analgesia duration after tracheostomy during neonatal intensive care: a quality initiative. Pediatr Qual Saf. (2018) 3(5):e106-e. doi: 10.1097/pq9.0000000000000106

CrossRef Full Text | Google Scholar

87. Rana D, Bellflower B, Sahni J, Kaplan AJ, Owens NT, Arrindell EL, et al. Reduced narcotic and sedative utilization in a NICU after implementation of pain management guidelines. J Perinatol. (2017) 37(9):1038–42. doi: 10.1038/jp.2017.88

PubMed Abstract | CrossRef Full Text | Google Scholar

88. Stetson RC, Smith BN, Sanders NL, Misgen MA, Ferrie LJ, Schuning VS, et al. Reducing opioid exposure in a level IV neonatal intensive care unit. Pediatr Qual Saf. (2020) 5(4):e312-e. doi: 10.1097/pq9.0000000000000312

CrossRef Full Text | Google Scholar

89. Tiacharoen D, Lertbunrian R, Veawpanich J, Suppalarkbunlue N, Anantasit N. Protocolized sedative weaning vs usual care in pediatric critically ill patients: a pilot randomized controlled trial. Indian J Crit Care Med. (2020) 24(6):451–8. doi: 10.5005/jp-journals-10071-23465

PubMed Abstract | CrossRef Full Text | Google Scholar

90. Vipond JM, Heiberger AL, Thompson PA, Huber JN. Shortened taper duration after implementation of a dtandardized protocol for iatrogenic benzodiazepine and opioid withdrawal in pediatric patients: results of a cohort study. Pediatr Qual Saf. (2018) 3(3):e079. doi: 10.1097/pq9.0000000000000079

PubMed Abstract | CrossRef Full Text | Google Scholar

91. Walters RA, Izquierdo M, Rodriguez JC, Stevens JS, Lavandosky G. Iatrogenic opiate withdrawal in pediatric patients: implementation of a standardized methadone weaning protocol and withdrawal assessment tool. J Pharm Pract. (2021) 34(3):417–22. doi: 10.1177/0897190019875613

PubMed Abstract | CrossRef Full Text | Google Scholar

92. Wilson AK, Ragsdale CE, Sehgal I, Vaughn M, Padilla-Tolentino E, Barczyk AN, et al. Exposure-Based methadone and lorazepam weaning protocol reduces wean length in children. J Pediatr Pharmacol Ther. (2021) 26(1):42–9. doi: 10.5863/1551-6776-26.1.42

PubMed Abstract | CrossRef Full Text | Google Scholar

93. Yang Y, Akhondi-Asl A, Geva A, Dwyer D, Stickney C, Kleinman ME, et al. Implementation of an analgesia-sedation protocol is associated with reduction in midazolam usage in the PICU. Pediatr Crit Care Med. (2021) 22(10):e513–23. doi: 10.1097/PCC.0000000000002729

PubMed Abstract | CrossRef Full Text | Google Scholar

94. Deindl P, Giordano V, Fuiko R, Waldhoer T, Unterasinger L, Berger A, et al. The implementation of systematic pain and sedation management has no impact on outcome in extremely preterm infants. Acta Paediatr. (2016) 105(7):798–805. doi: 10.1111/apa.13334

PubMed Abstract | CrossRef Full Text | Google Scholar

95. Deindl P, Unterasinger L, Kappler G, Werther T, Czaba C, Giordano V, et al. Successful implementation of a neonatal pain and sedation protocol at 2 NICUs. Pediatrics. (2013) 132(1):e211–8. doi: 10.1542/peds.2012-2346

PubMed Abstract | CrossRef Full Text | Google Scholar

96. Zhu X, Feng X, Lin J, Ding Y. Risk factors of delirium in paediatric intensive care units: a meta-analysis. PLoS One. (2022) 17(7):e0270639. doi: 10.1371/journal.pone.0270639

PubMed Abstract | CrossRef Full Text | Google Scholar

97. Ista E, Redivo J, Kananur P, Choong K, Colleti J Jr, Needham DM, et al. ABCDEF Bundle practices for critically ill children: an international survey of 161 PICUs in 18 countries. Crit Care Med. (2022) 50(1):114–25. doi: 10.1097/CCM.0000000000005168

PubMed Abstract | CrossRef Full Text | Google Scholar

98. Kinsman L, Rotter T, James E, Snow P, Willis J. What is a clinical pathway? Development of a definition to inform the debate. BMC Med. (2010) 8:31. doi: 10.1186/1741-7015-8-31

PubMed Abstract | CrossRef Full Text | Google Scholar

99. McLachlan S, Kyrimi E, Dube K, Hitman G, Simmonds J, Fenton N. Towards standardisation of evidence-based clinical care process specifications. Health Informatics J. (2020) 26(4):2512–37. doi: 10.1177/1460458220906069

PubMed Abstract | CrossRef Full Text | Google Scholar

100. Soong C, Shojania KG. Education as a low-value improvement intervention: often necessary but rarely sufficient. BMJ. (2020) 29(5):353–7. doi: 10.1136/bmjqs-2019-010411

CrossRef Full Text | Google Scholar

101. Stevens BJ, Yamada J, Promislow S, Stinson J, Harrison D, Victor JC. Implementation of multidimensional knowledge translation strategies to improve procedural pain in hospitalized children. Implement Sci. (2014) 9(1):120. doi: 10.1186/s13012-014-0120-1

PubMed Abstract | CrossRef Full Text | Google Scholar

102. Lebet RM, Hasbani NR, Sisko MT, Agus MS, Nadkarni VM, Wypij D, et al. Nurses’ perceptions of workload burden in pediatric critical care. Am J Crit Care. (2021) 30(1):27–35. doi: 10.4037/ajcc2021725

PubMed Abstract | CrossRef Full Text | Google Scholar

103. Rafaela P, Julia Valeria de Oliveira Vargas B, Fabiana Brum H, Alexander Garcia P, Eleine M, Edlamar Kátia A, et al. Evaluation of care technology applied to the nursing process in the light of best practices. Rev Rene. (2020) 21:e44420. doi: 10.15253/2175-6783.20202144420

CrossRef Full Text | Google Scholar

104. Bezemer T, De Groot MC, Blasse E, Ten Berg MJ, Kappen TH, Bredenoord AL, et al. A human (e) factor in clinical decision support systems. J Med Internet Res. (2019) 21(3):e11732. doi: 10.2196/11732

PubMed Abstract | CrossRef Full Text | Google Scholar

105. Nilsen P. Making sense of implementation theories, models and frameworks. Implement Sci. (2015) 10(1):53. doi: 10.1186/s13012-015-0242-0

PubMed Abstract | CrossRef Full Text | Google Scholar

106. Geva A, Albert BD, Hamilton S, Manning M-J, Barrett MK, Mirchandani D, et al. eSIMPLER: a dynamic, electronic health record–integrated checklist for clinical decision support during PICU daily rounds. Pediatr Crit Care Med. (2021) 22(10):898–905. doi: 10.1097/PCC.0000000000002733

PubMed Abstract | CrossRef Full Text | Google Scholar

107. Orenstein EW, Kandaswamy S, Muthu N, Chaparro JD, Hagedorn PA, Dziorny AC, et al. Alert burden in pediatric hospitals: a cross-sectional analysis of six academic pediatric health systems using novel metrics. J Am Med Inform Assoc. (2021) 28(12):2654–60. doi: 10.1093/jamia/ocab179

PubMed Abstract | CrossRef Full Text | Google Scholar

108. Yaghmai BF, Di Gennaro JL, Irby GA, Deeter KH, Zimmerman JJ. A pediatric sedation protocol for mechanically ventilated patients requires sustenance beyond implementation. Pediatr Crit Care Med. (2016) 17(8):721–6. doi: 10.1097/PCC.0000000000000846

PubMed Abstract | CrossRef Full Text | Google Scholar

109. Kouri A, Yamada J, Lam Shin Cheung J, Van de Velde S, Gupta S. Do providers use computerized clinical decision support systems? A systematic review and meta-regression of clinical decision support uptake. Implement Sci. (2022) 17(1):21. doi: 10.1186/s13012-022-01199-3

PubMed Abstract | CrossRef Full Text | Google Scholar

110. Dodds E, Kudchadkar SR, Choong K, Manning JC. A realist review of the effective implementation of the ICU liberation bundle in the paediatric intensive care unit setting. Aust Crit Care. In press. doi: 10.1016/j.aucc.2022.11.007

PubMed Abstract | CrossRef Full Text | Google Scholar

111. Rohlik G, Pfeiffer AJ, Collins CE, Parrett CR, Kawai Y. Improving pediatric delirium assessment documentation and implementation of a nonpharmacologic delirium management bundle in the cardiovascular intensive care unit. J Pediatr Nurs. (2021) 60:168–76. doi: 10.1016/j.pedn.2021.04.035

PubMed Abstract | CrossRef Full Text | Google Scholar

112. Hoffmann TC, Glasziou PP, Boutron I, Milne R, Perera R, Moher D, et al. Better reporting of interventions: template for intervention description and replication (TIDieR) checklist and guide. Br Med J. (2014) 348:g1687. doi: 10.1136/bmj.g1687

CrossRef Full Text | Google Scholar

113. Retzer A, Calvert M, Ahmed K, Keeley T, Armes J, Brown JM, et al. International perspectives on suboptimal patient-reported outcome trial design and reporting in cancer clinical trials: a qualitative study. Cancer Med. (2021) 10(16):5475–87. doi: 10.1002/cam4.4111

PubMed Abstract | CrossRef Full Text | Google Scholar

114. Reynders RM, Ladu L, Di Girolamo N. Contacting of authors modified crucial outcomes of systematic reviews but was poorly reported, not systematic, and produced conflicting results. J Clin Epidemiol. (2019) 115:64–76. doi: 10.1016/j.jclinepi.2019.07.001

PubMed Abstract | CrossRef Full Text | Google Scholar

115. van Dijk M, Ista E. Four-in-One: a comprehensive checklist for the assessment of pain, undersedation, iatrogenic withdrawal and delirium in the PICU: a delphi study. Front Pediatr. (2022) 10:887689. doi: 10.3389/fped.2022.887689

PubMed Abstract | CrossRef Full Text | Google Scholar

116. Yang Y, Geva A, Madden K, Mehta NM. Implementation science in pediatric critical care—sedation and analgesia practices as a case study. Front Pediatr. (2022) 10:864029. doi: 10.3389/fped.2022.864029

PubMed Abstract | CrossRef Full Text | Google Scholar

117. Armstrong MJ, Mullins CD, Gronseth GS, Gagliardi AR. Impact of patient involvement on clinical practice guideline development: a parallel group study. Implement Sci. (2018) 13(1):55. doi: 10.1186/s13012-018-0745-6

PubMed Abstract | CrossRef Full Text | Google Scholar

118. Engel J, von Borell F, Baumgartner I, Kumpf M, Hofbeck M, Michel J, et al. Modified ABCDEF-bundles for critically ill pediatric patients-what could they Look like? Front Pediatr. (2022) 654:886334. doi: 10.3389/fped.2022.886334

CrossRef Full Text | Google Scholar

119. Carman KL, Dardess P, Maurer M, Sofaer S, Adams K, Bechtel C, et al. Patient and family engagement: a framework for understanding the elements and developing interventions and policies. Health Aff. (2013) 32(2):223–31. doi: 10.1377/hlthaff.2012.1133

CrossRef Full Text | Google Scholar

120. Secunda KE, Kruser JM. Patient-Centered and family-centered care in the intensive care unit. Clin Chest Med. (2022) 43(3):539–50. doi: 10.1016/j.ccm.2022.05.008

PubMed Abstract | CrossRef Full Text | Google Scholar
