Pyelo-ureteral junction obstruction in poorly functioning kidneys: Does conservative management play a role in pediatric patients?

Background: Management of Pyelo-ureteral Junction Obstruction (PUJO) in poorly functioning kidneys in pediatric patients is still controversial, particularly regarding the role of conservative treatment.

Aim: To evaluate and present the outcomes of internal diversion and follow-up results of a small series of pediatric patients with UPJO in poorly functioning kidneys.

Study design: Retrospective review of 17 consecutive patients with unilateral PUJO in kidneys with Differential Renal Function (DRF) <20% undergoing temporary internal urinary diversion between 2009 and 2021 at a single tertiary center. DRF was reassessed after 1–3 months of diversion and subsequent management was conservative or surgical (pyeloplasty or nephrectomy) based on surgeon’s and family’s preferences without randomization.

Results: After a trial of internal urinary diversion, 4/17 patients (23%) showed a DRF increase ≥5% (9%–12%), up to a maximum DRF of 28%, 3 underwent pyeloplasty, while 1 was managed conservatively. The remaining 13 patients showed no differential renal function improvement after diversion, and 7 were managed expectantly while 6 surgically (4 pyeloplasty, 2 nephrectomy). Overall, nine patients (53%) were managed surgically and 8 (47%) expectantly After a median (range) follow-up of 3.1 (0.3–7.9) years, no significant difference was observed between groups regarding symptoms (p = 0.205), need for further surgery (p = 1.000), and renal function (p = 1.000).

Discussion: Although fraught with the limitation of a small sample size, this is the first study reporting on the conservative management of this controversial group of patients.

Conclusion: In present pediatric series of pyelo-ureteral Junction obstruction in poorly functioning kidneys with differential renal function <20%, function recovery after a trial of internal urinary diversion was quite exceptional, and no difference was observed in outcome between patients managed surgically and conservatively after stent removal.

Introduction

In a patient with Pyelo-Ureteral Junction Obstruction (PUJO) like hydronephrosis, the presence of renal function impairment, defined as a differential renal function (DRF) on the affected side <40% is generally considered an indication for surgery (1). Nevertheless, some patients present with a severely impaired DRF, which cut-off is quite variable and arbitrary in the literature generally ranging between <20% and <10% (2–7). Under these circumstances, management becomes more controversial. Some authors recommend direct nephrectomy, others direct pyeloplasty, and others a trial of temporary urinary diversion to begin with in order to assess the actual potential for function recovery before embarking on either nephrectomy or pyeloplasty (2–7). The evidence, however, indicates that the likelihood of renal function recovery is generally limited in these situations and that no factor can reliably predict it (2). Additionally, although conservative management is the first line treatment in patients with PUJO-like hydronephrosis and normal DRF (8, 9), to our knowledge, no pediatric series exists of patients with PUJO in poorly functioning kidneys treated nonoperatively.

The purpose of this study was to report the outcomes of internal diversion and follow-up results of a small series of pediatric patients with UPJO in poorly functioning kidneys comparing those treated operatively to those managed conservatively. Our hypotheses were that diversion hardly allows for function recovery and conservative management might be a viable option.

Methods

A retrospective review of consecutive patients with PUJO in poorly functioning kidney treated with a temporary urinary diversion at single tertiary center between 2009 and 2021 was undertaken. Inclusion criteria were age <18 years, unilateral PUJO, and ipsilateral Differential Renal Function (DRF) <20%. The cut-off of DRF <20% was arbitrary, but consistent with previous studies (2). Exclusion criteria were incomplete follow-up data, secondary PUJO, or associated upper and/or lower urinary tract anomalies. The number of cases in the area during the study period determined the sample size. Locally, nationally, and internationally referred patients composed the study population. Clinical, radiological, and surgical variables were revised.

PUJO was diagnosed in patients with persistent/worsening hydronephrosis on ultrasound and decreased DRF on diuretic renography. At the outset, the patients were evaluated with a diuretic renogram to confirm the obstruction and assess the DRF. Patients underwent a temporary internal urinary diversion with a Double-J stent (DJ). For the purpose of this study, the images of the pyelography performed at stent placement were reviewed by two of the authors and the cause of PUJ was classified as intrinsic (ureter entering the pelvic straight in a dependent position) or kinking (such as in case of high insertion or suspicion of extrinsic obstruction). A diuretic renogram was obtained with diversion in place after 1–3 months to assess any function recovery. In the absence of a standardized DRF cut-off on diuretic renography, we defined as significant improvement any increase in DRF ≥5%. Treatment options included removal of the ureteral stent and conservative management, pyeloplasty (laparoscopic or laparo-assisted dismembered Anderson-Hynes pyeloplasty), or nephrectomy (retroperitoneoscopic). There was no randomization. Patients were followed-up with serial clinical and sonographic checks at increasing intervals (usually at 2–6–12 months and yearly thereafter). A diuretic renogram was obtained during subsequent follow-up only in patients developing symptoms or with worsening hydronephrosis.

Primary endpoints to compare patients managed surgically vs. expectantly included symptoms (e.g., pain, hypertension, UTIs, etc.), need for further surgery, and renal function. The latter was defined as normal if serum creatinine was within normal range for age and weight, and there was no hypertension requiring treatment.

Categorical variables were reported as absolute and relative frequencies (%). Continuous variables are reported as median and range. Groups were compared using the Chi Square test or the Fisher exact test for categorical variables, as appropriate. For continuous variables, differences between groups were established with a non-parametric test, U Mann–Whitney test. All p-values were two-sided, and a value <0.05 was considered significant.

This study did not receive any specific grant from funding agencies in the public, commercial, or for nonprofit sectors. The authors have no financial relationships or conflicts of interest to disclose.

The present study received authorization for publication from the scientific board in the authors’ institution.

Results

The series included 17 patients (Tables 1, 2 and Figure 1). After DJ insertion, 4/17 (23%) patients showed a DRF increase ≥5% (median 11.5%, range 9%–12%), for a final maximum ipsilateral DRF of 28% in one patient. Of note, age of these 4 patients was 2.1, 2.3, 7.4, and 14 years, whereas none of the 6 patients undergoing diversion in the first 18 months of life showed any significant DRF improvement. DFR improvement occurred in 3 out of 8 patients with evidence of an intrinsic obstruction on pyelography vs. 1/6 with evidence of ureteral kinking. Two of the kidneys with DRF less than 15% experienced an increase of DRF ≥5% with diversion (Table 2).

FIGURE 1

Figure 1. Management, follow-up, and outcomes according to evolution of DRF with urinary diversion. UPJO, Ureteropelvic Junction Obstruction; DRF, Differential Renal Function.

TABLE 1

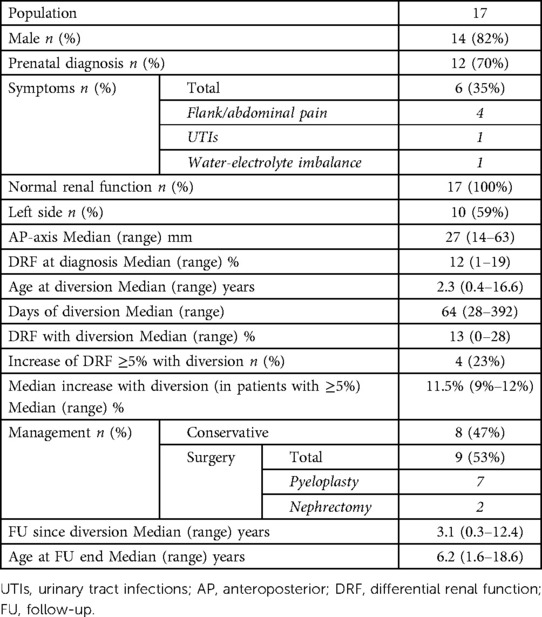

Table 1. Population, diagnosis and management, and follow-up.

TABLE 2

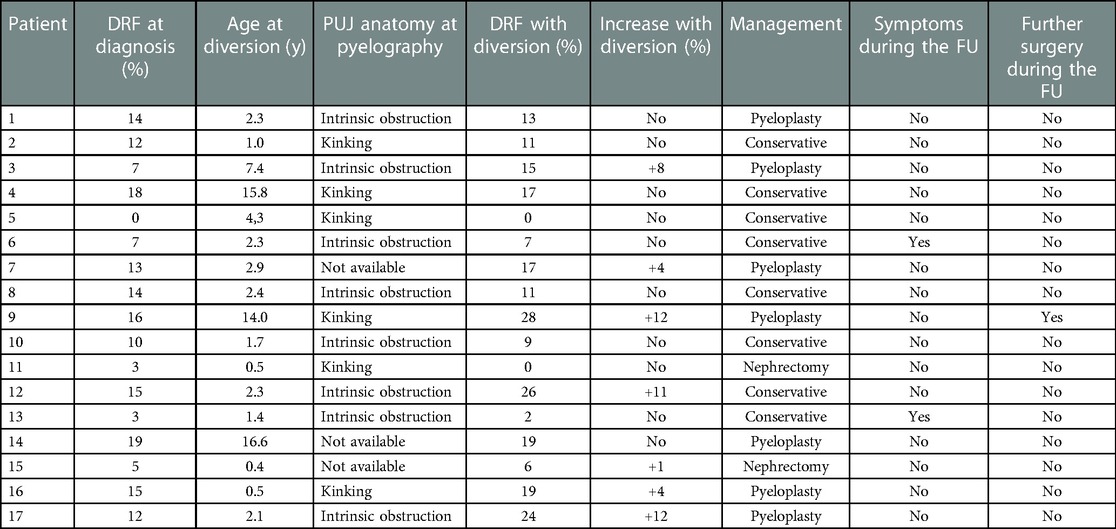

Table 2. Individual details of the patients.

Of the 4 patients showing a DRF improvement >5% after diversion, 3 underwent pyeloplasty, while 1 was managed conservatively for parental preference. The remaining 13 patients showed no DRF improvement after diversion, and 7 were managed expectantly while 6 surgically (4 pyeloplasty, 2 nephrectomy).

Overall, of 17 patients, 9 (53%) were managed surgically (7 pyeloplasty, 2 nephrectomy) and 8 (47%) expectantly. Median (range) follow-up after diversion was 3.1 (0.3–12.4) years and median (range) age at last follow-up was 6.2 (1.6–18.6) years. Outcomes of patients undergoing operative vs. nonoperative management are detailed in (Table 3). No statistically significant difference was observed regarding symptoms (p = 0.2), need for further surgery (p = 1.0), renal function (p = 1.0), despite a comparable length of follow-up (p = 0.9) and age at last follow-up (p = 0.3). No surgically treated patients developed symptoms, but one (11%) underwent an endoscopic balloon dilatation of the pyelo-ureteral anastomosis to rule out a recurrent obstruction after a pyeloplasty. Two patients (25%) managed conservatively developed symptoms during follow-up, a mild occasional hypertension which did not require any treatment and a single episode of urosepsis treated medically, respectively. None of the patients managed conservatively underwent further surgeries. All the patients had normal renal function at last follow-up.

TABLE 3

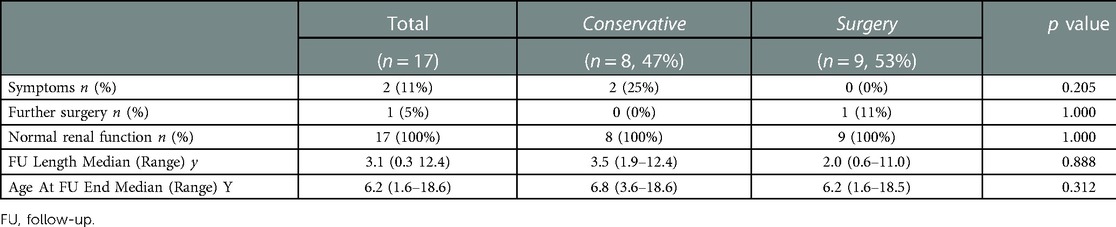

Table 3. Surgery and conservative management follow-up outcomes.

Table 4 summarizes results according to the changes in DFR during diversion. Of the 4 patients showing DRF improvement (3 pyeloplasty and 1 managed conservatively), none developed symptoms, one underwent a balloon dilatation of the pyelo-ureteral anastomosis, and all had normal renal function at last follow-up. Of the 13 patients with no increase of the DRF (7 managed expectantly, 4 pyeloplasty, and 2 nephrectomy), 2 managed conservatively developed symptoms during follow-up (1 occasional hypertension, 1 single episode of urosepsis), none underwent further surgery, and all had normal renal function at last follow-up.

TABLE 4

Table 4. Management and follow-up and outcomes according to evolution of differential renal function with diversion.

Discussion

In our experience, the chances of recovery of poorly functioning, obstructed kidneys was low, only 4 patients experienced an increase of DRF ≥5% and maximum increase was 12%. Patients managed surgically and expectantly had similar outcomes in terms of symptoms, need for further surgery, and final renal function.

A trial of urinary diversion either external with a percutaneous, nephrostomy, or internal with a DJ stent, as in current series, is theoretically rational under these circumstances to assess function salvageability and choose the most appropriate treatment. Such a strategy was initially popularized in the 1980s (10–15). However, reported outcomes in recent series are quite inconsistent, with improvements in renal function following diversion seen in 24%–100% of patients. Such variability can perhaps be accounted for by the heterogeneity of studies particularly in terms of the cut-offs used to define poor function (DRF <20%, <15%, or <10%) (3–6, 16), and significant DRF improvement (DRF ≥10% at control (6, 16); DRF increase ≥10% compared to the baseline (5); DRF ≥10% at control and PCN drainage greater than 200 ml per day (4); SRF and GFR more than 10% (3)), respectively. Unfortunately, all these parameters remain somewhat arbitrary. The results of present series seem to support the principle that function recovery is rare and often limited. Additionally, no criteria can predict which patients will experience function recovery (17, 18). Consistently, in contrast with common sense, none of the patients undergoing diversion below 18 months experienced significant function recovery, whereas the patient experiencing the greatest degree of function recovery was one of the oldest of the series. A recent systematic review suggested that renal function recoverability might be more likely in patients with a DRR at the outset <15% (18). We had no many patents with a DRF in the range 15%–20%, but function recovery occurred both in patient with a DRF at the outset above and below this cutoff (DRF 7%, 12%, 15%, 16%, respectively. Table 4). Overall, after reviewing our experience, we now question the role of a trial of urinary diversion in patients with poorly functioning, obstructed kidneys. Given the limited chances of function recovery, the costs and risks of two procedures and two anesthesia, in our opinion, are not warranted. Moreover, similar considerations apply also to an external diversion. Although the latter can potentially be placed and removed without anesthesia, it is perhaps more bothersome for the patients and their family. Previous studies suggested direct pyeloplasty as a viable alternative for those families wishing to make any attempt to preserve renal function, but double J stent placement and removal seem quicker and simpler procedures (19).

Beyond the debate surrounding urinary diversion, conservative treatment, nephrectomy, or pyeloplasty can all be used as final management. The first is often claimed as an option, but, in fact, to the best our knowledge, this is the first series reporting results. Interestingly enough, outcomes appeared to be pretty comparable between patients managed operatively and nonoperatively. In keeping with previous series (2), present one confirms that nephrectomy is the approach with the lowest risk of long-term issues and therefore the lowest need for long-term follow-up. Consistently, in retrospect, we believe that our choice to perform a pyeloplasty in the 4 patients with no increase in DRF after diversion, was a mistake and we would no longer offer this option in this scenario.

The results of present experience must be qualified by its retrospective nature and the extremely limited sample. The main limit of the study is the lack of randomization. Moreover, due to our methodology, we may have missed patients for whom conservative treatment without a trial of urinary diversion was elected during the study period. Furthermore, owing to the lack of a standardized prospective protocol for management of pediatric patients with PUJO in poorly functioning kidneys, decisions were left to clinicians’ and family/caregivers’ discretion. Therefore, larger, prospective, multicenter studies are required to validate our results.

Conclusions

Even if the numbers within the study are too small to draw any definitive conclusion, in our experience, only one-fourth of cases experienced an improvement in differential renal function >5%. Outcomes were not significantly different between patients managed conservatively and operatively after stent removal.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

AZ, EM and MC conceived the study and wrote the first draft of the manuscript. MC worked on the drafts and re-edits of the manuscript. All authors contributed to the article and approved the submitted version.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Abbreviations

PUJO, pyelo-ureteral junction obstruction; DRF, differential renal function; PCN, percutaneous nephrostomy; DJ, double-J stent; UTIs, urinary tract infections; US, ultrasound; FU, follow-up.

References

1. EAU. EAU Guidelines. Edn. Presented at the EAU annual congress Amsterdam 2022 (2022).

2. Gnech M, Berrettini A, Lopes RI, et al. Pyeloplasty vs. Nephrectomy for ureteropelvic junction obstruction in poorly functioning kidneys (differential renal function &lt;20%): a multicentric study. J Pediatr Urol. (2019) 15(5):553.e1–e8. doi: 10.1016/j.jpurol.2019.05.032

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Kumar V, Kumar Thakur V, Yadav R, et al. Role of nephrostomy in poorly functioning kidneys in patients with ureteropelvic junction obstruction (UPJO). Iran J Pediatr Surg. (2019) 5(1):1–5. doi: 10.22037/irjps.v5i1.23939

CrossRef Full Text | Google Scholar

4. Chowdhury MMR, Zaman R, Rasul MA, Hossain AS, Chowdhury SA, Rahman MM. Outcome of percutaneous nephrostomy in children with ureteropelvic junction obstruction. Bangladesh J Urol. (2020) 20(2):61–4. doi: 10.3329/bju.v20i2.49654

CrossRef Full Text | Google Scholar

5. Aziz MA, Hossain AZ, Banu T, et al. In hydronephrosis less than 10% kidney function is not an indication for nephrectomy in children. Eur J Pediatr Surg Off J Austrian Assoc Pediatr Surg. (2002) 12(5):304–7. doi: 10.1055/s-2002-35956

CrossRef Full Text | Google Scholar

6. Singh A, Bajpai M, Panda SS, Sharma N. Role of percutaneous nephrostomy in poorly functioning kidney due to pelviureteric junction obstruction in older children. J Prog Paediatr Urol. (2013) 16(2):46–9.

Google Scholar

7. Marpole R, Blackmore AM, Gibson N, et al. Gastroesophageal reflux in children with neurological impairment: a systematic review and meta-analysis. Br Med J. (2020) 55(11):516–54. doi: 10.1007/s00383-018-4335-0

CrossRef Full Text | Google Scholar

8. Ismail A, Elkholy A, Zaghmout O, et al. Postnatal management of antenatally diagnosed ureteropelvic junction obstruction. J Pediatr Urol. (2006) 2(3):163–8. doi: 10.1016/j.jpurol.2005.07.005

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Jain V, Agarwala S, Bhatnagar V, Gupta AK, Kumar R, Bal CS. Long term outcome of management of antenatally diagnosed pelvi-ureteric junction obstruction. Indian J Pediatr. (2012) 79(6):769–73. doi: 10.1007/s12098-011-0546-2

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Héloury Y, Schmitt P, Allouch G, Gruner M, Bruézière J. Treatment of neonatal hydronephrosis by malformation of the ureteropelvic junction: interest of percutaneous nephrostomy. Eur Urol. (1986) 12(4):224–9. doi: 10.1159/000472623

CrossRef Full Text | Google Scholar

11. Irving HC, Arthur RJ, Thomas DF. Percutaneous nephrostomy in paediatrics. Clin Radiol. (1987) 38(3):245–8. doi: 10.1016/s0009-9260(87)80057-0

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Winfield AC, Kirchner SG, Brun ME, Mazer MJ, Braren HV, Kirchner FKJ. Percutaneous nephrostomy in neonates, infants, and children. Radiology. (1984) 151(3):617–9. doi: 10.1148/radiology.151.3.6718719

PubMed Abstract | CrossRef Full Text | Google Scholar

13. LiPuma JP, Haaga JR, Bryan PJ, et al. Percutaneous nephrostomy in neonates and infants. J Urol. (1984) 132(4):722–4. doi: 10.1016/s0022-5347(17)49840-5

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Stanley P, Diament MJ. Pediatric percutaneous nephrostomy: experience with 50 patients. J Urol. (1986) 135(6):1223–6. doi: 10.1016/s0022-5347(17)46046-0

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Ransley PG, Dhillon HK, Gordon I, Duffy PG, Dillon MJ, Barratt TM. The postnatal management of hydronephrosis diagnosed by prenatal ultrasound. J Urol. (1990) 144(2 Pt 2):584. doi: 10.1016/s0022-5347(17)39528-9

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Gupta DK, Chandrasekharam VV, Srinivas M, Bajpai M. Percutaneous nephrostomy in children with ureteropelvic junction obstruction and poor renal function. Urology. (2001) 57(3):547–50. doi: 10.1016/s0090-4295(00)01046-3

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Castagnetti M, Novara G, Beniamin F, Vezzú B, Rigamonti W, Artibani W. Scintigraphic renal function after unilateral pyeloplasty in children: a systematic review. BJU Int. (2008) 102(7):862–8. doi: 10.1111/j.1464-410X.2008.07597.x

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Abbas T, Elifranji M, Al-Salihi M, Ahmad J, Vallasciani S, Elkadhi A, et al. Functional recoverability post-pyeloplasty in children with ureteropelvic junction obstruction and poorly functioning kidneys: systematic review. J Pediatr Urol. (2022) 18(5):616–28. doi: 10.1016/j.jpurol.2022.07.009.

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Lone YA, Samujh R, Bhattacharya A, Kanojia RP. Outcome of poorly functioning kidneys secondary to PUJO preserved by pyeloplast. J Pediatr Surg. (2017) 52(4):578–81. doi: 10.1016/j.jpedsurg.2016.11.039

PubMed Abstract | CrossRef Full Text | Google Scholar
