Kenichiro Hayashi*
Hikoro Matsui- Department of Pediatrics, The University of Tokyo Hospital, Bunkyo City, Japan
Background: Hyperlactemia after cardiopulmonary bypass is associated with adverse events during the early postoperative period in children. Serum lactate levels, a standard marker of anaerobic metabolism, are determined by the production, conversion and clearance of lactate, and may lag behind the anaerobic response. Here, we report a neonatal case under anaerobic conditions after cardiac surgery, whose expired gas parameters dramatically changed before a rise in blood lactate.
Case Presentation: A 23-day-old girl with tetralogy of Fallot was admitted to the pediatric intensive care unit after modified Blalock-Taussig shunt operation. As hemoconcentration increased and pleural fluid and ascites accumulated, we performed partial exchange transfusion to prevent shunt occlusion. Ten minutes after partial exchange transfusion, oxygen uptake and carbon dioxide production measured by indirect calorimetry suddenly dropped, while the respiratory quotient began to rise steeply before hyperlactatemia developed a few hours later.
Conclusion: Analysis of expired gas in critically ill children can detect the transition from aerobic to anaerobic conditions before hyperlactatemia.
Introduction
Aerobic metabolism maintains the balance between systemic oxygen (O2) delivery and consumption and is a key component in the management of critically ill patients. Anaerobic metabolism may arise through a mismatch between O2 demand and supply, a phenomenon that is often observed in pediatric patients after cardiopulmonary bypass (CPB) and can lead to hyperlactatemia, which is associated with adverse events during the early postoperative period (1–3). Serum lactate levels, a standard marker of anaerobic metabolism, generally reflect not only the results of anaerobic glycolysis, but also the conversion of lactate into pyruvate or glucose in the liver and its clearance in the liver and kidney (4). Therefore, direct analysis of O2 metabolism behind lactate production would provide further important information to elucidate the pathophysiology of anaerobic conditions.
Continuous and non-invasive analysis of expired gas through indirect calorimetry (IC) has been used to detect anaerobic metabolism, especially during exercise (5). Specifically, with increasing workload, IC indicates the rise of both O2 uptake (VO2) and carbon dioxide (CO2) production (VCO2), especially VCO2-dominant under anaerobic condition, leading to the elevation of the respiratory quotient (RQ = VCO2 / VO2). RQ elevation is also observed in the context of tissue hypoperfusion in some animal models (6–8) and is monitored in adult patients after cardiac surgery (9). Evaluating the metabolic condition by monitoring RQ is potentially useful for achieving a better understanding of the clinical state of critically ill children (10).
Here, we report a case of neonate under anaerobic condition after cardiac surgery, whose VO2, VCO2, and RQ dramatically changed before a rise in blood lactate, indicating that IC can be utilized for hemodynamic monitoring in pediatric critical care.
Case Presentation
The patient was a 23-day-old girl (height 47 cm, weight 3.0 kg) diagnosed with tetralogy of Fallot and suffering from repeated anoxic spells. She was admitted to the PICU and was mechanically ventilated after modified Blalock-Taussig shunt operation under CPB. At the time of admission, hemoconcentration increased, and pleural fluid and ascites accumulated and, after 6 h later, hemoglobin (Hb) and hematocrit (Hct) reached 22.1 g/dL (normal range 13.4–16.6 g/dL) and 67.5% (normal range 41–53%), respectively (17.1 g/dL and 52.2% on admission, respectively). Her hemodynamic condition was consistently stable with normal blood lactate levels (normal range below 2 mmol/L).
We decided to perform partial exchange transfusion (PExT) with acetated Ringer’s solution for diluting the blood to prevent shunt occlusion due to increased blood viscosity. We performed PExT three times (25 mL/kg in total) over 2 h to minimize the influence on hemodynamics. To determine the detailed status of oxygen delivery during the procedure, we monitored VO2, VCO2, and RQ breath by breath with IC (E-COVX; GE Healthcare, Helsinki, Finland), in addition to measuring blood lactate repeatedly every 30 mins to few hours. During the transient anaerobic metabolism associated with PExT, RQ showed a very fast response compared to the change in blood lactate (Figure 1). During PExT, mild hypotension and tachycardia occurred, although cardiac function was maintained on echocardiography. Therefore, we administered minimal fluid bolus therapy to maintain organ perfusion pressure. Throughout the period, her condition was almost stable with a temperature of 36.0 ± 0.4°C and blood glucose of 150 ± 10 mg/dL without infusion of insulin.

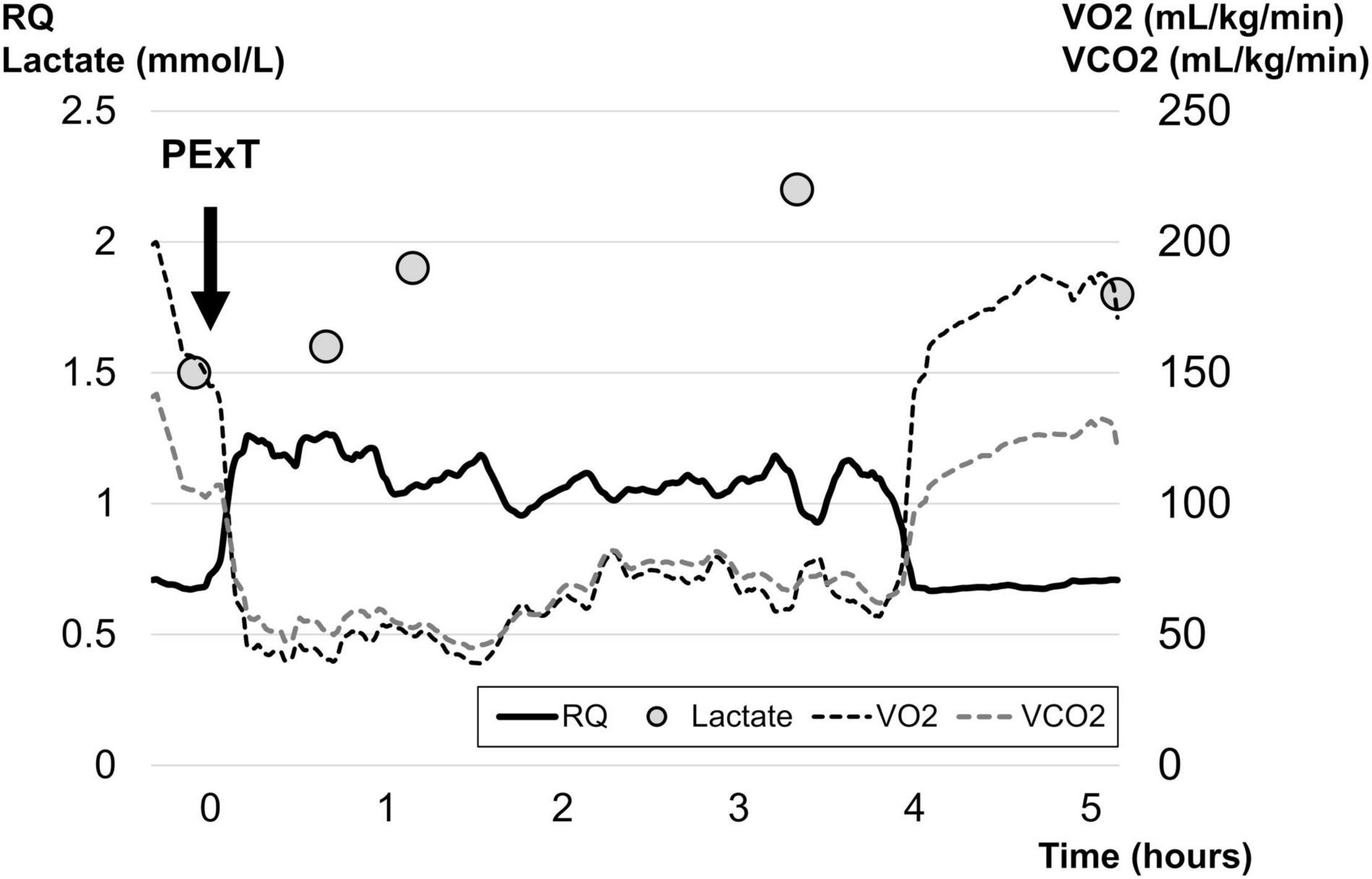

Figure 1. Changes in expired gas parameters and blood lactate over time. The trends of gas exchange measurements and blood lactate are presented. Ten minutes after the first PExT, both VO2 and VCO2 suddenly dropped, while RQ began to rise steeply before a rise in the level of blood lactate level up to 2.2 mmol/L a few hours after the RQ elevation. All of these parameters plateaued over the next 4 h, and then returned to the initial level. PExT, partial exchange transfusion; RQ, respiratory quotient; VCO2, carbon dioxide production; VO2, oxygen uptake.
She was extubated after her cardiorespiratory condition became stable on postoperative day 2. She was discharged from the PICU on postoperative day 5 without any complications of the surgery.
Discussion
In the case, we recognized a novel reaction of anaerobic metabolism with a drop in VO2 and VCO2 accompanied by the steep rise of RQ right after the blood was diluted through PExT. Quantitative measuring of VO2, VCO2 and RQ is the gold standard for the assessment of energy metabolism, and increased RQ is a marker of anaerobic metabolism (11). Furthermore, the plunge of VO2 and VCO2 and the elevation of RQ have been observed under anaerobic conditions in animal models of hemodilution (7). Therefore, we firstly applied IC for evaluating the relationships between hemodilution and expired gas parameters in a neonate requiring PExT. The reaction of VO2, VCO2 and RQ occurred several hours before the mild hyperlactatemia, and then recovered as blood lactate level gradually decreased. These findings suggest that IC has a potential for a sensitive assessment of the anaerobic status in critically ill pediatric patients. On the other hand, in routine intensive care, the use of IC for energy consumption monitoring and respiratory gas analysis is still uncommon and expensive. Thus, further research is required for the practical application of IC.
Under anaerobic conditions, the drop of VCO2 is less pronounced than that of VO2, leading to the elevation of RQ (=VCO2 / VO2) (11). Even in critical states, when the systemic oxygen supply (DO2) is maintained at a sufficient level, both VO2 and the aerobic metabolite, VCO2, remain constant. On contrast, in the case with significant or rapid decreases of DO2 to a certain level, VO2 in peripheral tissues is proportionally limited, which indicates anaerobic metabolism (12). In our patient, the fall of VO2 was attributed to the impaired DO2 caused by hemodilution after PExT. Under anaerobic metabolism, aerobic CO2 production declines in parallel with the decrease in VO2. In the meanwhile, bicarbonates buffer protons generated anaerobically in the process of producing lactates, resulting in new anaerobic CO2 production, which offsets the decrease in total VCO2 (11). Thus, in order to detect the change from aerobic to anaerobic state, it is important to evaluate VO2, VCO2, and RQ in combination, rather than VO2 and VCO2 individually.
The early detection of the increase in RQ preceding hyperlactatemia [blood lactate value above 2 mmol/L (13)] was another noticeable finding in the patient. Under anaerobic conditions, changes in the balance between VO2 and VCO2 occur more promptly than those in the blood lactate level (11), because lactate is one of the metabolic products affected by excretion through urine and sweat or by uptake in liver (14). The rise in VO2 and VCO2 before hyperlactatemia is observed during incremental exercise (15) or in patients with inadequate perfusion during CPB (16), which means that the trend of VO2, VCO2, and RQ is potentially a more sensitive marker of anaerobic metabolism than blood lactate.
In conclusion, we report a steep rise in RQ before hyperlactatemia under anaerobic metabolism in a pediatric patient after cardiac surgery through IC monitoring. Expired gas analysis in critically ill children has the potential to detect the transition from aerobic to anaerobic conditions before hyperlactatemia occurs. This needs to be further investigated by observational studies or randomized controlled trials in the future.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics Statement
The studies involving human participants were reviewed and approved by the ethical committee in the University of Tokyo for publication with informed consent [Institutional Review Board No: 2701-(5)]. Written informed consent to participate in this study was provided by the participants’ legal guardian/next of kin. Written informed consent was obtained from the minor(s)’ legal guardian/next of kin for the publication of any potentially identifiable images or data included in this article.
Author Contributions
KH contributed to the data collection and drafted the initial manuscript. HM supervised the manuscript. Both authors agree to be accountable for the content of the work and approved the submitted version.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We appreciate the patient’s parents for their kind cooperation and for giving us permission to publish this case report.
References
1. Cheifetz IM, Kern FH, Schulman SR, Greeley WJ, Ungerleider RM, Meliones JN. Serum lactates correlate with mortality after operations for complex congenital heart disease. Ann Thorac Surg. (1997) 64:735–8. doi: 10.1016/s0003-4975(97)00527-4
2. Charpie JR, Dekeon MK, Goldberg CS, Mosca RS, Bove EL, Kulik TJ. Serial blood lactate measurements predict early outcome after neonatal repair or palliation for complex congenital heart disease. J Thorac Cardiovasc Surg. (2000) 120:73–80. doi: 10.1067/mtc.2000.106838
3. Ladha S, Kapoor PM, Singh SP, Kiran U, Chowdhury UK. The role of blood lactate clearance as a predictor of mortality in children undergoing surgery for tetralogy of fallot. Ann Card Anaesth. (2016) 19:217–24. doi: 10.4103/0971-9784.179589
4. Stephens EH, Epting CL, Backer CL, Wald EL. Hyperlactatemia: an update on postoperative lactate. World J Pediatr Congenit Heart Surg. (2020) 11:316–24. doi: 10.1177/2150135120903977
5. Wasserman K, Beaver WL, Whipp BJ. Gas exchange theory and the lactic acidosis (anaerobic) threshold. Circulation. (1990) 81(1 Suppl.): Ii14–30.
6. Cohen IL, Sheikh FM, Perkins RJ, Feustel PJ, Foster ED. Effect of hemorrhagic shock and reperfusion on the respiratory quotient in swine. Crit Care Med. (1995) 23:545–52. doi: 10.1097/00003246-199503000-00021
7. Dubin A, Ferrara G, Kanoore Edul VS, Martins E, Canales HS, Canullán C, et al. Venoarterial PCO2-to-arteriovenous oxygen content difference ratio is a poor surrogate for anaerobic metabolism in hemodilution: an experimental study. Ann Intensive Care. (2017) 7:65. doi: 10.1186/s13613-017-0288-z
8. Ferrara G, Edul VSK, Canales HS, Martins E, Canullán C, Murias G, et al. Systemic and microcirculatory effects of blood transfusion in experimental hemorrhagic shock. Intensive Care Med Exp. (2017) 5:24. doi: 10.1186/s40635-017-0136-3
9. Piot J, Hébrard A, Durand M, Payen JF, Albaladejo P. An elevated respiratory quotient predicts complications after cardiac surgery under extracorporeal circulation: an observational pilot study. J Clin Monit Comput. (2019) 33:145–53. doi: 10.1007/s10877-018-0137-0
10. Beggs MR, Garcia Guerra G, Larsen BMK. Do picu patients meet technical criteria for performing indirect calorimetry? Clin Nutr ESPEN. (2016) 15:80–4. doi: 10.1016/j.clnesp.2016.06.003
11. Ospina-Tascón GA, Madriñán HJ. Combination of O2 and CO2-derived variables to detect tissue hypoxia in the critically ill patient. J Thorac Dis. (2019) 11(Suppl. 11):S1544–50. doi: 10.21037/jtd.2019.03.52
12. Vincent JL, De Backer D. Oxygen transport-the oxygen delivery controversy. Intensive Care Med. (2004) 30:1990–6. doi: 10.1007/s00134-004-2384-4
13. Klee P, Rimensberger PC, Karam O. Association between lactates, blood glucose, and systemic oxygen delivery in children after cardiopulmonary bypass. Front Pediatr. (2020) 8:332. doi: 10.3389/fped.2020.00332
14. Hernandez G, Bellomo R, Bakker J. The ten pitfalls of lactate clearance in sepsis. Intensive Care Med. (2019) 45:82–5. doi: 10.1007/s00134-018-5213-x
15. Whipp BJ. Physiological mechanisms dissociating pulmonary CO2 and O2 exchange dynamics during exercise in humans. Exp Physiol. (2007) 92:347–55. doi: 10.1113/expphysiol.2006.034363
