ORIGINAL RESEARCH article

Front. Pediatr., 09 January 2023
Sec. Pediatric Urology
This article is part of the Research Topic Recent Advances in Hypospadiology View all 6 articles

Reoperation frequency after transverse preputial Island flap urethroplasty “Duckett’s technique” in treatment of severe hypospadias: A single center study

\r\nJiayi Li&#x;Jiayi LiPei Liu&#x;Pei LiuZhenzhen YangZhenzhen YangXinyu WangXinyu WangSongqiao FanSongqiao FanZonghan LiZonghan LiHongcheng Song
Hongcheng Song*Weiping Zhang
\r\nWeiping Zhang*
  • Department of Urology, Beijing Children’s Hospital, Capital Medical University, National Center for Children’s Health, Beijing, China

Purpose: Transverse Preputial Island Flap Urethroplasty (TPIFU) is one of the most common techniques for treating severe hypospadias. Studies on the reoperation frequency after TPIFU is lacking. In the present study, we reported our clinical outcomes of severe hypospadias treated with one-staged TPIFU and analyzed the operation frequency.

Methods: We retrospectively analyzed the clinical data of severe hypospadias patients who underwent one-stage TPIFU from December 2018 to December 2019 in the department of Urology at Beijing Children's Hospital. A stepwise approach was used to manage the curvature. Severe hypospadias was defined as those residual curvature was higher than 30° after degloving. Urethroplasty complications included fistula, urethral stricture, and diverticulum. The short-term cure was identified as no complications occurring for 12 months after the date of last-time surgery. The reoperation rate and operation frequency of TPIFU were analyzed.

Results: A total of 136 patients who underwent one-stage TPIFU were included in the study. The follow-up after primary urethroplasty ranged from 22 to 50 months. The median age at primary surgery was 22.5 months (range from 13 to 132 months). After primary TPIFU surgery, 53 (39%) patients underwent additional surgical interventions to treat postoperative complications. Among them, 24 patients (17.6%) developed fistula, 17 patients (12.5%) developed urethral stricture and 11 patients (8.1%) developed diverticulum. After the second surgery, five patients remained fistula, five patients remained urethral stricture, and seven patients remained diverticulum. Overall, 61% (85 patients) met the cured standard after the primary operation, and the two operations cure rate was 87.5% (119 patients). 91.2% (124 patients) were cured in three operations.

Conclusions: Although the complication rates after primary TPIFU were relatively high, more than half of patients achieved short-term cured through a single operation, and the cure rate after two or three operations was acceptable.

Introduction

Hypospadias is one of the most common congenital malformations of boys, of which proximal hypospadias account for 20% of all cases (1). Despite the evaluation and development of surgical techniques, the complication rate and reoperation rate of proximal hypospadias repair are still far from satisfactory (2). For proximal hypospadias with severe curvature, transection of the urethral plate is inevitable to correct ventral curvature (VC), and the simultaneous urethral plate substitution must be performed with graft implantation. In this situation, some surgeons prefer single-stage urethroplasty, such as transverse preputial island flap urethroplasty (TPIFU), the Koyanagi technique, whereas others advocate two-stage repair to achieve better functional and cosmetic outcomes (36). The two-stage approach separated VC correction and reconstruction of the urethral plate from urethroplasty, simplifying proximal hypospadias repairs with a lower complications rate, and has become the preferred method for many surgeons (7, 8). The comparative studies of these two techniques indicate a higher complication rate of TPIFU (9, 10). During the past decades, researchers have modified the surgical technique of TPIFU in order to improve the success rate. Ferro et al. argued that cutting a wedge and a V-shaped suture at the ends of the flap could help prevent any circumferential suture line, avoiding proximal anastomotic stricture and distal meatal stenosis (11). Huang et al. modified the TPIFU by performing straightforward and reliable in situ tubularization of the flap, reducing urethral stricture incidence. Nevertheless, as one of the most common techniques for treating severe hypospadias, limited studies focus on the reoperation frequency after TPIFU.

In the present study, we reported our clinical outcomes of proximal hypospadias treated with one-staged TPIFU and analyzed the reoperation frequency. We hypothesized that although the complication rates after primary TPIFU were relatively high, the cure rate after two or three operations was acceptable.

Materials and methods

Patients

The clinical data of severe hypospadias patients who underwent primary TPIFU were retrospectively reviewed and analyzed from December 2018 to December 2019 in the department of Urology at Beijing Children's Hospital, National Center for Children's Health. For efficient reoperation frequency analysis, we identified that no complications occurred for 12 months after the date of last-time surgery as the standard of short-term cure. All patients achieved the standard of cure after primary surgery or accepted subsequent surgery handling with complications. The exclusion criteria included patients lost to follow-up or those with insufficient follow-up time (less than 12 months) after the last surgery. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the ethics committee of Beijing Children's Hospital, Capital Medical University, National Center for Children's Health [IEC-C-006-A04-V.06, (2022)-E-030-R]. Individual consent for this retrospective analysis was waived.

We used a stepwise approach to manage the curvature suggested by Castagnetti et al., and severe hypospadias was defined as the residual VC was higher than 30° after degloving (12). An orthopedic protractor measured the VC. As for the meatus position, we adopted the meatal position-based classification proposed by Duckett and was further simplified as distal (normal, fossa navicular, coronal sulcus, and distal shaft), mid-penile (middle shaft) and proximal (proximal shaft, penoscrotal, scrotum, and perineum) (13). Measurement of intrinsic parameters, suture materials, and strategies for urethroplasty were standardized between six surgeons with at least 15 years of experience in hypospadias surgery. Routine follow-up for all patients included assessment in the clinic at three months, then 12 months postoperatively, and continuing annual telephone interview or outpatient review. Urethroplasty complications included fistula, urethral stricture, and diverticulum. The urethral stricture was diagnosed by obstructive voiding symptoms, and cystoscopy was performed for further confirmation when managing urethral stricture. All the complications were managed by the original surgeon.

Surgical techniques

The TPIFU is the typical Duckett technique described in the previous literature (14). A stepwise approach was enforced during the operation: we fully degloved the penile shaft, freeing all ventral tissues, and radically dissected dartos. VC was evaluated with an artificial erection, and if the residual curvature less than 30°, dorsal plication was performed to correct it, we performed tubularized incised plate (TIP) urethroplasty or Onlay flap technique according to the UP condition. If the residual curvature was more than 30°, we transected the urethral plate at the corona, and dorsal plication was performed if the chordee was still present. For patients whose urethral plate was transected, we performed TPIFU. Release the urethral plate and urethra, release ventral fibrotic tissue, and drop back the meatus to the penoscrotal junction or the proximal shaft. Perform artificial erection by injecting normal saline into single corpora. The flap length is the distance from the retracted meatus to the glans tip after correcting VC. Subsequently, clip a 12-mm wide rectangular flap from the inner prepuce, and roll the mobilized foreskin into a tube over a catheter. Transpose the tubulate urethra ventrally through the glans channel and anastomose with the native urethra with 6-0 absorbed PDS. The relaxed vascularized and deepithelialized tissue was dissected to cover the neourethra. Then, the foreskin was sutured together to cover all of the penis. The surgical procedure is detailed in Figure 1. Finally, the penis body was bandaged with gauze and an elastic bandage.

FIGURE 1
www.frontiersin.org

Figure 1. Surgical procedure of TPIFU (the Duckett’s procedure). (A) Separate the dorsal skin flaps. (B) Clip the rectangular flap from the inner prepuce, and roll the mobilized foreskin into a tube over a catheter. (C) Transpose the tubulate urethra ventrally through the glans channel and anastomose with the native urethra. (D) Postoperative appearance. TPIFU, transverse preputial island flap urethroplasty.

Statistical analysis

Patients' data were analyzed with R software (Version 4.0.3, http://www.r-project.org). The normal distribution and the homogeneity variance test were presented as mean ± SD, non-normal distribution or inhomogeneity variance test was presented as median and interquartile range. Continuous data were expressed as a percentage (%).

Results

Of 161 patients with severe hypospadias treated by TPIFU (The Duckett's Procedure) from December 2018 to December 2019 in the department of Urology at Beijing Children's Hospital, 136 met the criteria and were included in this study (Figure 2). The median age at primary surgery was 22.5 months (range from 13 to 132 months). All the patients were followed up for 34 months as the median time (range 22–50 months). Preoperative degree of VC is 60.0 [45.0, 80.0] °. Before VC correction, there were 44 cases of a urinary meatus in the middle penile, 56 cases of a urinary meatus in the proximal penile, 31 cases of a urinary meatus in the penoscrotal, and five cases of a urinary meatus in the perineum. After VC correction, 61 cases of urinary meatus in the proximal penile, 56 cases in the penoscrotal, and 19 cases of urinary meatus in the perineum. The median length of the deficient urethra was 3.5 cm (range 2.5 cm–6.0 cm). Intraoperative data of patients are summarized in Table 1.

FIGURE 2
www.frontiersin.org

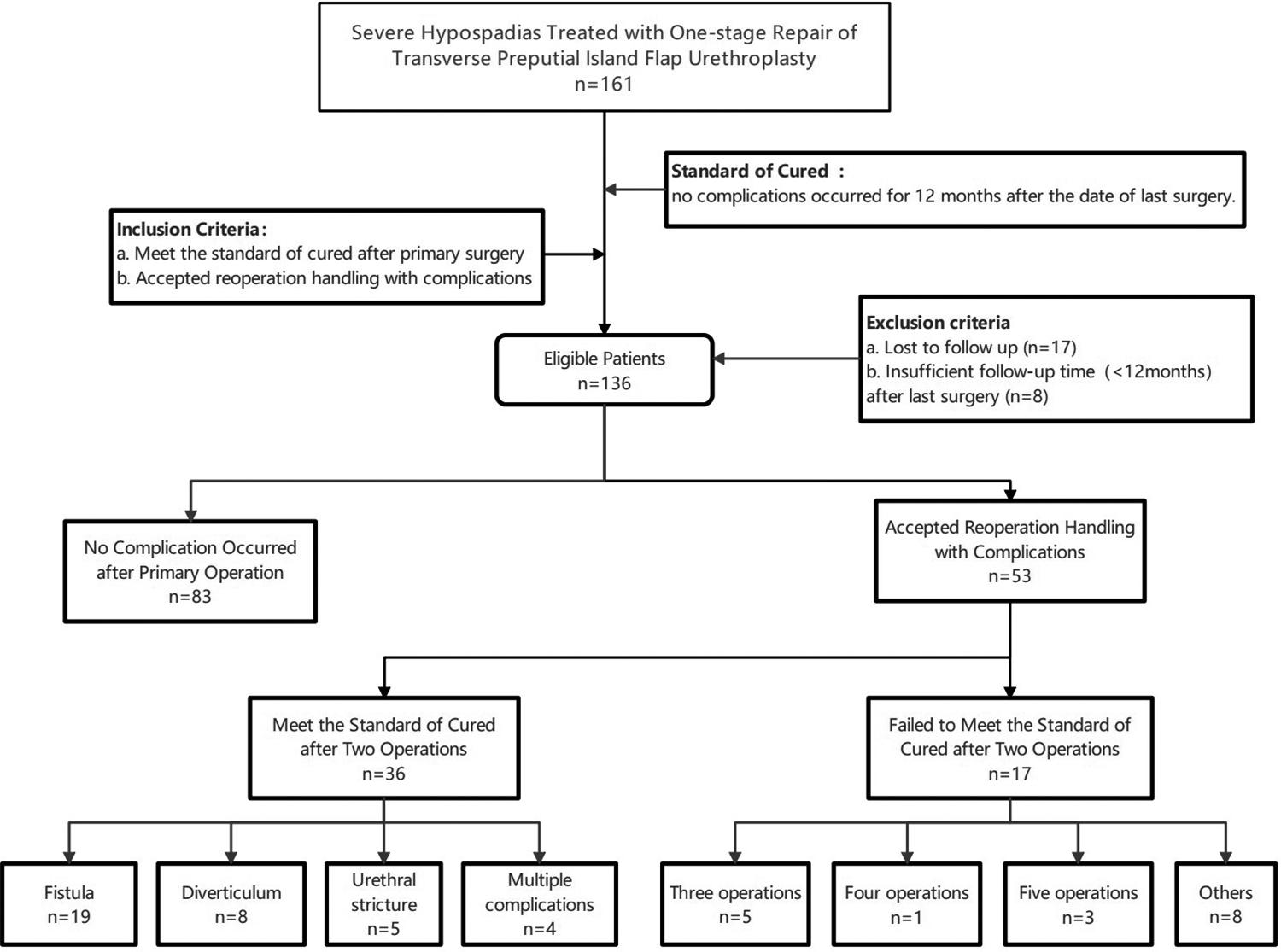

Figure 2. Reoperation analysis of TPIFU treating severe hypospadias. TPIFU, transverse preputial island flap urethroplasty.

TABLE 1
www.frontiersin.org

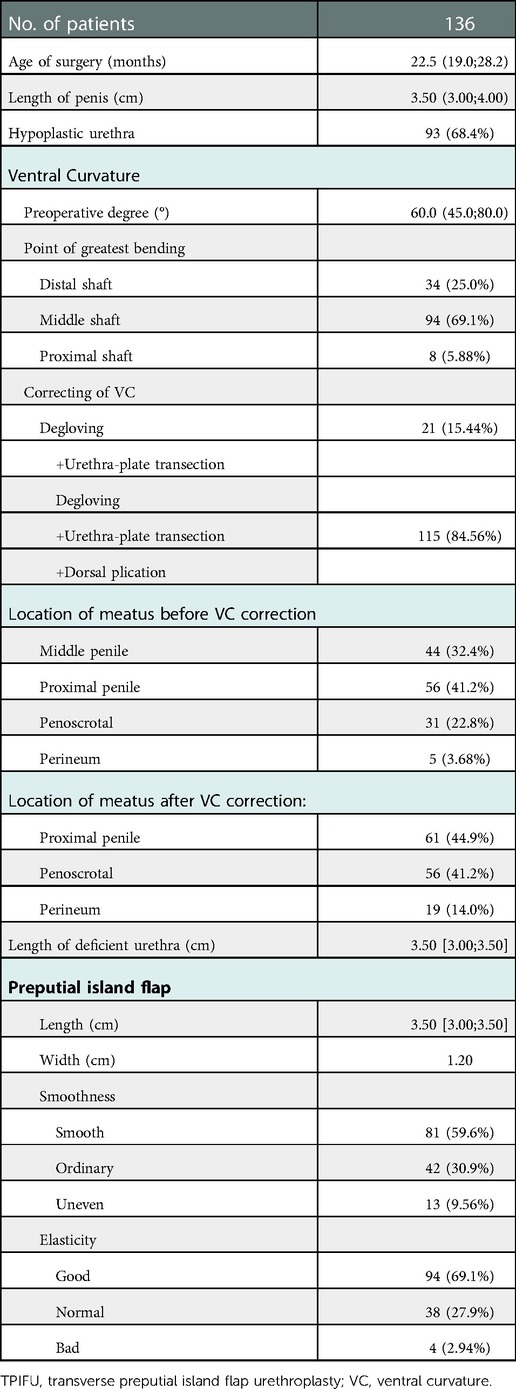

Table 1. Characteristics of patients treated with TPIFU.

As shown in Figure 2, a total of 83 (61%) patients met the standard of cure, which means no complication was identified for at least 12 months after the primary surgery. Among the other 53 (39%) patients who accepted reoperation handling with complications, 36 (26%) patients met the standard of cured after two operations (reoperated once). Among them, fistulas developed in 19 patients who underwent fistula repair. Five urethral strictures were treated successfully with one dilatation, and eight patients concurrent with diverticula were treated with resection of redundant tissue and multilayer closure. Besides, there were four patients with multiple complications handled by one reoperation. Two patients combined fistula and diverticula underwent fistula repair plus diverticula resection, and the other two patients underwent diverticula resection plus urethroplasty due to the combination of urethral stricture and diverticula. Five (4%) patients were cured after three operations (reoperated twice). Two of them accepted extra dilatation twice because of urethral stricture. Two patients successively underwent dilatation and fistula repair. One was reoperated twice due to urethral stricture and diverticula. At the date of the last follow-up, 17 (12.5%) cases who had accepted more than two surgeries did not achieve the cured standard yet. One child had repeated stricture and had been dilated three times after the initial surgery. Three cases remain with complications after five-time surgical treatments. One was dilated four times (still with diverticula), one was dilated three times and eventually developed into multiple complications including urethral stricture, fistula, diverticula, urethral stone, and recurrent curvature, underwent open surgical reconstruction. One sequentially accepted salvage urethrotomy and urethral reconstruction after two dilatations due to the stricture. Other eight patients accompanied with complications after two operations had delayed their further surgical treatment for myriad reasons.

Table 2 summarizes the reoperation data of TPIFU. After primary surgery, 24 patients (17.6%) developed fistula, 17 patients (12.5%) developed urethral stricture and 11 patients (8.1%) developed diverticulum. 17 patients did not meet the standard of cure after the second surgery, of which five patients remained fistula, five patients remained urethral stricture, and seven patients remained diverticulum. Overall, 61% (85 patients) of the patients met the standard of cured after primary operation in the present study, with a once-reoperation (two operations) cure rate was 87.5% (119 patients). 91.2% (124 patients) were cured in three operations.

TABLE 2
www.frontiersin.org

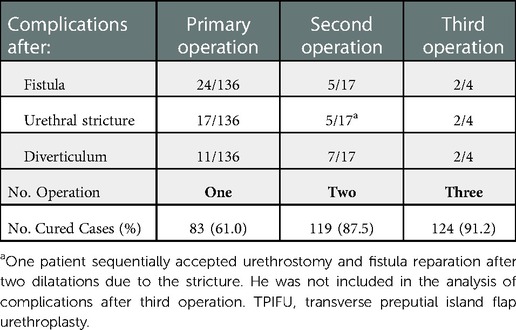

Table 2. Operation times of TPIFU.

Discussion

Consistently, there is a lack of a clear definition of severe hypospadias. The clinically accepted preoperative meatal position to classify the severity of hypospadias but the meatal position would change after VC correction. Therefore, a definite classification can only be completed at intra-operative findings. The curvature and meatal position were both important factors to describe the severity of hypospadias (15). In 2010, Castagnetti et al. (16) performed a systematic review of the management of primary severe hypospadias, and suggested 30° as the minimum cut-off point for defining a curvature as clinically significant. A 1999 survey of members of the American Academy of Paediatrics noted that 30° curvature was the threshold at which surgeons almost invariably agreed that non-operative management was no longer an option (17). A global survey of paediatric urologists, paediatric surgeons and plastic surgeons, published in 2011, broadly confirmed these results (18). For patients with residual VC was higher than 30° after degloving, transection of the urethral plate is inevitable, and grafts such as buccal mucosa graft and flaps have been used to achieve full correction of the penile curvature (19). In the present study, we used a stepwise approach to manage the curvature, and severe hypospadias was defined as the residual VC was higher than 30° after degloving. Of 136 patients who underwent TPIFU, the mean degree of VC was 60 °. The urethral plate was excised in all the cases, and dorsal plication was performed in 115 (84.56%) patients.

Although surgeons have been making various efforts or modifications to optimize the procedure, managing severe hypospadias is challenging, and the best options for fewer complications are still debated. Notwithstanding the dispute on single-stage vs. two-stage repairs is ardent, the purpose of the operation was to provide a tension-free, well-vascularized tubularized neourethra and improve postoperative wound healing (20). Recently, a new three-stage approach have been proposed to offer an alternative option for patients who presenting with diffuse scarring of the urethral plate and a shortage of penile skin for closure. It is believed that the selection of surgical techniques in hypospadias repair is highly based on the patient's anomaly characteristics and the surgeon's preferences. TPIFU is one of the most common techniques for severe hypospadias. Although researchers have made modifications to improve prognosis, the satisfactory complications rate has not been reached (2123). Indeed, the complication rates of TPIFU, ranging from 13% to 91%, vary widely in the literature and across countries (24). We reviewed the literature and summarised the outcomes of articles published on proximal hypospadias treated with TPIFU, as shown in Table 3 (14, 20, 23, 2537).

TABLE 3
www.frontiersin.org

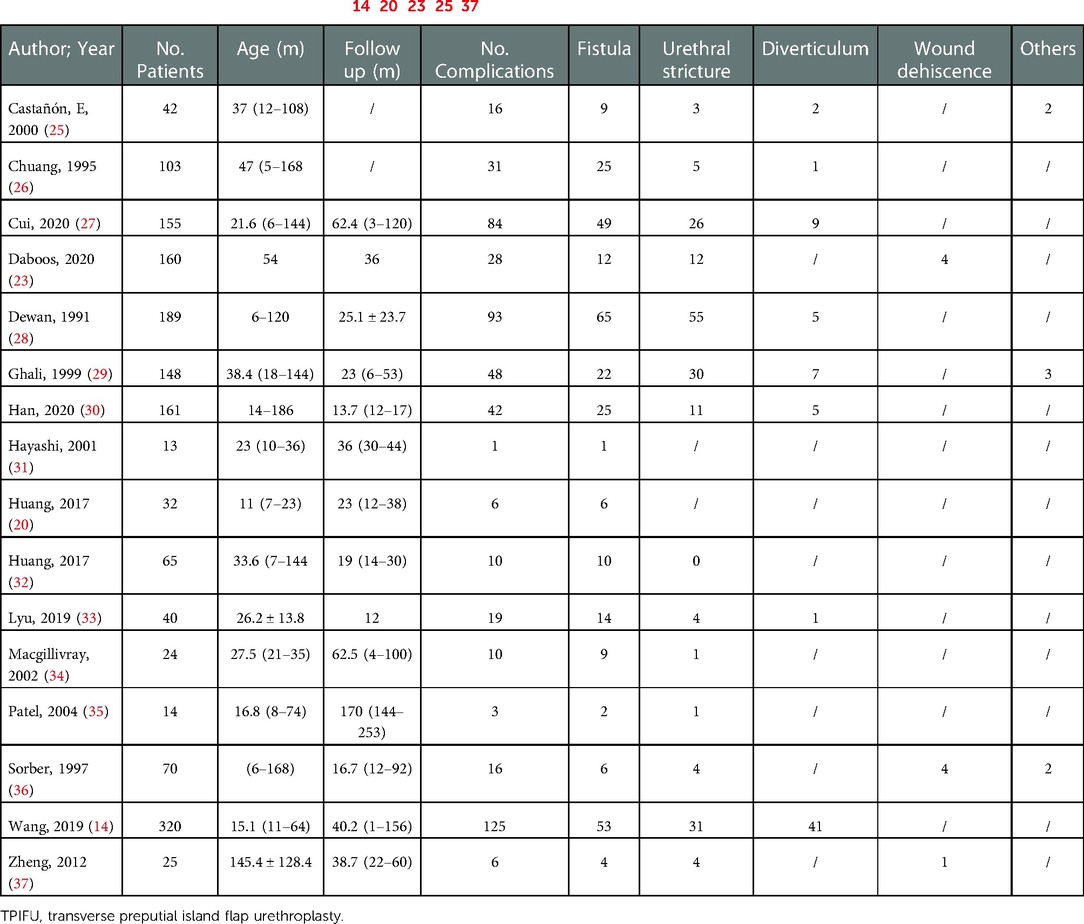

Table 3. Literature review of one-stage TPIFU (14, 20, 23, 2537).

In the present study, complications were defined as any complaints that required surgical correction, including fistula, urethral stricture, and diverticulum. The complication rate of primary operation was 39%, with fistula (24 patients, 17.6%) being the most common complication, similar to the previous studies (38). Both fistula and urethral stricture were related to the poor blood supply to the neourethra and the native urethra (39). Cui et al. suggested that surgeons should protect the vascular pedicle of the inner sheath of the foreskin, ensuring the transverse flap is as thick as possible so that the vascular tissue can be preserved. The marginal skin with poor blood supply at the end of the neourethra must be removed when the neourethra and the native urethra are anastomosed. Compared with the fistula, the urethral stricture is a more distressing complication from the patient's perspective. The main cause of strictures is the circular scar between the native urethra and the flap, and it may require salvage urethrotomy and even urethral reconstruction (40). In the present study, 17 patients (12.5%) developed urethral stricture, of which six underwent two or more dilatations, and two underwent open surgical reconstruction. As the urethral stricture is difficult to deal with, researchers have modified the surgical technique (11). In our experience, in addition to protecting the blood supply, a tension-free anastomosis between the neourethra and the native urethra is the key point to decreasing the incidence of urethral stricture. An oblique anastomosis should be adopted between the neourethra and the native urethra to increase the area of the anastomotic surface and the blood supply of the anastomosis. For patients developed urethral stricture, we usually choose the appropriate treatment according to the patient's urinary symptoms. For patients with less severe symptoms, dilatation was chosen in preference. For patients with more severe symptoms after repeated dilatations, we will perform salvage urethrotomy and urethral reconstruction. As for the diverticulum after TPIFU, it was hypothesized that the flap's lack of attachment to the surrounding tissues makes the neourethra more elastic and thus prone to progressive dilation (41). On the other hand, some researchers believed that the common cause of diverticulum is that tube is flail between only two fixed points at the hypospadic and the new meatus. In the present study, 12 (9.1%) patients concurrent with diverticula were treated with resection of redundant tissue and multilayer closure. Based on our clinical practice, the incidence of diverticulum was related to the smoothness and elasticity of the preputial island flap (As shown in Figure 3). Two-stage technique was recommanded for those preputial island flap condition is poor.

FIGURE 3
www.frontiersin.org

Figure 3. Preputial island flap condition. (A) In good condition, the flap is smooth and presents good elasticity. (B) In bad condition, the flap is stiff and not smooth.

To the best of our knowledge, this is the first study to focus on the reoperation frequency after TPIFU. Although the TPIFU developed relatively high complication and reoperation rate after the primary surgery, the result may be different if we focus on the surgery number to cure the patients. In the present study, 83 (61%) patients achieved short-term cured through a single operation, which means more than 50% of patients could be free from the second procedure. On the other hand, TPIFU provides the advantages of minimizing operative trauma, allowing the use of unscarred skin with good vascularity and decreasing the number of hospitalizations, decreasing the infection risk and caregiving burden for parents. As we gain an improved understanding of the interplay of psychological factors of children, including timing in genital awareness, sexual orientation, and body image, more procedures may lead children and parents to develop lower opinions on the repair of hypospadias and worse sexual and psychological results (42). As the National Center for Children's Health in China, our center has more patient resources and a well-structured educational system, helping doctors overcome the steep learning curve of TPIFU. Snodgrass et al. suggested that to gain expertise from greater volumes of cases, surgeons/teams should be designated for proximal hypospadias repair in each center (43). Castagnetti et al. argued that surgeon experience is more important than technique (15). When choosing the type of repair, personal preference, training, and success rate when using a specific technique should be considered as important variables. Every surgeon should develop their own strategy and focus on mastering only a few techniques.

The present study has several limitations, including the retrospective nature, a small number of patients, and short-term follow-up. The long-term complications such as curvature recurrence and erectile pain did not analyze due to insufficient follow-up duration. Besides, we did not measure uroflow and postvoid residual volume in all patients. Obstructive urinary flow pattern seems common in patients who underwent proximal hypospadias repair, which may remit spontaneously with age. Thus, we believe conservative treatment with watchful observation may avoid unnecessary intervention. Further multicenter studies with larger sample sizes are required. Besides, we will publish a follow-up series to further prospective validate and extend the result of the present study (Trial registration number ChiCTR1900023055).

Conclusions

To the best of our knowledge, this is the first study to focus on the reoperation frequency after TPIFU. Although the complication rates after primary TPIFU were relatively high, the cure rate after two or three operations was acceptable. Multi-institutional work with a large number of cases and long-term follow-up is needed in the future.

Data availability statement

The datasets used and/or analysed during the current study are available from the corresponding author upon reasonable request.

Ethics statement

This retrospective study was approved by the ethics committee of Beijing Children's Hospital, Capital Medical University, National Center for Children's Health [IEC-C-006-A04-V.06, (2022)-E-030-R].

Author contributions

JL and PL: developed the project, collected and analyzed the data, and wrote the manuscript. ZY, XW: analyzed the data and wrote the manuscript. SF and ZL: collected the data. HS and WZ: participated in the operation and revised the article. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by grants from the National Key R&D Program of China (grant no. 2016YFC 1000807).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Abbreviations

TPIFU, transverse preputial island flap urethroplasty; VC, ventral curvature.

References

1. Baskin LS. Hypospadias and urethral development. J Urol. (2000) 163:951–6. doi: 10.1016/S0022-5347(05)67861-5

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Prat D, Natasha A, Polak A, Koulikov D, Prat O, Zilberman M, et al. Surgical outcome of different types of primary hypospadias repair during three decades in a single center. Urol. (2012) 79:1350–3. doi: 10.1016/j.urology.2011.11.085

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Duckett JW JR. Transverse preputial island flap technique for repair of severe hypospadias. Urol Clin North Am. (1980) 7:423–30. doi: 10.1016/S0094-0143(21)01243-X

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Qin C, Wang W, Wang S-Q, Cao Q, Wang Z-J, Li P-C, et al. A modified method for the treatment of urethral fistula after hypospadias repair. Asian J Androl. (2012) 14:900–2. doi: 10.1038/aja.2012.85

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Johal NS, Nitkunan T, O'Malley K, Cuckow PM. The two-stage repair for severe primary hypospadias. Eur Urol. (2006) 50:366–71. doi: 10.1016/j.eururo.2006.01.002

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Bracka A. Hypospadias repair: the two-stage alternative. Br J Urol. (1995) 76(Suppl 3):31–41. doi: 10.1111/j.1464-410x.1995.tb07815.x

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Lambert SM, Snyder HM, Canning DA. The history of hypospadias and hypospadias repairs. Urol. (2011) 77:1277–83. doi: 10.1016/j.urology.2010.10.031

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Steven L, Cherian A, Yankovic F, Mathur A, Kulkarni M, Cuckow P. Current practice in paediatric hypospadias surgery; a specialist survey. J Pediatr Urol. (2013) 9:1126–30. doi: 10.1016/j.jpurol.2013.04.008

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Steven L. Zheng-2015-Two-stage urethroplasty is a better.

10. Sadeghi A, Mirshemirani A, Khaleghnejad Tabari A, Sadeghian N, Rozroukh M, Ghoroubi J, et al. Duckett versus modified bracka technique for proximal hypospadias repair A 10-year experience. Iran J Pediatr. (2017) 27:e7752. doi: 10.5812/ijp.7752

CrossRef Full Text | Google Scholar

11. Ferro F, Zaccara A, Spagnoli A, Lucchetti MC, Capitanucci ML, Villa M. Skin graft for 2-stage treatment of severe hypospadias: back to the future? J Urol. (2002) 168:1730–3. discussion 1733. doi: 10.1097/01.ju.0000028496.35756.8b

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Snodgrass W, Bush N. Surgery for primary proximal hypospadias with ventral curvature 30°. Curr Urol Rep. (2015) 16(69). doi: 10.1007/s11934-015-0543-5

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Duckett JW Jr. Hypospadias. Pediatr Rev. (1989) 11:37–42. doi: 10.1542/pir.11-2-37

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Wang C-X, Zhang W-P, Song H-C. Complications of proximal hypospadias repair with transverse preputial Island flap urethroplasty: a 15-year experience with long-term follow-up. Asian J Androl. (2019) 21:300–3. doi: 10.4103/aja.aja_115_18

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Castagnetti M, El-Ghoneimi A. Surgical management of primary severe hypospadias in children: an update focusing on penile curvature. Nat Rev Urol. (2022) 19:147–60. doi: 10.1038/s41585-021-00555-0

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Castagnetti M, Zhapa E, Rigamonti W. Primary severe hypospadias: comparison of reoperation rates and parental perception of urinary symptoms and cosmetic outcomes among 4 repairs. J Urol. (2013) 189:1508–13. doi: 10.1016/j.juro.2012.11.013

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Bologna RA, Noah TA, Nasrallah PF, McMahon DR. Chordee: varied opinions and treatments as documented in a survey of the American academy of pediatrics, section of urology. Urol. (1999) 53:608–12. doi: 10.1016/s0090-4295(98)00656-6

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Springer A, Krois W, Horcher E. Trends in hypospadias surgery: results of a worldwide survey. Eur Urol. (2011) 60:1184–9. doi: 10.1016/j.eururo.2011.08.031

PubMed Abstract | CrossRef Full Text | Google Scholar

19. van der Horst HJ, de Wall LL. Hypospadias, all there is to know. Eur J Pediatr. (2017) 176:435–41. doi: 10.1007/s00431-017-2864-5

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Huang Y, Xie H, Lv Y, Yu L, Sun L, Li X, et al. One-stage repair of proximal hypospadias with severe chordee by in situ tubularization of the transverse preputial island flap. J Pediatr Urol. (2017) 13:296–9. doi: 10.1016/j.jpurol.2017.02.015

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Aoki K, Fujimoto K, Yoshida K, Hirao Y, Ueoka K. One-stage repair of severe hypospadias using modified tubularized transverse preputial island flap with V-incision suture. J Pediatr Urol. (2008) 4:438–41. doi: 10.1016/j.jpurol.2008.05.005

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Patel RP, Shukla AR, Austin JC, Canning DA. Modified tubularized transverse preputial island flap repair for severe proximal hypospadias. BJU Int. (2005) 95:901–4. doi: 10.1111/j.1464-410X.2005.05425.x

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Daboos M, Helal AA, Salama A. Five years’ experience of double faced tubularized preputial flap for penoscrotal hypospadias repair in pediatrics. J Pediatr Urol. (2020) 16:673.e1–7. doi: 10.1016/j.jpurol.2020.07.037

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Babu R, Chandrasekharam VV. Meta-analysis comparing the outcomes of single stage (foreskin pedicled tube) versus two stage (foreskin free graft & foreskin pedicled flap) repair for proximal hypospadias in the last decade. J Pediatr Urol. (2021) 17:681–9. doi: 10.1016/j.jpurol.2021.05.014

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Castañón M, Muñoz E, Carrasco R, Rodó J, Morales L. Treatment of proximal hypospadias with a tubularized Island flap urethroplasty and the onlay technique: a comparative study. J Pediatr Surg. (2000) 35:1453–5. doi: 10.1053/jpsu.2000.16412

CrossRef Full Text | Google Scholar

26. Chuang JH, Shieh CS. Two-layer versus one-layer closure in transverse island flap repair of posterior hypospadias. J Pediatr Surg. (1995) 30:739–42. doi: 10.1016/0022-3468(95)90705-x

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Cui X, He Y, Huang W, Chen L, Wang Y, Zhou C. Clinical efficacy of transverse preputial Island flap urethroplasty for single-stage correction of proximal hypospadias: a single-centre experience in Chinese patients. BMC Urol. (2020) 20:118. doi: 10.1186/s12894-020-00686-3

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Dewan PA, Dinneen MD, Winkle D, Duffy PG, Ransley PG. Hypospadias: Duckett pedicle tube urethroplasty. Eur Urol. (1991) 20:39–42. doi: 10.1159/000471657

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Ghali AM. Hypospadias repair by skin flaps: a comparison of onlay preputial Island flaps with either Mathieu’s meatal-based or Duckett’s tubularized preputial flaps. BJU Int. (1999) 83:1032–8. doi: 10.1046/j.1464-410x.1999.00083.x

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Han W, Zhang W, Sun N, Yang Y. Comparison of continuous eversion and inverting subepithelial suture in transverse preputial island flap urethroplasty in proximal hypospadias repair: a retrospective study. Int Braz J Urol. (2020) 46:772–7. doi: 10.1590/S1677-5538.IBJU.2019.0484

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Hayashi Y, Kojima Y, Mizuno K, Nakane A, Kohri K. The modified Koyanagi repair for severe proximal hypospadias. BJU Int. (2001) 87:235–8. doi: 10.1046/j.1464-410x.2001.02029.x

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Huang L-Q, Guo Y-F, Ge Z, Lu R-G, Deng Y-J, Ma G, et al. A new modification of the Duckett technique for one-stage repairing urethral plate transected hypospadias: another option for severe hypospadias? Int Urol Nephrol. (2017) 49:2091–7. doi: 10.1007/s11255-017-1690-z

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Lyu Y, Yu L, Xie H, Huang Y, Li X, Sun L, et al. Comparison of short-term complications between onlay and duckett urethroplasty and the analysis of risk factors. Int Urol Nephrol. (2019) 51:783–8. doi: 10.1007/s11255-019-02125-1

PubMed Abstract | CrossRef Full Text | Google Scholar

34. MacGillivray D, Shankar KR, Rickwood AM. Management of severe hypospadias using Glassberg’s modification of the Duckett repair. BJU Int. (2002) 89:101–2. doi: 10.1046/j.1464-410X.2002.02552.x

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Patel RP, Shukla AR, Snyder HM. The island tube and Island onlay hypospadias repairs offer excellent long-term outcomes: a 14-year followup. J Urol. (2004) 172:1717–9. discussion 1719. doi: 10.1097/01.ju.0000138903.20136.22

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Sorber M, Feitz WF, De Vries JD. Short- and mid-term outcome of different types of one-stage hypospadias corrections. Eur Urol. (1997) 32:475–9. doi: 10.1159/000480810

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Zheng D, Wang H, Lu M, Chen Q, Chen Y, Ren X, et al. A comparative study of the use of a transverse preputial island flap (the Duckett technique) to treat primary and secondary hypospadias in older Chinese patients with severe chordee. World J Urol. (2013) 31:965–9. doi: 10.1007/s00345-012-0990-2

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Gite VA, Patil SR, Bote SM, Siddiqui MAKN, Nikose JV, Kandi AJ. Durham Smith vest-over-pant technique: simple procedure for a complex problem (post-hypospadias repair fistula). Urol Int. (2017) 99:29–35. doi: 10.1159/000455159

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Kraft KH, Shukla AR, Canning DA. Hypospadias. Urol Clin North Am. (2010) 37:167–81. doi: 10.1016/j.ucl.2010.03.003

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Zheng D, Yao H, Cai Z, Da J, Chen Q, Chen Y, et al. Two-stage urethroplasty is a better choice for proximal hypospadias with severe chordee after urethral plate transection: a single-center experience. Asian J Androl. (2015) 17:94–7. doi: 10.4103/1008-682X.137688

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Vallasciani S, Berrettini A, Nanni L, Manzoni G, Marrocco G. Observational retrospective study on acquired megalourethra after primary proximal hypospadias repair and its recurrence after tapering. J Pediatr Urol. (2013) 9:364–7. doi: 10.1016/j.jpurol.2012.05.005

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Tack LJ, Springer A, Riedl S, Tonnhofer U, Weninger J, Hiess M, et al. Psychosexual outcome, sexual function, and long-term satisfaction of adolescent and young adult men after childhood hypospadias repair. J Sex Med. (2020) 17:1665–75. doi: 10.1016/j.jsxm.2020.04.002

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Snodgrass W, Bush N. Staged tubularized autograft repair for primary proximal hypospadias with 30-degree or greater ventral curvature. J Urol. (2017) 198:680–6. doi: 10.1016/j.juro.2017.04.019

PubMed Abstract | CrossRef Full Text | Google Scholar
