Loop-Mediated Isothermal Amplification Methods for Diagnosis of Bacterial Meningitis

The rapid, accurate, and efficient identification of an infectious disease is critical to ensure timely clinical treatment and prevention in public health settings. In 2015, meningitis caused by Streptococcus pneumoniae, Haemophilus influenzae, and Neisseria meningitidis was responsible for 379,200 (range: 322,700–444,700) deaths. Clinical features alone cannot determine whether bacterial meningitis is present; an analysis of cerebrospinal fluid (CSF) is essential. Loop-mediated isothermal amplification (LAMP) is a nucleic acid amplification method offering an alternative to polymerase chain reaction (PCR). LAMP-based assays for detection of three leading bacteria in CSF for diagnosis of meningitis have been established. The typing assays using LAMP for detection of meningococcal serogroups A, B, C, W, X, and Y as well as H. influenzae serotypes a, b, c, d, e, and f were launched. In comparative analysis of the meningitis pathogen assays, LAMP assays did not yield false negative results, and the detection rate of LAMP assays was superior compared with PCR or conventional culture methods. LAMP assays provide accurate and rapid test results to detect major bacterial meningitis pathogens. Accumulating evidence suggests that LAMP assays have the potential to provide urgently needed diagnostics for bacterial meningitis in resource-limited settings of both developed and developing countries.

Introduction

Over the past several decades, the incidence of meningitis caused by Streptococcus pneumoniae and Haemophilus influenzae in children has declined due to widespread vaccination (1, 2). Recent success in the introduction of the meningococcal conjugate serogroup A vaccine has underscored the importance of continued clinical and epidemiologic surveillance for invasive meningococcal disease across countries where the vaccine has been deployed (3). At the same time, the incidence of invasive diseases due to bacterial strains that were not included in the vaccines has increased (2, 4, 5). Even with appropriate antimicrobial therapy, the burden of disease in adults and mortality both in adults and children remain high in several countries, particularly resource-limited countries (6).

Polymerase chain reaction (PCR)-based assays are relatively expensive and complex to perform in resource-limited laboratory settings. Loop-mediated isothermal amplification (LAMP) is a nucleic acid amplification method offering the rapid, accurate, and easy to use diagnosis of infectious diseases (7, 8). LAMP-based diagnostic assays for S. pneumoniae, H. influenzae, and N. meningitidis have been established (9–13). The typing assays using LAMP for the detection of N. meningitidis serogroups [A, B, C, W, X, and Y (14)] and H. influenzae serotypes [a, b, c, d, e, and f (15)] were released.

In 2015, meningitis caused by S. pneumoniae, H. influenzae, and N. meningitidis was responsible for 379,200 (range: 322,700–444,700) deaths (16). Clinically, the rapid, accurate, and efficient identification of an infectious agent is critical to ensure prompt, safe and effective therapy. Yet, clinical features alone cannot determine whether bacterial meningitis is present; an analysis of cerebrospinal fluid (CSF) is essential for diagnosis. Bacterial culture methods require a well-equipped laboratory with appropriate biosafety facilities, specialized bacterial culture media, and reagents. In developing countries, the accurate diagnosis of bacterial meningitis remains a challenge due to the limited availability of routine microbiology laboratory services (17). Moreover, because early empiric treatment with antibiotics is commonplace in many countries, bacterial growth in standard culture media may be inhibited by the antibiotics present in human clinical samples.

For decades, the lack of available diagnostic tests in developing countries has been associated with widespread empiric antibiotic treatment and rising antibiotic resistance. There is urgent need to develop and deploy effective diagnostic tests that meet the criteria needed to ensure global access to end-users in developed and developing countries. Despite technological innovations, low-cost, sensitive and specific diagnostic tests for major bacterial pathogens remain unavailable in many resource-limited countries. The goal of this report is to review rationale, strategy, and opportunities for application of LAMP diagnostic methods for bacterial meningitis.

LAMP Specificity

The isolation and identification of pneumococcus are complicated by contamination with alpha-hemolytic streptococci (Streptococcus mitis and Streptococcus oralis) belonging to the normal flora. S. mitis and S. oralis are most closely related to pneumococcus on this ecological basis, and their 16S rRNA sequences share over 99% identity with those of pneumococcus, making it difficult for clinical laboratories to differentiate pneumococcus from other oral alpha-hemolytic streptococci (18). Such misidentification might affect diagnosis and treatment.

The development of PCR-based assays targeting the ply (19) and lytA (20) genes was an important milestone in the laboratory diagnosis of pneumococcus. However, ply and lytA, initially thought to be present only in S. pneumoniae, were reported in strains of S. mitis (18). PCR-based tests that target these genes might result in the over-detection of pneumococcus. In many cases, PCR or real-time PCR methods are still not appropriate for resource-limited settings due to their technical requirements and cost.

The detection of S. pneumoniae teichoic acid antigen in urine (Binax NOW^® S. pneumoniae; Alere International Ltd., Galway, Ireland) is an alternative to culture or PCR; however, its specificity is low in children because of false-positive results in healthy children carrying pneumococci and other closely related Streptococcus species (21).

The matrix-assisted laser desorption ionization–time of flight mass spectrometry (MALDI-TOF MS) technique has emerged as a clinical microbiology laboratories for the identification of a wide range of pathogens, however, the specificity of MALDI-TOF test for the differentiation of pneumococci from other mitis group streptococci is still low and often recognized false-positives (22). Moreover, its apparatus is too expensive and complex to use in developing countries.

The LAMP assay has high specificity because the LAMP reaction occurs only when all six to eight regions within a target DNA are recognized correctly by the primers (8). Thus, the higher analytical specificity of the LAMP assay compared to other methods, including PCR, has been recognized in the published literature (9, 11, 23). Using 25 clinically isolated streptococcal strains, a LAMP test targeting lytA succeeded in differentiating 4 S. pneumoniae strains from 21 other Streptococcus species (3 S. oralis, 17 S. mitis, and 1 Streptococcus species) known to carry ply and, lytA whereas PCR produced 4 false-positive results for lytA and 17 false-positive results for ply (11, 23).

To assess H. influenzae type b (Hib) carriage, laboratory facilities for the reliable cultivation of Hib and identification of the capsular polysaccharide by immunological techniques are necessary. However, capsular antigen serotyping may produce inconsistent results; for example, 68% of isolates identified as Hib by serotyping yielded false-positives by PCR (24). Thus, in developing countries, the accurate diagnosis of Hib remains a challenge. A LAMP primer set for detecting Hib has been established and was compared with conventional PCR for the detection of bexA (25) and nested PCR for the detection of six capsule types of Hib (26). Using 46 H. influenzae strains and 21 non-H. influenzae strains, both of the nested PCR and LAMP assays for Hib accurately discriminated standard reference Hib strains from non-Hib strains, whereas the slide agglutination serotyping test yielded one false-positive and two false-negative results (9).

The identification and serogrouping of N. meningitidis infection are important for disease control and vaccination strategies. However, N. meningitidis is still diagnosed using classical culture methods. Neisseria meningitidis is subdivided into 13 serogroups based on the capsular polysaccharide type (A, B, C, D, E, H, I, K, L, W, X, Y, and Z); however, most invasive meningococcal disease has been attributed to six serogroups (A, B, C, W, X, and Y) (27). Five of these serogroups (A, B, C, W, and Y) are targets in currently licensed meningococcal vaccines.

A rapid diagnostic test using an immunochromatographic method for the identification of N. meningitidis serogroups A, C, W, and Y utilizing monoclonal antibodies against the polysaccharides of these four serogroups has been developed and used in endemic regions of Africa (28). Several PCR-based methods for the diagnosis of N. meningitidis infection and serogrouping of the six major serogroups have been developed (29, 30). Using the LAMP technique, N. meningitidis detection (12) and specific identification of the six major serogroups (A, B, C, W, X, and Y) of N. meningitidis (14) have been established, and their specificities have been confirmed.

LAMP Sensitivity

Loop-mediated isothermal amplification employs a DNA polymerase with strand-displacement activity, along with two inner primers (forward and backward inner primers) and two outer primers (F3 and B3) that recognize six separate regions within a target DNA sequence. This method utilizes a unique priming mechanism that yields specific DNA products in less time than PCR. Additional primers (i.e., loop primers: loop primer forward and loop primer backward) designed to anneal to the loop structure in LAMP can be used to accelerate the LAMP reaction, resulting in enhanced sensitivity, and loop primers are now commonly used in practical applications of LAMP (8).

Table 1 shows detection limits of LAMP and PCR assays detecting DNA of meningitis pathogens and using spiked CSF specimens. The pneumococcus LAMP method could detect as few as 10 copies of both purified DNA and spiked CSF specimens within 30 min with greater sensitivity than conventional PCR (11). The sensitivity of the LAMP method was comparable to that of real-time PCR targeting lytA (31). Hib LAMP also detects 10 copies of purified DNA in a 60-min reaction, reflecting a detection limit with a more than 100-fold greater sensitivity than both PCR for the detection of bexA and nested PCR for the detection of Hib (9). The meningococcus LAMP assay was more sensitive than the previously described PCR method. The detection limit of the LAMP assay was measured down to around 10 copies per reaction with a greater sensitivity than that of conventional PCR (10, 12). Using the DNA spike CSF specimens as a template, the detection limit of meningococcal PCR detection method was attenuated while that of LAMP method unchanged.

TABLE 1

Table 1. Limits of bacterial DNA detection in LAMP and PCR assays for meningitis pathogens using spiked CSF specimens.

To obtain sensitive reaction results from conventional PCR assays, a DNA extraction and purification step is required because biological fluids and substances contained in clinical samples inhibit reactions (32–34). This additional step makes it difficult to perform PCR as part of a bedside examination because the DNA extraction is a somewhat troublesome procedure requiring more than 30 min to complete as well as specific equipment and the added expense of a DNA extraction kit. LAMP exhibits less sensitivity to inhibitory substances such as serum, plasma, urine, and culture medium present in biological samples than PCR (35). In fact, the robustness of LAMP in the face of reaction inhibitors can contribute to saving the time and cost required for sample processing steps.

LAMP Assay Evaluation using Clinical CSF Specimens

The suitability of LAMP methods for detecting bacterial meningitis in CSF was validated with up to 1,574 randomly selected CSF samples from children with suspected meningitis in Korea, China, and Vietnam collected between 1999 and 2002 in prospective studies of bacterial meningitis (36–38). For comparison, CSF specimens were also tested by conventional PCR and culture tests. The comparative analysis of the meningitis pathogen LAMP assays, the clinical sensitivity, specificity, positive predictive value, and negative predictive value of the LAMP assays were compared with the PCR or conventional culture methods (9, 11, 12).

The pneumococcus detection rates of the LAMP, PCR and culture methods from CSF were 31.1% (33/106), 17.0% (18/106), and 10.4% (11/106), respectively. The detection rates for Hib were 57.7% (30/52), 42.3% (22/52), and 40.4% (21/52), respectively. Those of meningococcus were 2.0% (31/1,574), 1.6% (25/1,574), and 0.2% (3/1,574), respectively. The detection rates of the LAMP method were substantially higher than those of PCR and culture tests, even though the method for extraction of DNA was only heating at 95°C for 2 min.

Table 2 lists the overall performances of the LAMP and PCR assays used to detect three meningitis bacteria. The sensitivity, specificity, and positive and negative predictive values for the pneumococcus LAMP assay were 100.0% (18/18), 83.0% (73/88), 54.5% (18/33), and 100.0% (73/73), respectively, relative to PCR for diagnosis of pneumococcus infection. The comparable values of the Hib LAMP assay were 100.0% (22/22), 73.3% (22/30), 73.3% (22/30), and 100.0% (22/22), respectively. Those of the meningococcus LAMP assay were 100.0% (25/25), 99.6% (1,543/1,549), 80.6% (25/31), and 100.0% (1,543/1,543), respectively.

TABLE 2

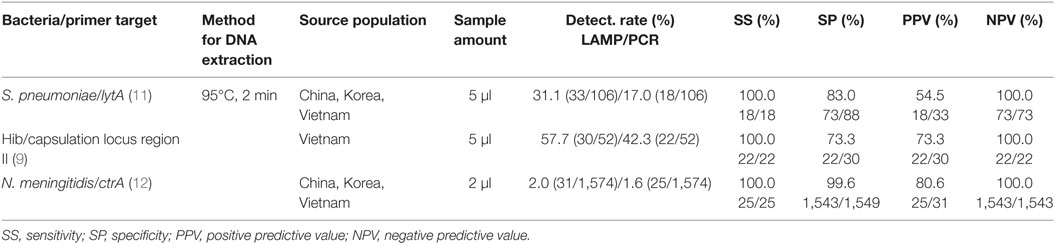

Table 2. A comparative analysis of PCR and LAMP for detection of bacterial meningitis.

It seems that in clinical CSF specimens, these LAMP methods have almost perfect clinical sensitivity and negative predictive value with high clinical specificity and positive predictive value for the detection of the targeted bacterial meningitis pathogens. Moreover, the DNA extraction from CSF specimens can be easily achieved by heating to 95°C for 2 min.

In the United Kingdom, a bedside meningococcal LAMP test was determined to have a positive predictive value of 100% and a negative predictive value of 97%, while their samples included blood or combined nasal and throat swabs (39).

Perspectives

Loop-mediated isothermal amplification methods for serogrouping meningococcus and serotyping Haemophilus influenzae have been established (9, 14, 15). However, LAMP methods for pneumococcus serotyping have not yet been available, and some studies have reported the incidence of invasive diseases due to pneumococcal strains that were not included in the vaccines (2, 40, 41). Pneumococcus has a highly diverse polysaccharide capsule, containing more than 90 different serotypes. The distribution of those serotypes varies geographically (42, 43). The available pneumococcal conjugate vaccines were designed to provide immunity against the most prevalent invasive serotypes worldwide (42). Understanding the geographic distribution and shifts in prevalence over time of every serotype is important for optimizing vaccine design and assessing the postvaccine introduction impact on disease burden. For the diagnosis of pneumococcal serotypes, LAMP tests that can generate multiple results simultaneously (multiplex format) would be advantageous.

Loop-mediated isothermal amplification reactions require separate reaction tubes for each pathogen or each target gene because test positivity is confirmed by the observation of turbidity in each reaction tube. The μTAS (micro Total Analysis Systems) or Lab on a Chip are next-generation LAMP detection devices (44) that enable the detection of multiple LAMP results simultaneously in a single microplate. Such a development has already started (45).

Because of the robustness and one-step reaction features of the LAMP assay (46), it could be easily applied to such next-generation reaction devices. In this case, a dried formulation of LAMP reagents (44) or a simple visual detection technique (7, 47) should be useful in developing LAMP tests capable of generating multiple results simultaneously. A multiple-LAMP assay for the diagnosis of bacterial meningitis could be applied to clinics in resource-limited settings. In this case, prospective studies of the LAMP assay should be done using clinical specimens and compare with conventional bacterial culture, antigen detection, PCR, etc.

Clinical Application

Clinical diagnosis of acute and potentially fatal infectious diseases remains a major priority in developed and developing countries. While a host of new and relatively expensive diagnostic platforms are in clinical use and development, there remains a need for lower cost meningitis diagnostic tests that can be performed by laboratory technicians with limited training and time. As hospitals seek to contain rising healthcare costs, LAMP assays for meningitis offer rapid, accurate, and easy to use detection of bacterial DNA that can be completed in a short time compared with bacterial culture. LAMP assays for the diagnosis of meningitis also fulfill other key requirements of tests to detect dangerous pathogens including the ability to be completed safely in standard clinical laboratory facilities present in the majority of tertiary care and community hospitals around the world.

Presently, several manufacturers have successfully launched validated LAMP-based diagnostic tests (44). In all cases, the diagnostic test manufacturers have licensed the LAMP technology with royalties going to patent holders in Japan. In coming years (the end of 2018), the primary LAMP technology patent is expected to expire. When this occurs, LAMP technology may be accessible in a broad range of healthcare environments across several regions worldwide. Expanding LAMP technology access across low- and middle-income countries may also be vital to improving diagnostic capacity, supporting prudent antibiotic usage and combating antimicrobial resistance. Deployment of LAMP assays offers the potential to provide urgently needed diagnostics for bacterial meningitis in resource-limited countries where there is a need for accurate case diagnosis to guide therapy on the frontline of patient care.

Public Health Perspectives

The rapidly evolving field of diagnostic testing has improved the availability of rapid diagnostic point-of-care (POC) tests that include assays that can be widely distributed and require a limited amount of training by end-users. For example, antigen detection POC tests that use urine specimens for testing have improved the detection of bacterial infections caused by S. pneumoniae—particularly in institutions where microbiologic culture methods may not be available (48). As molecular POC diagnostics such as LAMP assays become more widely available, their usage has the potential to improve public health surveillance and outbreak detection. Ultimately, the use of such tests can encourage more judicious use of antibiotics (with the potential for helping to reduce antimicrobial resistance) and improve control of diseases that threaten populations in developing and developed countries. Future research will be needed to identify how and where countries can best deploy LAMP POC tests in health systems to maximize their benefit to public health.

Author Contributions

PK, DK, MS, MO, and SH contributed the conception of this manuscript; PK, DK, MS, and SH drafted the manuscript; and EK and MO did the critical review and approved the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This project was supported by JSPS Bilateral Open Partnership Joint Research Projects (MS). DK was supported by the grant NRF-2015R1A2A2A01007297 and NRF-2015M3C9A2054024 from National Research Foundation (NRF) of Korea.

References

1. Martin NG, Sadarangani M, Pollard AJ, Goldacre MJ. Hospital admission rates for meningitis and septicaemia caused by Haemophilus influenzae, Neisseria meningitidis, and Streptococcus pneumoniae in children in England over five decades: a population-based observational study. Lancet Infect Dis (2014) 14(5):397–405. doi:10.1016/S1473-3099(14)70027-1

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Waight PA, Andrews NJ, Ladhani SN, Sheppard CL, Slack MP, Miller E. Effect of the 13-valent pneumococcal conjugate vaccine on invasive pneumococcal disease in England and Wales 4 years after its introduction: an observational cohort study. Lancet Infect Dis (2015) 15(5):535–43. doi:10.1016/S1473-3099(15)70044-7

CrossRef Full Text | Google Scholar

3. Daugla DM, Gami JP, Gamougam K, Naibei N, Mbainadji L, Narbe M, et al. Effect of a serogroup A meningococcal conjugate vaccine (PsA-TT) on serogroup A meningococcal meningitis and carriage in Chad: a community study [corrected]. Lancet (2014) 383(9911):40–7. doi:10.1016/S0140-6736(13)61612-8

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Rubach MP, Bender JM, Mottice S, Hanson K, Weng HY, Korgenski K, et al. Increasing incidence of invasive Haemophilus influenzae disease in adults, Utah, USA. Emerg Infect Dis (2011) 17(9):1645–50. doi:10.3201/eid1709.101991

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Lucidarme J, Hill DM, Bratcher HB, Gray SJ, du Plessis M, Tsang RS, et al. Genomic resolution of an aggressive, widespread, diverse and expanding meningococcal serogroup B, C and W lineage. J Infect (2015) 71(5):544–52. doi:10.1016/j.jinf.2015.07.007

CrossRef Full Text | Google Scholar

6. McGill F, Heyderman RS, Panagiotou S, Tunkel AR, Solomon T. Acute bacterial meningitis in adults. Lancet (2016) 388(10063):3036–47. doi:10.1016/S0140-6736(16)30654-7

CrossRef Full Text | Google Scholar

7. Tomita N, Mori Y, Kanda H, Notomi T. Loop-mediated isothermal amplification (LAMP) of gene sequences and simple visual detection of products. Nat Protoc (2008) 3(5):877–82. doi:10.1038/nprot.2008.57

CrossRef Full Text | Google Scholar

8. Mori Y, Notomi T. Loop-mediated isothermal amplification (LAMP): a rapid, accurate, and cost-effective diagnostic method for infectious diseases. J Infect Chemother (2009) 15(2):62–9. doi:10.1007/s10156-009-0669-9

CrossRef Full Text | Google Scholar

9. Kim DW, Kilgore PE, Kim EJ, Kim SA, Anh DD, Seki M. Loop-mediated isothermal amplification assay to detect Haemophilus influenzae type b in cerebrospinal fluid. J Clin Microbiol (2011) 49(10):3621–6. doi:10.1128/JCM.00515-11

CrossRef Full Text | Google Scholar

10. McKenna JP, Fairley DJ, Shields MD, Cosby SL, Wyatt DE, McCaughey C, et al. Development and clinical validation of a loop-mediated isothermal amplification method for the rapid detection of Neisseria meningitidis. Diagn Microbiol Infect Dis (2011) 69(2):137–44. doi:10.1016/j.diagmicrobio.2010.10.008

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Kim DW, Kilgore PE, Kim EJ, Kim SA, Anh DD, Dong BQ, et al. The enhanced pneumococcal LAMP assay: a clinical tool for the diagnosis of meningitis due to Streptococcus pneumoniae. PLoS One (2012) 7(8):e42954. doi:10.1371/journal.pone.0042954

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Lee D, Kim EJ, Kilgore PE, Kim SA, Takahashi H, Ohnishi M, et al. Clinical evaluation of a loop-mediated isothermal amplification (LAMP) assay for rapid detection of Neisseria meningitidis in cerebrospinal fluid. PLoS One (2015) 10(4):e0122922. doi:10.1371/journal.pone.0122922

CrossRef Full Text | Google Scholar

13. Takahashi H, Haga M, Sunagawa T, Saitoh T, Kitahara T, Matsumoto S, et al. Meningococcal carriage rates in healthy individuals in Japan determined using loop-mediated isothermal amplification and oral throat wash specimens. J Infect Chemother (2016) 22(7):501–4. doi:10.1016/j.jiac.2015.12.016

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Lee D, Kim EJ, Kilgore PE, Takahashi H, Ohnishi M, Tomono J, et al. A novel loop-mediated isothermal amplification assay for serogroup identification of Neisseria meningitidis in cerebrospinal fluid. Front Microbiol (2015) 6:1548. doi:10.3389/fmicb.2015.01548

CrossRef Full Text | Google Scholar

15. Takano C, Seki M, Kim DW, Kilgore PE, Fuwa K, Takahashi K, et al. Molecular serotype-specific identification of non-type b Haemophilus influenzae by loop-mediated isothermal amplification. Front Microbiol (2017) 8:1877. doi:10.3389/fmicb.2017.01877

PubMed Abstract | CrossRef Full Text | Google Scholar

16. GBD 2015 Mortality and Causes of Death Collaborators. Global, regional, and national life expectancy, all-cause mortality, and cause-specific mortality for 249 causes of death, 1980–2015: a systematic analysis for the Global Burden of Disease Study 2015. Lancet (2016) 388(10053):1459–544. doi:10.1016/S0140-6736(16)31012-1

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Borrow R, Findlow J, Gray S, Taylor S, Kaczmarski E. Safe laboratory handling of Neisseria meningitidis. J Infect (2014) 68(4):305–12. doi:10.1016/j.jinf.2014.01.003

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Whatmore AM, Efstratiou A, Pickerill AP, Broughton K, Woodard G, Sturgeon D, et al. Genetic relationships between clinical isolates of Streptococcus pneumoniae, Streptococcus oralis, and Streptococcus mitis: characterization of “Atypical” pneumococci and organisms allied to S. mitis harboring S. pneumoniae virulence factor-encoding genes. Infect Immun (2000) 68(3):1374–82. doi:10.1128/IAI.68.3.1374-1382.2000

CrossRef Full Text | Google Scholar

19. Salo P, Ortqvist A, Leinonen M. Diagnosis of bacteremic pneumococcal pneumonia by amplification of pneumolysin gene fragment in serum. J Infect Dis (1995) 171(2):479–82. doi:10.1093/infdis/171.2.479

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Nagai K, Shibasaki Y, Hasegawa K, Davies TA, Jacobs MR, Ubukata K, et al. Evaluation of PCR primers to screen for Streptococcus pneumoniae isolates and beta-lactam resistance, and to detect common macrolide resistance determinants. J Antimicrob Chemother (2001) 48(6):915–8. doi:10.1093/jac/48.6.915

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Vernet G, Saha S, Satzke C, Burgess DH, Alderson M, Maisonneuve JF, et al. Laboratory-based diagnosis of pneumococcal pneumonia: state of the art and unmet needs. Clin Microbiol Infect (2011) 17(Suppl 3):1–13. doi:10.1111/j.1469-0691.2011.03496.x

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Slotved HC, Facklam RR, Fuursted K. Assessment of a novel bile solubility test and MALDI-TOF for the differentiation of Streptococcus pneumoniae from other mitis group streptococci. Sci Rep (2017) 7(1):7167. doi:10.1038/s41598-017-07772-x

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Seki M, Yamashita Y, Torigoe H, Tsuda H, Sato S, Maeno M. Loop-mediated isothermal amplification method targeting the lytA gene for detection of Streptococcus pneumoniae. J Clin Microbiol (2005) 43(4):1581–6. doi:10.1128/JCM.43.4.1581-1586.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

24. LaClaire LL, Tondella ML, Beall DS, Noble CA, Raghunathan PL, Rosenstein NE, et al. Identification of Haemophilus influenzae serotypes by standard slide agglutination serotyping and PCR-based capsule typing. J Clin Microbiol (2003) 41(1):393–6. doi:10.1128/JCM.41.1.393-396.2003

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Corless CE, Guiver M, Borrow R, Edwards-Jones V, Fox AJ, Kaczmarski EB. Simultaneous detection of Neisseria meningitidis, Haemophilus influenzae, and Streptococcus pneumoniae in suspected cases of meningitis and septicemia using real-time PCR. J Clin Microbiol (2001) 39(4):1553–8. doi:10.1128/JCM.39.4.1553-1558.2001

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Falla TJ, Crook DW, Brophy LN, Maskell D, Kroll JS, Moxon ER. PCR for capsular typing of Haemophilus influenzae. J Clin Microbiol (1994) 32(10):2382–6.

PubMed Abstract | Google Scholar

27. Harrison OB, Claus H, Jiang Y, Bennett JS, Bratcher HB, Jolley KA, et al. Description and nomenclature of Neisseria meningitidis capsule locus. Emerg Infect Dis (2013) 19(4):566–73. doi:10.3201/eid1904.111799

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Chanteau S, Dartevelle S, Mahamane AE, Djibo S, Boisier P, Nato F. New rapid diagnostic tests for Neisseria meningitidis serogroups A, W135, C, and Y. PLoS Med (2006) 3(9):e337. doi:10.1371/journal.pmed.0030337

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Taha MK, Alonso JM, Cafferkey M, Caugant DA, Clarke SC, Diggle MA, et al. Interlaboratory comparison of PCR-based identification and genogrouping of Neisseria meningitidis. J Clin Microbiol (2005) 43(1):144–9. doi:10.1128/JCM.43.1.144-149.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Fraisier C, Stor R, Tenebray B, Sanson Y, Nicolas P. Use of a new single multiplex PCR-based assay for direct simultaneous characterization of six Neisseria meningitidis serogroups. J Clin Microbiol (2009) 47(8):2662–6. doi:10.1128/JCM.02415-08

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Sheppard CL, Harrison TG, Morris R, Hogan A, George RC. Autolysin-targeted LightCycler assay including internal process control for detection of Streptococcus pneumoniae DNA in clinical samples. J Med Microbiol (2004) 53(Pt 3):189–95. doi:10.1099/jmm.0.05460-0

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Mercier B, Gaucher C, Feugeas O, Mazurier C. Direct PCR from whole blood, without DNA extraction. Nucleic Acids Res (1990) 18(19):5908. doi:10.1093/nar/18.19.5908

CrossRef Full Text | Google Scholar

33. Khan G, Kangro HO, Coates PJ, Heath RB. Inhibitory effects of urine on the polymerase chain reaction for cytomegalovirus DNA. J Clin Pathol (1991) 44(5):360–5. doi:10.1136/jcp.44.5.360

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Wiedbrauk DL, Werner JC, Drevon AM. Inhibition of PCR by aqueous and vitreous fluids. J Clin Microbiol (1995) 33(10):2643–6.

PubMed Abstract | Google Scholar

35. Kaneko H, Kawana T, Fukushima E, Suzutani T. Tolerance of loop-mediated isothermal amplification to a culture medium and biological substances. J Biochem Biophys Methods (2007) 70(3):499–501. doi:10.1016/j.jbbm.2006.08.008

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Kim JS, Jang YT, Kim JD, Park TH, Park JM, Kilgore PE, et al. Incidence of Haemophilus influenzae type b and other invasive diseases in South Korean children. Vaccine (2004) 22(29–30):3952–62. doi:10.1016/j.vaccine.2004.04.003

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Anh DD, Kilgore PE, Kennedy WA, Nyambat B, Long HT, Jodar L, et al. Haemophilus influenzae type B meningitis among children in Hanoi, Vietnam: epidemiologic patterns and estimates of H. Influenzae type B disease burden. Am J Trop Med Hyg (2006) 74(3):509–15.

PubMed Abstract | Google Scholar

38. Kennedy WA, Chang SJ, Purdy K, Le T, Kilgore PE, Kim JS, et al. Incidence of bacterial meningitis in Asia using enhanced CSF testing: polymerase chain reaction, latex agglutination and culture. Epidemiol Infect (2007) 135(7):1217–26. doi:10.1017/S0950268806007734

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Bourke TW, McKenna JP, Coyle PV, Shields MD, Fairley DJ. Diagnostic accuracy of loop-mediated isothermal amplification as a near-patient test for meningococcal disease in children: an observational cohort study. Lancet Infect Dis (2015) 15(5):552–8. doi:10.1016/S1473-3099(15)70038-1

PubMed Abstract | CrossRef Full Text | Google Scholar

40. O’Brien KL, Wolfson LJ, Watt JP, Henkle E, Deloria-Knoll M, McCall N, et al. Burden of disease caused by Streptococcus pneumoniae in children younger than 5 years: global estimates. Lancet (2009) 374(9693):893–902. doi:10.1016/S0140-6736(09)61204-6

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Fukusumi M, Chang B, Tanabe Y, Oshima K, Maruyama T, Watanabe H, et al. Invasive pneumococcal disease among adults in Japan, April 2013 to March 2015: disease characteristics and serotype distribution. BMC Infect Dis (2017) 17(1):2. doi:10.1186/s12879-016-2113-y

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Johnson HL, Deloria-Knoll M, Levine OS, Stoszek SK, Freimanis Hance L, Reithinger R, et al. Systematic evaluation of serotypes causing invasive pneumococcal disease among children under five: the pneumococcal global serotype project. PLoS Med (2010) 7(10):e1000348. doi:10.1371/journal.pmed.1000348

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Messaoudi M, Milenkov M, Albrich WC, van der Linden MP, Benet T, Chou M, et al. The relevance of a novel quantitative assay to detect up to 40 major Streptococcus pneumoniae serotypes directly in clinical nasopharyngeal and blood specimens. PLoS One (2016) 11(3):e0151428. doi:10.1371/journal.pone.0151428

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Mori Y, Kanda H, Notomi T. Loop-mediated isothermal amplification (LAMP): recent progress in research and development. J Infect Chemother (2013) 19(3):404–11. doi:10.1007/s10156-013-0590-0

CrossRef Full Text | Google Scholar

45. Dou M, Sanjay ST, Dominguez DC, Liu P, Xu F, Li X. Multiplexed instrument-free meningitis diagnosis on a polymer/paper hybrid microfluidic biochip. Biosens Bioelectron (2017) 87:865–73. doi:10.1016/j.bios.2016.09.033

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Francois P, Tangomo M, Hibbs J, Bonetti EJ, Boehme CC, Notomi T, et al. Robustness of a loop-mediated isothermal amplification reaction for diagnostic applications. FEMS Immunol Med Microbiol (2011) 62(1):41–8. doi:10.1111/j.1574-695X.2011.00785.x

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Miyamoto S, Sano S, Takahashi K, Jikihara T. Method for colorimetric detection of double-stranded nucleic acid using leuco triphenylmethane dyes. Anal Biochem (2015) 473:28–33. doi:10.1016/j.ab.2014.12.016

PubMed Abstract | CrossRef Full Text | Google Scholar

48. Moisi JC, Saha SK, Falade AG, Njanpop-Lafourcade BM, Oundo J, Zaidi AK, et al. Enhanced diagnosis of pneumococcal meningitis with use of the Binax NOW immunochromatographic test of Streptococcus pneumoniae antigen: a multisite study. Clin Infect Dis (2009) 48(Suppl 2):S49–56. doi:10.1086/596481

PubMed Abstract | CrossRef Full Text | Google Scholar
