BRIEF RESEARCH REPORT article

Front. Pain Res., 14 June 2023
Sec. Neuromodulatory Interventions
This article is part of the Research Topic Non-invasive Vagal Nerve Stimulation for Chronic Pain View all 7 articles

Percutaneous electrical nerve field stimulation improves comorbidities in children with cyclic vomiting syndrome

\r\nKatja Karrento
Katja Karrento1*Liyun ZhangLiyun Zhang2William ConleyWilliam Conley1Zeeshan QaziZeeshan Qazi1Thangam VenkatesanThangam Venkatesan3Pippa SimpsonPippa Simpson2B U.K. Li\r\nB U.K. Li1
  • 1Division of Pediatric Gastroenterology, Hepatology and Nutrition, Department of Pediatrics, Medical College of Wisconsin, Milwaukee, WI, United States
  • 2Division of Quantitative Health Sciences, Department of Pediatrics, Medical College of Wisconsin, Milwaukee, WI, United States
  • 3Division of Gastroenterology, The Ohio State University, Columbus, OH, United States

Introduction: Children with cyclic vomiting syndrome (CVS) frequently suffer from disabling abdominal pain and comorbidities that impair quality of life. A noninvasive, auricular percutaneous electrical nerve field stimulation (PENFS) device is shown to be effective for abdominal pain in children with disorders of gut–brain interaction. We aimed to determine the effects of PENFS on pain, common comorbidities, and quality of life in pediatric CVS.

Methods: Children aged 8–18 years with drug-refractory CVS were enrolled in a prospective, open-label study receiving 6 consecutive weeks of PENFS. Subjects completed the following surveys at baseline, during/after therapy (week 6), and at extended follow-up approximately 4–6 months later: Abdominal Pain Index (API), State-Trait Anxiety Inventory for Children (STAI-C), Pittsburgh Sleep Quality Index (PSQI), and Patient Reported Outcome Measurement Information System (PROMIS) Pediatric Profile-37.

Results: Thirty subjects were included. Median (interquartile range, IQR) age was 10.5 (8.5–15.5) years; 60% were female. Median API scores decreased from baseline to week 6 (p = 0.003) and to extended follow-up (p < 0.0001). State anxiety scores decreased from baseline to week 6 (p < 0.0001) and to extended follow-up (p < 0.0001). There were short-term improvements in sleep at 6 weeks (p = 0.031) but not at extended follow-up (p = 0.22). Quality of life measures of physical function, anxiety, fatigue, and pain interference improved short-term, while there were long-term benefits for anxiety. No serious side effects were reported.

Conclusions: This is the first study to demonstrate the efficacy of auricular neurostimulation using PENFS for pain and several disabling comorbidities in pediatric CVS. PENFS improves anxiety, sleep, and several aspects of quality of life with long-term benefits for anxiety.

Clinical trial registration: ClinicalTrials.gov, identifier NCT03434652.

Introduction

Cyclic vomiting syndrome (CVS) is a disorders of gut-brain interaction (DGBI) that manifests by recurrent episodes of relentless nausea and vomiting (1). The illness is often disabling due to difficulties managing the relentless nausea, vomiting, and abdominal pain during attacks. Quality of life is in fact worse than in children with other DGBI (2). The impact on mental health in children with CVS is considerable and needs better management. Attacks are most commonly precipitated by emotional arousal (3, 4). Comorbidities of anxiety, depression, and sleep disturbances are highly prevalent and underlie the poor quality of life (5, 6). One study documented that comorbid anxiety rather than vomiting severity predicted reduced quality of life (6). Over time, recurrent episodes and failing drug trials result in progressive anxiety and depression. There is thus a need to better address the mental health comorbidities in pediatric CVS with more targeted therapies.

Despite young patient age, limited scientific evidence, and lack of regulatory approval, there is a high rate of antidepressant use in children with CVS (7). These children are at risk of polypharmacy and serious side effects including suicidal ideation (8). There is an urgent and unmet need for safer, non-pharmacological therapies. Percutaneous electrical nerve field stimulation (PENFS) has emerged as a promising, noninvasive auricular neurostimulation therapy with demonstrated efficacy and regulatory approval in children with pain-associated DGBI (9, 10). A recent study of adolescents with DGBI found positive effects on several non-gastrointestinal comorbidities including sleep and anxiety (11). A low vagal tone was documented to predict PENFS response, suggesting that poor dynamic parasympathetic control may underlie certain DGBI (12). Several small studies have documented suboptimal autonomic regulation in both children and adult CVS patients (3, 1315). A recent study demonstrated that children with CVS have abnormal cardiac vagal regulation during their inter-episodic well phase as compared to healthy controls (16).

There are no prior studies assessing the effects of PENFS on abdominal pain and extraintestinal comorbidities in CVS. By targeting autonomic pathways via stimulation of the outer ear, auricular neurostimulation may regulate triggers and comorbidities driven by altered sympathovagal balance. This study aimed to investigate the efficacy of PENFS on pain, anxiety, sleep, and quality of life in children with CVS. We hypothesized that in children with CVS, PENFS has positive effects on pain and comorbidities and, consequently, also improves quality of life.

Methods

Study population

This was a prospective, open-label trial in children aged 8–18 years with CVS followed up in an outpatient tertiary care CVS Center at Children's Wisconsin (CW) hospital between January 2018 and December 2020. All subjects met Rome IV and North American Society for Pediatric Gastroenterology, Hepatology and Nutrition (NASPGHAN) 2008 CVS criteria (1, 17). The study was approved by the CW Institutional Review Board. Informed consent/assent was obtained from all subjects and their legal guardian. All study interventions were performed in the CW pediatric Translational Research Unit.

All subjects underwent screening diagnostic tests as per the treating pediatric gastroenterologist. These tests were documented to be normal prior to CVS diagnosis per current expert consensus recommendations (1). Additional inclusion criteria were a CVS episode frequency of minimum every 6 weeks for at least two cycles prior to study enrollment and English language proficiency. Exclusion criteria were significant developmental delay, rumination syndrome, gastrointestinal motility disorder, seizure disorder, or other organic diseases that may elicit nausea and vomiting. No changes to patients’ existing pharmacologic therapy were allowed for at least 2 weeks prior to study enrollment and during the study period.

Treatment protocol

A total of 32 subjects were enrolled. A PENFS device (Neuraxis, Carmel, IN, United States) was placed on the outer ear by a trained and certified research nurse as previously described (9). The PENFS device consists of a battery-operated unit connected to a harness with four titanium electrodes that are applied percutaneously to the external ear. The settings deliver 3.2 V in a rectangular pulse wave and alternating frequencies (1 ms pulses of 1 and 10 Hz) every 2 s. PENFS therapy was initiated during the baseline inter-episodic wellness period. Each device was worn for 5 days (24 h a day) for 6 consecutive weeks and removed by the family in the home setting. The frequency of CVS episodes was assessed at baseline and at an extended follow-up visit 4–6 months after end of the study. Subjects completed the following patient-reported questionnaires at various time points before and after the treatment intervention:

1. Abdominal Pain Index (18) (API): four items assessing frequency, duration, and intensity of abdominal pain over the past week, with score range 0–4 (higher score indicating greater symptom burden). The API was completed at baseline, weekly during therapy, at the end of therapy (week 6), and at extended follow-up.

2. Daily worst and average abdominal pain intensity on a scale from 0 to 10. Weekly averages were computed during the 6-week therapy for both worst and average pain intensity.

3. State-Trait Anxiety Inventory for Children (19) (STAI-C). This validated 40-item instrument measures both the current state of anxiety and the anxiety trait of a child. A lower score indicates less anxiety. The STAI-C was completed at baseline, end of therapy (week 6), and at extended follow-up.

4. Pittsburgh Sleep Quality Index (20) (PSQI). The adolescent version of this nine-item questionnaire was used to assess quality and patterns of sleep over the past month. A lower score indicates improved sleep quality. The measure was completed at baseline, end of therapy (week 6), and at extended follow-up.

5. Patient Reported Outcome Measurement Information System (21) (PROMIS) Pediatric Profile-37. This quality of life outcome measure efficiently assesses physical, emotional, and psychosocial functioning across six domains (Physical Function, Anxiety, Depression, Fatigue, Peer Relationships, and Pain Interference). A lower score indicates improved quality of life for the Anxiety, Depression, Fatigue, and Pain Interference subscales while a higher score relates to improvement in the Physical Function and Peer Relationships subscales. The measure was completed at baseline, weekly during the study, end of therapy (week 6), and at extended follow-up. They survey assessed these outcomes in relation to a typical CVS episode in order to better capture disease-specific quality of life.

Statistical analysis

Continuous variables are summarized as median and interquartile range (IQR), and categorical variables as number (%). The Wilcoxon rank test was used to examine the score changes from time to time. A general linear model of repeated measures was used to examine the weekly averages of daily pain score and weekly API score changes over the treatment weeks. The maximum likelihood estimation method was used, and the subjects were viewed as clusters with heterogeneous autoregressive used as the variance covariance matrix. Pearson correlations test was used to examine any relationship between episode frequency (converted to monthly value) and outcome measures. A result was reported as significant for an unadjusted two-sided p-value <0.05. All data analyses were performed using SAS9.4 and SPSS28.0.

Results

Thirty-two subjects were enrolled. One subject dropped out after first visit due to transportation issues and one was excluded from analyses due to incorrect diagnosis (constipation). Thirty subjects were included in the final analyses. Eighteen (60%) were female and median (IQR) age was 10.5 (8.5–15.5) years. The majority (n = 29, 97%) were Caucasian and one subject was Hispanic. Twenty-two subjects (73%) suffered from CVS attacks 1–2 times per month, while the rest had episodes as often as three times (n = 1) or four times (n = 7) per month. The median (IQR) duration of episodes was 48.0 (24.0–96.0) h. All participants had failed previous pharmacological interventions to control the CVS episodes with a median (IQR) of 2.5 (1.0–4.0) prophylactic medications failed prior to entering the trial. The median (IQR) time to extended follow-up was 4.4 (3.1–6.8) months.

The frequency of episodes/month decreased from monthly median (IQR) 2.0 (1.0–3.0) at baseline to 0.5 (0.2–1.13) at the extended follow-up (p < 0.0001).

Pain measures

Abdominal Pain Index

Median (IQR) API scores on n = 26 subjects with complete data decreased from 1.64 (0–2.68) at baseline to 1.08 (0–1.65) at week 6 (p = 0.003) and to 0.55 (0–1.0) at follow-up (p < 0.0001; Figure 1). Weekly median API scores improved during the treatment course and were significantly lower than baseline scores after all treatment weeks (p < 0.05) except week 2 (p = 0.106).

FIGURE 1
www.frontiersin.org

Figure 1. Weekly pain scores as measured by API during the treatment intervention with significant improvement after 6 weeks of therapy (n = 26 subjects) compared to baseline (p = 0.003). API, abdominal pain index.

Daily pain intensity

Weekly averages across the 6-week treatment intervention also showed a reduction in the daily mean abdominal pain scores from baseline median (IQR) 5.0 (1.0–6.0) to 0.36 (0–1.57) at week 6 (p < 0.0001). The baseline scores were higher than all subsequent weeks of therapy (p < 0.0001), and the weekly average for mean abdominal pain during week 1 was significantly higher than week 3 (p = 0.028). There were similar findings for weekly averages for daily worst abdominal pain with significantly higher score at baseline compared to all subsequent weeks (p < 0.0001) and higher scores at week 1 compared to week 3 (p = 0.011).

State-Trait Anxiety Inventory for Children

A total of 26 subjects had complete data for the STAI-C state measure at all time points. Median (IQR) state anxiety scores decreased from 63.5 (52.0–70.0) at baseline to 51.0 (44.0–54.0) at week 6 (p < 0.0001) and 49.0 (44.0–54.0) at follow-up (p < 0.0001). Similarly, median (IQR) trait anxiety scores (n = 25 with complete data) decreased significantly from 49.0 (44.0–53.0) at baseline to 41.0 (37.0–51.0) at week 6 (p = 0.031). There was no significant reduction in trait anxiety score from baseline to follow-up (p = 0.06; Figure 2). While there was no significant relationship between reduced STAI-C state scores and episode frequency, the decrease in STAI-C trait at follow-up correlated with decrease in the average episode frequency (r = 0.41; p = 0.041).

FIGURE 2
www.frontiersin.org

Figure 2. STAI-C anxiety state and trait T-scores from baseline to end of therapy and follow-up time point. STAI-C, State-Trait Anxiety Inventory for Children.

Pittsburgh Sleep Quality Index

Twenty-six out of the 30 subjects had complete data sets with regard to PSQI scores. Study participants showed improved sleep quality with PENFS treatment although this did not have long-term effects. The median (IQR) PSQI score decreased from 7.0 (4.0–9.0) at baseline to 4.5 (3.0–8.0) at 6 weeks (p = 0.031). When compared to baseline, there was a nonsignificant reduction in PSQI scores at extended follow-up: median (IQR): 5.0 (3.0–9.0) (p = 0.22; Figure 3).

FIGURE 3
www.frontiersin.org

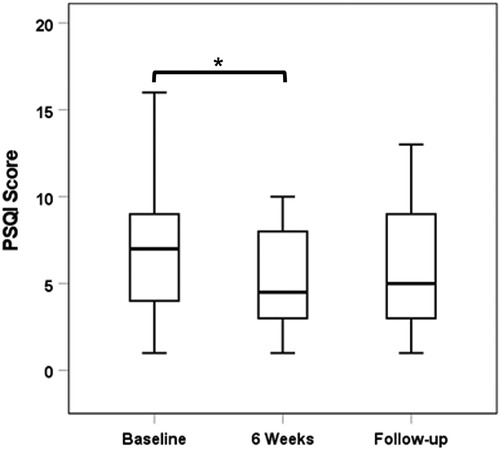

Figure 3. Median PSQI scores across study period. PSQI. Pittsburgh Sleep Quality Index.

PROMIS Pediatric Profile-37

A total of 27 out of the 30 patients studied had complete data sets to analyze. Study participants showed improvement in disease-specific physical function, anxiety, fatigue, and pain interference after 6 weeks of PENFS therapy. PROMIS scores for the anxiety subscale were also significantly reduced at the follow-up time point compared to baseline (Table 1). There was a nonsignificant correlation between reduction in anxiety and improved episode frequency/month at the extended follow-up (Pearson r = 0.12; p = 0.54).

TABLE 1
www.frontiersin.org

Table 1. PROMIS quality of life measure scores across several domains comparing baseline to 6 weeks and baseline to extended follow-up.

Weekly median subscale scores improved significantly (p < 0.05) during the treatment course for physical function (baseline > all weeks), anxiety (baseline > all weeks), depression (baseline > weeks 1, 3, and 4), fatigue (baseline > weeks 1, 3, 5, and 6), and pain interference (baseline > all weeks).

Discussion

This is the first study evaluating the effects of a non-implantable, auricular neurostimulation device on comorbidities and triggers associated with cyclic vomiting syndrome in children. This open-label, prospective trial demonstrates benefits of PENFS on pain, sleep, and several quality of life indices, including physical function, anxiety, fatigue, and pain interference. More importantly, there were long-term improvements in pain and anxiety measures at extended follow-up 4–6 months after study completion. The combination of short-term improvement in comorbidities and quality of life measures with a durable reduction in anxiety suggests that the therapy may have sustained alterations on the course of this disease.

Existing literature demonstrates a strong influence of mental health conditions in children with CVS. Anxiety is not only highly prevalent in children with CVS but also the main factor that predicts a reduced quality of life (5, 6). Anxiety and emotional arousal during positive and negative life events are the most common triggers for CVS attacks in children (3). A baseline higher autonomic reactivity and sensitivity to any disruptions of internal regulation is a postulated explanation for the rapid deterioration after an inciting trigger (22). Autonomic dysfunction has been implicated in the pathophysiology based on several smaller studies of both children and adults with CVS (3, 1315). One small study documented reduced parasympathetic tone in response to a social stress test (3). This study further noted that majority (82%) of children with CVS met the criteria for anxiety and that acute (state) anxiety (but not trait anxiety) correlated negatively with parasympathetic tone. These findings support a link between acute stress responses and altered vagal reactivity in children with CVS. Recently published data demonstrate an underlying autonomic imbalance with inefficient cardioinhibitory vagal regulation in children with CVS during their interictal well phase (16). These findings were generated in comparison to a larger cohort of age-, gender-, and size-matched healthy controls and corrected for medication confounders. Although speculative, anxiety may thus induce an unimpeded sympathetic activation that is chronically dampened by PENFS therapy, which likely acts via stimulation of the auricular branch of the vagus nerve (12). Thus, the long-term effects on anxiety measures in this study corroborate prior data and a plausible therapeutic mechanism that targets the underlying autonomic dysregulation. PENFS may have dual mechanistic roles by (1) influencing autonomic nervous system (ANS) and thus targeting the underlying pathology of CVS (16) and secondarily reducing anxiety/worries about subsequent episodes, and/or (2) direct anti-anxiety effects via vagal neurostimulation as reported in both human and animal studies (23, 24) and thus minimizing the triggering events. It is interesting to note that CVS has been linked to altered brain network connectivity. In adults with CVS, a functional MRI study suggested increased connectivity between the salience processing network and the mid/posterior insula, a key region for processing nausea and viscerosensory stimuli (25). There was also decreased sensorimotor connectivity in both CVS and migraine patients, suggesting a common pathophysiology. This provides another potential mechanism of excessive neuronal excitability with a lower threshold for activation by triggering events. Vagal neuromodulation via PENFS may induce neural plasticity and alter brain connectivity (26), thereby dampening this hyperexcitability. In a study of adults with fibromyalgia undergoing PENFS therapy, improved pain interference and sleep correlated with altered resting state functional network connectivity (27).

There is a great demand for effective, non-pharmacological therapies for children with CVS. Recent data show that children with DGBI incur significant healthcare utilization due largely to the lack of targeted and effective therapies (28). CVS patients, in particular, incur a substantial healthcare burden due to repeated emesis attacks (29). Costs related to hospitalizations for children with acute episodes of CVS have more than doubled over the past two decades and totaled $84 million/year (30). The need for repeated high acuity medical interventions due to rapid dehydration is likely to escalate the mental health comorbidities, explaining why anxiety is the main contributor to poor quality of life and disability (6). While there are scant supportive data and no regulatory approval, children with CVS are frequently treated with antidepressants that incur the risks of serious side effects and polypharmacy (8, 31, 32). A Cochrane review found no evidence to support the use of antidepressants for children with DGBI (7). Further, these drugs have strong anticholinergic effects that exert direct, inhibitory effects on cardiac vagal signaling (33). Finding effective, nondrug alternatives is thus paramount to improving care for this disabling condition.

The strengths of our study include the prospective study design and the long-term and multidimensional assessment of disease comorbidities and quality of life indices. Yet, our study has several important limitations. The lack of a sham-controlled study design is an important limitation and placebo effects may underlie some of the improvement as subjects received weekly attention. Placebo effects may be particularly high with non-pharmacological, noninvasive interventions such as the PENFS that are often highly sought by parents of CVS sufferers after failing numerous drug therapies. Bias in the report of symptom improvement may thus be a factor. Yet, the device placements were performed by certified research nurses who are not part of the research team and were instructed to refrain from interactions with subjects. The noted long-term improvements are also less likely due to placebo effects. Assessing an episodic illness with standardized patient-reported outcome surveys designed for chronic conditions is problematic. The pain assessment (API), in particular, is a survey of pain symptoms over past week, and long-term improvement in this measure may be less relevant to an episodic illness. However, progressive pain improvement throughout and after the treatment intervention based on several measures coupled with long-term reduction in episode frequency suggests that PENFS therapy influences the disease course. Additionally, the inclusion of comprehensive and long-term assessments of several comorbidities and quality of life measures in relation to the CVS episodes lessens this confounder. State anxiety assessment could also be confounded by the assessment at single points in time. The state anxiety or PROMIS anxiety subscales did not show a clear relationship. This could be due to a small sample size and insufficiently powered study. A longer duration of follow-up is likely needed to thoroughly assess the impact on episode frequency. However, anxiety indices were improved on both PROMIS and STAI-C (state) scales, suggesting long-term improvement in this common comorbidity. Further investigations of the impact of mental health comorbidities, including antecedent trauma, would be important for a more comprehensive understanding of this patient cohort. Finally, that lack of standardization of protocols, the type of stimulation (transcutaneous vs. percutaneous), and stimulation parameters limits the generalizability of research in the field of noninvasive neuromodulation (34). Reliable biomarkers of parasympathetic activity are needed to optimize stimulation protocols and individualize therapy.

In summary, this pilot study shows promising effects of noninvasive auricular neurostimulation via PENFS in children with CVS. While short-term effects were noted for several pain and quality of life measures during and after therapy, there were important long-term improvements on several anxiety measures. As a sympathetically mediated disorder strongly governed by heightened arousal and stress states, this therapy shows promise as an emerging non-pharmacological and targeted intervention for CVS.

Data availability statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Ethics statement

The studies involving human participants were reviewed and approved by Institutional Review Board, Children’s Wisconsin Hospital. Written informed consent to participate in this study was provided by the participants’ legal guardian/next of kin.

Author contributions

KK: study concept and design, acquisition of data, interpretation of data, obtained funding, administrative support and study supervision, drafting and critical revision of the manuscript. LZ: analysis and interpretation of data, statistical analysis, drafting and critical revision of the manuscript. WC and ZQ: processing and editing of data, assistance with interpretation of data, drafting and critical revision of the manuscript. TV: study design and implementation, interpretation of data, study supervision, drafting and critical revision of the manuscript. PS: study design, analysis and interpretation of data, statistical analysis, drafting and critical revision of the manuscript. BL: study concept and design, interpretation of data, obtained funding, study supervision, drafting and critical revision of the manuscript. All authors contributed to the article and approved the submitted version.

Funding

Funding in support of this work was provided by the Digestive Disease Center (DDC) at the Medical College of Wisconsin and the Cyclic Vomiting Syndrome Association. Study sponsors had no role in the study design or collection, analysis, or interpretation of data.

Acknowledgments

The authors wish to thank Louis Pawela and Rachel Unteutsch for their work on subject enrollment and database organization.

Conflict of interest

TV and BL serve as a consultant for Takeda Pharmaceuticals. KK serves on the Medical Advisory Board for Abbvie and consultant for Neurogastrx.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Li BU, Lefevre F, Chelimsky GG, Boles RG, Nelson SP, Lewis DW, et al. North American Society for Pediatric Gastroenterology, Hepatology, and Nutrition consensus statement on the diagnosis and management of cyclic vomiting syndrome. J Pediatr Gastroenterol Nutr. (2008) 47(3):379–93. doi: 10.1097/MPG.0b013e318173ed39

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Tarbell SE, Li BU. Health-related quality of life in children and adolescents with cyclic vomiting syndrome: a comparison with published data on youth with irritable bowel syndrome and organic gastrointestinal disorders. J Pediatr. (2013) 163(2):493–7. doi: 10.1016/j.jpeds.2013.01.025

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Tarbell SE, Millar A, Laudenslager M, Palmer C, Fortunato JE. Anxiety and physiological responses to the Trier Social Stress Test for Children in adolescents with cyclic vomiting syndrome. Auton Neurosci. (2017) 202:79–85. doi: 10.1016/j.autneu.2016.08.010

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Forbes D, Withers G, Silburn S, McKelvey R. Psychological and social characteristics and precipitants of vomiting in children with cyclic vomiting syndrome. Dig Dis Sci. (1999) 44(8 Suppl):19S–22S.10490034

PubMed Abstract | Google Scholar

5. Tarbell S, Li BU. Psychiatric symptoms in children and adolescents with cyclic vomiting syndrome and their parents. Headache. (2008) 48(2):259–66. doi: 10.1111/j.1526-4610.2007.00997.x

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Tarbell SE, Li BU. Anxiety measures predict health-related quality of life in children and adolescents with cyclic vomiting syndrome. J Pediatr. (2015) 167(3):633–8e1. doi: 10.1016/j.jpeds.2015.05.032

PubMed Abstract | CrossRef Full Text | Google Scholar

7. de Bruijn CMA, Rexwinkel R, Gordon M, Benninga M, Tabbers MM. Antidepressants for functional abdominal pain disorders in children and adolescents. Cochrane Database Syst Rev. (2021) 2(2):CD008013. doi: 10.1002/14651858.CD008013.pub3

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Diaz-Caneja CM, Espliego A, Parellada M, Arango C, Moreno C. Polypharmacy with antidepressants in children and adolescents. Int J Neuropsychopharmacol. (2014) 17(7):1063–82. doi: 10.1017/S1461145712001265

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Kovacic K, Hainsworth K, Sood M, Chelimsky G, Unteutsch R, Nugent M, et al. Neurostimulation for abdominal pain-related functional gastrointestinal disorders in adolescents: a randomised, double-blind, sham-controlled trial. Lancet Gastroenterol Hepatol. (2017) 2(10):727–37. doi: 10.1016/S2468-1253(17)30253-4

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Krasaelap A, Sood MR, Li BUK, Unteutsch R, Yan K, Nugent M, et al. Efficacy of auricular neurostimulation in adolescents with irritable bowel syndrome in a randomized, double-blind trial. Clin Gastroenterol Hepatol. (2020) 18(9):1987–94e2. doi: 10.1016/j.cgh.2019.10.012

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Santucci NR, King C, El-Chammas KI, Wongteerasut A, Damrongmanee A, Graham K, et al. Effect of percutaneous electrical nerve field stimulation on mechanosensitivity, sleep, and psychological comorbidities in adolescents with functional abdominal pain disorders. Neurogastroenterol Motil. (2022) 34(8):e14358. doi: 10.1111/nmo.14358

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Kovacic K, Kolacz J, Lewis GF, Porges SW. Impaired vagal efficiency predicts auricular neurostimulation response in adolescent functional abdominal pain disorders. Am J Gastroenterol. (2020) 115(9):1534–8. doi: 10.14309/ajg.0000000000000753

PubMed Abstract | CrossRef Full Text | Google Scholar

13. To J, Issenman RM, Kamath MV. Evaluation of neurocardiac signals in pediatric patients with cyclic vomiting syndrome through power spectral analysis of heart rate variability. J Pediatr. (1999) 135(3):363–6. doi: 10.1016/S0022-3476(99)70135-6

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Venkatesan T, Prieto T, Barboi A, Li B, Schroeder A, Hogan W, et al. Autonomic nerve function in adults with cyclic vomiting syndrome: a prospective study. Neurogastroenterol Motil. (2010) 22(12):1303–7. doi: 10.1111/j.1365-2982.2010.01577.x

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Chelimsky TC, Chelimsky GG. Autonomic abnormalities in cyclic vomiting syndrome. J Pediatr Gastroenterol Nutr. (2007) 44(3):326–30. doi: 10.1097/MPG.0b013e31802bddb7

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Kolacz J, Kovacic K, Dang L, Li BUK, Lewis GF, Porges SW. Cardiac vagal regulation is impeded in children with cyclic vomiting syndrome. Am J Gastroenterol. (2023):1–8. doi: 10.14309/ajg.0000000000002207

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Hyams JS, Di Lorenzo C, Saps M, Shulman RJ, Staiano A, van Tilburg M. Functional disorders: children and adolescents. Gastroenterology. (2016) 150(6):1456–68. doi: 10.1053/j.gastro.2016.02.015

CrossRef Full Text | Google Scholar

18. Laird KT, Sherman AL, Smith CA, Walker LS. Validation of the Abdominal Pain Index using a revised scoring method. J Pediatr Psychol. (2015) 40(5):517–25. doi: 10.1093/jpepsy/jsu118

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Deacy AD, Gayes LA, De Lurgio S, Wallace DP. Adaptation of the state-trait inventory for cognitive and somatic anxiety for use in children: a preliminary analysis. J Pediatr Psychol. (2016) 41(9):1033–43. doi: 10.1093/jpepsy/jsw030

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Buysse DJ, Reynolds CF 3rd, Monk TH, Berman SR, Kupfer DJ. The Pittsburgh Sleep Quality Index: a new instrument for psychiatric practice and research. Psychiatry Res. (1989) 28(2):193–213. doi: 10.1016/0165-1781(89)90047-4

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Cunningham NR, Kashikar-Zuck S, Mara C, Goldschneider KR, Revicki DA, Dampier C, et al. Development and validation of the self-reported PROMIS pediatric pain behavior item bank and short form scale. Pain. (2017) 158(7):1323–31. doi: 10.1097/j.pain.0000000000000914

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Levinthal DJ. The cyclic vomiting syndrome threshold: a framework for understanding pathogenesis and predicting successful treatments. Clin Transl Gastroenterol. (2016) 7(10):e198. doi: 10.1038/ctg.2016.55

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Bremner JD, Gurel NZ, Wittbrodt MT, Shandhi MH, Rapaport MH, Nye JA, et al. Application of noninvasive vagal nerve stimulation to stress-related psychiatric disorders. J Pers Med. (2020) 10(3):119. doi: 10.3390/jpm10030119

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Noble LJ, Meruva VB, Hays SA, Rennaker RL, Kilgard MP, McIntyre CK. Vagus nerve stimulation promotes generalization of conditioned fear extinction and reduces anxiety in rats. Brain Stimul. (2019) 12(1):9–18. doi: 10.1016/j.brs.2018.09.013

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Ellingsen DM, Garcia RG, Lee J, Lin RL, Kim J, Thurler AH, et al. Cyclic vomiting syndrome is characterized by altered functional brain connectivity of the insular cortex: a cross-comparison with migraine and healthy adults. Neurogastroenterol Motil. (2017) 29(6):1–7. doi: 10.1111/nmo.13004

CrossRef Full Text | Google Scholar

26. Hays SA, Rennaker RL, Kilgard MP. Targeting plasticity with vagus nerve stimulation to treat neurological disease. Prog Brain Res. (2013) 207:275–99. doi: 10.1016/B978-0-444-63327-9.00010-2

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Woodbury A, Krishnamurthy V, Gebre M, Napadow V, Bicknese C, Liu M, et al. Feasibility of auricular field stimulation in fibromyalgia: evaluation by functional magnetic resonance imaging, randomized trial. Pain Med. (2021) 22(3):715–26. doi: 10.1093/pm/pnaa317

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Beinvogl B, Palmer N, Kohane I, Nurko S. Healthcare spending and utilization for pediatric irritable bowel syndrome in a commercially insured population. Neurogastroenterol Motil. (2021) 33(11):e14147. doi: 10.1111/nmo.14147

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Bhandari S, Venkatesan T. Clinical characteristics, comorbidities and hospital outcomes in hospitalizations with cyclic vomiting syndrome: a nationwide analysis. Dig Dis Sci. (2017) 62(8):2035–44. doi: 10.1007/s10620-016-4432-7

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Thavamani A, Umapathi KK, Khatana J, Bhandari S, Kovacic K, Venkatesan T. Cyclic vomiting syndrome-related hospitalizations trends, comorbidities & health care costs in children: a population based study. Children. (2022) 9(1):1–10. doi: 10.3390/children9010055

CrossRef Full Text | Google Scholar

31. Boles RG, Lovett-Barr MR, Preston A, Li BU, Adams K. Treatment of cyclic vomiting syndrome with co-enzyme Q10 and amitriptyline, a retrospective study. BMC Neurol. (2010) 10:10. doi: 10.1186/1471-2377-10-10

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Moraros J, Nwankwo C, Patten SB, Mousseau DD. The association of antidepressant drug usage with cognitive impairment or dementia, including Alzheimer disease: a systematic review and meta-analysis. Depress Anxiety. (2017) 34(3):217–26. doi: 10.1002/da.22584

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Saternos HC, Almarghalani DA, Gibson HM, Meqdad MA, Antypas RB, Lingireddy A, et al. Distribution and function of the muscarinic receptor subtypes in the cardiovascular system. Physiol Genomics. (2018) 50(1):1–9. doi: 10.1152/physiolgenomics.00062.2017

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Farmer AD, Strzelczyk A, Finisguerra A, Gourine AV, Gharabaghi A, Hasan A, et al. International consensus based review and recommendations for minimum reporting standards in research on transcutaneous vagus nerve stimulation (version 2020). Front Hum Neurosci. (2021) 14:568051. doi: 10.3389/fnhum.2020.568051

PubMed Abstract | CrossRef Full Text | Google Scholar
