REVIEW article

Front. Oncol.
Sec. Neuro-Oncology and Neurosurgical Oncology
Volume 14 - 2024 | doi: 10.3389/fonc.2024.1481430

Preoperative Mapping Techniques for Brain Tumor Surgery: A Systematic Review

Provisionally accepted
  • 1 Department of Neurosurgery, Städtisches Klinikum Karlsruhe, Karlsruhe, Germany
  • 2 Department of Neurosurgery, Charité University Medicine Berlin, Berlin, Germany
  • 3 Department of Neurosurgery, University of Foggia, Foggia, Italy
  • 4 Department of Neurosurgery, Charité - Universitätsmedizin Berlin, Berlin, Baden-Württemberg, Germany
  • 5 Department of Neurosurgery, University of Messina, Messina, Italy
  • 6 Einstein Center for Neurosciences, Charité University Medicine Berlin, Berlin, Baden-Wurttemberg, Germany
  • 7 Charité University Medicine Berlin, Berlin, Germany

The final, formatted version of the article will be published soon.

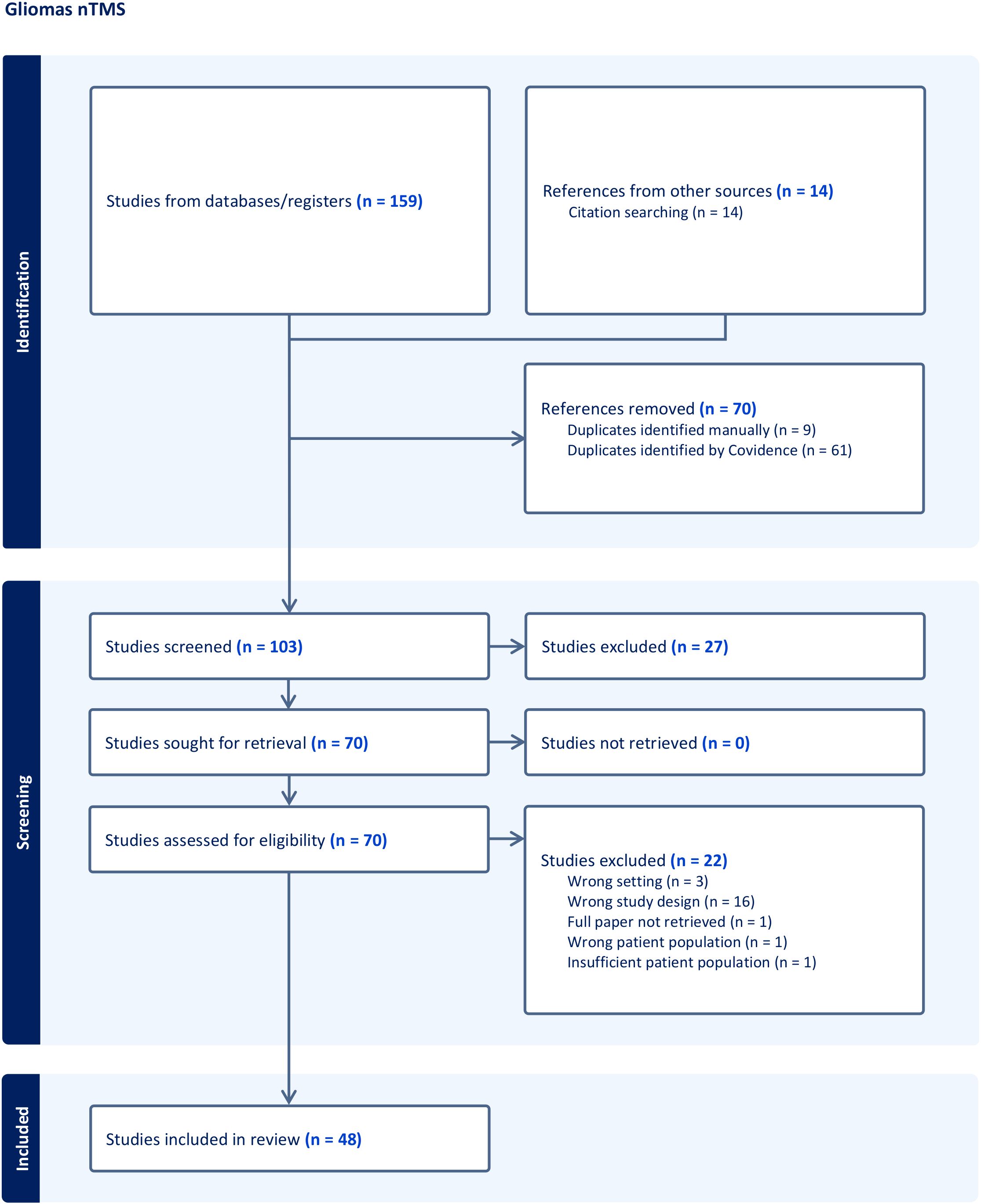

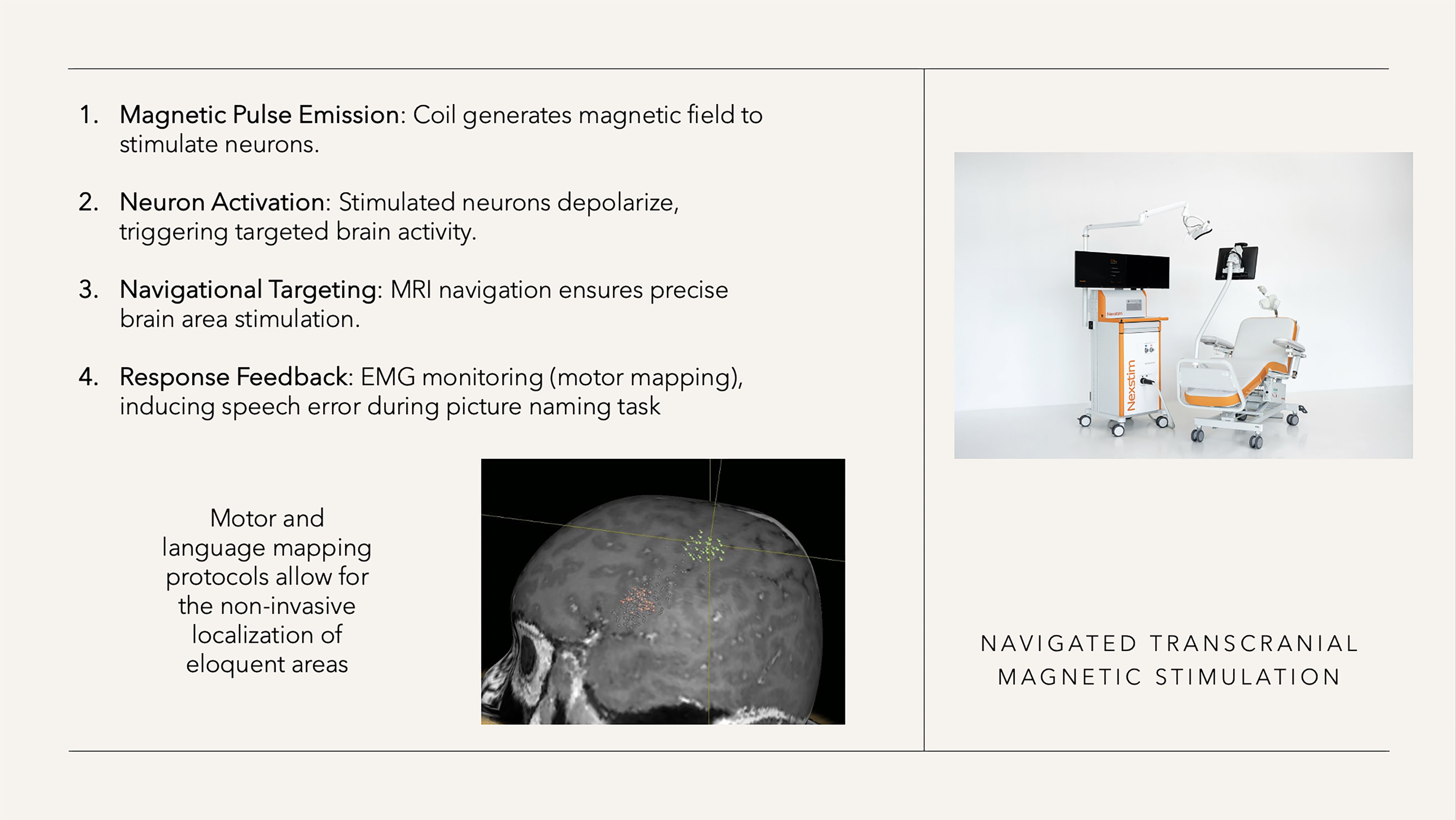

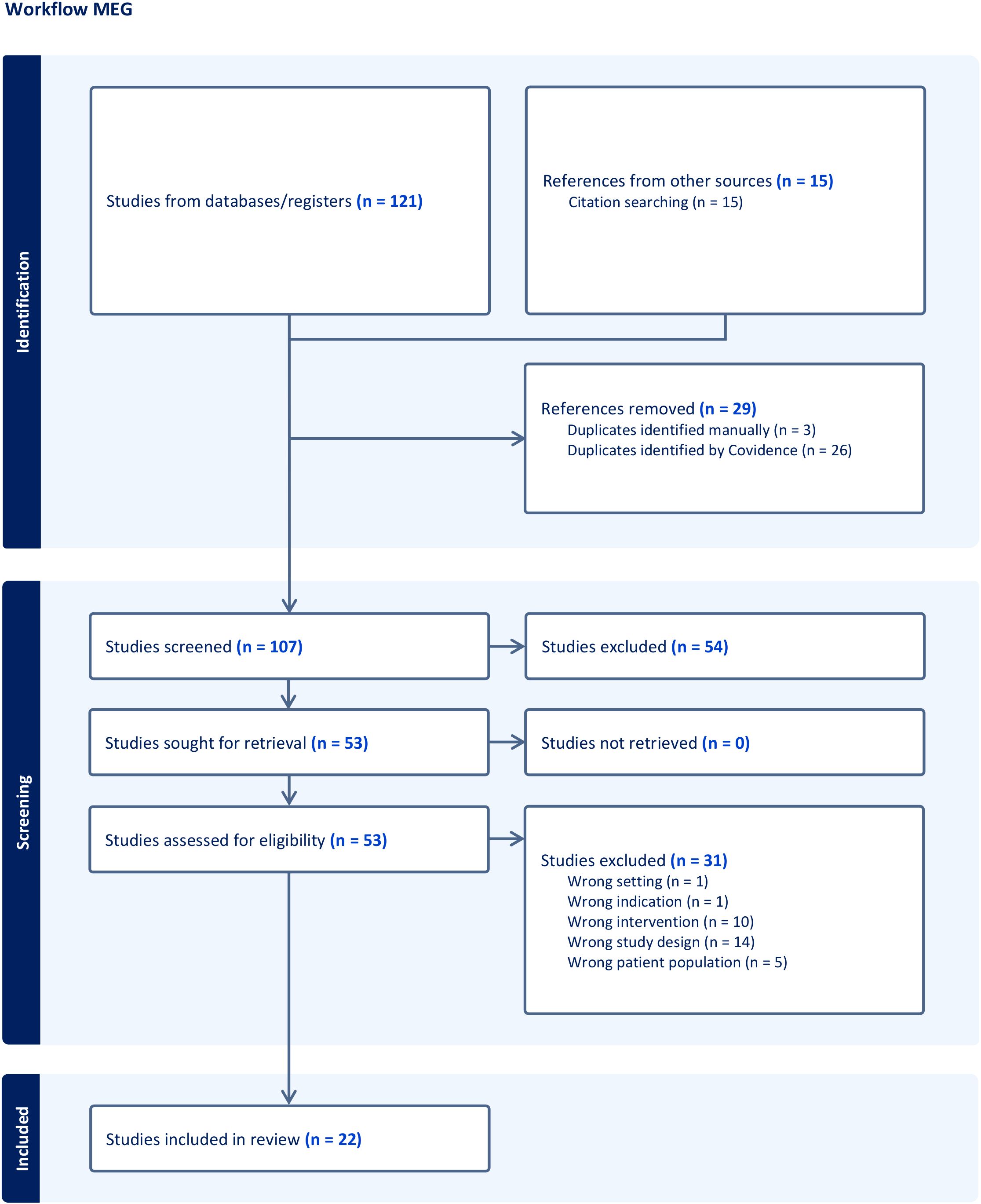

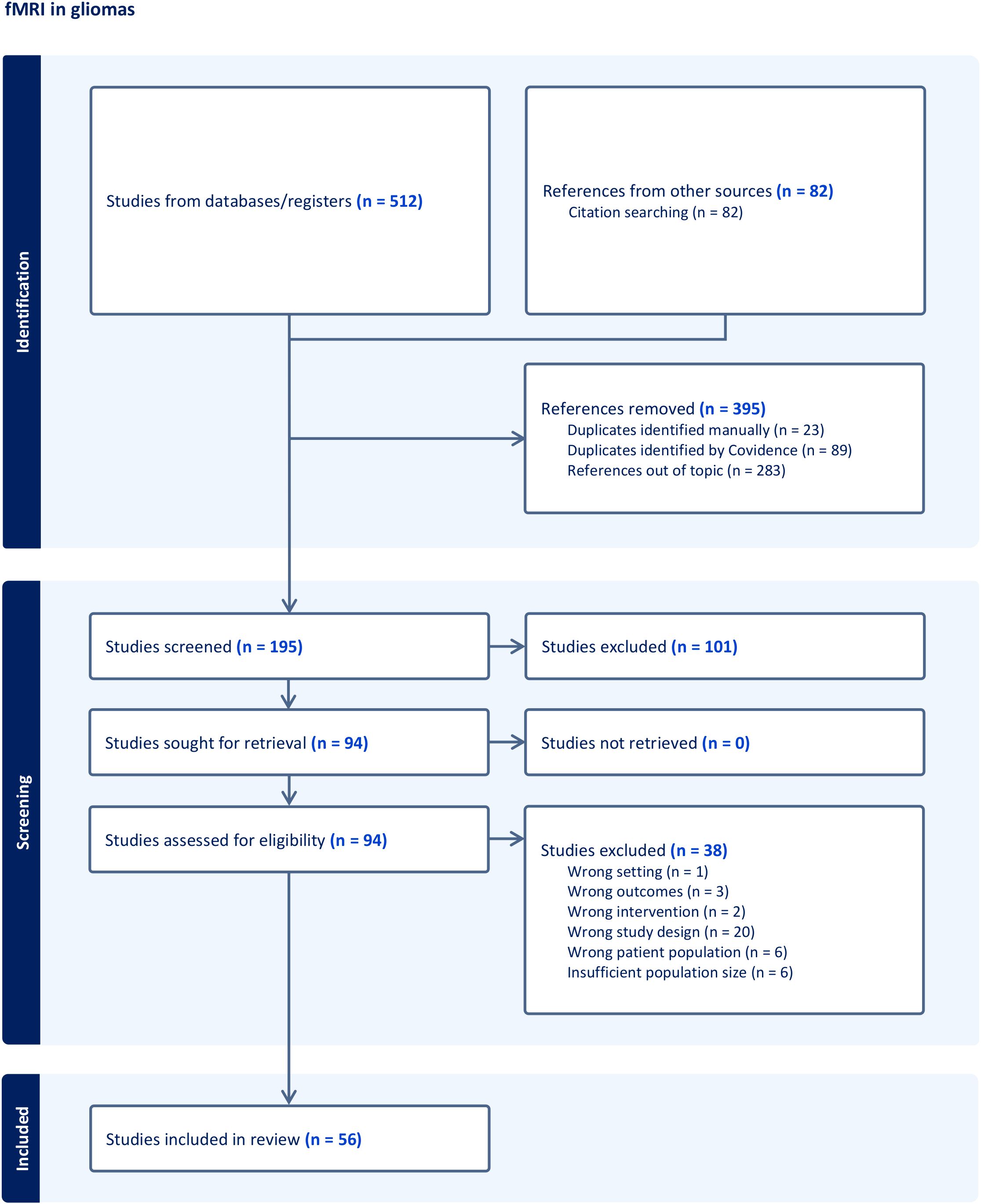

    Accurate preoperative mapping is crucial for maximizing tumor removal while minimizing damage to critical brain functions during brain tumor surgery. Navigated transcranial magnetic stimulation (nTMS), magnetoencephalography (MEG), and functional magnetic resonance imaging (fMRI) are established methods for assessing motor and language function. Following PRISMA guidelines, this systematic review analyzes the reliability, clinical utility, and accessibility of these techniques. A total of 128 studies (48 nTMS, 56 fMRI, 24 MEG) were identified from various databases.The analysis finds nTMS to be a safe, standardized method with high accuracy compared to direct cortical stimulation for preoperative motor mapping. Combining nTMS with tractography allows for preoperative assessment of shortterm and long-term motor deficits, which may not be possible with fMRI. fMRI data interpretation requires careful consideration of co-activated, non-essential areas (potentially leading to false positives) and situations where neural activity and blood flow are uncoupled (potentially leading to false negatives). These limitations restrict fMRI's role in preoperative planning for both motor and language functions. While MEG offers high accuracy in motor mapping, its high cost and technical complexity contribute to the limited number of available studies.Studies comparing preoperative language mapping techniques with direct cortical stimulation show significant variability across all methods, highlighting the need for larger, multicenter studies for validation. Repetitive nTMS speech mapping offers valuable negative predictive value, allowing clinicians to evaluate whether a patient should undergo awake or asleep surgery. Language function monitoring heavily relies on the specific expertise and experience available at each center, making it challenging to establish general recommendations.

    Keywords: navigated transcranial magnetic stimulation (nTMS), MEG (magnetoencephalography), fMRI, Brain Mapping, Preoperative mapping, Brain tumor surgery, motor eloquent tumors, language eloquent tumor

    Received: 15 Aug 2024; Accepted: 10 Dec 2024.

    Copyright: © 2024 Leone, Carbone, Spetzger, Vajkoczy, Raffa, Engelhardt, Picht, Colamaria and Rosenstock. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence: Tizian Rosenstock, Charité University Medicine Berlin, Berlin, Germany

    Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
