REVIEW article

Front. Oncol., 10 July 2024
Sec. Gynecological Oncology

Construction of a nomogram model for predicting the outcome of debulking surgery for ovarian cancer on the basis of clinical indicators

Yuanyuan Si,&#x;Yuanyuan Si1,2†Ningjia Song&#x;Ningjia Song2†Yong Ji*Yong Ji1*
  • 1Department of Anesthesiology, Affiliated Hospital of Jiangnan University, Wuxi, China
  • 2Wuxi Medical School, Jiangnan University, Wuxi, China

Objective: This study aimed to investigate the risk factors affecting satisfaction with debulking surgery for ovarian cancer and establish a preoperative clinical predictive model.

Methods: Clinical data from 131 patients who underwent ovarian cancer debulking surgery at Jiangnan University Affiliated Hospital between 2016 and 2022 were collected. Patients were randomly separated into an experimental group and a control group in a 7:3 ratio. On the basis of intraoperative outcomes, patients were grouped as either surgery-satisfactory or surgery-unsatisfactory. Clinical indicators were compared through single-factor analysis between groups. Significantly different factors (p < 0.1) were further analyzed through multivariate logistic regression. A predictive nomogram model was developed and validated by receiver operating characteristic (ROC), calibration, and clinical decision curves.

Results: Single-factor analysis revealed the significance of factors such as albumin levels, alkaline phosphatase (ALP), ECOG scores, CA125, HE4, and lymph node metastasis. Multivariate regression analysis identified albumin levels, ALP, ECOG scores, HE4, and lymph node metastasis as independent risk factors for satisfactory surgical outcomes in patients with ovarian cancer undergoing debulking surgery as (p < 0.05). A clinical predictive model was successfully constructed. ROC curves showed AUC values of 0.818 and 0.796 for the experimental and validation groups, respectively. Internal validation through the bootstrap method confirmed the model’s fit in both groups. Meanwhile, the clinical decision curve demonstrated the model’s high utility.

Conclusion: Independent risk factors associated with satisfactory tumor reduction in patients with ovarian cancer undergoing debulking surgery included decreased albumin levels, ALP > 137 U/L, ECOG = 1 score, HE4 > 140 pmol/L, and lymph node metastasis. Constructing a clinical predictive model through logistic regression analysis enables individualized testing and maximizes clinical benefits.

1 Introduction

Epithelial ovarian cancer (EOC) often manifests subtly without specific early symptoms, and it ranks the highest in terms of fatality rates among female reproductive system malignancies (1, 2). Standard treatment for advanced EOC involves initial debulking surgery followed by postoperative platinum-based chemotherapy. For challenging cases wherein satisfactory tumor reduction is difficult to achieve, a strategy comprising neoadjuvant chemotherapy prior to interval debulking surgery may be considered (25). Notably, complete cytoreduction without visible residual disease postsurgery serves as an independent prognostic factor influencing patient outcomes (68). Therefore, predicting successful tumor reduction preoperatively is crucial to guiding the initial treatment plan in clinical settings. Tumor markers, hematologic indicators, radiological images, genetic analysis by microarrays, and diagnostic laparoscopy have been utilized in several studies to predict the outcomes of debulking surgery (915). The use of surgery instruments, access methods, protective stoma, and intraabdominal drainage have notable effects (1618). Nevertheless, the effectiveness of these parameters has proven unsatisfactory and constrained in accuracy. This retrospective study analyzed patients with ovarian cancer undergoing debulking surgery at our institution from January 2016 to December 2022 to identify key factors associated with achieving effective tumor reduction.

2 Material and methods

2.1 Clinical data

This retrospective study included 131 patients with ovarian cancer who underwent debulking surgery at the Jiangnan University Affiliated Hospital from January 2016 to December 2022. The dataset was divided randomly into an experimental group (91 cases) and a validation group (40 cases) in a 7:3 ratio. Comparative analysis revealed no statistically significant differences between the two groups (p > 0.05).

Inclusion criteria were as follows: (1) pathologically confirmed ovarian cancer; (2) receipt of debulking surgery for ovarian cancer; and (3) availability of complete clinical data.

Exclusion criteria were as follows: (1) individuals with severe cardiovascular diseases; (2) prior exposure to chemotherapy, radiotherapy, or immunotherapy; and (3) patients with mental illnesses.

2.2 Data collection

Clinical information was extracted from electronic medical records. It included age, height, weight, menopausal status, hypertension history, ascites presence, reproductive history, blood parameters, blood glucose levels, ECOG scores, liver function tests, tumor markers (CEA, CA125, HE4, and CA199), interventions, surgical methods, FIGO stage, pathological types, and lymph node status.

2.3 Assessment criteria

The Gynecologic Oncology Group classifies postoperative residual tumors as R0 (no macroscopic residual tumor); R1 (residual tumor size 0.1–1 cm), which is considered as satisfactory surgery; and R2 (residual tumor size 1.1–2 cm), which is deemed as unsatisfactory surgery.

2.4 Statistical analysis

Statistical analyses were performed by SPSS 27.0 software. The continuous normality and homogeneity of variance data were assessed. Normally distributed data were depicted as mean ± standard deviation. Independent sample t-test was used for intergroup comparisons. Categorical data were presented as frequencies and percentages and compared via the Chi-square test. Risk factors for surgical satisfaction in patients with ovarian cancer were analyzed by multivariable logistic regression. Model accuracy was evaluated through the Hosmer–Lemeshow test, and receiver operating characteristic (ROC) curves were plotted. Predictive model visualizations were created using the R software packages rms and rmda.

3 Results

3.1 Comparison of clinical data between experimental and validation groups

The analysis of patients’ clinical data in the experimental and validation groups revealed no statistically significant differences (p > 0.05) (Table 1).

Table 1
www.frontiersin.org

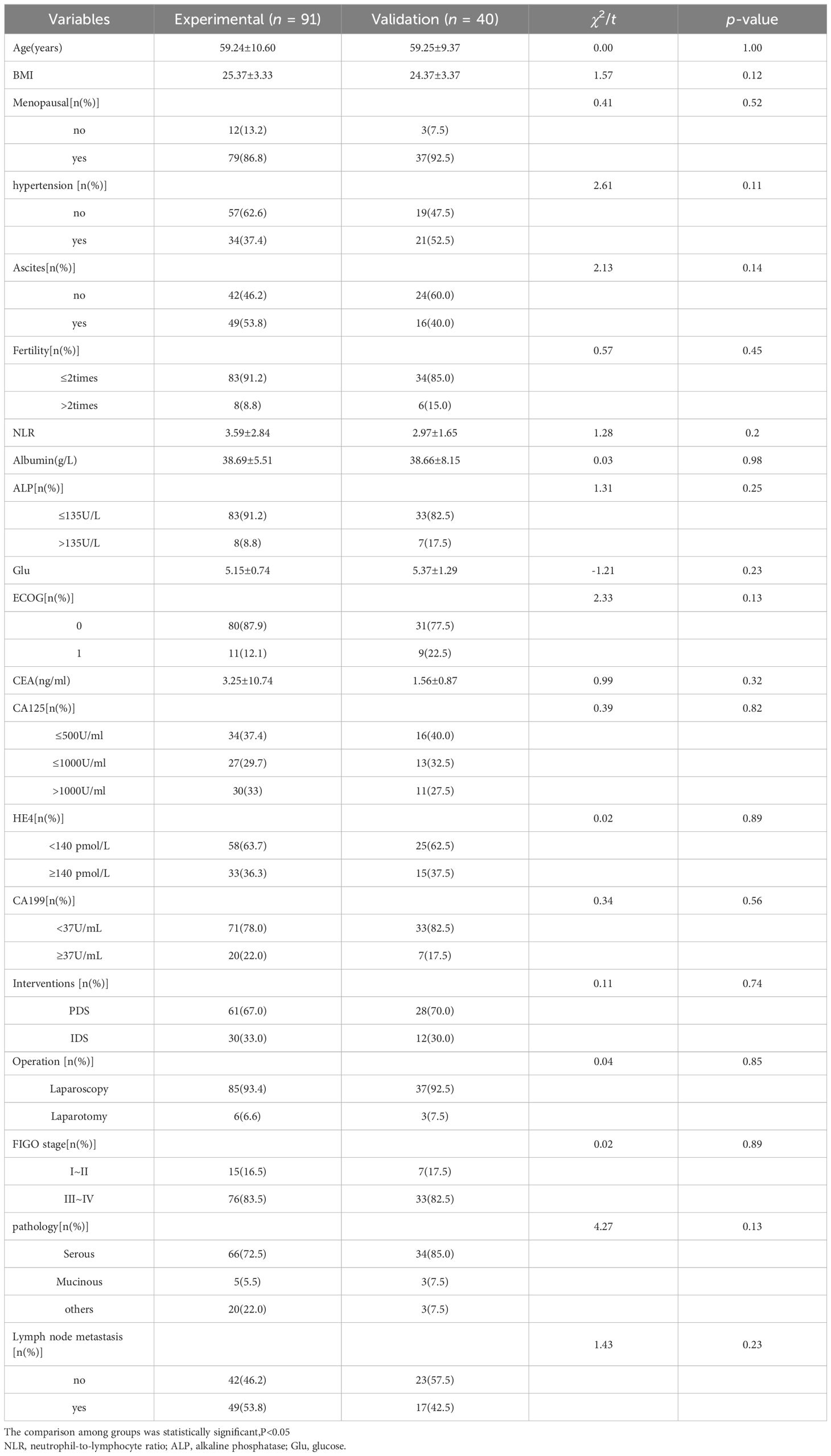

Table 1 Comparison of clinical data between the experimental group and the validation group.

3.2 Development of the clinical predictive model

3.2.1 Comparison of clinical data within the experimental group

Significant differences (p < 0.1) were observed in the comparison of clinical parameters between patients with ovarian cancer in the satisfactory and unsatisfactory surgical groups. Parameters showing variance included albumin and alkaline phosphatase (ALP) levels, ECOG score, CA125, HE4, FIGO staging, and lymph node metastasis. Conversely, no statistically significant differences (p > 0.1) were found in age, BMI, menopausal status, hypertension and ascites history, reproductive history, NLR, blood glucose levels, CEA, CA199, interventions received, surgical methods, FIGO stage, and pathological types (Table 2).

Table 2
www.frontiersin.org

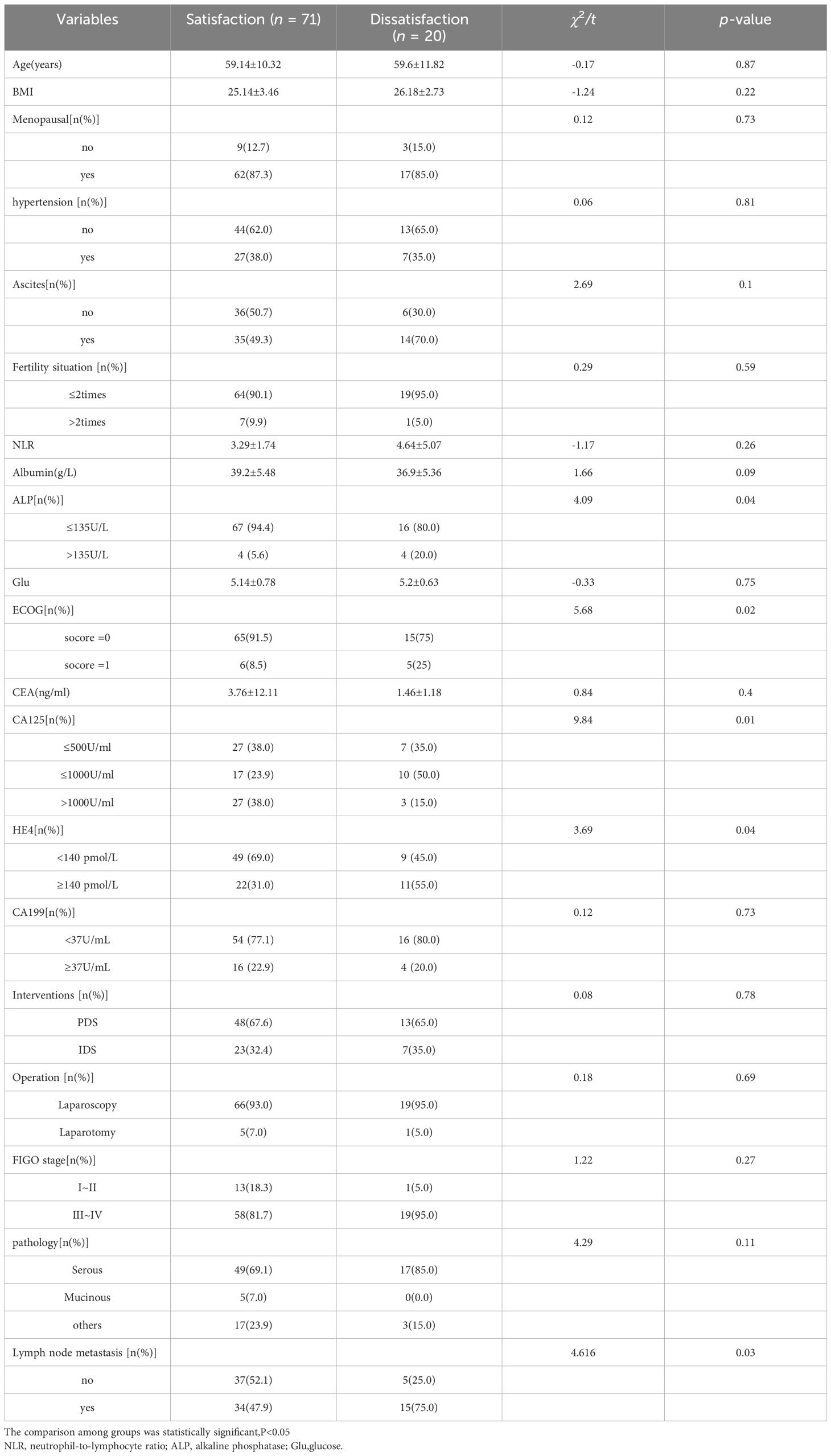

Table 2 Comparison of clinical data between surgical satisfaction group and surgical dissatisfaction group.

3.2.2 Establishment of the clinical predictive model

Variables with p < 0.1 from Table 2 were utilized as independent factors in the multivariable logistic regression model, with surgical satisfaction as the dependent variable. Albumin, ALP, ECOG scores, HE4, and lymph node metastasis were identified as key independent risk factors (p < 0.05) affecting the satisfaction level of patients with ovarian cancer undergoing debulking surgery. The model equation was as follows: 6.562 − 0.192 × albumin − 2.179 × ALP + 2.027 × ECOG score + 1.536 × HE4 + 1.740 × lymph node metastasis (Table 3).

Table 3
www.frontiersin.org

Table 3 Multivariate logistic regression analysis of risk factors affecting surgical satisfaction.

3.2.3 Nomogram model

On the basis of the results of multivariable logistic regression analysis, a nomogram model was generated using the R package rms. Notably, a decrease in albumin levels by five units resulted in an 11-point increase in the model score. Compared with ALP levels at or below 135 U/L, ALP > 135 U/L contributed to a 33-point increase in the model score. Additionally, an ECOG score of 1 versus 0 led to a 32-point increase in the model score. HE4 > 140 pmol/L contributed to a 22-point score increase, whereas the presence of lymph node metastasis added 25 points to the model score (Figure 1).

Figure 1
www.frontiersin.org

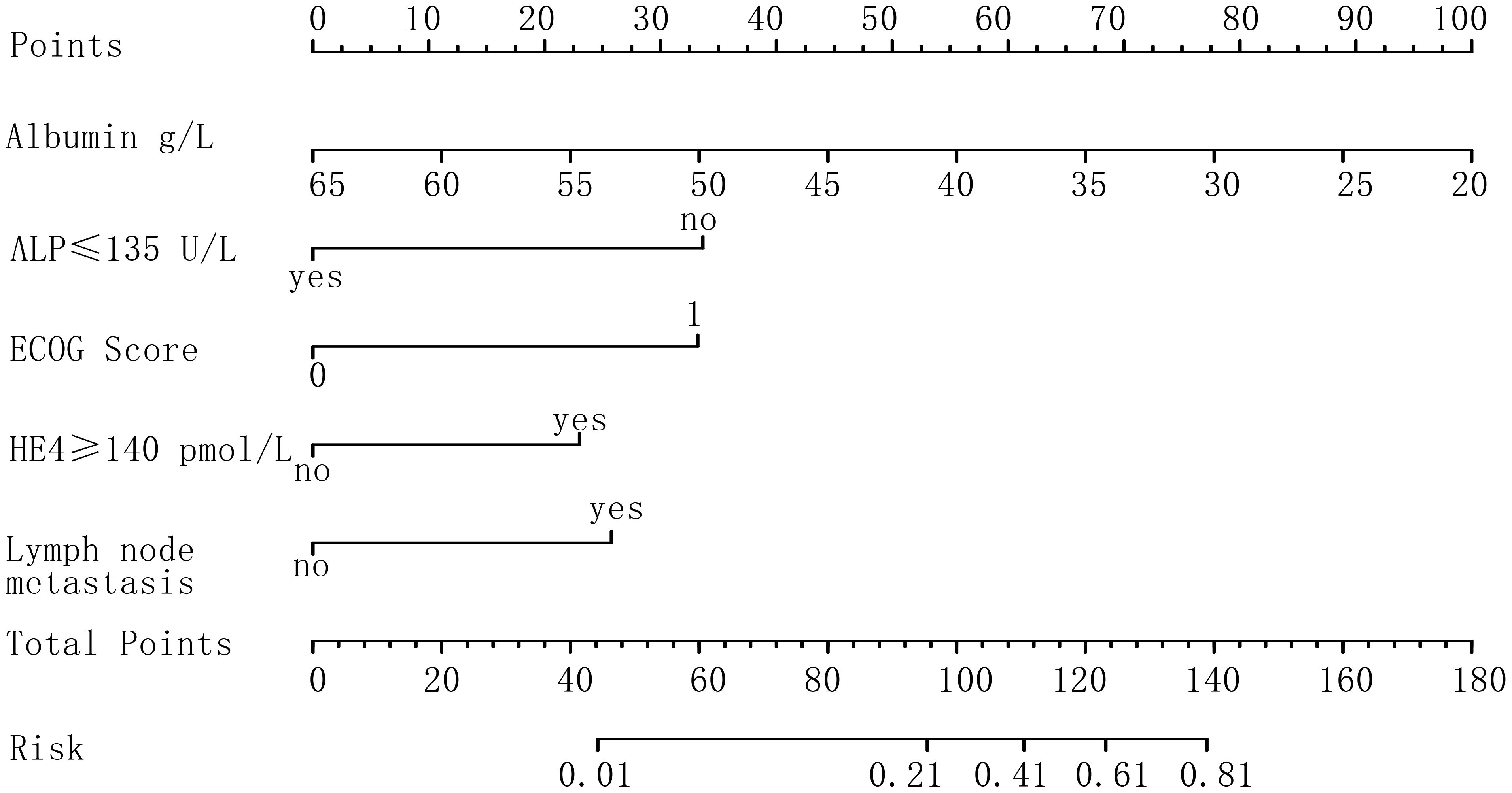

Figure 1 Nomogram of risk factors for debulking surgery in patients with EOC.

3.3 Validation of the nomogram model

3.3.1 ROC curve

ROC curves were generated by SPSS software to assess model accuracy. The AUC and 95% CI were calculated. The results revealed an AUC of 0.818 (p < 0.000; 95% CI: 0.721–0.915) for the experimental group and 0.796 (p < 0.05; 95% CI: 0.566–1.000) for the validation group. These findings suggested the effective prediction of postsurgery satisfaction levels in patients with ovarian cancer (Figure 2).

Figure 2
www.frontiersin.org

Figure 2 ROC curve of the nomograms for debulking surgery. (A) The experimental group. (B) The validation group.

3.3.2 Calibration curve

Calibration curves were plotted for both groups by using the rms package in R software and assessed via a Hosmer–Lemeshow goodness-of-fit test. Excellent consistency between actual and predicted probabilities was observed, indicating high predictive accuracy (Figure 3).

Figure 3
www.frontiersin.org

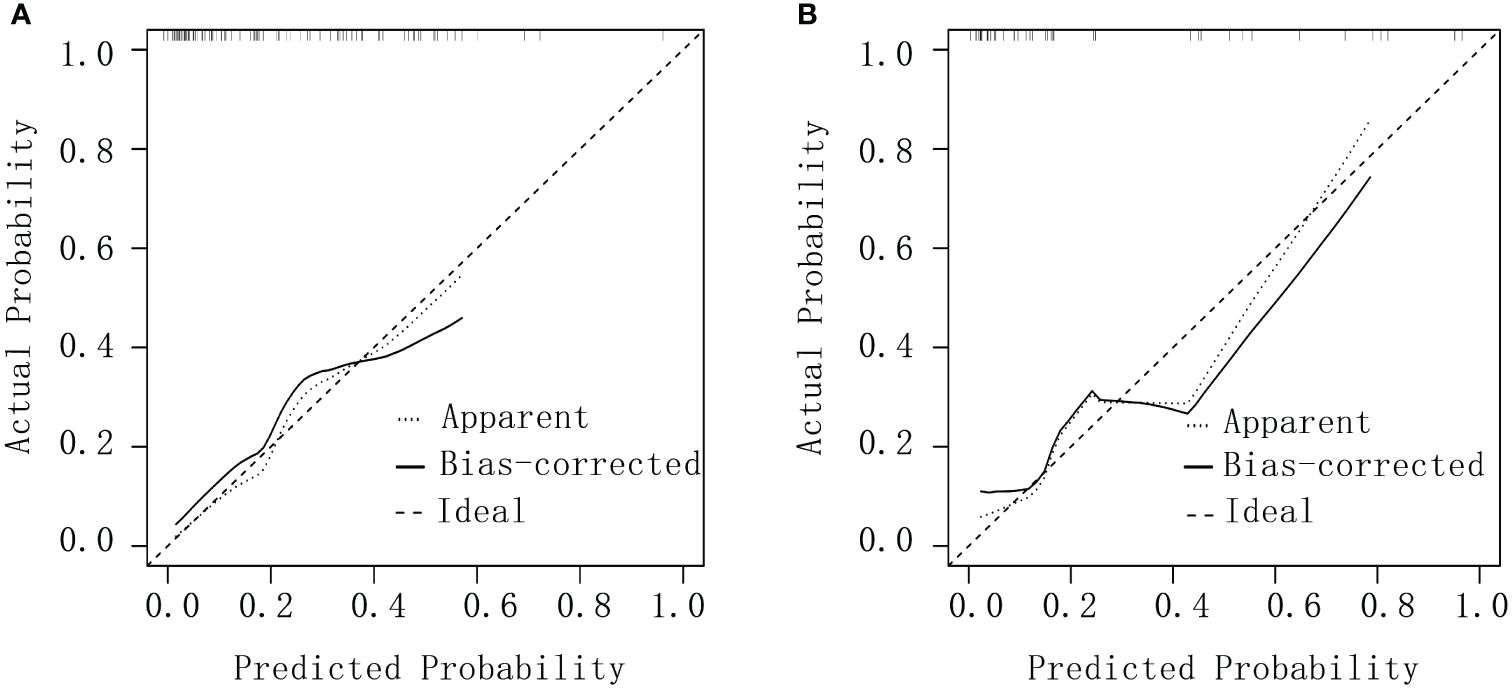

Figure 3 Calibration curves for debulking surgery. (A) The experimental group. (B) The validation group.

3.3.3 Clinical decision curve

The clinical decision curve generated by utilizing the rmda package in R software illustrated the model’s performance relative to reference lines. Notably, it demonstrated the model’s high safety levels, substantial net benefits, and considerable clinical value (Figure 4).

Figure 4
www.frontiersin.org

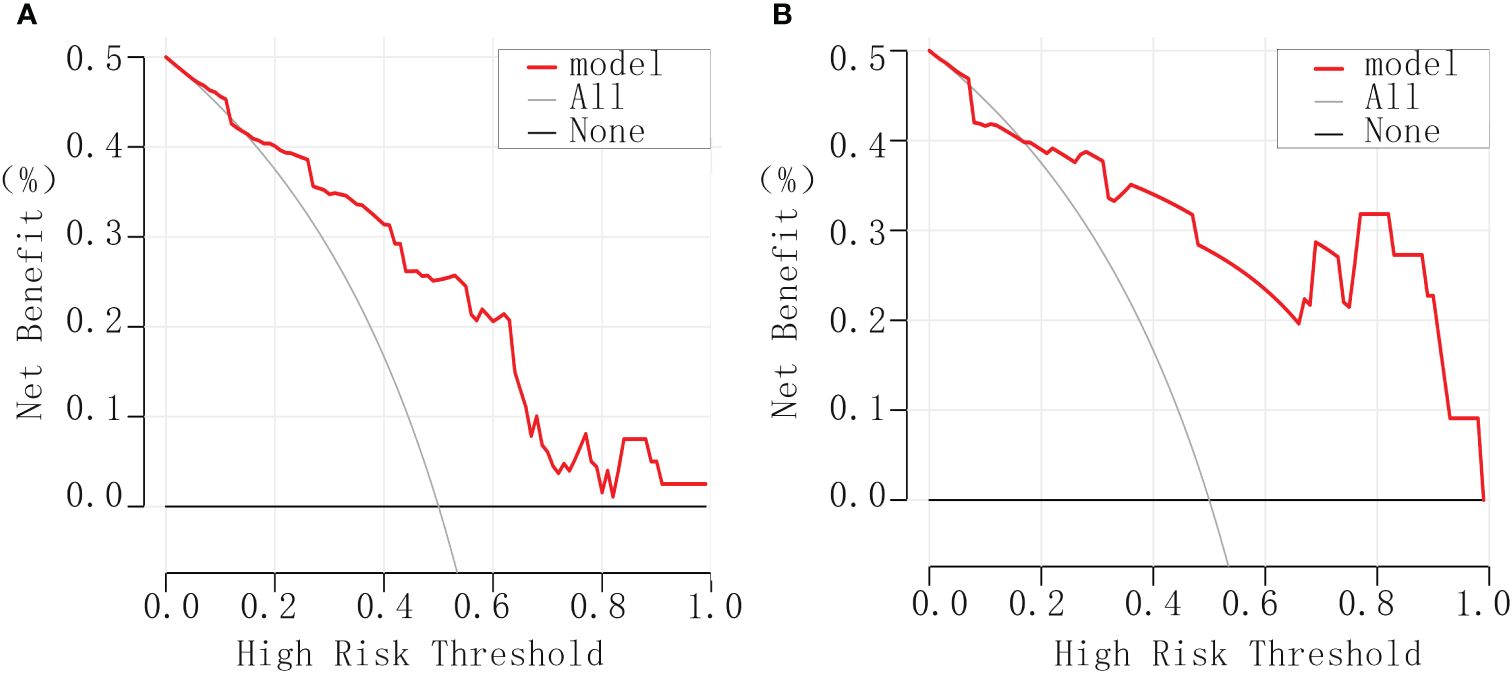

Figure 4 Clinical decision curves for debulking surgery. (A) The experimental group. (B) The validation group.

4 Discussion

Among malignancies in the female reproductive system, EOC ranks as the third most prevalent and lethal form. In 2020, China reported 55,342 new cases of ovarian cancer, with a mortality rate of 67.8% (19). Initial treatment protocols for ovarian cancer are determined after evaluation by gynecologic oncologists. When optimal debulking is not possible, neoadjuvant chemotherapy rather than immediate blind debulking surgery may precede surgical intervention posttumor reduction. Research indicated a direct correlation between the extent of cytoreduction during ovarian cancer surgery and the survival rates of patients, with a 25% increase in patient survival observed for every additional 10% resection achieved (20).

Elevated serum levels of the tumor marker HE4 have been linked to a high likelihood of unsatisfactory results in debulking surgeries for EOC (21, 22). The independent predictive power of HE4 for surgical outcomes remains a topic of debate and lacks a unanimous optimal threshold value (Supplementary Table S1). In this study, the group experiencing unsatisfactory outcomes exhibited notably higher HE4 levels than their counterparts with satisfactory outcomes. Multifactorial analysis identified HE4 as an independent risk factor affecting the success of debulking surgeries, with a critical threshold of 140 pmol/L. Furthermore, the presence of lymph node metastasis has been shown to influence surgical outcomes, particularly increasing the likelihood of unsatisfactory results in patients with ovarian cancer and positive lymph node involvement (23).

Moreover, research has highlighted the remarkable association of albumin levels, serum ALP, and ECOG score with the outcomes of debulking surgery for epithelial ovarian cancer.

Previous large-scale retrospective studies demonstrated that serum albumin levels are a significant independent prognostic marker for patients with ovarian cancer undergoing debulking surgery (24, 25). Studies have linked hypoalbuminemia (albumin < 35 g/L) to increased postoperative complications and mortality rates in epithelial ovarian cancer (2628). Notably, low albumin levels are correlated with a high likelihood of residual lesions postsurgery (27). The present study showed that decreasing albumin levels correspond to an increased probability of unsatisfactory outcomes in debulking surgery for ovarian cancer. Elevated serum ALP levels are essential diagnostic indicators for skeletal issues and exhibit a notable correlation with bone metastasis in breast cancer (29). They are associated with unfavorable prognostic outcomes, indicating a risk factor for unsatisfactory debulking surgery results in breast cancer. The data in this study suggested that an advantageous outcome of debulking surgery may be obtained if ALP can be normalized below 135 U/L. The ECOG score serves as a measure of patient physical capacity, reflecting overall health status and treatment tolerance (30). Low ECOG scores indicate good treatment endurance and are linked to prolonged patient survival. ECOG scores were identified as an independent risk factor for satisfactory debulking surgery outcomes.

In summary, factors such as HE4, lymph node metastasis, albumin, ALP, and ECOG scores play pivotal roles in influencing the success of debulking surgery for epithelial ovarian cancer. The developed line plot model demonstrated substantial predictive value for identifying unsatisfactory debulking surgery outcomes. Given the limited case selection in this study, potential biases may exist in the data. Therefore, future studies should involve large sample sizes to validate the present findings and enhance the accuracy of our predictive model.

Author contributions

YS: Investigation, Writing – original draft. NS: Investigation, Methodology, Resources, Validation, Writing – review & editing. YJ: Data curation, Validation, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2024.1421247/full#supplementary-material

Supplementary Table 1 | Studies were selected by exploring the PubMed database with a combination of the keywords “ovarian cancer”, “debulking surgery” and “HE4”. We took into consideration studies published after the year 2000 and the results are summarized in Supplementary Table S1.

References

1. Cress RD, Chen YS, Morris CR, Petersen M, Leiserowitz GS. : characteristics of long-term survivors of epithelial ovarian cancer. Obstetrics Gynecology. (2015) 126:491–7. doi: 10.1097/AOG.0000000000000981

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Lheureux S, Gourley C, Vergote I, Oza AM. Epithelial ovarian cancer. Lancet. (2019) 393:1240–53. doi: 10.1016/S0140-6736(18)32552-2

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Berenice Delga J-MC, Houvenaeghel G, Blache G, Sabiani L, El Hajj H, Andrieux N, et al. 30 years of experience in the management of stage III and IV epithelial ovarian cancer: impact of surgical strategies on survival. Cancers. (2020) 12(3):768. doi: 10.3390/cancers12030768

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Kuroki L, Guntupalli SR. Treatment of epithelial ovarian cancer. Bmj. (2020) 371:m3773. doi: 10.1136/bmj.m3773

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Lheureux S, Braunstein M, Oza AM. Epithelial ovarian cancer: Evolution of management in the era of precision medicine. CA Cancer J Clin. (2019) 69:280–304. doi: 10.3322/caac.21559

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Dai-yuan M, Bang-xian T, Xian-fu L, Ye-qin Z, Hong-Wei C. A meta-analysis: neoadjuvant chemotherapy versus primary surgery in ovarian carcinoma FIGO stageIII and IV. World J Surg Oncol. (2013) 11:267. doi: 10.1186/1477-7819-11-267

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Vergote I, Tropé CG, Amant F, Kristensen GB, Ehlen T, Johnson N, et al. : neoadjuvant chemotherapy or primary surgery in stage IIIC or IV ovarian cancer. New Engl J o f Med. (2010) 363(10):943–53. doi: 10.1056/NEJMoa0908806

CrossRef Full Text | Google Scholar

8. Tateo S, Mereu L, Salamano S, Klersy C, Barone M, Spyropoulos AC, et al. Ovarian cancer and venous thromboembolic risk. Gynecol Oncol. (2005) 99:119–25. doi: 10.1016/j.ygyno.2005.05.009

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Suidan RS, Ramirez PT, Sarasohn DM, Teitcher JB, Mironov S, Iyer RB, et al. : A multicenter prospective trial evaluating the ability of preoperative computed tomography scan and serum CA-125 to predict suboptimal cytoreduction at primary debulking surgery for advanced ovarian, fallopian tube, and peritoneal cancer. Gynecol Oncol. (2014) 134:455–61. doi: 10.1016/j.ygyno.2014.07.002

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Ferrandina G, Sallustio G, Fagotti A, Vizzielli G, Paglia A, Cucci E, et al. Role of CT scan-based and clinical evaluation in the preoperative prediction of optimal cytoreduction in advanced ovarian cancer: a prospective trial. Br J Cancer. (2009) 101:1066–73. doi: 10.1038/sj.bjc.6605292

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Berchuck A, Iversen ES, Lancaster JM, Dressman HK, West M, Nevins JR, et al. Prediction of optimal versus suboptimal cytoreduction of advanced-stage serous ovarian cancer with the use of microarrays. Am J Obstet Gynecol. (2004) 190:910–25. doi: 10.1016/j.ajog.2004.02.005

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Fagotti A, Ferrandina G, Fanfani F, Garganese G, Vizzielli G, Carone V, et al. Prospective validation of a laparoscopic predictive model for optimal cytoreduction in advanced ovarian carcinoma. Am J Obstet Gynecol. (2008) 199:642.e641–646. doi: 10.1016/j.ajog.2008.06.052

CrossRef Full Text | Google Scholar

13. Vizzielli G, Costantini B, Tortorella L, Pitruzzella I, Gallotta V, Fanfani F, et al. : A laparoscopic risk-adjusted model to predict major complications after primary debulking surgery in ovarian cancer: A single-institution assessment. Gynecol Oncol. (2016) 142:19–24. doi: 10.1016/j.ygyno.2016.04.020

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Fagotti A, Ferrandina G, Fanfani F, Ercoli A, Lorusso D, Rossi M, et al. A laparoscopy-based score to predict surgical outcome in patients with advanced ovarian carcinoma: a pilot study. Ann Surg Oncol. (2006) 13:1156–61. doi: 10.1245/ASO.2006.08.021

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Gu Y, Qin M, Jin Y, Zuo J, Li N, Bian C, et al. : A prediction model for optimal primary debulking surgery based on preoperative computed tomography scans and clinical factors in patients with advanced ovarian cancer: A multicenter retrospective cohort study. Front Oncol. (2020) 10:611617. doi: 10.3389/fonc.2020.611617

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Mereu L, Angioni S, Melis GB, Mencaglia L. Single access laparoscopy for adnexal pathologies using a novel reusable port and curved instruments. Int J Gynaecol Obstet. (2010) 109:78–80. doi: 10.1016/j.ijgo.2009.11.012

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Angioni S, Pontis A, Sedda F, Zampetoglou T, Cela V, Mereu L, et al. Single-port versus conventional multiport access prophylactic laparoscopic bilateral salpingo-oophorectomy in high-risk patients for ovarian cancer: a comparison of surgical outcomes. Onco Targets Ther. (2015) 8:1575–80. doi: 10.2147/OTT

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Mereu L, Dalprà F, Berlanda V, Pertile R, Coser D, Pecorino B, et al. Anastomotic leakage after colorectal surgery in ovarian cancer: drainage, stoma utility and risk factors. Cancers (Basel). (2022) 14(24):6243. doi: 10.3390/cancers14246243

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Cao W, Chen H-D, Yu Y-W, Li N, Chen W-Q. Changing profiles of cancer burden worldwide and in China: a secondary analysis of the global cancer statistics 2020. Chin Med J. (2021) 134:783–91. doi: 10.1097/CM9.0000000000001474

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Niloff JM, Knapp RC, Schaetzl E, Reynolds C, Bast RC Jr. CA125 antigen levels in obstetric and gynecologic patients. Obstet Gynecol. (1984) 64:703–7.

PubMed Abstract | Google Scholar

21. Song YJ. Prediction of optimal debulking surgery in ovarian cancer. Gland Surg. (2021) 10:1173–81. doi: 10.21037/gs

PubMed Abstract | CrossRef Full Text | Google Scholar

22. AlSomairi A, Himayda S, Altelmesani A, Lee YJ, Lee JY. Prognostic value of HE4 in advanced-stage, high-grade serous ovarian cancer: Analysis of HE4 kinetics during NACT, predicting surgical outcome and recurrence in comparison to CA125. Gynecol Oncol. (2024) 181:155–61. doi: 10.1016/j.ygyno.2023.12.021

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Coleridge SL, Bryant A, Kehoe S, Morrison J. Chemotherapy versus surgery for initial treatment in advanced ovarian epithelial cancer. Cochrane Database Systematic Rev. (2021) 2(2):CD005343. doi: 10.1002/14651858.CD005343.pub5

CrossRef Full Text | Google Scholar

24. Komrokji RS, Corrales-Yepez M, Kharfan-Dabaja MA, Al Ali NH, Padron E, Rollison DE, et al. : Hypoalbuminemia is an independent prognostic factor for overall survival in myelodysplastic syndromes. Am J Hematol. (2012) 87:1006–9. doi: 10.1002/ajh.23303

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Ayhan A, Günakan E, Alyazıcı İ, Haberal N, Altundağ Ö, Dursun P. The preoperative albumin level is an independent prognostic factor for optimally debulked epithelial ovarian cancer. Arch Gynecol Obstet. (2017) 296:989–95. doi: 10.1007/s00404-017-4511-9

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Desbène C, Maiga RY, Gaillard O. Immunoanalytical characteristics of HE4 protein. Annales biologie clinique. (2018) 76:225–33. doi: 10.1684/abc.2018.1330

CrossRef Full Text | Google Scholar

27. Zhang CL, Jiang XC, Li Y, Pan X, Gao MQ, Chen Y, et al. Independent predictive value of blood inflammatory composite markers in ovarian cancer: recent clinical evidence and perspective focusing on NLR and PLR. J Ovarian Res. (2023) 16:36. doi: 10.1186/s13048-023-01116-2

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Dai D, Balega J, Sundar S, Kehoe S, Elattar A, Phillips A, et al. Serum albumin as a predictor of survival after interval debulking surgery for advanced ovarian cancer (AOC): A retrospective study. J Invest Surg. (2022) 35:426–31. doi: 10.1080/08941939.2020.1827314

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Tang SN, Zuber V, Tsilidis KK. Identifying and ranking causal biochemical biomarkers for breast cancer: a Mendelian randomisation study. BMC Med. (2022) 20:457. doi: 10.1186/s12916-022-02660-2

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Gray HJ, Chatterjee P, Rosati R, Appleyard LR, Durenberger GJ, Diaz RL, et al. Extraordinary clinical response to ibrutinib in low-grade ovarian cancer guided by organoid drug testing. NPJ Precis Oncol. (2023) 7:45. doi: 10.1038/s41698-023-00379-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: ovarian cancer, nomogram, debulking surgery, ROC curve, calibration curve, clinical decision curve
