Raffaele Scafa1
Maurizio Merico2
Alfonso Massimiliano Ferrara3
Sara Watutantrige Fernando3Pava Srsen4Francesca Schiavi3Stefania Zovato3
Alberto Ferlin1,2*†- 1Department of Medicine, University of Padova, Padova, Italy
- 2Unit of Andrology and Reproductive Medicine, University Hospital of Padova, Padova, Italy
- 3Familial Cancer Unit, Veneto Institute of Oncology Istituto Oncologico Veneto (IOV)-IRCSS, Padova, Italy
- 4Department of Medicine, Unit of Surgical Pathology and Cytopathology, University Hospital of Padova, Padova, Italy
We report the case of a 38-year-old man whose diagnostic workup for primary infertility led to the discovery of obstructive azoospermia due to bilateral papillary cystadenoma of the epididymis (PCE). Given the rarity of this finding and because PCE could be a manifestation of Von Hippel-Lindau disease (VHL), although the patient had no family or personal history of VHL, the VHL gene was tested, and a known pathogenetic variant (c.464-1G>A; p.)? was found. Screening for other Von Hippel-Lindau disease-associated neoplasms revealed bilateral retinal capillary hemangioblastomas, clear cell renal cell carcinoma, and multiple pancreatic cysts. In this case, an accurate diagnostic workup for male infertility allowed the detection of a rare life-threatening syndrome, already presenting with several silent neoplasms. For this reason, this case report may be useful for reproductive medicine specialists in the management of male infertility.
Introduction
Von Hippel-Lindau disease (VHL) is an autosomal dominant syndrome that predisposes to the development of several malignant and benign neoplasms: retinal and central nervous system hemangioblastomas, clear cell renal cell carcinoma (ccRCC), pheochromocytomas and paragangliomas, pancreatic neuroendocrine tumors, pancreatic and renal cysts, endolymphatic sac tumors (ELST), epididymal cysts and cystadenomas in men, and cystadenomas of the broad ligament of the uterus in women (1). The estimated incidence of this condition ranges from 1 in 36,000 to 1 in 45,000 live births (2). Men and women are equally affected, with a mean age at tumor diagnosis of 26 years and an estimated penetrance of more than 90% by the age of 65 (3, 4).
VHL is caused by mutations in the VHL tumor suppressor gene (located at ch. 3p25.3), which encodes the VHL protein (pVHL) that regulates Hypoxia Inducible Factors (HIFs) (5). In normoxic conditions, pVHL binds to HIFs, leading to proteasome-mediated degradation. Under hypoxic conditions or loss of functional pVHL, HIF subunits are able to translocate to the nucleus and activate the transcription of many hypoxia-inducible genes (such as VEGF, EPO, TGFα, and PDGFβ), causing cell growth and angiogenesis (6). In 80% of cases, patients inherit a single germline mutant VHL allele from an affected parent, while in the other 20%, there is a de novo germline mutation. Tumor development occurs when the second wild-type copy is spontaneously lost or inactivated, according to Knudson’s two-hit hypothesis (3).
In individuals with a first-degree relative affected by VHL, the diagnosis of VHL is clinically established by the presence of a single typical VHL-related tumor (retinal or central nervous system (CNS) hemangioblastoma, or RCC). In the absence of a family history of VHL, the diagnosis requires two or more retinal or CNS hemangioblastomas, or one hemangioblastoma and one visceral tumor (excluding epididymal and renal cysts, which are common in the general population) (7).
Genetic testing can confirm or exclude a diagnosis in at-risk relatives from established families with VHL. Failure to find a disease-causing mutation in individuals with a suspected clinical diagnosis or individuals with an atypical presentation does not rule out a clinical diagnosis.
Despite the fact that VHL can cause manifestations at the epididymis level, such as cysts and cystadenomas, VHL screening is not included in the routine investigations for male infertility.
Case description
A 38-year-old man was referred to our Unit of Andrology and Reproductive Medicine for primary infertility. Nothing relevant emerged from his family history. The patient denied any history of cryptorchidism, orchitis, epididymitis, or testicular trauma. The only relevant data was the detection at the age of 18 of bilateral epididymal cysts, which were not further investigated.
On physical examination, he had normotrophic testes (right 17 cc, left 14 cc) with voluminous, firm masses involving the heads of both epididymis, tender to palpation. The vas deferens were apparently normal. Physical examination revealed obesity (height 166 cm, weight 102 kg, BMI 37 kg/m2) and excluded gynecomastia, inguinal lymphadenopathies, and inguinal hernia. Two semen analyses showed azoospermia (no sperm observed after centrifugation) with normal volume (2.0 ml) and pH (7.2).
The endocrine assessment showed normogonadotropic hypogonadism (total testosterone 8.94 nmol/l, LH 4.7 IU/L, FSH 8.9 IU/L), and tumor markers (α-fetoprotein, β-hCG, and LDH isoenzymes) were negative.
Testicular ultrasound (US) showed bilateral epididymal head enlargement (right 33 mm and left 30 mm) due to lobulated cystic masses, which also showed increased vascularization on color Doppler US. Moreover, the US revealed signs of bilateral congestion of the rete testis. Transrectal ultrasound (TRUS) showed a slightly enlarged prostate (32 ml) with normoechoic texture, without focal lesions. The seminal vesicles and vas deferens were normal.
For further evaluation, the patient underwent a scrotal and pelvic contrast-enhanced MRI, which described several cystic formations in both epididymis with non-homogeneous dense contents and proteinaceous aspects, consistent with the first hypothesis of bilateral spermatocele, according to the radiologist (Figure 1).
Figure 1 Axial (A, B) and coronal (C) TSE T2-weighted MRI images showing the presence of bilateral papillary cystadenoma of the epididymis.
We, therefore, performed bilateral testicular sperm extraction (TESE), which allowed the cryopreservation of sperm, and bilateral partial enucleation of epididymal cysts whose histologic examination showed bilateral papillary cystadenoma of the epididymis (PCE) (Figure 2).
Figure 2 Histologic examination showing papillary cystadenoma of the epididymis (PCE).
Bilateral PCE is very rare and often pathognomonic for VHL. Consequently, the VHL gene was tested, and a known pathogenetic variant (c.464-1G>A; p.)? was found (Figure 3). Therefore, the patient underwent further evaluation in order to exclude the presence of other VHL-associated neoplasms. Fundoscopy revealed bilateral retinal capillary hemangioblastomas. Abdominal ultrasound showed multiple kidney cysts and three kidney masses highly suspicious for malignancy (two in the left kidney and one in the right kidney with peripheral calcific spots), which were enucleoresected, with histological examination confirming the diagnosis of ccRCC. The pancreatic structure was almost entirely subverted by numerous cysts up to 60 mm in diameter. Biochemical testing for pheochromocytoma by evaluation of 24-hour urinary fractionated metanephrines was negative.

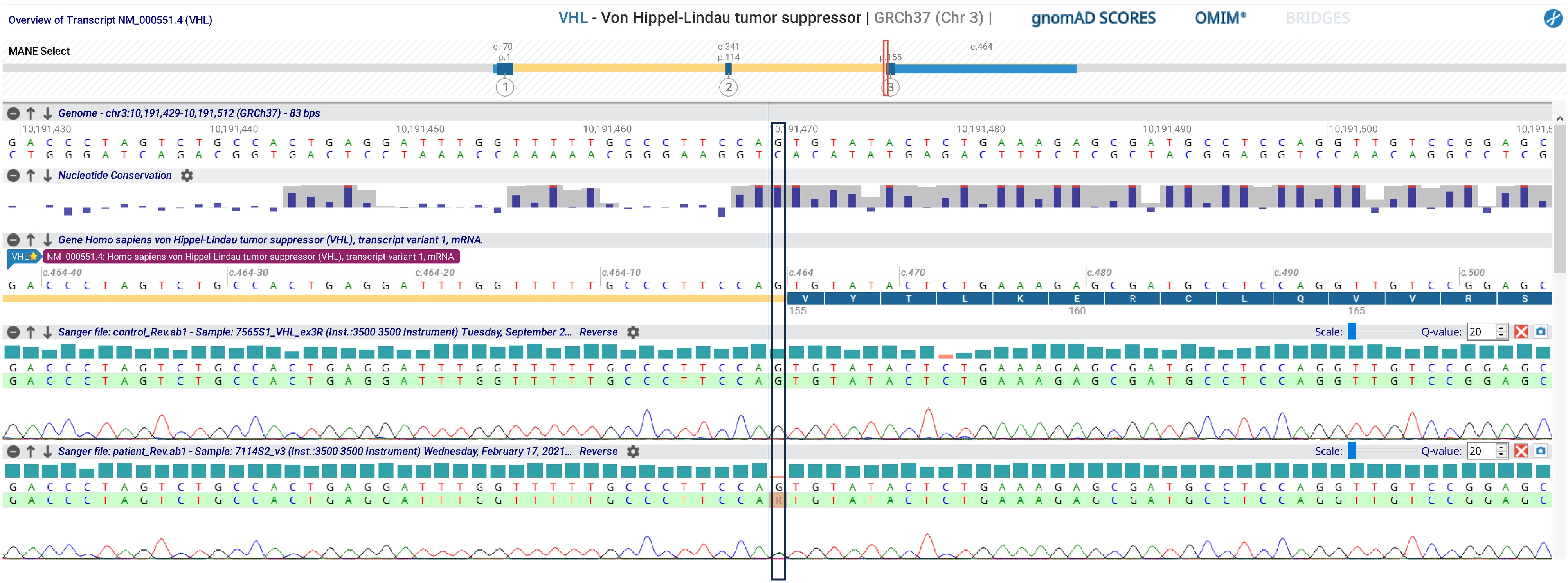

Figure 3 VHL gene sequencing analysis evidencing the variant c.464-1G>A.
Discussion
Papillary cystadenoma of the epididymis (PCE) is the second most common benign neoplasm of the epididymis after adenomatoid tumors (8). It mostly affects young adults and may occur sporadically or in association with VHL (9). More than one-third of the PCE cases reported in the literature have occurred in VHL patients; this correlation is stronger in the case of bilateral tumor presentation (10, 11).
The diagnosis is primarily incidental because PCE is often asymptomatic. In symptomatic patients, the most common presentation is a painless, slowly growing scrotal swelling. Patients rarely complain of pain or tenderness in the scrotum. More rarely, when bilateral, as in our case, PCE can be a cause of infertility due to obstructive azoospermia. The prevalence of PCE in infertile patients is unknown.
To the best of our knowledge, this is the second case in which VHL was diagnosed due to primary infertility in an otherwise asymptomatic patient with no family history of VHL. The diagnostic work-up for infertility led to the identification of obstructive azoospermia due to bilateral PCE, which then allowed the detection of VHL, a life-threatening syndrome already associated with several silent neoplasms. Exams also led to the diagnosis of functional normogonadotropic hypogonadism related to obesity, after the exclusion of organic causes (12). Previously, de Souza Andrade et al. (13) described a patient who underwent surgical excision of a cerebellar hemangioblastoma and received a VHL diagnosis only 2 years later, when he was found to have bilateral PCE associated with obstructive azoospermia (14).
Regarding the infertility problem in this specific setting, standard approaches to obstructive azoospermia, which include sperm retrieval via percutaneous or open biopsy of the testes, are the preferred management strategies (15). Symptomatic PCE, instead, when feasible, is usually treated with testicle-sparing surgical excision.
Conclusion
This case report may be of value to specialists in reproductive medicine in the management of male infertility; in fact, clinicians should be aware of the possibility that men with obstructive azoospermia may have bilateral PCE related to VHL disease. On the other hand, VHL should always be considered in patients with PCE, even in asymptomatic individuals with no family history of VHL, since they may be at risk for developing other VHL-associated tumors. This is especially true in the case of bilateral PCE, a condition that is almost pathognomonic for VHL (9).
Once a VHL gene mutation is identified in a proband, genetic testing should be offered to all first-degree relatives of the individual, even if the family history is negative, because reduced penetrance, later age of onset, variable expressivity among family members, or death of an affected parent before the onset of symptoms are reported in VHL (16).
Although preventive treatment cannot yet be offered for VHL, patients are recommended to undergo regular surveillance to ensure early diagnosis and timely treatment to prevent avoidable morbidity and mortality (17).
In the patient in this case report, the diagnosis of VHL allowed the early identification of malignant tumors that would otherwise have been detected much later and with a significantly worse prognosis.
In conclusion, VHL should always be considered in patients with papillary cystadenoma of the epididymis, especially when bilateral.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
Ethical approval was not required for the studies involving humans because standard clinical care and case report for a subject who agreed to collect and publish his data anonimously. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
RS: Data curation, Writing – review & editing, Conceptualization, Formal Analysis, Investigation, Writing – original draft. MM: Conceptualization, Investigation, Writing – original draft, Writing – review & editing. AMF: Investigation, Writing – review & editing, Data curation, Formal Analysis. SW: Data curation, Investigation, Writing – review & editing. PS: Investigation, Writing – review & editing. FS: Formal Analysis, Writing – review & editing. SZ: Data curation, Writing – review & editing, Supervision, Validation. AF: Data curation, Supervision, Validation, Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Ben-Skowronek I, Kozaczuk S. Von hippel-lindau syndrome. Horm Res Paediatr (2015) 84:145–52. doi: 10.1159/000431323
2. Evans DG, Howard E, Giblin C, Clancy T, Spencer H, Huson SM, et al. Birth incidence and prevalence of tumor-prone syndromes: Estimates from a UK family genetic register service. Am J Med Genet A (2010) 152A:327–32. doi: 10.1002/ajmg.a.33139
3. Lonser RR, Glenn GM, Walther M, Chew EY, Libutti SK, Linehan WM, et al. Von Hippel-Lindau disease. Lancet (2003) 361:2059–67. doi: 10.1016/S0140-6736(03)13643-4
4. Maher E, Yates J, Harries R, Benjamin C, Harris R, Moore AT, et al. Clinical features and natural history of von hippel-lindau disease. . QJM (1990) 77:1151–63. doi: 10.1093/qjmed/77.2.1151
5. Gossage L, Eisen T, Maher ER. VHL, the story of a tumour suppressor gene. Nat Rev Cancer (2015) 15:55–64. doi: 10.1038/nrc3844
6. Nielsen SM, Rhodes L, Blanco I, Chung WK, Eng C, Maher ER, et al. Von Hippel-Lindau disease: genetics and role of genetic counseling in a multiple neoplasia syndrome. J Clin Oncol (2016) 34:2172–81. doi: 10.1200/JCO.2015.65.6140
7. Louise M Binderup M, Smerdel M, Borgwadt L, Beck Nielsen SS, Madsen MG, Møller HU, et al. Von Hippel-Lindau disease: Updated guideline for diagnosis and surveillance. Eur J Med Genet (2022) 65:104538. doi: 10.1016/j.ejmg.2022.104538
8. Kuhn MT, MacLennan GT. BENIGN NEOPLASMS OF THE EPIDIDYMIS. J Urol (2005) 174:723–3. doi: 10.1097/01.ju.0000170979.21638.e4
9. Uppuluri S, Bhatt S, Tang P, Dogra VS. Clear cell papillary cystadenoma with sonographic and histopathologic correlation. J Ultrasound Med (2006) 25:1451–3. doi: 10.7863/jum.2006.25.11.1451
10. Odrzywolski KJ, Mukhopadhyay S. Papillary cystadenoma of the epididymis. Arch Pathol Lab Med (2010) 134:630–3. doi: 10.5858/134.4.630
11. Ko Y, Nuffer Z, Jean-Gilles J, Dogra V. Papillary cystadenoma of the epididymis: A case report and review of the literature. Am J Sonography (2018) 1:5. doi: 10.25259/AJS-14-2018
12. Corona G, Goulis DG, Huhtaniemi I, Zitzmann M, Toppari J, Forti G, et al. European Academy of Andrology (EAA) guidelines on investigation, treatment and monitoring of functional hypogonadism in males. Andrology (2020) 8:970–87. doi: 10.1111/andr.12770
13. de Souza Andrade J, Bambirra EA, Bicalho OJ, de Souza AF. Bilateral papillary cystadenoma of the epididymis as a component of Von Hippel-Lindau’s syndrome: report of a case presenting as infertility. J Urol (1985) 133:288–9. doi: 10.1016/S0022-5347(17)48920-8
14. Man Y, Shang X, Liu C, Zhang W, Huang Q, Ma S, et al. Whole-exome sequencing identifies the VHL mutation (c.262T < C, p.Try88Arg) in non-obstructive azoospermia-associated cystic renal cell carcinoma. Curr Oncol (2022) 29:2376–84. doi: 10.3390/curroncol29040192
15. Gomella PT, Shin P, Srinivasan R, Linehan WM, Ball MW. Obstructive azoospermia secondary to bilateral epididymal cystadenomas in a patient with Von Hippel-Lindau. Urol Case Rep (2019) 27:100922. doi: 10.1016/j.eucr.2019.100922
16. Santarpia L, Sarlis NJ, Santarpia M, Sherman SI, Trimarchi F, Benvenga S. Mosaicism in Von Hippel-Lindau disease: an event important to recognize. J Cell Mol Med (2007) 11:1408–15. doi: 10.1111/j.1582-4934.2007.00122.x
