Minimal residual disease (MRD) assessment using peripheral blood instead of bone marrow aspirate/biopsy specimen or the biopsy of the cancerous infiltrated by lymphoid malignancies is an emerging technique with enormous interest of research and technological innovation at the current time. In some lymphoid malignancies (particularly ALL), Studies have shown that MRD monitoring of the peripheral blood may be an adequate alternative to frequent BM aspirations. However, additional studies investigating the biology of liquid biopsies in ALL and its potential as an MRD marker in larger patient cohorts in treatment protocols are warranted. Despite the promising data, there are still limitations in liquid biopsies in lymphoid malignancies, such as standardization of the sample collection and processing, determination of timing and duration for liquid biopsy analysis, and definition of the biological characteristics and specificity of the techniques evaluated such as flow cytometry, molecular techniques, and next generation sequencies. The use of liquid biopsy for detection of minimal residual disease in T-cell lymphoma is still experimental but it has made significant progress in multiple myeloma for example. Recent attempt to use artificial intelligence may help simplify the algorithm for testing and may help avoid inter-observer variation and operator dependency in these highly technically demanding testing process.
1 Liquid biopsies
1.1 Liquid biopsy components
1.1.1 Circulating tumor cells
Circulating tumor cells (CTCs) are cancerous cells that break away from the primary tumor and enter the bloodstream, leading to metastasis. The detection of CTCs in clinical samples using a liquid biopsy can be an effective tool for cancer diagnosis and prognosis (1). However, CTCs are present in low abundance in most patients and have a short half-life of a few hours, making them difficult to detect. Various techniques have been defined to isolate and analyze CTCs with their detection usually dependent on molecular markers like the epithelial cell adhesion molecule - the most widely used (2, 3). Though still experimental, CTC detection is now used as a surrogate biomarker in numerous solid cancers (breast, prostate, lung, and liver cancers). The analysis CTCs is not commonly done in hematological malignancies, but it is still possible in certain conditions such as acute leukemias, myelodysplastic syndromes (MDSs), myeloproliferative neoplasms (MPNs), multiple myelomas (MM), and lymphomas (4–6).
1.1.2 Cell-free DNA
It has been known for some time that circulating cell-free DNA (cfDNA) can be found in human body fluids, including plasma. In healthy individuals, the majority of cfDNA molecules in plasma originate from the hematopoietic system. However, in certain clinical situations, such as pregnancy, organ transplantation, and cancer, it has been observed that the related or affected tissues may release additional DNA into the plasma pool (7, 8). In oncological patients, apoptosis, necrosis, or both, are the main sources of circulating cell-free DNA (cfDNA) (in this case called circulating tumor DNA - ctDNA). Apoptosis is a process of programmed cell death characterized by the trimming of chromosomes into nucleosomes (consisting of 180 base pairs) by enzymes called DNases, which are then released into the bloodstream. These nucleosomes circulate for a period of one to three hours before being removed by phagocytic cells and other cells. Necrosis, on the other hand, occurs when cells are damaged or stressed to the point of uncontrolled death, leading to the random and incomplete digestion of DNA (9–11). It has been suggested that the fragmentation profile of circulating cfDNA may reveal information about the tissue origin in cancer patients (11). Additionally, DNA methylation patterns are known to be tissue-specific, and thus, their analysis may allow for the determination of the origin of cf-DNA fragments. Plasma cfDNA methylation profiling has also been demonstrated to be a highly accurate approach for the diagnostic evaluation of several types of malignancies (12, 13). Furthermore, the sequence analysis of tumor-associated cfDNA may also be utilized for the identification of specific mutations, such as TP53, KRAS, BRAF, and HER2, which may be useful for guiding therapeutic decisions (14, 15). Liquid biopsies, by the quantification of cfDNA using real-time quantitative digital polymerase chain reaction (qRT-dPCR) and next-generation sequencing (NGS), can be used for all types of lymphomas, because the plasma regularly contains low levels of detectable lymphoma-derived cfDNA, as well as in myeloid pathology, MDS, MPN, and AML, and/or other lymphoid malignancies, such as acute lymphoblastic leukemia (ALL) and multiple myeloma (MM) (16, 17).
1.1.3 Tumor-educated platelets
Numerous studies demonstrated that platelets could influence various aspects of cancer progression, particularly tumor cell metastasis. In cancer patients, platelets often display distinct RNA and protein profiles, despite showing no significant changes in their hemostatic activity. This phenotypically distinct population of platelets, known as tumor-educated platelets (TEP), has recently received considerable attention due to its potential detection and analysis using liquid biopsy (18, 19).
1.1.4 Exosomes
Exosomes are small, extracellular vesicles that are secreted by multivesicular bodies within live cells through exocytosis. They range in size from 30 to 150 nm and can facilitate communication between cells due to their composition, which includes nucleic acids, proteins, and lipids (20). Tumor-derived exosomes (TDEs) are closely related to tumor progression, metastasis, and immune evasion. Thus, TDEs analyzed through their RNA content, may hold great promise for early cancer detection, prognosis, and management assessment (21, 22).
1.1.5 Micro-RNA
MicroRNAs (miRNAs) are small, non-coding RNA molecules that are about 20 nucleotides long and play a role in regulating posttranscriptional gene expression. In recent years, miRNAs have received increasing attention due to their involvement in various aspects of cancer progression, such as cell growth, differentiation, proliferation, angiogenesis, and apoptosis (23, 24). The high concentration of miRNAs in exosomes has led to a growing interest in the use of exosomal miRNAs as cancer biomarkers for purposes of diagnosis, prognosis, and therapeutics (25, 26).
2 Minimal residual disease assessment using liquid biopsy
In the setting of hematological malignancies, minimal residual disease (MRD) is defined as the presence of residual leukemic cells not detected by conventional cytomorphological methods, and it is a powerful parameter to guide clinical management. For instance, MRD is accepted as the strongest independent prognostic factor in ALL (27). MRD can be performed on bone marrow aspirate specimens or blood- liquid biopsy through the detection of ctDNA. The preferred approach for detecting MRD varies according to immunophenotype and molecular features of the cancerous cells and available resources. Methods of analysis can vary but they mainly include the following. First is multicolor flow cytometry which is a rapid method that identifies leukemic blasts based on their aberrant immunophenotype. It is less sensitive than molecular techniques and may produce false-negative results if the immunophenotype changes (28). Second is through polymerase chain reaction (PCR) which can quantify MRD by detecting blasts based on immunoglobulin (Ig) or T-cell receptor (TCR) gene rearrangements or leukemia-specific chromosomal rearrangements. It is more sensitive than flow cytometry, but requires a sample obtained at the time of diagnosis and may produce false positives due to sample contamination (29, 30). The third method is reverse transcriptase PCR(RT-PCR) which can identify leukemia-specific fusion mRNA, such as the BCR : ABL1 rearrangement associated with t (9, 22). It is very sensitive and stable throughout the disease course but is only applicable for a minority of patients and the mRNA target may be more easily degraded during sample handling/transport compared to DNA (31, 32). Last, next-generation sequencing (NGS) uses multiplex PCR to amplify Ig or T-cell receptor (TCR) gene rearrangements and then sequences the DNA with high depth (coverage). It is the most sensitive method for detecting MRD and enables monitoring of MRD and identification of clonal evolution during therapy (32).
Numerous studies have demonstrated that the positive predictive value of ctDNA’s detection, is satisfactory since the presence of MRD, which can be detected through its presence, is linked to a poorer disease-free survival rate. However, many limitations maintain the negative predictive of this technique at a low level. They include detection methods that are not sensitive enough to detect ctDNA at very low levels, improper timing of post-treatment sampling, and the possibility of new cell clones emerging that are not detected by the chosen technique. In addition, proper sample processing logistics are critical for the adequate detection of cfDNA and to prevent the breakdown of WBCs and contamination with genomic DNA. It is ideal to process the samples quickly (preferably within four hours) or to collect them in tubes containing a cell stabilizing agent (33–35). Table 1 summarizes the available MRD detection techniques in different lymphoid malignancies.

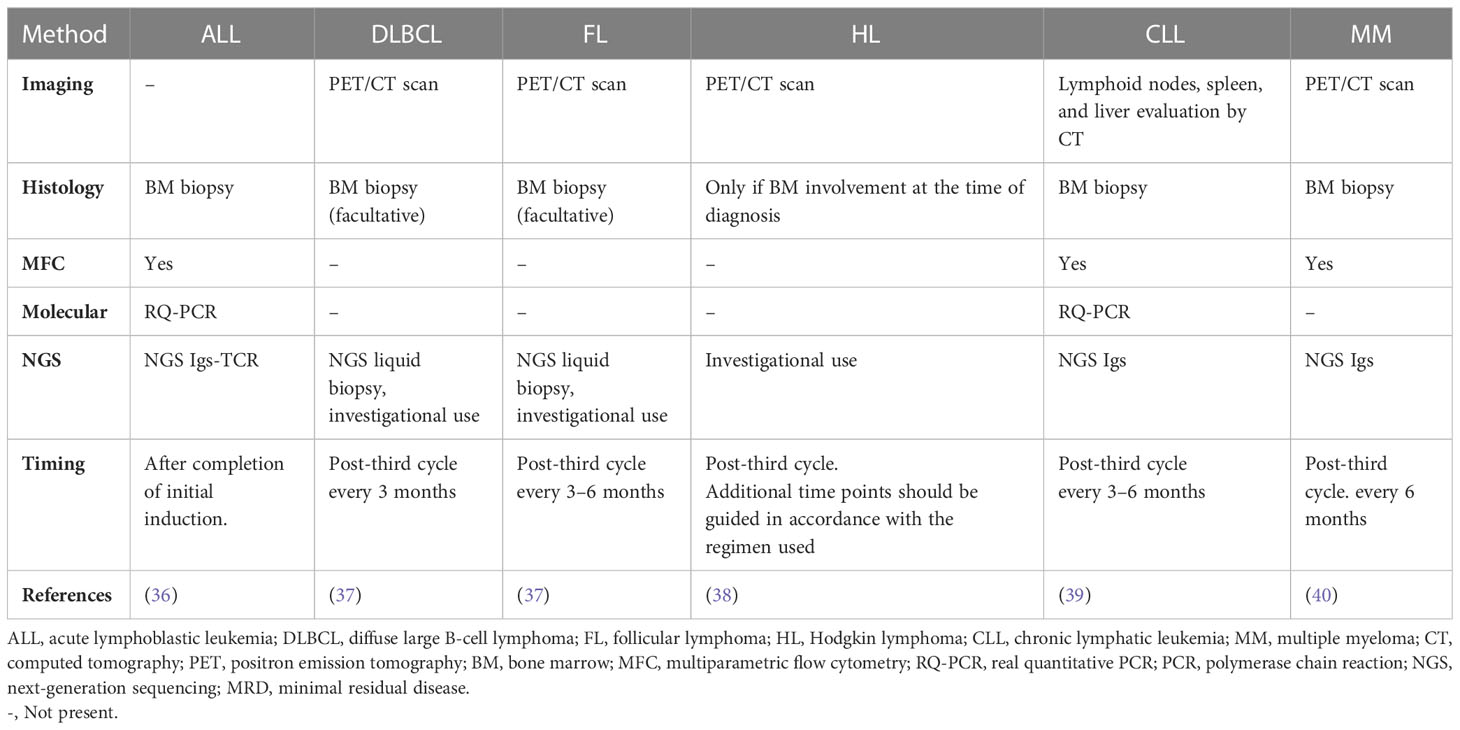

Table 1 Assessment of MRD in lymphoid malignancies.
3 MRD assessment using liquid biopsy in different malignancies
3.1 ALL
MRD is the most important prognostic factor in ALL and can be used to shape treatment choices and overall patient management to achieve better outcomes (41). Multiparameter flow cytometry, PCR based diagnostics used in ALL with BCR/ABL1 mutations, or tests based on next-generation sequencing (NGS) of clonal Ig and/or TCR loci can all be used to assess ALL MRD (42, 43). Compared to the other modalities, NGS is the most sensitive for ALL MRD detection in the bone marrow (BM) with a sensitivity of 10-6, it is approved and commercially accessible in the United States, and it is being used more frequently in clinical practice (44). However, these approaches’ requirement for recurrent invasive BM assessments is one of their limitations, especially in the pediatric population that constitutes 60% of newly diagnosed ALL cases (45). Hence, liquid biopsies would be a significant advancement to avoid these traditional intrusive tests. Yet only a handful of studies have explored the use of blood for MRD assessment in ALL. Schwartz et al. demonstrated that the elevation of total cfDNA in plasma in ALL could possibly be used as an MRD marker. They also revealed using quantitative analysis that Ig/T cell receptor (TCR) gene rearrangements showed significant concordance between plasma and peripheral blood (PB) leukocytes (46). Furthermore, a recent study showed that monitoring plasma for leukemia structural variants (SVs), found in cfDNA, with droplet digital PCR (ddPCR) may provide useful information for the tailored follow-up of ALL patients (47). In their study of Ig/TCR rearrangements in bone marrow compared to peripheral blood (PB) samples from T-ALL and precursor B-ALL, Van der Velden et al. discovered a high association between the BM and PB MRD levels of T-ALL but not of precursor B-ALL (48). Another study on pediatric ALL looked into the level of clonal Ig/TCR gene rearrangements in plasma and compared it to MRD determined by flow cytometry in BM. The authors came to the conclusion that both approaches could independently predict relapse despite the methods’ poor correlation (49). All these studies have shown that MRD monitoring of the PB appears to be an adequate alternative to frequent BM aspirations, however, additional studies investigating the biology of liquid biopsies in ALL and its potential as an MRD marker in larger patient cohorts within current treatment protocols are warranted.
3.2 Diffuse large B cell lymphoma
Some malignant cells express antigen receptors of B-lymphocytes (BCR). These receptors are made up of paired light and heavy immunoglobulin chains. Variable diversity joining (VDJ) rearrangements in the progenitor B-cells can result in diversity in the characteristics of molecules which lead to unique clonotypes in each lymphoma. These can be useful in anticipating relapses in the peripheral blood if the relapse comes from the diagnosis clone. This technique has some caveats as some DLBCLs have unproductive VDJ rearrangements (50, 51). However, multiple studies have shown that liquid biopsies, specifically cfDNA and ctDNA analysis, can be a practical tool in determining minimal residual disease in DLBCL (52–56).
Assessing the response to the treatment, prognosis, and early detection of relapse is a complex and sometimes inaccurate process due to the biological and clinical heterogeneity of DLCBL. Liquid biopsies have also been shown to be effective in diagnosis, evaluation of disease progression, and response to the treatment of DLBCL (54, 57–61). Liquid biopsies, such as ddPCR, have also been utilized to detect common mutations in DLBCL such as XPO1, EF71K, EZH2 Y641, and MYD88 L265P (54, 57, 62). Roschewki et al. evaluated the appropriateness and prognostic impact of NGS-based molecular ctDNA (63). Rossi et al. assessed the rapid clearance of mutations from cfDNA among the responsive patients with DLBCL treated with R-CHOP. This was demonstrated using CAncer Personalized Profiling by deep Sequencing (CAPPseq) technology (64). A high ctDNA burden before treatment has been proven to be associated with a bad prognosis and high MRD (53, 60). This concept was introduced by Kurtz and his colleagues in the evaluation of the response and determining MRD by ctDNA analysis prior to the chemotherapy (65). Pretreatment ctDNA and molecular responses were independently prognostic of outcomes in DLBCL. Furthermore, a two-log drop in ctDNA levels after two chemotherapy courses were associated with an eventual completer response and cure (63). Later Kurtz and his colleagues used phased variant enrichment and detection sequencing (PhasED-Seq), where they were able to detect phase variants for DBLCL and increase the sensitivity (66). To overcome the heterogeneity and to detect MRD, different fragmentation patterns and hypermutation patterns of ctDNA were identified; they were shown to be superior to traditional tissue biopsies in terms of prognostic information (67). In this study, the latter also accurately determined the absence of MRD in cured patients where PET falsely identified the presence of MRD (67). These studies showed that ctDNA analysis could be informative and even superior in DLBCL compared to the other methods. Another group of scientists decided that the tumor burden by ctDNA prior to treatment heavily relies on the diagnosis to treatment interval (68). Shin et al. analyzed the plasma of cfDNA of a proposed a panel of 66 genes associated with non-Hodgkin’s lymphoma. This study revealed that the level of ctDNA was decreased in patients with a response to therapy, and it increased in patients with disease progression (69). Last, monitoring the MRD with ctDNA may be helpful, following CAR-T-cell therapy (37, 70).
Exosomes or exosomal nucleic acids are another type of liquid biopsy that is shown to be informative in determining MRD and response to treatment (71–73). Furthermore, exosomes also are promising in exploring the new therapeutic targets in DLBCL. Chen and her colleagues provided evidence that Tumor-derived exosomes can increase the immune response and promote tumor growth, suggesting that targeting exosomes could be a potential target in the treatment of DLBCL (74).
Along with the promising data, there are still limitations in liquid biopsies in the context of DLBCL, such as standardization of the sample collection and processing, determination of timing and duration for liquid biopsy analysis, and definition of the biological characteristics and specificity of the ctDNA, cfDNA, and exosomes. One must keep in mind that some mutations such as TP53 or DNMT3A could have their origin in clonal hematopoiesis of an indeterminate potential (CHIP) (58, 75). Providing more convincing evidence by comparing the different methods of MRD detection versus liquid biopsies is crucial. Nevertheless, there is promising evidence that, soon we will be able to use liquid biopsies in the assessment of the MRD in DLBCL and by that could diminish the invasive procedures and overtreatment by false positive MRD.
3.3 Mantle cell lymphoma
Mantle cell lymphoma (MCL) is a rare and aggressive type of non-Hodgkin lymphoma, with a median survival of five to six years. As MCL significantly invades both bone marrow and peripheral blood, MRD assessment has been useful in the management of MCL and has been developing over time from flow cytometry and PCR, to more recent NGS-based methods (76). In a randomized phase 2 trial of bendamustine + rituximab-based induction followed by rituximab ± lenalidomide consolidation for MCL, MRD levels have been shown to be correlated with progression-free survival (PFS) (77). In another study in patients with MCL, post-stem cell transplant (SCT) MRD tracking using IgNGS had a high negative predictive value and was able to identify the presence of ctDNA months prior to clinical recurrence (78).
Lakhotia et al. analyzed the clinical significance of ctDNA dynamics by NGS during therapy in patients with MCL treated with bortezomib + DA-EPOCH-R. Baseline ctDNA was significantly correlated with the total metabolic tumor volume (TMTV) on PET Scan, and dynamic changes that occurred very early during therapy predicted clinical outcomes. ctDNA clearance after one and two cycles of therapy were significantly associated with a longer PFS, and a trend towards better overall survival (OS) was seen. Additionally, ctDNA monitoring after induction showed that molecular relapse can precede clinical relapse (79). Similarly, another prospective phase 2 study of sequential chemoradioimmunotherapy followed by SCT showed that post-treatment NGS–based ctDNA monitoring identified early molecular relapse. In patients who relapsed, 67% had MRD positivity at least 3 months prior, and 72% of patients who did not relapse had undetectable ctDNA (80).
3.4 Follicular cell lymphoma
Several studies have shown that quantification of cfDNA and ctDNA in follicular cell lymphoma (FL) at diagnosis represents a potential powerful prognostic biomarker. Using NGS to detect VDJ mutations in plasma samples, Sarkozy et al. assessed the prognostic value of the ctDNA level at diagnosis from 34 patients with FL. In a multivariate analysis, authors found that a high baseline ctDNA level was the only independent factor significantly associated with a worse PFS (81). Similarly, Delfau-Larue et al. retrospectively analyzed baseline samples from 133 patients with FL using ddPCR and IgH rearrangements. A significant correlation was found between TMTV and both CTCs and cfDNA, with a worse PFS in patients with high cfDNA and TMTV (82).
MRD assessment by NGS can also help in predicting clinical outcomes in patients with FL. Recent studies suggested that ctDNA may be a more sensitive prognostic marker compared to radiographic response. Significantly shorter PFS was seen among patients with MRD positivity during, or after the end of treatment. In addition, MRD negativity at 1-year and 2-years post-treatment was associated with an improved PFS both in partial and complete remission (83, 84). A prospective study by Distler et al. also evaluated the ability of peripheral blood ctDNA by NGS to serially monitor untreated FL patients during watchful waiting. Baseline ctDNA significantly correlated with the TMTV on PET scan, and serial monitoring of ctDNA demonstrated patterns of sharp increases prior to progression. In non-progressing patients, there was an overall trend for decreasing ctDNA values over time, and undetectable ctDNA correlated with spontaneous clinical regression in some patients (85).
ctDNA may also serve as a minimally invasive marker for predicting FL progression and its transformation into diffuse large B-cell lymphoma. An analysis of tumor and peripheral blood samples from transformed FL patients identified de novo mutations that occurred at the time of transformation and often weeks to months prior (53). Ladetto at al showed that several MRD negative results over time reduced the likelihood of FL relapse, but more data into the extent of clinical relevance of serial monitoring is warranted (86).
MRD assessment in FL has been explored as a guide to therapeutic decision-making for additional therapy with Rituximab, which can convert MRD positive FL to MRD negative in cases such as advanced FL after chemotherapy and localized FL after radiotherapy. One of the main factors limiting the use of such monitoring in management is a lack of detectable molecular in a significant proportion of cases. Technical and technological advancement are underway to potentially overcome these limitations (87, 88).
3.5 Primary CNS lymphoma
Primary central nervous system lymphoma (PCNSL) is a rare but aggressive type of lymphoma with generally poor survival rates. The use of cfDNA and ctDNA as minimally invasive liquid biopsies has been studied in PCNSL as a way to improve the diagnosis and treatment of this anatomically challenging disease. A retrospective study on 25 patients with PCNSL demonstrated that somatic mutations and gene alterations can be detected by NGS-based circulating cfDNA sequencing (89). In patients with MYD88 L265P mutated PCNSL, several studies suggested the important role of detecting this mutation in plasma and cerebrospinal fluid (CSF) samples as an additional diagnostic tool (90–92). A study by Watanabe et al. showed that ddPCR-based detection of MYD88 mutation from CSF cfDNA was reliable and consistent with those of standard tumor-derived DNA (93). CSF ctDNA was also shown to be better than plasma ctDNA and flow cytometry at detecting CNS lesions and residual disease, hence its utility in predicting relapses (94).
Heger et al. recently found that the assessment of cfDNA fragment length profiles and their dynamic changes has the potential to significantly improve treatment guidance in PCNSL. Higher average mutated allele frequency in a plasma sample at baseline was associated with worse OS and PFS. Similarly, mutation-based tracking of peripheral residual disease showed that its persistence during treatment was significantly associated with reduced PFS and OS (95). Using NGS CAPP-seq, another study demonstrated the utility of ctDNA as a decision-making tool in PCNSL treatment guidance, by accurately mirroring tumor burden, serving as clinical biomarker for risk stratification, and predicting outcomes (96).
3.6 T-cell lymphoma
Adult T-cell leukemia/lymphoma (ATL) is a T-cell malignancy that arises in long-term carriers of human T-lymphotropic virus type 1. Being extremely aggressive, the survival of some subtypes is around 8 to 10 months. For the past 35 years, the average survival has remained unchanged (97). T-cell lymphoma is less common than B-cell lymphoma; hence, there is less evidence for the liquid biopsy in T-cell lymphoma. In addition, to diagnose the latter or to determine the mutational defect, allele-specific polymerase chain reaction (AS- PCR) can be used to identify HOAG17V/IDH2R172 mutations (17). However, no association was done between mutations and the clinical parameters nor survival in a study done by Hayashida et al. (98). In fact, in a study with 34 patients diagnosed with peripheral T-cell lymphoma where TCR rearrangements was detected by dPCR, Milkjovic et al. reported an average of 2.6-log decrease in the ctDNA levels and an early clearance of ctDNA after the first two cycles of treatment. However, the decrease was not associated with a statistically significant improvement in the event free survival (median (95% CI), 8.4 (0.1–NR) vs. 2.0 (0.1–NR) years; p = 0.32) or OS (median, 8.4 (0.3–NR) vs. 7.0 (0.5–NR) years; p = 0.44) (99). Therefore, due to the lack of association and evidence, the use of liquid biopsy for detection of minimal residual disease in T-cell lymphoma is still inconclusive.
3.7 Hodgkin lymphoma
Classical Hodgkin’s lymphoma (cHL) is a treatable malignancy with an annual incidence rate of 10% of new lymphomas and a prevalence rate of 1% of all cancers in the western part of the world. Multiagent chemotherapy (escalated BEACOPP, ABVD or brentuximab+AVD) and radiation therapies ensured an excellent outcome with a 5-year progression free survival rate of 65% to 95% (100, 101). Many patients, after only two cycles of frontline chemotherapy, benefit, so their treatment intensity gets de-escalated (102). However, around 25% of patient will relapse, shedding the lights on the urgency to understand the biological processes involved and to select useful biomarkers (101). To date, there is not yet pathognomonic biomarkers for classic Hodgkin lymphoma because Hodgkin Reed-Sternberg (HRS) tumor cells are very rare (0.1–3% of cells in the tissue) (103). Due to the low tumor cell count (around only 1% of lymphoma tissue), using tissue-based techniques to genotype HL is a challenging approach. Laser microdissection and flow sorting of the malignant HRS cells to molecularly profile HL has been used by previous studies, but these complex methods have resulted in less than 100 HL genomes being profiled to date (5). Recent research has proved that ctDNA analysis leads to more comprehensive genomic characterization of cHL (104). Two studies assessing the use of liquid biopsies to genotype HL were published (105). The studies focused on the feasibility of liquid biopsy in genotyping HL and identified the most recurrent mutated genes, such as STAT6, GNA13, ITPKB, SOCS1 and TNFAIP3 (106). In fact, using CAPP-seq on cfDNA, Spina et al. proved that STAT6, TNFAIP3, ITPKB, GNA13, B2M, ATM, SPEN, and XPO1 are the most mutated genes (105). Concerning the MRD, Camus et al. explained that the XPO1 E571K mutation will aid as a biomarker in cHL, by means of digital PCR. Their study presented a not statistically significant association claiming that patients with a detectable XPO1 mutation at the end of treatment could have a shorter progression free survival (107). To conclude, the limitations of these studies are numerous, and more data is crucial prior to integrating liquid biopsies in monitoring MRD in lymphomas (99).
3.8 Chronic lymphocytic leukemia
Chronic lymphocytic leukemia (CLL) is the most common lymphoproliferative disease in the elderly of the western world, and it has a multitude of clinical outcomes. In CLL, even though the MRD is not yet well investigated as in other hematologic tumors, recent studies are revealing its role in providing better progression-free and overall survival rates (92). Relying on ctDNA for disease observing has also recently been established in CLL (108). Multiparameter flow cytometer (MFC) and real time quantitative polymerase chain reaction (RQ-PCR) are the most common used techniques. Even though CLL is a circulation disease in the peripheral blood, much research has proven the effectiveness of ctDNA, using digital PCR and targeted sequencing. In CLL, ctDNA analysis display fluctuations in the disease across tissues, including the bone marrow and lymph nodes. This offers supplementary information that cannot be attained by only monitoring the circulating disease. Moreover, in CLL, serial ctDNA investigation favors examining clonal dynamics and discovering genomic changes linked with Richter’s syndrome (104). To conclude, additional data and research ought to be performed to implement the MRD monitoring as a harmonizing method additionally to the ones used.
3.9 Multiple myeloma
The standard method for determining a patient’s diagnosis, prognosis, and genetic assessment in MM is a BM aspirate and biopsy and performing fluorescent in situ hybridization (FISH). However, because it necessitates an invasive approach, this uncomfortable method provides a significant disadvantage for routine illness assessment. New research also showed that a single BM aspirate is unable to display the complex genetic heterogeneity of MM (109). Liquid biopsies may represent an emerging tool that can be used in clinical settings to detect and track MM, leading to a more specific treatment approach (110).
Currently, techniques utilized to detect MRD comprise of next-generation flow cytometry (NGF) and NGS. The initial technique used to assess MRD was flow cytometry more than a decade ago, which had a sensitivity of 10−4 initially and has now improved to 2×10−6 (111). The EuroFlow consortium has standardized this methodology (112). Alongside, NGS has also emerged for measuring MRD, where immunoglobulin gene segments are amplified and sequenced with consensus primers (113). The Adaptive Clonoseq platform (formerly known as LymphoSIGHT) presently has a sensitivity of 6.77×10−7, using 20 μg DNA from 1mL of bone marrow aspirate (114, 115).
There is a high level of agreement between NGF and NGS techniques in detecting MRD, exceeding 80% in newly diagnosed patients as shown in the FORTE (116) and CASSIOPEIA (117) trials. The concordance was similarly high, ranging from 85.8% to 92.9% when comparing NGF with NGS from a different platform called LymphoTrack. The choice of MRD assay typically depends on institutional preference and availability. However, NGS requires a baseline sample to provide a trackable sequence, which is not necessary for NGF. In some cases, a trackable sequence for NGS could not be identified in 7.8% of samples (118). Another advantage of NGF is that it can detect hemodilution by examining mast cell, erythroblast, and B-cell precursor populations (112). Moreover, NGF can potentially assess the bone marrow microenvironment, which may have prognostic relevance in research settings.
Several meta-analyses have demonstrated that achieving a deeper response beyond complete remission (CR) is linked to an improvement in OS (119–121). The initial meta-analyses focused on transplant-eligible patients who underwent intensive therapy and where MRD was mostly evaluated by older and less sensitive flow cytometry (10−4). However, a recent meta-analysis builds upon these prior observations and includes older, transplant-ineligible patients, as well as patients with relapsed disease. The study revealed that compared to MRD-positive disease, MRD-negative status was associated with better progression-free survival (hazard ratio 0.33; 95% CI 0.29-0.37) and OS (hazard ratio 0.45; 95% CI 0.39-0.51) across various patient populations, including those with relapsed or high-risk disease (121). It is noteworthy that MRD status can also stratify patients in CR, with an OS of 112 months for MRD-negative patients, compared to 82 months for MRD-positive patients (120).
Considering these discoveries, the status of MRD is being used more often as a benchmark to compare different treatment plans, particularly as these plans are becoming more successful in achieving deeper responses. The International Myeloma Working Group and Bone Marrow Transplant Clinical Trials Network have established definitions for MRD and its measurement, with the former recommending a sensitivity of 10-5 (40, 122). The use of MRD as a replacement endpoint for regulatory purposes is currently being debated (123) and is being explored by a coalition of academic organizations and pharmaceutical companies known as the International Independent Team for Endpoint Approval of Myeloma MRD (124–126).
Diving into how MRD can be utilized, one should notice that nearly immediately following the onset of the premalignant clonal activity, CTCs can be detected. These cells are liberated from the BM into the circulation and typically join other BM sites (127). In fact, Sata et al. found that polymerase chain reaction using allele-specific oligonucleotides (ASO-PCR) levels in BM cells and peripheral blood cells were strongly correlated, which suggests that MM cells may circulate in the peripheral blood (128). CTCs can be found in monoclonal gammopathy of undetermined significance (MGUS), smoldering multiple myeloma (SMM) and overt MM. The primary difference between these disorders is the CTC rate, which rises in percentages from 0.0002% for MGUS to 0.004% for SMM and 0.04% for overt MM (129). Interestingly, a high CTC count in SMM was associated with a significant likelihood of progressing to clinical MM within 2–3 years after diagnosis (130). Notably, the CTC count was thought to be a distinct prognostic factor. Lower progression-free survival (PFS) related to rising numbers of CTCs. In addition to that, MM patients with undetectable CTCs exhibited exceptionally long PFS (131). By investigating the clonotypic VDJ rearrangement for tracking circulating MM cells and cell-free myeloma DNA, Oberle et al. found that most non-responders and progressors had lingering myeloma cells and cell-free myeloma DNA in the blood (132).
The extension and aggressiveness of the illness appear to be related to cfDNA levels. MM patients without extramedullary involvement and extramedullary MM (EMM) patients’ plasma samples were used in a study to assess the relationship between cfDNA and MM progression. Surprisingly, individuals with extramedullary involvement produced higher levels of cfDNA than participants without this sort of involvement. Additionally, compared to BM aspirates, plasma tumor-originated cfDNA (ctDNA) showed a higher concordance to extramedullary tumors. Considering this, cfDNA is a helpful alternative for EMM genetic identification, particularly when the tumor is difficult to access. It may also be used to monitor MM progression (133). Numerous studies have looked at the genetic traits in SMM that can reliably identify patients with high risk SMM. According to certain findings, cfDNA levels were lower in SMM participants than in patients with overt MM. A study looked at whether variations in the quantity of cfDNA correlate with risk levels identified by the 70 gene expression profile (GEP70). The amounts of cfDNA were noticeably higher in the GEP70 high-risk group compared to the low risk set (134). Another study demonstrated that cfDNA may be used to determine the tumor burden and forecast the likelihood of a disease recurrence in MM patients. Additionally, cfDNA with driver mutations provided more reliable evidence of the recurrence of MM than serum free light chains (135). According to Rustad et al., there is a correlation between the quantity of mutated alleles in the peripheral blood and the percentage of BM plasma cells, which may reflect mutated cells, tumor load, and the development of a more advanced disease (136).
There are few papers that compare the assessment of the minimal residual disease (MRD) using cfDNA to other common approaches including flow cytometry and DNA assessment in the BM (137). Mazzotti et al. demonstrated, using solely IgH gene rearrangements, that there is no relationship between DNA and BM for the MRD by NGS (137). Another research showed that cfDNA may be used to assess the MRD, particularly in EMM. Although a pertinent link between the quantity of tumor-specific cfDNA and clinical outcomes has been found in other studies, the findings in the case of the MRD assessment were not significant (138). As of now, using cfDNA alone has little value in assessing the MRD in MM subjects, despite mounting evidence that it may be a helpful auxiliary method for the treatment and control of the disease and, possibly, with further development, becoming a useful tool for assessing the MRD (139). The clonoSEQ® Assay (Adaptive Biotechnologies Corporation, Seattle, USA) identifies and tracks unique disease-associated immunoglobulin (Ig) sequences by next-generation sequencing of IgH, IgK, and IgL rearrangements and IgH-BCL1/2 translocations in malignant B cells and is useful for MRD assessment in CLL, ALL and Multiple Myeloma (MM). The MRD assessment using clonoSEQ® can be used in the assessment of myeloma burden throughout treatment with accuracy, sensitivity and standardization when compared to traditional cytomorphology. Both bone marrow based and peripheral blood based assays are available (115).
Different studies explored liquid biopsies in MM. KRAS, NRAS and BRAF mutations were evaluated by both Mithraprabhu et al. and Kis et al., in 2017, The former found that the analysis of ctDNA in seven patients indicated that the frequency of certain mutant clones increased at the same time as clinical relapse, suggesting that it could be used as a non-invasive method to monitor the progression of MM disease (140). The latter found that the concentration of cfDNA was significantly higher in the MM cohort than in 56 patients with advanced solid tumors (p < 0.001). The concentration of cfDNA was associated with advanced disease, as shown by a correlation with late relapse compared to early relapse (p = 0.016). The frequency of mutations in cfDNA showed strong agreement with those in bone marrow samples, with R2 values ranging from 0.913 to 0.997 (141). Gerber et al. evaluated somatic mutations utilizing CAPP-seq. The quantity of cfDNA was associated with clinical and pathological indicators that reflect the size and spread of the tumor, such as the degree of bone marrow plasma cell infiltration (p = 0.02). The frequencies of variant alleles in plasma samples were positively correlated with those in tumor biopsies (rs = 0.58, p = 9.6 × 10−5) (142). Table 2 represents trials evaluating MRD to guide treatment.

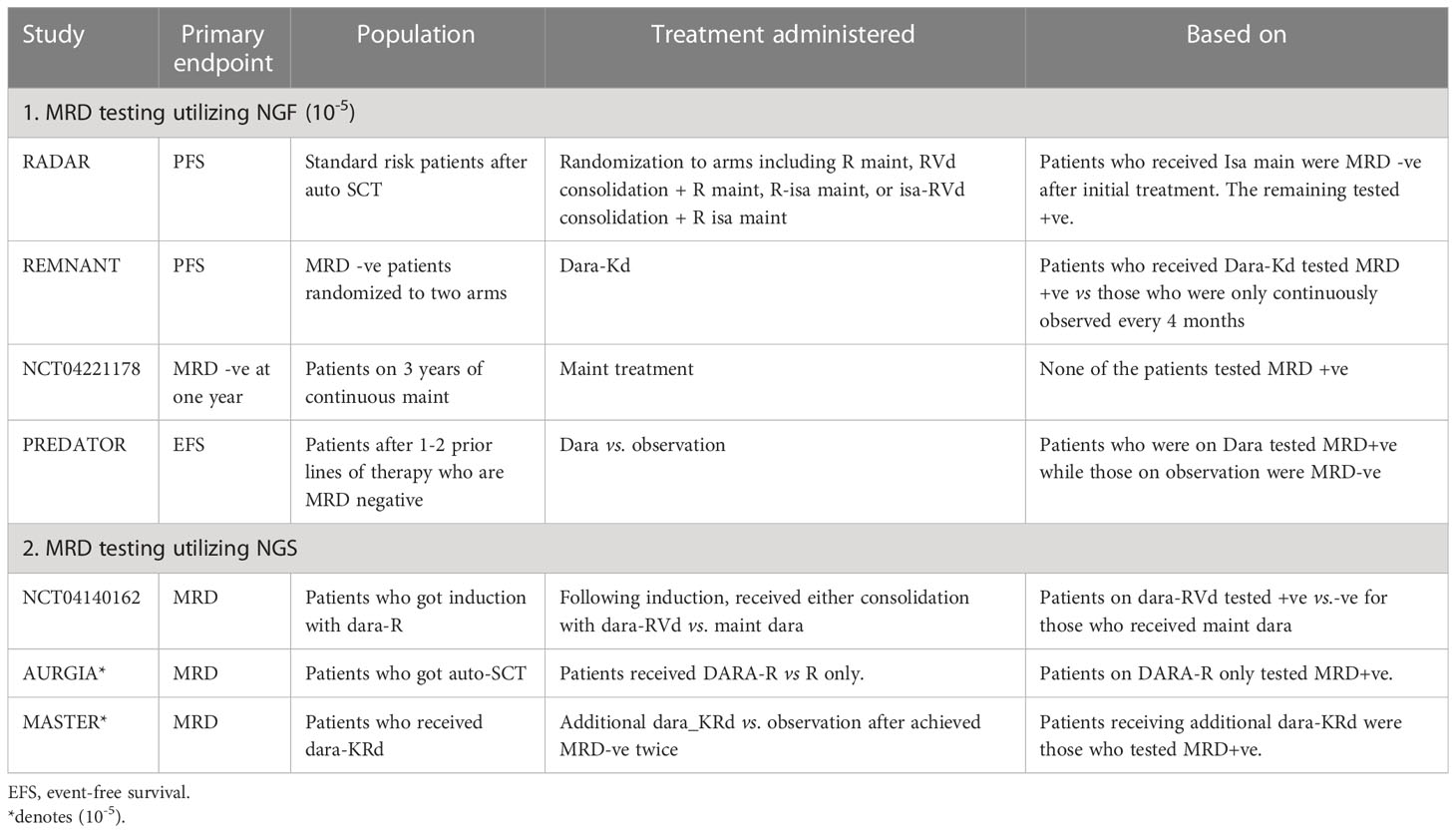

Table 2 Trials utilizing MRD to guide initial and maintenance therapy.
3.10 Waldenström’s macroglobulinemia
Waldenström’s macroglobulinemia (WM) is a type of lymphoplasmacytic lymphoma with recurring somatic mutations, including MYD88 and CXCR4 mutations, which can be found in up to 97% and 40% of cases, respectively (143). While the current genomic analysis of CD19+ selected cells from bone marrow aspirates is the standard procedure, liquid biopsies are becoming a reliable alternative. Bagratuni et al. collected and analyzed approximately 100 paired bone marrow and peripheral blood samples from patients with IgM monoclonal gammopathies (144). They found that cfDNA is a reliable biomarker for the detection of MYD88 and CXCR4 mutations, with high concordance rates between bone marrow and cfDNA detection across all stages of the disease (145). Drandi et al. also demonstrated the feasibility of detecting MYD88 mutations in cfDNA using droplet digital PCR (ddPCR), with good concordance rates between bone marrow and cfDNA detection. This is of notable clinical importance since the MYD88L265P is a diagnostic and predictive biomarker of therapy response. Diagnostically, liquid biopsies including surface marker and genetic mutations such as MYD88L265P participate in distinguishing WM from B-cell lymphoproliferative disorders as well as from related IgM monoclonal gammopathies. Furthermore, MYD88L265P mutation detection have a role in MRD monitoring as well. Dynamics of MRD clearance need to be explored further in a controlled prospective setting to draw conclusions in comparing optimal sources of sampling, but initial retrospective results suggest the mutation clears from the PB earlier than BM (146). The ddPCR technique can also be applied in other liquid biopsies, such as the detection of the MYD88L265P mutation in the cerebrospinal fluid of patients with suspected Bing-Neel syndrome (147). Overall, liquid biopsies have the potential to serve as a reliable alternative to bone marrow CD19+ selected cell analysis.
3.11 Chronic myelocytic leukemia
Different groups have recently conducted tests on the quantification of BCR-ABL1 transcripts by using digital PCR in patients with chronic myeloid leukemia (CML). One such study, known as the ISAV study, involved CML patients who had been on first-generation TKI therapy for more than two years and had undetectable BCR-ABL1 levels by RT-qPCR for at least 18 months. The researchers, including Mori et al., used the Fluidigm dPCR platform, which involves multiple parallel micro-reactions, to select patients who were suitable for discontinuing TKIs. The study showed that most patients who remained in a stable state of undetectable minimal residual disease (MRD) by RT-qPCR were dPCR-negative at the time of TKI suspension (148). Furthermore, the majority of patients who relapsed and were unable to sustain TKI discontinuation were found to be dPCR-positive (68% vs. 43%) (149, 150). Another meta-analysis study also demonstrated the effectiveness of dPCR in supporting the selection of CML patients for TKI discontinuation. Other groups have also confirmed the accuracy and sensitivity of first-generation dPCR platforms in measuring BCR-ABL1 transcripts (151).
Goh and their colleagues assessed the ability of nanofluidic dPCR to monitor the continual decrease in BCR-ABL1 transcript levels, even after it had become undetectable using traditional RT-qPCR methods. They found that dPCR had a 2-3 log improvement in sensitivity over RT-qPCR, with 75% of samples that were undetectable by RT-qPCR showing positivity for BCR-ABL1 transcripts when screened by dPCR (152). Other studies have also confirmed the improved sensitivity of dPCR. In a comparison between RT-qPCR and dPCR, the two methods had a 99% correlation, but only dPCR was able to predict a logarithmic increase in MRD. Additionally, dPCR was able to detect an increase in BCR-ABL1 transcripts up to three months earlier than RT-qPCR (153). The use of dPCR for BCR-ABL1 quantification has also been explored in pediatric CML cases. In these cases, dPCR improved MRD monitoring by detecting the BCR-ABL1 fusion gene on genomic DNA. This is because in pediatric patients, the ABL1 and BCR breakpoint cluster regions are positioned in a way that affects the match between the primers and probe on the BCR-ABL1 transcript (154). This evidence was confirmed by another study, which demonstrated that monitoring MRD through the detection of both cDNA and gDNA is the most sensitive approach for pediatric CML patients (155).
It is possible to detect BCR-ABL1 on gDNA instead of cDNA in adults, even if they have a long history of undetectable MRD using conventional RT-qPCR based on RNA analysis (155). This is because the fusion gene may not be transcribed. A gDNA-based dPCR approach can accurately measure the major breakpoint region and the presence of the BCR-ABL1 fusion gene, increasing sensitivity compared to fluorescence in situ hybridization (156, 157). A second-generation chip-based dPCR platform has been developed in recent years for the detection of BCR-ABL1 transcripts. Bernardi and their colleagues demonstrated that dPCR can provide precise, sensitive, and accurate quantification of BCR-ABL1 transcripts in different biological matrices, including the gold standard peripheral blood cells. They also showed that CML cells can release EVs (158, 159). The presence of BCR-ABL1 positive extracellular vesicles (EVs) has been shown to have an impact on both in vitro and in vivo tumor progression. However, the biological significance of these EVs has not yet been fully understood. CML patients have been found to have a higher number of circulating EVs at diagnosis compared to patients in early stages of treatment or in “deep” MRD, as well as healthy individuals. Additionally, the presence of BCR-ABL1 transcripts detected by RT-qPCR has only been observed in the cargo of exosomes isolated from CML patients in the early stages of the disease. With the application of dPCR, it has been possible to detect the BCR-ABL1 transcript in patients with undetectable MRD levels, using a new biological substrate (circulating exosomes) and avoiding invasive clinical procedures. This suggests the potential of using dPCR to detect active leukemic cells in a less invasive way (158).
Using second-generation dPCR platforms has allowed for the possibility of suspending TKIs therapy for CML patients (160, 161). Italian and French cooperative groups have investigated the use of dPCR in this context and have found that BCR-ABL1 values measured by dPCR are a significant predictor of molecular recurrence. This finding has been supported by a meta-analysis of five different trials (162–164). Additionally, dPCR is reported to be more reliable than RT-qPCR in amplifying all transcript variants present in CML patients. Third-generation dPCR chip-based platforms, such as novel microfluidic array partitioning consumable devices, have also been used to precisely quantify BCR-ABL1 transcripts down to a 0.01% allele frequency with high reproducibility across many replicates, providing further evidence of dPCR’s ability to overcome RT-qPCR limitations (165).
As a result of the promising outcomes, it is not surprising that new commercial assays certified for diagnostic use have emerged for detecting BCR-ABL1 transcripts by dPCR. Furthermore, some expert panels have recommended coordinated international efforts to standardize MRD monitoring by dPCR in adult CML patients through inter- and intra-laboratory tests (166). This push will support the routine use of dPCR alongside RT-qPCR in some settings of CML patients. The routine use of dPCR is preferred over other technologies due to its lower analysis costs, ranging from EUR 4 to 12 per sample, making it a more affordable option (166).
The CD26 antigen is preferentially expressed on leukemic cells from CML patients but not on normal BM cells or those from other neoplasms (167). In one study, CD26+ leukemic stem cells (LSC) were present in around 30% of CML patients with undetectable BCR-ABL1 by RQ-PCR. Quiescent residual LSC may not express BCR-ABL1 transcriptionally, which makes them undetectable by RQ-PCR or by other molecular techniques investigating the BCR-ABL1 transcript. This opens the opportunity to use residual CD26+ LSC in the PB by flow cytometry for MRD monitoring, in addition to standard BCR-ABL1 detection. This is being investigated further (168).
Other methods of BCR-ABL1 independent MRD monitoring currently under investigation for potential clinical use include miRNA quantification and mitochondrial DNA (mtDNA) mutations detection (169).
4 Artificial intelligence and liquid biopsies
Artificial Intelligence (AI) will inescapably be involved in the future landscape of hematological disease management at all stages. Different models using AI have already shown promise in several areas of hematology. For instance, in cytomorphology AI models were able to differentiate cell types and detect malignant clones. In cytogenetics, AI models were able to support karyotyping (170). Technologies leveraging AI have been rapidly evolving over the last few years and may very well be on their way to enhance the clinical practice of the human hematologist. In fact, in 2022 alone, the FDA has approved 91 new additions to their list of legally marketed AI/ML-enabled medical devices (171).
Although the terms “AI” and “machine learning” (ML) are commonly used interchangeably in medical literature, ML is actually a subset of AI that refers to the automatic detection of patterns and associations within the data analyzed. AI can be broadly separated into two groups: strong and narrow. Narrow or weak AI performs one task based on a defined dataset, such as the automatic classification of cell types, and refers to all current medical ML-based algorithms. To qualify as strong, the AI model would have to reliably perform multiple tasks without the need for human intervention, but none of the present-day models achieve this in medicine, ethical and legal questions aside (172).
Phenotypic assessment of peripheral blood (PB) and bone marrow (BM) samples is still the backbone of hematological diagnostics and depends on the experience and capabilities of hematologists and pathologists with limited reproducibility. Several models have been created to classify blood cell types and morphological features, even reaching sensitivity and specificity of over 93.5% and 96.0% respectively (173). For instance, one model was able to reliably identify acute promyelocytic leukemia, an oncologic emergency, in AML samples in a fraction of the time it would take using traditional methods (174). There is even an ongoing prospective clinical trial (ClinicalTrials.gov Identifier: NCT04466059) leveraging an AI model to classify single-cell images of PB smears side-by-side to routine diagnostics with sensitivity and specificity of AI-guided diagnostics as the primary outcomes measured. In TKI treatment selection of CML chronic phase patients, the choice between several highly effective treatment options is complex and frequently subjective. An AI model developed by Sasaki et al. was able to give personalized recommendations that were associated with better survival probability compared to treatment with a non-recommended therapy (175).
MRD has been proving to be of increasing utility in multiple hematological diseases. Multiparameter flow cytometry (MFC) is routinely used to measure MRD in the clinical setting, but it strongly depends on operator skill and expert knowledge. In AML and MDS patients, Ko et al. were able to apply supervised ML techniques to create an automated MFC interpretation algorithm that objectively, reliably, and rapidly detected MRD with high accuracy (> 90%), thus opening the door to the resolution of inter-lab standardization issues (176). Similarly, in childhood B-ALL, Reiter et al. showed high correlation between operator-based and their automated MFC MRD assessment (177). In CLL, Salama et al. created a working model that detected MRD with high accuracy, albeit needing additional clinical validation (178).
Moreover, Hoffman et al. developed an AI algorithm that aims to prevent technique-related false-negative AML MRD results due to critical BM dilution with PB (179). Going even further, Guerrero et al. developed a model to predict MRD negativity and therefore survival outcomes in patients with newly diagnosed multiple myeloma, based on tumor and immune biomarkers (180).
Concerning future considerations although AI-based methods have shown promise and success, both the medical community and the public have not been persuaded enough to embrace AI in routine clinical practice. This of trust in AI predictions can begin to be tackled by focusing on explainable and widely validated models (181). Currently, AI still mostly exists in the research setting, but the future of hematology research will be the integration of the swaths of data from research and the real-world data to find the best way to allow AI to expand the work of human physicians to a point none could reach individually (182).
5 Conclusion
Liquid biopsy for MRD testing using blood is rapidly evolving in the field of lymphoid malignancies. Most advancement is seen in the evaluation, management and in the post-therapy monitoring of ALL leading to routine clinical utilization. Liquid biopsy based MRD testing in common non-Hodgkin’s lymphoma such as diffuse large B cell lymphoma, follicular or mantel cell lymphoma remains experimental. Similarly, NGS based MRD testing in Hodgkin’s lymphoma is used in the research setting only for now. In the field of CLL and multiple myeloma NGS based MRD testing has been widely utilized in clinical trials and has started to come to the clinic for patient evaluation after therapy. MRD guided approach to therapy will probably be the standard of care moving forward in hematologic malignancies. Finally, employing artificial intelligence may simplify the complexities associated with current high-tech, high-skill and labor-intensive process of MRD testing using liquid biopsy. AI based algorithm can have the potential to prevent technique-related false-negatives or false positives.
Author contributions
MaZ drafted the manuscript. JK, LS, EH, MoZ, SA, WM, MM, SM and MaZ contributed to the discussion section. CC conceived the idea for the paper. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

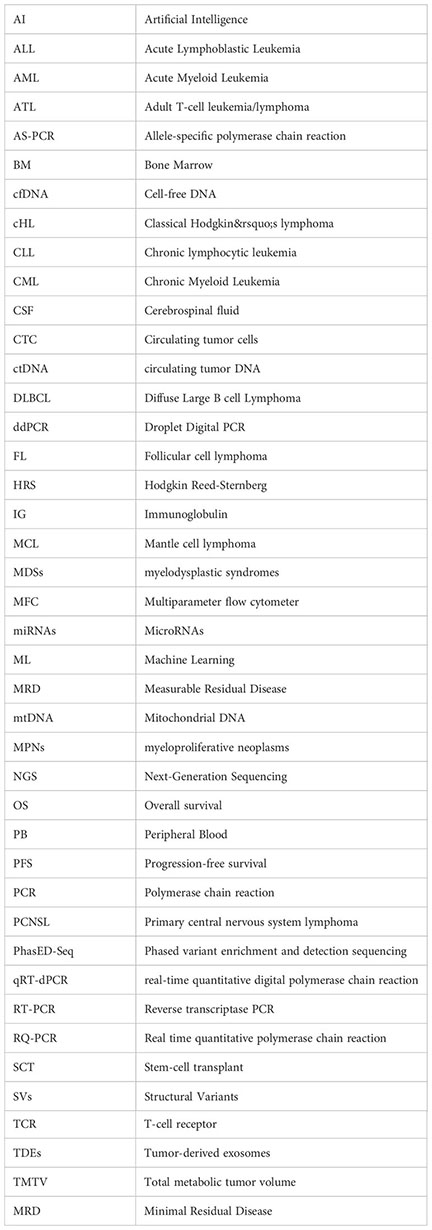

Glossary
