Evaluation of flattening-filter-free and flattening filter dosimetric and radiobiological criteria for lung SBRT: A volume-based analysis

Introduction: The use of volumetric modulated arc therapy (VMAT) with flattening-filter-free (FFF) beams is becoming more prevalent in lung cancer stereotactic body radiotherapy (SBRT). The aim in this study was to assess the impact of dosimetric and radiobiological differences between FFF and flattening filter (FF) beams for lung SBRT based on the target volume.

Methods: A total of 198 lung stereotactic body radiation therapy treatment plans with FFF beams and FF beams were retrospectively selected for this study. For all plans, the prescribed dose was 50 Gy/5 fractions, and the dose volume histogram (DVH) for the target and organs at risk (OAR) and the normal tissue complication probability (NTCP) of the lung were recorded and compared. Moreover, monitor units (MUs), the beam on-time and the treatment time were evaluated.

Results: The study was performed following the Radiation Therapy Oncology Group (RTOG) 0813 and 0915 protocols. No significant differences in D₉₀, coverage rate (CR) or conformity index (CI) of the target were observed between FFF beams and FF beams (p>0.05). The D₂, R_50% and gradient index (GI) for the target improved with FFF beams compared with FF beams (p<0.05). FFF beams also significantly reduced the dose for the lung, heart, spinal cord, esophagus and NTCP of the lung (p<0.05), compared with FF beams. However, there was no significant difference in sparing of the trachea (p>0.05). The mean MUs, beam on-time and treatment time were 1871 ± 278 MUs, 3.2 ± 0.2 min and 3.9 ± 0.3 min for FFF beams, and 1890 ± 260 MUs, 4.2 ± 0.3 min and 4.8 ± 0.4 min for FF beams, respectively.

Discussion: The FFF beam technique for lung SBRT with VMAT results in a better dose fall-off, better dose-sparing of OAR, lower NTCP of the lung and a shorter beam on-time compared with the FF beam technique. Additionally, the improvement in target and OAR-sparing for FFF beams was increased with increasing target volume.

Introduction

Among Chinese men, lung cancer is the most common cancer, accounting for about 24.6% of all new cancer cases, according to data released in 2022 by the Chinese National Cancer Center (1). The use of stereotactic body radiation therapy (SBRT) has become the standard treatment for medically inoperable, early stage, non-small-cell lung cancer (NSCLC) (2–4). Compared to conventional radiation therapy, SBRT has the major feature of delivering large doses, while minimizing the dose to the organs at risk (OAR) (5–7). However, with the delivery of large doses, which results in a prolonged beam on-time, it could impact patient safety, such as patient motion, and the succeeding risk of dose uncertainties increases. The crucial challenges of SBRT concern safety, accuracy, and speed.

Due to advances in technology, there has been growing interest in the clinical use of flattening-filter-free (FFF) beams to deliver lung SBRT treatment (8–10). The FFF beam has had the flattening filter removed, such that the beam is not flat, as flatness is not necessary for volumetric modulated arc therapy (VMAT). The main characteristics of FFF beams are the high dose rate (1400 monitor units per minute for 6 MV photon beam), a cone-shaped dose profile (11), reduced peripheral dose outside of the beam (12) and an increased superficial dose. The most notable results of FFF beams are the large reduction in beam on-time, increased clinical efficiency, a better target dose coverage and OAR-sparing (8, 10, 13, 14).

With these advantages of FFF beams, many researchers have studied the dosimetry of FFF beams and FF beams in lung SBRT (8, 15, 16). However, according to a previous paper (17) and our experience, the difference in plan quality between FFF beams and FF beams is dependent on PTV. Only Reggiori et al. (17) have compared FFF beams with FF beams based on PTV for liver SBRT. To the best of our knowledge, there have been few studies evaluating the dosimetric and radiobiological differences between FFF beams and FF beams for lung SBRT based on PTV. Treatment plan evaluation metrics for lung SBRT were recommended by the Radiation Therapy Oncology Group (RTOG) 0813 and 0915 protocols; these include R_50%, the gradient index (GI), the conformity index (CI), and the coverage rate (CR) for PTV, and dose volume limits for OAR (18, 19). Furthermore, the normal tissue complication probability (NTCP) for the lung was evaluated between FFF beams and FF beams. The patients were divided into four groups according to the 0813 and 0915 protocols, as Group1 (3.8 cm³≤PTV<7.4 cm³), Group 2(7.4 cm³≤PTV<13.2 cm³), Group 3(13.2 cm³≤PTV<22.0 cm³) and Group 4(22.0 cm³≤PTV ≤ 34.0 cm³). In this work, we retrospectively compared the dosimetry and NTCP of 175 lung SBRT patients, using VMAT with FFF beams and FF beams dependent on PTV.

Materials and methods

Patients

175 patient with 198 pulmonary lesions (198 independent isocentre) treated with SBRT using either FFF or FF beams during June 2021 to March 2022 were included in the study. This retrospective study was approved by the Ethics Committee of our hospital. Patient characteristics are summarized in Table 1. The patients were immobilized in a supine position with their arms above their head. All patients received two computed tomography (CT) scans: a free-breathing CT scan and a four-dimensional CT scan (4DCT). CT scans with a 3 mm slice thickness were acquired with a 16-slice Brilliance Big Bore CT (Philips Medical Systems, Cleveland, OH, USA). All 10 phases of the 4DCT slices and respiratory motion data were transferred to MIM Maestro software (MIM Software Inc., Cleveland, OH, USA) using 4D Workflow, where the maximum intensity projection (MIP) images and average intensity projection (AIP) images were generated. Visible lesions on CT were used to determine the gross tumor volume (GTV) using the window/level settings on the lung (window/level ranges from 800 to 1600 HU or -600 to -750 HU), and the GTV and clinical target volume (CTV) was often considered to be equal (20, 21). CTVs from 4DCT were contoured on CT images of each respiratory phase (CTV0, CTV10 to CTV90) and added together to define the internal target volume (ITV). The planning target volume (PTV) was generated by expanding 5 mm in three dimensions to ITV. The volume for the PTV range was from 5.07 to 33.49 cc (mean 14.63 ± 5.25 cc), and the detail of the PTV is shown in Table 1. The patients were stratified into four groups according to the RTOG 0813 protocol by the volume lesion: the first group included 7 patients with a PTV from 3.8 to 7.4 cm³, the second group included 83 patients with a PTV from 7.4 to 13.2 cm³, the third group included 91 patients with a PTV from 13.2 to 22.0 cm³, and the fourth group included 17 patients with a PTV from 22.0 to 34.0 cm³. The OAR of this study were contoured on the CT image, which included the lung, heart, spinal cord, esophagus and trachea.

TABLE 1

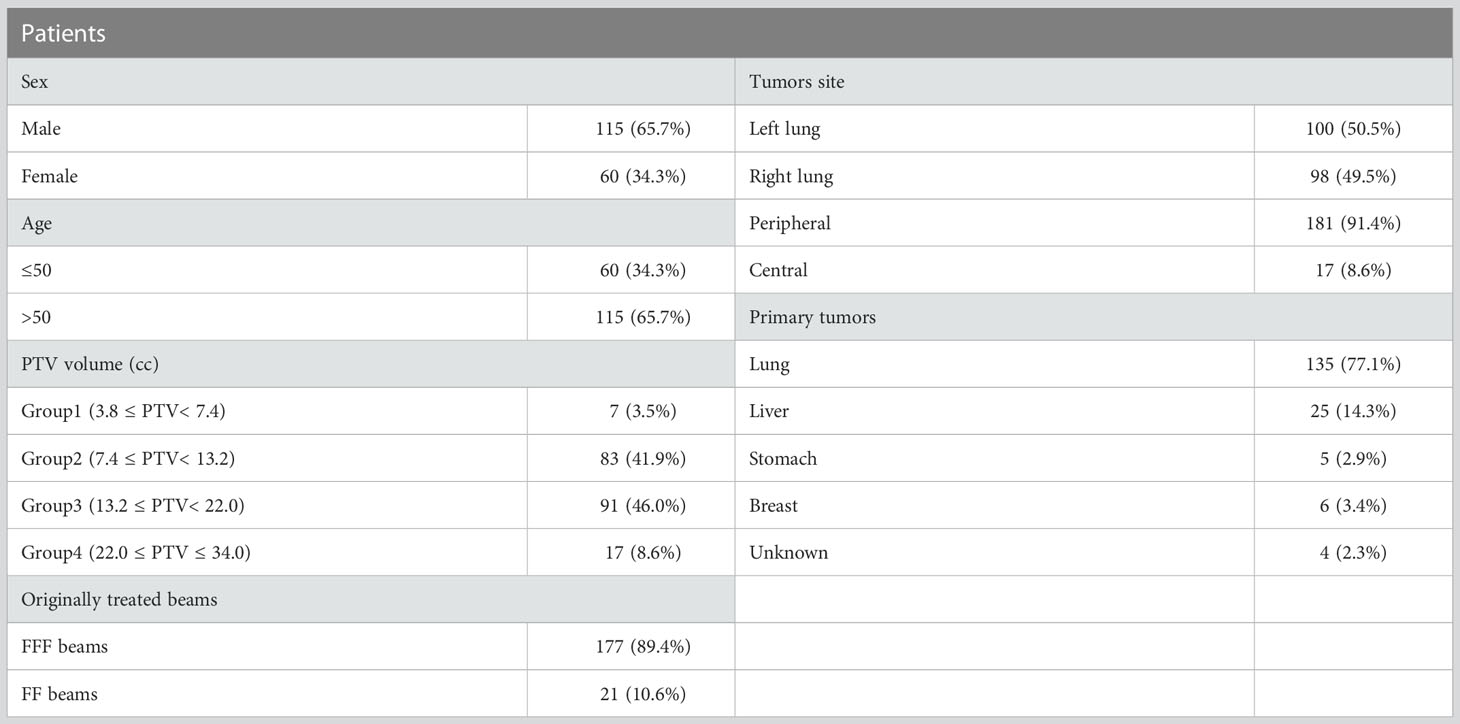

Table 1 Patient characteristics of 175 patients with 198 pulmonary lesions.

Treatment planning

All clinical treatment plans were generated using the Pinnacle TPS (version 9.10, Philips Radiation Oncology Systems, Fitchburg, WI, USA). Intensity modulation was performed using the direct machine parameter optimization (DMPO) algorithm. The collapsed cone (CC) algorithm was applied for final dose calculations, with a grid size of 2.5 mm. For each patient, two plans were created:1) a triple VMAT arc using FFF beams (VMAT_FFF) with collimator 0° and couch 0°; and 2) a triple VAMT arc using FF beams (VMAT_FF) with collimator 0° and couch 0°. The treatment beam was a non-coplanar6MV photon using the Infinity Linear Accelerator (Elekta AB, Sweden). The Infinity Linear Accelerator is equipped with a multileaf collimator, MLCi2, which has 40 leaf pairs of 0.5 cm thickness. The maximum dose rate of the FFF beams and FF beams was 1400 and 600 monitor units (MU)/min for 6 MV photons at the Elekta Infinity linear accelerator, respectively. VMAT_FFF and VMAT_FF plans were generated using 3 arcs; for example, when the target was in the right lung, the arcs were as follows: 1) located in the lower region of the lung with 3 partial arcs, the first of which was clockwise from 181˚ to 300˚, the second was counterclockwise from 300˚ to 181˚, and the third was clockwise from 120˚ to 179˚; 2) located in the upper region of the lung, with 3 partial arcs, the first of which was clockwise from 250˚ to 30˚, with the same range of angles for arc 2 and arc 3; and 3) located near the midline of the body with 3 full arcs, from 181˚ to 179˚.The arcs for right lung are presented in Figure 1.

FIGURE 1

Figure 1 The arcs for right lung for FFF beams and FF beams. (A) the lower region of the lung. (B) the upper region of the lung. (C) the midline of the body.

The penalties and weights for the target and OAR, and the number of iterations were kept the same for the VMAT_FFF and VMAT_FF plans. The prescribed dose was 50 Gy in 5 fractions aimed to cover the PTV with 90% of the prescribed dose (D₉₀).The dose constraints for the PTV were1) D₉₀≥100% of the prescribed dose, and 2) D₂ ≤ 125% of the prescribed dose. For the OAR, both the VMAT_FFF and VMAT_FF plans met the dose volume limits of the RTOG 0813/0915 protocols, as detailed in Table 2.

TABLE 2

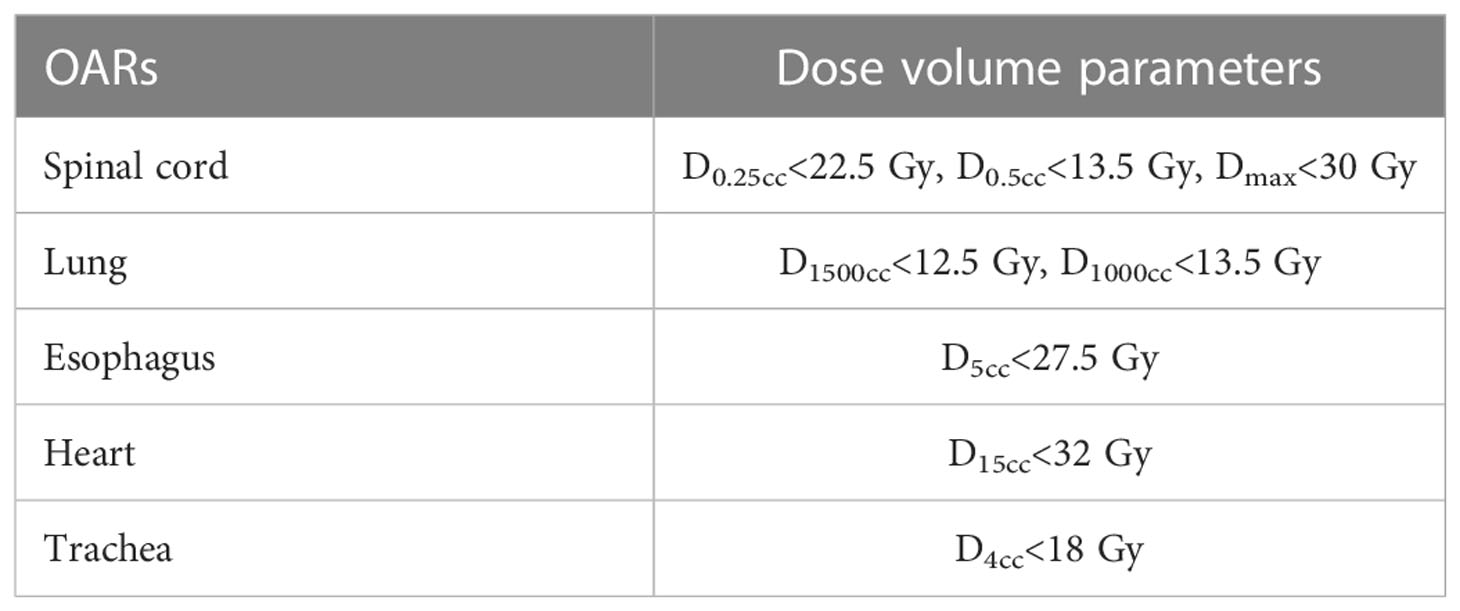

Table 2 Dose-volume constraints for OARs.

Evaluation of dosimetric data

The dosimetric quality of the treatments were measured using a dose volume histogram (DVH) metrics. For PTV, the target coverage (D₉₀ and D₂), the coverage rate (CR), the conformity index (CI), R_50% and the gradient index (GI) were reported (22–24).

CR was defined as:

$\begin{array}{ll}\text{CR}=\text{T}{\text{V}}_{\text{PV}}/\text{TV}& (1)\end{array}$

where TV_PV is the target volume covered by the prescription isodose and TV is the volume of the target.

CI was defined as:

$\begin{array}{ll}\text{CI}={\left(\text{T}{\text{V}}_{\text{PV}}\right)}^2/\left(\text{TV}\times \text{PV}\right)& (2)\end{array}$

where PV is the volume covered by the prescription isodose. CI values range between 0 and 1, and a CI close to 1 represents better conformity. GI was defined as the ratio of the volume of half the prescription isodose and the TV_PV. R_50% was calculated using the RTOG 0813 protocol (18), and it was defined as the ratio of 50% prescription isodose volume to the PTV. Furthermore, dosimetric parameters were evaluated for the lung, spinal cord, esophagus, heart and trachea. The dose to the lung was evaluated using V₅, V₂₀, D_1000cc, D_1500cc and the mean lung dose (MLD). D_max, D_0.25cc and D_0.5cc of spinal cord were recorded. For the esophagus, heart and trachea, the D_max, D_5cc, D_1500cc and D_4cc were scored, respectively. Moreover, monitor units (MUs),the beam on-time (BOT) and the treatment time for the two plans were also recorded.

Evaluation of NTCP data

The NTCP for ≥ grade 2 radiation pneumonitis (RP) of the lung was assessed for VMAT_FFF and VMAT_FF plans. For all patients, we exported DVHs of the lung to convert the physical dose into the biologically effective dose (BED) (25), using the LQ model and α/β-ratio of 3 Gy (26), as follows:

$\begin{array}{ll}\text{BED=D}\left(\mathrm{1+}\frac{\text{d}}{\text{α/β}}\right) & (3)\end{array}$

in which the total dose (D) is the dose per fraction (d) multiplied by the number of fractions (n). The Lyman–Kutcher–Burman (LKB) model of NTCP (27) can be calculated from the EUD or V_x according to:

$\begin{array}{ll}\text{NTCP=}\frac{1}{\sqrt{\mathrm{2\pi }}}\underset{-\infty }{\overset{\text{t}}{\int }}{\text{e}}^{\frac{-{\text{x}}^2}{2}}\text{dx}& (4)\end{array}$

With

$$\text{t=}\{\begin{array}{c}\frac{{\text{EUD-TD}}_{50}}{\text{m}·{\text{TD}}_{50}}\text{ , for MLD}\\ \frac{{\text{V}}_{\text{x}}{\text{-V}}_{\mathrm{x50}}}{\text{m}·{\text{V}}_{\mathrm{x50}}}{\text{ ,for V}}_5{\text{, and V}}_{20}\end{array}$$

In Equation (4), the MLD (BED-corrected) can be used instead of the EUD to calculate the NTCP, according to Seppenwoolde et al. (28). TD₅₀, the mean dose for 50%of the NTCP, and m, a slope parameter (the steepness of the curve decreases with increasing m), were 20.8 Gy and 0.45, respectively, for the equation based on MLD, as proposed by Borst et al. (26). V_x50 represents the V_x parameter for 50% of the NTCP. The parameters for the NTCP model are given in Table 3.

TABLE 3

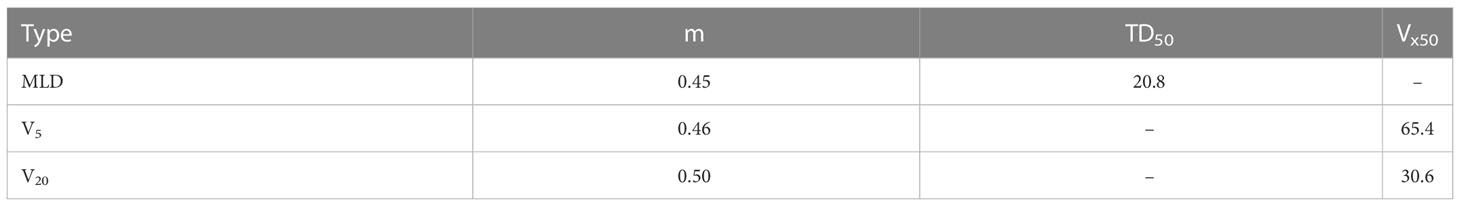

Table 3 Parameters used to calculate NTCP.

Data were statistically analyzed using SPSS 19.0 software (IBM, New York, USA). A paired t-test(two-sided) was used for analyzing the dosimetric and radiobiological parameters of the PTV and OAR between VMAT_FFF and VMAT_FF plans with normal distribution. A value of p<0.05 was considered to be significant.

Results

Dosimetric evaluation of PTV

All plans were normalized to cover 90% of the PTV with the prescribed dose and met the planning objectives, as described in Table 2.A comparison of the PTV and OAR dosimetric parameters for the VMAT_FFF and VMAT_FF plans for all 198 lung SBRT plans(generated on 175 patients with 198 independent isocentre) is presented in Table 4. In general, the dose within the PTV was similar for the VMAT_FFF plan and the VMAT_FF plan. There was no significant difference in D₉₀, CR and the CI of the PTV between the two plans (p>0.05). However, the D₂, R_50% and GI of the VMAT_FFF plan were significantly lower than the VMAT_FF plan (p<0.05). D₂ of the PTV was 55.30 ± 0.45 Gy for the VMAT_FFF plan and 55.90 ± 0.50 Gy for the VMAT_FF plan. R_50% of the PTV was 4.88 ± 0.61 for the VMAT_FFF plan and 4.98 ± 0.64 for the VMAT_FF plan. GI of the PTV was 5.21 ± 0.73 for the VMAT_FFF plan and 5.33 ± 0.78 for the VMAT_FF plan.

TABLE 4

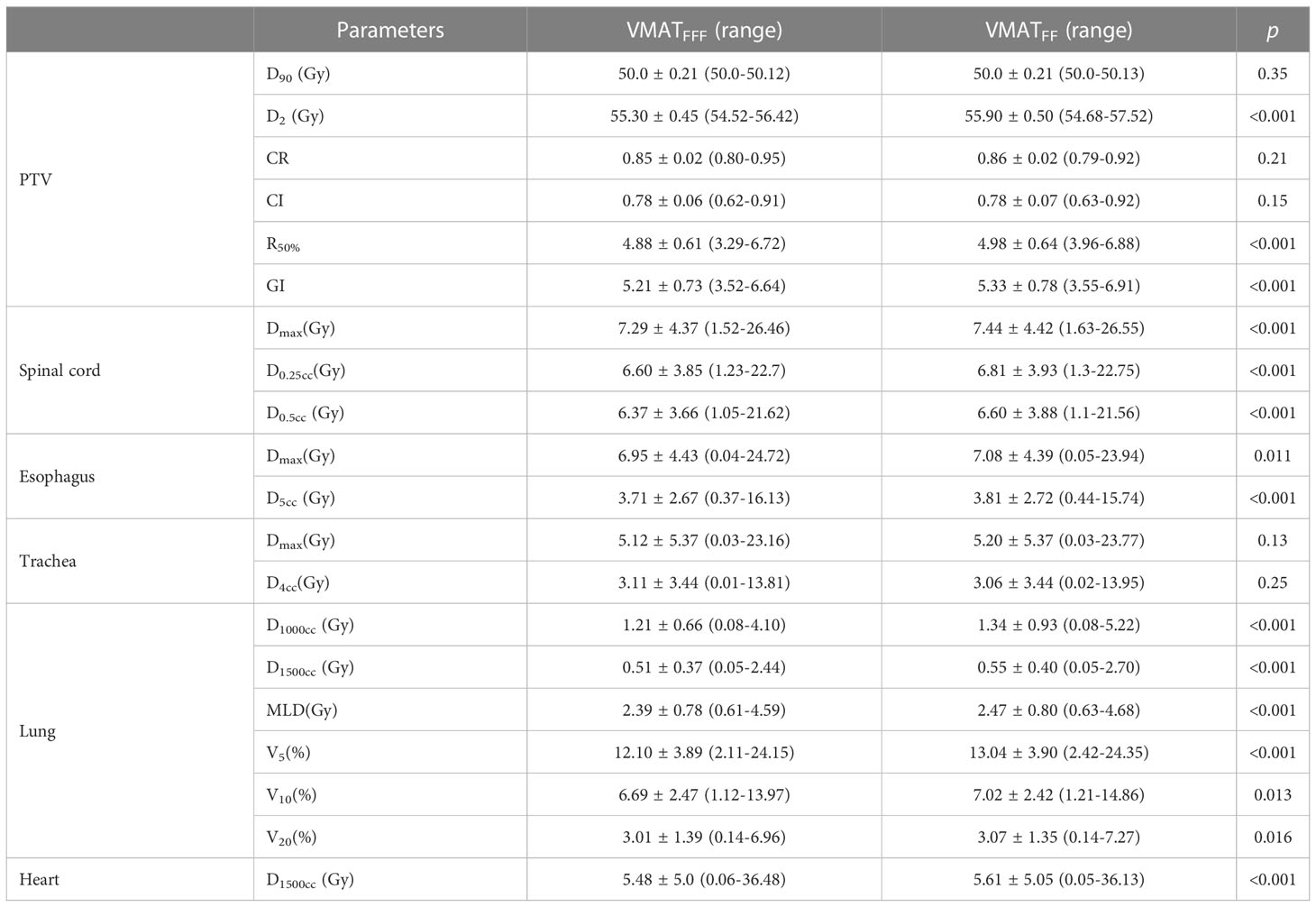

Table 4 Comparison of the dosimetric parameters (mean ± standard)of PTV and OARs.

Dosimetric evaluation of OAR

All dosimetric parameters of the lung, esophagus, spinal cord and heart were significantly decreased in the VMAT_FFF plan (p<0.05). The absolute differences in D_1000cc, D_1500cc, MLD, V₅, V₁₀, and V₂₀of the lung were up to 0.13 Gy, 0.04 Gy, 0.08 Gy, 0.94%, 0.33% and 0.06% higher, respectively, with the VMAT_FF plan. Compared with the VMAT_FF plan, the VMAT_FFF plan provided a lower D_max, D_0.25cc and D_0.5cc to the spinal cord, D_max and D_5cc to the esophagus, and D_1500cc to the heart by 0.15 Gy, 0.21 Gy, 0.23 Gy, 0.13 Gy, 0.1 Gy and 0.13 Gy, respectively. No substantial differences were observed in D_max and D_4cc of the trachea (p>0.05). Figure 2 shows the V₅, V₁₀, V₂₀ and MLD of the lung for FFF beams and FF beams for all treatment plans, and the metrics are represented as a function of the PTV volume.

FIGURE 2

Figure 2 Lung representative dosimetric parameters for FFF beams and FF beams. (A)V₅ of lung. (B)V₁₀ of lung.(C) V₂₀ of lung. (D) MLD of lung.

Figure 3 and Figure 4 show the DVHs and a dose distribution in one patient, respectively. As can be seen in Figure 1, for the PTV, the high-dose spillage of the VMAT_FFF plan was significantly lower than the VMAT_FF plan; for the OAR, the VMAT_FFF plan significantly reduced low-dose spillage for the lung and spinal cord. In Figure 3, the VMAT_FFF plan had the slight advantages of providing tighter intermediate-dose spillage (see R_50% and GI) compared with the VMAT_FF plan.

FIGURE 3

Figure 3 Dose-volume histogram of target and selected OARs. (Solid line: VMAT_FFF, Dashed line: VMAT_FF). (A) dose ranges from 0 to 61 Gy. (B) dose ranges from 0 to 20 Gy.

FIGURE 4

Figure 4 Comparison of dose distributions for a patient with contoured PTV (red), lung (light green), heart (brown), esophagus (cyan), and trachea (dark cyan). (A) VMAT_FFF plan. (B) VMAT_FF plan. The dose distribution ranges from 25 Gy to 65 Gy. (C) The absolute dose difference distribution between the (A) and (B). The dose distribution ranges from -3.11 Gy (blue color) to 3.11 Gy (red color).

NTCP evaluation of the lung

Table 5 lists the NTCP values for the VMAT_FFF plan and the VMAT_FF plan. According to the NTCP model based on MLD, the average values [range] were 1.86 ± 0.19% [1.58%-5.71%] and 1.88 ± 0.19% [1.58%-5.82%] for the VMAT_FFF plan and VMAT_FF plan, respectively. For the model based on V₅, the average NTCP [range] value for the VMAT_FFF plan was 3.87 ± 1.73% [1.74%-9.01%] compared with 4.17 ± 1.80% [1.83%-9.51%] for the VMAT_FF plan. The NTCP based on V₂₀ were 3.31 ± 0.70% [2.28%-5.37%] and 3.33 ± 0.73% [2.28%-5.59%] for the VMAT_FFF plan and the VMAT_FF plan, respectively.

TABLE 5

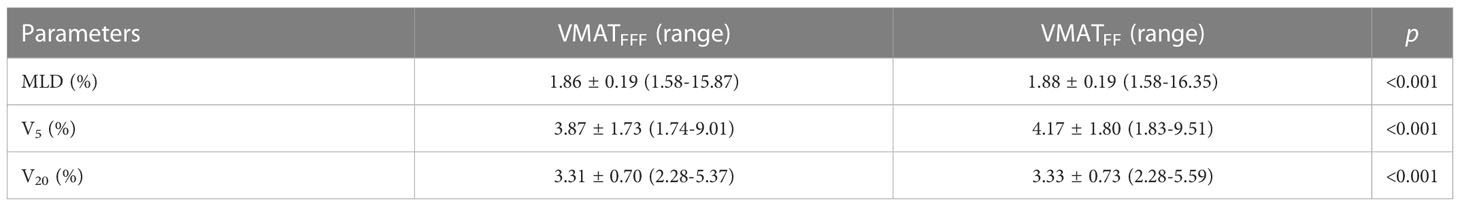

Table 5 Comparison of NTCP (mean ± standard)of lung.

MUs, beam on-time and treatment time

The average MU values were 1871 ± 278 MUs and 1890 ± 260 MUs for the VMAT_FFF plan and the VMAT_FF plan, respectively. The average beam on-time was 1.3 times higher for the VMAT_FF plan: 4.2 ± 0.3 min, while for the VMAT_FFF plan, due to the higher dose rates, the beam on-time reduced to 3.2 ± 0.2 min. The average treatment time were 3.9 ± 0.3 min and 4.8 ± 0.4 min for the VMAT_FFF plan and the VMAT_FF plan, respectively.

A volume-based analysis

Patient’s PTVs ranges from 5.07 to 33.49 cc were stratified into four volume groups according to the RTOG 0813 protocol. All values for PTV (R_50% and GI), the lung (V₅, V₁₀, V₂₀ and MLD) and the NTCP of the lung in the four groups are provided in Table 6. The results for the heart, esophagus, trachea and spinal cord are not listed since these OARs were not close to the PTV and do not show a clear trend with the PTV. For all groups, the data showed significant differences between the VMAT_FFF plan and the VMAT_FF plan (p<0.05).

TABLE 6

Table 6 Summary of the results for parameters of PTV, lung and NTCP (mean ± standard)in four group according to the PTV volume.

The TD was calculated as follows:

$\begin{array}{ll}\text{TD}=\frac{{\text{V}}_{\text{FF}}}{{\text{V}}_{\text{FFF}}}& (5)\end{array}$

where V_FF and V_FFF represent the values for the VMAT_FF and VMAT_FFF plans, respectively. The GI and R_50% values show a decrease between Group 1 and Group 2 which is then stable in Group 3 and 4with increasing volumes. The VMAT_FFF plan can be observed as the most advantageous for a small volume in terms of R_50% and GI. In Group 1, the TD values for R_50% had a mean value of 1.04, while this value for GI was 1.04. In Figure 5B, the trend observed was different to that of the GI and the fluctuations were more marked. For V₅, V₁₀, V₂₀ and the MLD of lung, the biggest differences between the two plans were in Group 4, at 1.13, 1.09, 1.04 and 1.04, respectively. In Figure 5C, the trend observed was similar to that of Figure 5B and the biggest difference between the two plans appeared in Group 4.

FIGURE 5

Figure 5 (A–C) presents the difference (TD) between two plans for the PTV, lung and NTCP, respectively.

Furthermore, R_50% for the VMAT_FFF plan and the VMAT_FF plan are described with a power functional form and shown in Eq.(6) and Eq.(7):

$\begin{array}{ll}{R}_{50\%FFF}=7.72V^{-0.19}& (6)\end{array}$

where V is the volume of PTV, with a standard error of 0.36 and 0.02 for the A and B parameters, and an R² of 0.4;

$\begin{array}{ll}{R}_{50\%FF}=7.92V^{-0.2}& (7)\end{array}$

with an R² of 0.4, and a standard error of 0.38 and 0.02 for the A and B parameters. A plot of R_50% versus PTV is presented in Figure 6. Figure 6 shows that VMAT_FFF plan have steeply dose fall-off than VMAT_FF plans. According to the RTOG 0813/0915 reports, 195 plans exhibited no deviation, 3 plans a minor deviation (less than 10% difference), and none exhibited a major deviation (more than 10% difference) for the VMAT_FFF plan; 186 plans exhibited no deviation, 12 plans a minor deviation, and none exhibited a major deviation for the VMAT_FF plan.

FIGURE 6

Figure 6 The R_50% for VMAT_FFF and VMAT_FF plans plotted with PTV volume and was presented by a power functional form: (A) R_50% of VMAT_FFF plan. (B) R_50% of VMAT_FF plan.

Figure 5 The differences between VMAT_FFF and VMAT_FF plans in four groups: (A) R_50% and GI of PTV. (B) V₅, V₁₀, V₂₀ and MLD of lung. (C) NTCP of V₅, V₂₀ and MLD.

Discussion

In the present study, for 175 patients with 198 pulmonary lesions, we investigated the potential advantage of using FFF beams in lung SBRT based on the target volumes. For the investigated VMAT techniques, treatment planning with FFF beams resulted in plans of similar or better quality and a lower NTCP of the lung compared with FF beams. Furthermore, our results indicated that the differences between FFF and FF beams for the parameters of PTV of the lung and the NTCP have been related to the target volume, as shown in Table 6 and Figure 5.

With large doses in a few fractions and a conventional dose rate, the SBRT beam on-time can become very long, increasing patient discomfort and treatment uncertainty. Hence, shortening the SBRT beam on-time becomes crucial. A primary advantage of FFF beams is that they have similar MUs; meanwhile, they shave a shortened beam on-time compared with FF beams. Our results showed that the FFF beams obtained a 23.8% reduction in beam on-time, a 18.8% reduction in treatment time and a 1.0% reduction in MUs for VMAT. A few investigators have reported the time advantage of FFF beams for VMAT plans. For instance, Pokhrel et al. (8) reported that the average beam on-time for FFF beams was 6.5 min, and was much shorter than for FF beams (15.1 min). Pokhrel et al. (15) has shown an overall reduction in beam on-time by about 57.0% using FFF beams for lung lesions. However, in our study, the beam on-time of FFF beams was not significantly reduced compared to the FF beams, which could be related to the DMPO algorithm (Pinnacle) generating segment having less MUs than others TPS. When the dose rate was still increasing, the segment was over. Furthermore, compared to the FF beams, the MUs did not change significantly while using FFF beams. Furthermore, the reason for similar MUs for FFF beams and FF beams is likely to be the small PTV in this study.

One of the major concerns for treating lung cancer using SBRT is the low-dose bath exposure of the lung, such as V₅, V₁₀, V₂₀ and the MLD (29). According to the RTOG 0813 recommendation (18), all of the SBRT plans had D_1500cc<12.5 Gy, D_1000cc<13.5 Gy and V₂₀<10%. The use of FFF beams in lung SBRT treatment has been previously studied (6, 15, 30). Pokhrel et al. (15) designed VMAT plans using FFF beams and FF beams for 13 patients with lung cancer. They found that the VMAT_FFF plans had a lower dose to OAR. Similarly, Vassiliev et al. (30) investigated dosimetric differences between FFF beams and FF beams, and reported that FFF beams achieved significantly better target coverage and OAR-sparing than FF beams. This dosimetric advantage of FFF beams was due to the lower out-of-field dose, more rapid dose fall-off, and softer energy spectrum removing the flattening filter compared to FF beams (31). In the current study, utilizing FFF beams for VMAT plans resulted in a better D₂ and falloff gradient (R_50% and GI) and achieved a similar target coverage (D₉₀, CR, and CI) compared to FF beam plans. The differences in the D₉₀, CR, and CI were not significant. For all plans, the VMAT_FFF plans provided similar or better OAR-sparing (lung, esophagus, spinal cord and heart), except the trachea. V₅, V₁₀, and V₂₀ of lung were found to be lower by an average of 0.94%, 0.33%, and 0.06% for FFF beams compared with FF beams, respectively. Although, FFF beams has significantly better OAR-sparing than FF beams, the absolute differences between the values are very small. This result might due to the small target volume in our study, the mean volume of PTV is 14.63 ± 5.25 cc. With the target volume increase, the absolute difference between FFF beams and FF beams will increase. For instance, V₅, V₁₀, and V₂₀ of lung were lower by an average of 1.99%, 0.74%, and 0.18% for FFF beams compared with FF beams in Group4, respectively.

For the lung, FFF beams appeared the most advantageous for a large-size target (Group 4) in V₅, V₁₀, V₂₀ and the MLD of lung. Although the fluctuations were more marked, the trend in the differences increased with an increasing target volume. A different trend was observed for R_50% and GI; the biggest differences between two techniques appeared in Group 1: 3.62% for R_50% and 3.49% for GI, respectively. There may be several possible explanations for these trends, including (1) there was no significant difference in D₉₀, CR, and the CI of PTV between the two techniques due to the profile of the FFF and FFF beams, which are similar; the difference is a lower penumbra, as described by Hrbacek et al. (31) (2); FFF beams have a reduced out-of-field dose that is lower than that for FF beams, especially at the edge of the field and at distances further from the edge; thus, there is a noticeable reduction effect for low doses, such as V₅ of the lung.

Previous studies have indicated that the dose difference can be significant for radiobiological factors of NTCP (32), which could affect radiotherapy quality. Therefore, evaluating NTCP is a very important part of a comparative study of the two technologies. Timmeren et al. (33) compared a multiple-isocenter technique and a single-isocenter technique for lung SBRT with NTCP based on MLD and V₂₀. Kang et al. (34) evaluated the dosimetric and radiobiological parameters in four radiotherapy regimens for synchronous bilateral breast cancer. However, to our knowledge, there are fewer related studies on FFF beams in lung SBRT. Lower doses to the lung of FFF beams resulted in a significantly lower NTCP based on the MLD, V₅ and V₂₀. Evaluated by an NTCP model based on the MLD developed by Borst et al. (26), the risk of radiation pneumonitis decreased, on average, by 0.02% using FFF beams compared to FF beams; this was 0.3% to the model based on V₅ and 0.02% to the model based on V₂₀. We found that lung SBRT with FFF beams could be safely used in order to improve the plan quality and reduce beam on-time. As a result, it is expected that a lower incidence of pneumonitis would be responsible for lung toxicity in lung SBRT patients using FFF beams.

Additionally, we assessed the equations to predict the R_50% with a small PTV (<34 cm³). Of the 198 lung SBRT plans, 3 exhibited a minor deviation for the VMAT_FFF plans and 12 exhibited a minor deviation for the VMAT_FF plans, respectively, and none exhibited a major deviation according to the RTOG 0813/0915 reports. It is also worth highlighting that FFF beams have better dose fall-off than FF beams. Hoffman et al. (35) provided the equation of R_50% for 317 lung SBRT plans, and the PTV range was from 1.8 cm³ to 163 cm³. Our equation was larger than Hoffman’s work, which may be due to the values of R_50% in our work having a major deviation compared with the equation. The predictive capability of R_50% equations for FFF beams and FF beams could function as a useful tool to guide a treatment planner before and after optimization. It can be time-consuming for a planner to generate VMAT plans, and they are often required to generate additional structures such as dose-limiting ring structures. Prior to optimization, the planner could approximately predict the dose distribution of the plan through the R_50% equation, and the ring could be generated more accurately, which would reduce the plan optimization time. After optimization, the R_50% equation could evaluate the value of R_50% with no deviation, minor deviation, or major deviation, and potentially improve the plan quality. As part of the plan quality control (QC), the planner could benchmark the plan against R_50% from the equation. Knowing a deviation of R_50% compared with the equation, the planner could potentially be spared their efforts in pursuing a better outcome.

However, a limitation of our study was that we only studied a total of 7 and 17 lesions for Group 1 and Group 4, respectively. Future studies are needed to compare the two techniques for more lesions and to increase the PTV range from 34 cc to 95 cc or larger. Moreover, we only selected patients with lung cancer, but the potential for the target and OAR using FFF beams might be suitable for brain and liver SBRT cases. The clinical advantages of FFF beams should be also studied in other tumor cases based on the PTV. Another limitation is that we don’t investigate the interplay effects between the tumor respiratory and dynamic MLC movement for FFF beams and FF beams. The interplay effects plays an important role and could create cold or hot spots inside the lung tumor (36, 37). Fernandez et al. (36) investigated interplay effects in SBRT lung cases and concluded that the interplay effects could result in up to 20% dose variation near the edges of the PTV. However, it has been indicated that the interplay effects causes might negligible dose blurring when using two or more VMAT arcs for FFF beams (38). In the future, one could expand the investigation of interplay effects.

FFF beams and FF beams showed significant differences in dosimetric and radiobiological parameters. For the parameters of the lung, the biggest difference was observed between FFF beams and FF beams for a large target volume; the opposite was observed for the PTV parameter. In this retrospective analysis, we demonstrated that using FFF beams for lung SBRT can reduce the dose to OAR (except the trachea) and potentially provide faster treatment delivery by significantly reducing the beam on-time, when compared with FF beams. Furthermore, using FFF beams could improve patient’s comfort, reduce intra-fraction motion and reduce the probability of radiation pneumonitis. The advantage of FFF beams could be observed with an increasing volume range from 3.8 cm³ to 34 cm³.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
