- 1Department of Radiation Oncology, Inselspital, Bern University Hospital, University of Bern, Bern, Switzerland
- 2Department of Clinical Oncology, Leeds Cancer Center, St. James's Institute of Oncology, Leeds, United Kingdom
- 3Department of Radiation Oncology, Cantonal Hospital of Graubunden, Chur, Switzerland
- 4Department of Radiation Oncology, University Hospital of Geneva, Geneva, Switzerland
- 5Department of Radiation Oncology, University Hospital Basel, Basel, Switzerland
- 6Department of Radiation Oncology, Cantonal Hospital of Lucerne, Lucerne, Switzerland
- 7Department of Radiation Oncology, University Hospital of Zurich, Zurich, Switzerland
- 8Department of Radiation Oncology, Cantonal Hospital of St. Gallen, St. Gallen, Switzerland
- 9Department of Otorhinolaryngology, Head and Neck Surgery, Inselspital, Bern University Hospital, University of Bern, Bern, Switzerland
- 10Department of Radiation Oncology, University Hospital of Lausanne, Lausanne, Switzerland
- 11Department of Radiation Oncology, Cerrahpaşa Faculty of Medicine, Istanbul University, Istanbul, Turkey
Background and Purpose: Larynx cancer represents one of the most frequently diagnosed head and neck malignancies, which is most often confined to the glottic area. The aim of this study was to report the oncological outcome and identify prognostic factors in early-stage glottic squamous cell carcinoma treated with radiotherapy.
Material and Methods: Patients (n = 761) diagnosed and treated in 10 centers between 1990 and 2015 were retrospectively analyzed. Probabilities of loco-regional control (LRC) and overall survival (OS) were calculated and possible prognostic factors were analyzed using Cox proportional hazards models.
Results: The median follow-up was 63 months (range: 2–243). Three hundred and sixty-four, 148 and 249 patients had cT1a, cT1b, and cT2 stage I-II disease, respectively. Five and 10-years LRC/OS rates in the whole cohort were 83/82% and 80/68%, respectively. Three patients developed distant recurrences. In univariate analysis, male sex (HR: 3.49; 95% CI: 1.47–11.37; p < 0.01), T2 vs. T1a (HR: 1.62; 95% CI: 1.08–2.43; p = 0.02) and anterior commissure involvement (ACI) (HR: 1.66; 95% CI: 1.38–2.45; p < 0.01) were associated with impaired LRC. In multivariate analysis, male sex (HR: 3.42; 95% CI: 1.44–11.17; p < 0.01) and ACI (HR: 1.51; 95% CI: 1.01–2.28; p = 0.047) remained poor prognostic factors. No relation of treatment technique and biologically equivalent dose (BED) to oncological outcome was identified except for higher BED10(L = 25; T = 1) yielding better LRC in T1a tumors (p = 0.04) in univariate analyses.
Conclusion: Our results highlight the negative impact of ACI on tumor control. A less-expected finding was the impact of sex on tumor control. Further research is needed to validate its prognostic value and investigate any related biologic or behavioral factors, which may be modified to improve oncologic outcome.
Introduction
Laryngeal squamous cell carcinoma comprises around 25% of all head and neck cancers (1). About 50–60% of the laryngeal squamous cell carcinoma arise from the glottic region (2) and over 80% of those patients present in an early UICC (Union for International Cancer Control) stage (3). The larynx has important roles in production of phonation, coordination of swallowing and respiration. Therefore, the treatment aim of laryngeal cancer is not only achieving maximum disease control, but also preservation of organ function. In the absence of large randomized studies providing a clear evidence for the best strategy to treat early-stage glottic squamous cell carcinoma (EGSCC), many retrospective studies reported comparable control rates following radiotherapy (RT) or surgery. The 5-year loco-regional control (LRC) following RT ranges from 80 to 95% for T1 and 61–82% for the T2 cancer. Five year overall (OS) rates in stage I and II are in the range of 89–100% and 60–100%, respectively (4, 5).
The negative prognostic factors reported for EGSCC are higher stage (6), anterior commissure involvement (ACI) (7–11), anemia (12), continuation of smoking (13), and protracted treatment time (14). Amongst these, the impact of dose/fractionation has been extensively investigated. Multiple randomized studies have demonstrated a benefit of shorter treatment time, regardless of whether that goal was achieved by means of acceleration or hypofractionation (15–19). Current recommendation in the national guidelines is to treat EGSCC with fraction sizes of 2 Gy up to 66 (stage I) - 70 Gy (stage II) preferably in an accelerated schedule or with hypofractionation, with fraction sizes such as 2.25 Gy up to 63 Gy (stage I) – 65.25 Gy (stage II) and 2.75 Gy to a dose of 55 Gy (20–23). On the other hand, there are also published works with findings contradicting with the above-mentioned information (24, 25). Furthermore, there seem to be other factors such as sex, which were suggested to influence tumor control (26, 27) and survival (28, 29).
The aim of this retrospective study was to assess the oncologic outcome and its potentially influencing factors after RT of stage I and II EGSCC in a multicenter setting with a sufficient follow-up.
Materials and Methods
Approvals of institutional and regional review boards were obtained. All subjects gave written informed consent in accordance with the Declaration of Helsinki. The charts of all patients diagnosed and treated with EGSCC in 10 university and teaching hospitals from three countries (Switzerland, Turkey and United Kingdom) between 1990 and 2015 with histologically-proven stage I and II invasive EGSCC were reviewed. All patients underwent endoscopic examination of the upper airways under general anesthesia. The diagnostic workup of the stage II tumors was completed with a magnetic resonance imaging or computed tomography of the neck, and computed tomography or X-ray of the chest based on the year and institution. Imaging workup for staging of T1 tumors was not standard in every site throughout the years the patients were diagnosed. Previously treated (i.e., surgery or radiation) cases were excluded. Surgical excisions with a failed aim of achieving clear margins (i.e., with an indication of adjuvant radiotherapy) were also excluded. Excisional biopsies with a diagnostic intent were allowed.
The centers were arbitrarily selected via personal communication. Patient and disease characteristics, such as age, sex, date of diagnosis (date of initial positive biopsy), tumor stage, presence of ACI and treatment features, such as start and end date of RT, dose/fractionation and treatment technique were collected. Regarding follow-up, information about relapse, mortality, incidence and localization of second primary cancer (SPC) were obtained. Staging was revised according to the 8th edition of UICC staging system (30). Information about RT portals and target volumes, smoking, alcohol abuse, toxicity and complications was not obtained.
RT was delivered using two-dimensional conventional or three-dimensional conformal technique in the majority of the cases, followed by an era of intensity modulated radiotherapy (IMRT). The follow-up schedules and assessment measures of toxicity were not standard among all centers.
Due to the expected heterogeneity in dose and fractionation schedules among centers, two distinct biologically equivalent dose (BED) models were generated by using the following equation (31): BEDα/β = D(1 + d/(α/β)) – (OTT – L) x T [D: total dose; d: dose per fraction; OTT: overall treatment time; L: time lag; T: time factor]. Based on L and T published in the literature (31–33), two biological scenarios were simulated: BED10(L = 25; T = 1) and BED10(L = 28; T = 0.6). BED10(L = 25; T = 1) corresponds to a rather aggressive tumor biology, by which the accelerated repopulation starts after day 25, and afterwards the daily loss of dose regarding tumor control probability is 1 Gy. On the other hand, BED10(L = 28; T = 0.6) refers to a relatively less aggressive tumor biology, by which the accelerated repopulation starts after day 28, and the daily loss of dose is 0.6 Gy.
All time-to-event intervals were calculated based on the date of initial positive biopsy. The follow-up time was not censored at a predefined time point. Kaplan-Meier curves and log-rank test were used to depict and compare the variables regarding time-to event endpoints, respectively. Univariate Cox's proportional hazards regression was used to evaluate possible prognostic factors including age, sex, T stage, ACI, BED10 and treatment modality for LRC. Variables yielding two-sided p < 0.1 were used to build multivariate models. Backwards elimination was used to identify potential independent factors. Statistical analyses were performed with JMP (version 14.0 - SAS Institute GmbH, Germany). The anonymized version of the data will be provided upon reasonable personal request.
Results
Seven hundred sixty-one patients from three countries were diagnosed and treated at 10 institutions in a timeframe of 25 years. The median follow-up was 63 months (range: 2–243). Table 1 summarizes the patient, disease and treatment characteristics (details of treatment characteristics provided in the Supplementary Materials 1, 2). The reasons for discontinuing with follow-up varied from patient preference to outsourcing the follow-up controls to an external ear, nose and throat specialist in some centers.

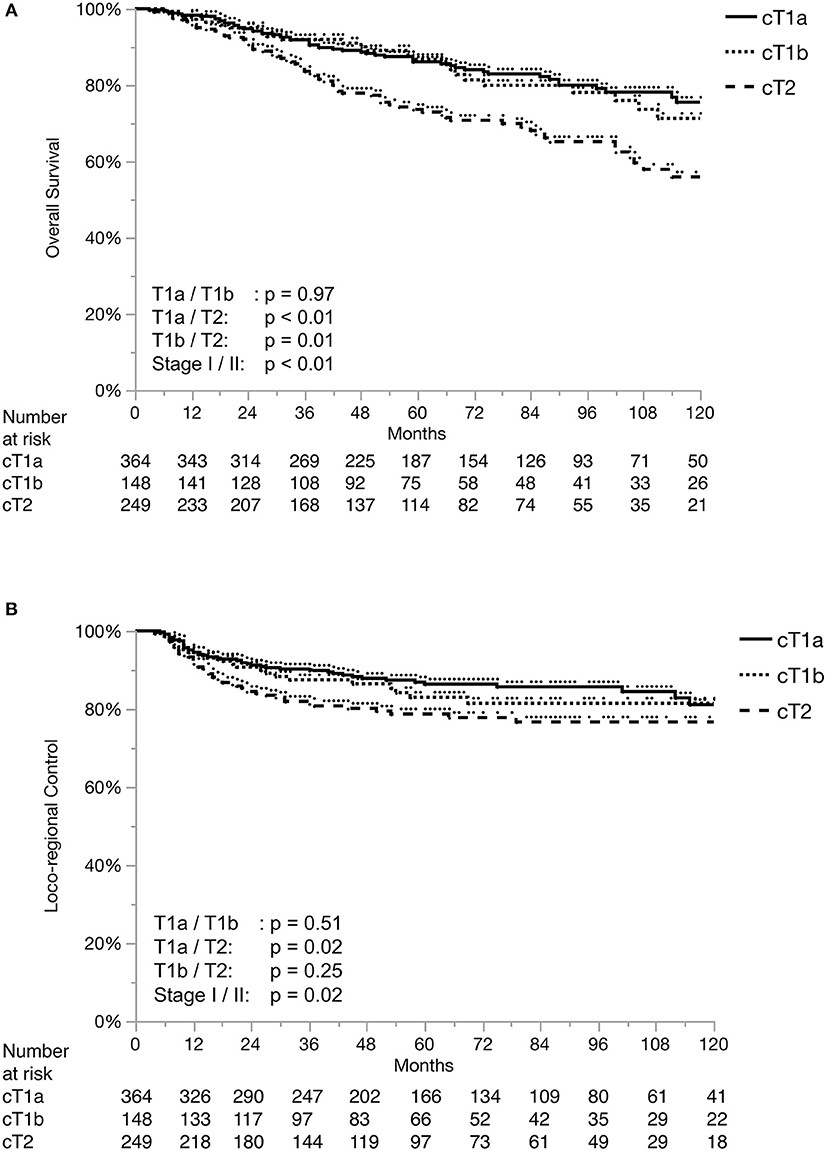

Loco-regional control (LRC) at 2, 5 and 10 years were 89, 83, and 80%, respectively. Overall survival (OS) at 2, 5, and 10 years were 93, 82, and 68%, respectively. Figure 1 shows the Kaplan-Meier curves for OS and LRC in patients with T1a, T1b, and T2 stage tumors. Figure 2 demonstrates the separation of Kaplan-Meier curves for LRC based on ACI for each T stage.
Figure 2. Loco-regional control separated by anterior commissure involvement in each stage. ACI, anterior commissure involvement; Loco-regional control in Stage T1a (A), in Stage T1b (B), and in Stage T2 (C).
Across all centers, the most frequently used fraction size was 2 Gy (66%). In a decreasing order; conventional fractionation (defined as > 1.8 and < 2.25 Gy) (69%), hypofractionation (25%), pure hyperfractionation (14) (5%) and partial hyperfractionation (e.g., concomitant boost) (1%) was utilized. Two centers used a single standard dose/fractionation schedule (2 and 2.75 Gy, respectively), whereas the remaining centers used various schedules (Supplementary Material 2). Concerning the composite impact of dose, fractionation and overall treatment time, Figures 3 and 4 demonstrate the LRC differences in each stage based on their median BED10(L = 2 5; T = 1) and BED10(L = 28; T = 0.6), respectively. There was no significant difference in LRC according to BED for either model except for higher BED10(L = 25; T = 1) yielding better LRC in T1a tumors (Figure 3A). Treatment technique, fraction size, total treatment time and BED were not normally-distributed in the whole cohort (Supplementary Material 1) and were heterogeneous among and within the institutions (Supplementary Material 2).
Figure 3. Loco-regional control separated by median BED10(L = 25; T = 1). Loco-regional control in T1a (A), T1b (B), and T2 (C) tumors. Each stage subgroup is dichotomized with its own median value: stage T1a: 60.1 Gy; stage T1b: 61 Gy; stage T2: 64.6 Gy.
Figure 4. Loco-regional control separated by median BED10(L = 28; T = 0.6). Loco-regional control in T1a (A), T1b (B), and T2 (C) tumors. Each stage subgroup is dichotomized with its own median value: stage T1a: 70.6 Gy; stage T1b: 70.8 Gy; stage T2: 71.93 Gy.

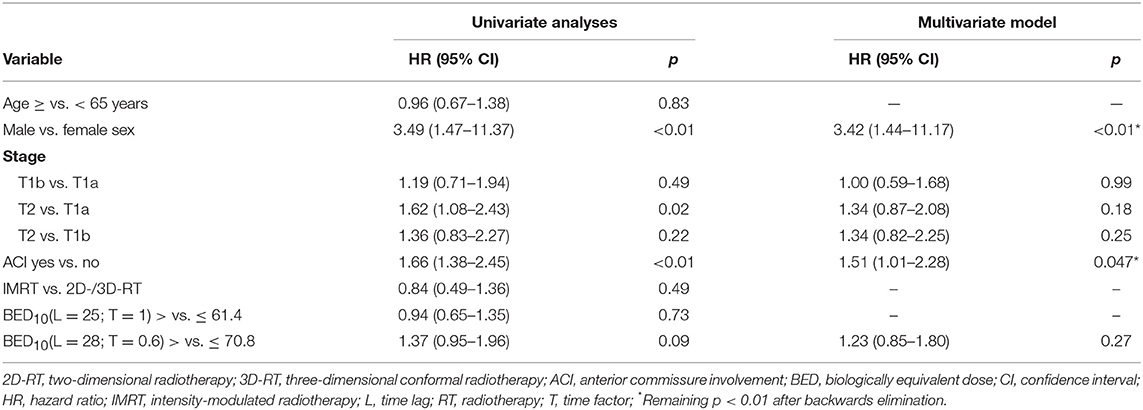

The results of the uni- and multivariate Cox proportional hazard models evaluating the potential prognostic value of various parameters for LRC are provided in Table 2. Male sex, T2 stage and ACI were associated with inferior LRC according to the univariate analyses. Male sex and the presence of ACI at the time of diagnosis were isolated as independent risk factors in multivariate analysis. Although not initially planned, based on these results, an exploratory analysis was performed to test the possible contribution of sex and ACI to OS. Neither male sex (HR: 1.62; 95% confidence interval [CI]: 0.93–3.19; p = 0.94) nor the presence of ACI (HR: 1.03; 95% CI: 0.76–1.41; p = 0.84) influenced OS. Similarly, no significant difference in median age in men and women was observed according to Wilcoxon test (both 65 years, p = 0.96).
Out of 761 of patients, 3 underwent total laryngectomy due to organ dysfunction without any evidence of tumor persistence or recurrence (two patients initially treated with 2 Gy per fraction, the other one with 2.25 Gy per fraction). One hundred and nineteen patients (16%) experienced a biopsy-proven recurrence in a median time of 15 months (range: 4–148). Patterns of tumor recurrence and subsequent treatments are provided in Table 3. With a median follow-up of 32 months (range: 0–224) after tumor recurrence, OS at 2 and 5 years after recurrence were 67 and 60%, respectively. The 5-years OS after tumor recurrence were 68%, 76% and 43% in patients who originally had T1a, T1b, and T2 tumors, respectively (p < 0.02). The exact T and N stages at the time of recurrence were not obtained. Of the patients with tumor recurrence, 88% were treated with curative intent, all (n = 104) of them in the form of salvage surgery. Nine and 87 patients underwent partial (information about the partial laryngectomy types not available) and total laryngectomies, respectively. Adjuvant re-irradiation was required in 14.4% of these cases. The 2- and 5-years OS after salvage treatment were 75 and 67%, respectively. The 5-years OS after salvage treatment of patients with the initially T1a, T1b, and T2 tumors were 69, 84, and 56%, respectively (p = 0.17). Detailed information about the types of salvage surgery and related complications was not obtained. The 2- and 5-years larynx preservation rates (i.e., death with intact larynx censored) after initial diagnosis in T1a/1b/2 stages were 93/93/89% and 88/87/85%, respectively.
A total of 94 patients were diagnosed with metachronous SPCs. Of those; 28, 61 and 5 had head and neck SPCs, non-head and neck SPCs and both (synchronous), respectively. The incidence of SPC in 2, 5, and 10 years was 4, 10, and 21%, respectively. No association between fraction size and SPC risk was found: hazard ratio (per change in regressor over entire range): 1.48; 95% CI: 0.44–4.78; p = 0.52. Based on the results regarding the impact of sex on LRC and the lack of data about smoking and alcohol status, an exploratory analysis was performed to look for any difference in SPC among men and women, which may indirectly suggest a difference in the exposure to habitual carcinogens. However, no difference was observed (HR for SPC in men/women: 1.06; 95% CI: 0.56–2.27; p = 0.87).
Discussion
The main objective of this pooled analysis was to report the outcome of stage I-II EGSCC patients treated at 10 university and teaching hospitals with definitive RT, in order to determine outcomes and identify possible prognostic factors. Our study confirms that RT of EGSCC results in favorable LRC and OS in line with the literature (4, 5). On multivariate analysis, independent negative prognostic factors for LRC were ACI and male sex, with the latter being a rather unexpected finding.
By contrast with other subsites of head and neck tumors where male sex has been consistently associated with poorer outcome, a survival advantage for male sex has been reported in larynx cancer (34, 35). It has been speculated that this might be due to differences in tumor localization with men being significantly more affected by glottic tumors while women presenting more often supraglottic cancers (36, 37). However, the presence of significant sex differences in our cohort solely composed of patients with glottic laryngeal cancer points to other possible factors, such as different history and behaviors of smoking and smoking cessation between men and women at the time of diagnosis, as well as during and after the treatment. On the other hand, as an indirect surrogate for exposure to carcinogens, no difference in the SPC incidence between men and women was observed. Still, we can not directly rule out the possibility of such a difference. It is also worth noting, that the OS and the distribution of age were not significantly different among men and women in our cohort.
In the EGSCC literature, the distribution of sex is nearly always descriptively reported, whereas its possible prognostic value is less frequently addressed. In two separate recent pooled analyses of National Cancer Database (USA) (28, 29), male sex was found to be a prognostic factor negatively influencing OS in the multivariate Cox proportional hazards models, whereas its impact for LRC was not investigated. In some studies male sex was associated (38–40) with poor LRC while this was not the case in others (10, 17, 18, 41–43), as based on univariate analyses. To the best of our knowledge, there are only other two retrospective studies, which reported on male sex as a poor prognostic factor for LRC emerging from the multivariate analysis (26, 27). In the age of biomarkers, sex as one of the most obvious phenotypic features can be the elephant in the room (44). In one way or another, it is important to further investigate this finding. The possible impact of genetic and hormonal factors on tumor control would expand our understanding of tumor biology and treatment response. On the other hand, in case of the lack of a direct causality between sex and oncologic outcome, but the identification of confounding factors such as behavioral differences (e.g., smoking and alcohol) among men and women, more emphasis would be given to modify these habits.
Some previous retrospective studies demonstrated that ACI is a poor prognostic factor for RT outcome (7–11), but these results are not consistent with the results of other studies (24). Some authors pointed out the possible underdosage of tumors with ACI close to the skin caused by the air-tissue interface (43). In our series, the finding of impaired LRC in the presence of ACI was reproduced. However, due to the lack of information about treatment volumes and details of treatment techniques, the underlying reason could not be identified. The impact of ACI should be further investigated, which may be integrated in the future staging algorithms and treatment algorithms.
Altered fractionation with shorter overall treatment time is known to be associated with better tumor control and survival benefit in head and neck cancer (45–50). In the last decade, three prospective randomized trials from Japan and Korea addressed fractionation specifically in EGSCC (17, 18, 25), favoring moderate hypofractionation (2.25 Gy), with disease outcome superiority and logistic benefits. On the other hand, contrary to what was expected, RTOG 9512 showed increased toxicity and futility with hyperfractionation in T2 glottic larynx cancer (19). Using accelerated RT, the results of the DAHANCA 6 trial showed a significant improvement in the loco-regional control of EGSCC with a hazard ratio of 0.60 (95% CI: 0.41–0.89) with a median follow-up of 14.5 years. There were no significant differences in long term toxicity between accelerated and normofractionated RT (16). Despite of the relatively large sample size, such an impact on oncologic outcome could not be reproduced in our cohort, probably due to the lack of normal distribution of fraction size, treatment time and BED. The only exception shown by the univariate log-rank test on the BED10(L = 25; T = 1) model yielding higher LRC in T1a tumors. Nevertheless, this may also be a result of multiple testing with two models in three tumor stages.
High SPC rates in head and neck cancer patients is a major problem. With each passing year, about 3% of the successfully treated patients are expected to develop a SPC (51, 52). In the SEER database analysis published by Rusthoven et al. (53), a reduced incidence SPC within the head and neck region was observed in patients treated with vs. without RT (hazard ratio: 0.71, 95% CI: 0.65–0.79; p < 0.01). The difference was still significant in laryngeal subsite on multivariate analysis. The authors suggested that RT had a preventative effect on transformation of the subclinical malignant foci. Our results about SPC incidence are consistent with the literature. Due to the lack of previously published data, we performed an exploratory analysis on fraction size and the incidence of SPC, and could not find any correlation at all. However, our median follow-up of 5 years is not long enough to observe any meaningful difference or exclude the long-term possibility of increased incidence of SPC. Moreover, the hypothesis regarding ablation of the premalignant foci with RT may be invalid or less prominent in the IMRT era, and if still present, this effect might be limited in the treatment of EGSCC, where elective nodal irradiation is often omitted. Data regarding the size of radiation portals, target volumes and whether elective nodal irradiation was performed was not collected in our pooled patient cohort.
Recent data suggests that IMRT may decrease the toxicity of RT for larynx cancer (54), although the approach of treating the whole larynx as a compartment is still widely used for EGSCC. It is based on the traditional conventional field design, which was established in an era where image guidance in RT was poor. Another reason was the laryngeal displacement due to swallowing movements during RT, which was later reported to be not a serious concern (55, 56). A combination of IMRT and modified target volumes (57) offers the potential to avoid the unnecessary dose to the healthy laryngeal tissue and especially to the carotid arteries (58, 59). With a newer technique developed by the Rotterdam group, it is even possible to apply 58.08 Gy in 16 fractions limited to the involved vocal cord with a significant dose reduction in the vicinity (60). The clinical results indicate no grade 3 toxicity, whereas the 2-year LRC and OS were 100% and 90%, respectively (61). When compared with a historical cohort, which was treated to the whole larynx (66/2 Gy), single vocal cord irradiation yielded less grade ≥2 acute toxicity (17 vs. 66%, p < 0.01) and lower voice-handicap index scores in all follow-up visits performed in regular short intervals until 18 months (p < 0.01). Based on these results, our group is about to start with a multi-center randomized phase III trial, which will compare voice quality after single vocal cord irradiation vs. transoral CO2 laser microsurgery in Tis and T1a N0 glottic cancer (NCT04057209).
The lack of a significant difference in OS between different initial T stages after salvage treatment can be explained by the patterns of recurrence. Most tumors recurred locally, which can be often successfully salvaged by total laryngectomy. On the other hand, the quality of life burden of such measures is well-known (62).
Our present study has limitations owing to its retrospective and multi-center nature, which predisposes the results to potential bias. Most importantly, we were not able to report on toxicity, smoking and alcohol consumption status due to the lack of consistent data. The wide range of dose-fractionations and techniques employed across 10 centers limits the ability of this type of analysis to identify a superior schedule, although our analysis did not detect differing outcomes based upon BED calculations. Last but not least, it should be noted that the heterogeneity of primary treatment preferences among participating centers presumably have an inevitable impact on the results. During the data acquisition in each center, the patients treated with RT were not systematically identified within the whole collective of patients (including those treated with primary surgery), who were diagnosed with EGSCC. Therefore, the quantification of the treatment patterns, which would indicate the institutional preferences, is not available.
Conclusions
The results of our series demonstrate a negative impact of ACI on tumor control, indicating an additional prognostic value of ACI involvement beyond the current UICC TNM staging system for EGSCC. The less-expected and intriguing finding was the negative impact of male sex on tumor control. Further research is required in order to elucidate the true role of sex on oncological outcome in glottic laryngeal cancer or investigate any related behavioral factors, which may be modified for better oncologic outcome.
Data Availability Statement
The anonymized datasets generated for this study are available on request to the corresponding author.
Ethics Statement
The studies involving human participants were reviewed and approved by corresponding regional ethics committees of each institution. The patients/participants provided their written informed consent to participate in this study.
Author Contributions
OE, RG, and MŞ: conception and design. OE, EE, CO, FC, GS, GH, LAd, LAn, MO, MS, MŞ, NK, OR, RP, and TS: collection of data. Drafting of the manuscript and approval of the final version by all co-authors.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Berna C. Özdemir, MD Ph.D. for her valuable input concerning the possible impact of sex on oncologic outcome.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2019.00932/full#supplementary-material
References
1. Torre LA, Bray F, Siegel RL, Ferlay J, Lortet-Tieulent J, Jemal A. Global cancer statistics, 2012. CA Cancer J Clin. (2015) 65:87–108. doi: 10.3322/caac.21262
2. Mastronikolis N, Papadas T, Goumas P, Triantaphyllidou I, Theocharis D, Papageorgakopoulou N, et al. Head and neck: laryngeal tumors: an overview. Atlas Genet Cytogenet Oncol Haematol. (2011) 13:888–93. doi: 10.4267/2042/44625
3. Lyhne NM, Johansen J, Kristensen CA, Andersen E, Primdahl H, Andersen LJ, et al. Pattern of failure in 5001 patients treated for glottic squamous cell carcinoma with curative intent - A population based study from the DAHANCA group. Radiother Oncol. (2016) 118:257–66. doi: 10.1016/j.radonc.2016.02.006
4. Chera BS, Amdur RJ, Morris CG, Kirwan JM, Mendenhall WM. T1N0 to T2N0 squamous cell carcinoma of the glottic larynx treated with definitive radiotherapy. Int J Radiat Oncol Biol Phys. (2010) 78:461–6. doi: 10.1016/j.ijrobp.2009.08.066
5. Ermiş E, Teo M, Dyker KE, Fosker C, Sen M, Prestwich RJ. Definitive hypofractionated radiotherapy for early glottic carcinoma: experience of 55Gy in 20 fractions. Radiat Oncol. (2015) 10:203. doi: 10.1186/s13014-015-0505-6
6. National Cancer Institute Surveillance Epidemiology and End Results. Cancer Stat Facts: Larynx Cancer. Available online at: https://seer.cancer.gov/statfacts/html/laryn.html (cited March 3, 2019).
7. Garden AS, Forster K, Wong PF, Morrison WH, Schechter NR, Ang KK. Results of radiotherapy for T2N0 glottic carcinoma: Does the “2” stand for twice-daily treatment? Int J Radiat Oncol Biol Phys. (2003) 55:322–8. doi: 10.1016/S0360-3016(02)03938-X
8. Cellai E, Frata P, Magrini SM, Paiar F, Barca R, Fondelli S, et al. Radical radiotherapy for early glottic cancer: results in a series of 1087 patients from two Italian radiation oncology centers. The case of T1N0 diseas. Int J Radiat Oncol Biol Phys. (2005) 63:1378–86. doi: 10.1016/j.ijrobp.2005.05.018
9. Laccourreye O, Muscatello L, Laccourreye L, Naudo P, Brasnu D, Weinstein G. Supracricoid partial laryngectomy with cricohyoidoepiglottopexy for “early” glottic carcinoma classified as T1-T2N0 invading the anterior commissu. Am J Otolaryngol. (1997) 18:385–90. doi: 10.1016/S0196-0709(97)90058-2
10. Marshak GG, Brenner B, Shvero J, Shapira J, Ophir D, Hochman I, et al. Prognostic factors for local control of early glottic cancer: the rabin medical center retrospective study on 207 patients. Int J Radiat Oncol Biol Phys. (1999) 43:1009–13. doi: 10.1016/S0360-3016(98)00547-1
11. Smee RI, Meagher NS, Williams JR, Broadley K, Bridger GP. Role of radiotherapy in early glottic carcinoma. Head Neck. (2010) 32:850–9. doi: 10.1002/hed.21262
12. Hoff CM. Importance of hemoglobin concentration and its modification for the outcome of head and neck cancer patients treated with radiotherapy. Acta Oncol. (2012) 51:419–32. doi: 10.3109/0284186X.2011.653438
13. Al-Mamgani A, van Rooij PH, Mehilal R, Verduijn GM, Tans L, Kwa SLS. Radiotherapy for T1a glottic cancer: the influence of smoking cessation and fractionation schedule of radiotherapy. Eur Arch Otorhinolaryngol. (2014) 271:125–32. doi: 10.1007/s00405-013-2608-8
14. Elicin O, Mahmut Ozsahin E. Head and Neck Canc. In: Trombetta T, Pignol J-P, Montemaggi P, Brady LW, editors. Alternate Fractionation in Radiotherapy - Paradigm Change. Cham: Springer (2017). p. 191–7. doi: 10.1007/174_2017_32
15. Yamoah K, Showalter TN, Ohri N. Radiation therapy intensification for solid tumors: a systematic review of randomized trials. Int J Radiat Oncol Biol Phys. (2015) 93:737–45. doi: 10.1016/j.ijrobp.2015.07.2284
16. Lyhne NM, Primdahl H, Kristensen C a., Andersen E, Johansen J, Andersen LJ, et al. The DAHANCA 6 randomized trial: effect of 6 vs 5 weekly fractions of radiotherapy in patients with glottic squamous cell carcinoma. Radiother Oncol. (2015) 117:91–8. doi: 10.1016/j.radonc.2015.07.004
17. Yamazaki H, Nishiyama K, Tanaka E, Koizumi M, Chatani M. Radiotherapy for early glottic carcinoma (T1N0M0): results of prospective randomized study of radiation fraction size and overall treatment tim. Int J Radiat Oncol Biol Phys. (2006) 64:77–82. doi: 10.1016/j.ijrobp.2005.06.014
18. Moon SH, Cho KH, Chung EJ, Lee CG, Lee KC, Chai G-Y, et al. A prospective randomized trial comparing hypofractionation with conventional fractionation radiotherapy for T1-2 glottic squamous cell carcinomas: results of a Korean Radiation Oncology Group (KROG-0201) study. Radiother Oncol. (2013) 110:98–103. doi: 10.1016/j.radonc.2013.09.016
19. Trotti A, Zhang Q, Bentzen SM, Emami B, Hammond ME, Jones CU, et al. Randomized trial of hyperfractionation versus conventional fractionation in T2 squamous cell carcinoma of the vocal cord (RTOG 9512). Int J Radiat Oncol Biol Phys. (2014) 89:958–63. doi: 10.1016/j.ijrobp.2014.04.041
20. Mehanna H, Kong A, Ahmed SK. Recurrent Head and neck cancer: United Kingdom National Multidisciplinary Guidelines. J Laryngol Otol. (2016) 130:S1–2. doi: 10.1017/S002221511600061X
21. National Comprehensive Cancer Network. National Comprehensive Cancer Network Guidelines for Head and Neck Cancers (version 2.2018). (2018). Available online at: http://www.nccn.org/professionals/physician_gls/pdf/head-and-neck.pdf (cited Decebmer 5, 2018).
22. Yesensky J, Agrawal N, Bayan S, Blair E, Portugal L, Chan J, et al. AHNS Series - Do you know your guidelines? Principles of treatment for glottic cancer: a review of the National Comprehensive Cancer Network guidelines. Head Neck. (2017) 39:1729–32. doi: 10.1002/hed.24816
23. Dahanca stråleretninglinier. (2018). Available online at: https://www.dahanca.dk/assets/files/GUID_DAHANCA%20straaleretningslinjer.pdf
24. Hartl DM, Ferlito A, Brasnu DF, Langendijk JA, Rinaldo A, Silver CE, et al. Evidence-based review of treatment options for patients with glottic canc. Head Neck. (2011) 33:1638–48. doi: 10.1002/hed.21528
25. Kodaira T, Kagami Y, Shibata T, Shikama N, Nishimura Y, Ishikura S, et al. Results of a multi-institutional, randomized, non-inferiority, phase III trial of accelerated fractionation versus standard fractionation in radiation therapy for T1-2N0M0 glottic cancer: Japan Clinical Oncology Group Study (JCOG0701). Ann Oncol Off J Eur Soc Med Oncol. (2018) 29:992–7. doi: 10.1093/annonc/mdy036
26. Warde P, O'Sullivan B, Bristow RG, Panzarella T, Keane TJ, Gullane PJ, et al. T1/T2 glottic cancer managed by external beam radiotherapy: the influence of pretreatment hemoglobin on local control. Int J Radiat Oncol Biol Phys. (1998) 41:347–53. doi: 10.1016/S0360-3016(98)00062-5
27. Zouhair A, Azria D, Coucke P, Matzinger O, Bron L, Moeckli R, et al. Decreased local control following radiation therapy alone in early-stage glottic carcinoma with anterior commissure extensio. Strahlenther Onkol. (2004) 180:84–90. doi: 10.1007/s00066-004-1164-y
28. Stokes WA, Abbott D, Phan A, Raben D, Lanning RM, Karam SD. Patterns of care for patients with early-stage glottic cancer undergoing definitive radiation therapy: a national cancer database analysis. Int J Radiat Oncol Biol Phys. (2017) 98:1014–21. doi: 10.1016/j.ijrobp.2017.03.050
29. Bledsoe TJ, Park HS, Stahl JM, Yarbrough WG, Burtness BA, Decker RH, et al. Hypofractionated radiotherapy for patients with early-stage glottic cancer: patterns of care and survival. J Natl Cancer Inst. (2017) 109:1–9. doi: 10.1093/jnci/djx042
30. Lydiatt WM, Patel SG, O'Sullivan B, Brandwein MS, Ridge JA, Migliacci JC, et al. Head and Neck cancers-major changes in the American Joint Committee on cancer eighth edition cancer staging manual. CA Cancer J Clin. (2017) 67:122–37. doi: 10.3322/caac.21389
31. Fowler JF. The linear-quadratic formula and progress in fractionated radiotherapy. Br J Radiol. (1989) 62:679–94. doi: 10.1259/0007-1285-62-740-679
32. Slevin NJ, Hendry JH, Roberts SA, Agren-Cronqvist A. The effect of increasing the treatment time beyond three weeks on the control of T2 and T3 laryngeal cancer using radiotherapy. Radiother Oncol. (1992) 24:215–20. doi: 10.1016/0167-8140(92)90226-K
33. Taylor JM, Withers HR, Mendenhall WM. Dose-time considerations of head and neck squamous cell carcinomas treated with irradiatio. Radiother Oncol. (1990) 17:95–102. doi: 10.1016/0167-8140(90)90096-F
34. Ellis L, Rachet B, Birchall M, Coleman MP. Trends and inequalities in laryngeal cancer survival in men and women: England and Wales 1991-2006. Oral Oncol. (2012) 48:284–9. doi: 10.1016/j.oraloncology.2011.10.012
35. National Cancer Institute. Surveillance, Epidemiology, and End Results Program. Fast Stats. Available online at: https://seer.cancer.gov/faststats/selections.php?
36. Silvestri F, Bussani R, Stanta G, Cosatti C, Ferlito A. Supraglottic versus glottic laryngeal cancer: epidemiological and pathological aspects. ORL J Otorhinolaryngol Relat Spec. (1992) 54:43–8. doi: 10.1159/000276258
37. Brandstorp-Boesen J, Sørum Falk R, Boysen M, Brøndbo K. Impact of stage, management and recurrence on survival rates in laryngeal canc. PLoS ONE. (2017) 12:e0179371. doi: 10.1371/journal.pone.0179371
38. Shelan M, Anschuetz L, Schubert AD, Bojaxhiu B, Dal Pra A, Behrensmeier F, et al. T1-2 glottic cancer treated with radiotherapy and/or surgery. Strahlenther Onkol. (2017) 193:995–1004. doi: 10.1007/s00066-017-1139-4
39. Mendenhall WM, Parsons JT, Stringer SP, Cassisi NJ. Management of Tis, T1, and T2 squamous cell carcinoma of the glottic larynx. Am J Otolaryngol. (1992) 15:250–7. doi: 10.1016/0196-0709(94)90091-4
40. Rudoltz MS, Benammar A, Mohiuddin M. Prognostic factors for local control and survival in T1 squamous cell carcinoma of the glottis. Int J Radiat Oncol Biol Phys. (1993) 26:767–72. doi: 10.1016/0360-3016(93)90490-M
41. Al-Mamgani A, van Rooij PH, Woutersen DP, Mehilal R, Tans L, Monserez D, et al. Radiotherapy for T1-2N0 glottic cancer: a multivariate analysis of predictive factors for the long-term outcome in 1050 patients and a prospective assessment of quality of life and voice handicap index in a subset of 233 patients. Clin Otolaryngol. (2013) 38:306–12. doi: 10.1111/coa.12139
42. Dixon LM, Douglas CM, Shaukat SI, Garcez K, Lee LW, Sykes AJ, et al. Conventional fractionation should not be the standard of care for T2 glottic canc. Radiat Oncol. (2017) 12:178. doi: 10.1186/s13014-017-0915-8
43. Tong C-C, Au K-H, Ngan RKC, Chow S-M, Cheung F-Y, Fu Y-T, et al. Impact and relationship of anterior commissure and time-dose factor on the local control of T1N0 glottic cancer treated by 6 MV photons. Radiat Oncol. (2011) 6:53. doi: 10.1186/1748-717X-6-53
44. Özdemir BC, Csajka C, Dotto G-P, Wagner AD. Sex differences in efficacy and toxicity of systemic treatments: an undervalued issue in the era of precision oncology. J Clin Oncol. (2018) 36:JCO.2018.78.329. doi: 10.1200/JCO.2018.78.3290
45. Le QT, Fu KK, Kroll S, Ryu JK, Quivey JM, Meyler TS, et al. Influence of fraction size, total dose, and overall time on local control of T1-T2 glottic carcinoma. Int J Radiat Oncol Biol Phys. (1997) 39:115–26. 6 doi: 10.1016/S0360-3016(97)00284-8
46. Overgaard J, Hansen HS, Specht L, Overgaard M, Grau C, Andersen E, et al. Five compared with six fractions per week of conventional radiotherapy of squamous-cell carcinoma of head and neck: DAHANCA 6 and 7 randomised controlled trial. Lancet. (2003) 362:933–40. doi: 10.1016/S0140-6736(03)14361-9
47. Rosenthal DI, Ang KK. Altered radiation therapy fractionation, chemoradiation, and patient selection for the treatment of head and neck squamous carcinoma. Semin Radiat Oncol. (2004) 14:153–66. doi: 10.1053/j.semradonc.2004.01.001
48. Bourhis J, Overgaard J, Audry H, Ang KK, Saunders M, Bernier J, et al. Hyperfractionated or accelerated radiotherapy in head and neck cancer: a meta-analysis. Lancet. (2006) 368:843–54. doi: 10.1016/S0140-6736(06)69121-6
49. Sakata K, Someya M, Hori M, Nakata K, Takagi M, Hareyama M. Hyperfractionated accelerated radiotherapy for T1,2 glottic carcinoma. Consideration of time-dose factors. Strahlentherapie und Onkol. (2008) 184:364–9. doi: 10.1007/s00066-008-1819-1
50. Becker-Schiebe M, Christiansen H. [Non- inferior moderate hypofractionated irradiation of glottis T1/T2 laryngeal cancer ]. Strahlenther Onkol. (2014) 190:694–5. doi: 10.1007/s00066-014-0663-8
51. Yamamoto E, Shibuya H, Yoshimura R, Miura M. Site specific dependency of second primary cancer in early stage head and neck squamous cell carcinoma. Cancer. (2002) 94:2007–14. doi: 10.1002/cncr.10444
52. Cooper JS, Pajak TF, Rubin P, Tupchong L, Brady LW, Leibel SA, et al. Second malignancies in patients who have head and neck cancer: incidence, effect on survival and implications based on the RTOG experienc. Int J Radiat Oncol Biol Phys. (1989) 17:449–56. doi: 10.1016/0360-3016(89)90094-1
53. Rusthoven K, Chen C, Raben D, Kavanagh B. Use of external beam radiotherapy is associated with reduced incidence of second primary head and neck cancer: a SEER database analysis. Int J Radiat Oncol Biol Phys. (2008) 71:192–8. doi: 10.1016/j.ijrobp.2007.09.045
54. Modesto A, Laprie A, Vieillevigne L, Graff P, Sarini J, Vergez S, et al. Intensity-modulated radiotherapy for laryngeal and hypopharyngeal cancer: minimization of late dysphagia without jeopardizing tumor control. Strahlenther Onkol. (2015) 191:225–33. doi: 10.1007/s00066-014-0767-1
55. van Asselen B, Raaijmakers CPJ, Lagendijk JJW, Terhaard CHJ. Intrafraction motions of the larynx during radiotherapy. Int J Radiat Oncol Biol Phys. (2003) 56:384–90. doi: 10.1016/S0360-3016(02)04572-8
56. Bradley JA, Paulson ES, Ahunbay E, Schultz C, Li XA, Wang D. Dynamic MRI analysis of tumor and organ motion during rest and deglutition and margin assessment for radiotherapy of head-and-neck canc. Int J Radiat Oncol Biol Phys. (2011) 81:e803–12. doi: 10.1016/j.ijrobp.2010.12.015
57. Chera BS, Amdur RJ, Morris CG, Mendenhall WM. Carotid-sparing intensity-modulated radiotherapy for early-stage squamous cell carcinoma of the true vocal cord. Int J Radiat Oncol Biol Phys. (2010) 77:1380–5. doi: 10.1016/j.ijrobp.2009.07.1687
58. Dorresteijn LDA, Kappelle AC, Boogerd W, Klokman WJ, Balm AJM, Keus RB, et al. Increased risk of ischemic stroke after radiotherapy on the neck in patients younger than 60 years. J Clin Oncol. (2002) 20:282–8. doi: 10.1200/JCO.2002.20.1.282
59. Smith GL, Smith BD, Buchholz TA, Giordano SH, Garden AS, Woodward WA, et al. Cerebrovascular disease risk in older head and neck cancer patients after radiotherapy. J Clin Oncol. (2008) 26:5119–25. doi: 10.1200/JCO.2008.16.6546
60. Kwa SLS, Al-Mamgani A, Osman SOS, Gangsaas A, Levendag PC, Heijmen BJM. Inter- and intrafraction target motion in highly focused single vocal cord irradiation of T1a larynx cancer patients. Int J Radiat Oncol Biol Phys. (2015) 93:190–5. doi: 10.1016/j.ijrobp.2015.04.049
61. Al-Mamgani A, Kwa SLS, Tans L, Moring M, Fransen D, Mehilal R, et al. Single Vocal cord irradiation: image guided intensity modulated hypofractionated radiation therapy for T1a glottic cancer: early clinical results. Int J Radiat Oncol Biol Phys. (2015) 93:337–43. doi: 10.1016/j.ijrobp.2015.06.016
